CLAIRE A
9379387 | TCRP2 | 9379387 by ********* Last update: Mon Mar 25 2024

General Info

Ship Name:CLAIRE A
IMO Code:9379387
Call Sign:TCRP2
Line Operator:9379387
Class Name for Sister Ships:64B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:045
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,578

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

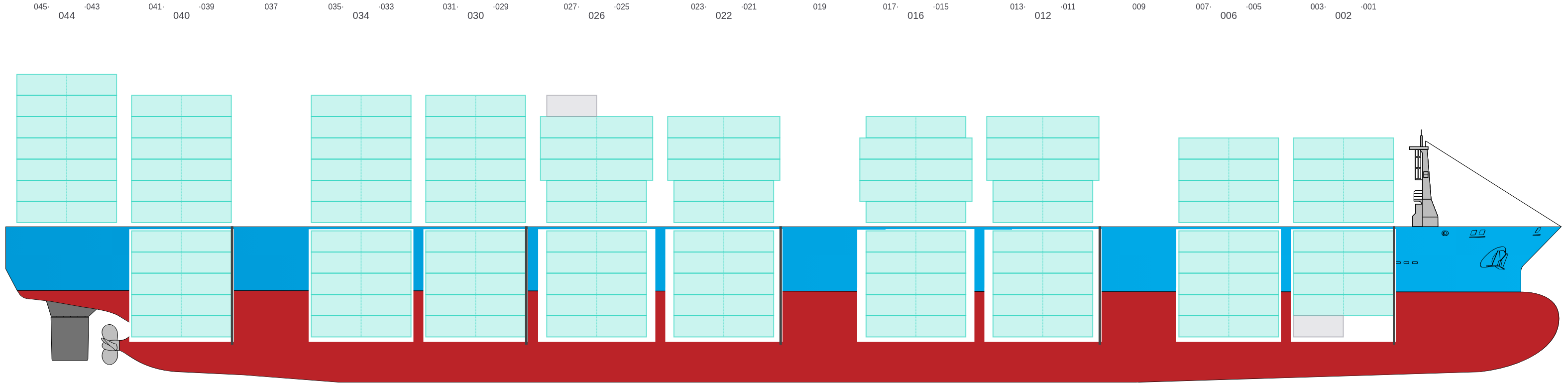

Side view of CLAIRE A

Hatch-Covers View

Deck view of CLAIRE A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • ← / ?

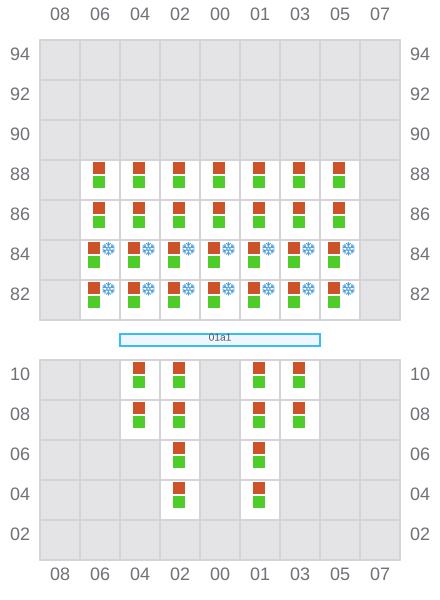

Bay 001 view and slots of CLAIRE A

003

  • ←

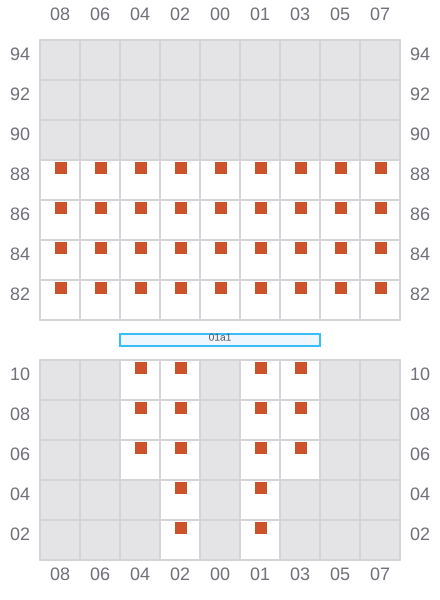

Bay 003 view and slots of CLAIRE A

005 (006)

  • →
Bay 005 view and slots of CLAIRE A

007

  • ←
  • → / ?

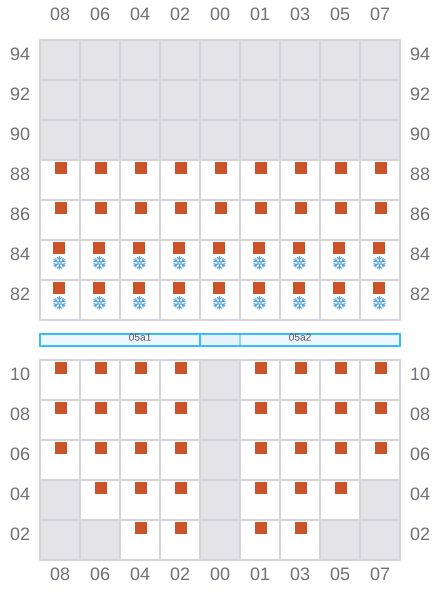

Bay 007 view and slots of CLAIRE A

009

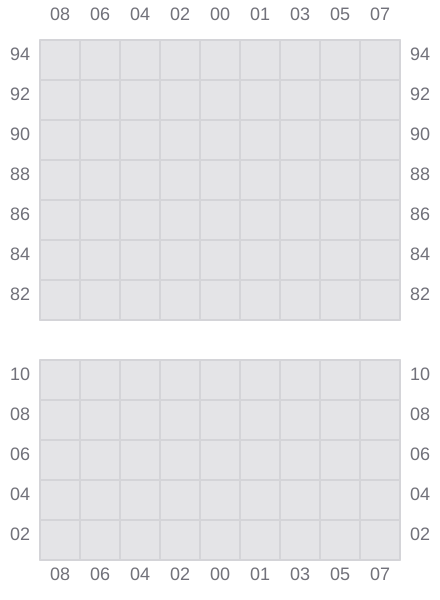

Bay 009 view and slots of CLAIRE A

011 (012)

  • →
  • ← / ?

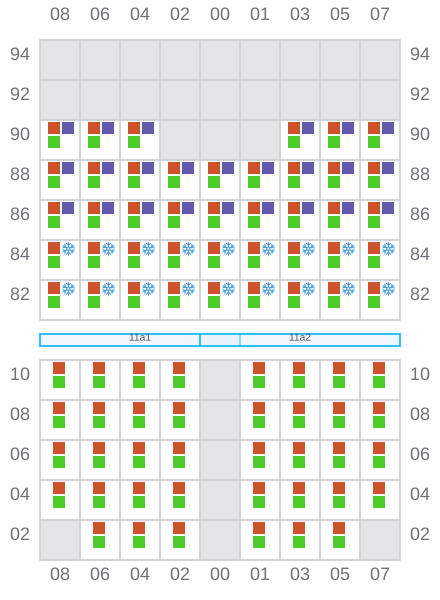

Bay 011 view and slots of CLAIRE A

013

  • ←

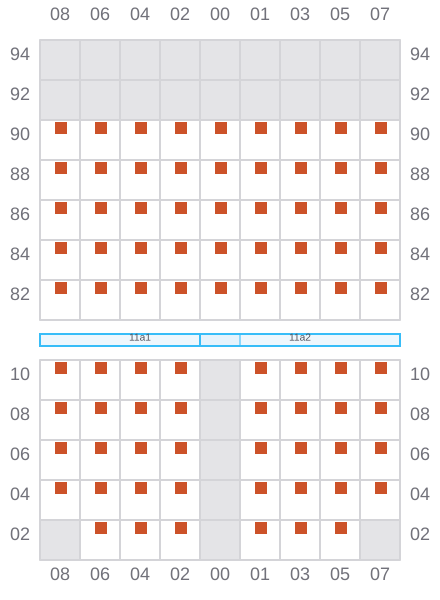

Bay 013 view and slots of CLAIRE A

015 (016)

  • →

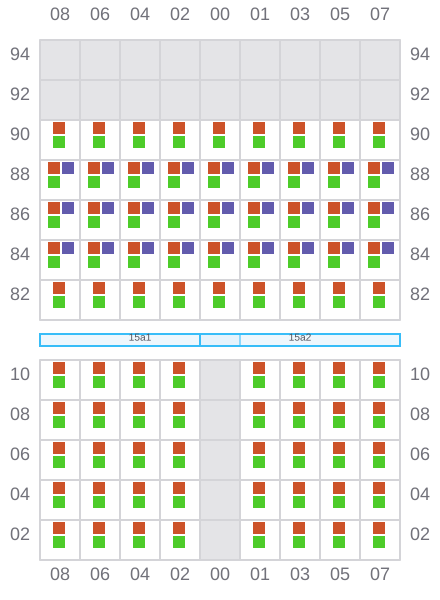

Bay 015 view and slots of CLAIRE A

017

  • ←
  • → / ?

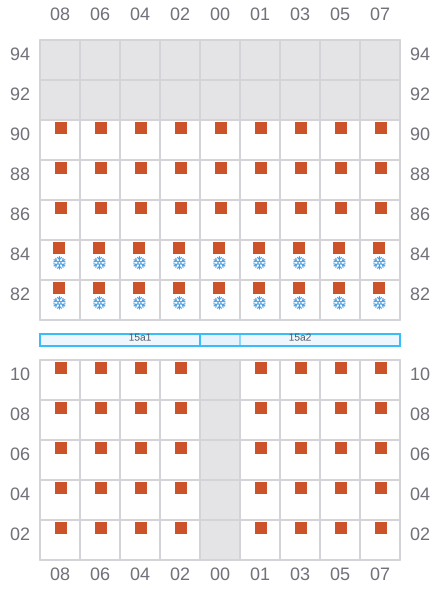

Bay 017 view and slots of CLAIRE A

019

Bay 019 view and slots of CLAIRE A

021 (022)

  • →

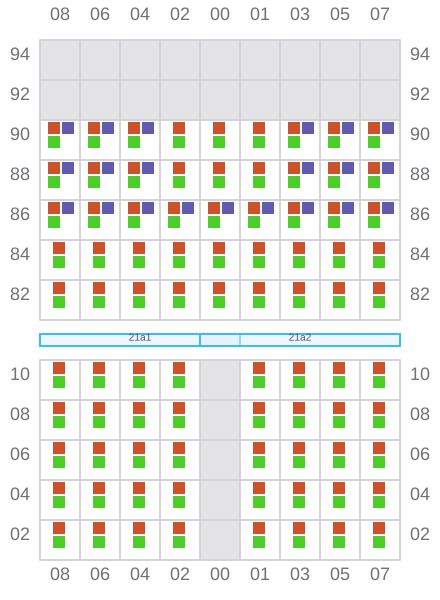

Bay 021 view and slots of CLAIRE A

023

  • ←
  • →

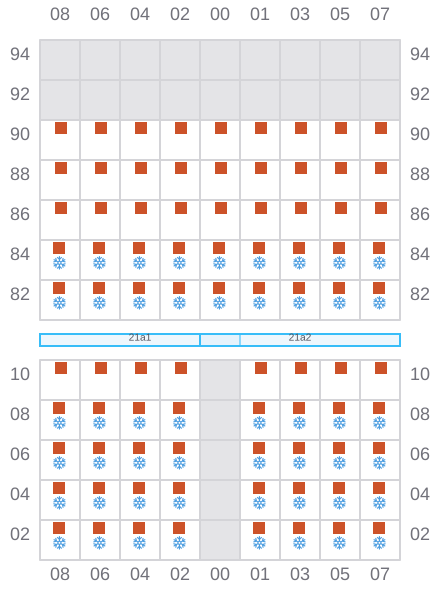

Bay 023 view and slots of CLAIRE A

025 (026)

  • →
  • ←

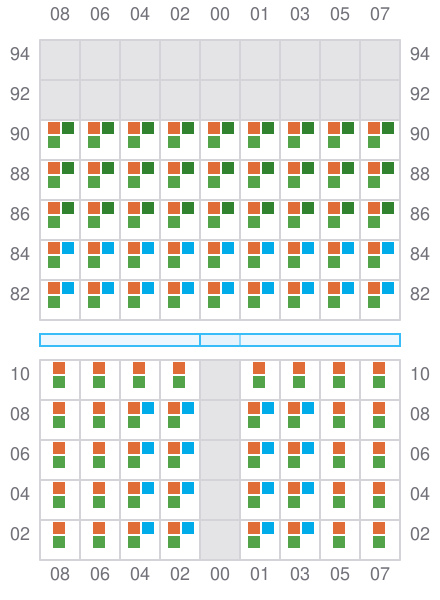

Bay 025 view and slots of CLAIRE A

027

  • ←

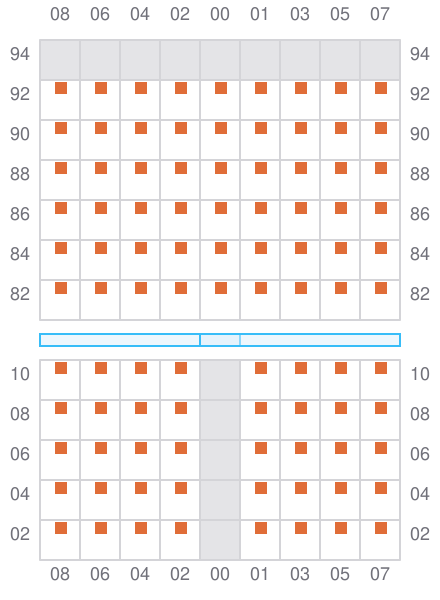

Bay 027 view and slots of CLAIRE A

029 (030)

  • →

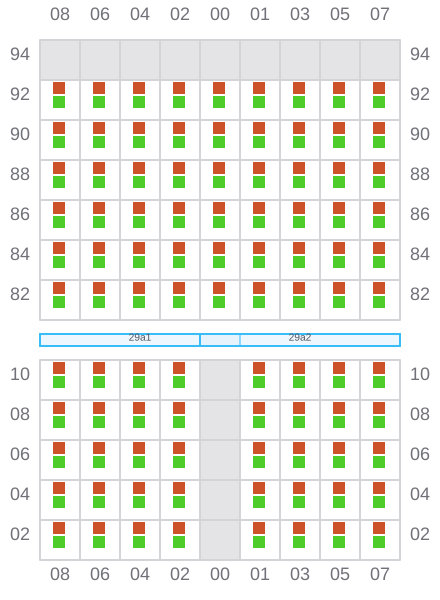

Bay 029 view and slots of CLAIRE A

031

  • ←
  • →

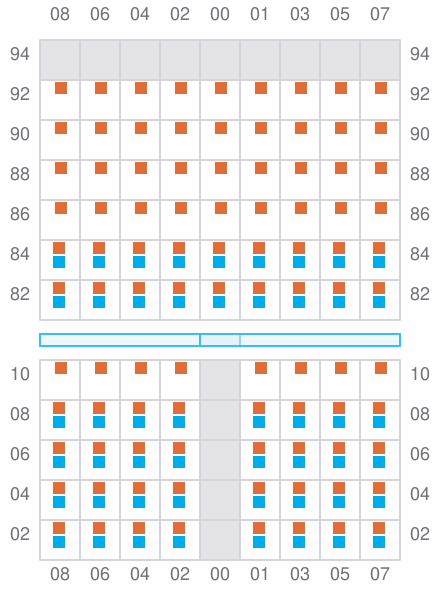

Bay 031 view and slots of CLAIRE A

033 (034)

  • →
  • ← / ?

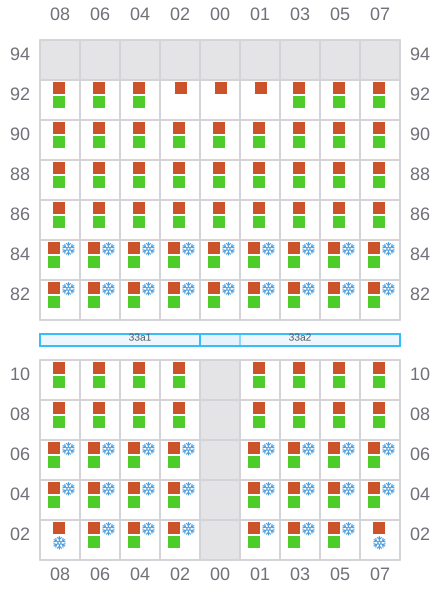

Bay 033 view and slots of CLAIRE A

035

  • ←

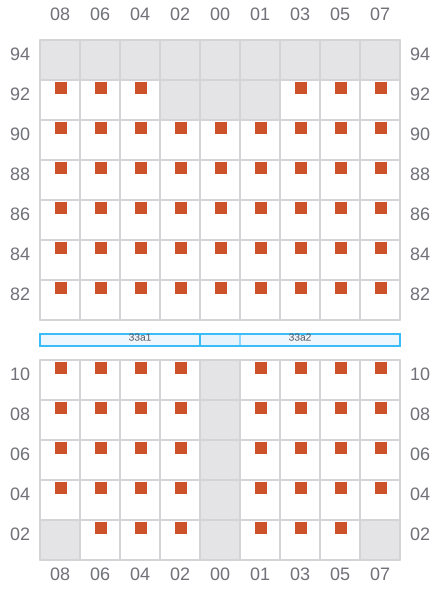

Bay 035 view and slots of CLAIRE A

037

Bay 037 view and slots of CLAIRE A

039 (040)

  • →

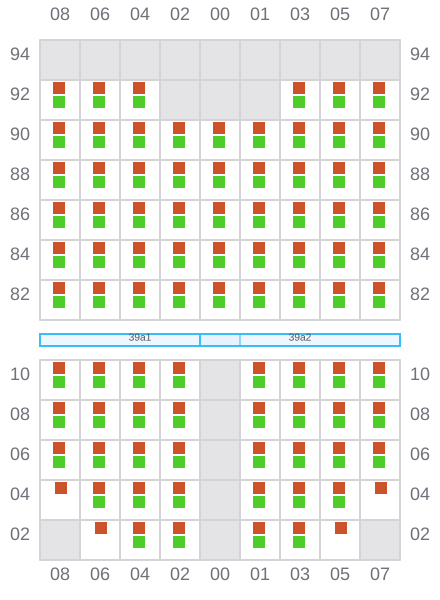

Bay 039 view and slots of CLAIRE A

041

  • ←
  • → / ?

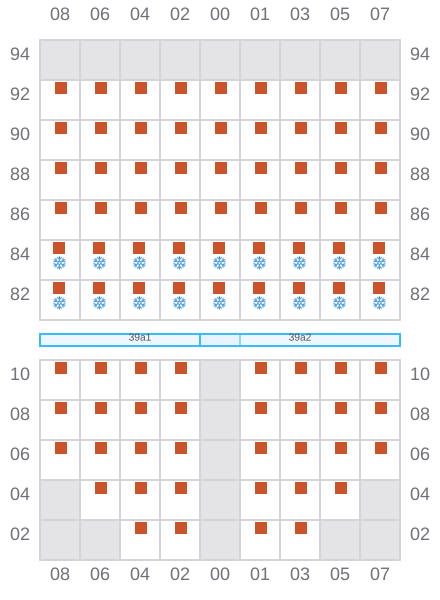

Bay 041 view and slots of CLAIRE A

043 (044)

  • → / ?

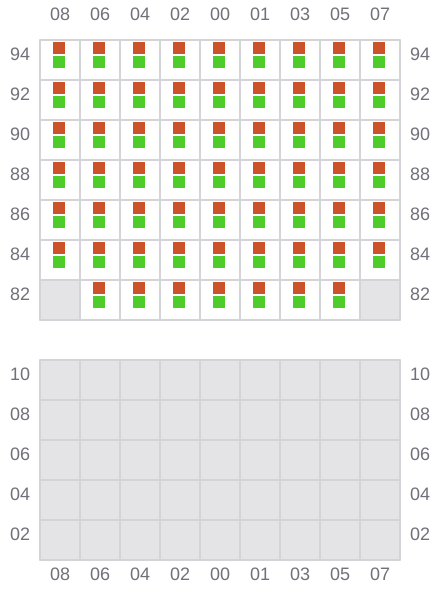

Bay 043 view and slots of CLAIRE A

045

  • ← / ?
  • → / ?

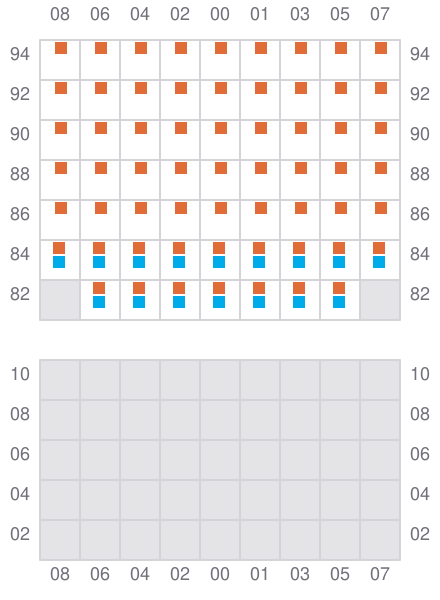

Bay 045 view and slots of CLAIRE A
