CLEMENS SCHULTE
9665671 | 9V2333 | 9665671 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:CLEMENS SCHULTE

IMO Code:9665671

Call Sign:9V2333

Line Operator:9665671

Class Name for Sister Ships:MSL

Year Built:2014

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):244.00

LOA (Length Overall):255.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:057

Max ISO Row:14

Center Line Row:Yes

Max Above ISO Tier:98

Min Above ISO Tier:80

Max Below ISO Tier:16

Min Below ISO Tier:02

Total TEU:5,466

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

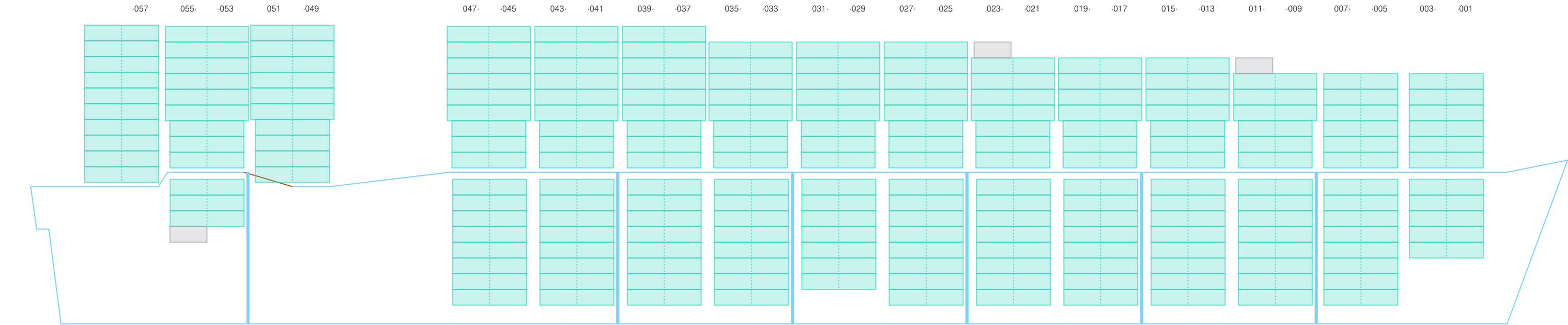

Side view of CLEMENS SCHULTE

Hatch-Covers View

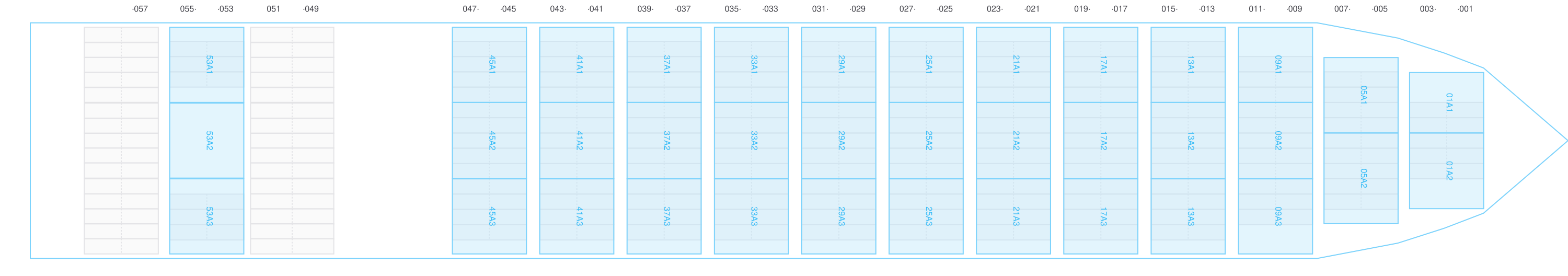

Deck view of CLEMENS SCHULTE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

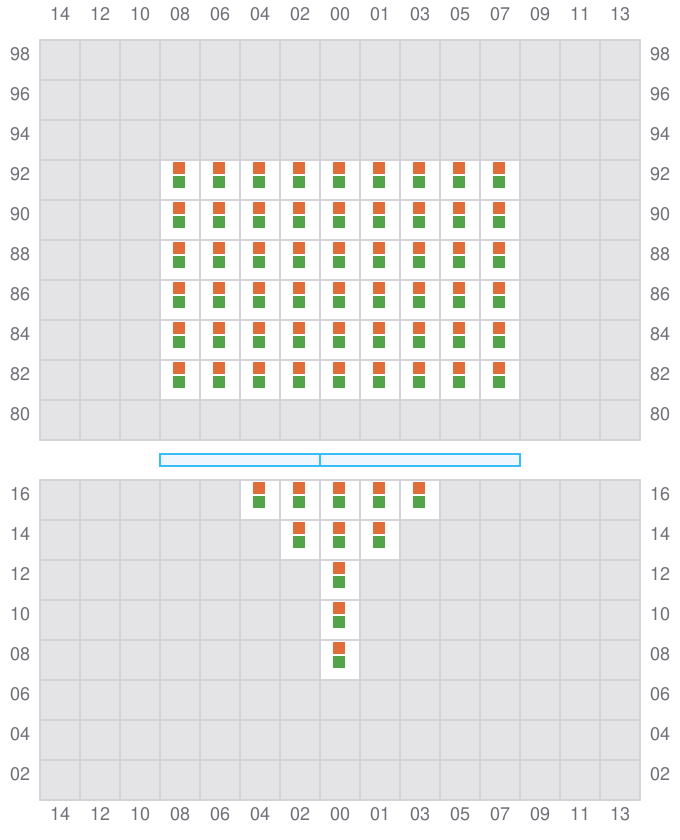

Bay 001 view and slots of CLEMENS SCHULTE

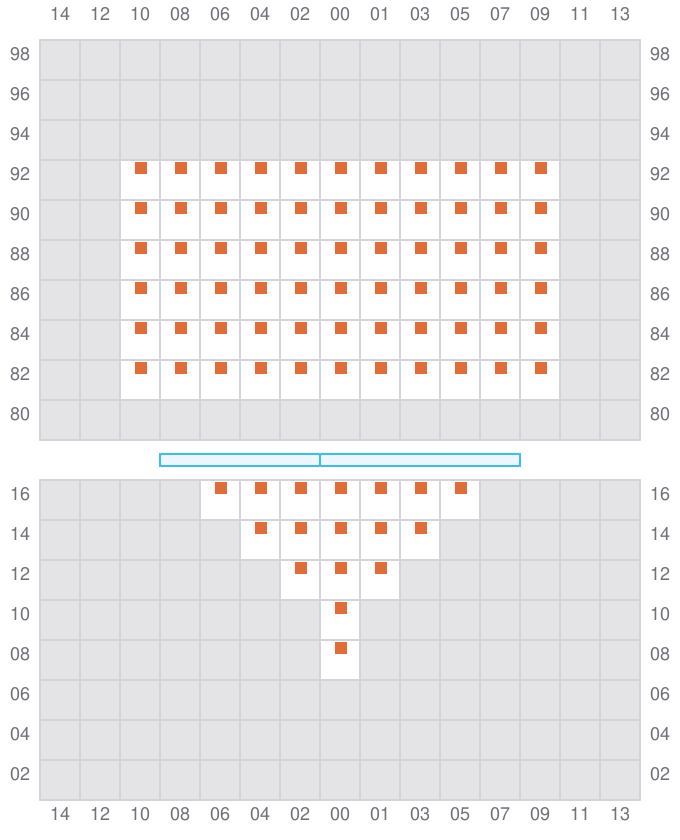

003

←

Bay 003 view and slots of CLEMENS SCHULTE

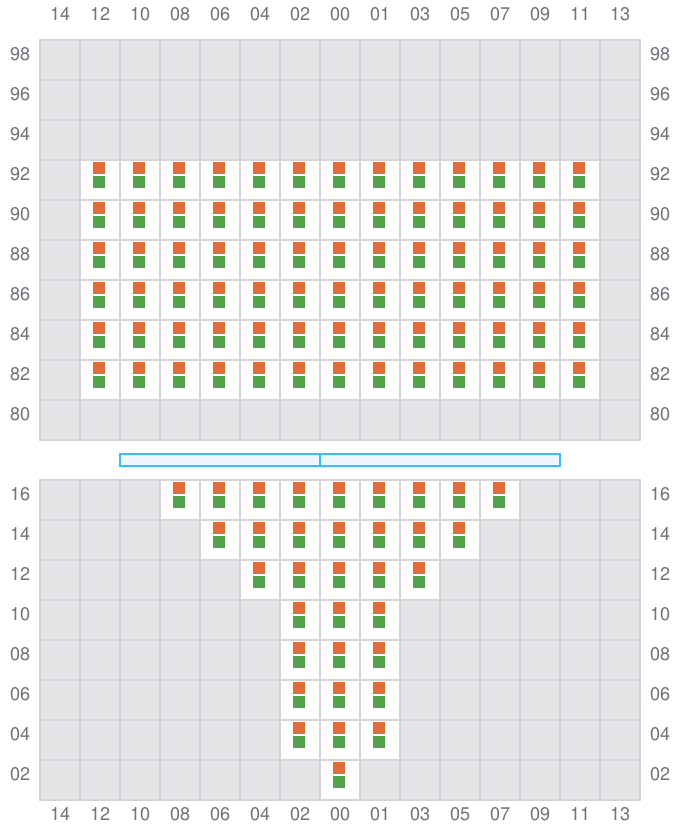

005 (006)

→

Bay 005 view and slots of CLEMENS SCHULTE

007

←
^→ / _?

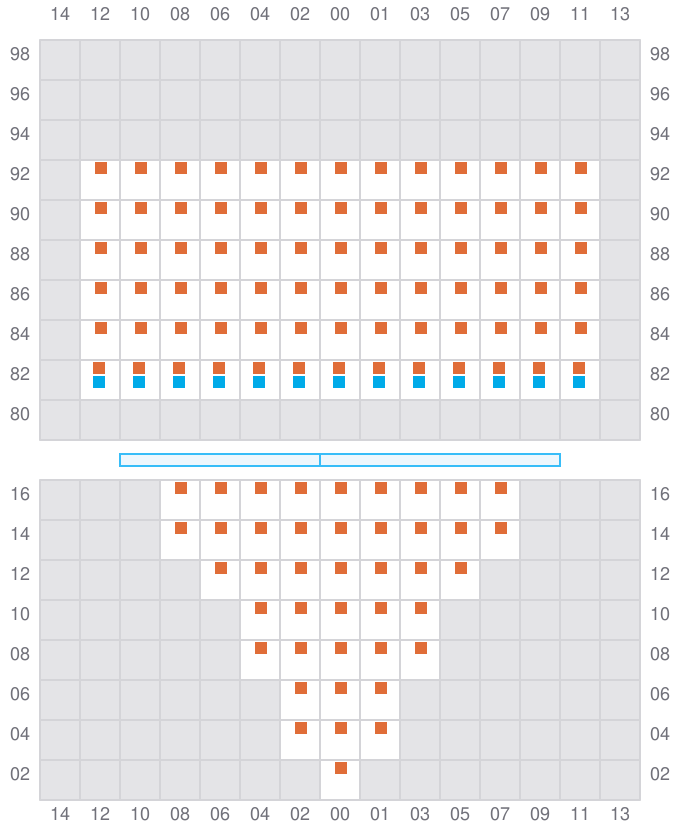

Bay 007 view and slots of CLEMENS SCHULTE

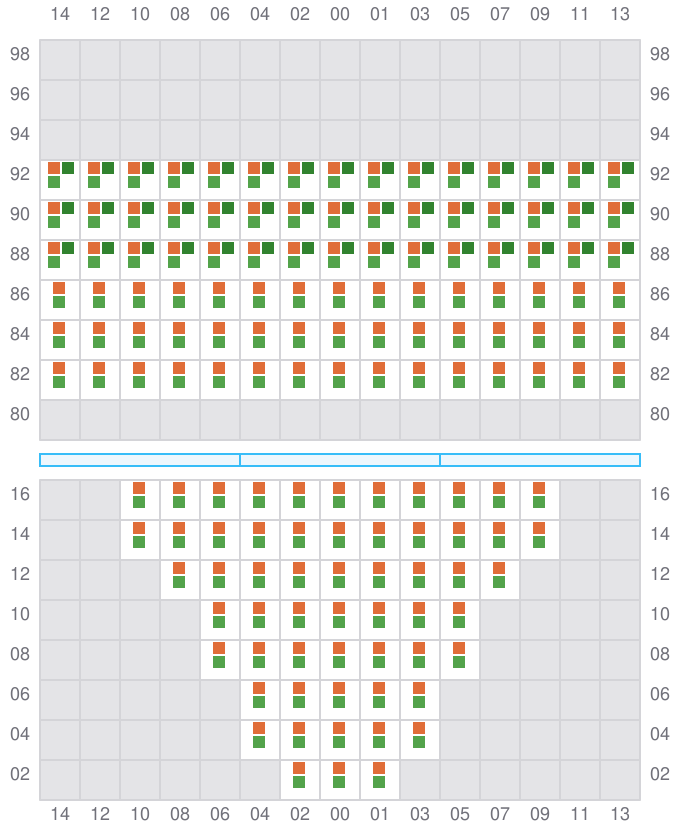

009 (010)

→

Bay 009 view and slots of CLEMENS SCHULTE

011

←
^→ / _?

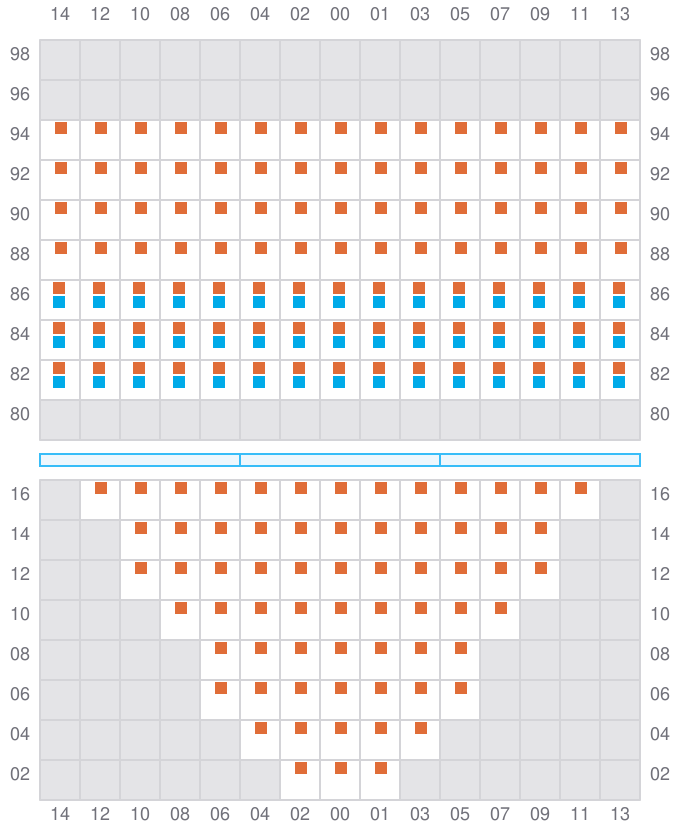

Bay 011 view and slots of CLEMENS SCHULTE

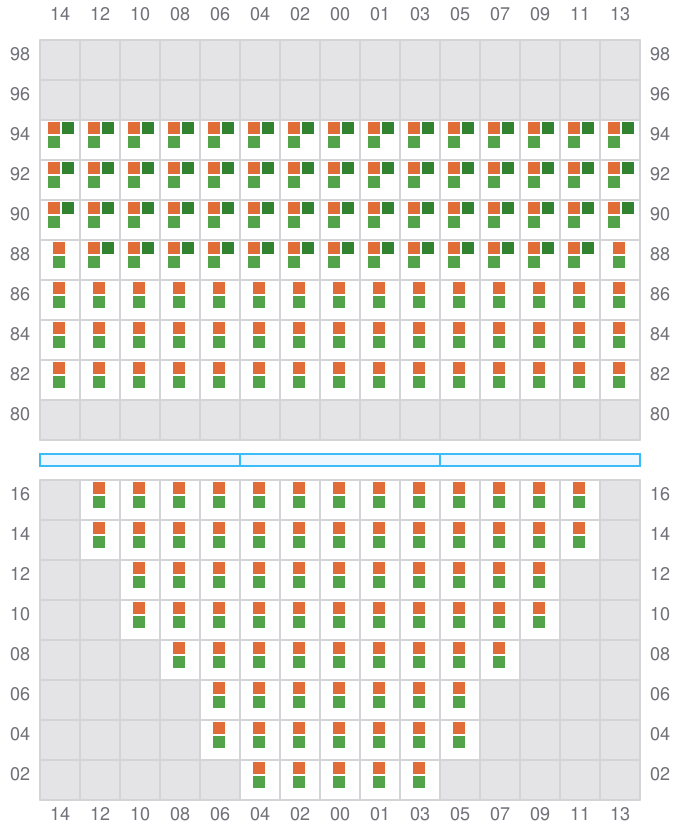

013 (014)

→

Bay 013 view and slots of CLEMENS SCHULTE

015

←
^→ / _?

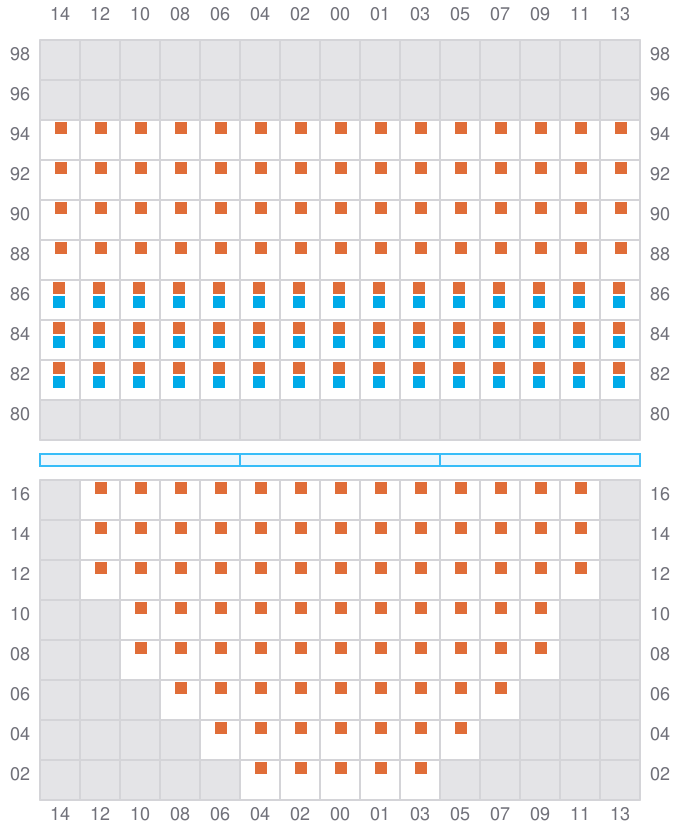

Bay 015 view and slots of CLEMENS SCHULTE

017 (018)

→

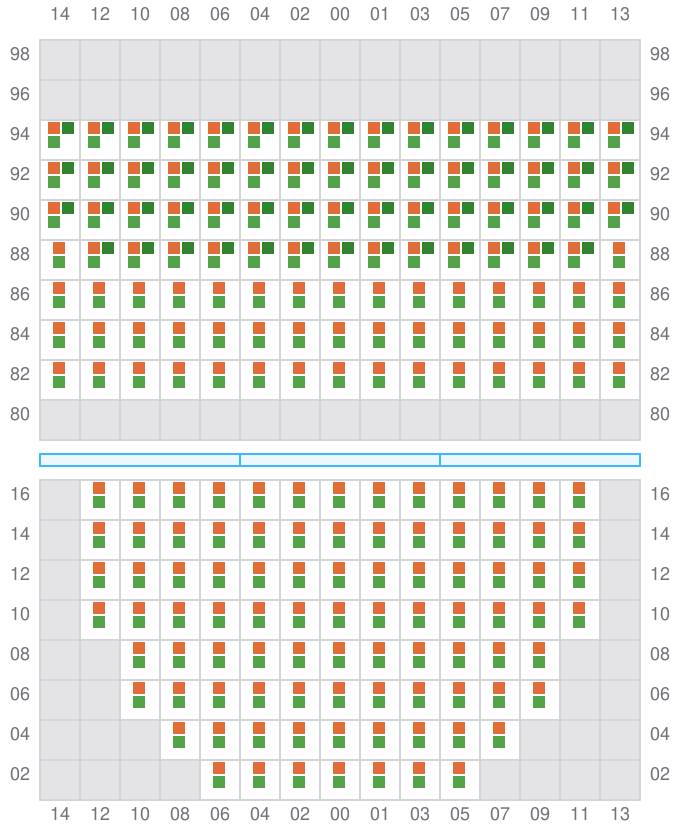

Bay 017 view and slots of CLEMENS SCHULTE

019

←
^→ / _?

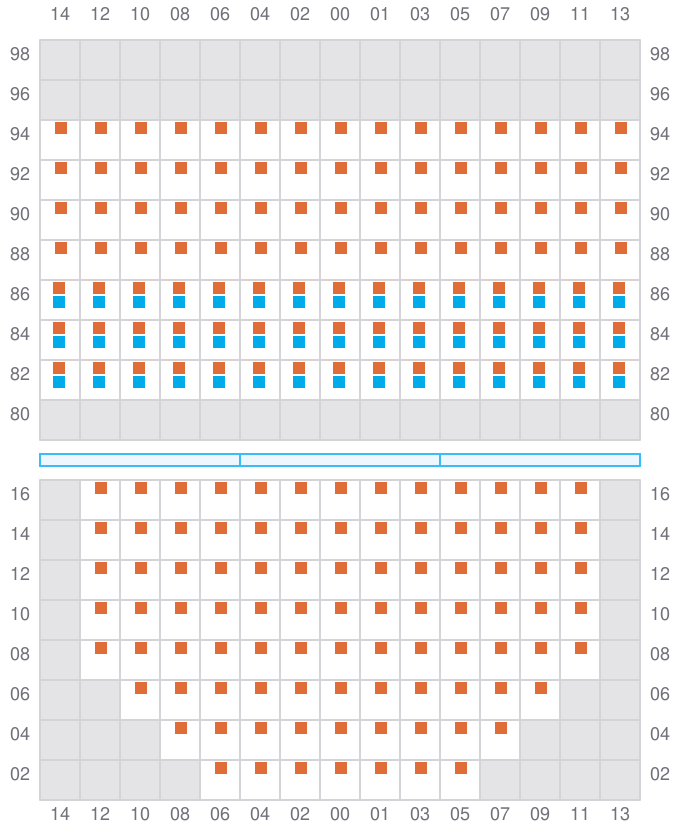

Bay 019 view and slots of CLEMENS SCHULTE

021 (022)

→

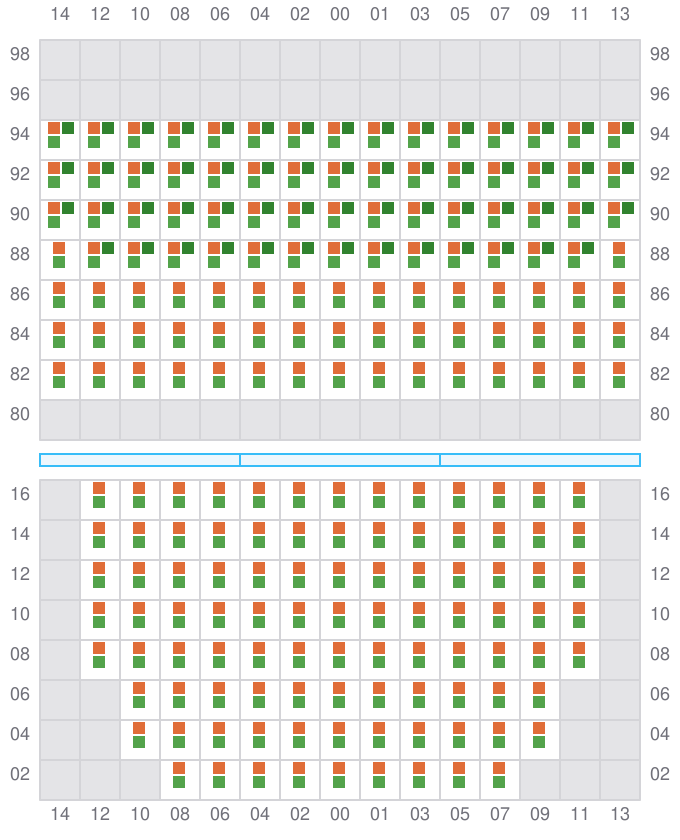

Bay 021 view and slots of CLEMENS SCHULTE

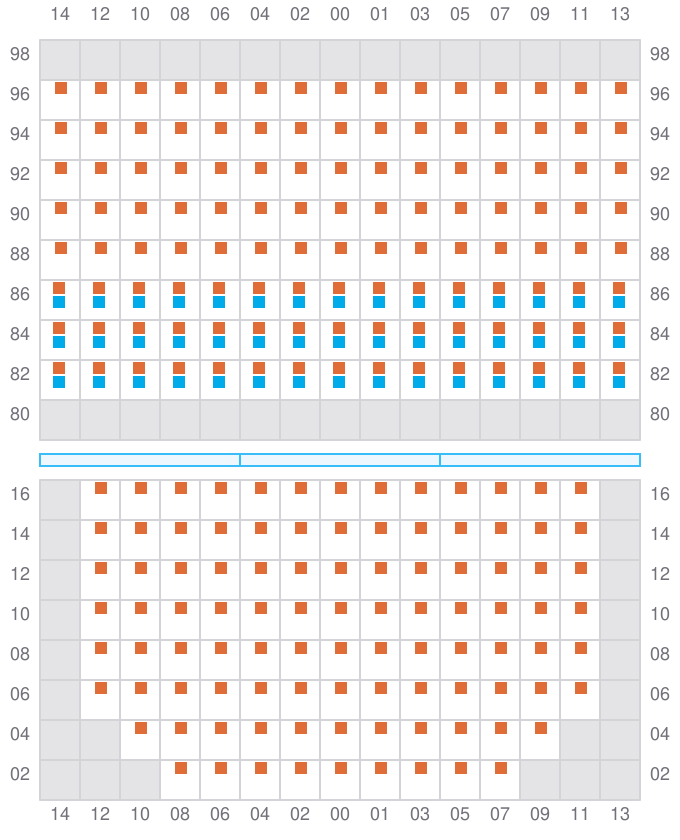

023

←
^→ / _?

Bay 023 view and slots of CLEMENS SCHULTE

025 (026)

→

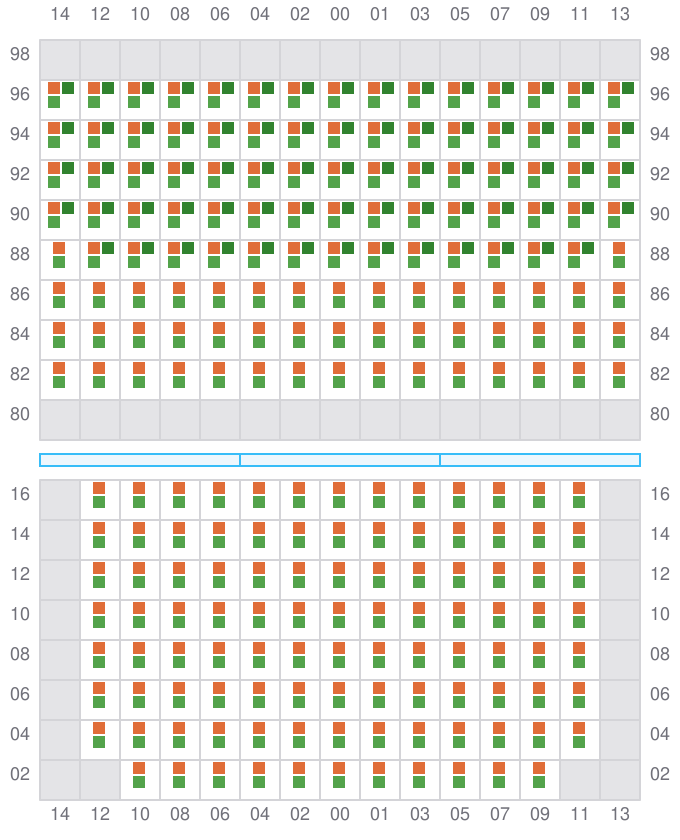

Bay 025 view and slots of CLEMENS SCHULTE

027

←
^→ / _?

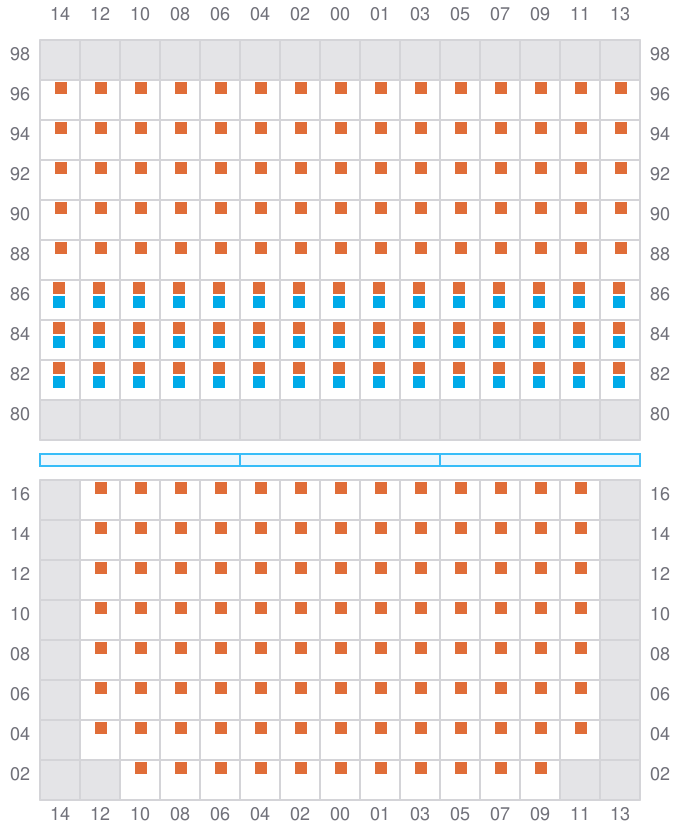

Bay 027 view and slots of CLEMENS SCHULTE

029 (030)

→

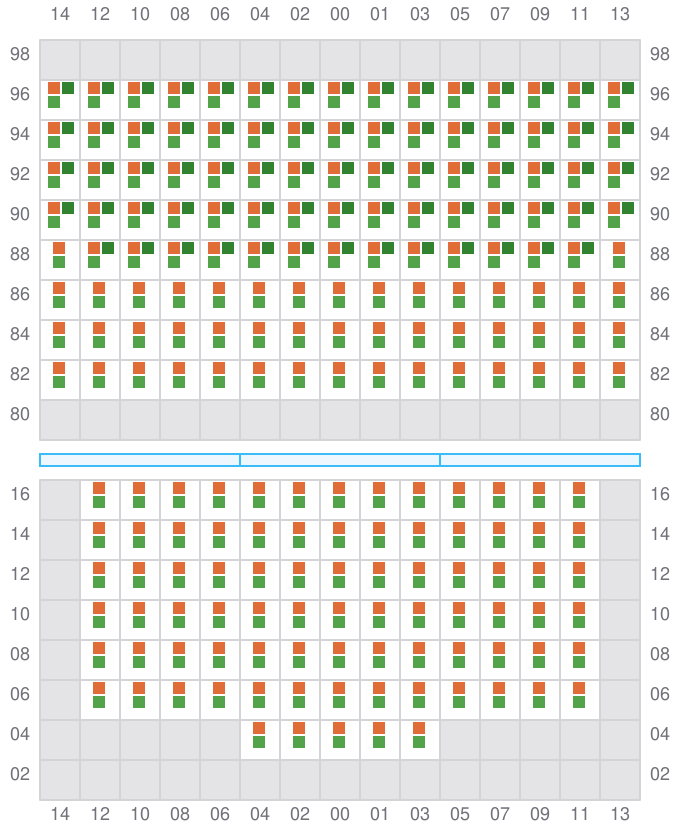

Bay 029 view and slots of CLEMENS SCHULTE

031

←
^→ / _?

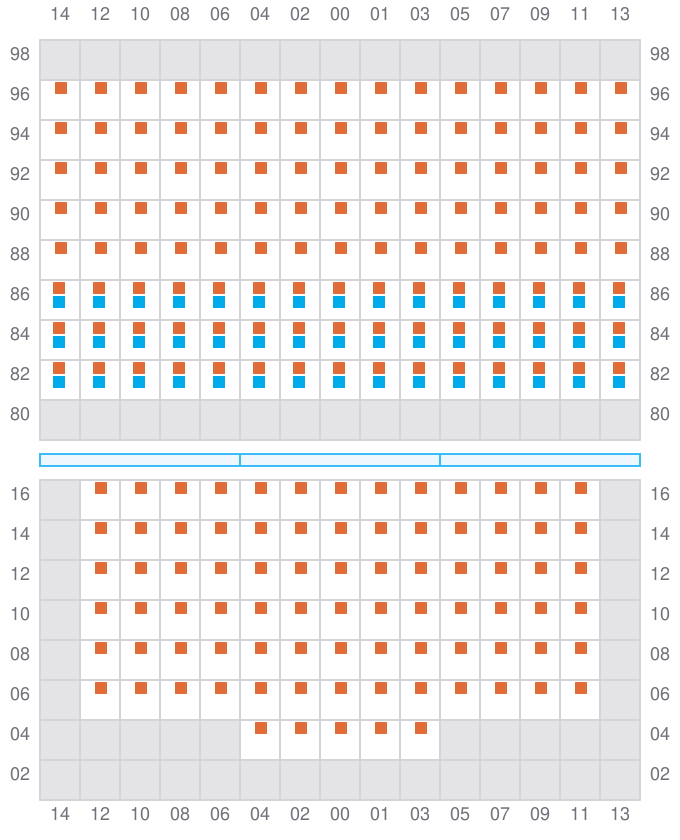

Bay 031 view and slots of CLEMENS SCHULTE

033 (034)

→

Bay 033 view and slots of CLEMENS SCHULTE

035

←
→

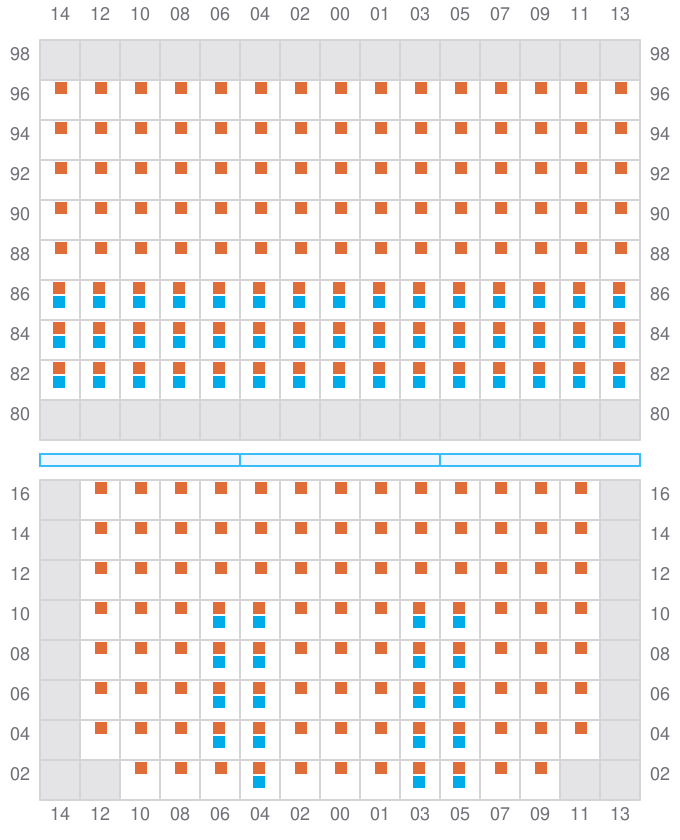

Bay 035 view and slots of CLEMENS SCHULTE

037 (038)

→

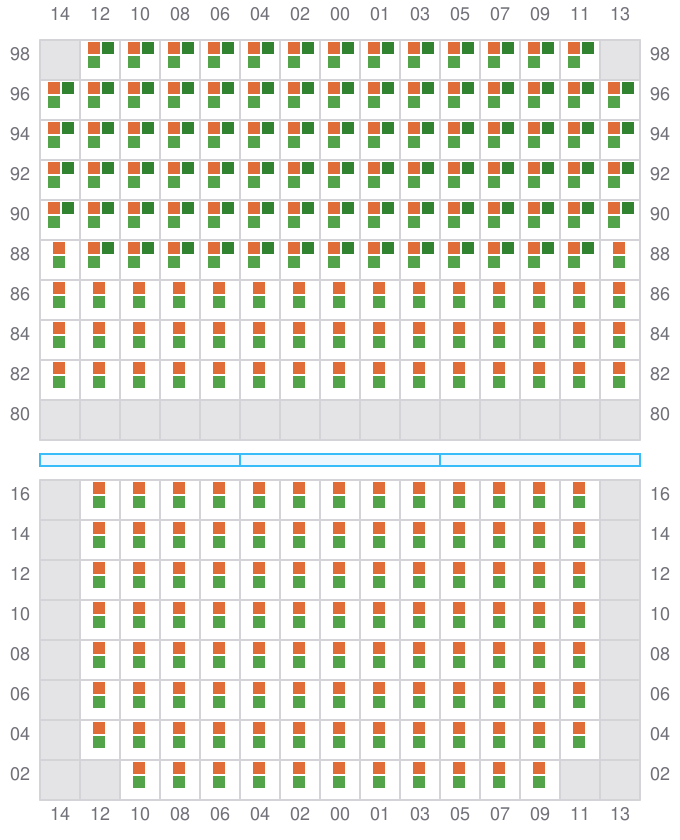

Bay 037 view and slots of CLEMENS SCHULTE

039

←
→

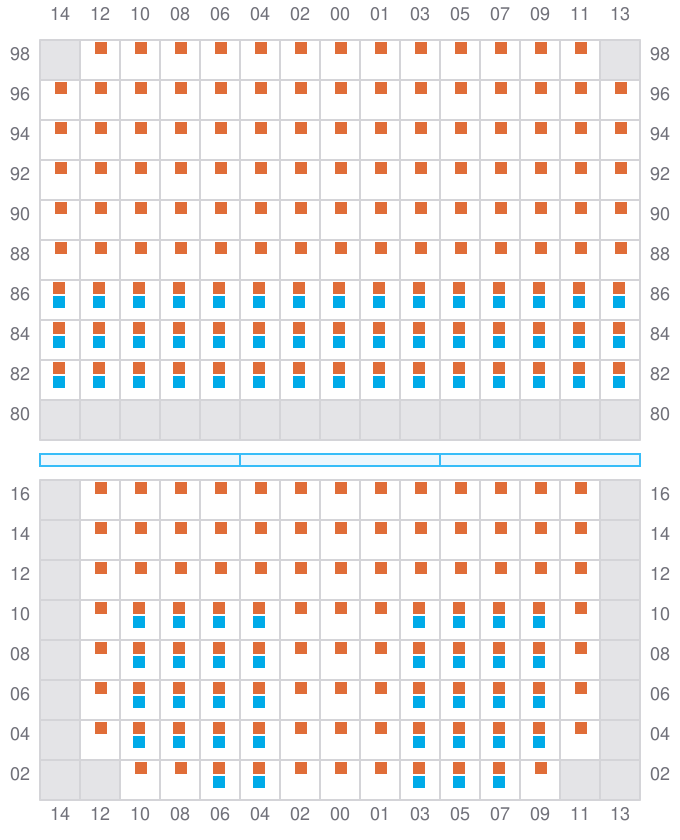

Bay 039 view and slots of CLEMENS SCHULTE

041 (042)

→

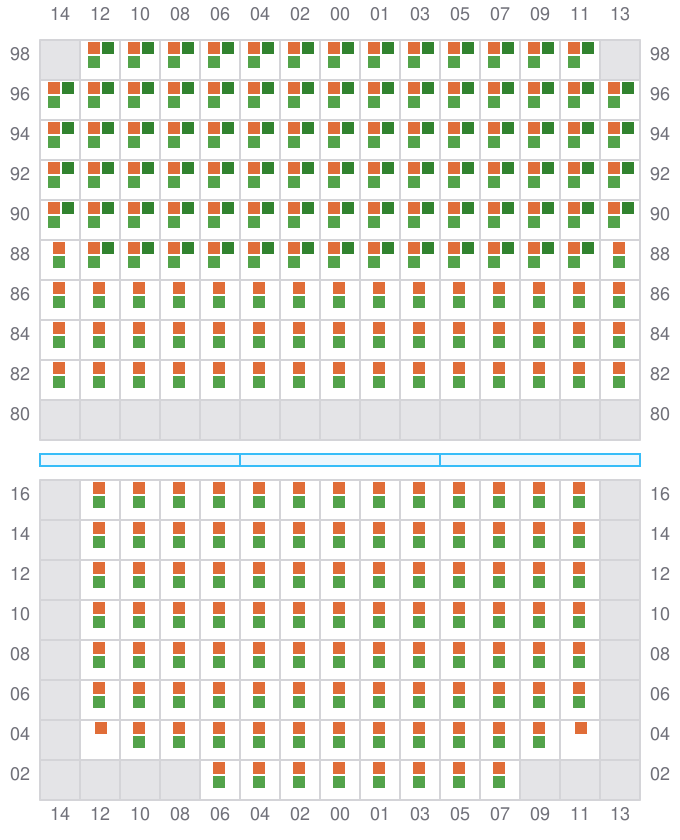

Bay 041 view and slots of CLEMENS SCHULTE

043

←
^→ / _?

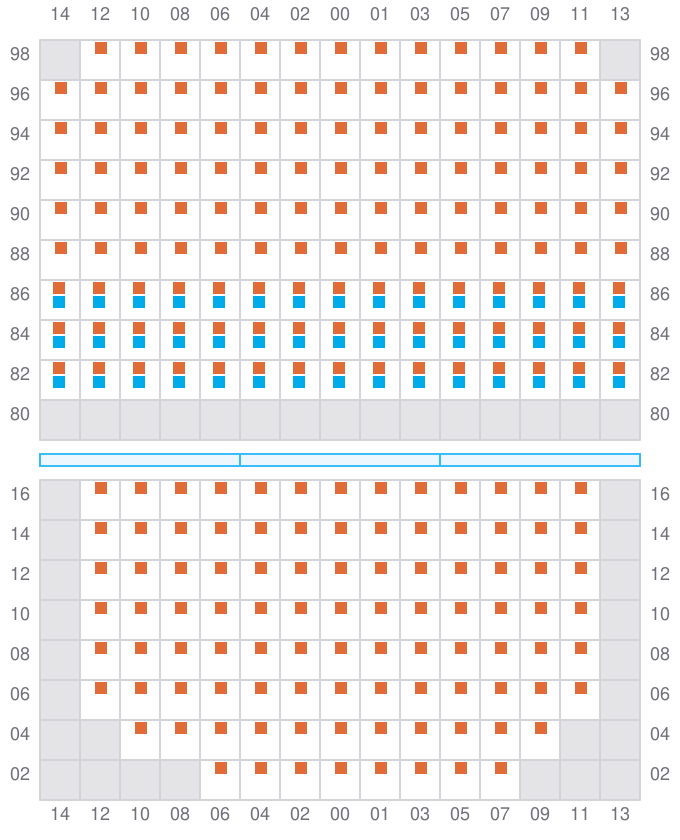

Bay 043 view and slots of CLEMENS SCHULTE

045 (046)

→

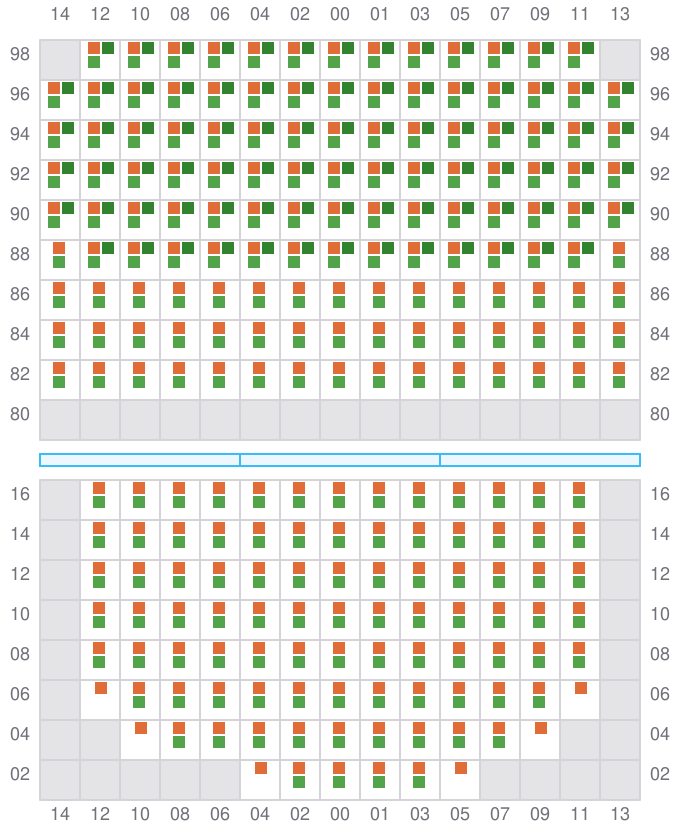

Bay 045 view and slots of CLEMENS SCHULTE

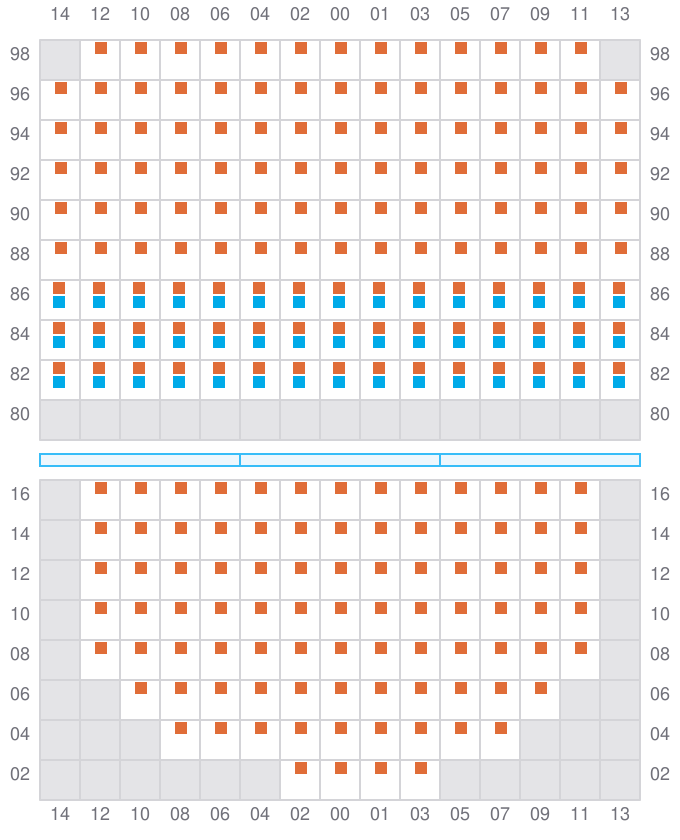

047

←
^→ / _?

Bay 047 view and slots of CLEMENS SCHULTE

049 (050)

^→ / _?
^← / _?

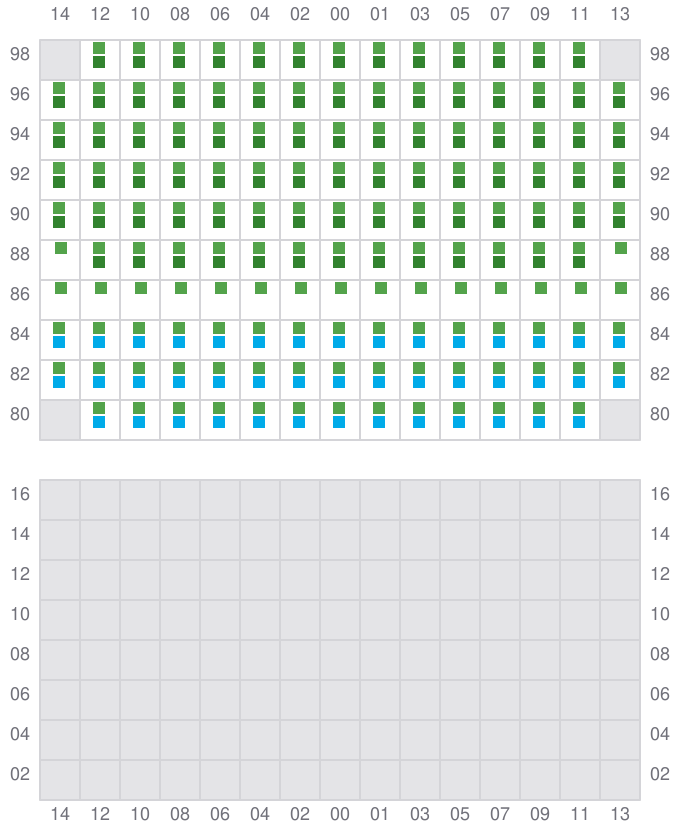

Bay 049 view and slots of CLEMENS SCHULTE

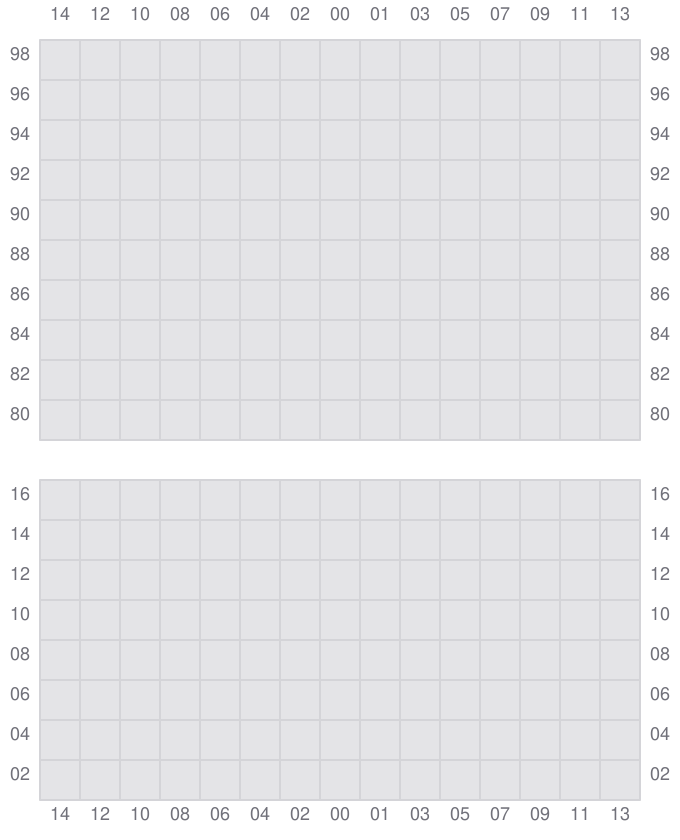

051

Bay 051 view and slots of CLEMENS SCHULTE

053 (054)

→
^← / _?

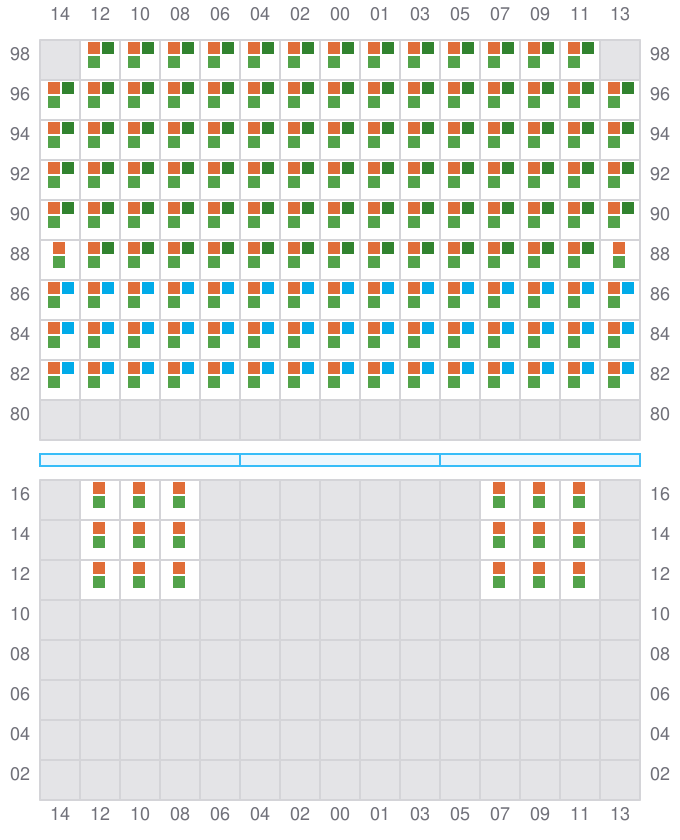

Bay 053 view and slots of CLEMENS SCHULTE

055

←

Bay 055 view and slots of CLEMENS SCHULTE

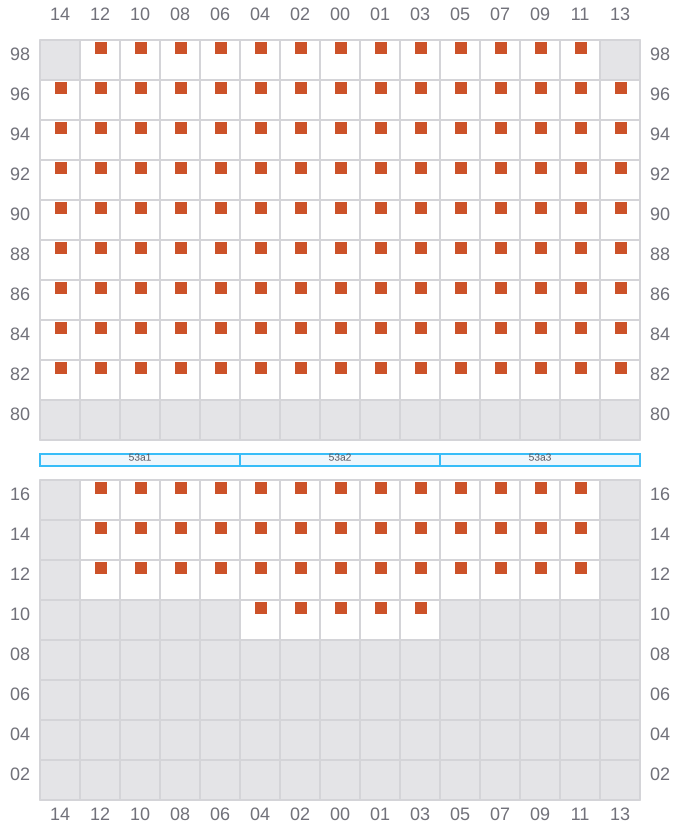

057 (058)

^→ / _?
^← / _?

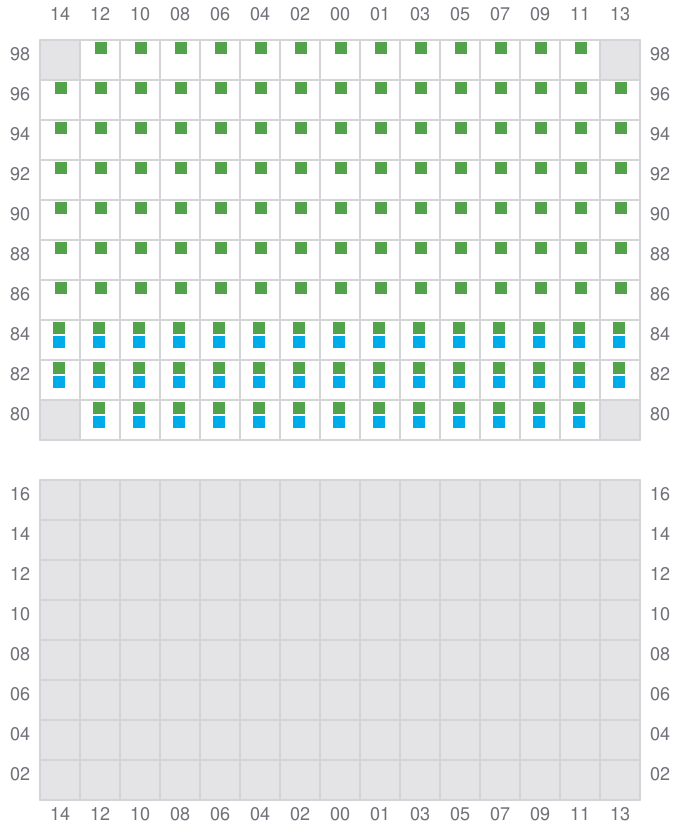

Bay 057 view and slots of CLEMENS SCHULTE
