CLEMENTINE MAERSK
9245770 | OUQK2 | 924577 by ********* Last update: Sat Mar 16 2024

General Info

Ship Name:CLEMENTINE MAERSK
IMO Code:9245770
Call Sign:OUQK2
Line Operator:924577
Class Name for Sister Ships:548
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,358

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

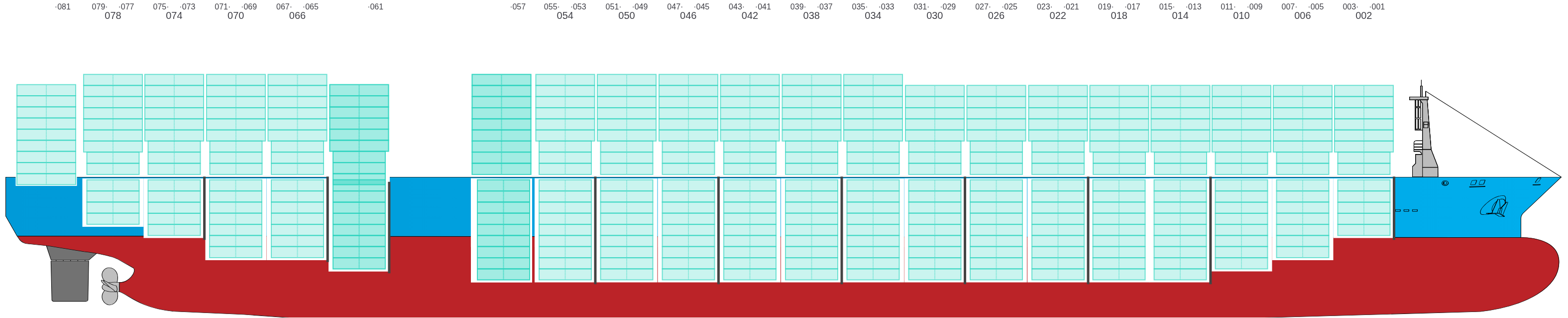

Side view of CLEMENTINE MAERSK

Hatch-Covers View

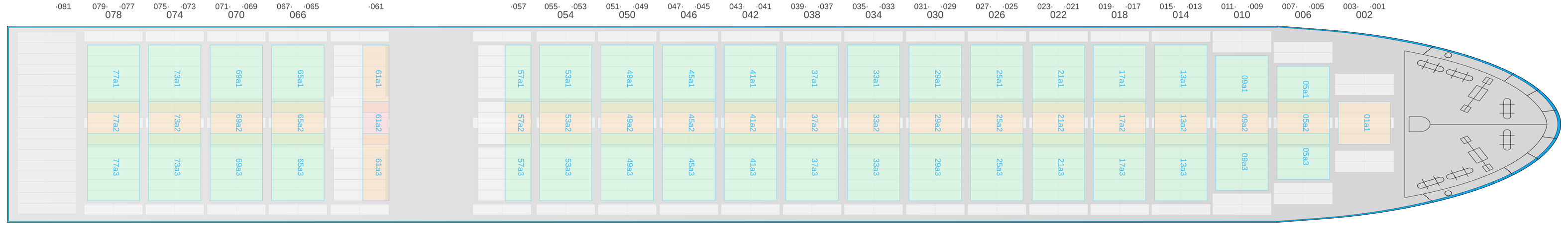

Deck view of CLEMENTINE MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

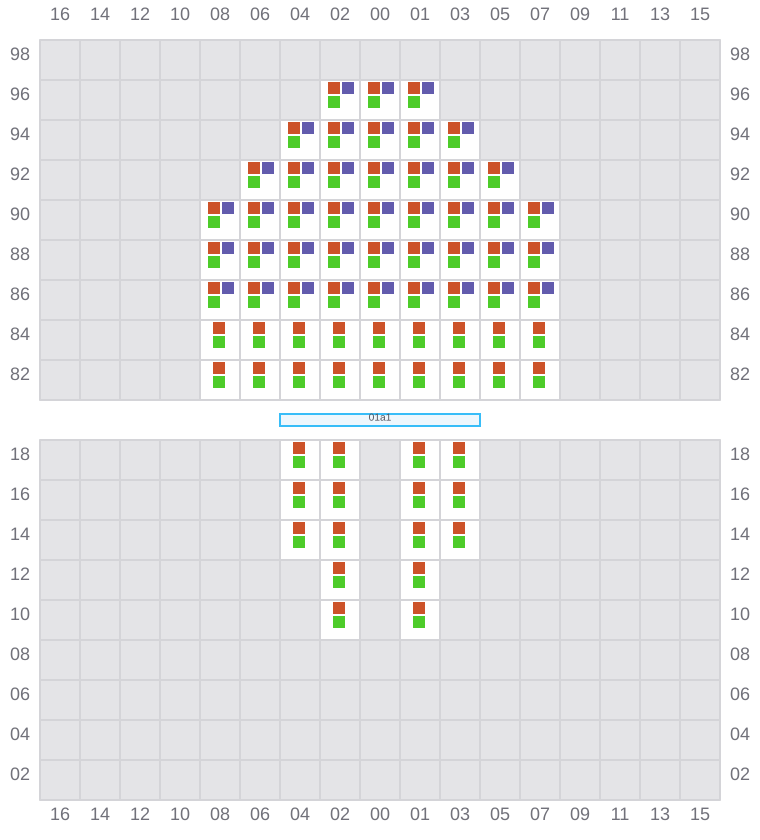

Bay 001 view and slots of CLEMENTINE MAERSK

003

  • ←

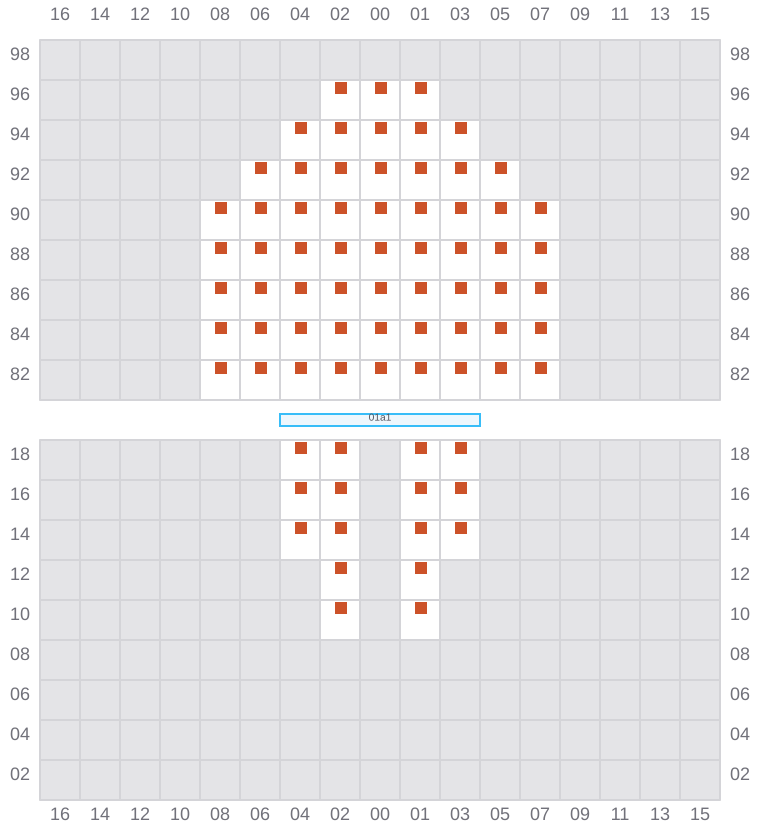

Bay 003 view and slots of CLEMENTINE MAERSK

005 (006)

  • →

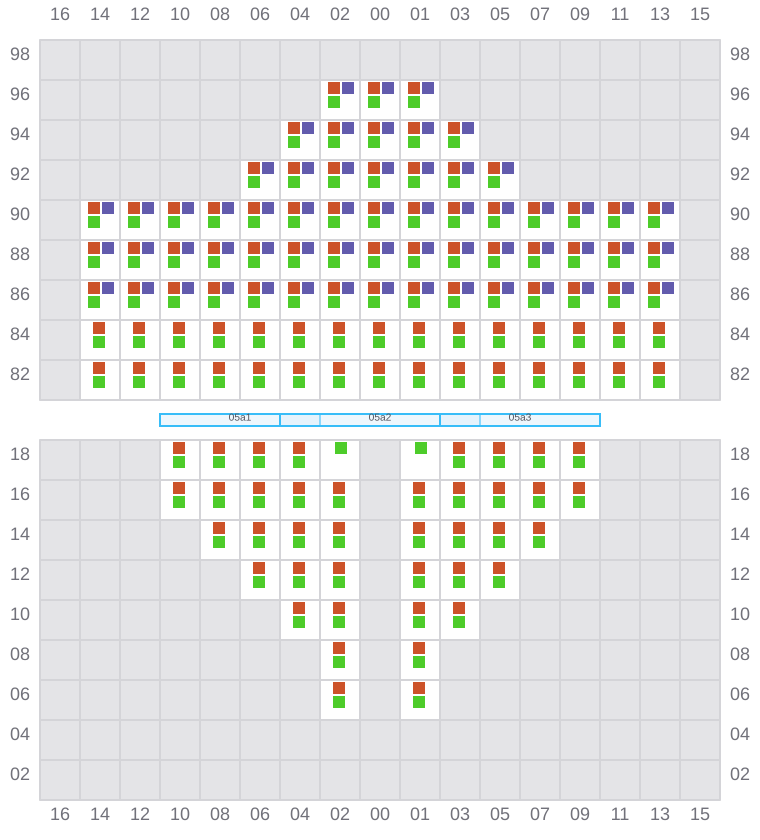

Bay 005 view and slots of CLEMENTINE MAERSK

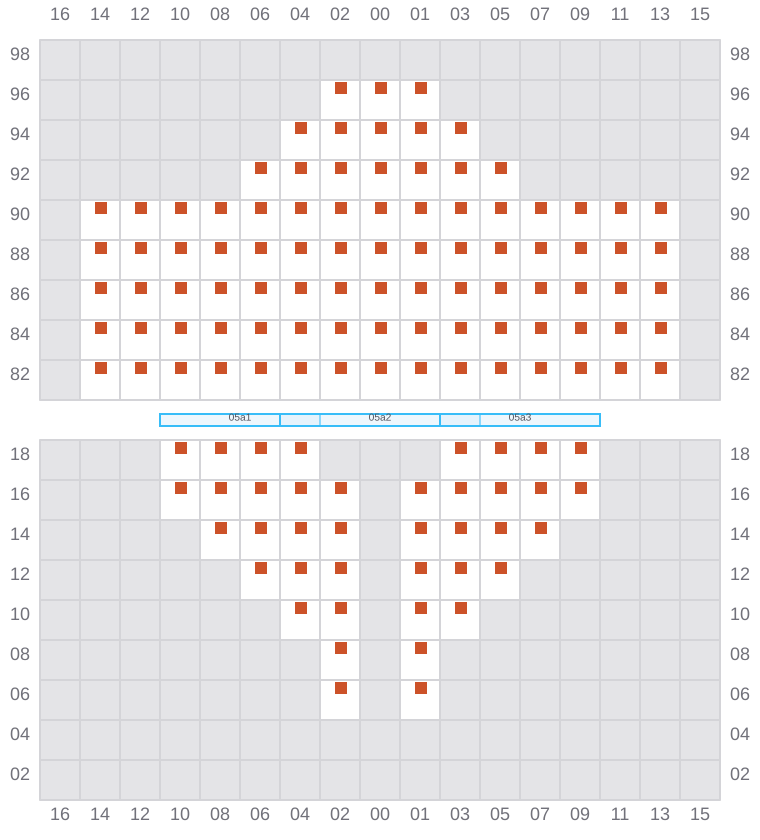

007

  • ←
Bay 007 view and slots of CLEMENTINE MAERSK

009 (010)

  • →

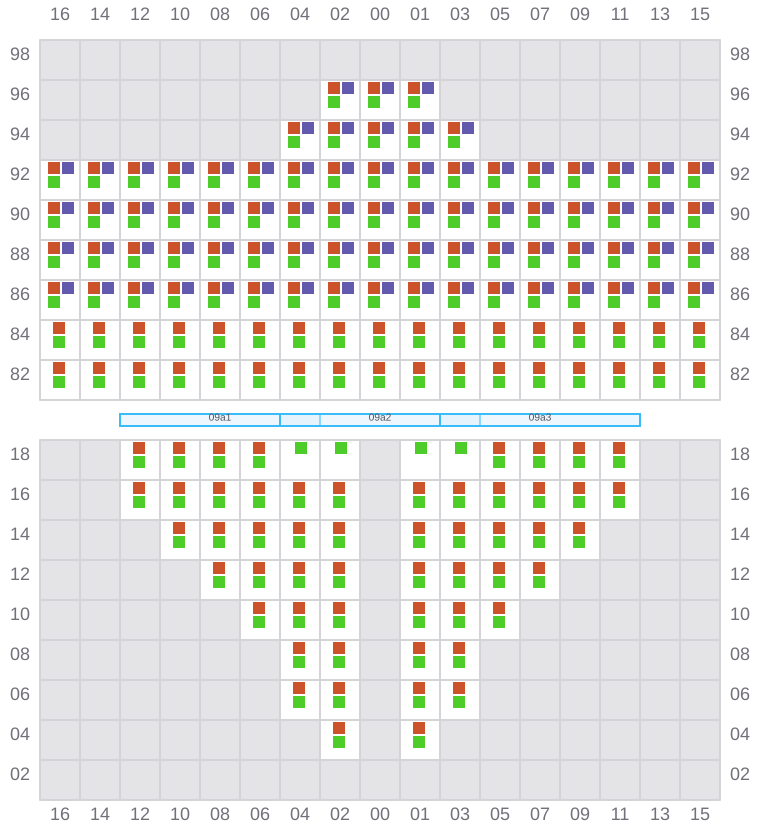

Bay 009 view and slots of CLEMENTINE MAERSK

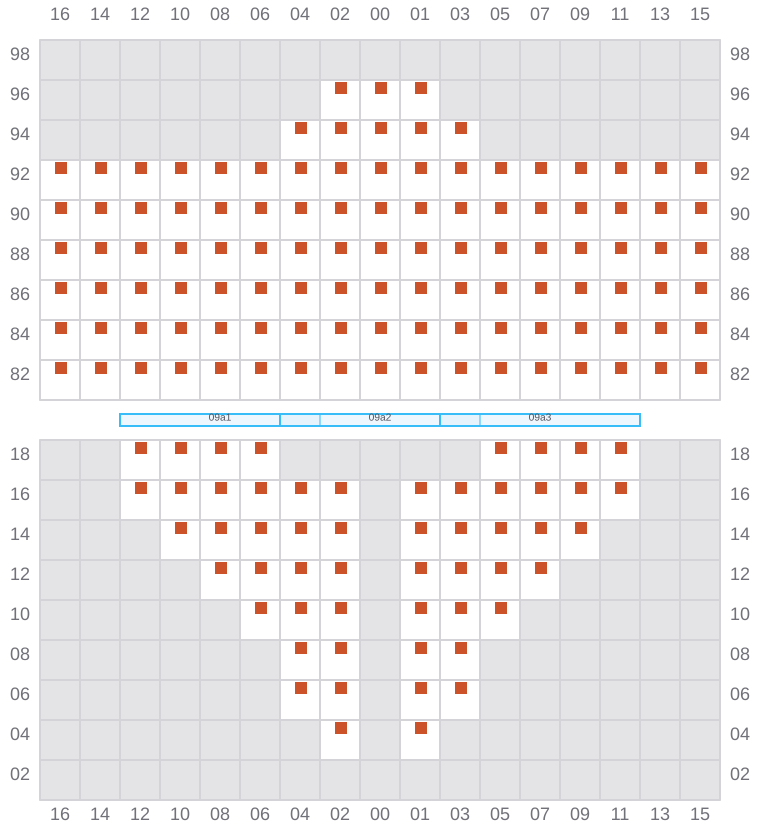

011

  • ←
Bay 011 view and slots of CLEMENTINE MAERSK

013 (014)

  • →

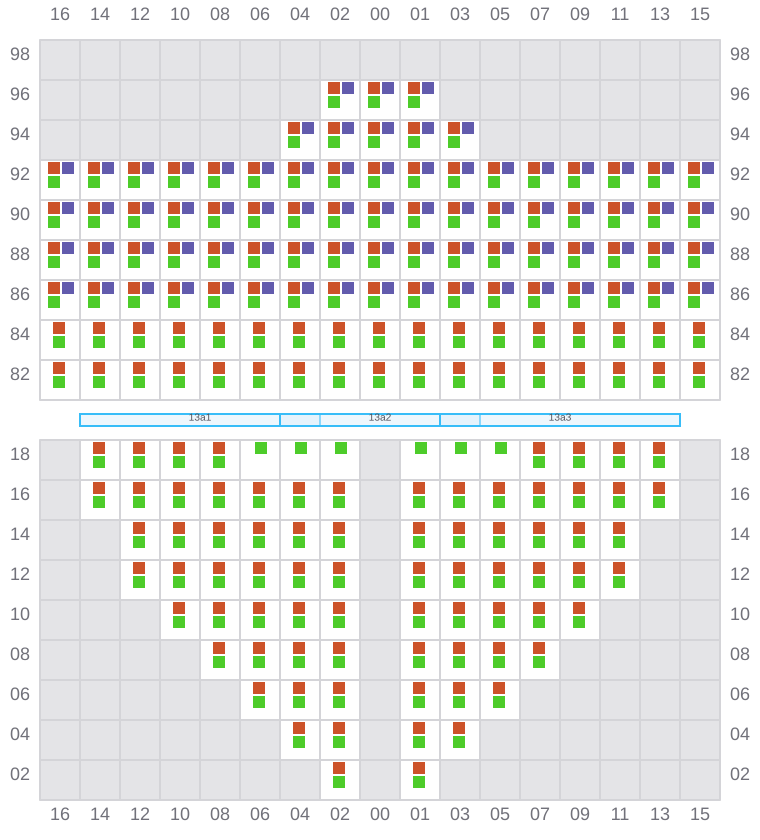

Bay 013 view and slots of CLEMENTINE MAERSK

015

  • ←
Bay 015 view and slots of CLEMENTINE MAERSK

017 (018)

  • →

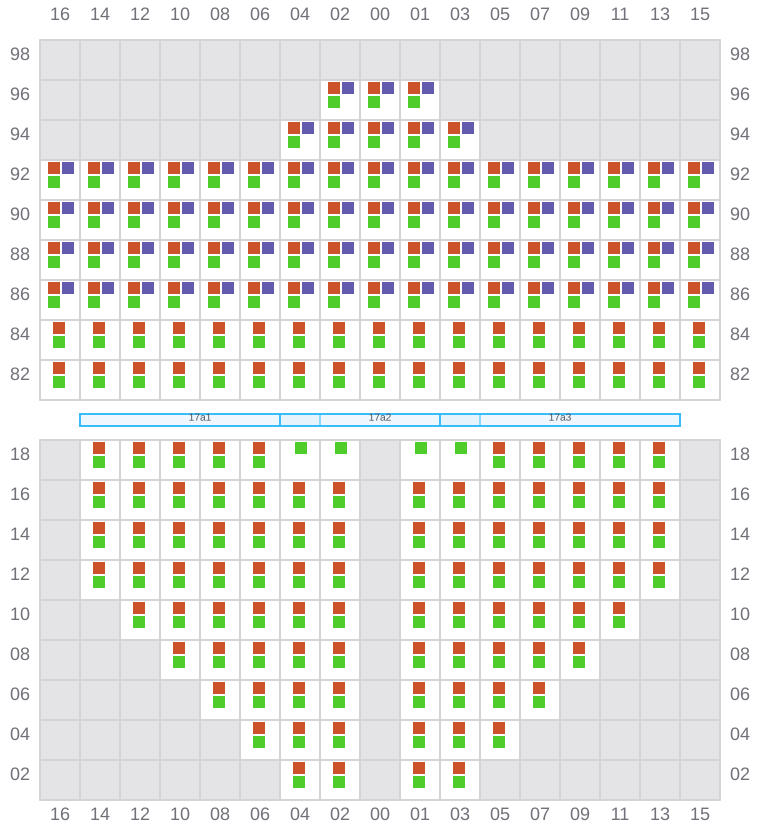

Bay 017 view and slots of CLEMENTINE MAERSK

019

  • ←
  • → / ?

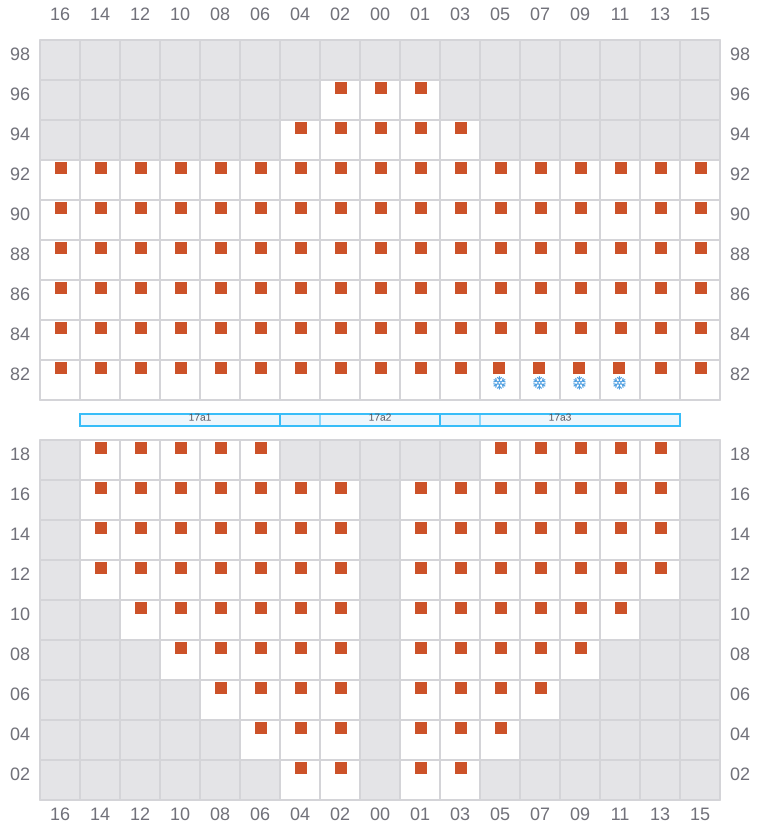

Bay 019 view and slots of CLEMENTINE MAERSK

021 (022)

  • →
Bay 021 view and slots of CLEMENTINE MAERSK

023

  • ←
  • → / ?

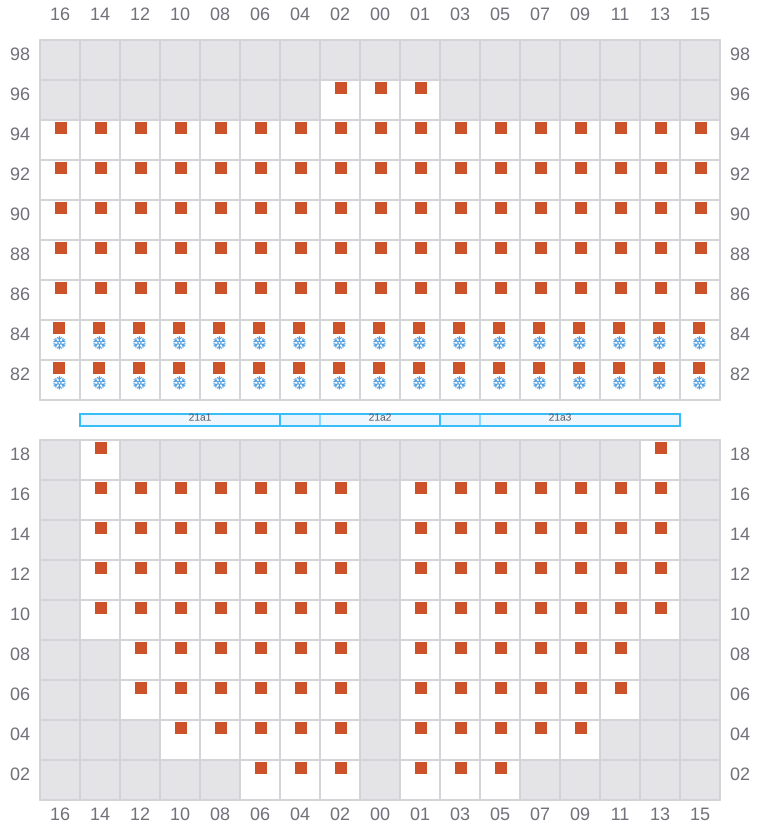

Bay 023 view and slots of CLEMENTINE MAERSK

025 (026)

  • →

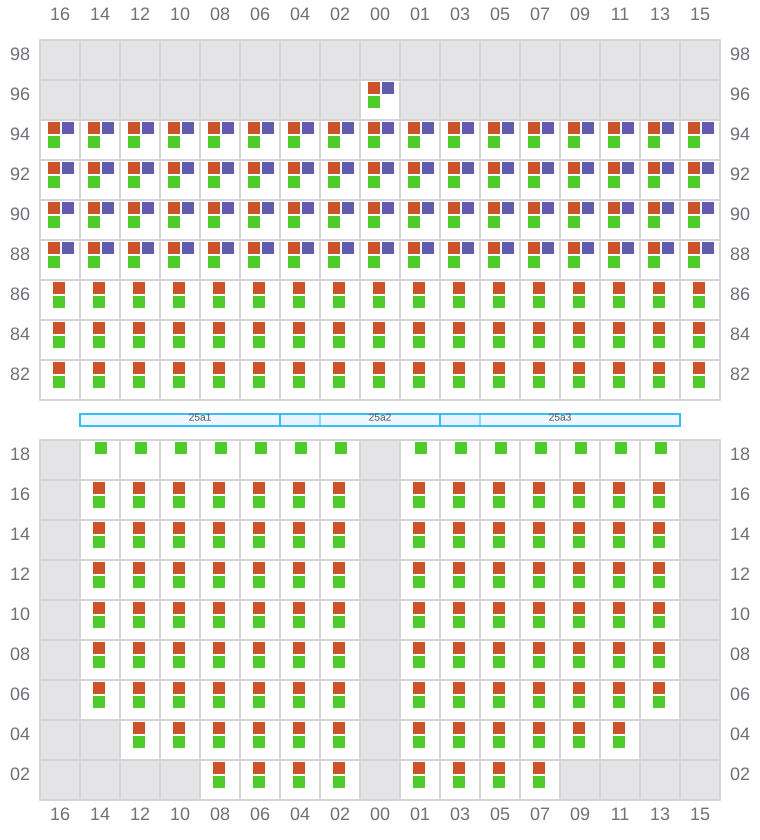

Bay 025 view and slots of CLEMENTINE MAERSK

027

  • ←

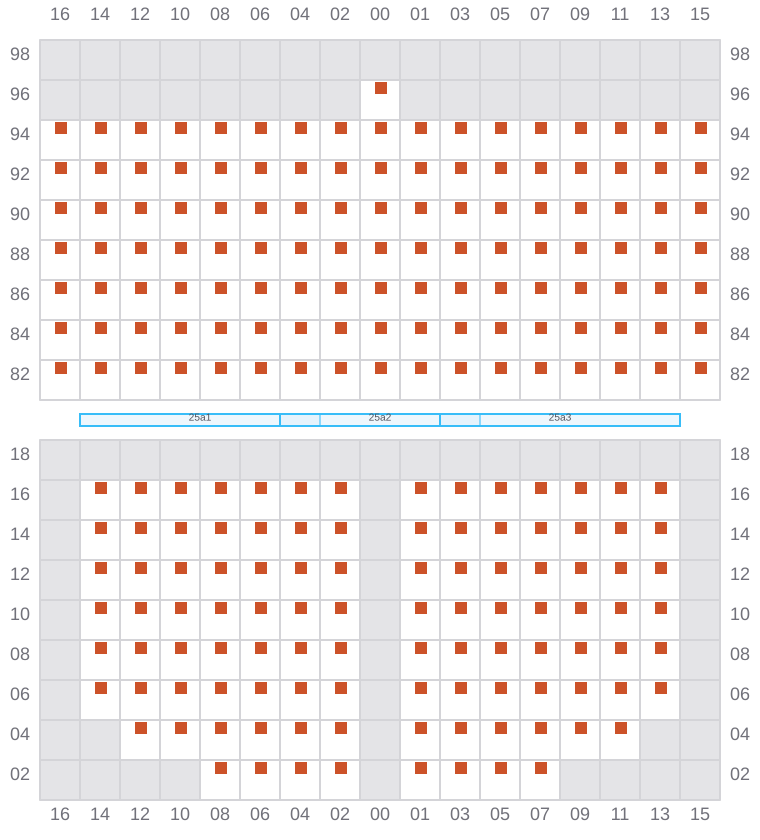

Bay 027 view and slots of CLEMENTINE MAERSK

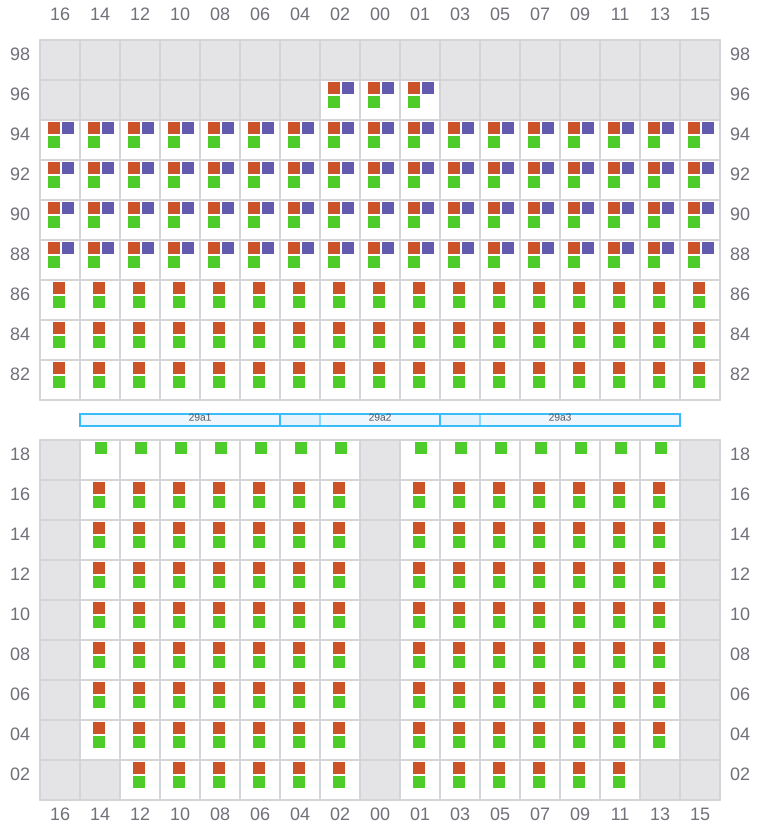

029 (030)

  • →
  • ? / →
Bay 029 view and slots of CLEMENTINE MAERSK

031

  • ←
  • →

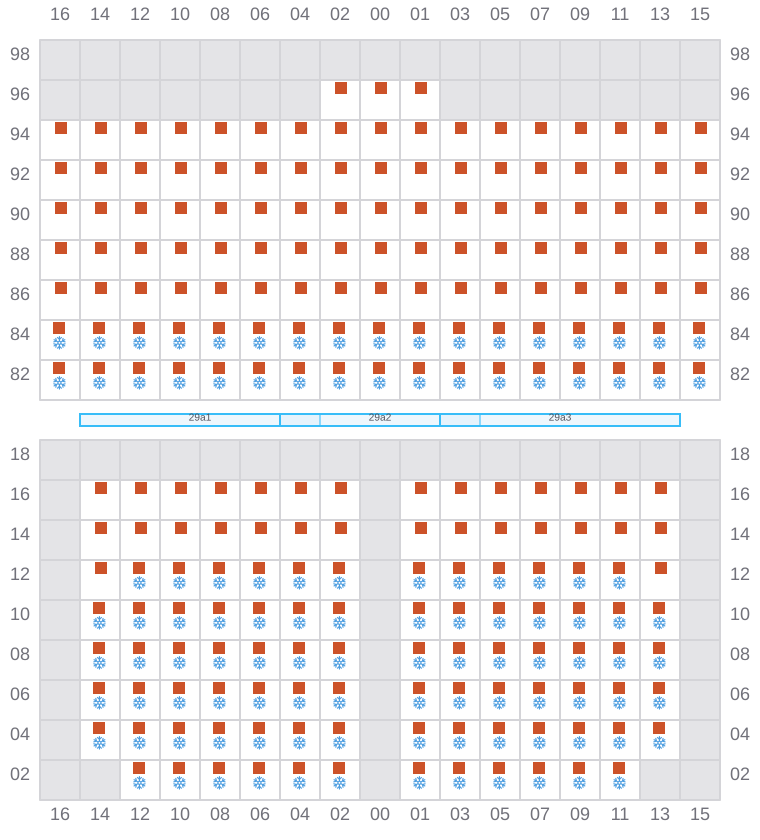

Bay 031 view and slots of CLEMENTINE MAERSK

033 (034)

  • →

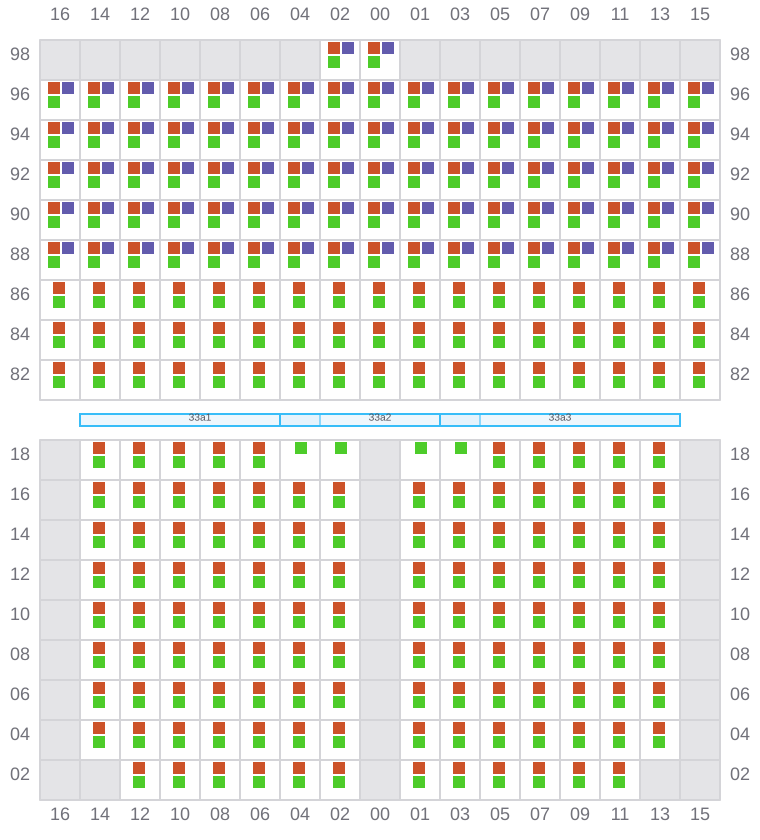

Bay 033 view and slots of CLEMENTINE MAERSK

035

  • ←

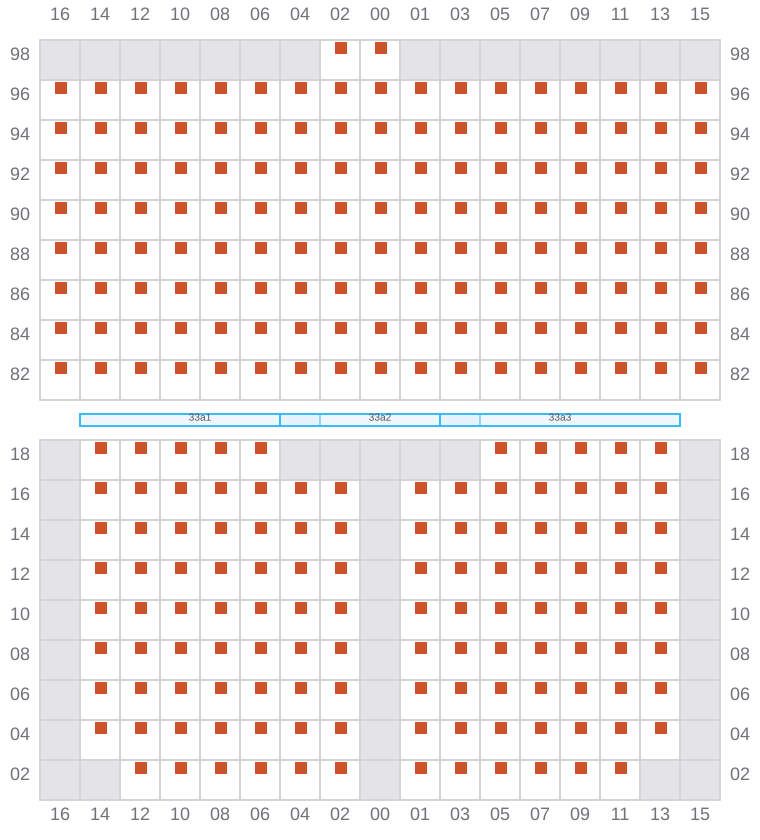

Bay 035 view and slots of CLEMENTINE MAERSK

037 (038)

  • →
  • ? / →

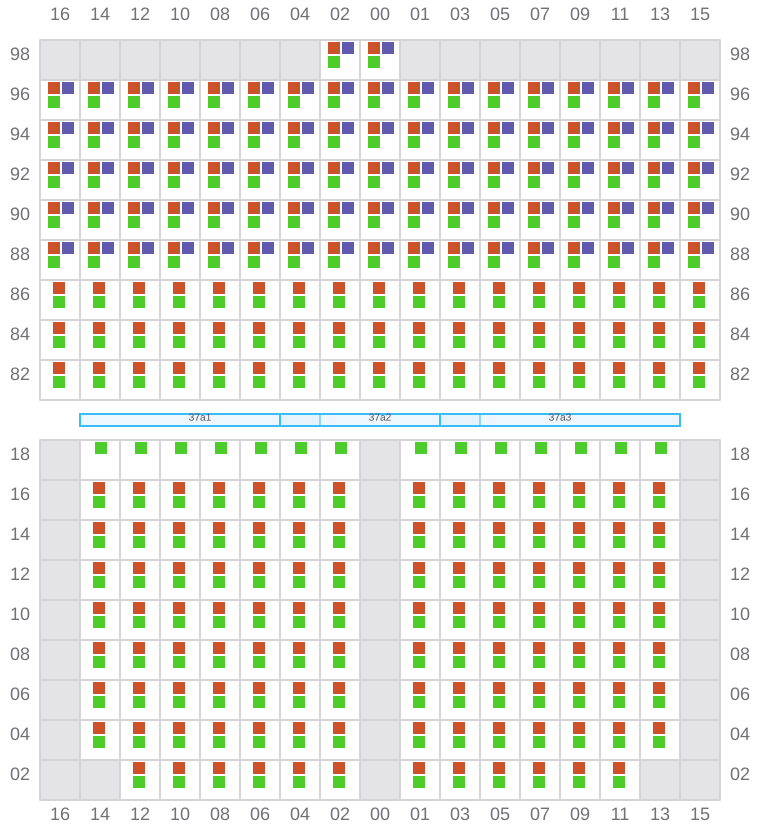

Bay 037 view and slots of CLEMENTINE MAERSK

039

  • ←
  • →

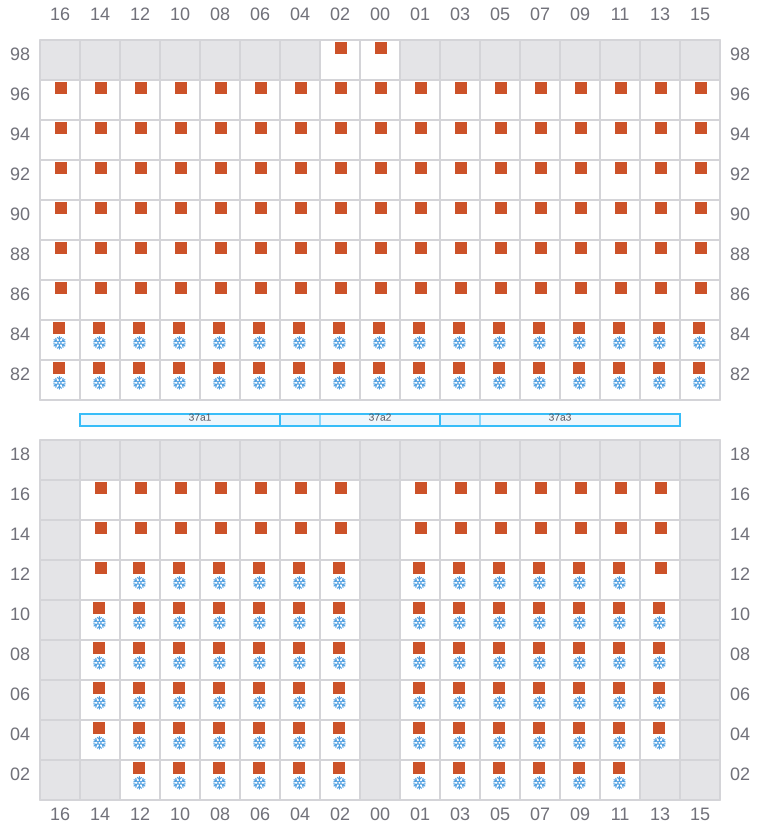

Bay 039 view and slots of CLEMENTINE MAERSK

041 (042)

  • →

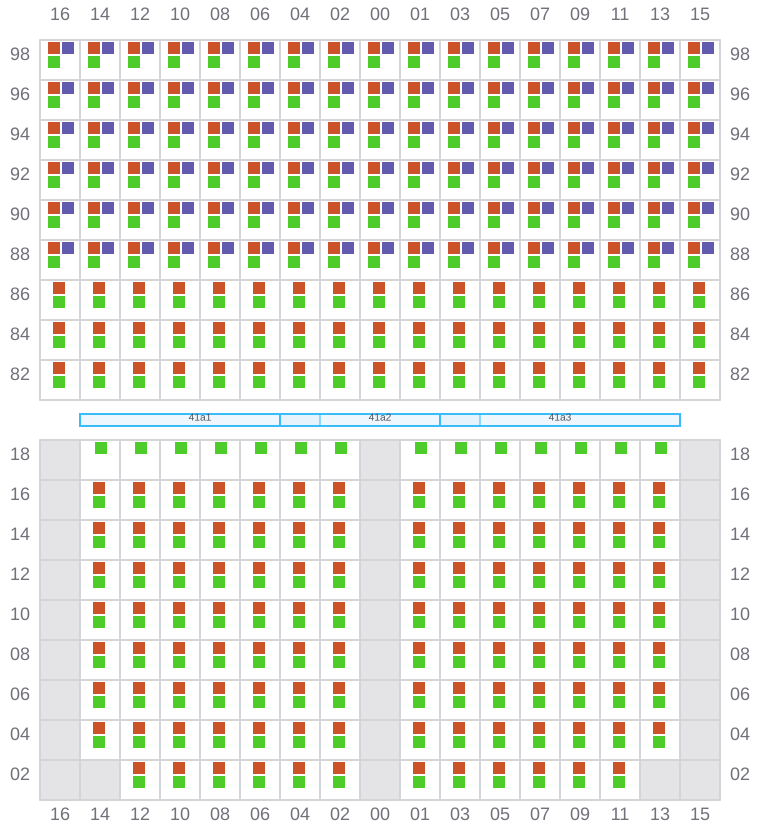

Bay 041 view and slots of CLEMENTINE MAERSK

043

  • ←

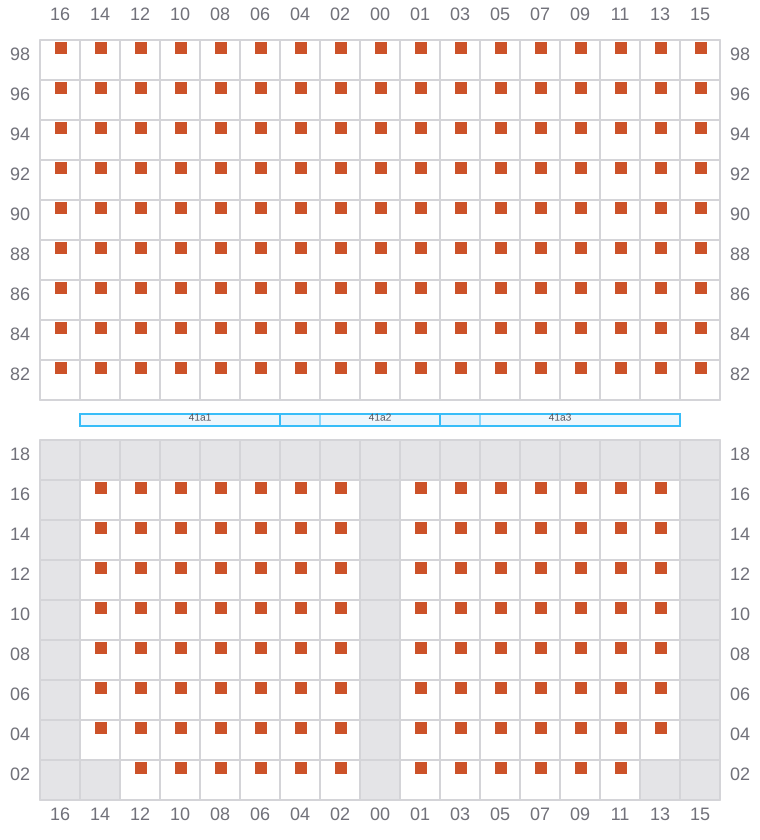

Bay 043 view and slots of CLEMENTINE MAERSK

045 (046)

  • →
  • ? / →
Bay 045 view and slots of CLEMENTINE MAERSK

047

  • ←
  • →
Bay 047 view and slots of CLEMENTINE MAERSK

049 (050)

  • →

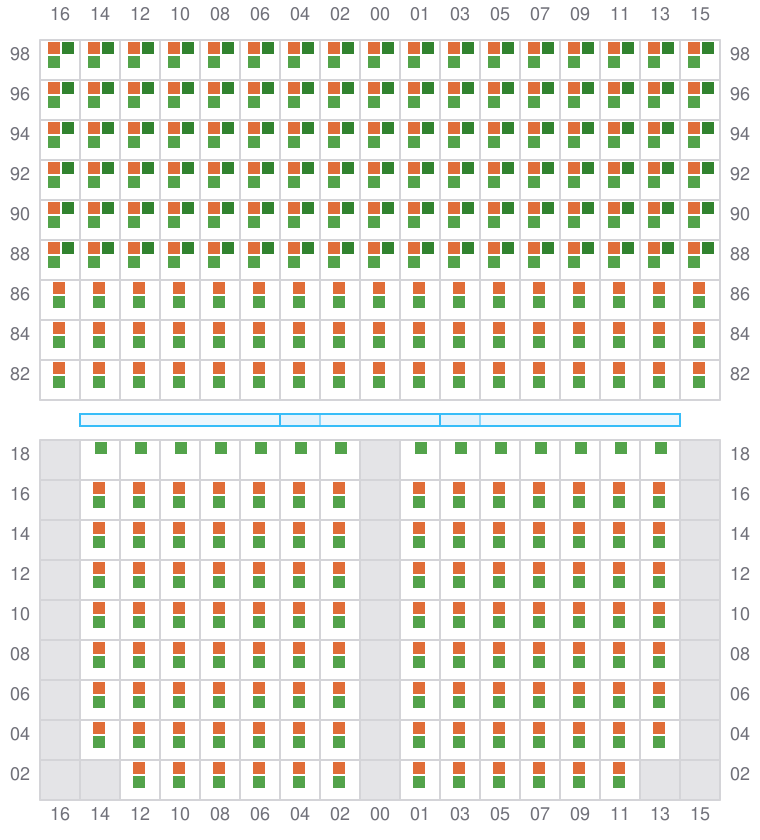

Bay 049 view and slots of CLEMENTINE MAERSK

051

  • ←
  • → / ?

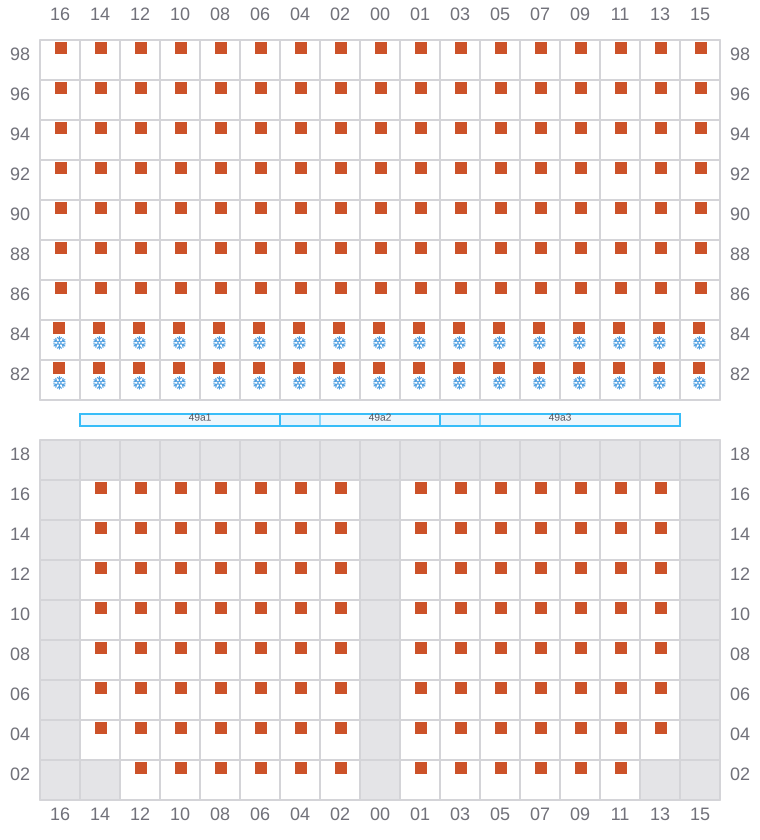

Bay 051 view and slots of CLEMENTINE MAERSK

053 (054)

  • →
  • ? / →

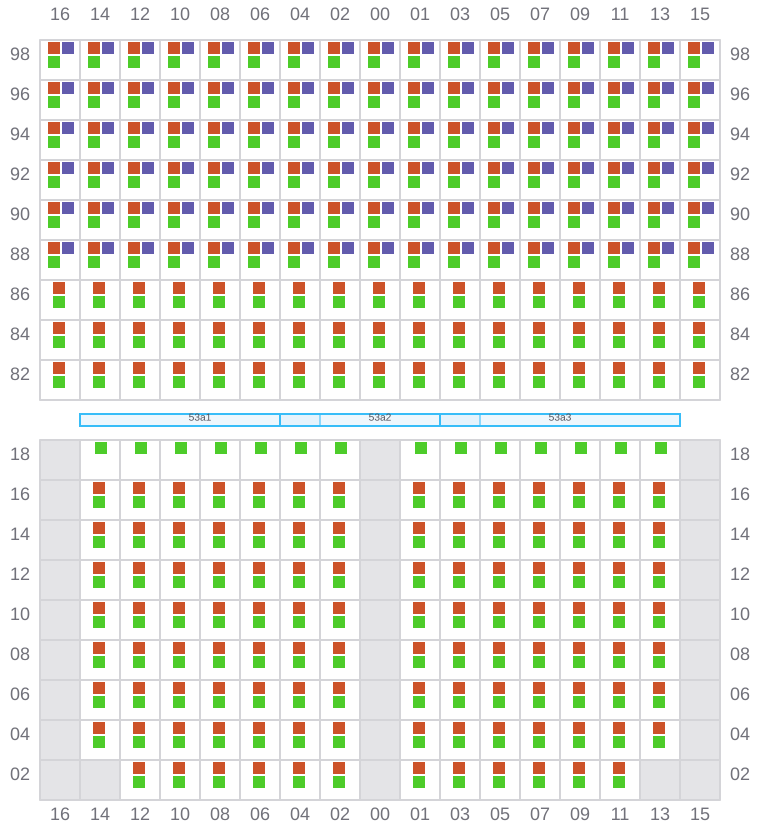

Bay 053 view and slots of CLEMENTINE MAERSK

055

  • ←
  • →

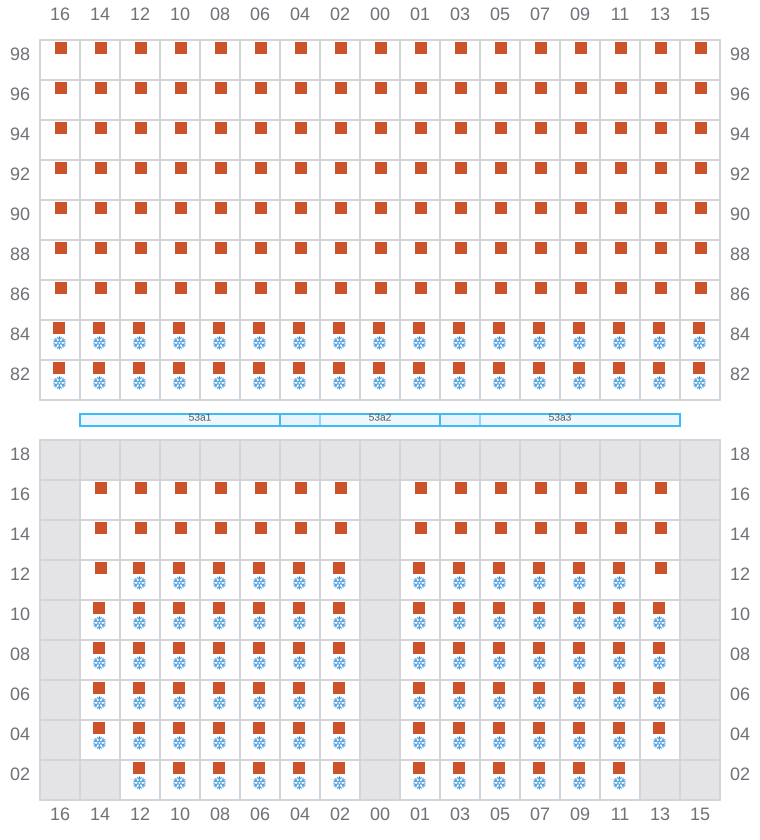

Bay 055 view and slots of CLEMENTINE MAERSK

057 (058)

  • →
  • → / ?

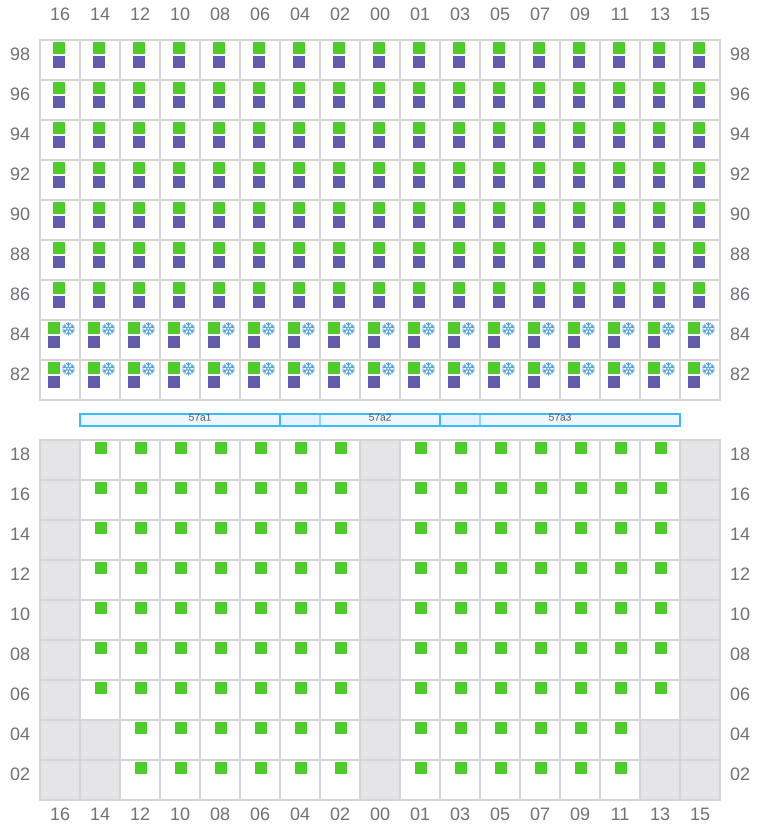

Bay 057 view and slots of CLEMENTINE MAERSK

059

Bay 059 view and slots of CLEMENTINE MAERSK

061 (062)

  • →
  • ← / ?

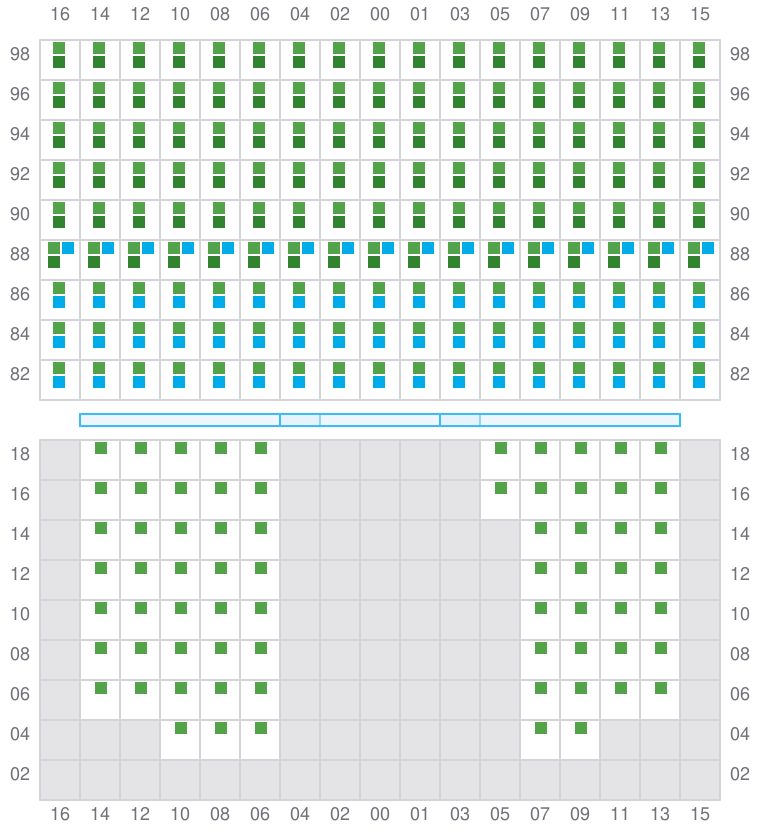

Bay 061 view and slots of CLEMENTINE MAERSK

063

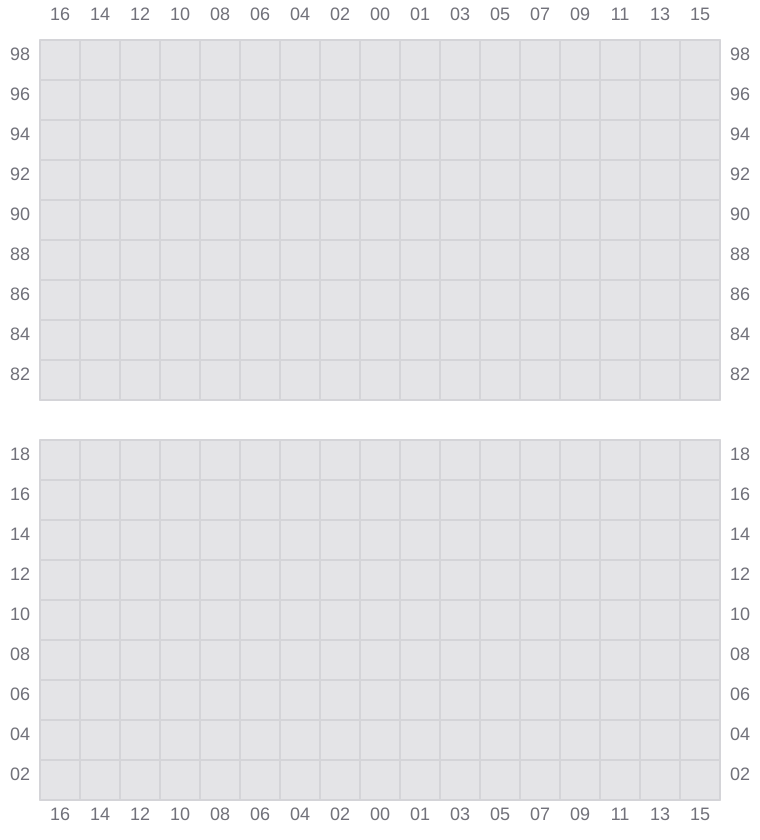

Bay 063 view and slots of CLEMENTINE MAERSK

065 (066)

  • →
  • ← / →

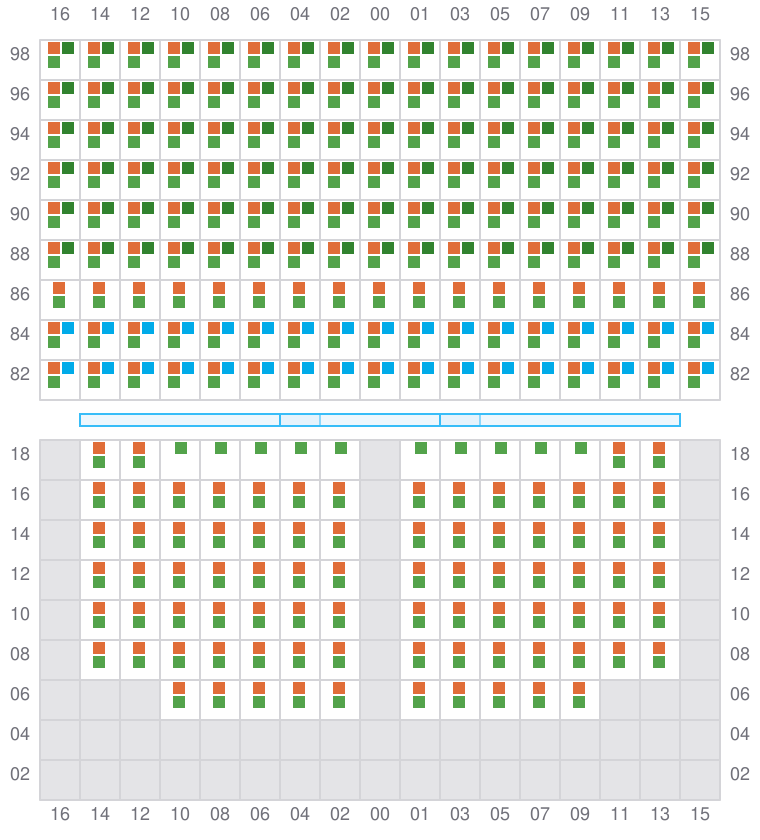

Bay 065 view and slots of CLEMENTINE MAERSK

067

  • ←
  • ? / →

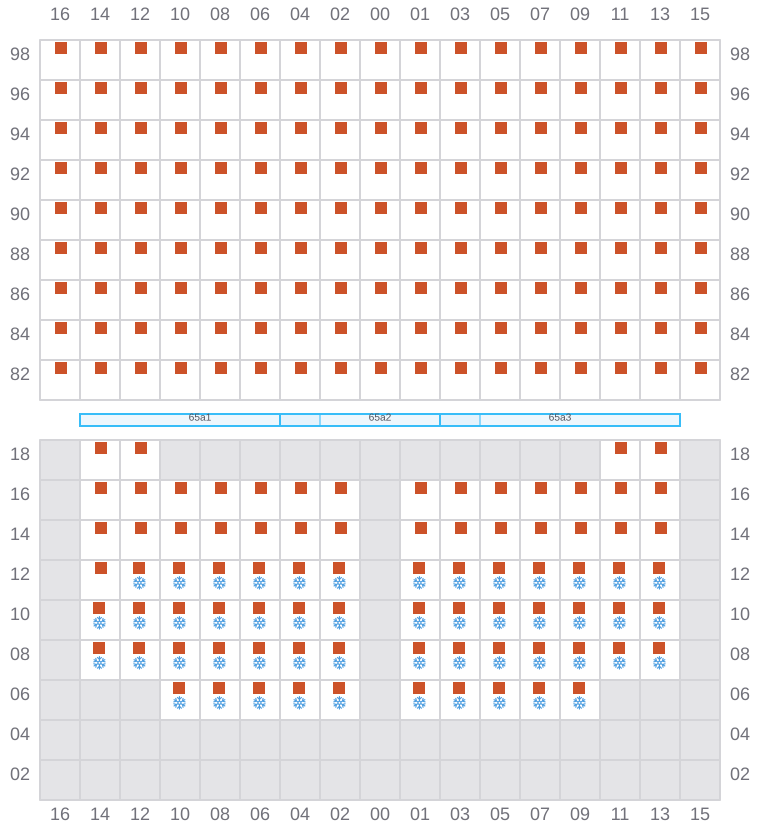

Bay 067 view and slots of CLEMENTINE MAERSK

069 (070)

  • →
  • ← / ?

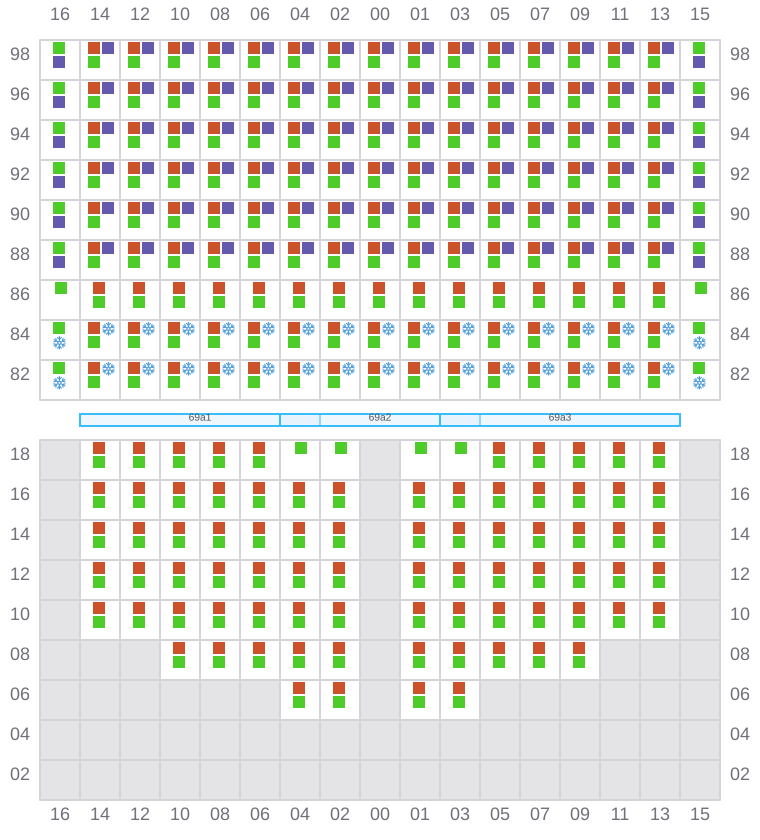

Bay 069 view and slots of CLEMENTINE MAERSK

071

  • ←
Bay 071 view and slots of CLEMENTINE MAERSK

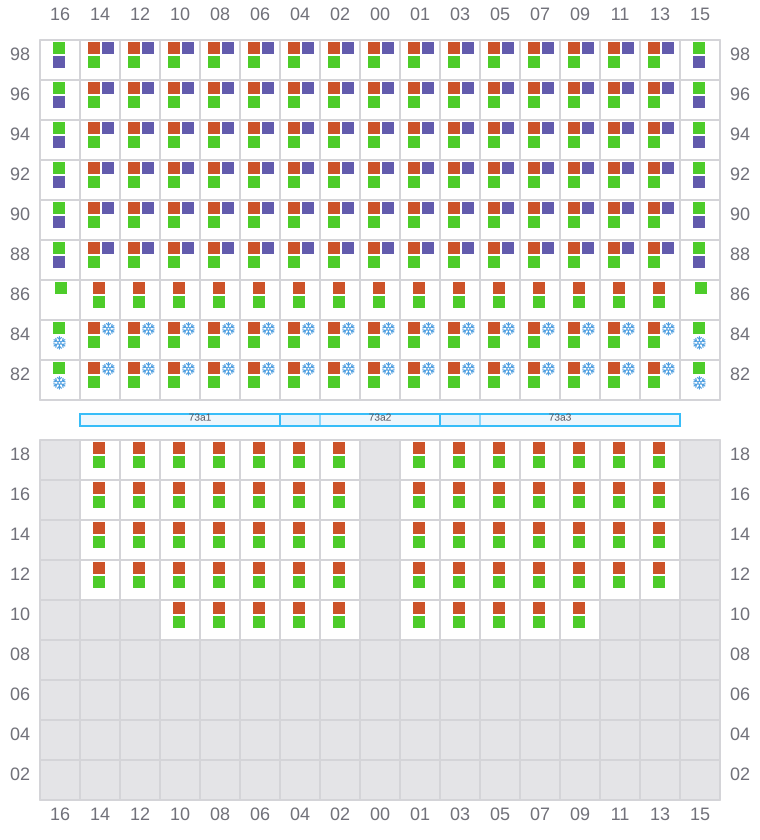

073 (074)

  • →
  • ← / ?
Bay 073 view and slots of CLEMENTINE MAERSK

075

  • ←

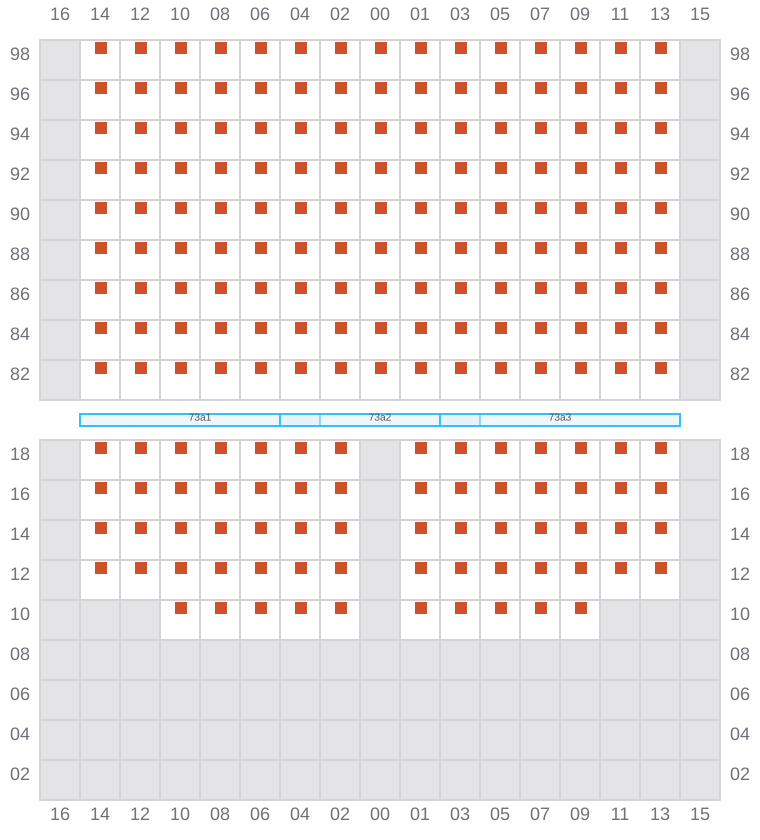

Bay 075 view and slots of CLEMENTINE MAERSK

077 (078)

  • →
  • ← / ?

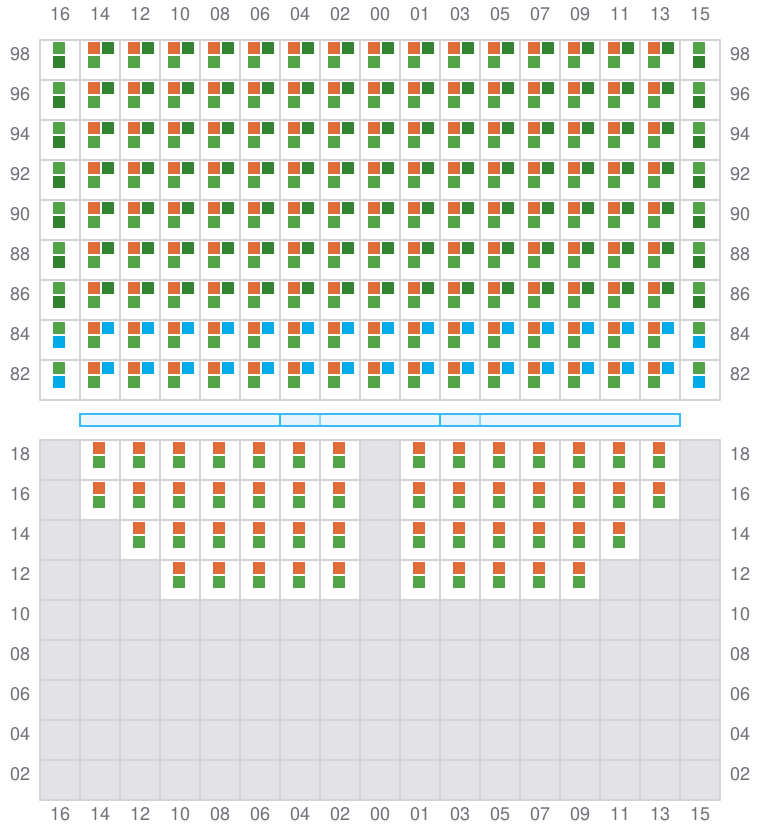

Bay 077 view and slots of CLEMENTINE MAERSK

079

  • ←

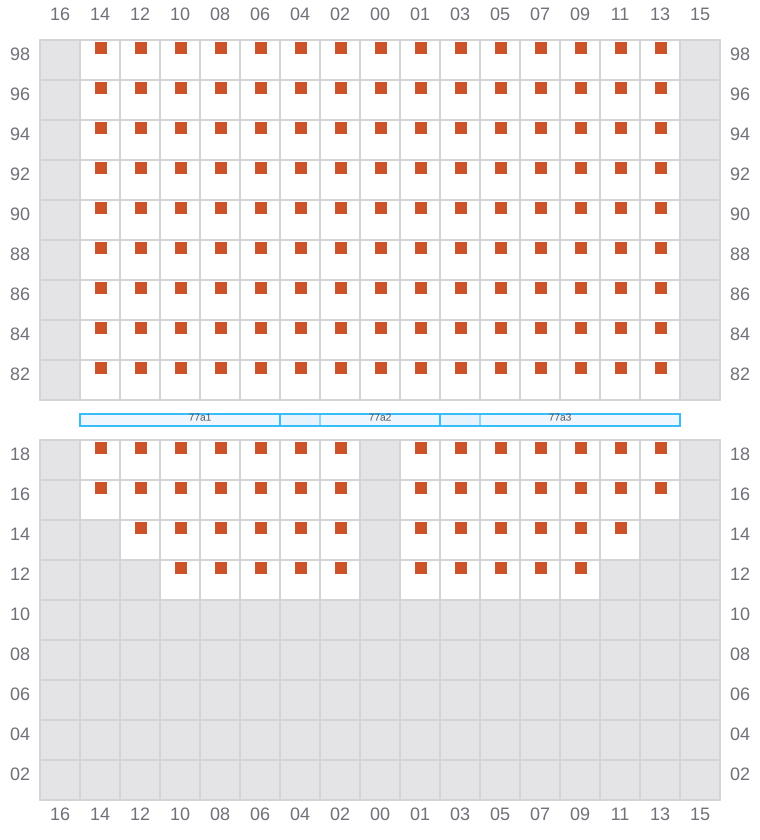

Bay 079 view and slots of CLEMENTINE MAERSK

081 (082)

  • → / ?
Bay 081 view and slots of CLEMENTINE MAERSK
