CLIFFORD MAERSK
9198575 | OYRO2 | 9198575 by ********* Last update: Mon Mar 11 2024

General Info

Ship Name:CLIFFORD MAERSK
IMO Code:9198575
Call Sign:OYRO2
Line Operator:9198575
Class Name for Sister Ships:780
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:081
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:9,732

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

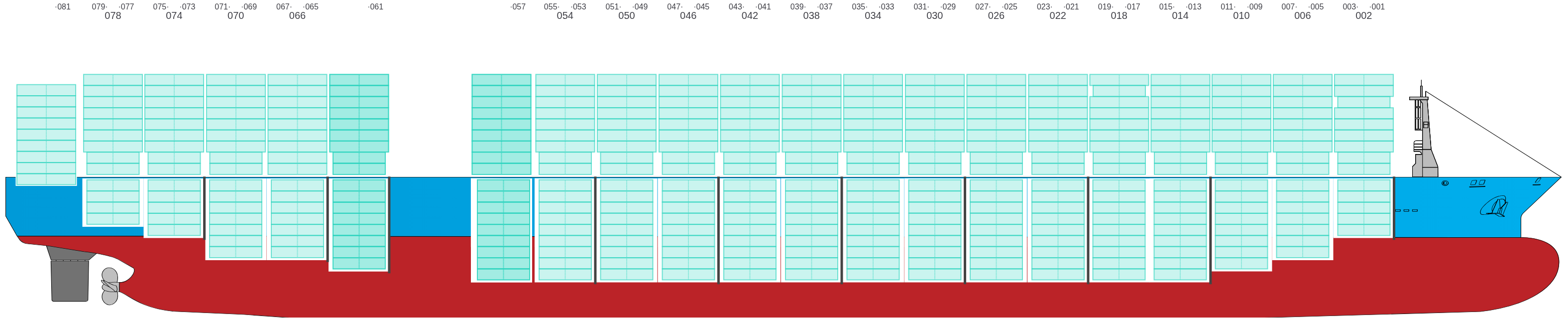

Side View

Side view of CLIFFORD MAERSK

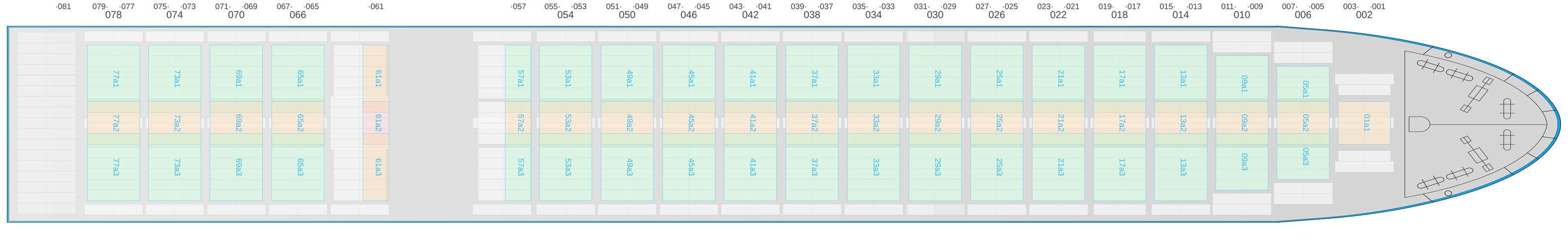

Hatch-Covers View

Deck view of CLIFFORD MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

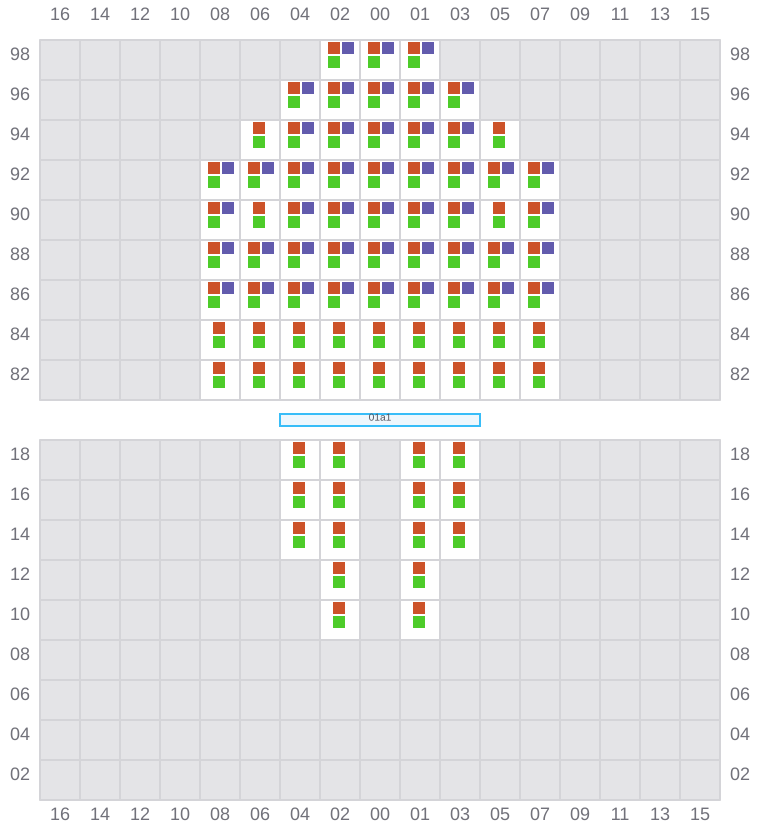

001 (002)

  • →
Bay 001 view and slots of CLIFFORD MAERSK

003

  • ←

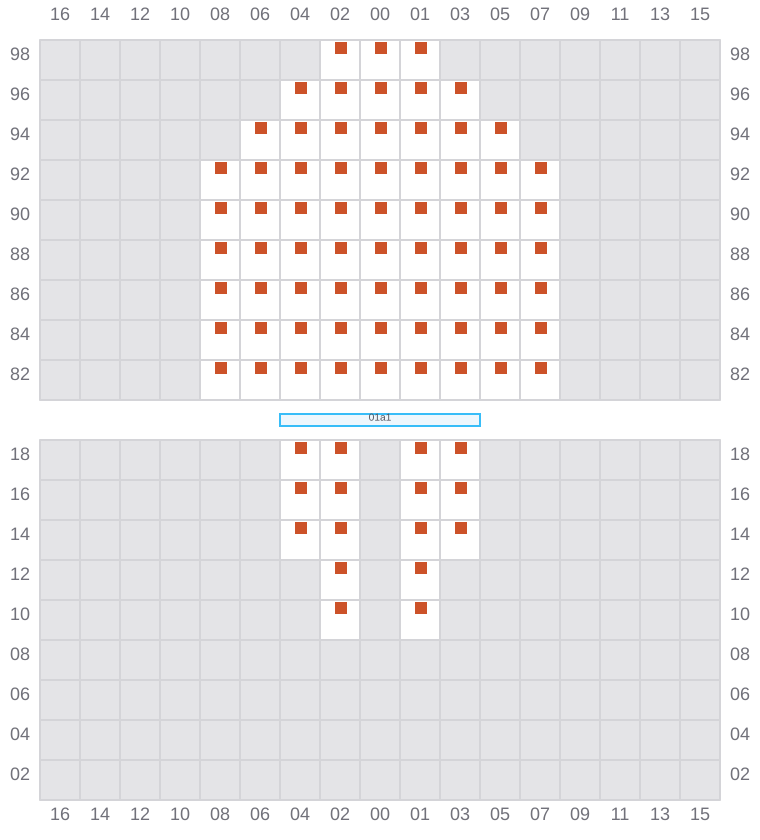

Bay 003 view and slots of CLIFFORD MAERSK

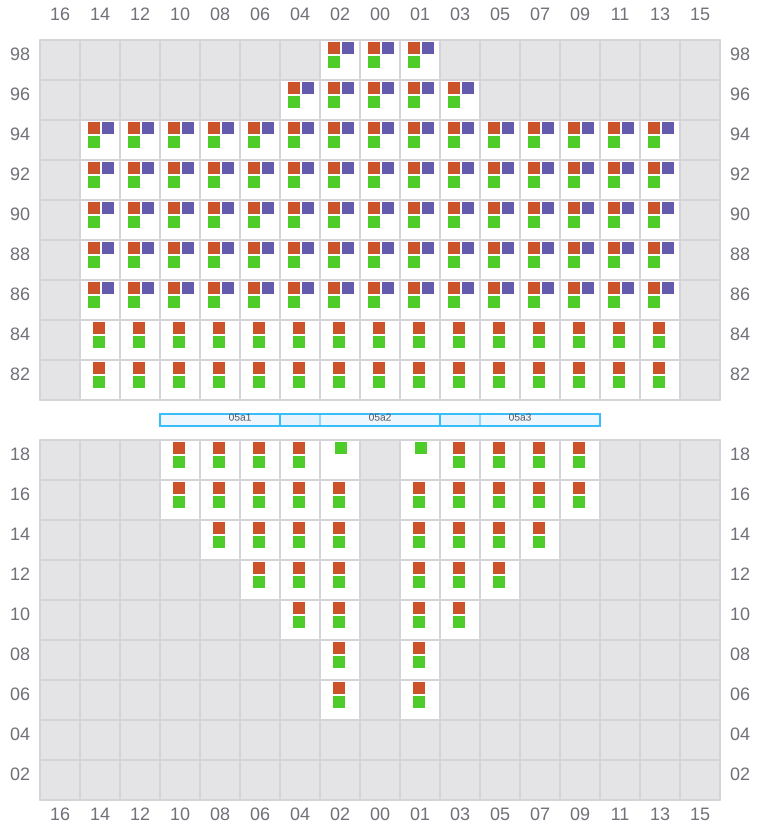

005 (006)

  • →
Bay 005 view and slots of CLIFFORD MAERSK

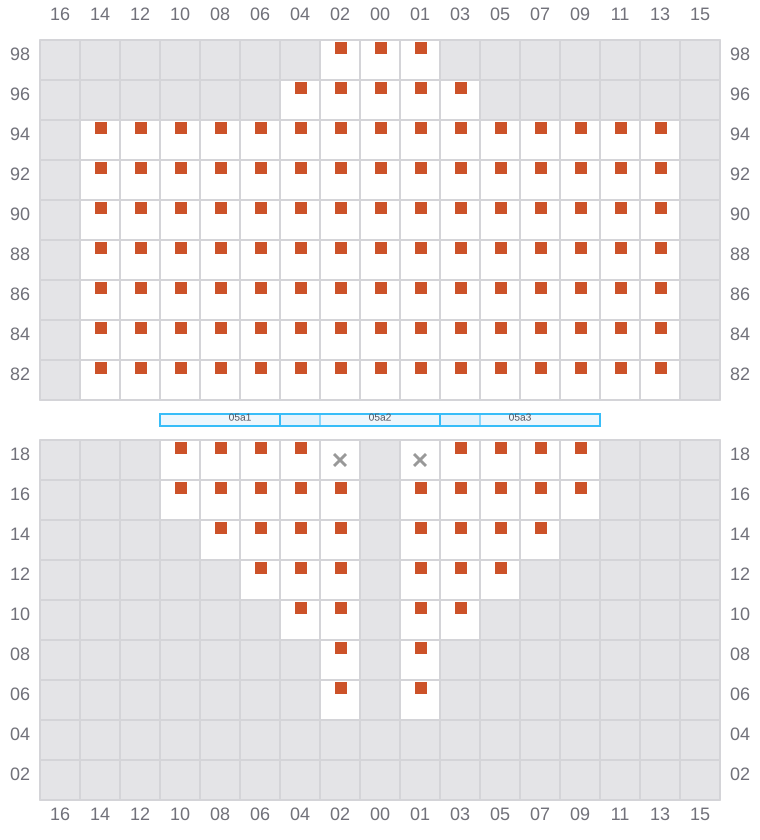

007

  • ←
Bay 007 view and slots of CLIFFORD MAERSK

009 (010)

  • →

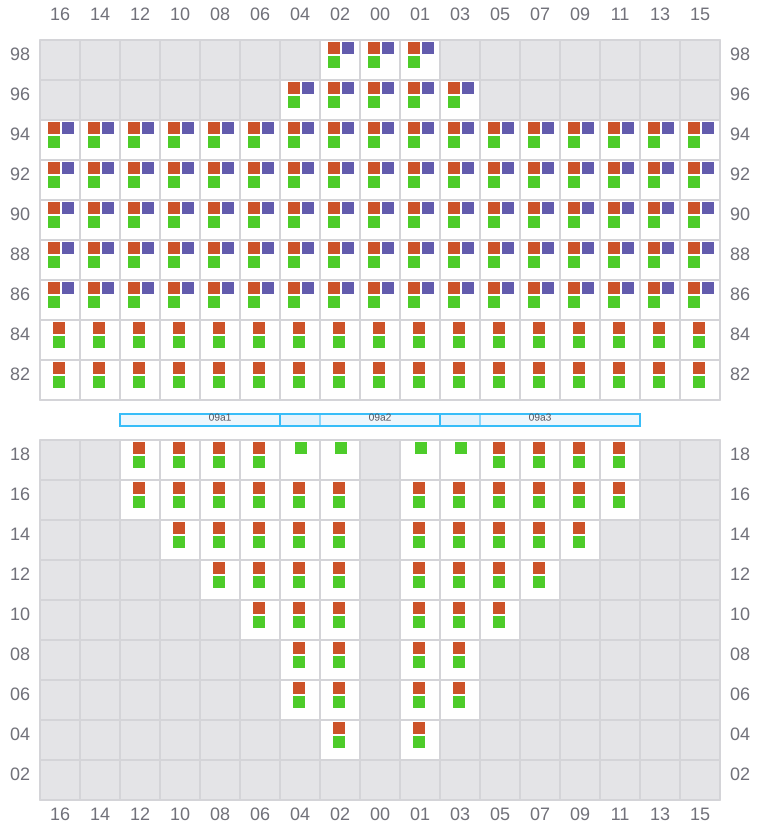

Bay 009 view and slots of CLIFFORD MAERSK

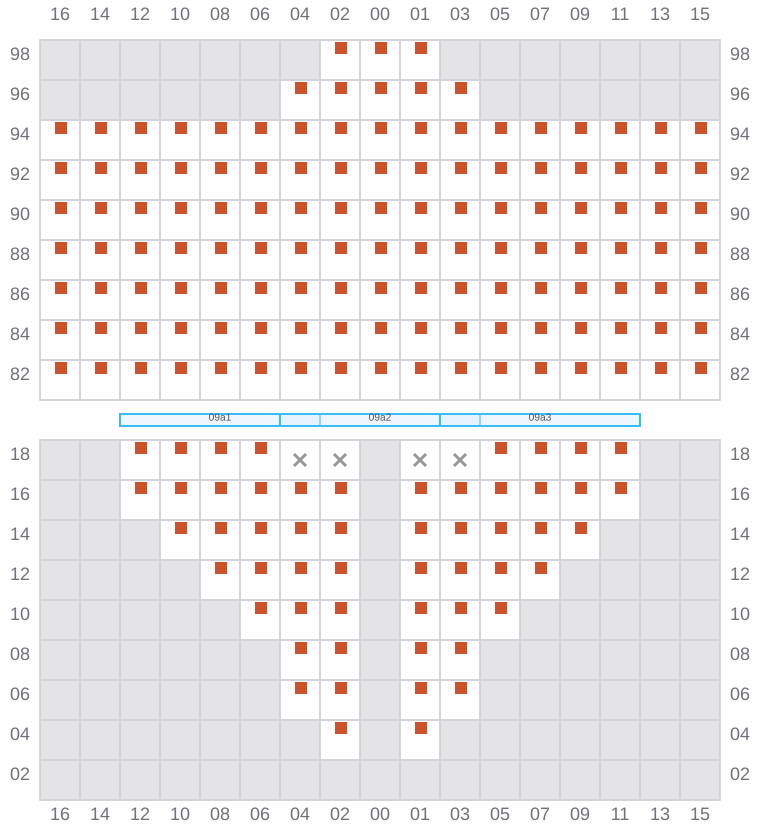

011

  • ←
Bay 011 view and slots of CLIFFORD MAERSK

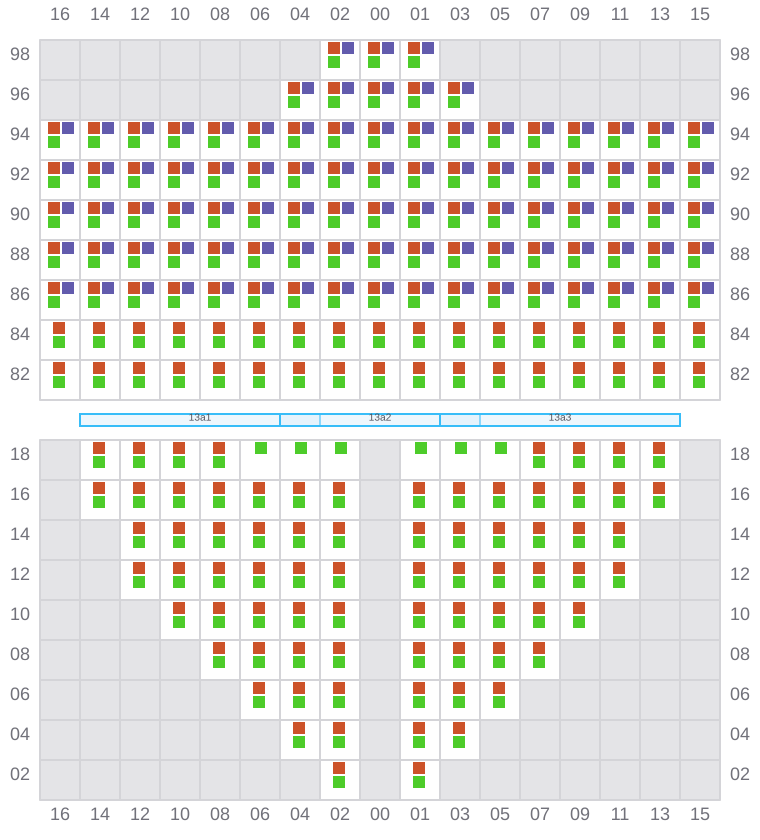

013 (014)

  • →

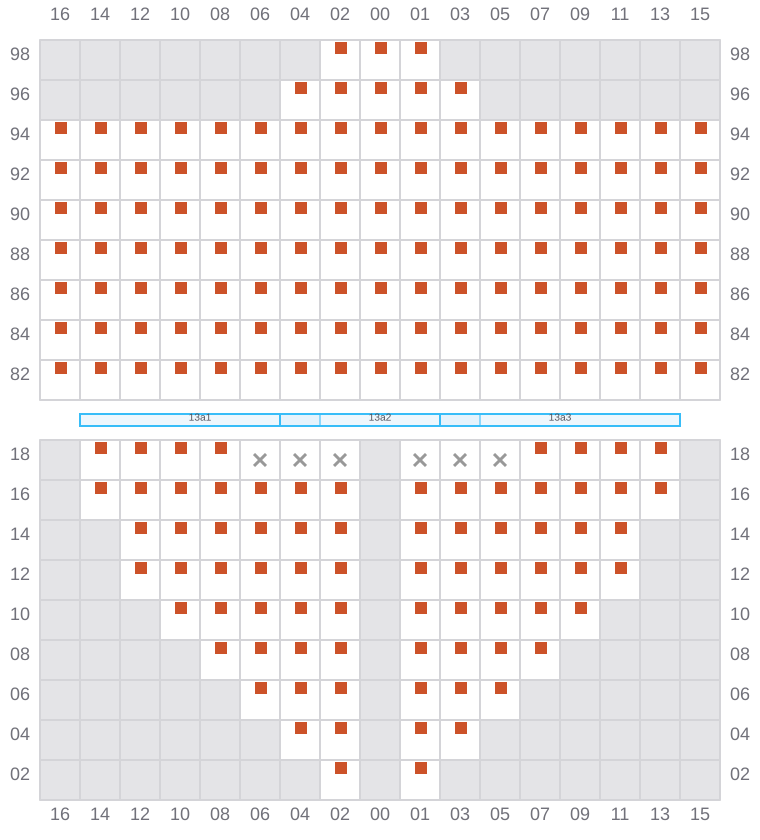

Bay 013 view and slots of CLIFFORD MAERSK

015

  • ←
Bay 015 view and slots of CLIFFORD MAERSK

017 (018)

  • →
Bay 017 view and slots of CLIFFORD MAERSK

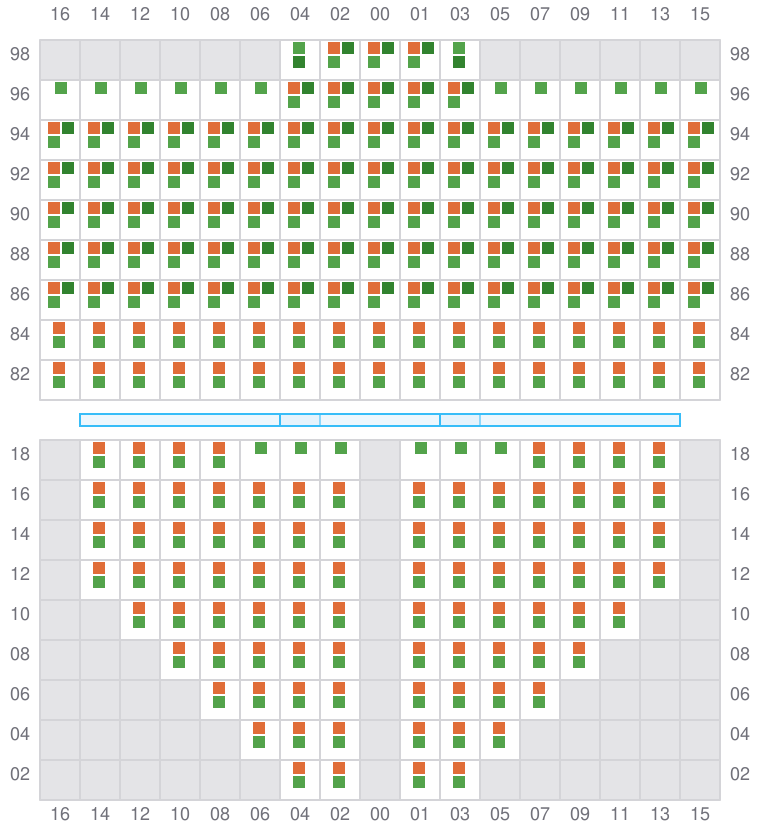

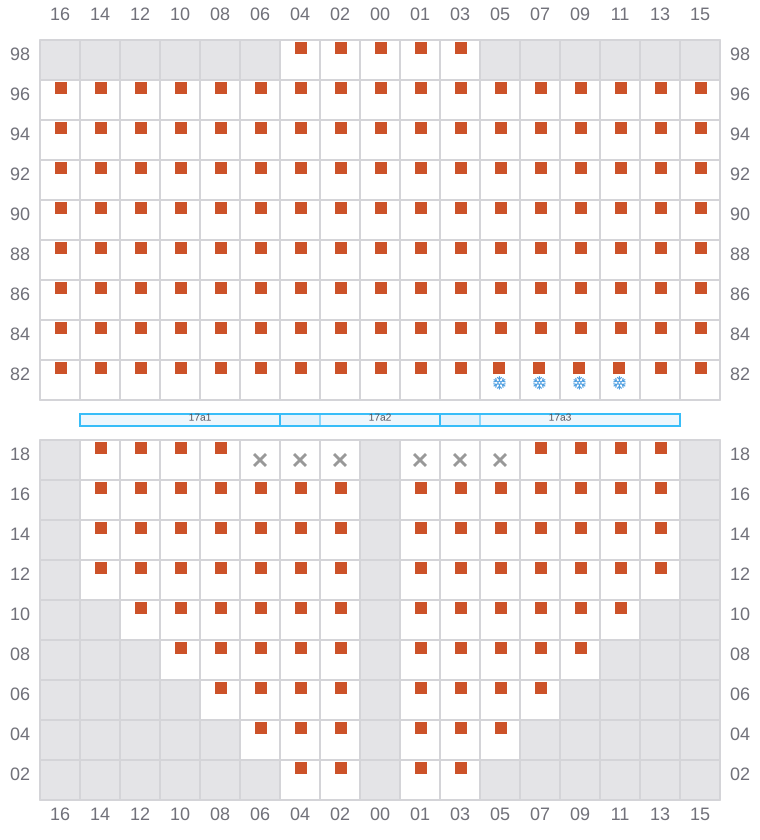

019

  • ←
  • → / ?
Bay 019 view and slots of CLIFFORD MAERSK

021 (022)

  • →

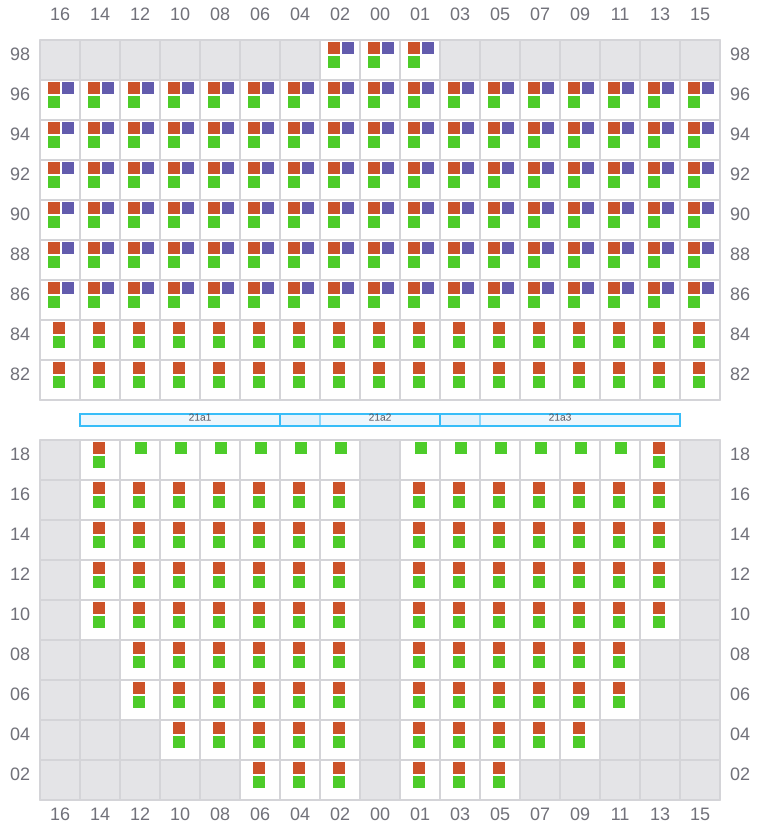

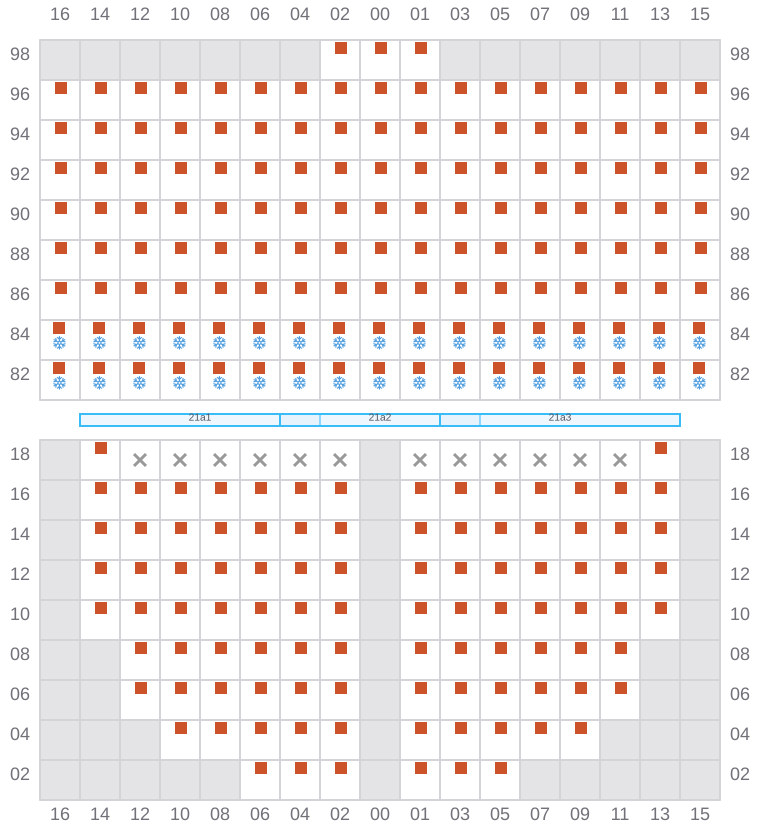

Bay 021 view and slots of CLIFFORD MAERSK

023

  • ←
  • → / ?
Bay 023 view and slots of CLIFFORD MAERSK

025 (026)

  • →

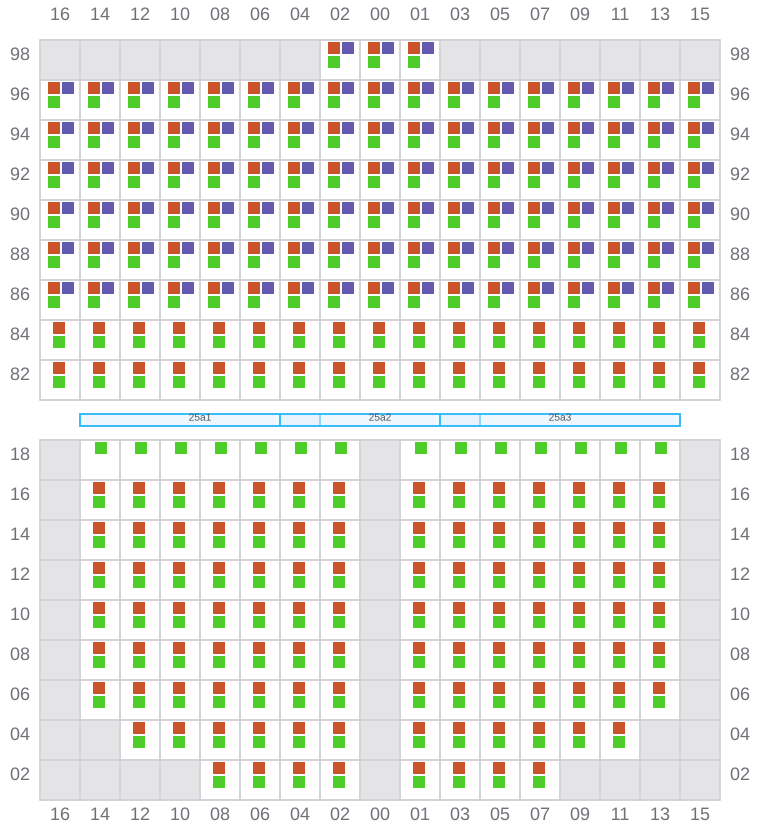

Bay 025 view and slots of CLIFFORD MAERSK

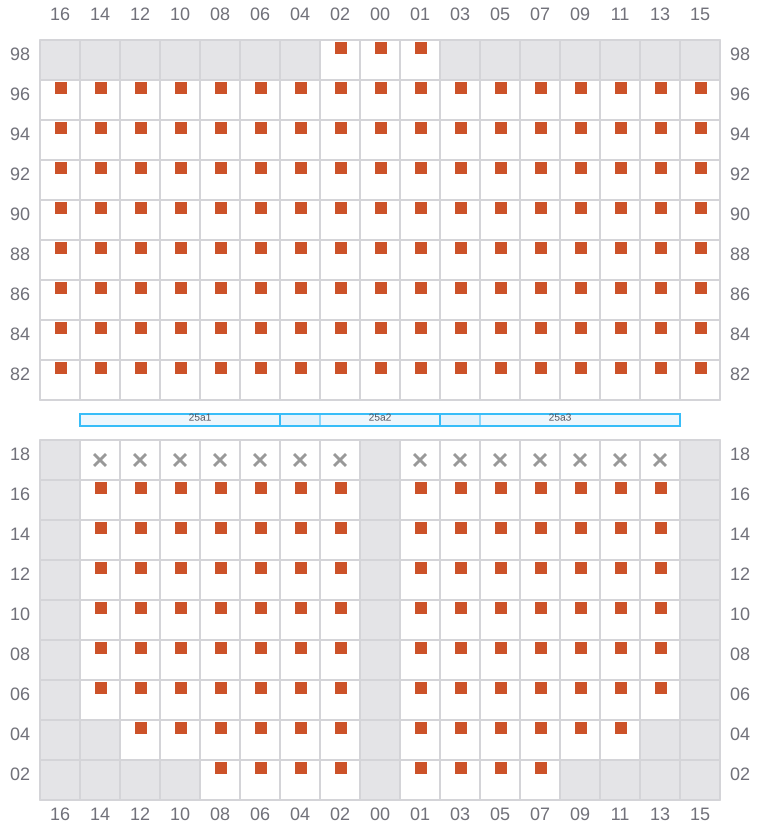

027

  • ←
Bay 027 view and slots of CLIFFORD MAERSK

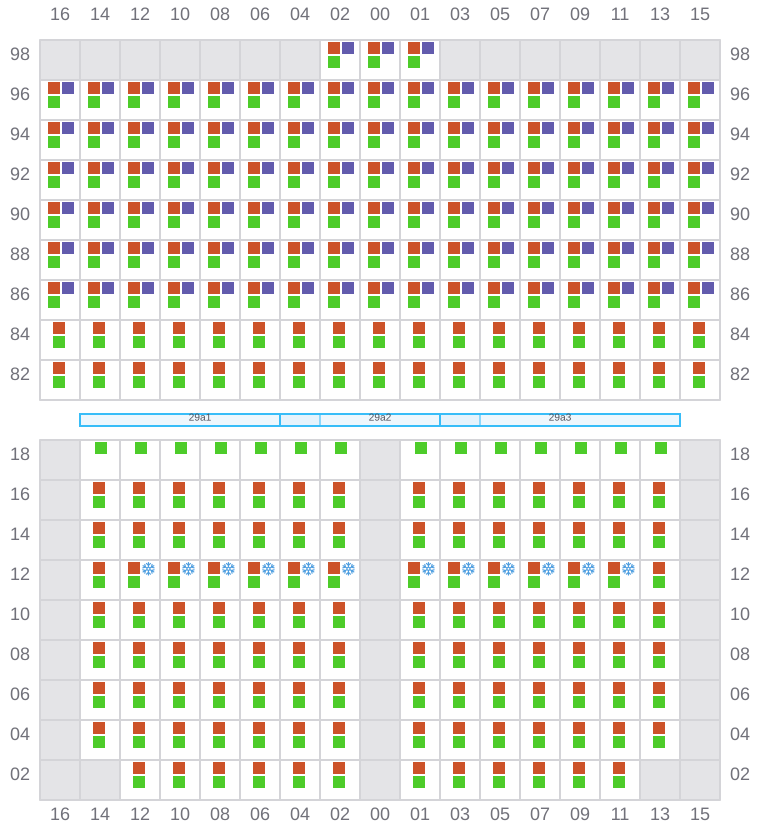

029 (030)

  • →
  • ? / →
Bay 029 view and slots of CLIFFORD MAERSK

031

  • ←
  • →
Bay 031 view and slots of CLIFFORD MAERSK

033 (034)

  • →

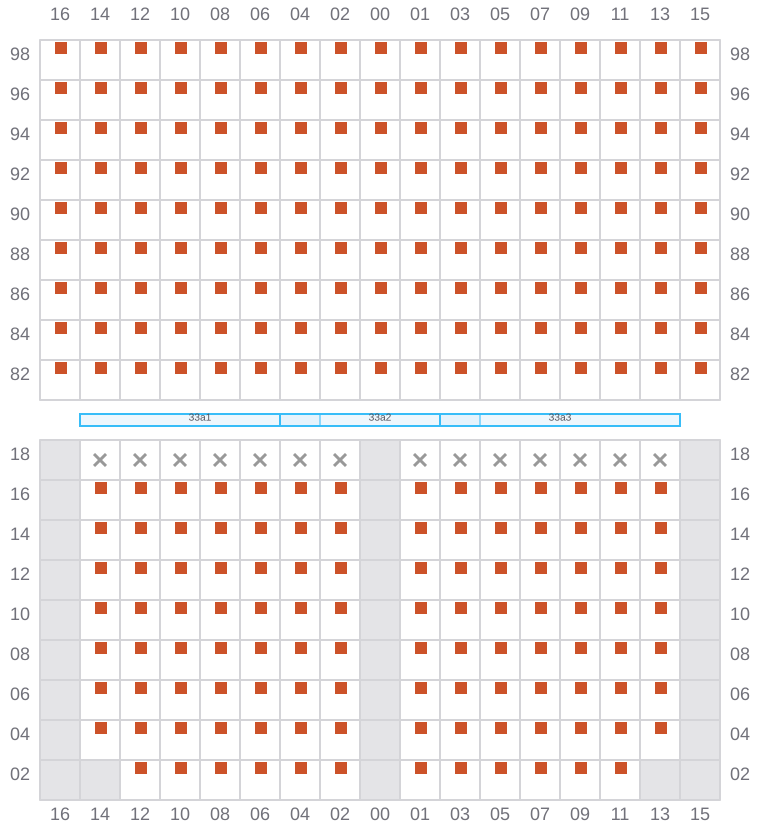

Bay 033 view and slots of CLIFFORD MAERSK

035

  • ←
Bay 035 view and slots of CLIFFORD MAERSK

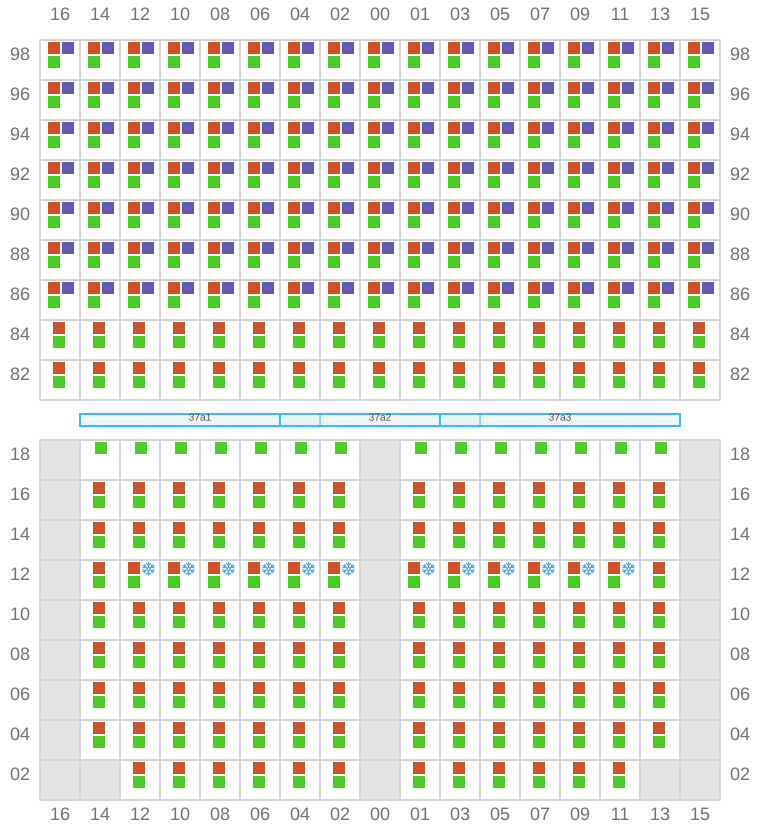

037 (038)

  • →
  • ? / →

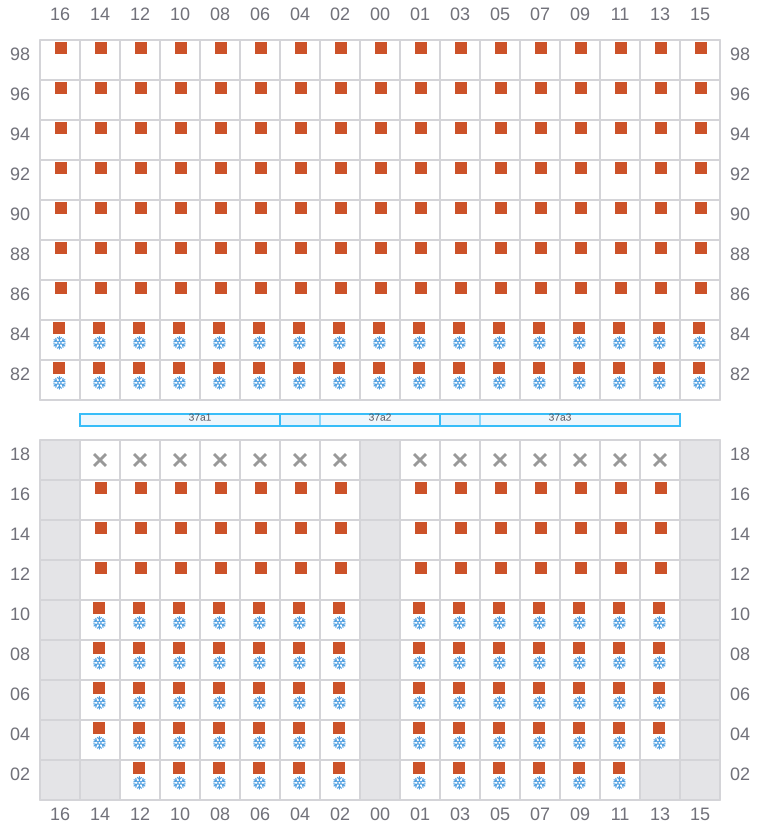

Bay 037 view and slots of CLIFFORD MAERSK

039

  • ←
  • →
Bay 039 view and slots of CLIFFORD MAERSK

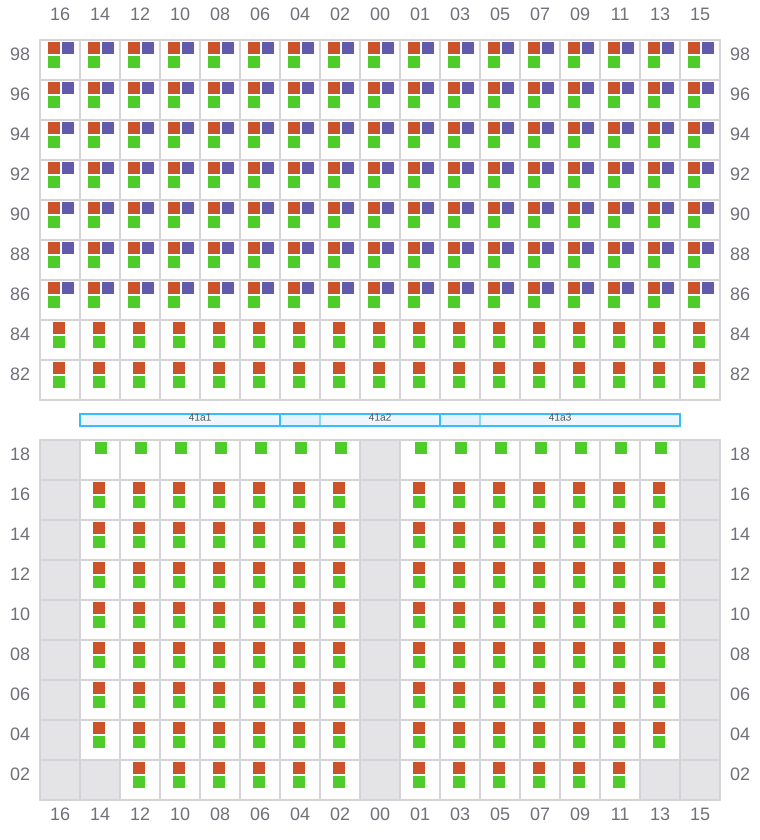

041 (042)

  • →
Bay 041 view and slots of CLIFFORD MAERSK

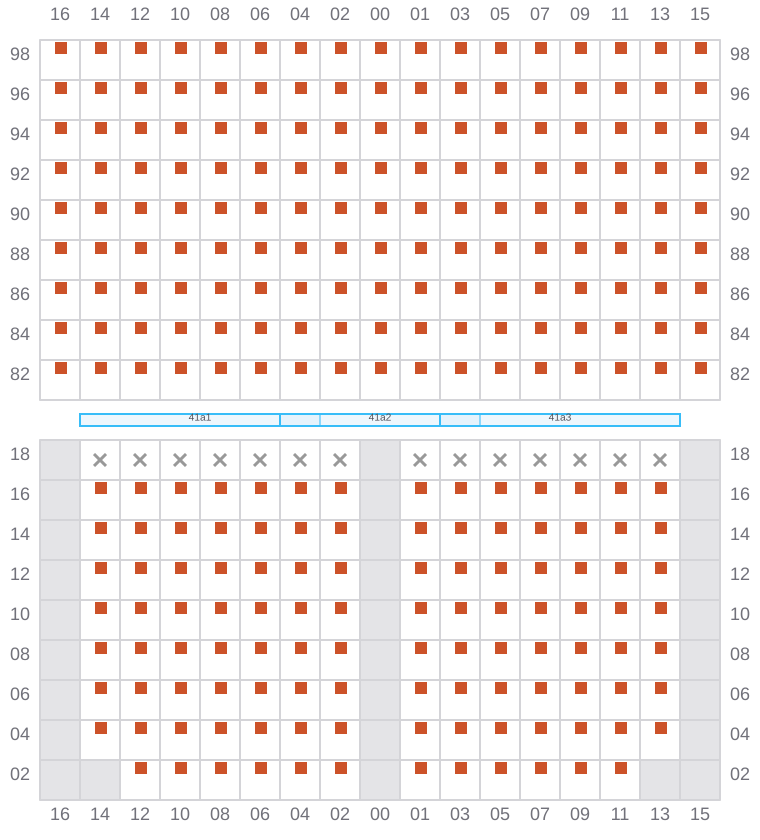

043

  • ←
Bay 043 view and slots of CLIFFORD MAERSK

045 (046)

  • →
  • ? / →

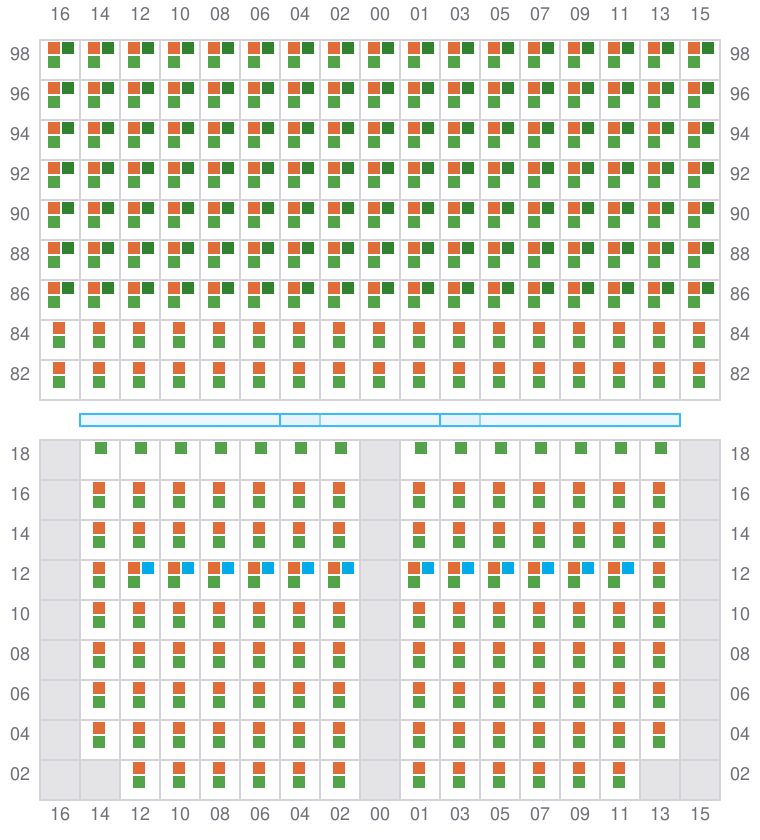

Bay 045 view and slots of CLIFFORD MAERSK

047

  • ←
  • →

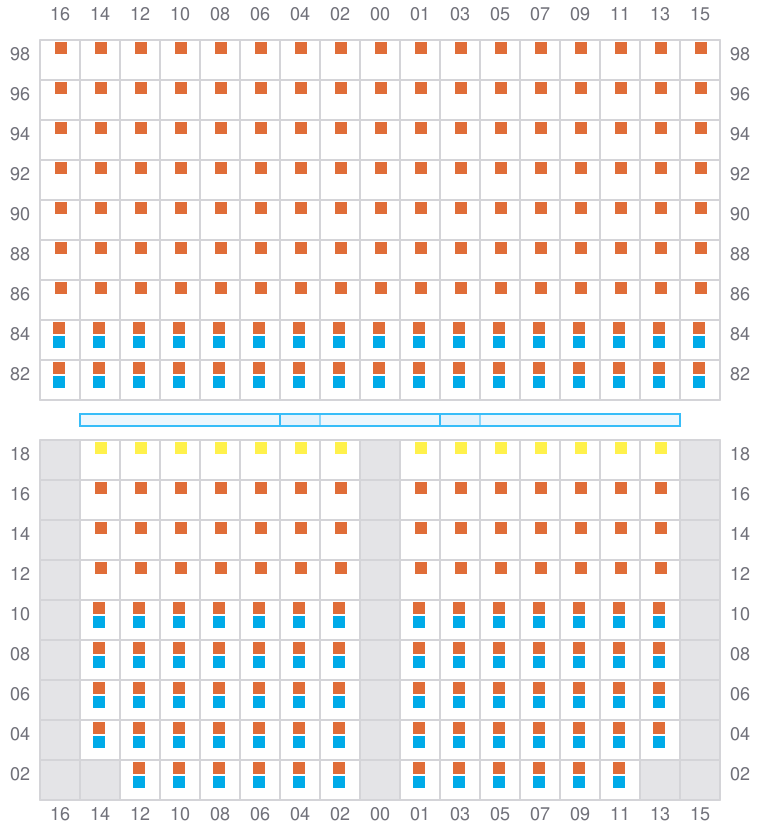

Bay 047 view and slots of CLIFFORD MAERSK

049 (050)

  • →
Bay 049 view and slots of CLIFFORD MAERSK

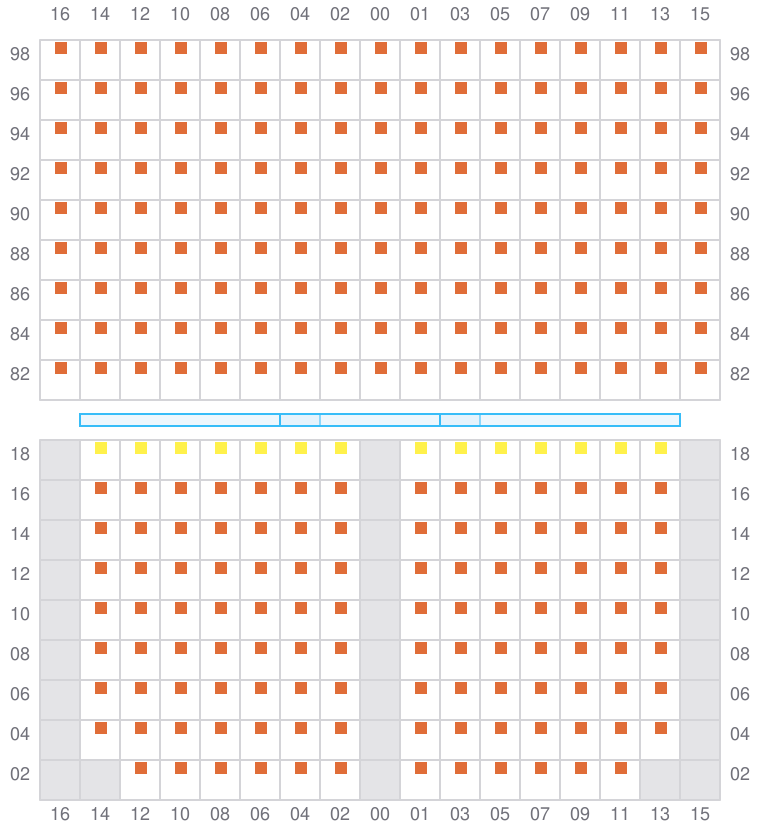

051

  • ←
Bay 051 view and slots of CLIFFORD MAERSK

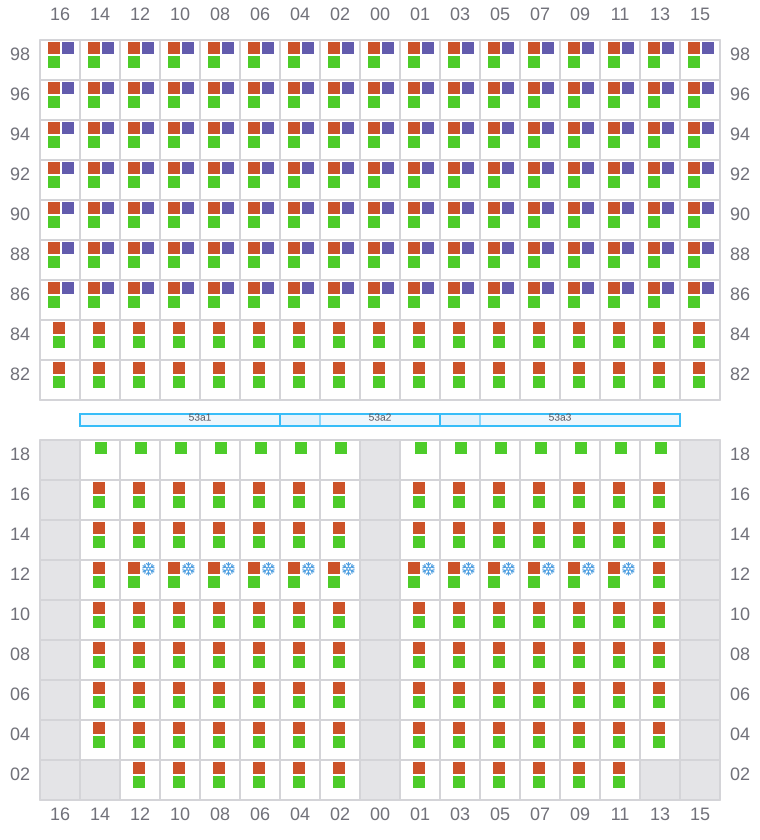

053 (054)

  • →
  • ? / →

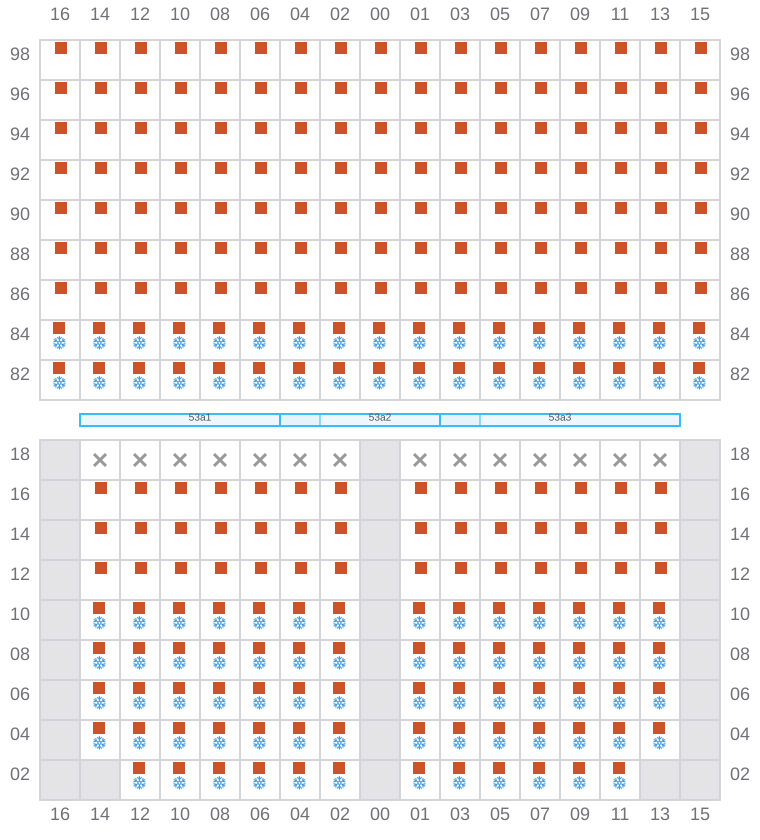

Bay 053 view and slots of CLIFFORD MAERSK

055

  • ←
  • →
Bay 055 view and slots of CLIFFORD MAERSK

057 (058)

  • →
  • → / ?

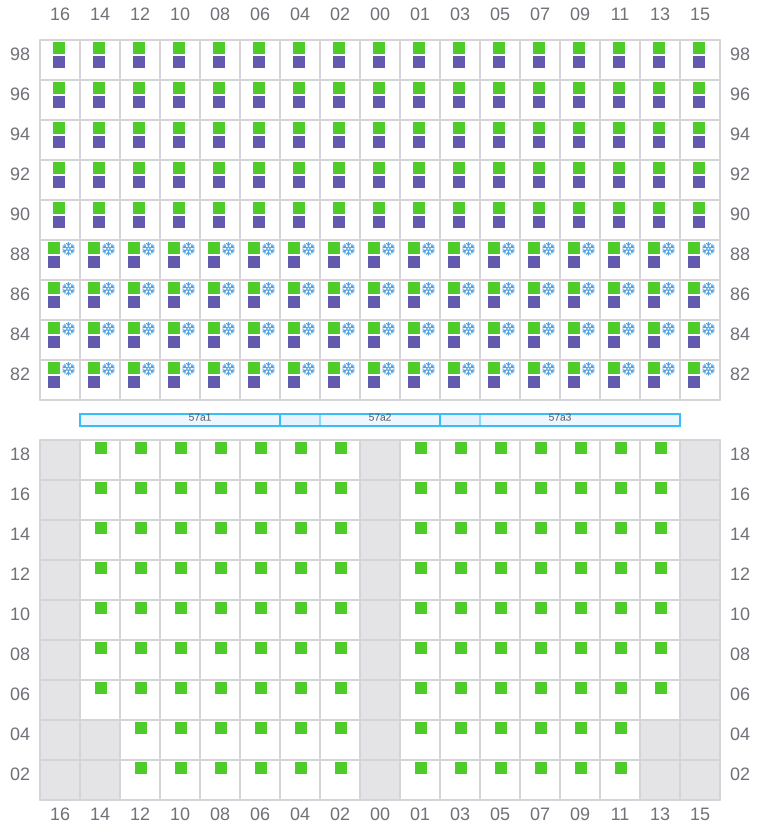

Bay 057 view and slots of CLIFFORD MAERSK

059

Bay 059 view and slots of CLIFFORD MAERSK

061 (062)

  • →
  • ← / ?

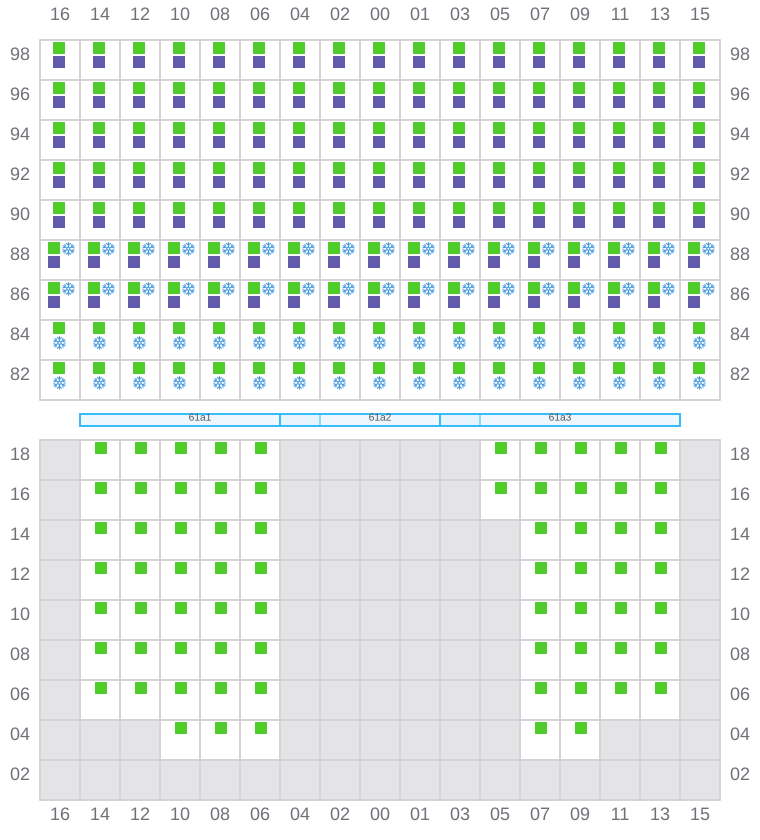

Bay 061 view and slots of CLIFFORD MAERSK

063

Bay 063 view and slots of CLIFFORD MAERSK

065 (066)

  • →
  • ← / →

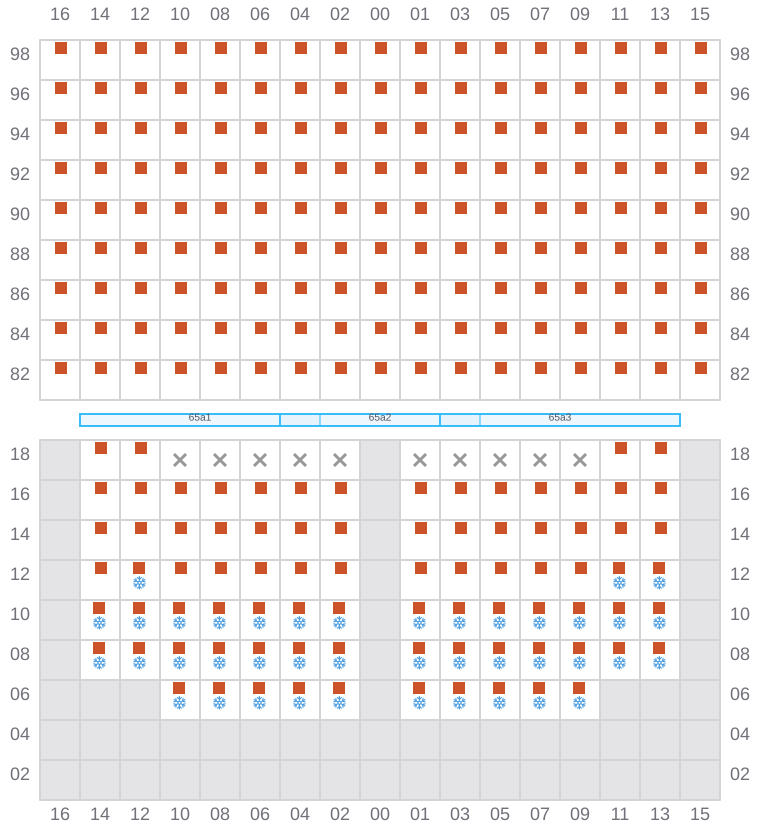

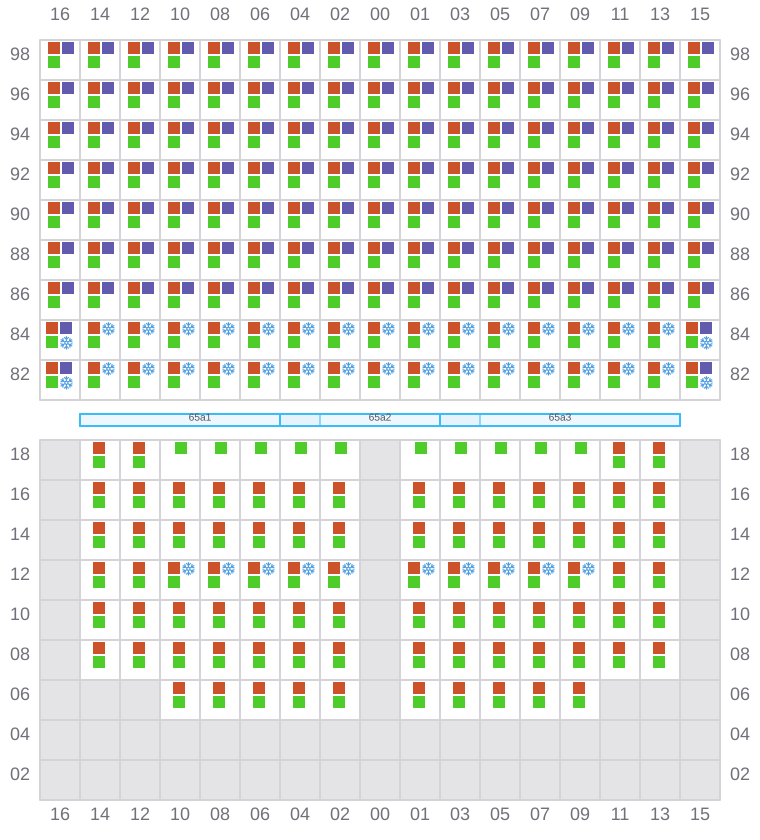

Bay 065 view and slots of CLIFFORD MAERSK

067

  • ←
  • ? / →
Bay 067 view and slots of CLIFFORD MAERSK

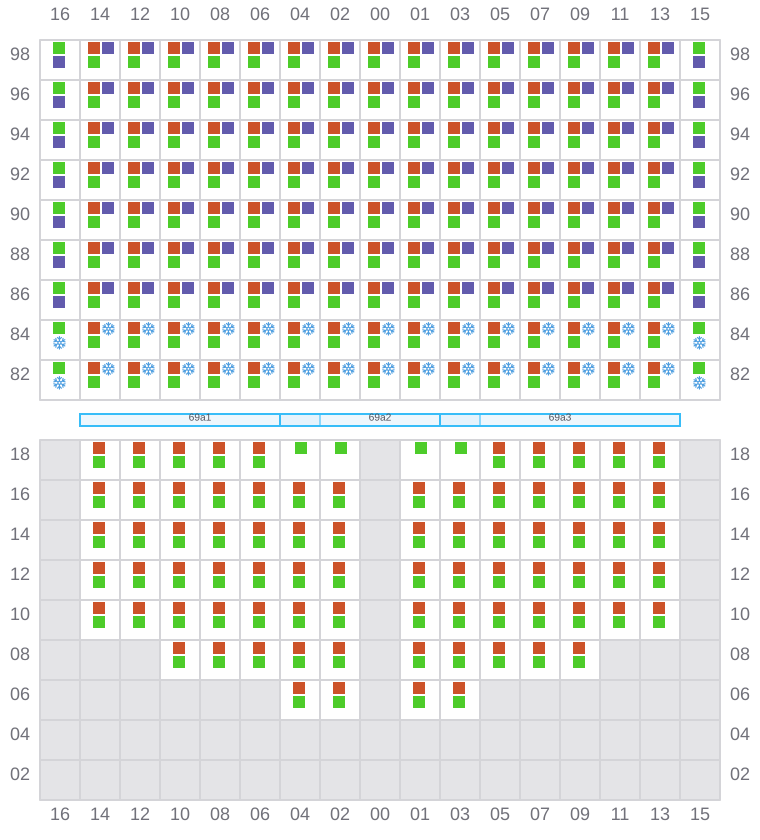

069 (070)

  • →
  • ← / ?
Bay 069 view and slots of CLIFFORD MAERSK

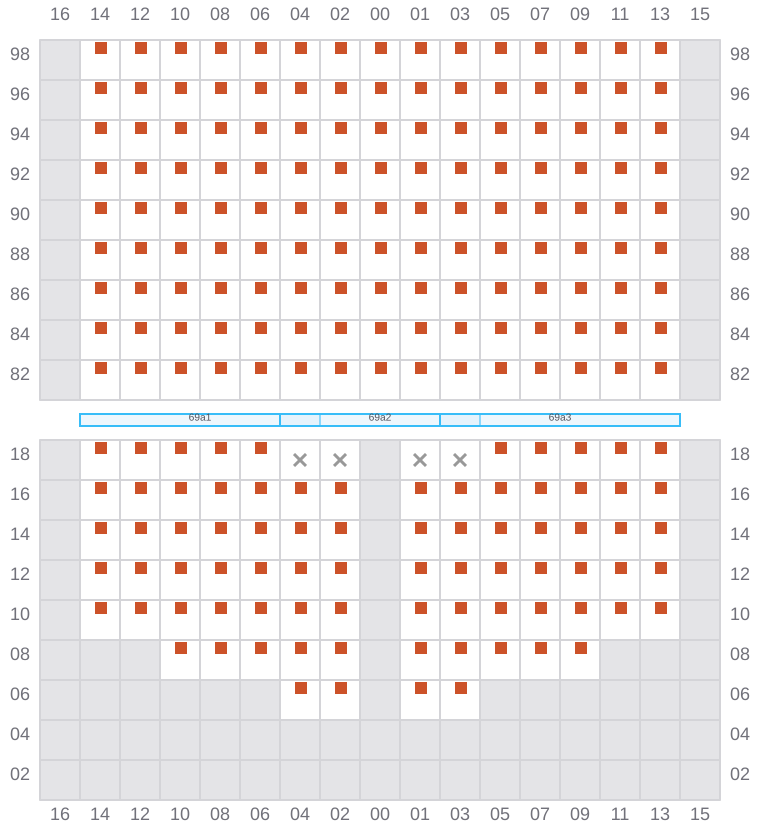

071

  • ←
Bay 071 view and slots of CLIFFORD MAERSK

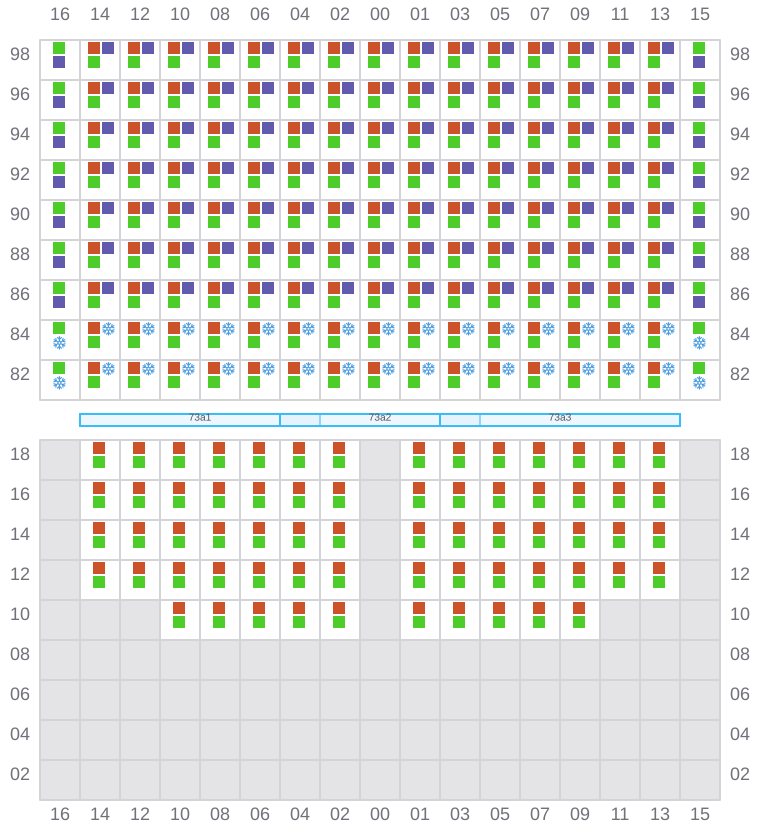

073 (074)

  • →
  • ← / ?
Bay 073 view and slots of CLIFFORD MAERSK

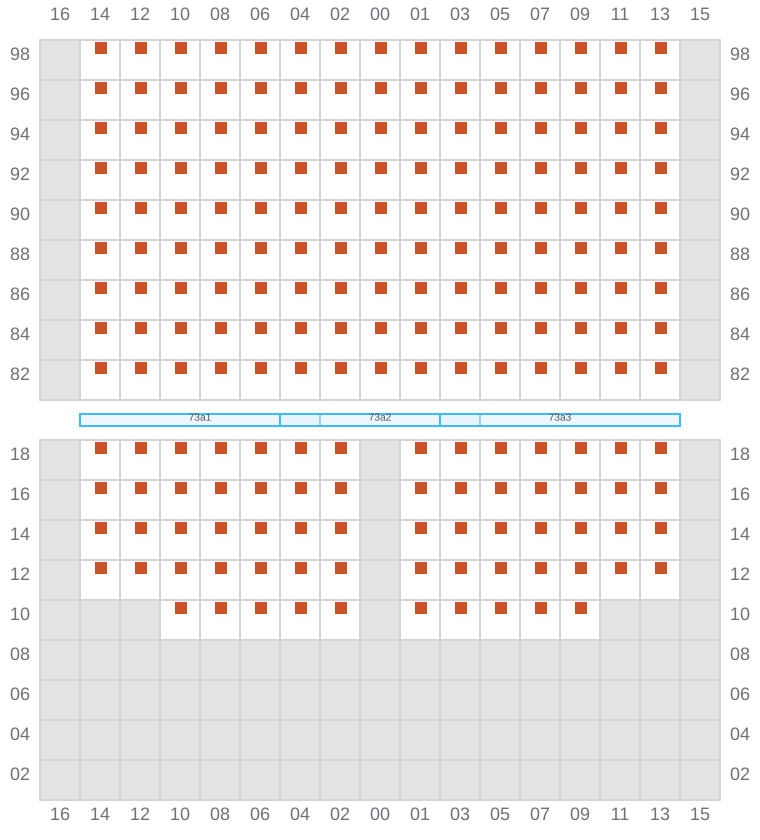

075

  • ←
Bay 075 view and slots of CLIFFORD MAERSK

077 (078)

  • →
  • ← / ?

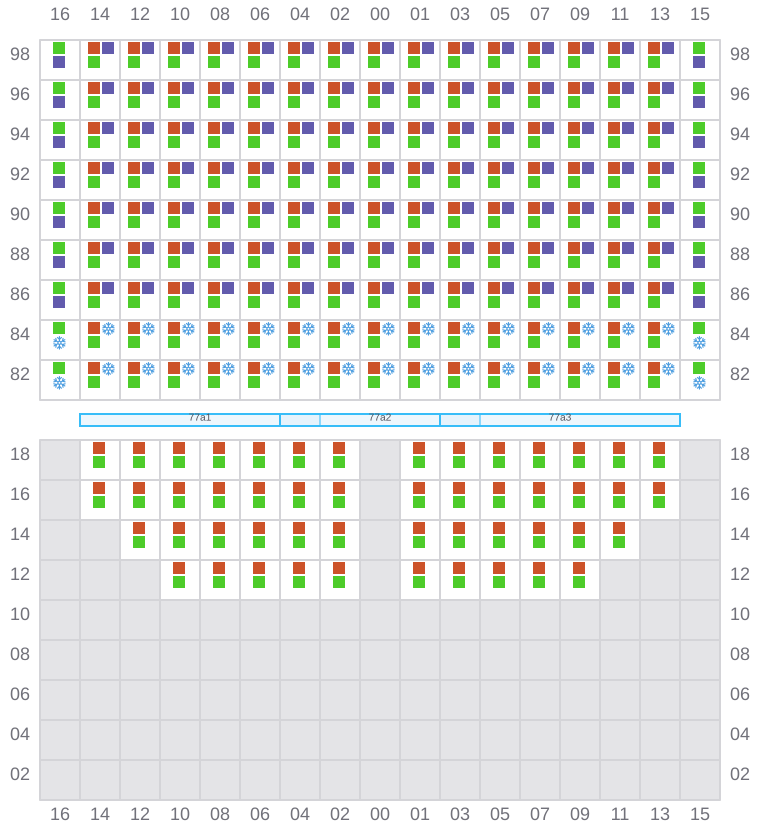

Bay 077 view and slots of CLIFFORD MAERSK

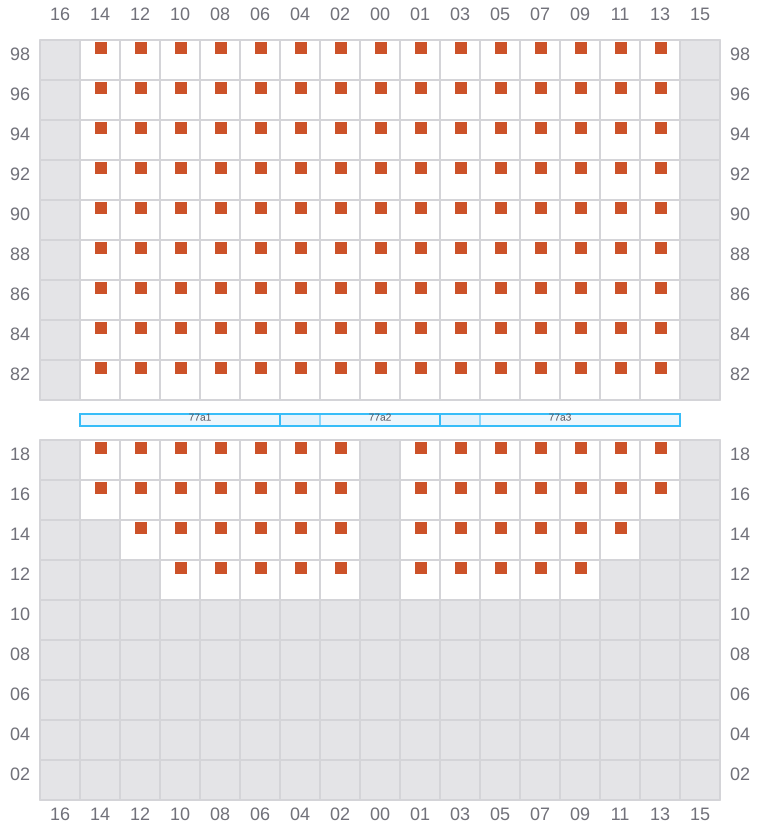

079

  • ←
Bay 079 view and slots of CLIFFORD MAERSK

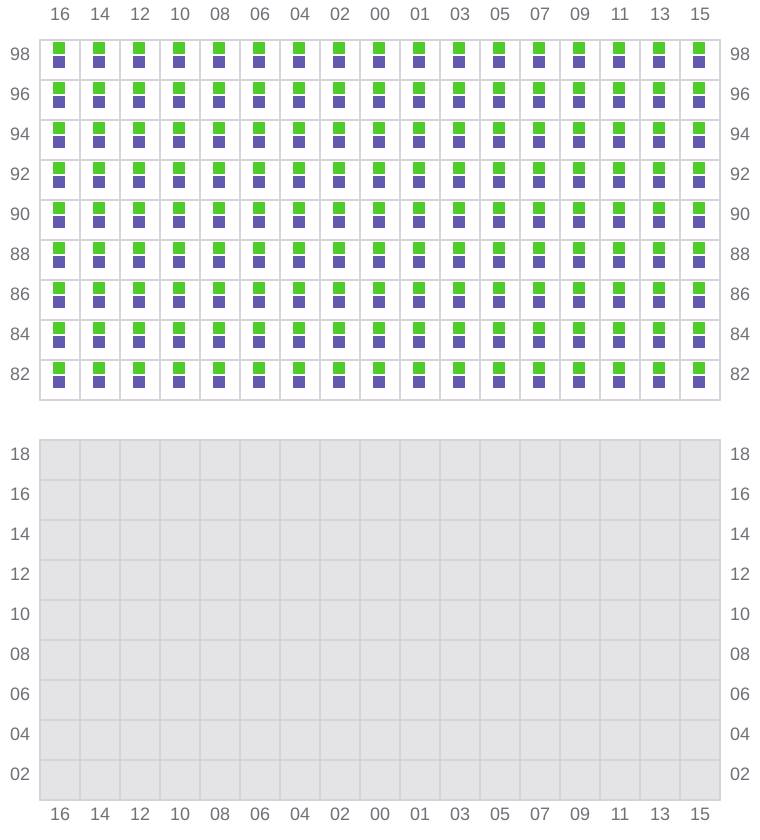

081 (082)

  • → / ?
Bay 081 view and slots of CLIFFORD MAERSK
