CMA CGM ABU DHABI
9802499 | 9HA4782 | CMA by *********************** Last update: Tue Feb 11 2025

General Info

Ship Name:CMA CGM ABU DHABI
IMO Code:9802499
Call Sign:9HA4782
Line Operator:CMA
Class Name for Sister Ships:CGAB
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:041
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,512

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

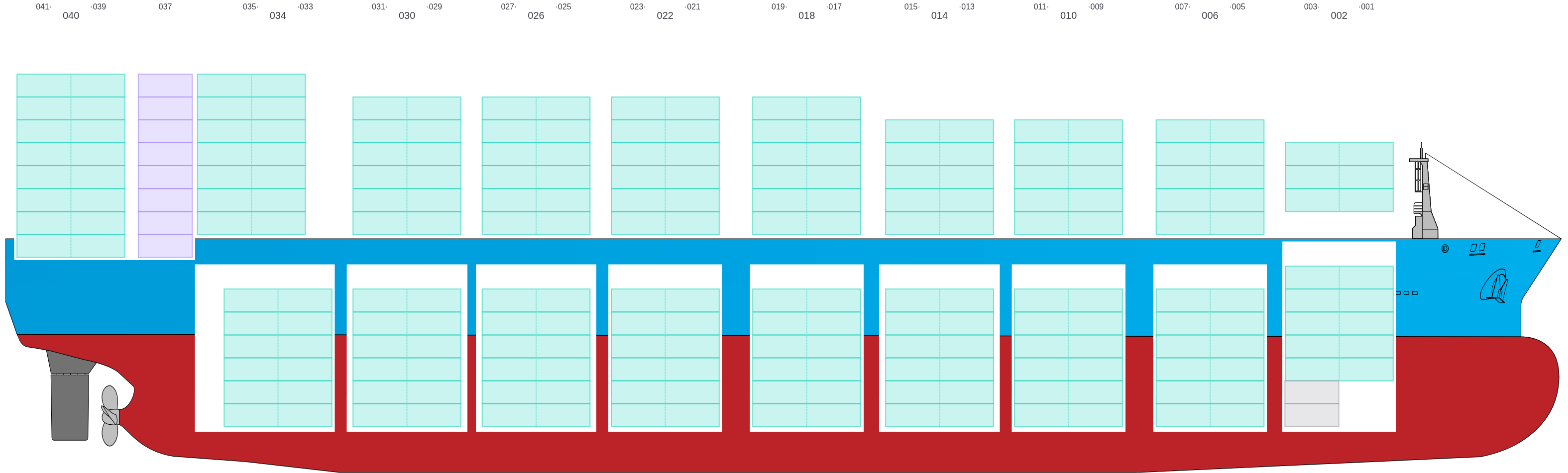

Side View

Side view of CMA CGM ABU DHABI

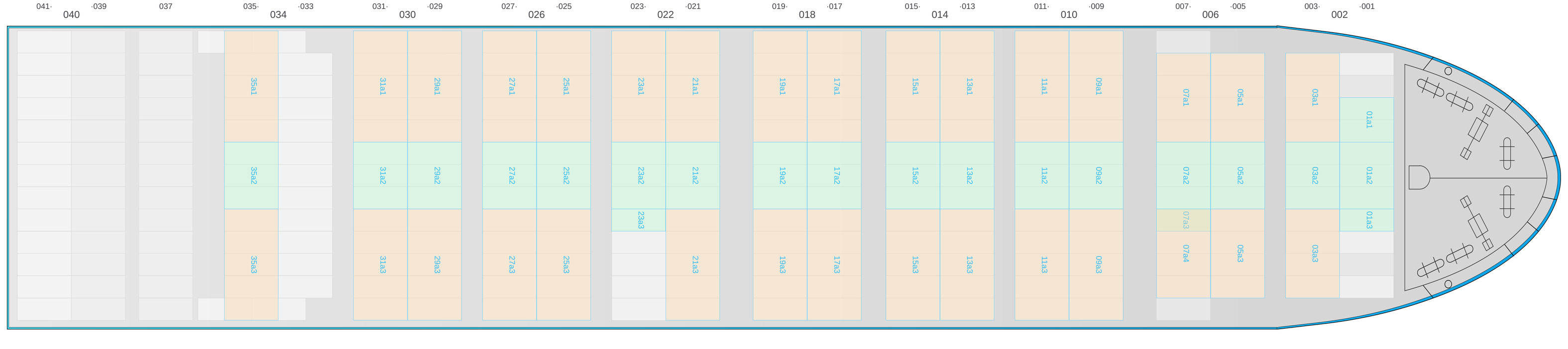

Hatch-Covers View

Deck view of CMA CGM ABU DHABI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • →

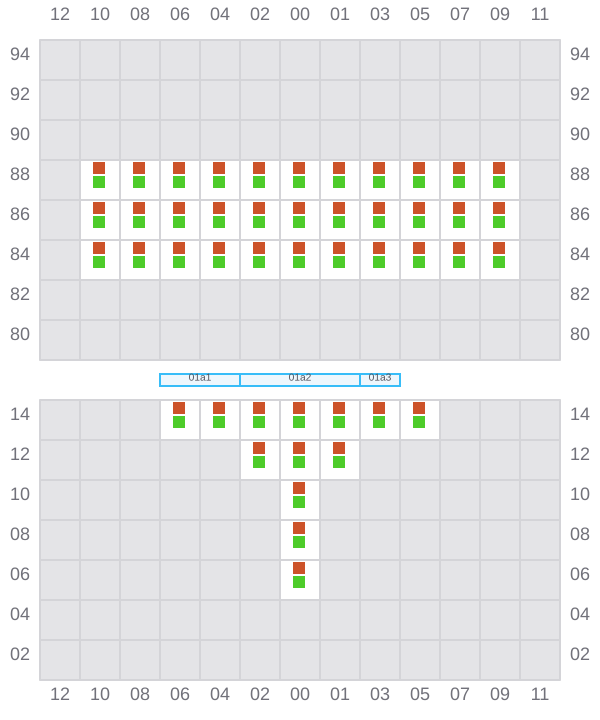

Bay 001 view and slots of CMA CGM ABU DHABI

003

  • ←
  • →
Bay 003 view and slots of CMA CGM ABU DHABI

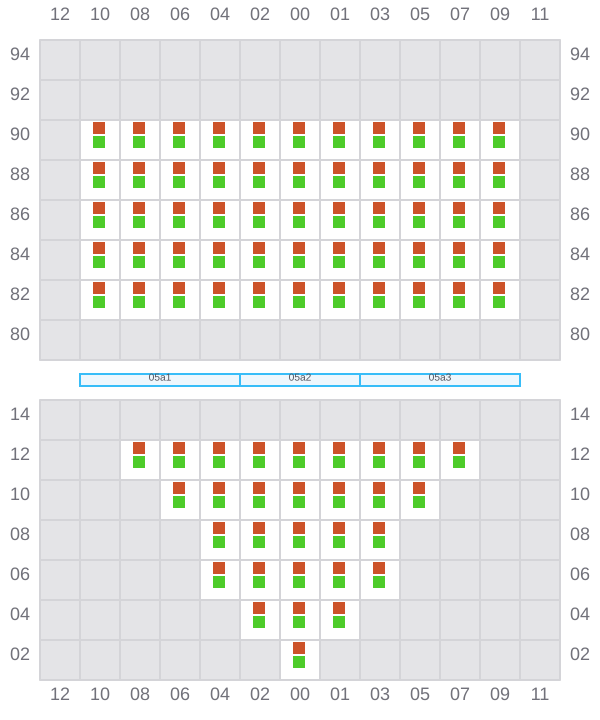

005 (006)

  • →
  • →
Bay 005 view and slots of CMA CGM ABU DHABI

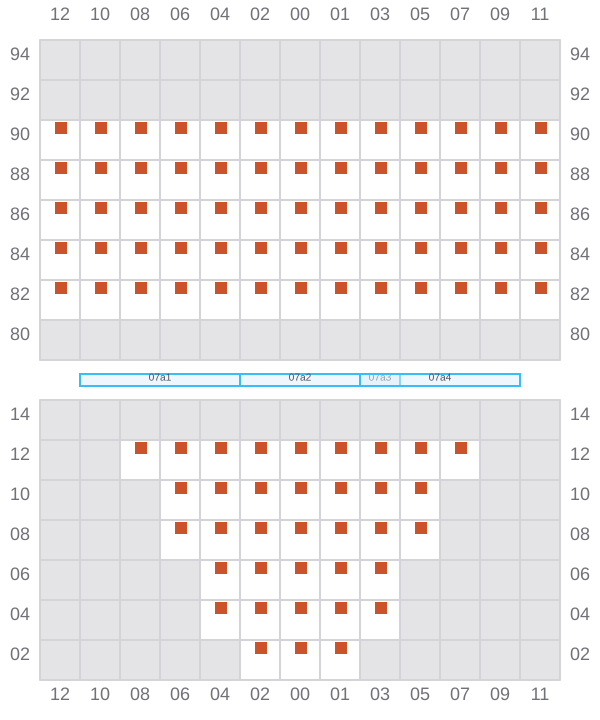

007

  • ←
  • →
Bay 007 view and slots of CMA CGM ABU DHABI

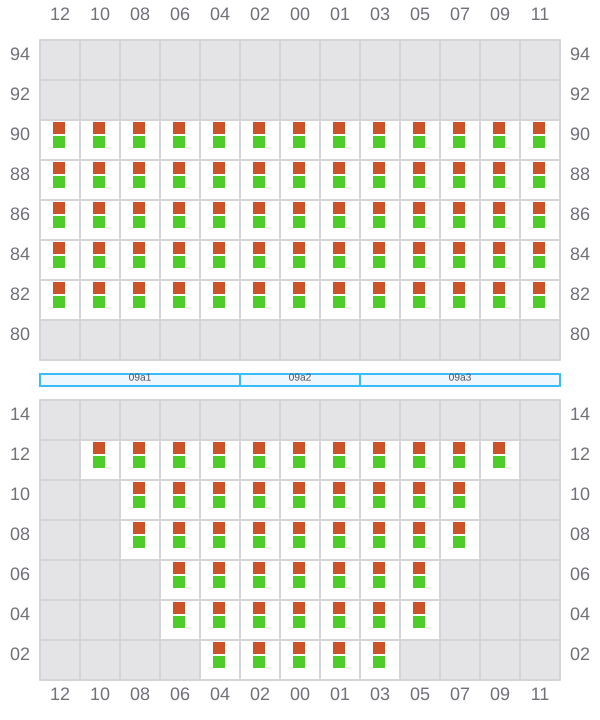

009 (010)

  • →
  • →
Bay 009 view and slots of CMA CGM ABU DHABI

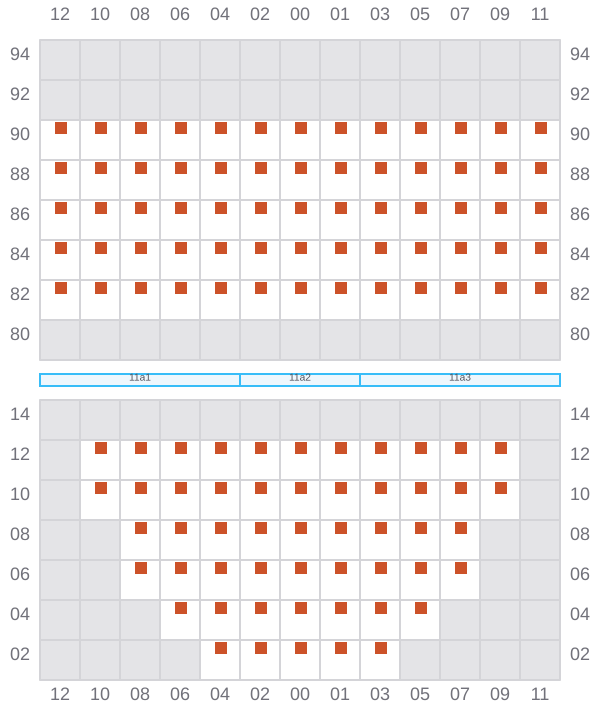

011

  • ←
  • →
Bay 011 view and slots of CMA CGM ABU DHABI

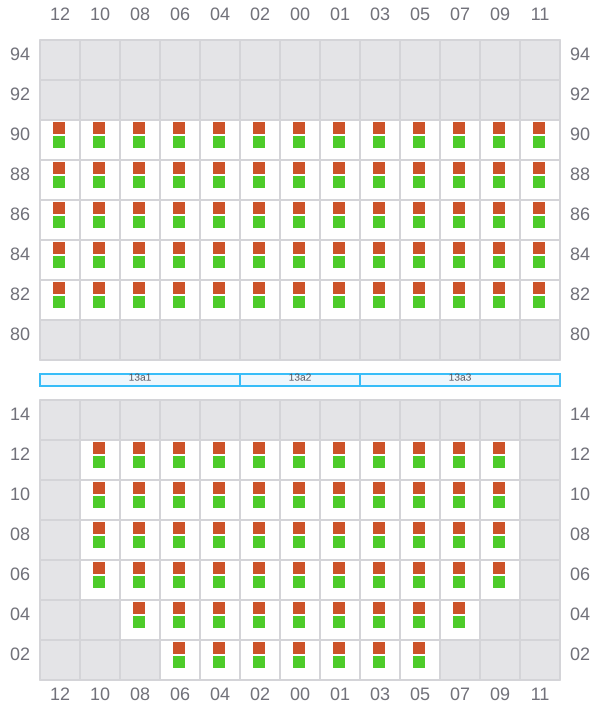

013 (014)

  • →
  • →
Bay 013 view and slots of CMA CGM ABU DHABI

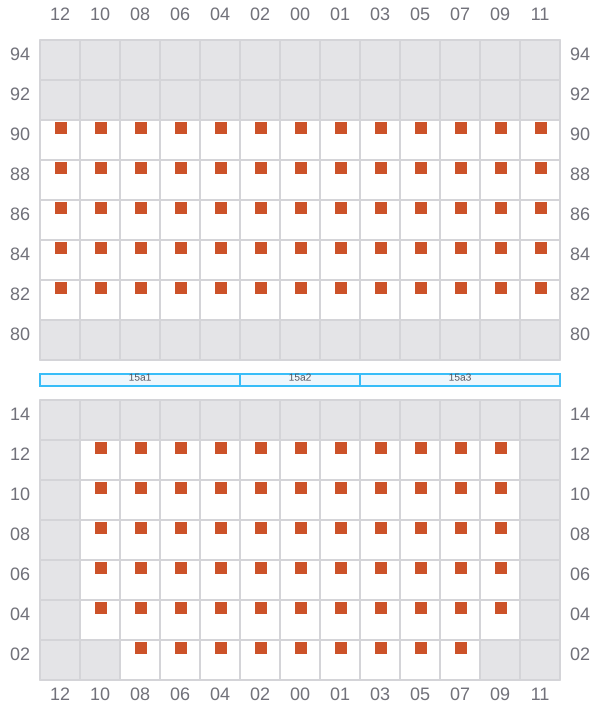

015

  • ←
  • →
Bay 015 view and slots of CMA CGM ABU DHABI

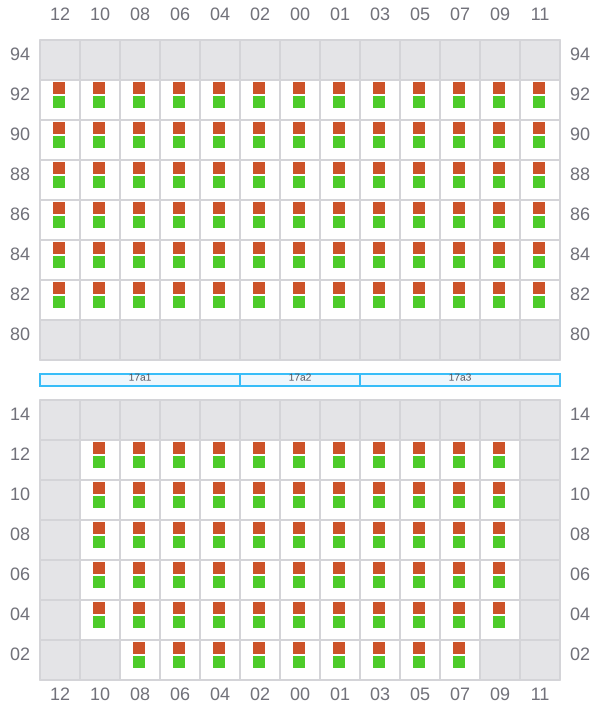

017 (018)

  • →
  • →
Bay 017 view and slots of CMA CGM ABU DHABI

019

  • ←
  • →

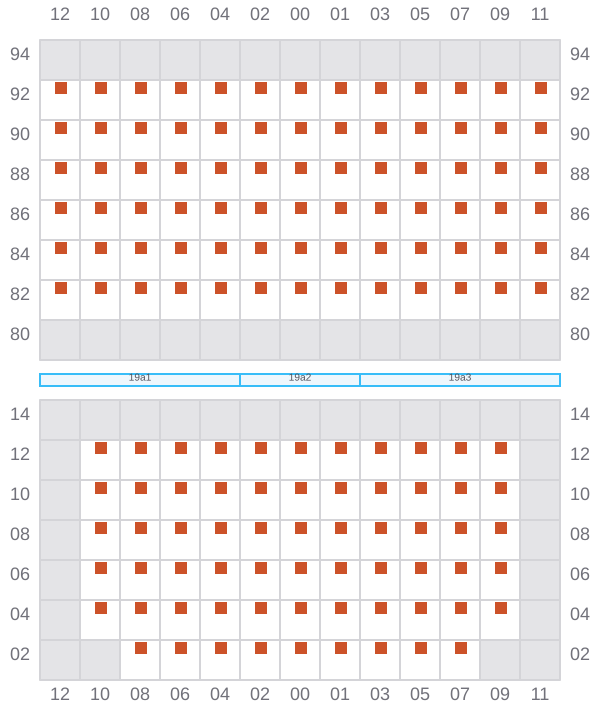

Bay 019 view and slots of CMA CGM ABU DHABI

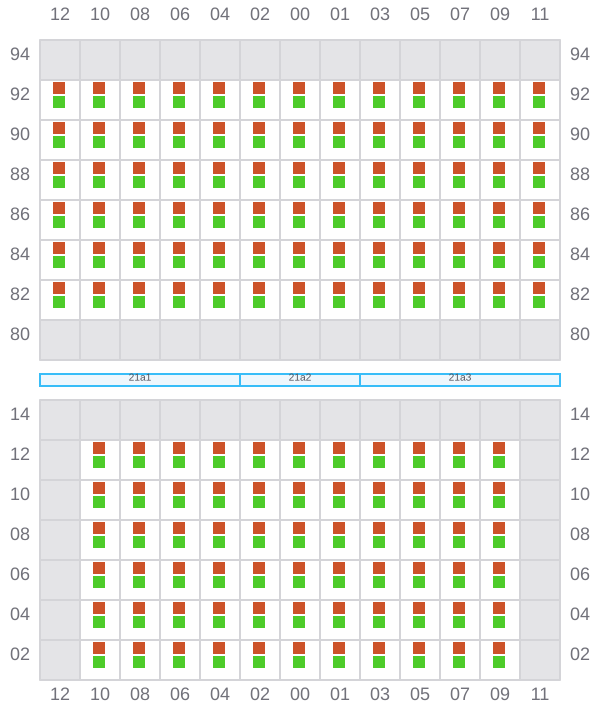

021 (022)

  • →
  • →
Bay 021 view and slots of CMA CGM ABU DHABI

023

  • ←
  • →

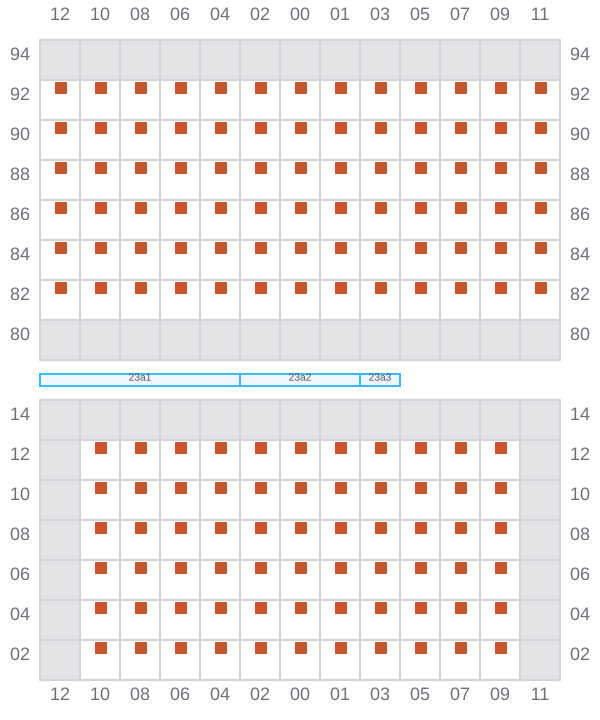

Bay 023 view and slots of CMA CGM ABU DHABI

025 (026)

  • →
  • →

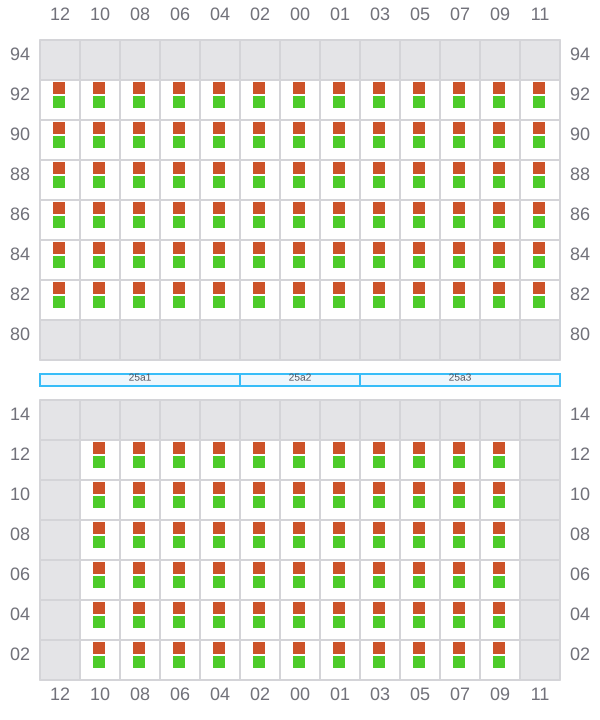

Bay 025 view and slots of CMA CGM ABU DHABI

027

  • ←
  • →
Bay 027 view and slots of CMA CGM ABU DHABI

029 (030)

  • →
  • →
Bay 029 view and slots of CMA CGM ABU DHABI

031

  • ←
  • →

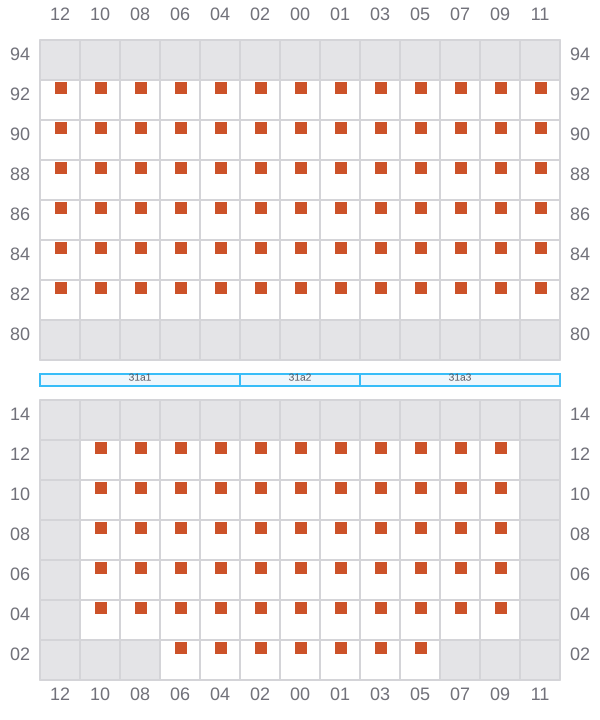

Bay 031 view and slots of CMA CGM ABU DHABI

033 (034)

  • →
  • →

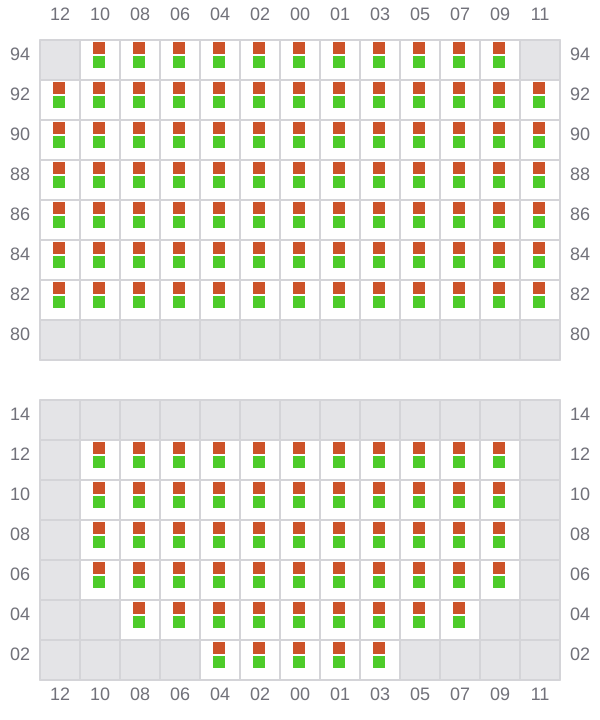

Bay 033 view and slots of CMA CGM ABU DHABI

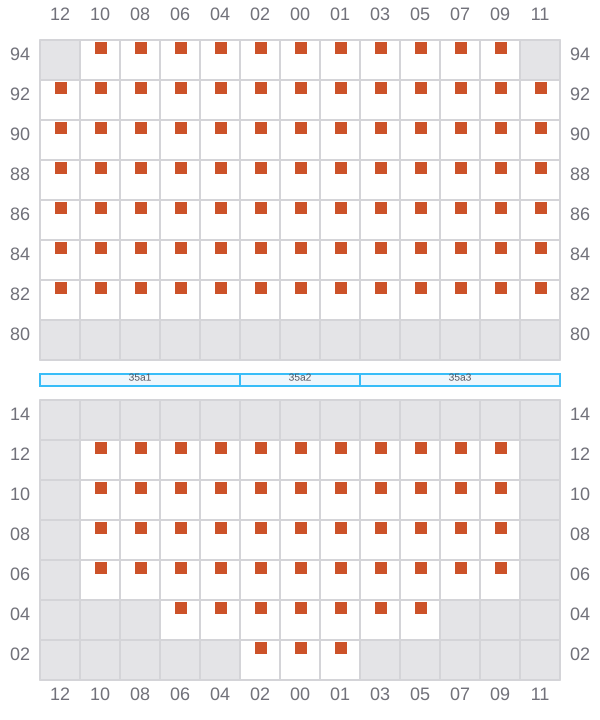

035

  • ←
  • →
Bay 035 view and slots of CMA CGM ABU DHABI

037

  • → / ?

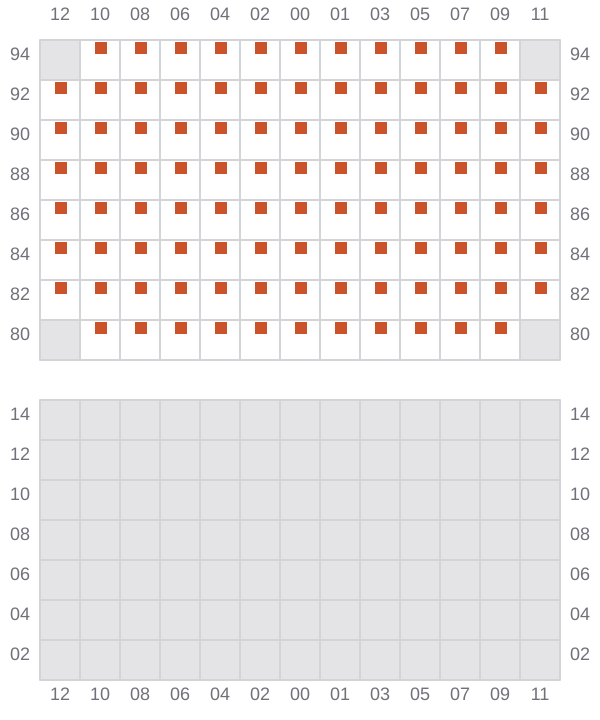

Bay 037 view and slots of CMA CGM ABU DHABI

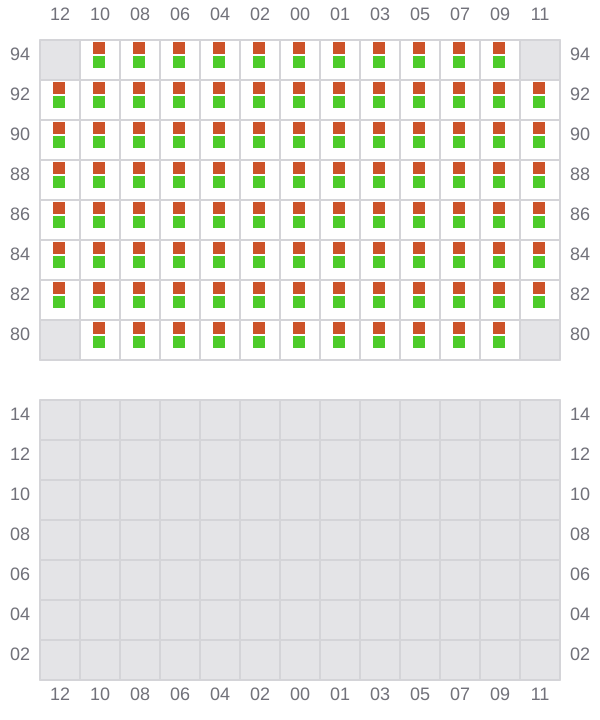

039 (040)

  • → / ?
  • → / ?
Bay 039 view and slots of CMA CGM ABU DHABI

041

  • ← / ?
  • → / ?

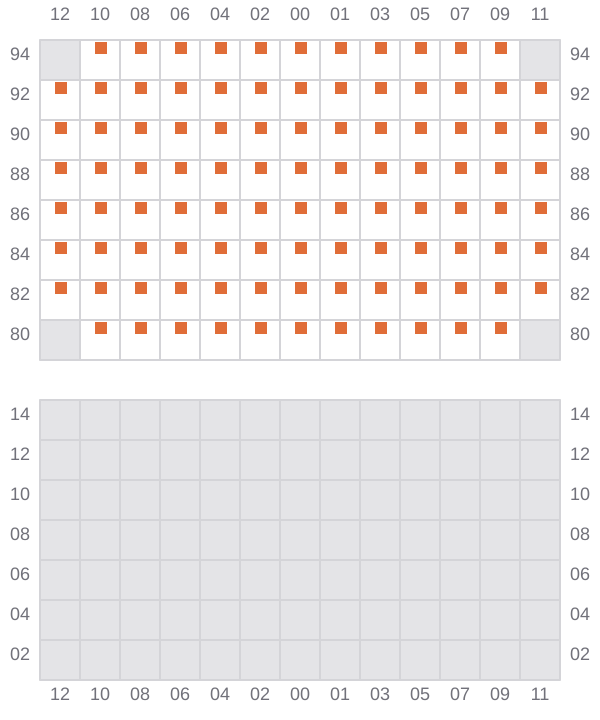

Bay 041 view and slots of CMA CGM ABU DHABI
