CMA CGM AFRICA FOUR
9451965 | C6YS9 | 9451965 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:CMA CGM AFRICA FOUR
IMO Code:9451965
Call Sign:C6YS9
Line Operator:9451965
Class Name for Sister Ships:CMA CGM AFRICA FOUR
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:051
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,748
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-sideView.png?v=1712946518823)
Hatch-Covers View
![Deck view of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-deckView.png?v=1712946518823)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
![Bay 001 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b001.png?v=1712946518823)

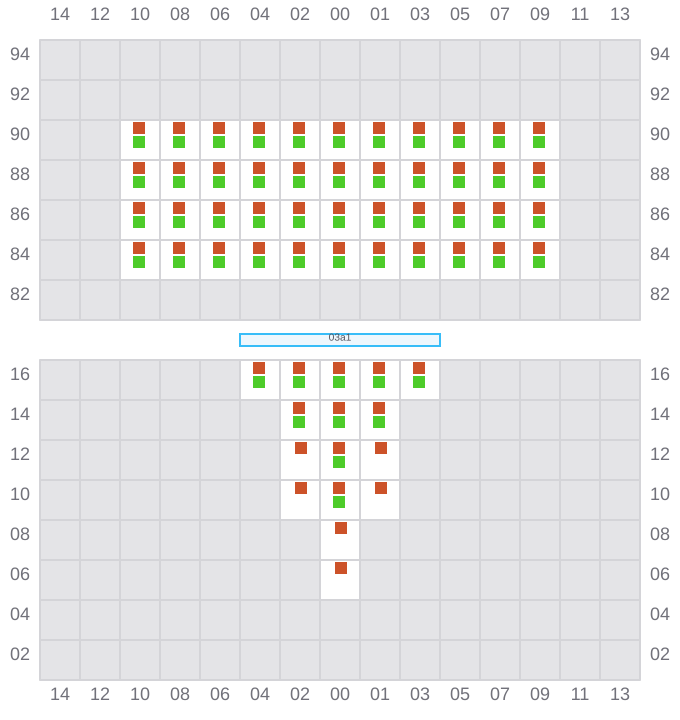

003 (002)
- ←
![Bay 003 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b003.png?v=1712946518823)
005
- →
![Bay 005 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b005.png?v=1712946518823)
007 (006)
- ←
![Bay 007 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b007.png?v=1712946518823)

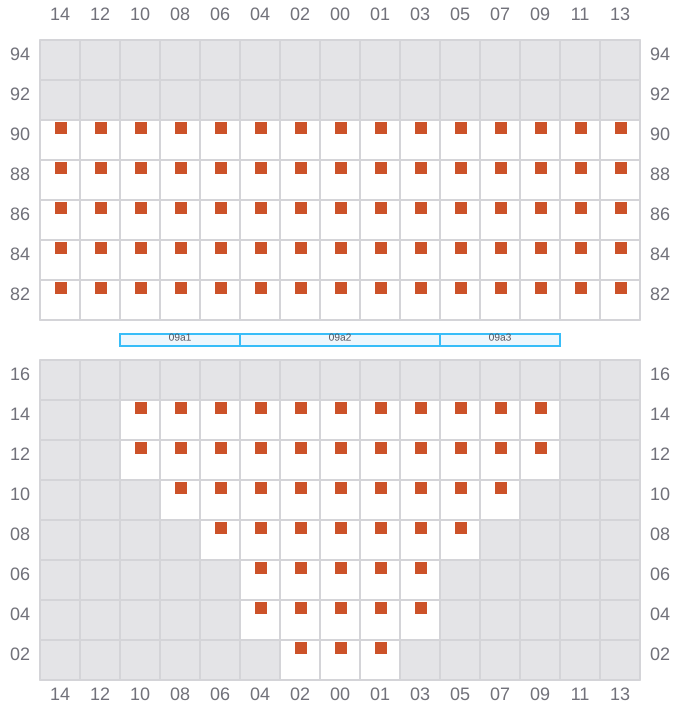

009
- →
![Bay 009 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b009.png?v=1712946518823)
011 (010)
- ←
![Bay 011 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b011.png?v=1712946518823)
013
- →
![Bay 013 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b013.png?v=1712946518823)

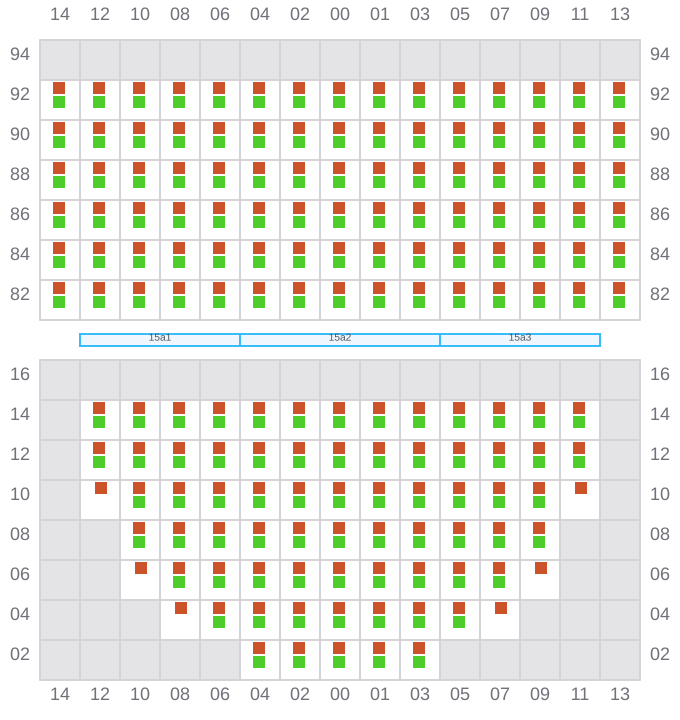

015 (014)
- ←
![Bay 015 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b015.png?v=1712946518823)
017
- →
![Bay 017 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b017.png?v=1712946518823)

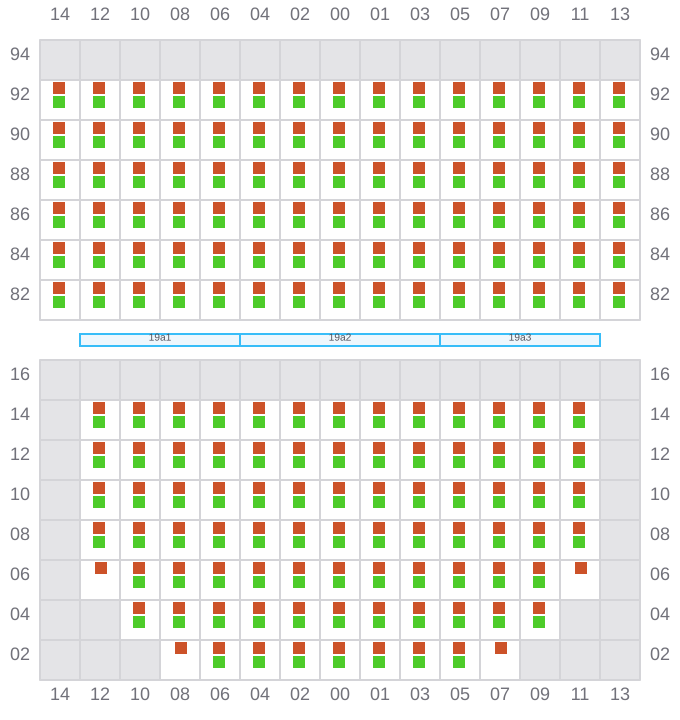

019 (018)
- ←
![Bay 019 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b019.png?v=1712946518823)
021
- →
![Bay 021 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b021.png?v=1712946518823)
023 (022)
- ←
![Bay 023 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b023.png?v=1712946518823)
025
- →
![Bay 025 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b025.png?v=1712946518823)
027 (026)
- ←
![Bay 027 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b027.png?v=1712946518823)
029
- →
![Bay 029 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b029.png?v=1712946518823)
031 (030)
- ←
![Bay 031 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b031.png?v=1712946518823)
033
- →
![Bay 033 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b033.png?v=1712946518823)
035 (034)
- ←
![Bay 035 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b035.png?v=1712946518823)

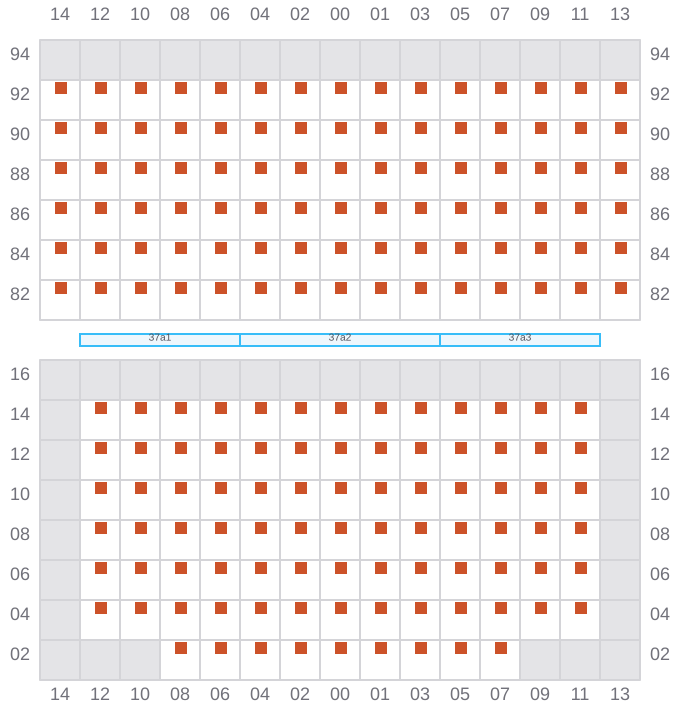

037
- →
![Bay 037 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b037.png?v=1712946518823)

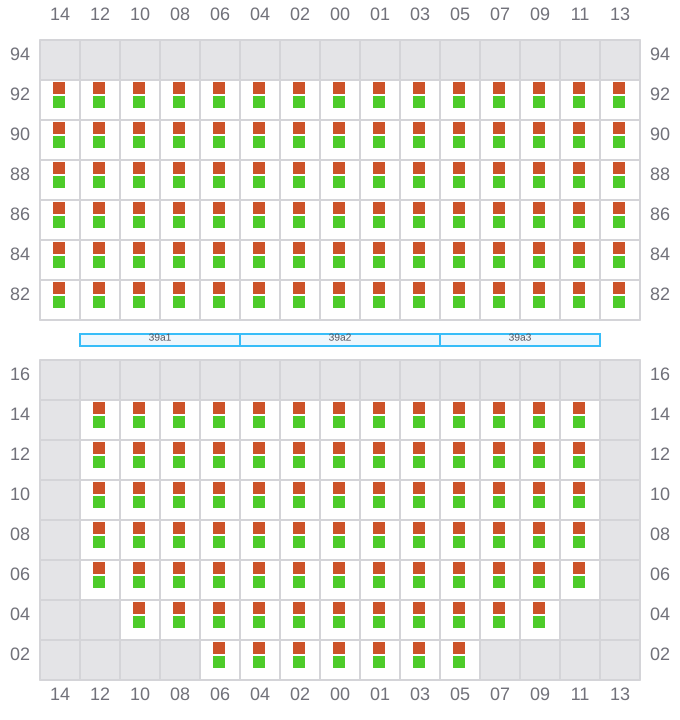

039 (038)
- ←
![Bay 039 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b039.png?v=1712946518823)
041
- →
![Bay 041 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b041.png?v=1712946518823)

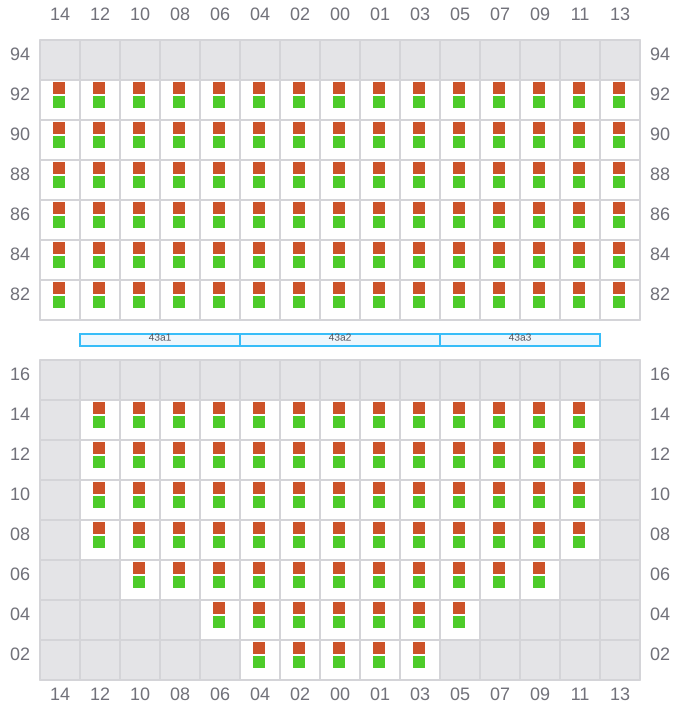

043 (042)
- ←
![Bay 043 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b043.png?v=1712946518823)

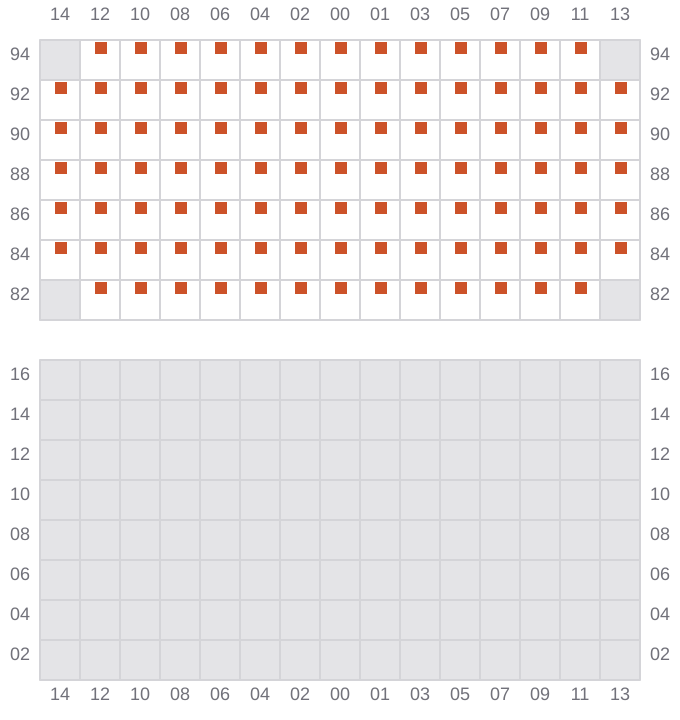

045
- → / ?
![Bay 045 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b045.png?v=1712946518823)
047 (046)
- ← / ?
![Bay 047 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b047.png?v=1712946518823)

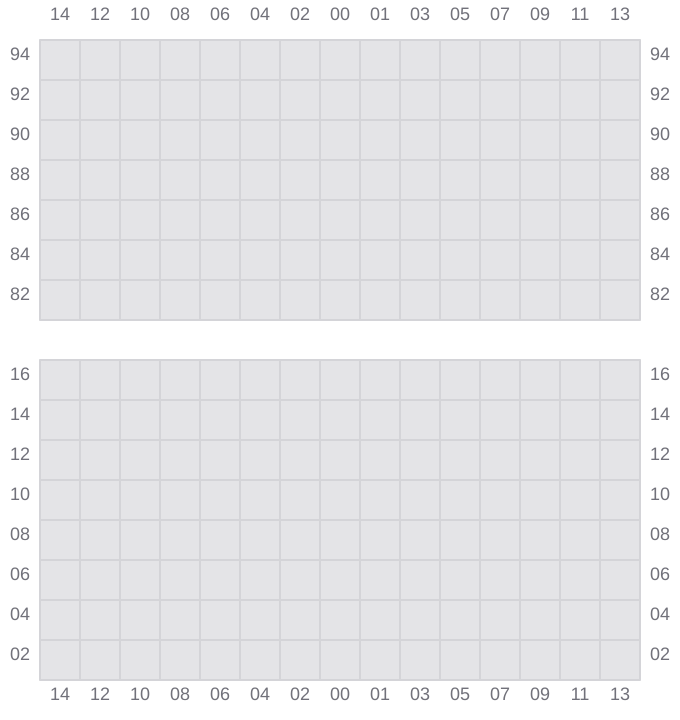

049
![Bay 049 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b049.png?v=1712946518823)

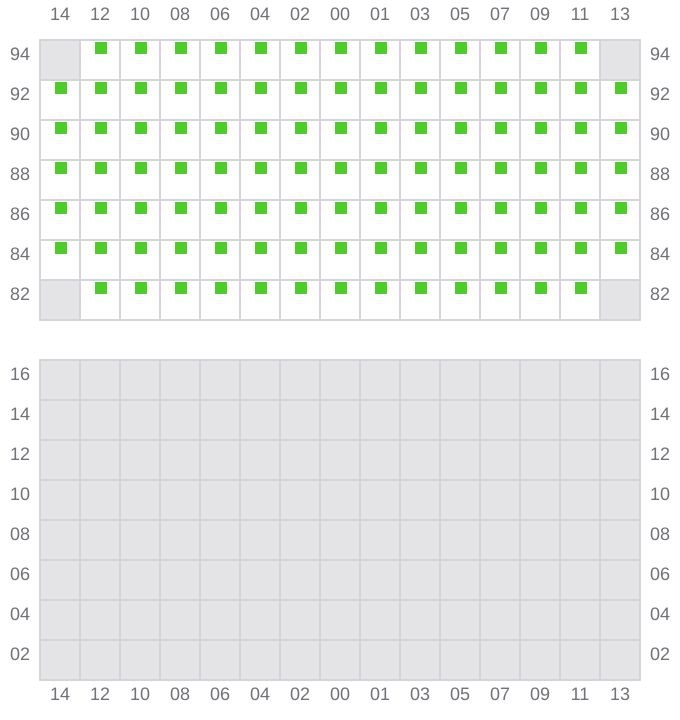

051 (050)
- ← / ?
![Bay 051 view and slots of CMA CGM AFRICA FOUR](/vessel-images/388f0dc2-5eeb-4500-b026-59fcd455da0f-b051.png?v=1712946518823)
