CMA CGM AFRICA THREE
9451939 | C6YS8 | 945193 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:CMA CGM AFRICA THREE
IMO Code:9451939
Call Sign:C6YS8
Line Operator:945193
Class Name for Sister Ships:CMA CGM AFRICA THREE
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,754

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

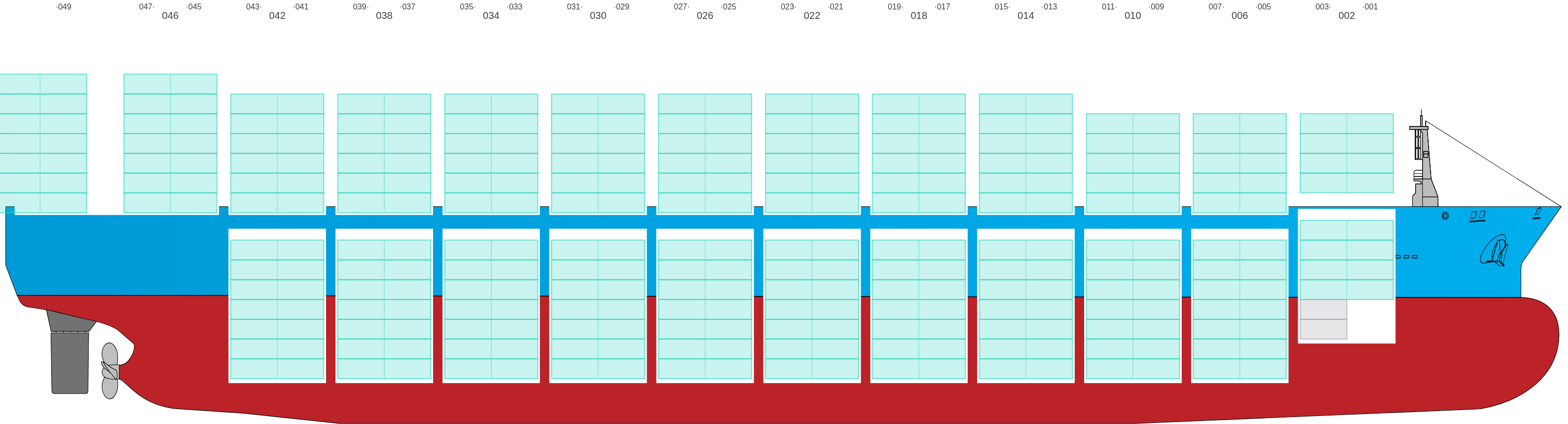

Side view of CMA CGM AFRICA THREE

Hatch-Covers View

Deck view of CMA CGM AFRICA THREE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

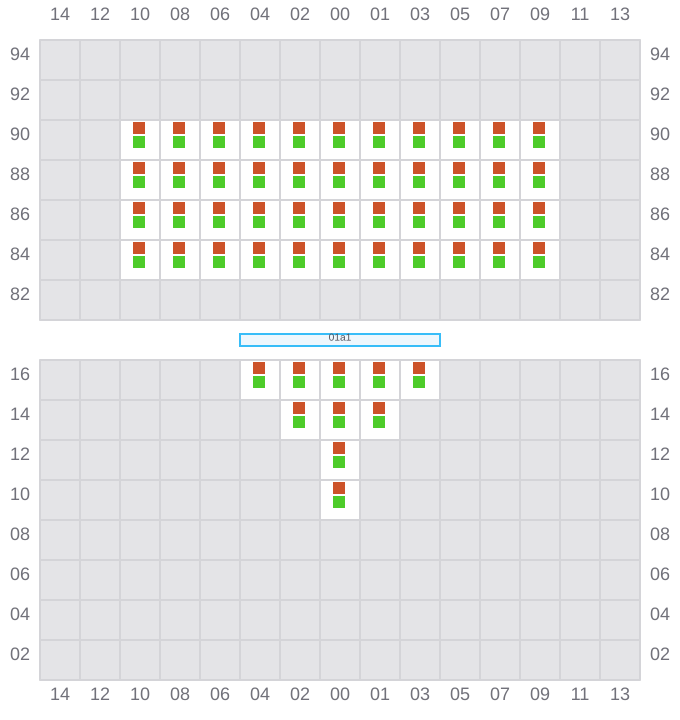

Bay 001 view and slots of CMA CGM AFRICA THREE

003

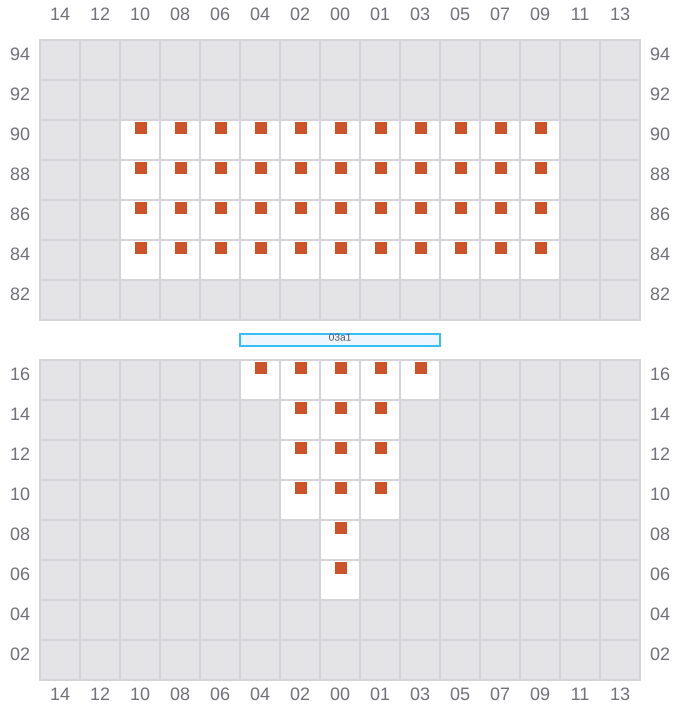

Bay 003 view and slots of CMA CGM AFRICA THREE

005 (006)

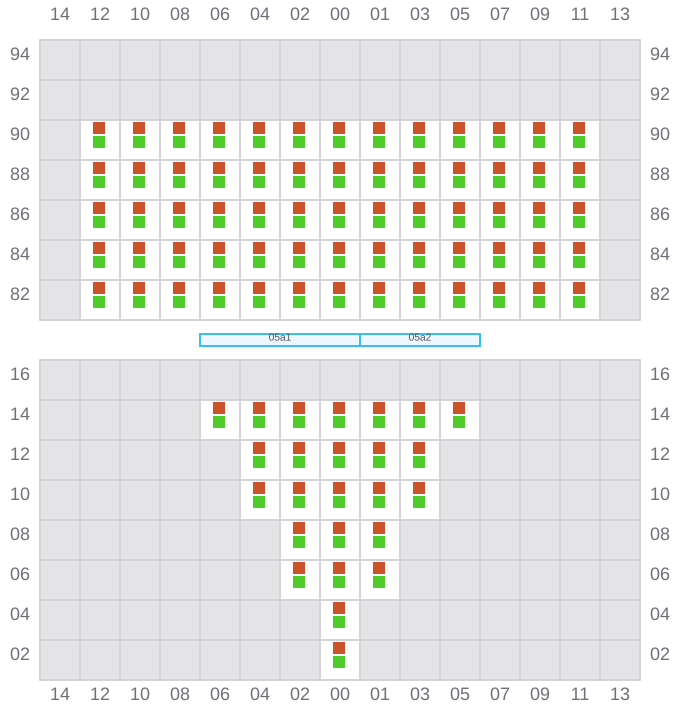

Bay 005 view and slots of CMA CGM AFRICA THREE

007

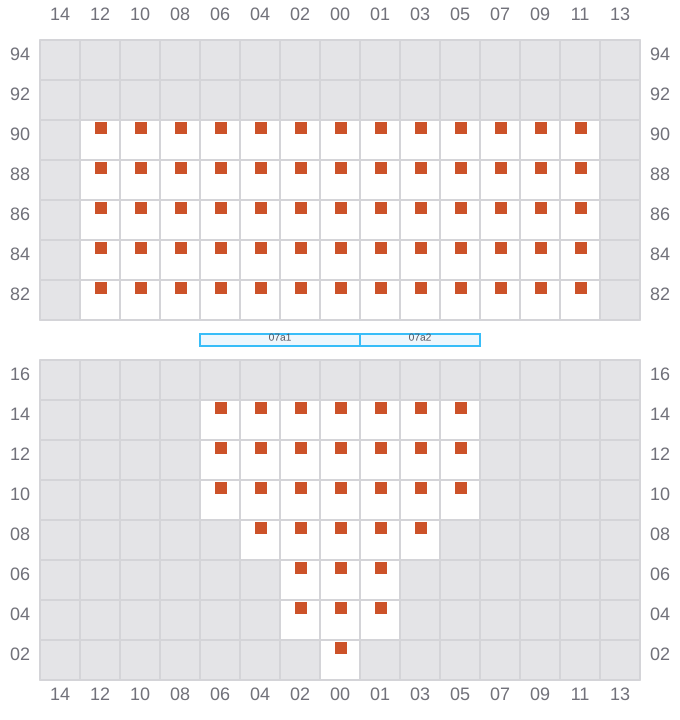

Bay 007 view and slots of CMA CGM AFRICA THREE

009 (010)

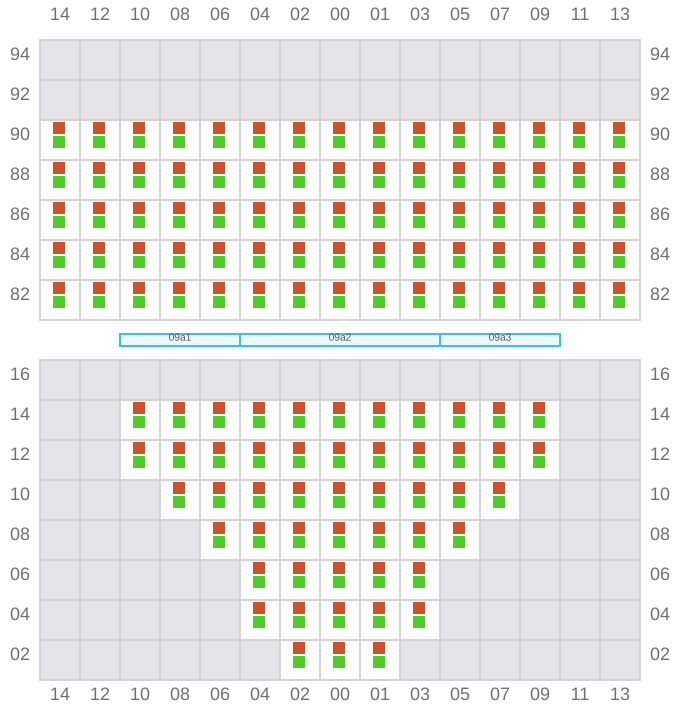

Bay 009 view and slots of CMA CGM AFRICA THREE

011

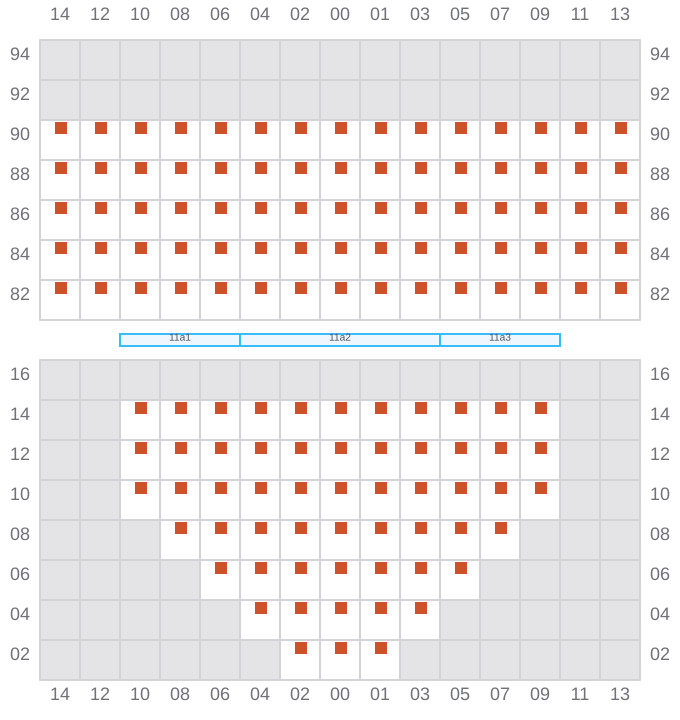

Bay 011 view and slots of CMA CGM AFRICA THREE

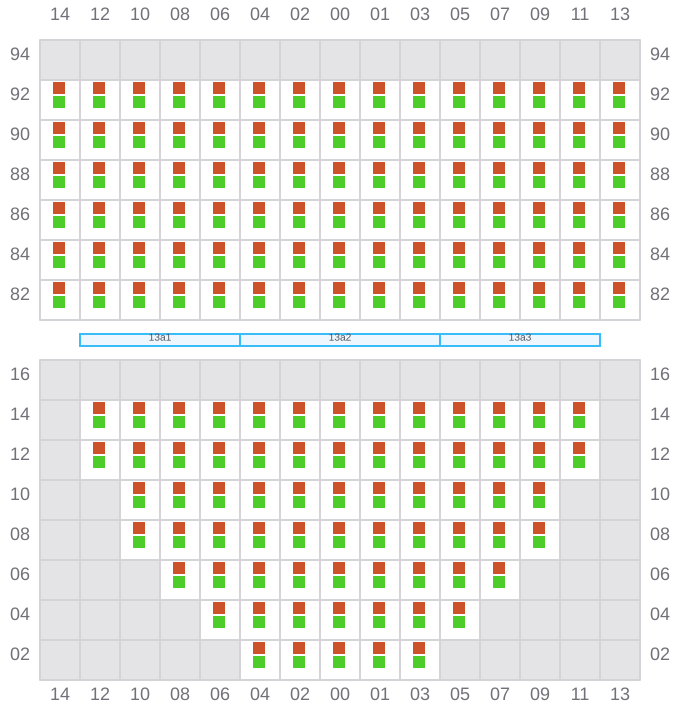

013 (014)

Bay 013 view and slots of CMA CGM AFRICA THREE

015

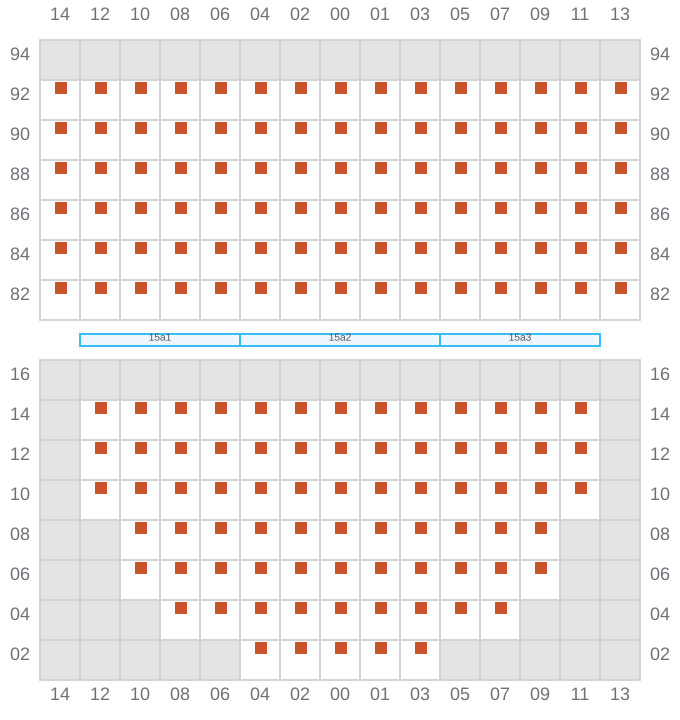

Bay 015 view and slots of CMA CGM AFRICA THREE

017 (018)

Bay 017 view and slots of CMA CGM AFRICA THREE

019

Bay 019 view and slots of CMA CGM AFRICA THREE

021 (022)

Bay 021 view and slots of CMA CGM AFRICA THREE

023

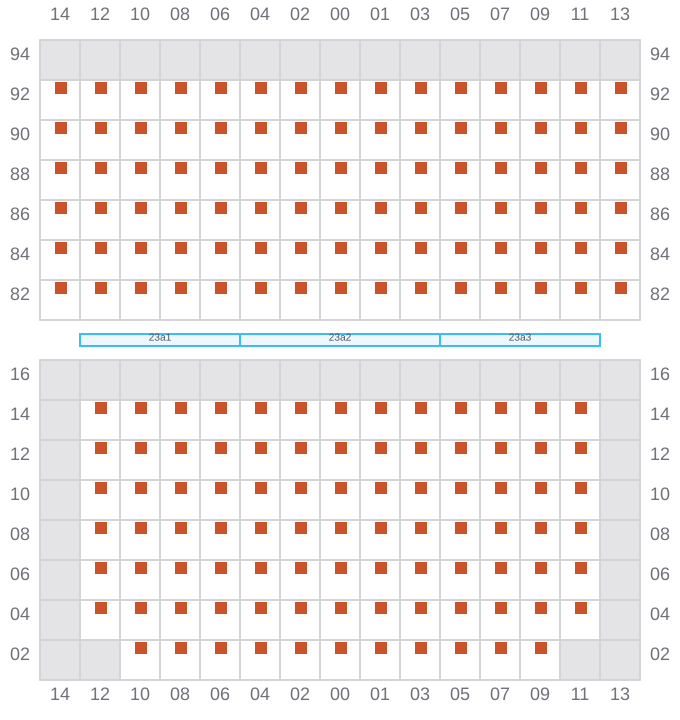

Bay 023 view and slots of CMA CGM AFRICA THREE

025 (026)

Bay 025 view and slots of CMA CGM AFRICA THREE

027

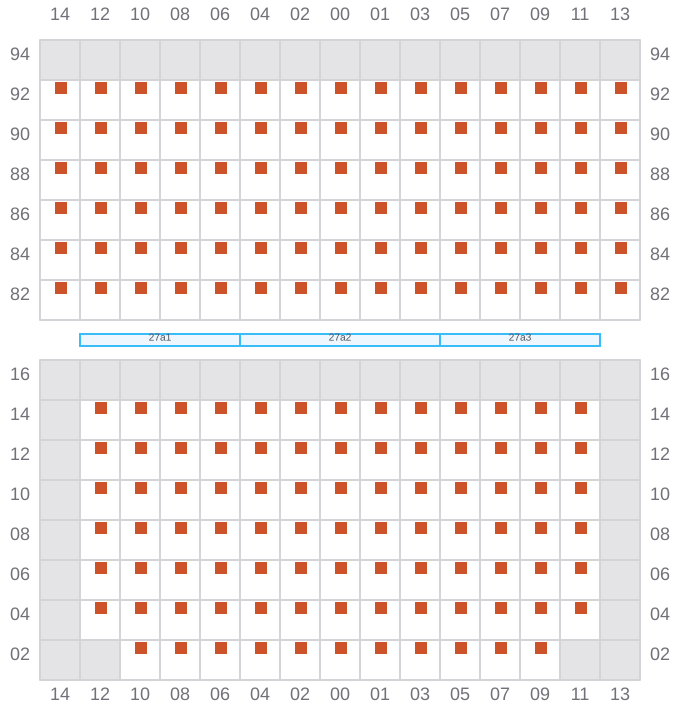

Bay 027 view and slots of CMA CGM AFRICA THREE

029 (030)

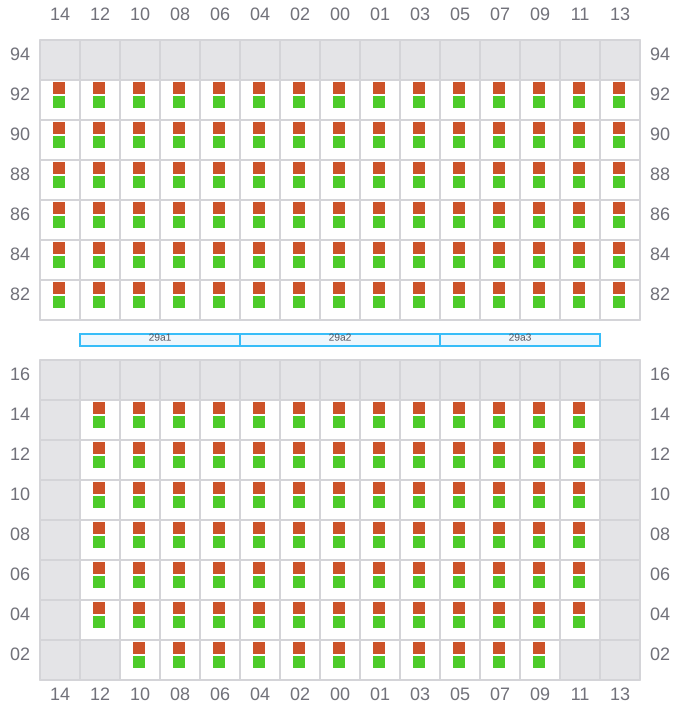

Bay 029 view and slots of CMA CGM AFRICA THREE

031

Bay 031 view and slots of CMA CGM AFRICA THREE

033 (034)

Bay 033 view and slots of CMA CGM AFRICA THREE

035

Bay 035 view and slots of CMA CGM AFRICA THREE

037 (038)

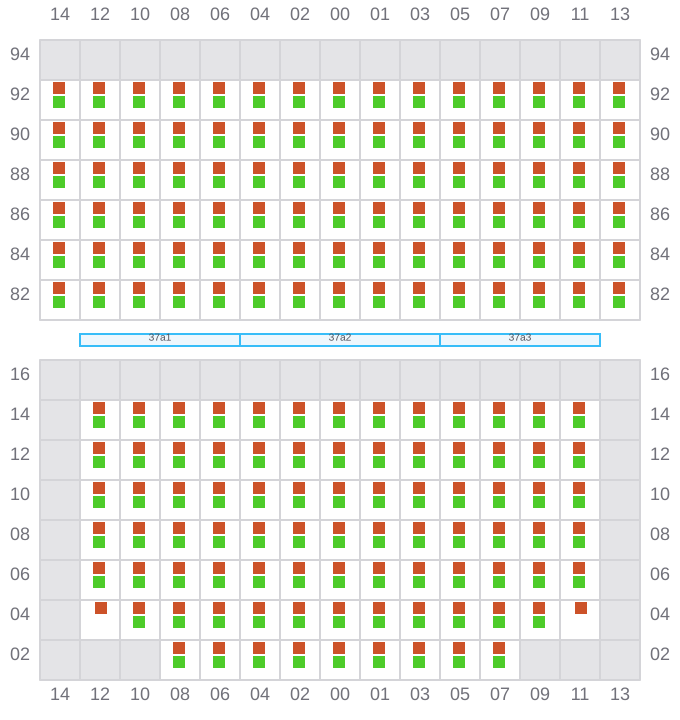

Bay 037 view and slots of CMA CGM AFRICA THREE

039

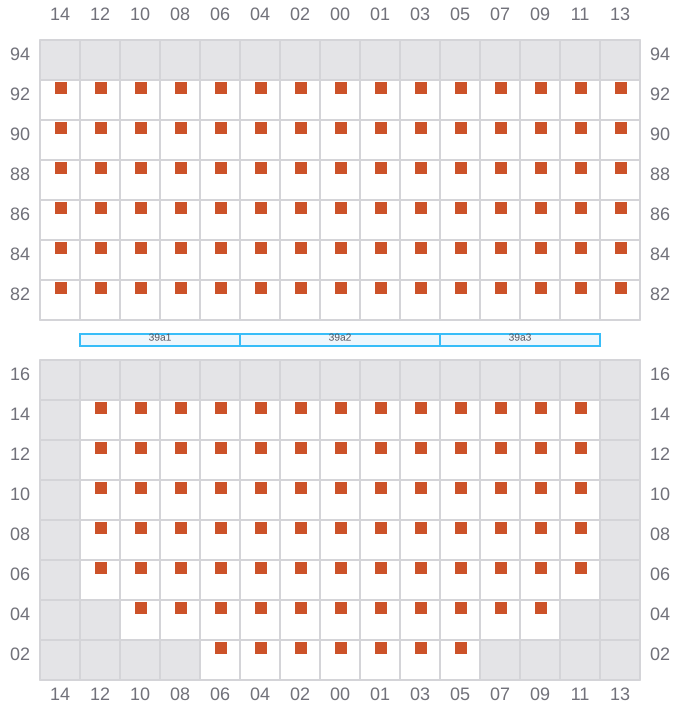

Bay 039 view and slots of CMA CGM AFRICA THREE

041 (042)

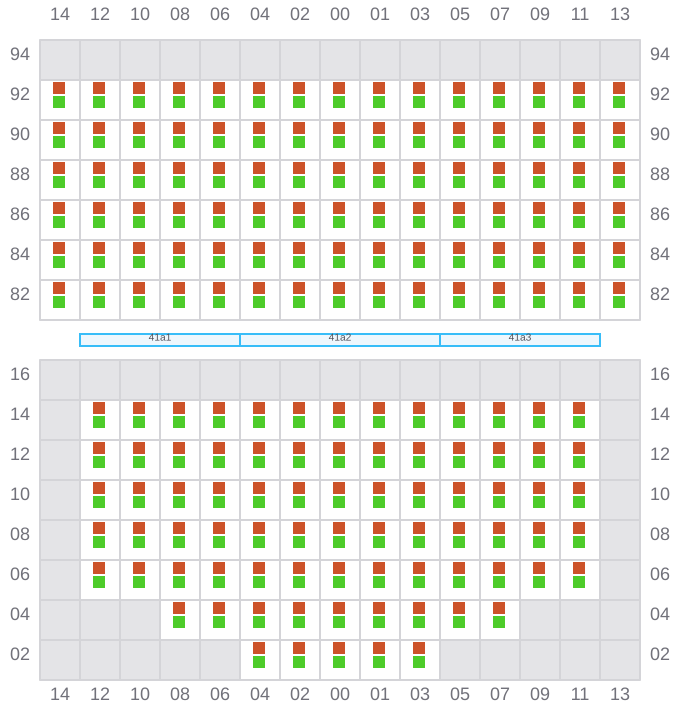

Bay 041 view and slots of CMA CGM AFRICA THREE

043

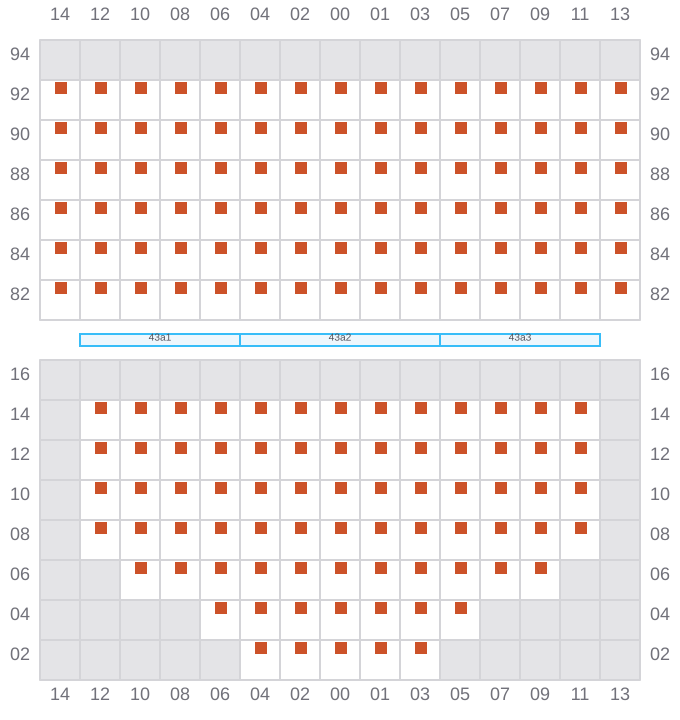

Bay 043 view and slots of CMA CGM AFRICA THREE

045 (046)

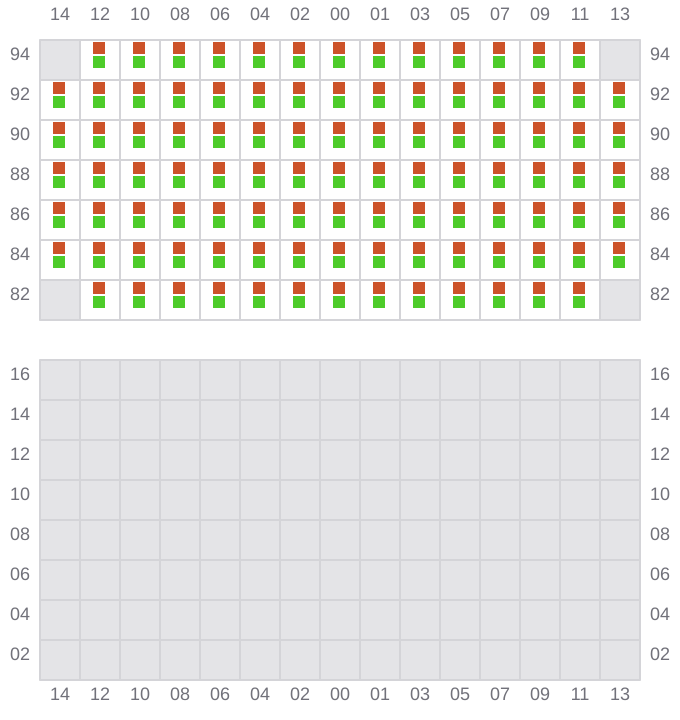

Bay 045 view and slots of CMA CGM AFRICA THREE

047

Bay 047 view and slots of CMA CGM AFRICA THREE

049 (050)

Bay 049 view and slots of CMA CGM AFRICA THREE
