CMA CGM AFRICA THREE
9451939 | C6YS8 | CMA by *********************** Last update: Thu Jan 30 2025
General Info
Ship Name:CMA CGM AFRICA THREE
IMO Code:9451939
Call Sign:C6YS8
Line Operator:CMA
Class Name for Sister Ships:CAFR
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):217.30
LOA (Length Overall):228.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,748
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

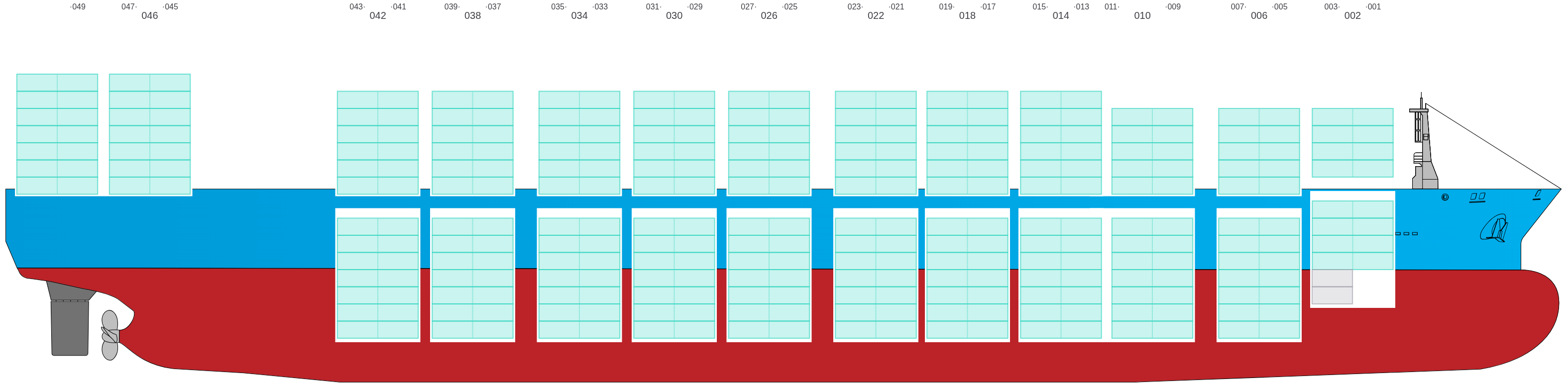

Side View

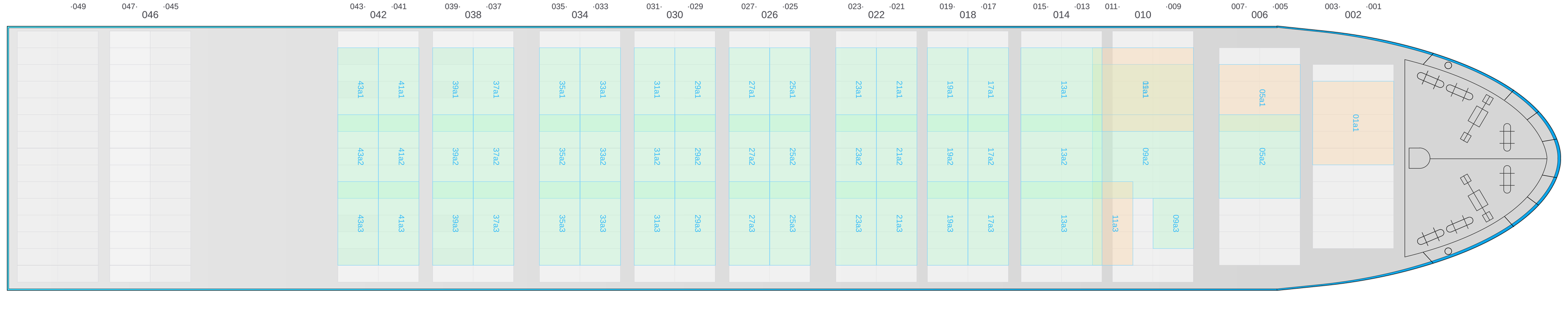

Hatch-Covers View

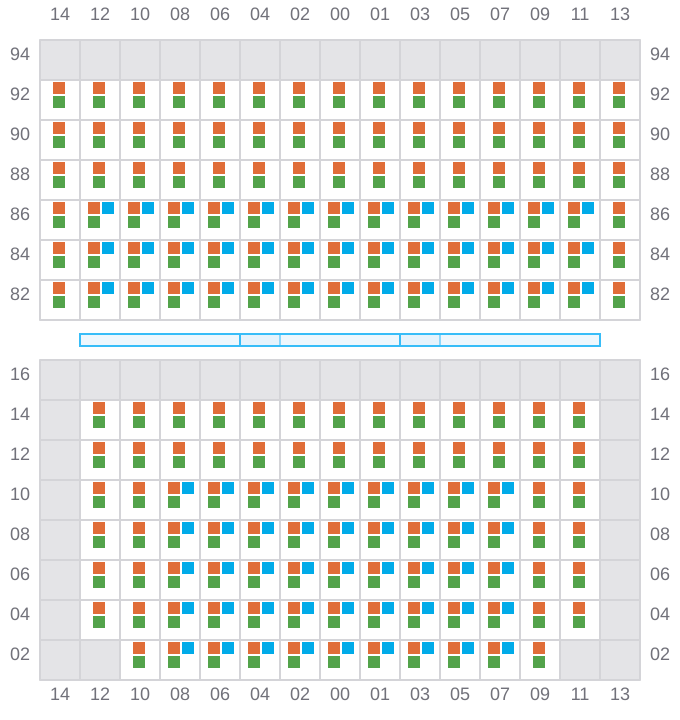

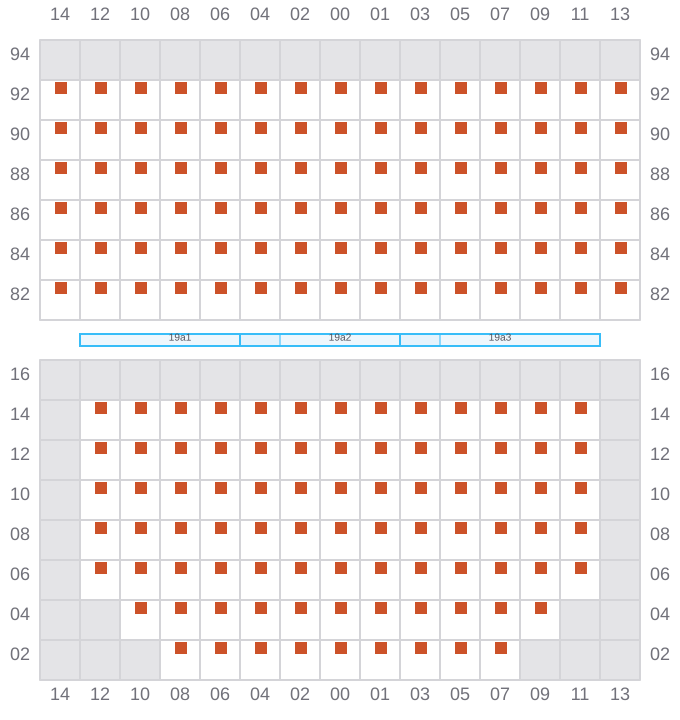

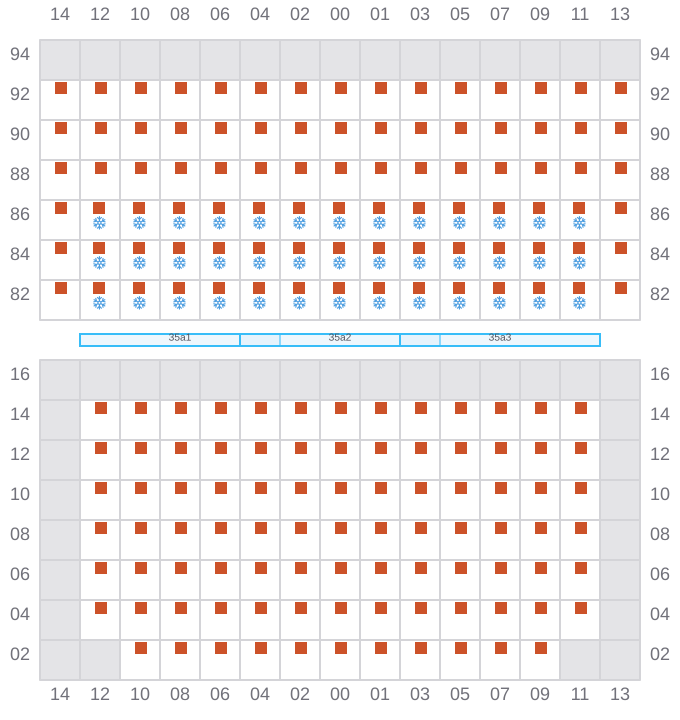

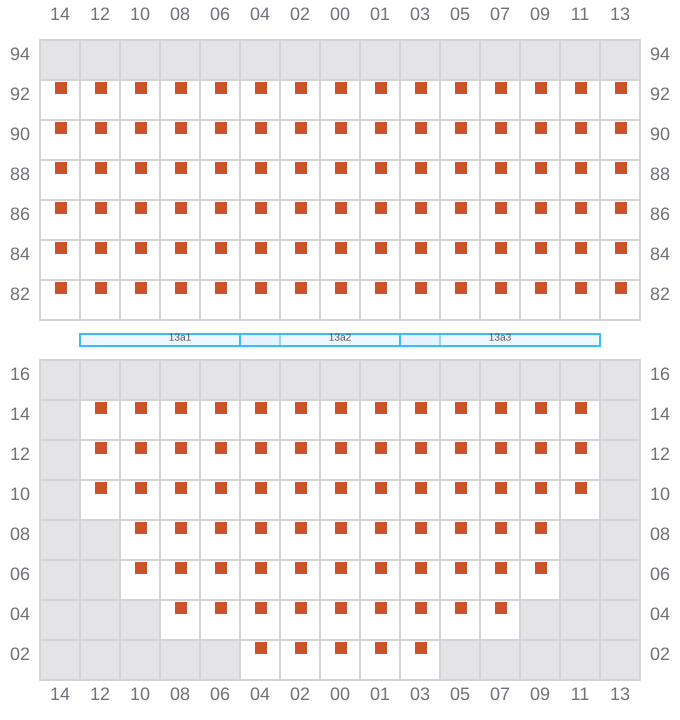

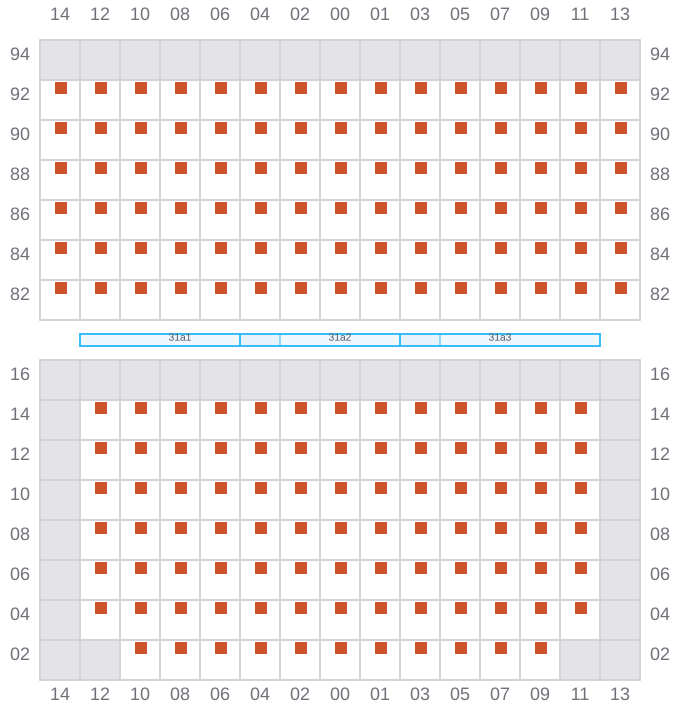

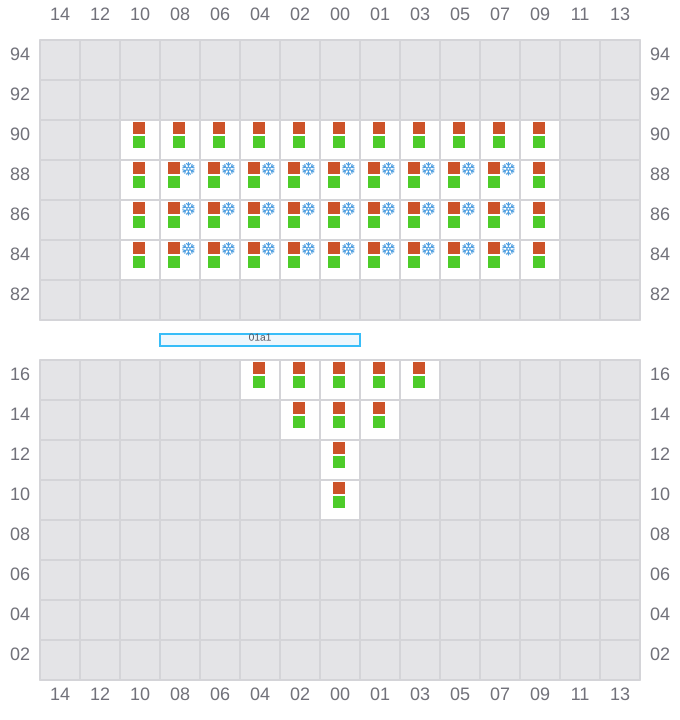

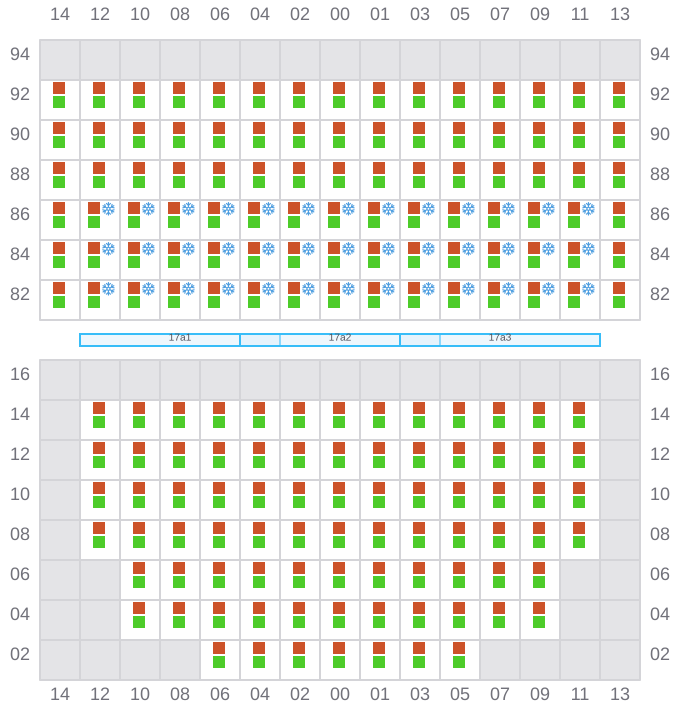

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- → / ?
- →

003
- ←
- →

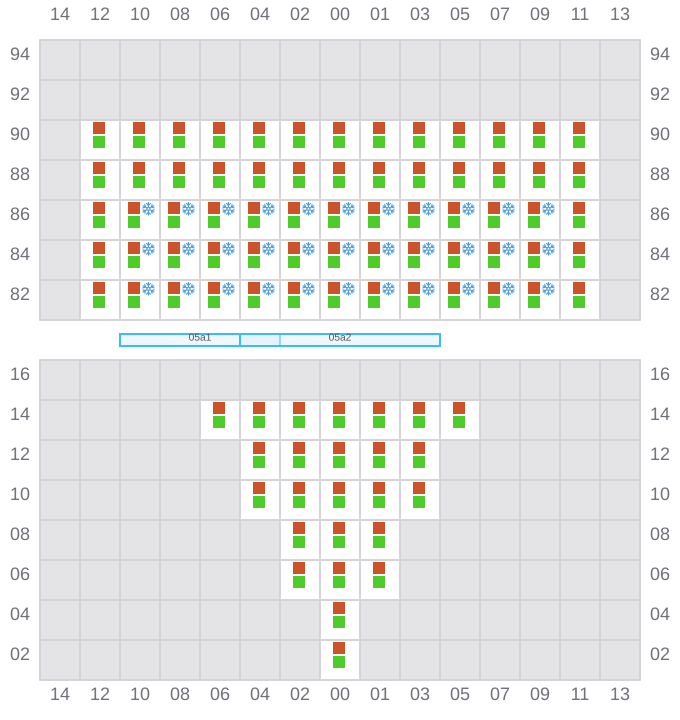

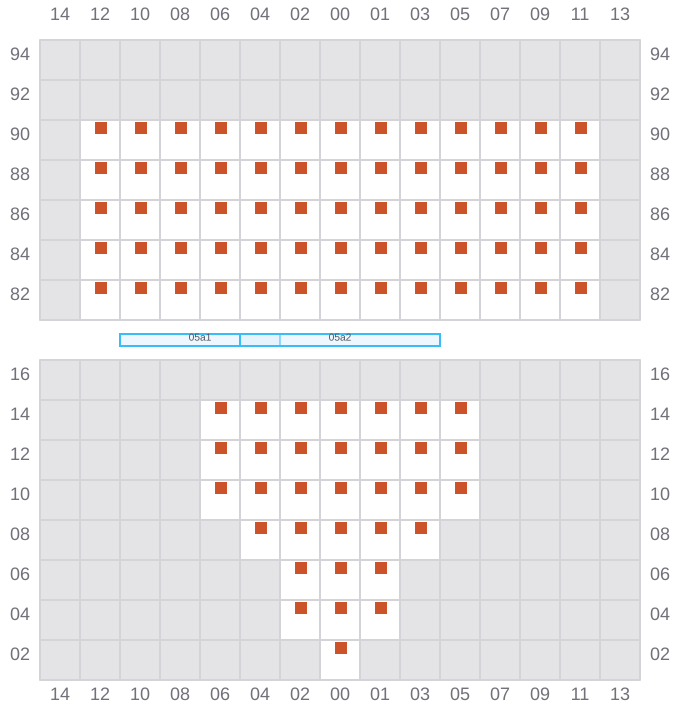

005 (006)
- →
- → / ?
- →

007
- ←
- →

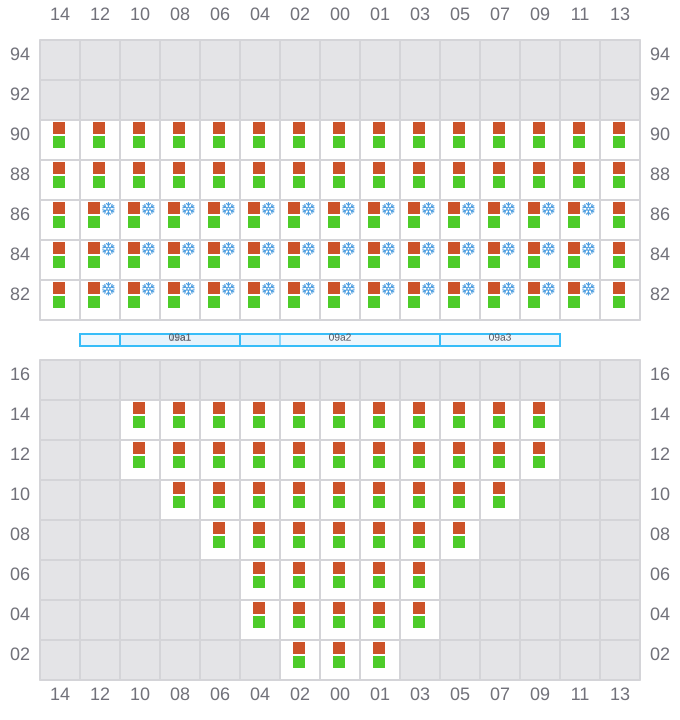

009 (010)
- →
- → / ?
- →

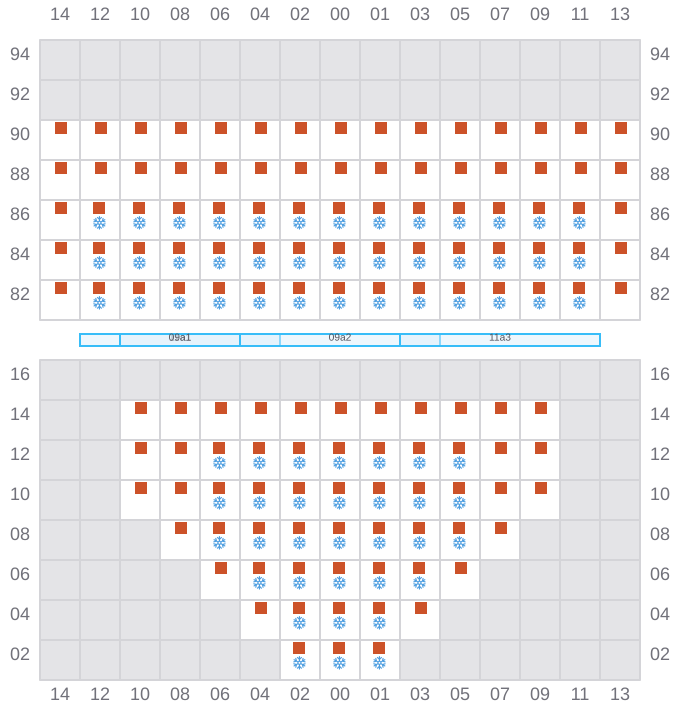

011
- ←
- →
- →

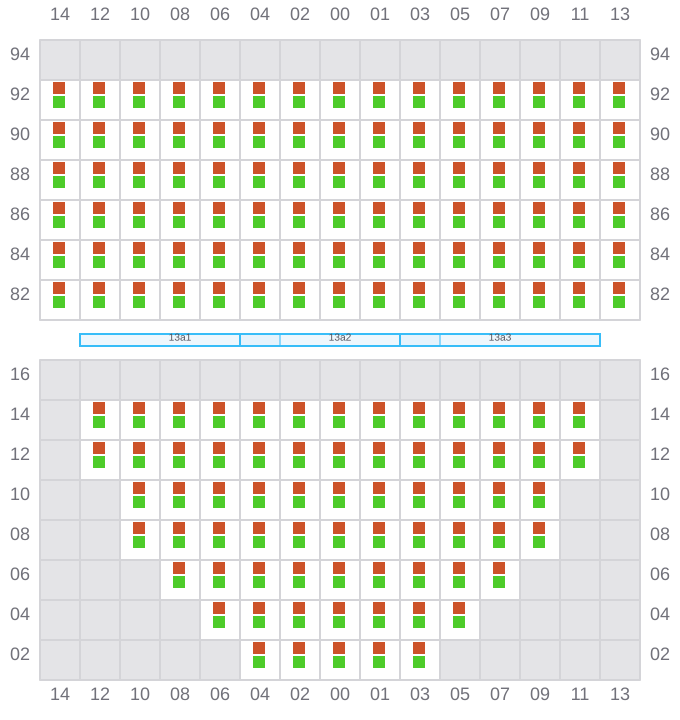

013 (014)
- →
- →

015
- ←
- →

017 (018)
- →
- → / ?
- →

019
- ←
- →

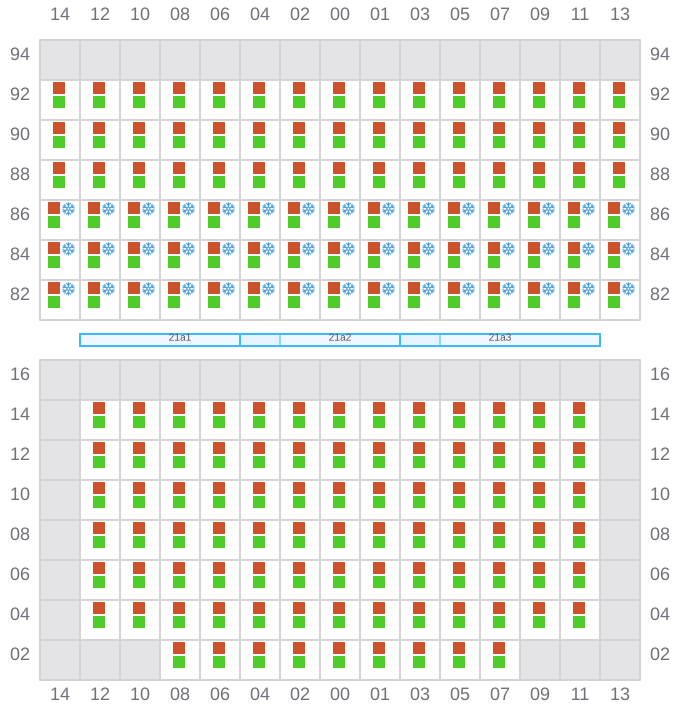

021 (022)
- →
- → / ?
- →

023
- ←
- →

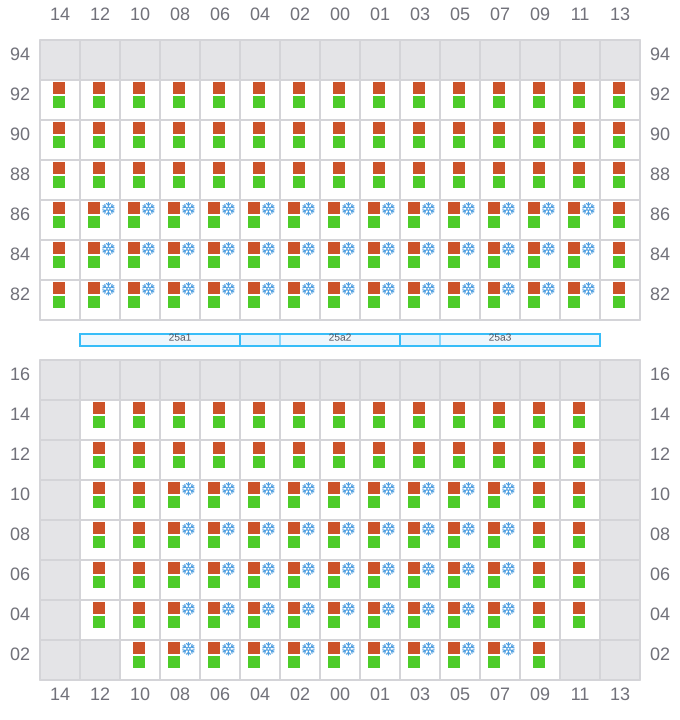

025 (026)
- →
- →
- →

027
- ←
- ? / →
- →

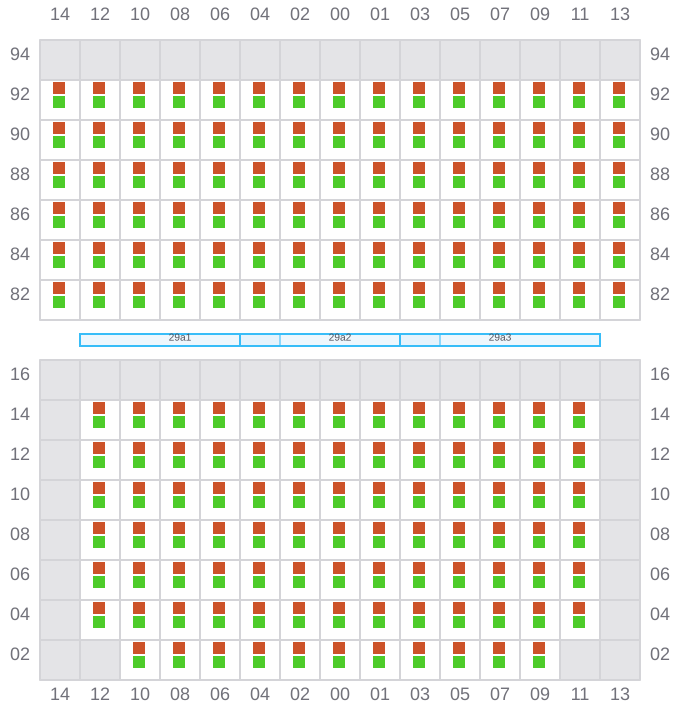

029 (030)
- →
- →

031
- ←
- →

033 (034)
- →
- →
- →

035
- ←
- → / ?
- →

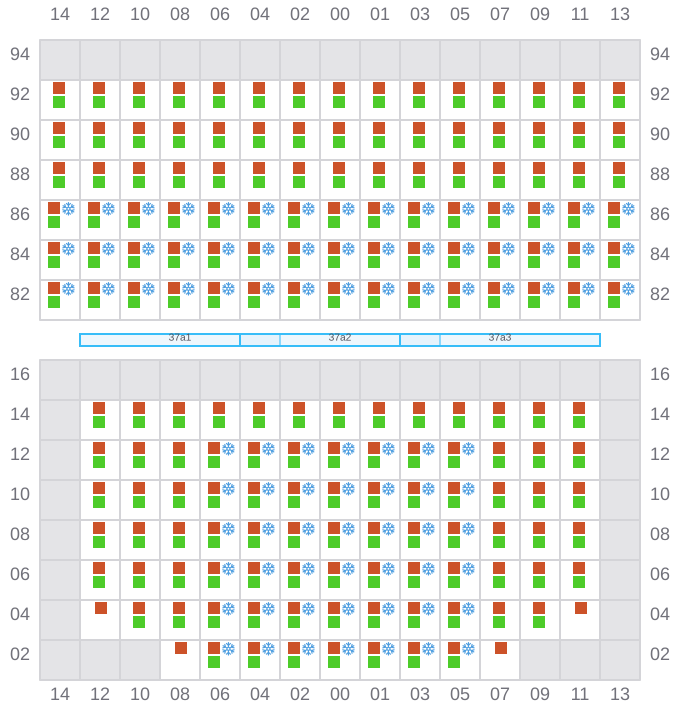

037 (038)
- →
- →
- →

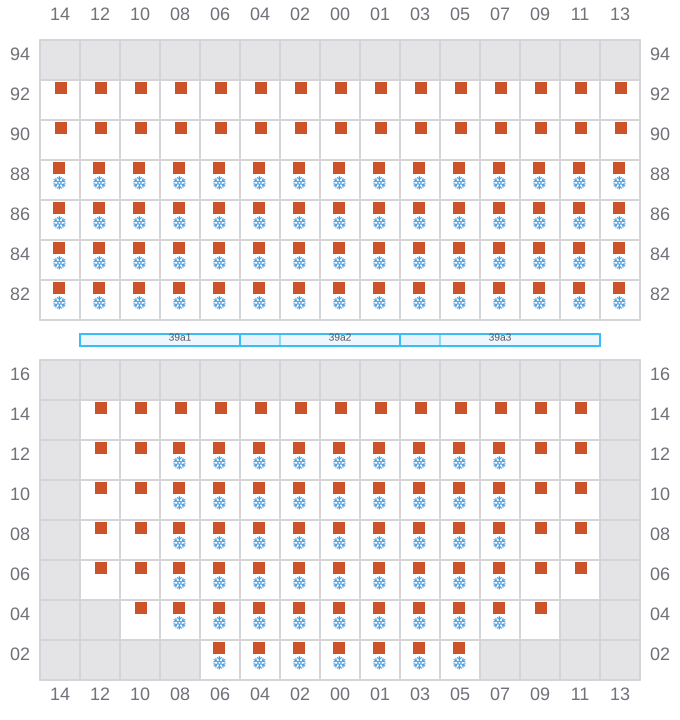

039
- ←
- →
- →

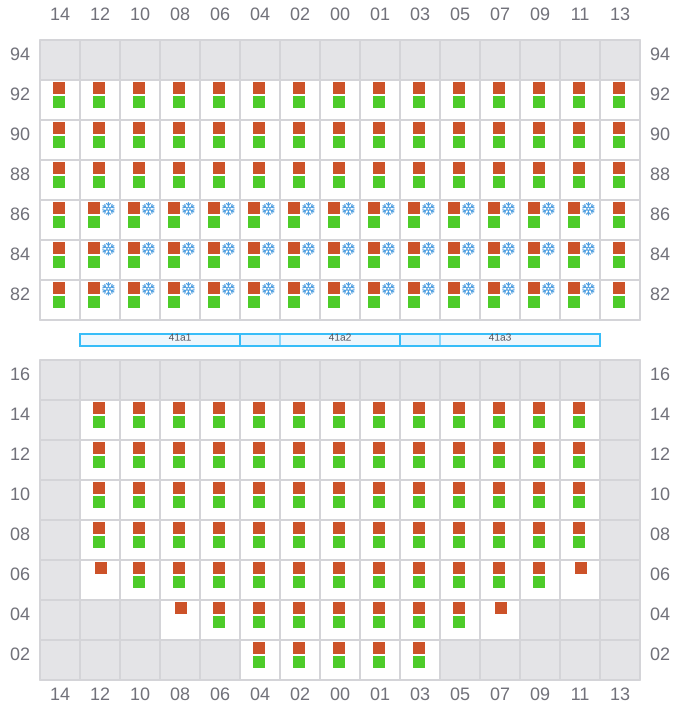

041 (042)
- →
- → / ?
- →

043
- ←
- →

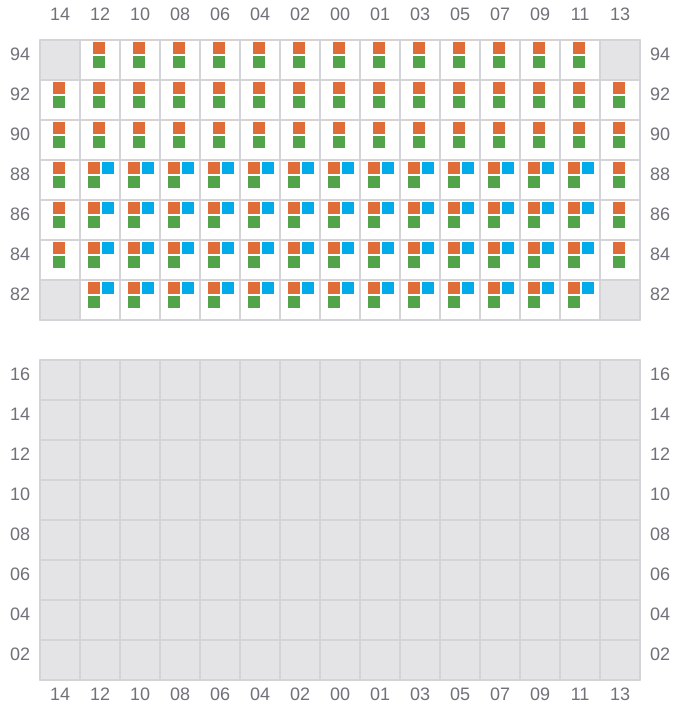

045 (046)
- → / ?
- → / ?
- → / ?

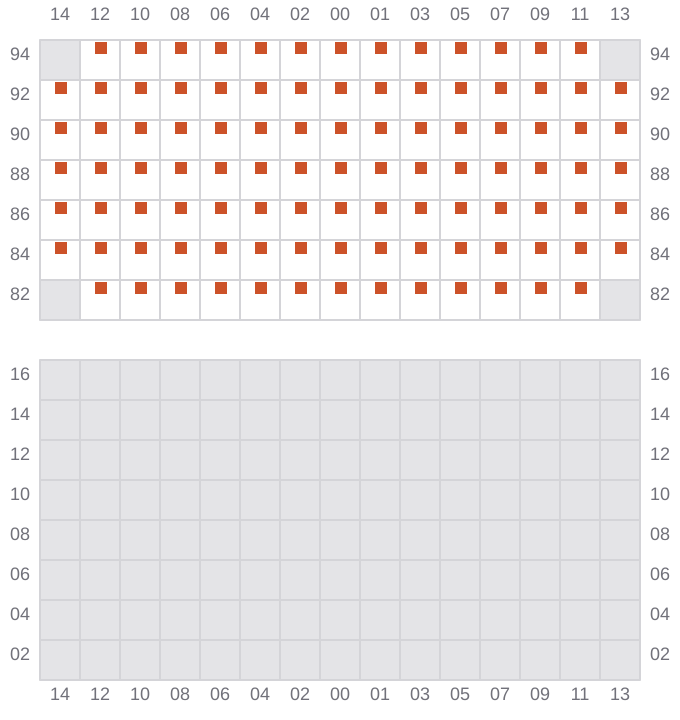

047
- ← / ?
- → / ?

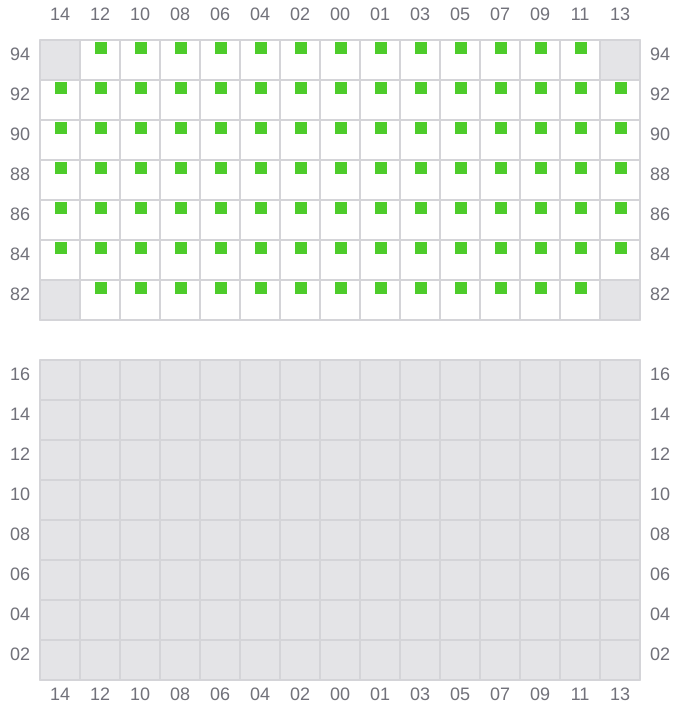

049 (050)
- → / ?
- → / ?
