CMA CGM AFRICA TWO
9451927 | C6YR9 | 9451927 by ********* Last update: Thu Apr 11 2024
General Info
Ship Name:CMA CGM AFRICA TWO
IMO Code:9451927
Call Sign:C6YR9
Line Operator:9451927
Class Name for Sister Ships:CMA CGM AFRICA TWO
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,754
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

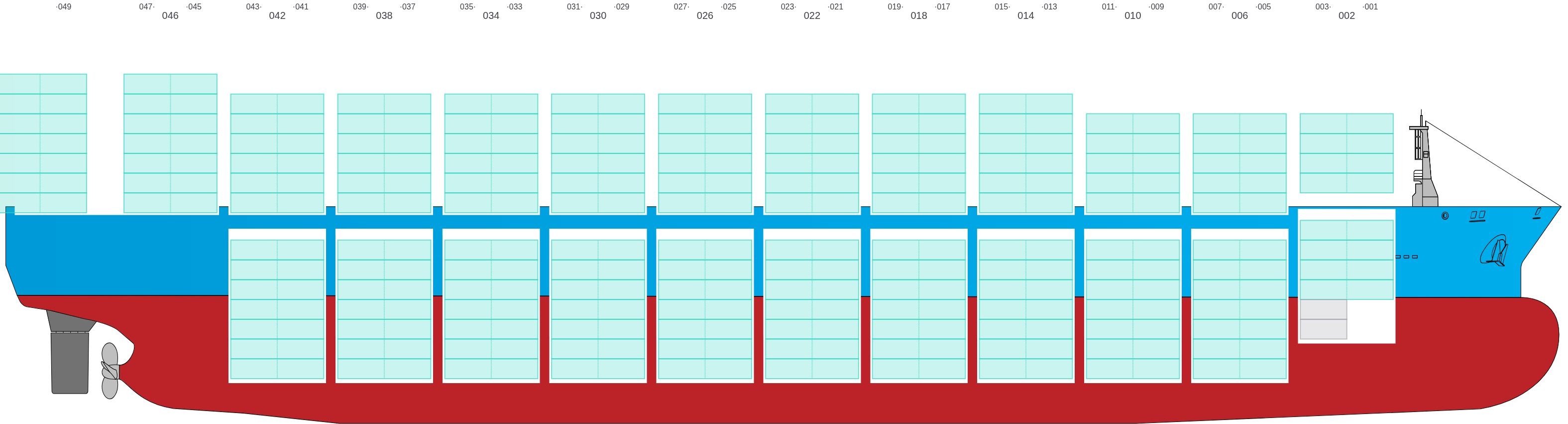

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

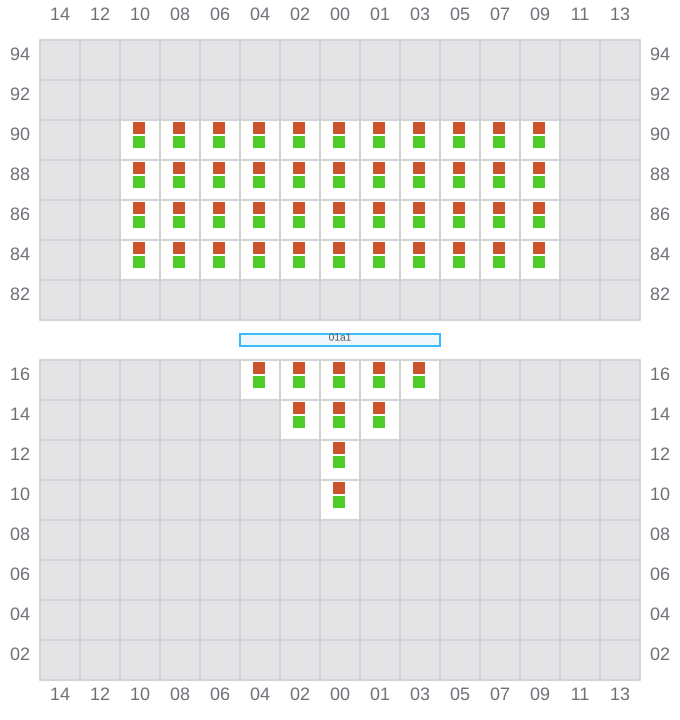

001 (002)
- →

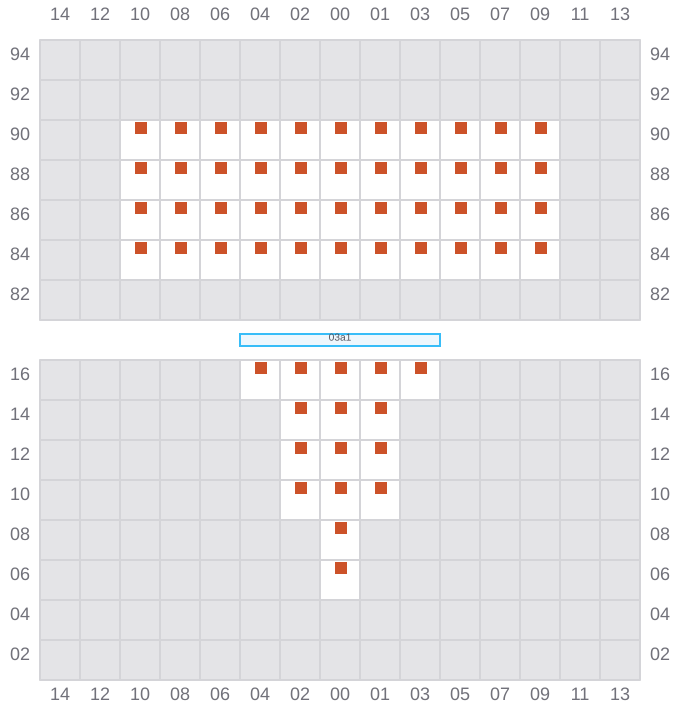

003
- ←

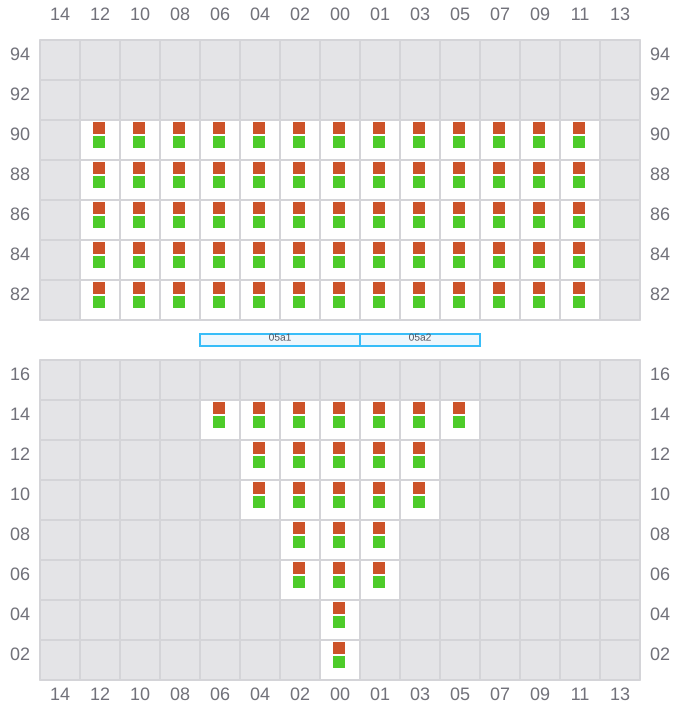

005 (006)
- →

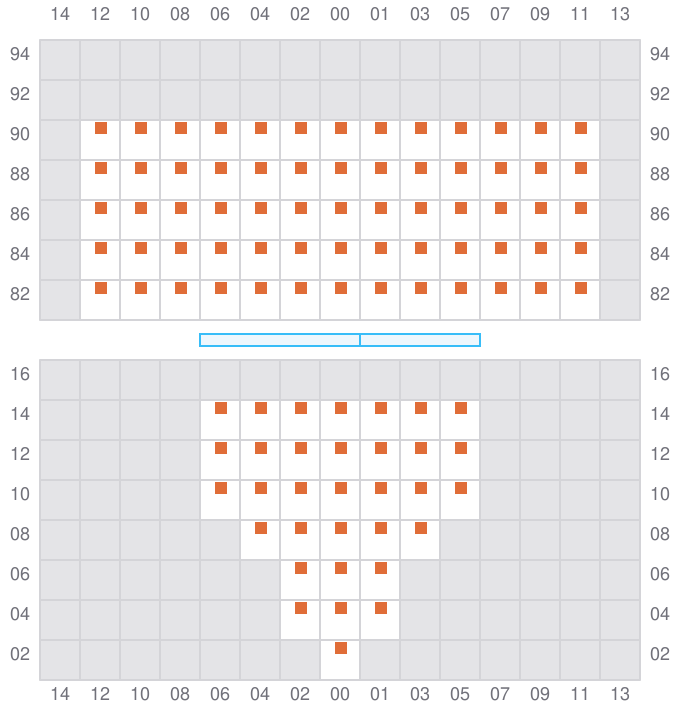

007
- ←

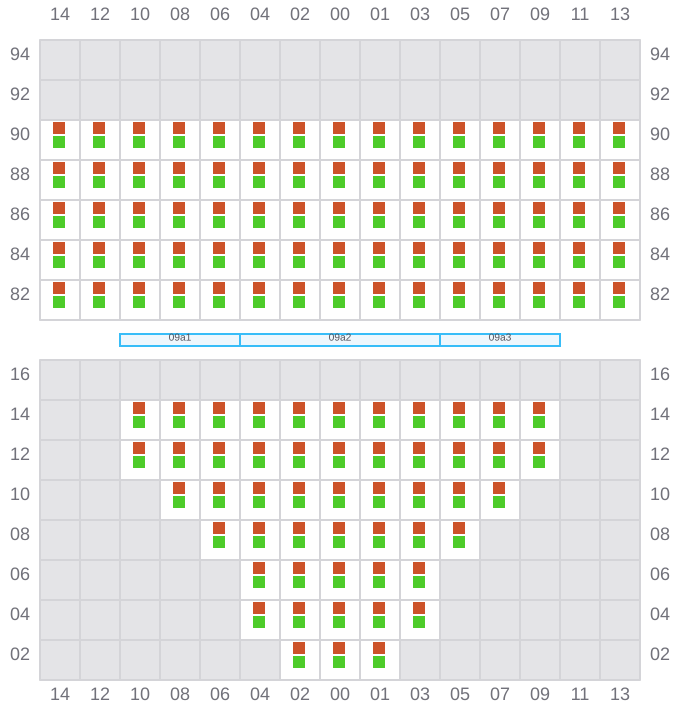

009 (010)
- →

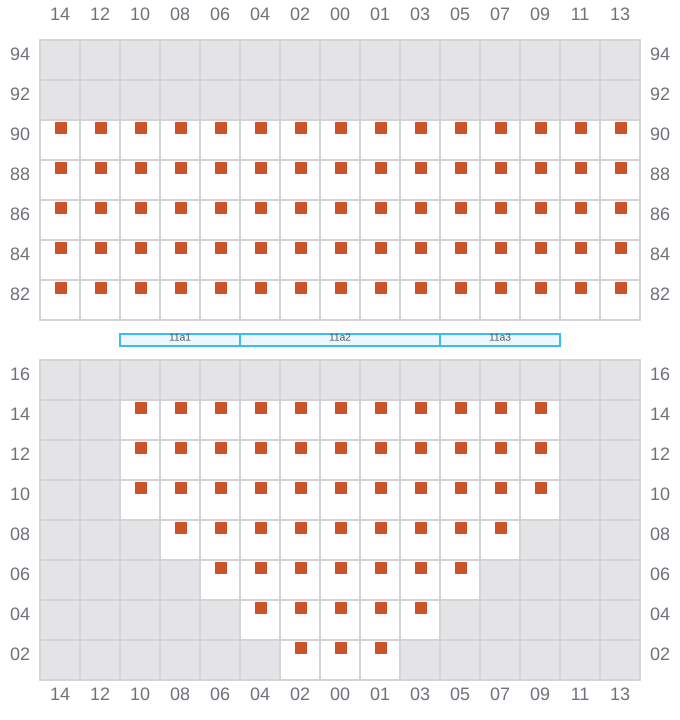

011
- ←

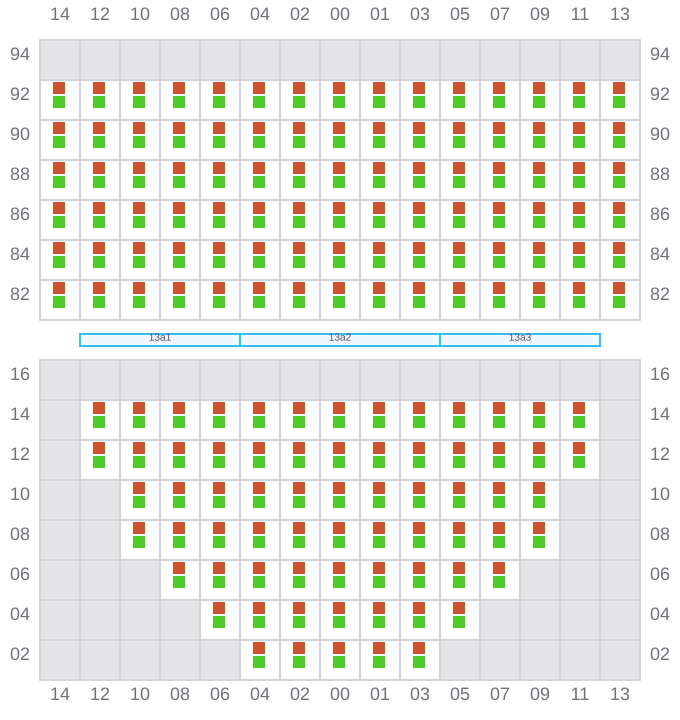

013 (014)
- →

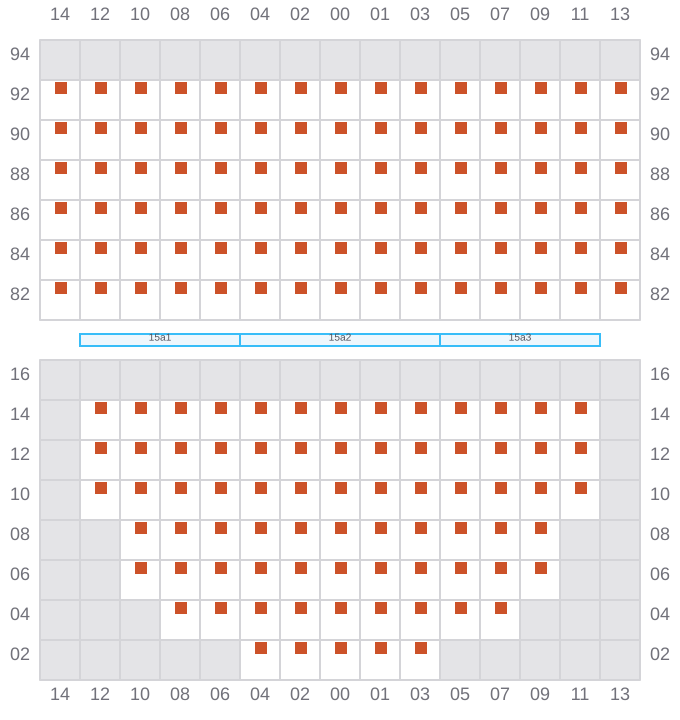

015
- ←

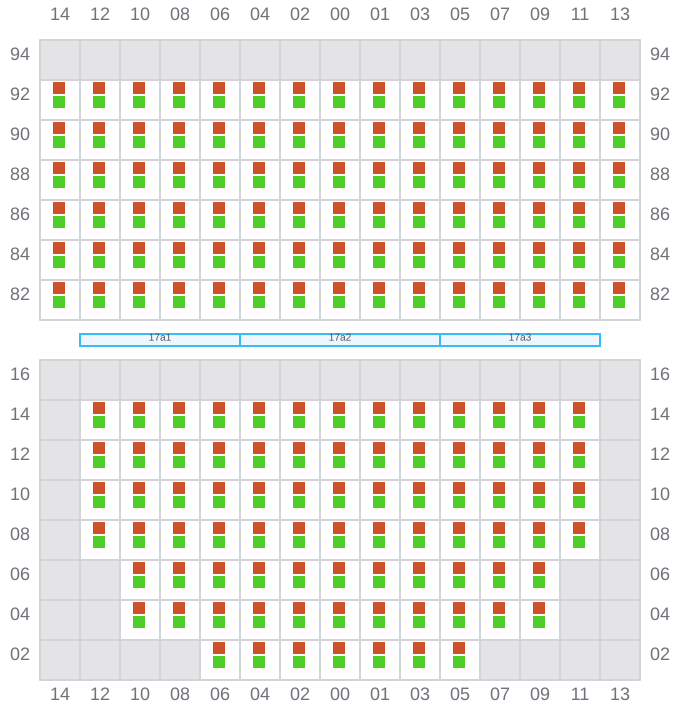

017 (018)
- →

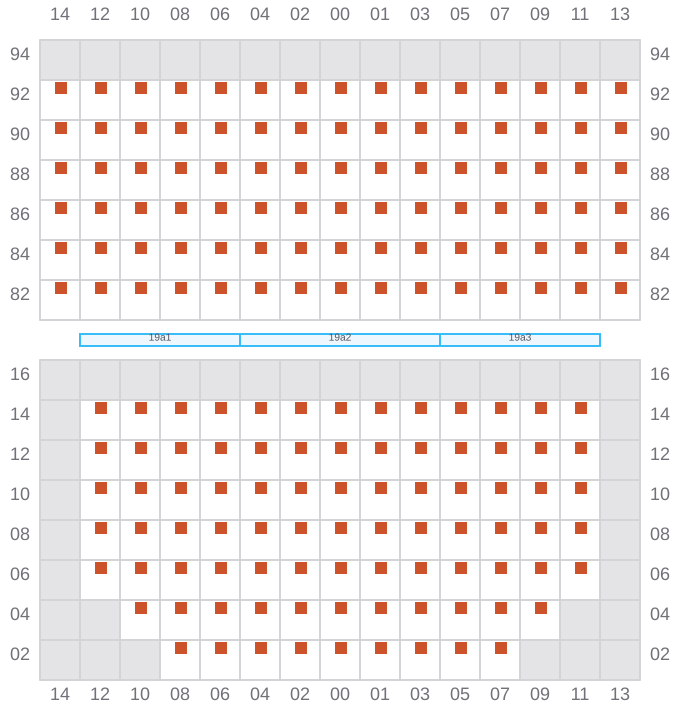

019
- ←
021 (022)
- →

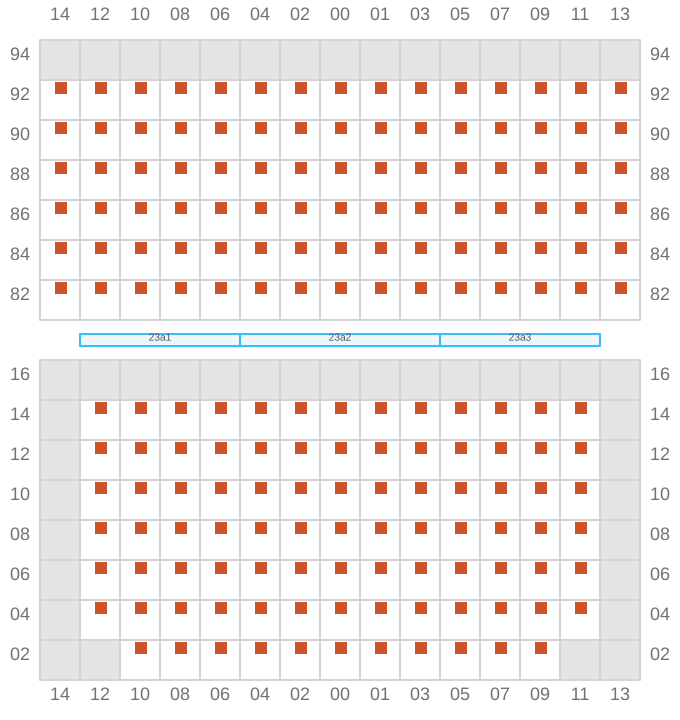

023
- ←
025 (026)
- →

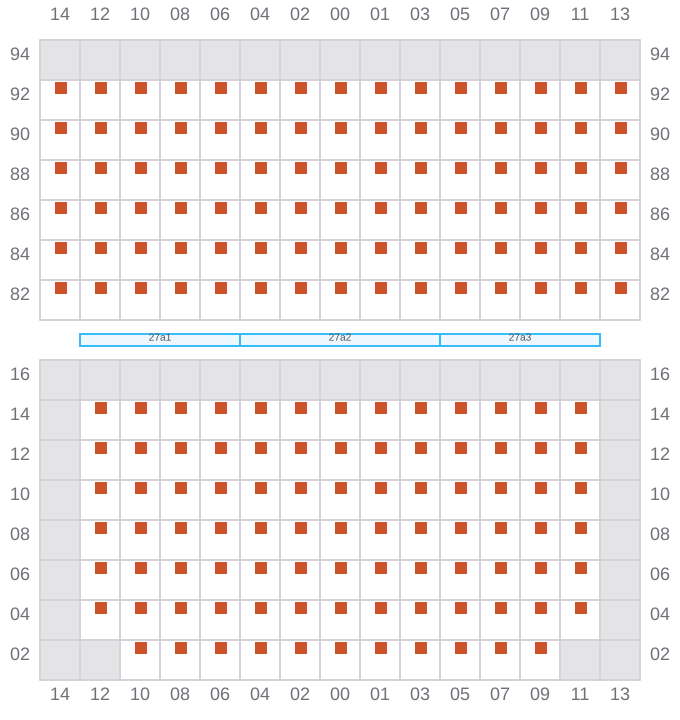

027
- ←
029 (030)
- →
031
- ←
033 (034)
- →
035
- ←
037 (038)
- →
039
- ←

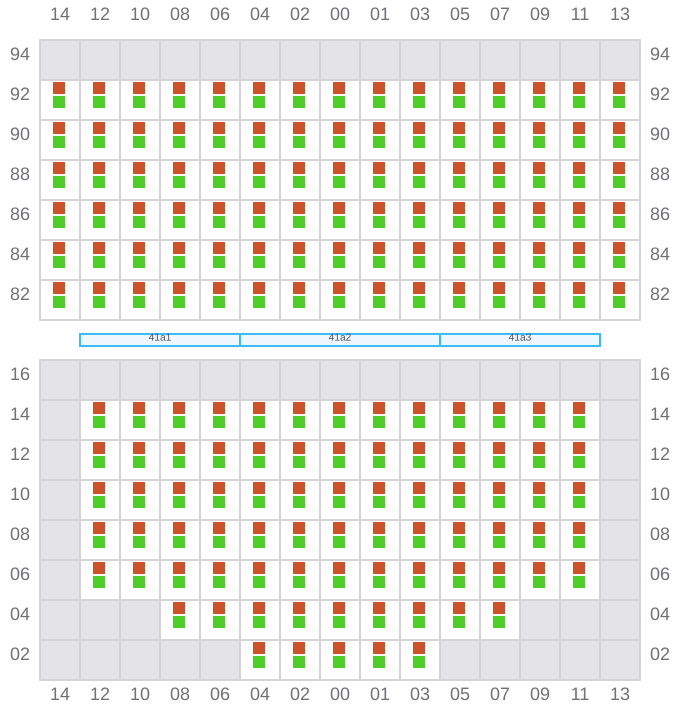

041 (042)
- →
043
- ←

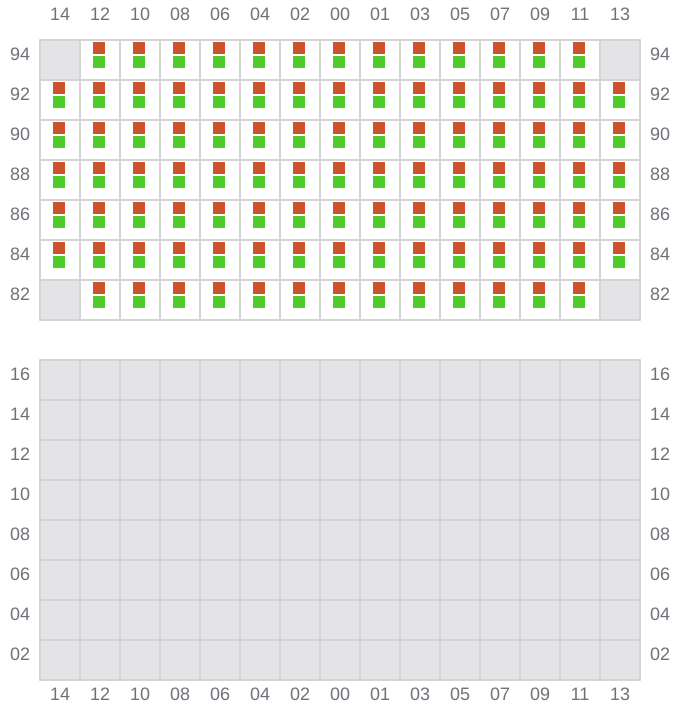

045 (046)
- → / ?

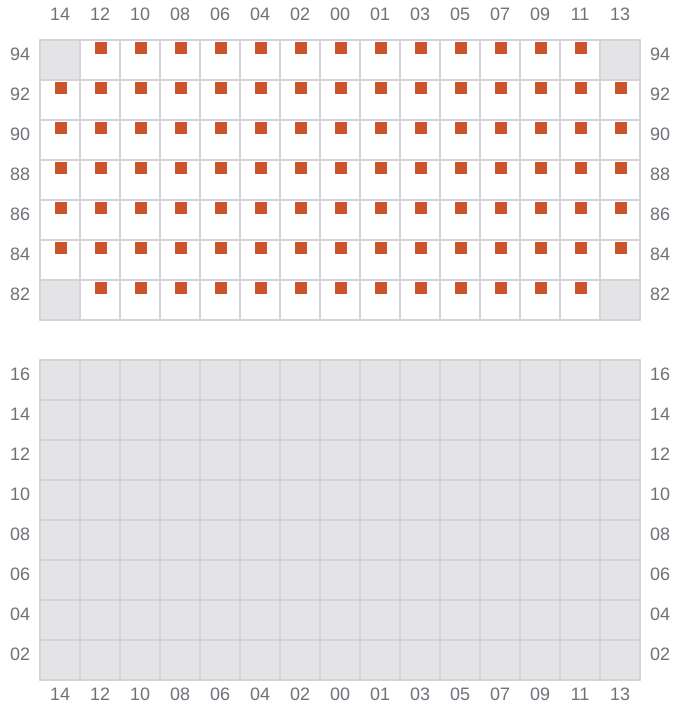

047
- ← / ?

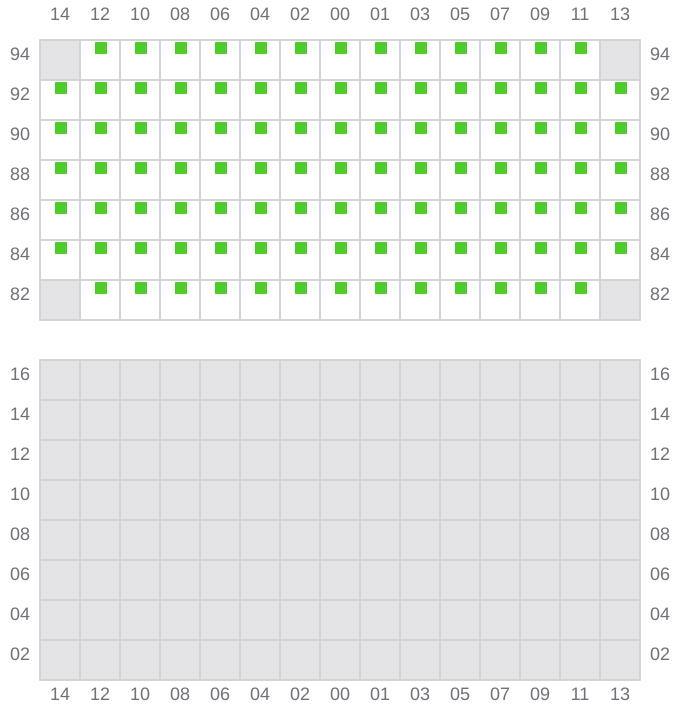

049 (050)
- → / ?
