CMA CGM ALASKA
9469572 | 9HA5189 | CMA by *********************** Last update: Mon Feb 03 2025

General Info

Ship Name:CMA CGM ALASKA
IMO Code:9469572
Call Sign:9HA5189
Line Operator:CMA
Class Name for Sister Ships:MSC FABIOLA
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.85
LOA (Length Overall):366.08
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:76
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,380

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of CMA CGM ALASKA

Hatch-Covers View

Deck view of CMA CGM ALASKA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CMA CGM ALASKA

003

Bay 003 view and slots of CMA CGM ALASKA

005 (006)

Bay 005 view and slots of CMA CGM ALASKA

007

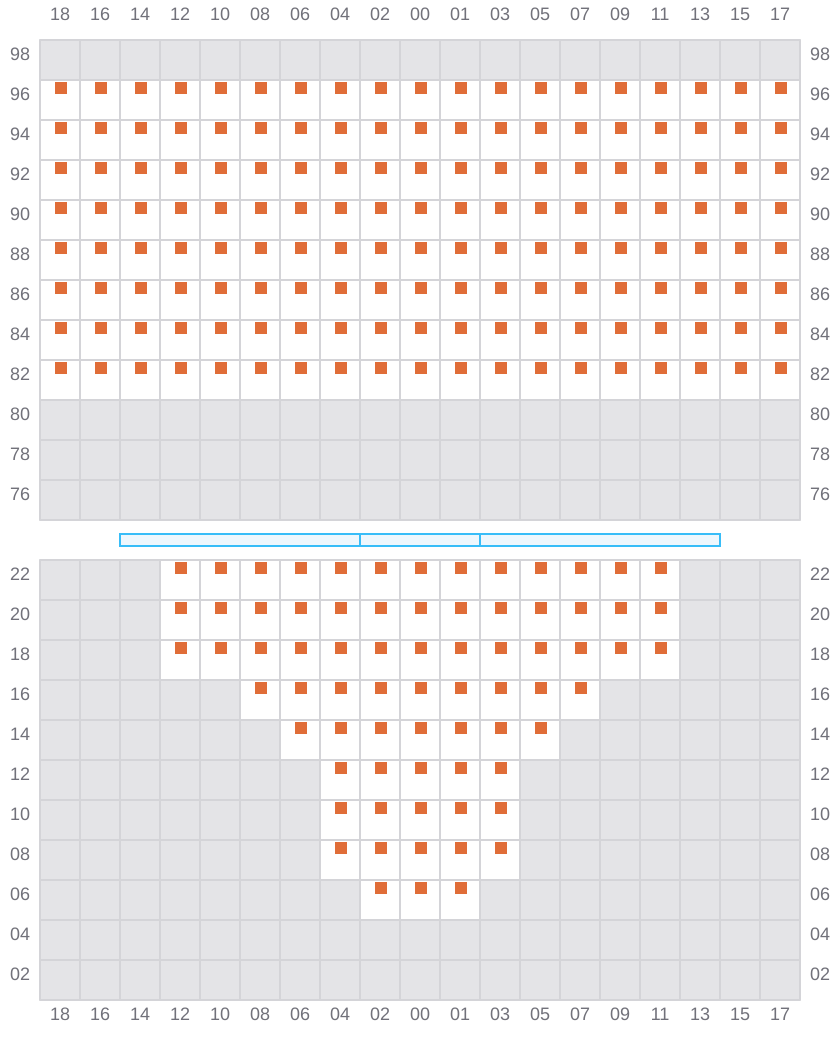

Bay 007 view and slots of CMA CGM ALASKA

009 (010)

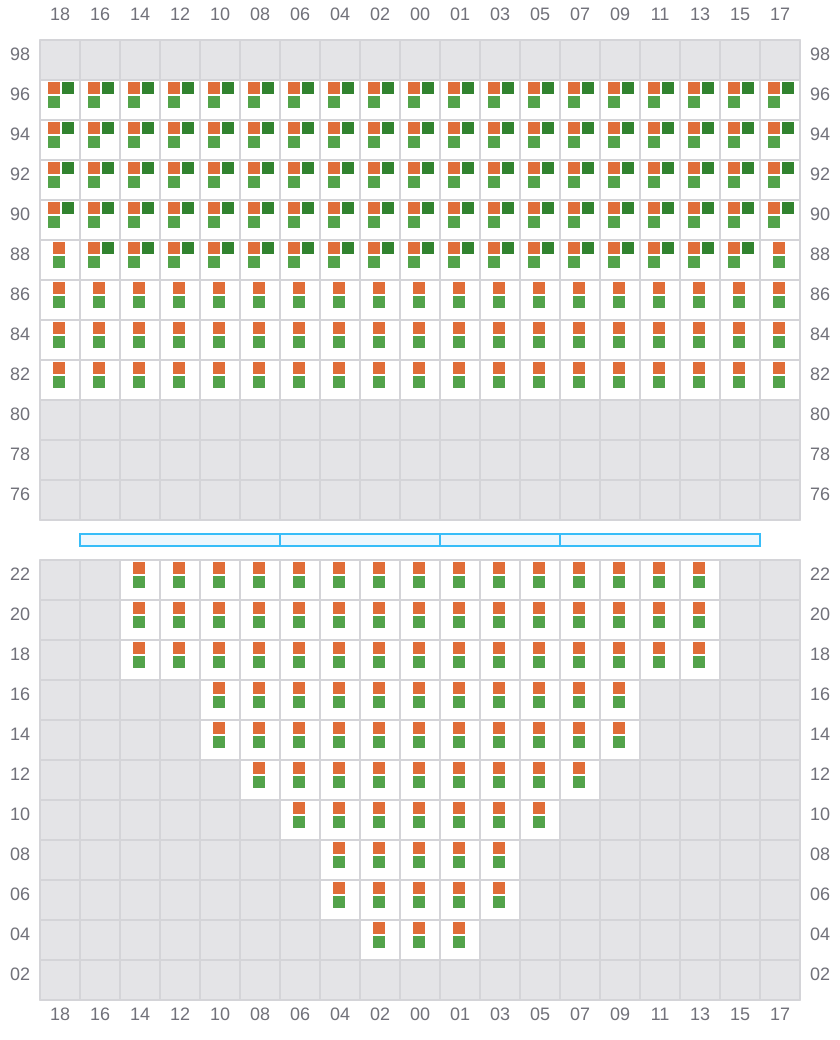

Bay 009 view and slots of CMA CGM ALASKA

011

  • / ?
Bay 011 view and slots of CMA CGM ALASKA

013 (014)

Bay 013 view and slots of CMA CGM ALASKA

015

  • / ?

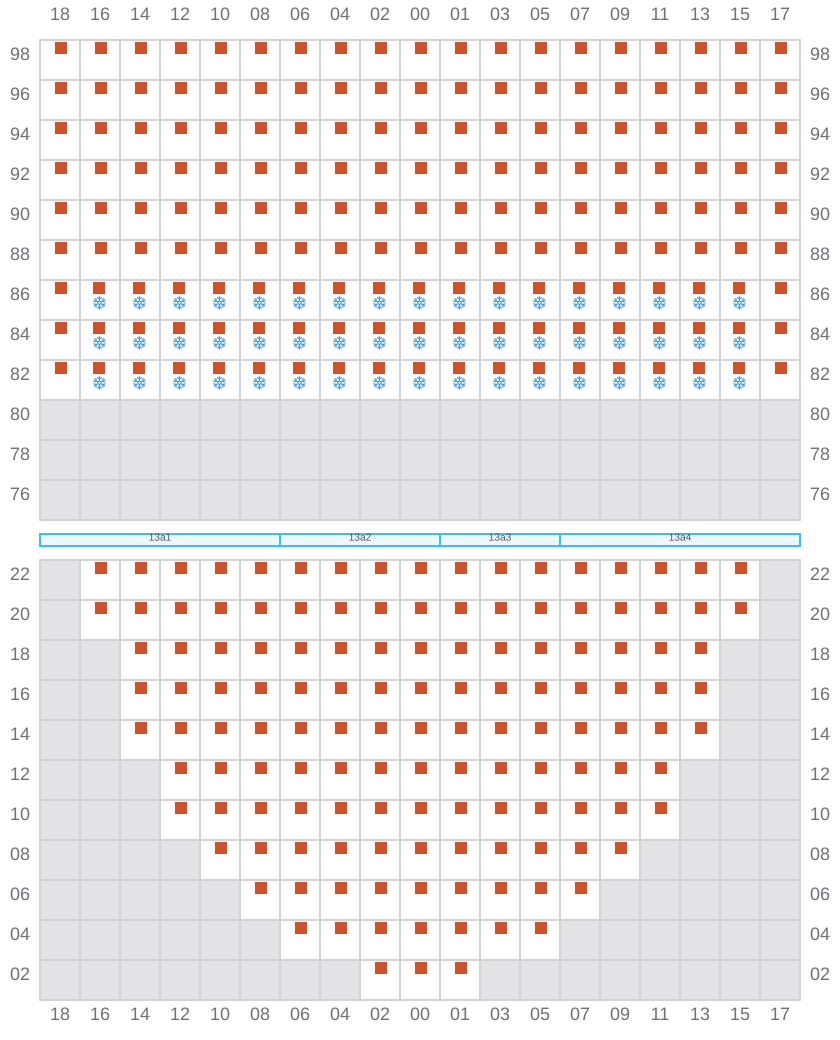

Bay 015 view and slots of CMA CGM ALASKA

017 (018)

Bay 017 view and slots of CMA CGM ALASKA

019

  • / ?
Bay 019 view and slots of CMA CGM ALASKA

021 (022)

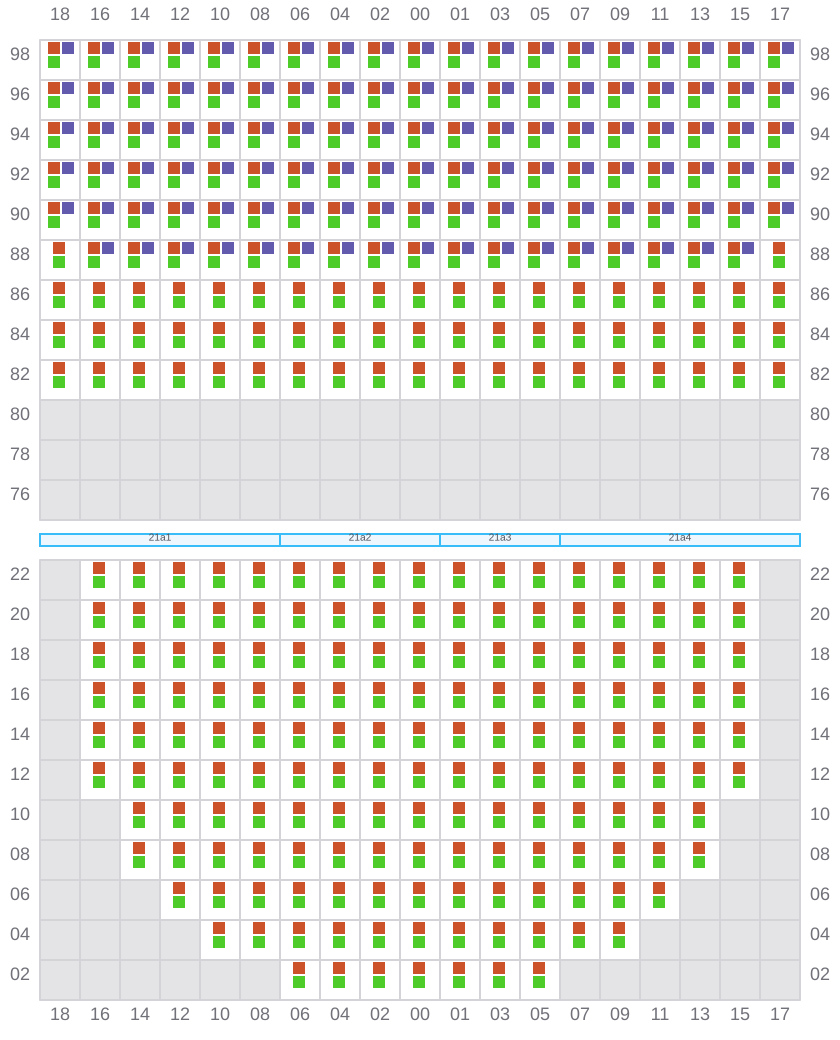

Bay 021 view and slots of CMA CGM ALASKA

023

  • / ?
Bay 023 view and slots of CMA CGM ALASKA

025 (026)

Bay 025 view and slots of CMA CGM ALASKA

027

  • / ?
Bay 027 view and slots of CMA CGM ALASKA

029 (030)

Bay 029 view and slots of CMA CGM ALASKA

031

  • / ?
Bay 031 view and slots of CMA CGM ALASKA

033 (034)

Bay 033 view and slots of CMA CGM ALASKA

035

  • / ?

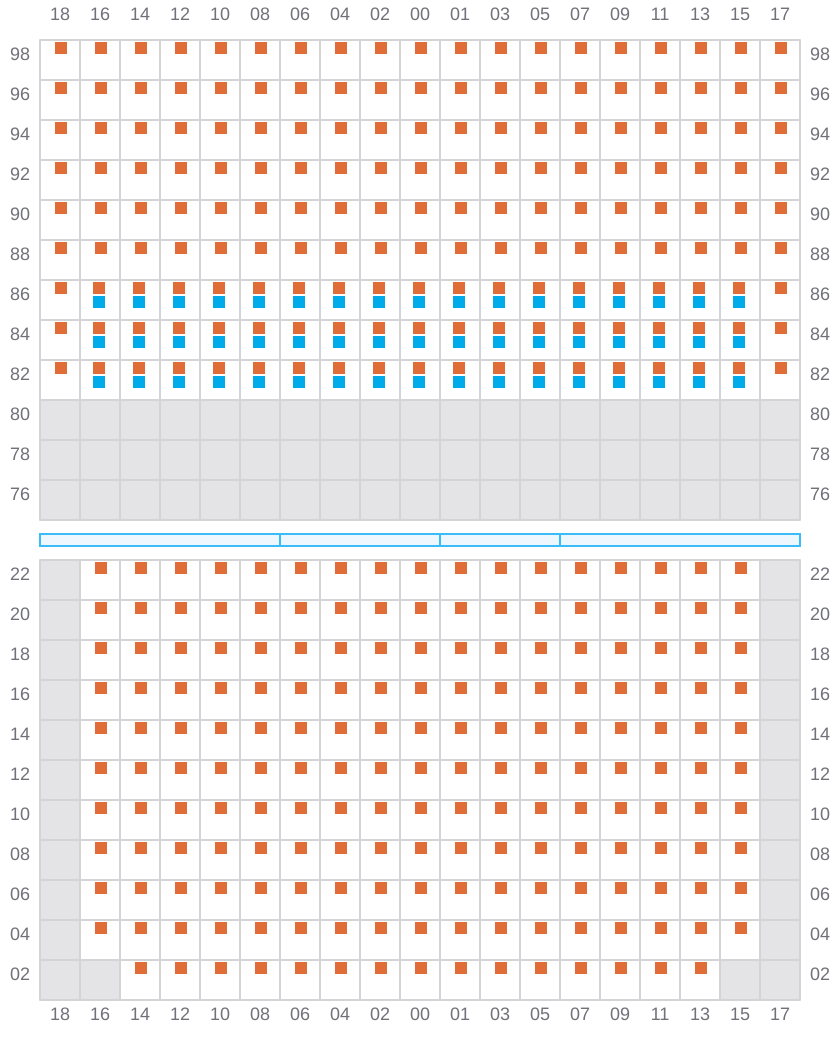

Bay 035 view and slots of CMA CGM ALASKA

037 (038)

Bay 037 view and slots of CMA CGM ALASKA

039

  • / ?

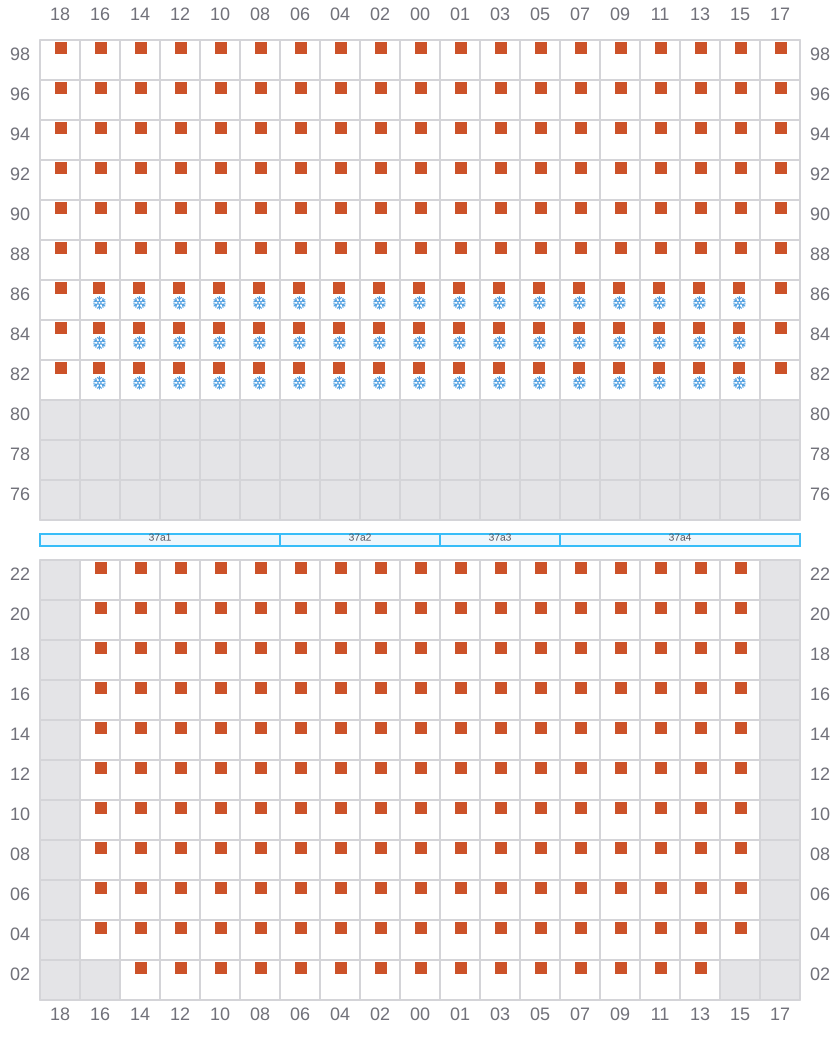

Bay 039 view and slots of CMA CGM ALASKA

041 (042)

Bay 041 view and slots of CMA CGM ALASKA

043

  • / ?
Bay 043 view and slots of CMA CGM ALASKA

045 (046)

Bay 045 view and slots of CMA CGM ALASKA

047

  • / ?
Bay 047 view and slots of CMA CGM ALASKA

049 (050)

Bay 049 view and slots of CMA CGM ALASKA

051

  • / ?

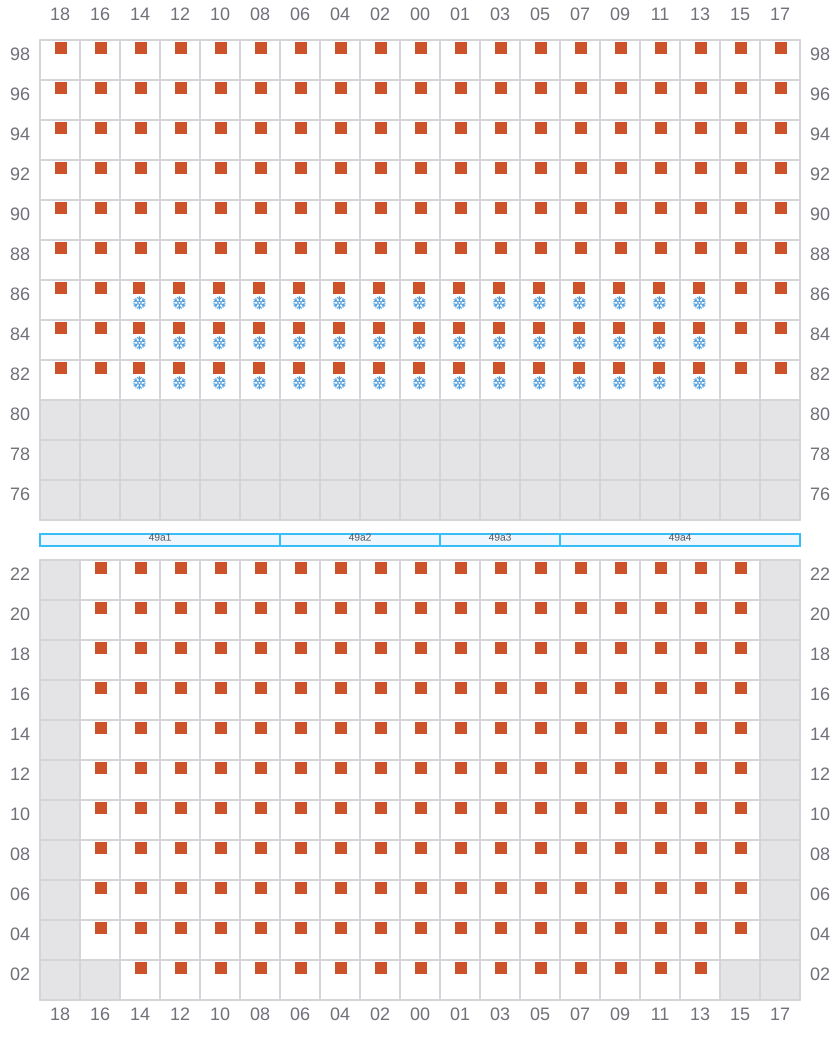

Bay 051 view and slots of CMA CGM ALASKA

053 (054)

Bay 053 view and slots of CMA CGM ALASKA

055

  • / ?
Bay 055 view and slots of CMA CGM ALASKA

057 (058)

Bay 057 view and slots of CMA CGM ALASKA

059

  • / ?
Bay 059 view and slots of CMA CGM ALASKA

061 (062)

Bay 061 view and slots of CMA CGM ALASKA

063

  • / ?
Bay 063 view and slots of CMA CGM ALASKA

065 (066)

Bay 065 view and slots of CMA CGM ALASKA

067

  • / ?
Bay 067 view and slots of CMA CGM ALASKA

069 (070)

  • / ?
  • / ?
Bay 069 view and slots of CMA CGM ALASKA

071

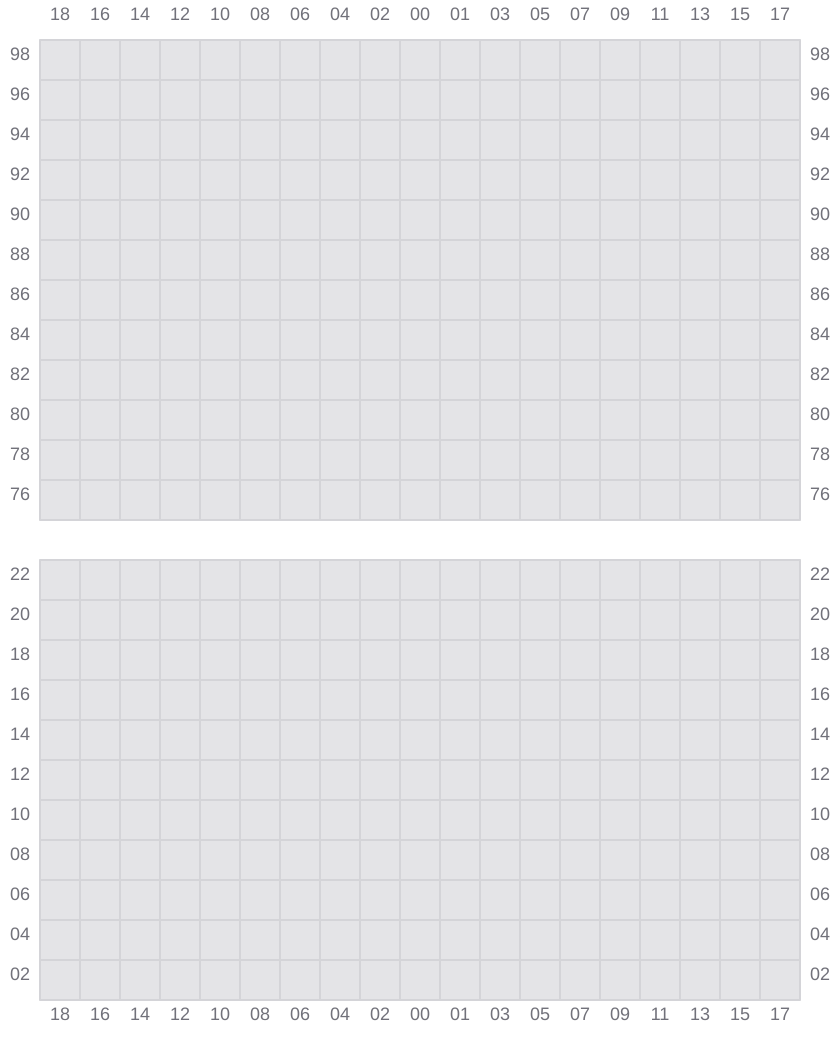

Bay 071 view and slots of CMA CGM ALASKA

073 (074)

Bay 073 view and slots of CMA CGM ALASKA

075

  • / ?
Bay 075 view and slots of CMA CGM ALASKA

077 (078)

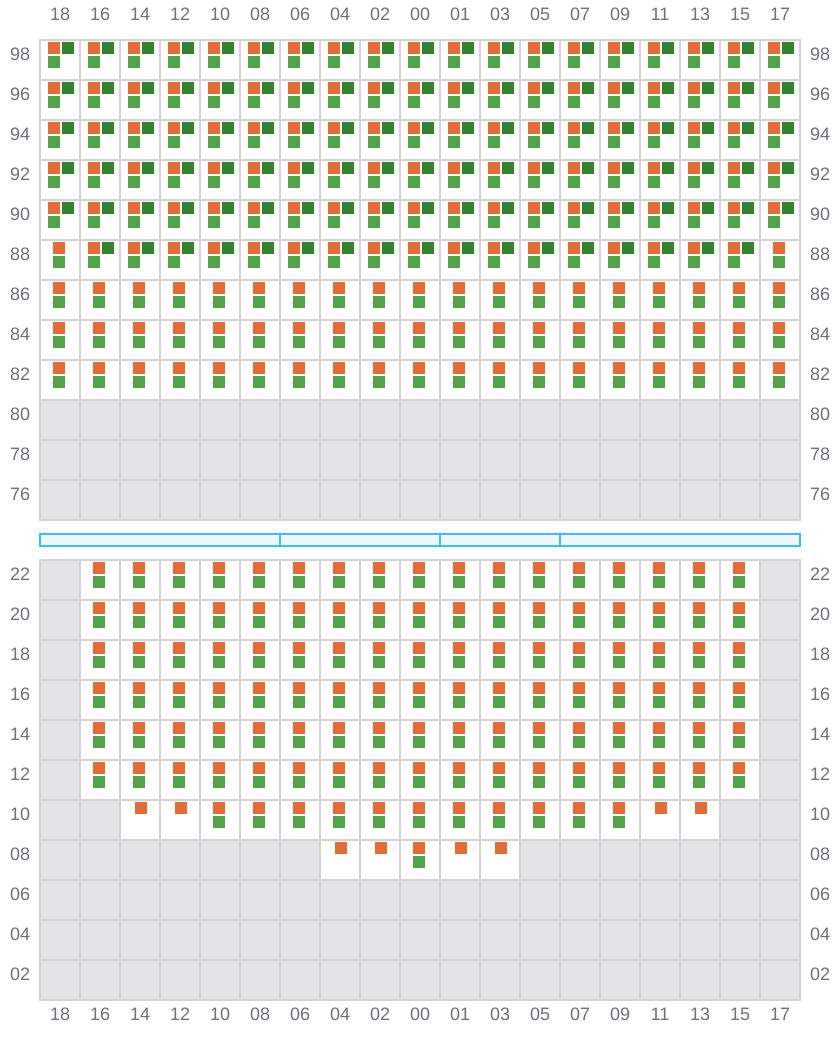

Bay 077 view and slots of CMA CGM ALASKA

079

  • / ?
Bay 079 view and slots of CMA CGM ALASKA

081 (082)

Bay 081 view and slots of CMA CGM ALASKA

083

  • / ?
Bay 083 view and slots of CMA CGM ALASKA

085 (086)

  • / ?
  • / ?

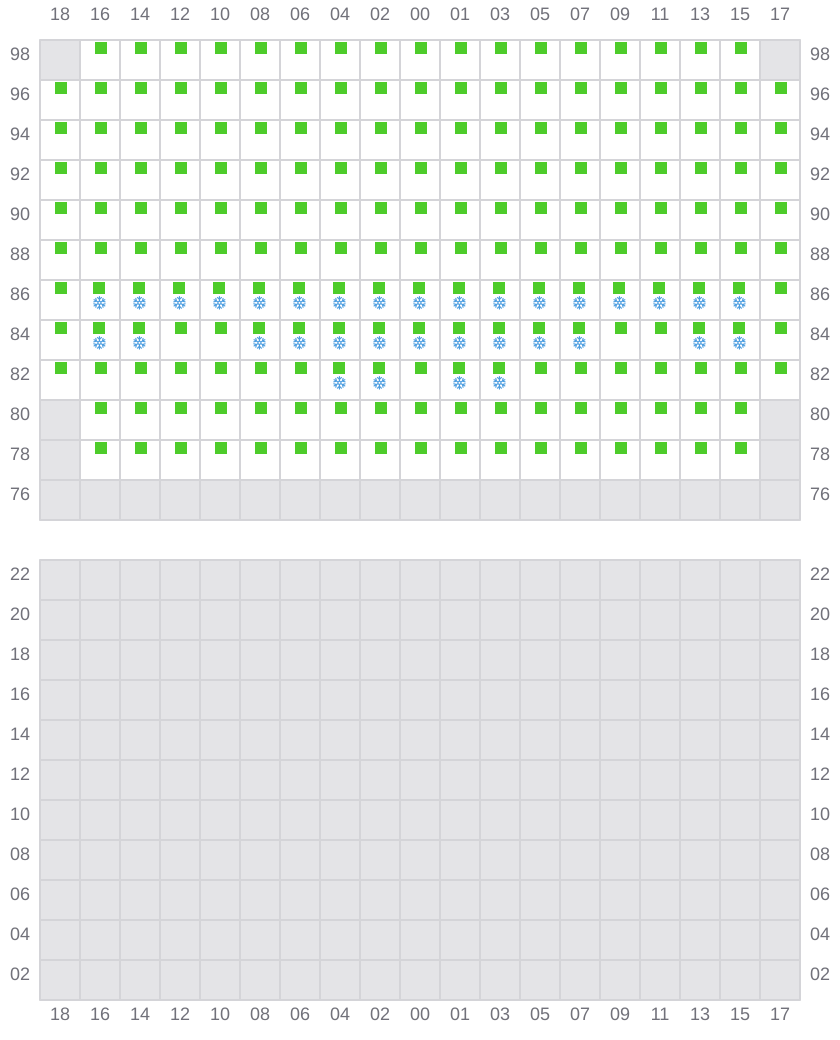

Bay 085 view and slots of CMA CGM ALASKA
