CMA CGM ALCAZAR
9335197 | 3ENL3 | 9335197 by ********* Last update: Tue Apr 09 2024

General Info

Ship Name:CMA CGM ALCAZAR
IMO Code:9335197
Call Sign:3ENL3
Line Operator:9335197
Class Name for Sister Ships:CMA CGM ALCAZAR
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):283.00
LOA (Length Overall):294.10
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,089

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

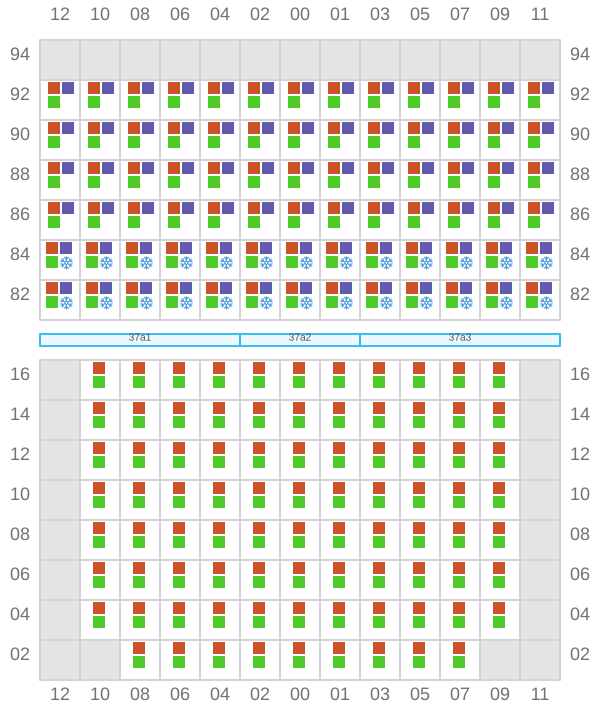

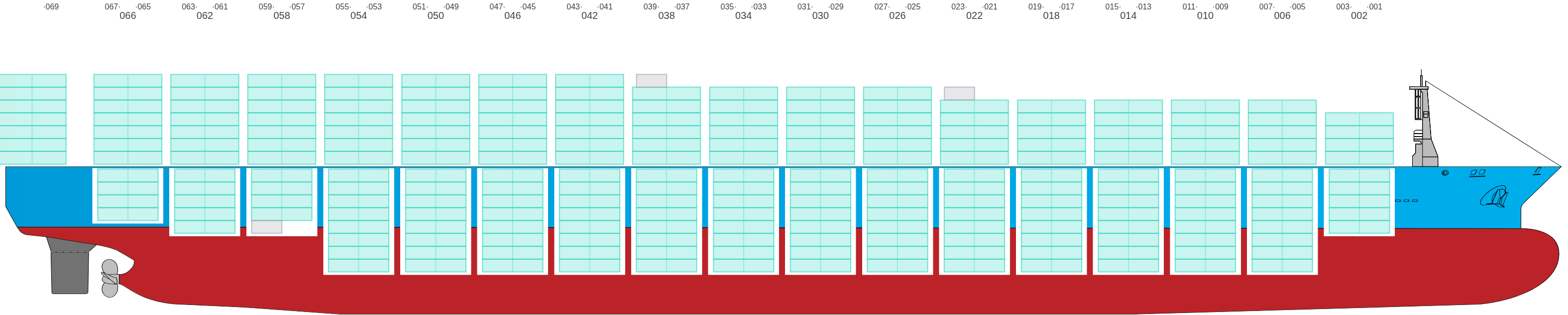

Side view of CMA CGM ALCAZAR

Hatch-Covers View

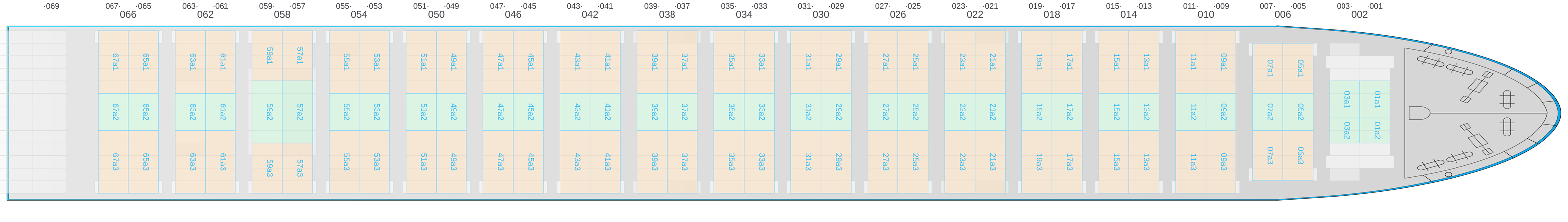

Deck view of CMA CGM ALCAZAR

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

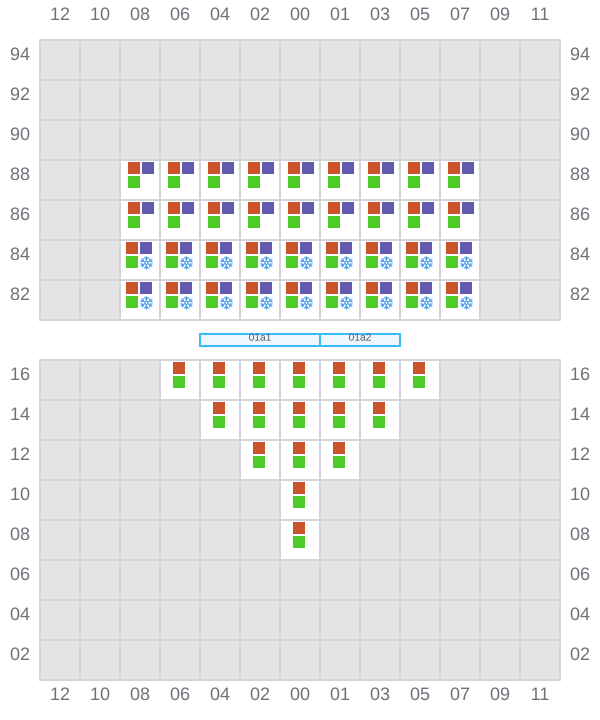

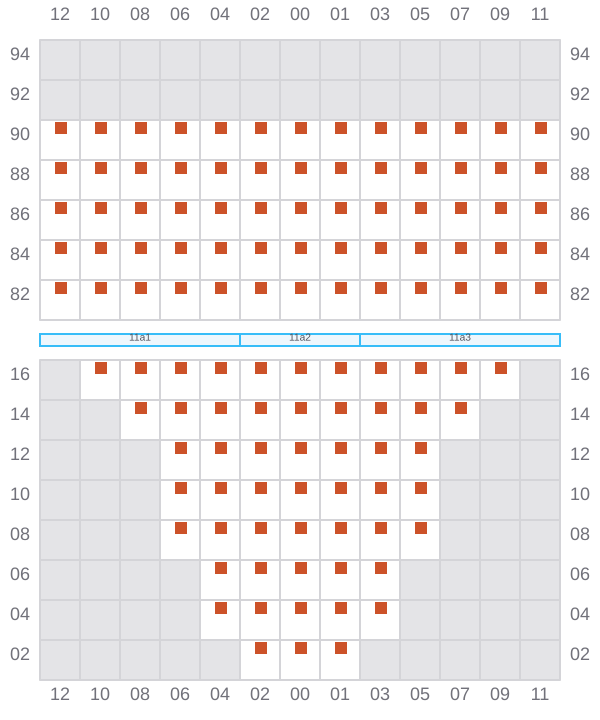

Bay 001 view and slots of CMA CGM ALCAZAR

003

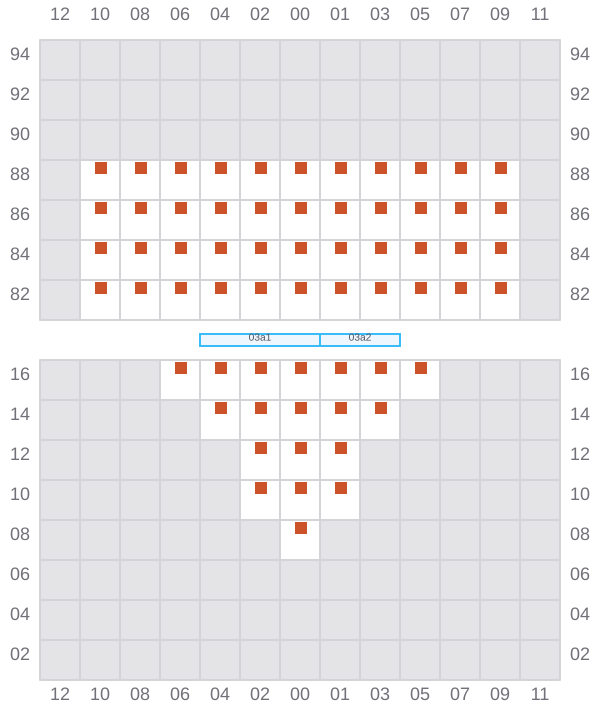

Bay 003 view and slots of CMA CGM ALCAZAR

005 (006)

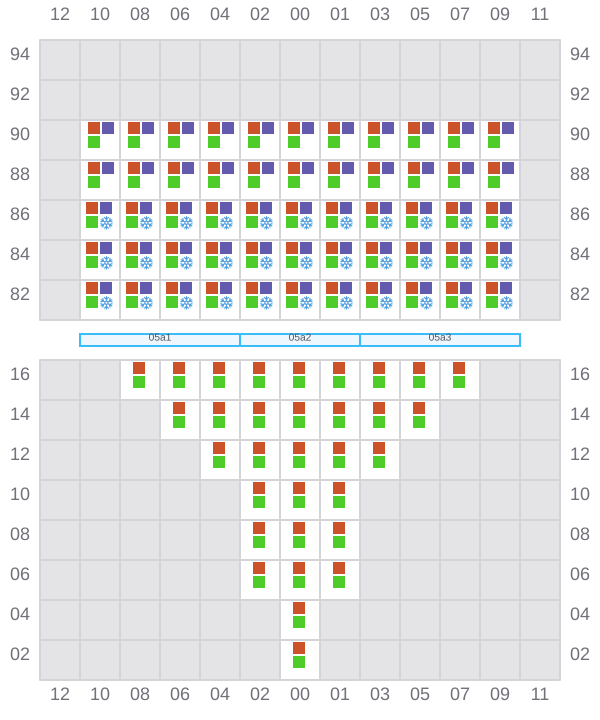

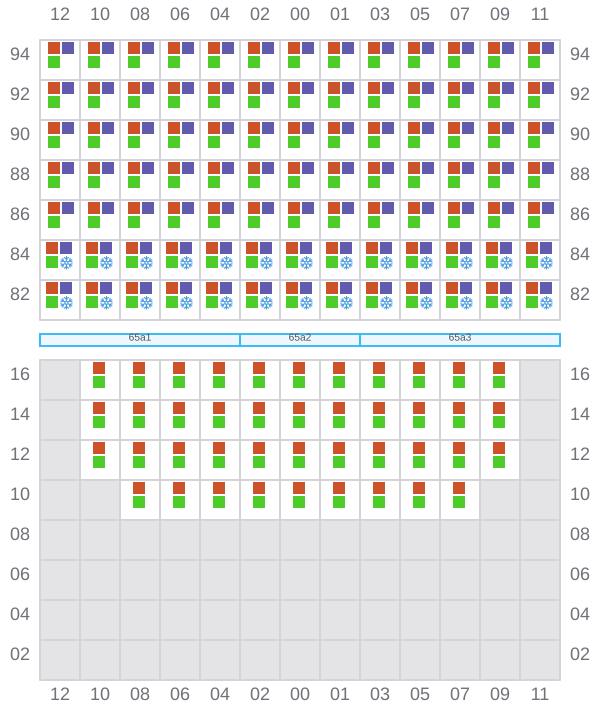

Bay 005 view and slots of CMA CGM ALCAZAR

007

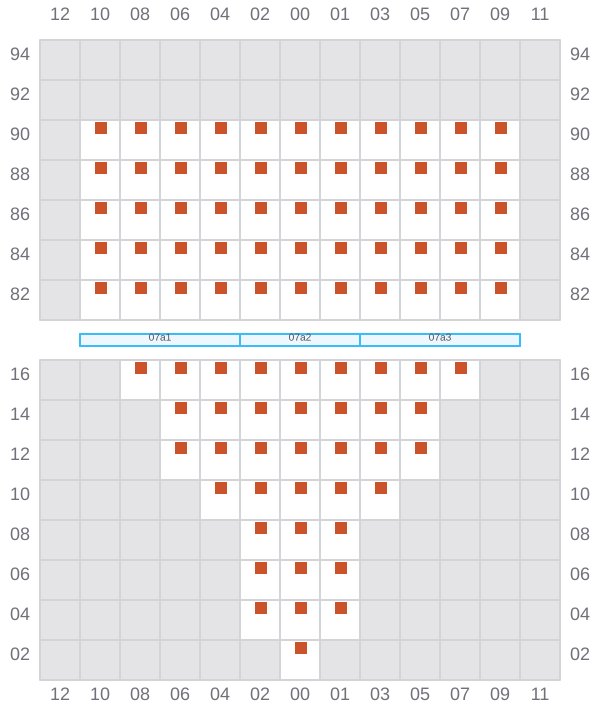

Bay 007 view and slots of CMA CGM ALCAZAR

009 (010)

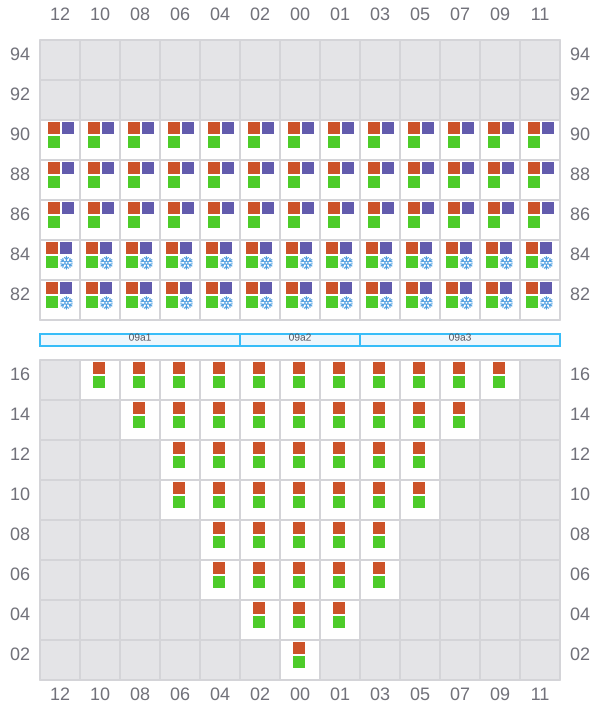

Bay 009 view and slots of CMA CGM ALCAZAR

011

Bay 011 view and slots of CMA CGM ALCAZAR

013 (014)

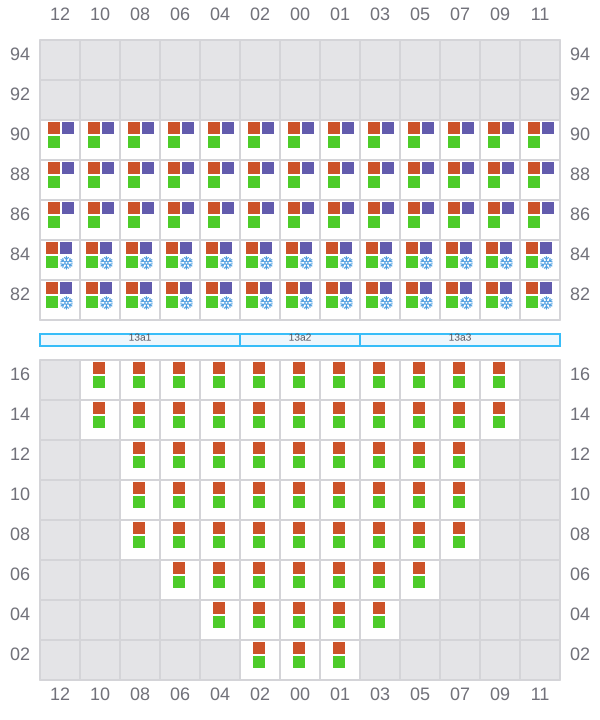

Bay 013 view and slots of CMA CGM ALCAZAR

015

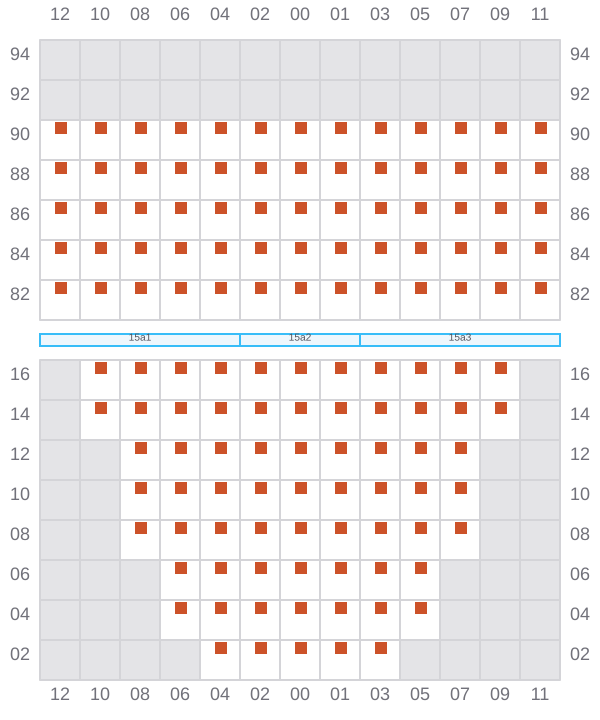

Bay 015 view and slots of CMA CGM ALCAZAR

017 (018)

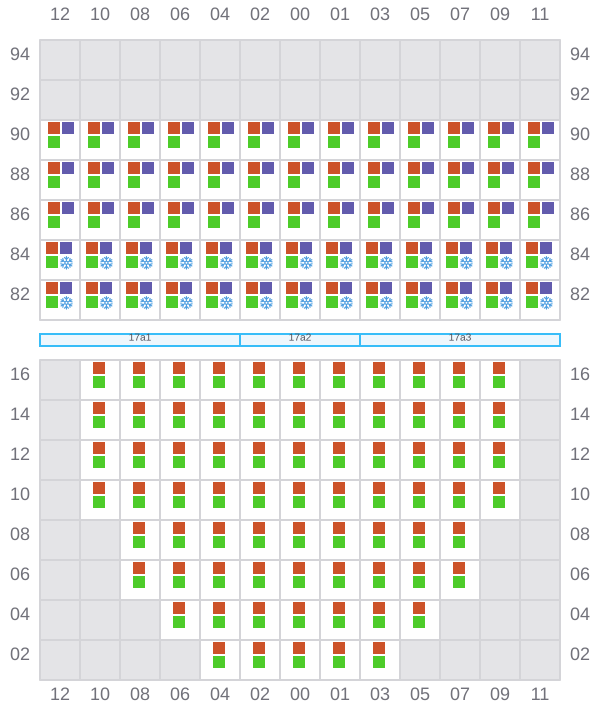

Bay 017 view and slots of CMA CGM ALCAZAR

019

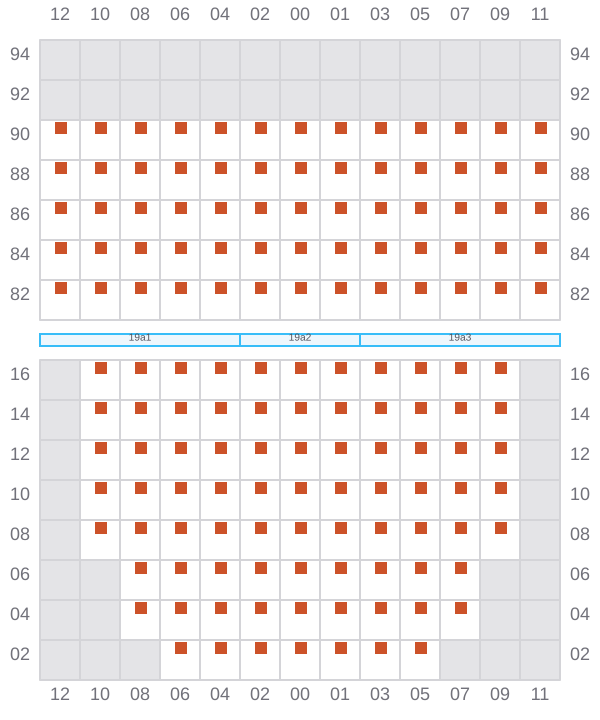

Bay 019 view and slots of CMA CGM ALCAZAR

021 (022)

Bay 021 view and slots of CMA CGM ALCAZAR

023

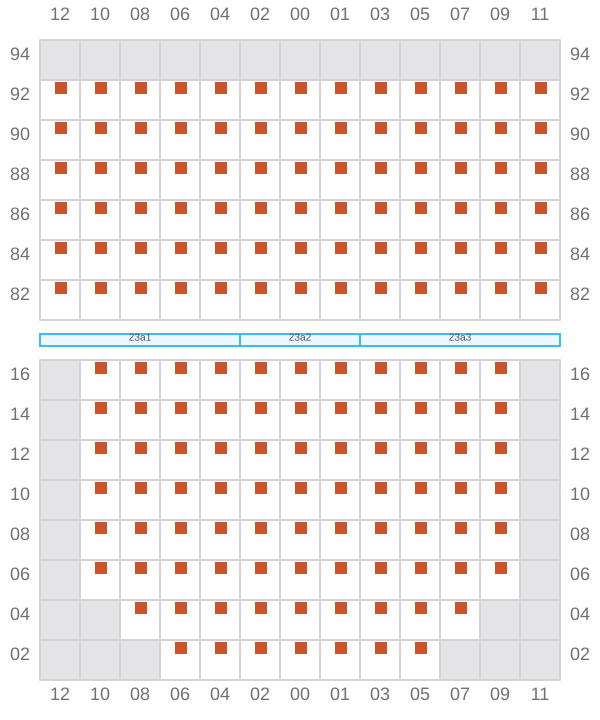

Bay 023 view and slots of CMA CGM ALCAZAR

025 (026)

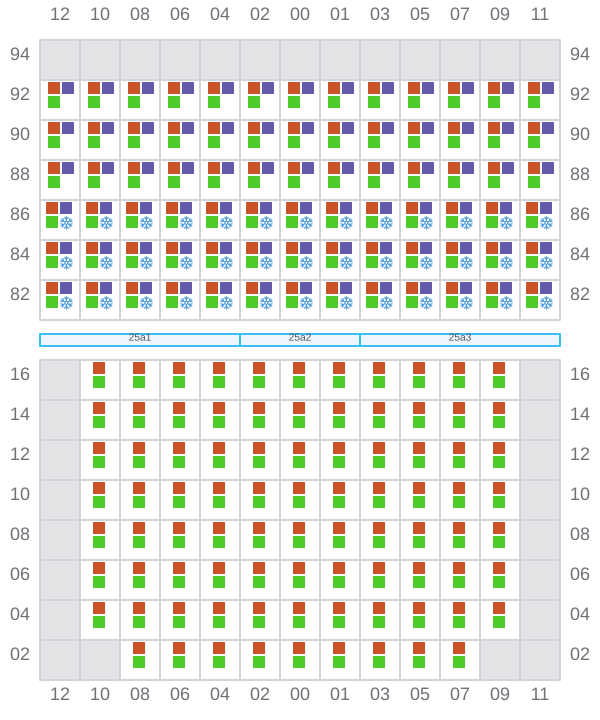

Bay 025 view and slots of CMA CGM ALCAZAR

027

Bay 027 view and slots of CMA CGM ALCAZAR

029 (030)

Bay 029 view and slots of CMA CGM ALCAZAR

031

Bay 031 view and slots of CMA CGM ALCAZAR

033 (034)

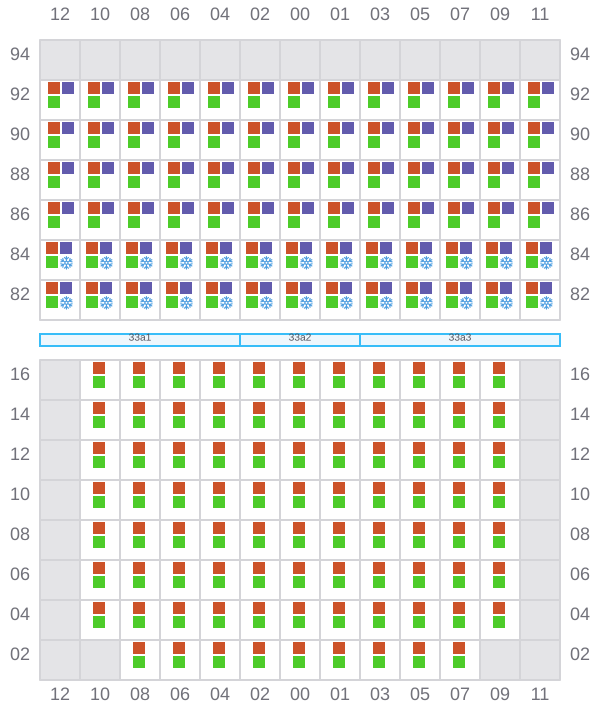

Bay 033 view and slots of CMA CGM ALCAZAR

035

Bay 035 view and slots of CMA CGM ALCAZAR

037 (038)

Bay 037 view and slots of CMA CGM ALCAZAR

039

Bay 039 view and slots of CMA CGM ALCAZAR

041 (042)

Bay 041 view and slots of CMA CGM ALCAZAR

043

Bay 043 view and slots of CMA CGM ALCAZAR

045 (046)

Bay 045 view and slots of CMA CGM ALCAZAR

047

Bay 047 view and slots of CMA CGM ALCAZAR

049 (050)

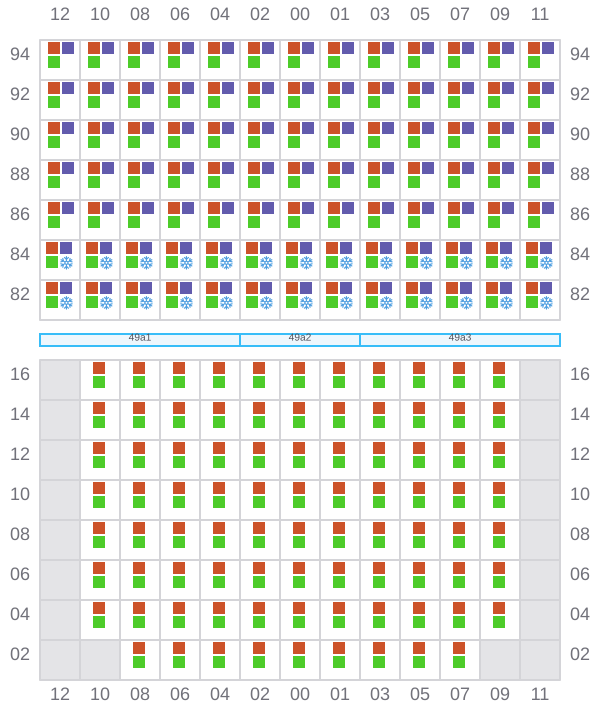

Bay 049 view and slots of CMA CGM ALCAZAR

051

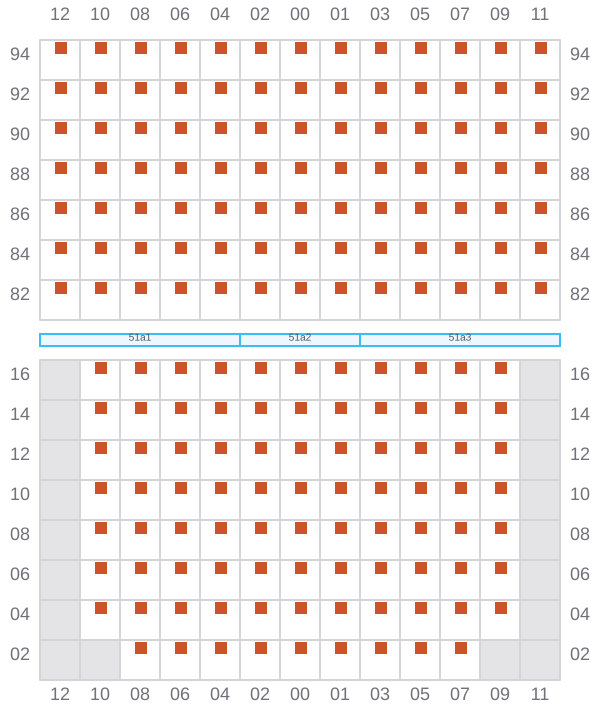

Bay 051 view and slots of CMA CGM ALCAZAR

053 (054)

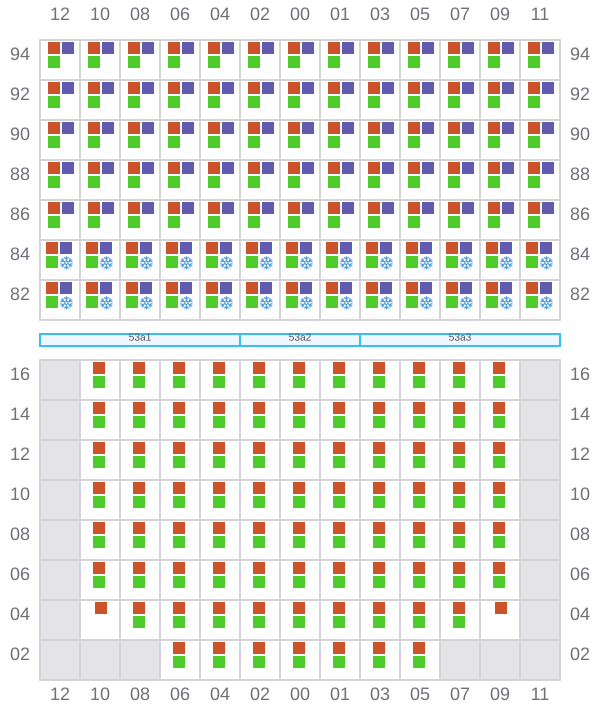

Bay 053 view and slots of CMA CGM ALCAZAR

055

Bay 055 view and slots of CMA CGM ALCAZAR

057 (058)

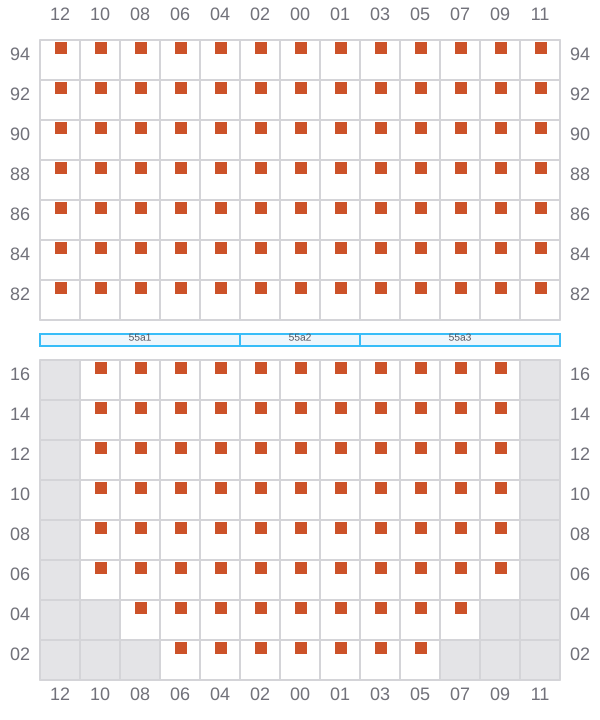

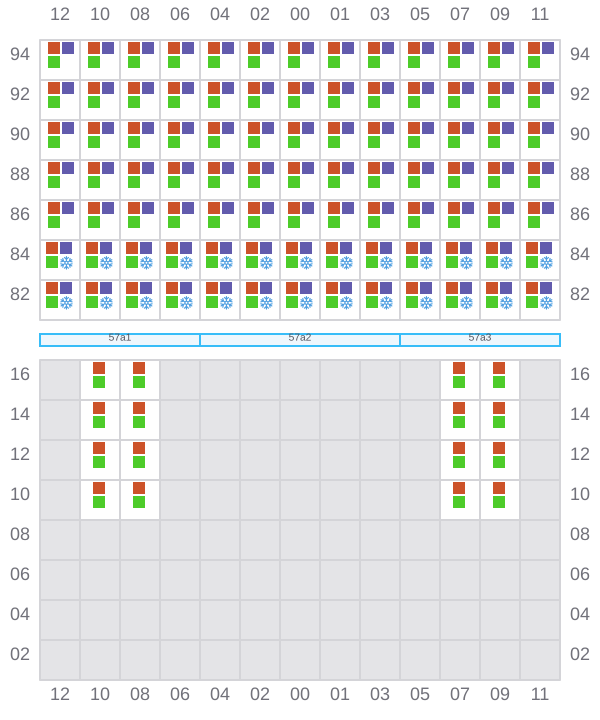

Bay 057 view and slots of CMA CGM ALCAZAR

059

Bay 059 view and slots of CMA CGM ALCAZAR

061 (062)

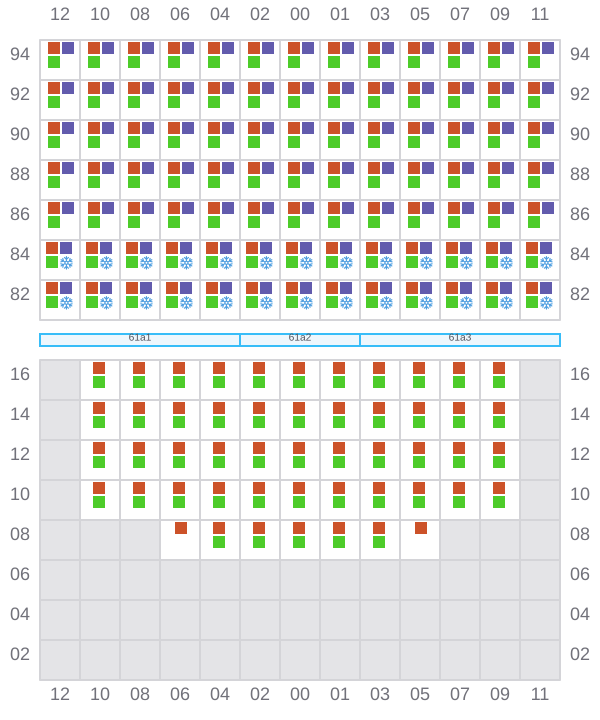

Bay 061 view and slots of CMA CGM ALCAZAR

063

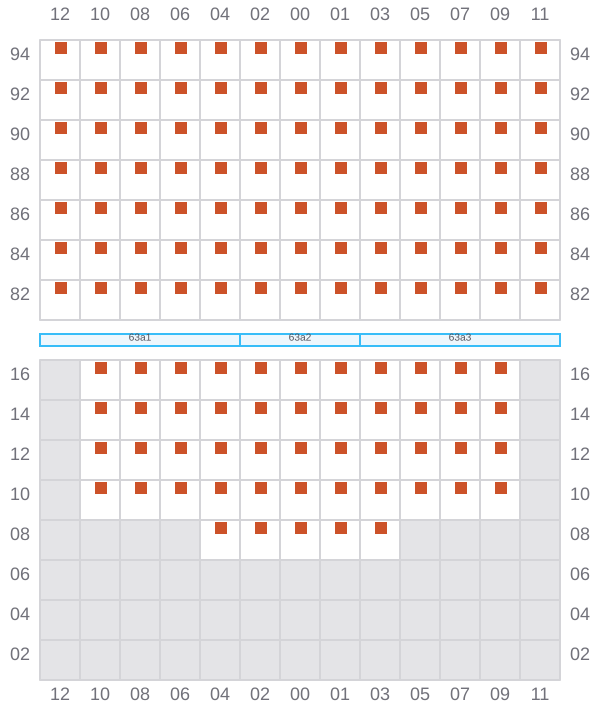

Bay 063 view and slots of CMA CGM ALCAZAR

065 (066)

Bay 065 view and slots of CMA CGM ALCAZAR

067

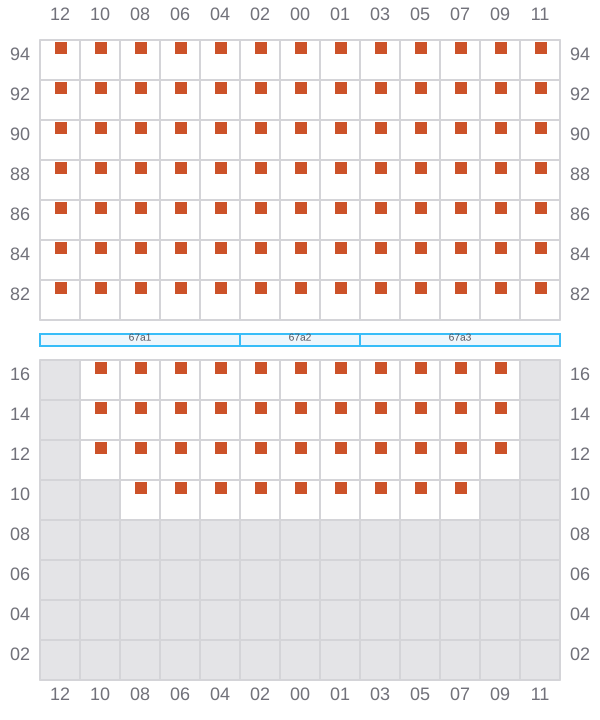

Bay 067 view and slots of CMA CGM ALCAZAR

069 (070)

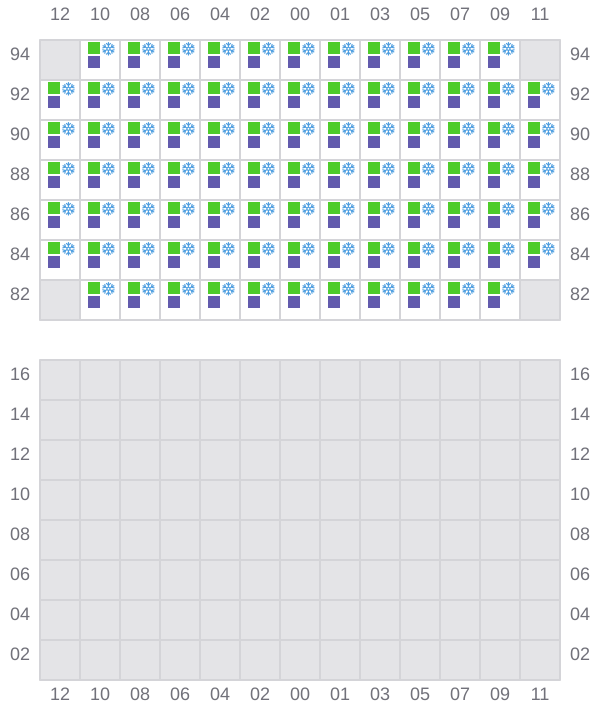

Bay 069 view and slots of CMA CGM ALCAZAR
