CMA CGM ALIAGA
9323039 | 9HA5518 | 9323039 by ********* Last update: Thu Jul 11 2024

General Info

Ship Name:CMA CGM ALIAGA
IMO Code:9323039
Call Sign:9HA5518
Line Operator:9323039
Class Name for Sister Ships:STX 3500
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.30
LOA (Length Overall):246.80
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,586

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

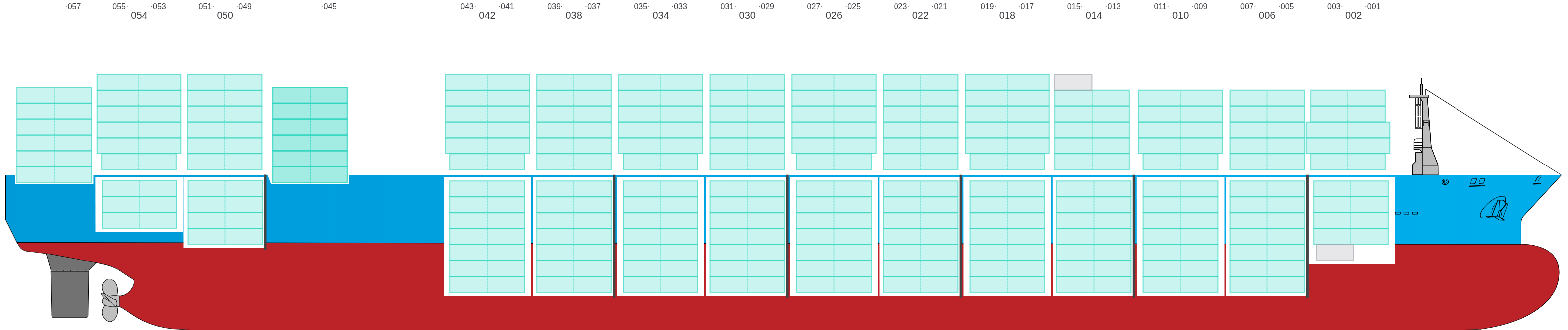

Side View

Side view of CMA CGM ALIAGA

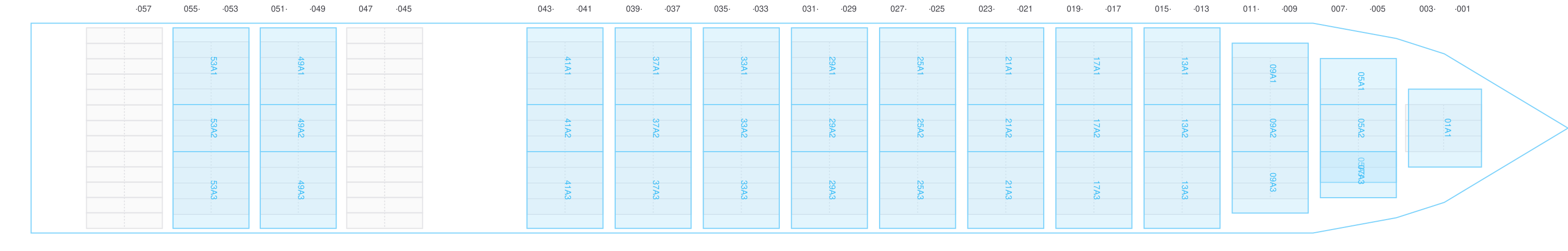

Hatch-Covers View

Deck view of CMA CGM ALIAGA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

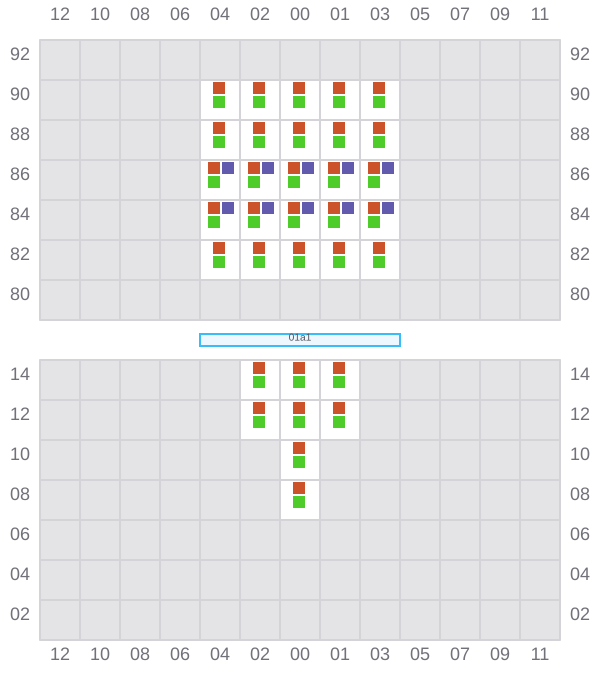

001 (002)

  • →
Bay 001 view and slots of CMA CGM ALIAGA

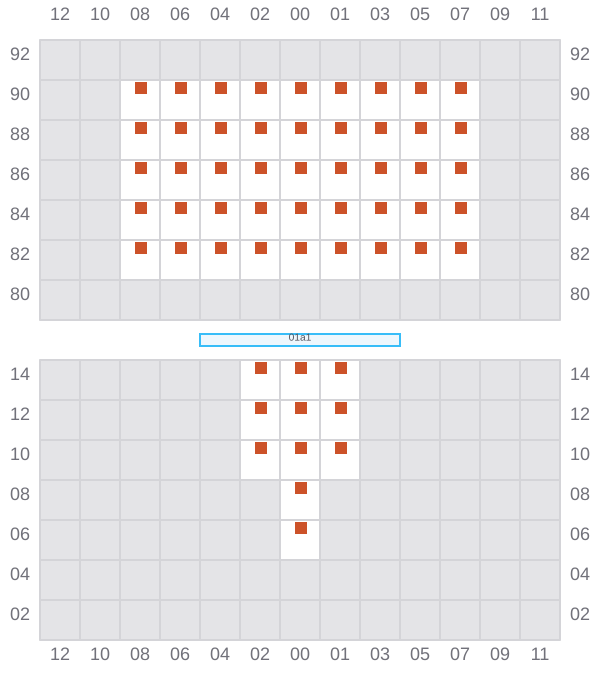

003

  • ←
Bay 003 view and slots of CMA CGM ALIAGA

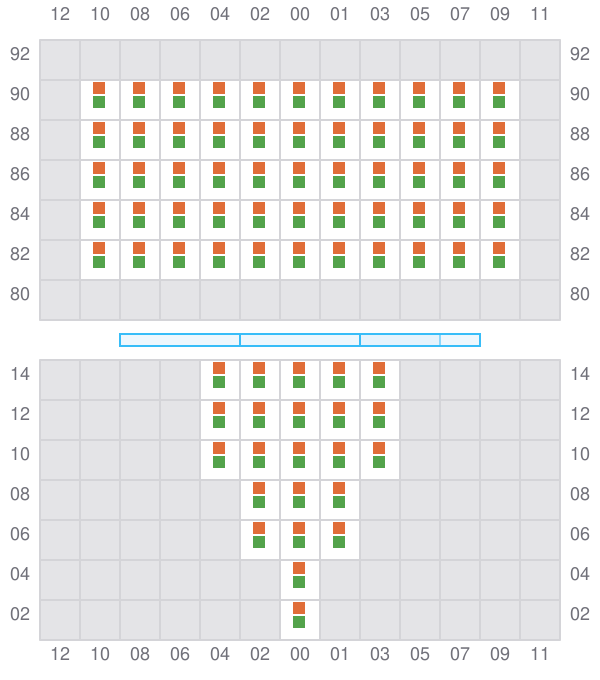

005 (006)

  • →
Bay 005 view and slots of CMA CGM ALIAGA

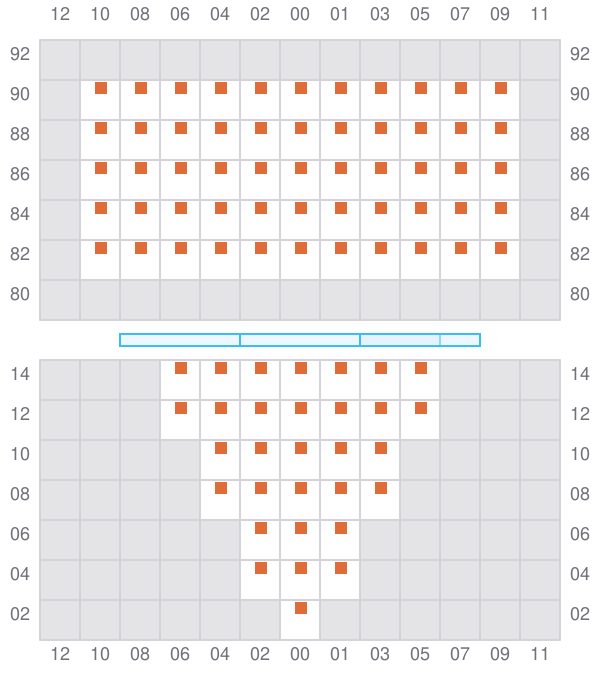

007

  • ←
Bay 007 view and slots of CMA CGM ALIAGA

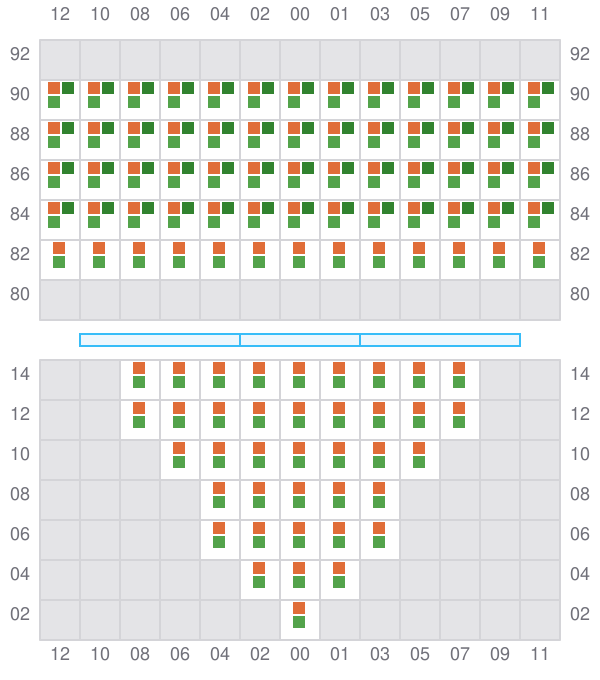

009 (010)

  • →
Bay 009 view and slots of CMA CGM ALIAGA

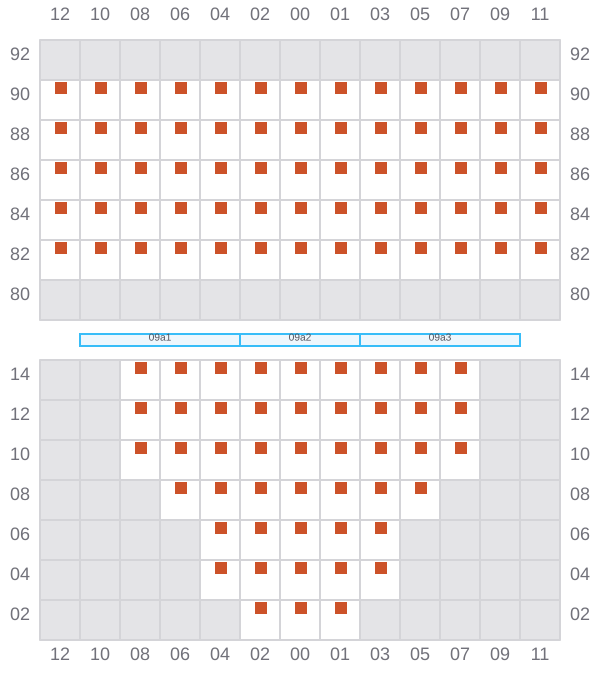

011

  • ←
Bay 011 view and slots of CMA CGM ALIAGA

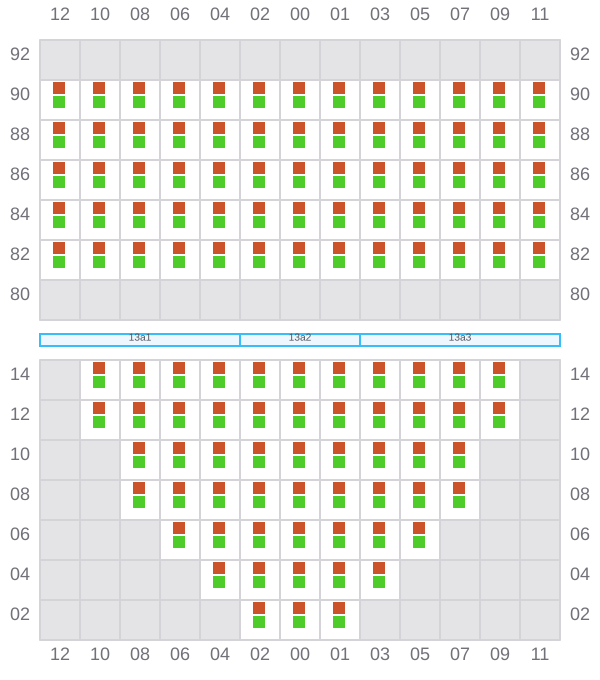

013 (014)

  • →
Bay 013 view and slots of CMA CGM ALIAGA

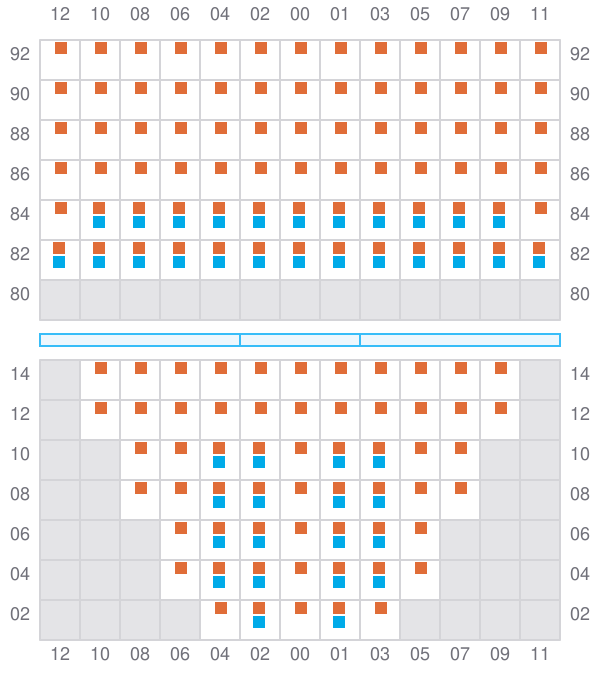

015

  • ←
  • →
Bay 015 view and slots of CMA CGM ALIAGA

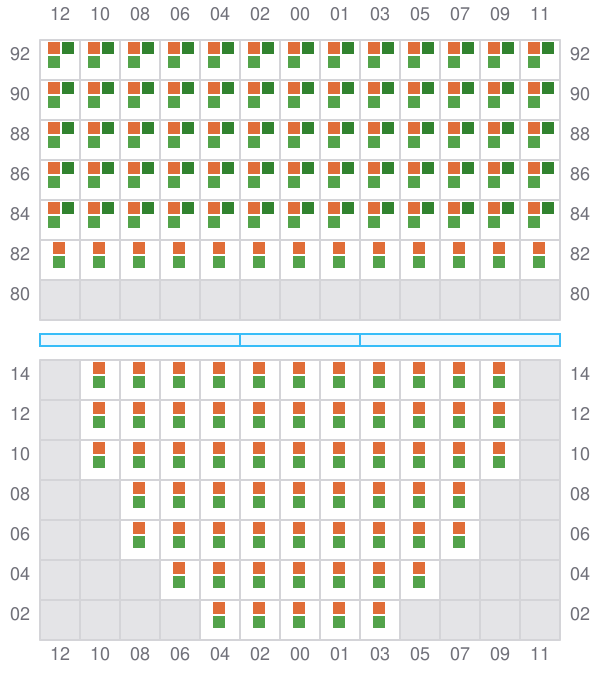

017 (018)

  • →
Bay 017 view and slots of CMA CGM ALIAGA

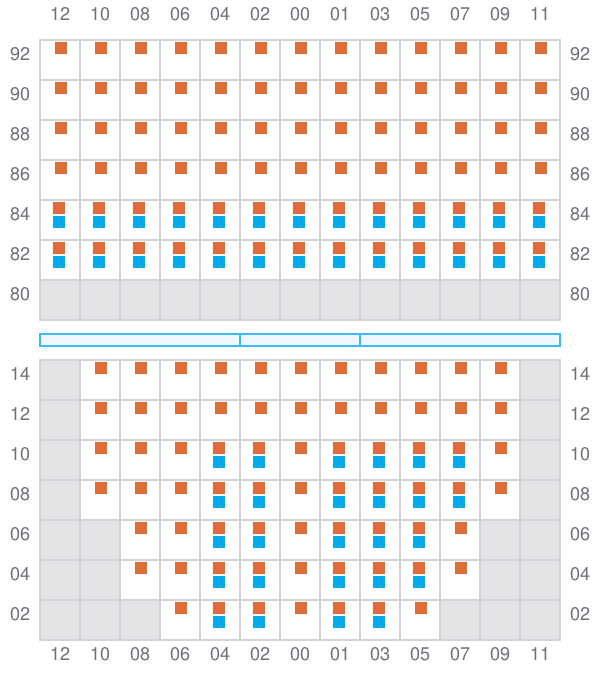

019

  • ←
  • →
Bay 019 view and slots of CMA CGM ALIAGA

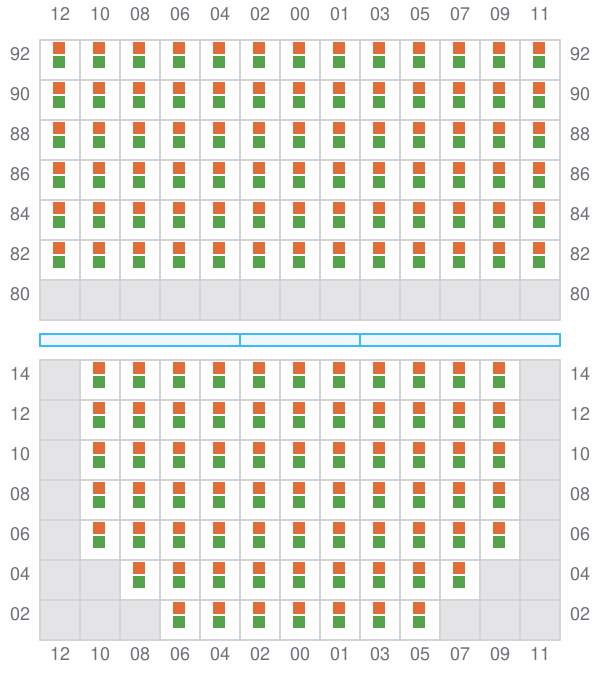

021 (022)

  • →
Bay 021 view and slots of CMA CGM ALIAGA

023

  • ←
  • →

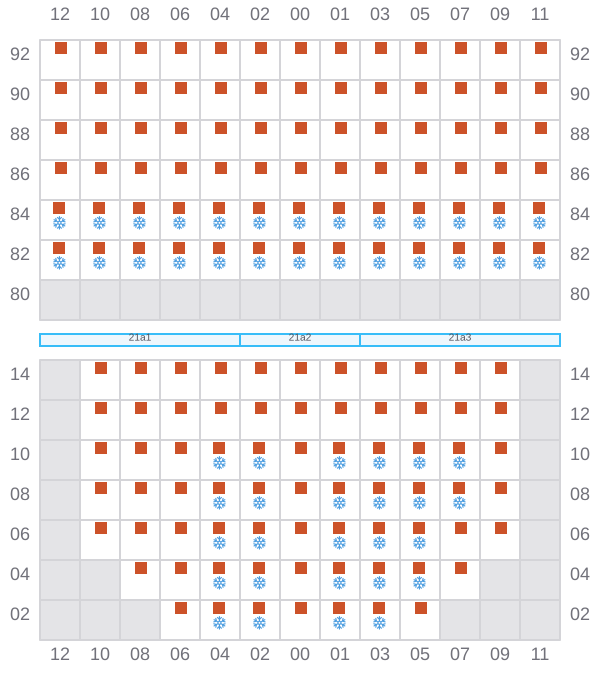

Bay 023 view and slots of CMA CGM ALIAGA

025 (026)

  • →
Bay 025 view and slots of CMA CGM ALIAGA

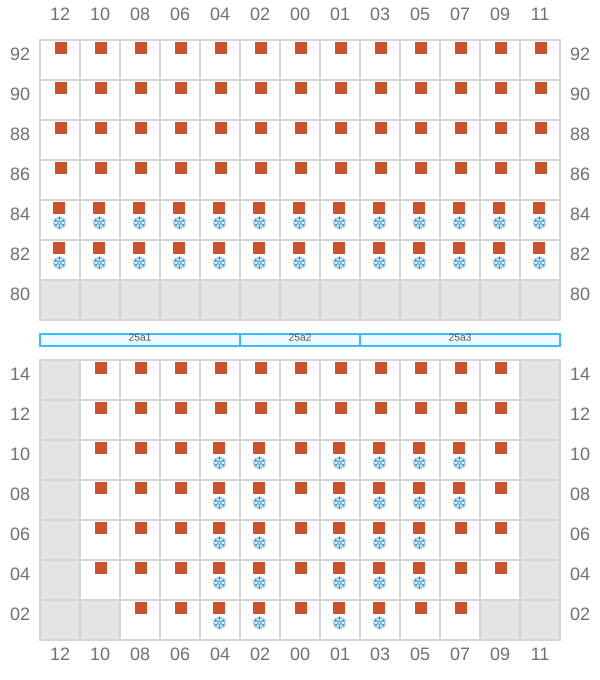

027

  • ←
  • →
Bay 027 view and slots of CMA CGM ALIAGA

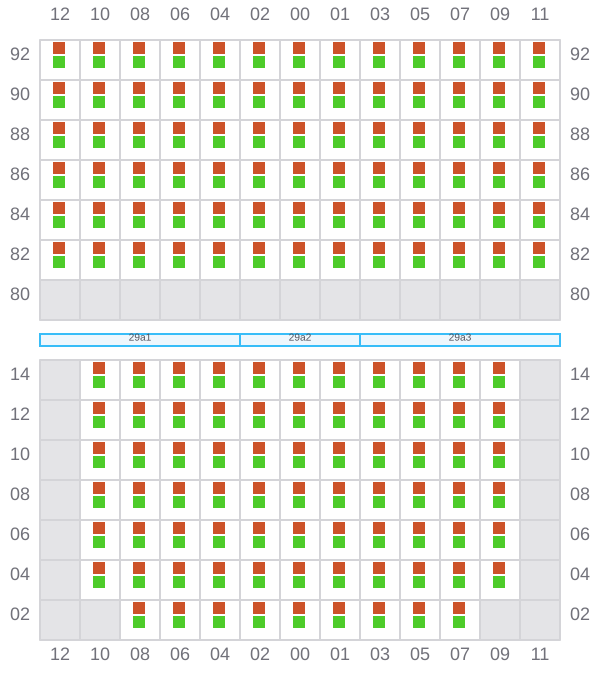

029 (030)

  • →
Bay 029 view and slots of CMA CGM ALIAGA

031

  • ←
  • →
Bay 031 view and slots of CMA CGM ALIAGA

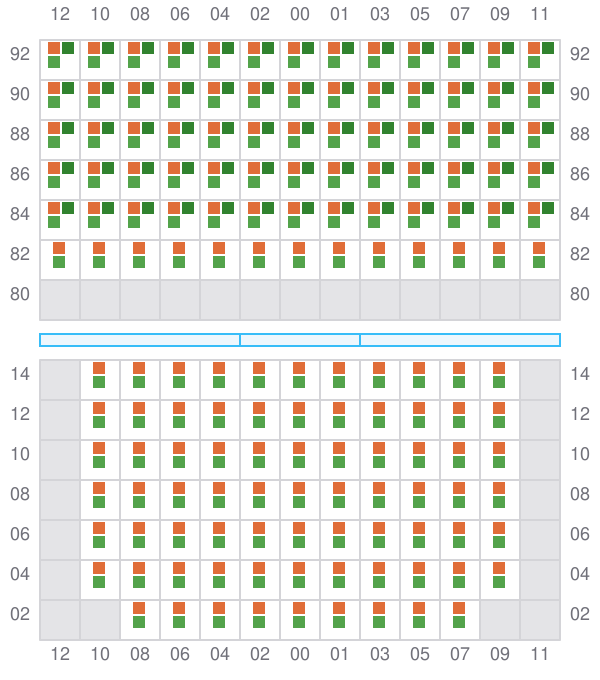

033 (034)

  • →
Bay 033 view and slots of CMA CGM ALIAGA

035

  • ←
  • →
Bay 035 view and slots of CMA CGM ALIAGA

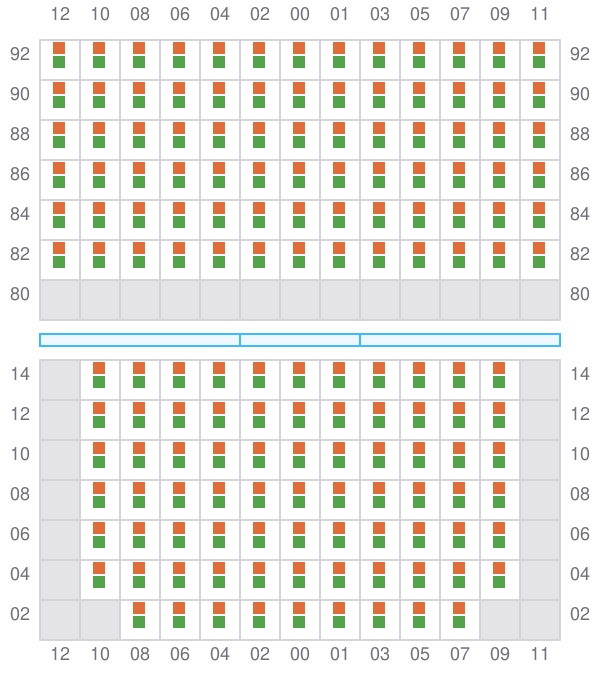

037 (038)

  • →
Bay 037 view and slots of CMA CGM ALIAGA

039

  • ←
  • →

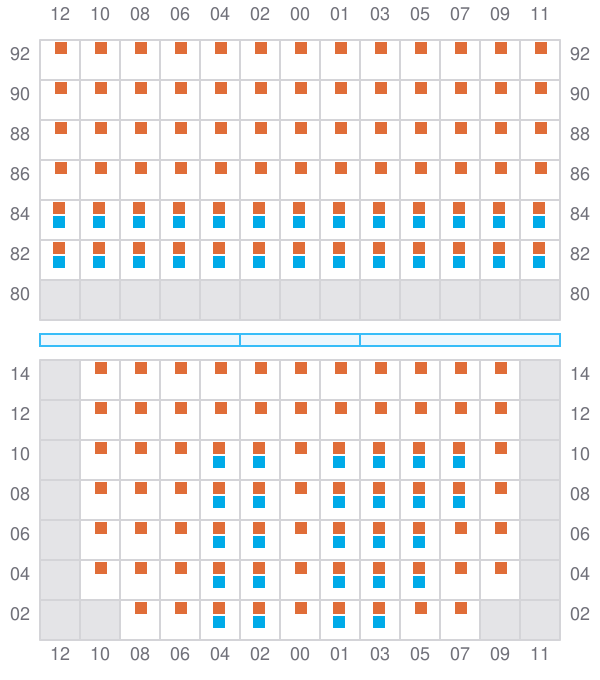

Bay 039 view and slots of CMA CGM ALIAGA

041 (042)

  • →
Bay 041 view and slots of CMA CGM ALIAGA

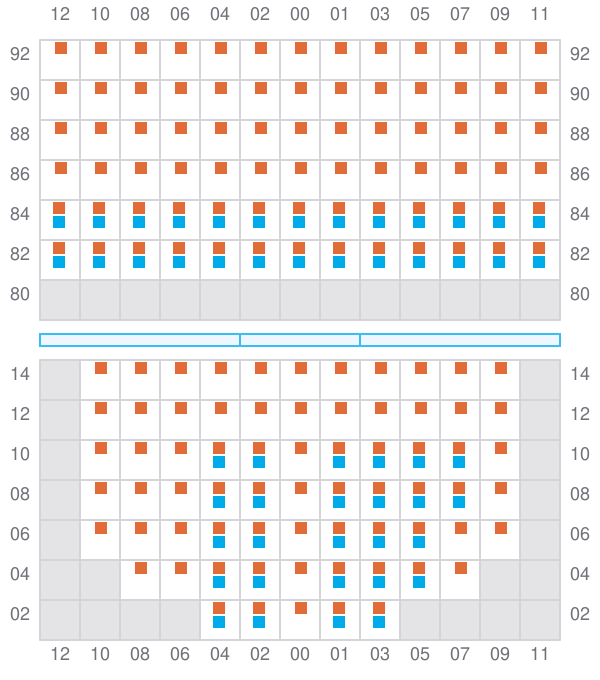

043

  • ←
  • →
Bay 043 view and slots of CMA CGM ALIAGA

045 (046)

  • → / ?
  • ← / ?

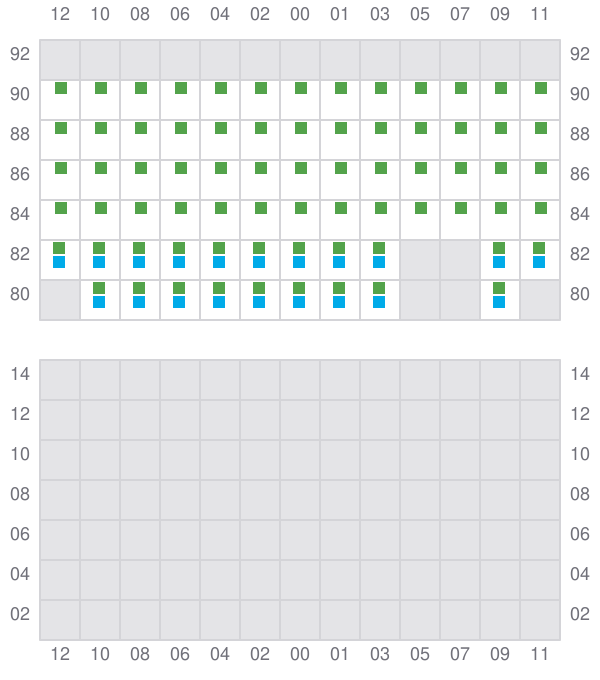

Bay 045 view and slots of CMA CGM ALIAGA

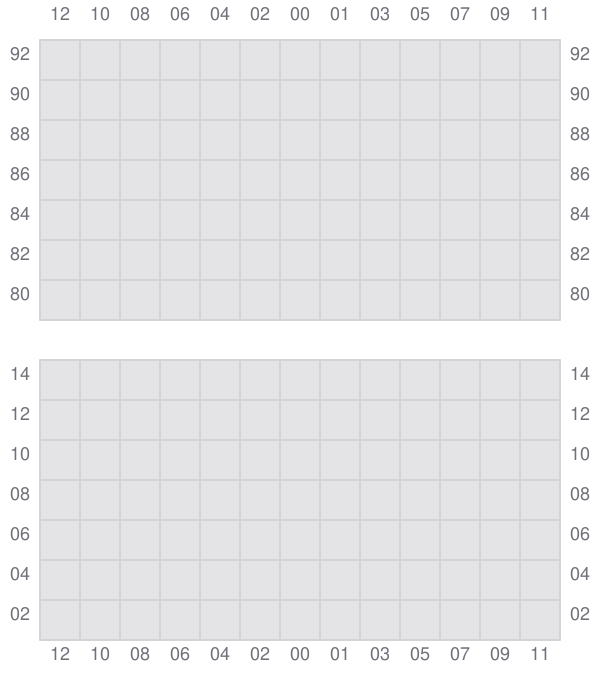

047

Bay 047 view and slots of CMA CGM ALIAGA

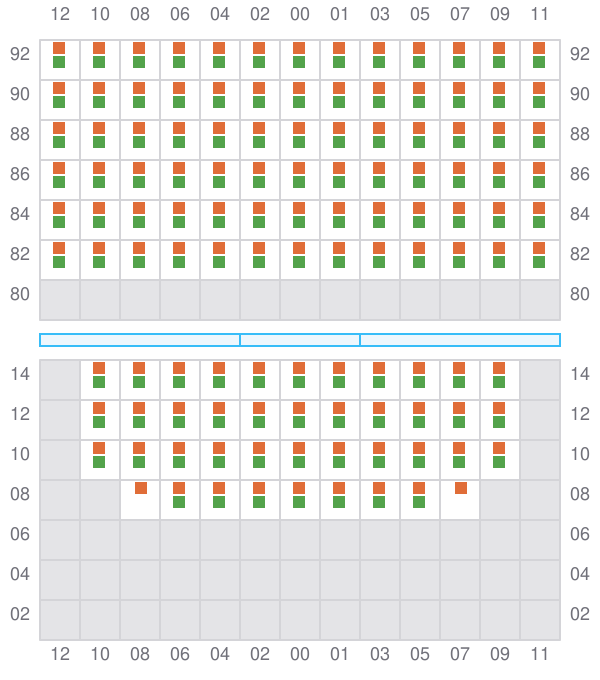

049 (050)

  • →
Bay 049 view and slots of CMA CGM ALIAGA

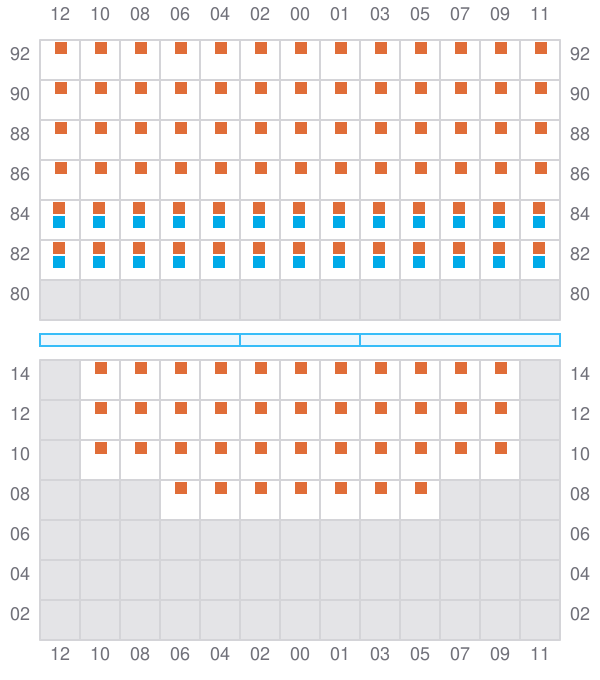

051

  • ←
  • → / ?
Bay 051 view and slots of CMA CGM ALIAGA

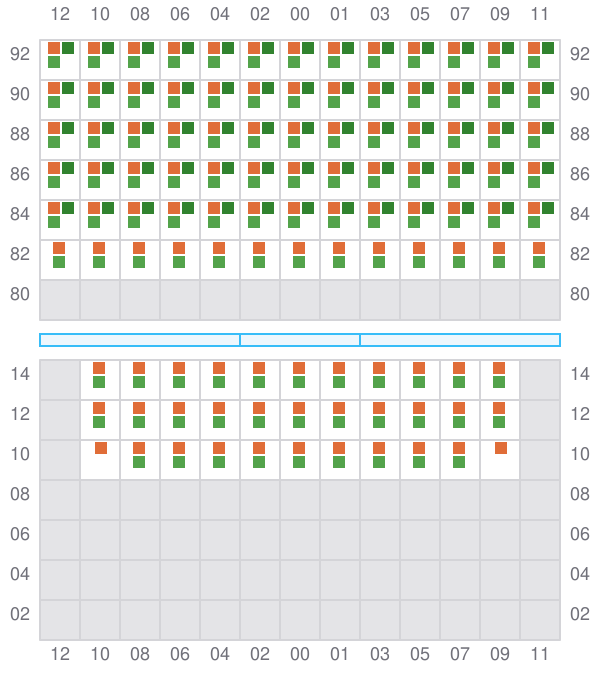

053 (054)

  • →
Bay 053 view and slots of CMA CGM ALIAGA

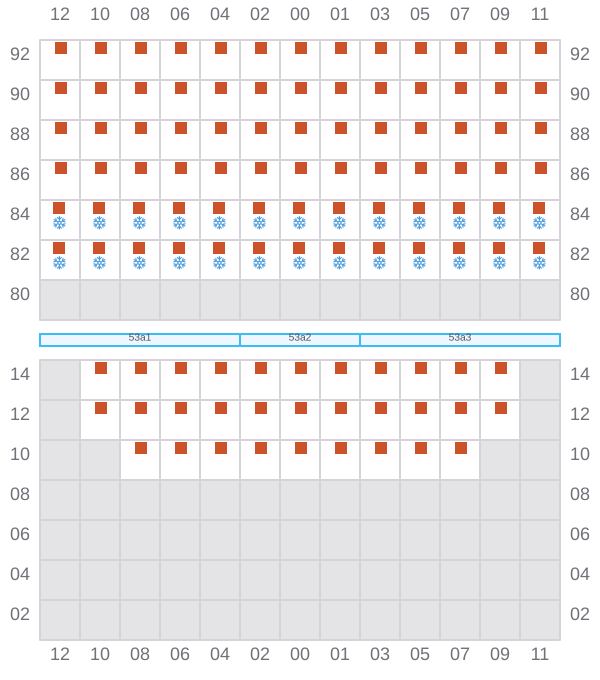

055

  • ←
  • → / ?
Bay 055 view and slots of CMA CGM ALIAGA

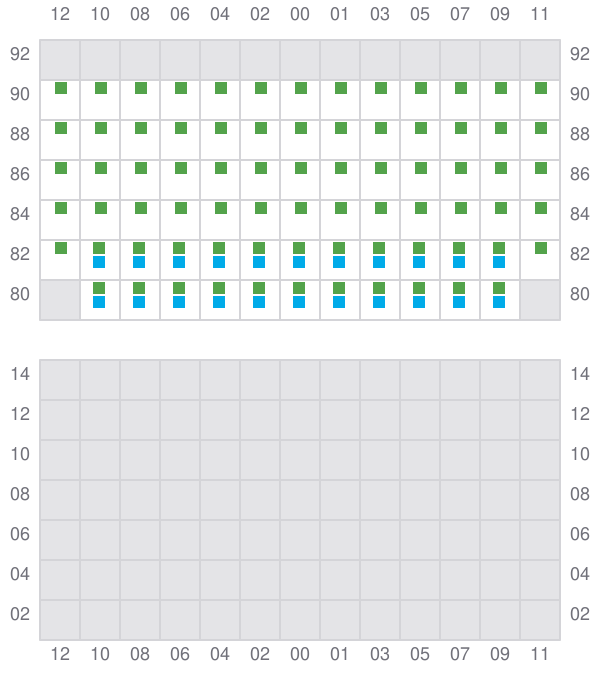

057 (058)

  • → / ?
  • ← / ?
Bay 057 view and slots of CMA CGM ALIAGA
