CMA CGM ALIAGA
9323039 | 9HA5518 | 9323039 by ********* Last update: Thu May 09 2024
General Info
Ship Name:CMA CGM ALIAGA
IMO Code:9323039
Call Sign:9HA5518
Line Operator:9323039
Class Name for Sister Ships:NORDAUTUMN
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):232.29
LOA (Length Overall):246.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:057
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:91
Min Above ISO Tier:79
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,598
Centers of Gravity
LCG Values:Known
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

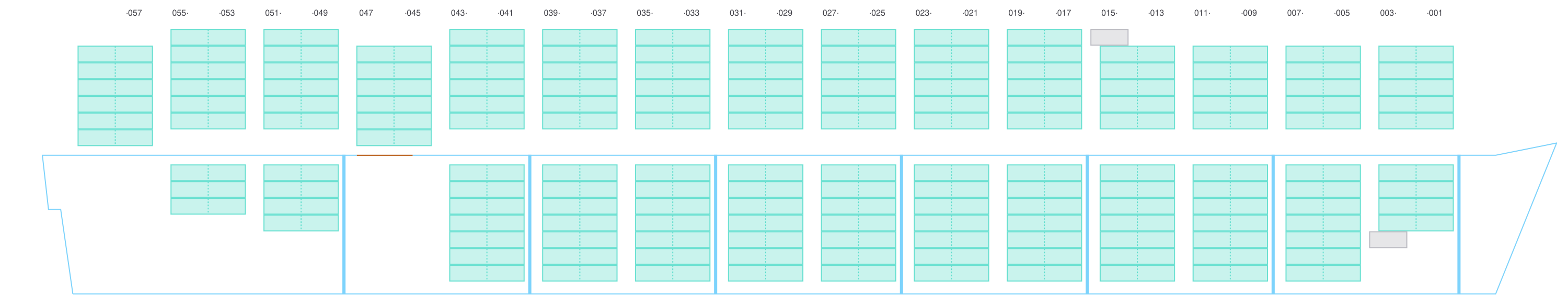

Side View
![Side view of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-sideView.png?v=1715276687698)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

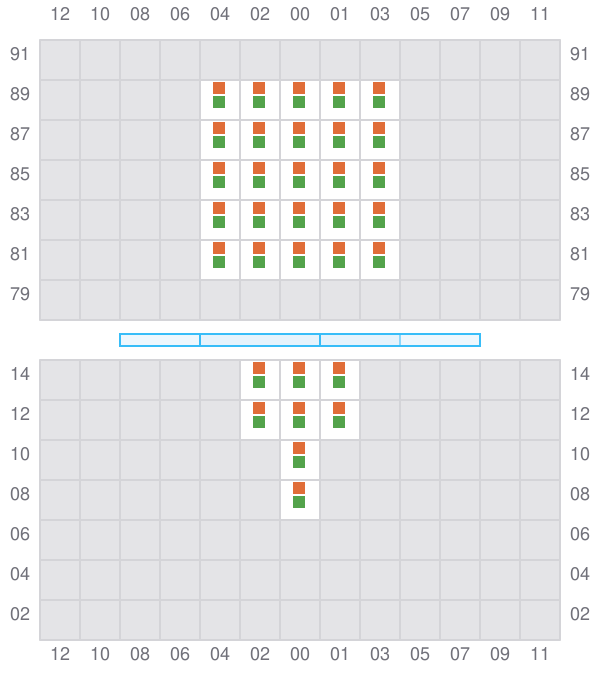

001 (002)
- →
![Bay 001 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b001.png?v=1715276687698)

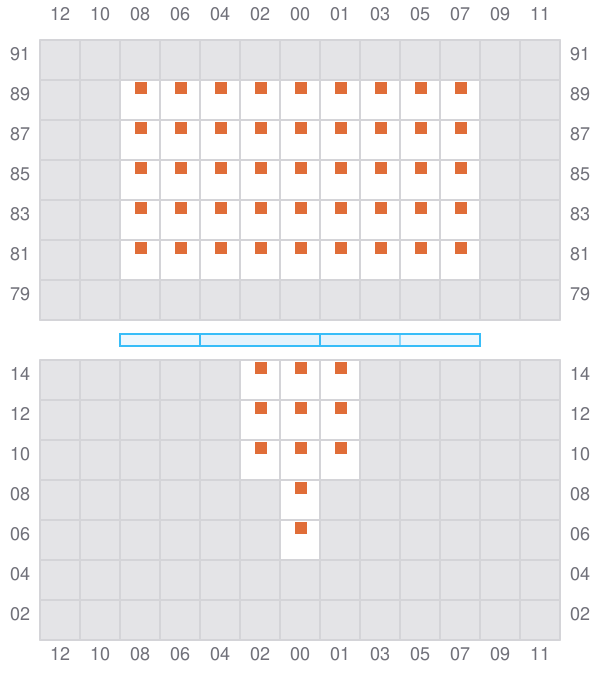

003
- ←
![Bay 003 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b003.png?v=1715276687698)

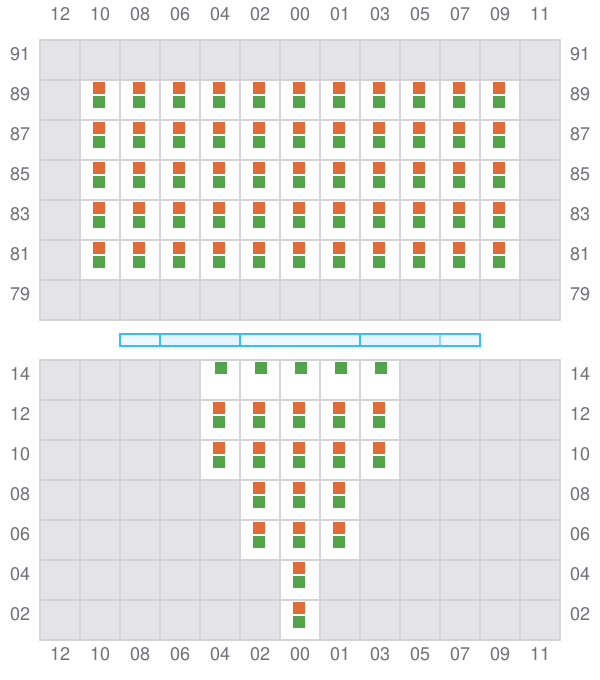

005 (006)
- →
![Bay 005 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b005.png?v=1715276687698)

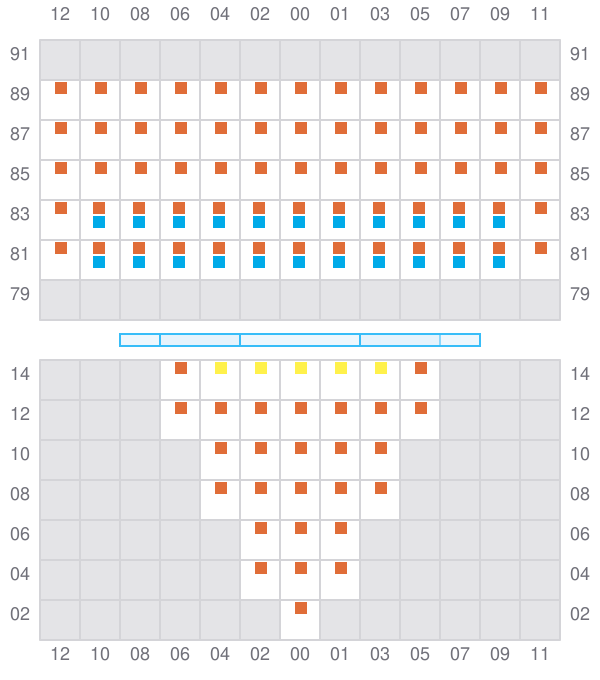

007
- ←
![Bay 007 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b007.png?v=1715276687698)

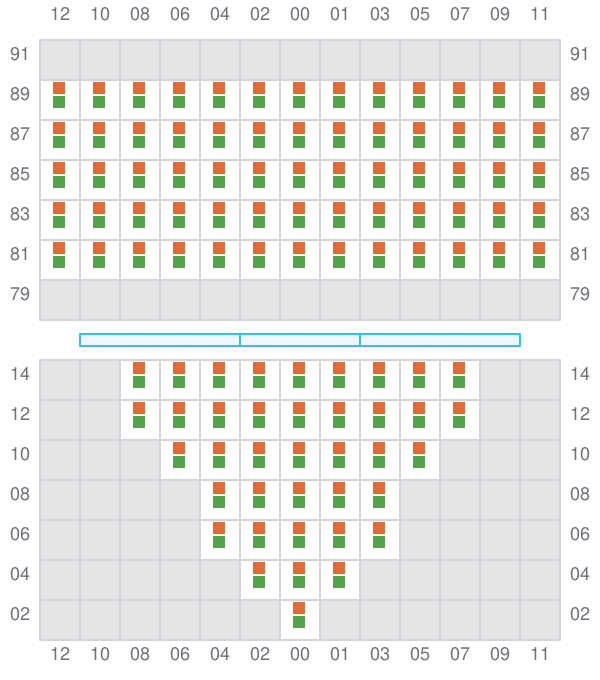

009 (010)
- →
![Bay 009 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b009.png?v=1715276687698)

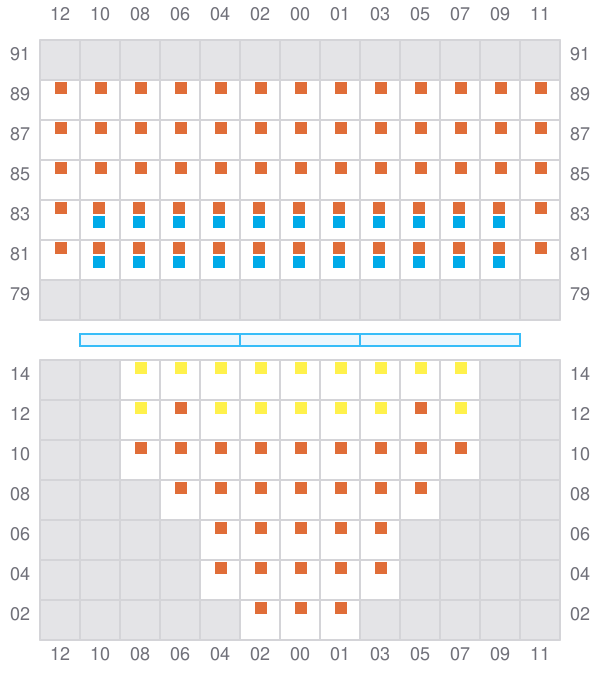

011
- ←
![Bay 011 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b011.png?v=1715276687698)

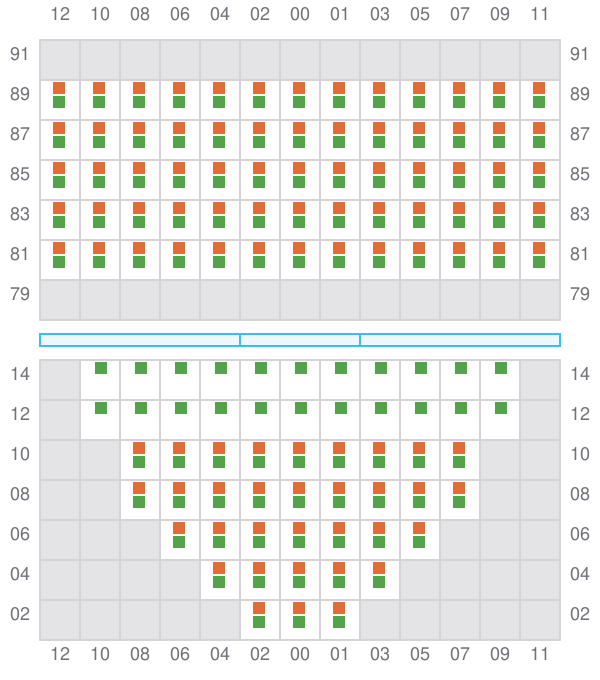

013 (014)
- →
![Bay 013 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b013.png?v=1715276687698)

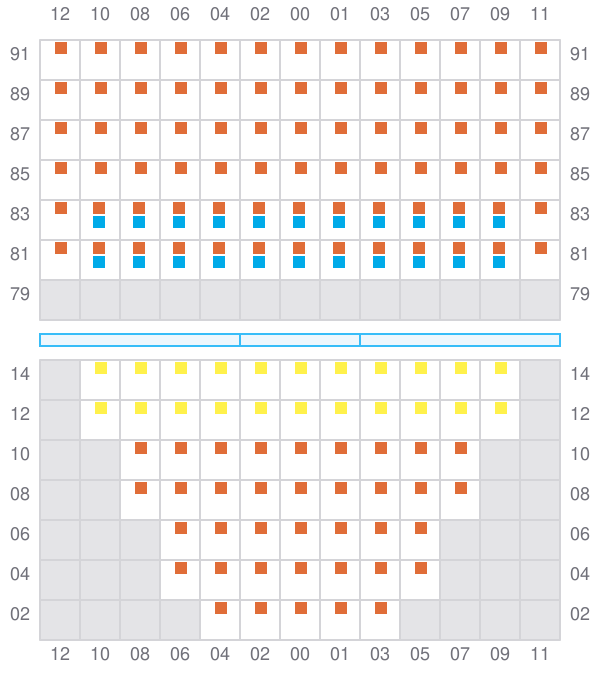

015
- ←
![Bay 015 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b015.png?v=1715276687698)

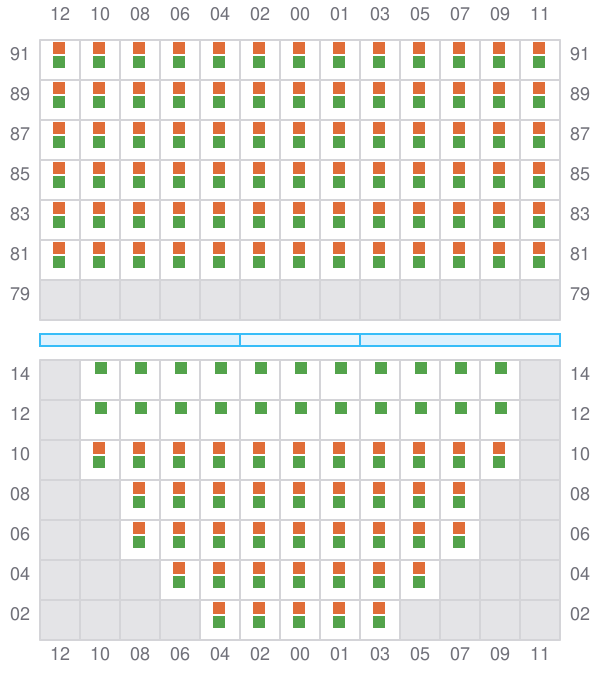

017 (018)
- →
![Bay 017 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b017.png?v=1715276687698)
019
- ←
![Bay 019 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b019.png?v=1715276687698)
021 (022)
- →
![Bay 021 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b021.png?v=1715276687698)
023
- ←
![Bay 023 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b023.png?v=1715276687698)

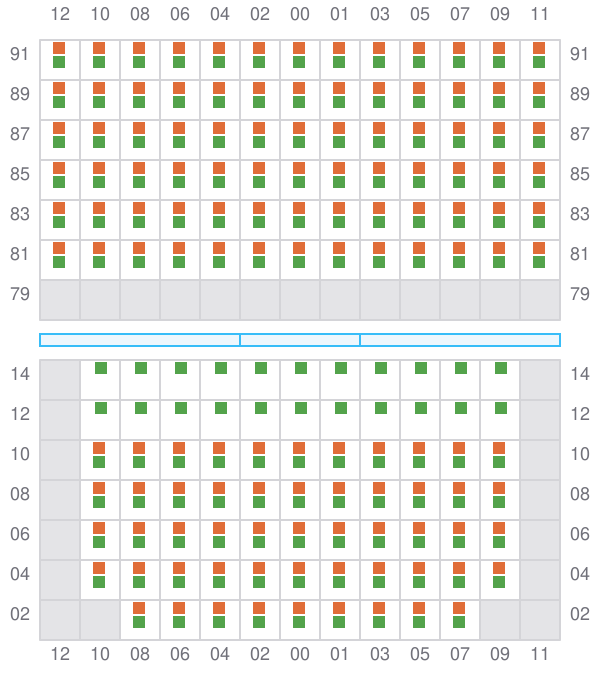

025 (026)
- →
![Bay 025 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b025.png?v=1715276687698)

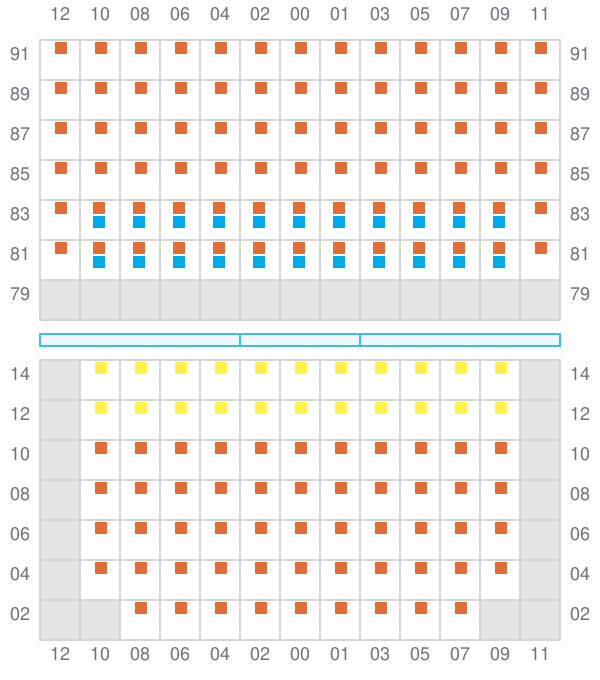

027
- ←
![Bay 027 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b027.png?v=1715276687698)
029 (030)
- →
![Bay 029 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b029.png?v=1715276687698)
031
- ←
![Bay 031 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b031.png?v=1715276687698)
033 (034)
- →
![Bay 033 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b033.png?v=1715276687698)
035
- ←
![Bay 035 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b035.png?v=1715276687698)
037 (038)
- →
![Bay 037 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b037.png?v=1715276687698)

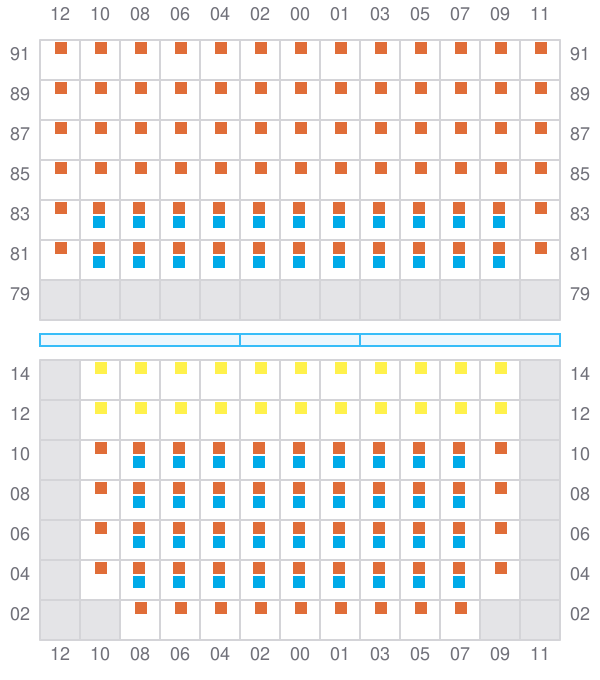

039
- ←
![Bay 039 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b039.png?v=1715276687698)

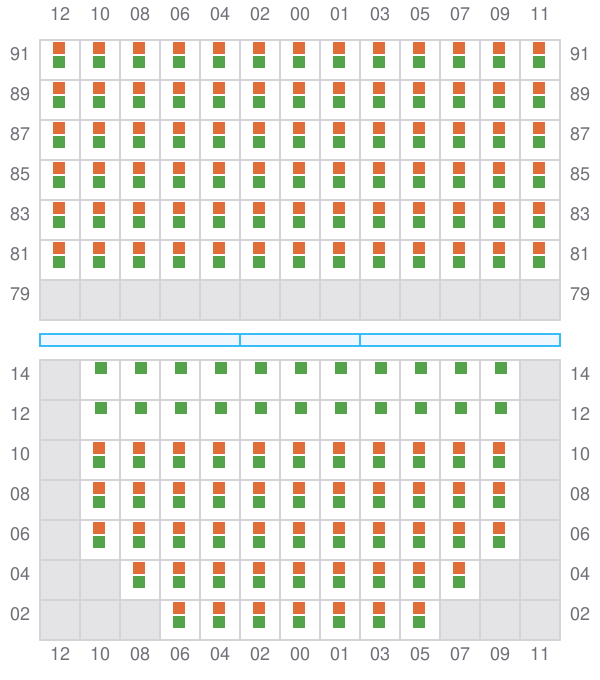

041 (042)
- →
![Bay 041 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b041.png?v=1715276687698)

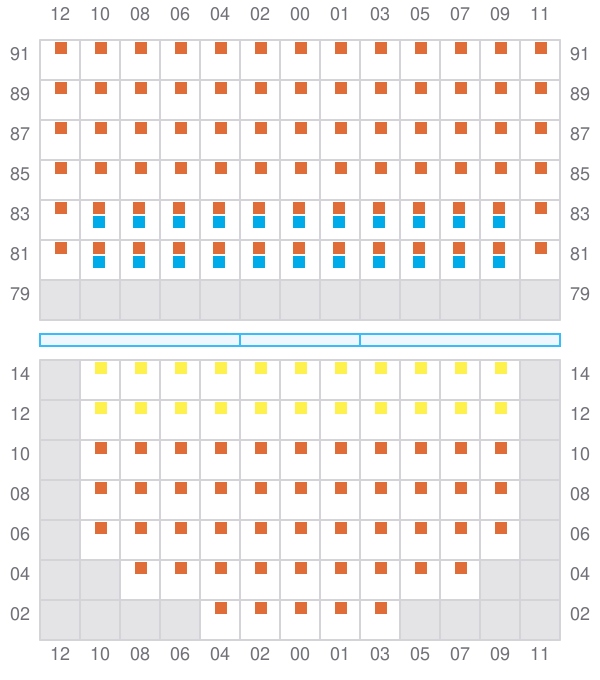

043
- ←
![Bay 043 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b043.png?v=1715276687698)

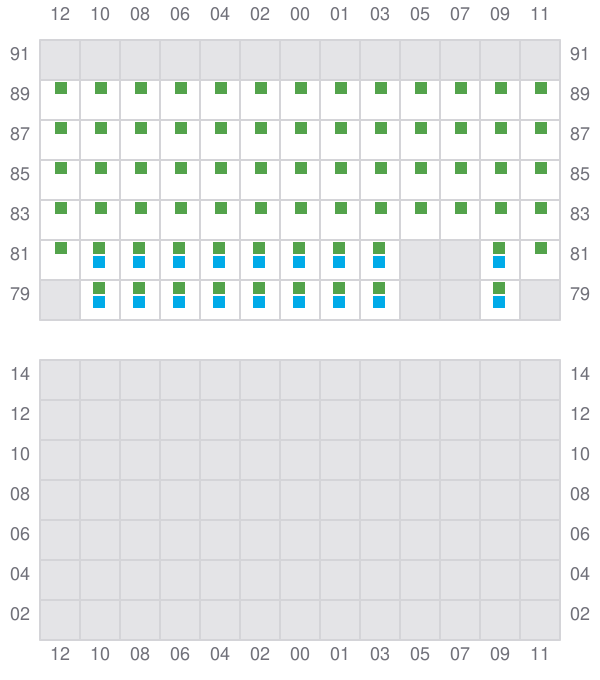

045 (046)
- → / ?
![Bay 045 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b045.png?v=1715276687698)

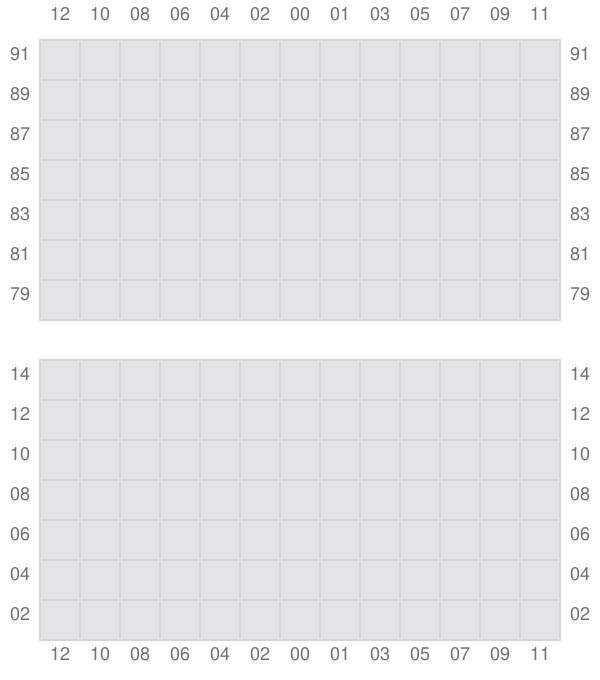

047
![Bay 047 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b047.png?v=1715276687698)

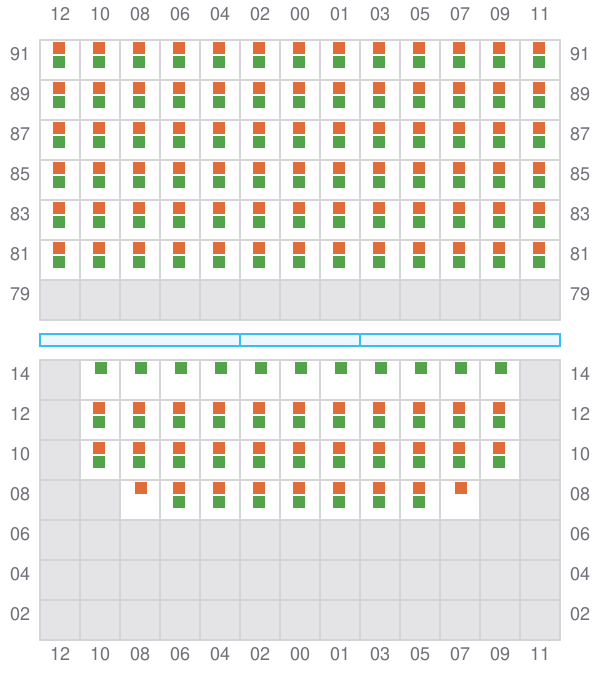

049 (050)
- →
![Bay 049 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b049.png?v=1715276687698)

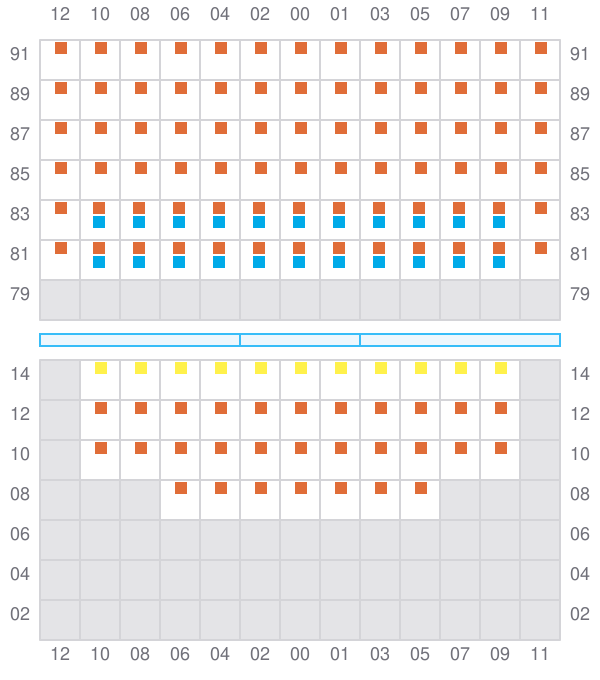

051
- ←
![Bay 051 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b051.png?v=1715276687698)

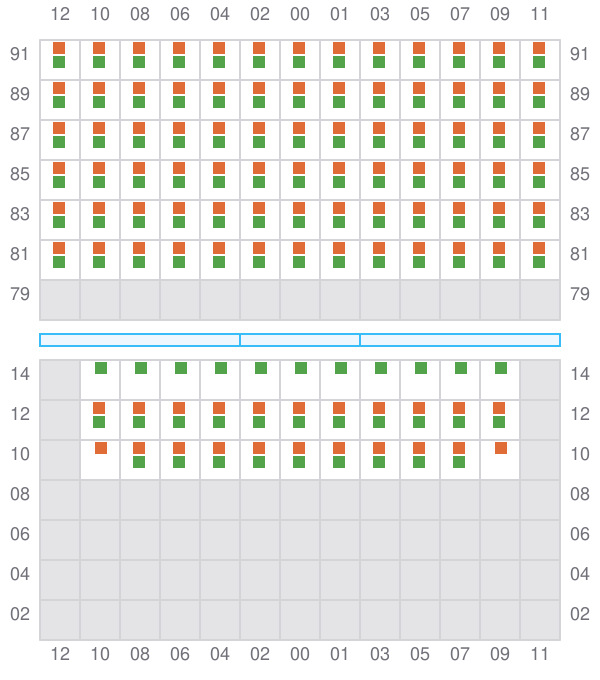

053 (054)
- →
![Bay 053 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b053.png?v=1715276687698)

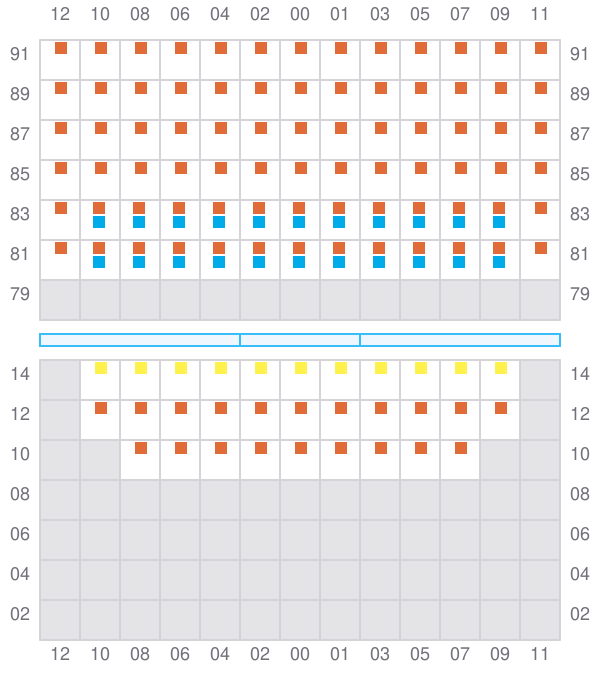

055
- ←
![Bay 055 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b055.png?v=1715276687698)

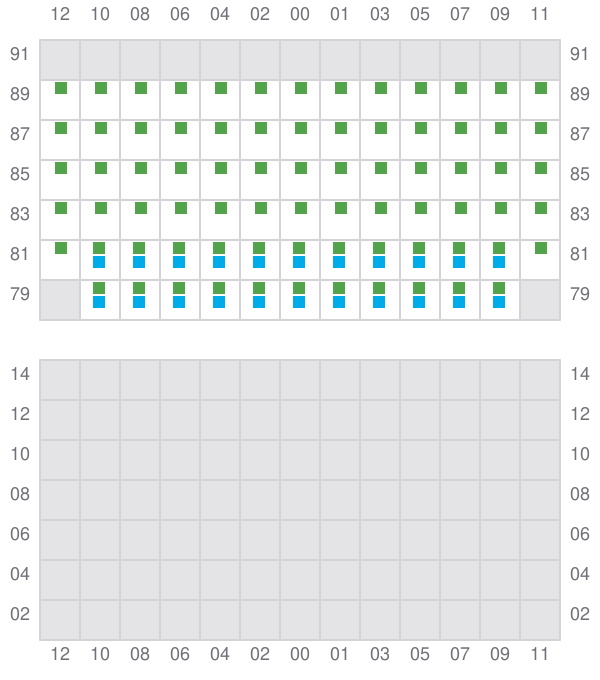

057 (058)
- → / ?
![Bay 057 view and slots of CMA CGM ALIAGA](/vessel-images/cf239b32-0b0e-41f2-a1c8-82731af57dc3-b057.png?v=1715276687698)
