CMA CGM AMBER
9350381 | 9HA4980 | 9350381 by ********* Last update: Tue Apr 09 2024

General Info

Ship Name:CMA CGM AMBER
IMO Code:9350381
Call Sign:9HA4980
Line Operator:9350381
Class Name for Sister Ships:CMA CGM AMBER
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:065
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,378

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

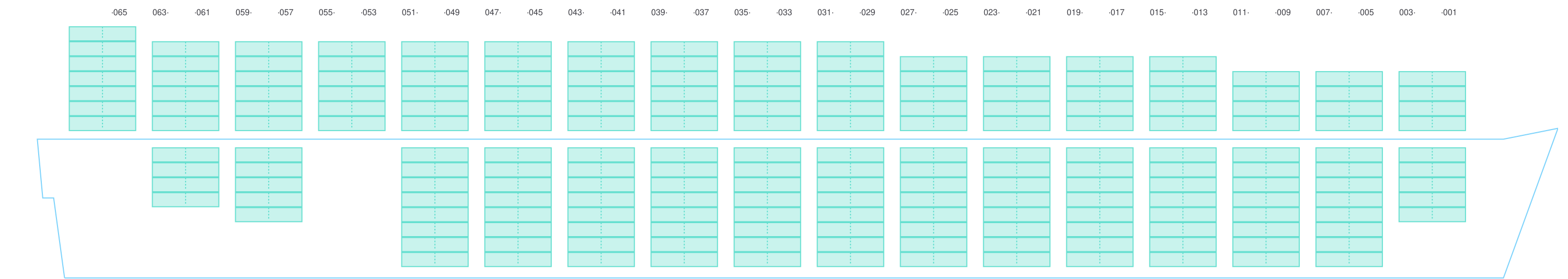

Side view of CMA CGM AMBER

Hatch-Covers View

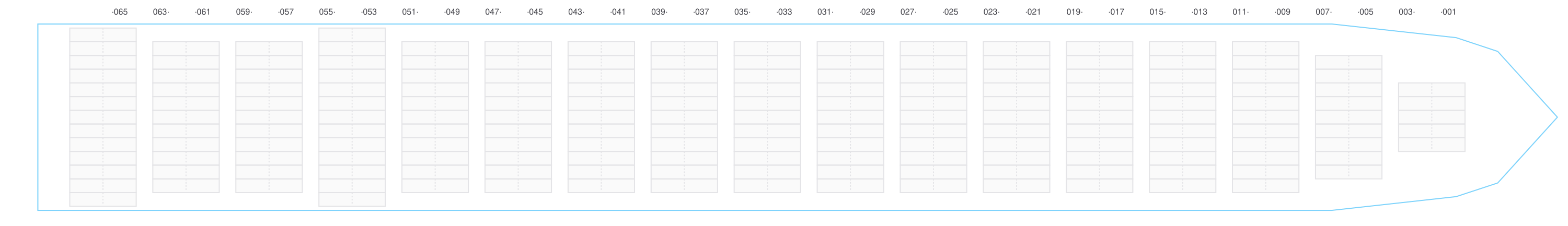

Deck view of CMA CGM AMBER

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

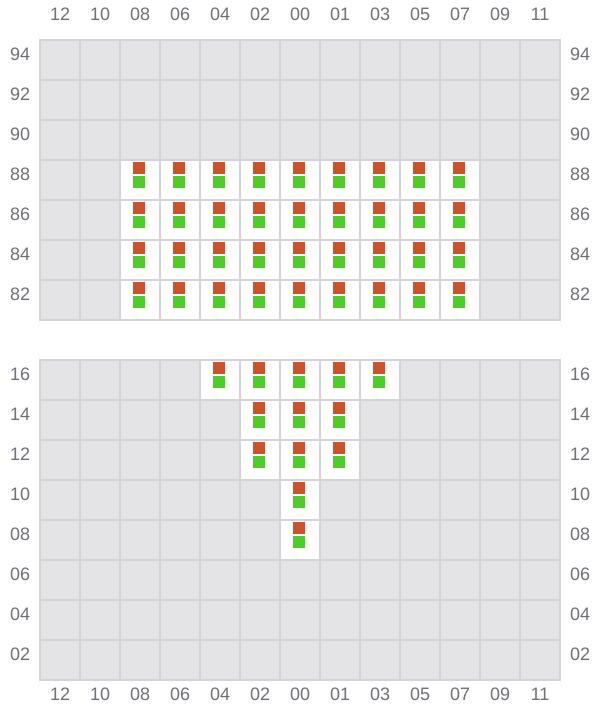

Bay 001 view and slots of CMA CGM AMBER

003

  • ←

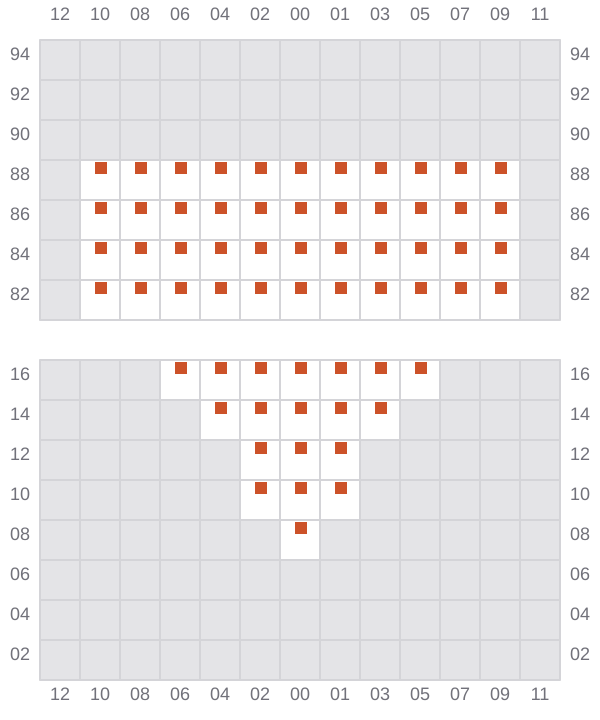

Bay 003 view and slots of CMA CGM AMBER

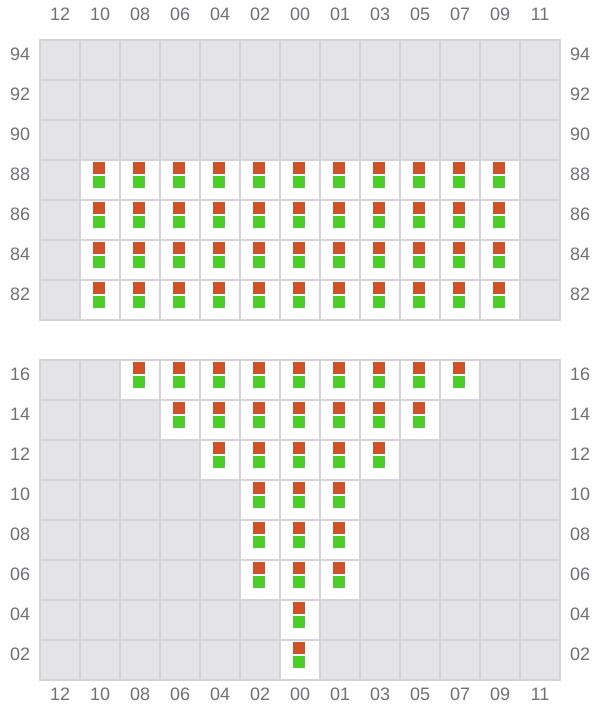

005 (006)

  • →
Bay 005 view and slots of CMA CGM AMBER

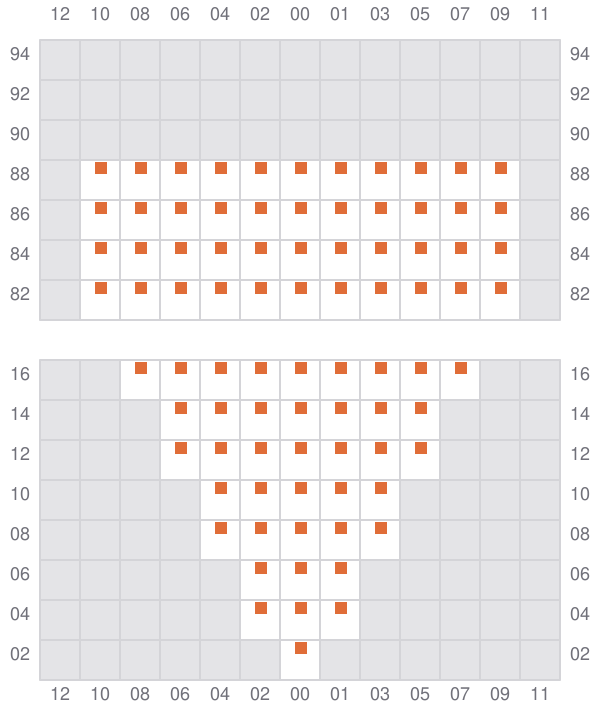

007

  • ←
Bay 007 view and slots of CMA CGM AMBER

009 (010)

  • →

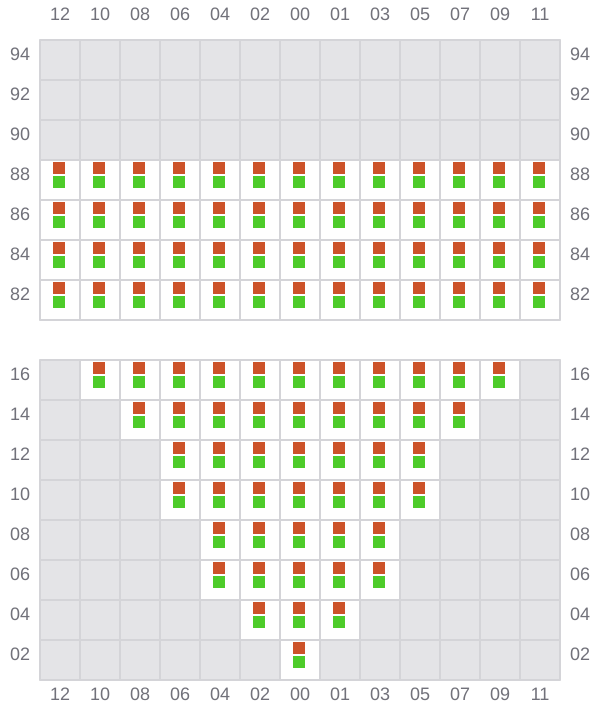

Bay 009 view and slots of CMA CGM AMBER

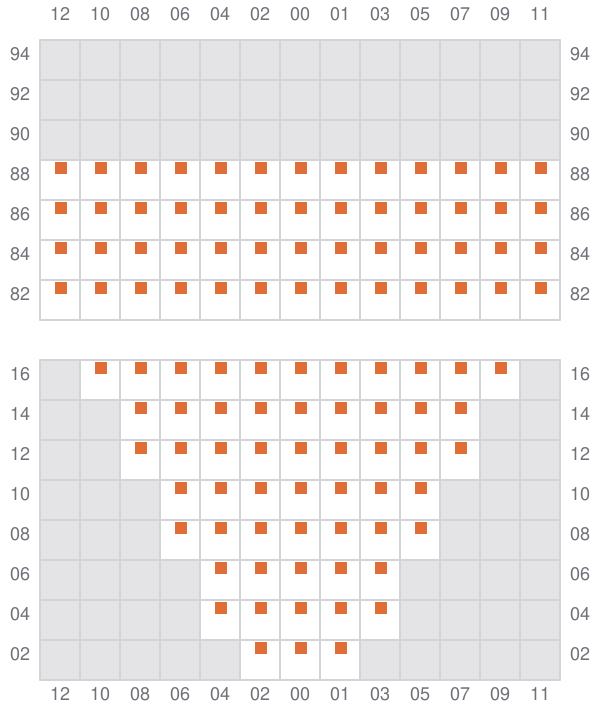

011

  • ←
Bay 011 view and slots of CMA CGM AMBER

013 (014)

  • →

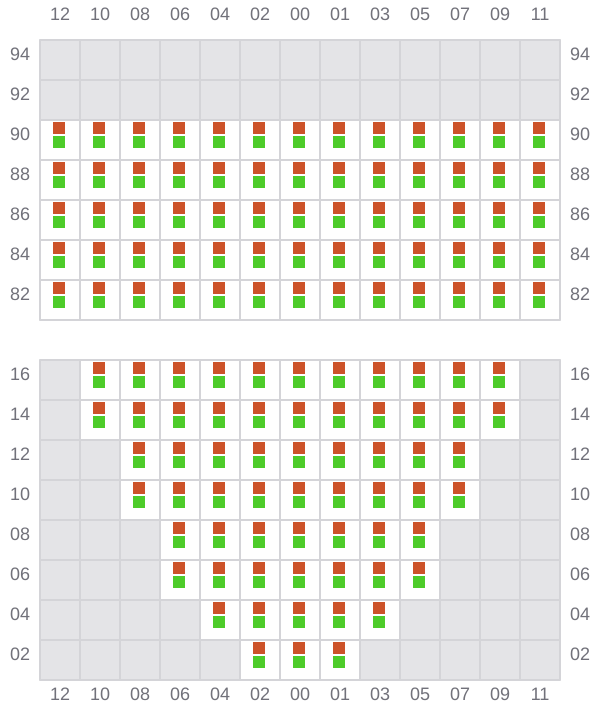

Bay 013 view and slots of CMA CGM AMBER

015

  • ←

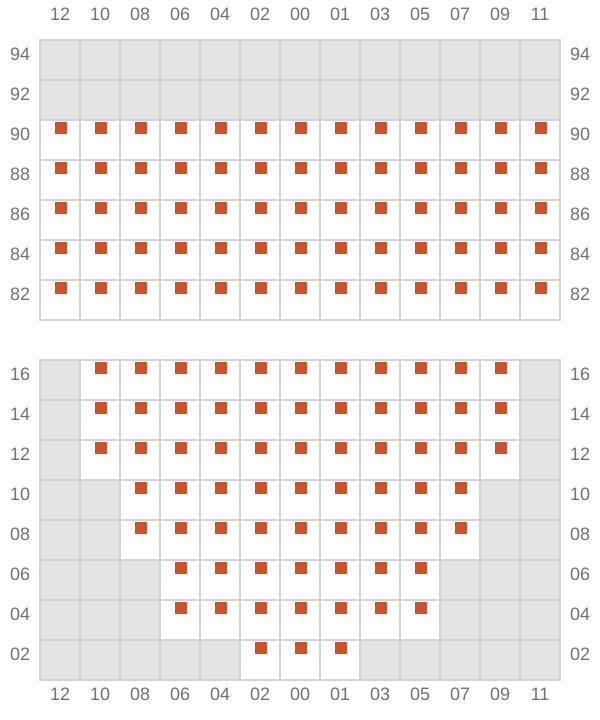

Bay 015 view and slots of CMA CGM AMBER

017 (018)

  • →

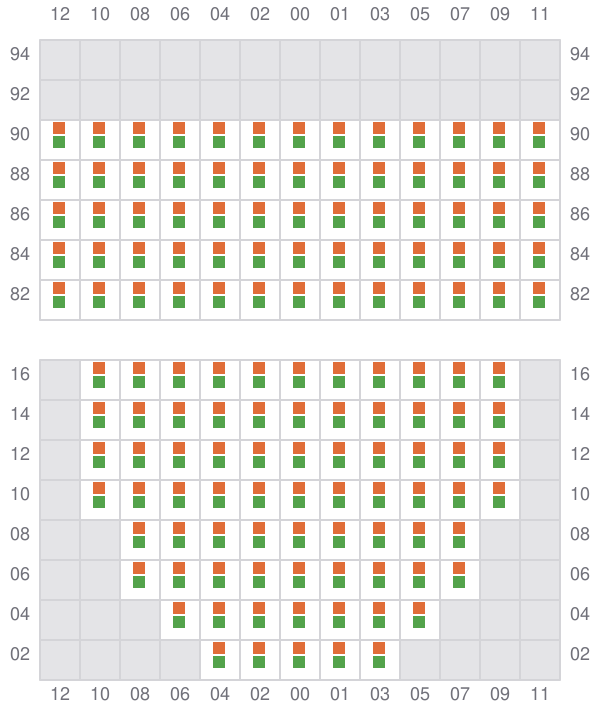

Bay 017 view and slots of CMA CGM AMBER

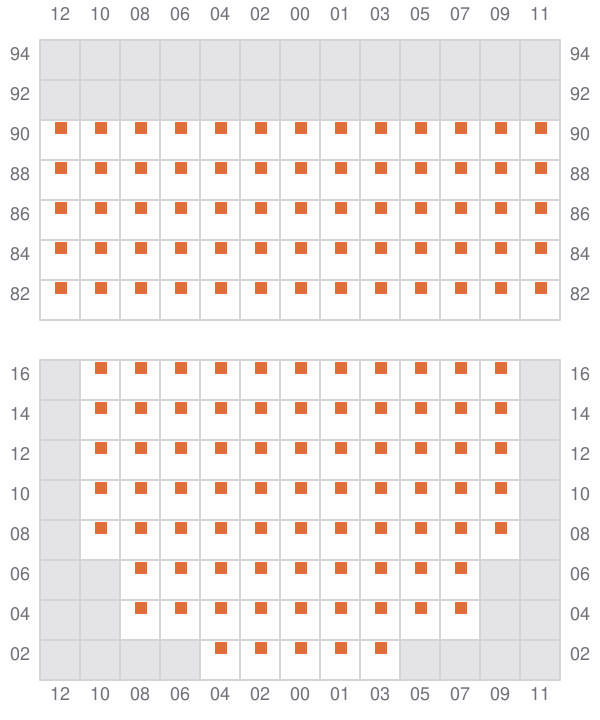

019

  • ←
Bay 019 view and slots of CMA CGM AMBER

021 (022)

  • →

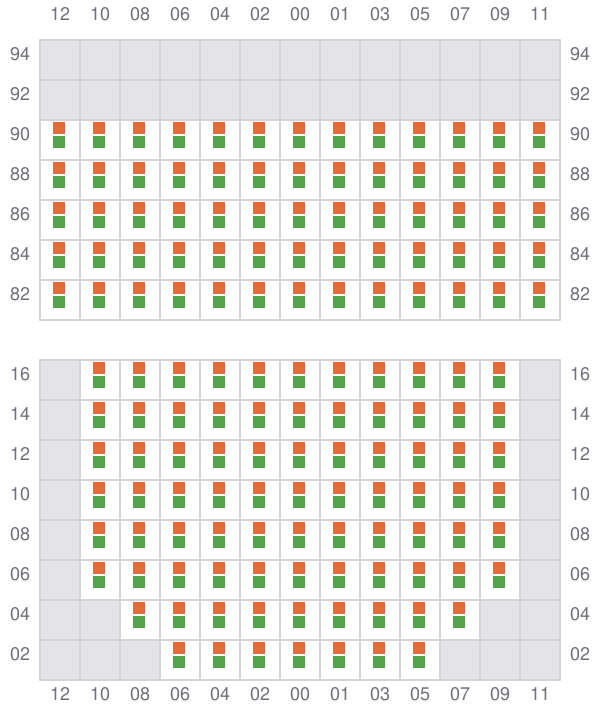

Bay 021 view and slots of CMA CGM AMBER

023

  • ←

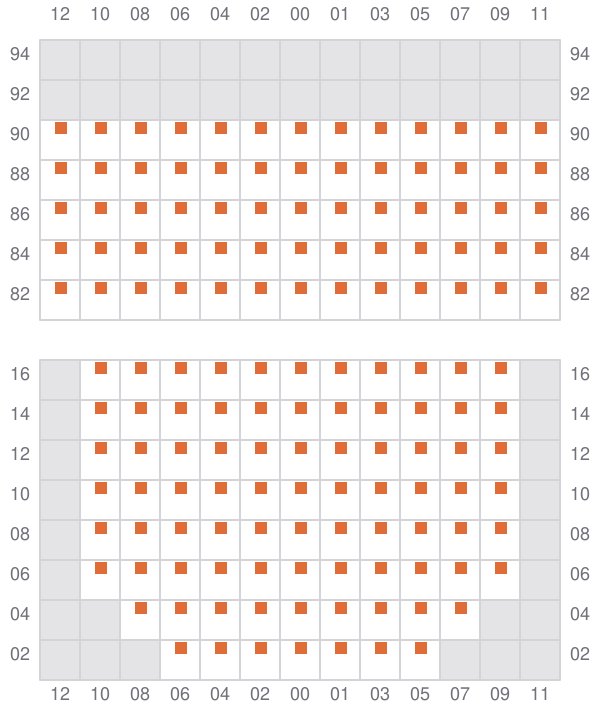

Bay 023 view and slots of CMA CGM AMBER

025 (026)

  • →

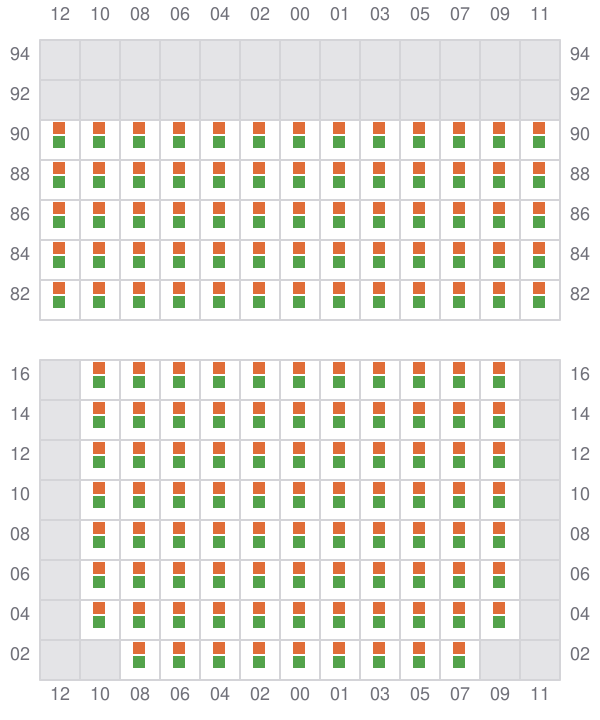

Bay 025 view and slots of CMA CGM AMBER

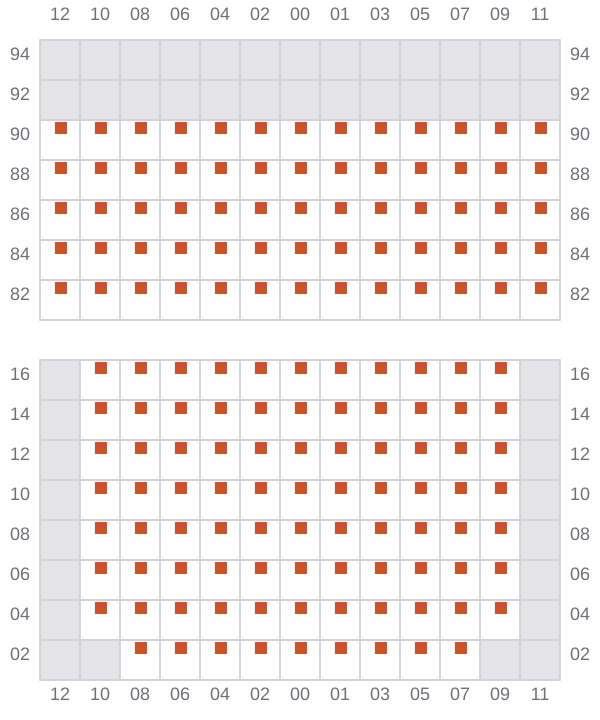

027

  • ←
Bay 027 view and slots of CMA CGM AMBER

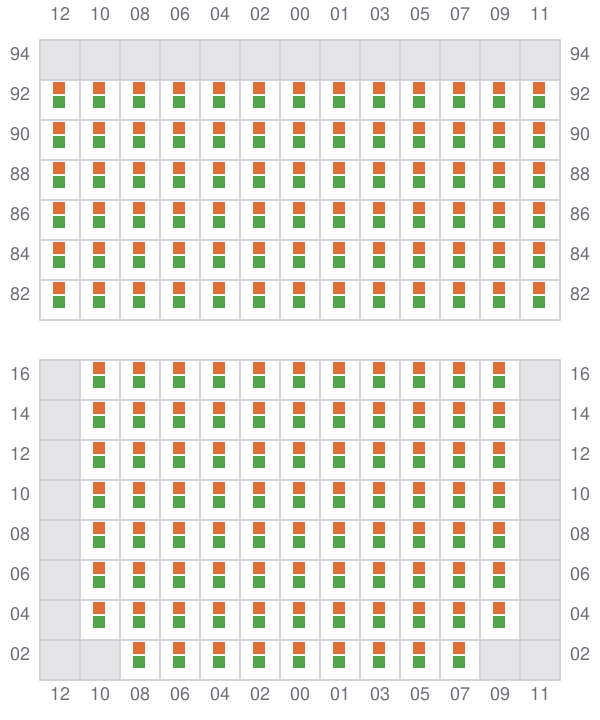

029 (030)

  • →
Bay 029 view and slots of CMA CGM AMBER

031

  • ←
Bay 031 view and slots of CMA CGM AMBER

033 (034)

  • →

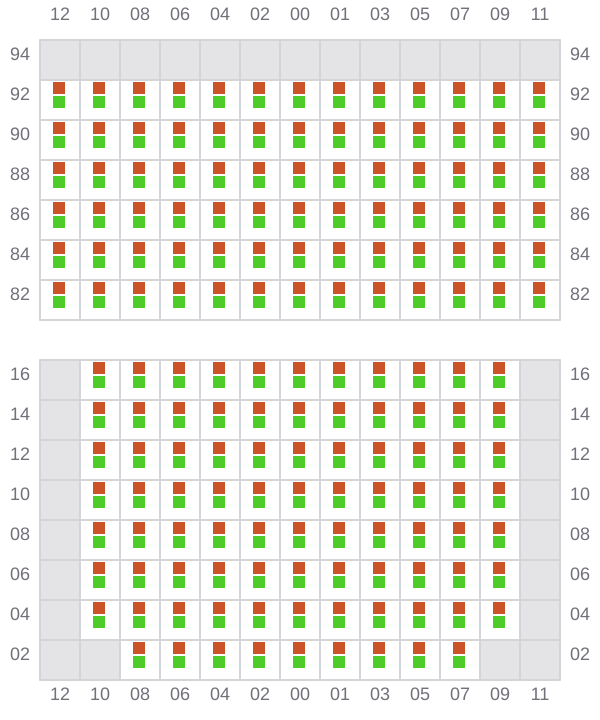

Bay 033 view and slots of CMA CGM AMBER

035

  • ←

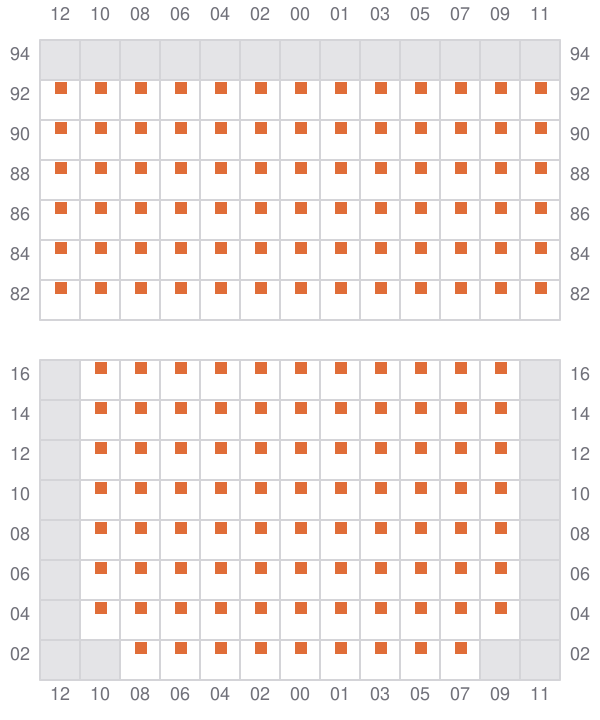

Bay 035 view and slots of CMA CGM AMBER

037 (038)

  • →
Bay 037 view and slots of CMA CGM AMBER

039

  • ←
Bay 039 view and slots of CMA CGM AMBER

041 (042)

  • →
Bay 041 view and slots of CMA CGM AMBER

043

  • ←

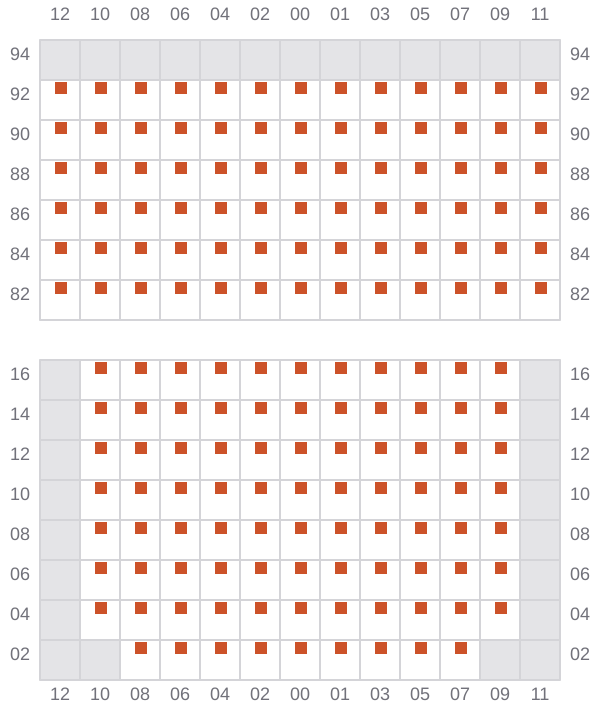

Bay 043 view and slots of CMA CGM AMBER

045 (046)

  • →
Bay 045 view and slots of CMA CGM AMBER

047

  • ←

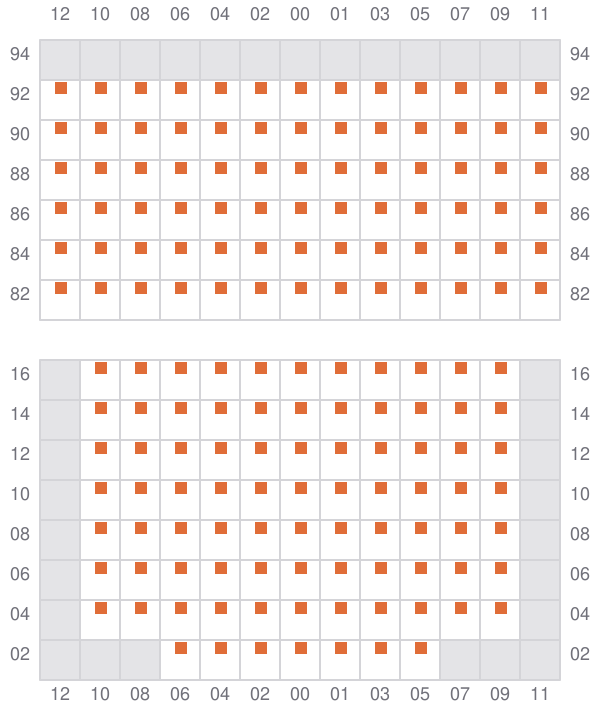

Bay 047 view and slots of CMA CGM AMBER

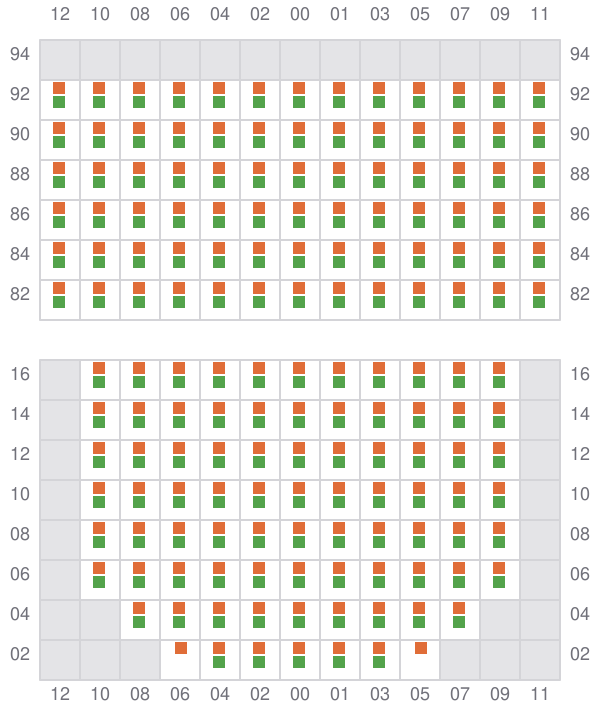

049 (050)

  • →
Bay 049 view and slots of CMA CGM AMBER

051

  • ←

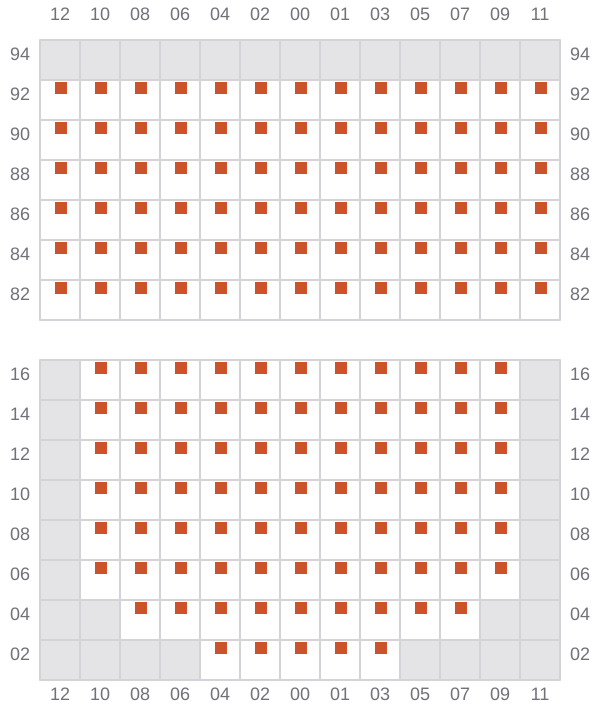

Bay 051 view and slots of CMA CGM AMBER

053 (054)

  • → / ?

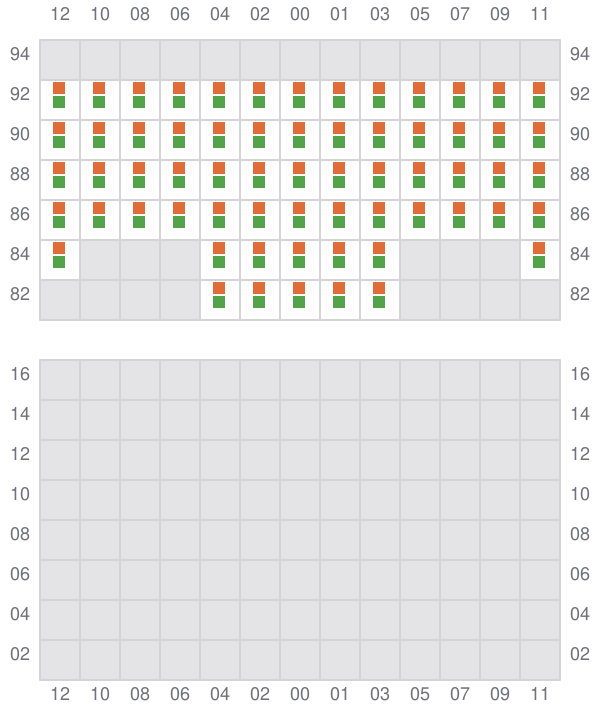

Bay 053 view and slots of CMA CGM AMBER

055

  • ← / ?

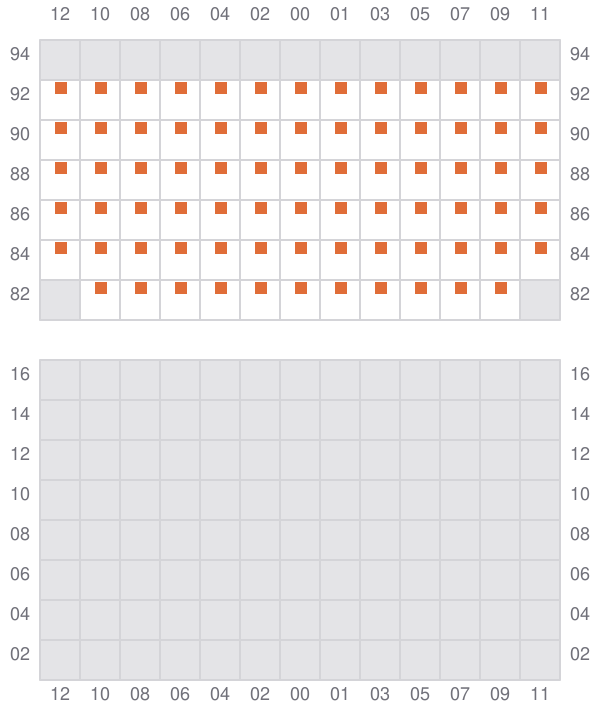

Bay 055 view and slots of CMA CGM AMBER

057 (058)

  • →

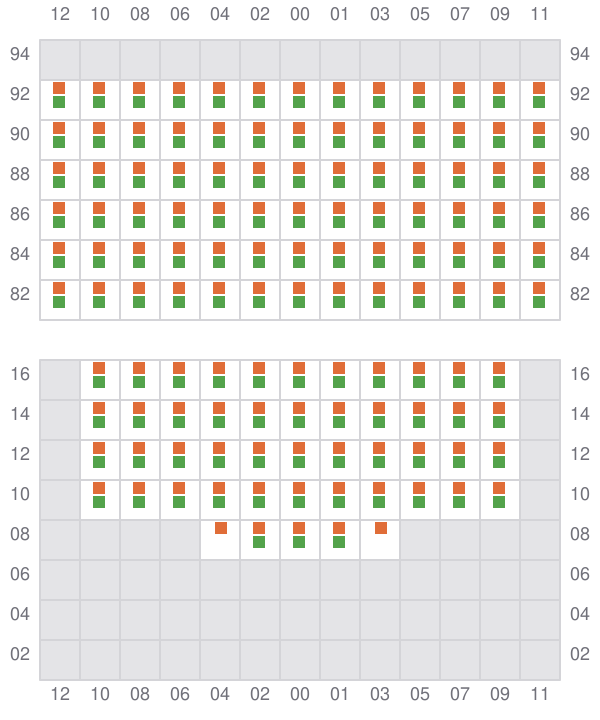

Bay 057 view and slots of CMA CGM AMBER

059

  • ←

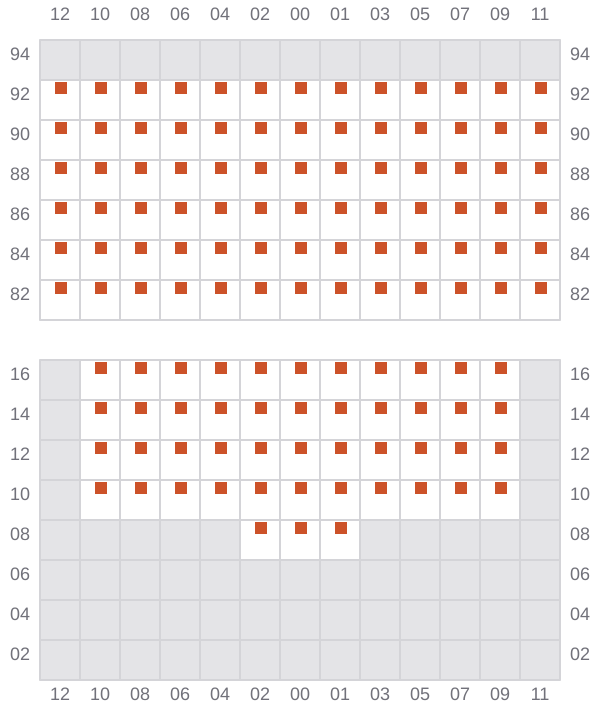

Bay 059 view and slots of CMA CGM AMBER

061 (062)

  • →

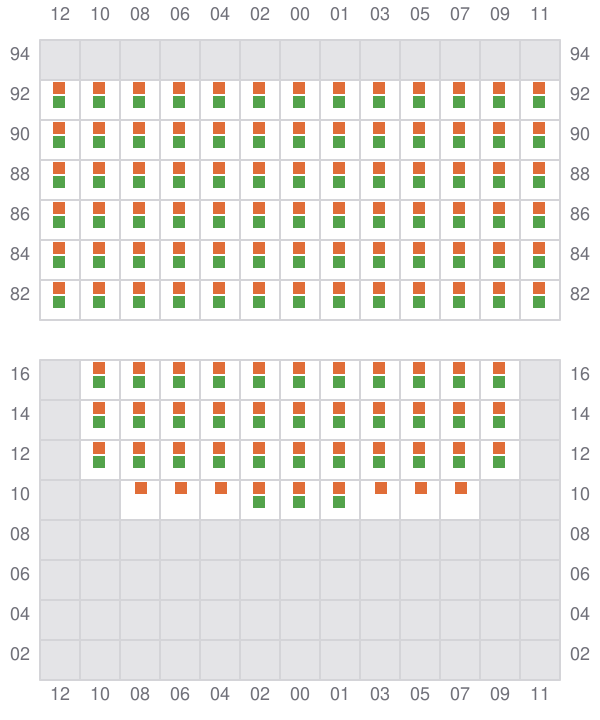

Bay 061 view and slots of CMA CGM AMBER

063

  • ←

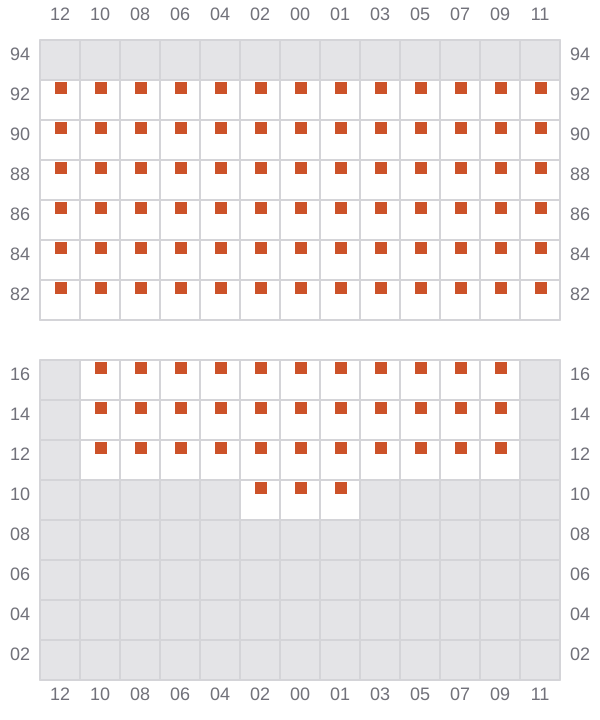

Bay 063 view and slots of CMA CGM AMBER

065 (066)

  • → / ?

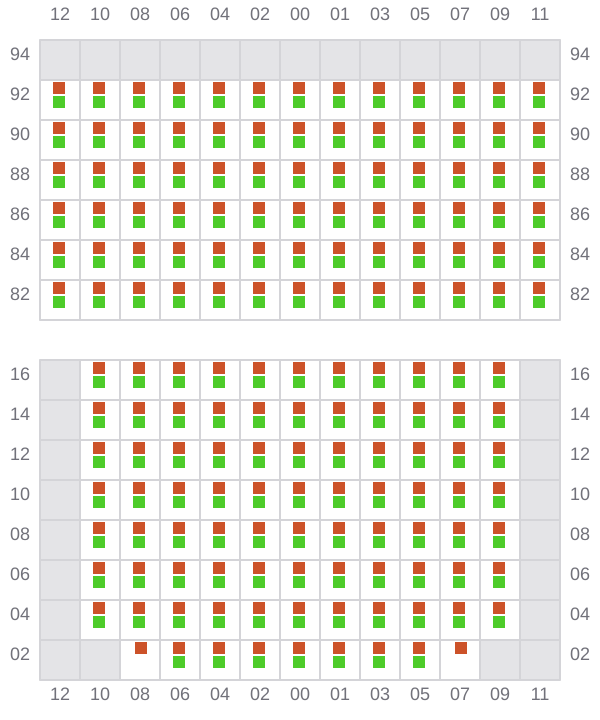

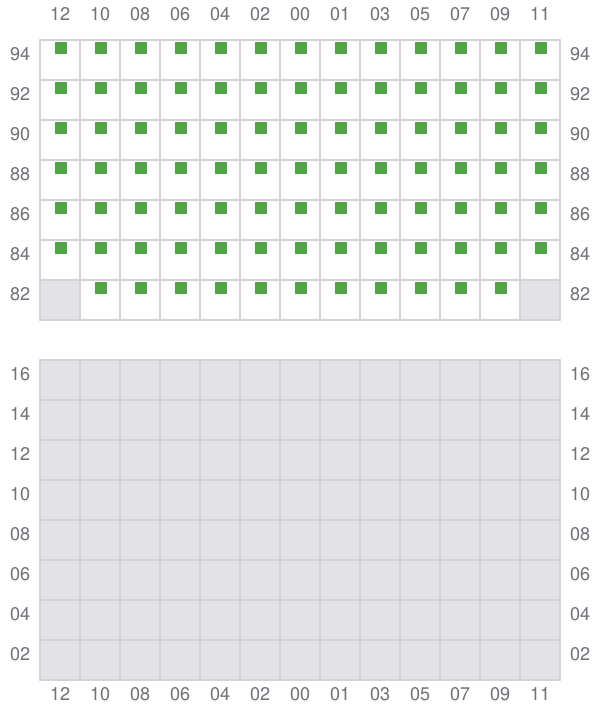

Bay 065 view and slots of CMA CGM AMBER
