CMA CGM AMERIGO VESPUCCI
9454395 | 9HA5406 | 945439 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:CMA CGM AMERIGO VESPUCCI
IMO Code:9454395
Call Sign:9HA5406
Line Operator:945439
Class Name for Sister Ships:CGM AMERIGO VESPUCCI
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,402
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

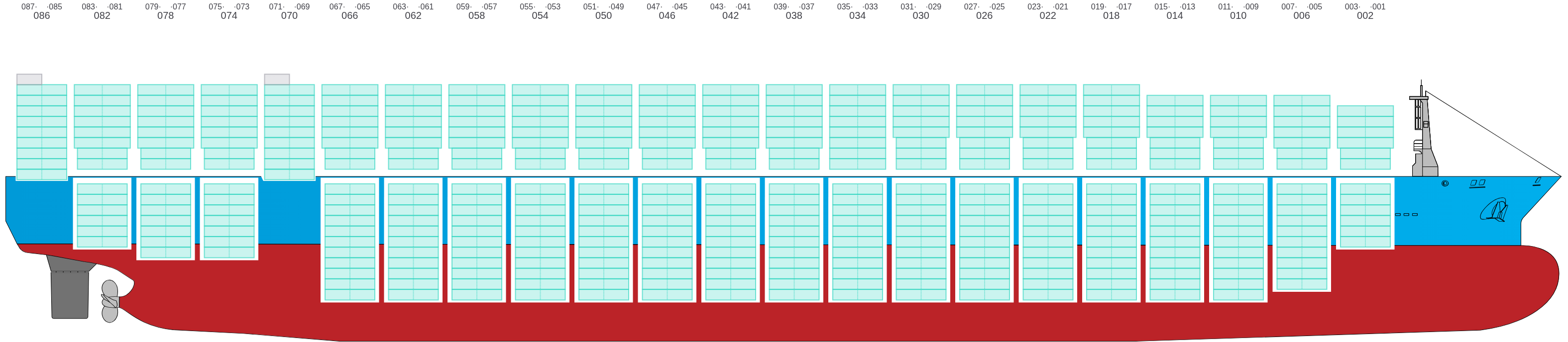

Side View
![Side view of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-sideView.png?v=1712946654701)
Hatch-Covers View
![Deck view of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-deckView.png?v=1712946654701)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

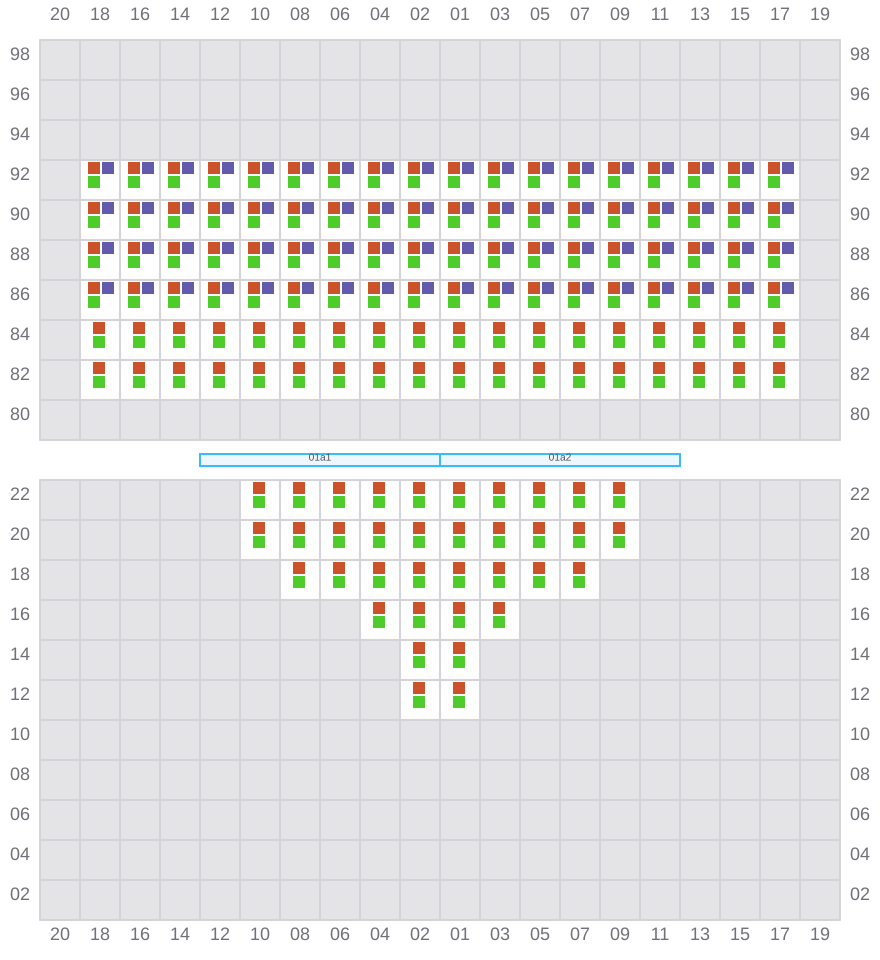

001 (002)
- →
![Bay 001 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b001.png?v=1712946654701)

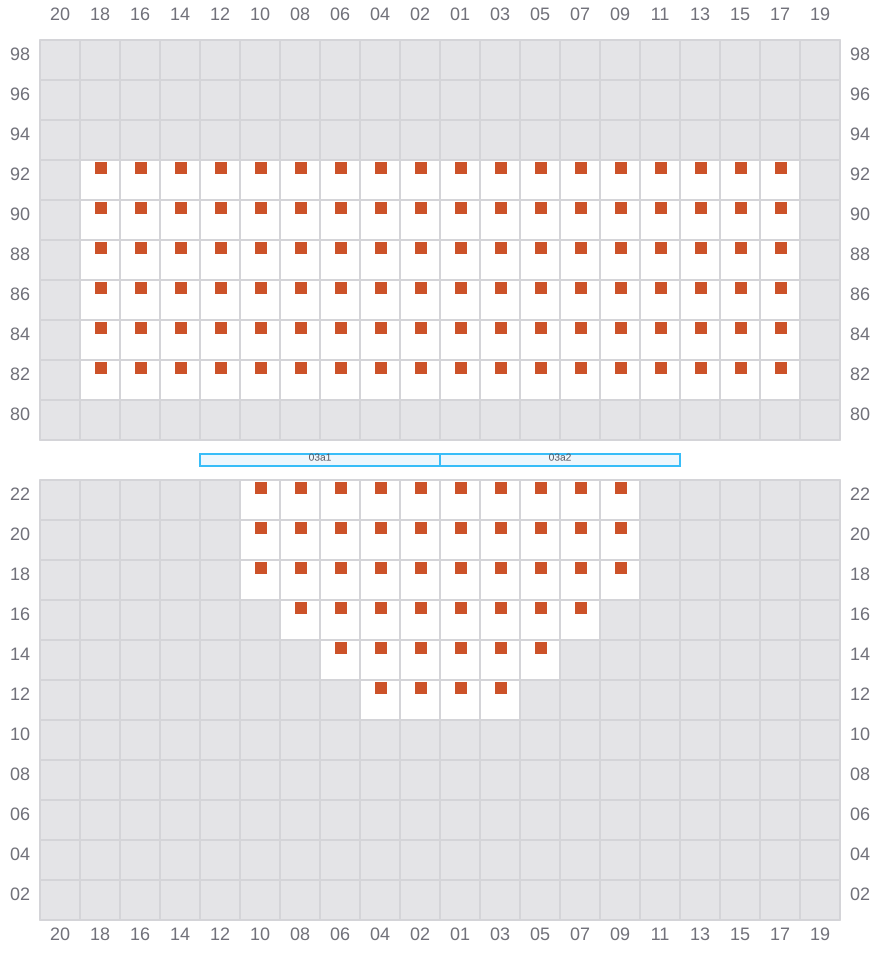

003
- ←
![Bay 003 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b003.png?v=1712946654701)

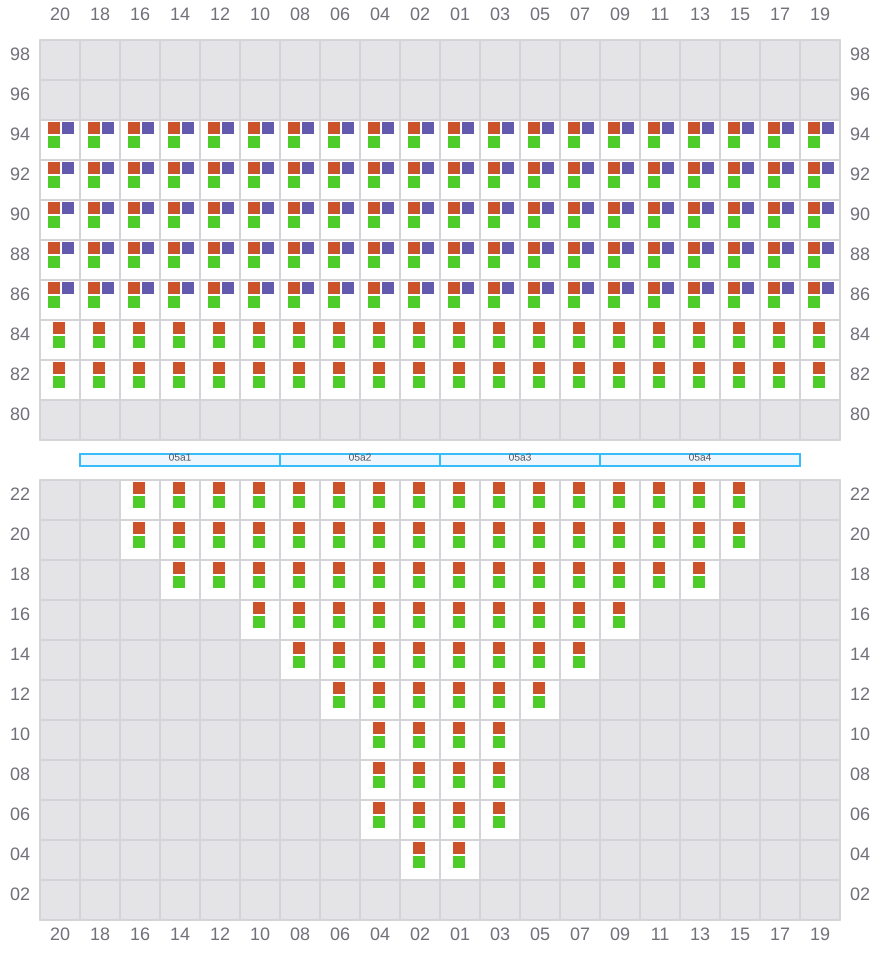

005 (006)
- →
![Bay 005 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b005.png?v=1712946654701)

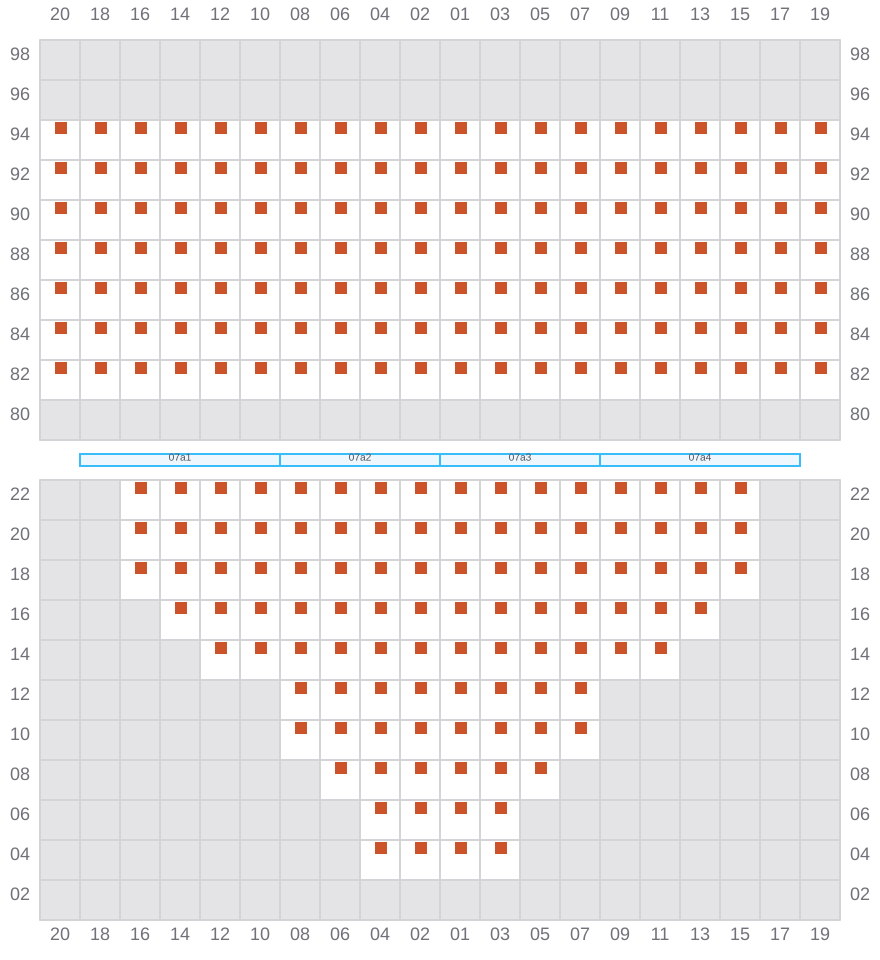

007
- ←
![Bay 007 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b007.png?v=1712946654701)

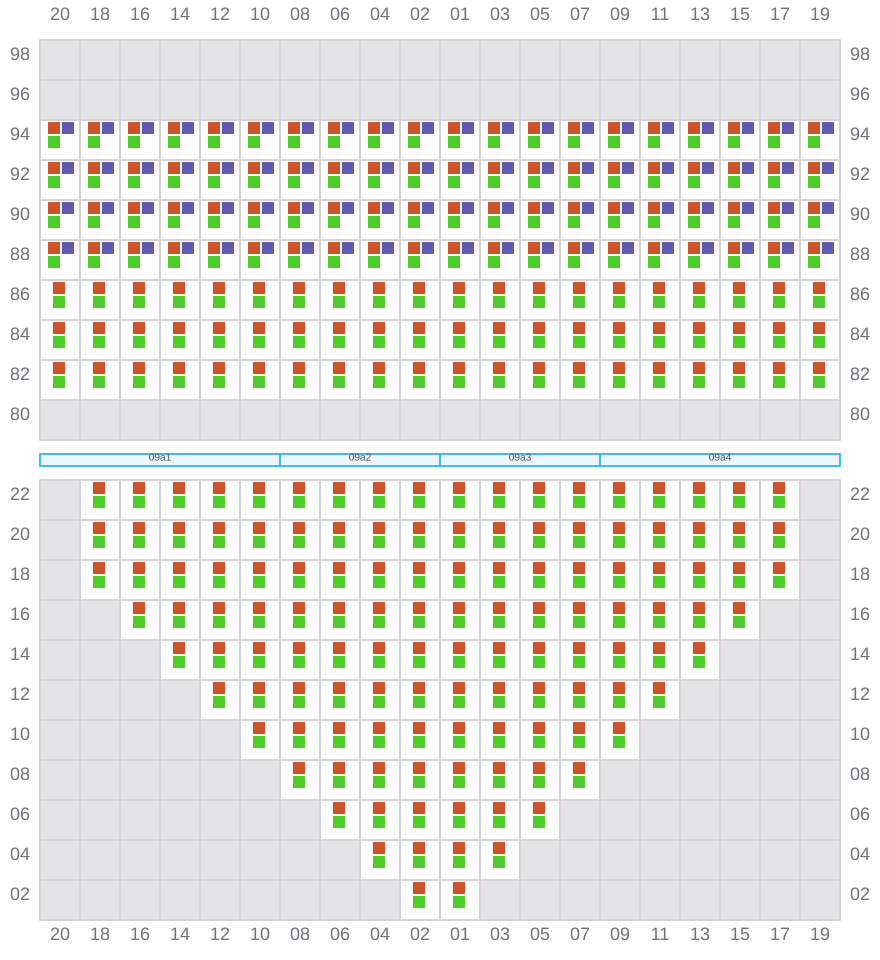

009 (010)
- →
![Bay 009 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b009.png?v=1712946654701)

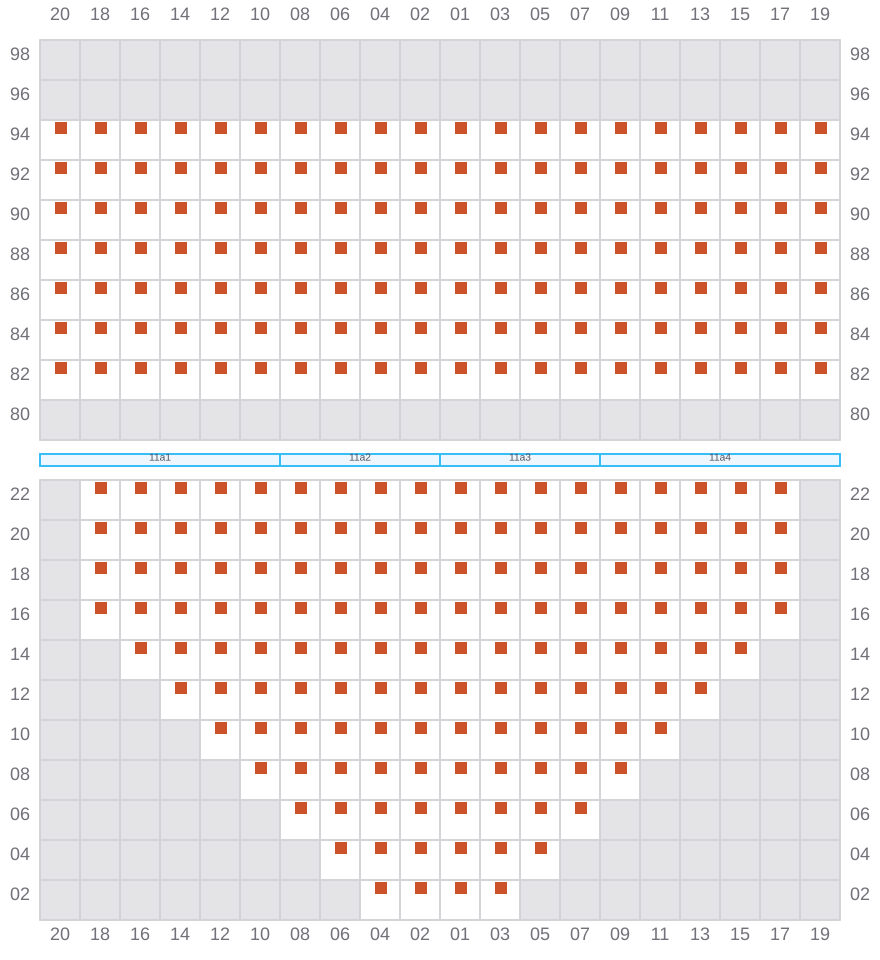

011
- ←
![Bay 011 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b011.png?v=1712946654701)

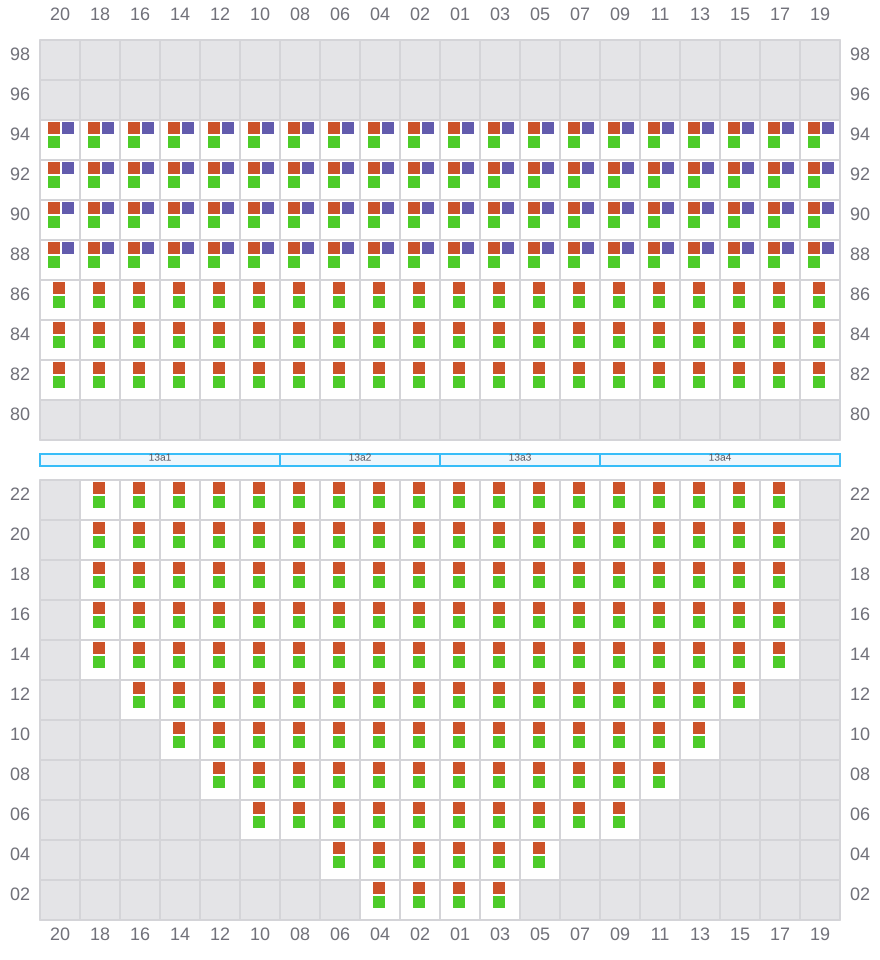

013 (014)
- →
![Bay 013 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b013.png?v=1712946654701)

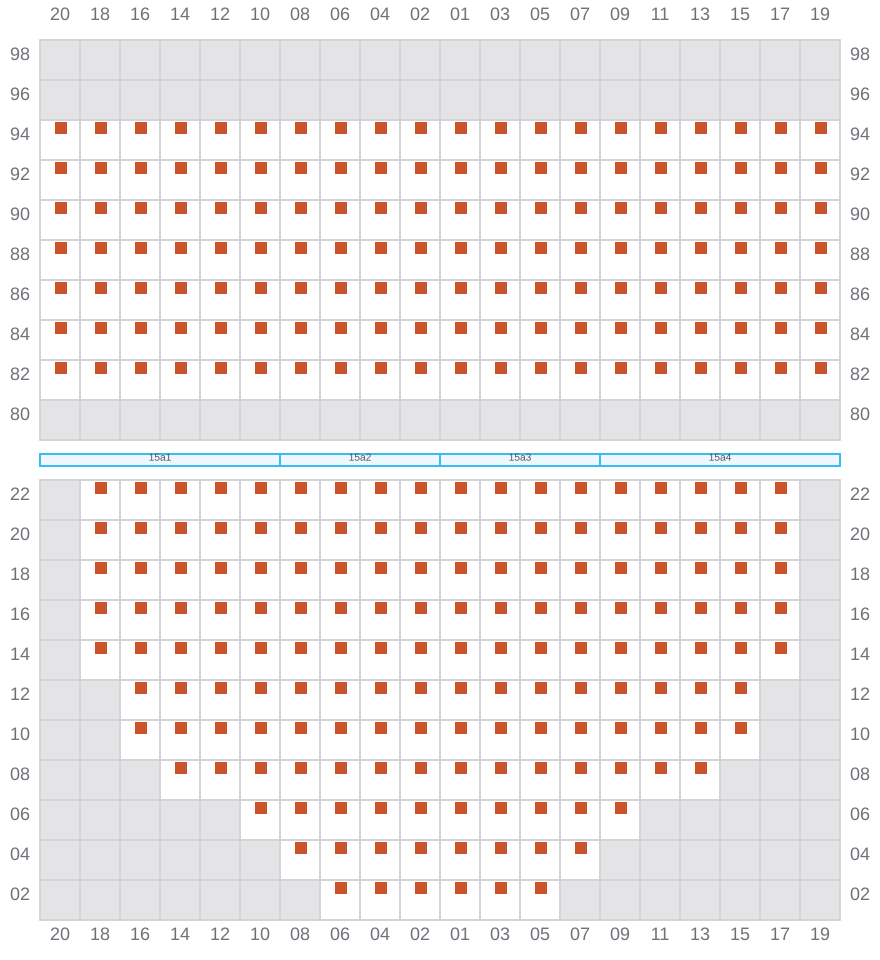

015
- ←
![Bay 015 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b015.png?v=1712946654701)

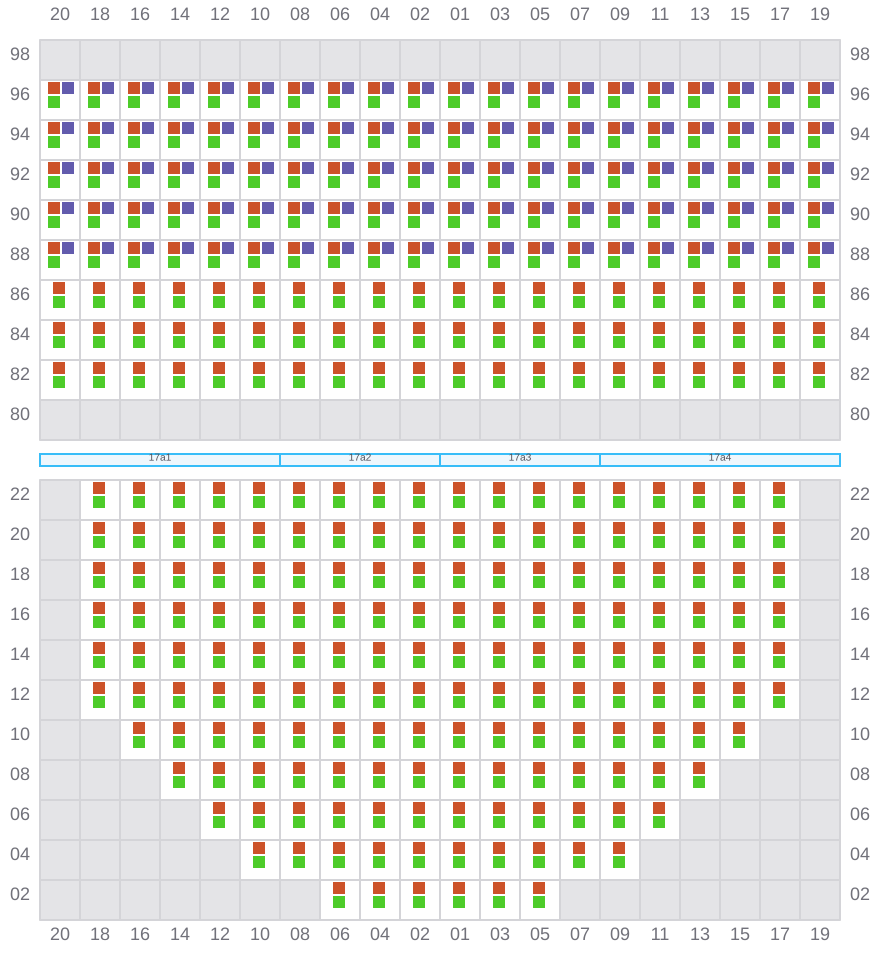

017 (018)
- →
![Bay 017 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b017.png?v=1712946654701)

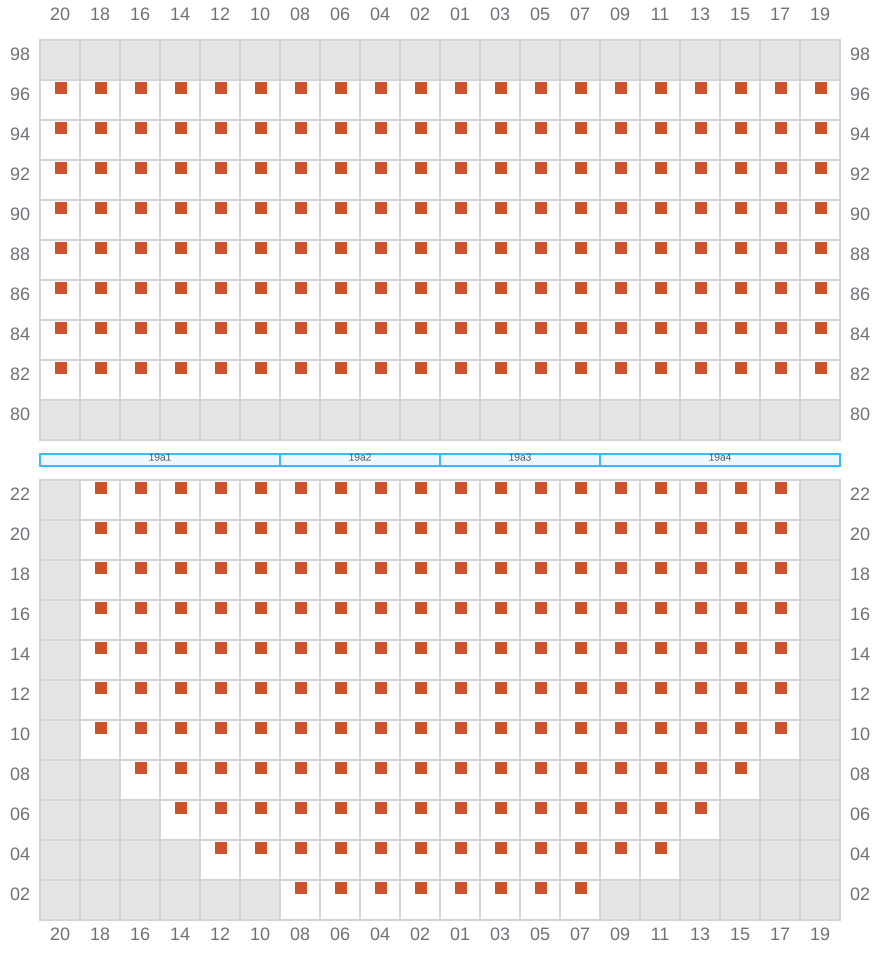

019
- ←
![Bay 019 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b019.png?v=1712946654701)

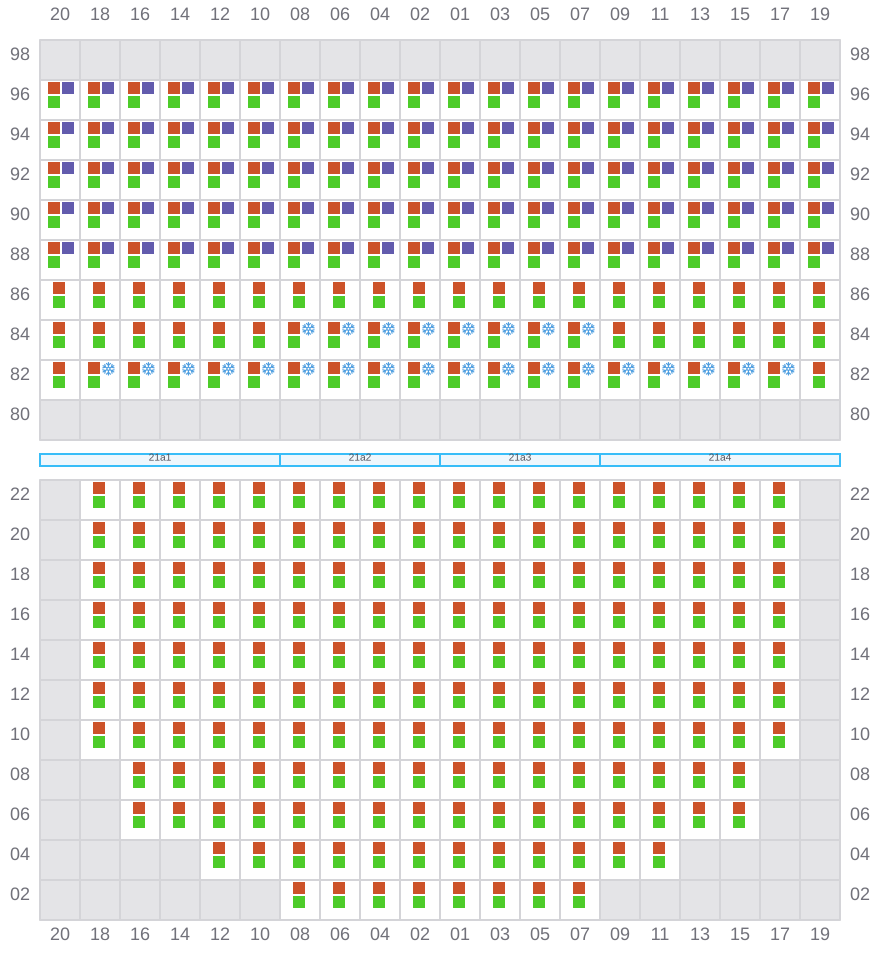

021 (022)
- →
![Bay 021 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b021.png?v=1712946654701)

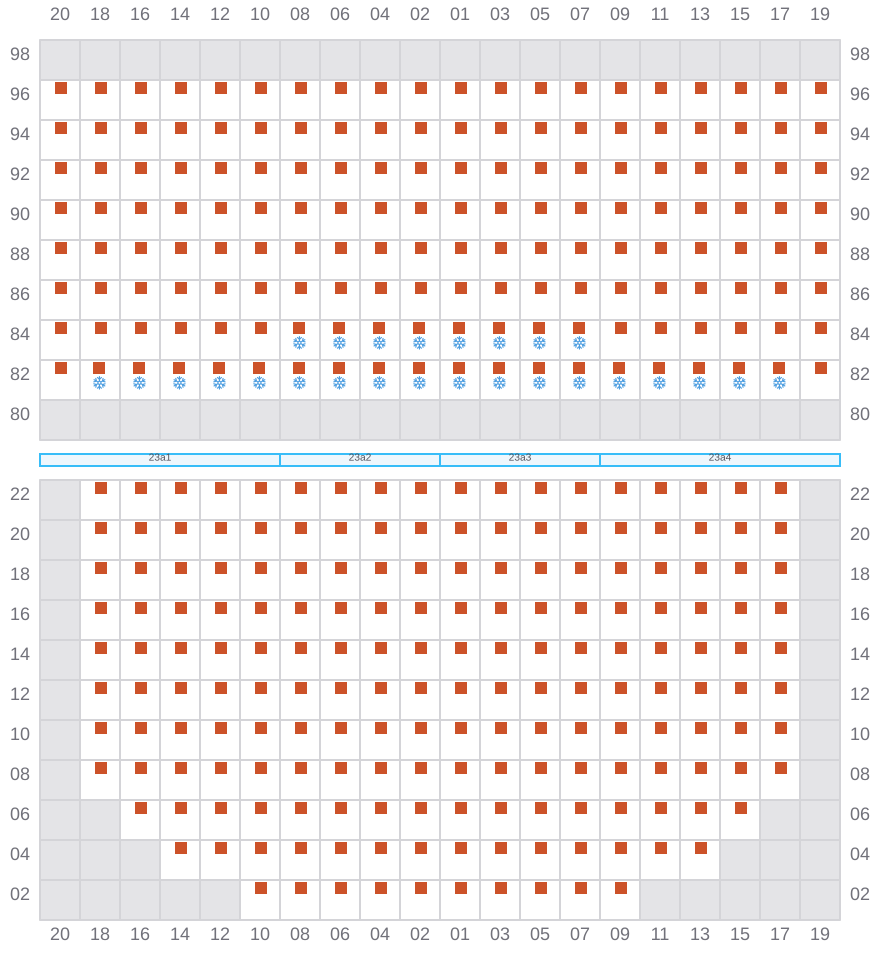

023
- ←
![Bay 023 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b023.png?v=1712946654701)

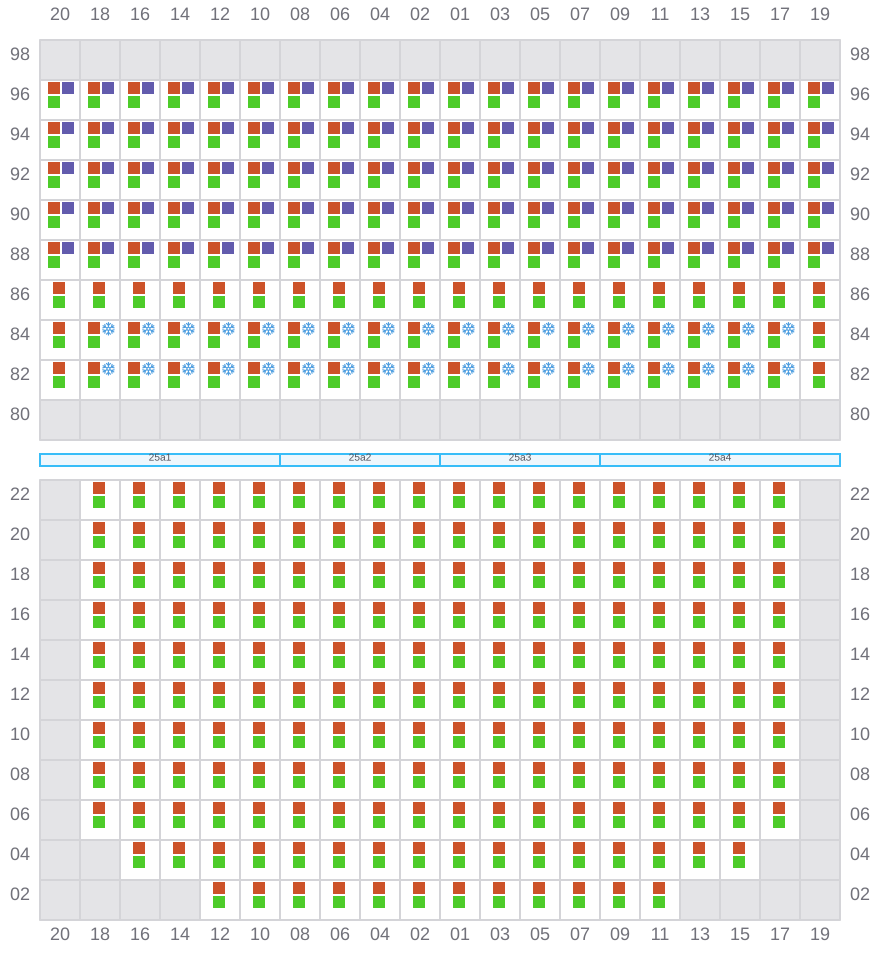

025 (026)
- →
![Bay 025 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b025.png?v=1712946654701)

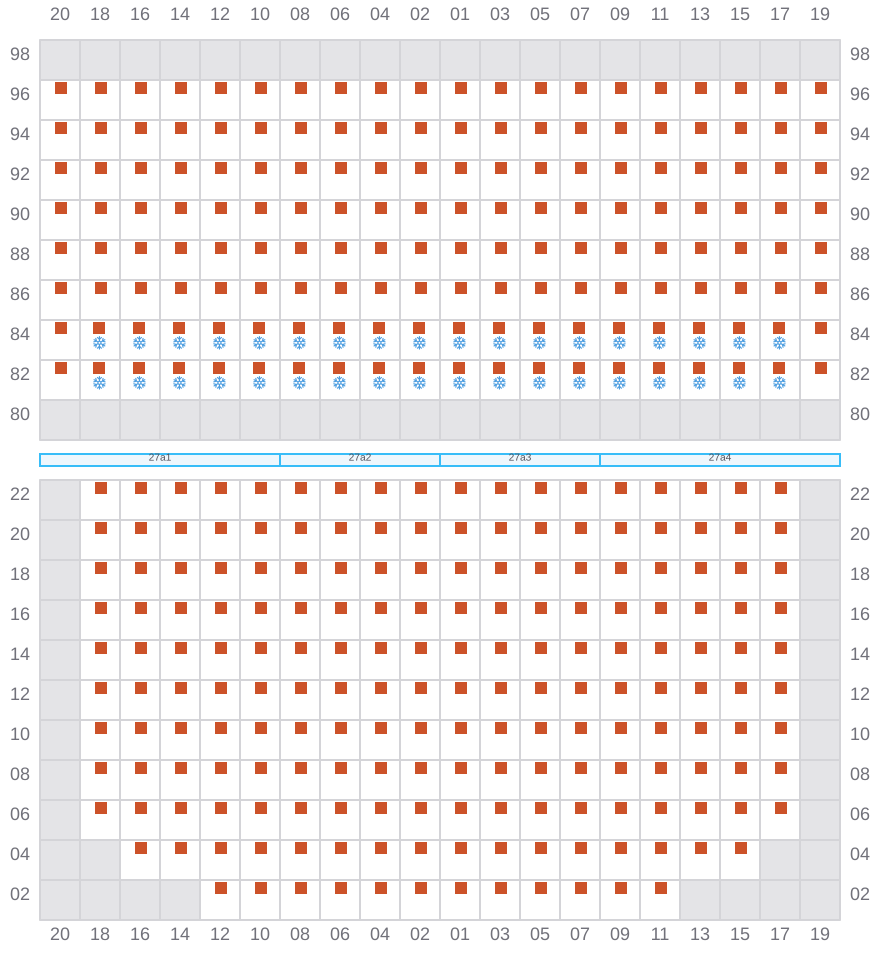

027
- ←
![Bay 027 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b027.png?v=1712946654701)

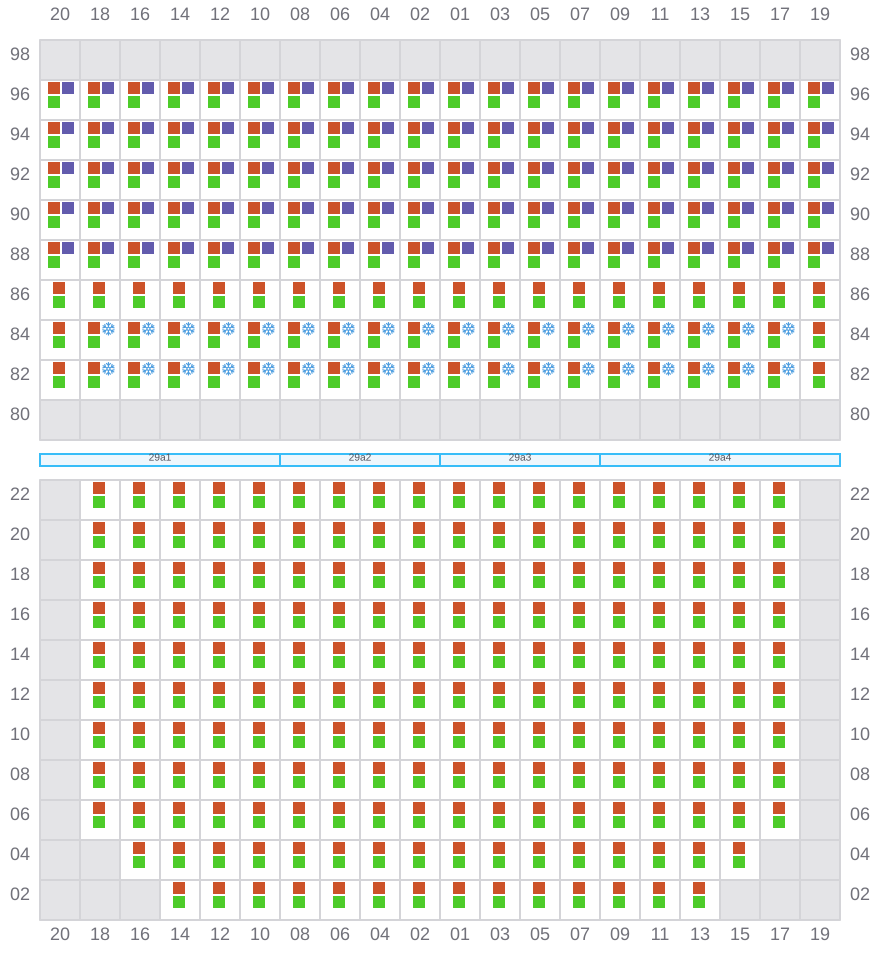

029 (030)
- →
![Bay 029 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b029.png?v=1712946654701)

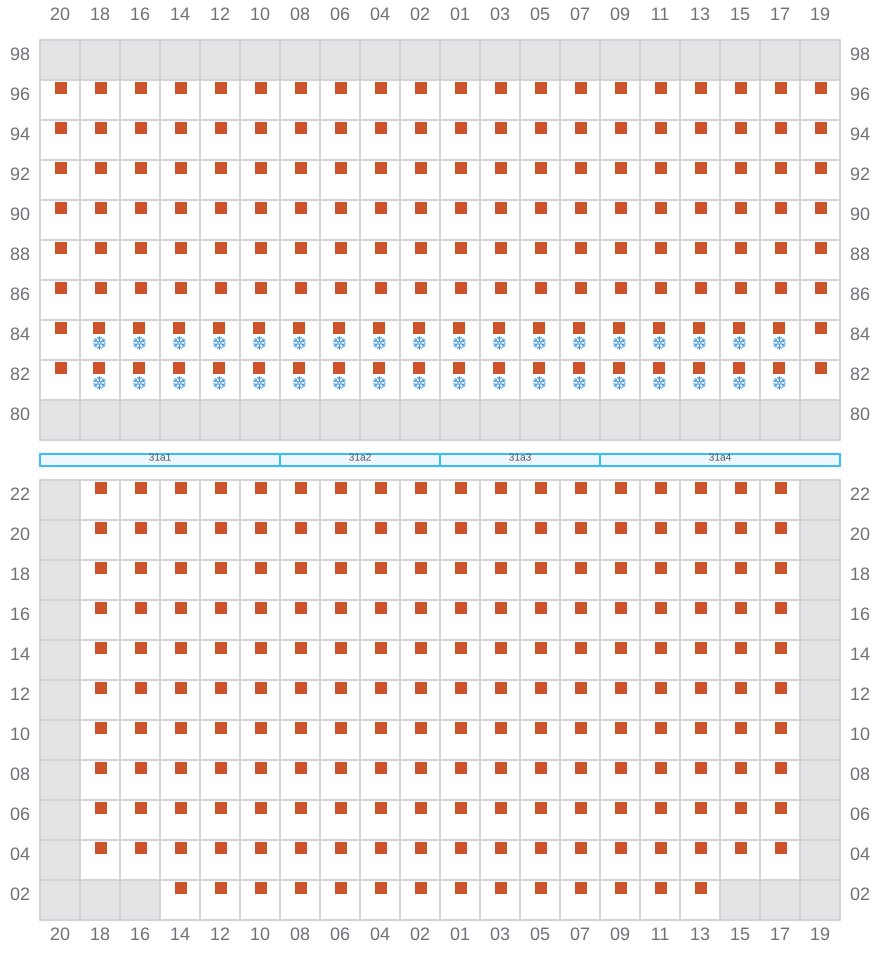

031
- ←
![Bay 031 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b031.png?v=1712946654701)

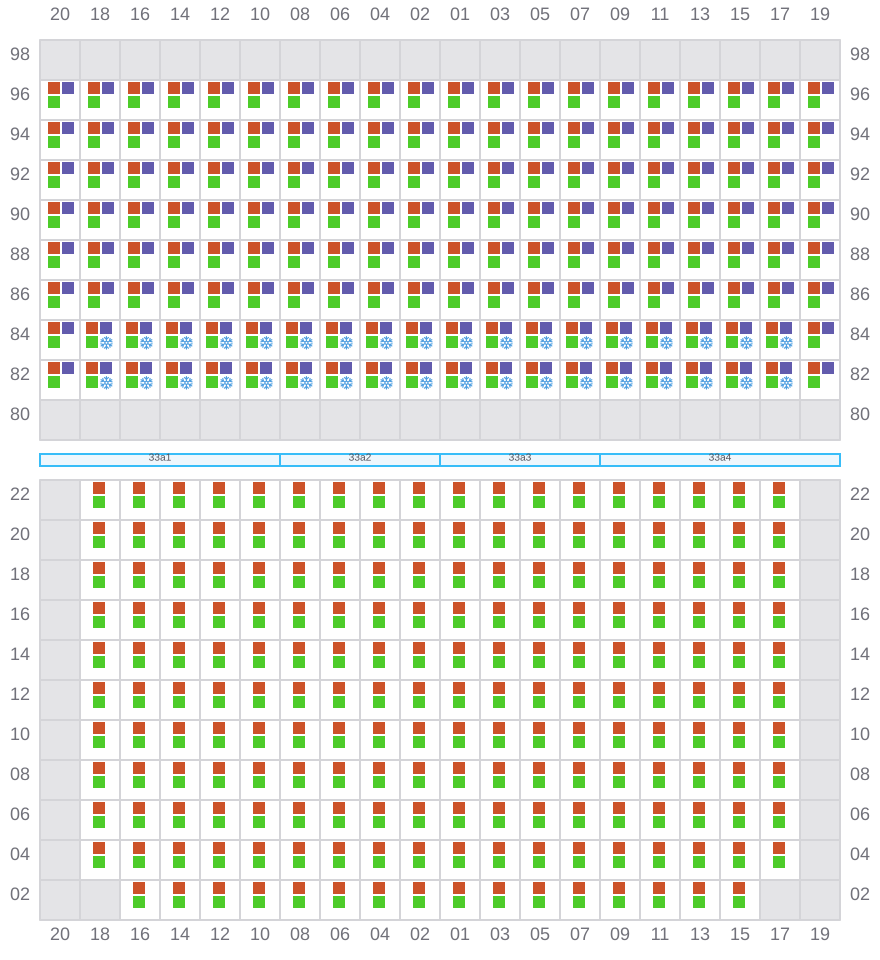

033 (034)
- →
![Bay 033 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b033.png?v=1712946654701)

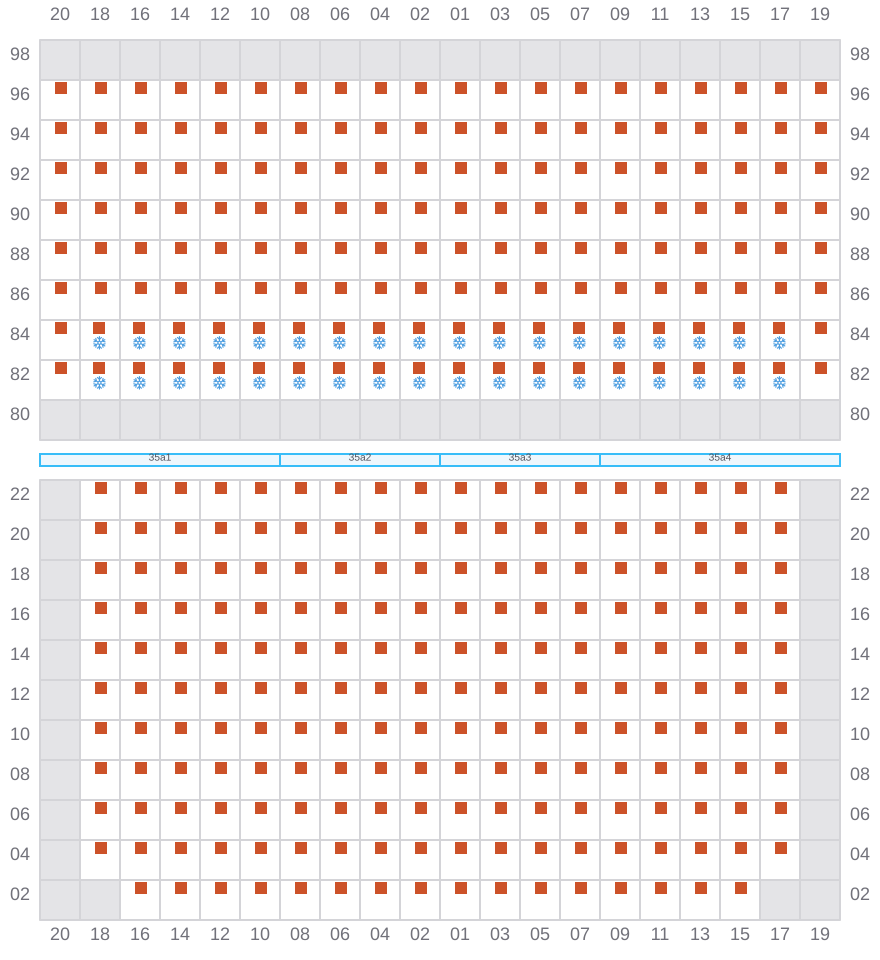

035
- ←
![Bay 035 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b035.png?v=1712946654701)

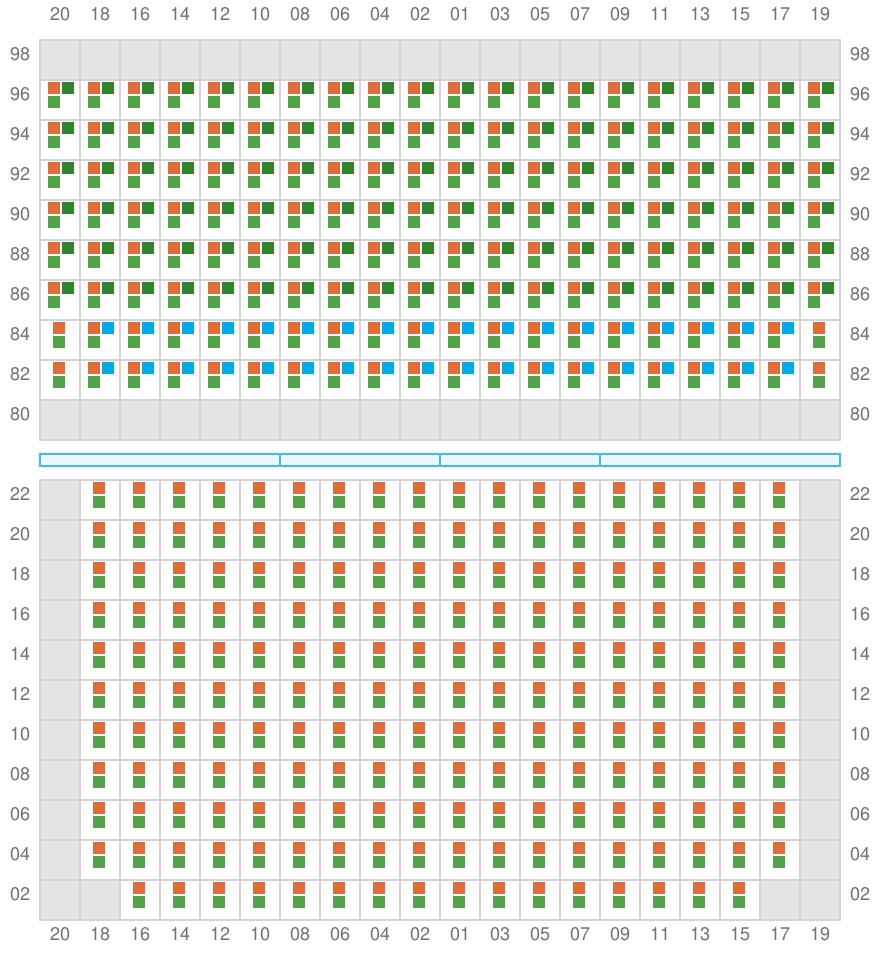

037 (038)
- →
![Bay 037 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b037.png?v=1712946654701)

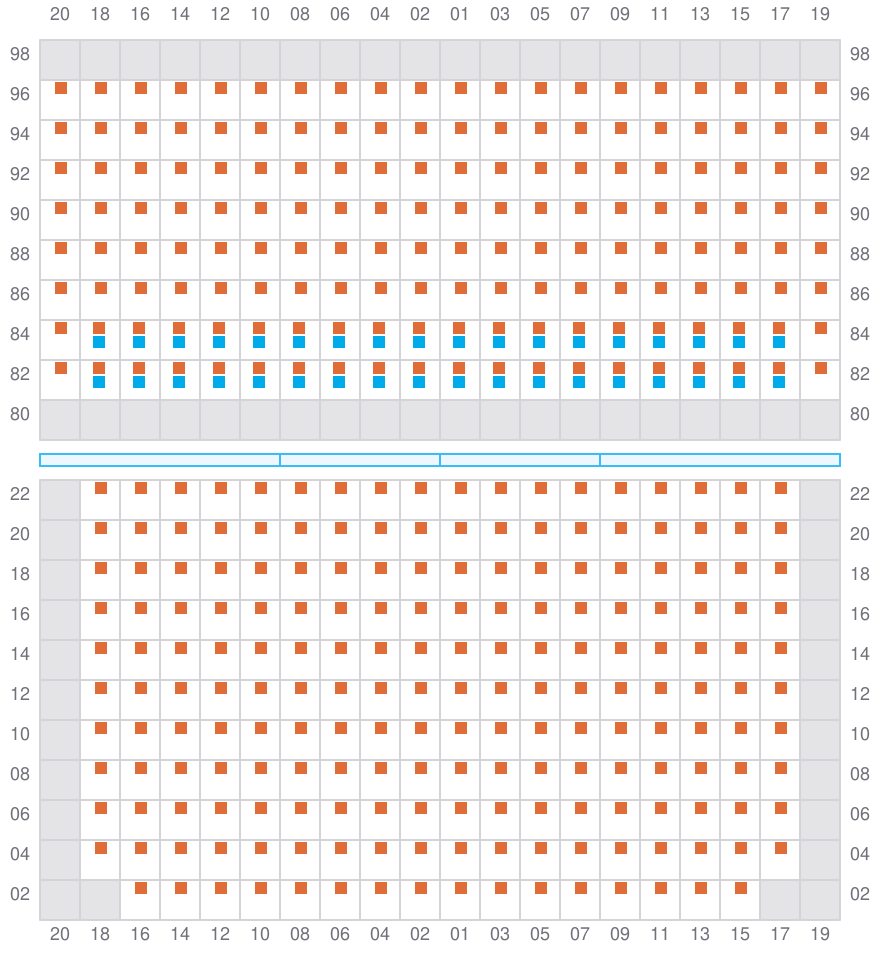

039
- ←
![Bay 039 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b039.png?v=1712946654701)
041 (042)
- →
![Bay 041 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b041.png?v=1712946654701)
043
- ←
![Bay 043 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b043.png?v=1712946654701)
045 (046)
- →
![Bay 045 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b045.png?v=1712946654701)
047
- ←
![Bay 047 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b047.png?v=1712946654701)

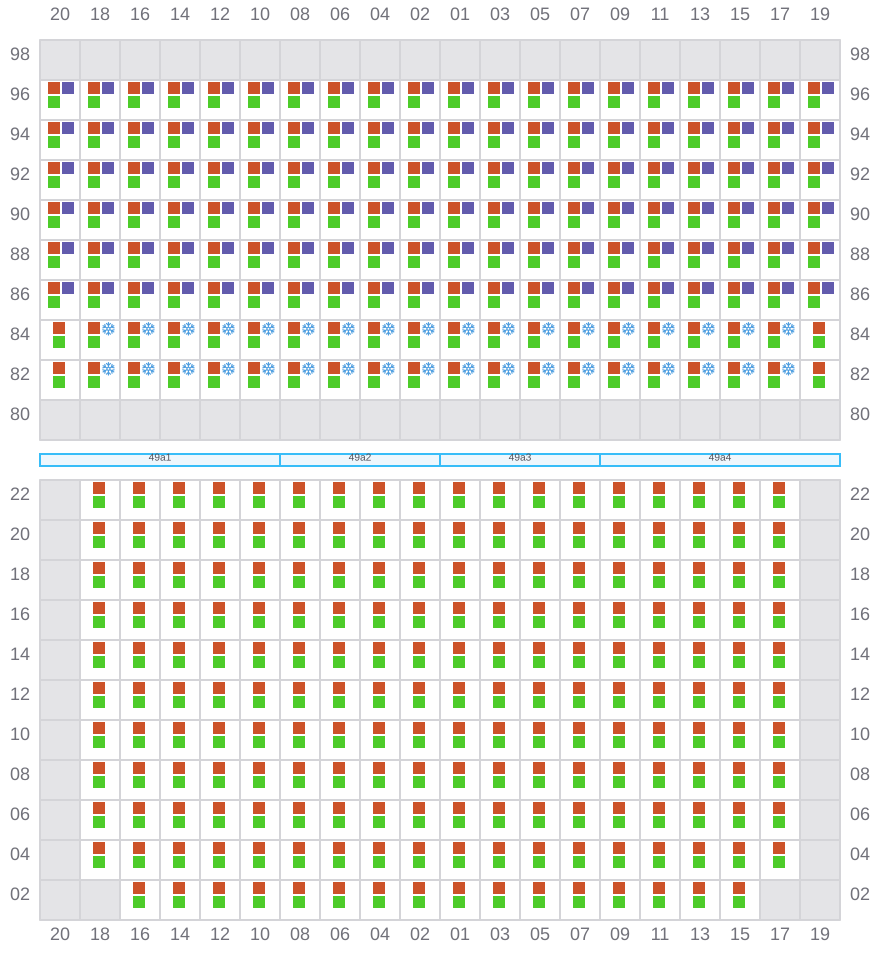

049 (050)
- →
![Bay 049 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b049.png?v=1712946654701)

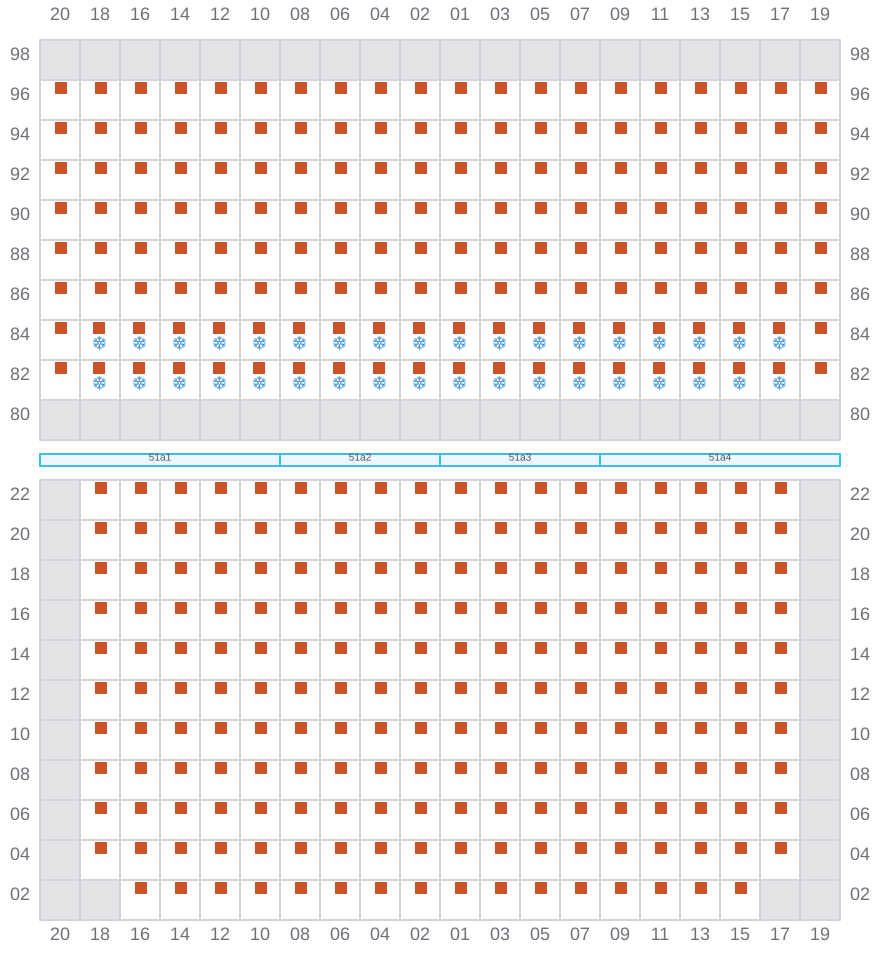

051
- ←
![Bay 051 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b051.png?v=1712946654701)
053 (054)
- →
![Bay 053 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b053.png?v=1712946654701)
055
- ←
![Bay 055 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b055.png?v=1712946654701)

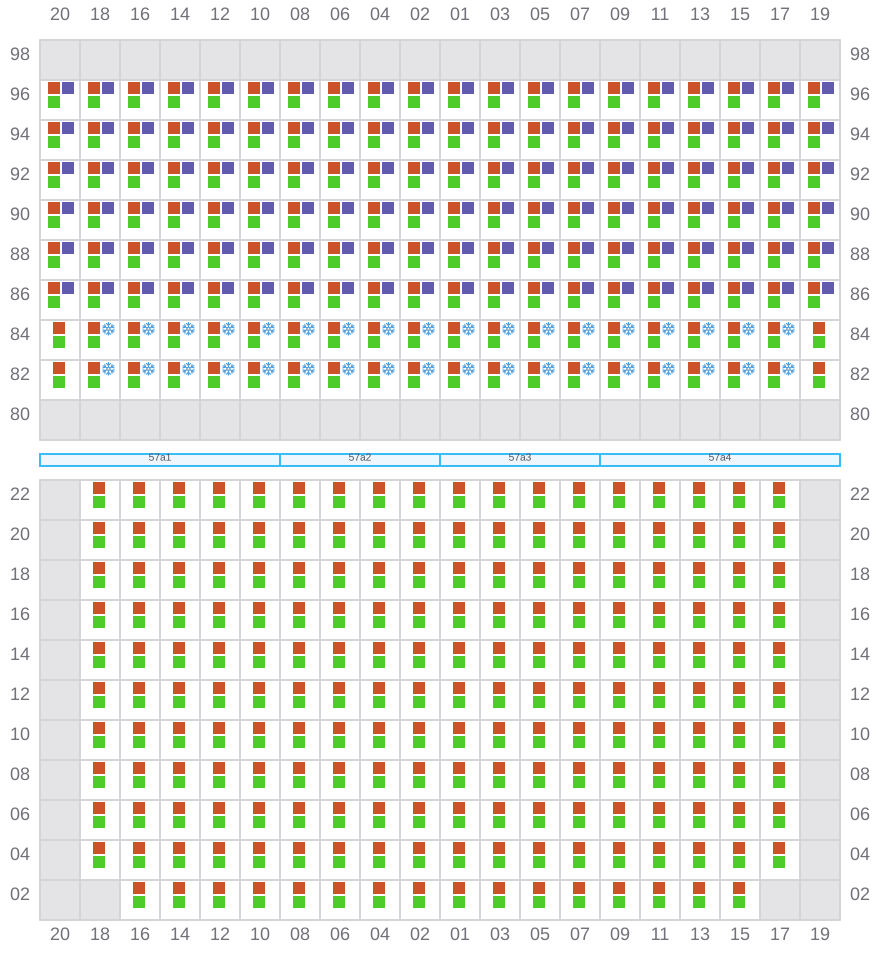

057 (058)
- →
![Bay 057 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b057.png?v=1712946654701)

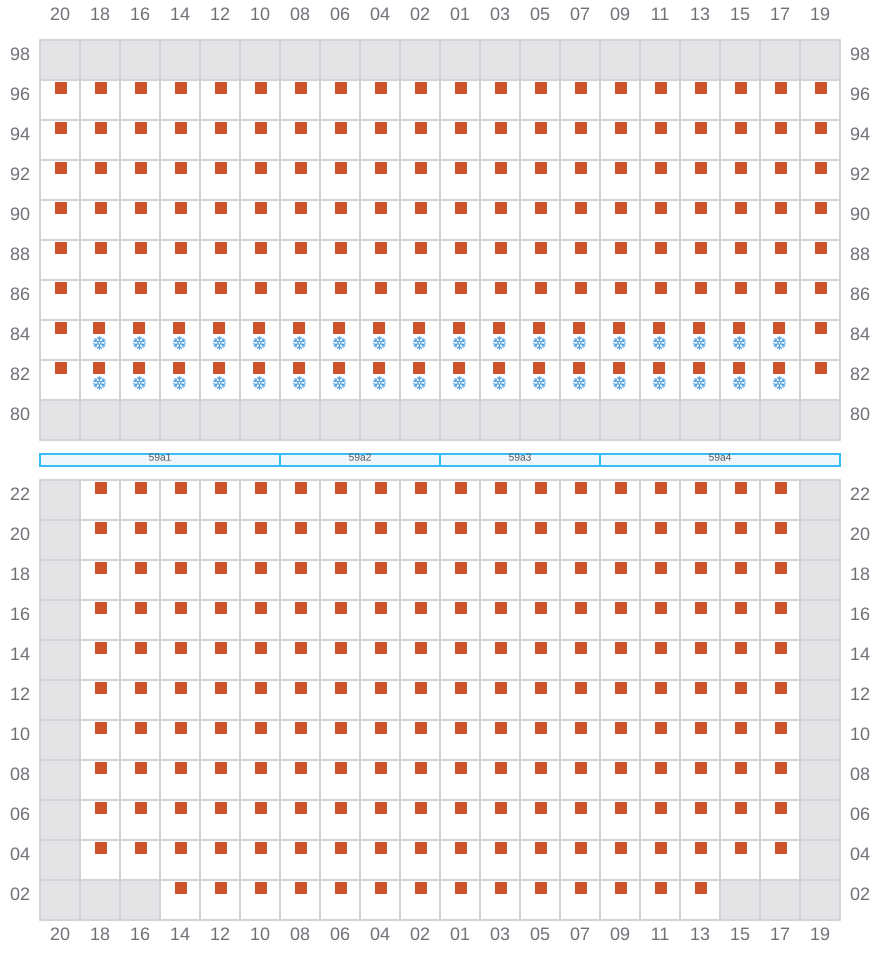

059
- ←
![Bay 059 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b059.png?v=1712946654701)

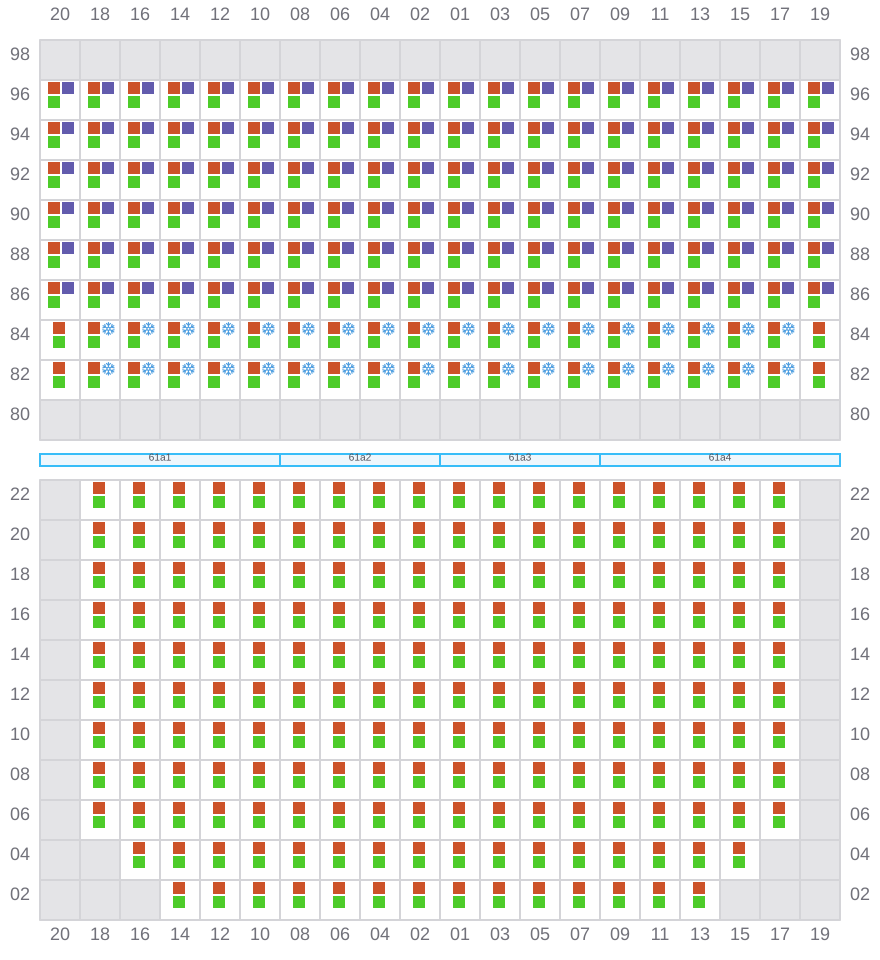

061 (062)
- →
![Bay 061 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b061.png?v=1712946654701)

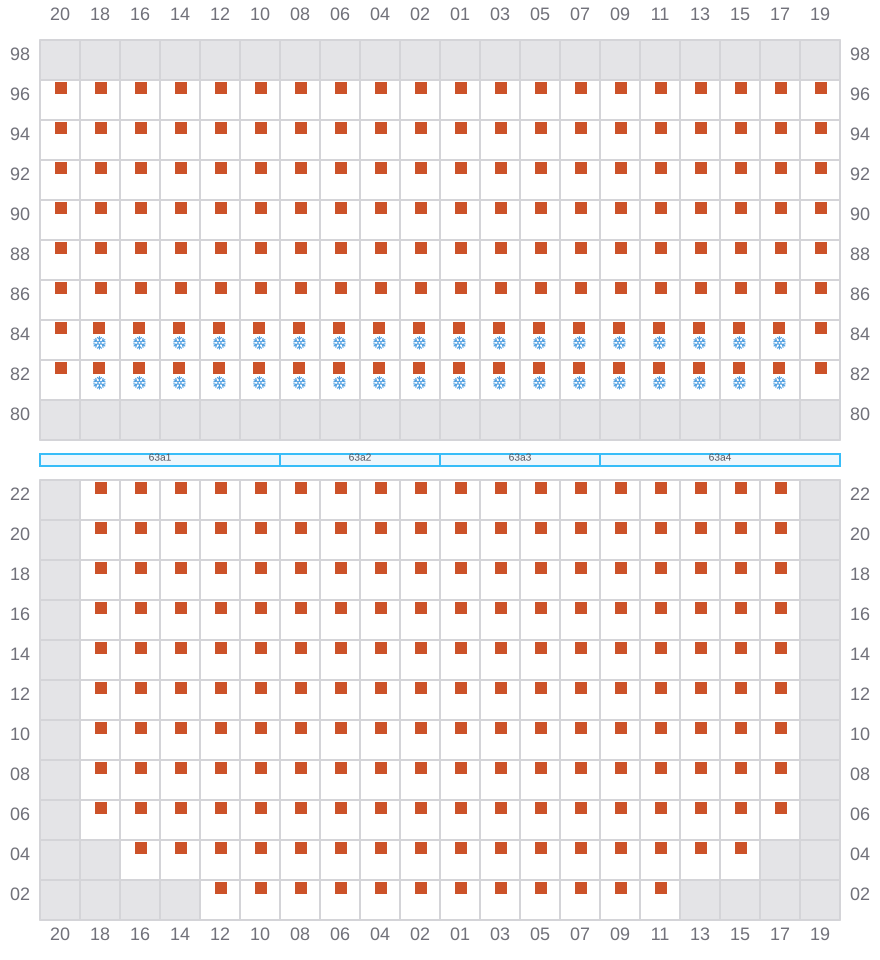

063
- ←
![Bay 063 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b063.png?v=1712946654701)

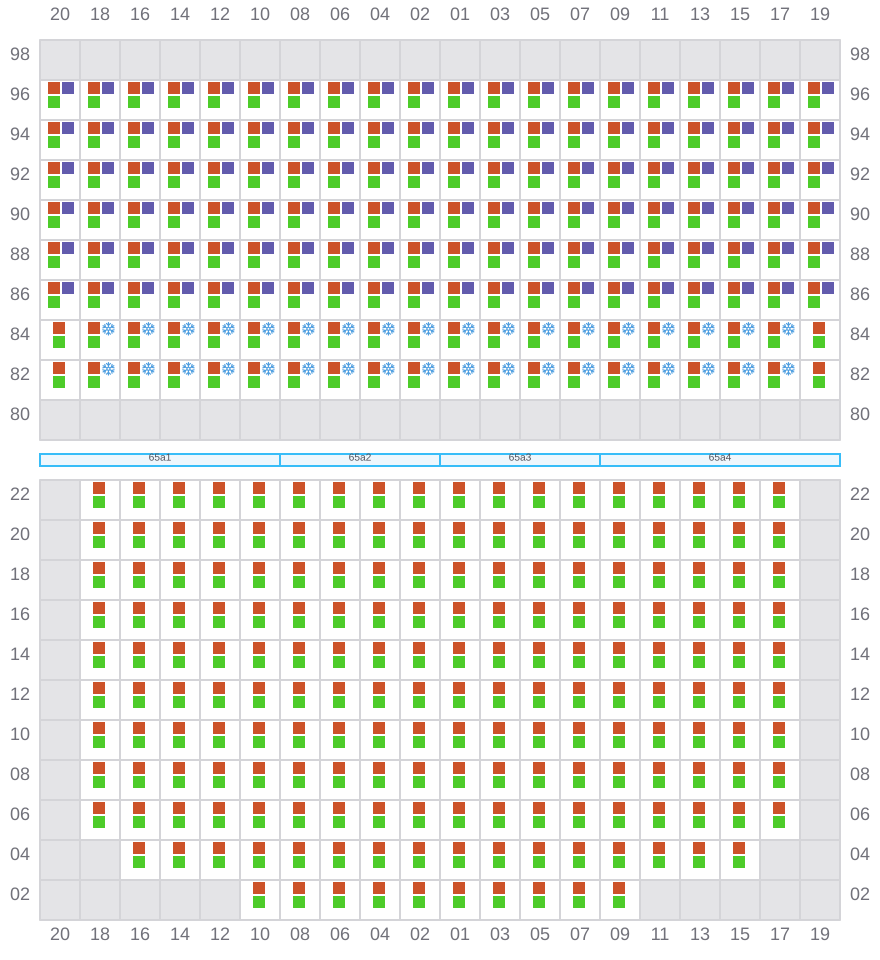

065 (066)
- →
![Bay 065 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b065.png?v=1712946654701)

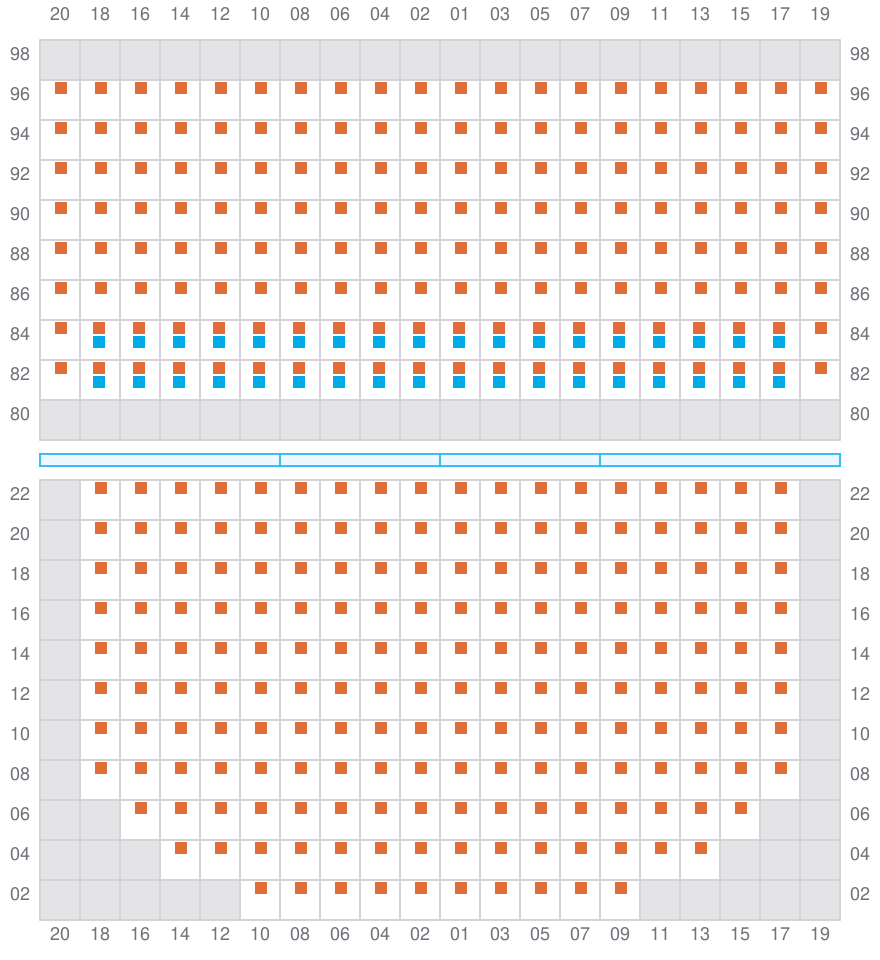

067
- ←
![Bay 067 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b067.png?v=1712946654701)

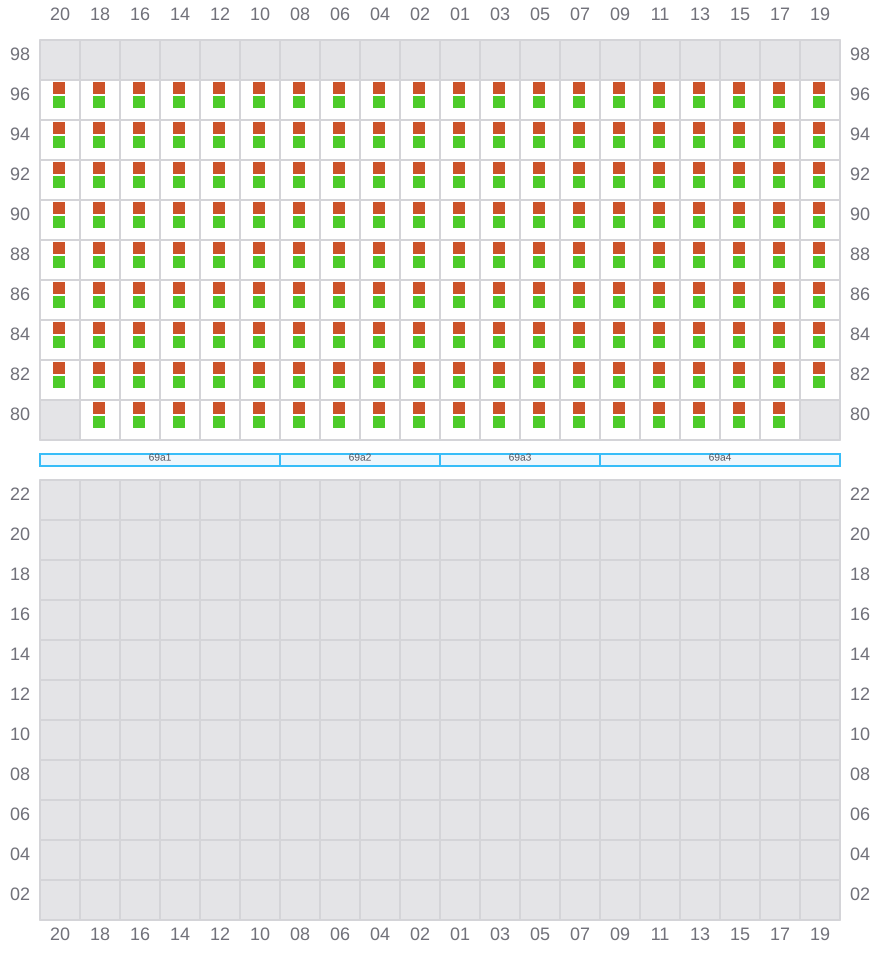

069 (070)
- → / ?
![Bay 069 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b069.png?v=1712946654701)

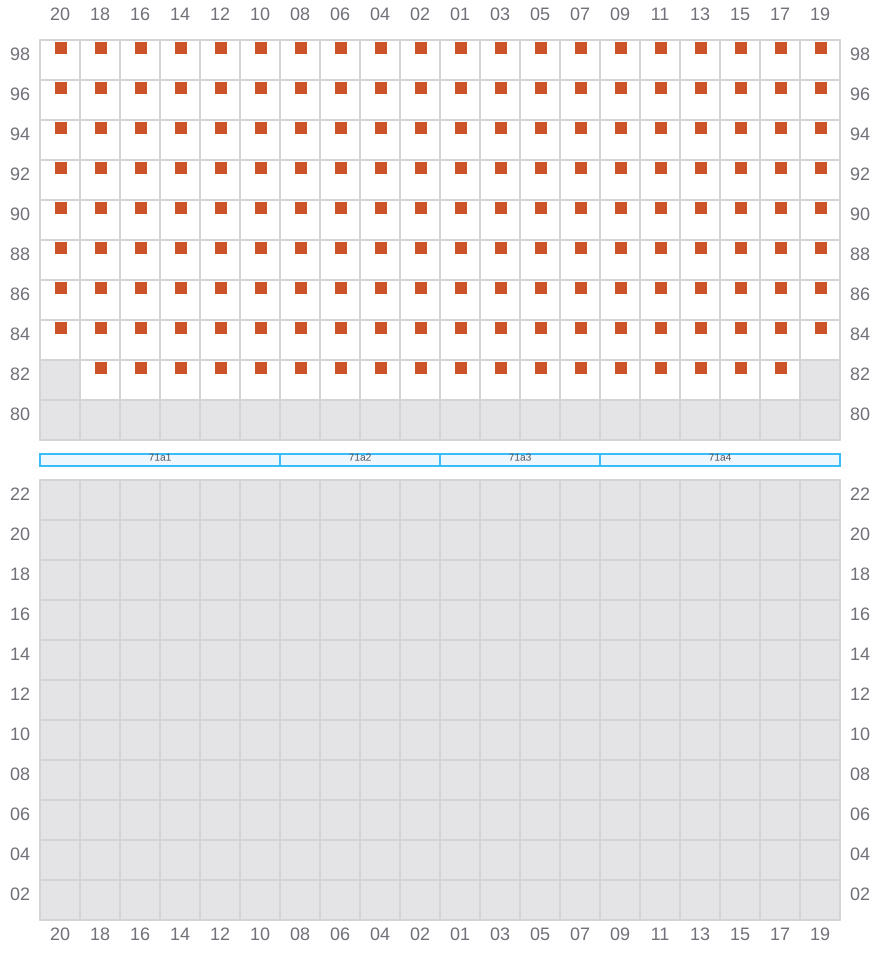

071
- ← / ?
![Bay 071 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b071.png?v=1712946654701)

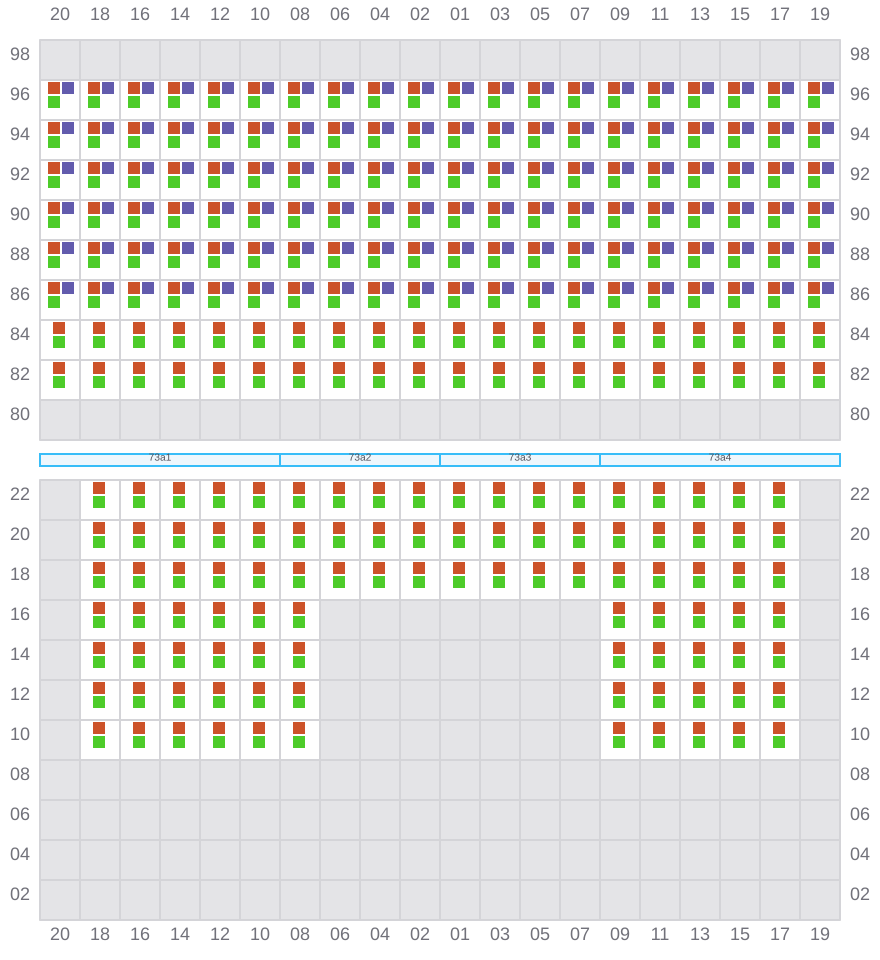

073 (074)
- →
![Bay 073 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b073.png?v=1712946654701)

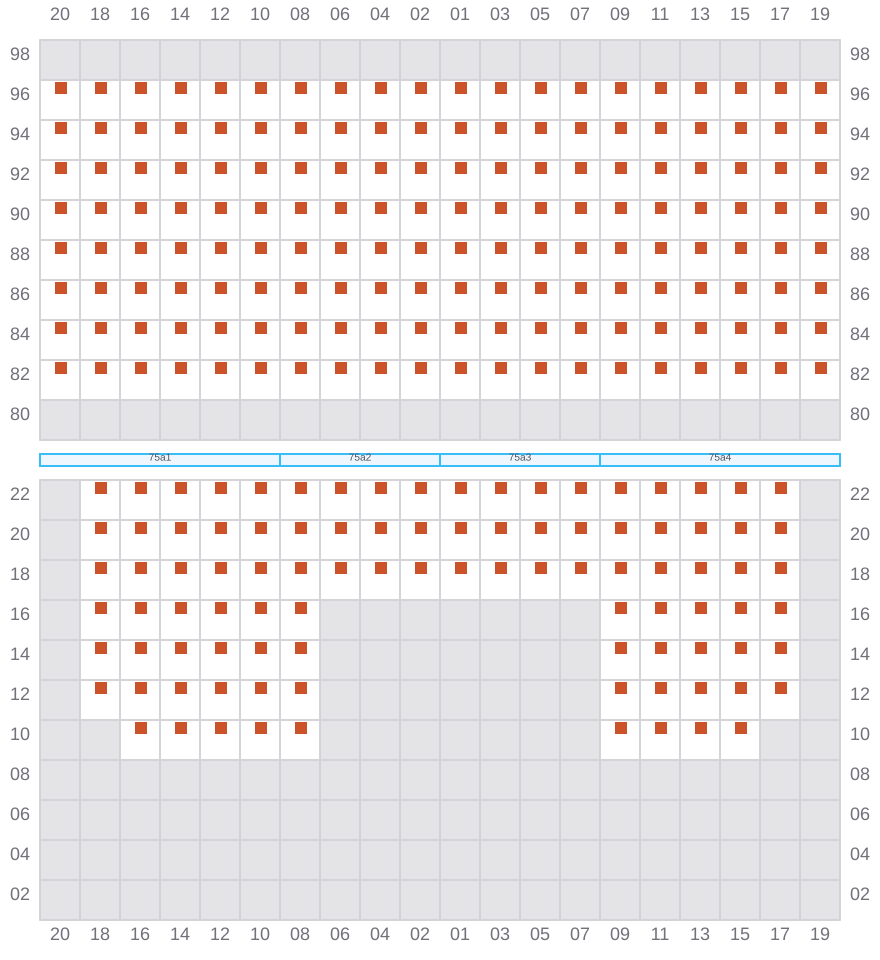

075
- ←
![Bay 075 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b075.png?v=1712946654701)

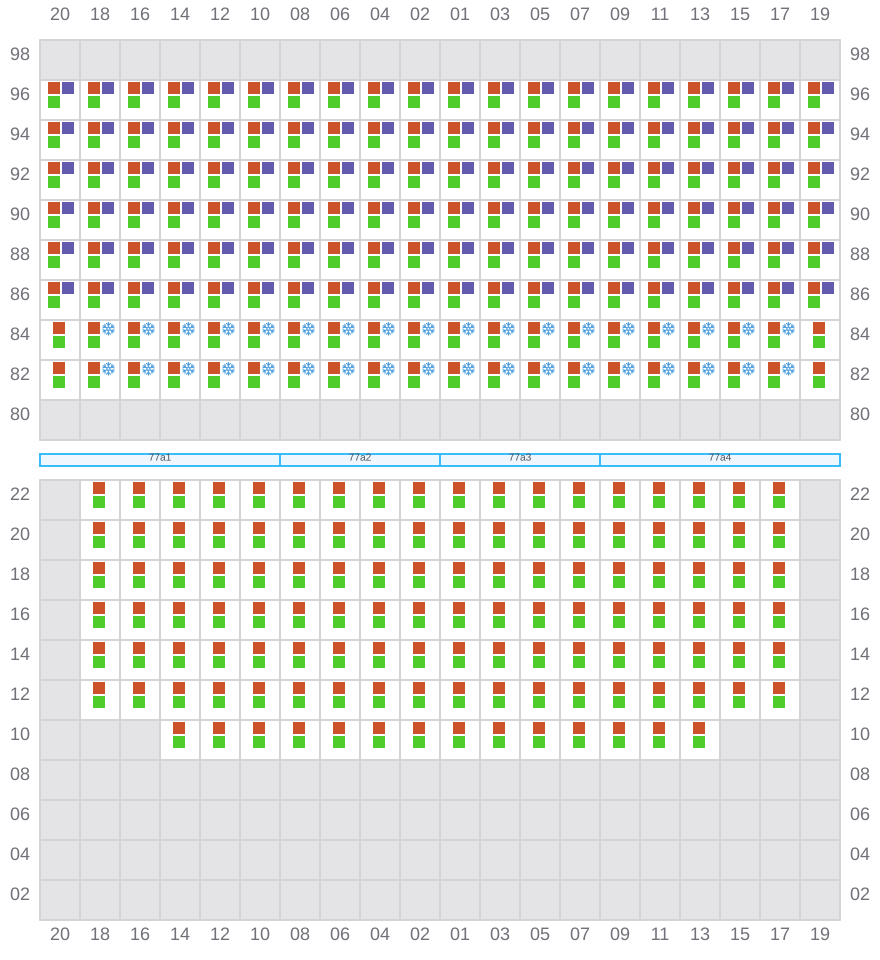

077 (078)
- →
![Bay 077 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b077.png?v=1712946654701)

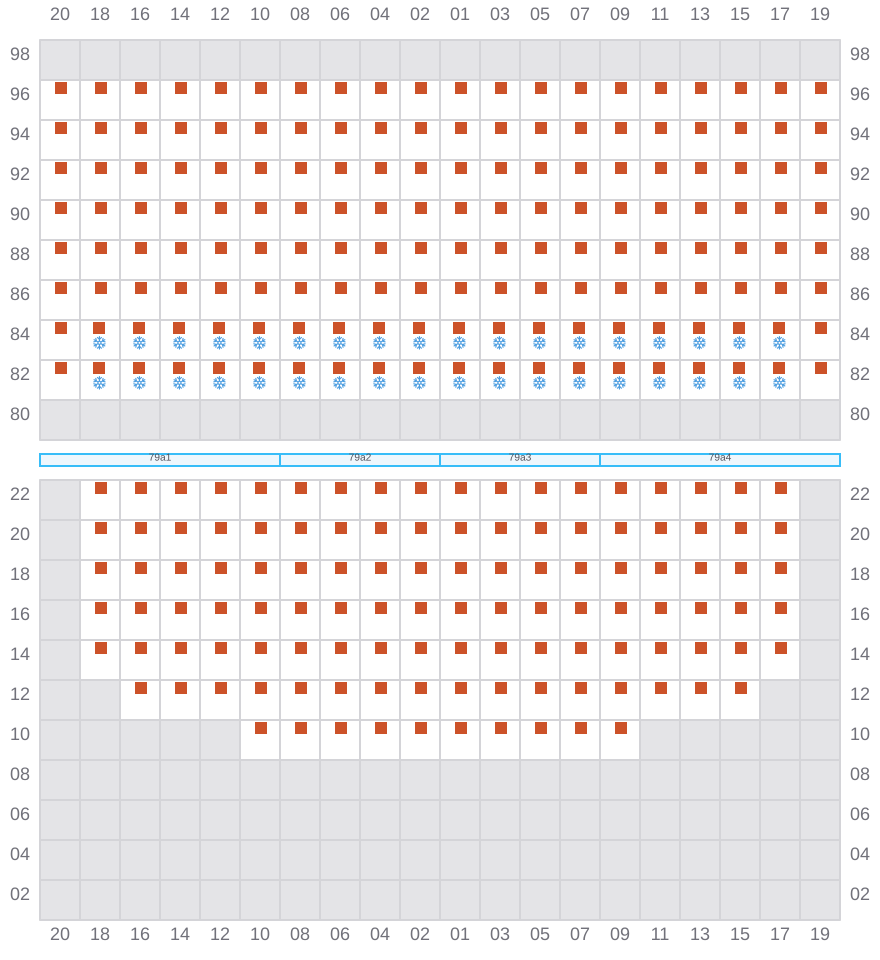

079
- ←
![Bay 079 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b079.png?v=1712946654701)

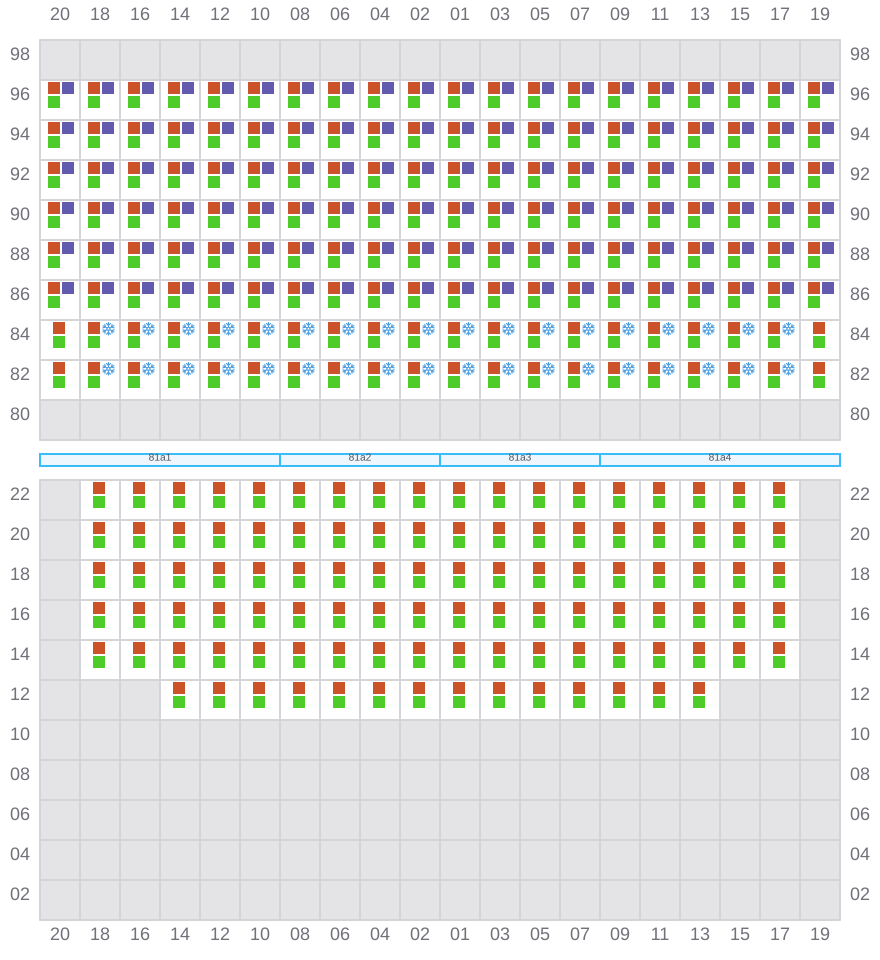

081 (082)
- →
![Bay 081 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b081.png?v=1712946654701)

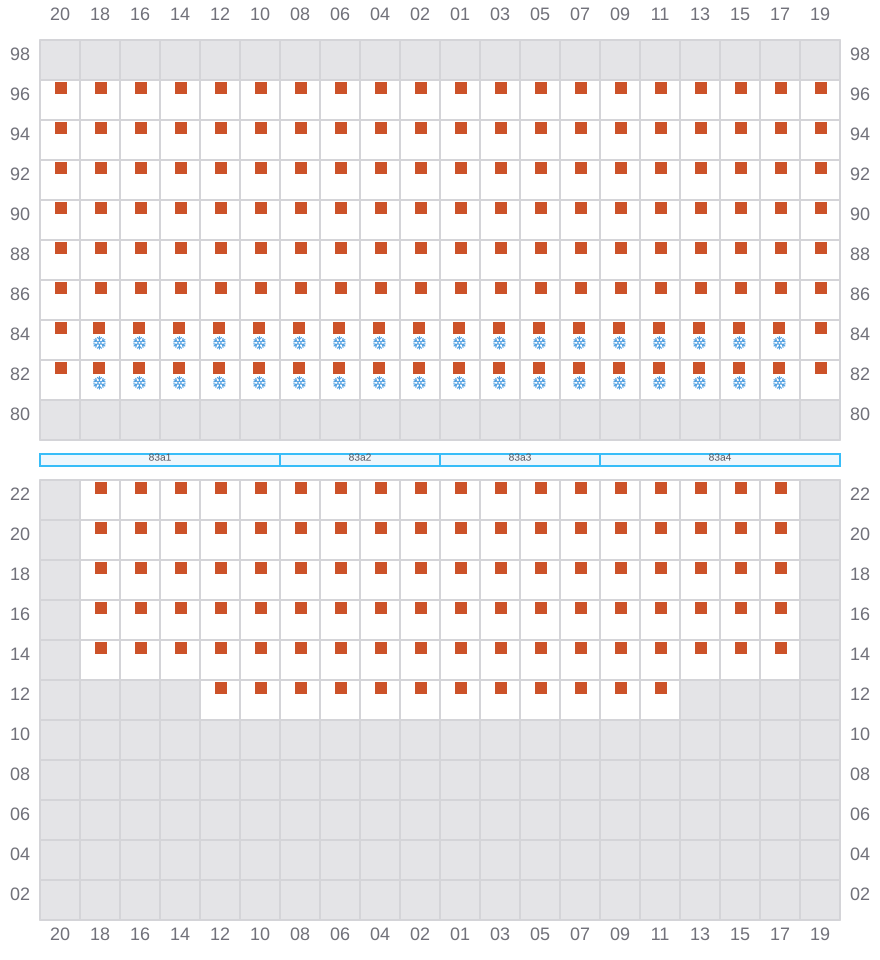

083
- ←
![Bay 083 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b083.png?v=1712946654701)

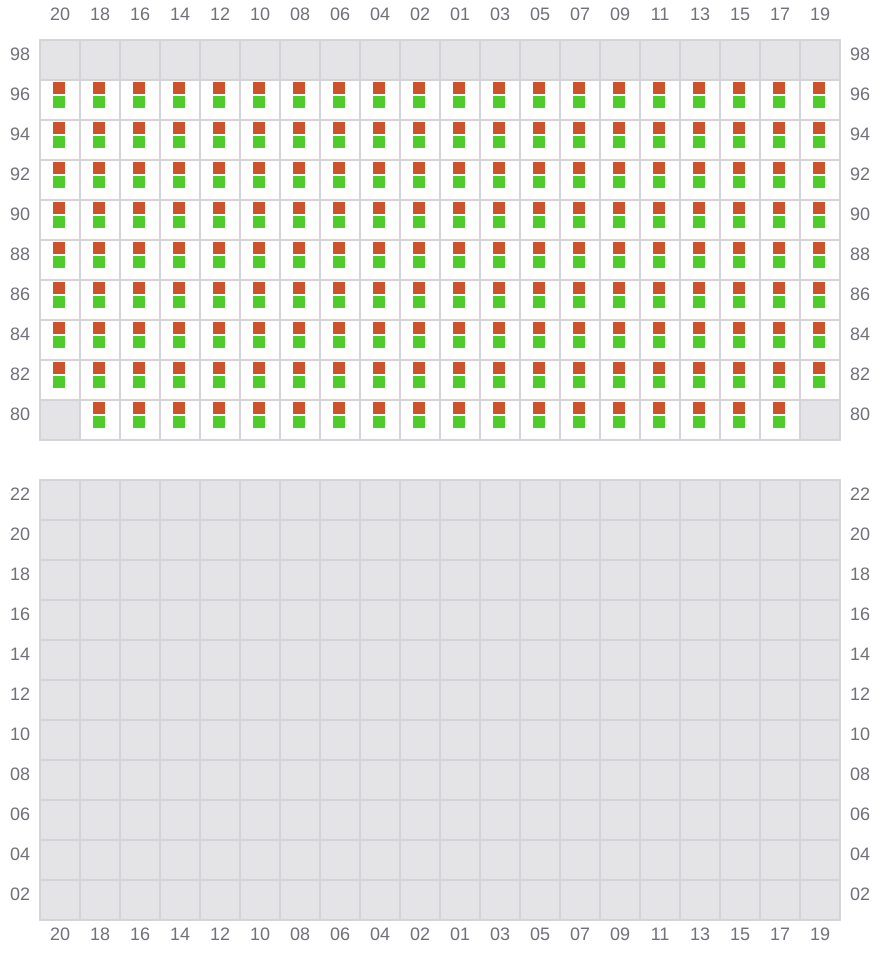

085 (086)
- → / ?
![Bay 085 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b085.png?v=1712946654701)

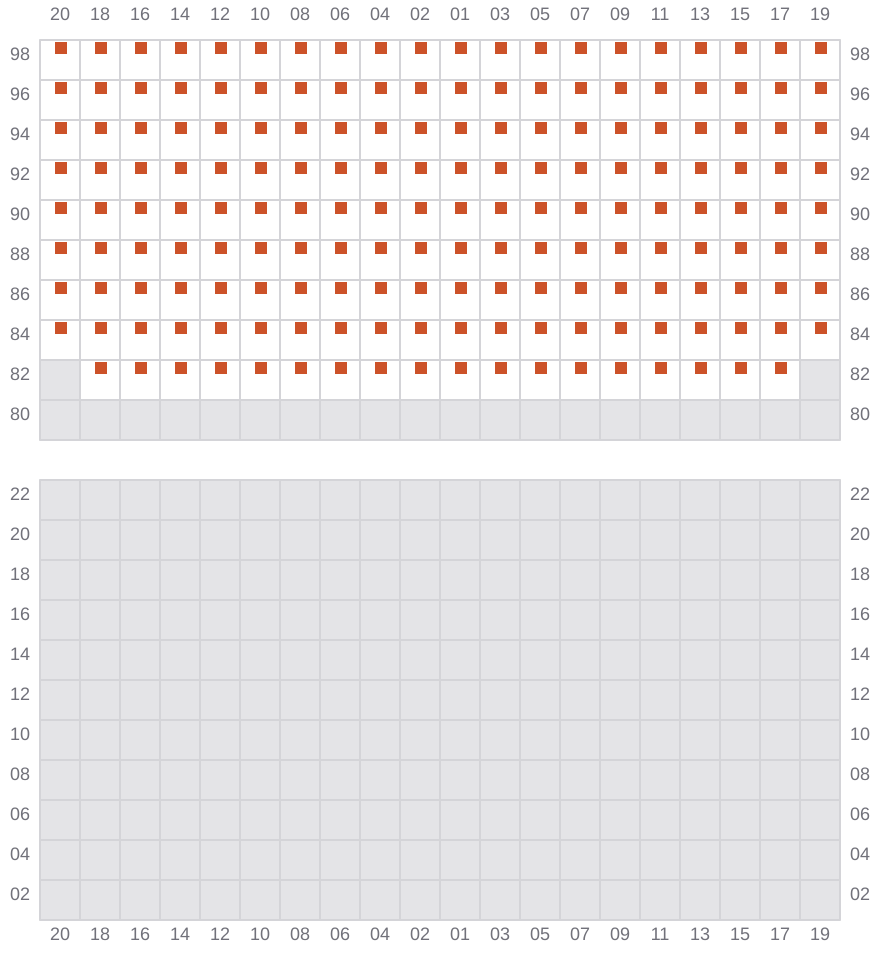

087
- ← / ?
![Bay 087 view and slots of CMA CGM AMERIGO VESPUCCI](/vessel-images/95741ab3-bf1a-4556-8819-daae6450ec4c-b087.png?v=1712946654701)
