CMA CGM ANTOINE DE SAINT EXUPERY
9776418 | 9HA5316 | CMA by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:CMA CGM ANTOINE DE SAINT EXUPERY
IMO Code:9776418
Call Sign:9HA5316
Line Operator:CMA
Class Name for Sister Ships:CGAE
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:22
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:20,956

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

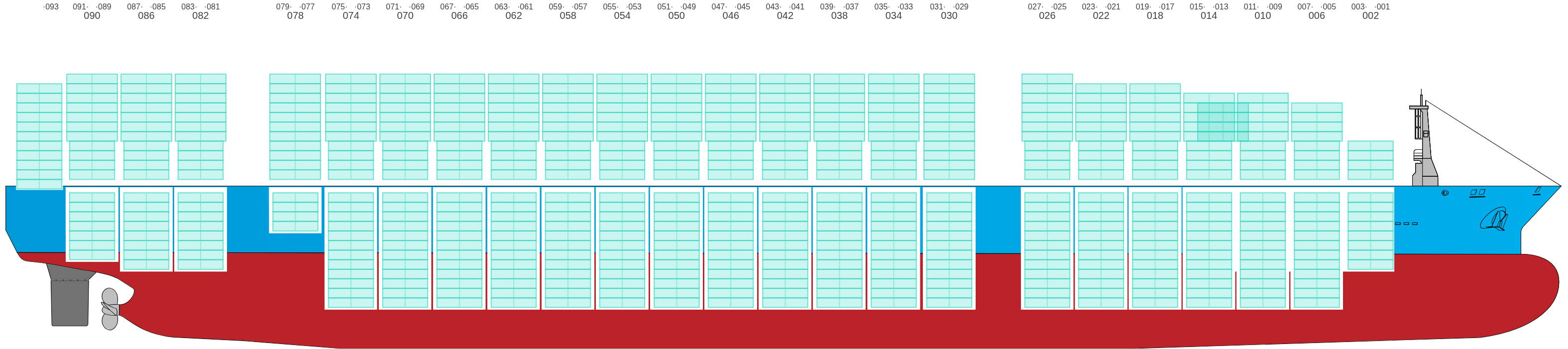

Side View

Side view of CMA CGM ANTOINE DE SAINT EXUPERY

Hatch-Covers View

Deck view of CMA CGM ANTOINE DE SAINT EXUPERY

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

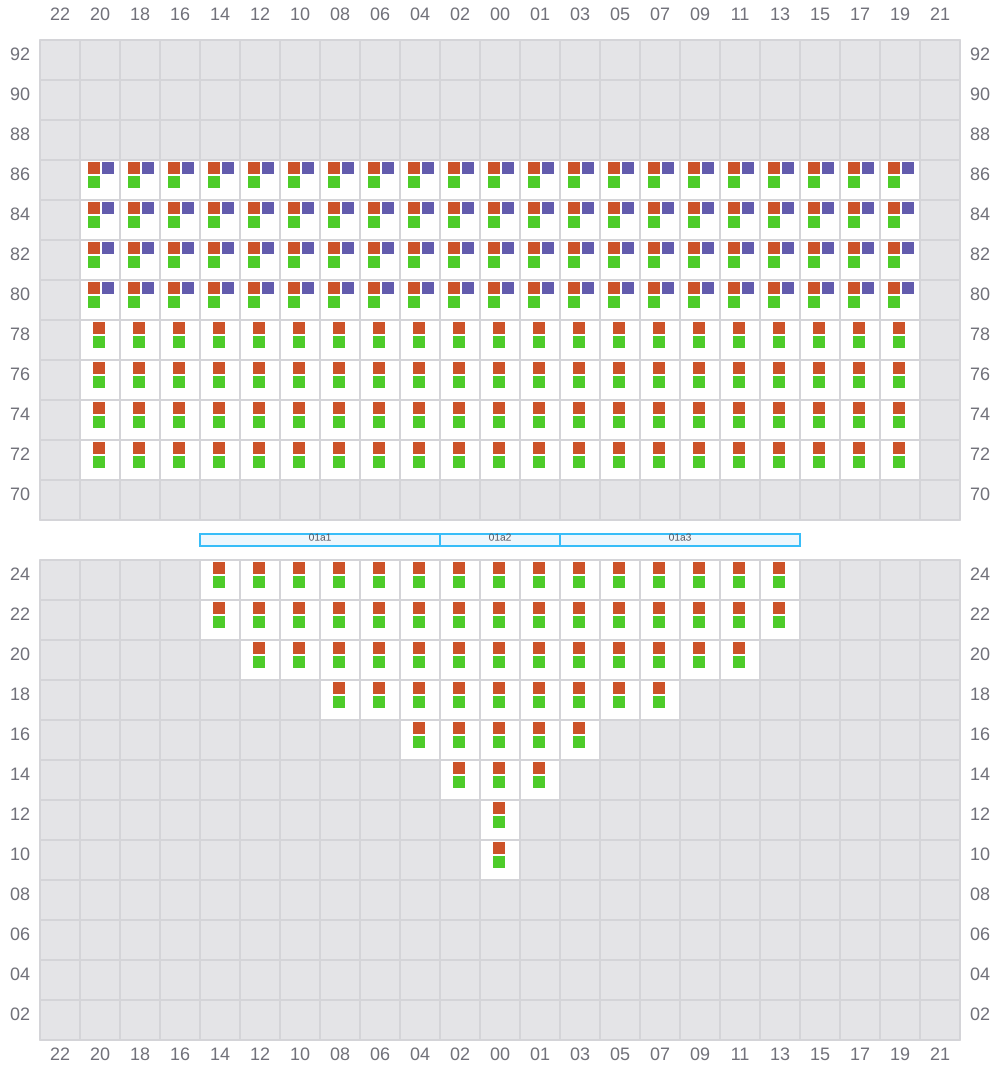

001 (002)

  • →
  • →
Bay 001 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

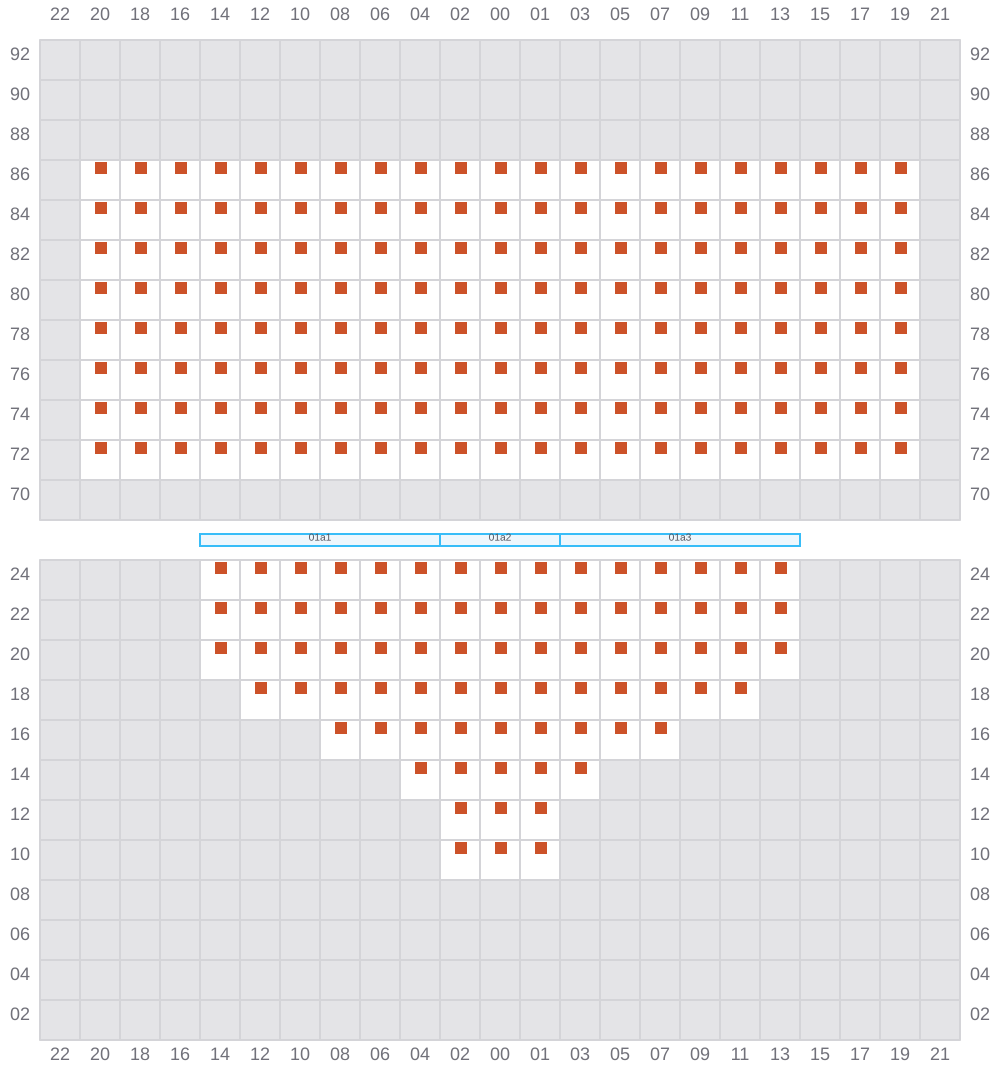

003

  • ←
  • →
Bay 003 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

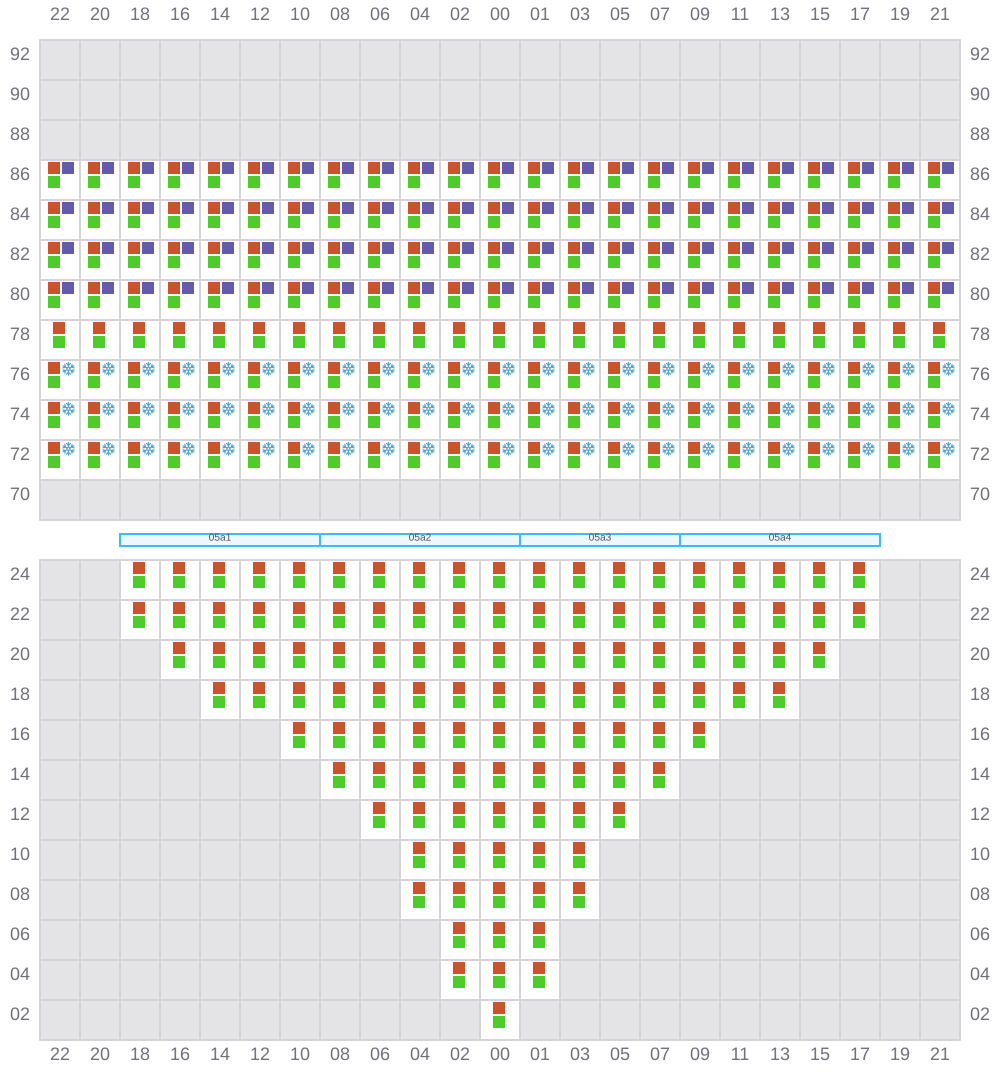

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

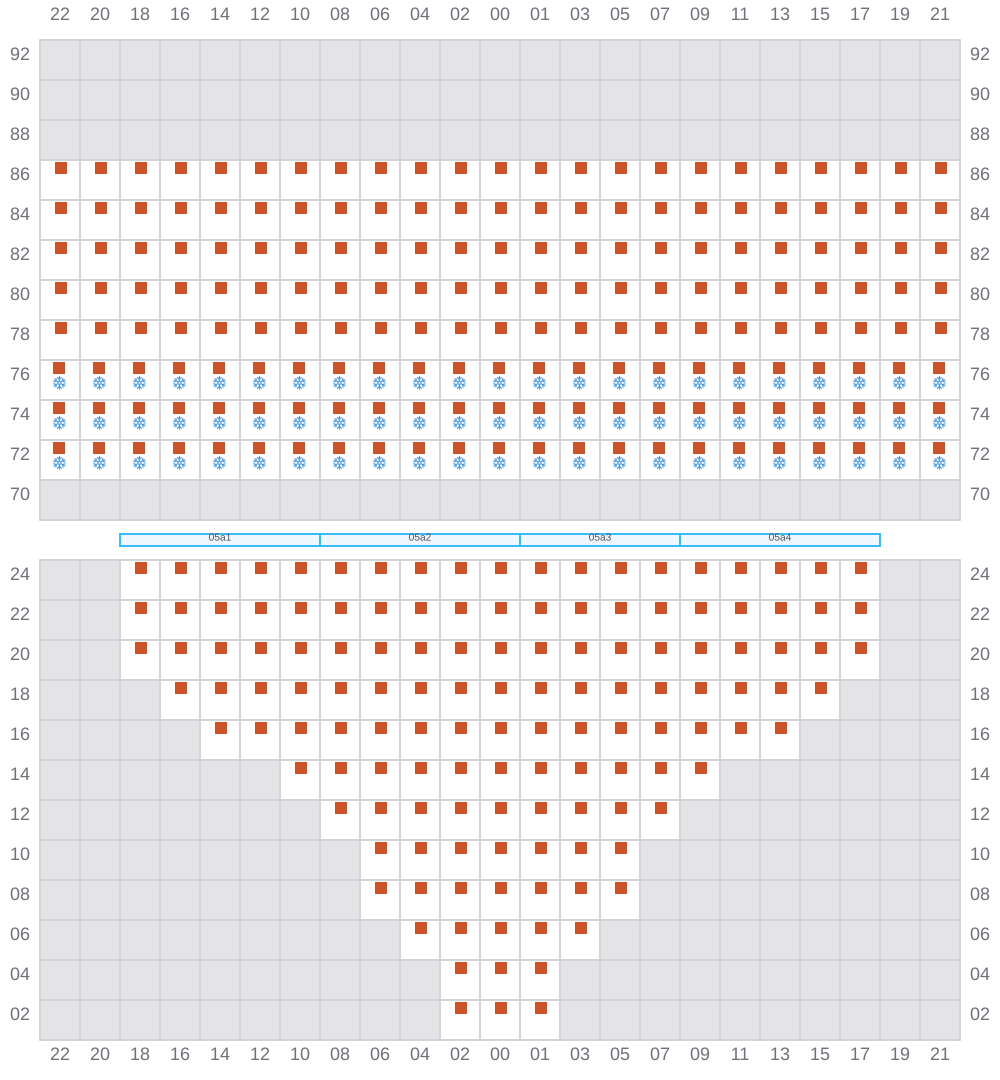

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

009 (010)

  • →
  • → / ?
  • →

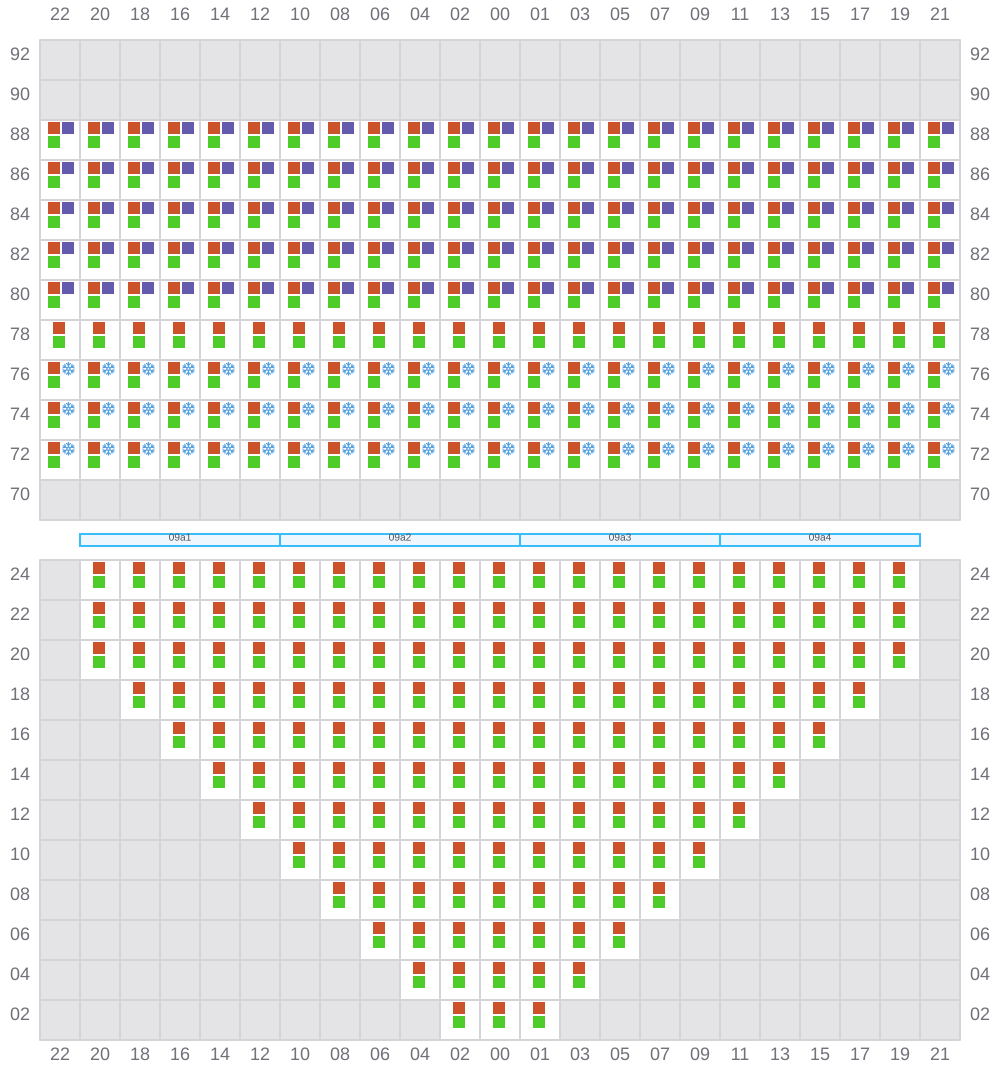

Bay 009 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

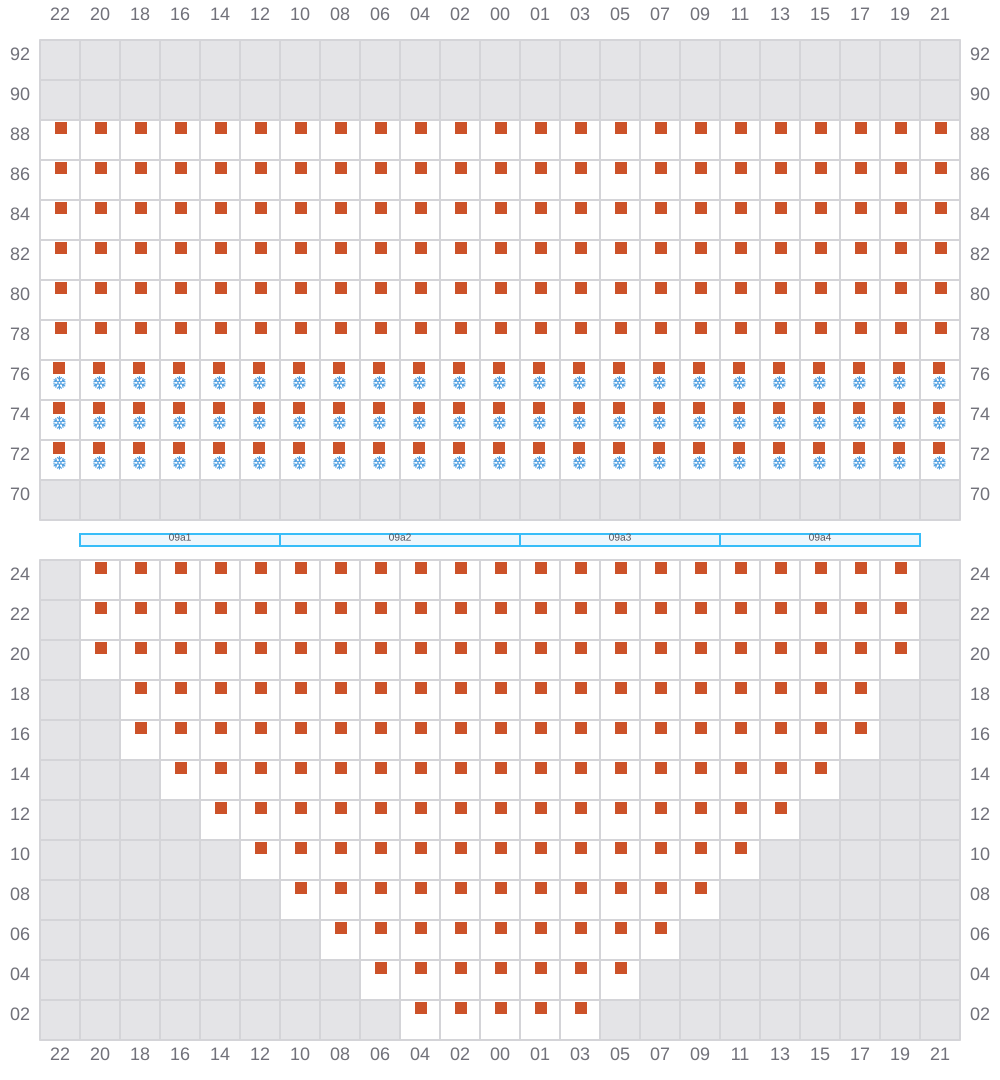

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

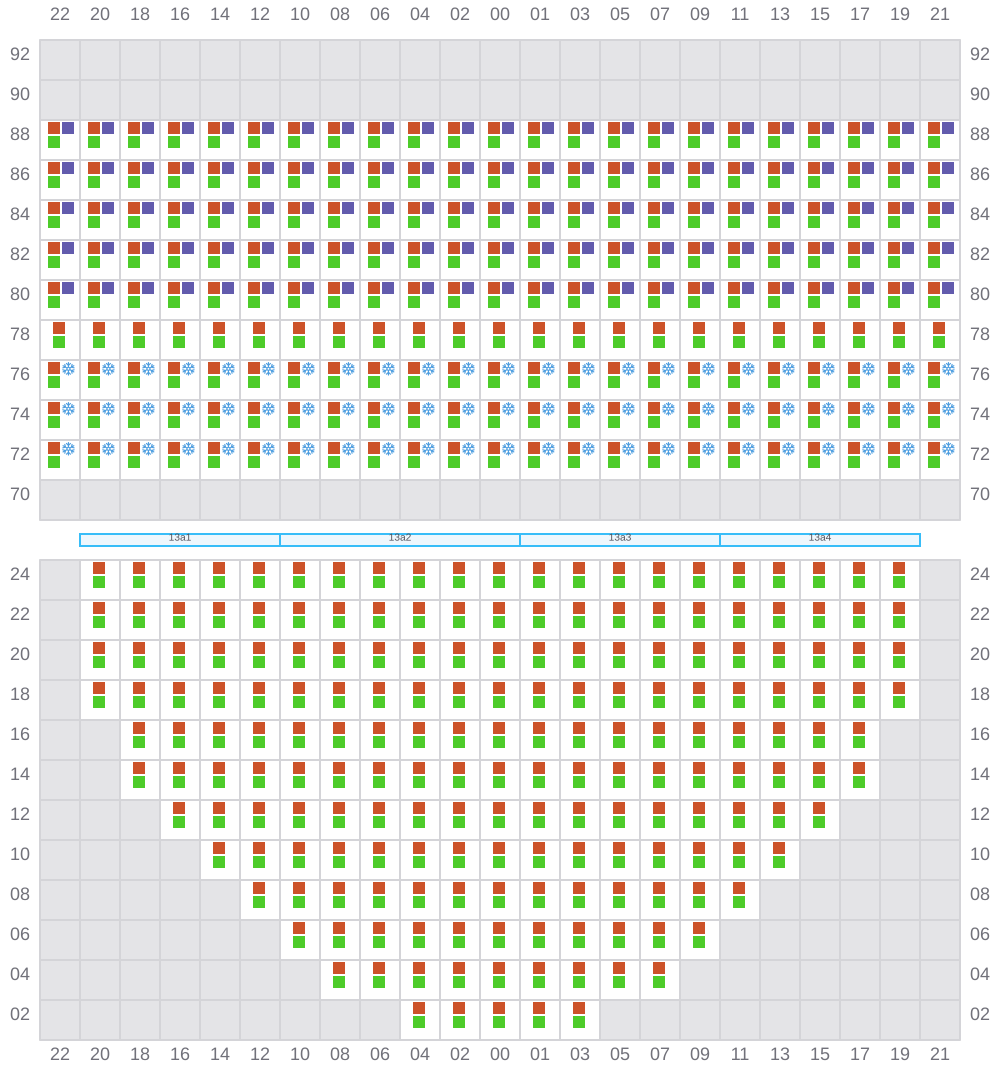

013 (014)

  • →
  • → / ?
  • →
Bay 013 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

015

  • ←
  • → / ?
  • →

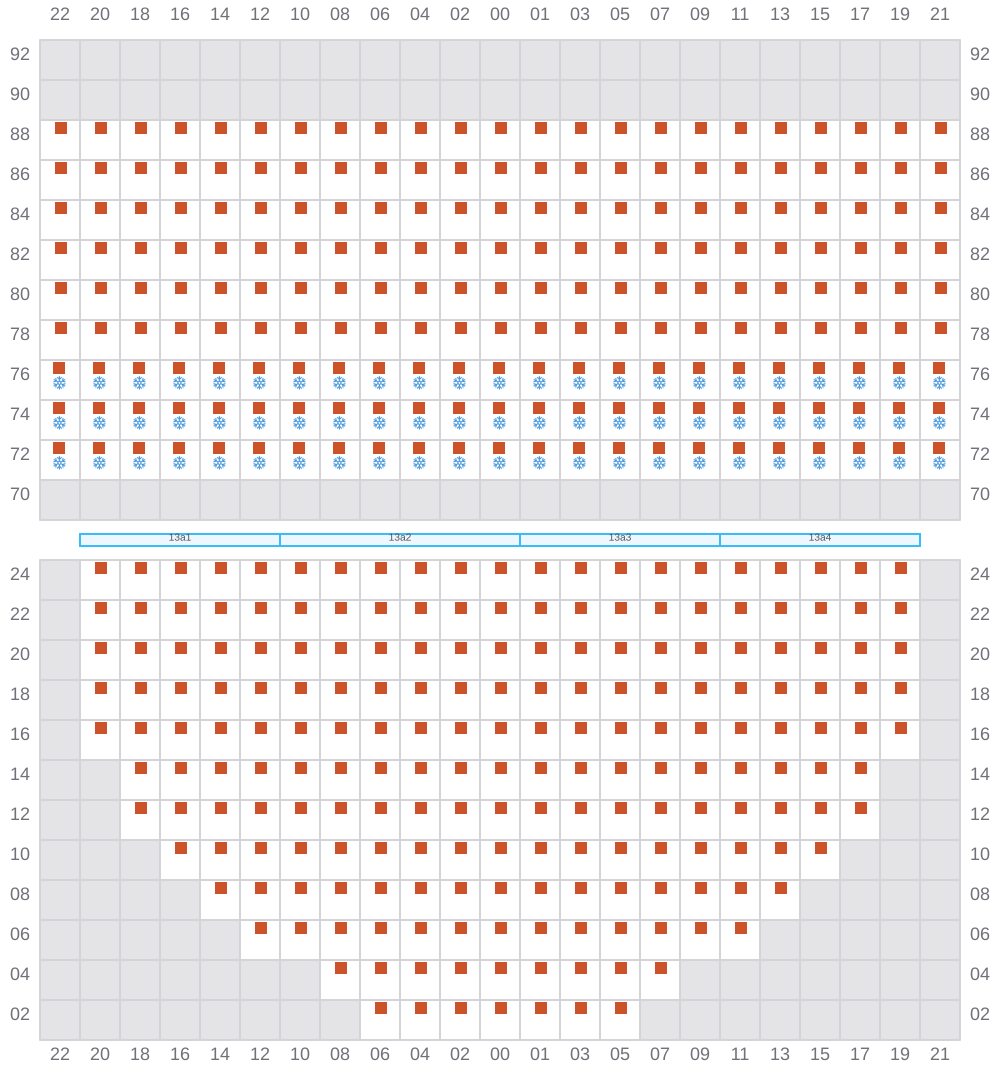

Bay 015 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

017 (018)

  • →
  • → / ?
  • →

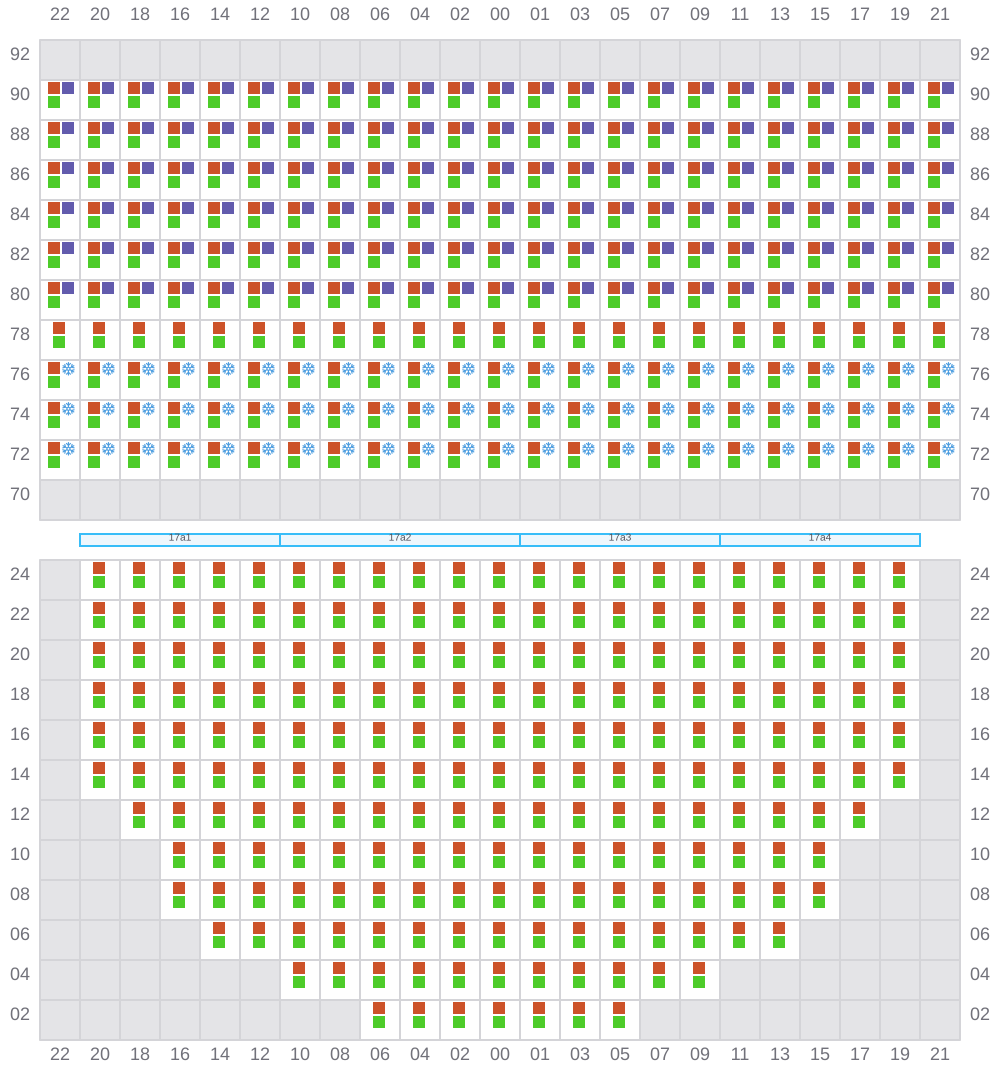

Bay 017 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

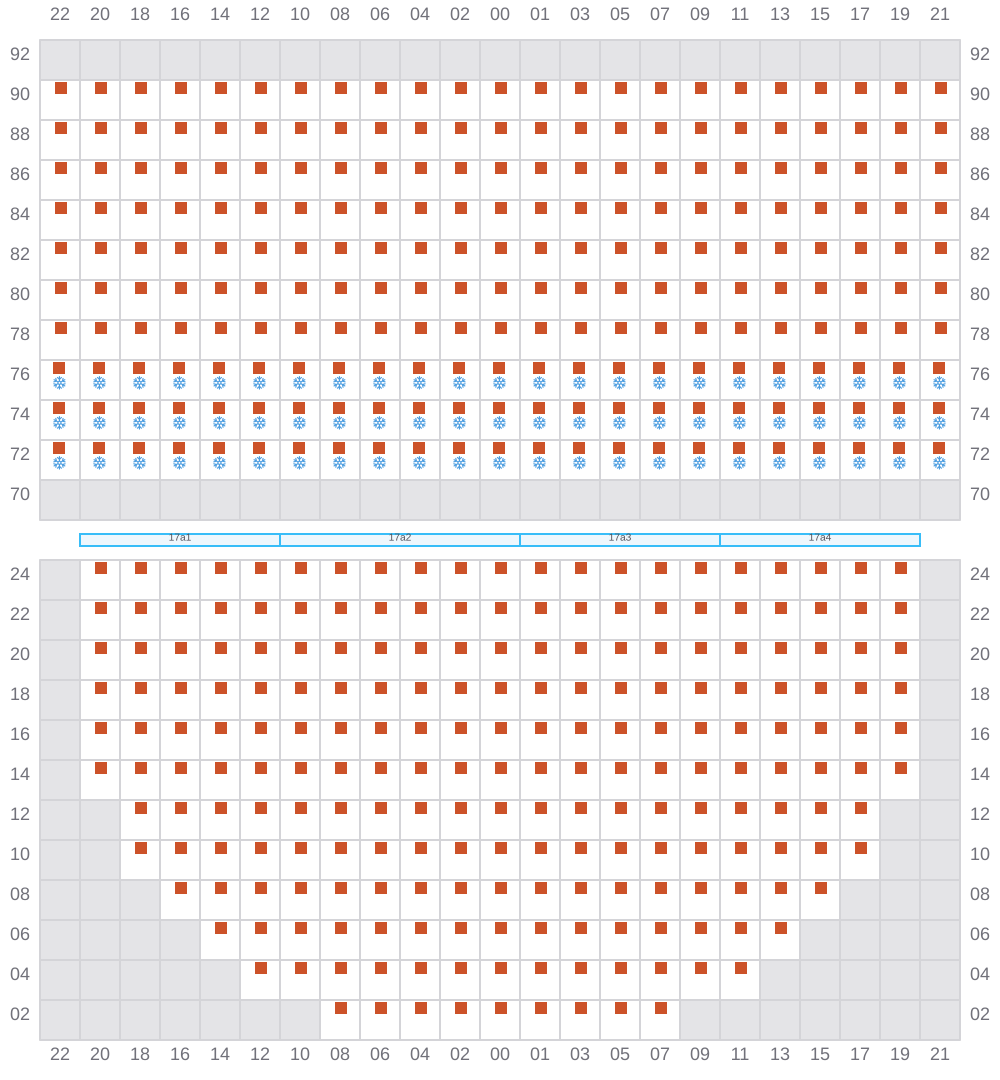

019

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

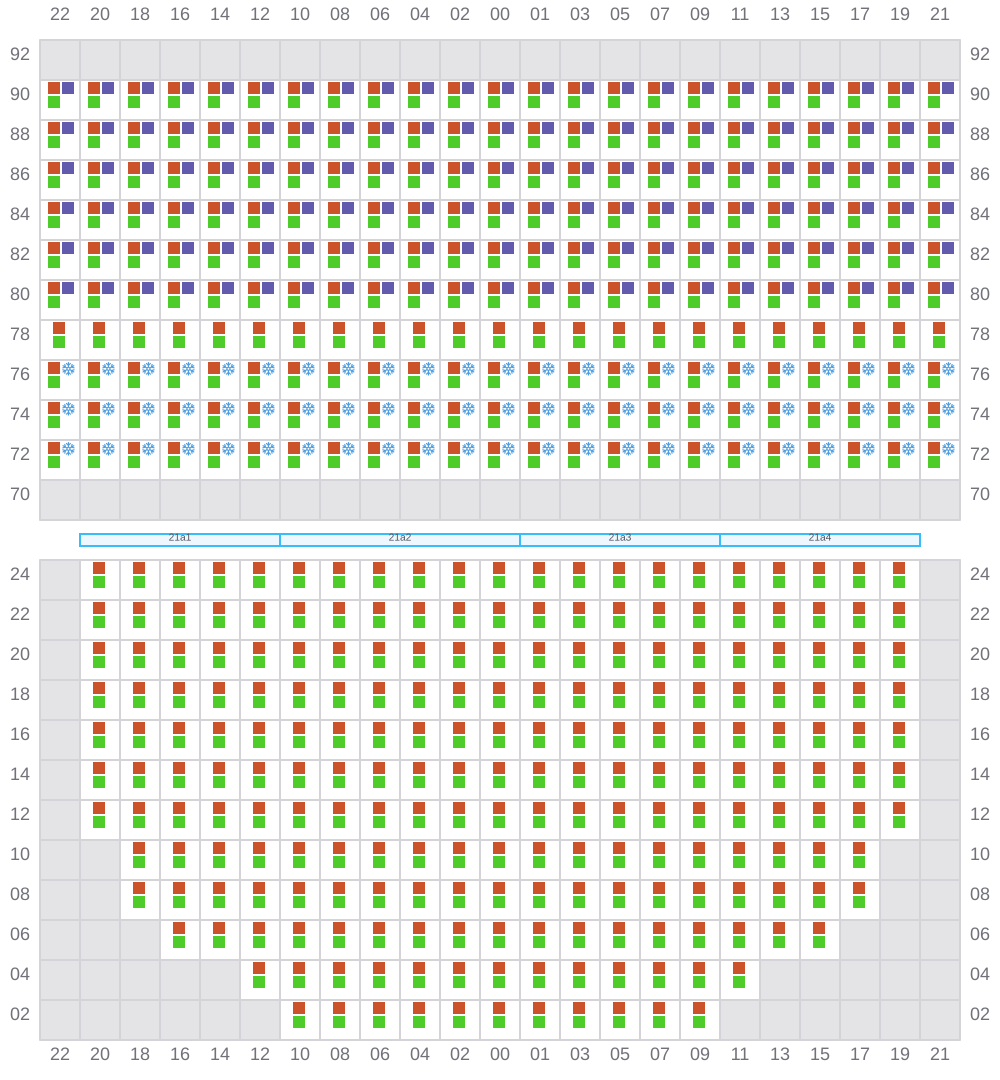

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

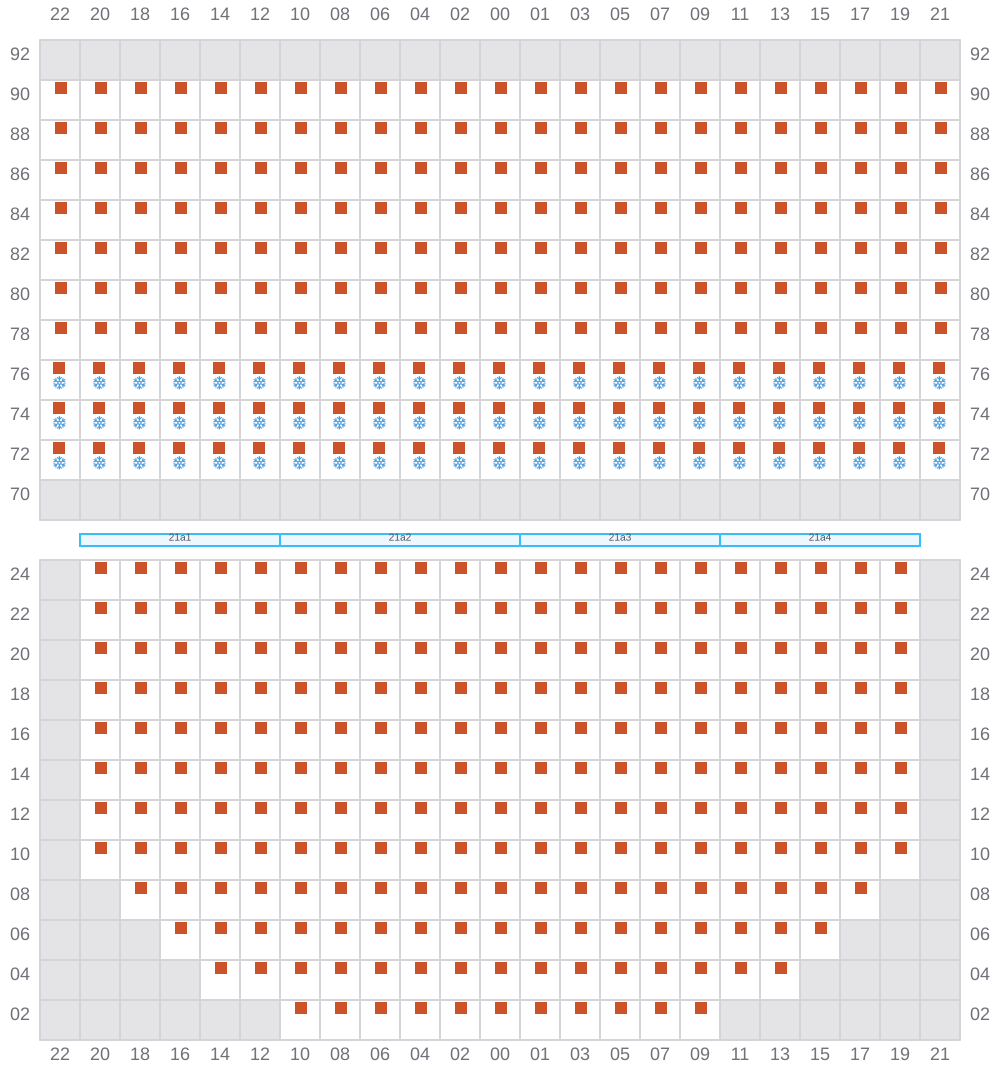

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

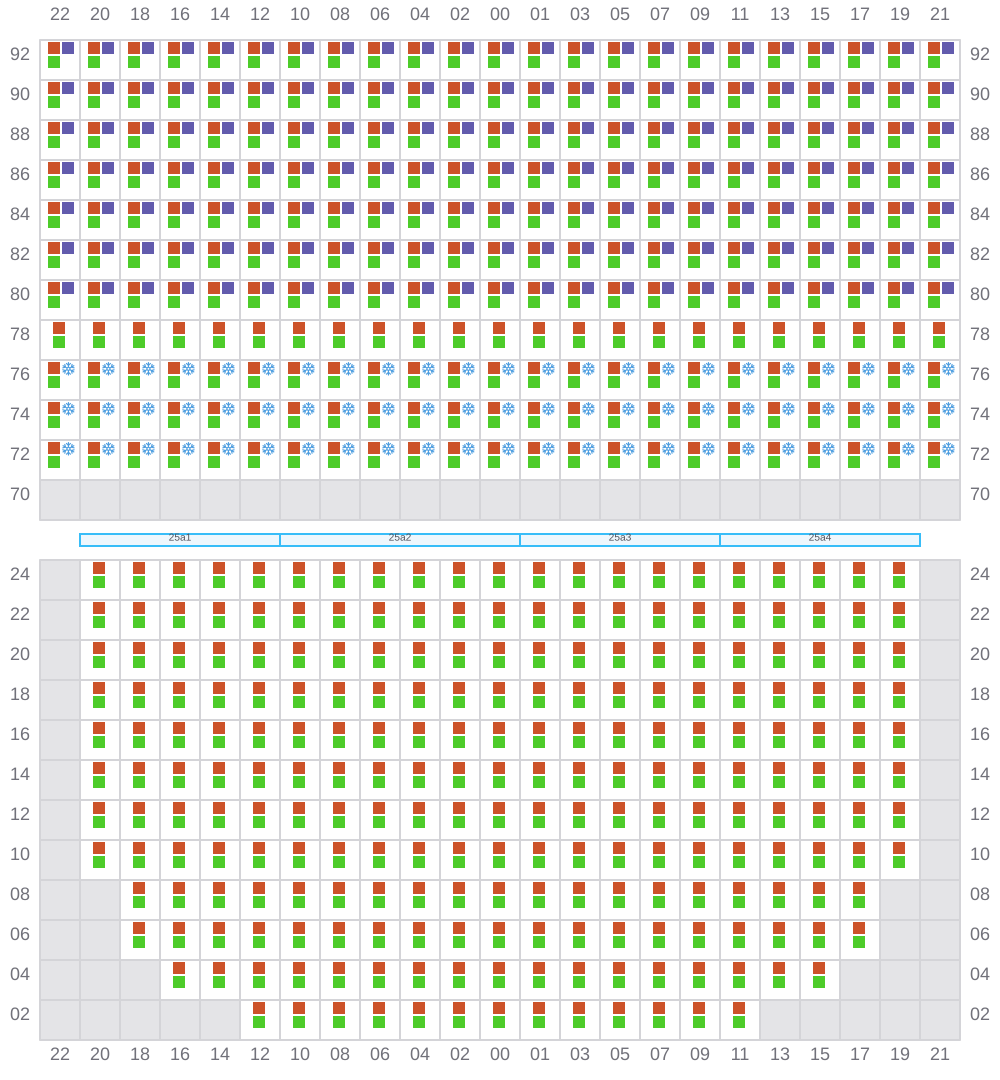

025 (026)

  • →
  • ← / ?
  • →
Bay 025 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

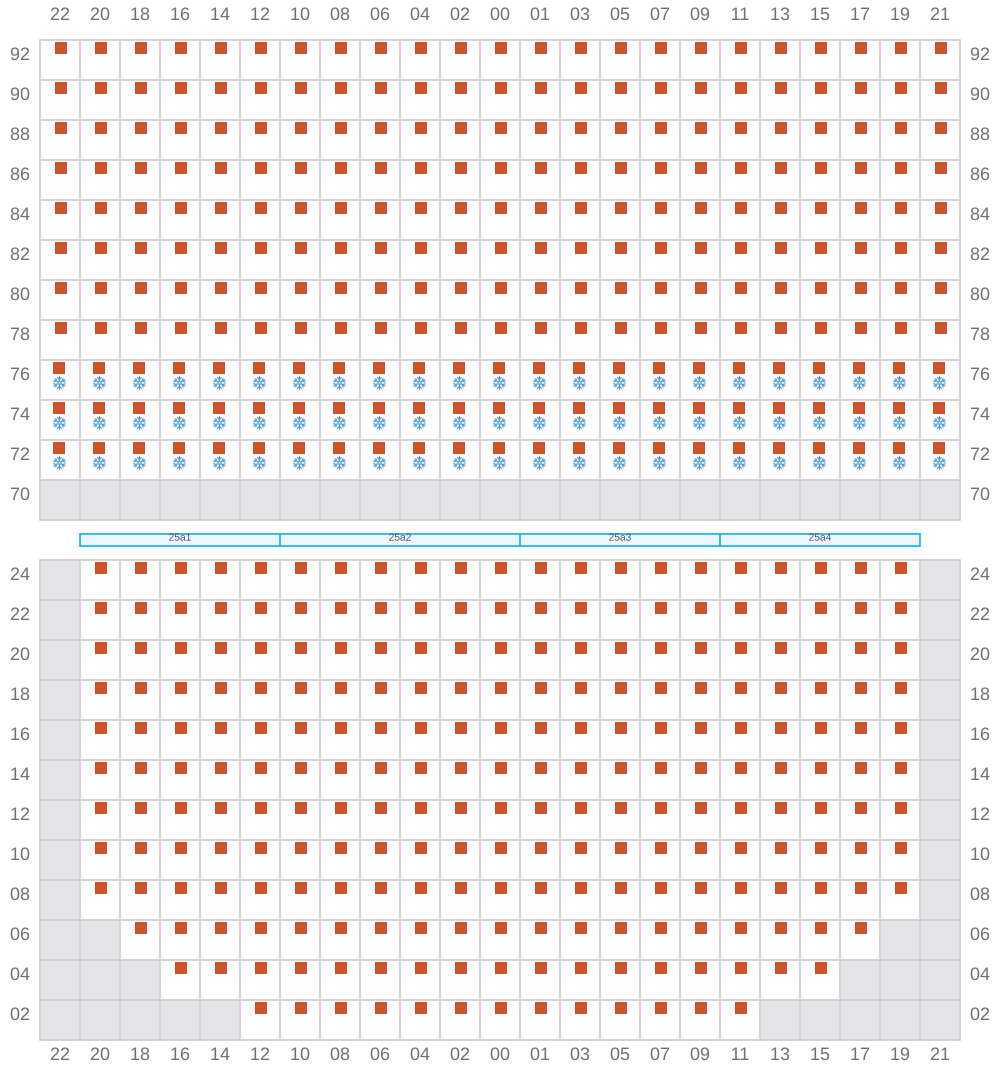

027

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

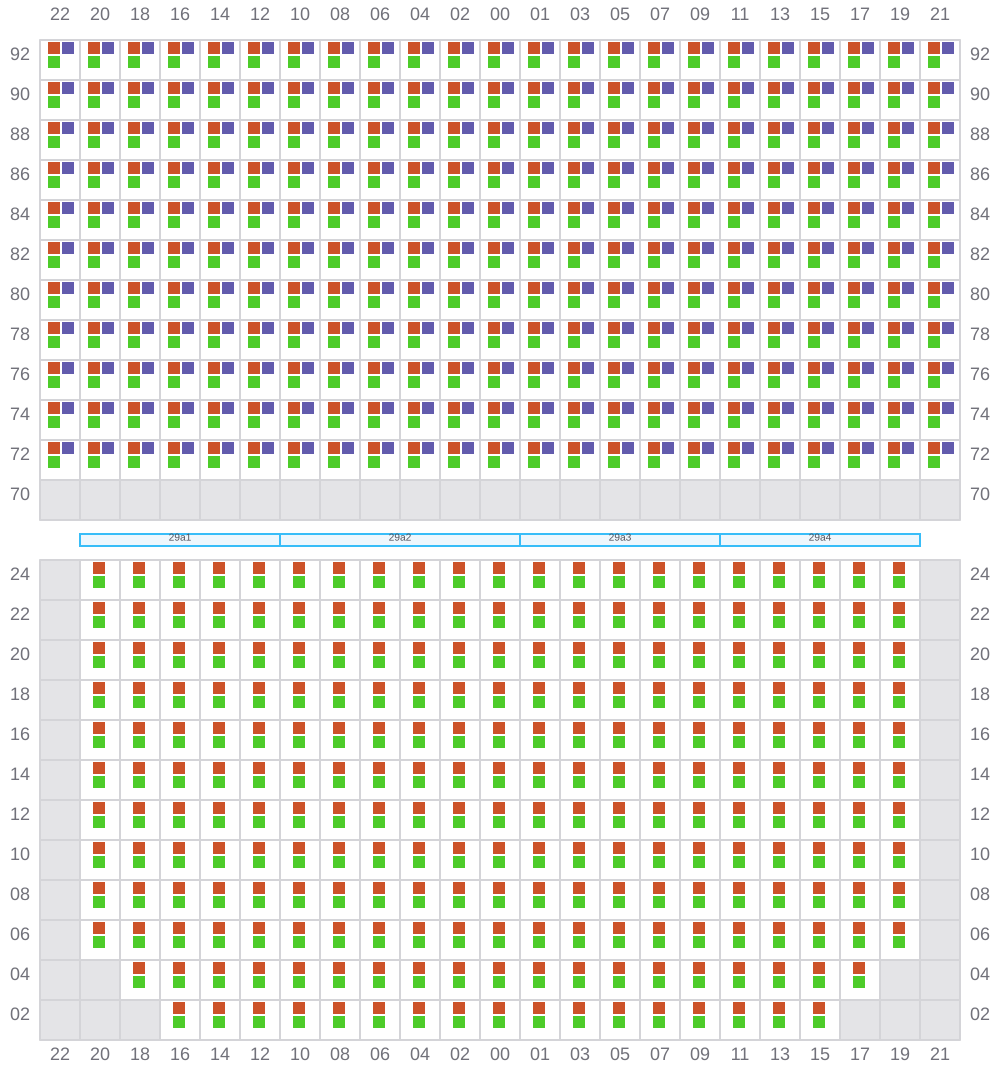

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

031

  • ←
  • → / ?
  • →

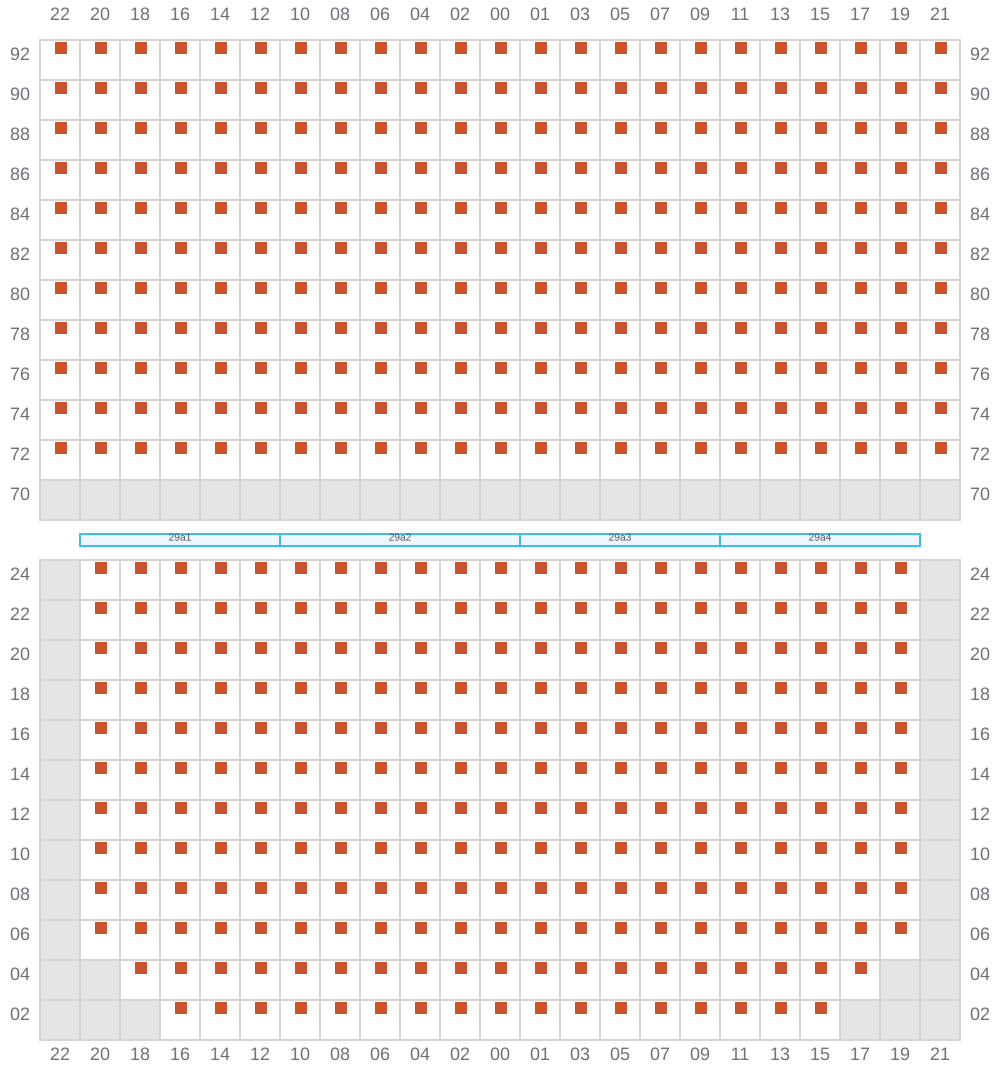

Bay 031 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

033 (034)

  • →
  • → / ?
  • →

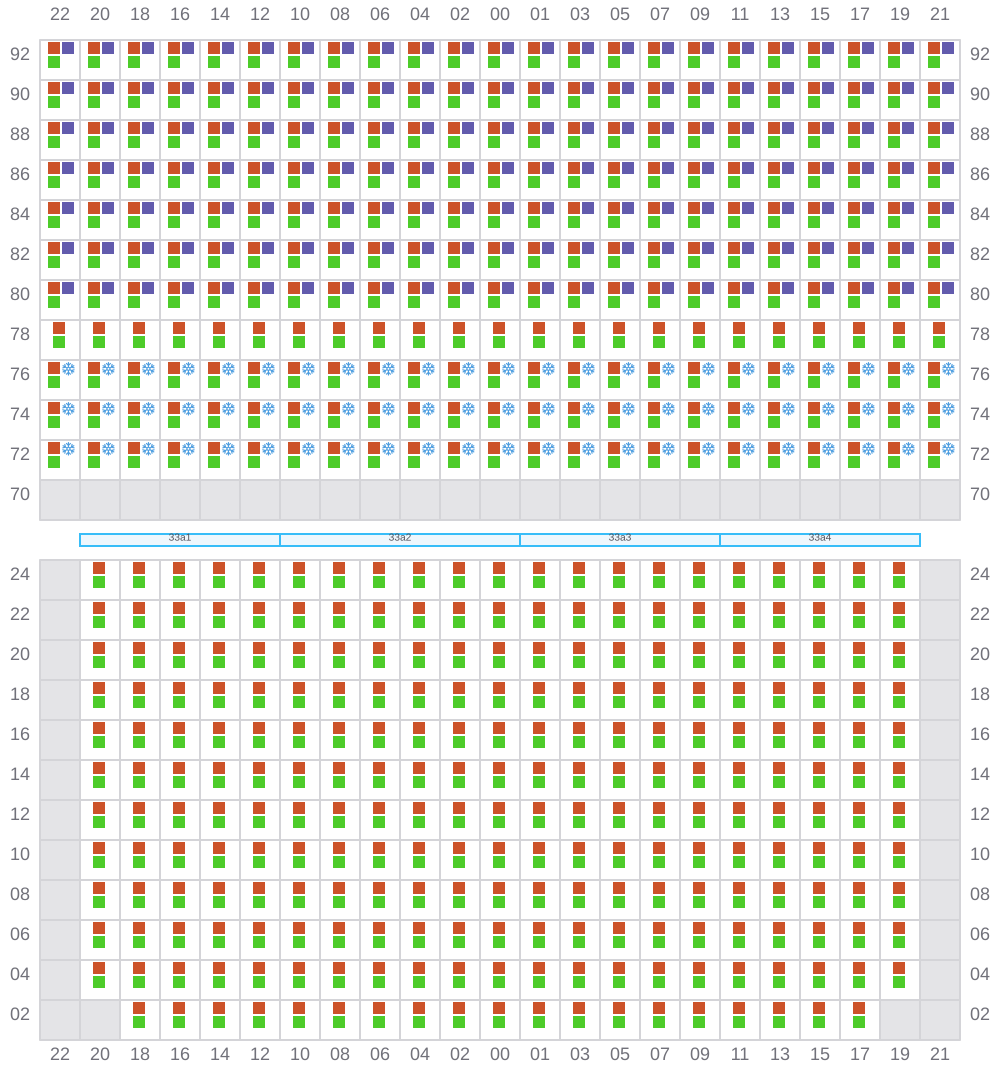

Bay 033 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

035

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

037 (038)

  • →
  • → / ?
  • →
Bay 037 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

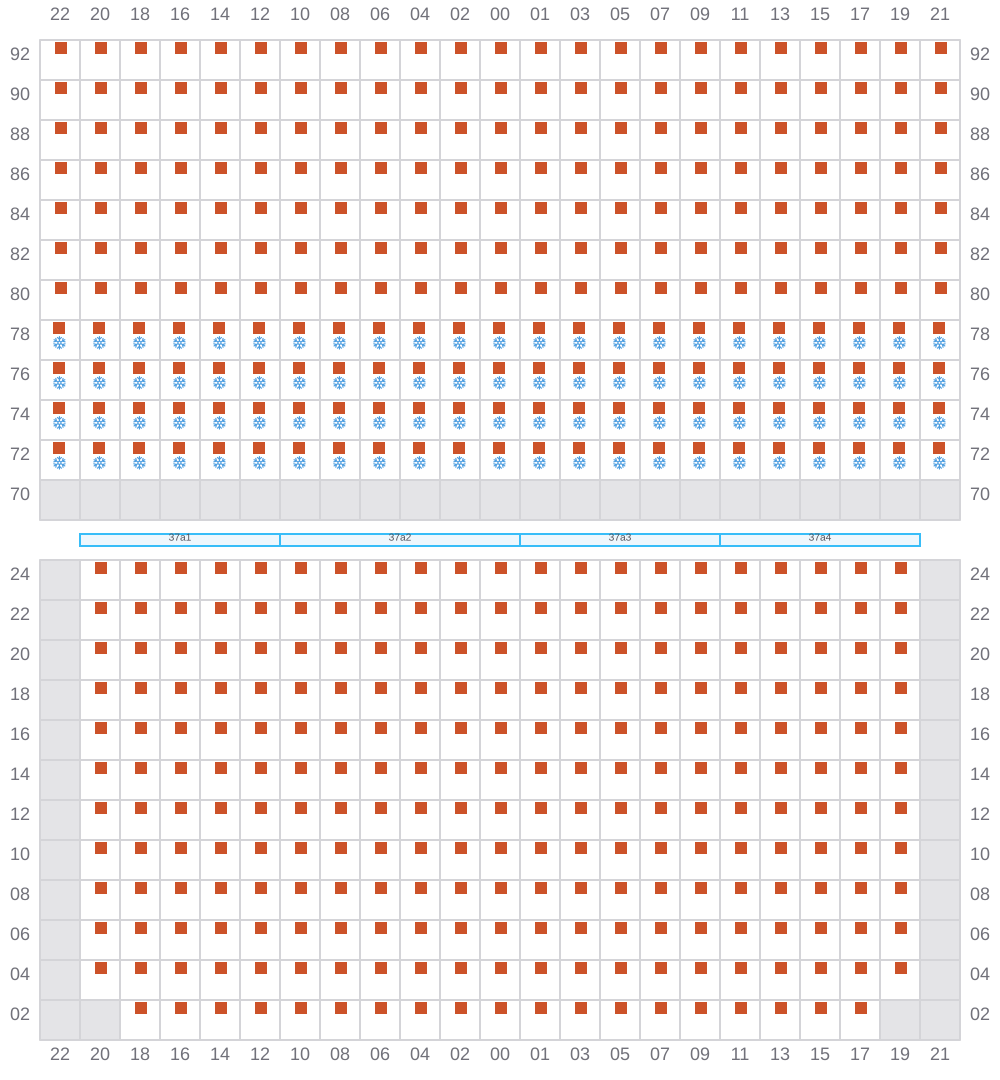

039

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

041 (042)

  • →
  • → / ?
  • →
Bay 041 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

043

  • ←
  • → / ?
  • →
Bay 043 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

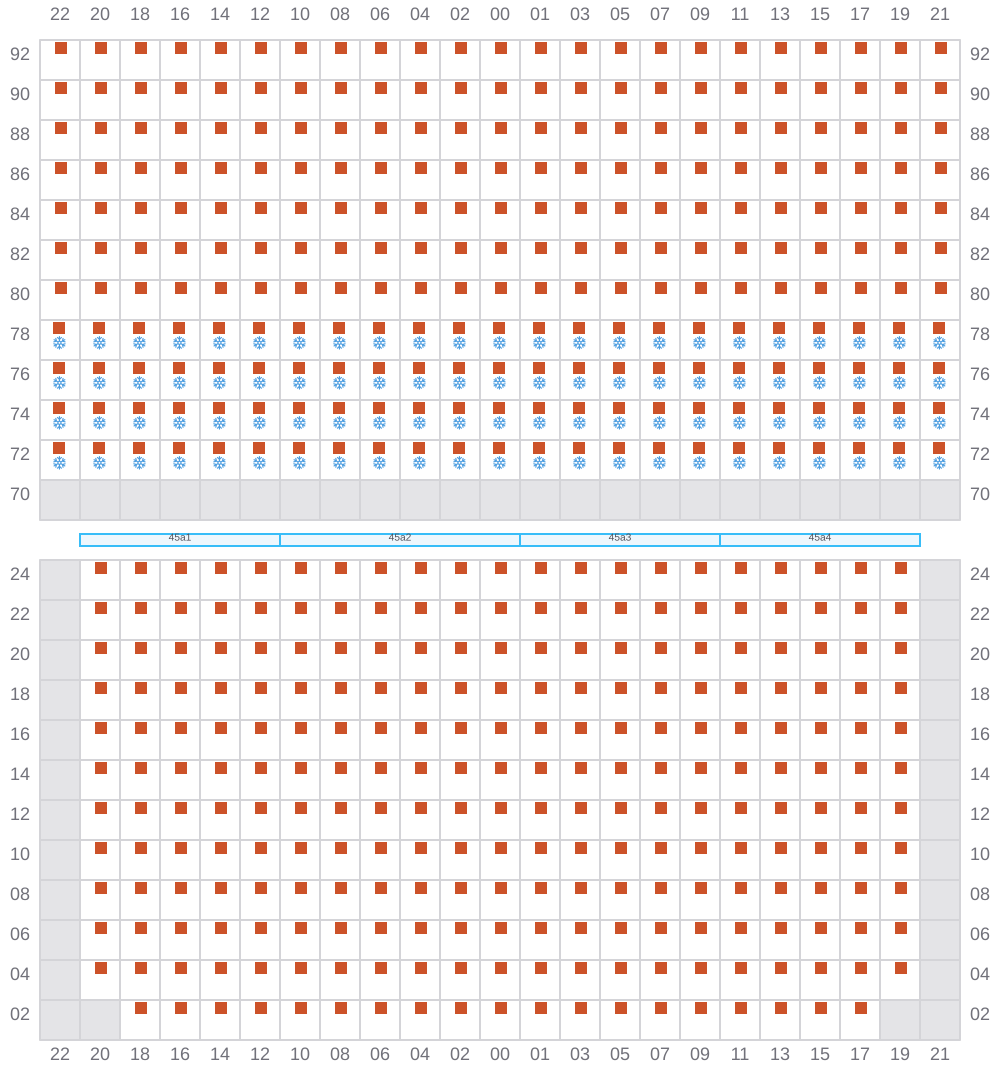

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

049 (050)

  • →
  • → / ?
  • →
Bay 049 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

051

  • ←
  • → / ?
  • →

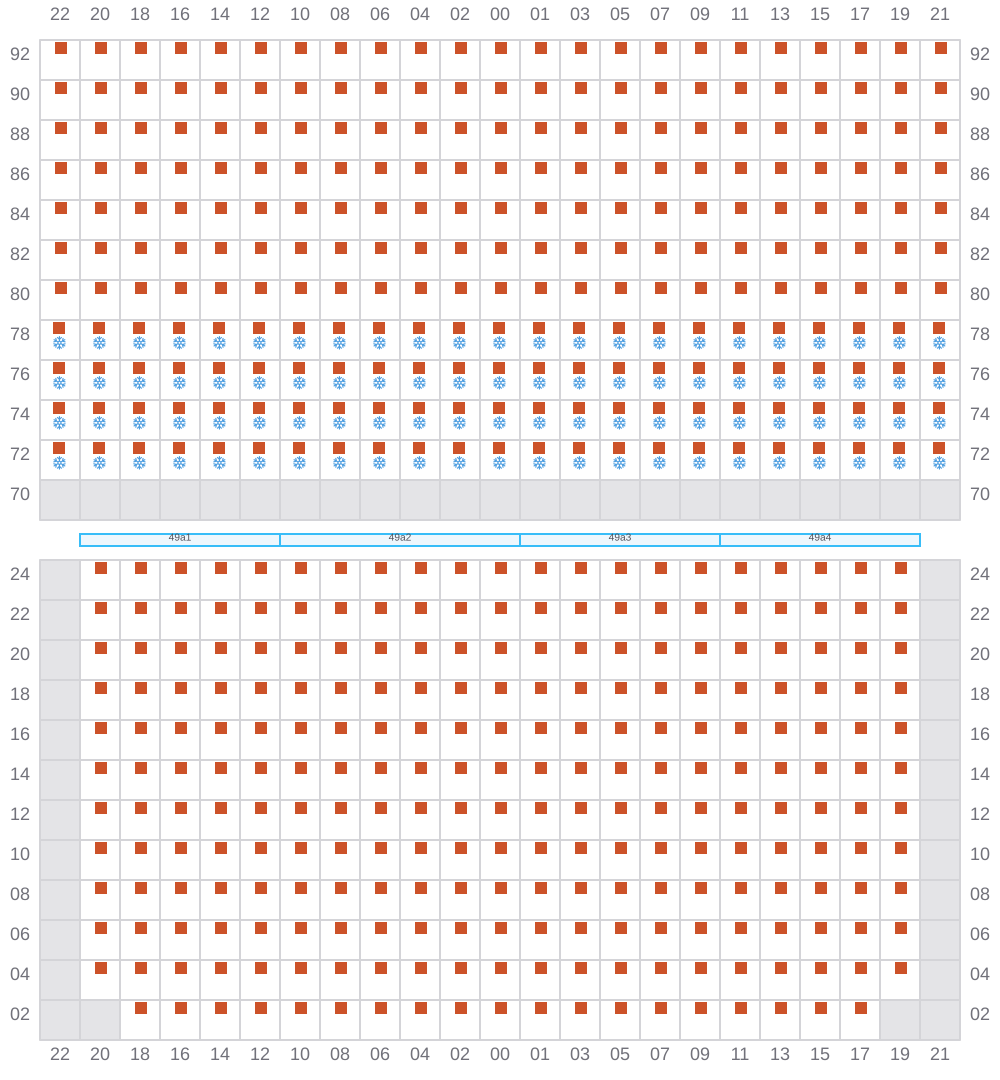

Bay 051 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

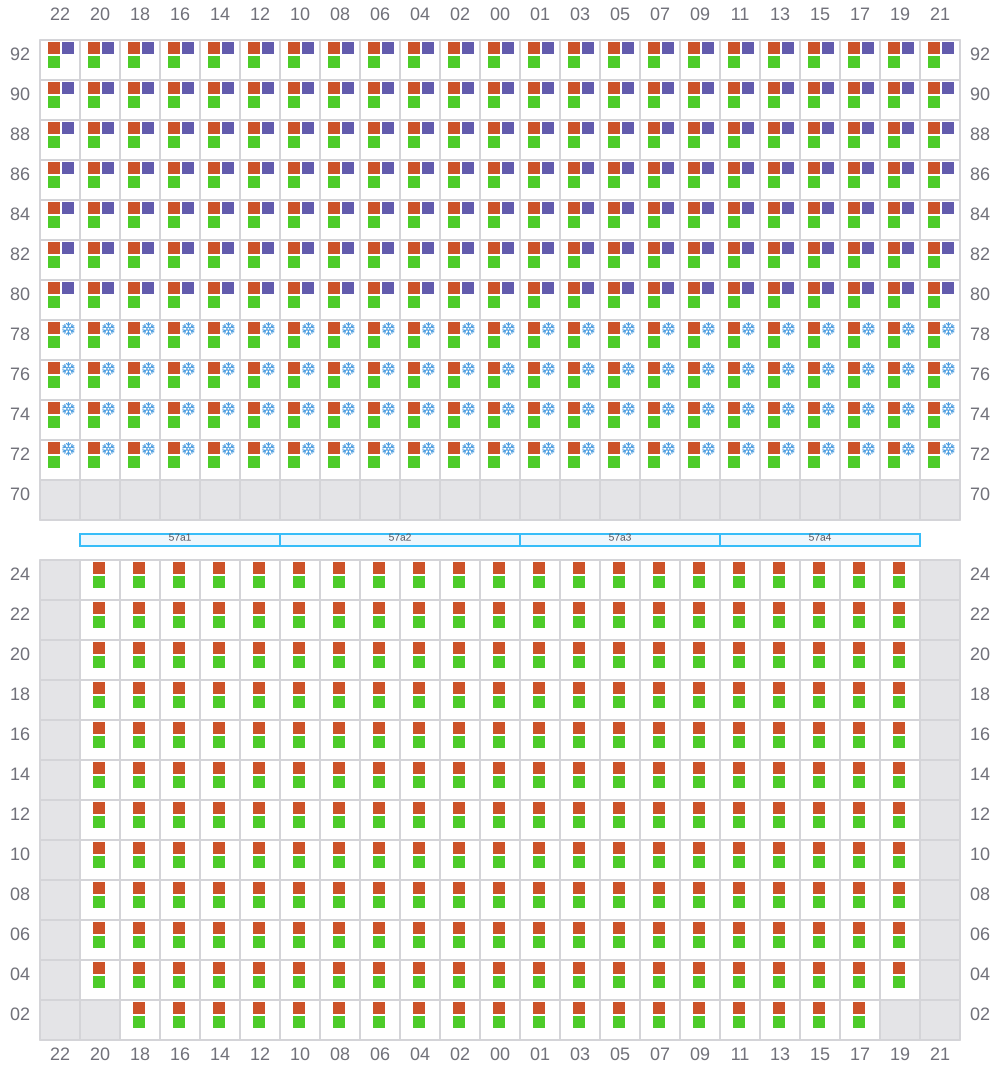

057 (058)

  • →
  • → / ?
  • →
Bay 057 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

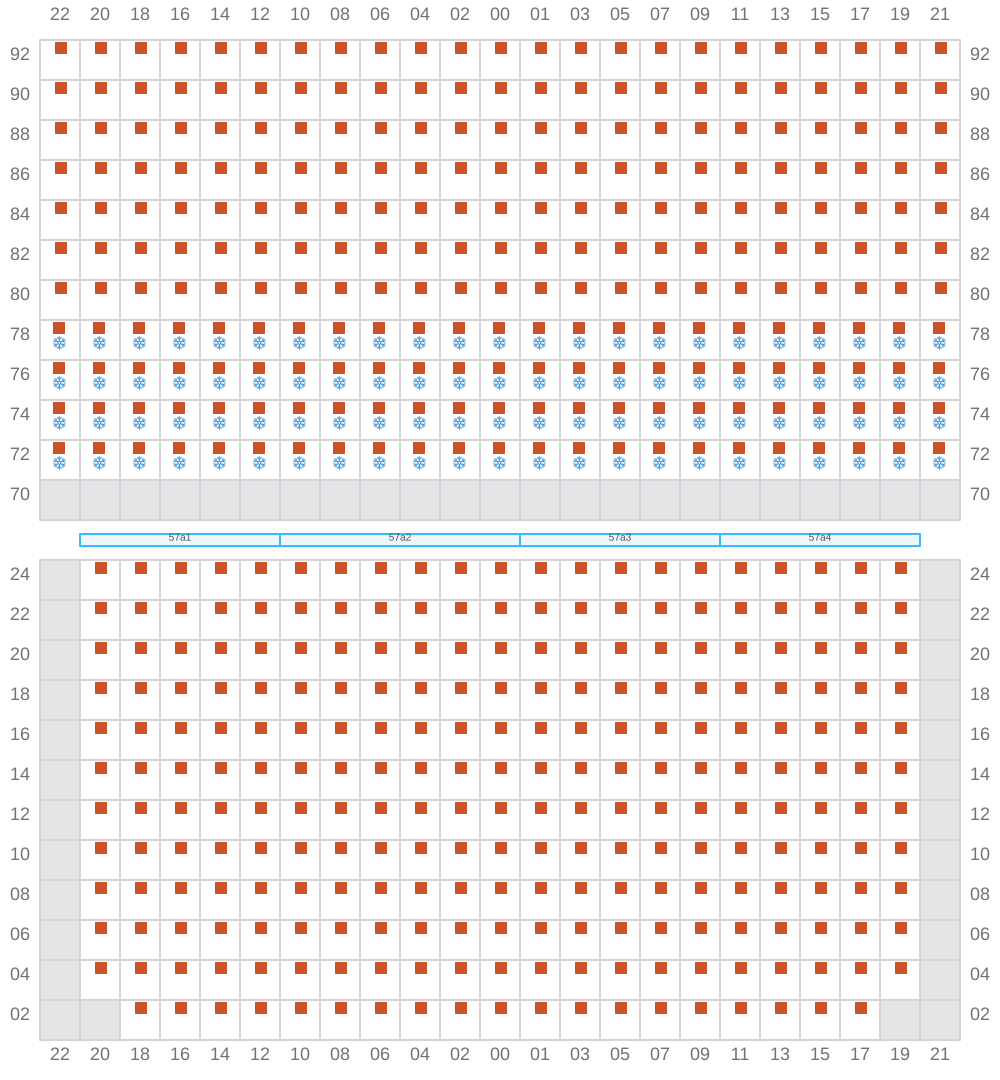

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

061 (062)

  • →
  • → / ?
  • →

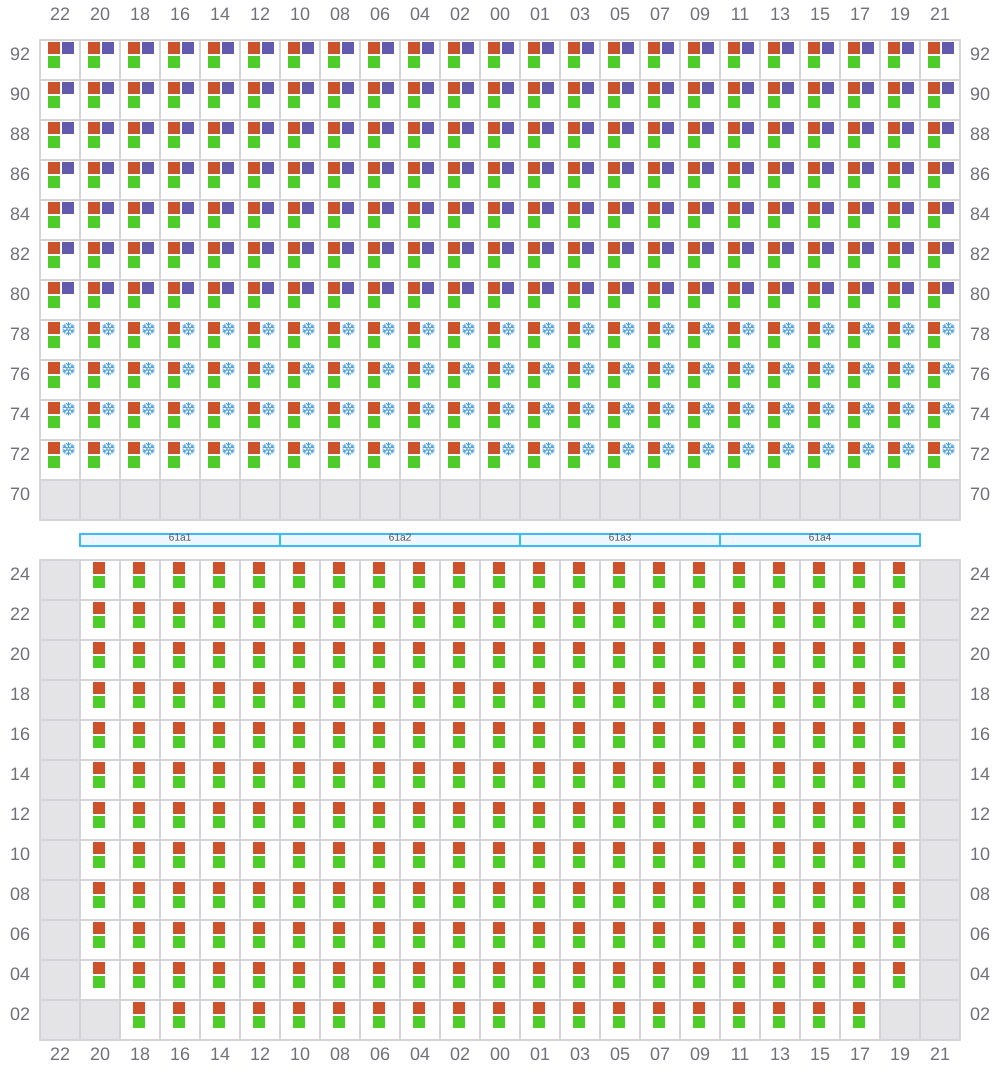

Bay 061 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

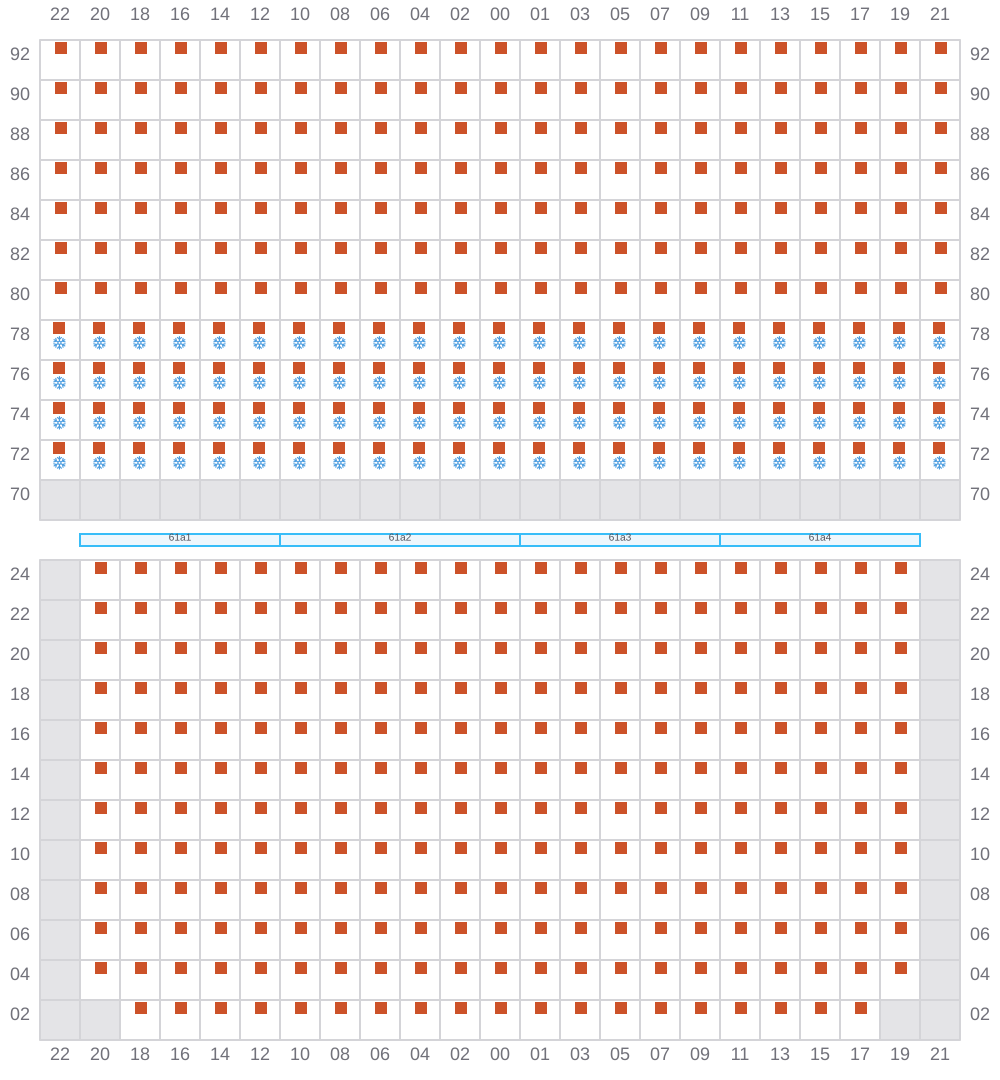

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

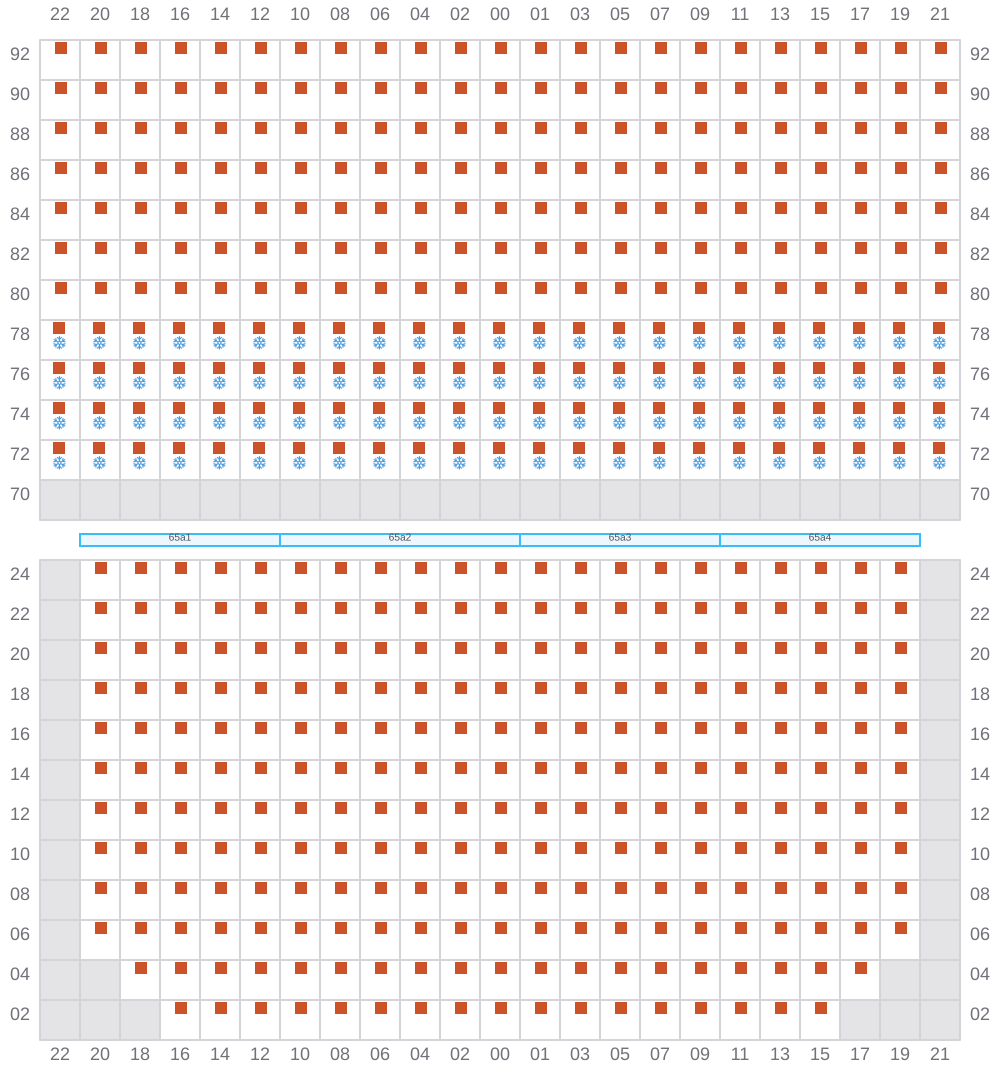

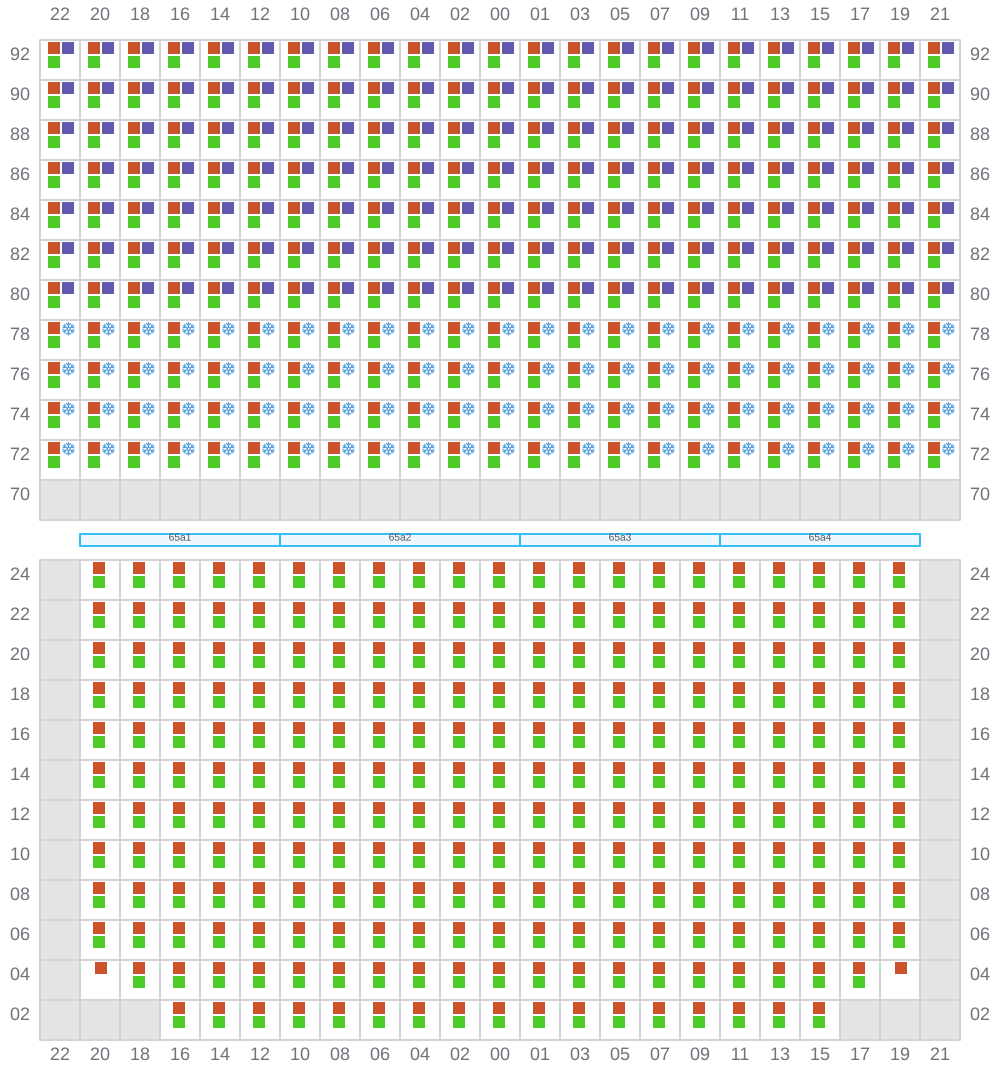

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

067

  • ←
  • → / ?
  • →
Bay 067 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

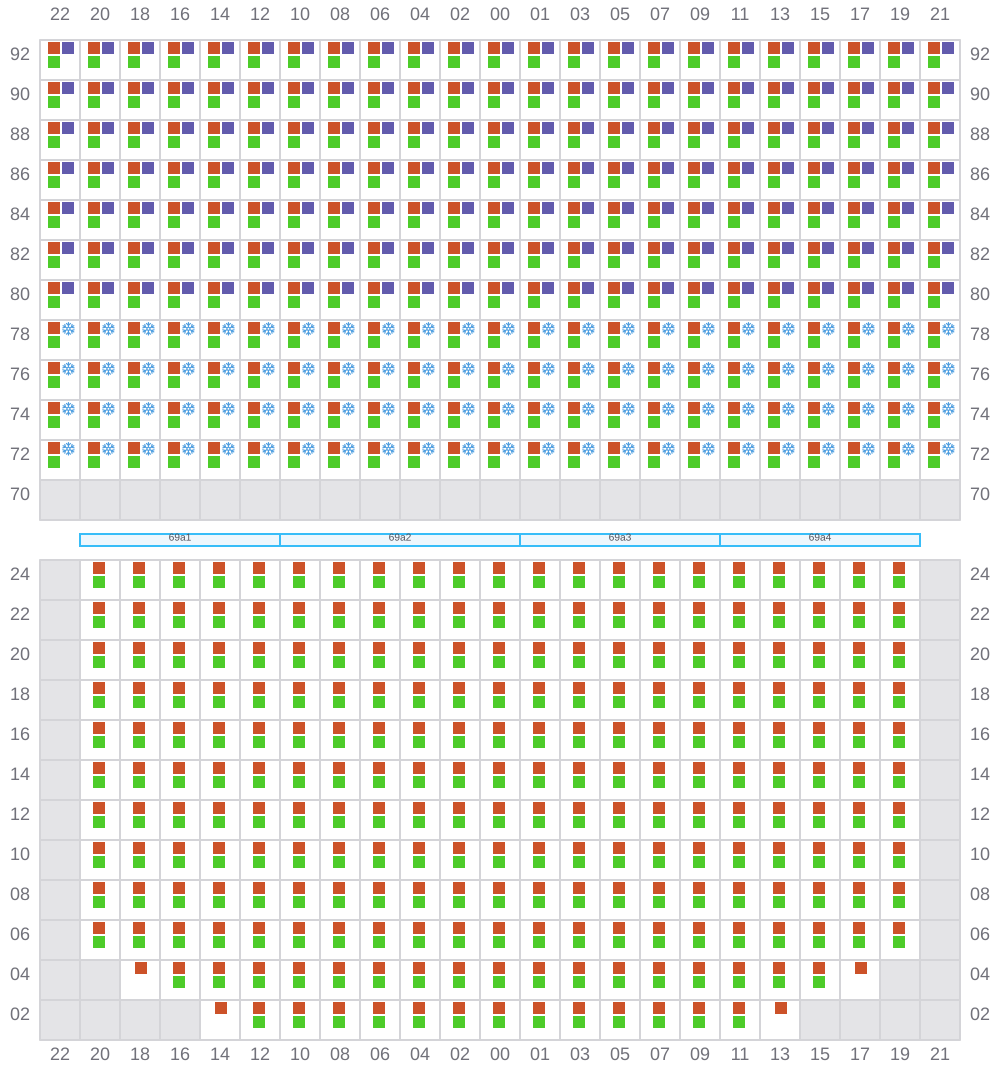

069 (070)

  • →
  • → / ?
  • →
Bay 069 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

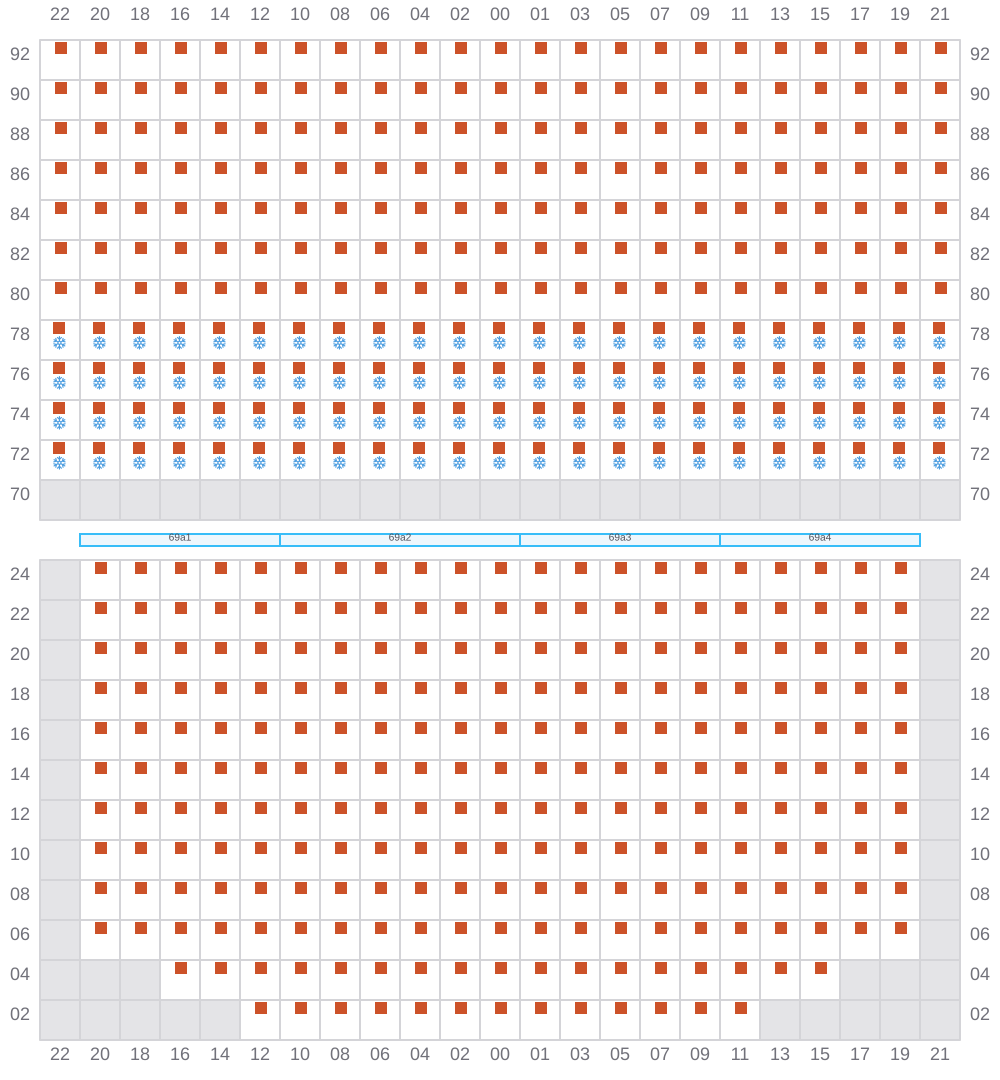

071

  • ←
  • → / ?
  • →
Bay 071 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

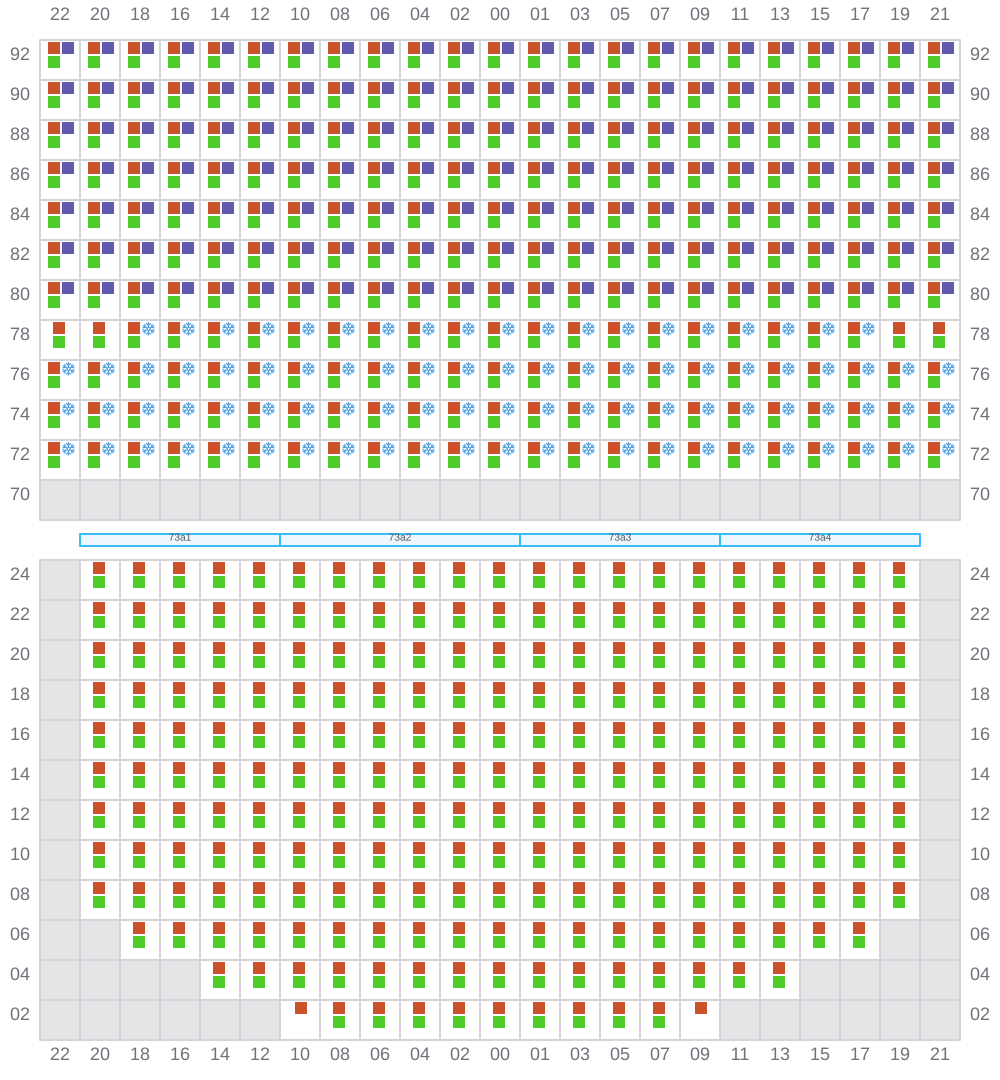

073 (074)

  • →
  • → / ?
  • →
Bay 073 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

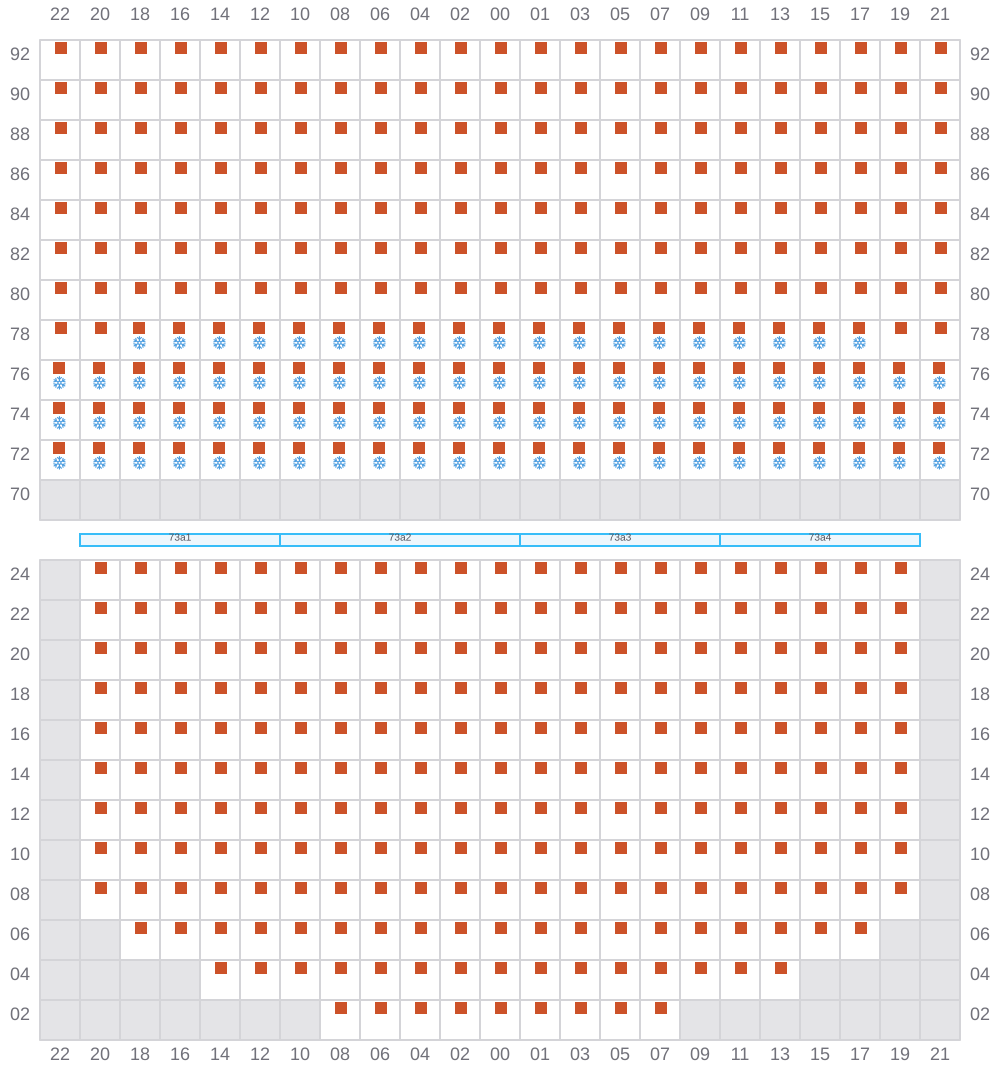

075

  • ←
  • → / ?
  • →
Bay 075 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

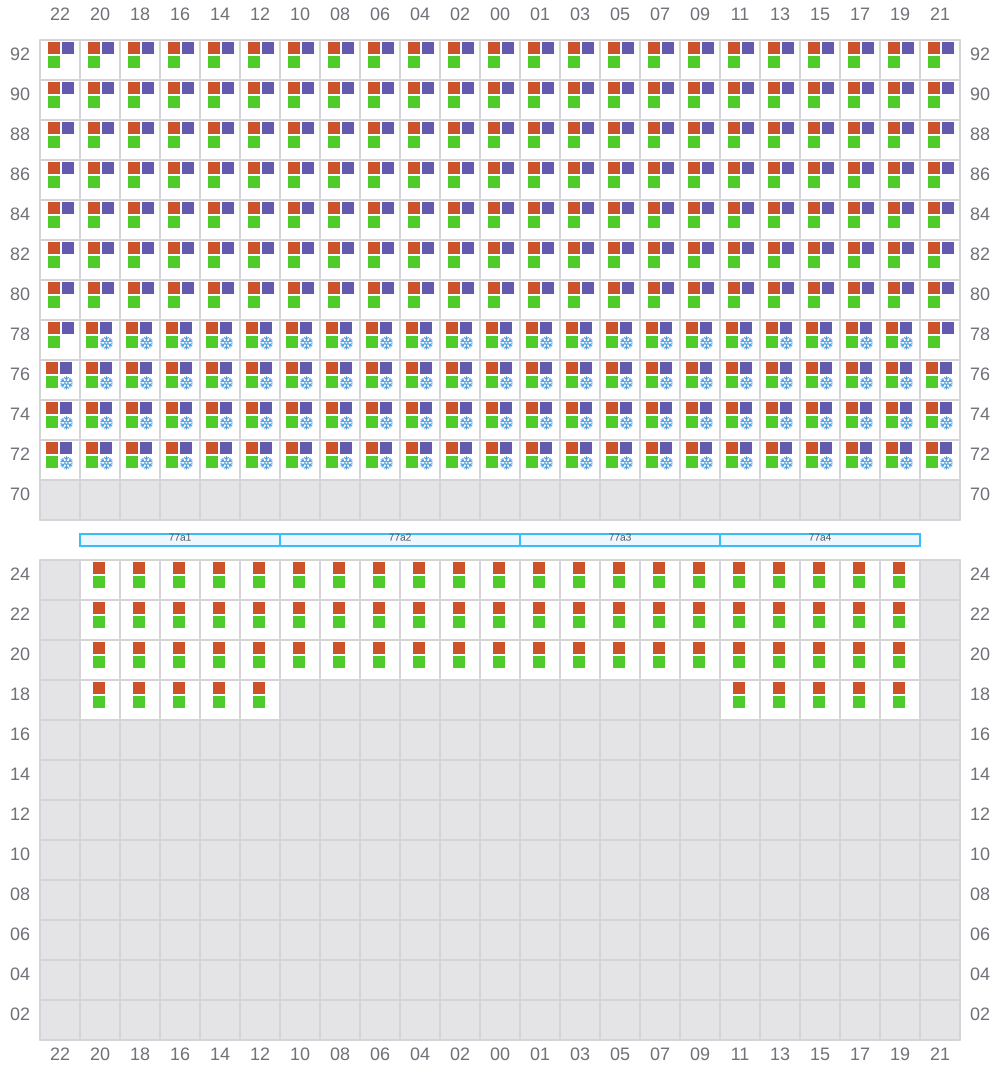

077 (078)

  • →
  • ← / ?
  • →
Bay 077 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

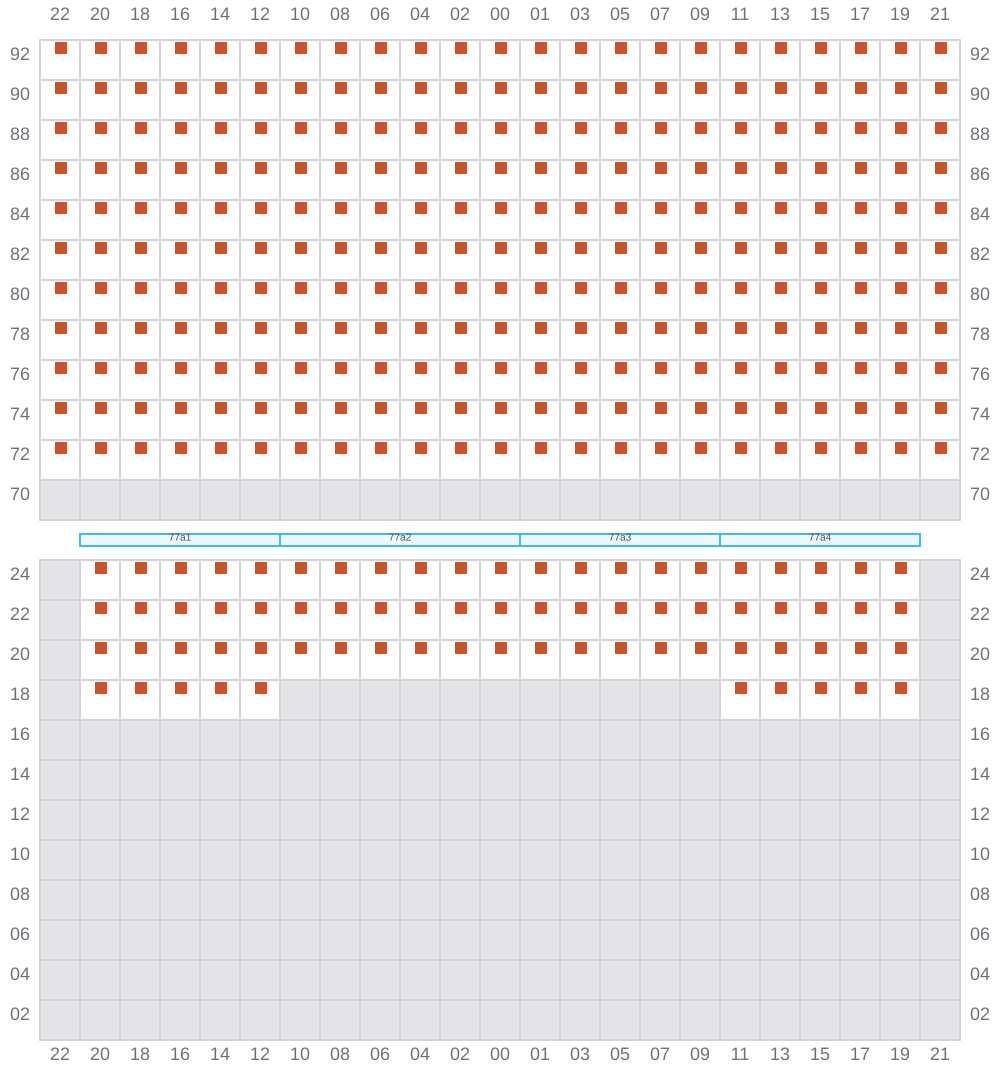

079

  • ←
  • → / ?
  • →
Bay 079 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

081 (082)

  • →
  • → / ?
  • →

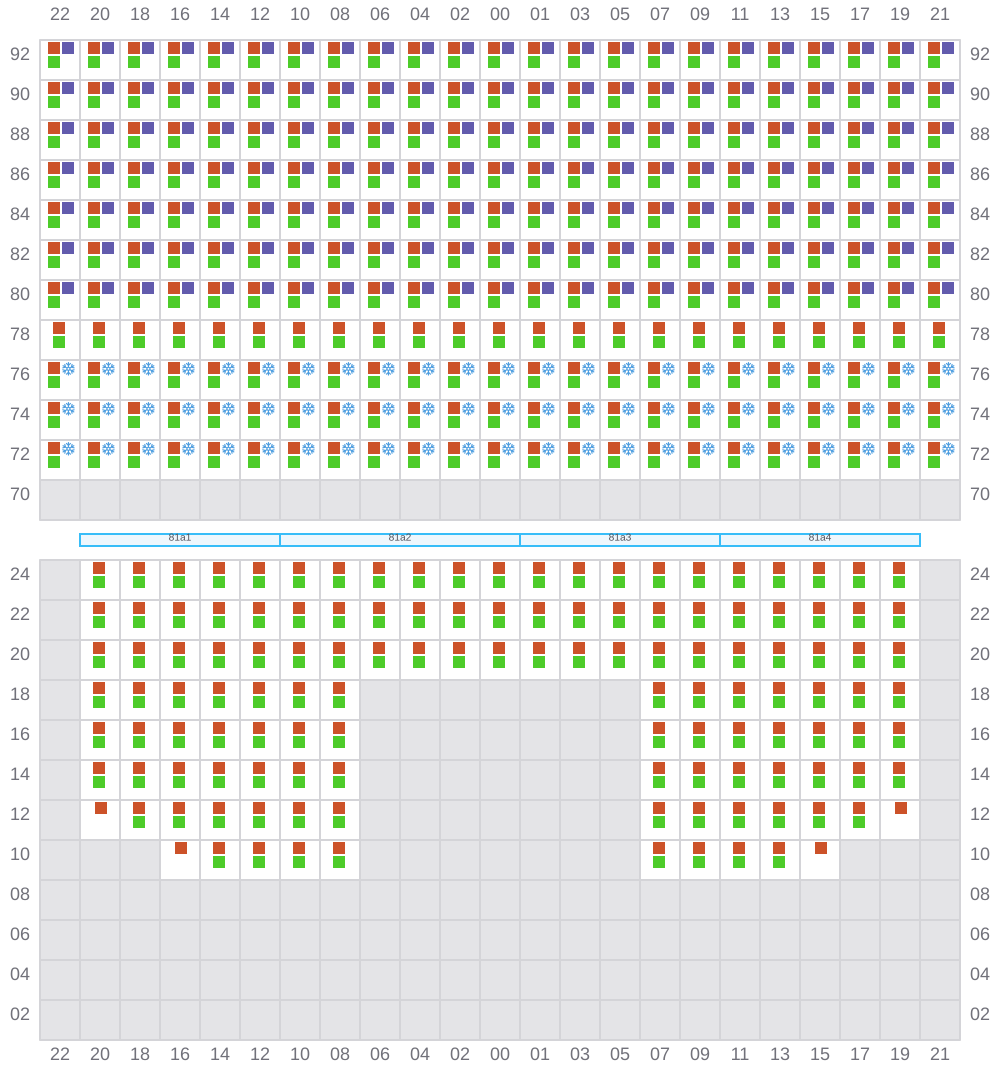

Bay 081 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

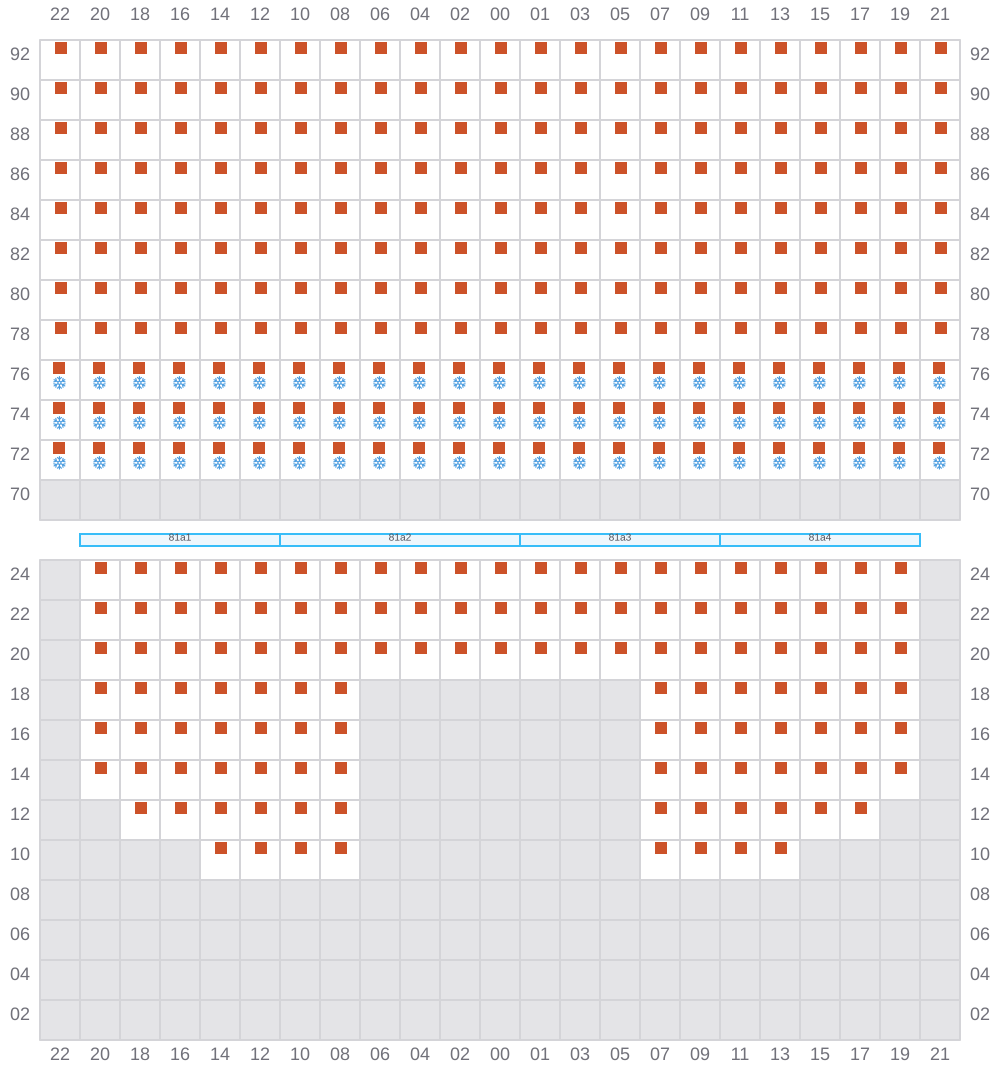

083

  • ←
  • → / ?
  • →
Bay 083 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

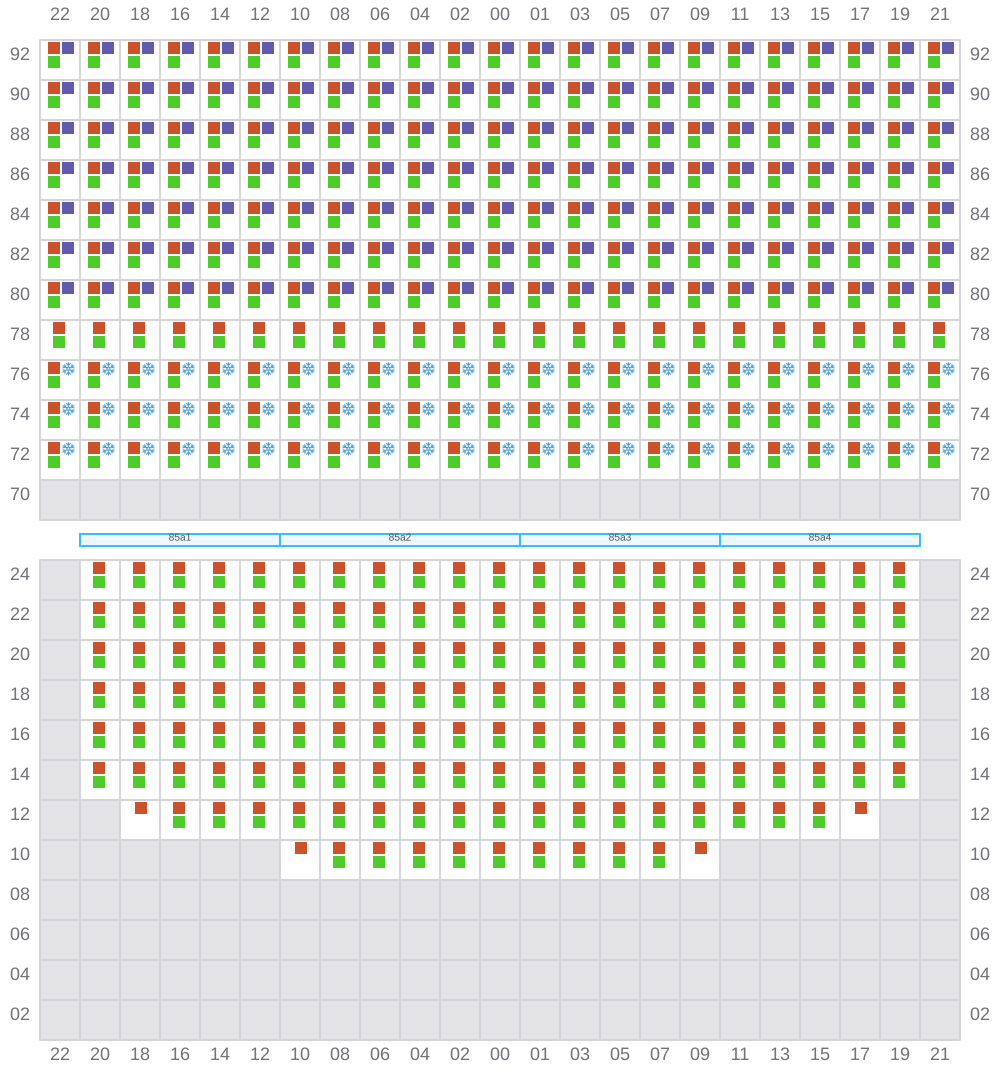

085 (086)

  • →
  • → / ?
  • →
Bay 085 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

087

  • ←
  • → / ?
  • →
Bay 087 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

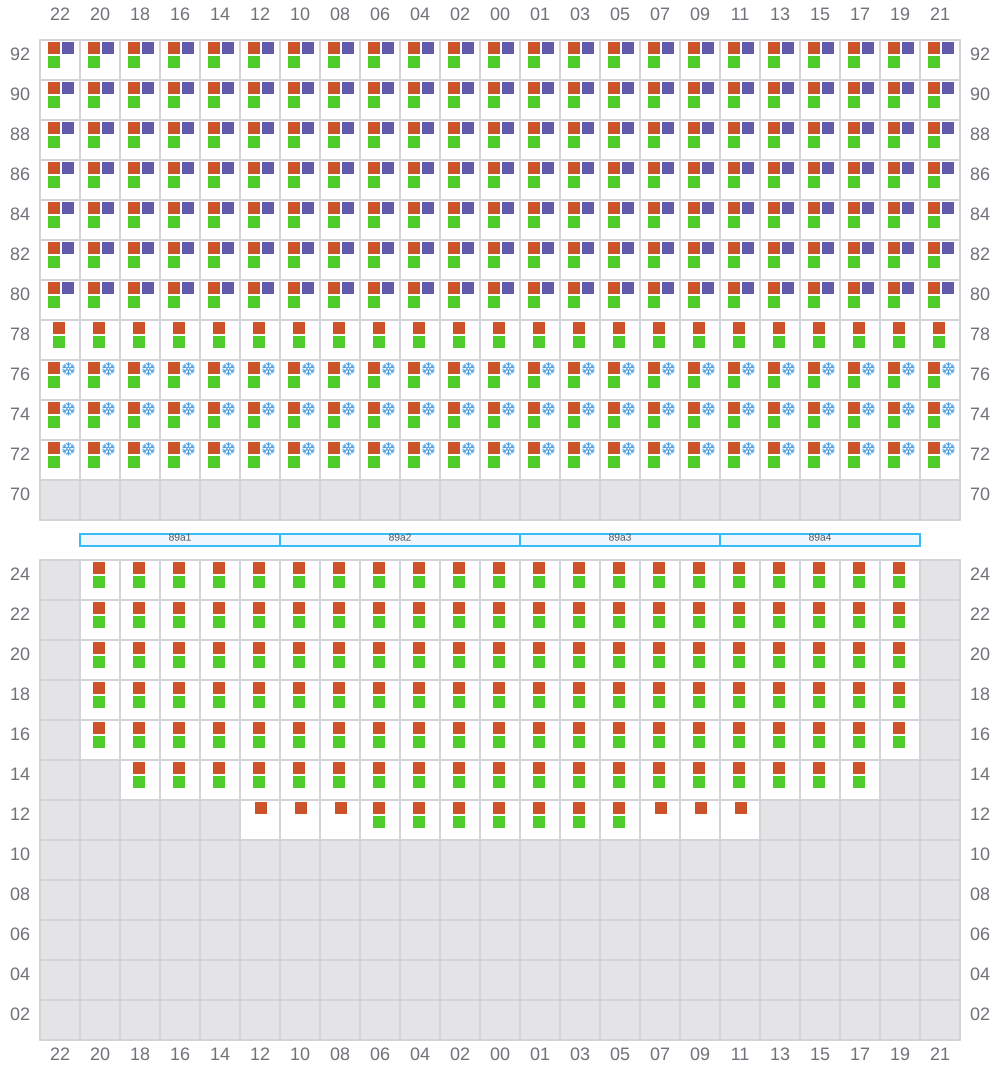

089 (090)

  • →
  • → / ?
  • →
Bay 089 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

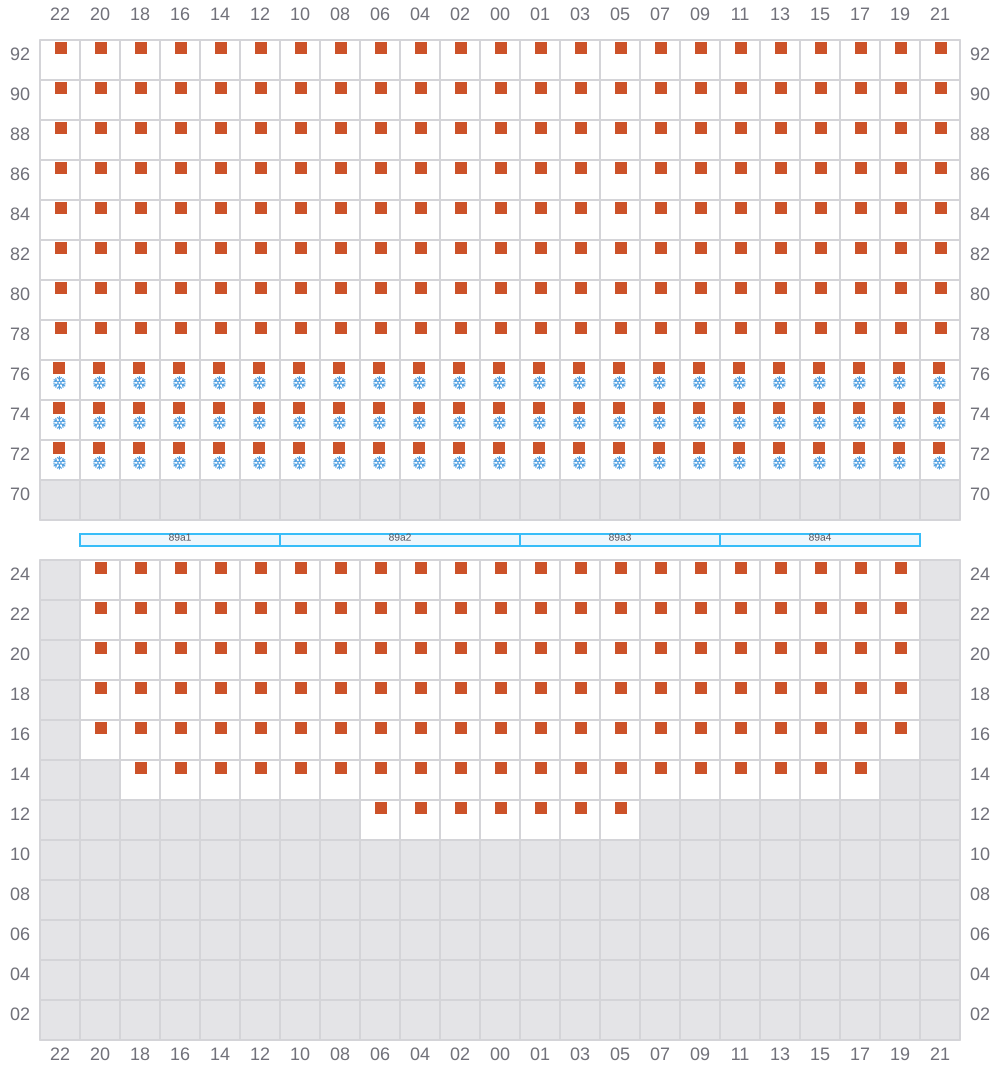

091

  • ←
  • → / ?
  • →
Bay 091 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY

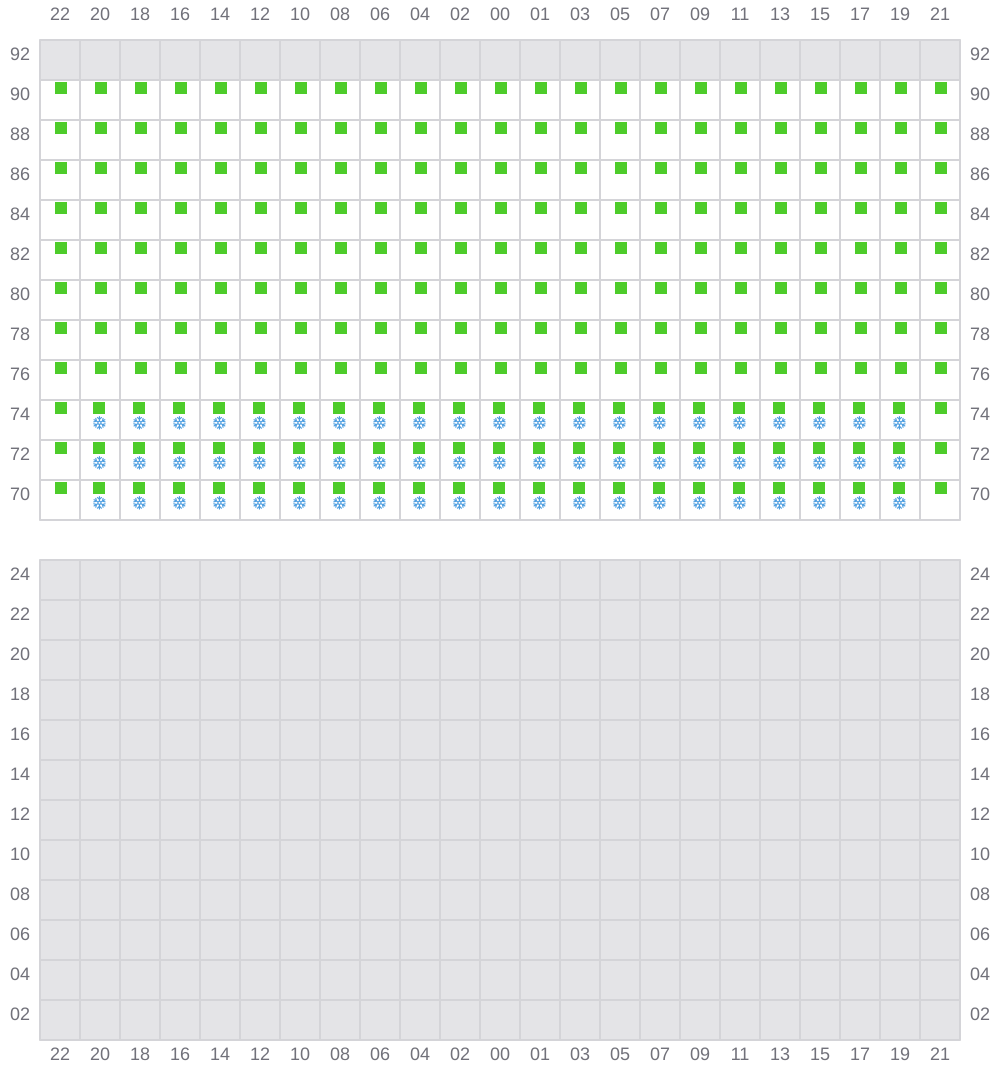

093 (094)

  • → / ?
  • → / ?
  • → / ?
Bay 093 view and slots of CMA CGM ANTOINE DE SAINT EXUPERY
