CMA CGM AQUILA
9410741 | 9HA5018 | CMA by *********************** Last update: Wed Jan 29 2025

General Info

Ship Name:CMA CGM AQUILA

IMO Code:9410741

Call Sign:9HA5018

Line Operator:CMA

Class Name for Sister Ships:CGAQ

Year Built:2009

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):348.00

LOA (Length Overall):363.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:18

Center Line Row:No

Max Above ISO Tier:96

Min Above ISO Tier:82

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:11,388

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

Side View

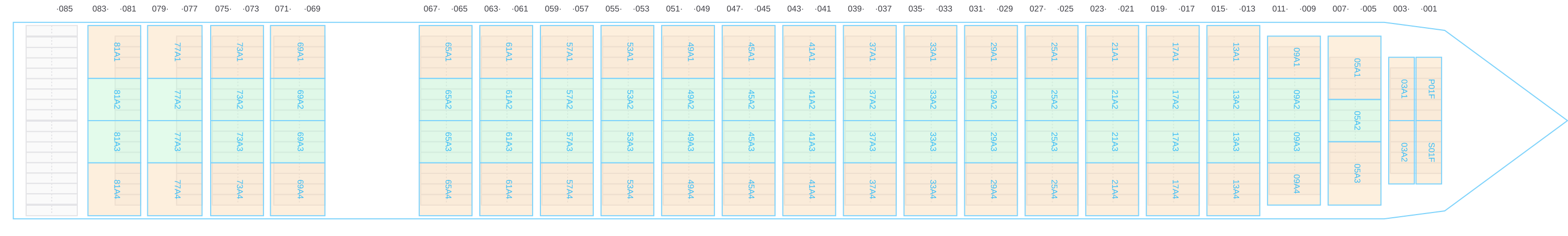

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

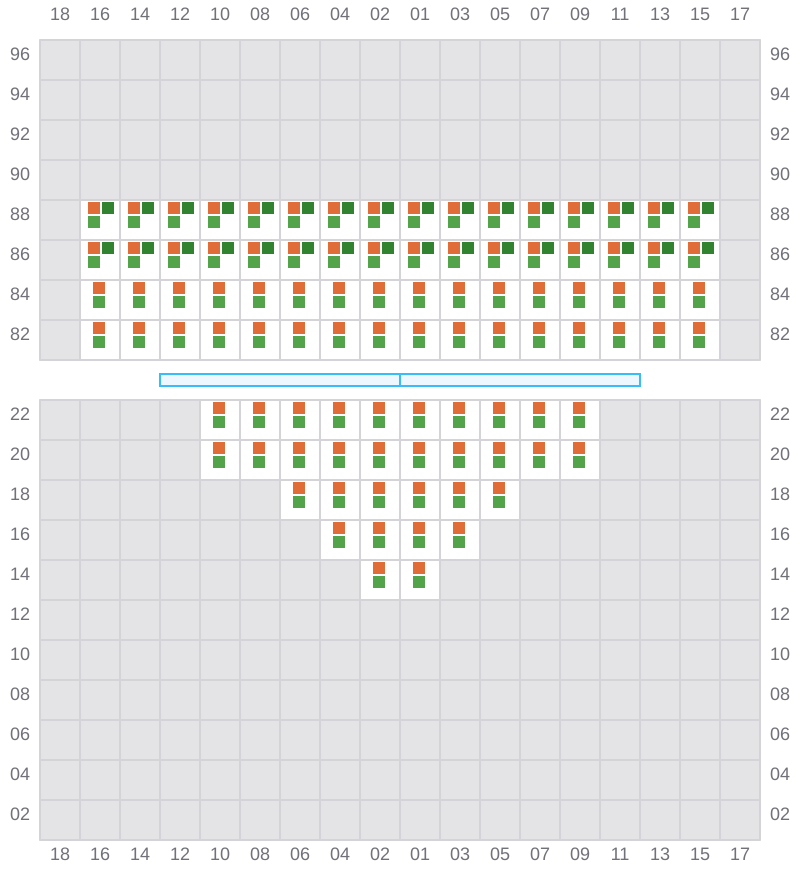

Bay 001 view and slots of CMA CGM AQUILA

003

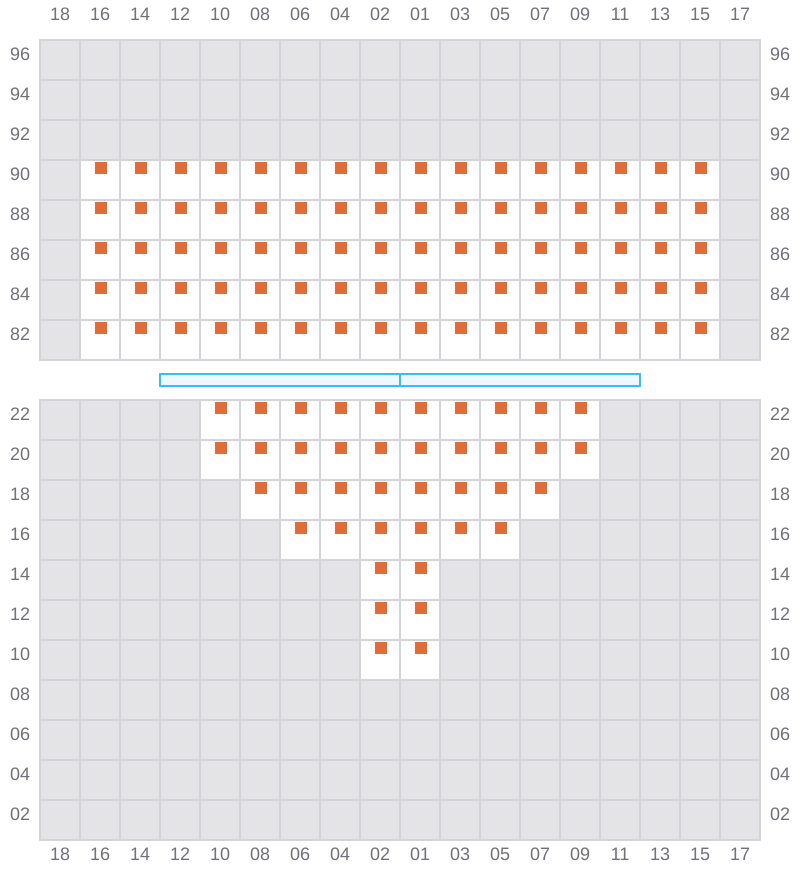

Bay 003 view and slots of CMA CGM AQUILA

005 (006)

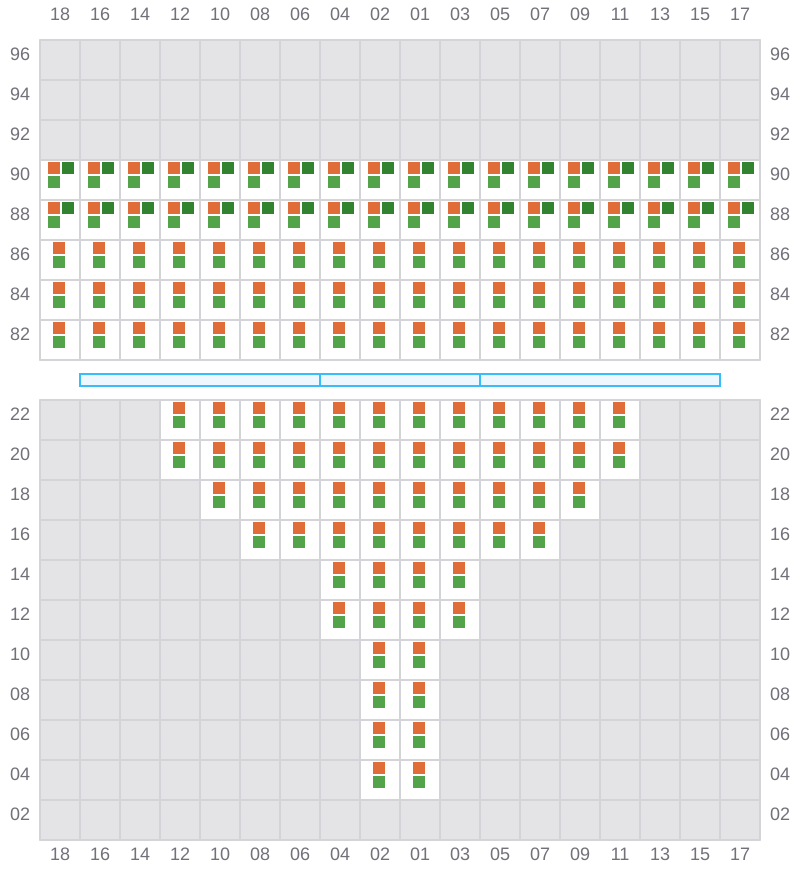

Bay 005 view and slots of CMA CGM AQUILA

007

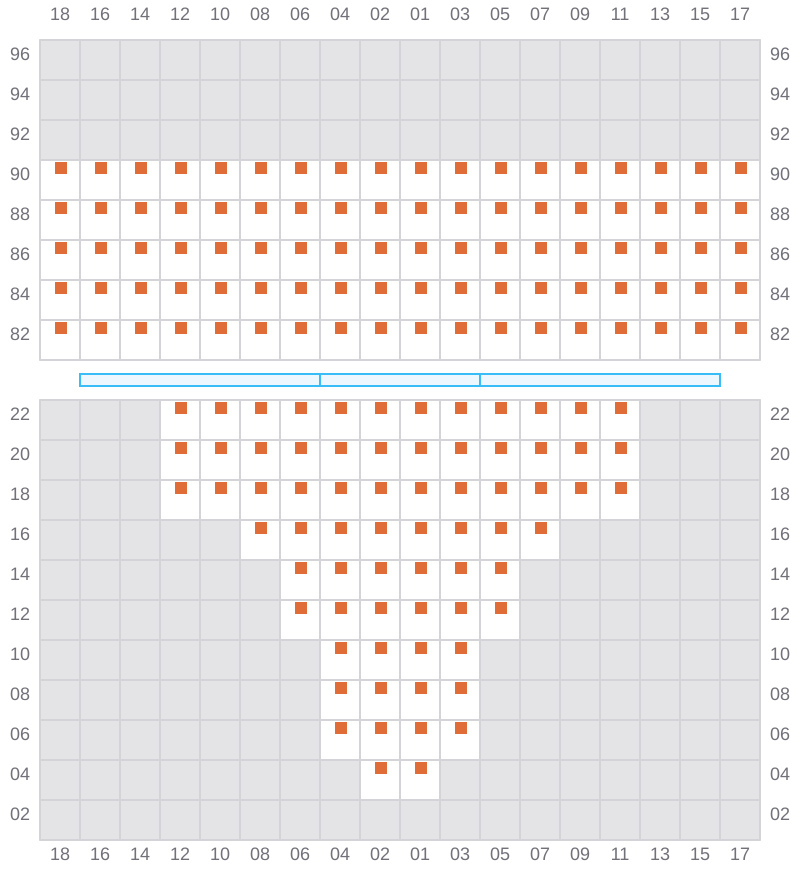

Bay 007 view and slots of CMA CGM AQUILA

009 (010)

→
^→ / _?
→

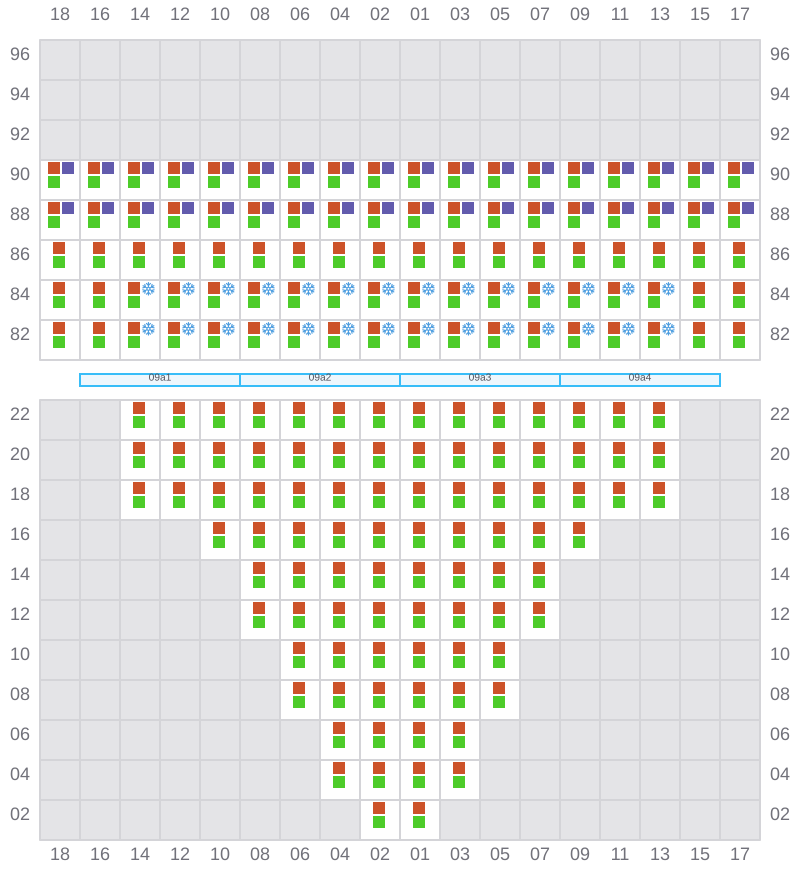

Bay 009 view and slots of CMA CGM AQUILA

011

←
^→ / _?
→

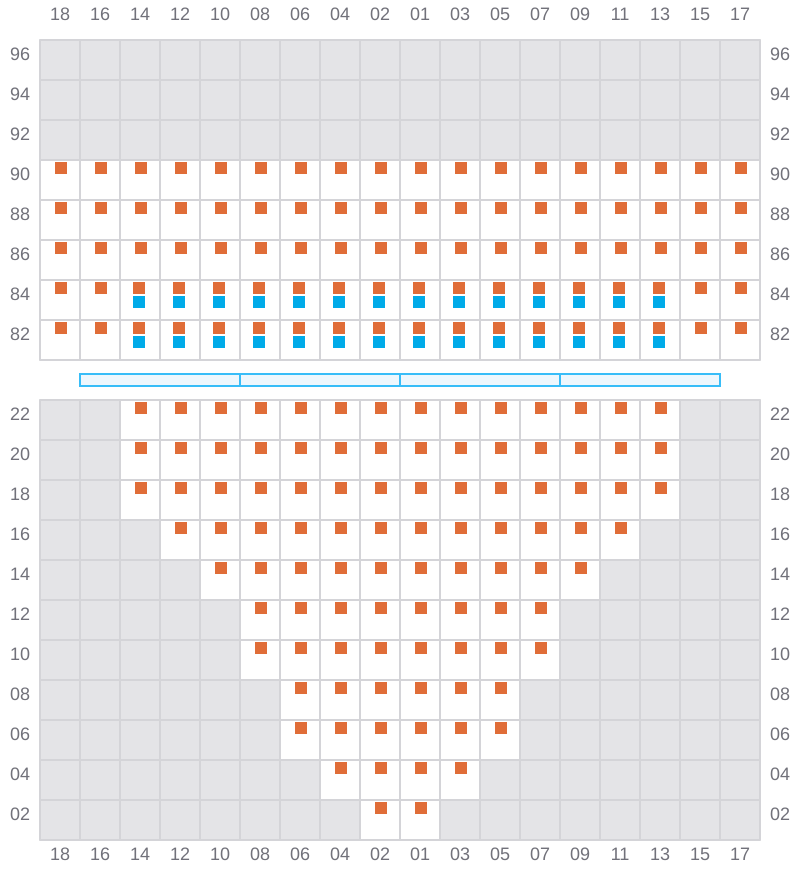

Bay 011 view and slots of CMA CGM AQUILA

013 (014)

→
^→ / _?
→

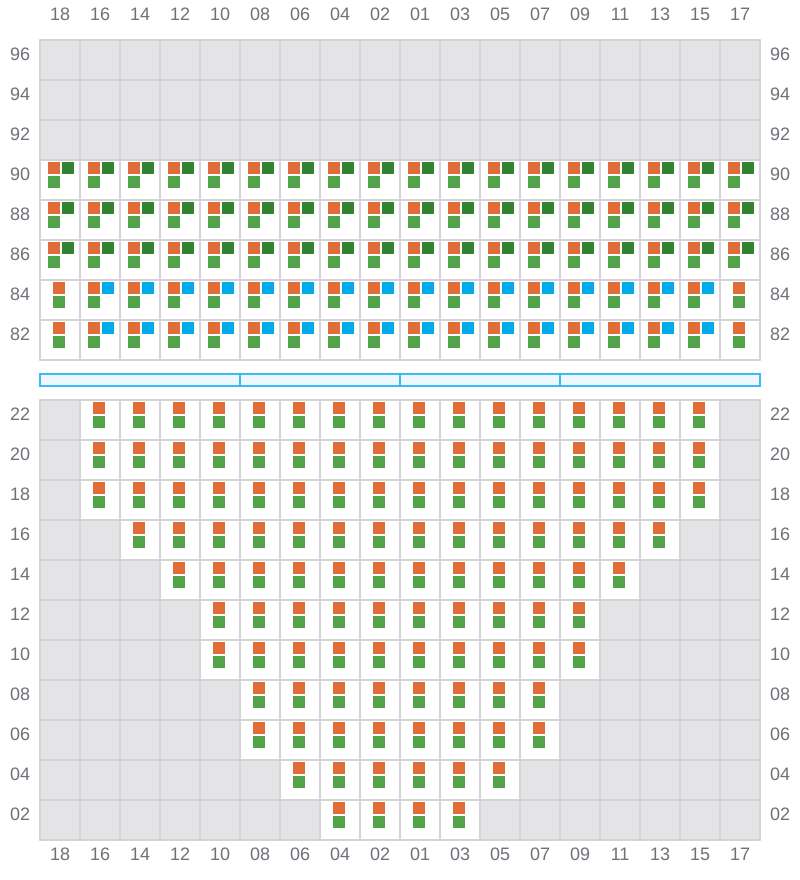

Bay 013 view and slots of CMA CGM AQUILA

015

←
^→ / _?
→

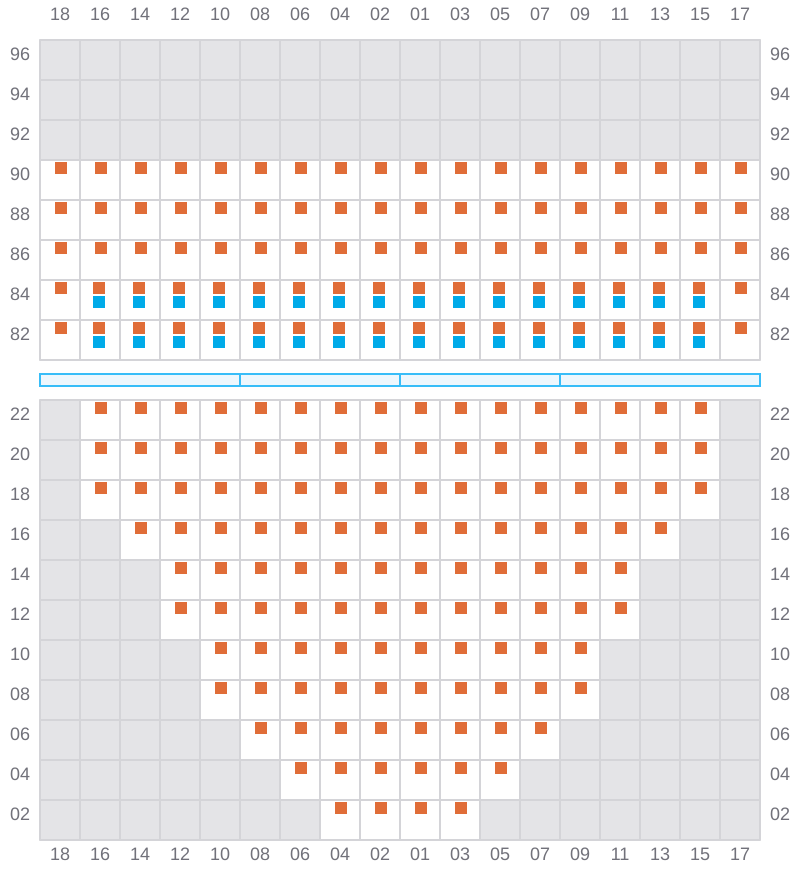

Bay 015 view and slots of CMA CGM AQUILA

017 (018)

→
^→ / _?
→

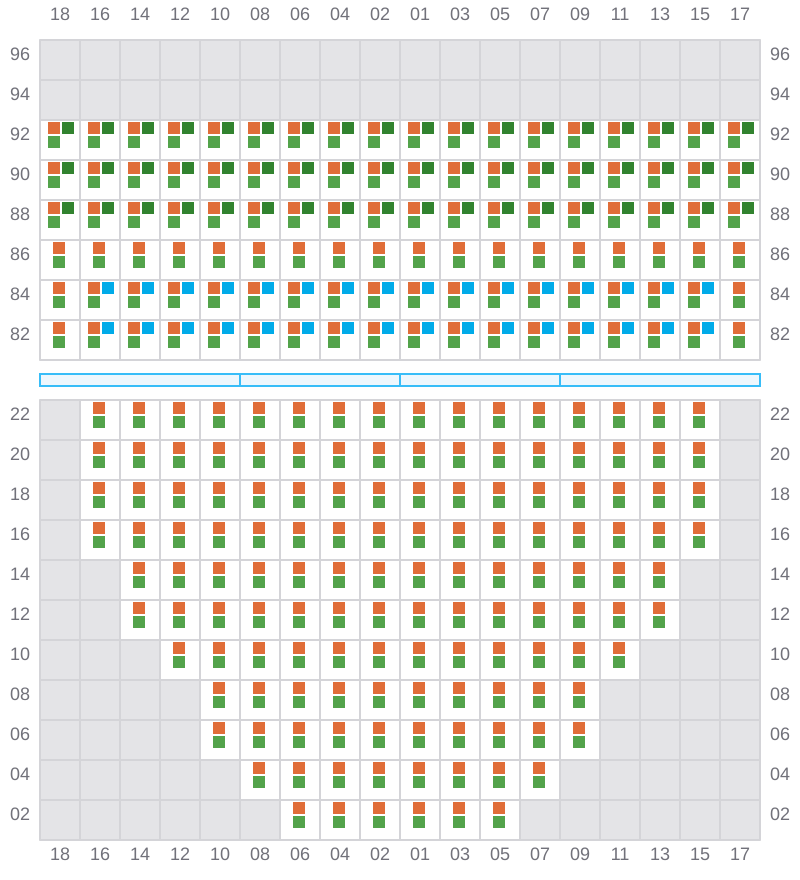

Bay 017 view and slots of CMA CGM AQUILA

019

←
^→ / _?
→

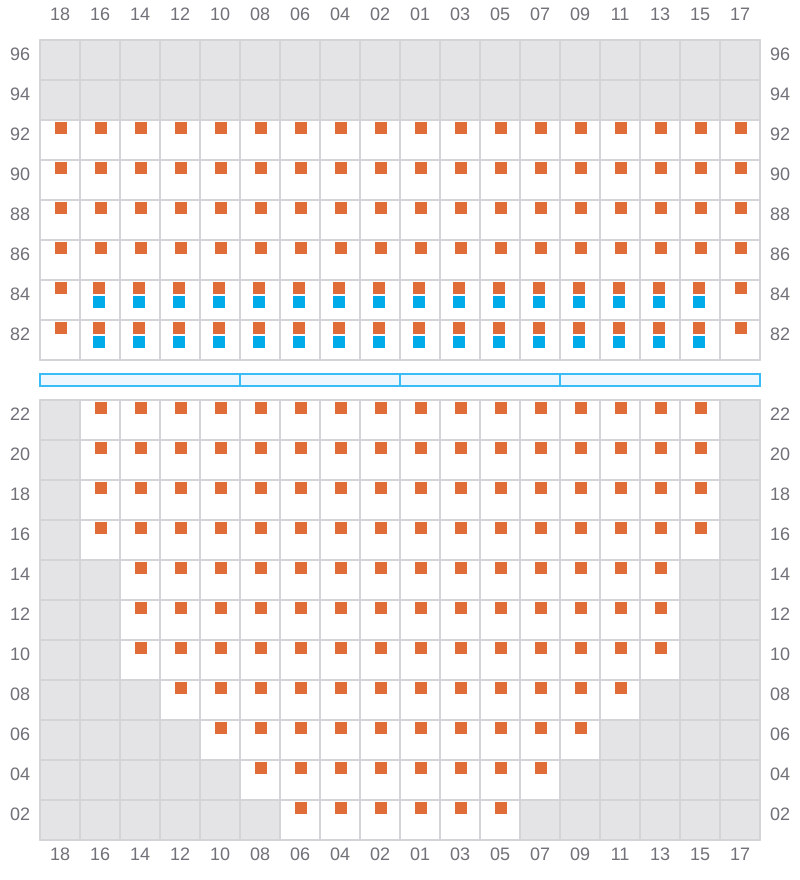

Bay 019 view and slots of CMA CGM AQUILA

021 (022)

→
^→ / _?
→

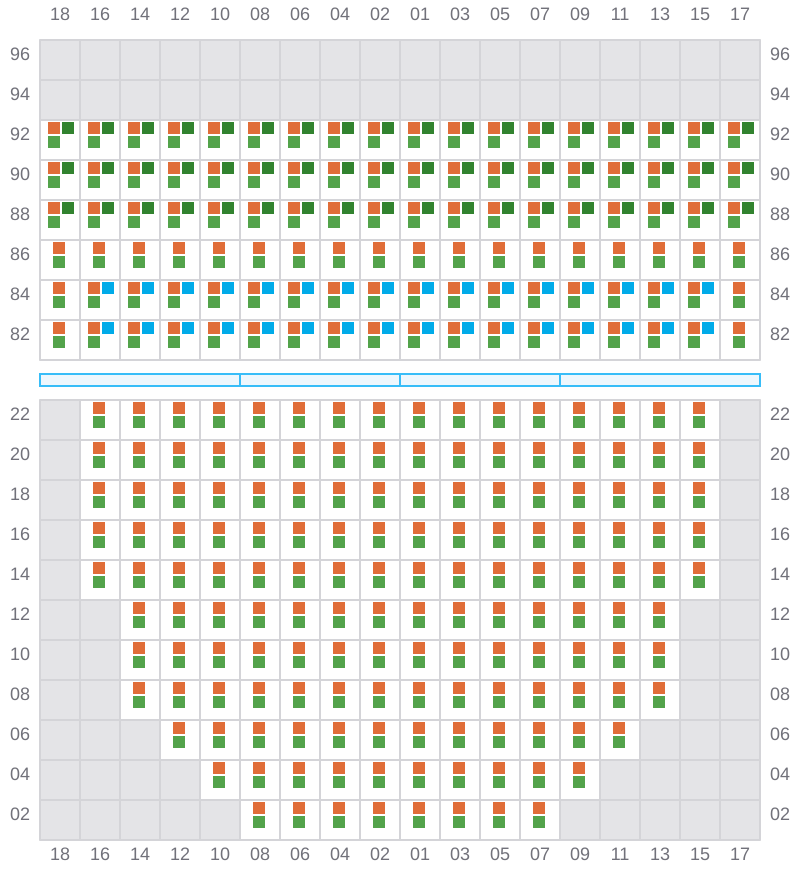

Bay 021 view and slots of CMA CGM AQUILA

023

←
^→ / _?
→

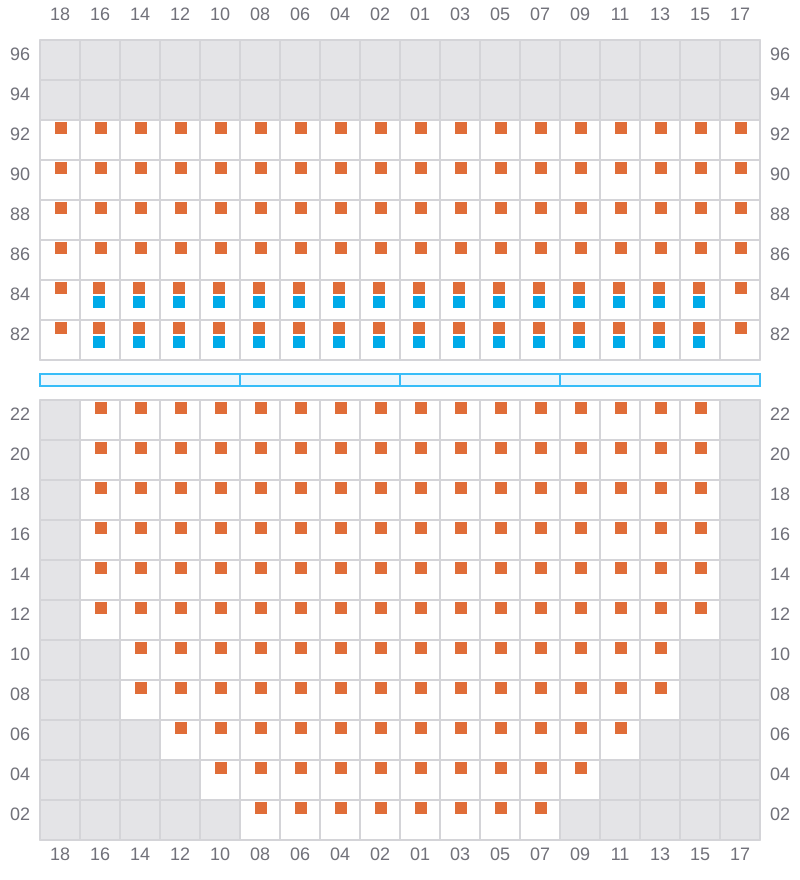

Bay 023 view and slots of CMA CGM AQUILA

025 (026)

→
^→ / _?
→

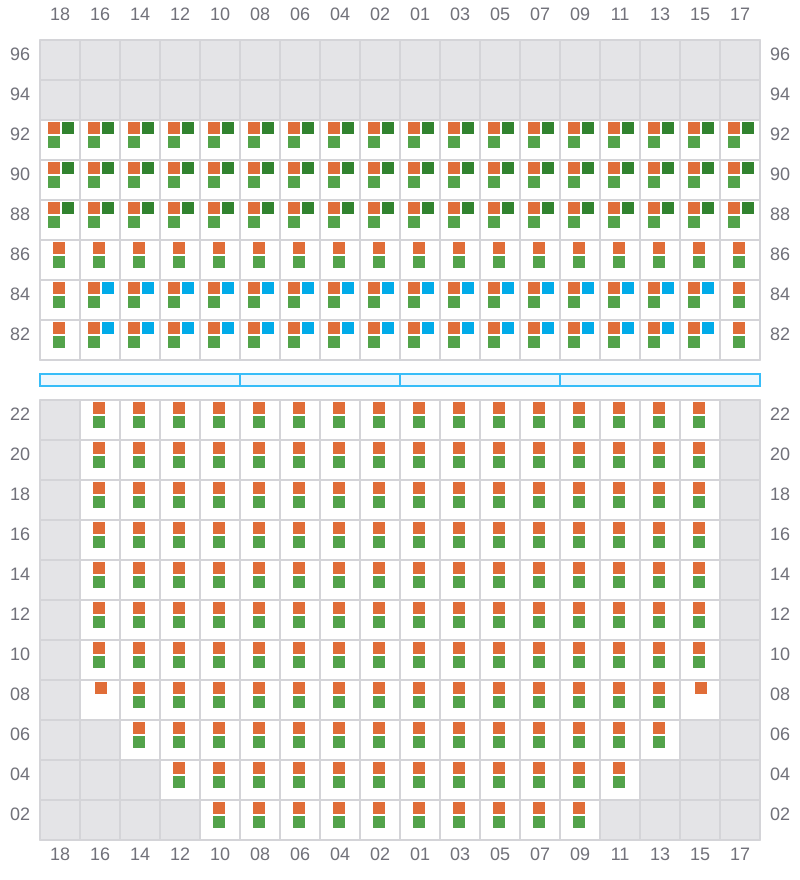

Bay 025 view and slots of CMA CGM AQUILA

027

←
^→ / _?
→

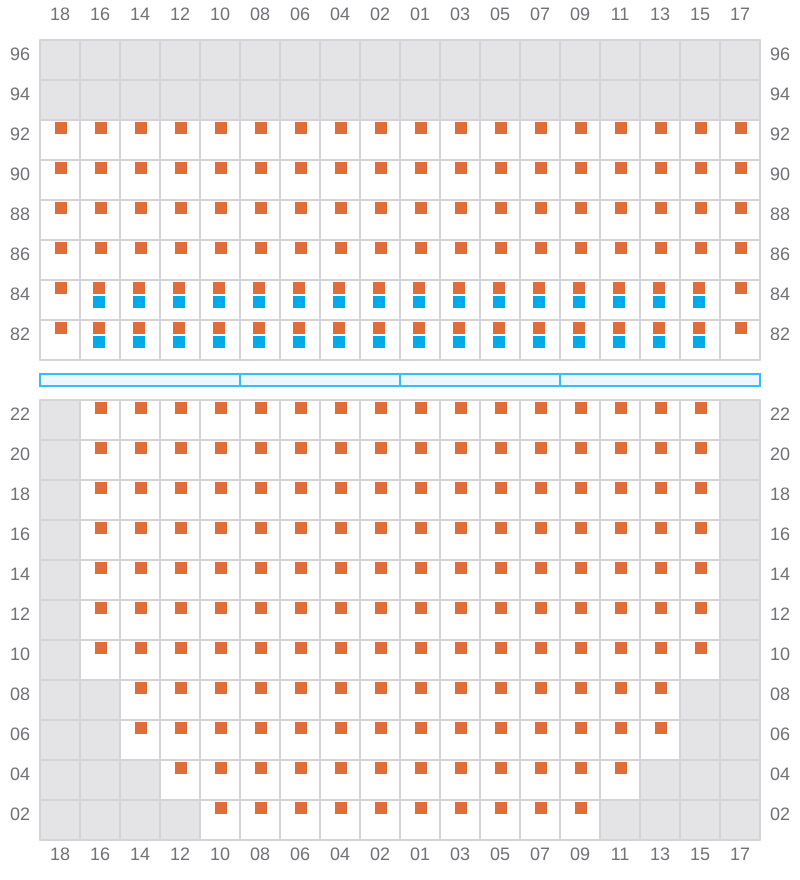

Bay 027 view and slots of CMA CGM AQUILA

029 (030)

→
^→ / _?
→

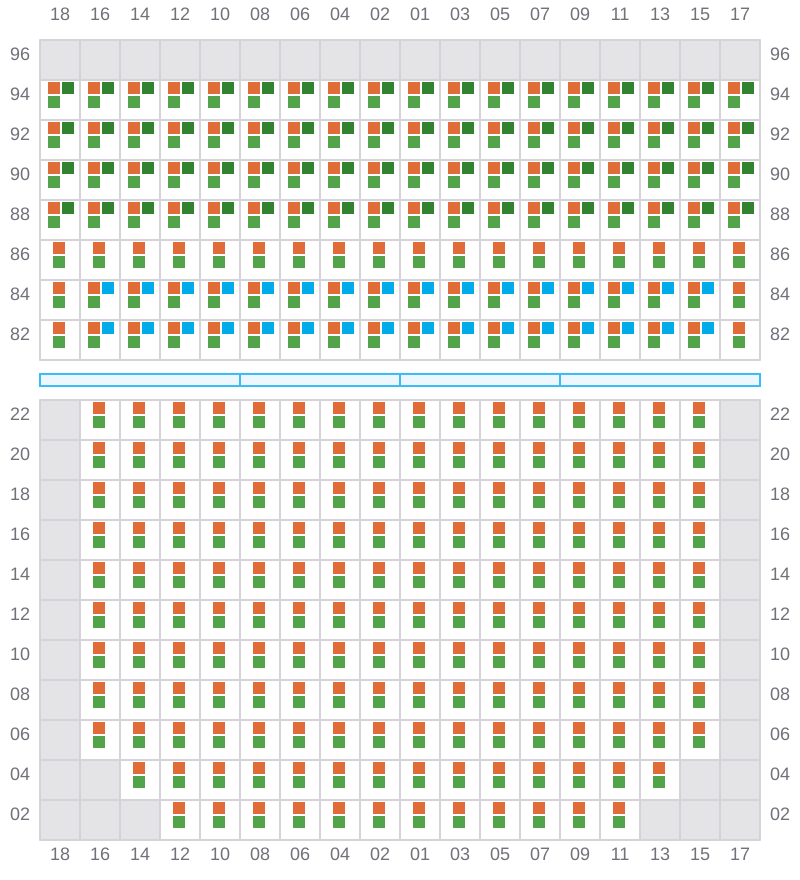

Bay 029 view and slots of CMA CGM AQUILA

031

←
^→ / _?
→

Bay 031 view and slots of CMA CGM AQUILA

033 (034)

→
^→ / _?
→

Bay 033 view and slots of CMA CGM AQUILA

035

←
^→ / _?
→

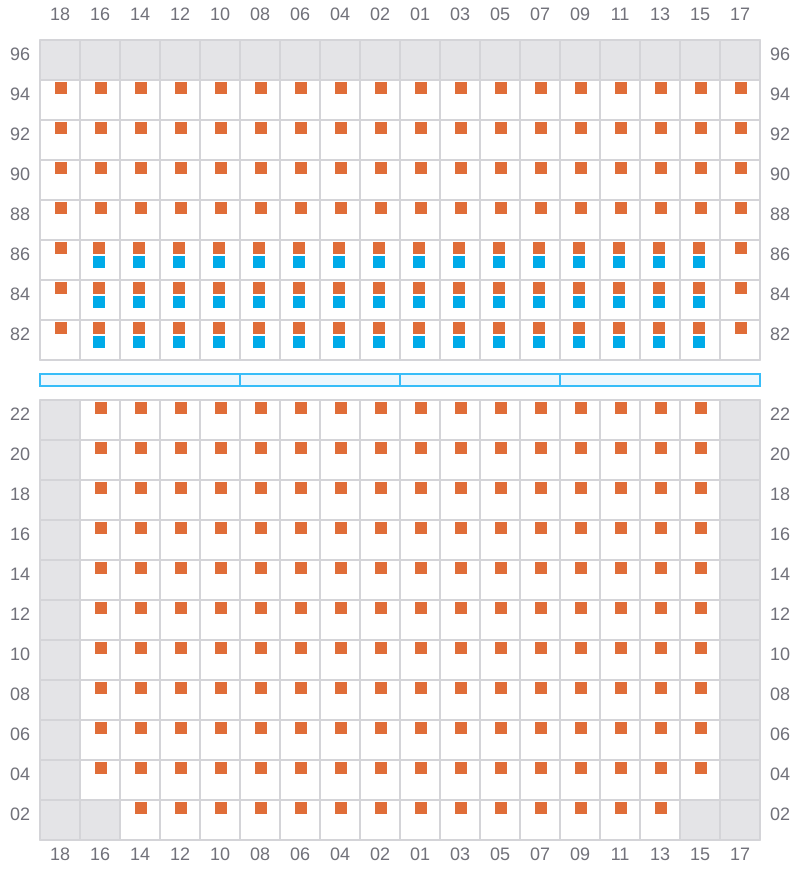

Bay 035 view and slots of CMA CGM AQUILA

037 (038)

→
^→ / _?
→

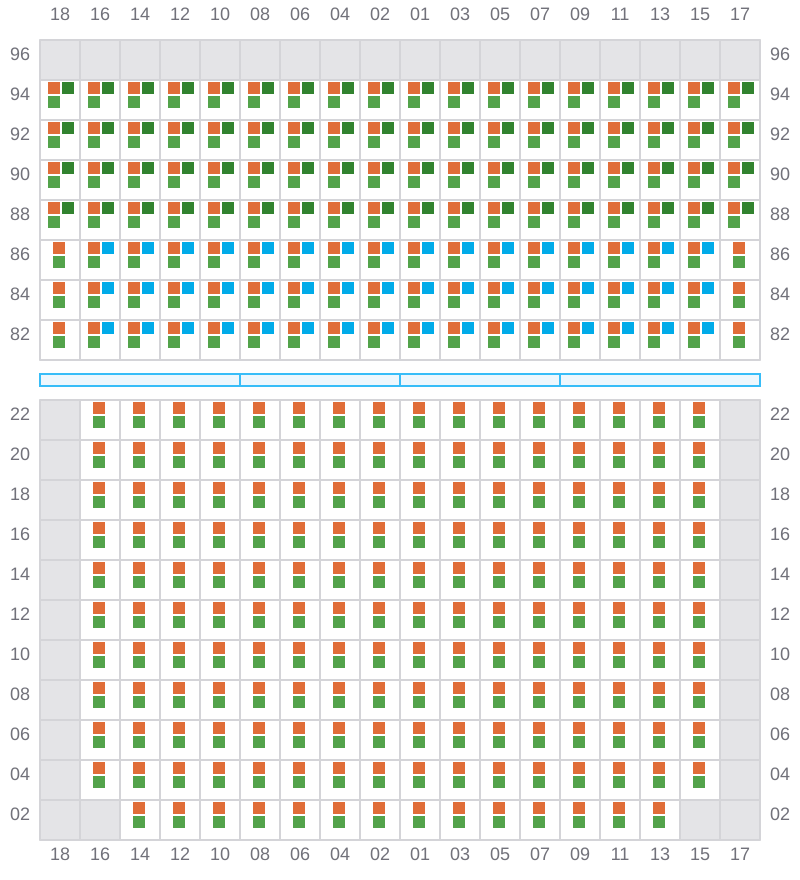

Bay 037 view and slots of CMA CGM AQUILA

039

←
^→ / _?
→

Bay 039 view and slots of CMA CGM AQUILA

041 (042)

→
^→ / _?
→

Bay 041 view and slots of CMA CGM AQUILA

043

←
^→ / _?
→

Bay 043 view and slots of CMA CGM AQUILA

045 (046)

→
^→ / _?
→

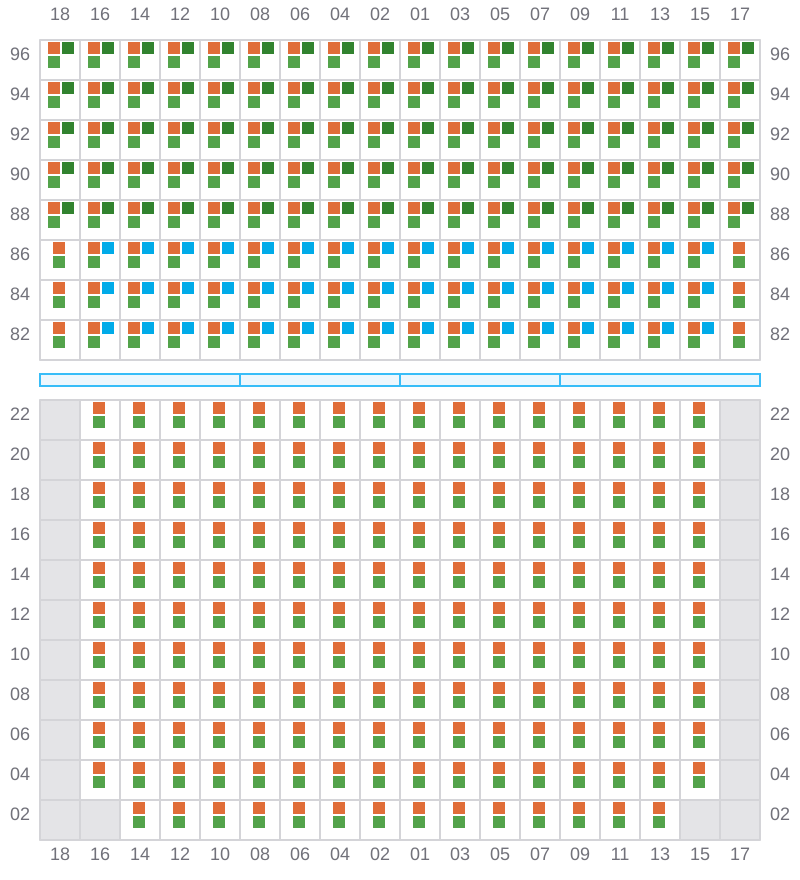

Bay 045 view and slots of CMA CGM AQUILA

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM AQUILA

049 (050)

→
^→ / _?
→

Bay 049 view and slots of CMA CGM AQUILA

051

←
^→ / _?
→

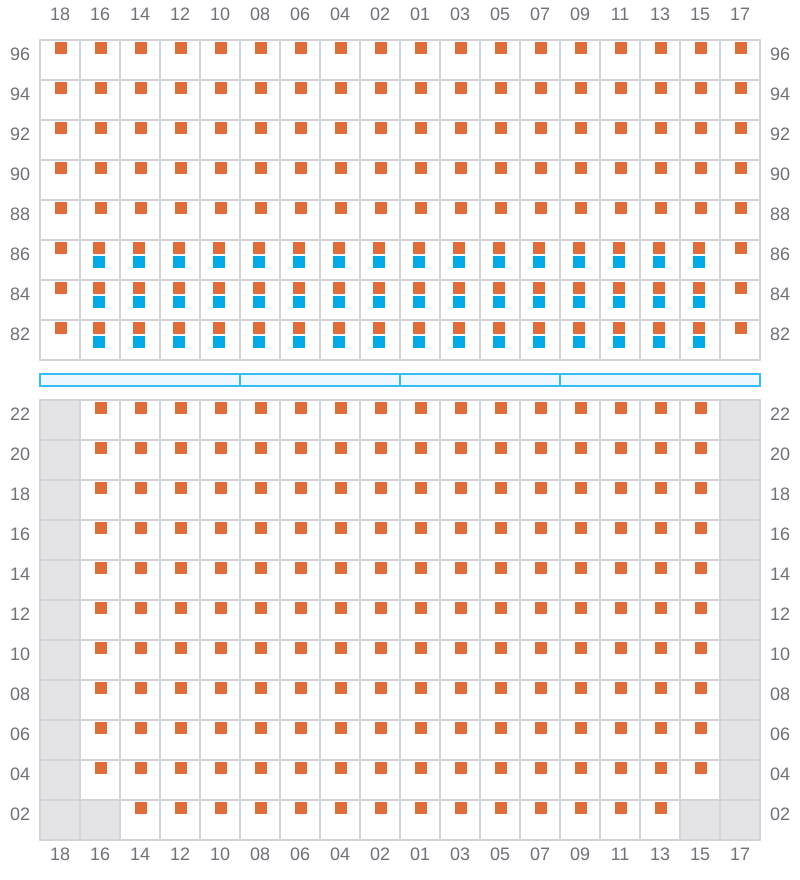

Bay 051 view and slots of CMA CGM AQUILA

053 (054)

→
^→ / _?
→

Bay 053 view and slots of CMA CGM AQUILA

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM AQUILA

057 (058)

→
^→ / _?
→

Bay 057 view and slots of CMA CGM AQUILA

059

←
^→ / _?
→

Bay 059 view and slots of CMA CGM AQUILA

061 (062)

→
^→ / _?
→

Bay 061 view and slots of CMA CGM AQUILA

063

←
^→ / _?
→

Bay 063 view and slots of CMA CGM AQUILA

065 (066)

→
^→ / _?
→

Bay 065 view and slots of CMA CGM AQUILA

067

←
^→ / _?
→

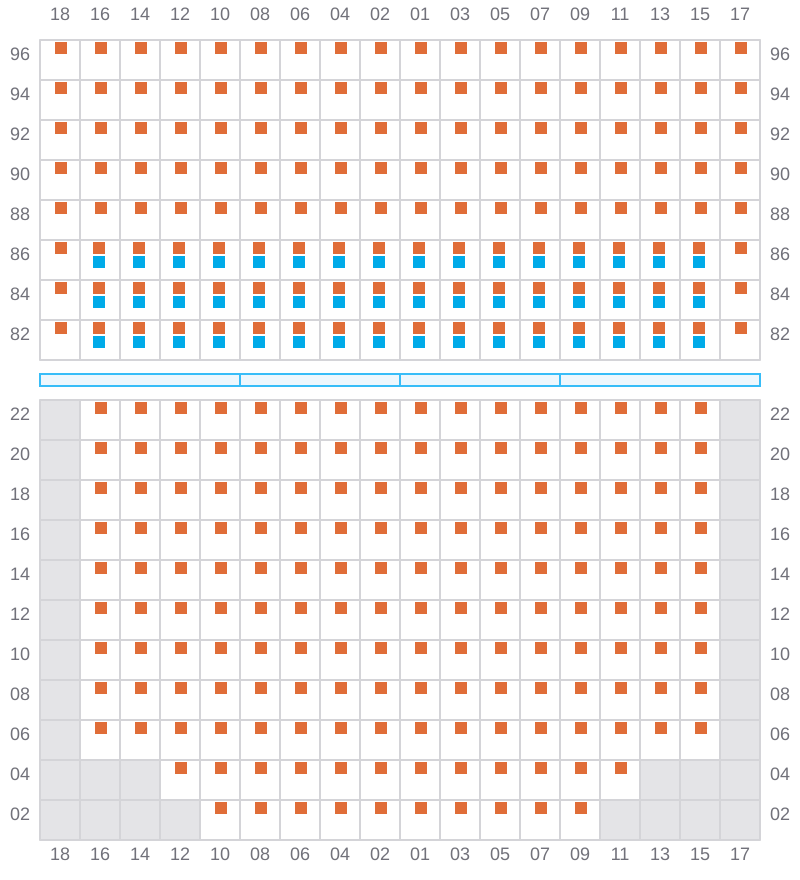

Bay 067 view and slots of CMA CGM AQUILA

069 (070)

→
^→ / _?
→

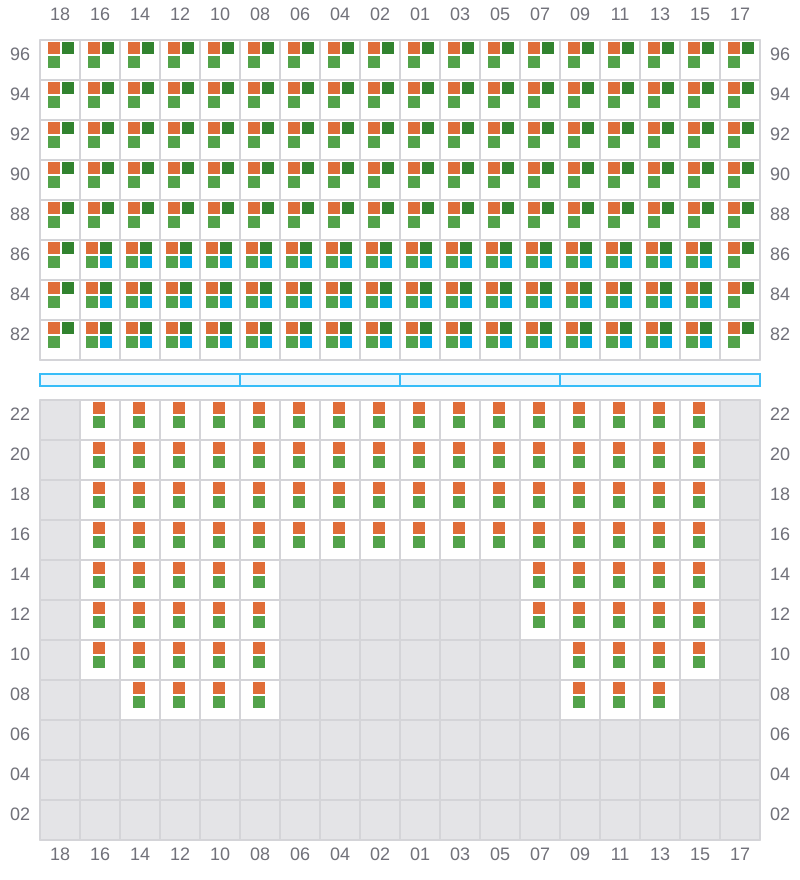

Bay 069 view and slots of CMA CGM AQUILA

071

←
^→ / _?
→

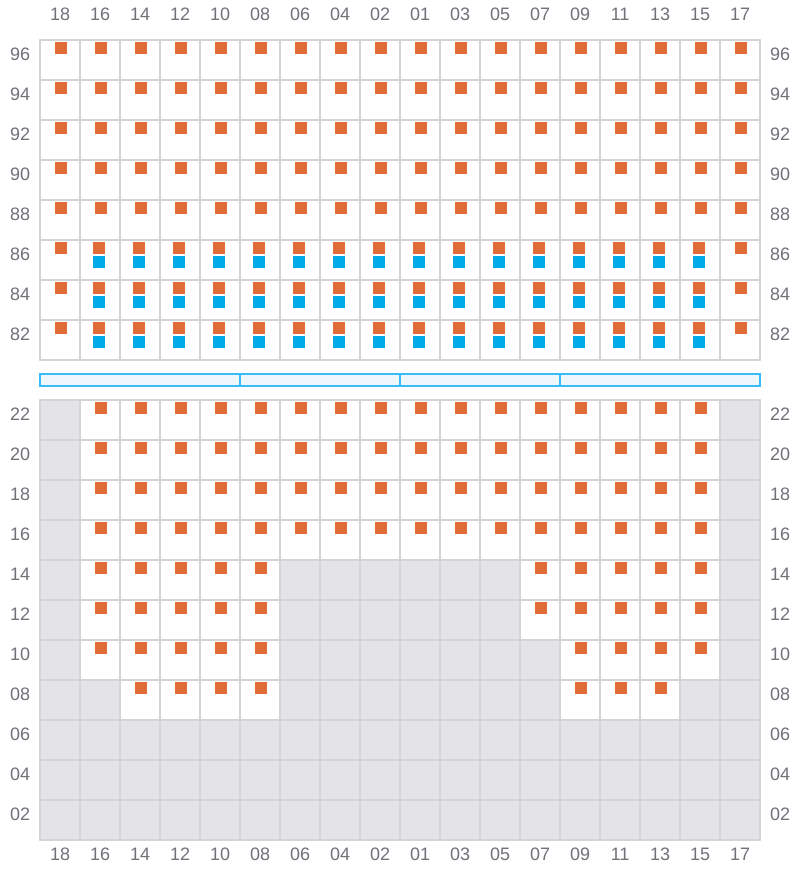

Bay 071 view and slots of CMA CGM AQUILA

073 (074)

→
^→ / _?
→

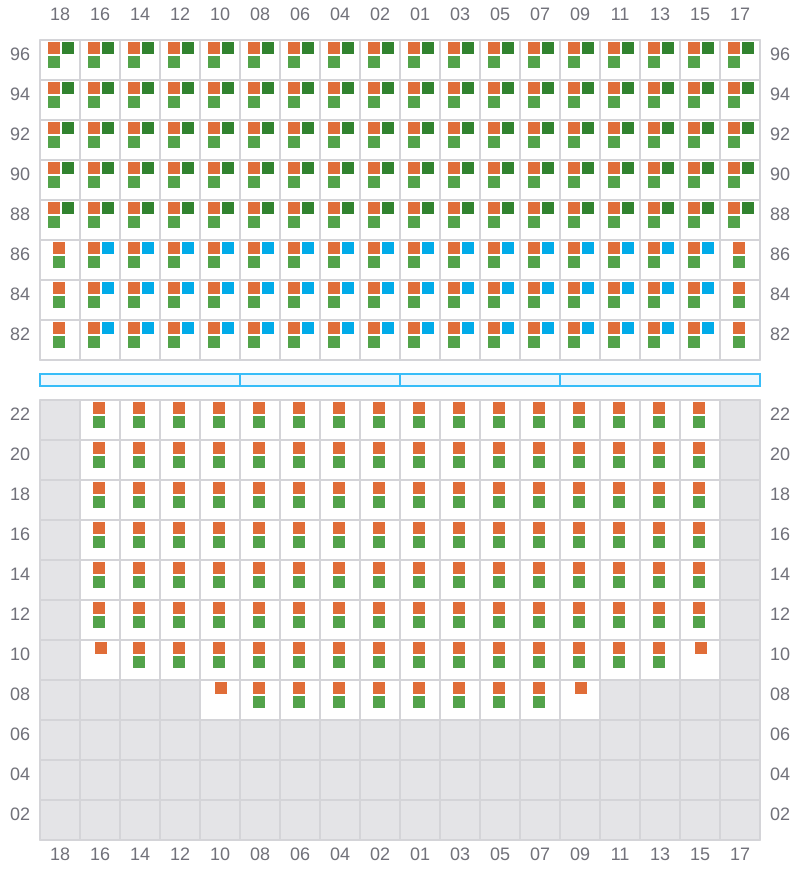

Bay 073 view and slots of CMA CGM AQUILA

075

←
^→ / _?
→

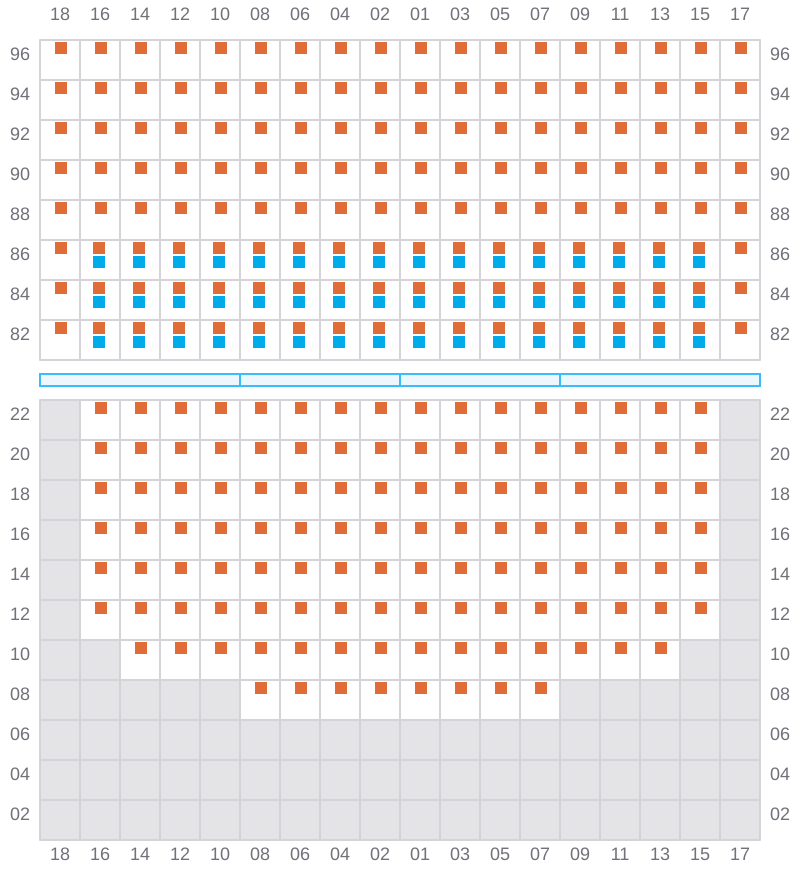

Bay 075 view and slots of CMA CGM AQUILA

077 (078)

→
^→ / _?
→

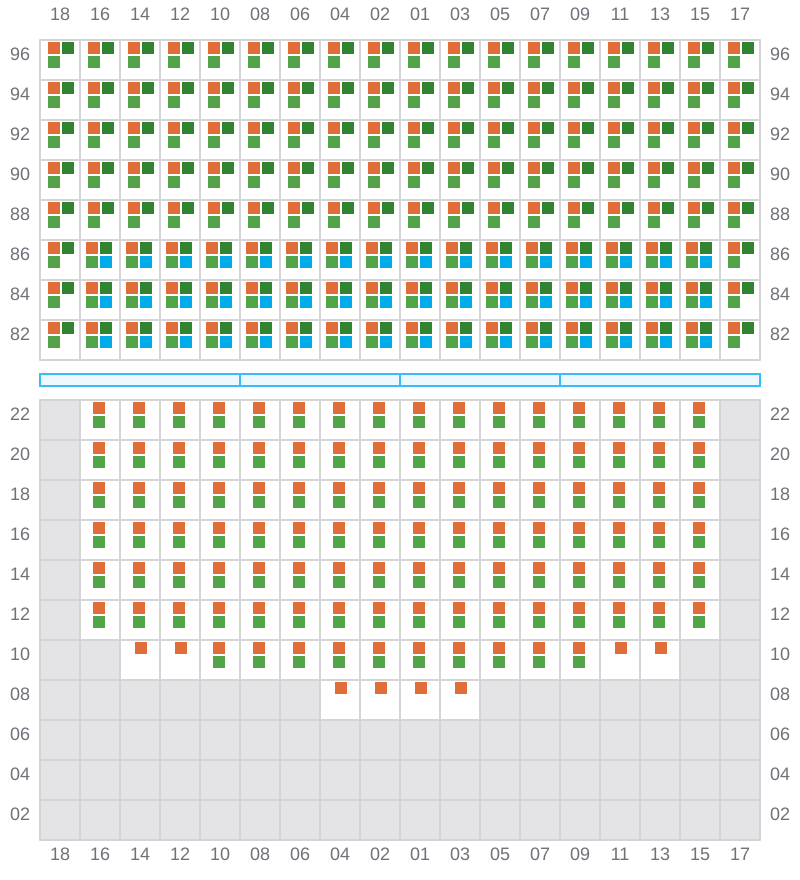

Bay 077 view and slots of CMA CGM AQUILA

079

←
^→ / _?
→

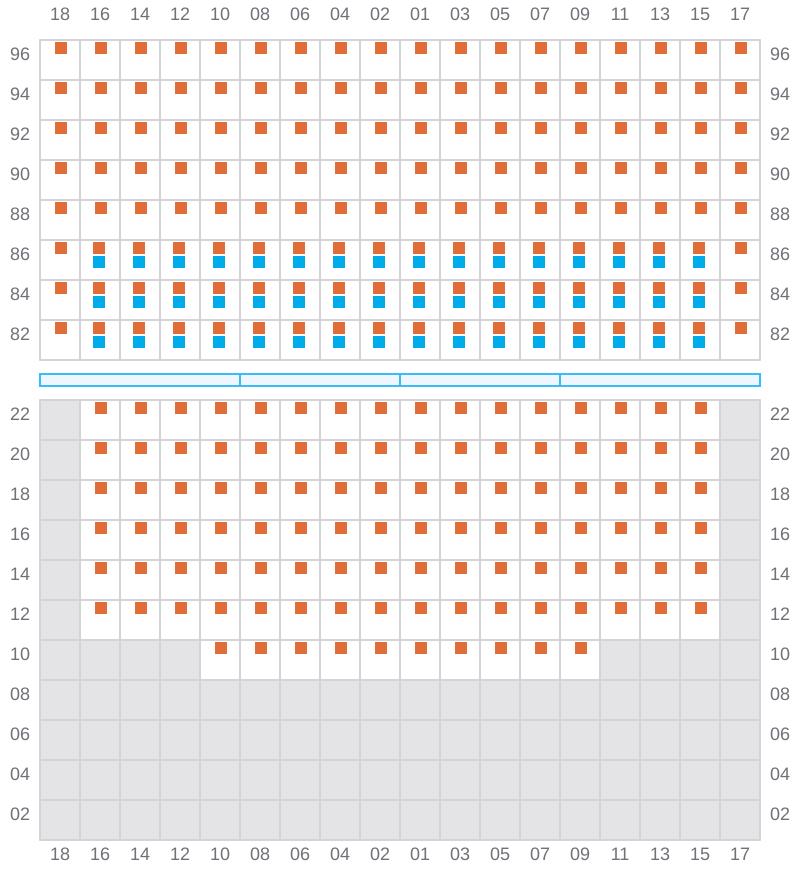

Bay 079 view and slots of CMA CGM AQUILA

081 (082)

→
^→ / _?
→

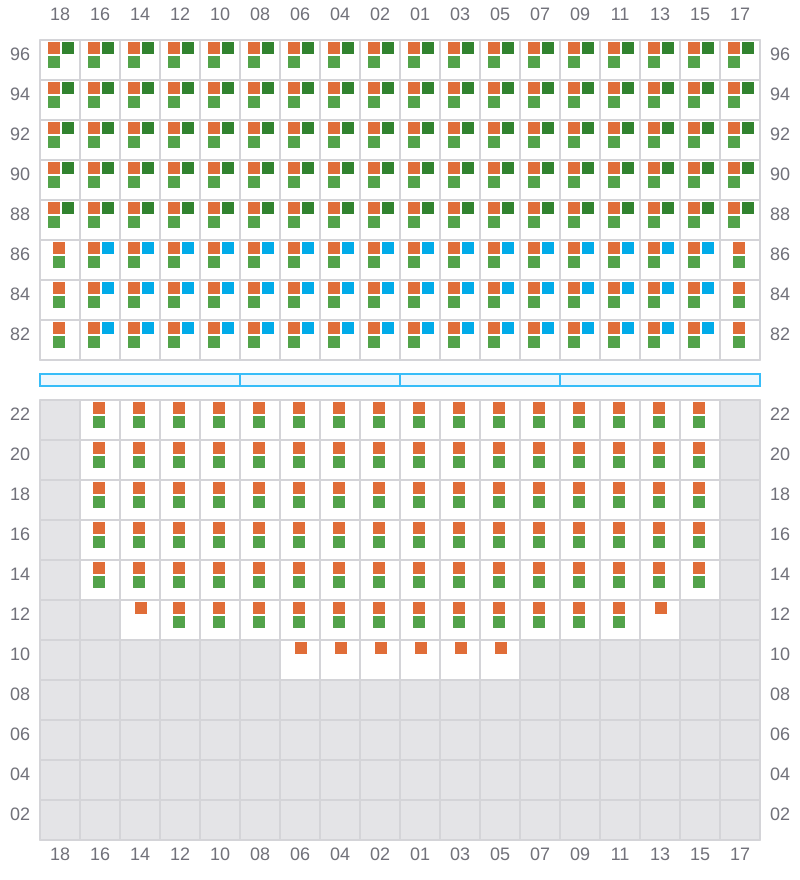

Bay 081 view and slots of CMA CGM AQUILA

083

←
^→ / _?
→

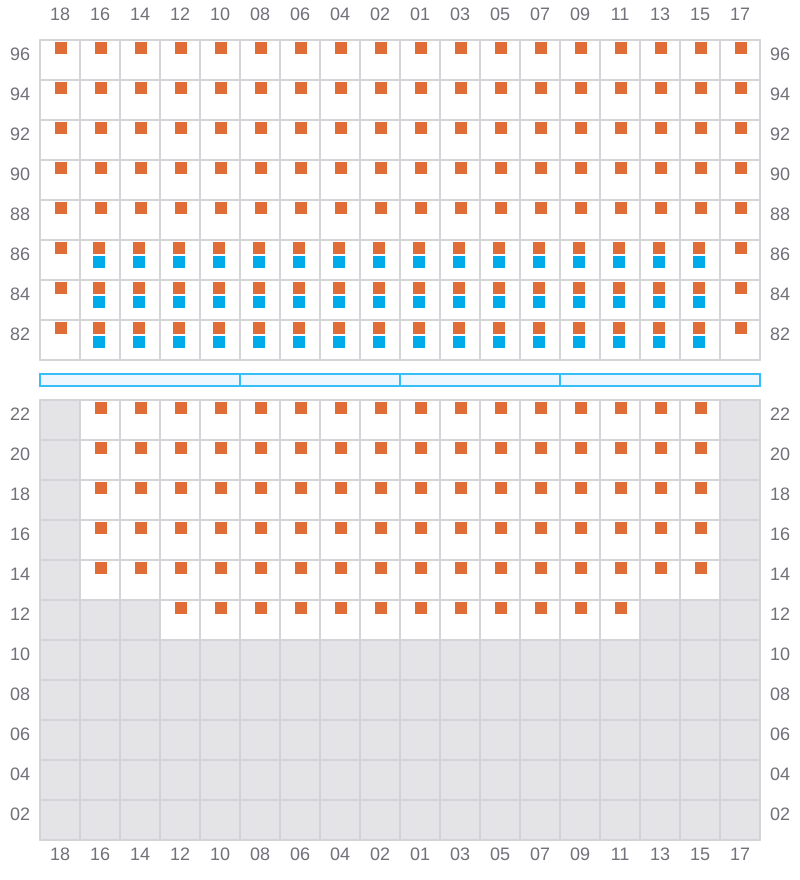

Bay 083 view and slots of CMA CGM AQUILA

085 (086)

^→ / _?
^← / _?
^→ / _?

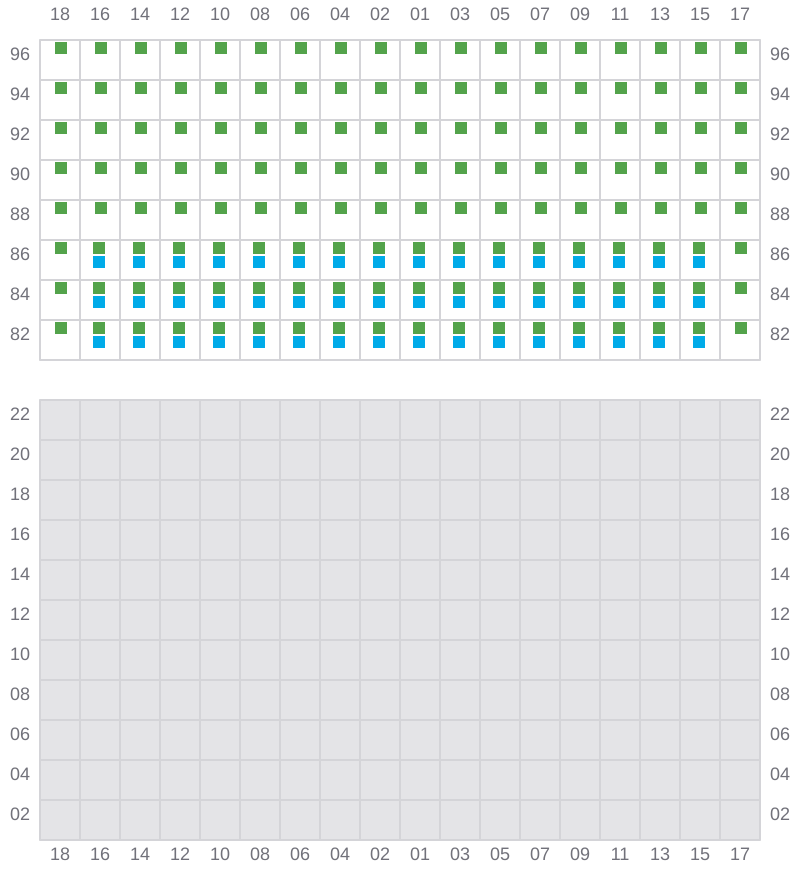

Bay 085 view and slots of CMA CGM AQUILA
