CMA CGM ATTILA
9433793 | 9HA2742 | 9433793 by ********* Last update: Thu Apr 11 2024
General Info
Ship Name:CMA CGM ATTILA
IMO Code:9433793
Call Sign:9HA2742
Line Operator:9433793
Class Name for Sister Ships:CMA CGM ATTILA
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,599
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

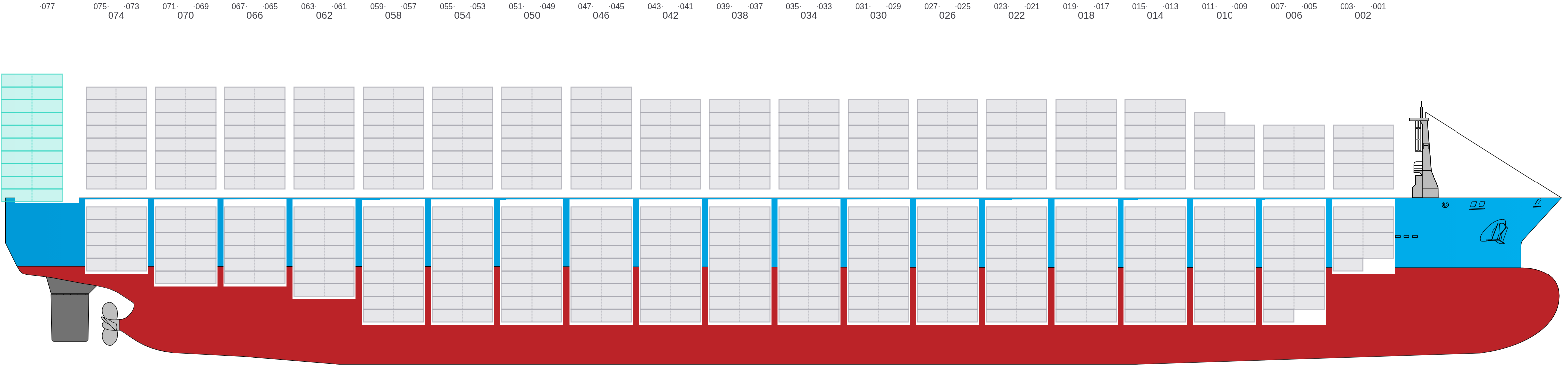

Side View
![Side view of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-sideView.png?v=1712876734056)
Hatch-Covers View
![Deck view of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-deckView.png?v=1712876734056)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

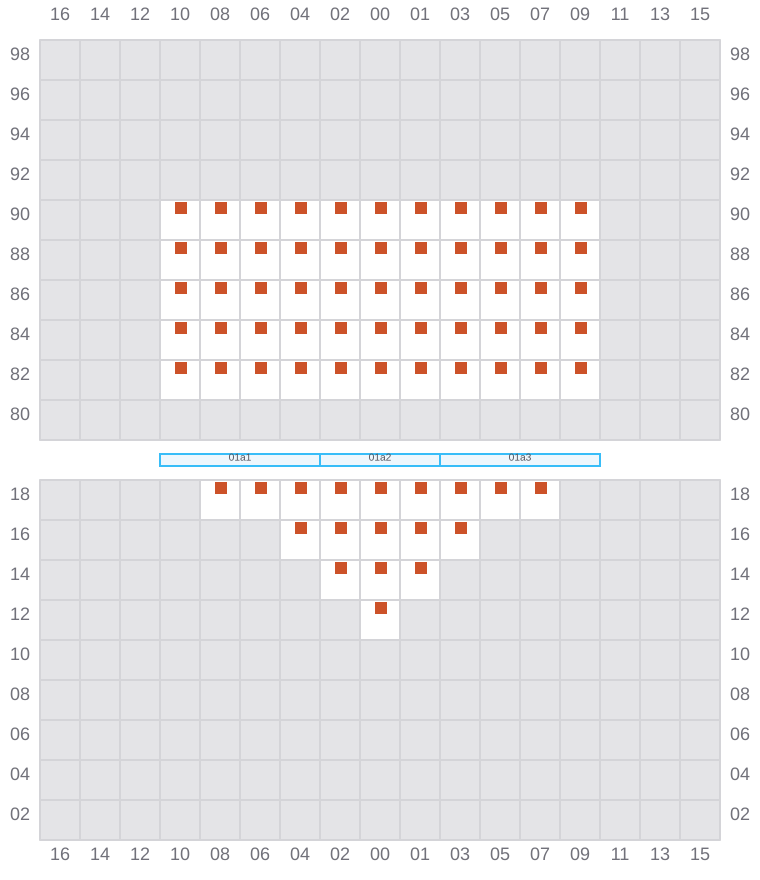

001
- →
![Bay 001 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b001.png?v=1712876734056)

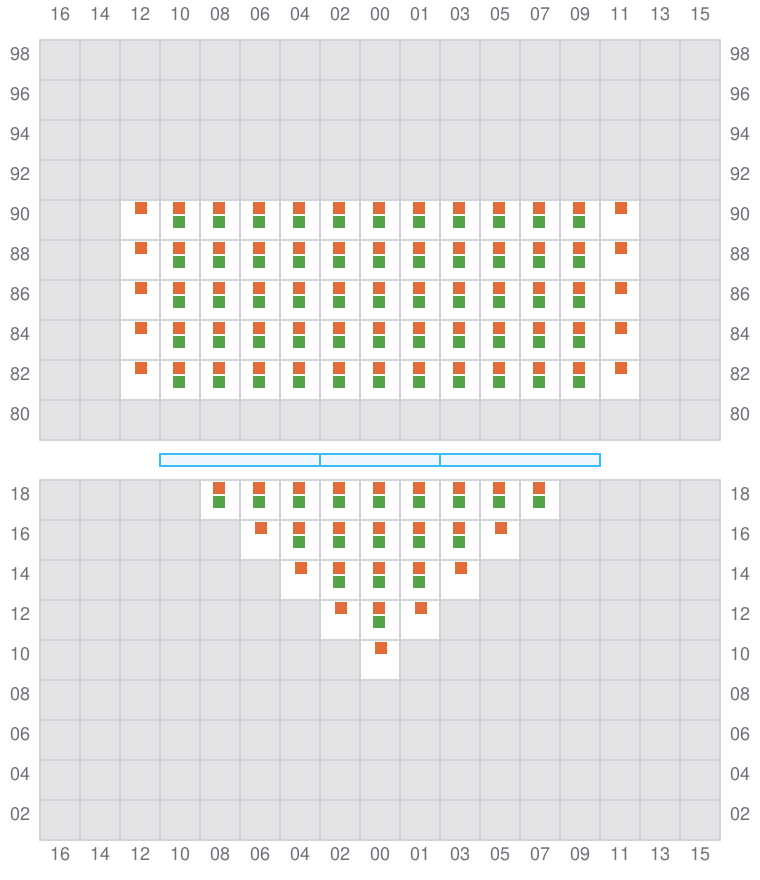

003 (002)
- ←
![Bay 003 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b003.png?v=1712876734056)

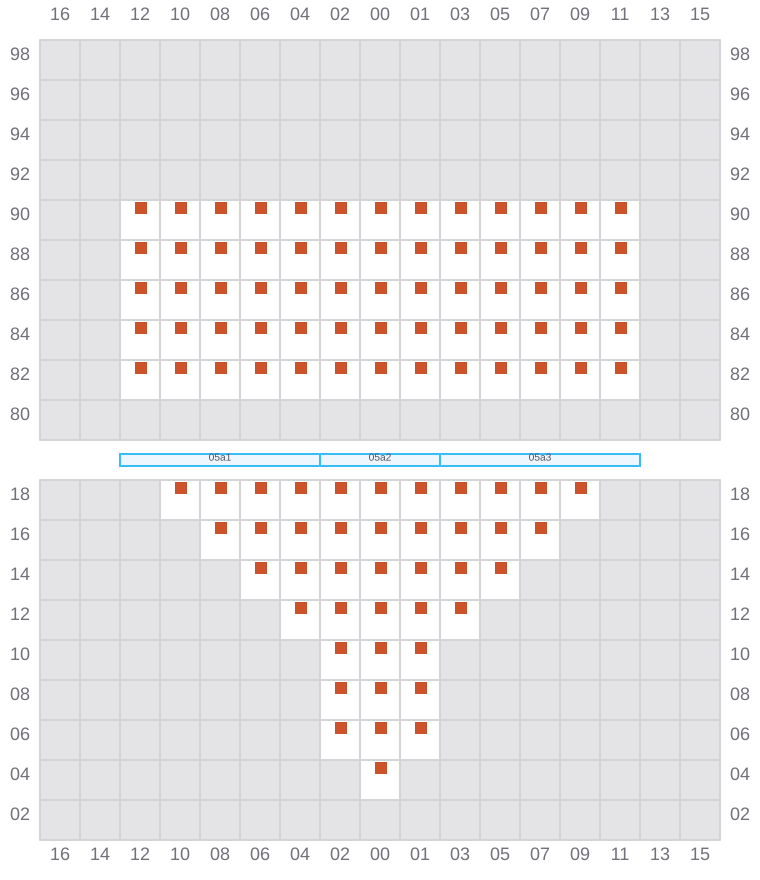

005
- →
![Bay 005 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b005.png?v=1712876734056)

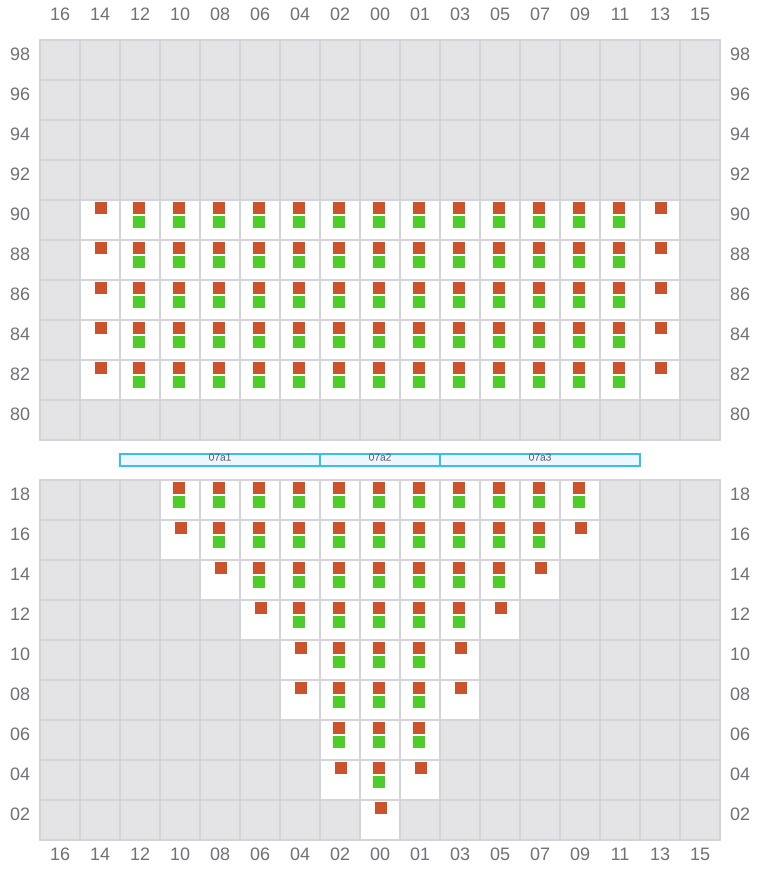

007 (006)
- ←
![Bay 007 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b007.png?v=1712876734056)

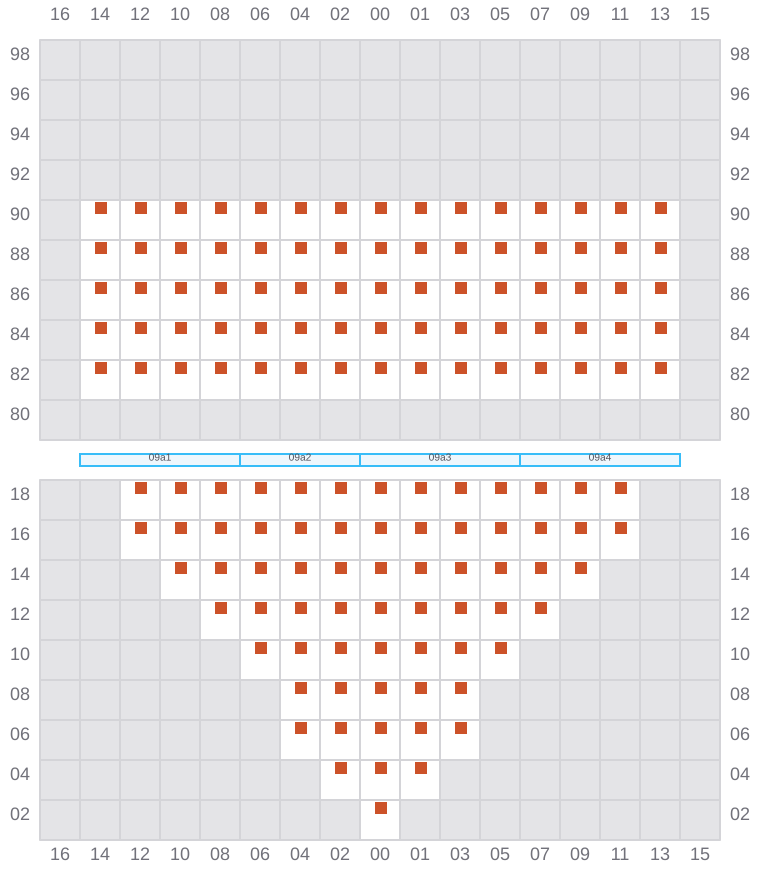

009
- →
![Bay 009 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b009.png?v=1712876734056)

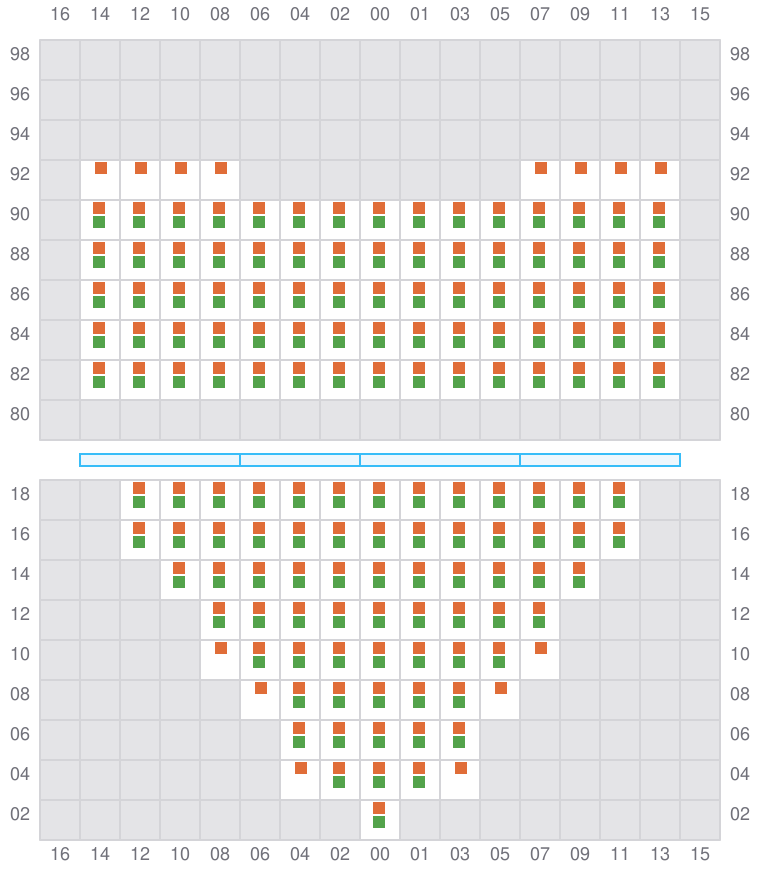

011 (010)
- ←
![Bay 011 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b011.png?v=1712876734056)

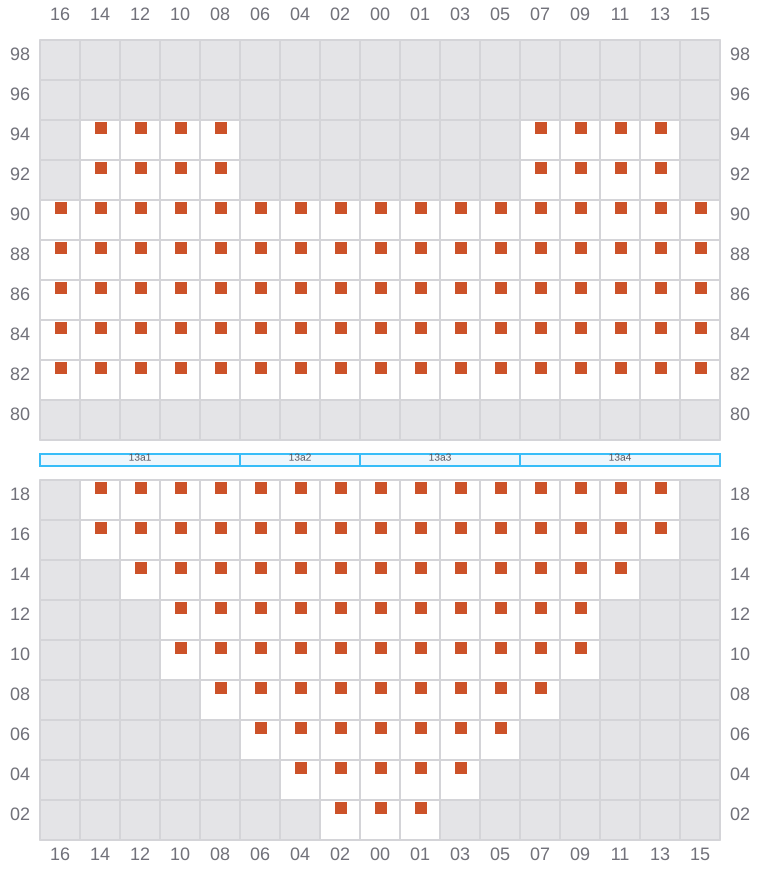

013
- →
![Bay 013 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b013.png?v=1712876734056)

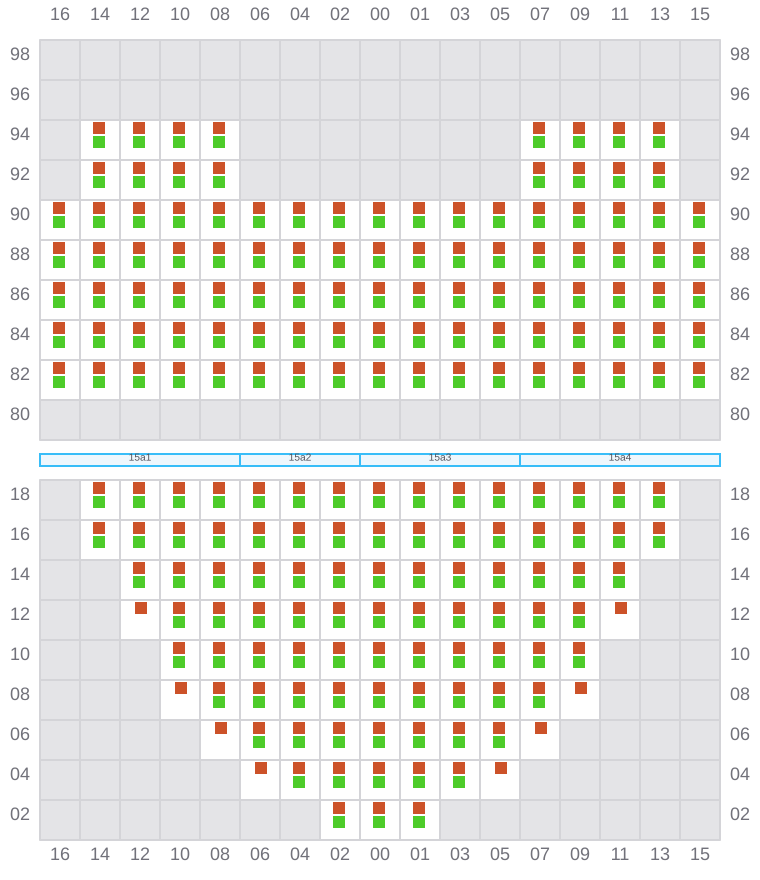

015 (014)
- ←
![Bay 015 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b015.png?v=1712876734056)

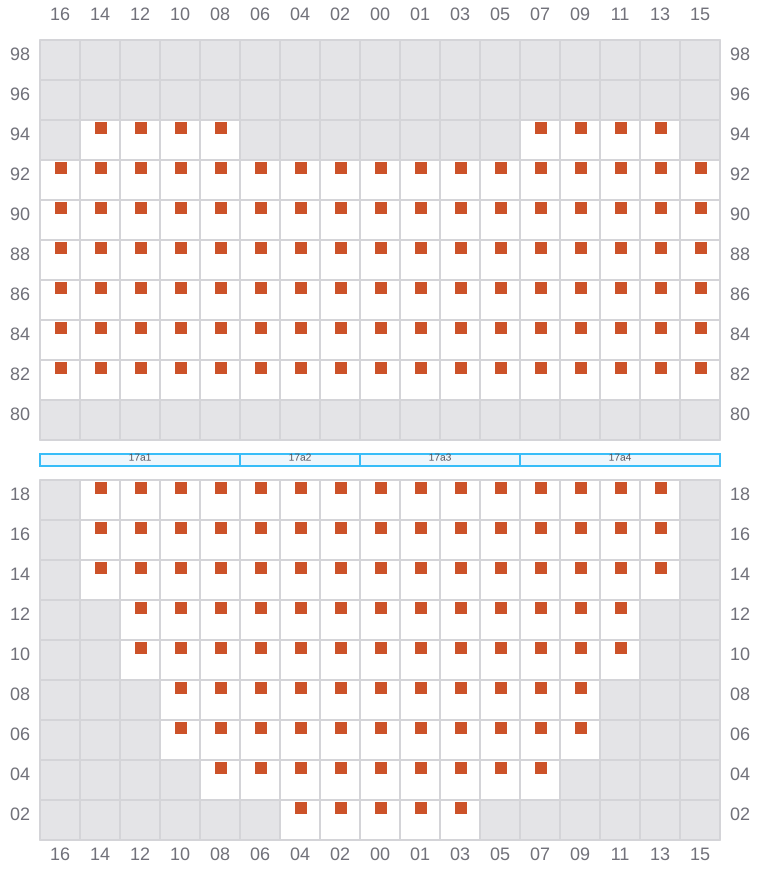

017
- →
![Bay 017 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b017.png?v=1712876734056)

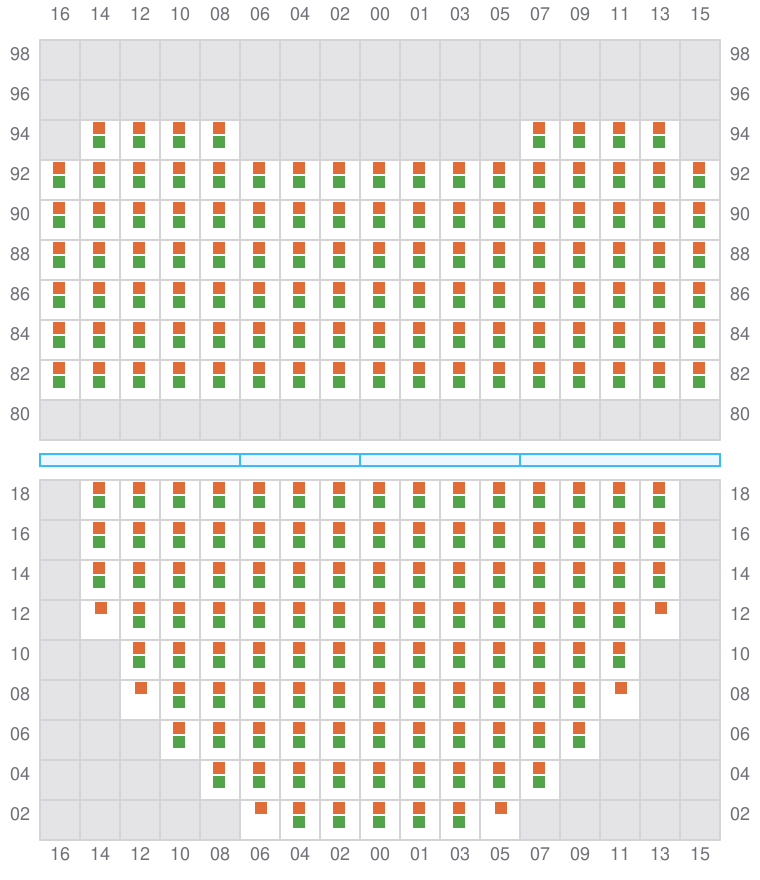

019 (018)
- ←
![Bay 019 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b019.png?v=1712876734056)

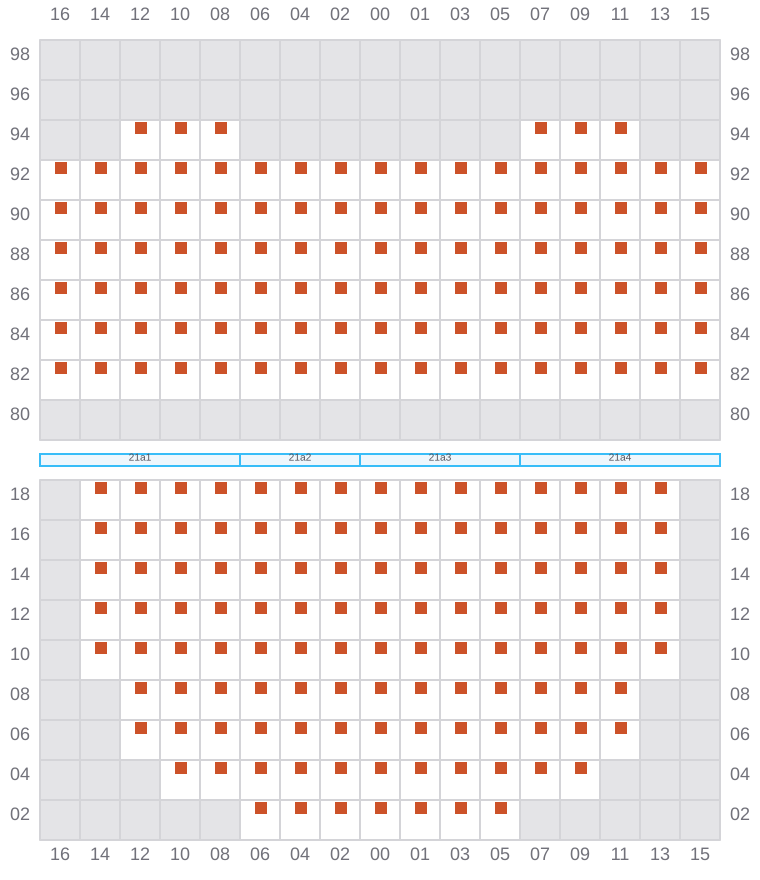

021
- →
![Bay 021 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b021.png?v=1712876734056)

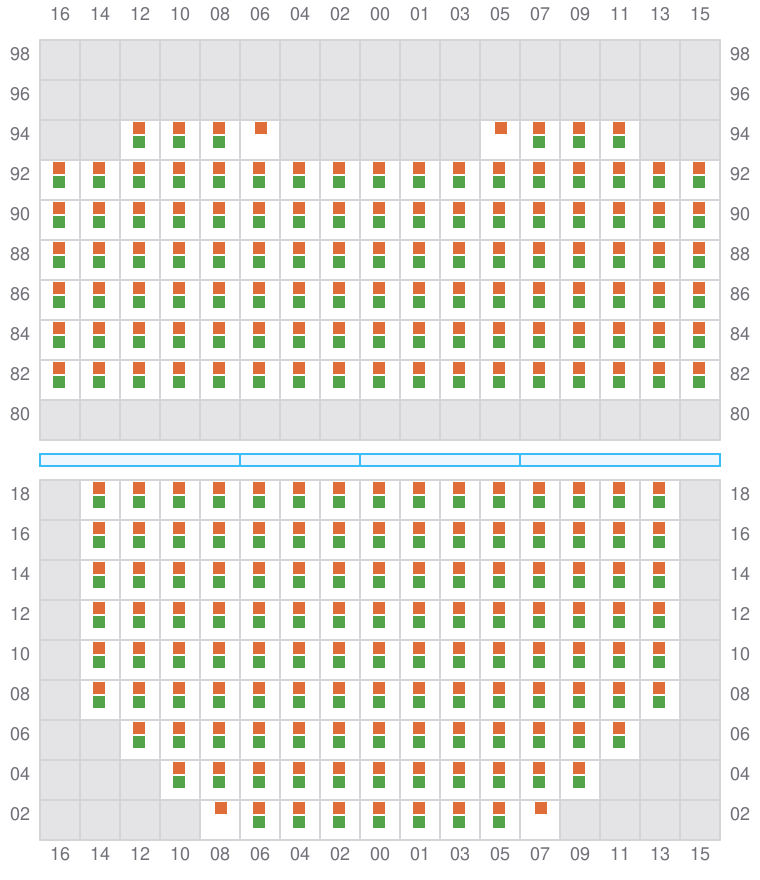

023 (022)
- ←
![Bay 023 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b023.png?v=1712876734056)

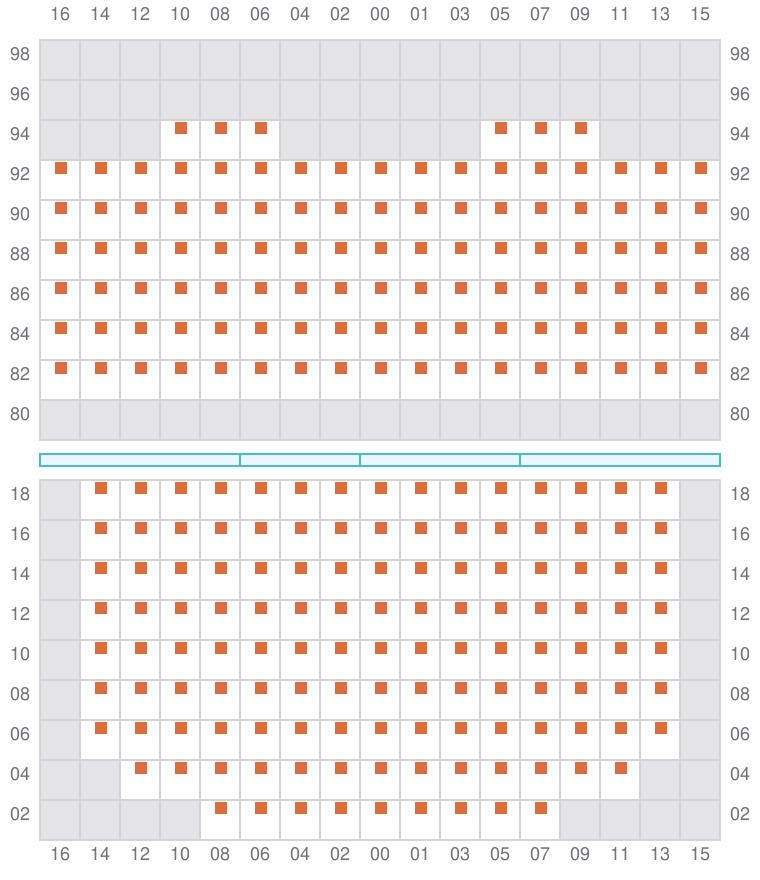

025
- →
![Bay 025 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b025.png?v=1712876734056)

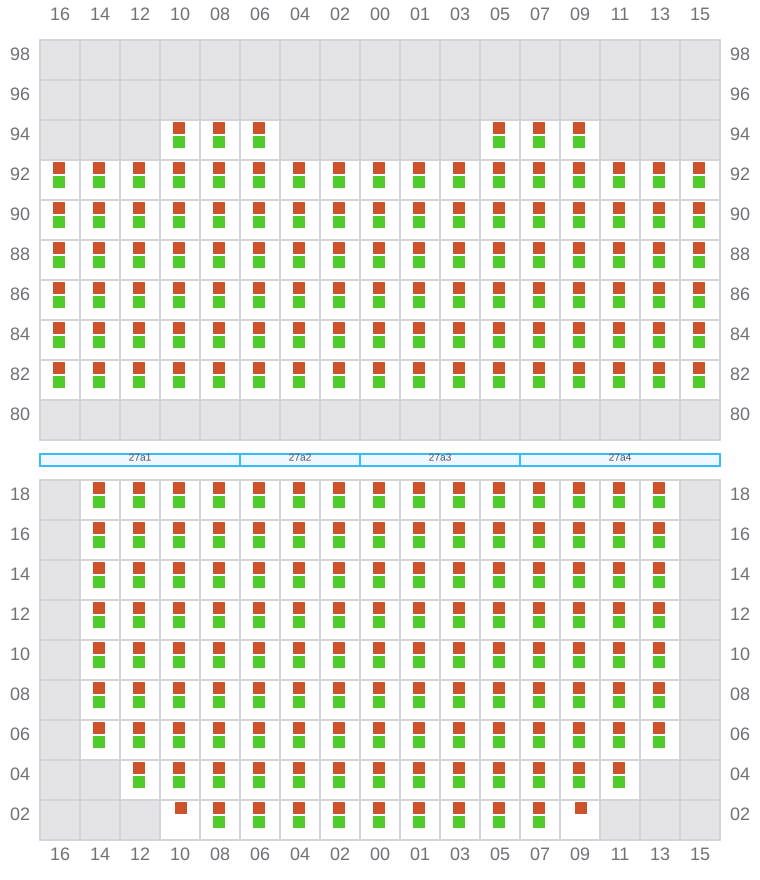

027 (026)
- ←
![Bay 027 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b027.png?v=1712876734056)

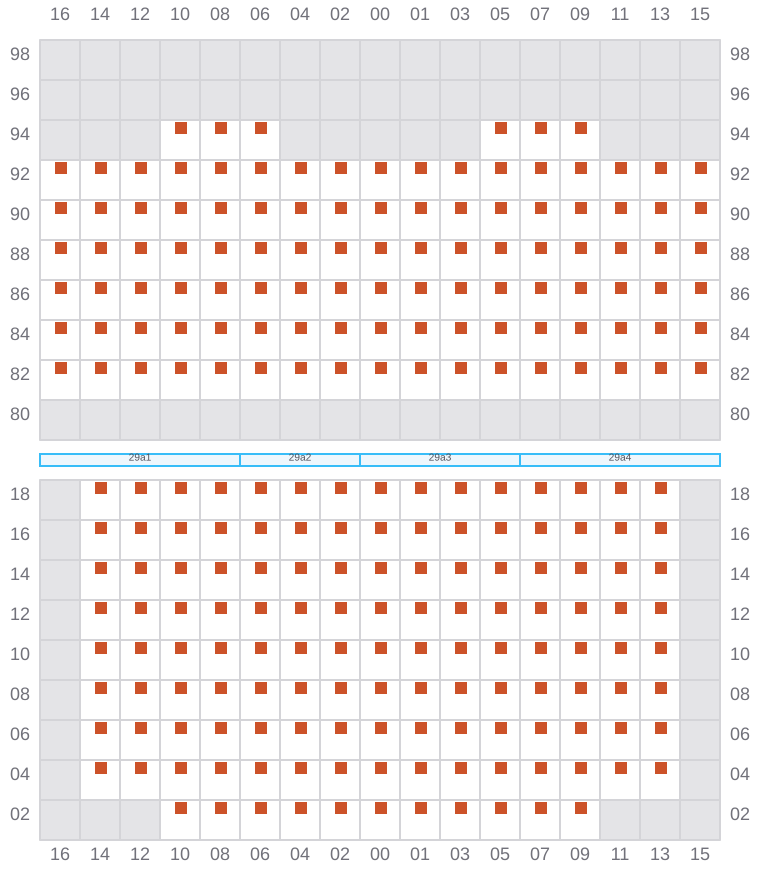

029
- →
![Bay 029 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b029.png?v=1712876734056)

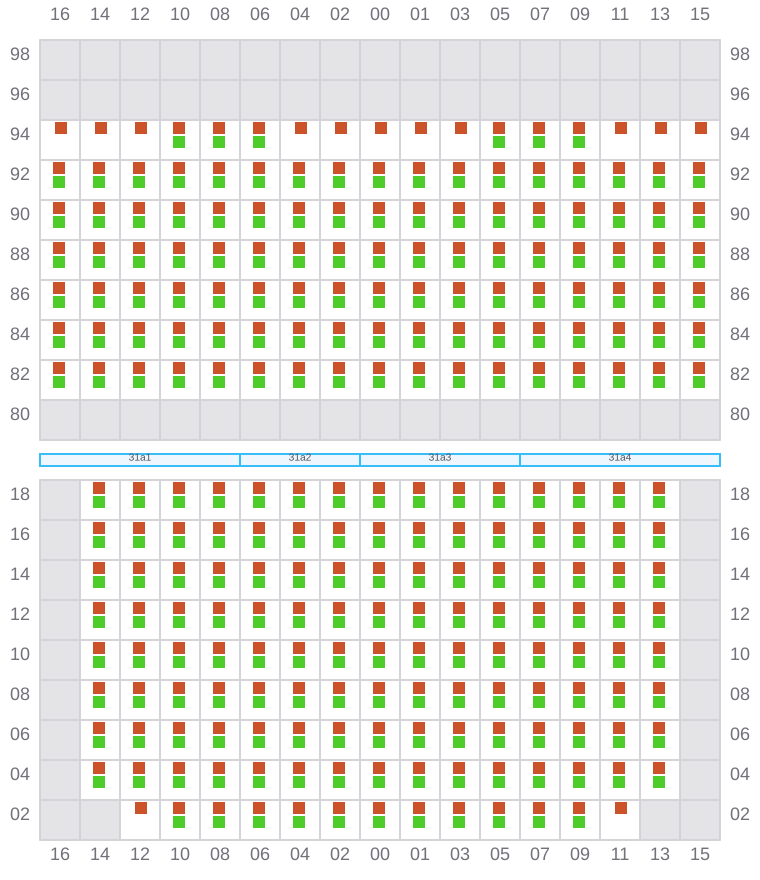

031 (030)
- ←
![Bay 031 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b031.png?v=1712876734056)

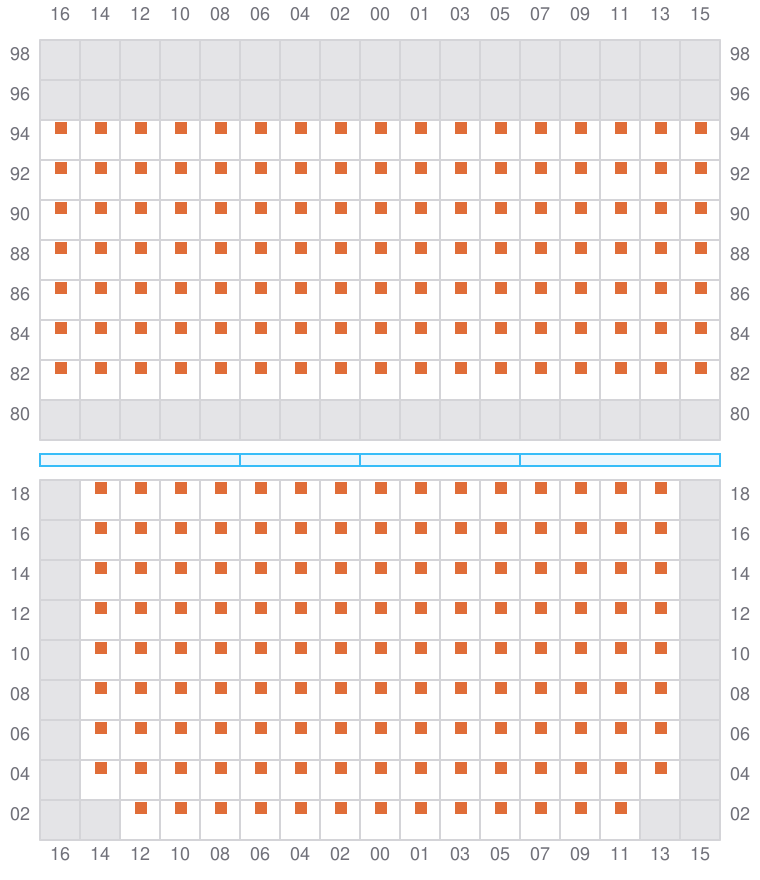

033
- →
![Bay 033 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b033.png?v=1712876734056)
035 (034)
- ←
![Bay 035 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b035.png?v=1712876734056)

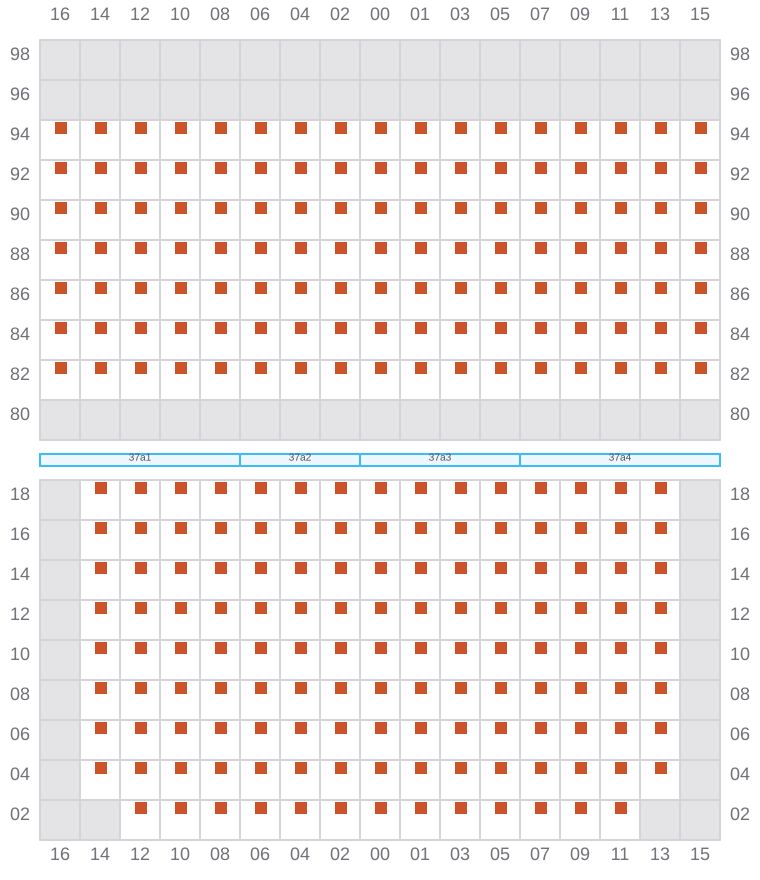

037
- →
![Bay 037 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b037.png?v=1712876734056)

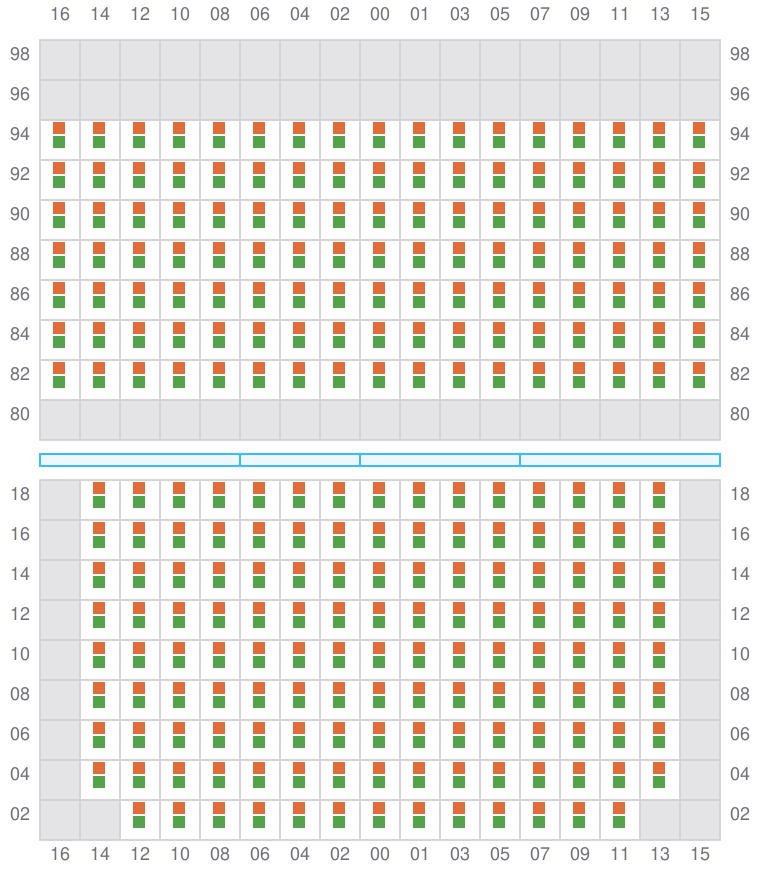

039 (038)
- ←
![Bay 039 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b039.png?v=1712876734056)
041
- →
![Bay 041 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b041.png?v=1712876734056)

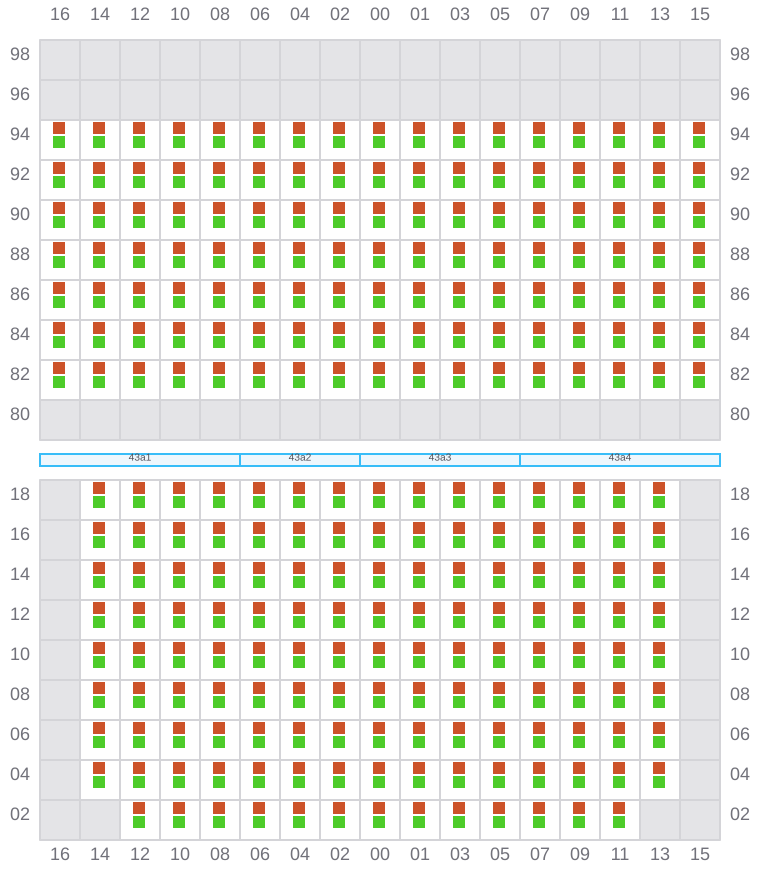

043 (042)
- ←
![Bay 043 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b043.png?v=1712876734056)

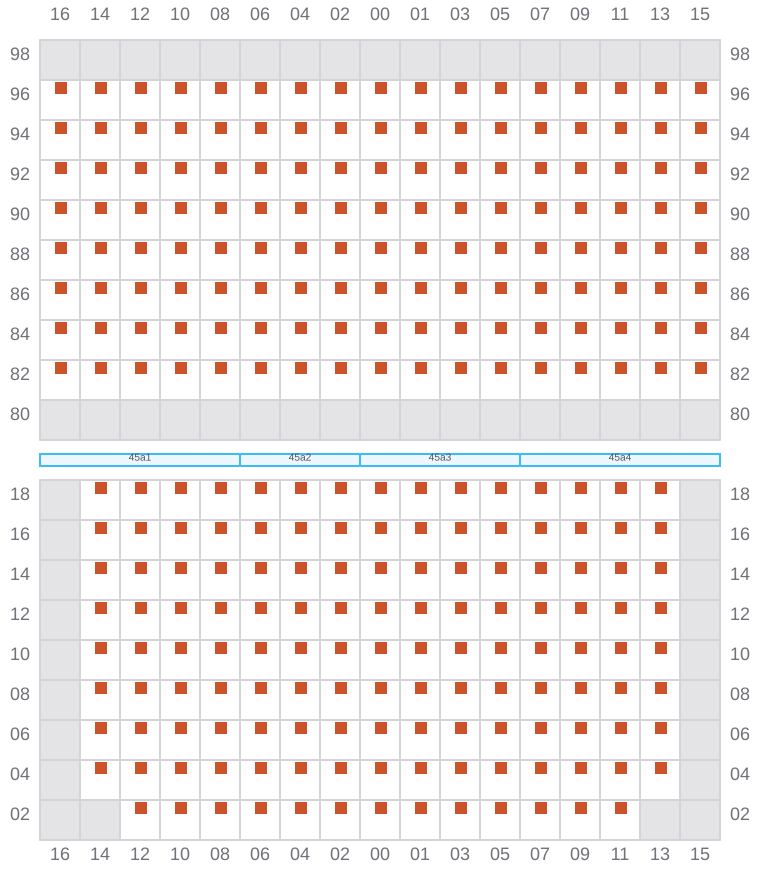

045
- →
![Bay 045 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b045.png?v=1712876734056)

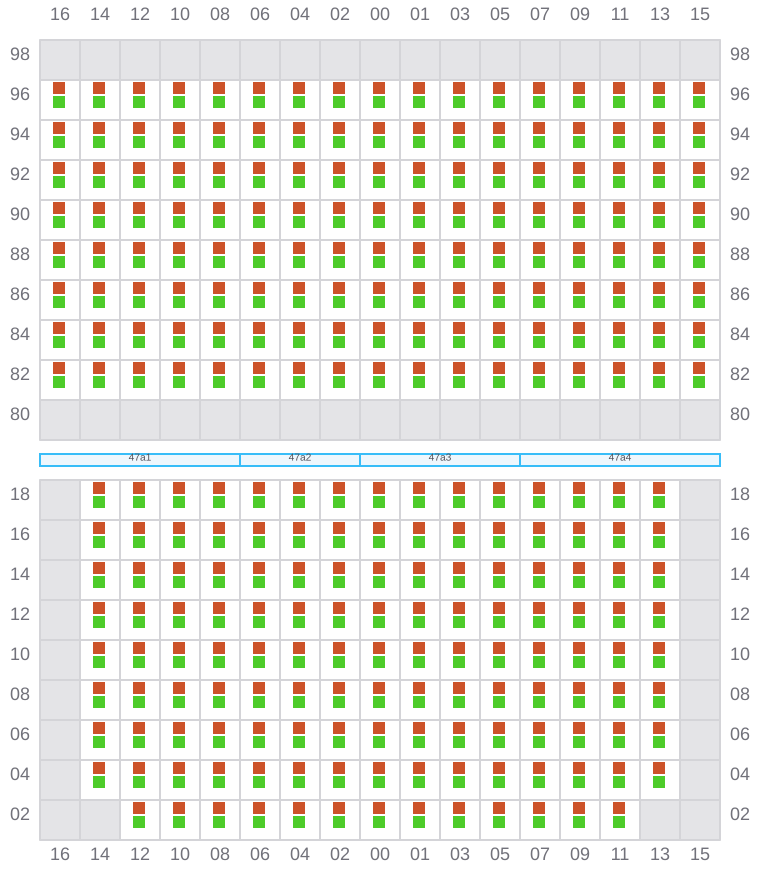

047 (046)
- ←
![Bay 047 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b047.png?v=1712876734056)

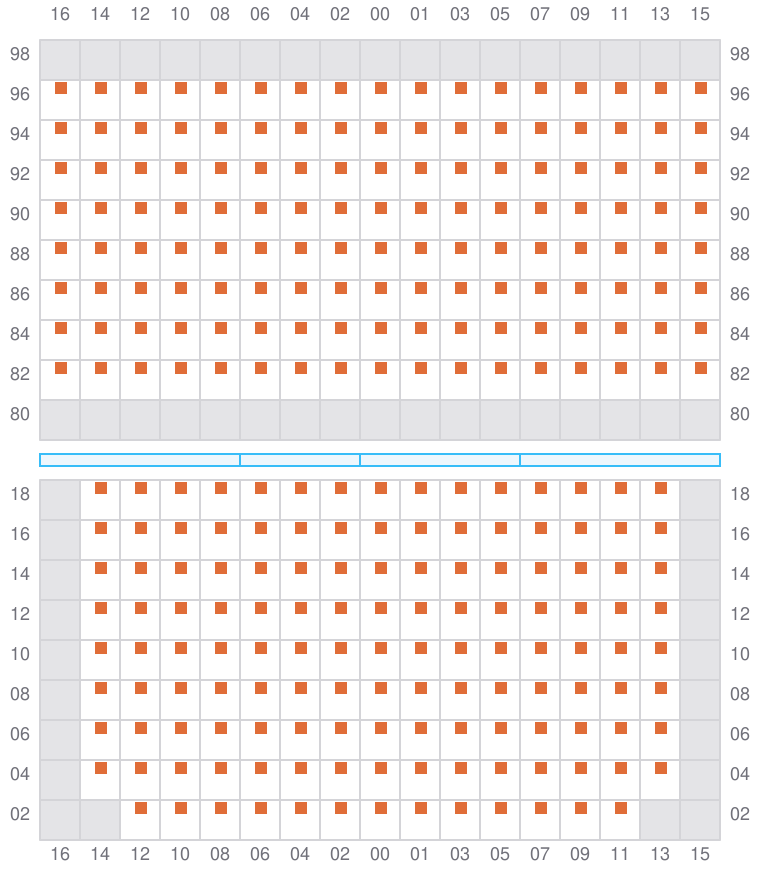

049
- →
![Bay 049 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b049.png?v=1712876734056)

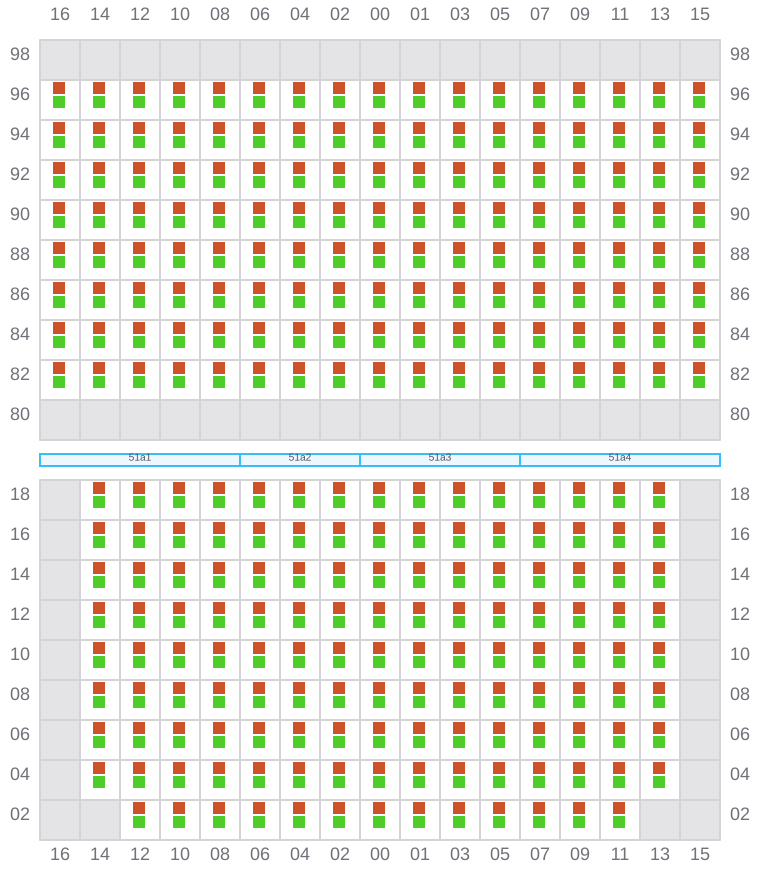

051 (050)
- ←
![Bay 051 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b051.png?v=1712876734056)
053
- →
![Bay 053 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b053.png?v=1712876734056)

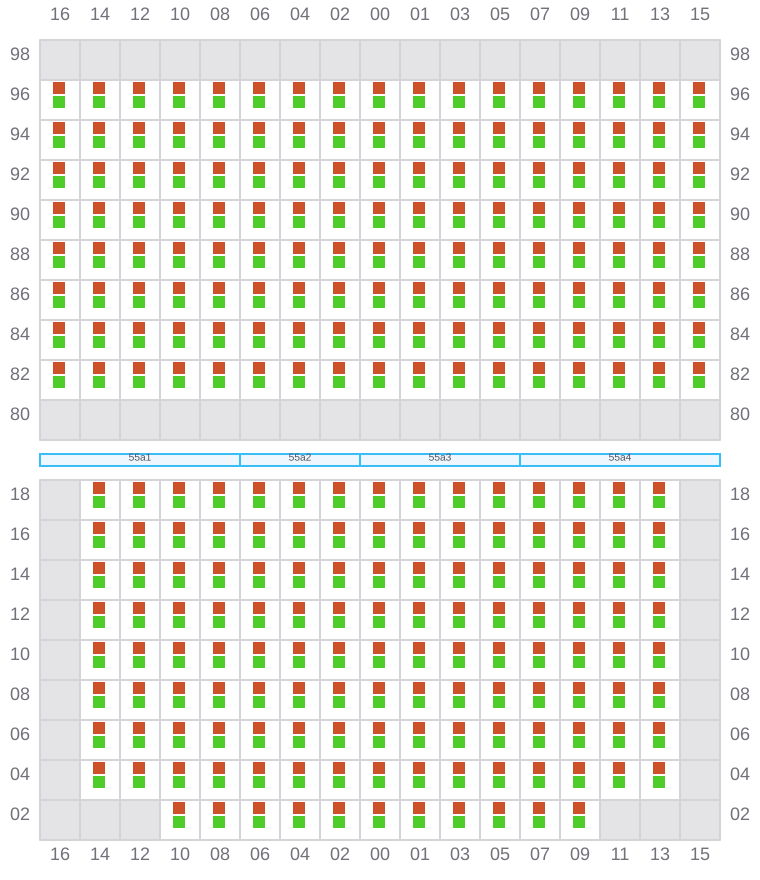

055 (054)
- ←
![Bay 055 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b055.png?v=1712876734056)

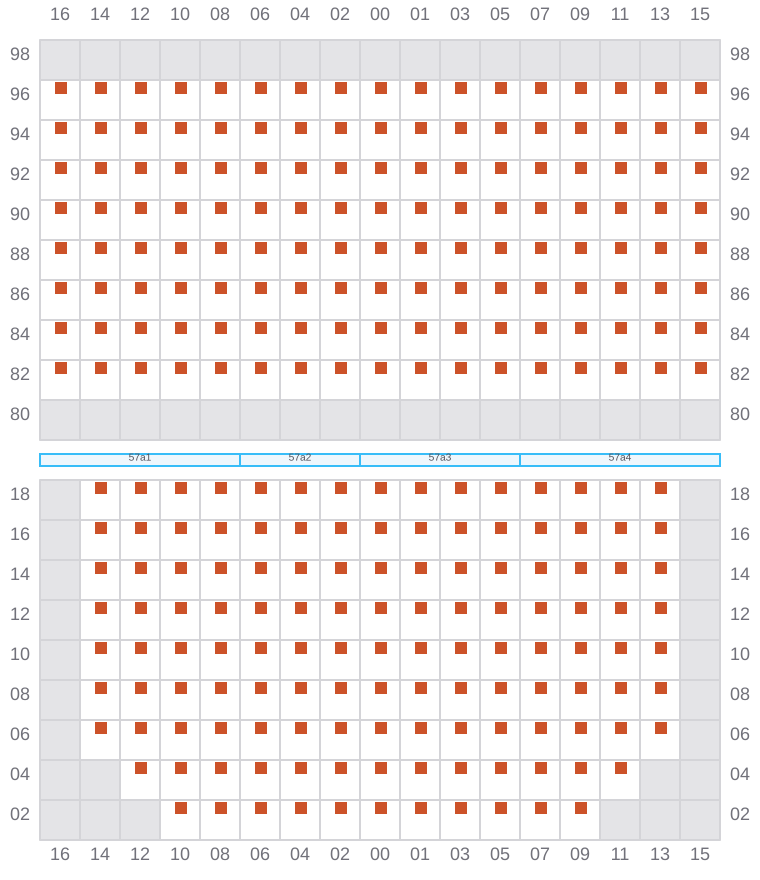

057
- →
![Bay 057 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b057.png?v=1712876734056)

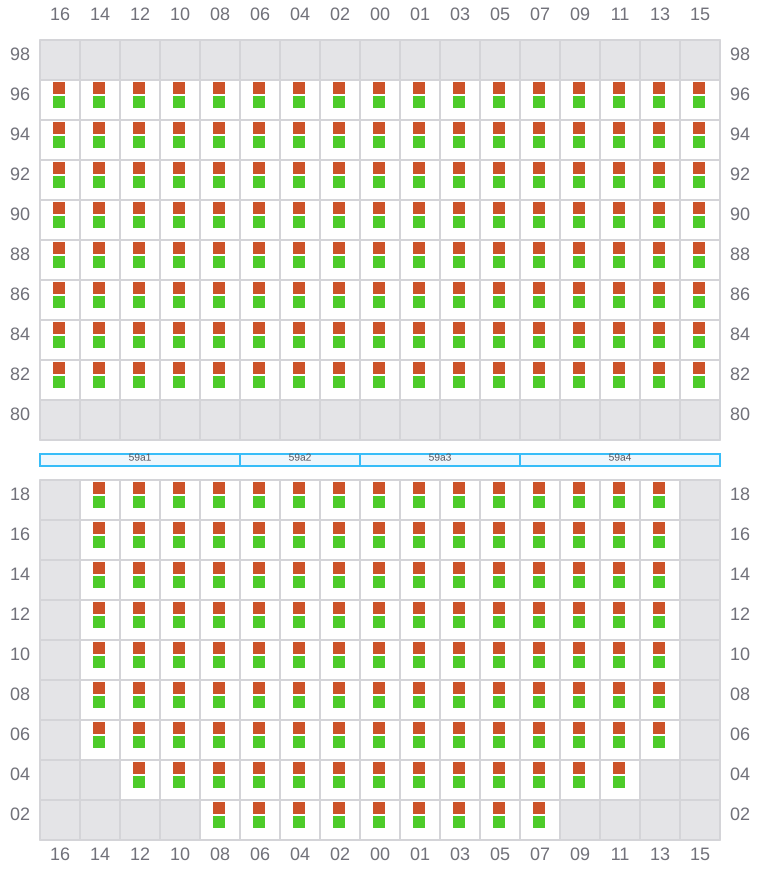

059 (058)
- ←
![Bay 059 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b059.png?v=1712876734056)

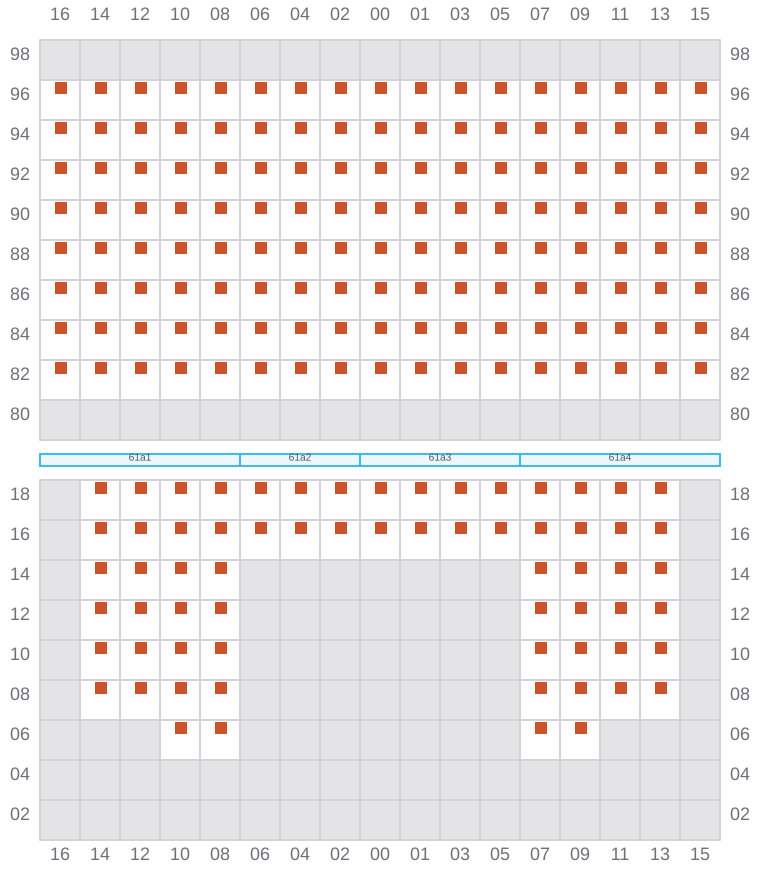

061
- →
![Bay 061 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b061.png?v=1712876734056)

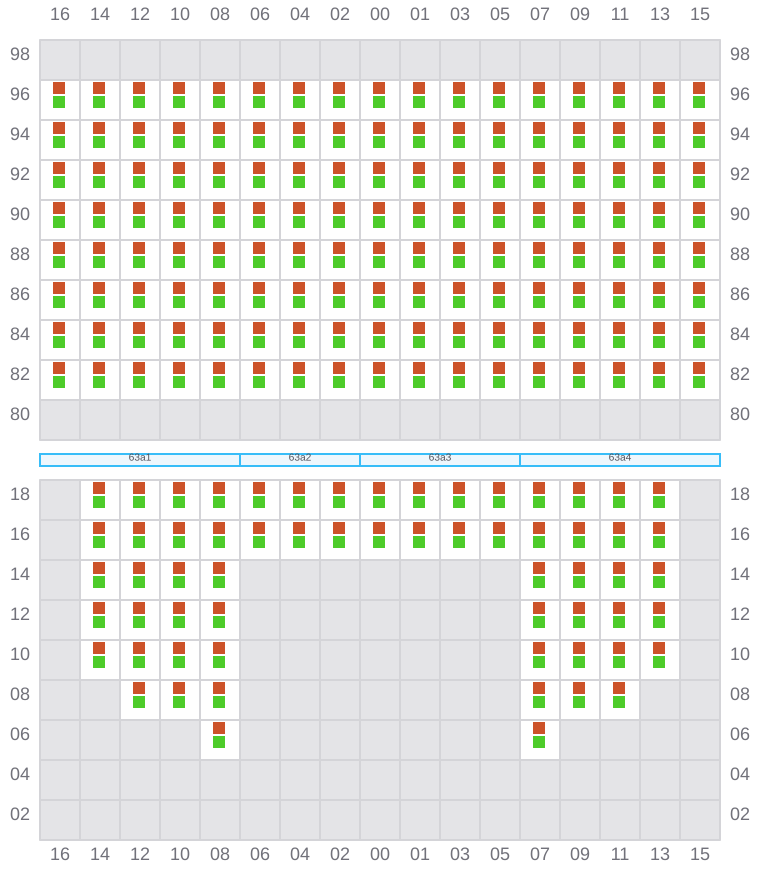

063 (062)
- ←
![Bay 063 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b063.png?v=1712876734056)

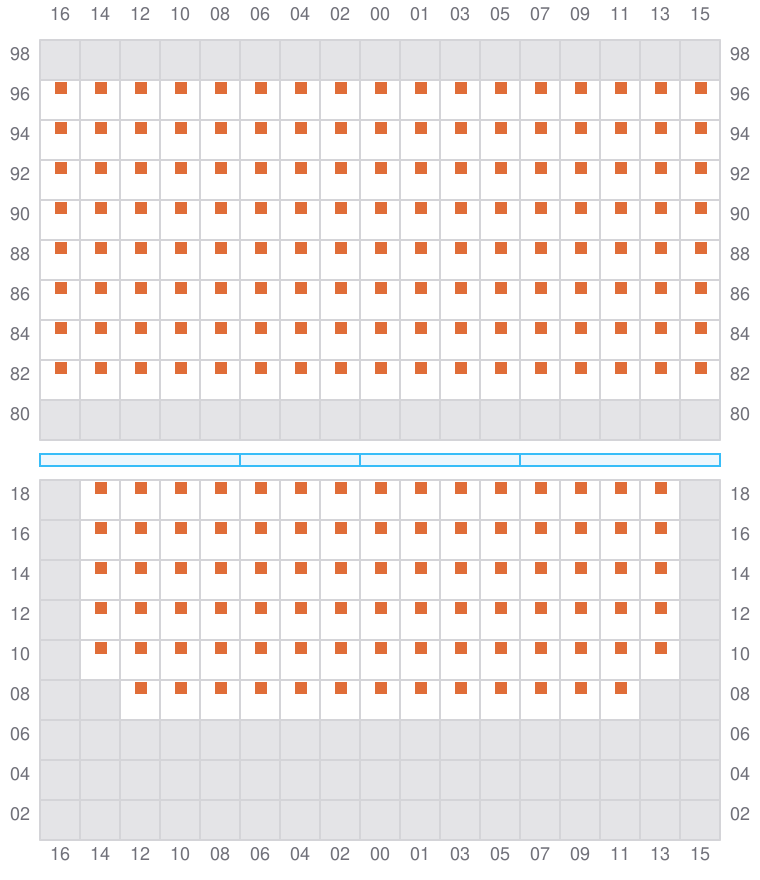

065
- →
![Bay 065 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b065.png?v=1712876734056)

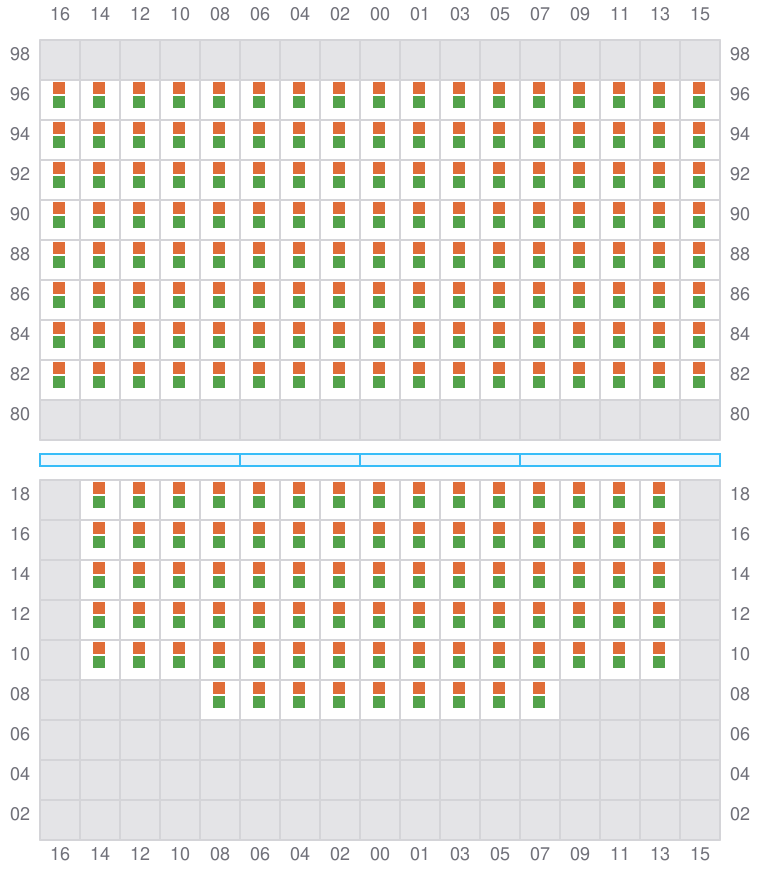

067 (066)
- ←
![Bay 067 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b067.png?v=1712876734056)

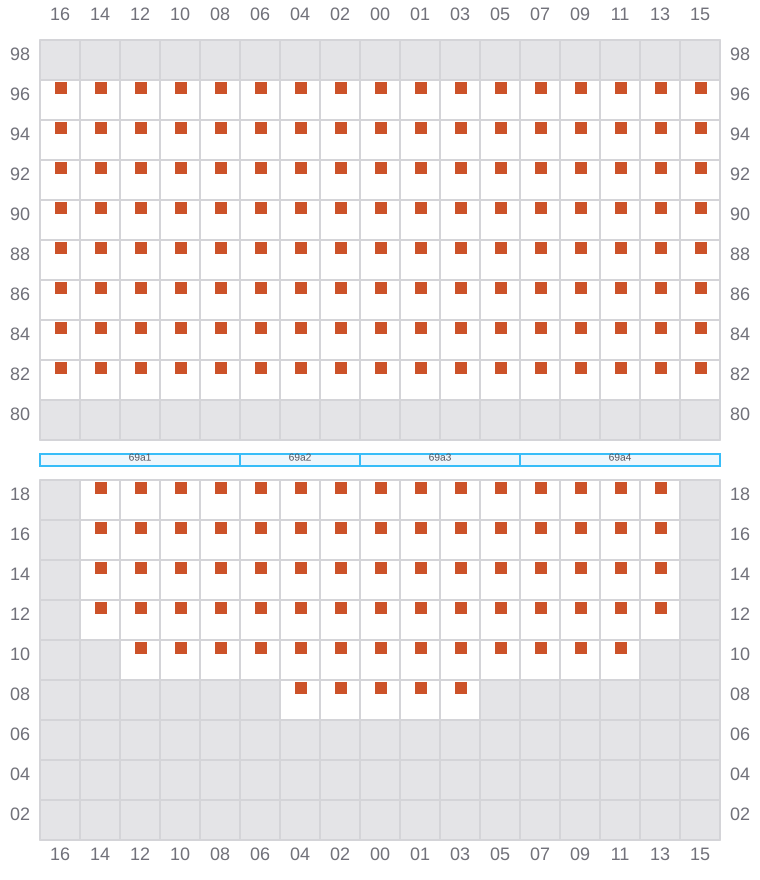

069
- →
![Bay 069 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b069.png?v=1712876734056)

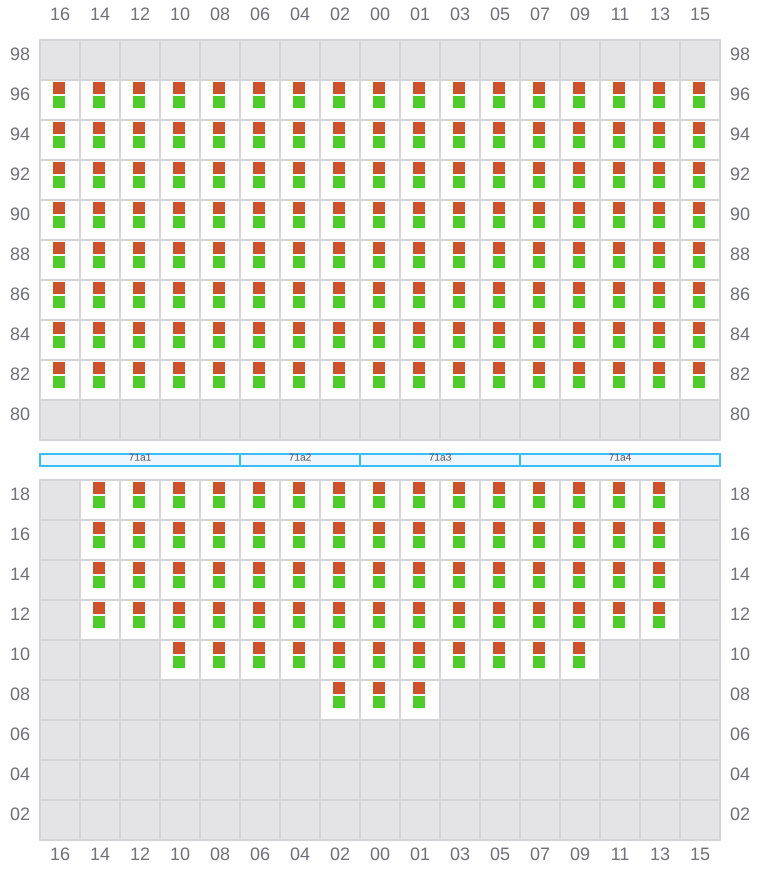

071 (070)
- ←
![Bay 071 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b071.png?v=1712876734056)

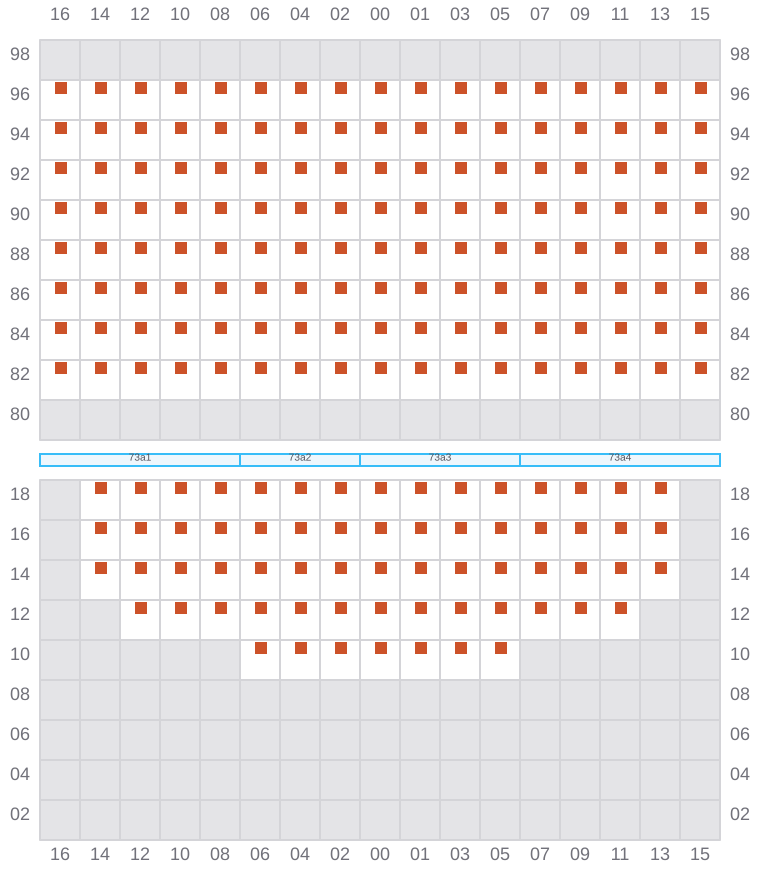

073
- →
![Bay 073 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b073.png?v=1712876734056)

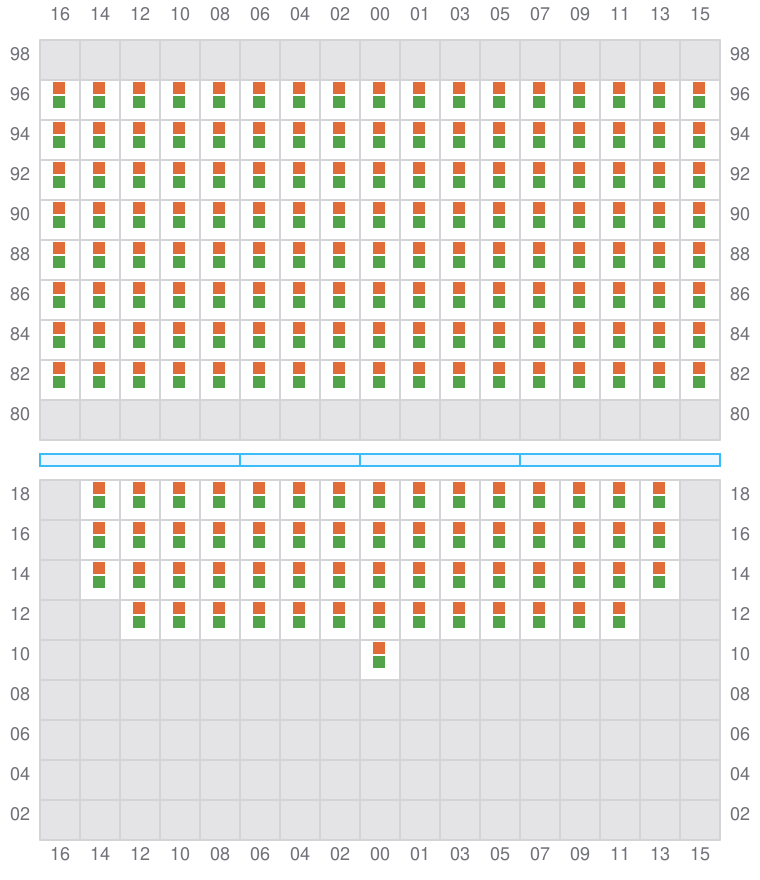

075 (074)
- ←
![Bay 075 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b075.png?v=1712876734056)

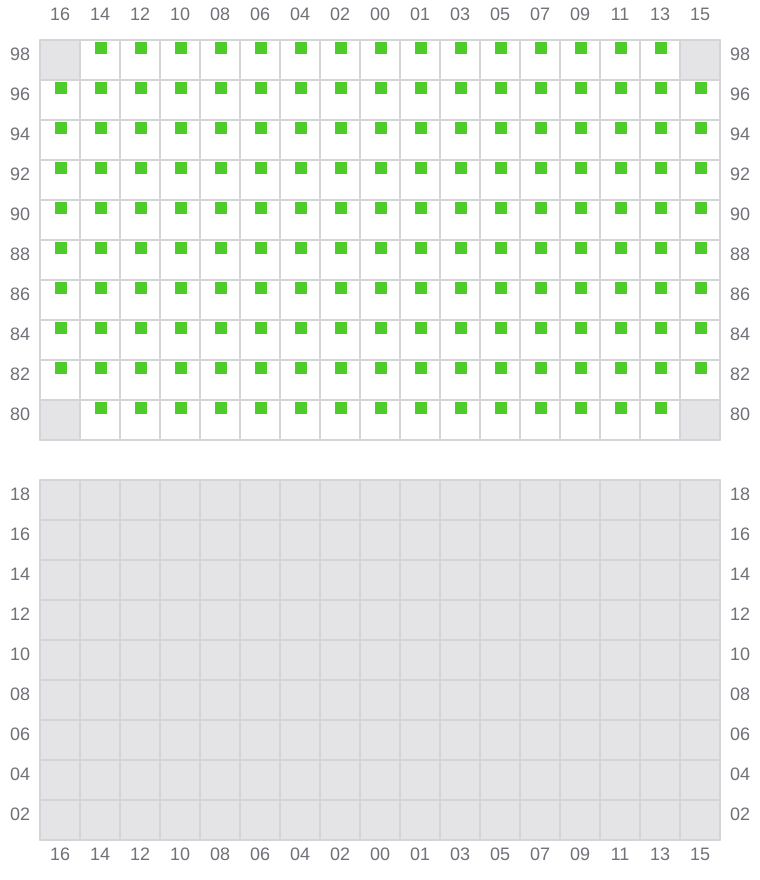

077 (078)
- → / ?
![Bay 077 view and slots of CMA CGM ATTILA](/vessel-images/e4673bb0-8871-40a3-bd38-c7ca3756ea72-b077.png?v=1712876734056)
