CMA CGM BALBOA
9344655 | 9HA5511 | CMA by ************************** Last update: Fri Jun 23 2023
General Info
Ship Name:CMA CGM BALBOA
IMO Code:9344655
Call Sign:9HA5511
Line Operator:CMA
Class Name for Sister Ships:BBA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):175.00
LOA (Length Overall):186.39
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,841
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-sideView.png?v=1687545312693)
Hatch-Covers View
![Deck view of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-deckView.png?v=1687545312693)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

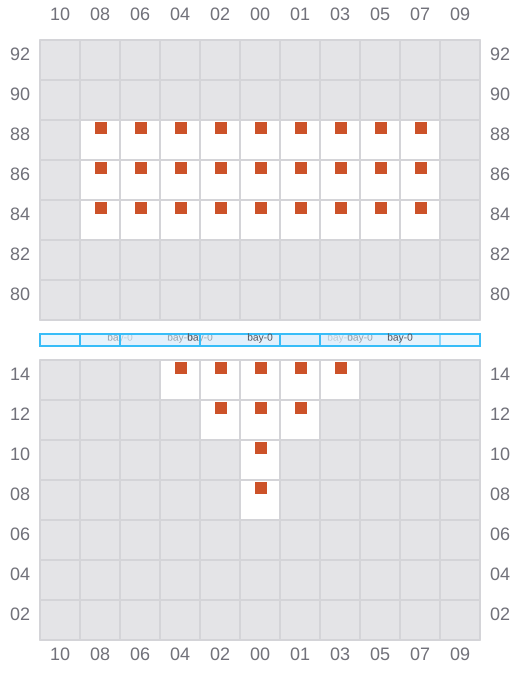

001
- ←
![Bay 001 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b001.png?v=1687545312693)

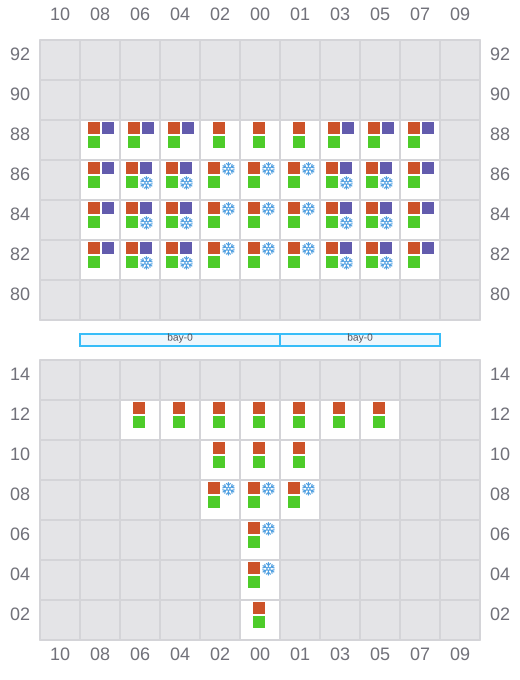

003 (004)
- →
![Bay 003 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b003.png?v=1687545312693)
005
- ←
![Bay 005 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b005.png?v=1687545312693)

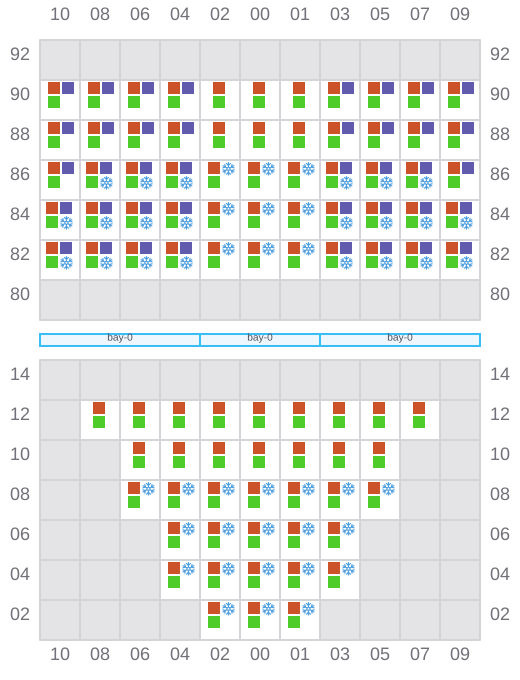

007 (008)
- →
![Bay 007 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b007.png?v=1687545312693)

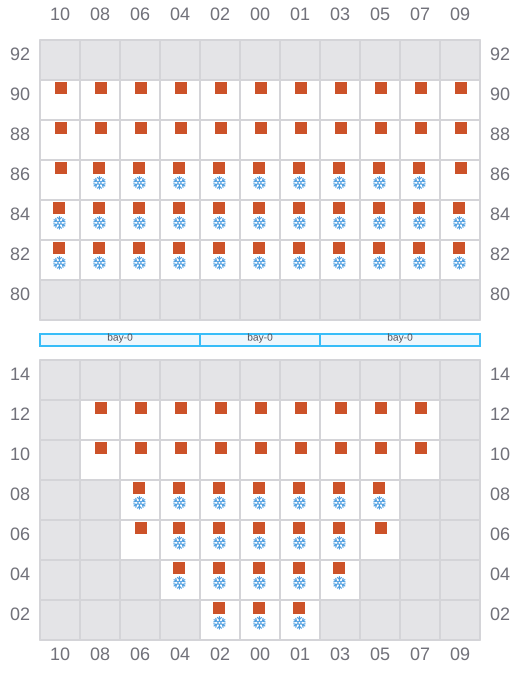

009
- ←
![Bay 009 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b009.png?v=1687545312693)

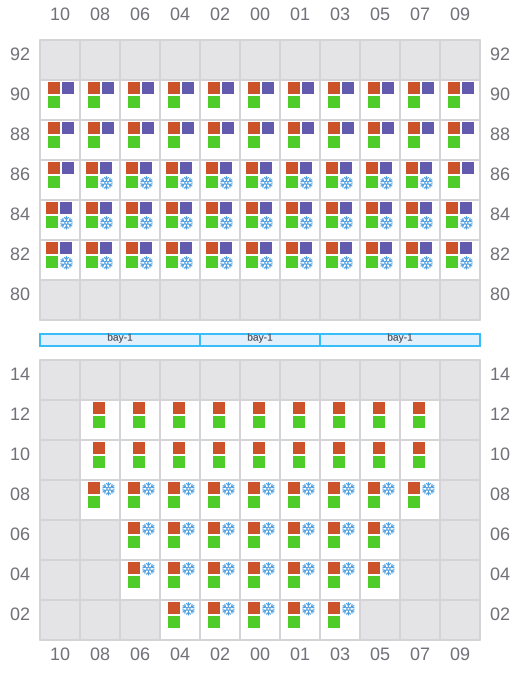

011 (012)
- →
![Bay 011 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b011.png?v=1687545312693)

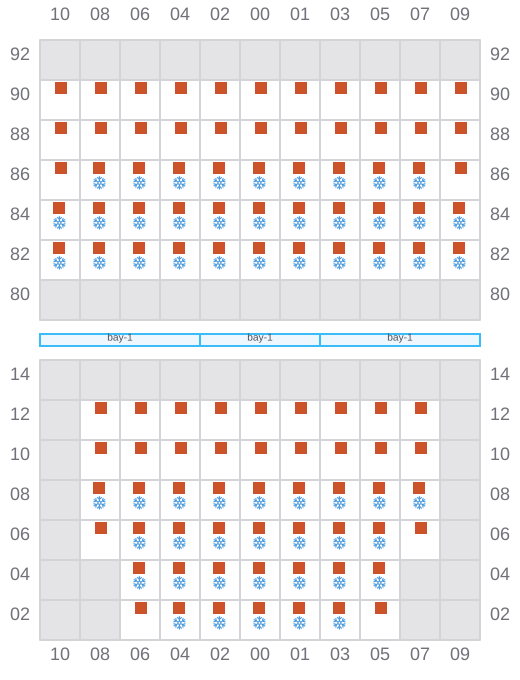

013
- ←
![Bay 013 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b013.png?v=1687545312693)

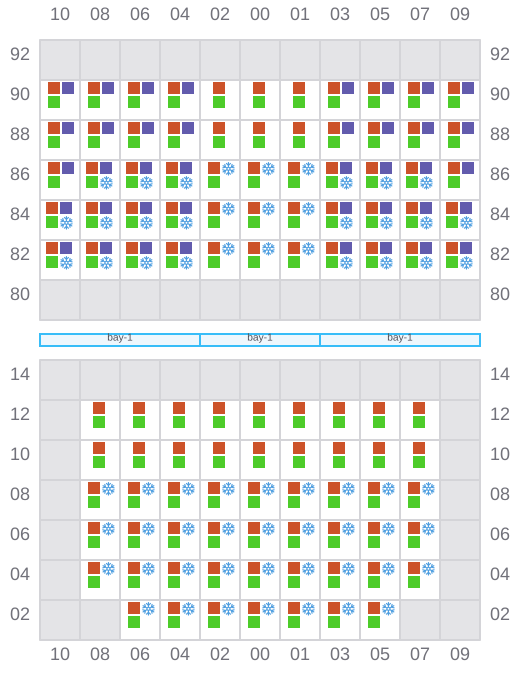

015 (016)
- →
![Bay 015 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b015.png?v=1687545312693)

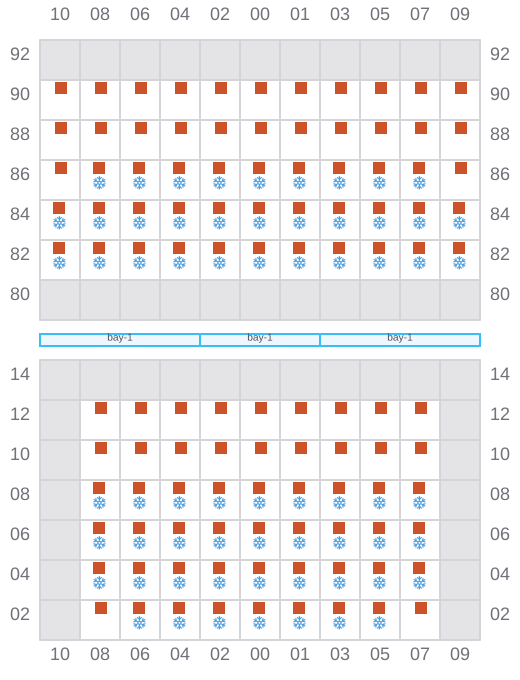

017
- ←
![Bay 017 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b017.png?v=1687545312693)

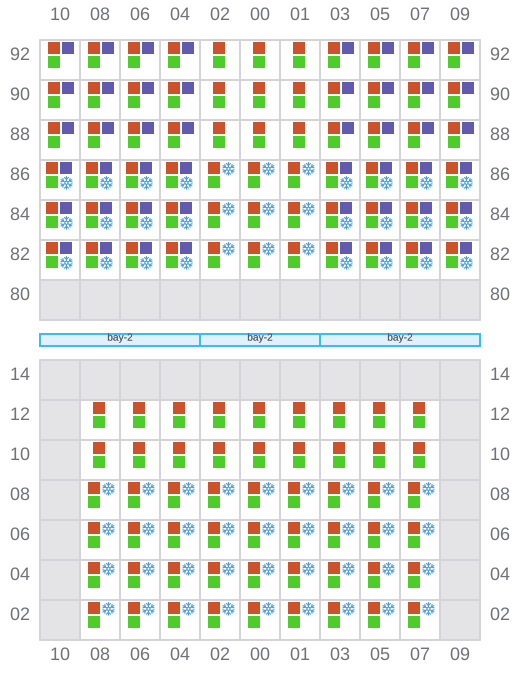

019 (020)
- →
![Bay 019 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b019.png?v=1687545312693)

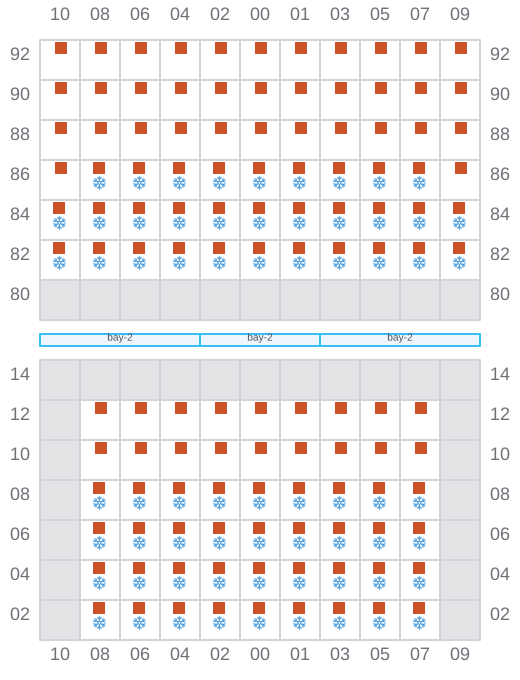

021
- ←
![Bay 021 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b021.png?v=1687545312693)

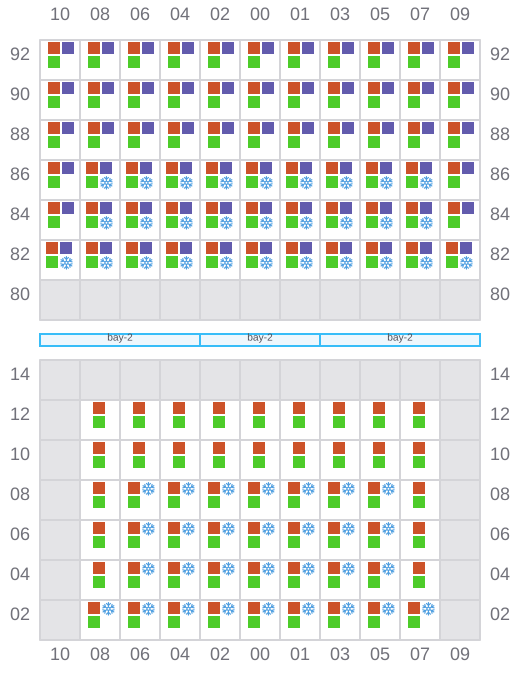

023 (024)
- →
![Bay 023 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b023.png?v=1687545312693)

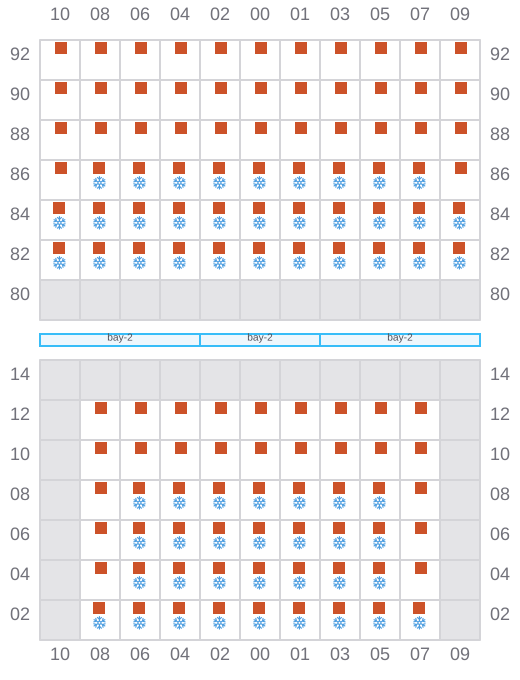

025
- ←
![Bay 025 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b025.png?v=1687545312693)

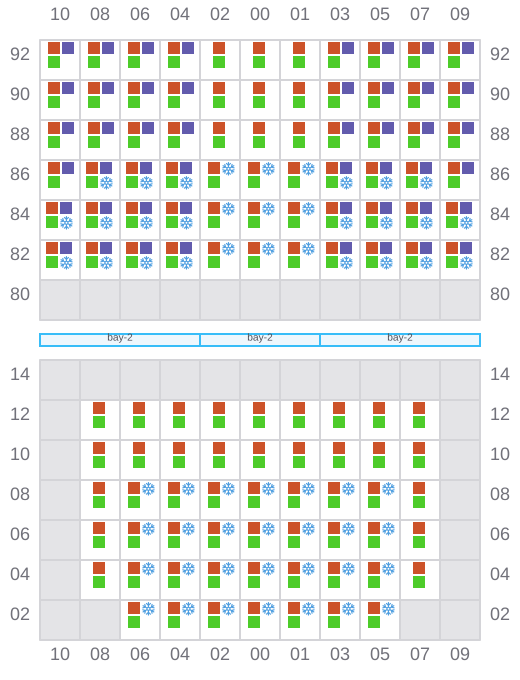

027 (028)
- →
![Bay 027 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b027.png?v=1687545312693)

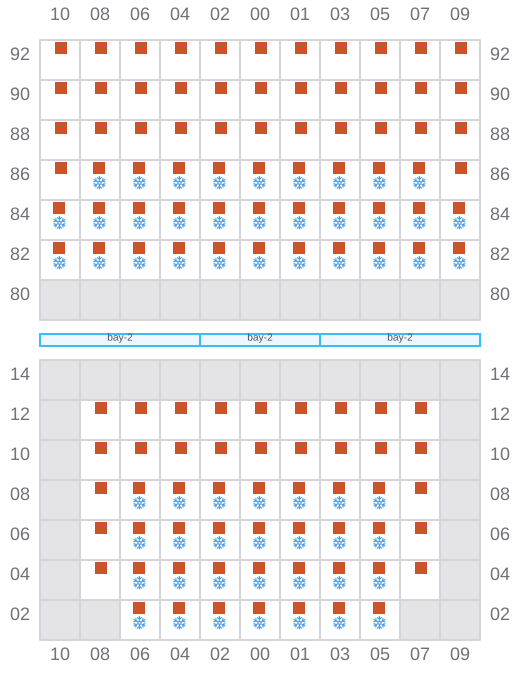

029
- ←
![Bay 029 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b029.png?v=1687545312693)

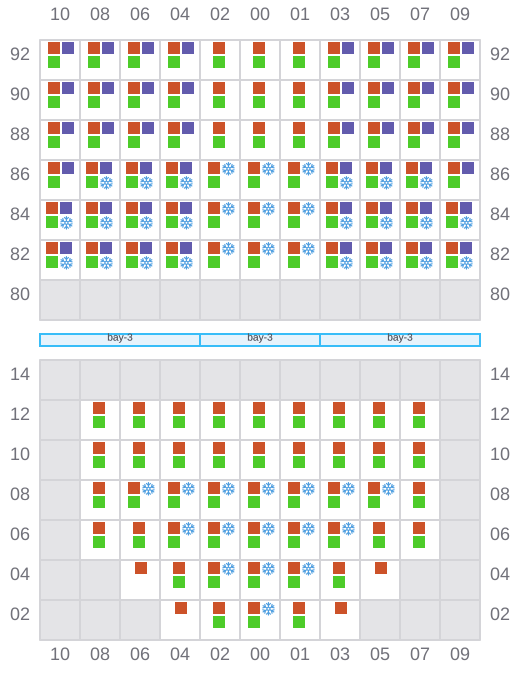

031 (032)
- →
![Bay 031 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b031.png?v=1687545312693)

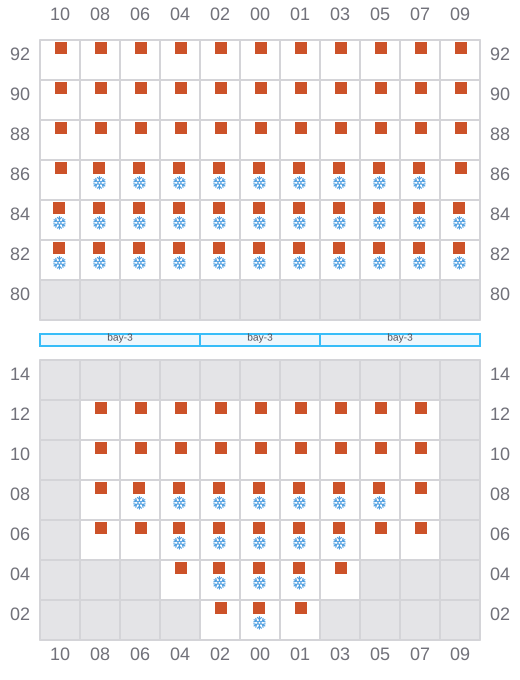

033
- ←
![Bay 033 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b033.png?v=1687545312693)

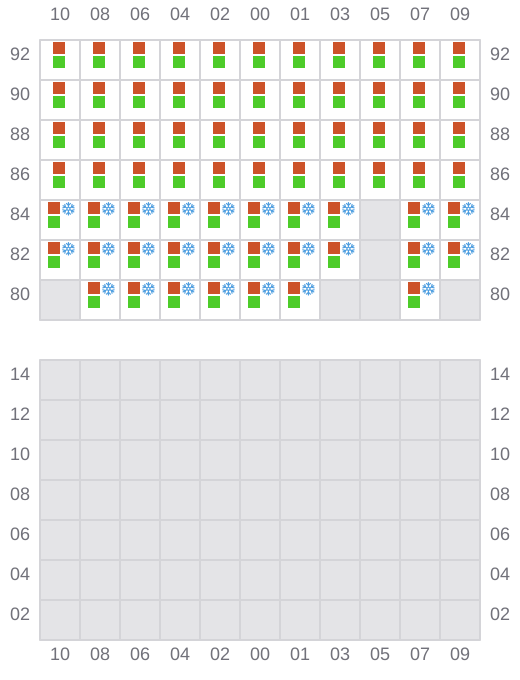

035 (036)
- → / ?
![Bay 035 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b035.png?v=1687545312693)

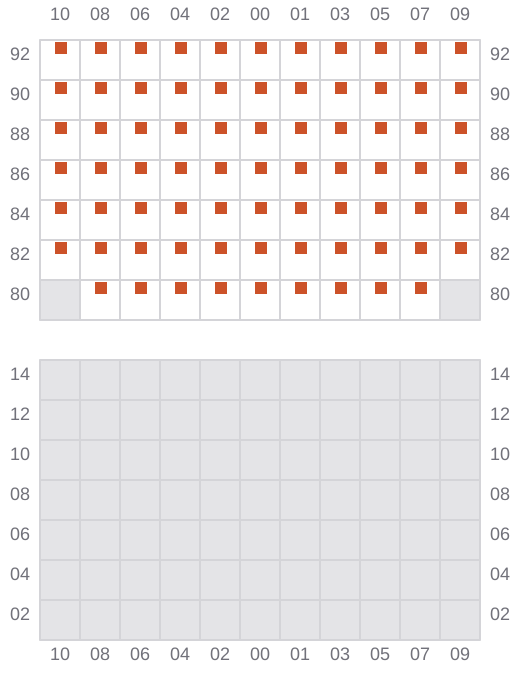

037
- ← / ?
![Bay 037 view and slots of CMA CGM BALBOA](/vessel-images/6f7a9e4d-f92f-42bd-acfd-bcb1f733f7bb-b037.png?v=1687545312693)
