CMA CGM BELLINI
9280598 | 9HA4640 | 9280598 by ********* Last update: Wed Apr 10 2024

General Info

Ship Name:CMA CGM BELLINI
IMO Code:9280598
Call Sign:9HA4640
Line Operator:9280598
Class Name for Sister Ships:CMA CGM BELLINI
Year Built:2004
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:5,782

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CMA CGM BELLINI

Hatch-Covers View

Deck view of CMA CGM BELLINI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

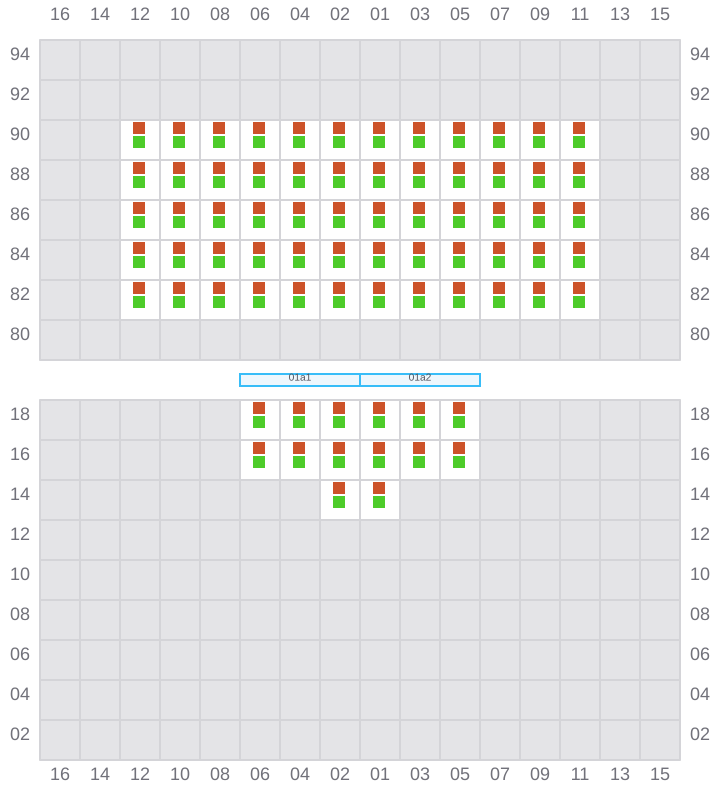

Bay 001 view and slots of CMA CGM BELLINI

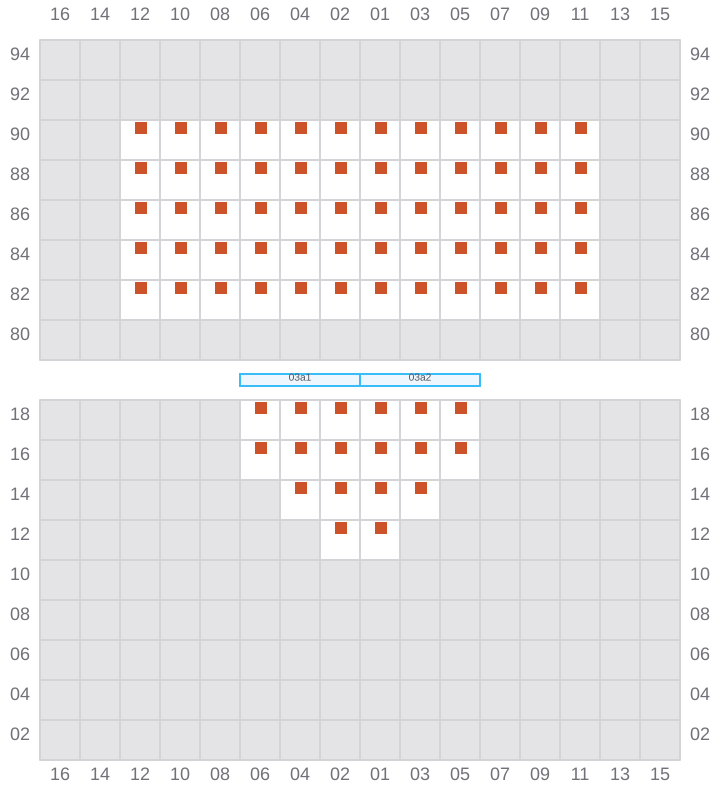

003

Bay 003 view and slots of CMA CGM BELLINI

005 (006)

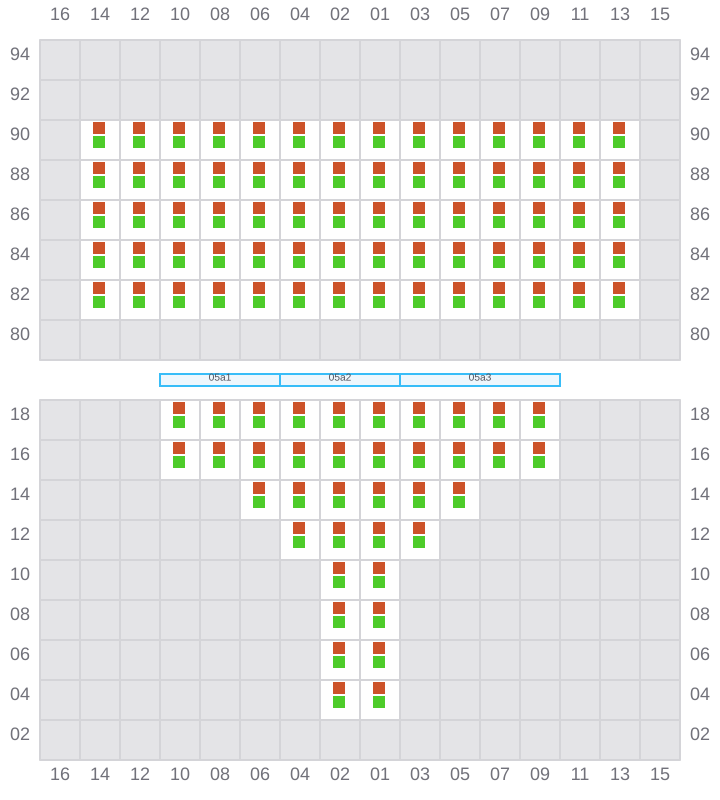

Bay 005 view and slots of CMA CGM BELLINI

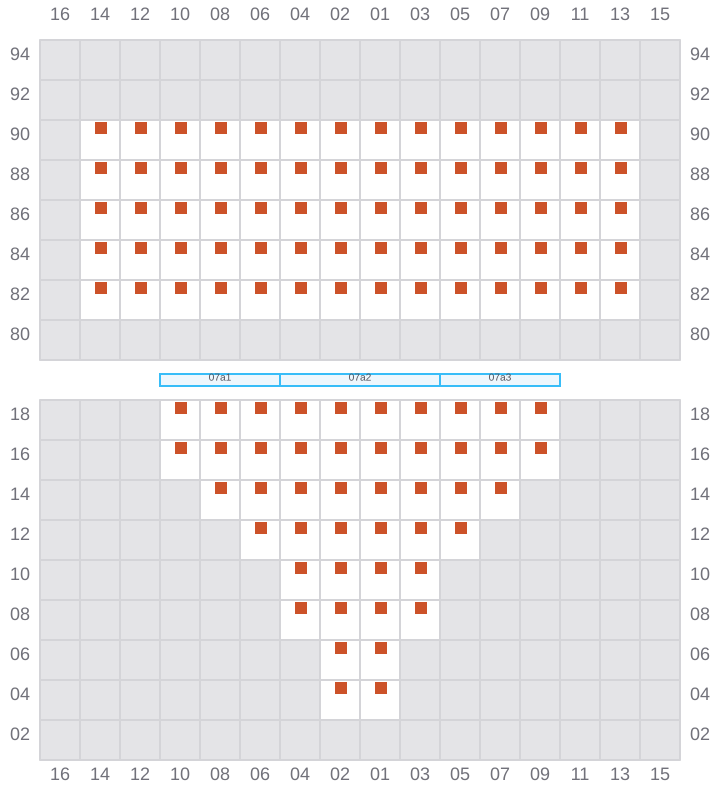

007

Bay 007 view and slots of CMA CGM BELLINI

009 (010)

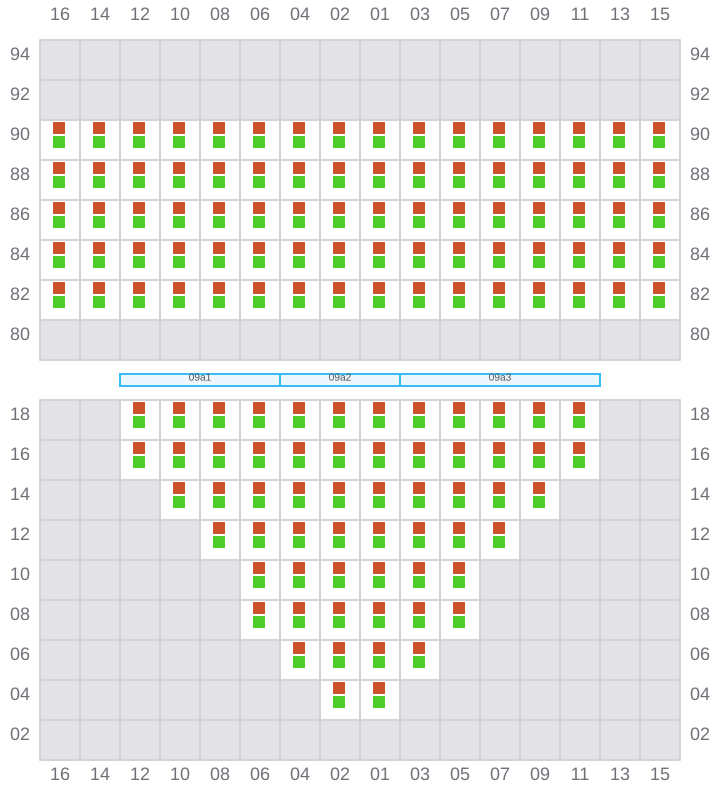

Bay 009 view and slots of CMA CGM BELLINI

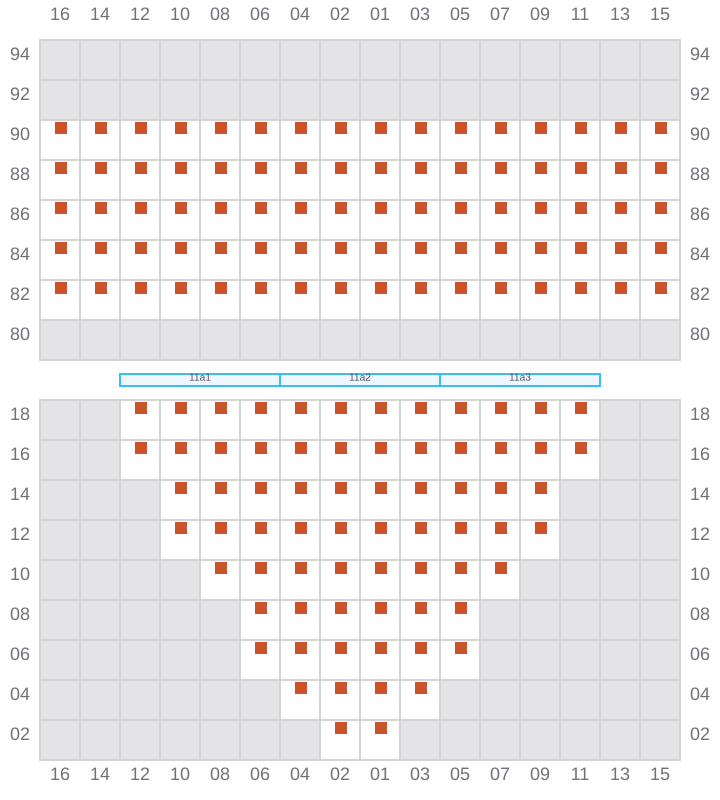

011

Bay 011 view and slots of CMA CGM BELLINI

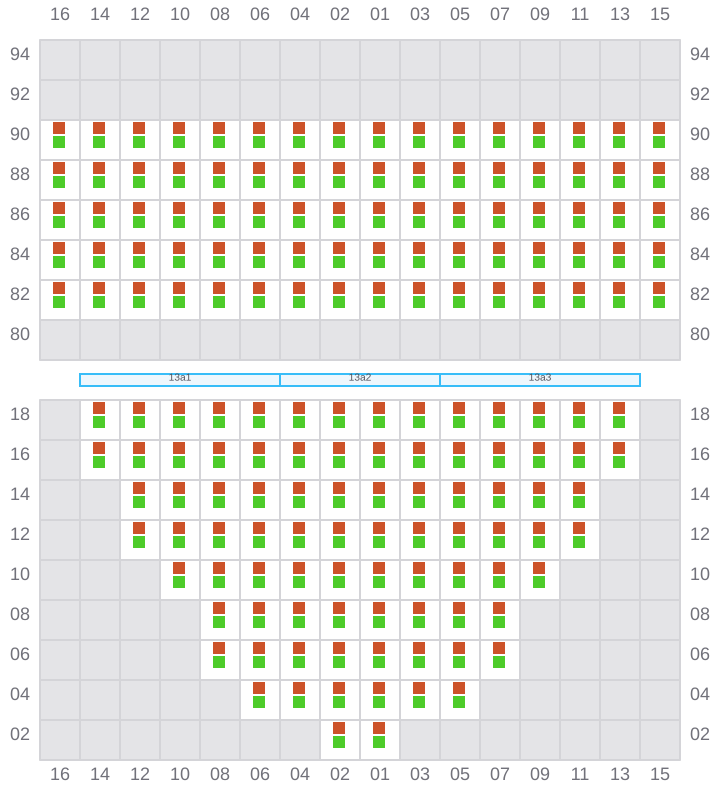

013 (014)

Bay 013 view and slots of CMA CGM BELLINI

015

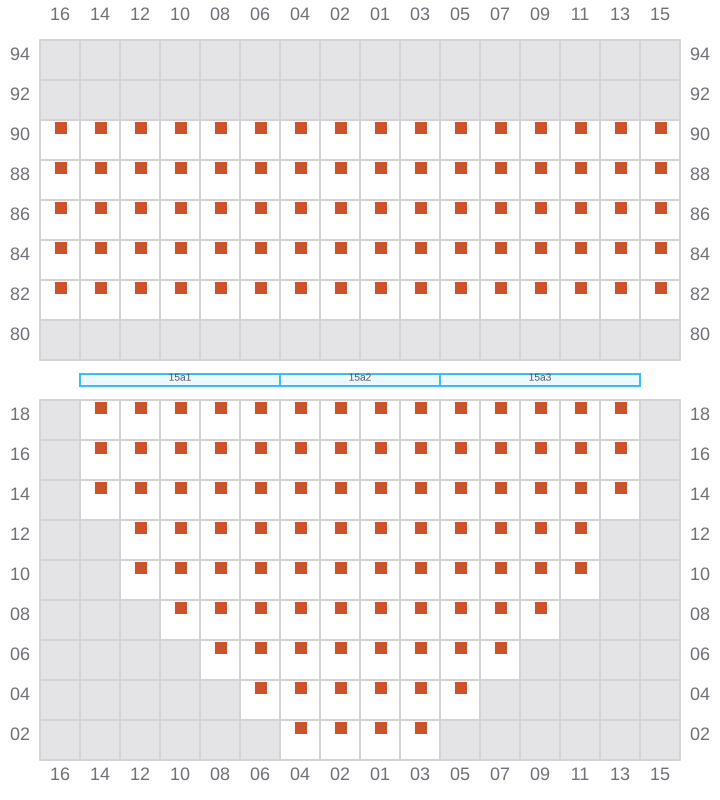

Bay 015 view and slots of CMA CGM BELLINI

017 (018)

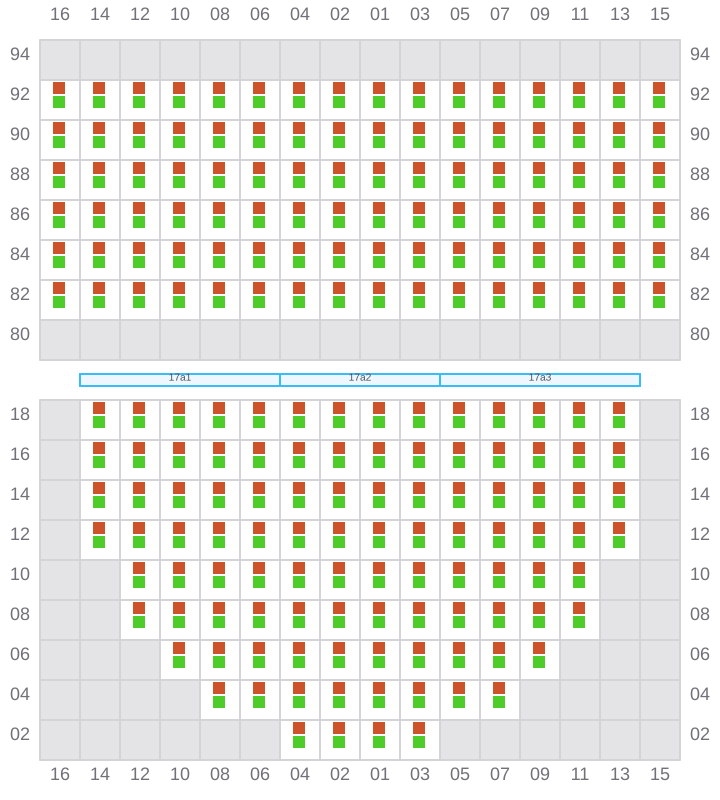

Bay 017 view and slots of CMA CGM BELLINI

019

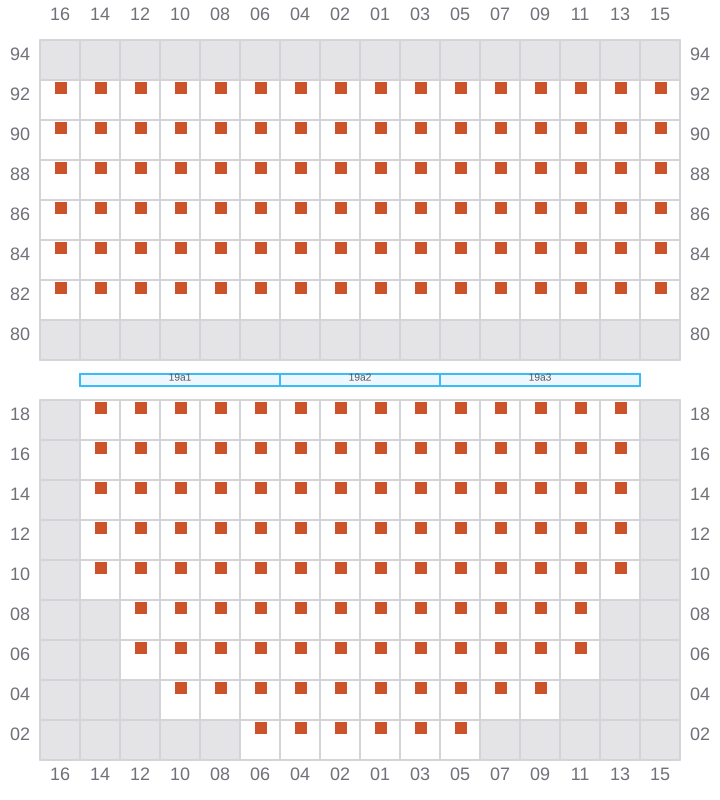

Bay 019 view and slots of CMA CGM BELLINI

021 (022)

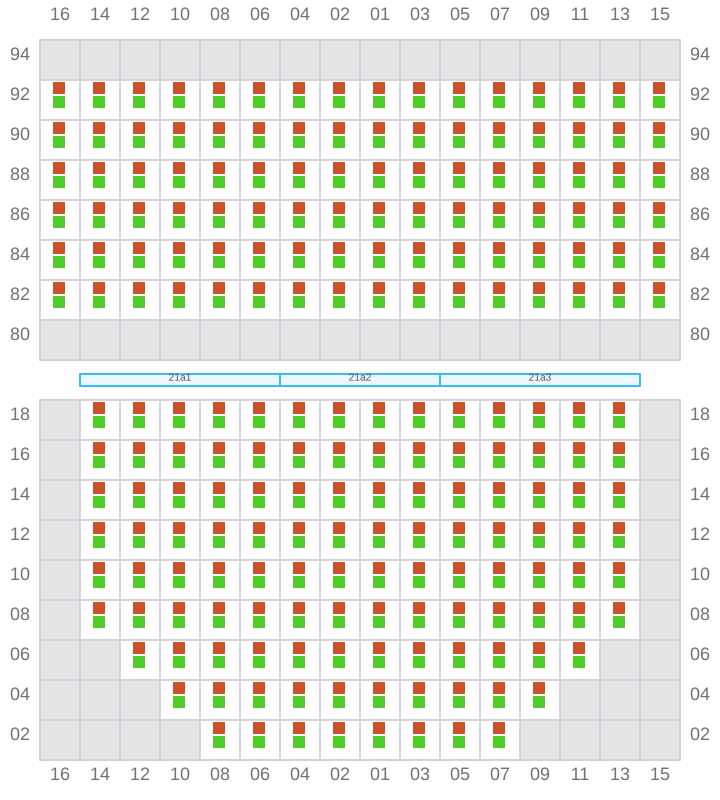

Bay 021 view and slots of CMA CGM BELLINI

023

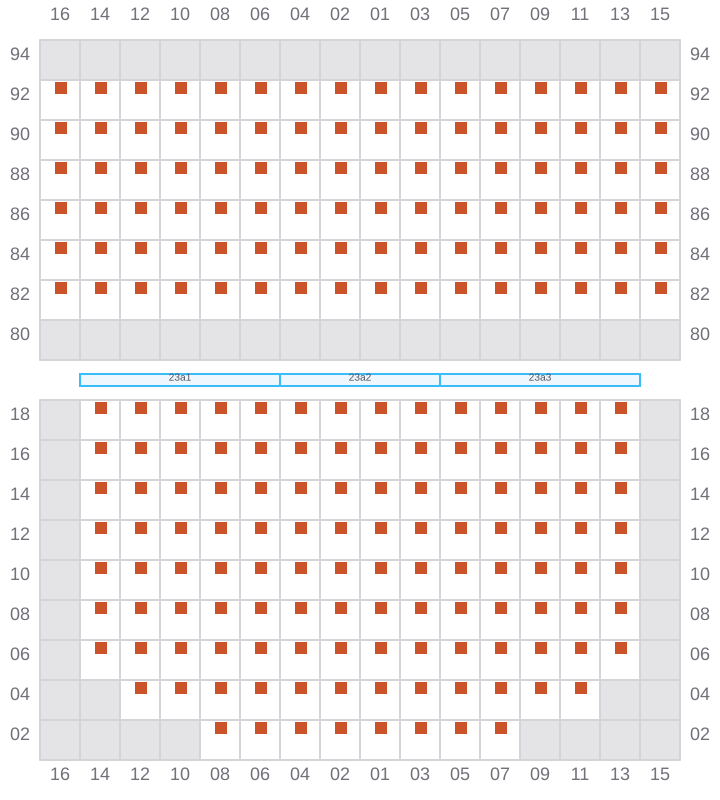

Bay 023 view and slots of CMA CGM BELLINI

025 (026)

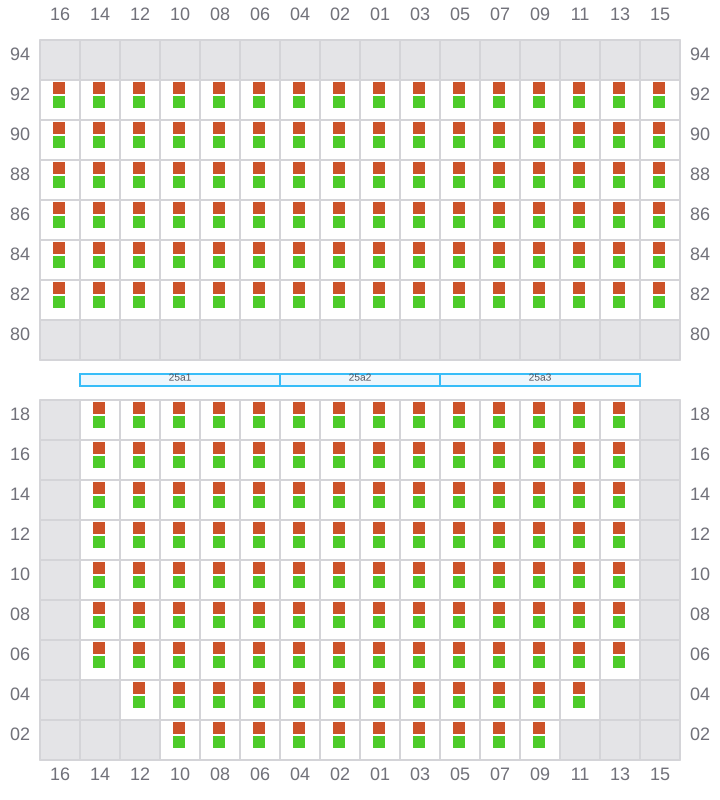

Bay 025 view and slots of CMA CGM BELLINI

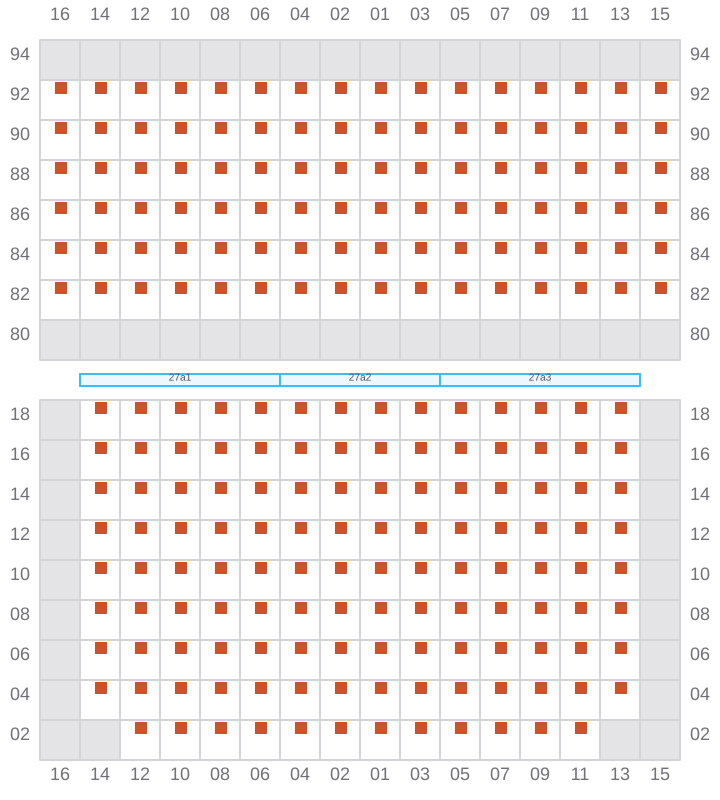

027

Bay 027 view and slots of CMA CGM BELLINI

029 (030)

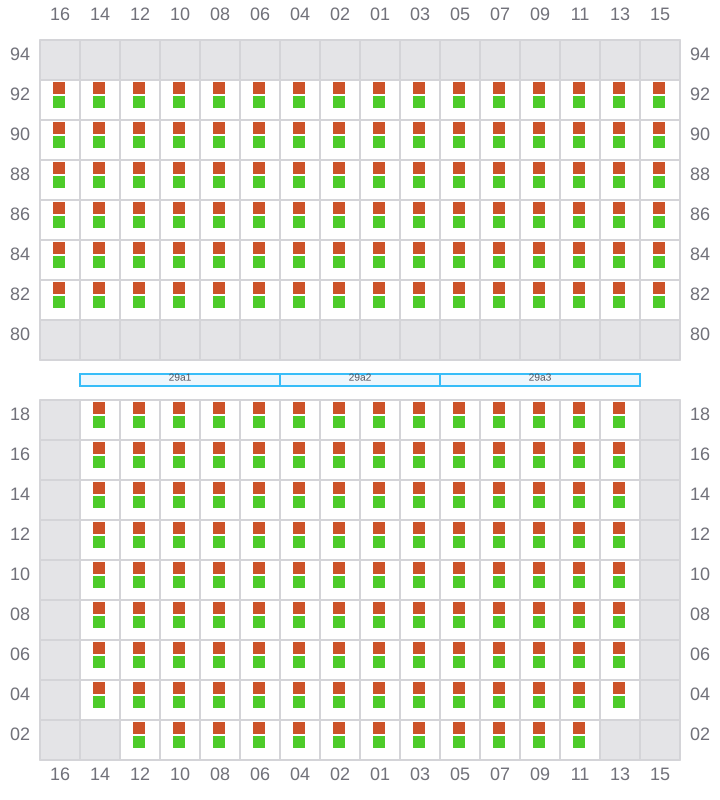

Bay 029 view and slots of CMA CGM BELLINI

031

Bay 031 view and slots of CMA CGM BELLINI

033 (034)

Bay 033 view and slots of CMA CGM BELLINI

035

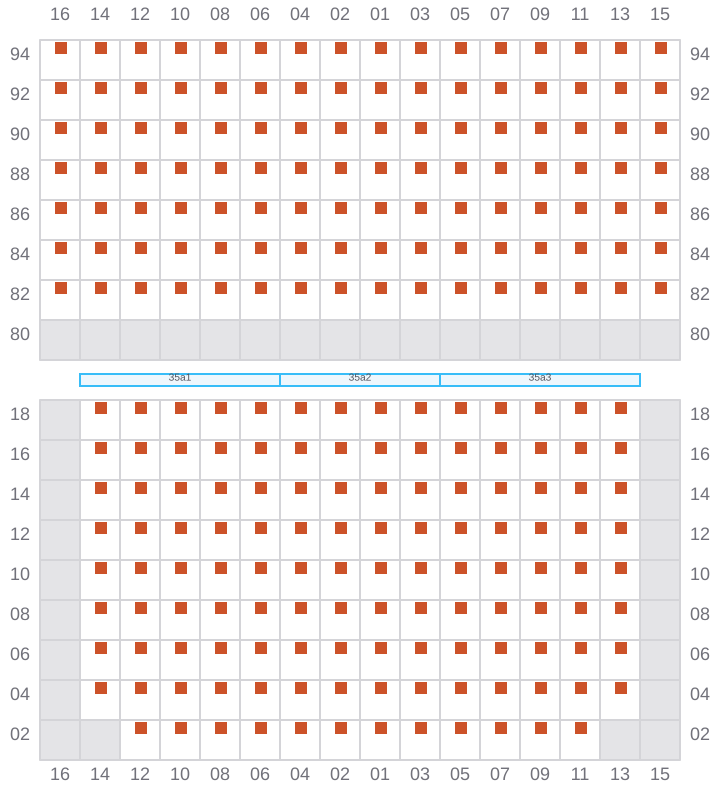

Bay 035 view and slots of CMA CGM BELLINI

037 (038)

Bay 037 view and slots of CMA CGM BELLINI

039

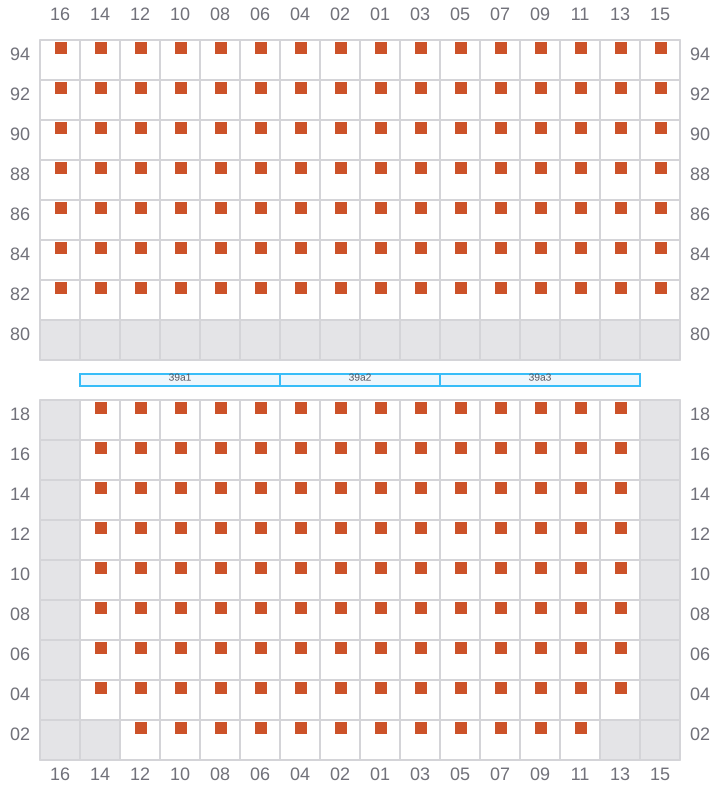

Bay 039 view and slots of CMA CGM BELLINI

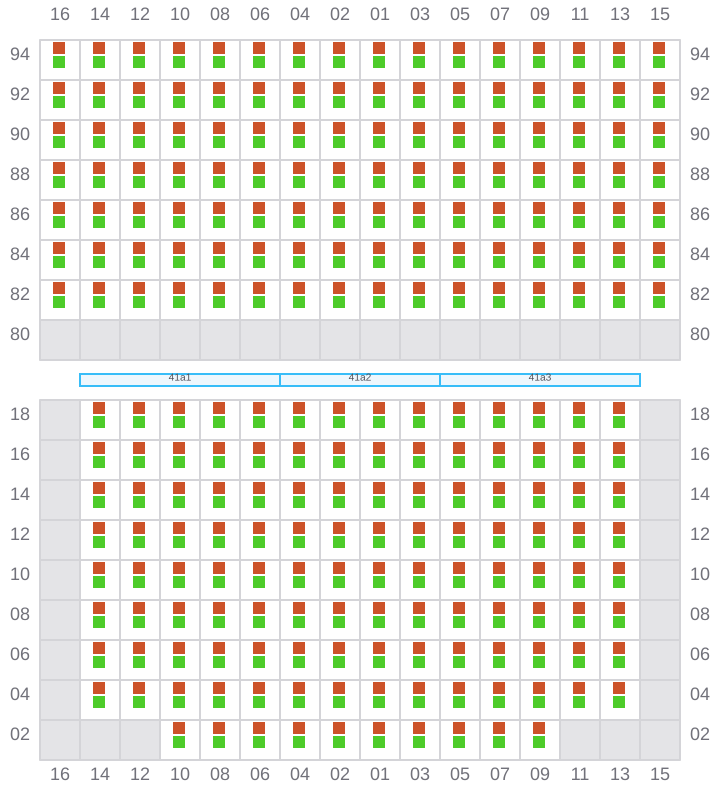

041 (042)

Bay 041 view and slots of CMA CGM BELLINI

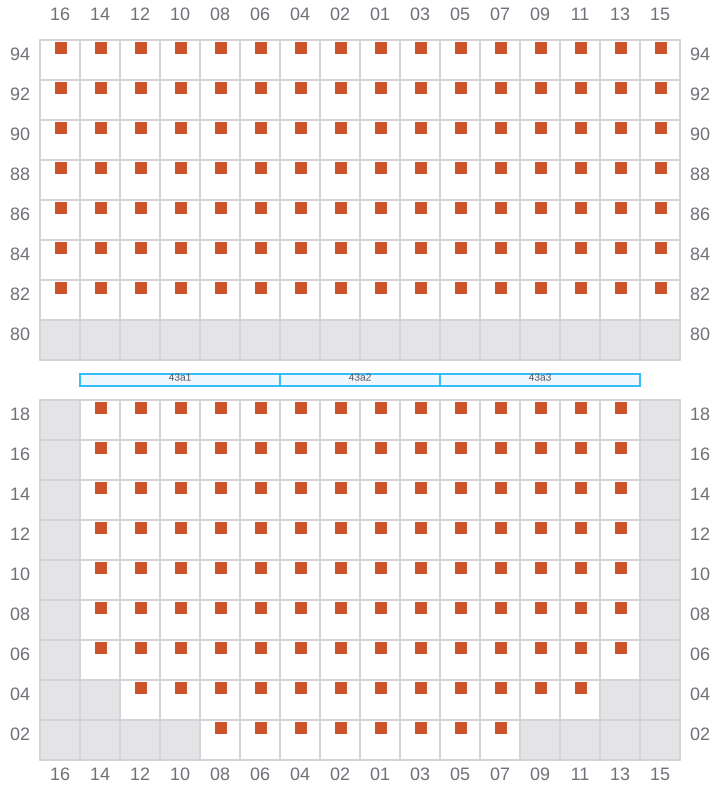

043

Bay 043 view and slots of CMA CGM BELLINI

045 (046)

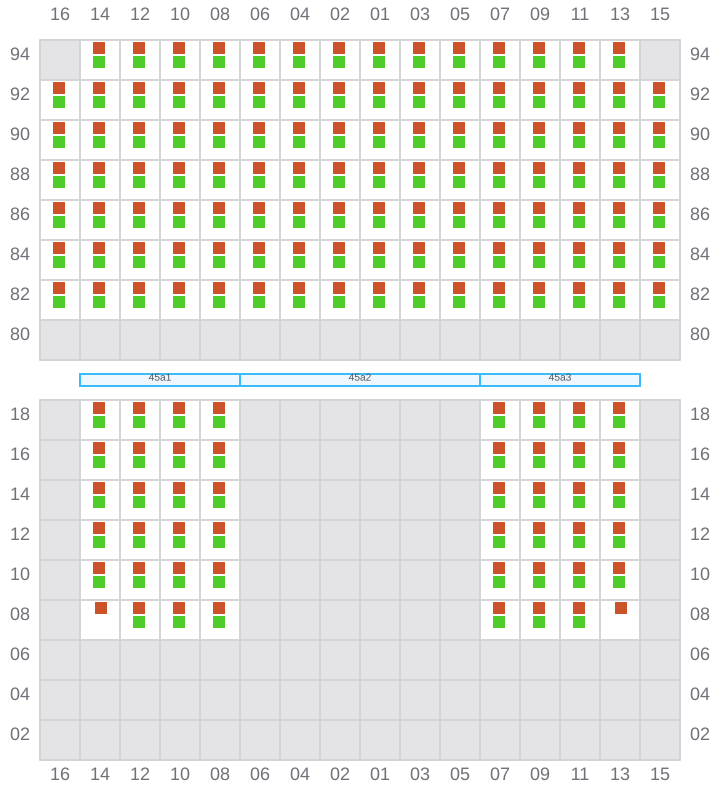

Bay 045 view and slots of CMA CGM BELLINI

047

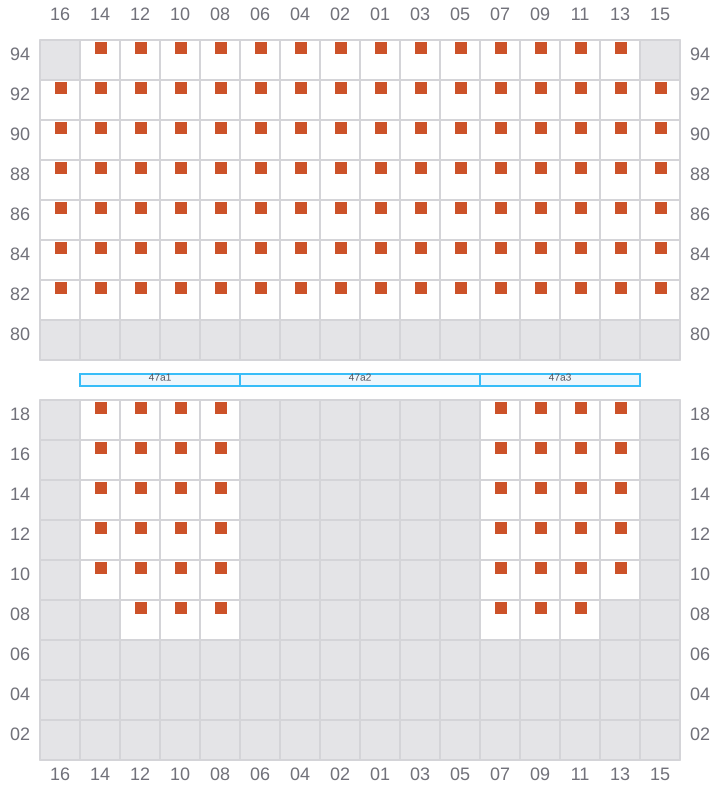

Bay 047 view and slots of CMA CGM BELLINI

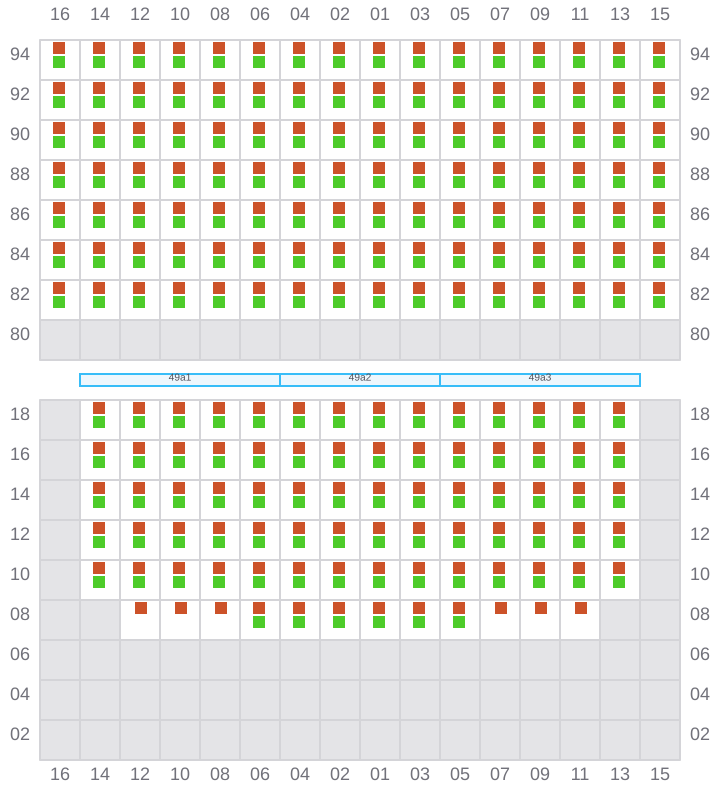

049 (050)

Bay 049 view and slots of CMA CGM BELLINI

051

Bay 051 view and slots of CMA CGM BELLINI

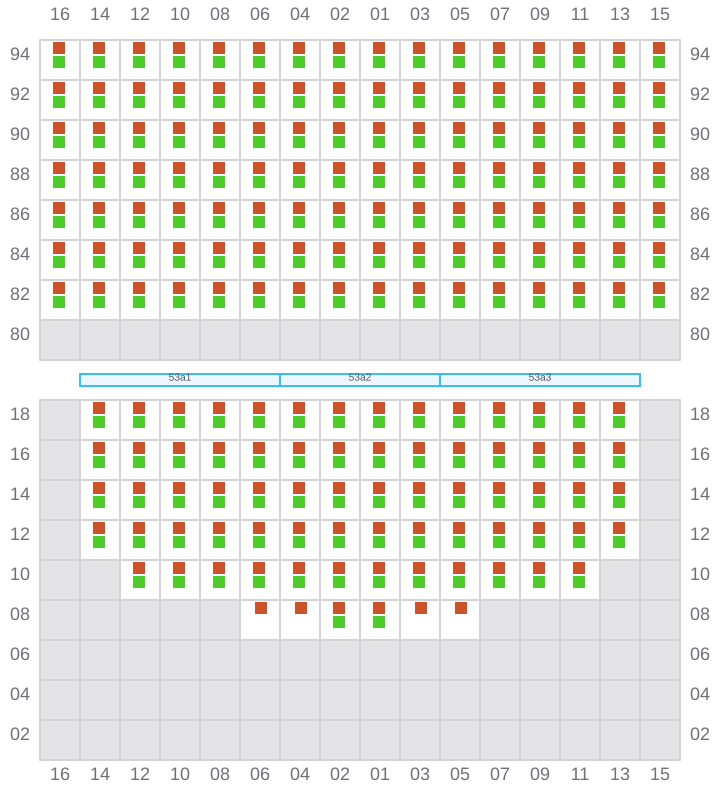

053 (054)

Bay 053 view and slots of CMA CGM BELLINI

055

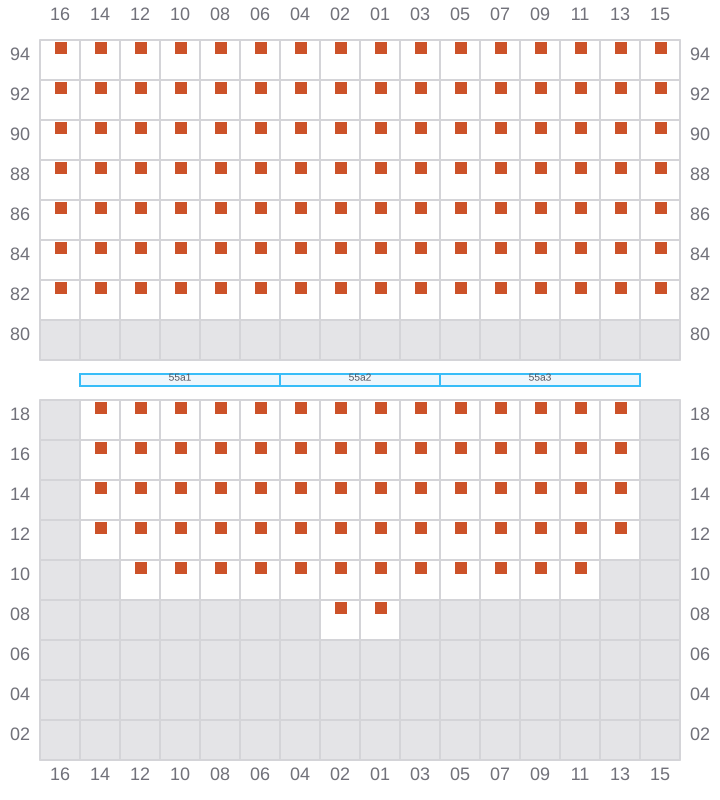

Bay 055 view and slots of CMA CGM BELLINI

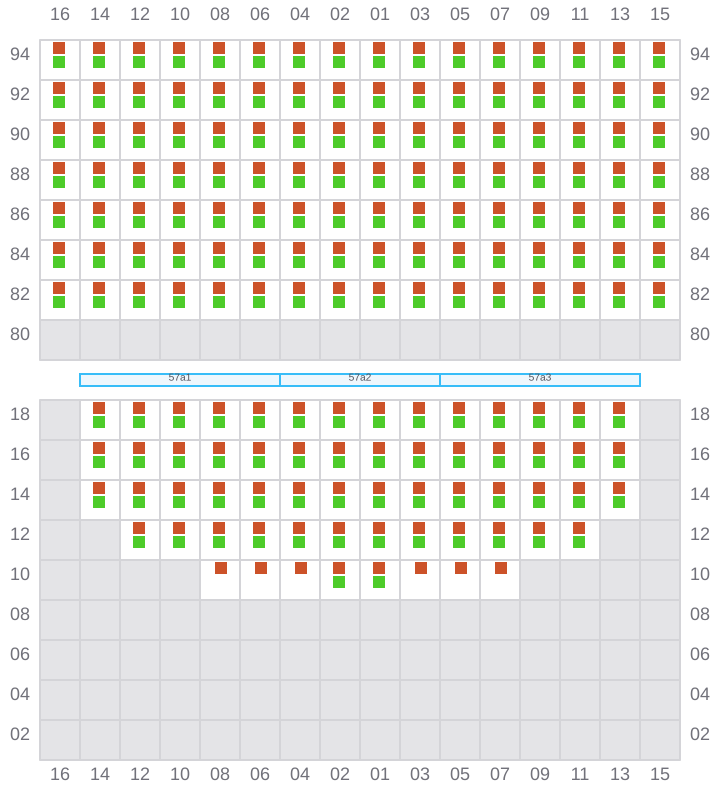

057 (058)

Bay 057 view and slots of CMA CGM BELLINI

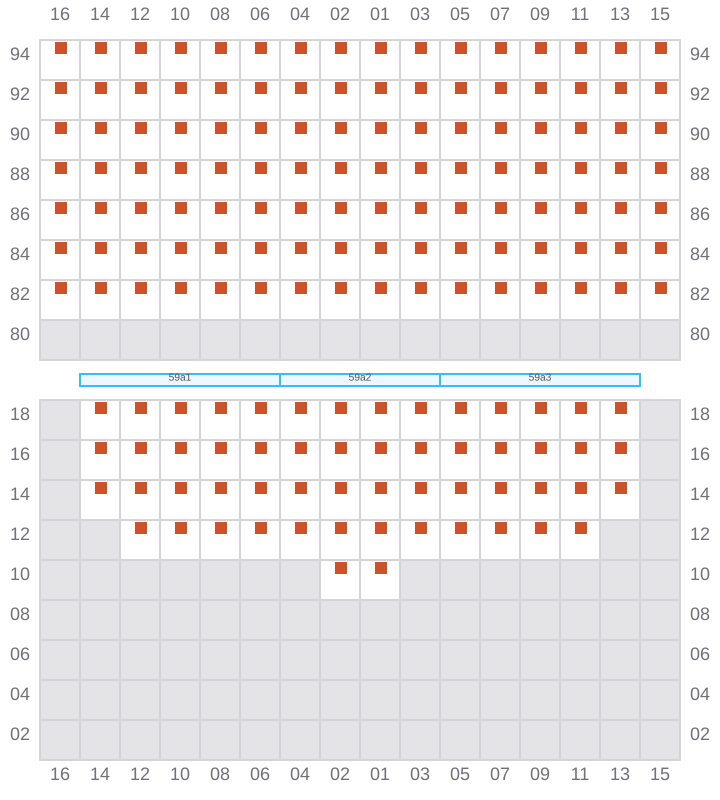

059

Bay 059 view and slots of CMA CGM BELLINI

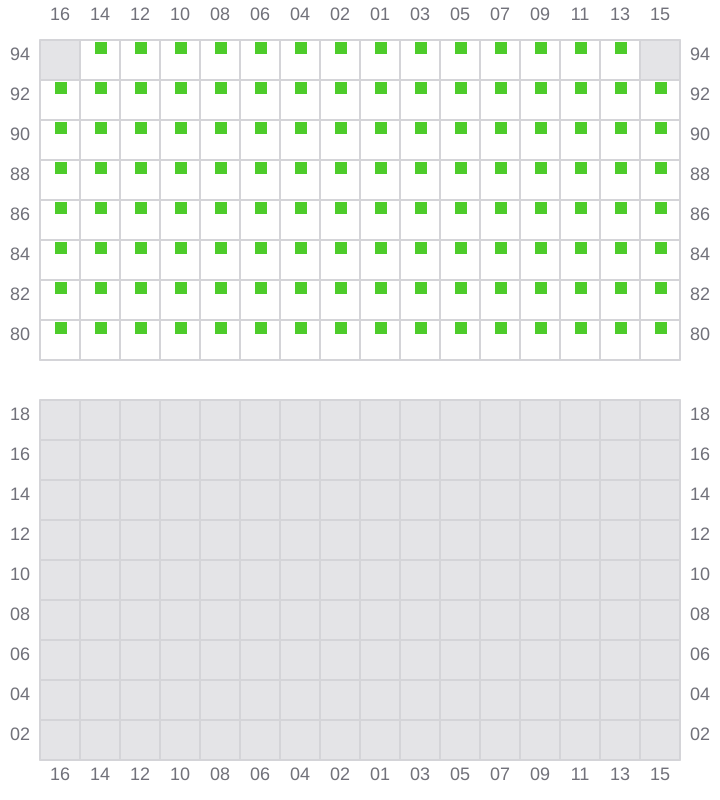

061 (062)

Bay 061 view and slots of CMA CGM BELLINI
