CMA CGM BENJAMIN FRANKLIN
9706891 | 9HA5008 | CMA by *********************** Last update: Wed Feb 05 2025

General Info

Ship Name:CMA CGM BENJAMIN FRANKLIN
IMO Code:9706891
Call Sign:9HA5008
Line Operator:CMA
Class Name for Sister Ships:CGBF
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:093
Max ISO Row:20
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:68
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:18,045

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

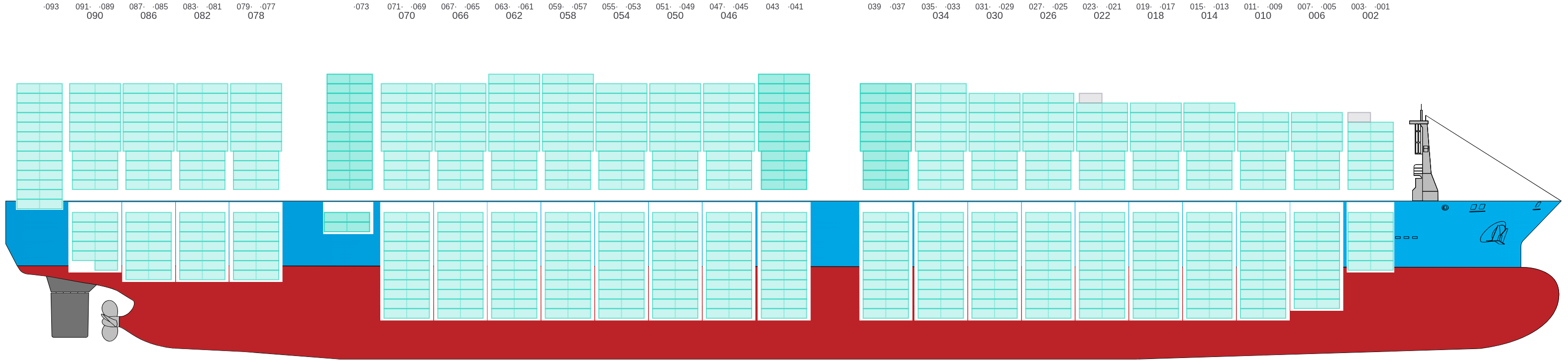

Side View

Side view of CMA CGM BENJAMIN FRANKLIN

Hatch-Covers View

Deck view of CMA CGM BENJAMIN FRANKLIN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →
  • → / ?
  • →

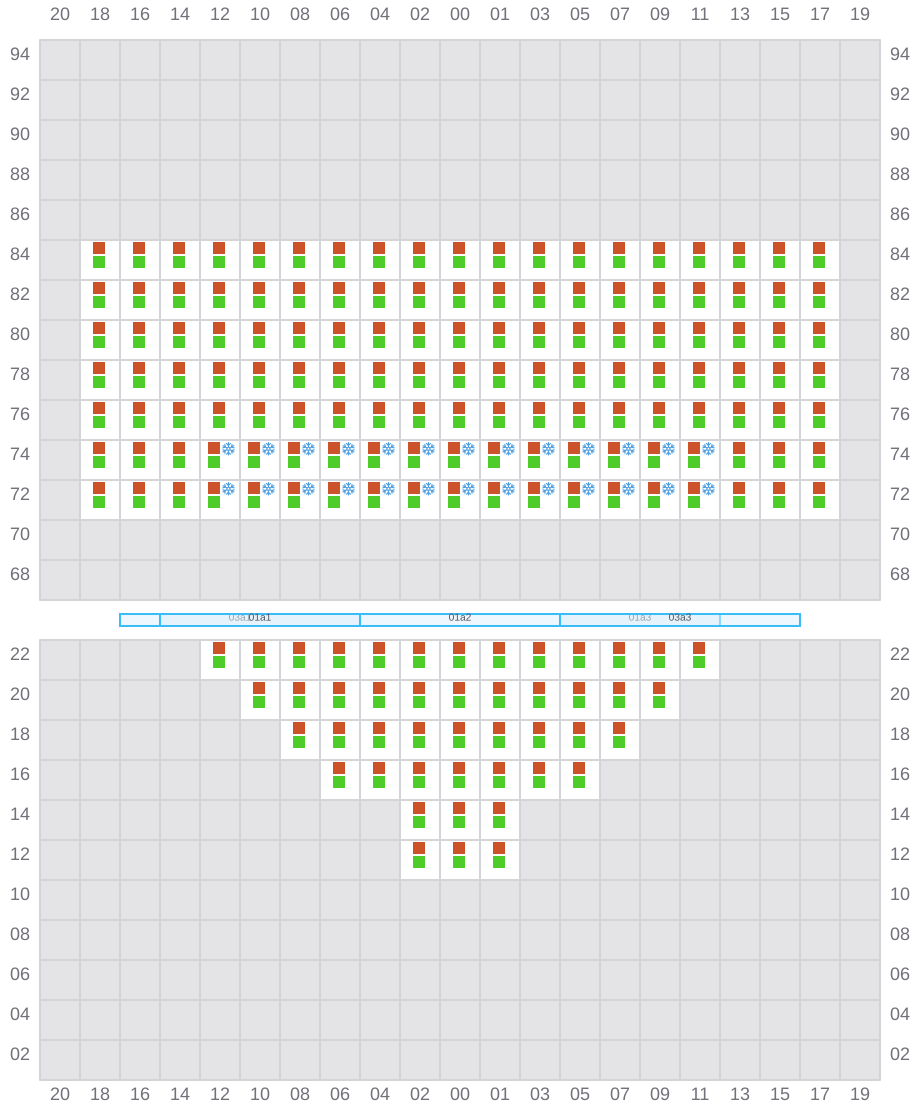

Bay 001 view and slots of CMA CGM BENJAMIN FRANKLIN

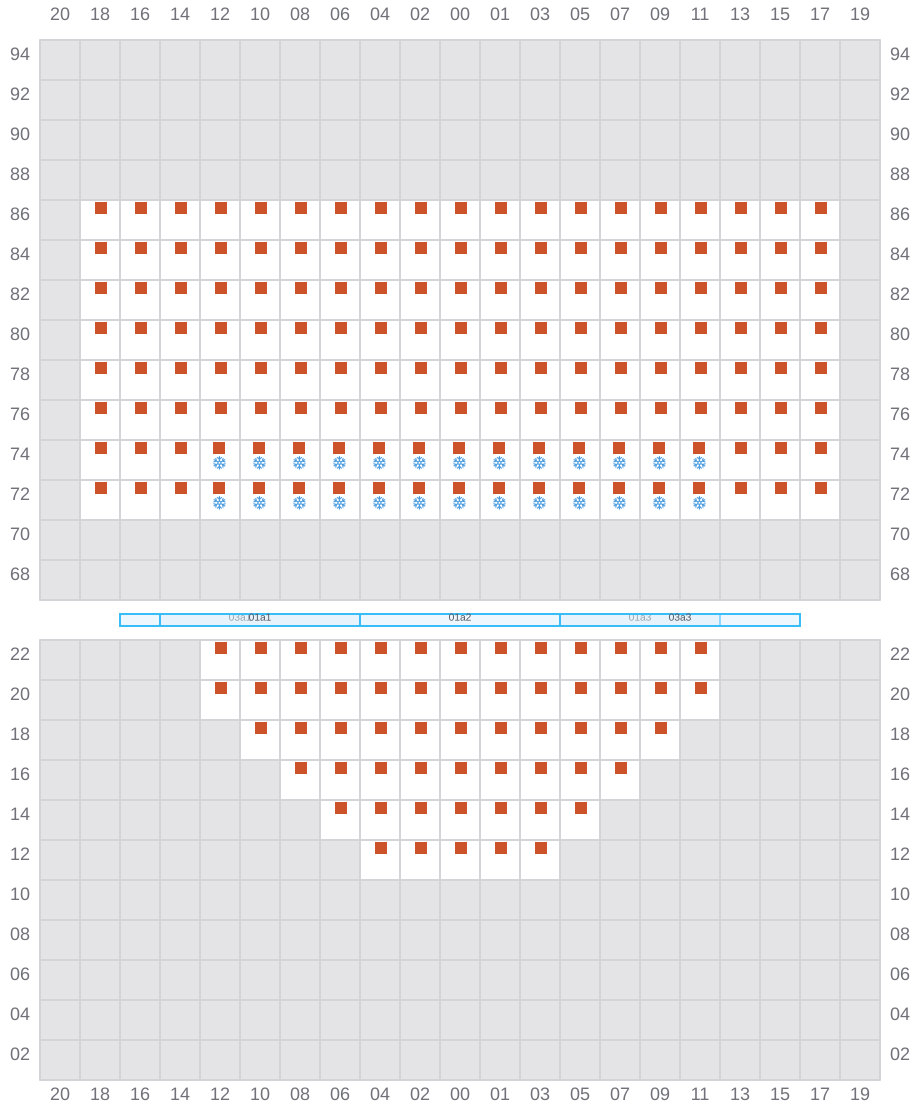

003

  • ←
  • → / ?
  • →
Bay 003 view and slots of CMA CGM BENJAMIN FRANKLIN

005 (006)

  • →
  • → / ?
  • →

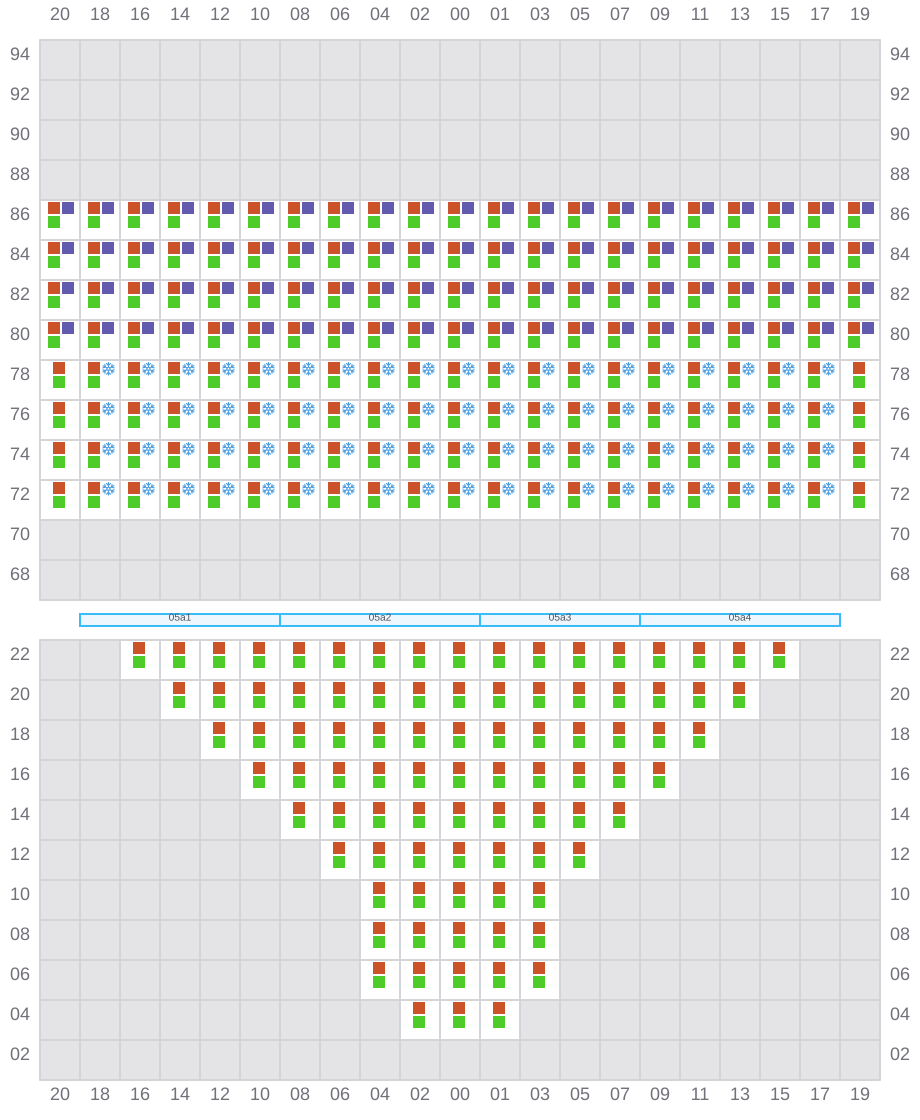

Bay 005 view and slots of CMA CGM BENJAMIN FRANKLIN

007

  • ←
  • → / ?
  • →

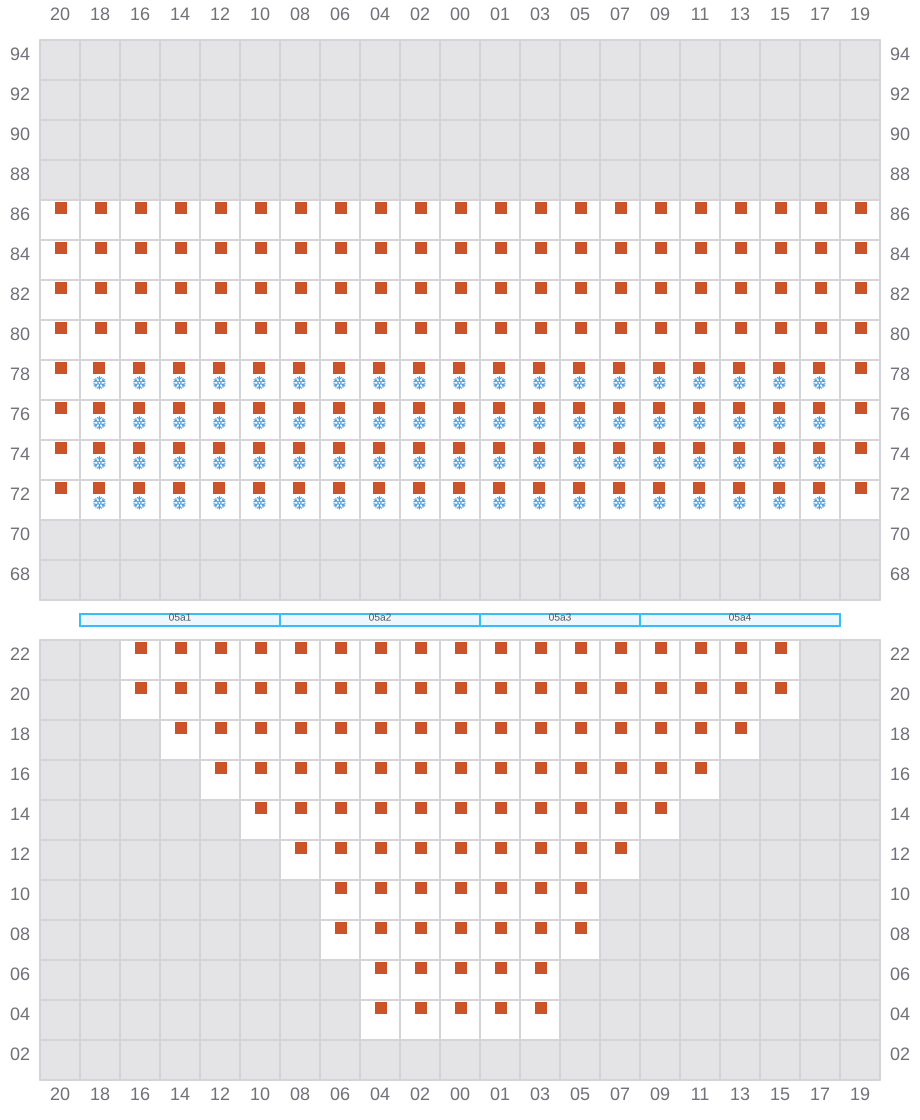

Bay 007 view and slots of CMA CGM BENJAMIN FRANKLIN

009 (010)

  • →
  • → / ?
  • →

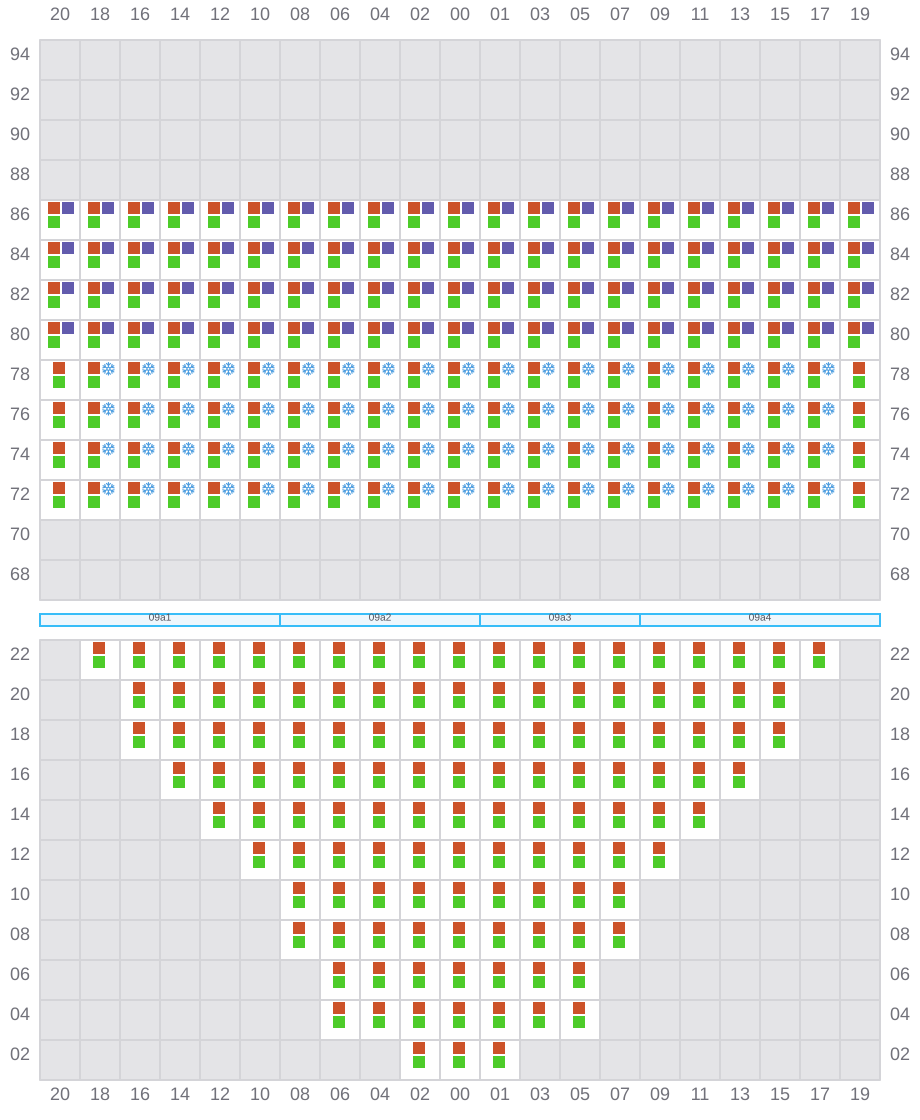

Bay 009 view and slots of CMA CGM BENJAMIN FRANKLIN

011

  • ←
  • → / ?
  • →
Bay 011 view and slots of CMA CGM BENJAMIN FRANKLIN

013 (014)

  • →
  • → / ?
  • →

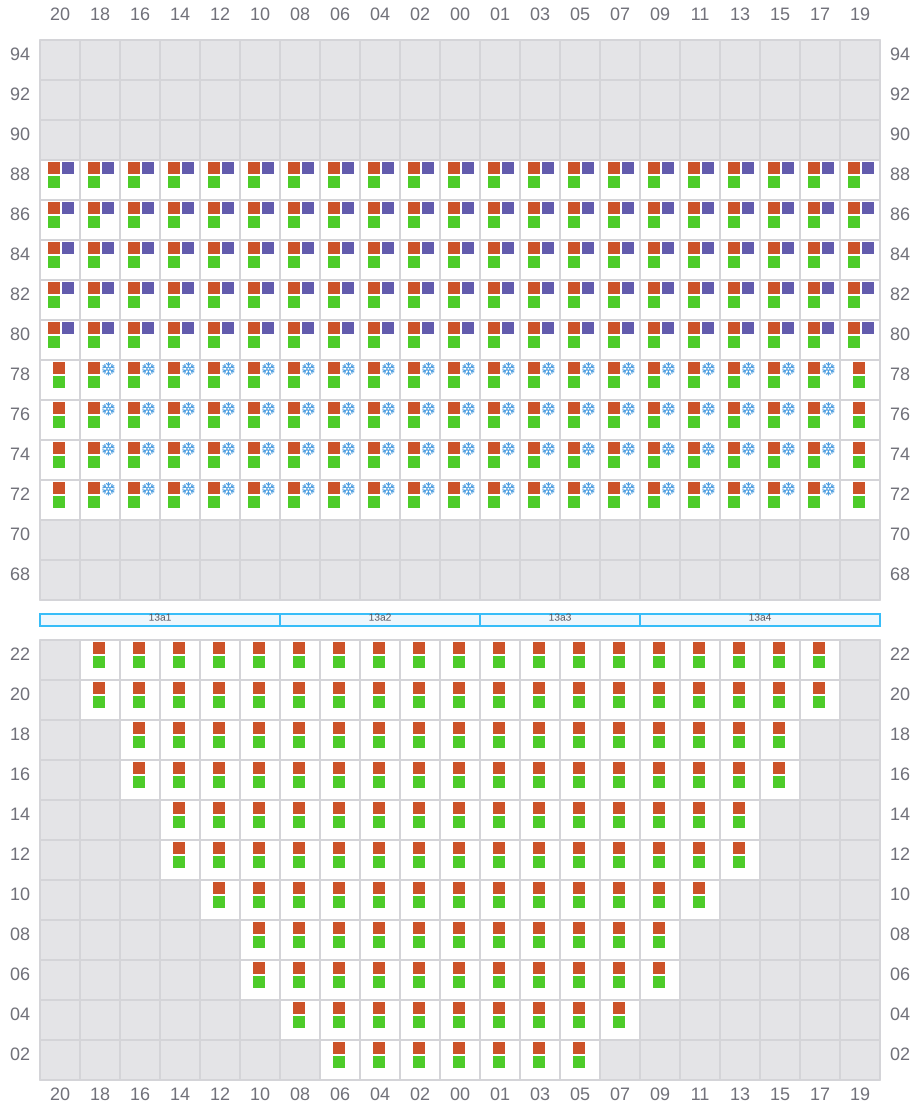

Bay 013 view and slots of CMA CGM BENJAMIN FRANKLIN

015

  • ←
  • → / ?
  • →

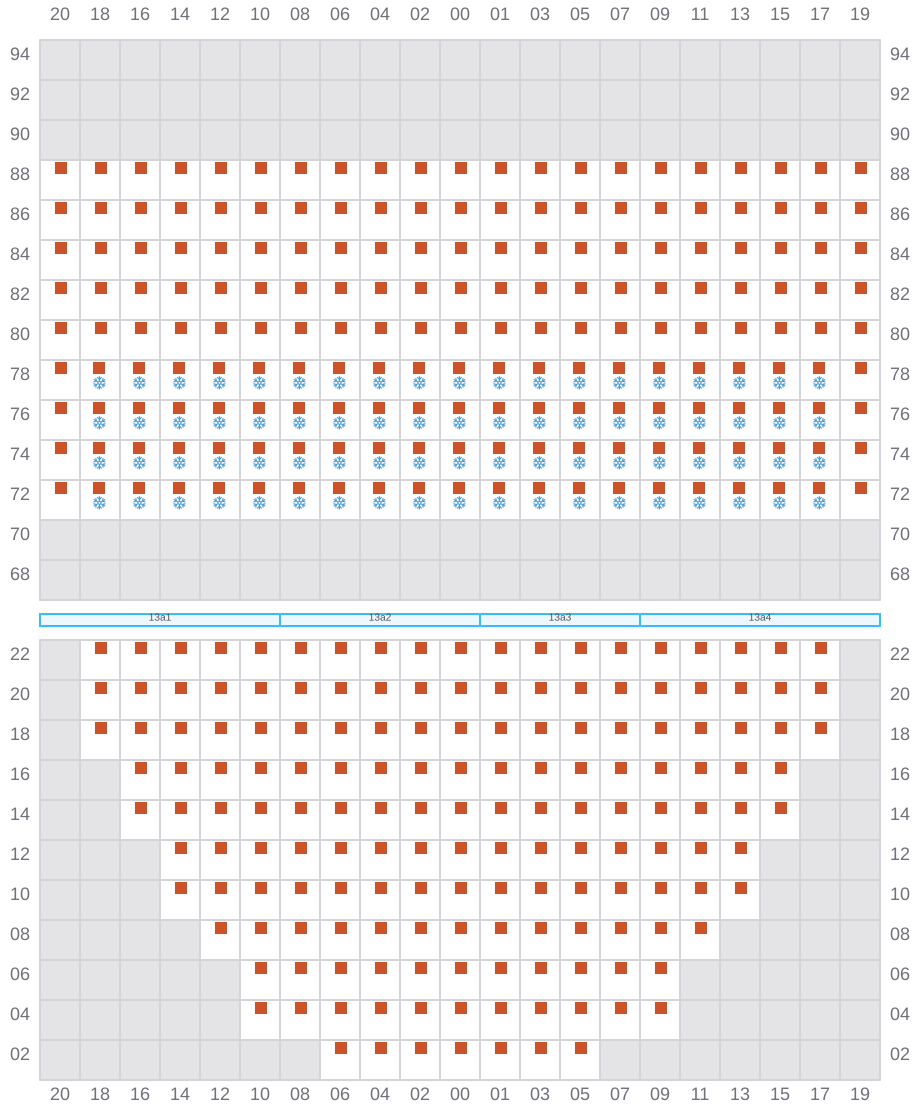

Bay 015 view and slots of CMA CGM BENJAMIN FRANKLIN

017 (018)

  • →
  • → / ?
  • →

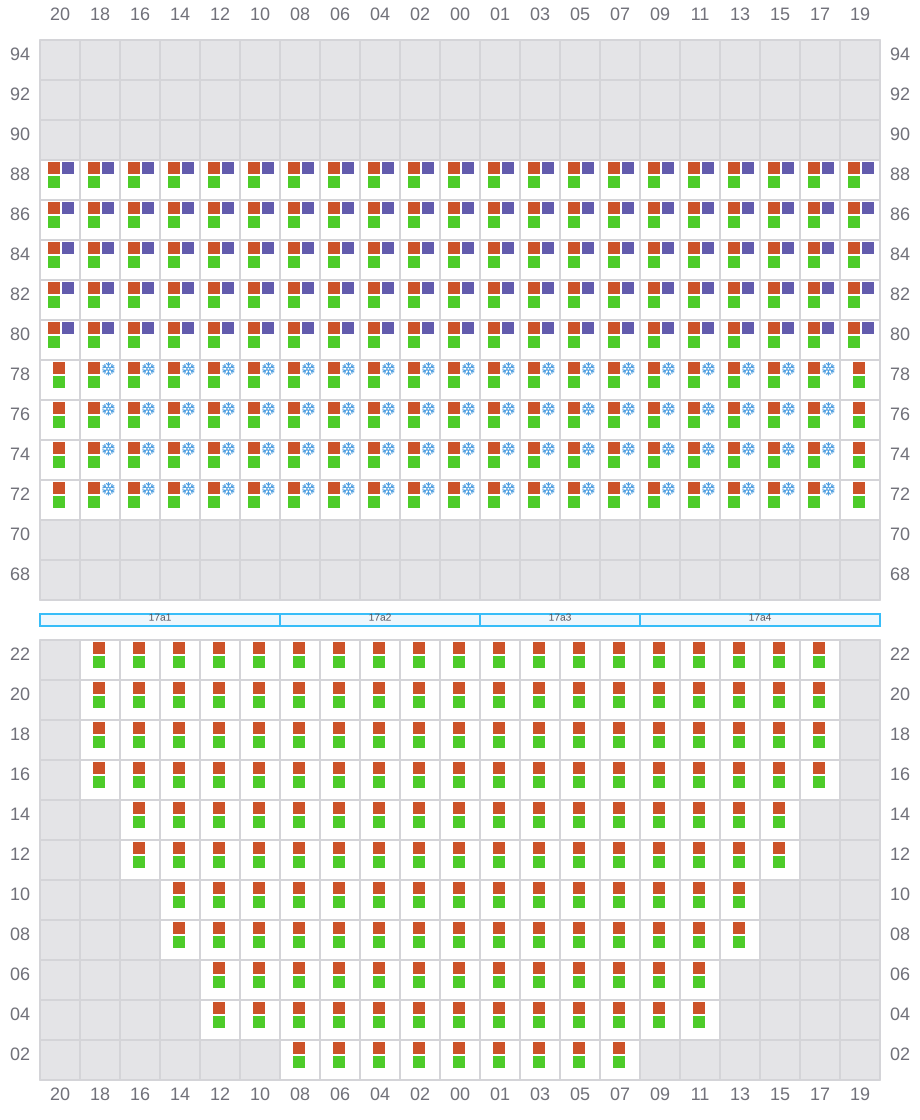

Bay 017 view and slots of CMA CGM BENJAMIN FRANKLIN

019

  • ←
  • → / ?
  • →

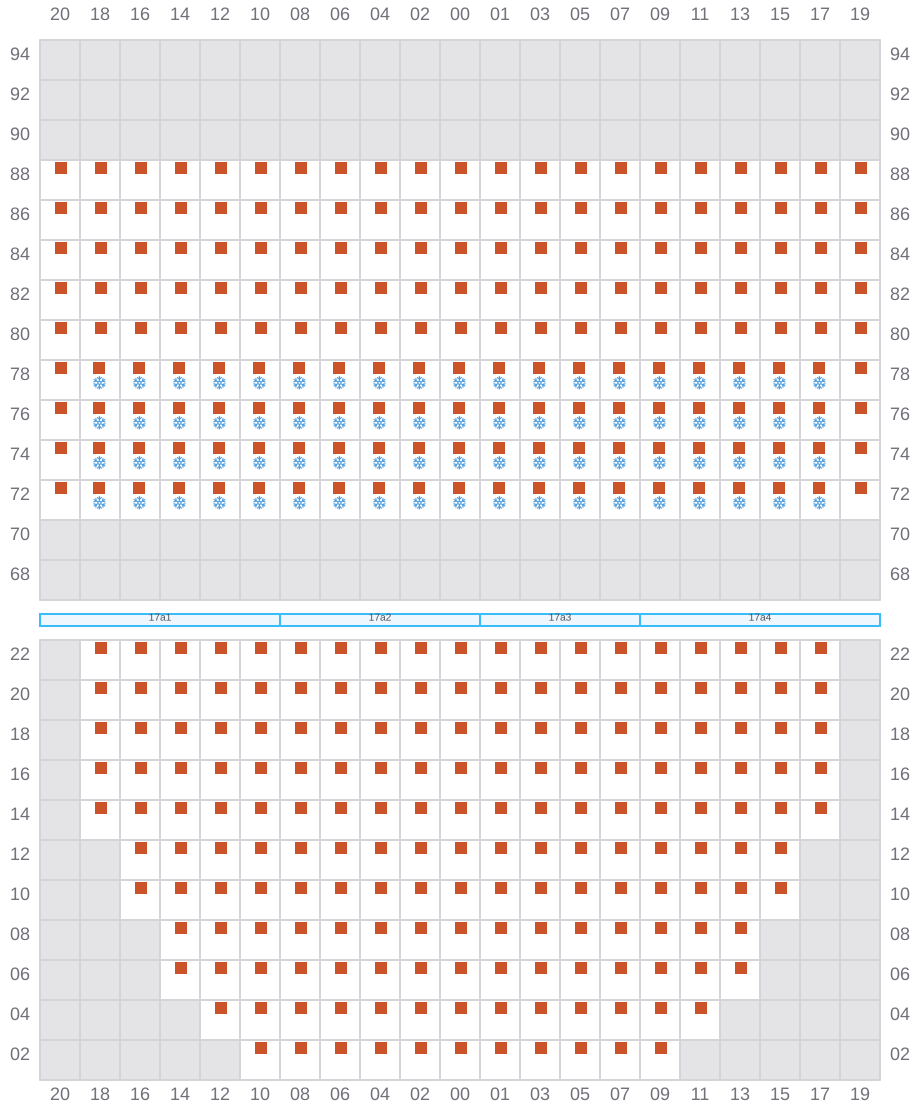

Bay 019 view and slots of CMA CGM BENJAMIN FRANKLIN

021 (022)

  • →
  • → / ?
  • →

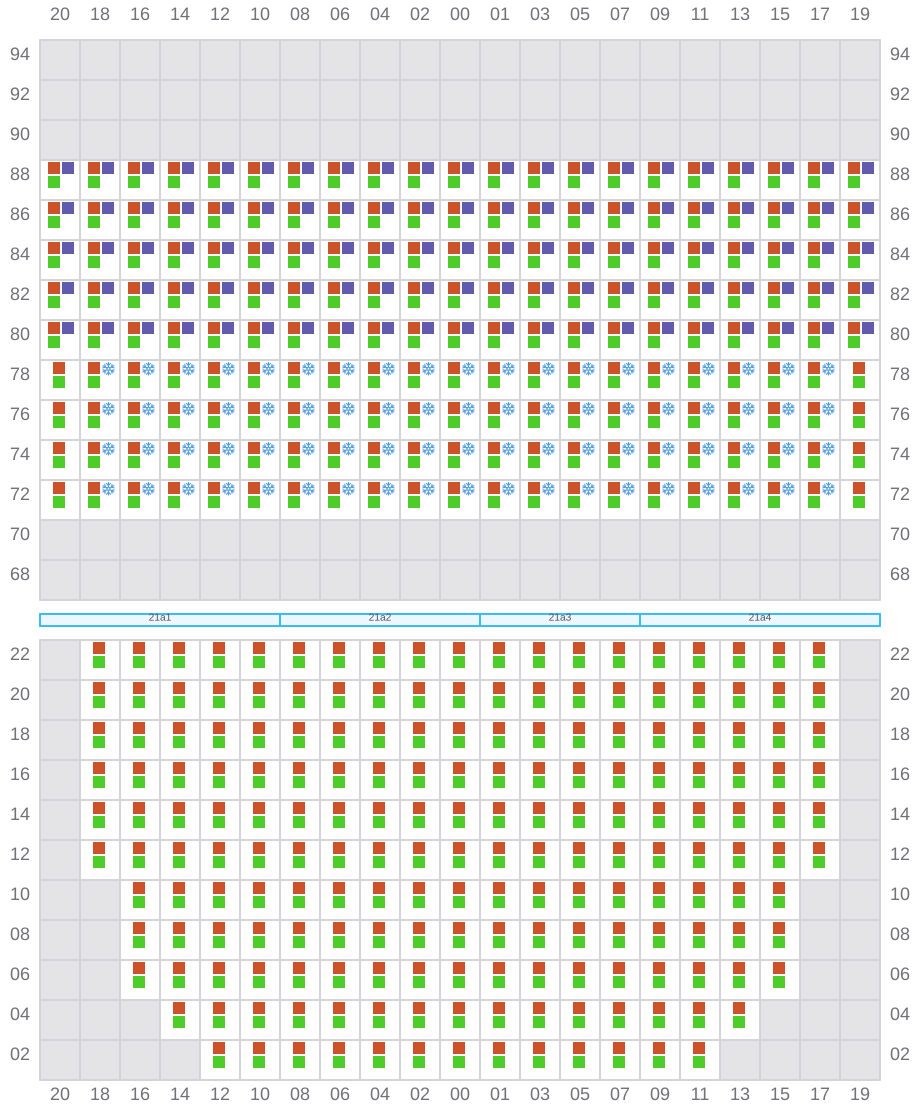

Bay 021 view and slots of CMA CGM BENJAMIN FRANKLIN

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM BENJAMIN FRANKLIN

025 (026)

  • →
  • → / ?
  • →

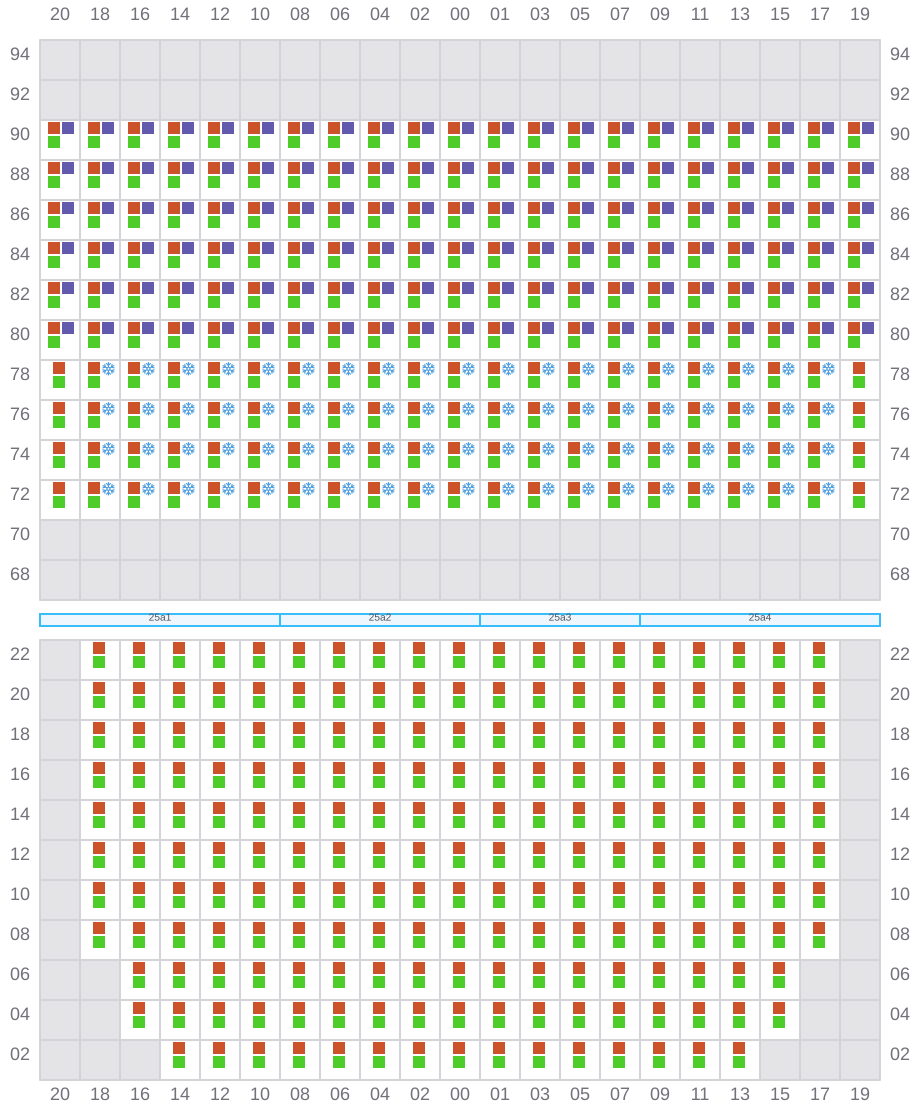

Bay 025 view and slots of CMA CGM BENJAMIN FRANKLIN

027

  • ←
  • → / ?
  • →

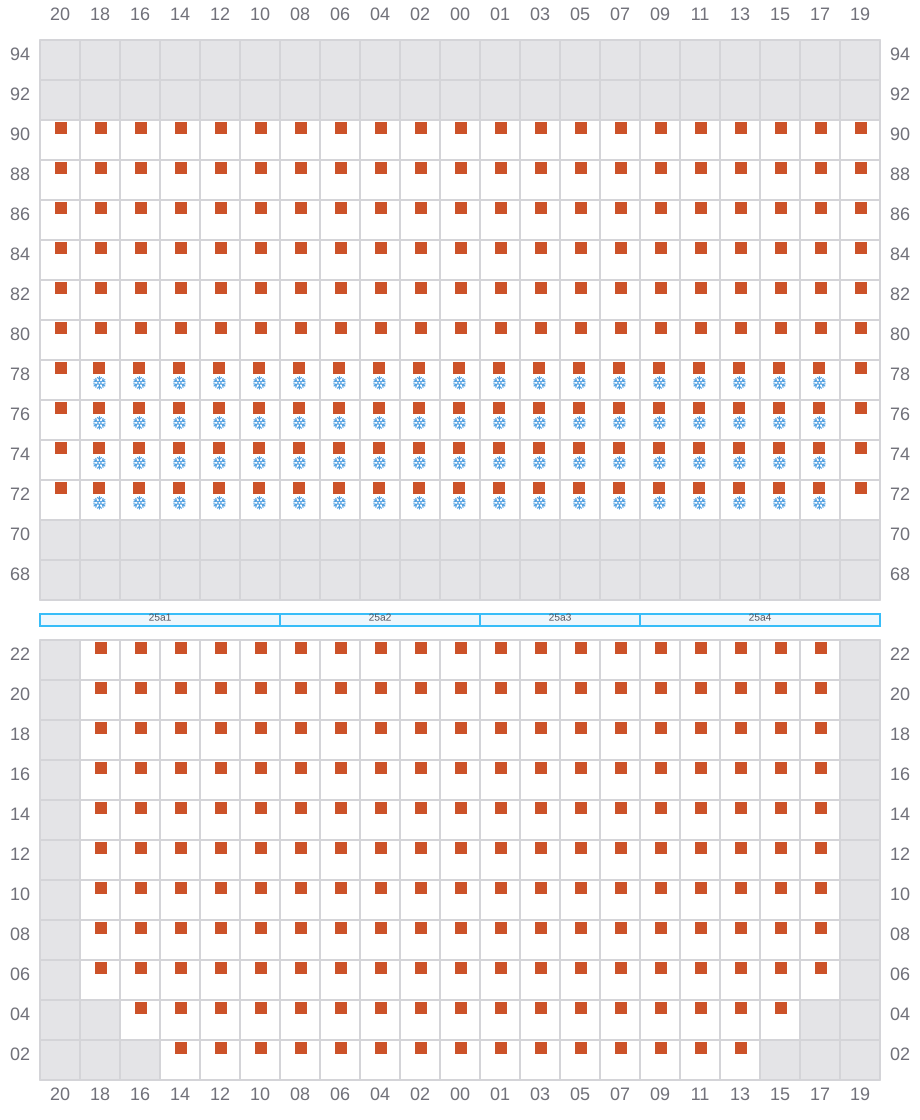

Bay 027 view and slots of CMA CGM BENJAMIN FRANKLIN

029 (030)

  • →
  • → / ?
  • →
Bay 029 view and slots of CMA CGM BENJAMIN FRANKLIN

031

  • ←
  • → / ?
  • →

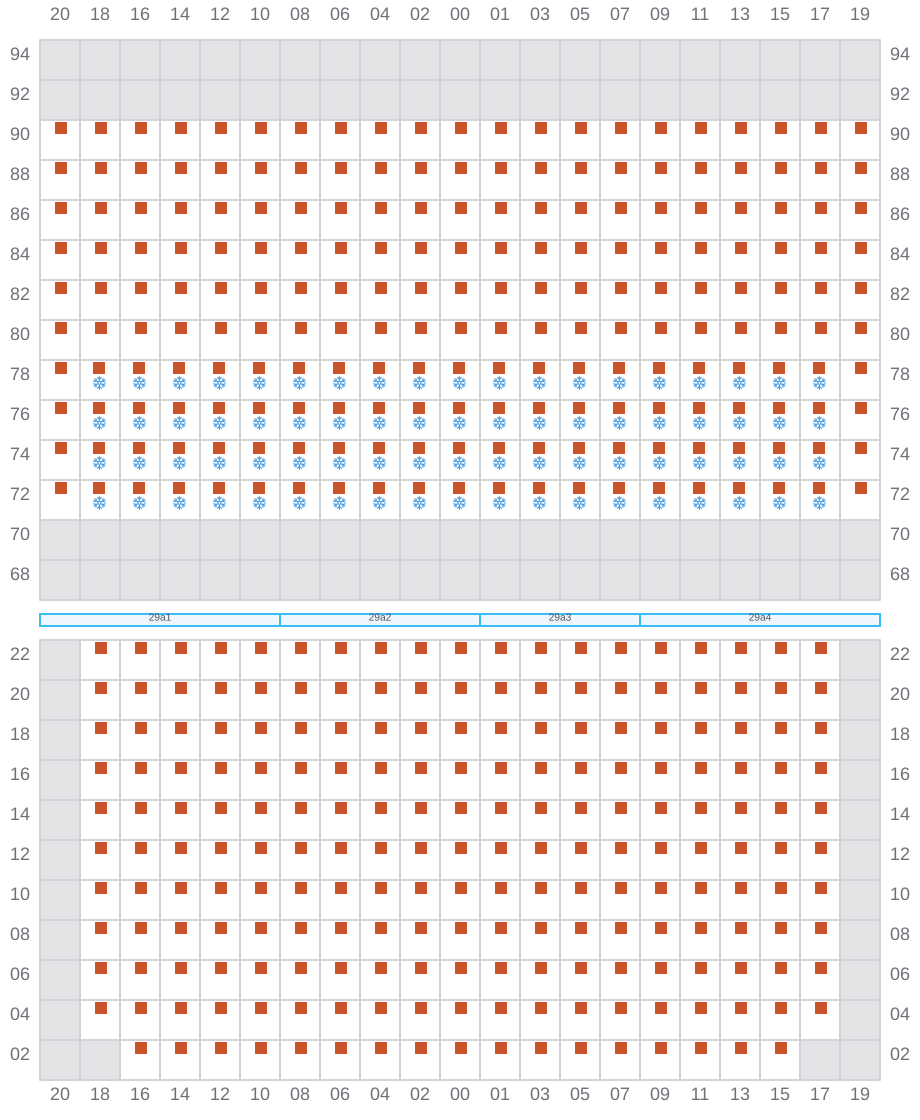

Bay 031 view and slots of CMA CGM BENJAMIN FRANKLIN

033 (034)

  • →
  • → / ?
  • →
Bay 033 view and slots of CMA CGM BENJAMIN FRANKLIN

035

  • ←
  • → / ?
  • →

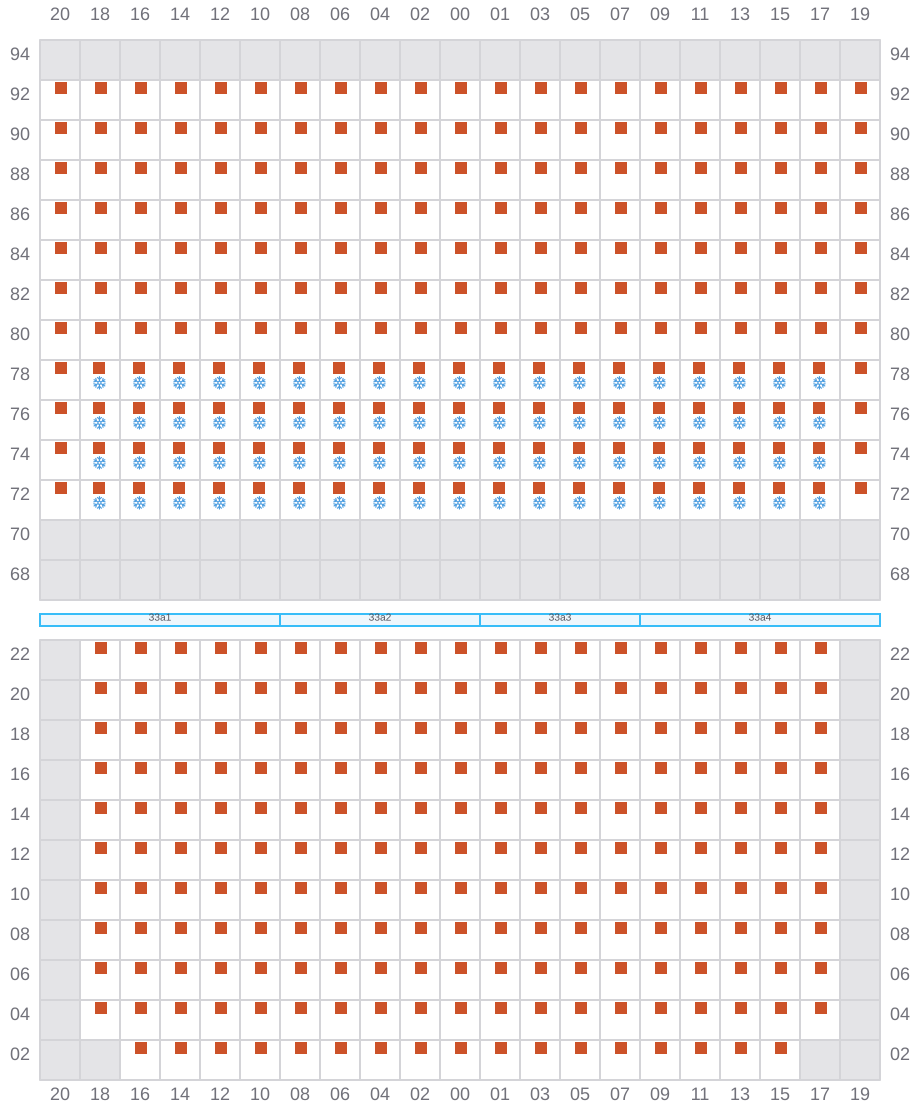

Bay 035 view and slots of CMA CGM BENJAMIN FRANKLIN

037 (038)

  • →
  • → / ?
  • →

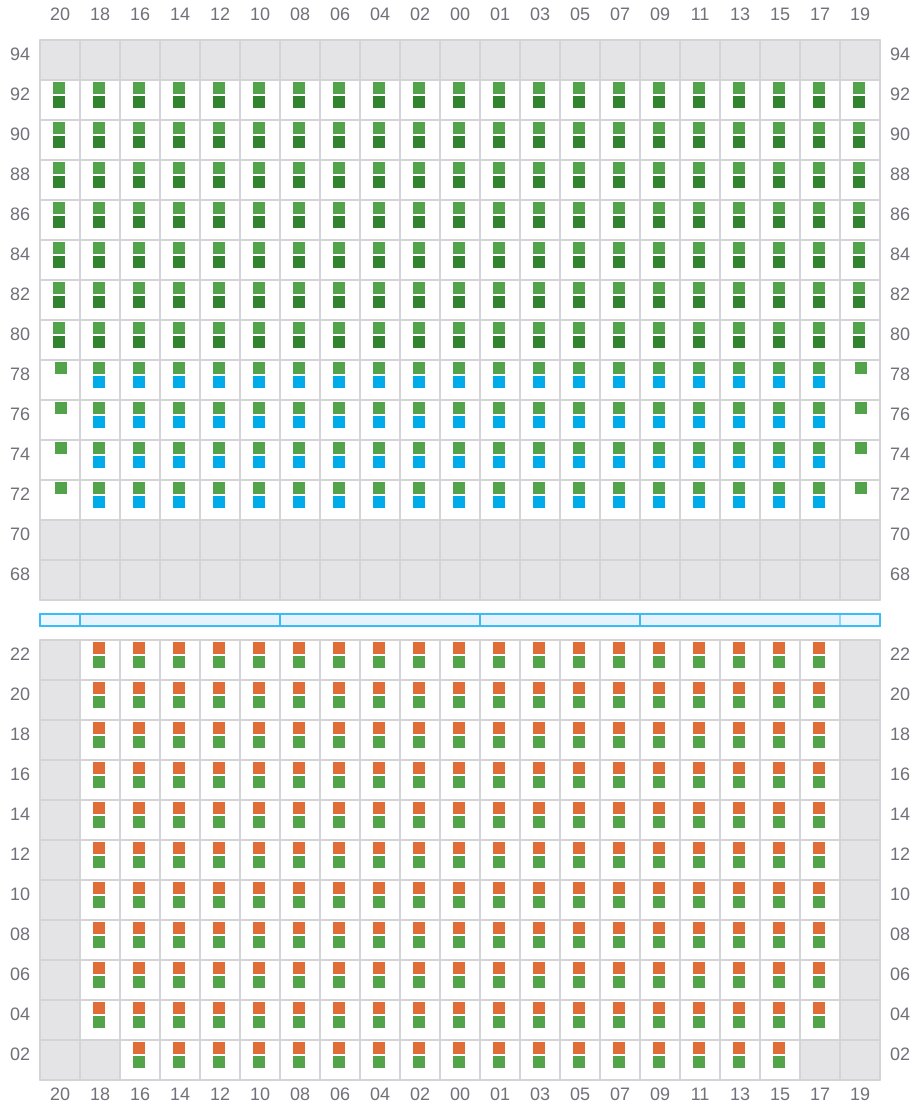

Bay 037 view and slots of CMA CGM BENJAMIN FRANKLIN

039

  • ? / ←
  • ? / →

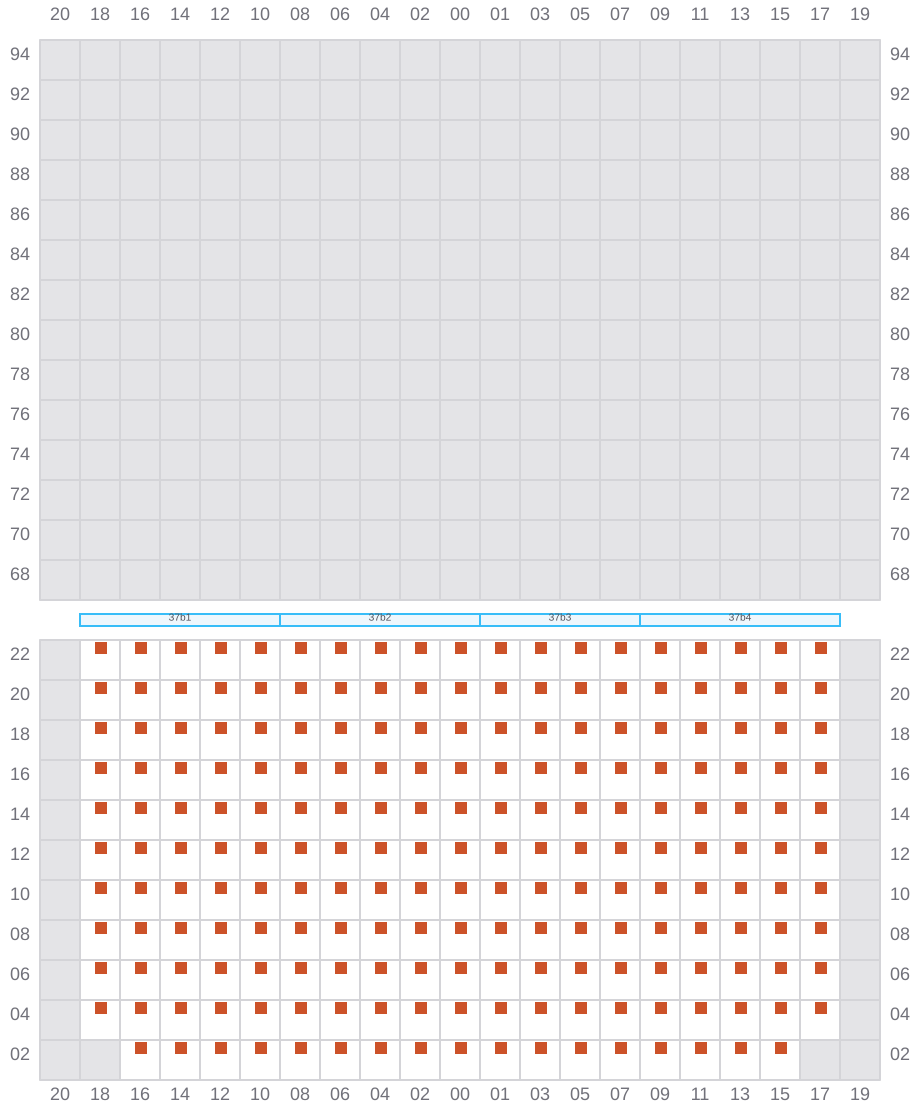

Bay 039 view and slots of CMA CGM BENJAMIN FRANKLIN

041 (042)

  • →
  • → / ?
  • →

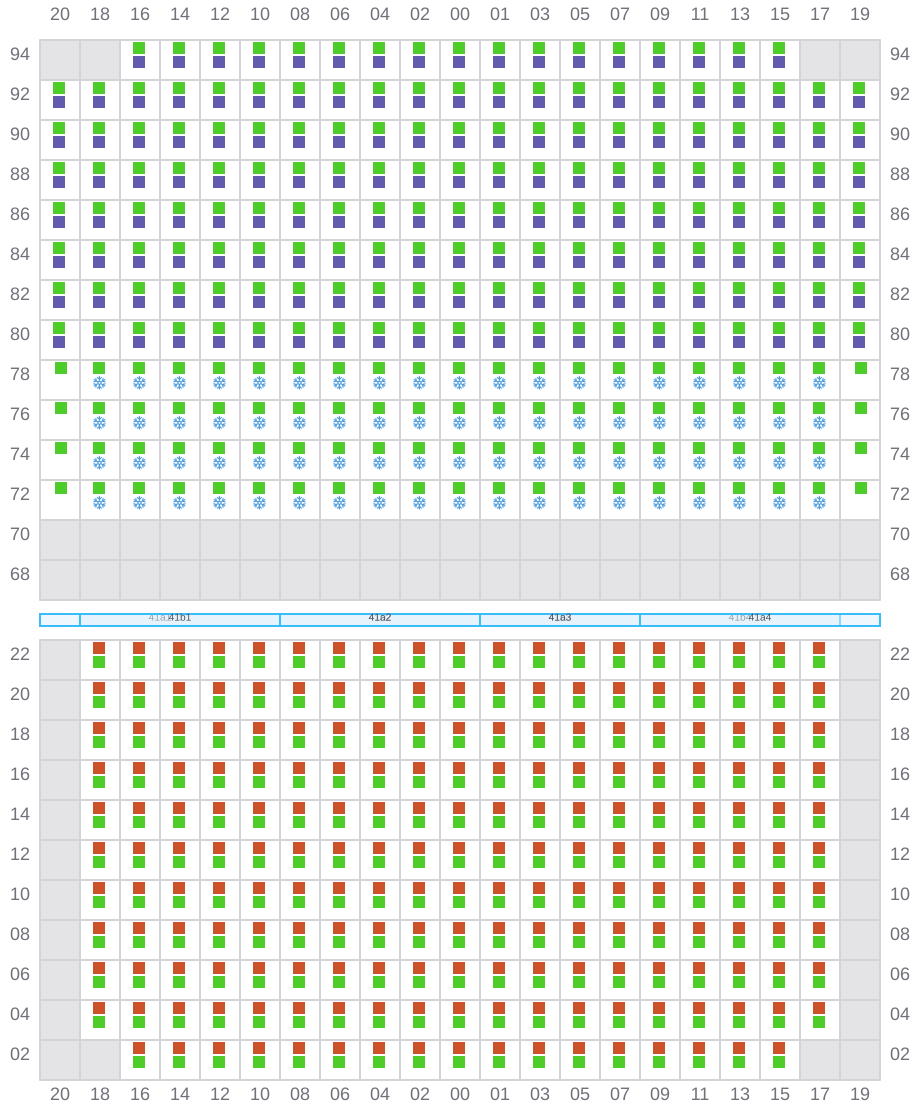

Bay 041 view and slots of CMA CGM BENJAMIN FRANKLIN

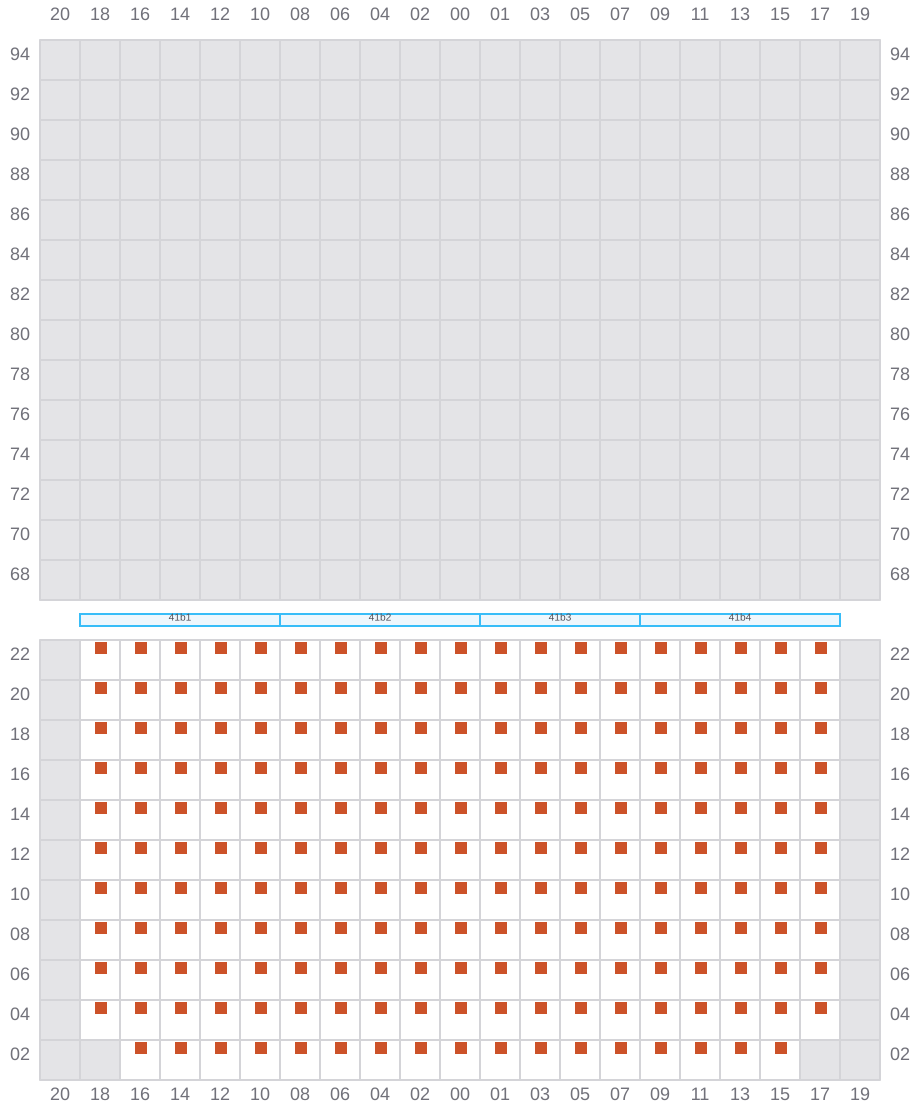

043

  • ? / ←
  • ? / →
Bay 043 view and slots of CMA CGM BENJAMIN FRANKLIN

045 (046)

  • →
  • → / ?
  • →
Bay 045 view and slots of CMA CGM BENJAMIN FRANKLIN

047

  • ←
  • → / ?
  • →
Bay 047 view and slots of CMA CGM BENJAMIN FRANKLIN

049 (050)

  • →
  • → / ?
  • →

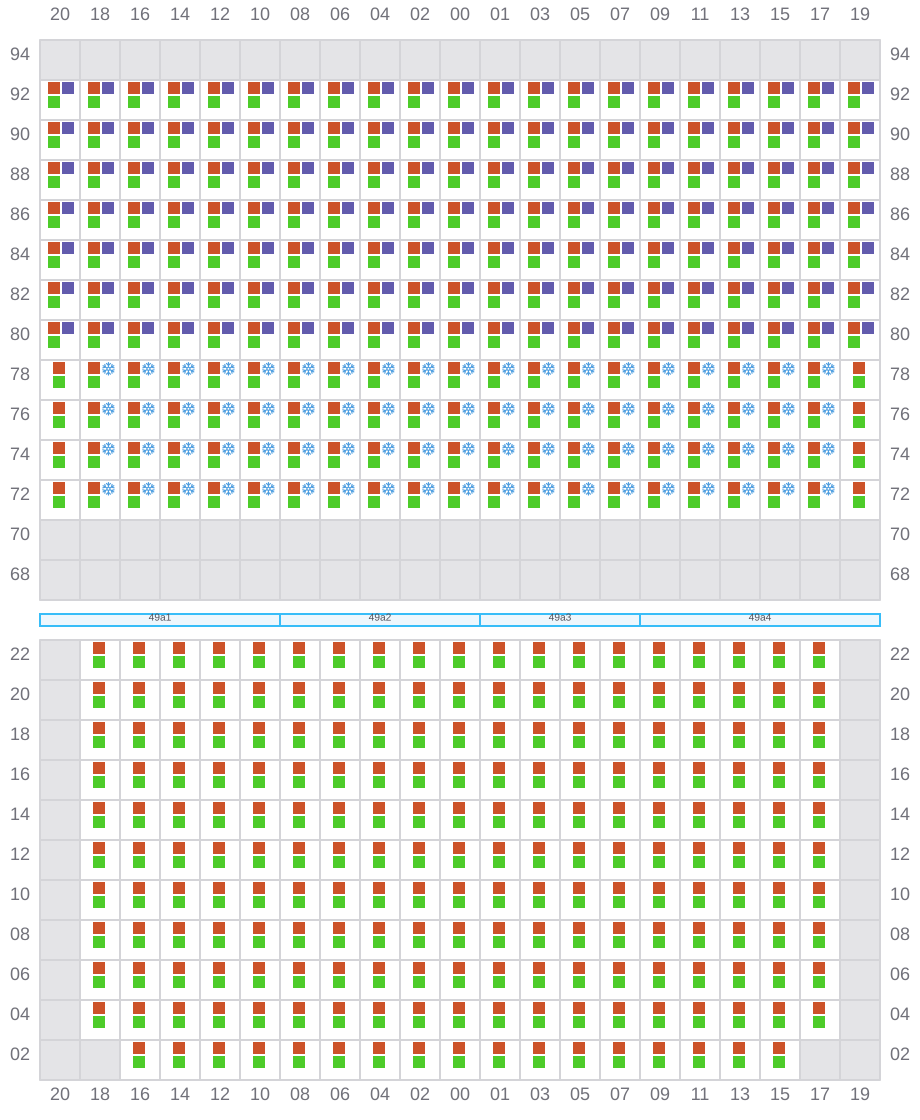

Bay 049 view and slots of CMA CGM BENJAMIN FRANKLIN

051

  • ←
  • → / ?
  • →
Bay 051 view and slots of CMA CGM BENJAMIN FRANKLIN

053 (054)

  • →
  • → / ?
  • →
Bay 053 view and slots of CMA CGM BENJAMIN FRANKLIN

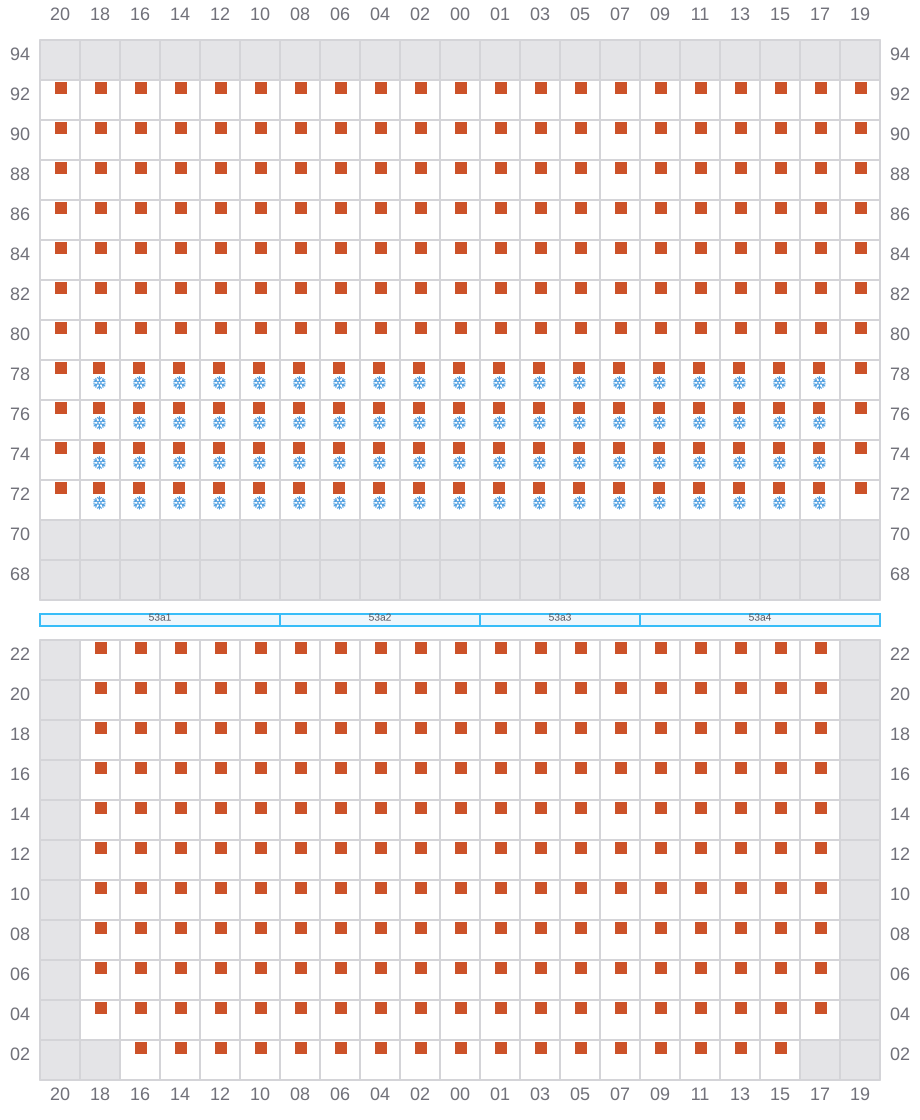

055

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM BENJAMIN FRANKLIN

057 (058)

  • →
  • → / ?
  • →

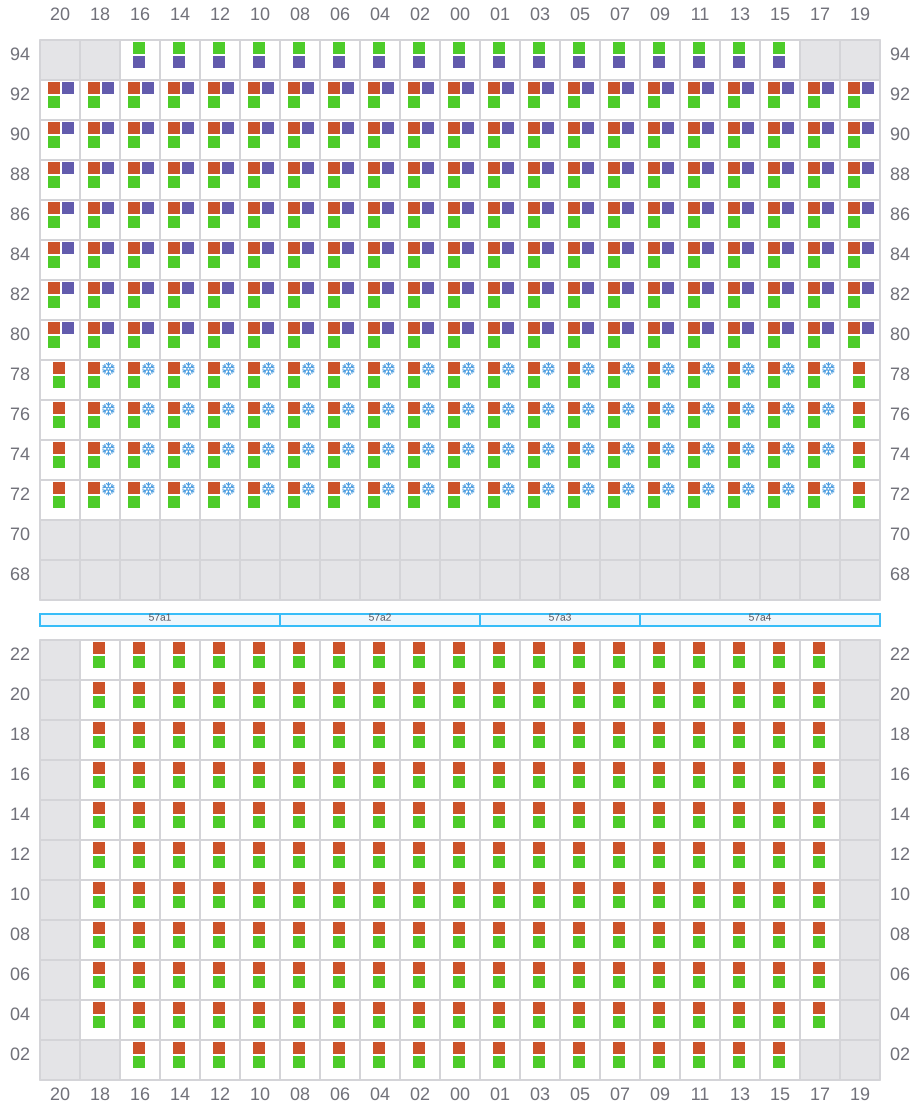

Bay 057 view and slots of CMA CGM BENJAMIN FRANKLIN

059

  • ←
  • → / ?
  • →
Bay 059 view and slots of CMA CGM BENJAMIN FRANKLIN

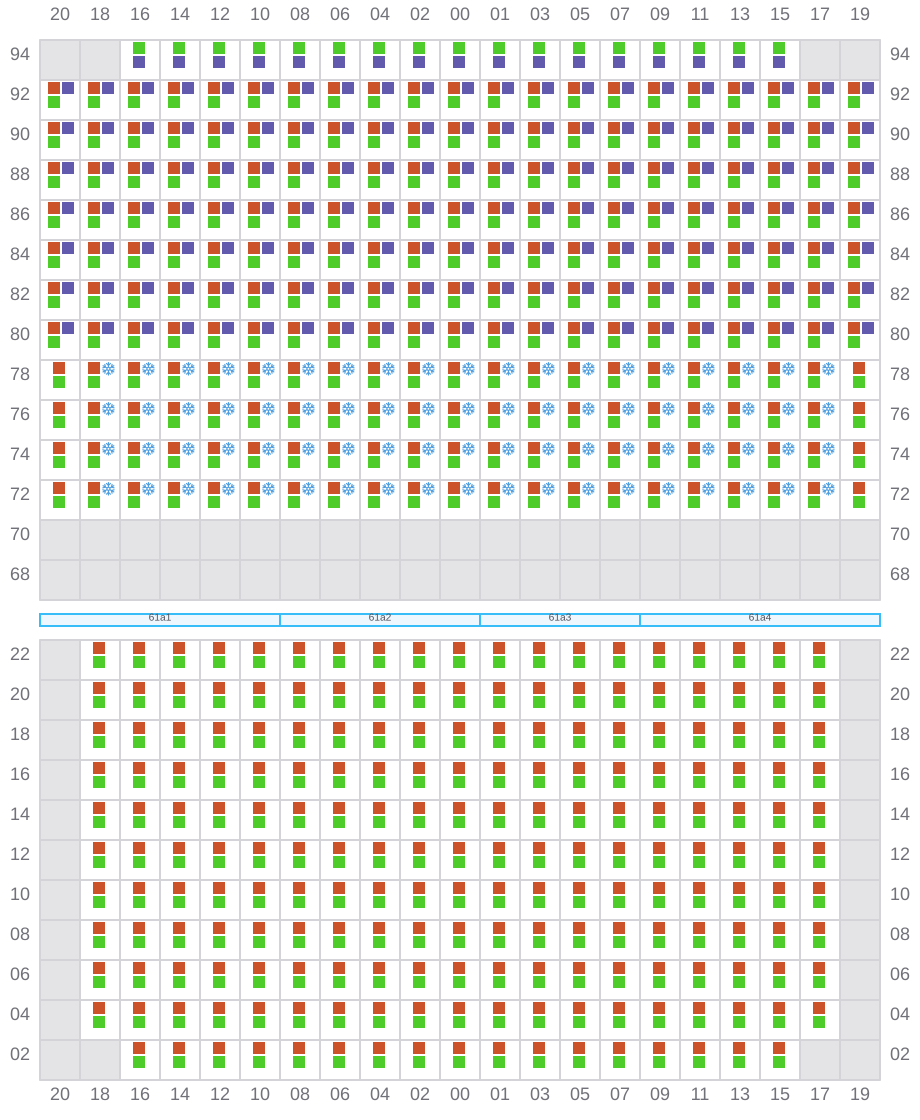

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of CMA CGM BENJAMIN FRANKLIN

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM BENJAMIN FRANKLIN

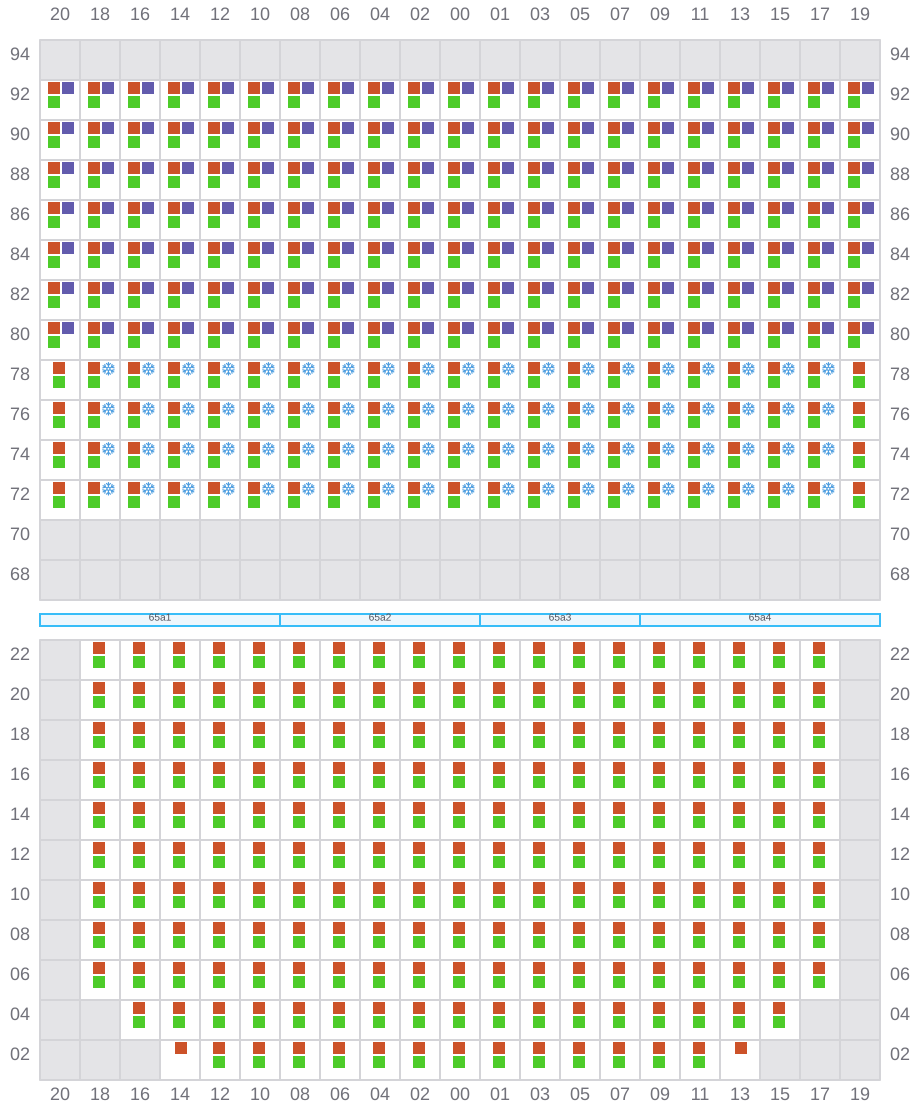

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM BENJAMIN FRANKLIN

067

  • ←
  • → / ?
  • →

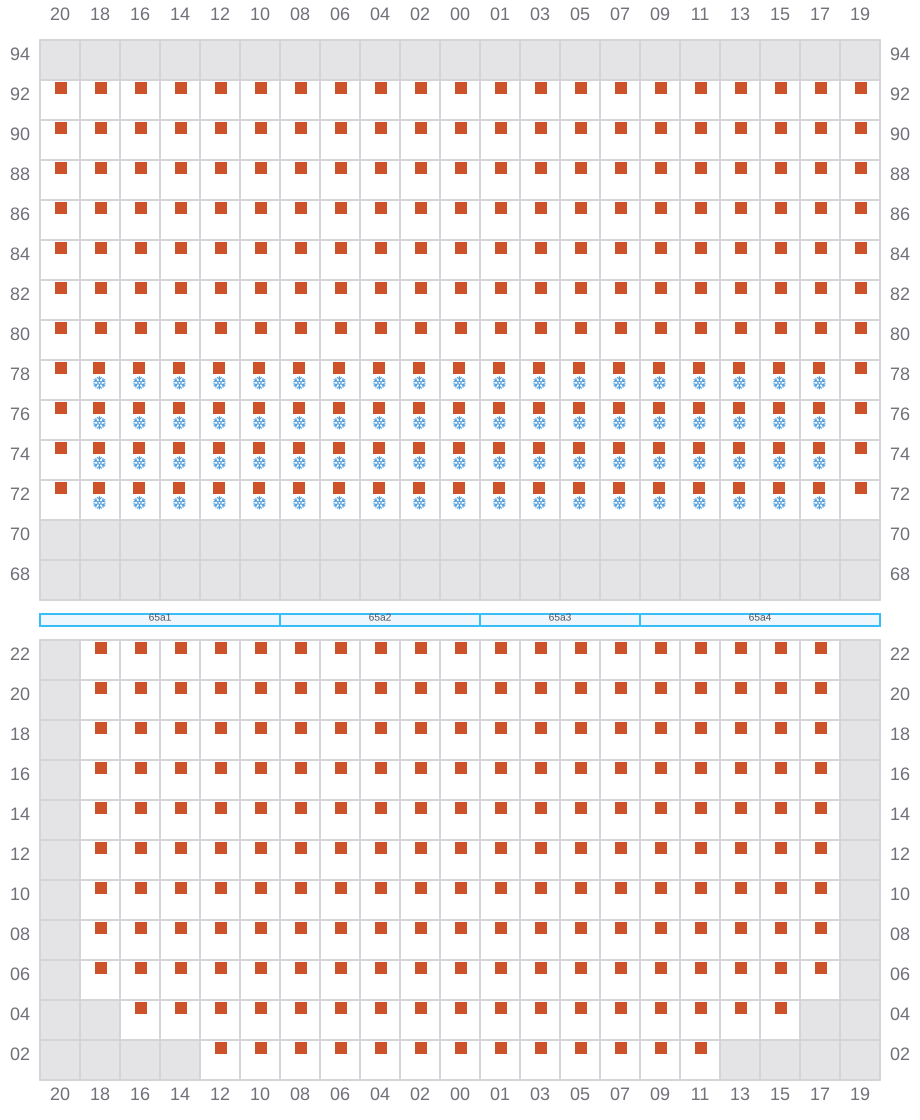

Bay 067 view and slots of CMA CGM BENJAMIN FRANKLIN

069 (070)

  • →
  • → / ?
  • →

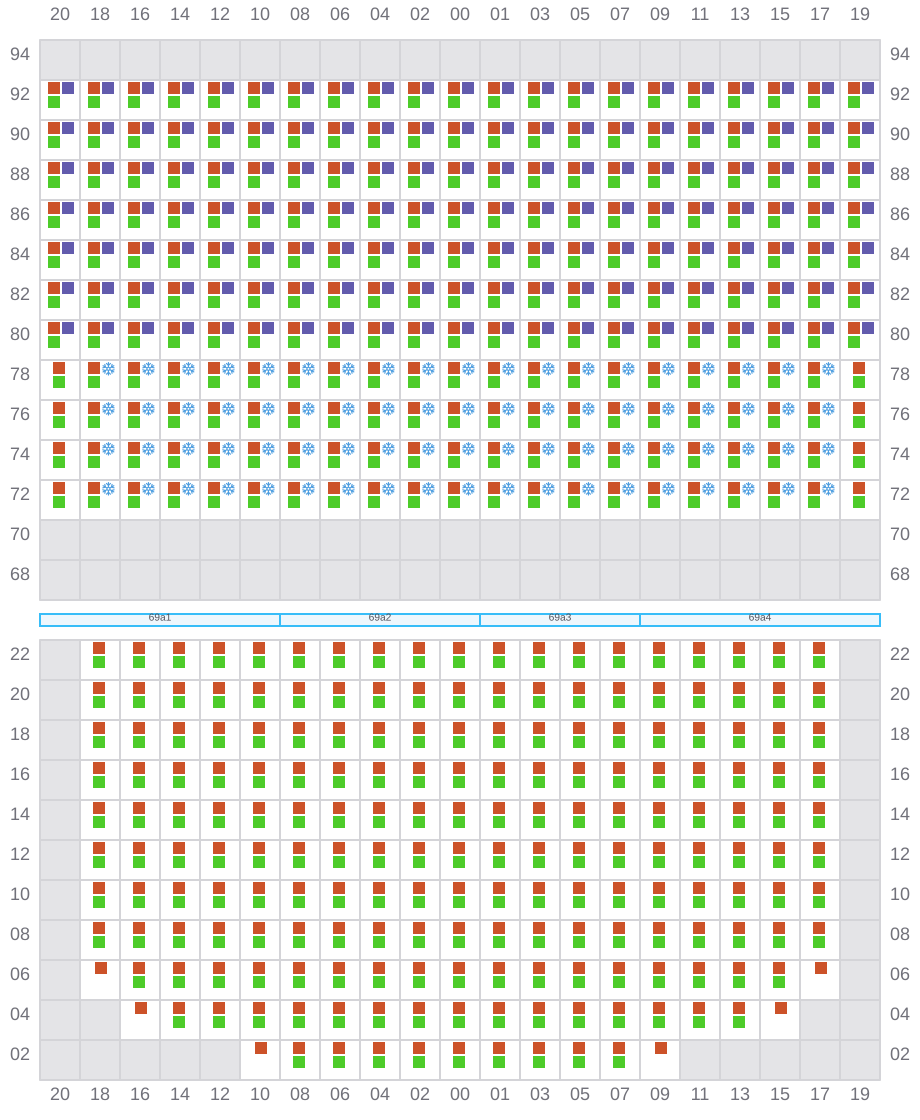

Bay 069 view and slots of CMA CGM BENJAMIN FRANKLIN

071

  • ←
  • → / ?
  • →

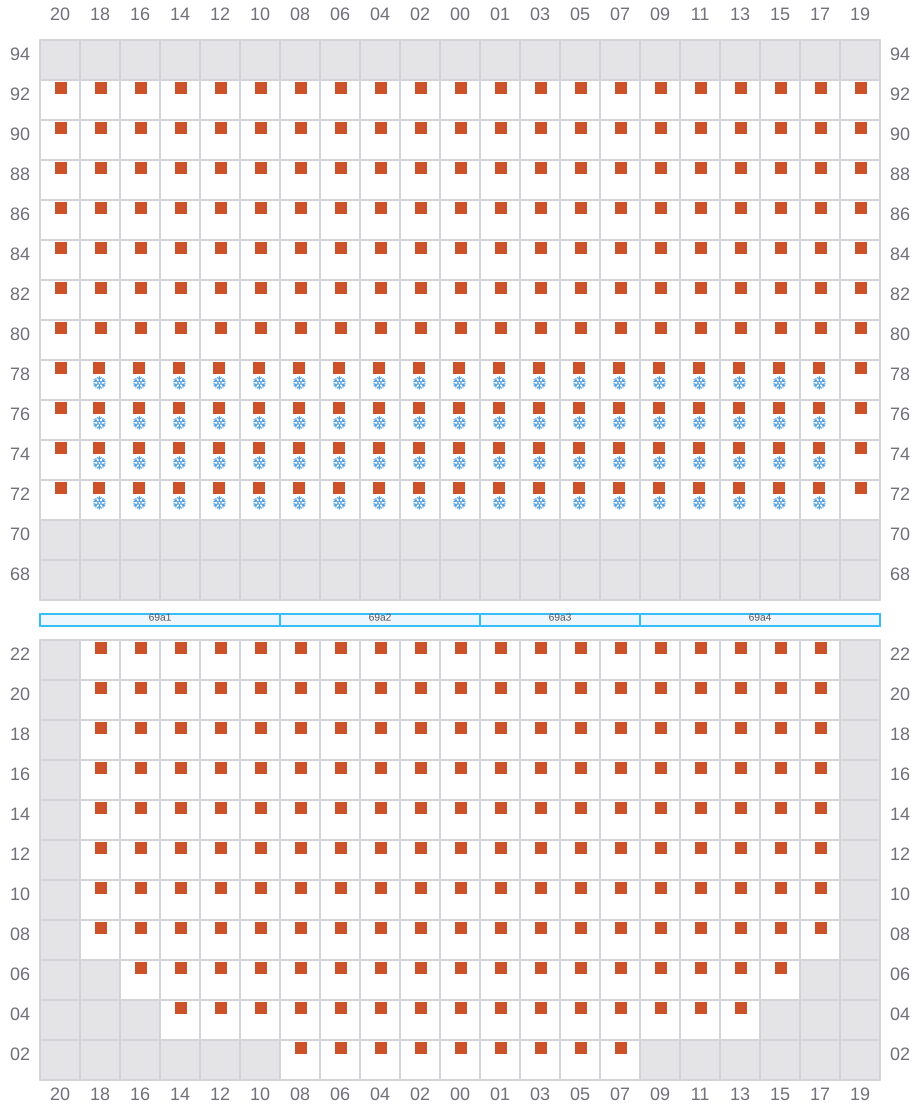

Bay 071 view and slots of CMA CGM BENJAMIN FRANKLIN

073 (074)

  • →
  • →

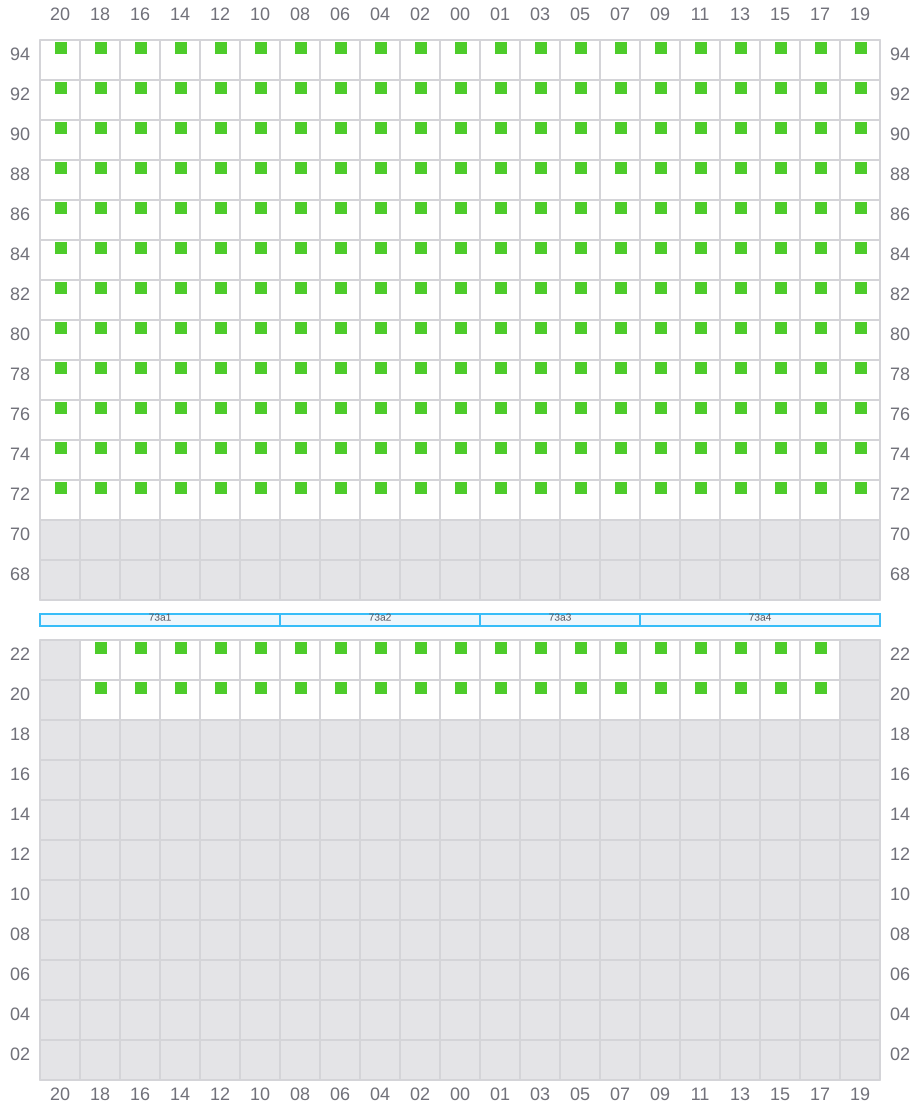

Bay 073 view and slots of CMA CGM BENJAMIN FRANKLIN

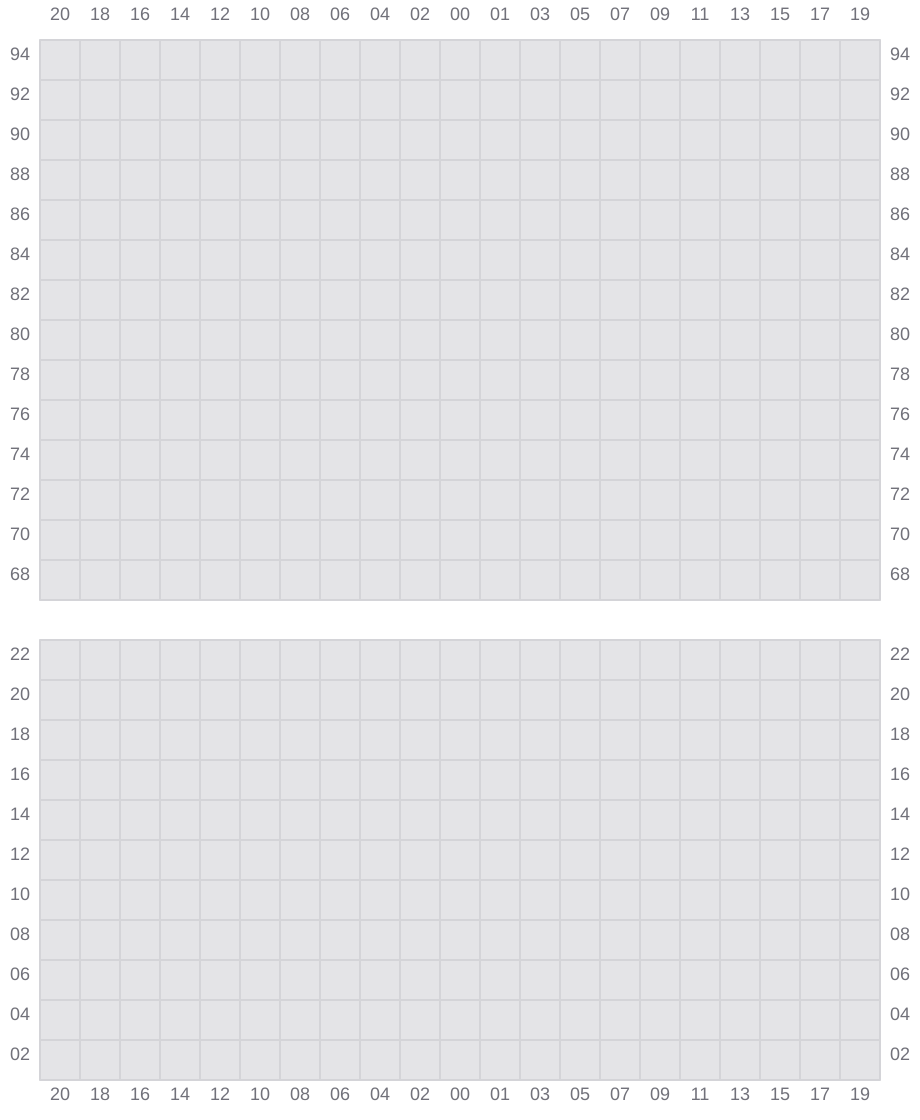

075

Bay 075 view and slots of CMA CGM BENJAMIN FRANKLIN

077 (078)

  • →
  • → / ?
  • →

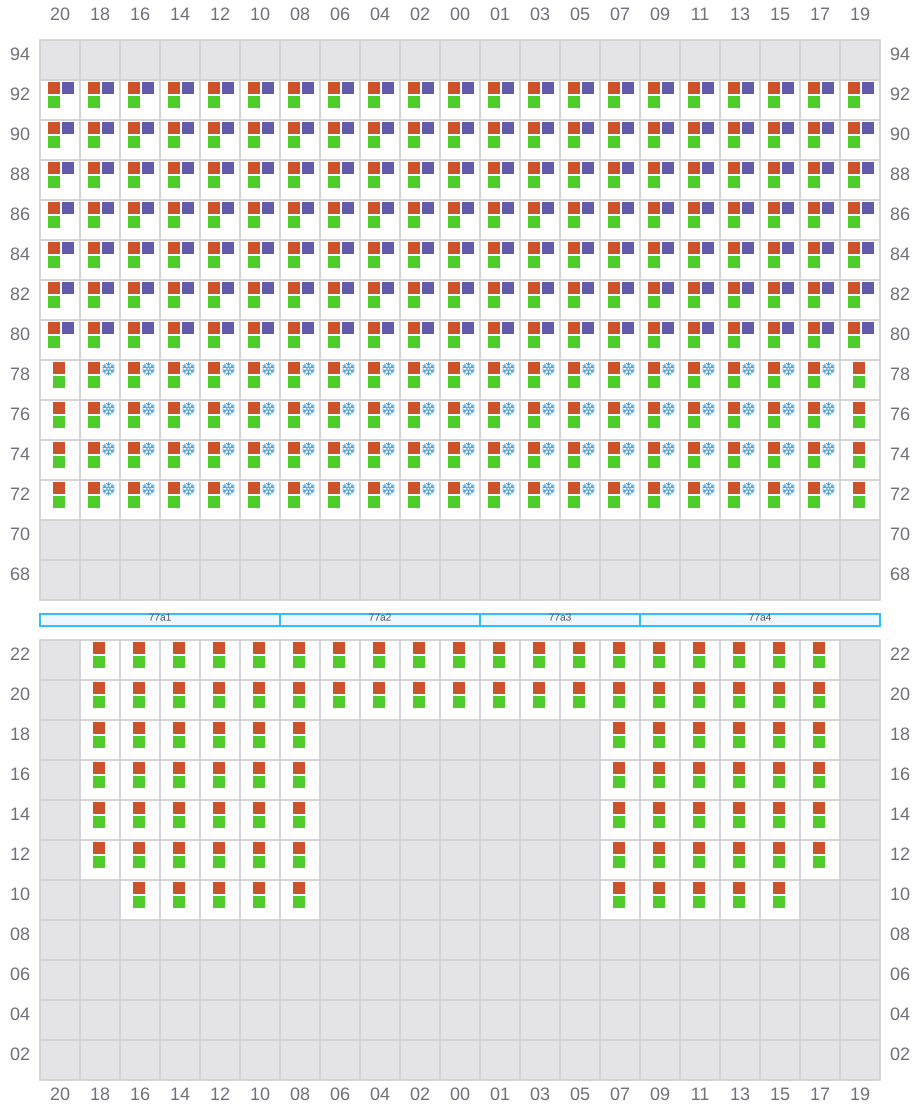

Bay 077 view and slots of CMA CGM BENJAMIN FRANKLIN

079

  • ←
  • → / ?
  • →

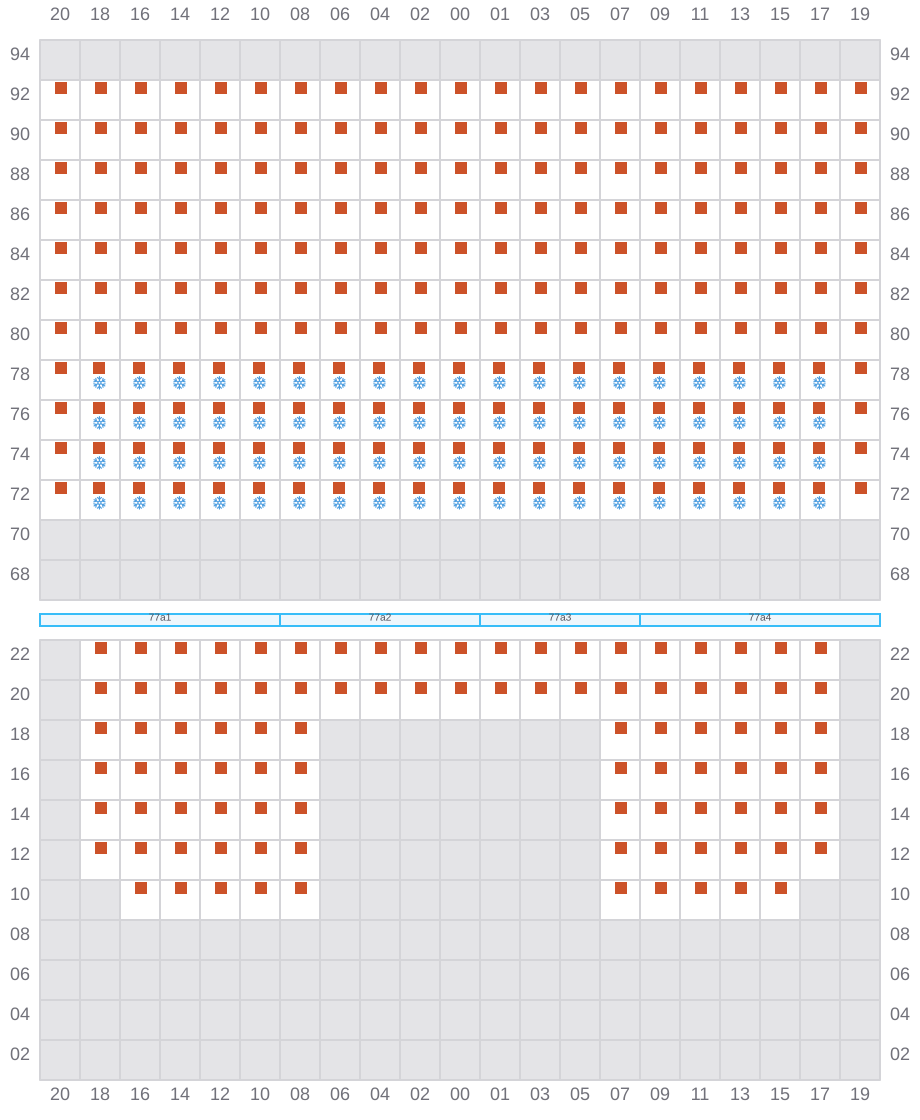

Bay 079 view and slots of CMA CGM BENJAMIN FRANKLIN

081 (082)

  • →
  • → / ?
  • →

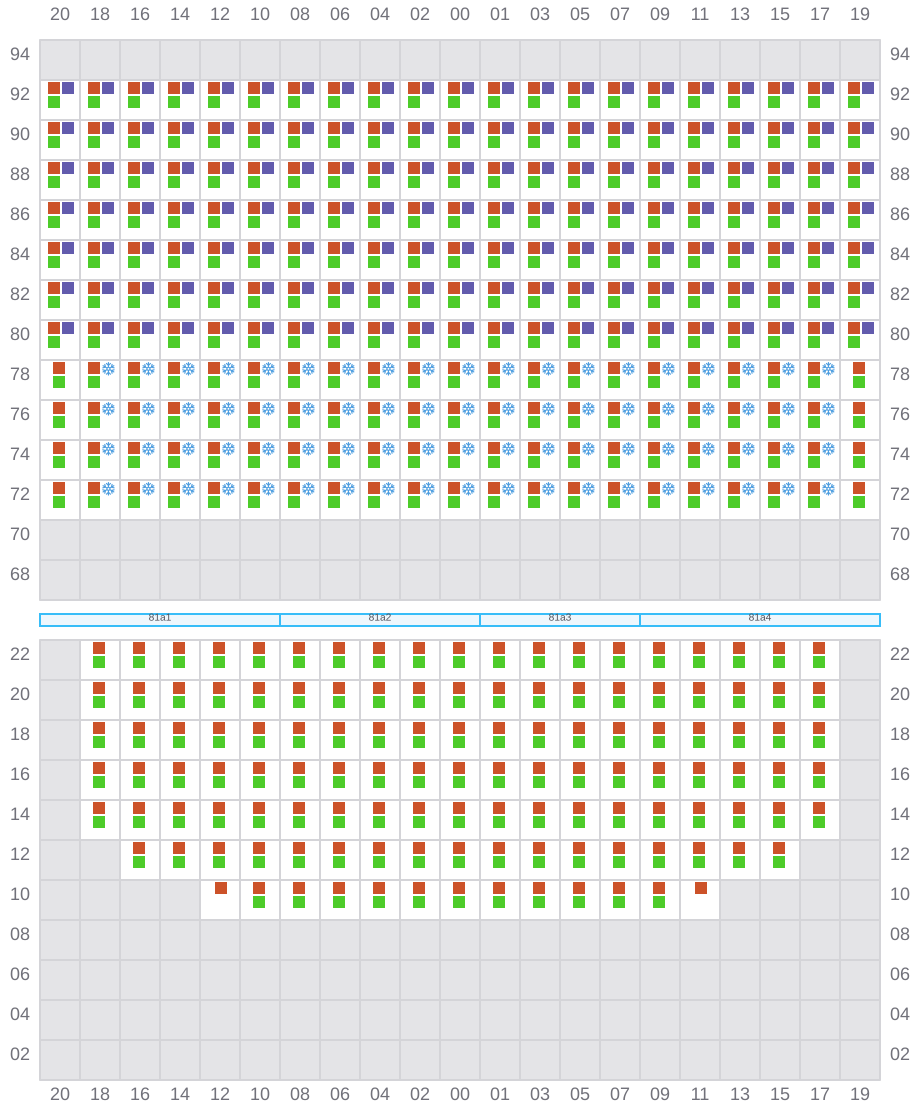

Bay 081 view and slots of CMA CGM BENJAMIN FRANKLIN

083

  • ←
  • → / ?
  • →

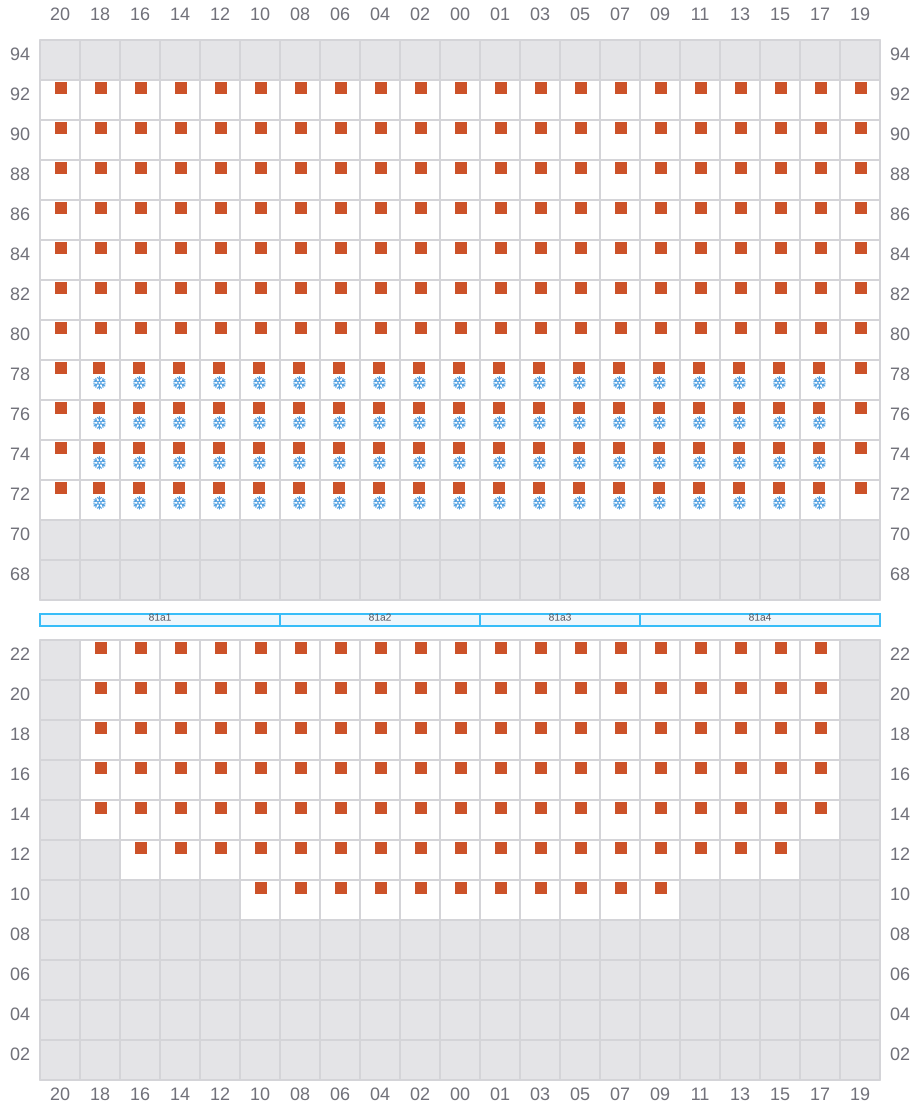

Bay 083 view and slots of CMA CGM BENJAMIN FRANKLIN

085 (086)

  • →
  • → / ?
  • →

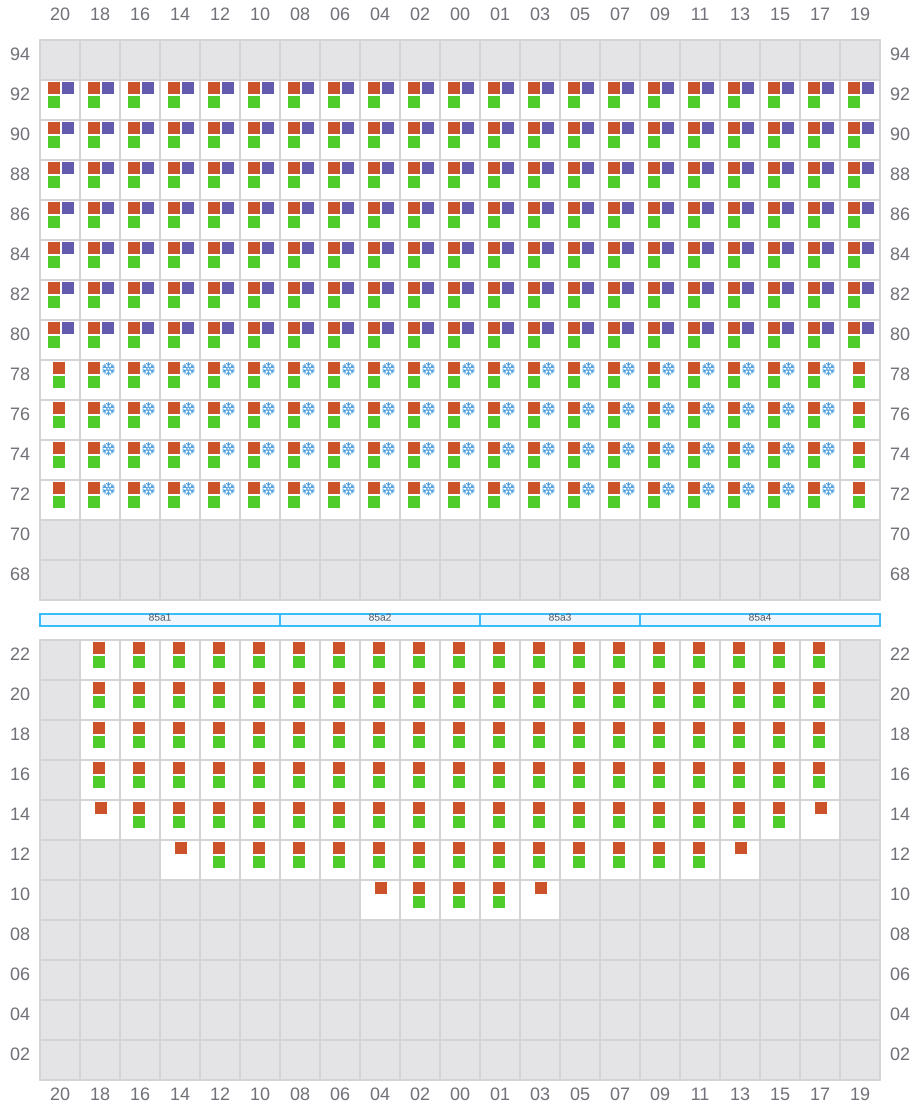

Bay 085 view and slots of CMA CGM BENJAMIN FRANKLIN

087

  • ←
  • → / ?
  • →

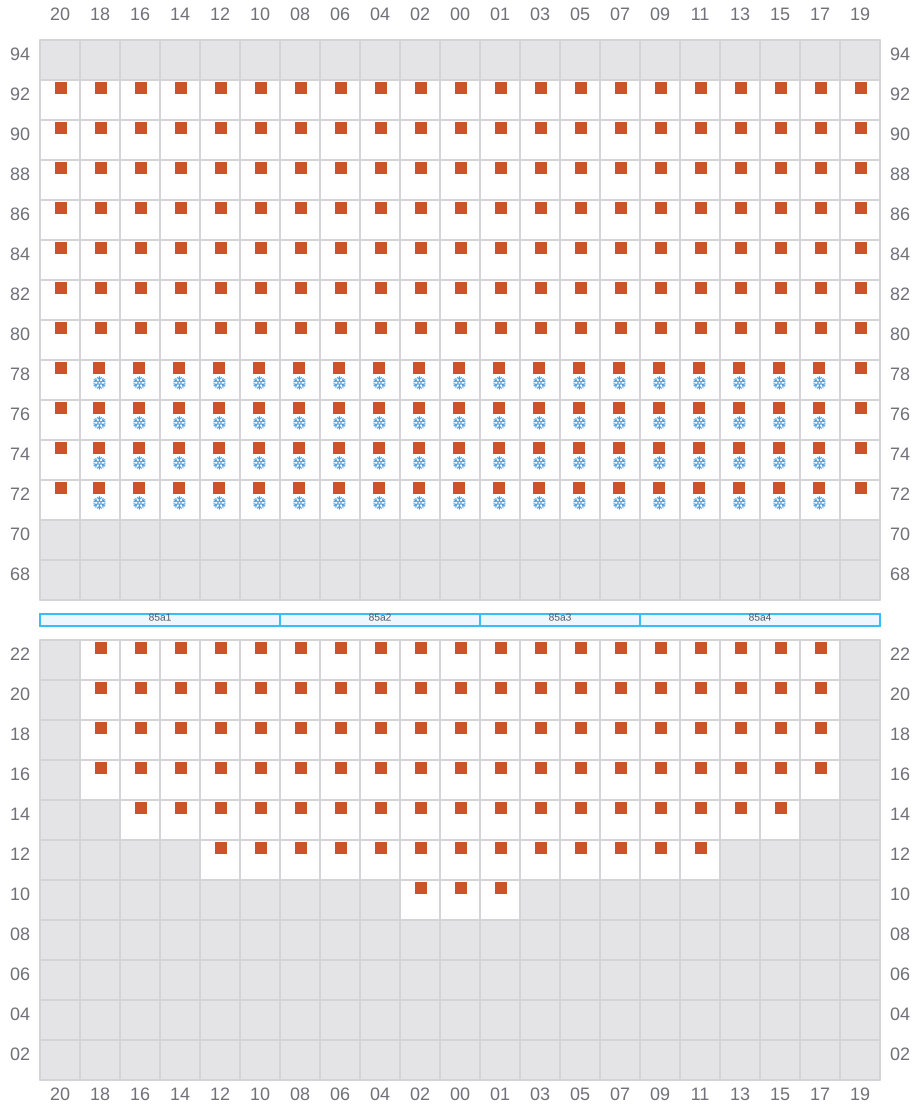

Bay 087 view and slots of CMA CGM BENJAMIN FRANKLIN

089 (090)

  • →
  • → / ?
  • →

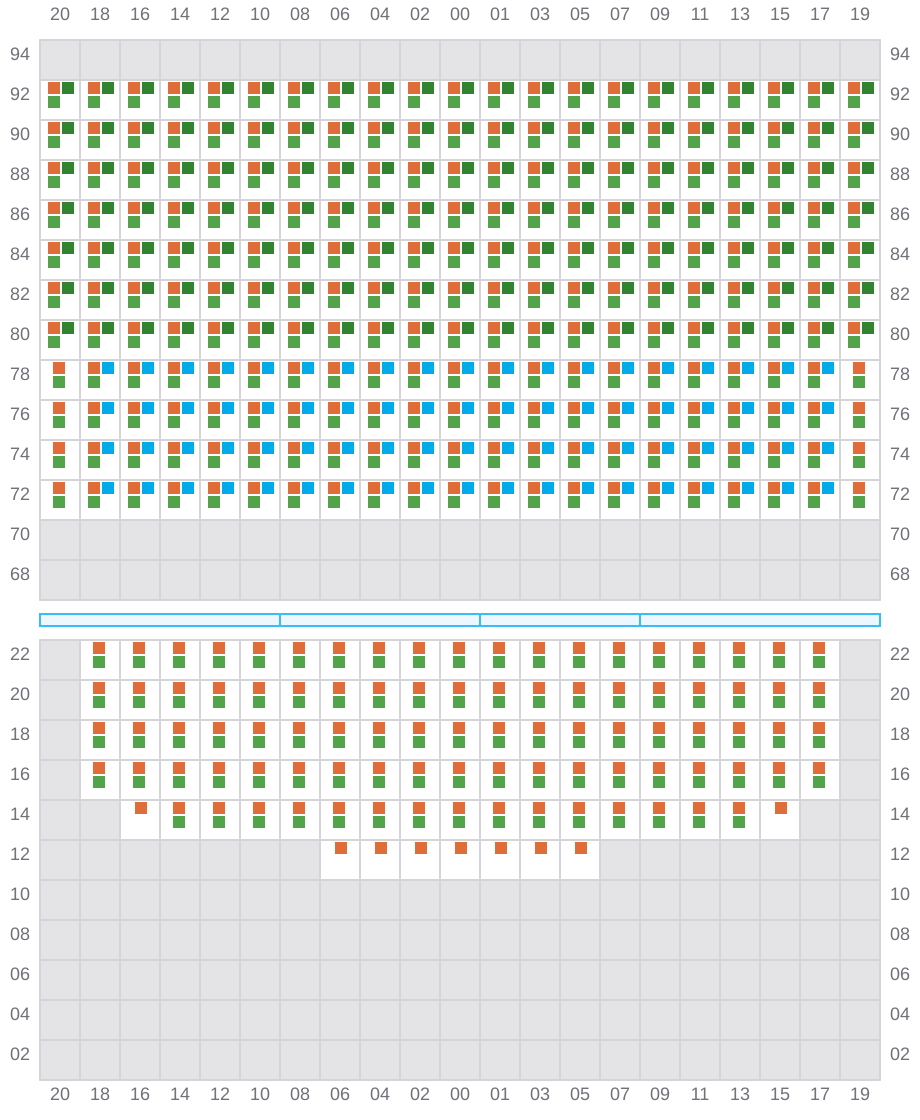

Bay 089 view and slots of CMA CGM BENJAMIN FRANKLIN

091

  • ←
  • → / ?
  • →

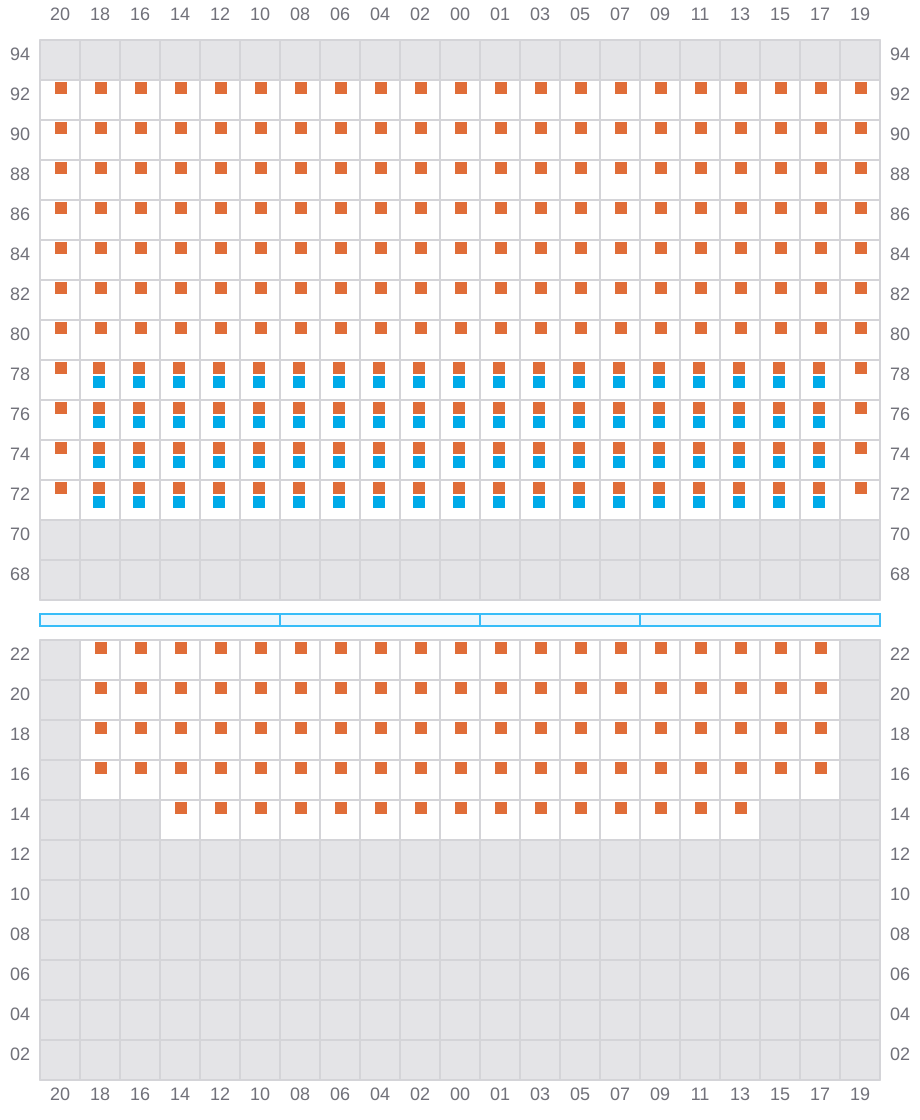

Bay 091 view and slots of CMA CGM BENJAMIN FRANKLIN

093 (094)

  • → / ?
  • → / ?

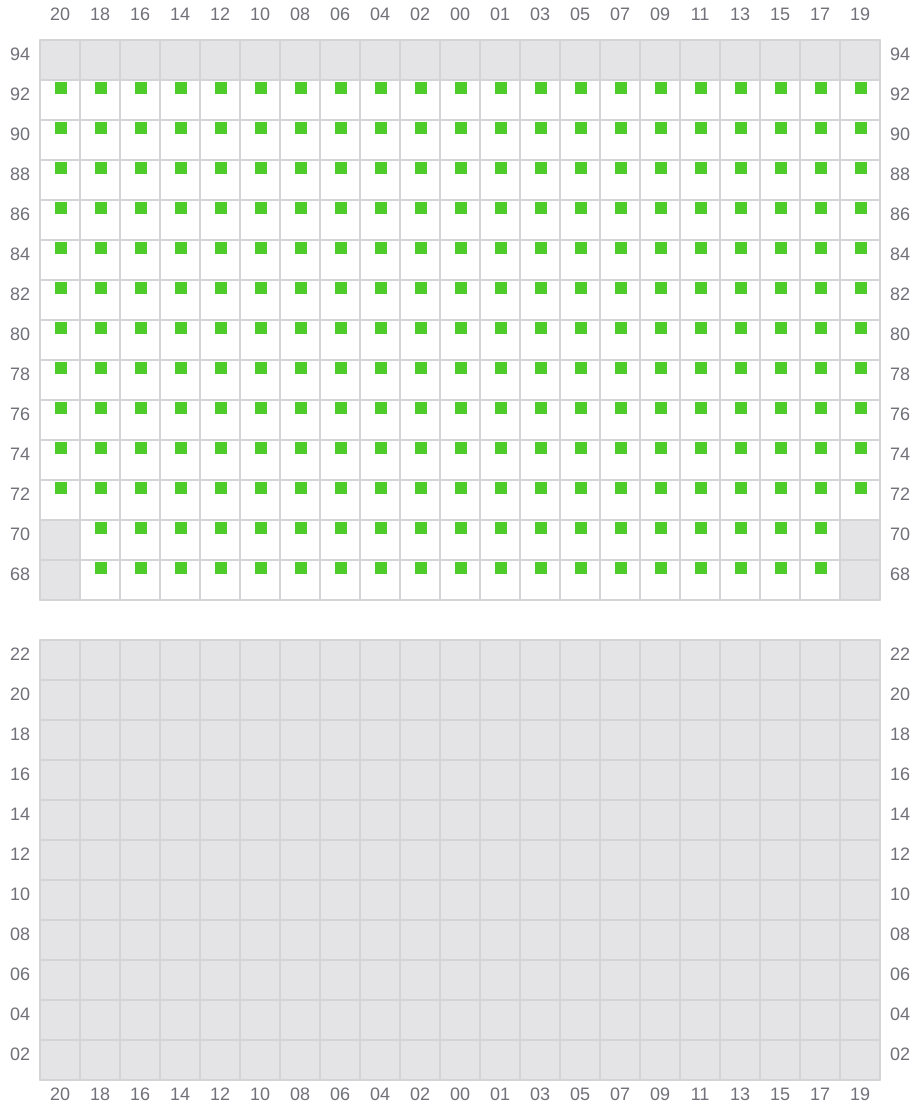

Bay 093 view and slots of CMA CGM BENJAMIN FRANKLIN
