CMA CGM BIANCA
9436367 | 9HA2889 | CMA by *********************** Last update: Wed Jan 29 2025
General Info
Ship Name:CMA CGM BIANCA
IMO Code:9436367
Call Sign:9HA2889
Line Operator:CMA
Class Name for Sister Ships:CGBI
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):320.00
LOA (Length Overall):334.98
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,727
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

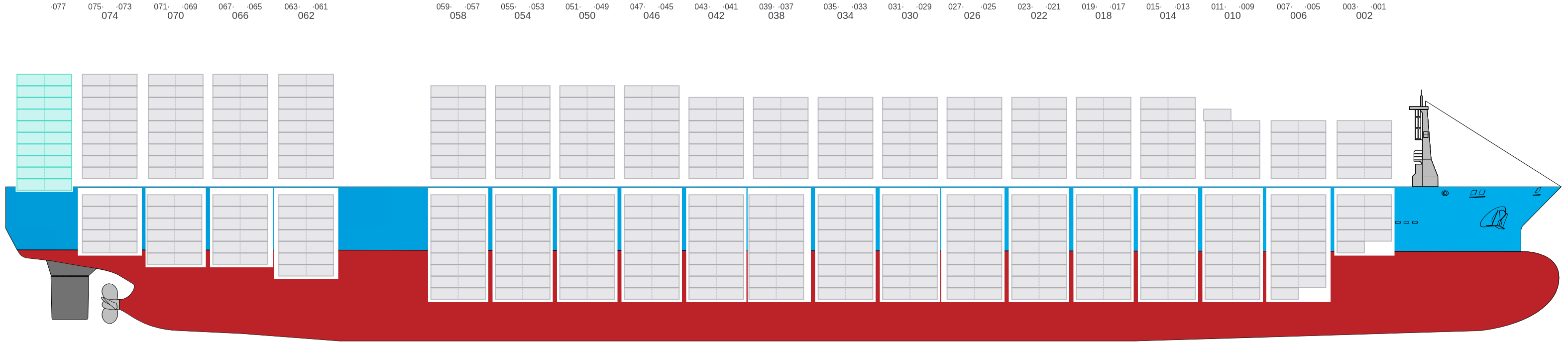

Side View

Hatch-Covers View

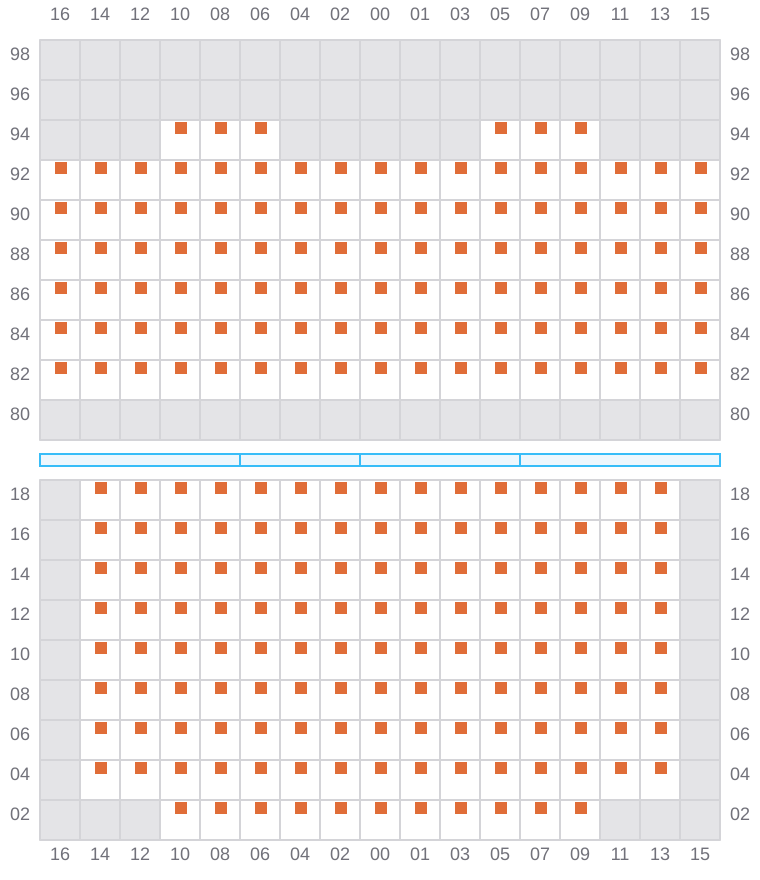

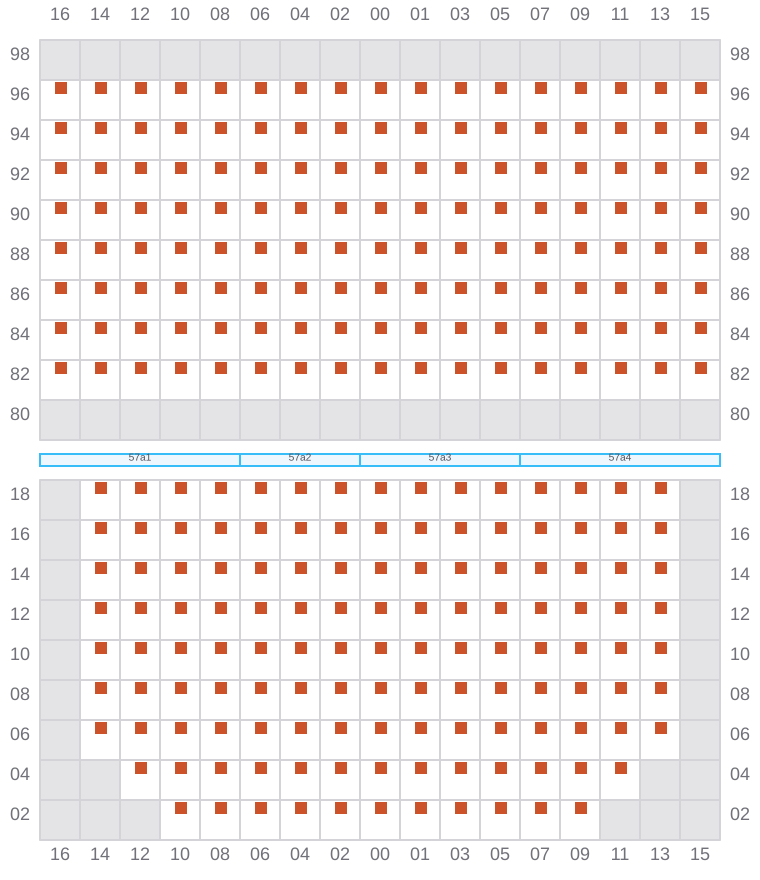

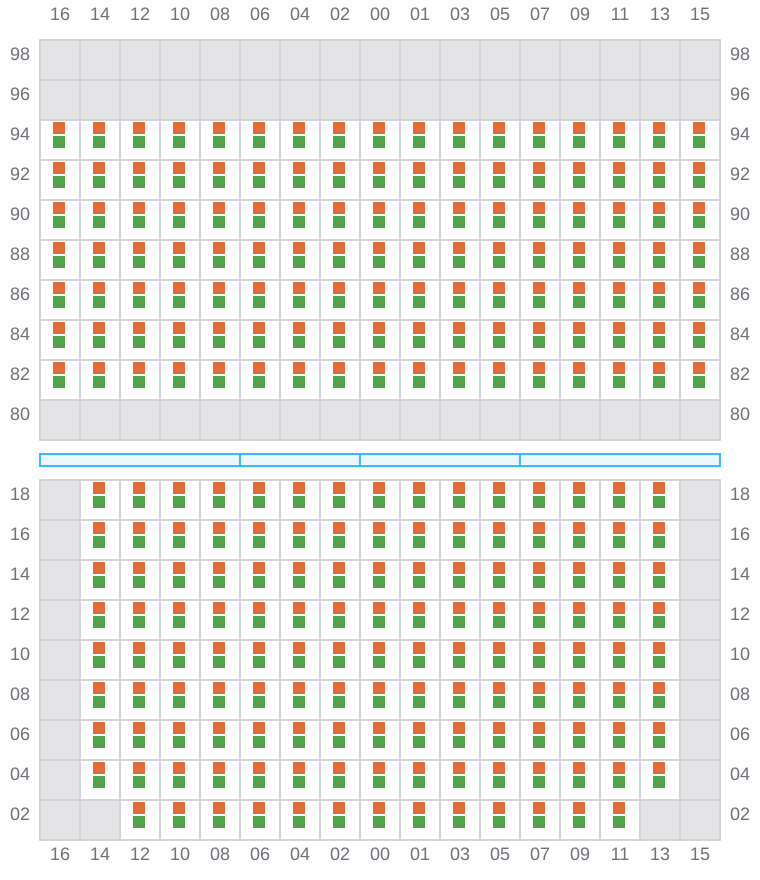

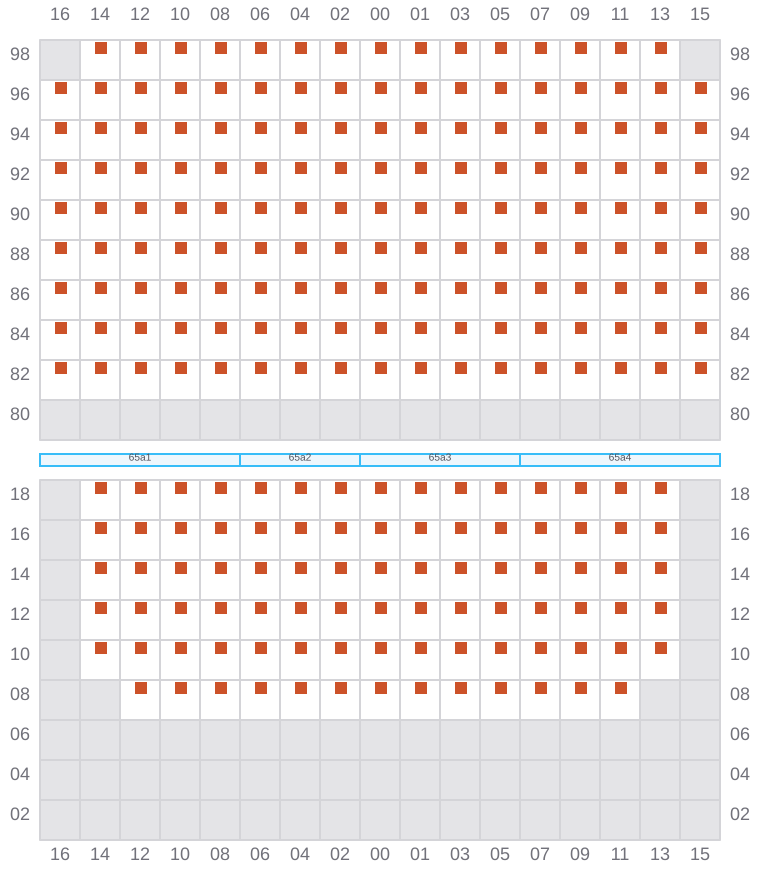

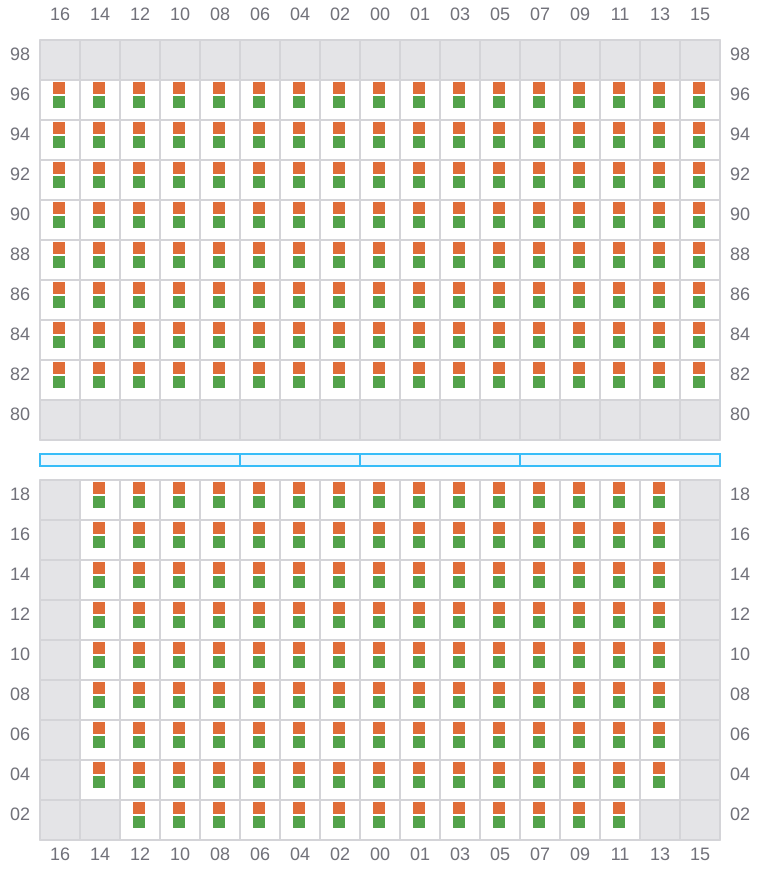

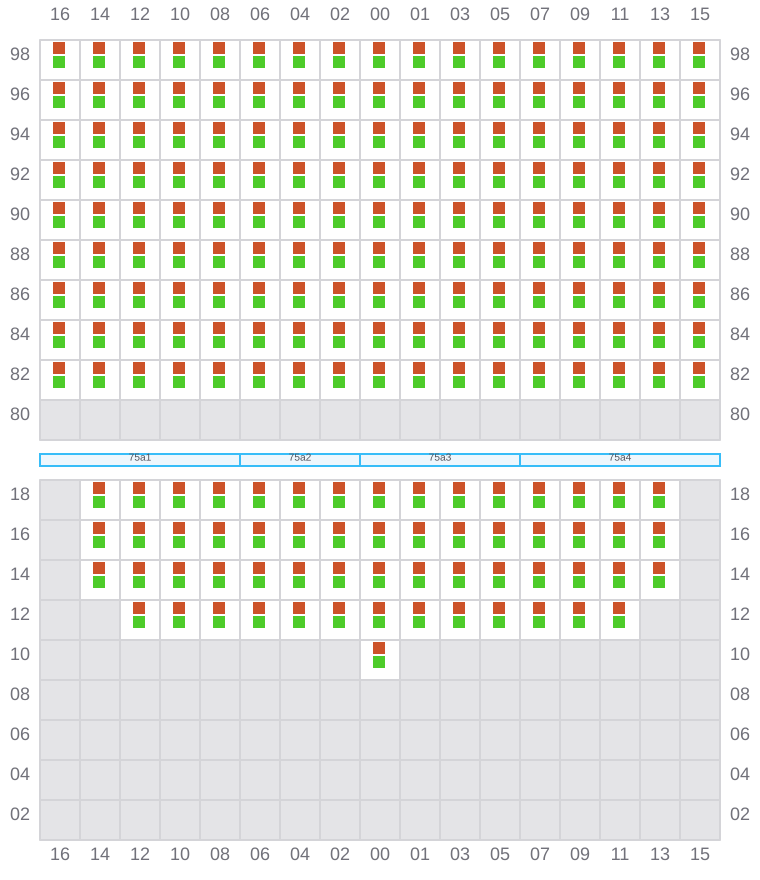

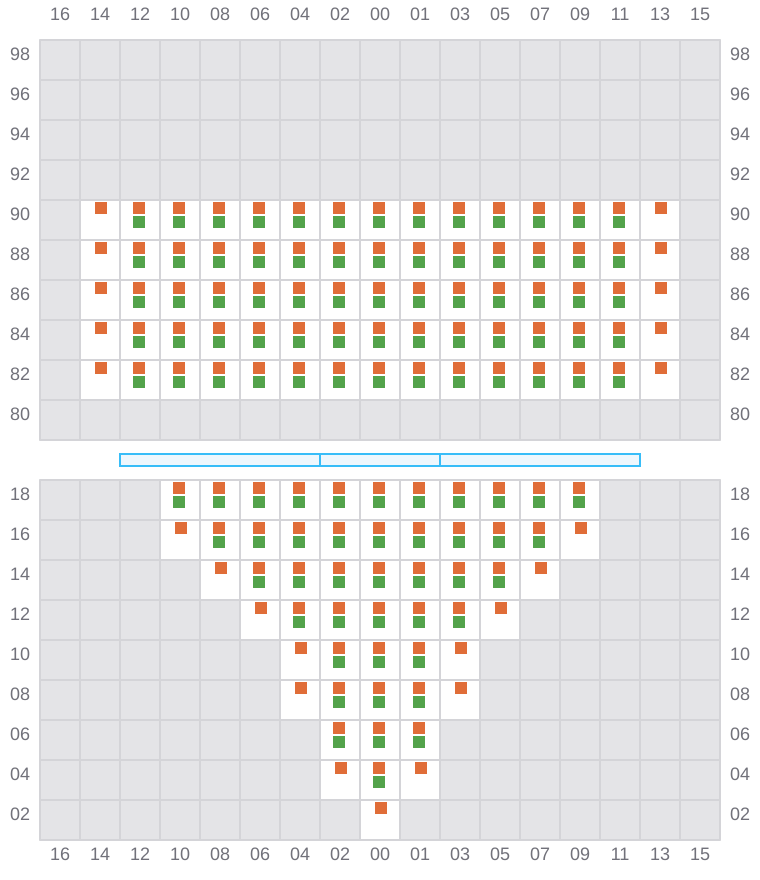

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

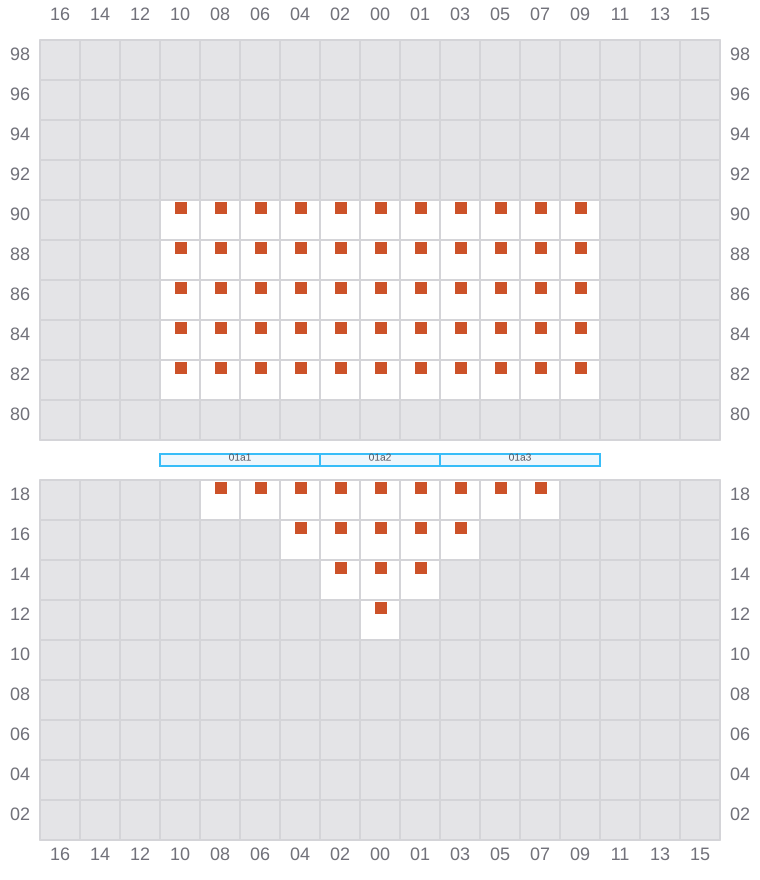

001
- →
- →

003 (002)
- ←
- →

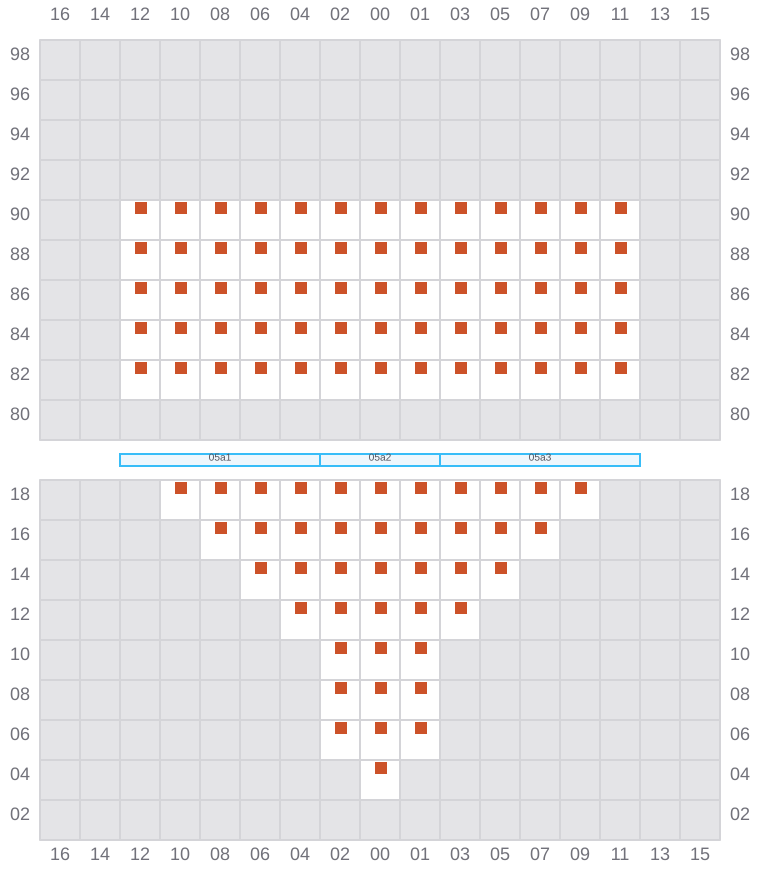

005
- →
- →

007 (006)
- ←
- →

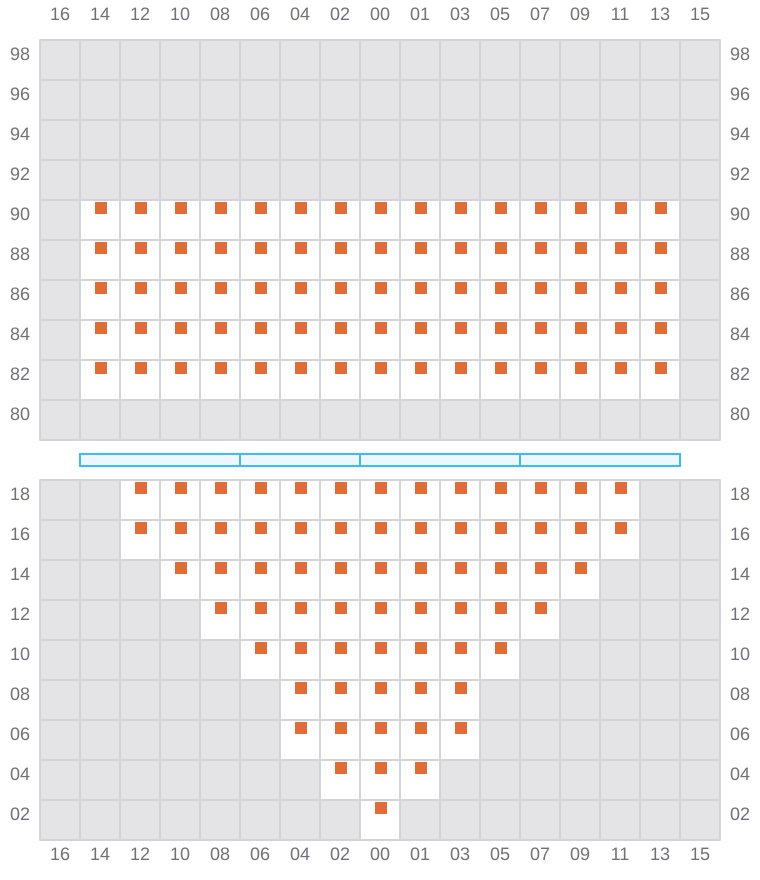

009
- →
- →

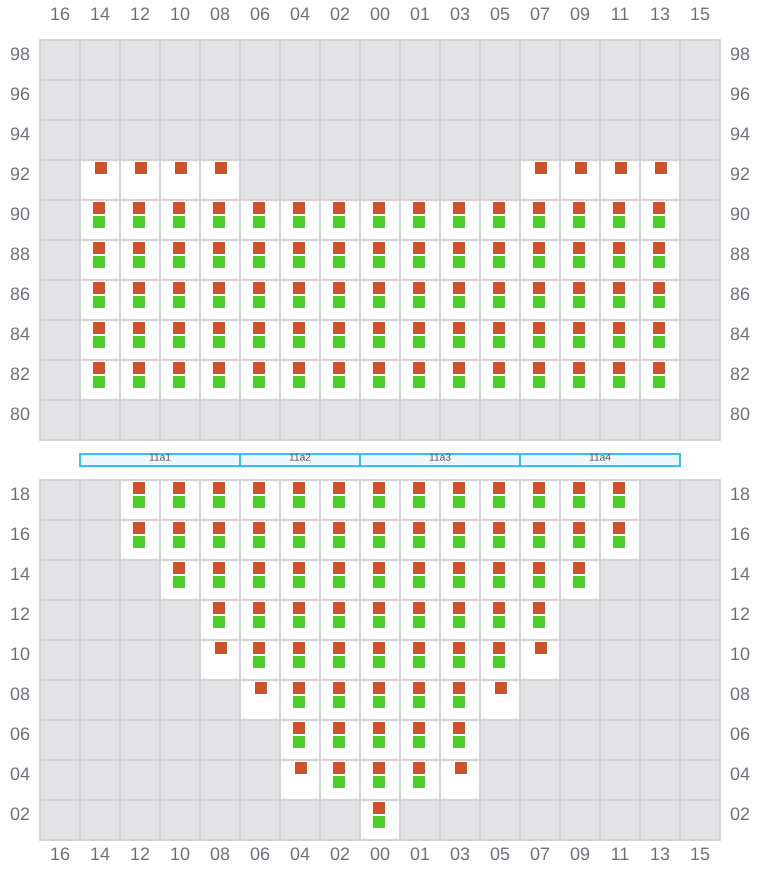

011 (010)
- ←
- →

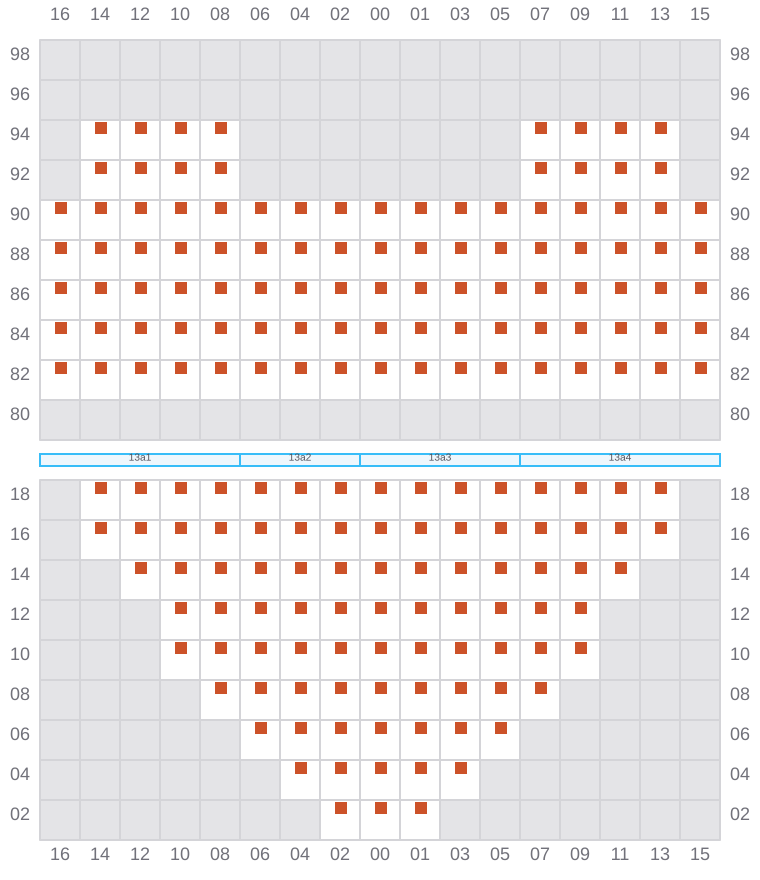

013
- →
- →

015 (014)
- ←
- →

017
- →
- →

019 (018)
- ←
- →

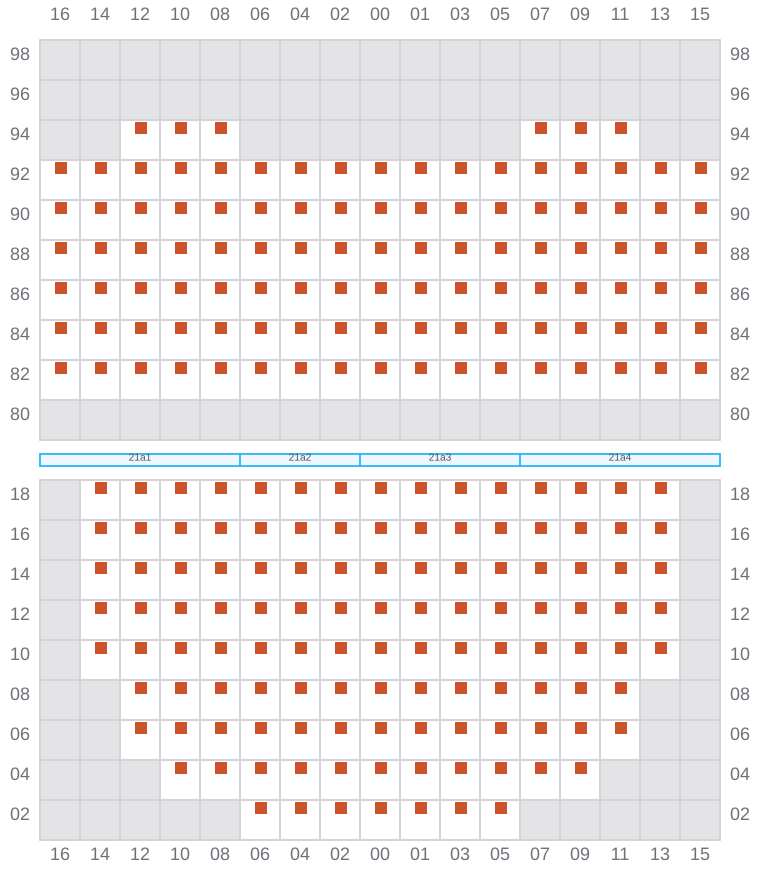

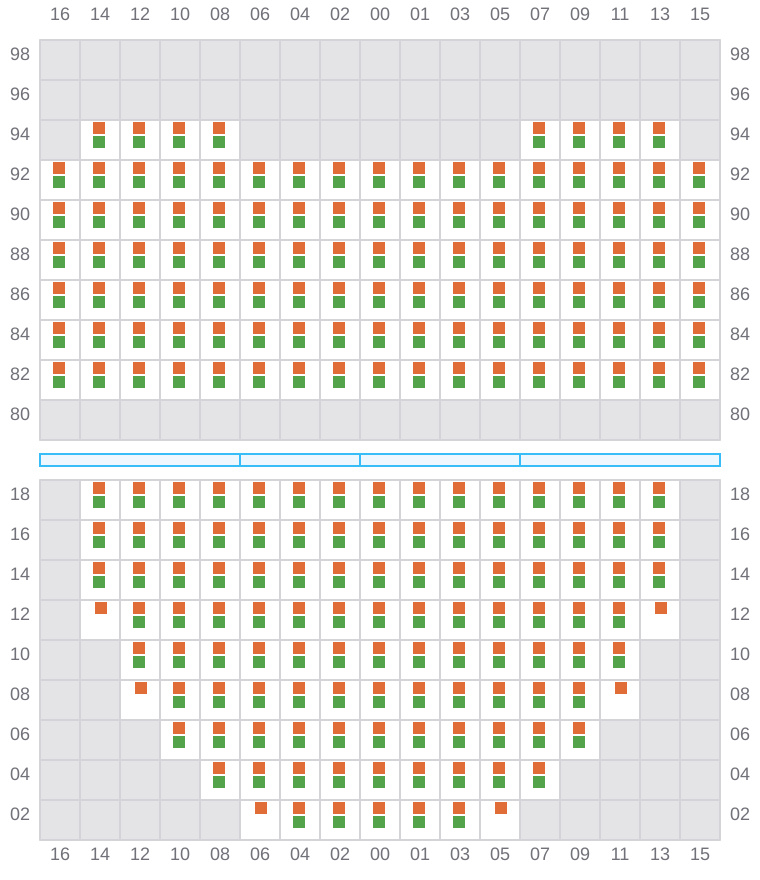

021
- →
- →

023 (022)
- ←
- →

025
- →
- →

027 (026)
- ←
- →

029
- →
- →

031 (030)
- ←
- →

033
- →
- →

035 (034)
- ←
- →

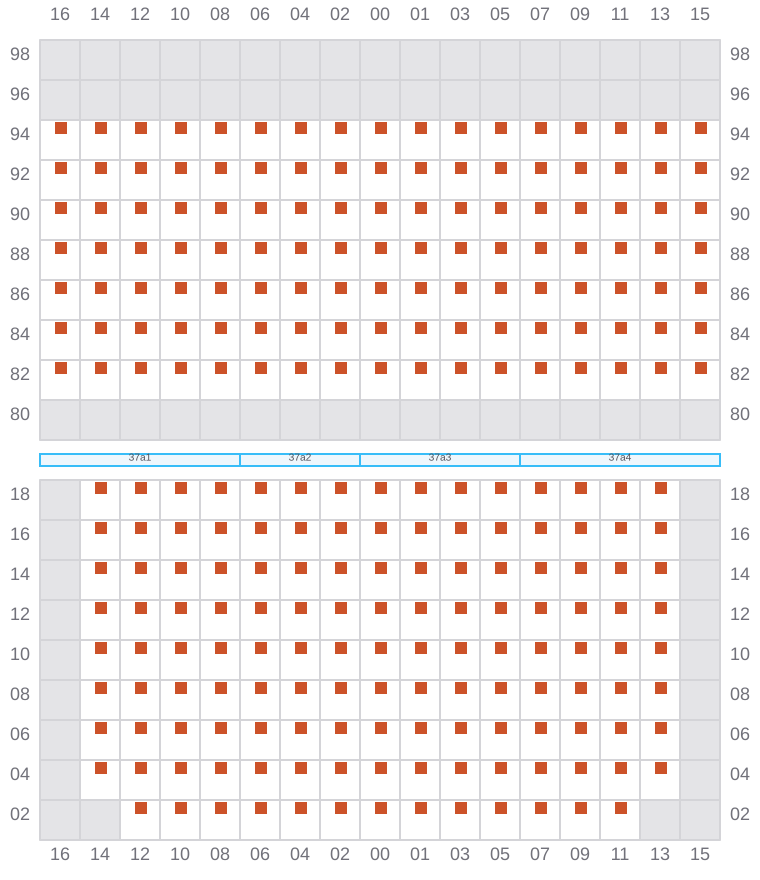

037
- →
- →

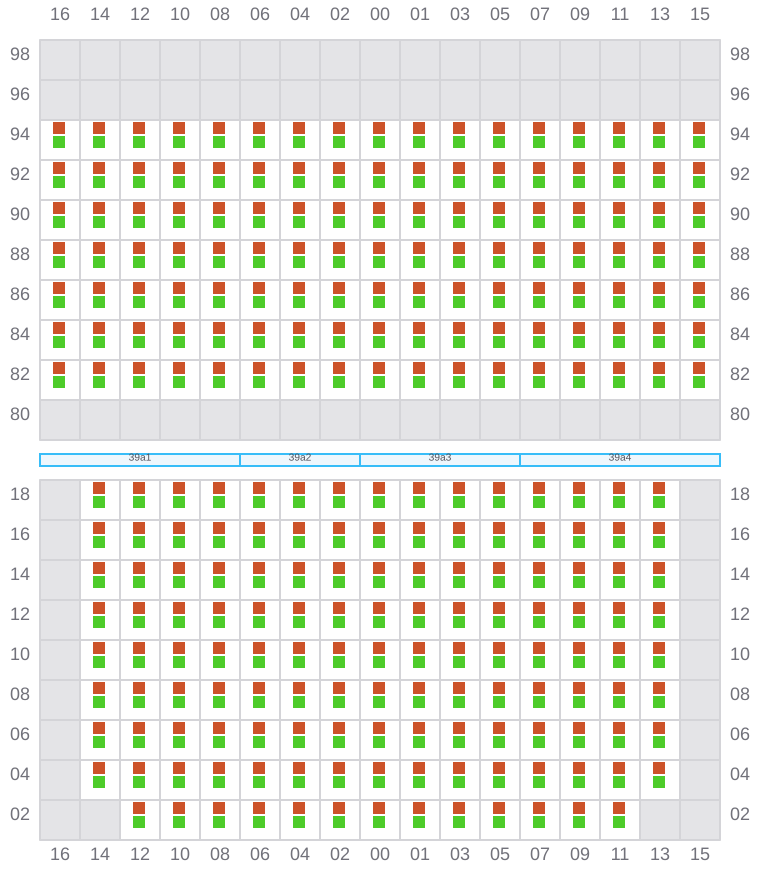

039 (038)
- ←
- →

041
- →
- →

043 (042)
- ←
- →

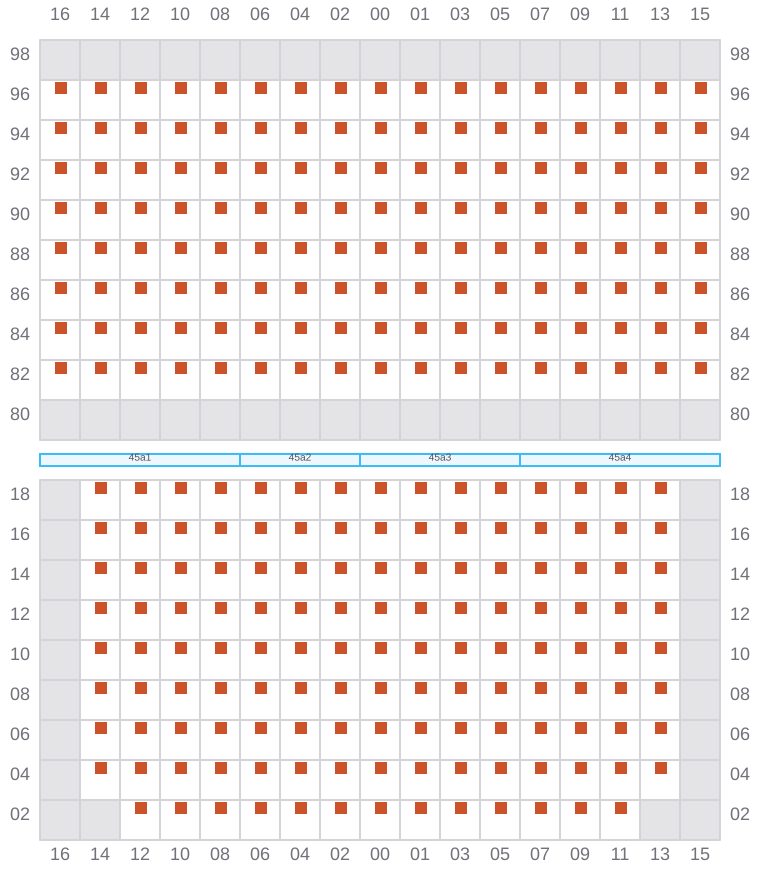

045
- →
- →

047 (046)
- ←
- →

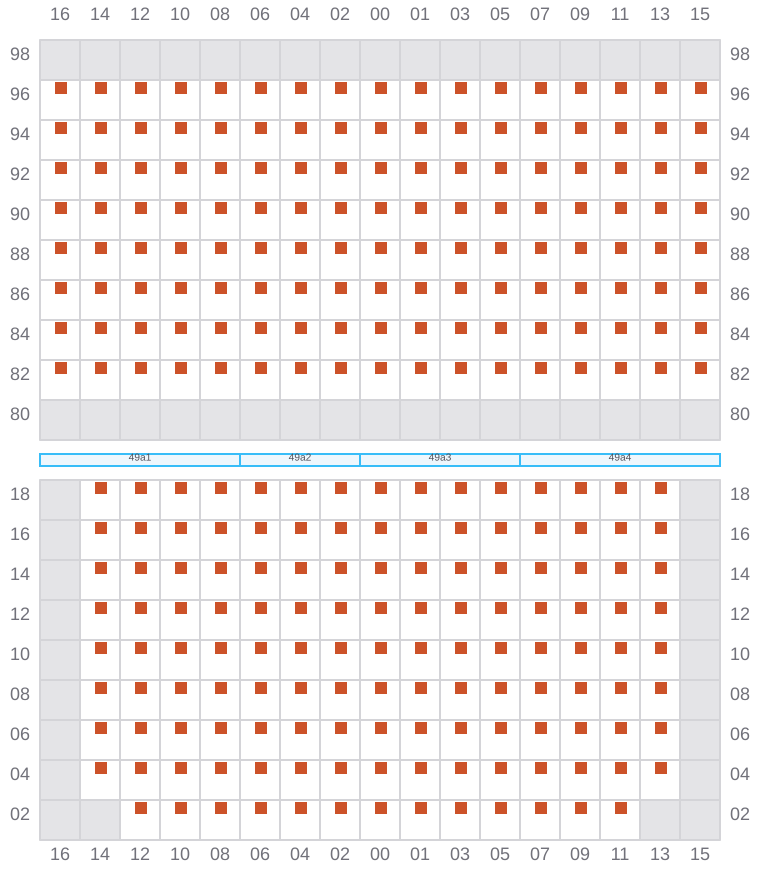

049
- →
- →

051 (050)
- ←
- →

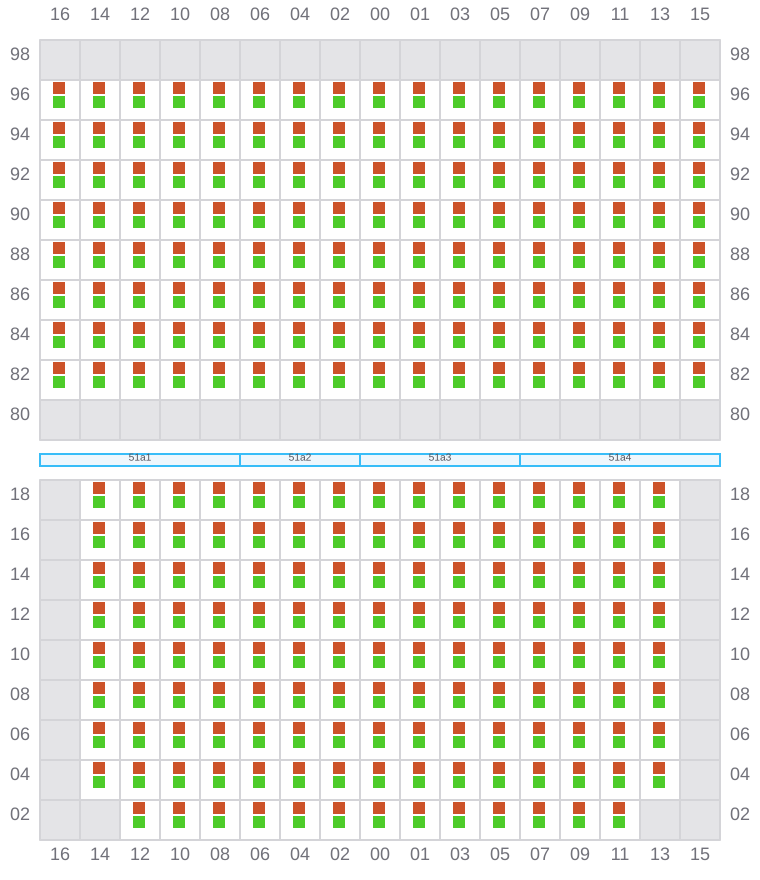

053
- →
- →

055 (054)
- ←
- →

057
- →
- →

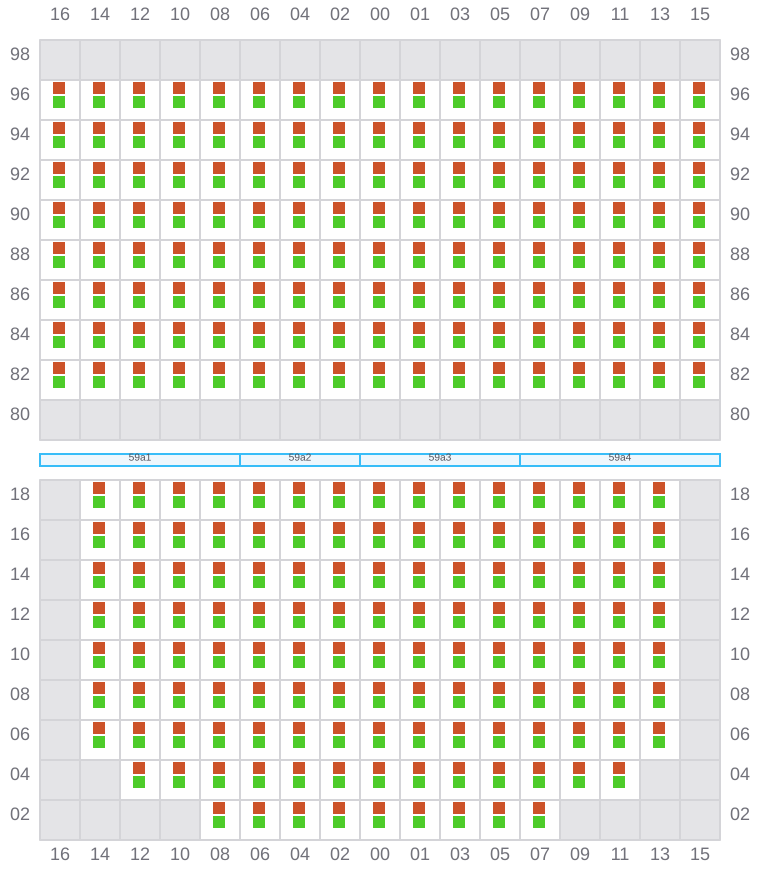

059 (058)
- ←
- →

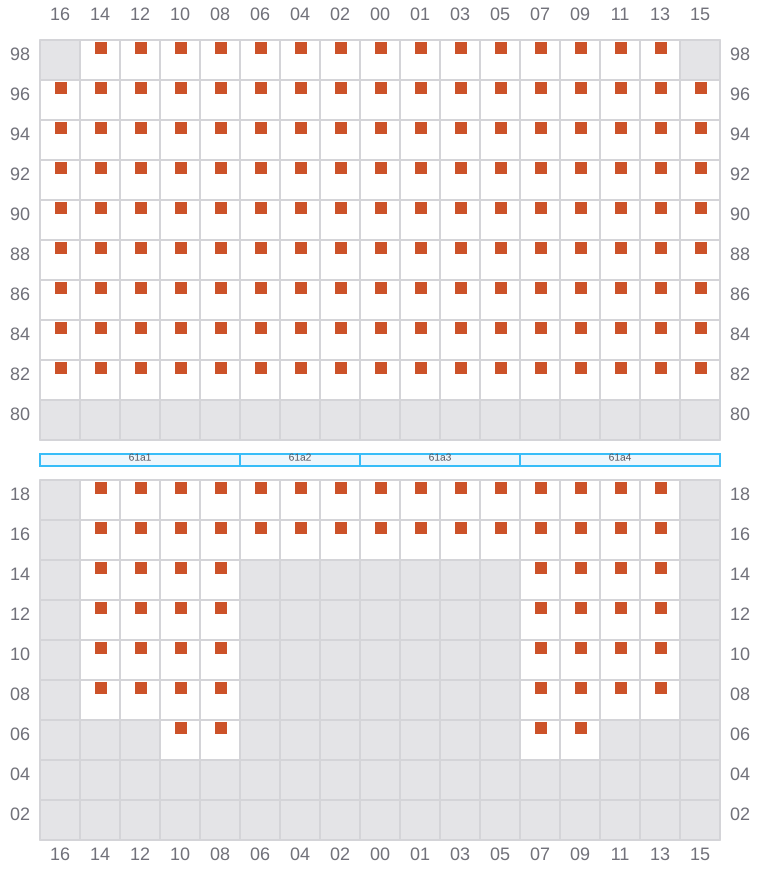

061
- →
- →

063 (062)
- ←
- →

065
- →
- →

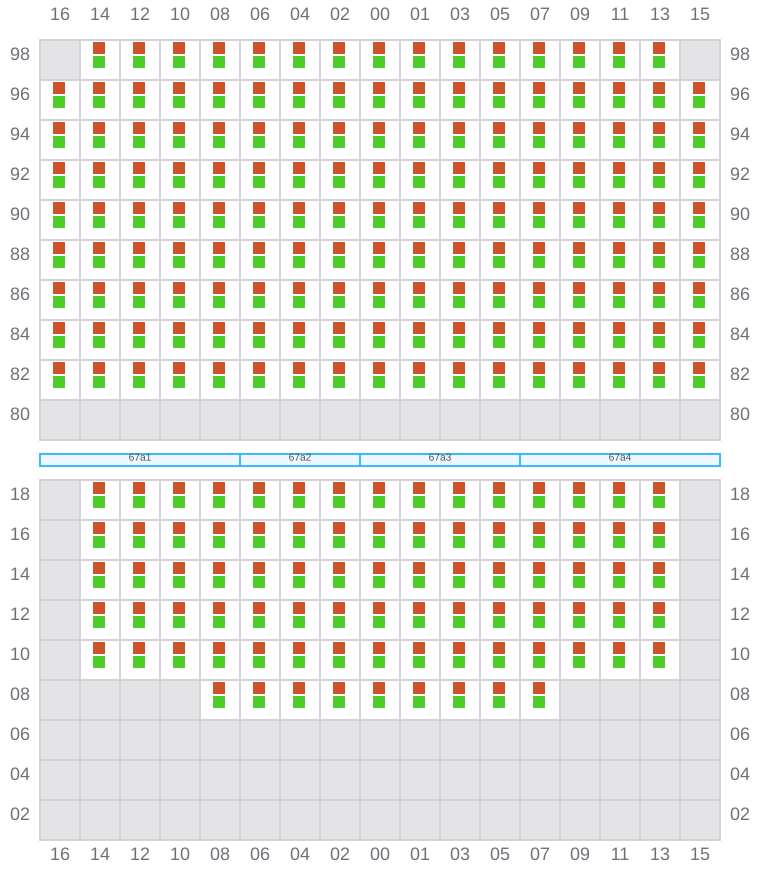

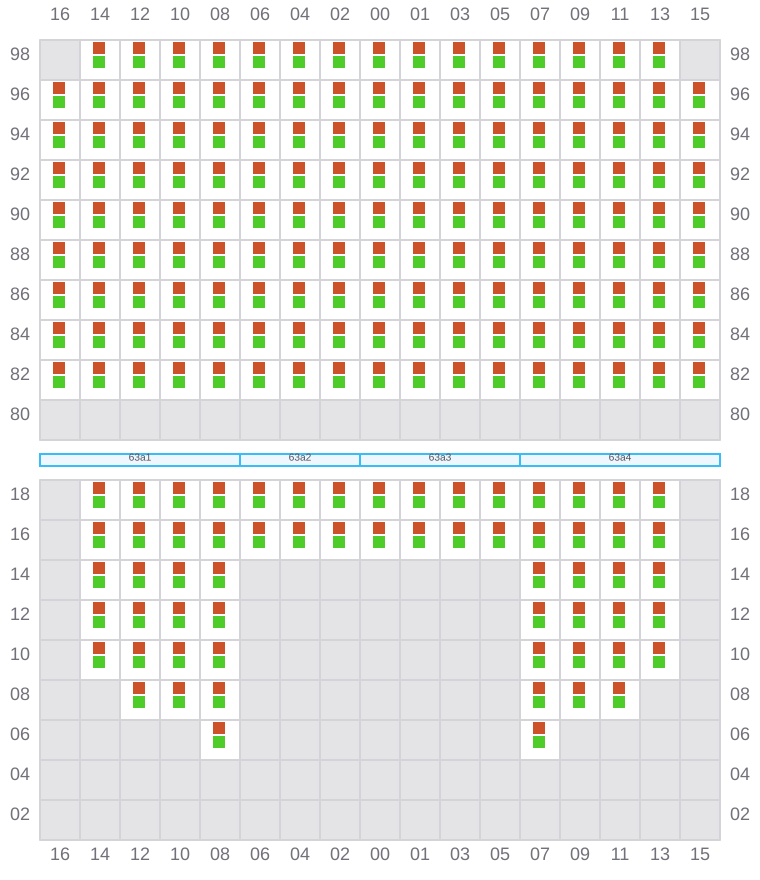

067 (066)
- ←
- →

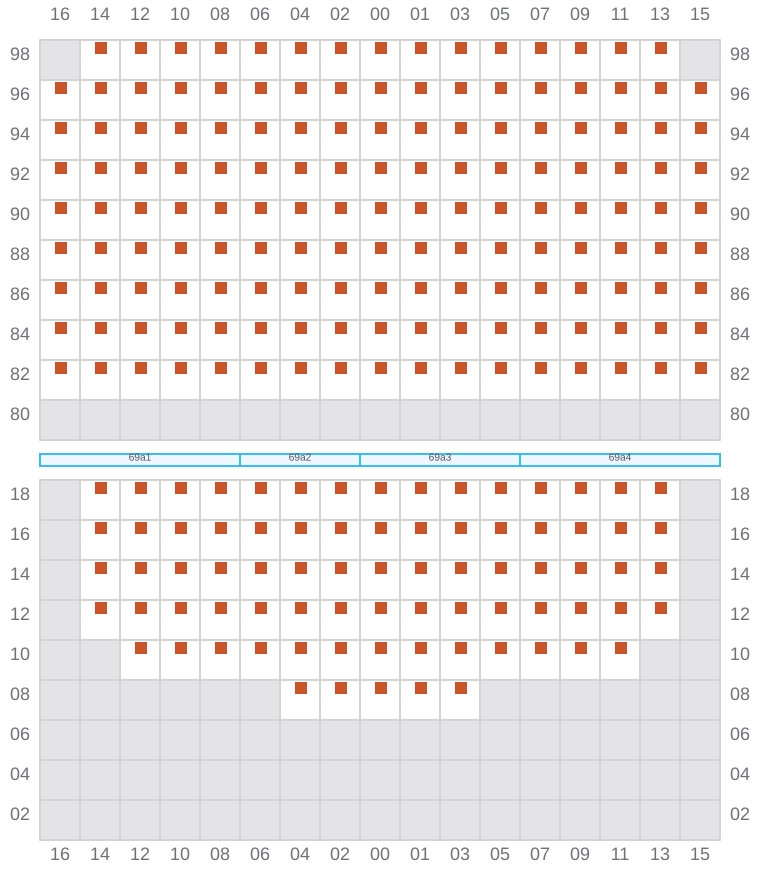

069
- →
- →

071 (070)
- ←
- →

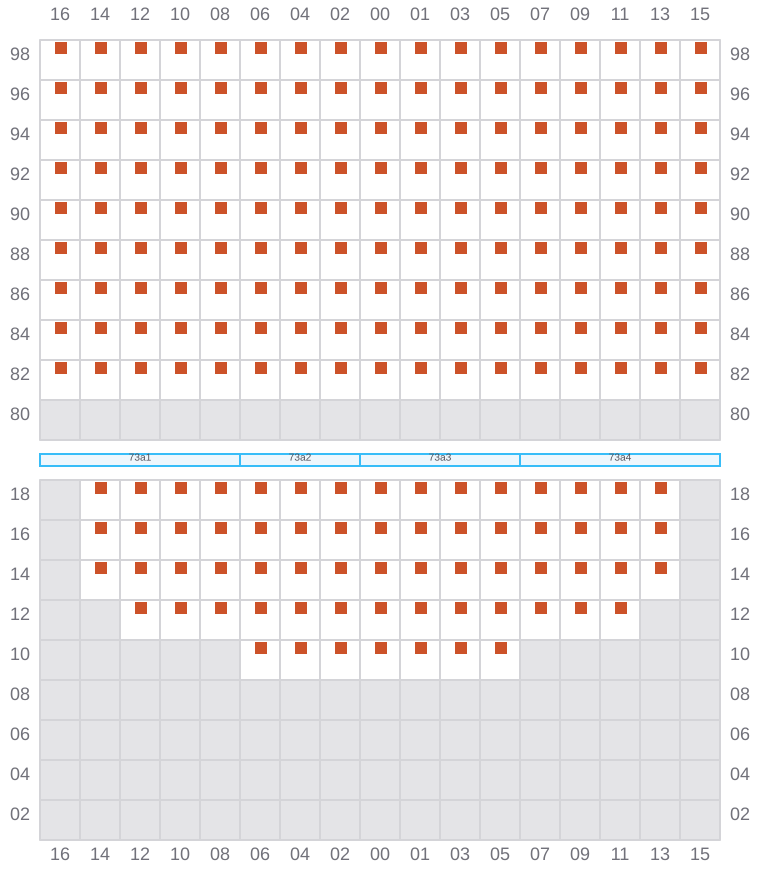

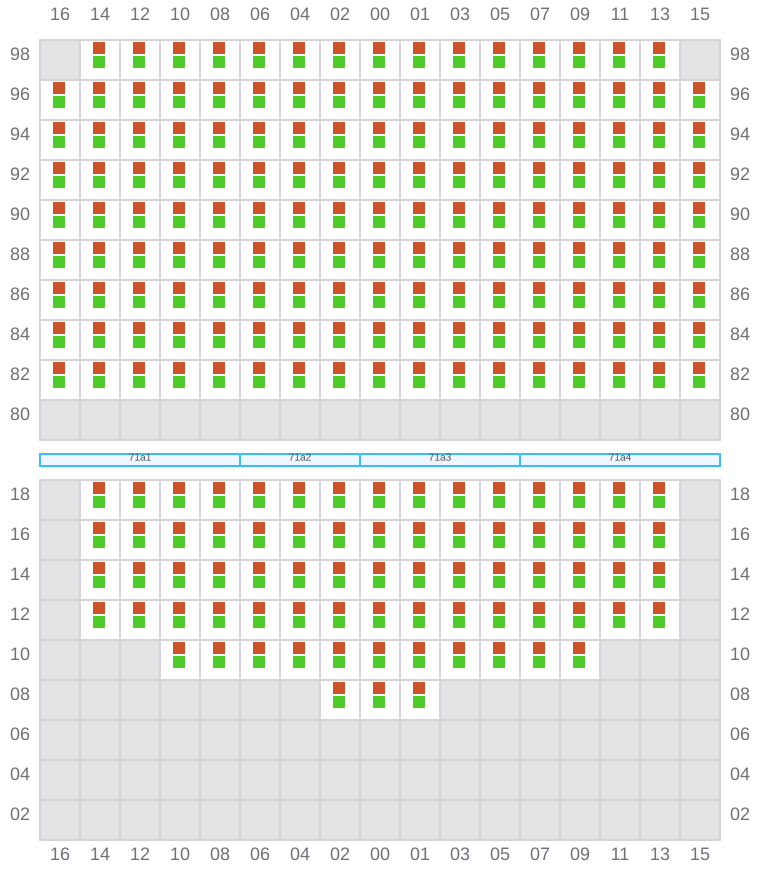

073
- →
- →

075 (074)
- ←
- →

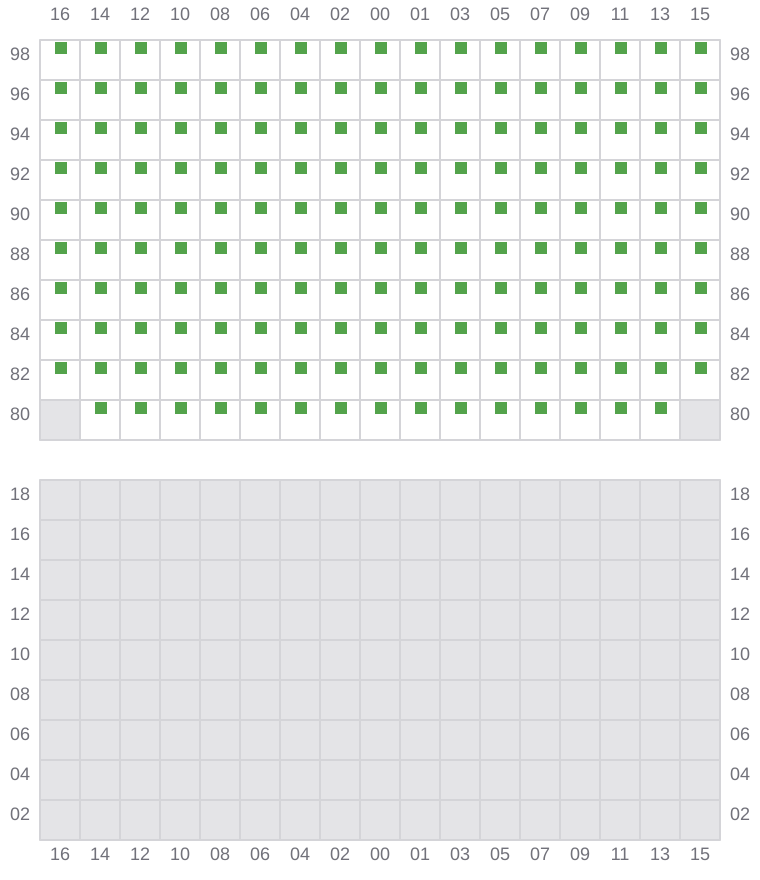

077 (078)
- → / ?
- → / ?
