CMA CGM BIANCA
9436367 | 9HA2889 | 9436367 by ********* Last update: Thu Apr 11 2024
General Info
Ship Name:CMA CGM BIANCA
IMO Code:9436367
Call Sign:9HA2889
Line Operator:9436367
Class Name for Sister Ships:CMA CGM BIANCA
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,535
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

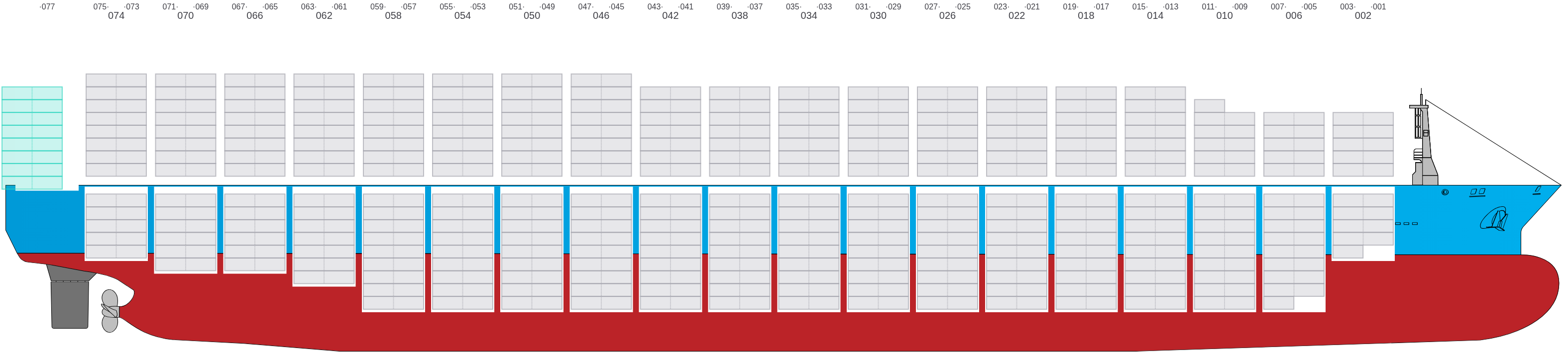

Side View
Hatch-Covers View

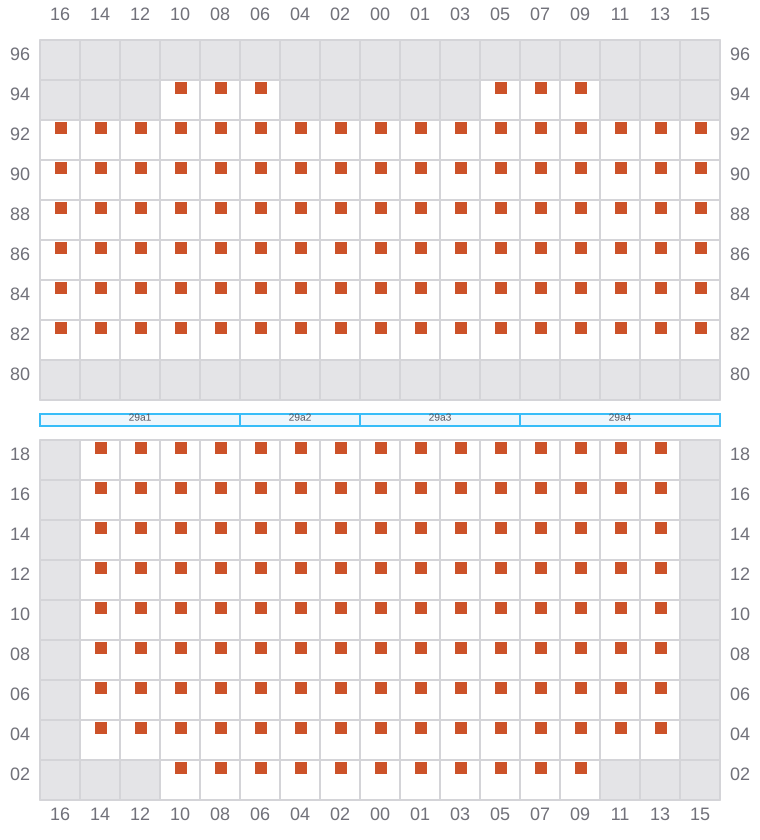

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

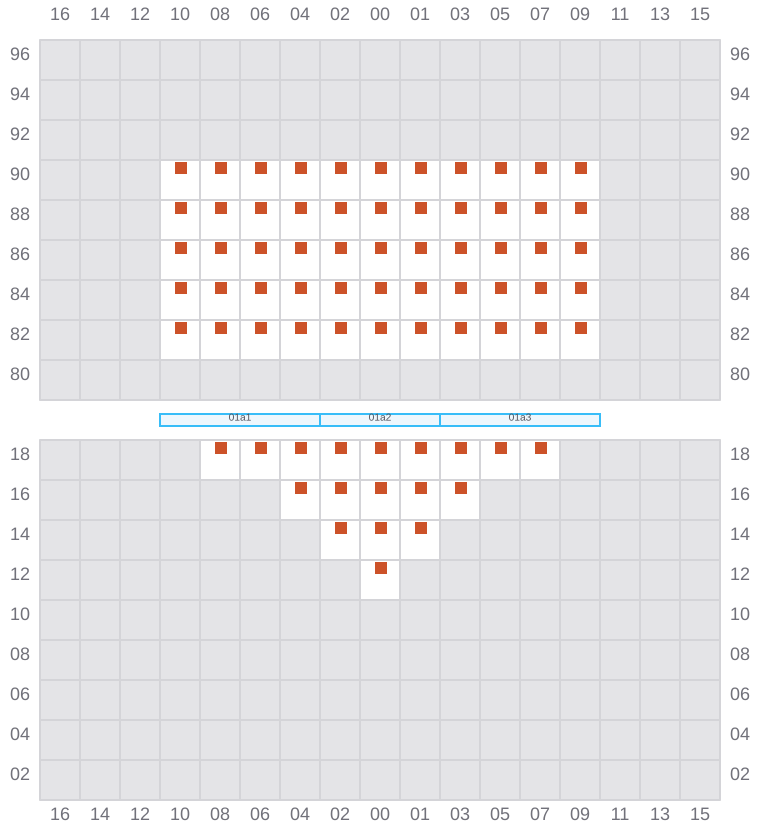

001
- →

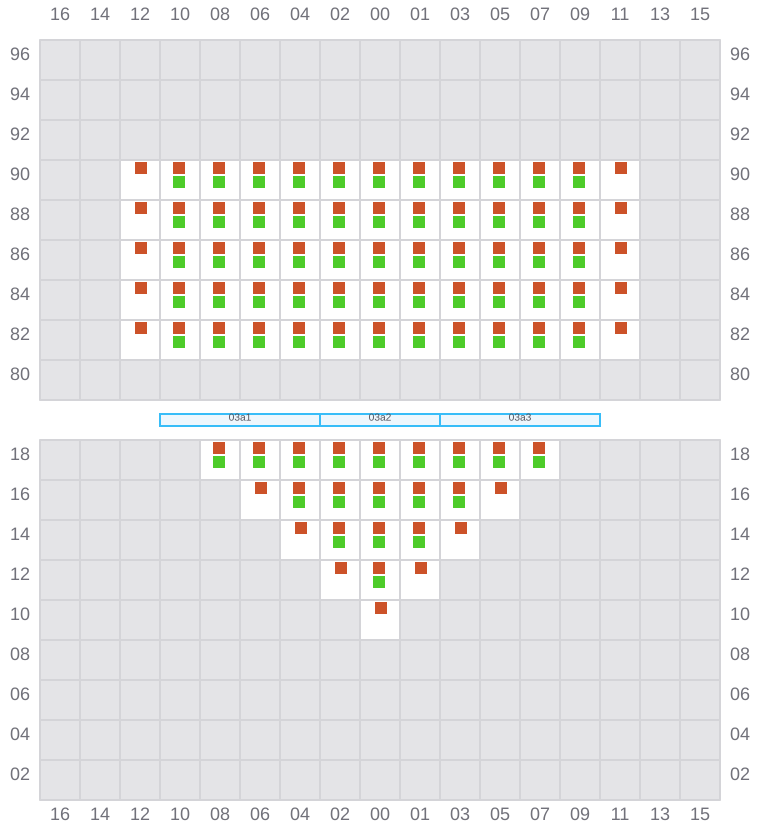

003 (002)
- ←

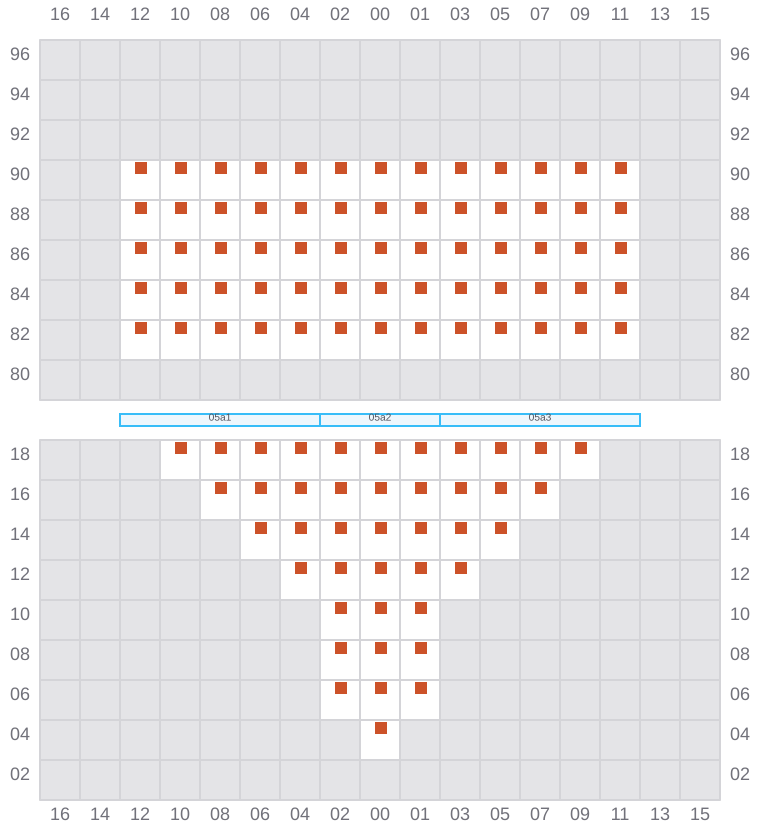

005
- →

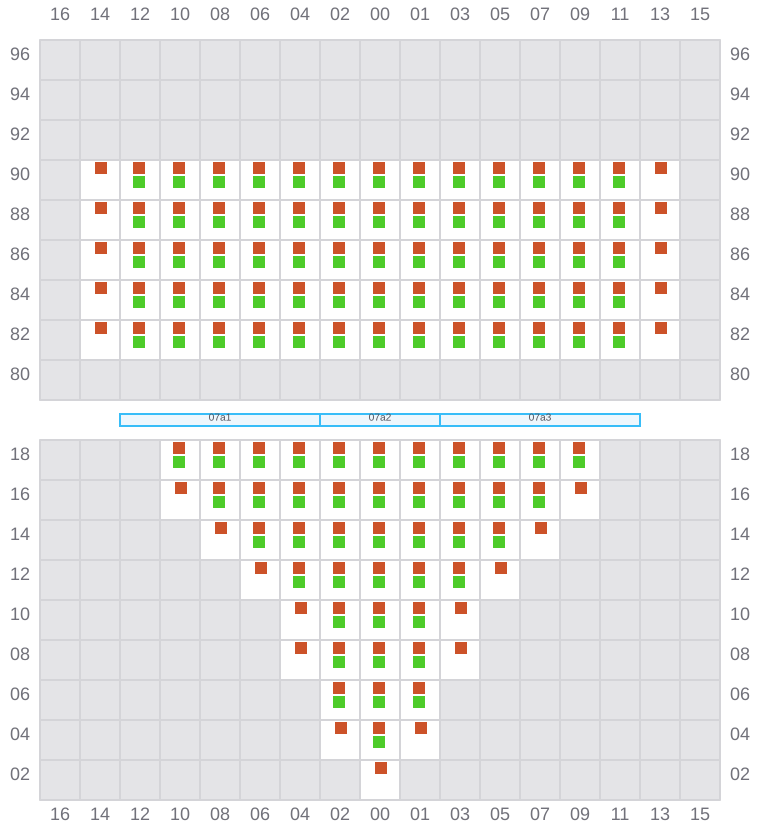

007 (006)
- ←

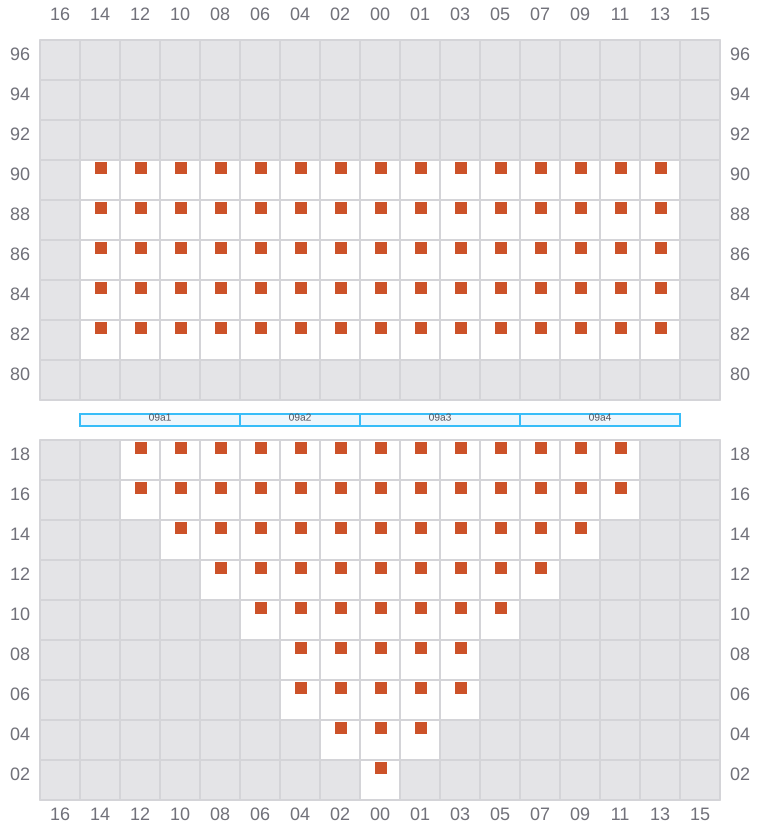

009
- →

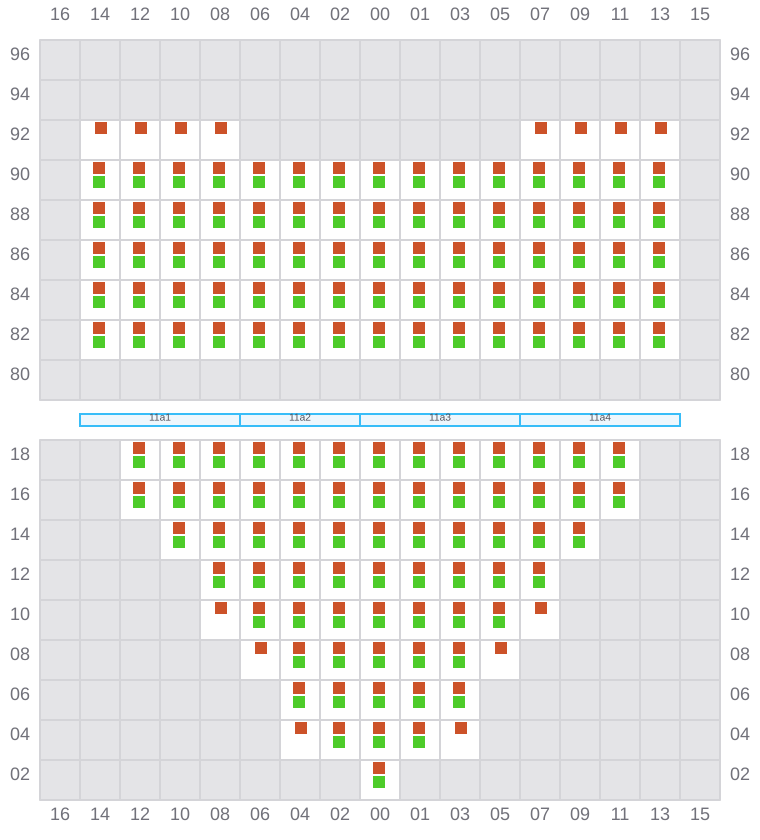

011 (010)
- ←

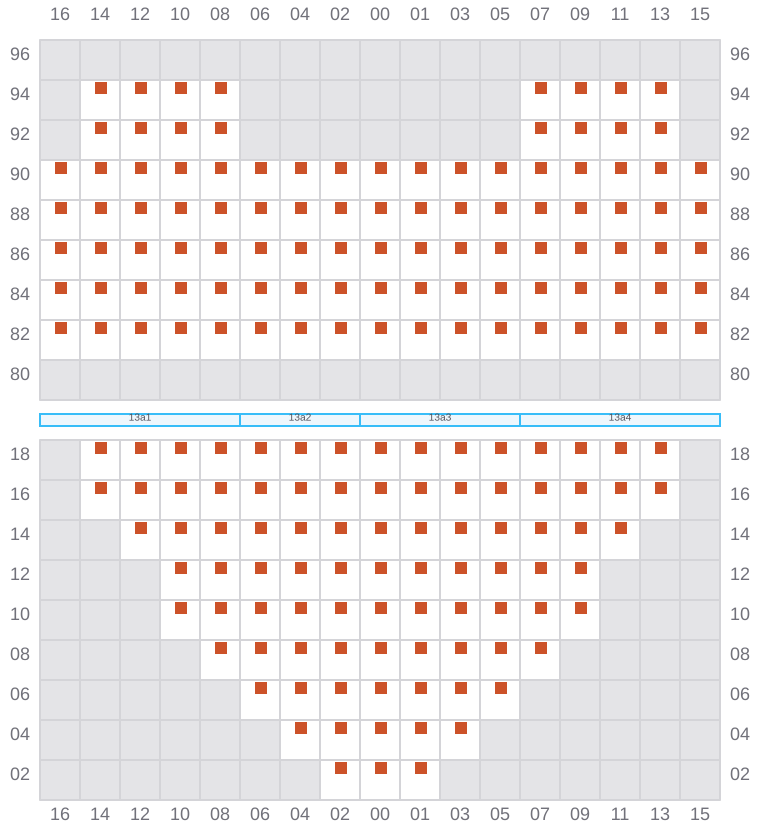

013
- →

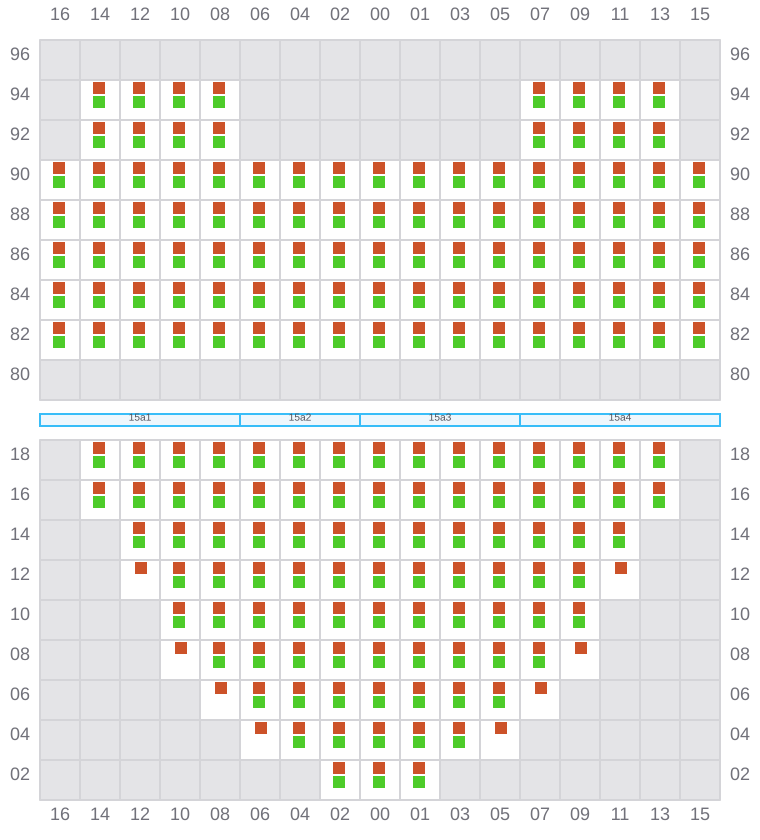

015 (014)
- ←

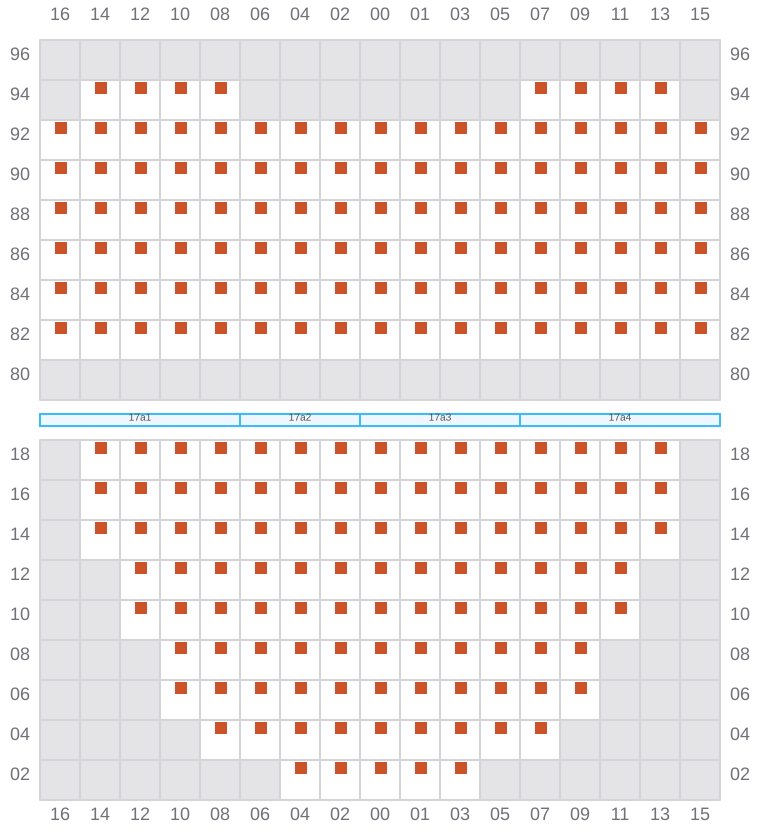

017
- →

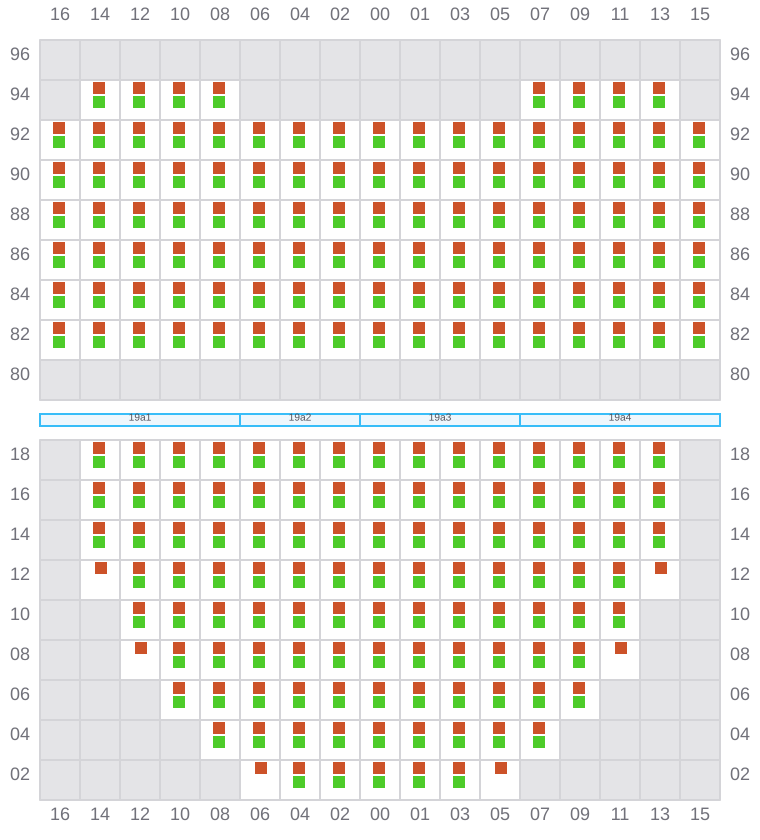

019 (018)
- ←

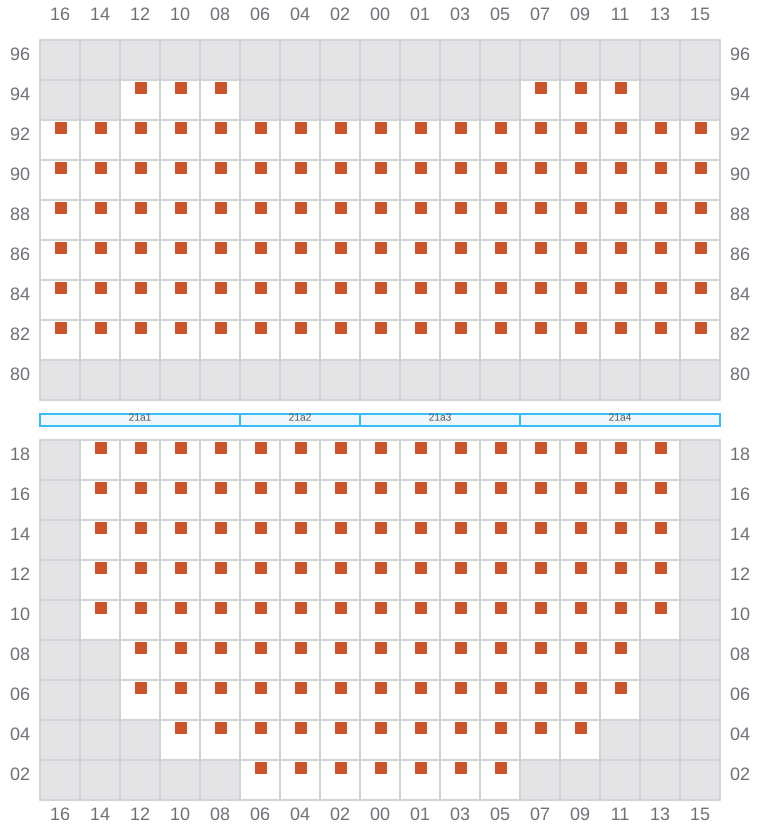

021
- →

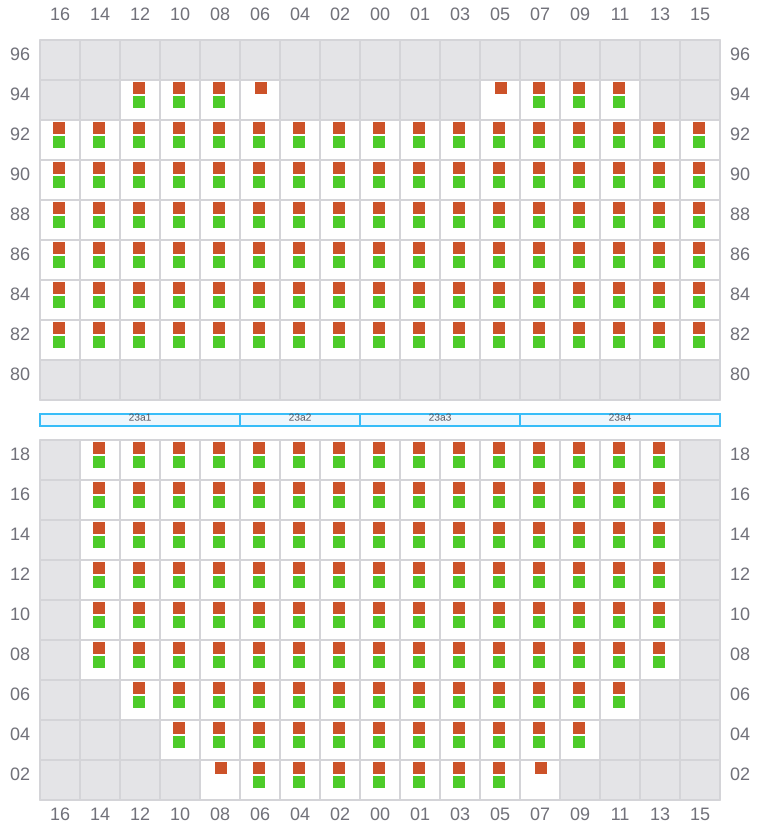

023 (022)
- ←

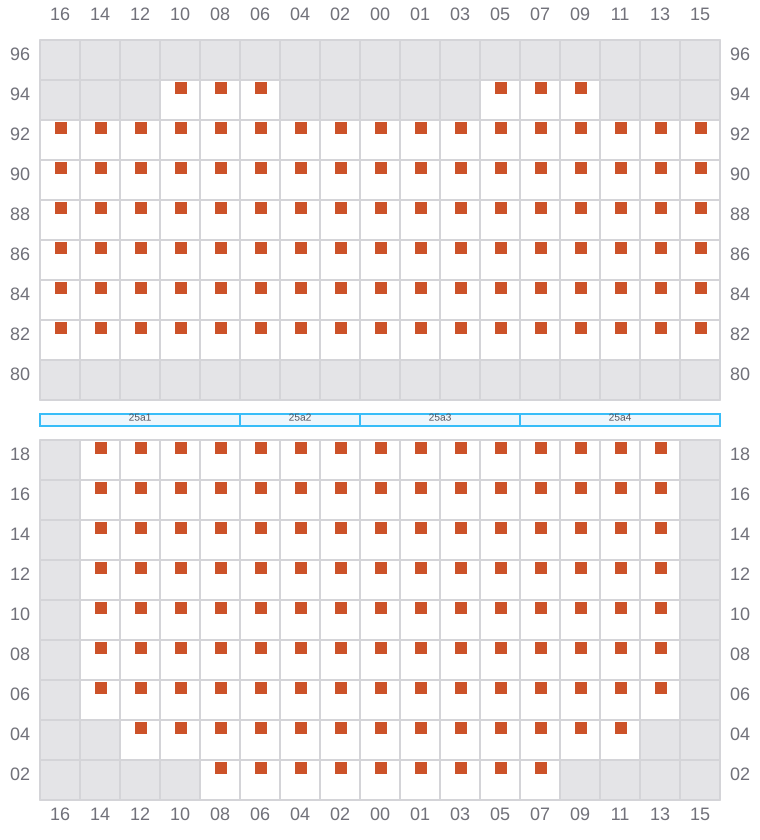

025
- →

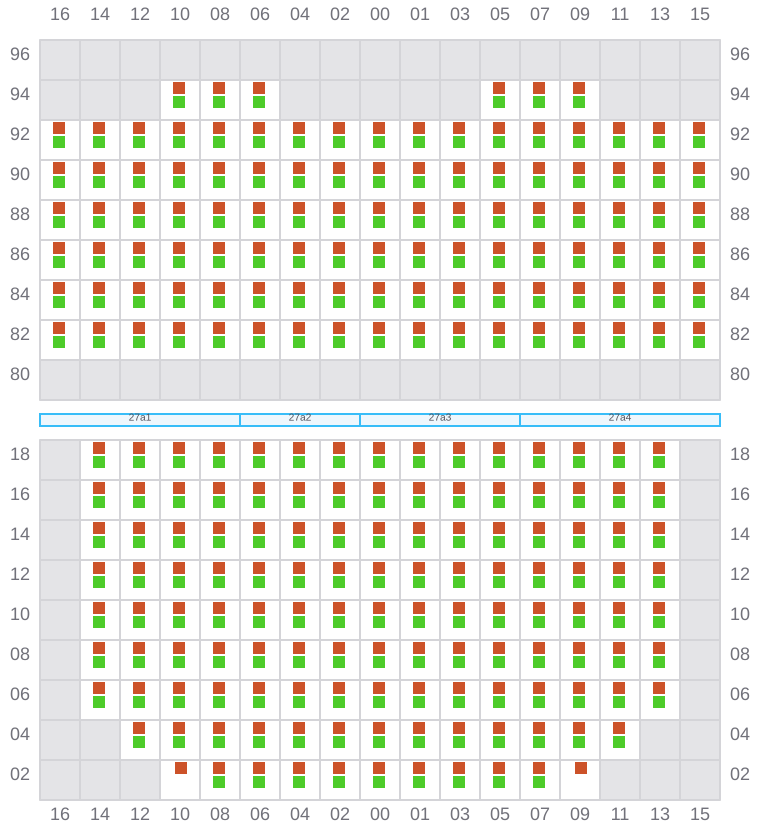

027 (026)
- ←
029
- →

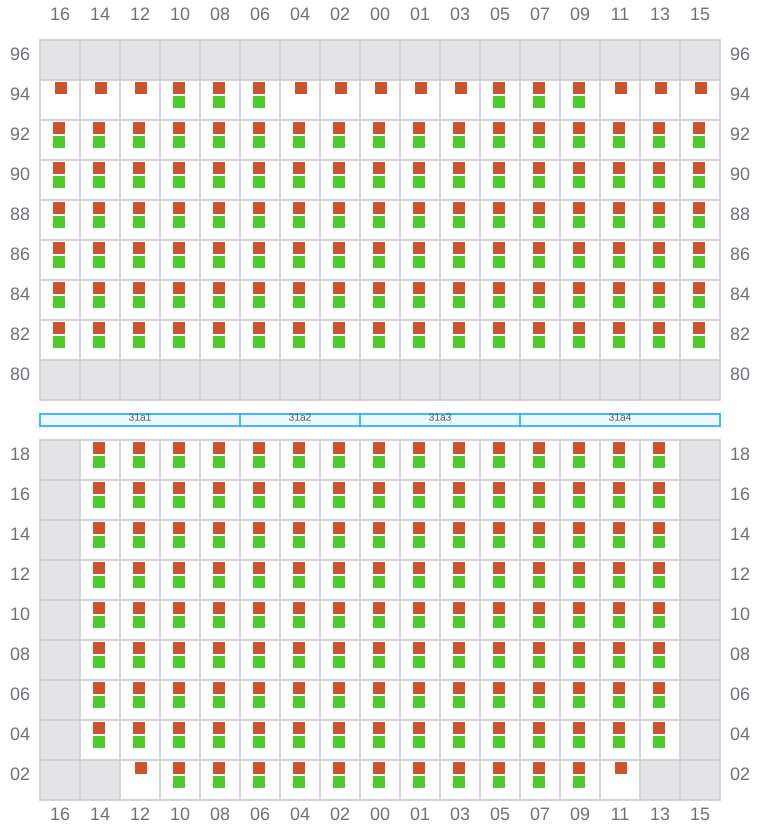

031 (030)
- ←

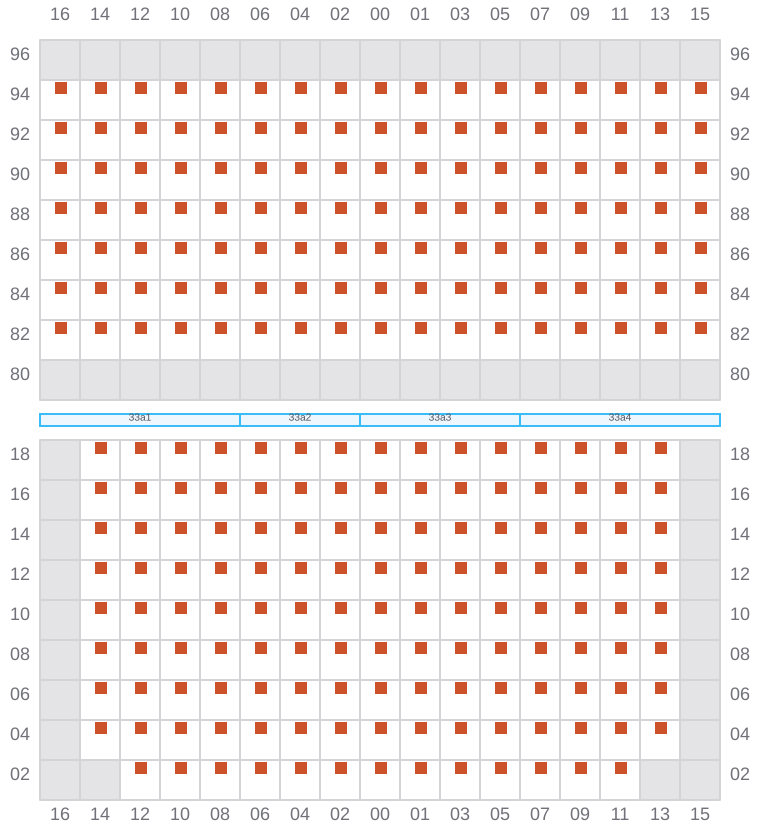

033
- →
035 (034)
- ←
037
- →

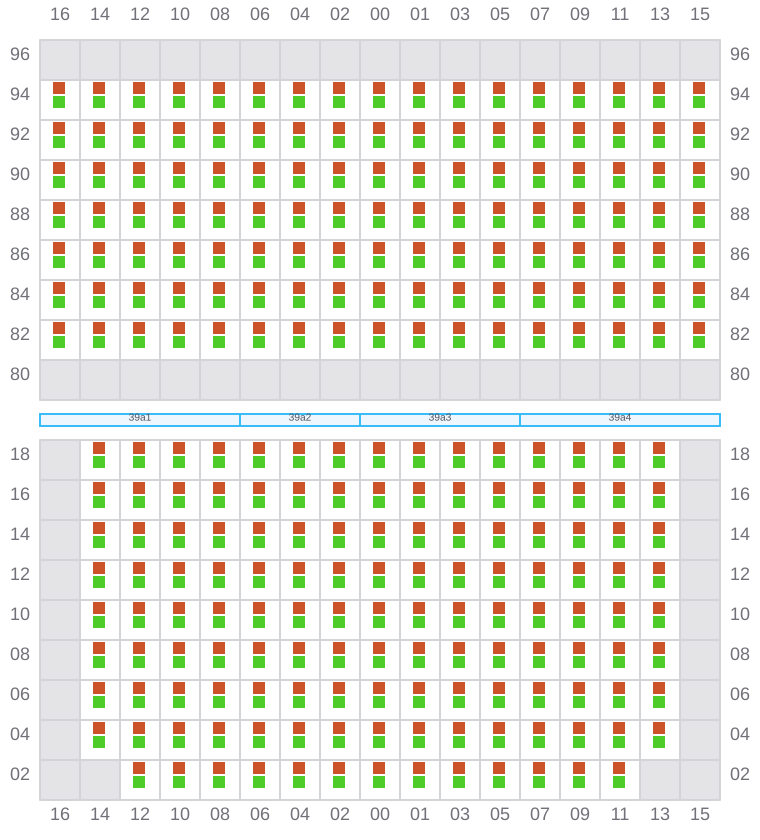

039 (038)
- ←
041
- →
043 (042)
- ←

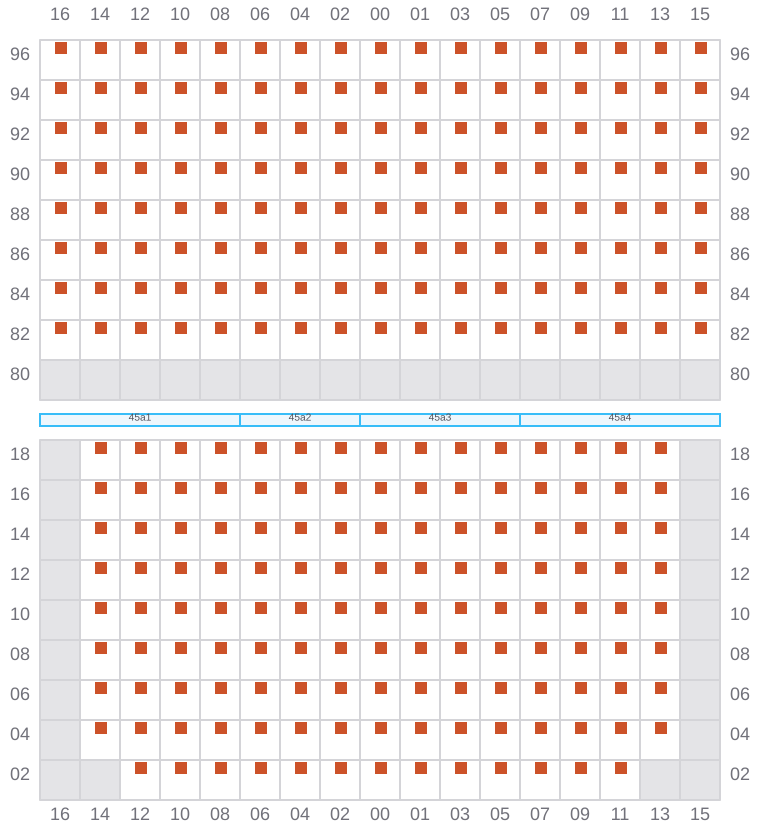

045
- →

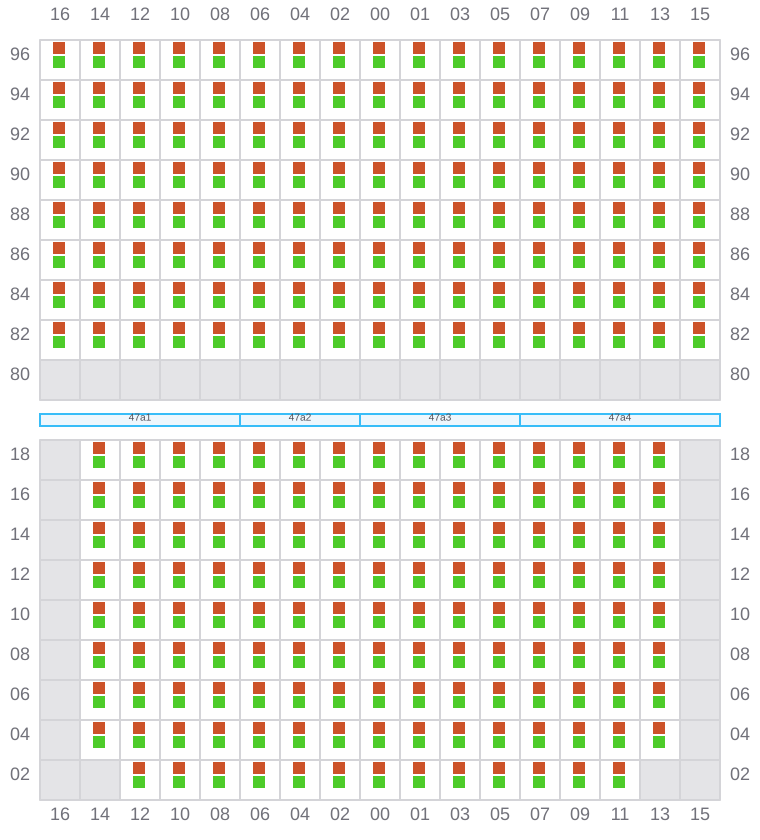

047 (046)
- ←

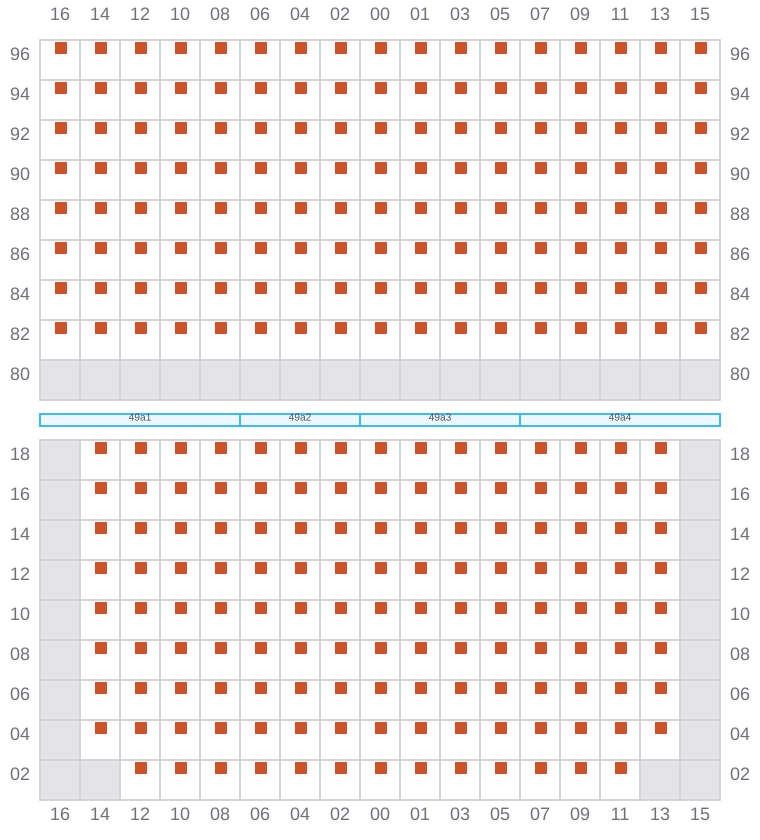

049
- →
051 (050)
- ←
053
- →

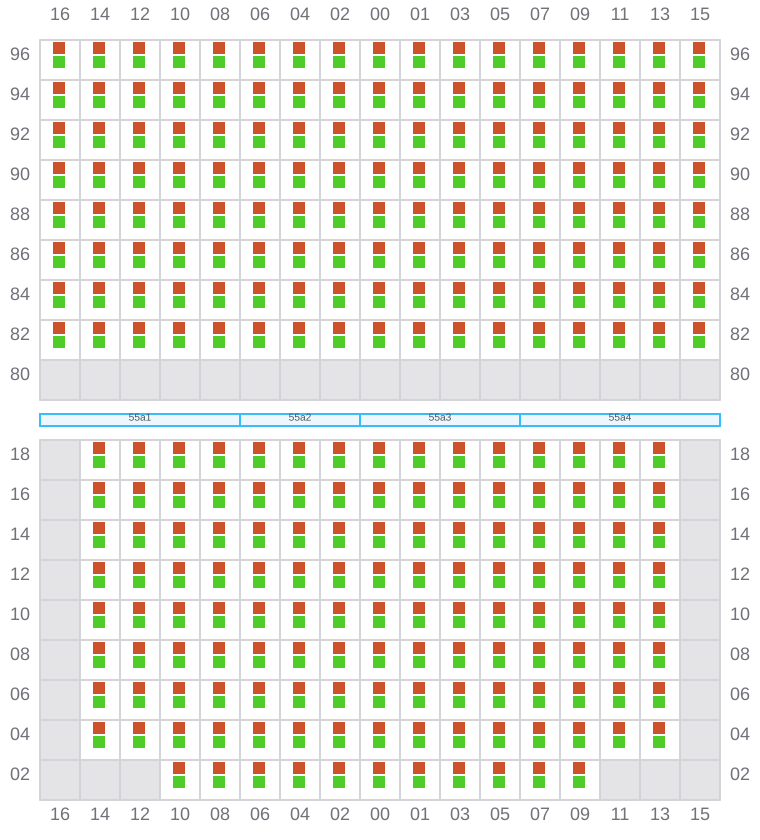

055 (054)
- ←

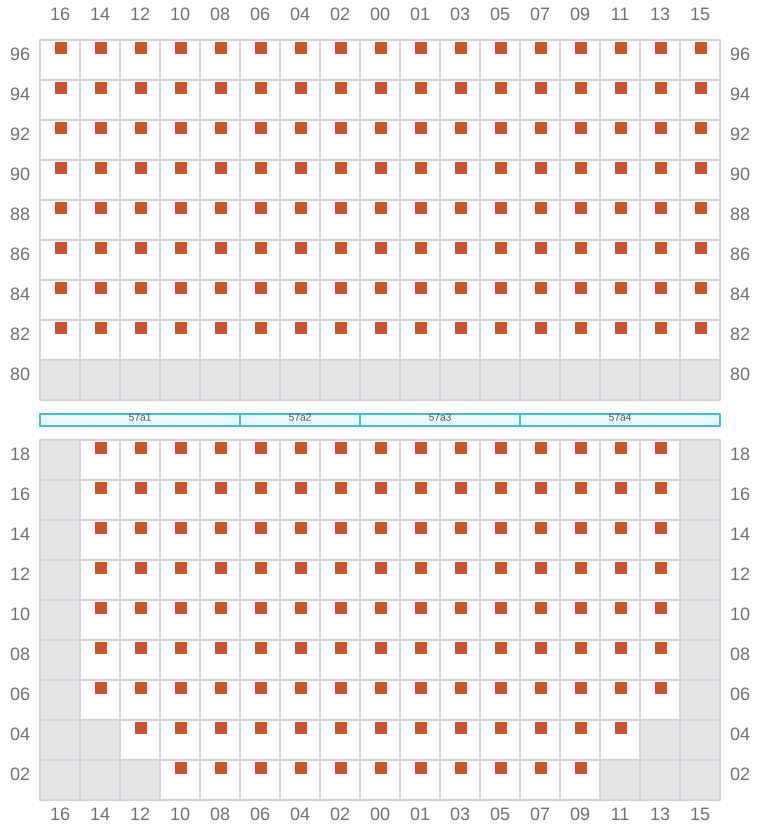

057
- →

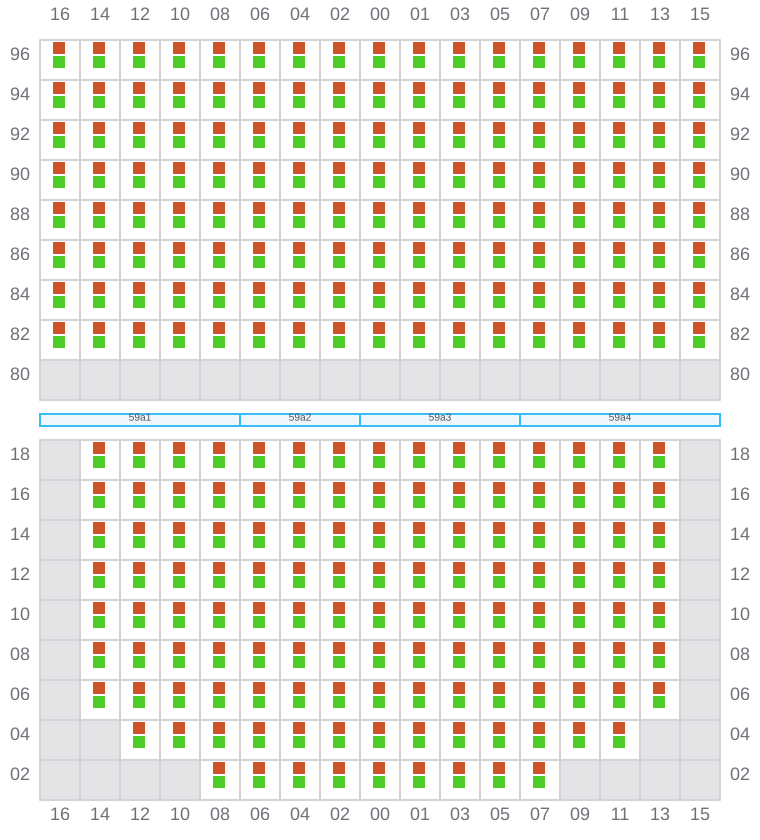

059 (058)
- ←

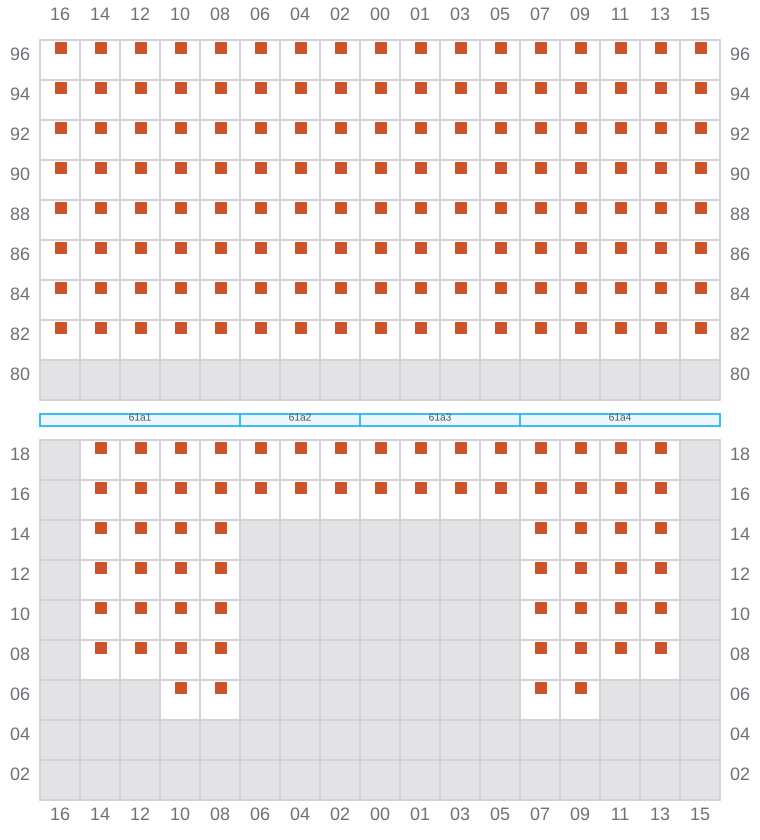

061
- →

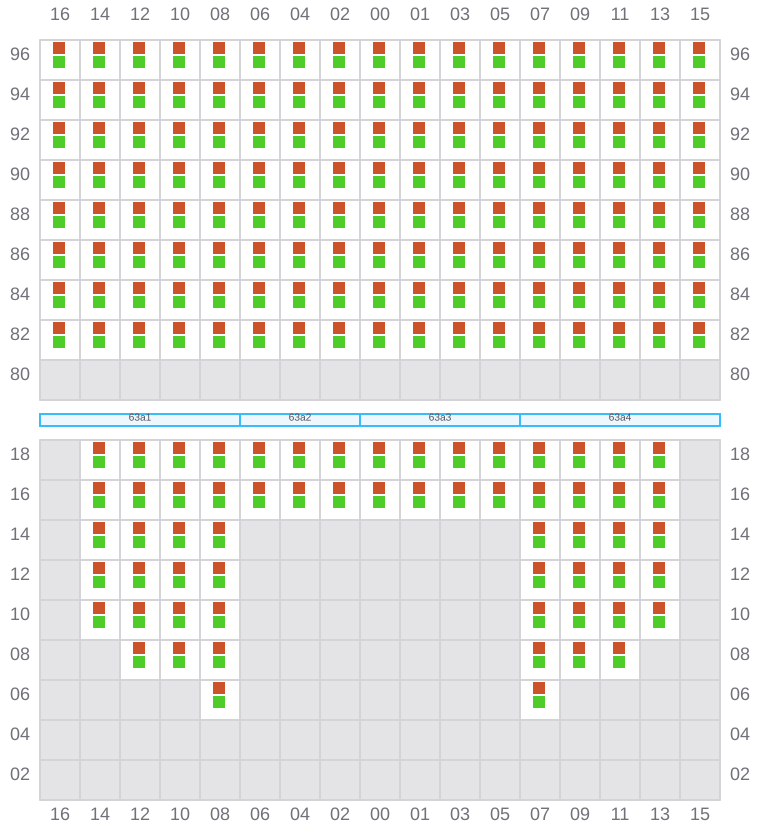

063 (062)
- ←

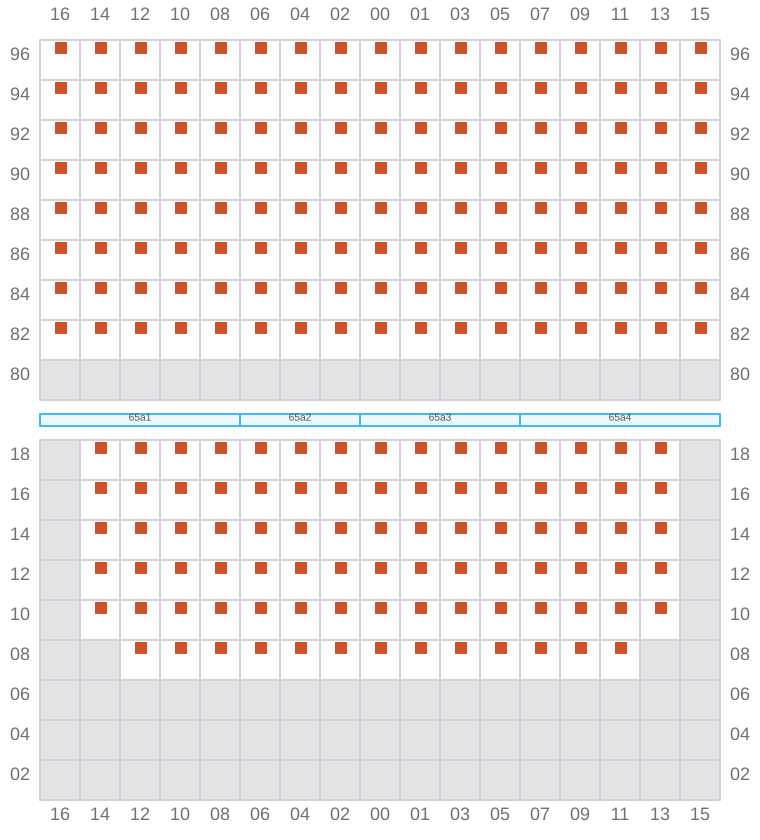

065
- →

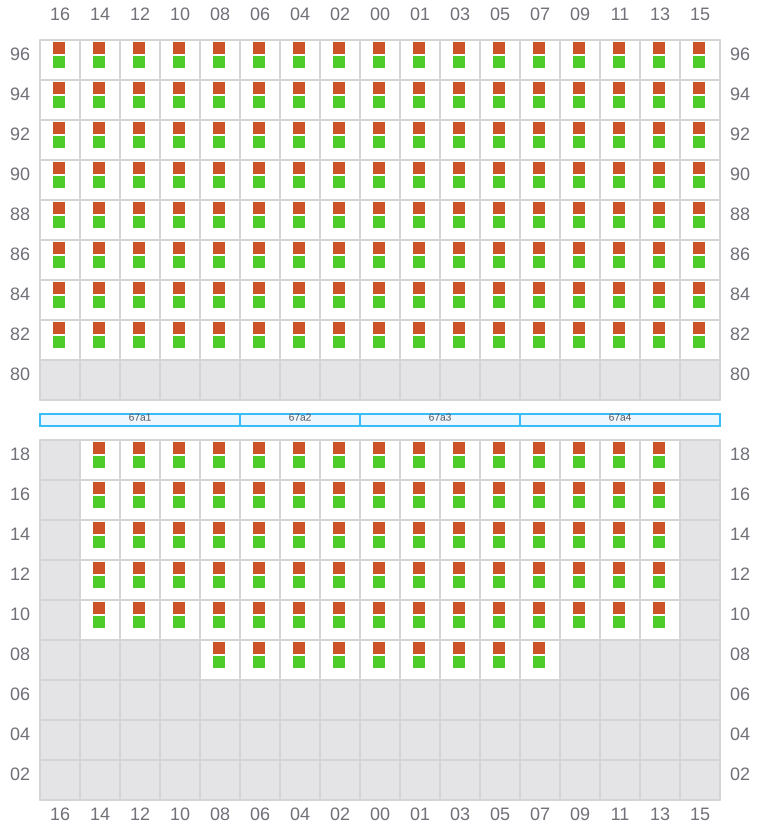

067 (066)
- ←
069
- →
071 (070)
- ←

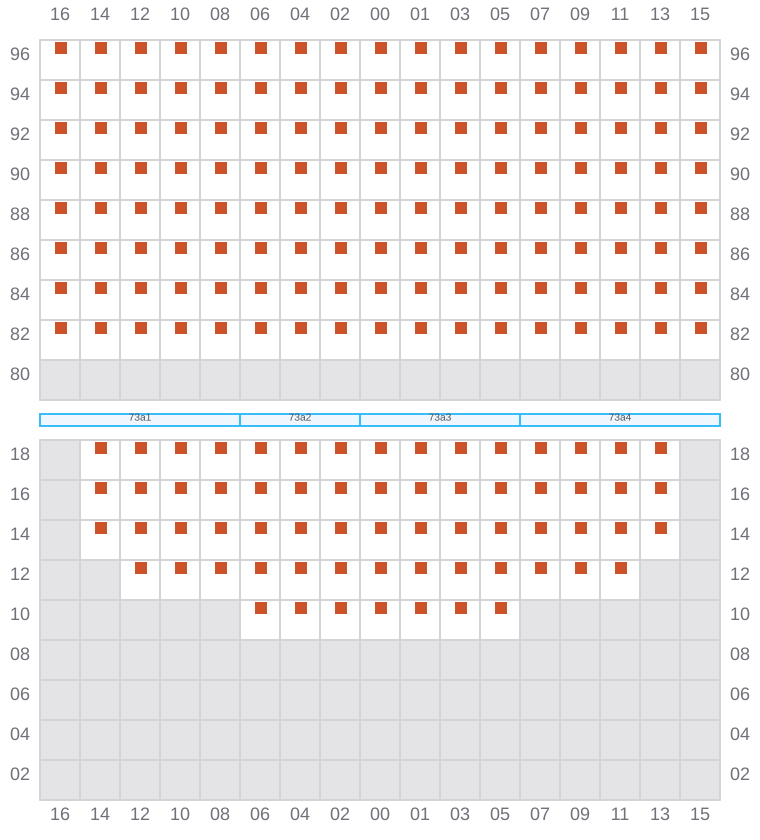

073
- →

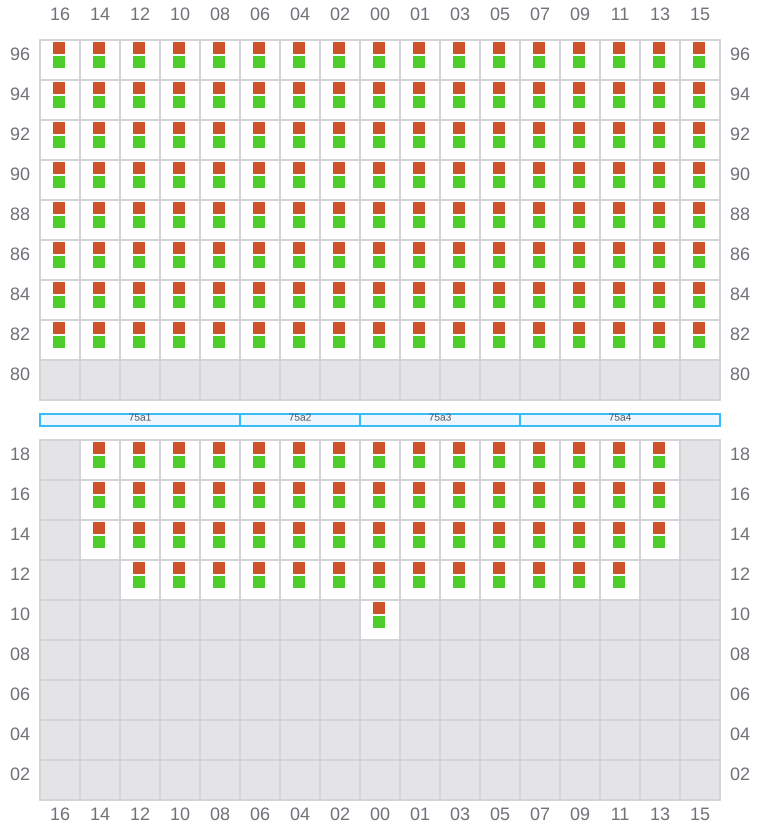

075 (074)
- ←

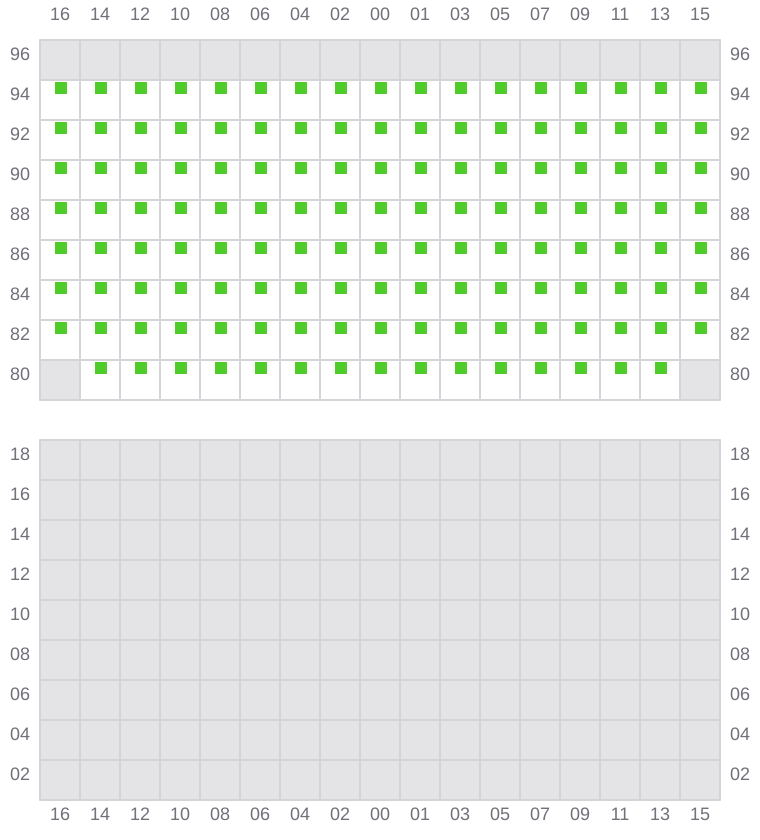

077 (078)
- → / ?
