CMA CGM CAIMEP
9431757 | 9HA5437 | 9431757 by ********* Last update: Mon Apr 01 2024
General Info
Ship Name:CMA CGM CAIMEP
IMO Code:9431757
Call Sign:9HA5437
Line Operator:9431757
Class Name for Sister Ships:APL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):247.10
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,258
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

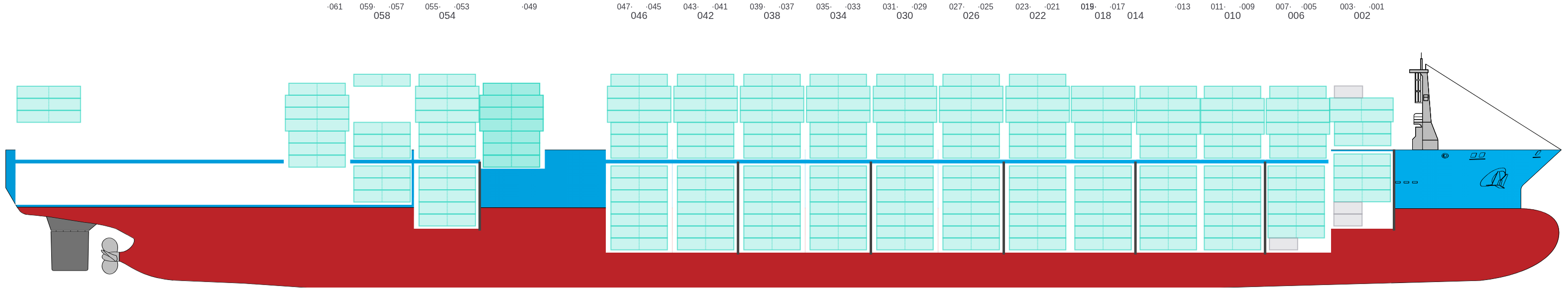

Side View
![Side view of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-sideView.png?v=1711999222170)

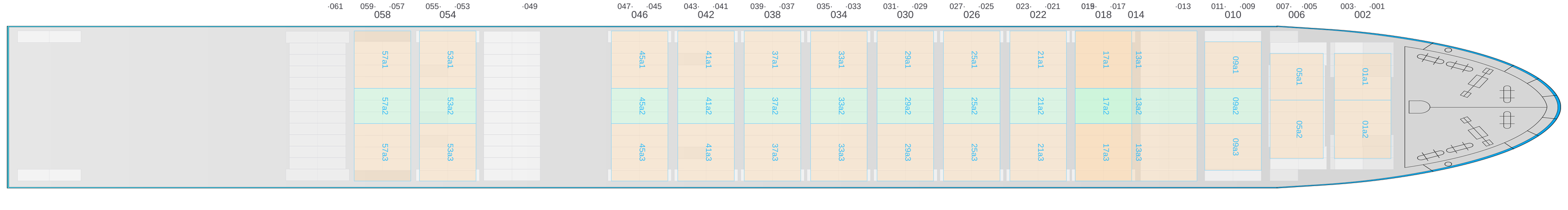

Hatch-Covers View
![Deck view of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-deckView.png?v=1711999222170)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

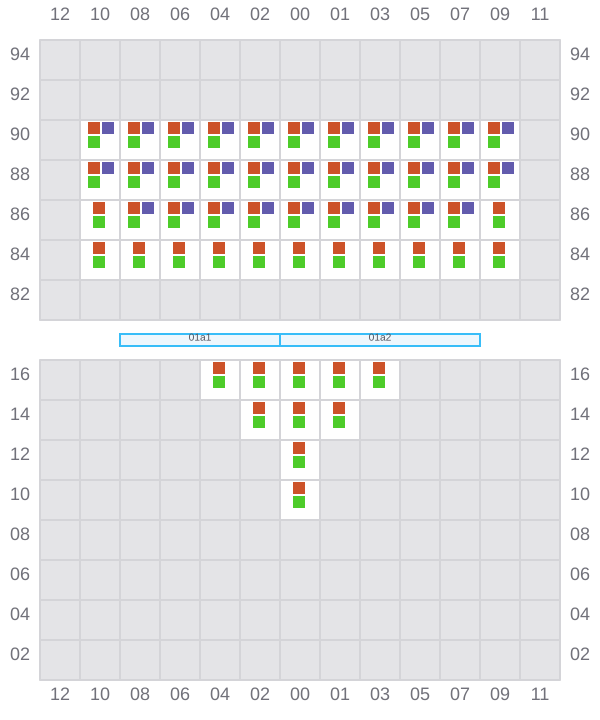

001 (002)
- →
![Bay 001 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b001.png?v=1711999222170)

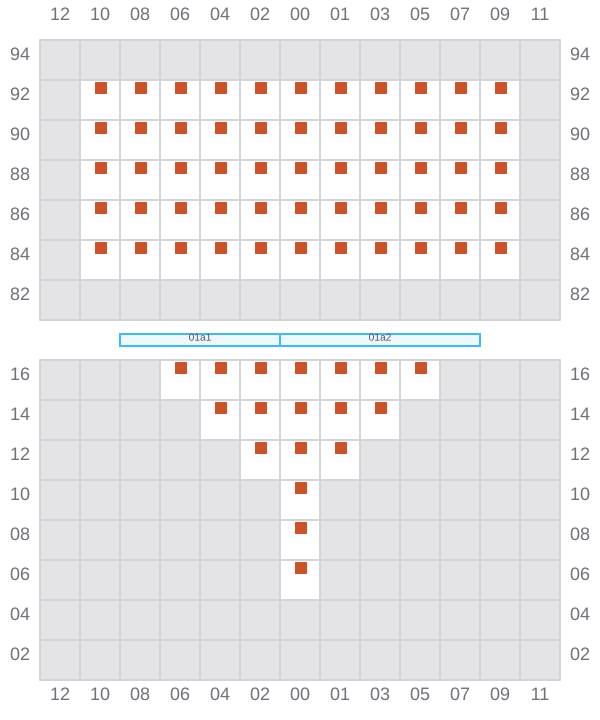

003
- ←
![Bay 003 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b003.png?v=1711999222170)

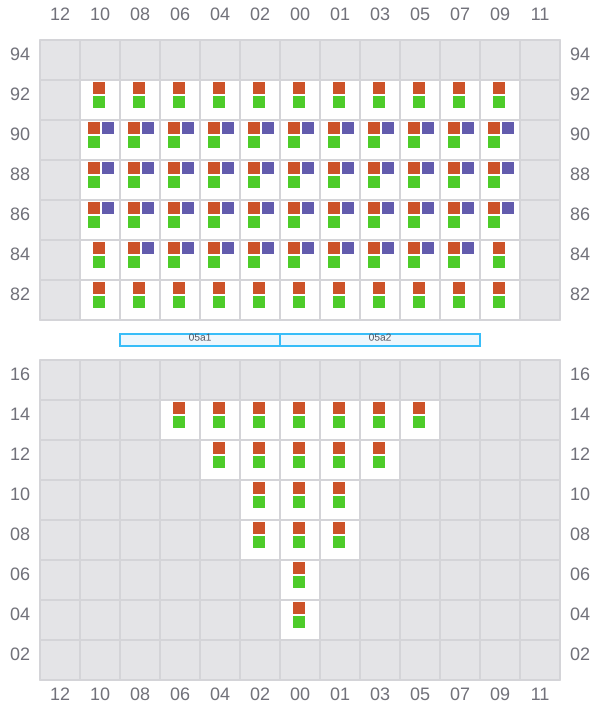

005 (006)
- →
![Bay 005 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b005.png?v=1711999222170)

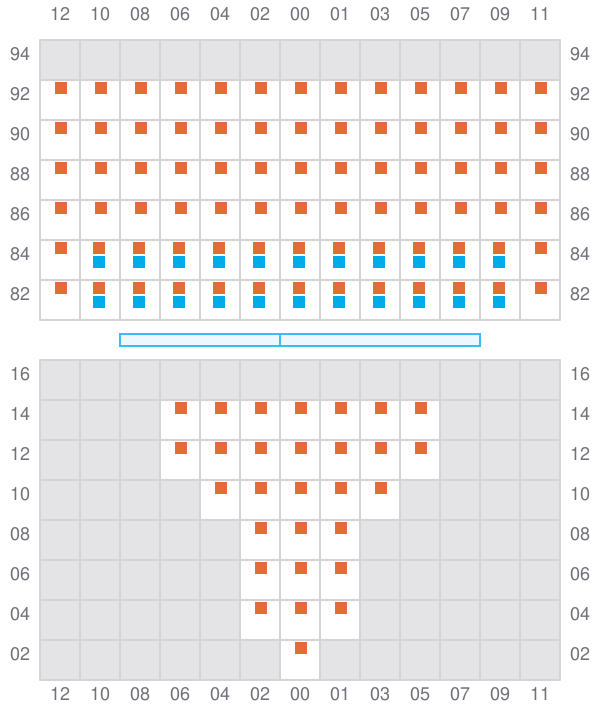

007
- ←
![Bay 007 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b007.png?v=1711999222170)

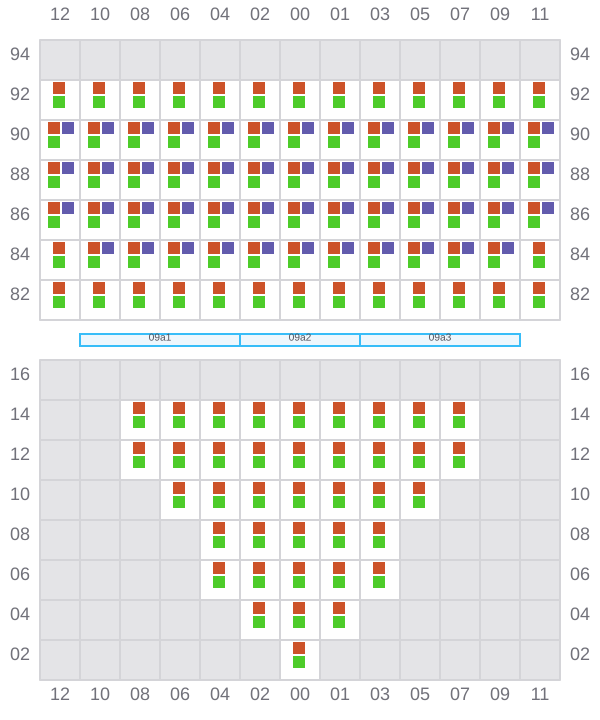

009 (010)
- →
![Bay 009 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b009.png?v=1711999222170)

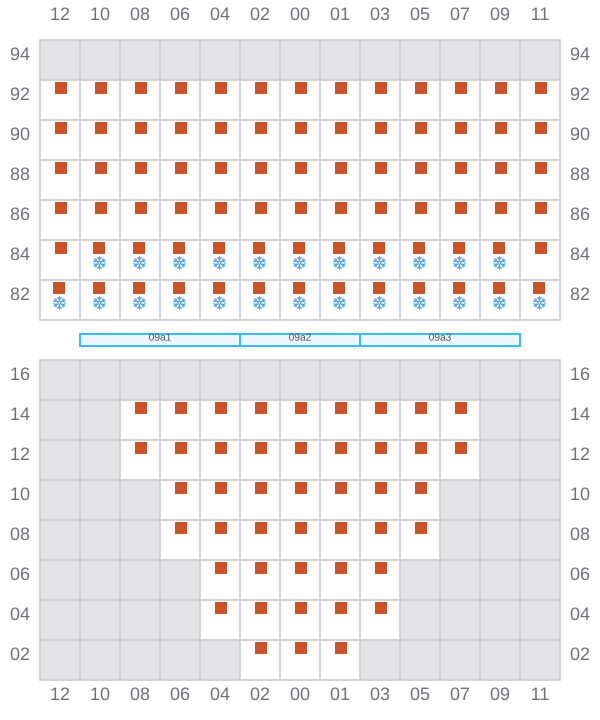

011
- ←
![Bay 011 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b011.png?v=1711999222170)

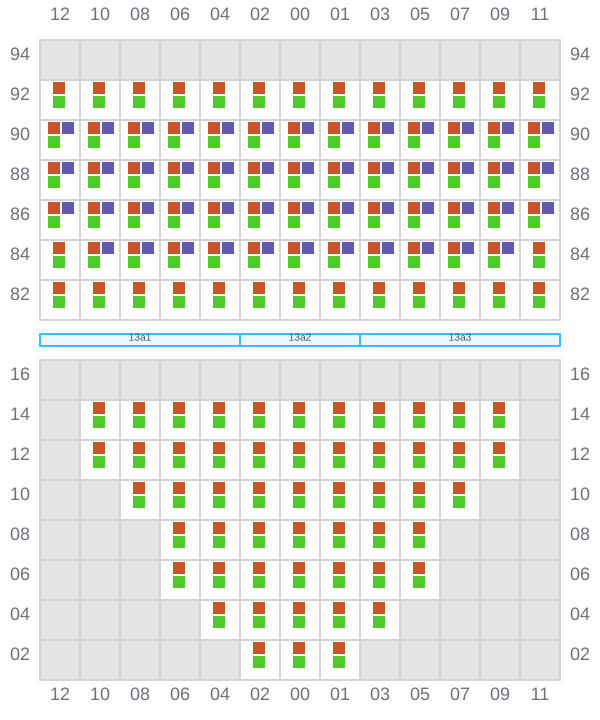

013 (014)
- →
![Bay 013 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b013.png?v=1711999222170)

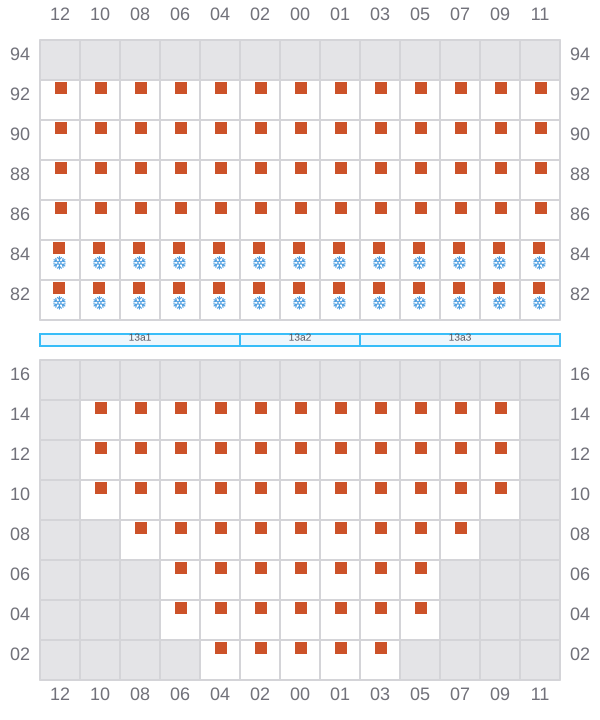

015
- ←
![Bay 015 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b015.png?v=1711999222170)

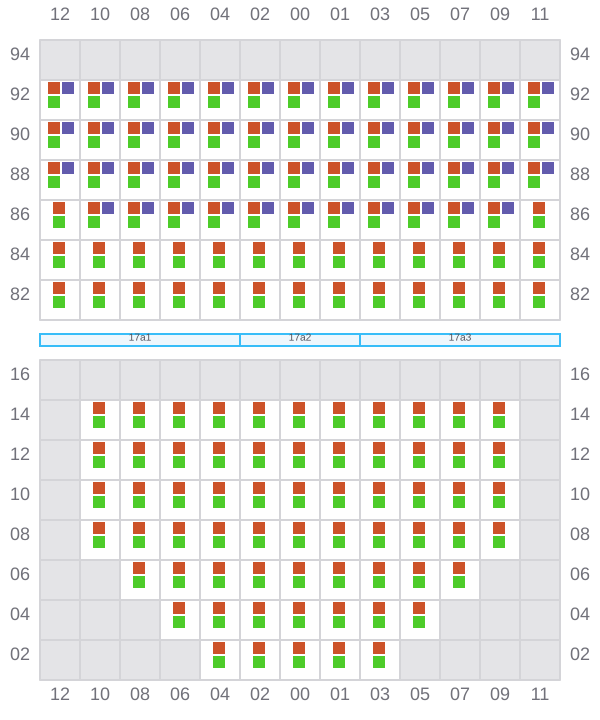

017 (018)
- →
![Bay 017 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b017.png?v=1711999222170)

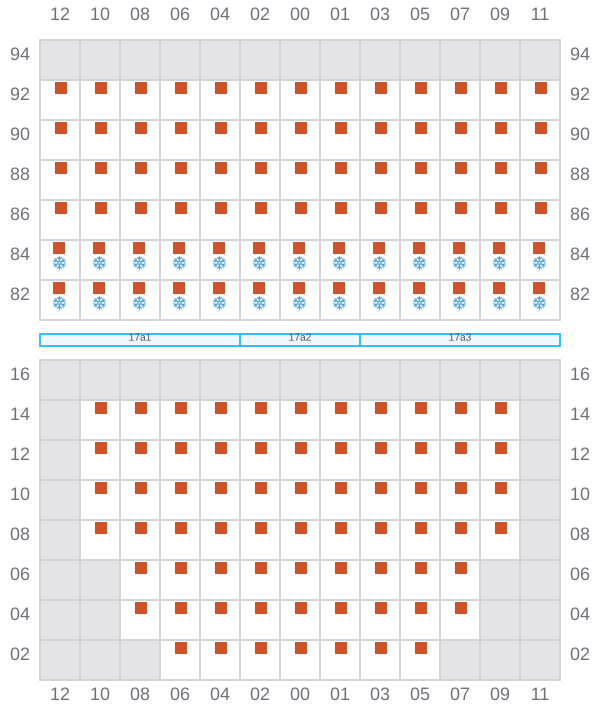

019
- ←
![Bay 019 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b019.png?v=1711999222170)

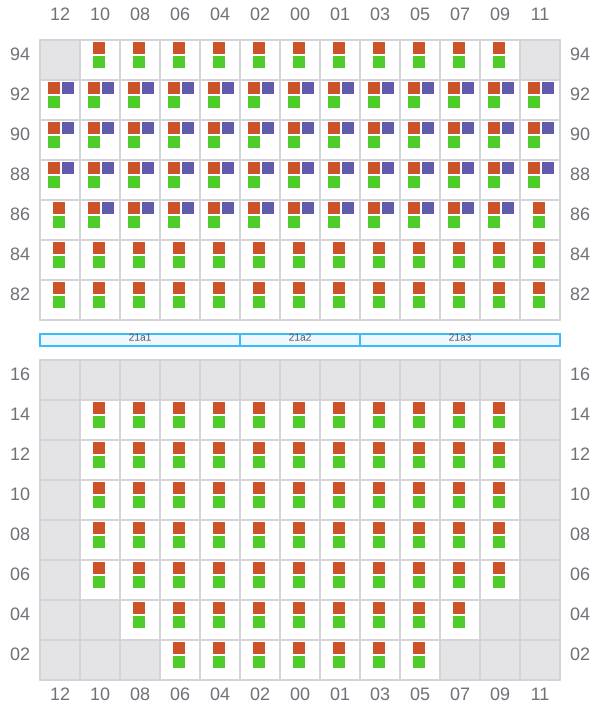

021 (022)
- →
![Bay 021 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b021.png?v=1711999222170)

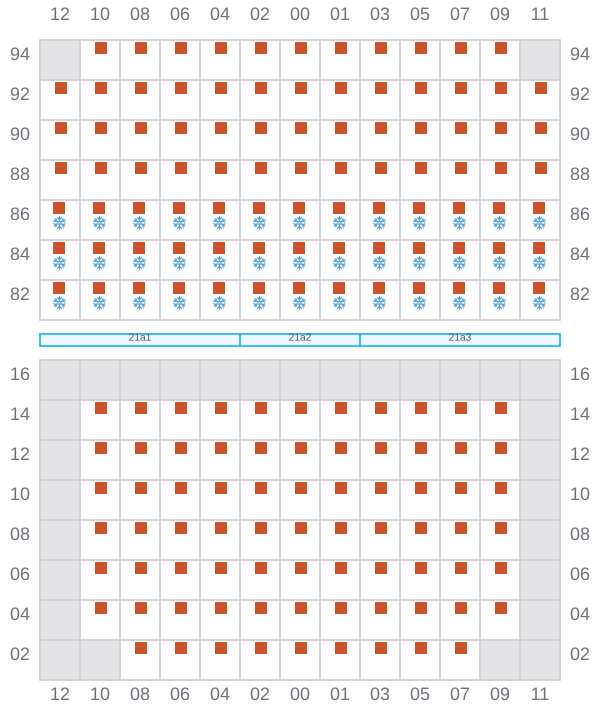

023
- ←
![Bay 023 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b023.png?v=1711999222170)

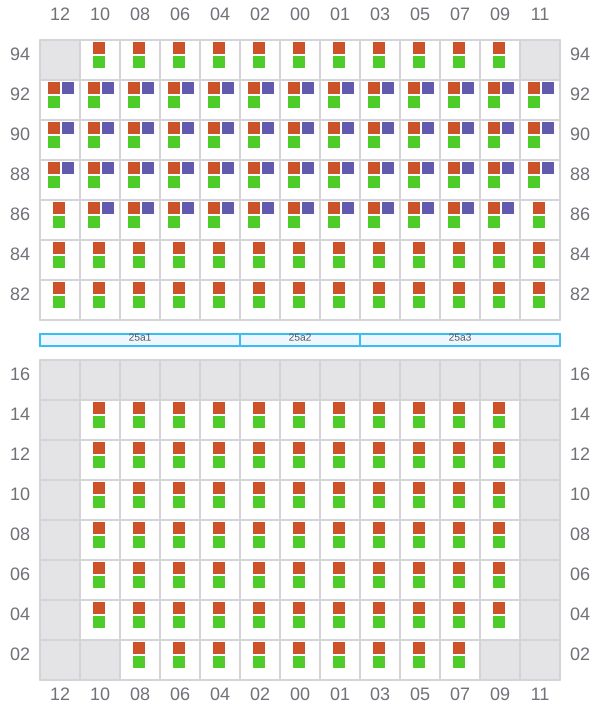

025 (026)
- →
![Bay 025 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b025.png?v=1711999222170)
027
- ←
![Bay 027 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b027.png?v=1711999222170)

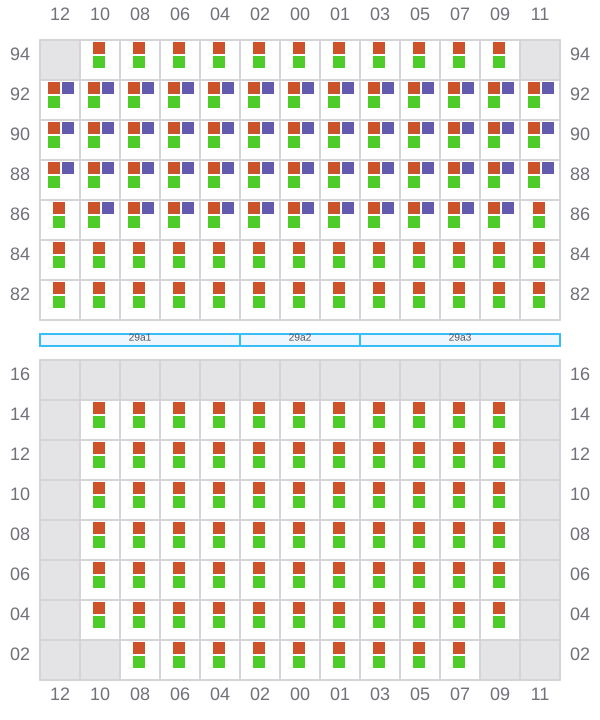

029 (030)
- →
![Bay 029 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b029.png?v=1711999222170)

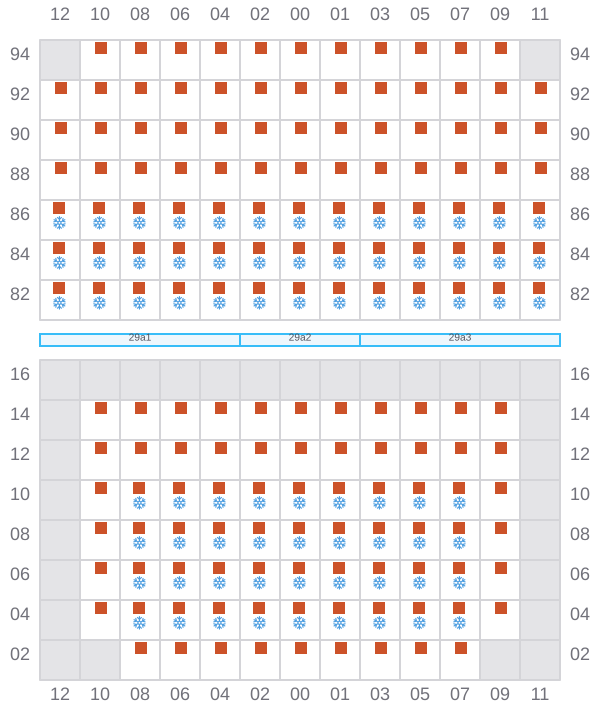

031
- ←
![Bay 031 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b031.png?v=1711999222170)
033 (034)
- →
![Bay 033 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b033.png?v=1711999222170)
035
- ←
![Bay 035 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b035.png?v=1711999222170)

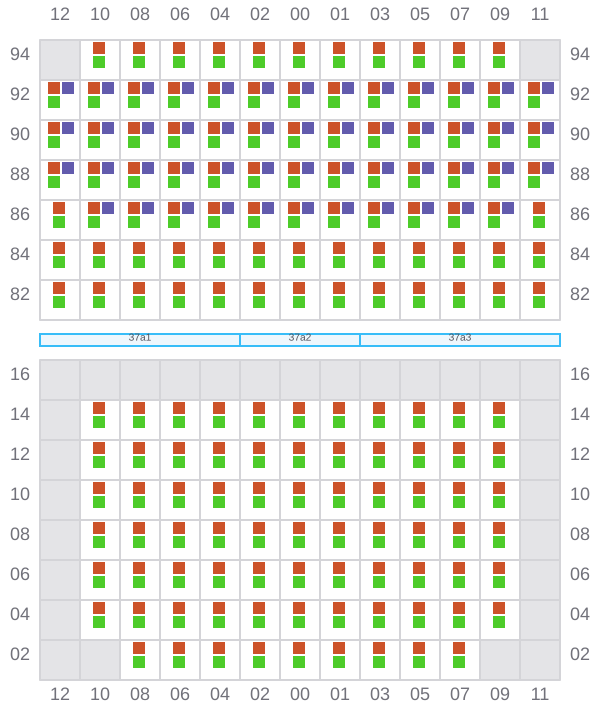

037 (038)
- →
![Bay 037 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b037.png?v=1711999222170)
039
- ←
![Bay 039 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b039.png?v=1711999222170)
041 (042)
- →
![Bay 041 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b041.png?v=1711999222170)

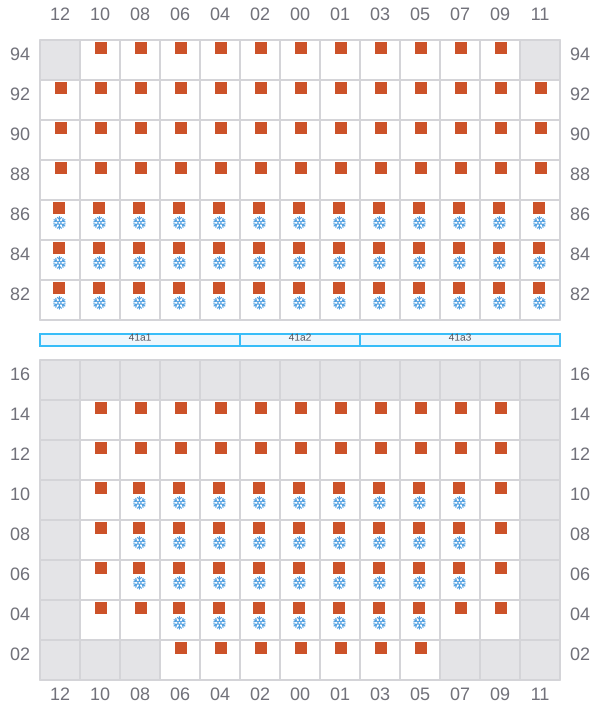

043
- ←
![Bay 043 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b043.png?v=1711999222170)

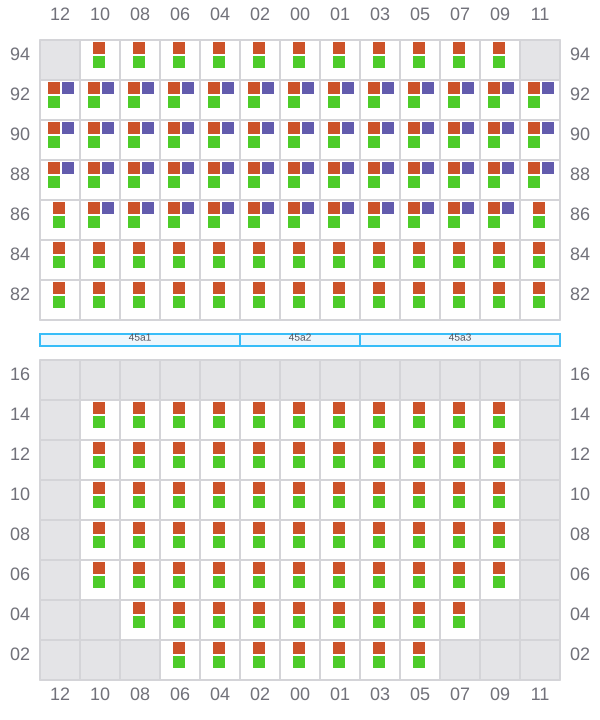

045 (046)
- →
![Bay 045 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b045.png?v=1711999222170)
047
- ←
![Bay 047 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b047.png?v=1711999222170)

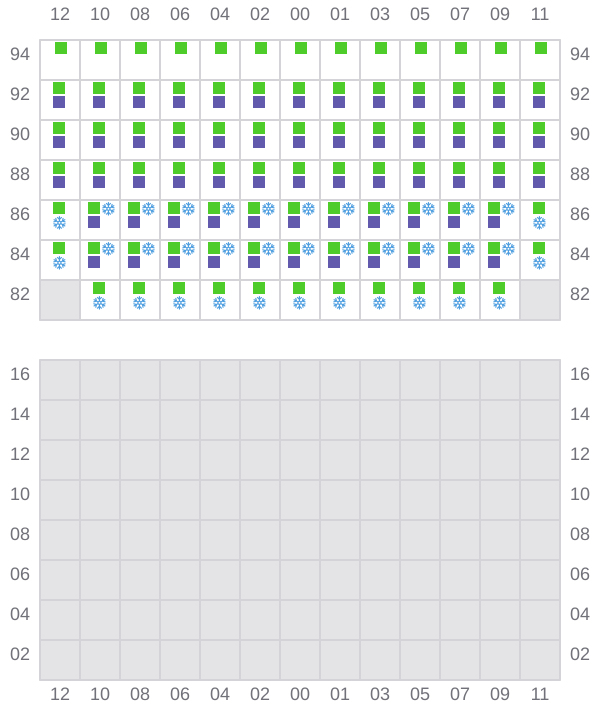

049 (050)
- → / ?
![Bay 049 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b049.png?v=1711999222170)

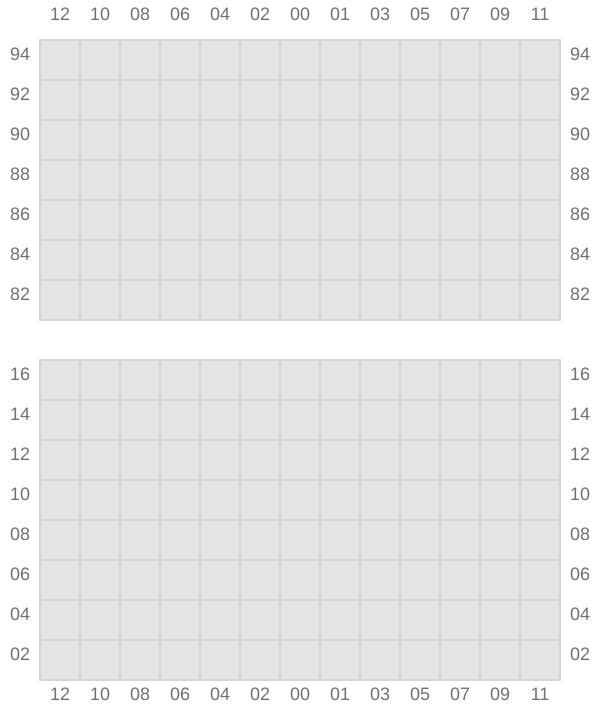

051
![Bay 051 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b051.png?v=1711999222170)

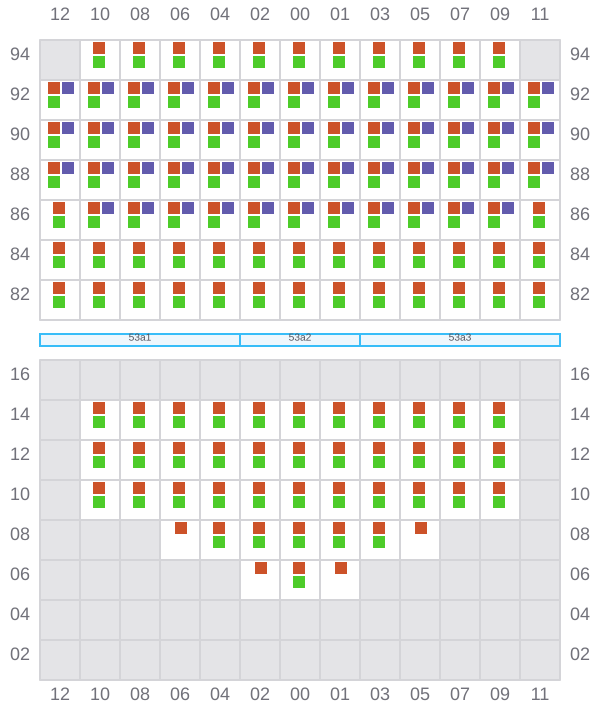

053 (054)
- →
![Bay 053 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b053.png?v=1711999222170)

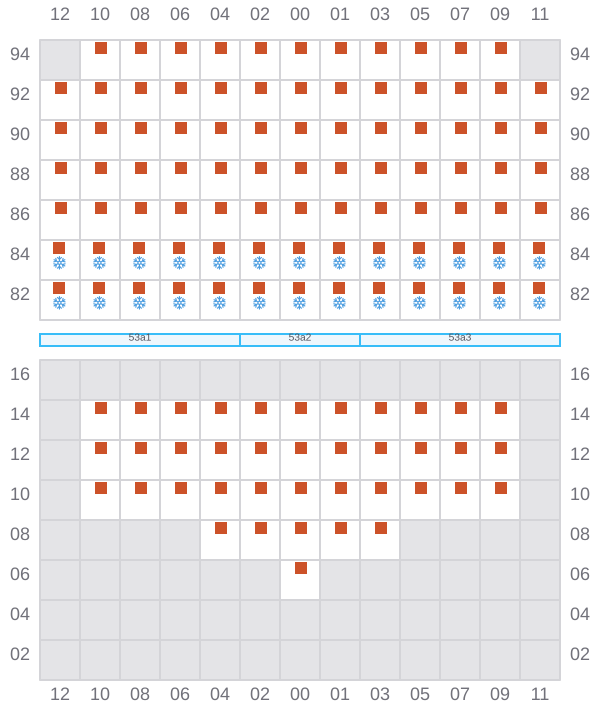

055
- ←
![Bay 055 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b055.png?v=1711999222170)

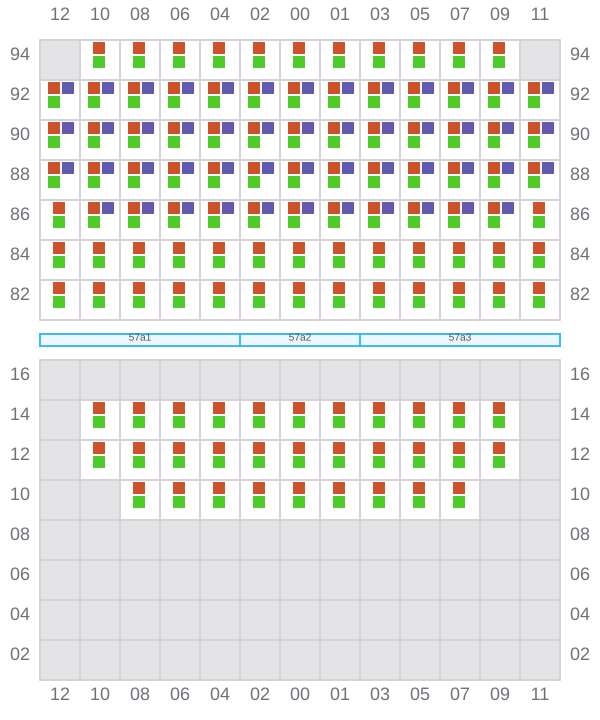

057 (058)
- →
![Bay 057 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b057.png?v=1711999222170)

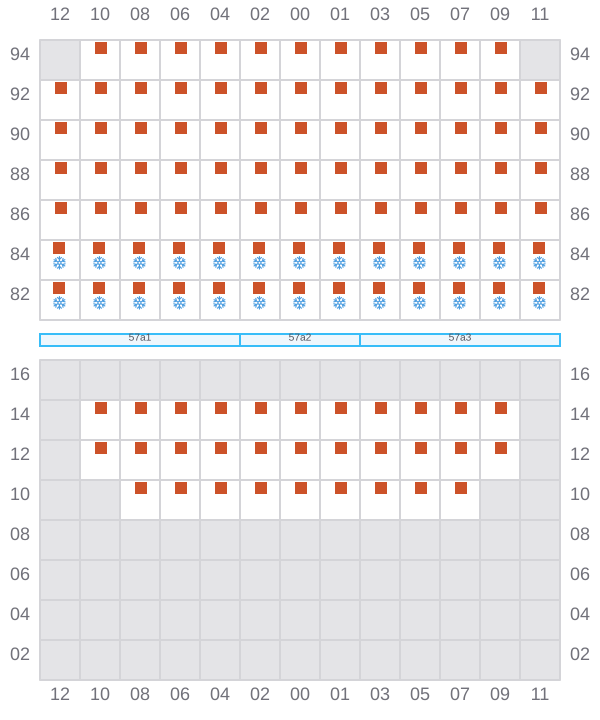

059
- ←
![Bay 059 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b059.png?v=1711999222170)

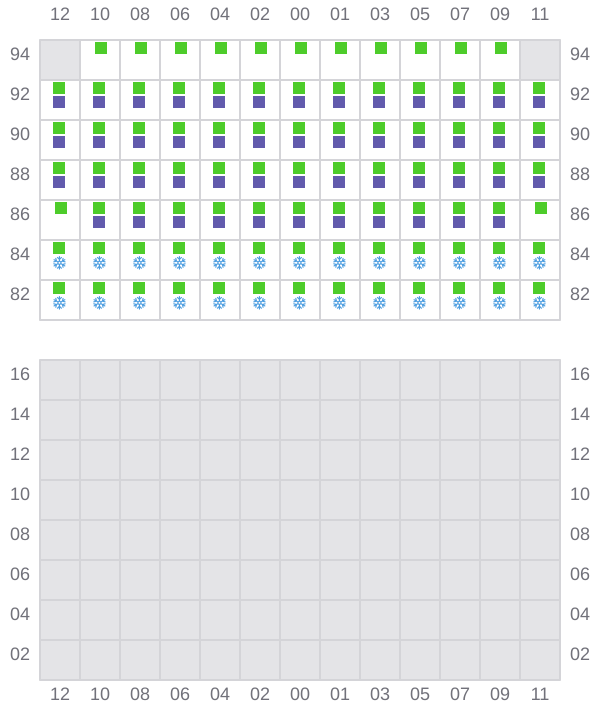

061 (062)
- → / ?
![Bay 061 view and slots of CMA CGM CAIMEP](/vessel-images/ba7944ff-62c7-4b78-8268-ac604071ad55-b061.png?v=1711999222170)
