CMA CGM CAYENNE
9709192 | 9HA5585 | 9709192 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:CMA CGM CAYENNE
IMO Code:9709192
Call Sign:9HA5585
Line Operator:9709192
Class Name for Sister Ships:CMA CGM CAYENNE
Year Built:2015
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,188

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

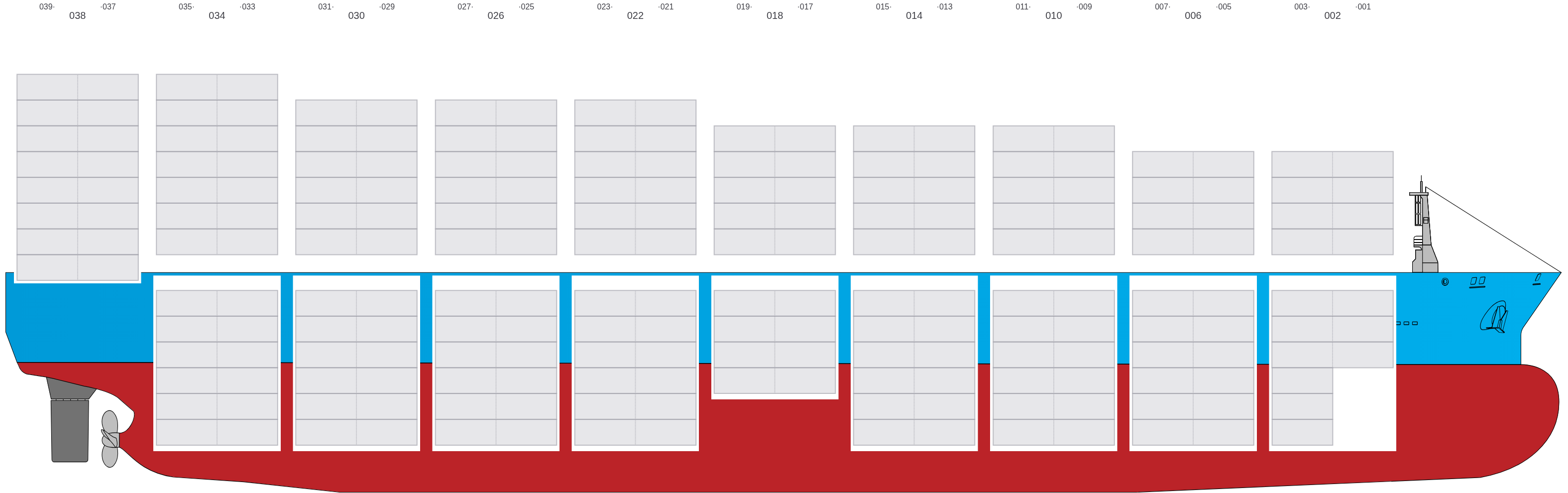

Side view of CMA CGM CAYENNE

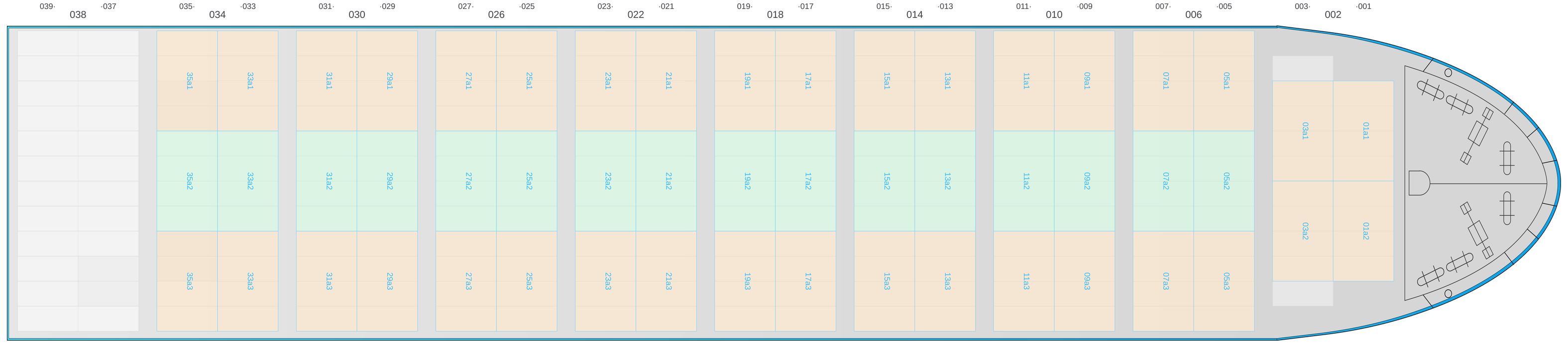

Hatch-Covers View

Deck view of CMA CGM CAYENNE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

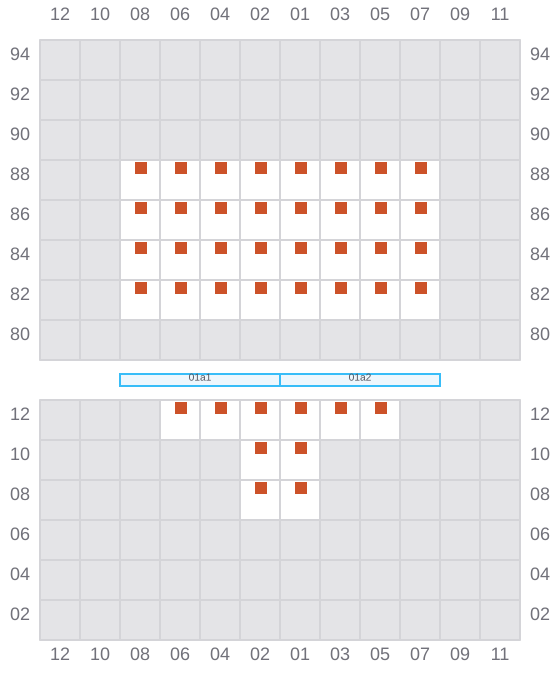

Bay 001 view and slots of CMA CGM CAYENNE

003 (002)

  • ←

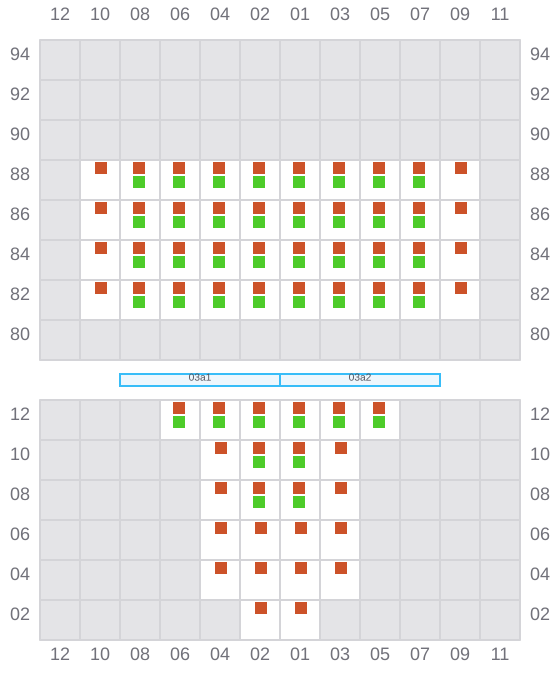

Bay 003 view and slots of CMA CGM CAYENNE

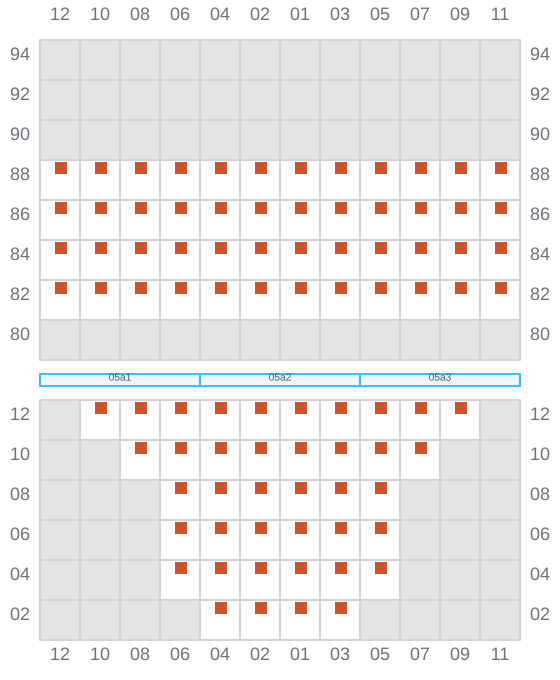

005

  • →
Bay 005 view and slots of CMA CGM CAYENNE

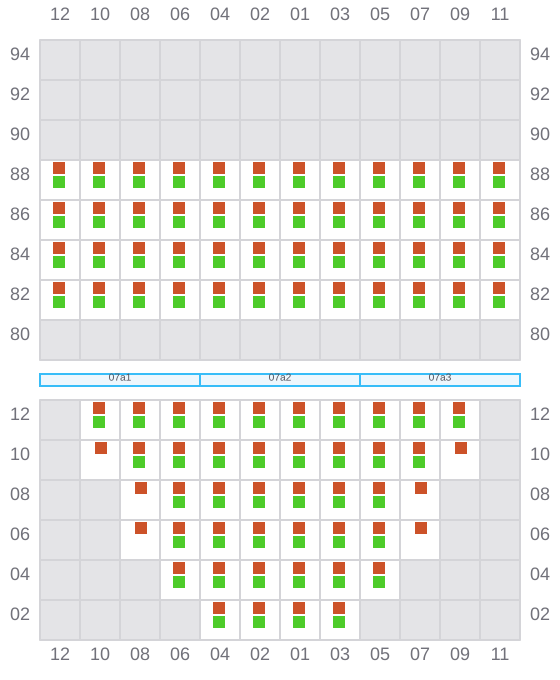

007 (006)

  • ←
Bay 007 view and slots of CMA CGM CAYENNE

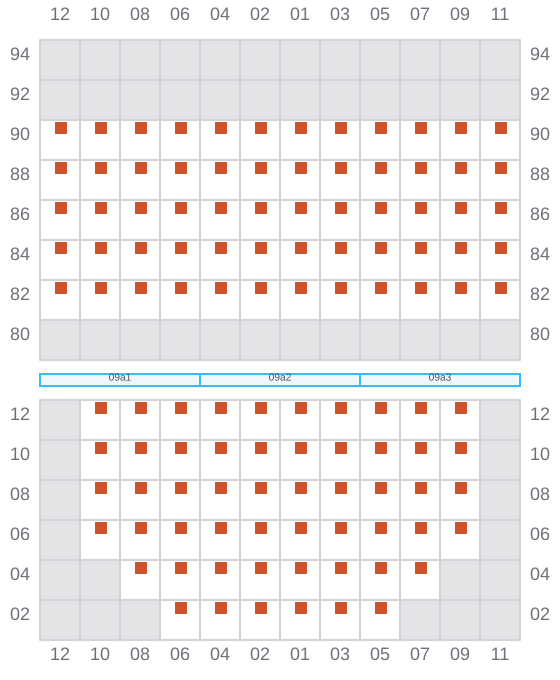

009

  • →
Bay 009 view and slots of CMA CGM CAYENNE

011 (010)

  • ←

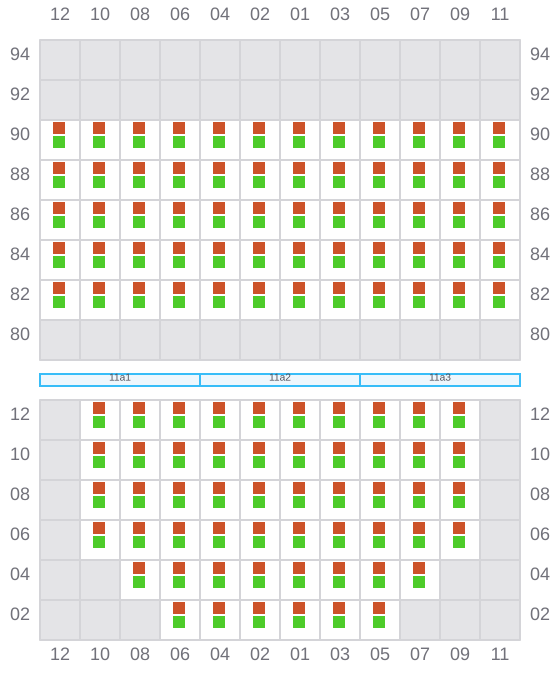

Bay 011 view and slots of CMA CGM CAYENNE

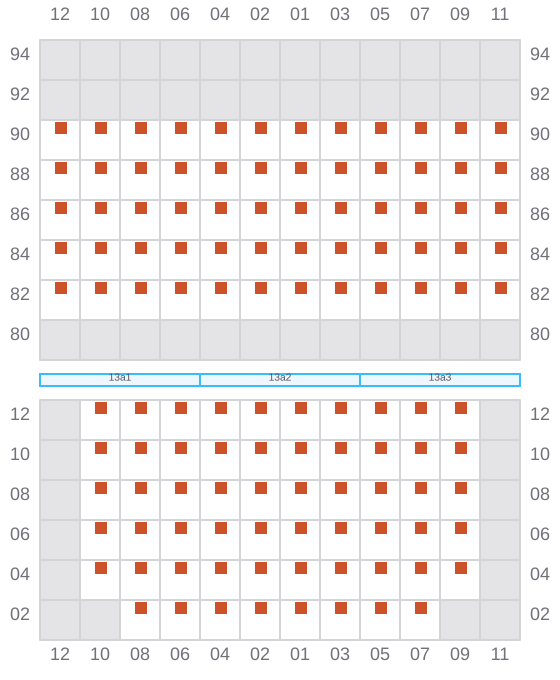

013

  • →
Bay 013 view and slots of CMA CGM CAYENNE

015 (014)

  • ←

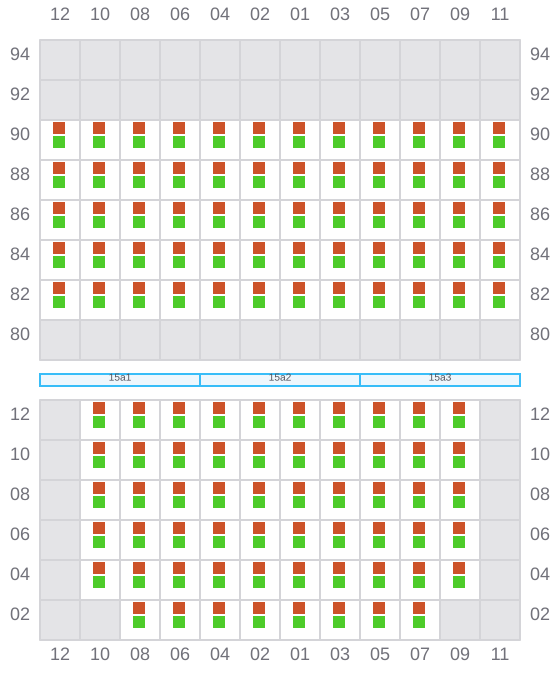

Bay 015 view and slots of CMA CGM CAYENNE

017

  • →

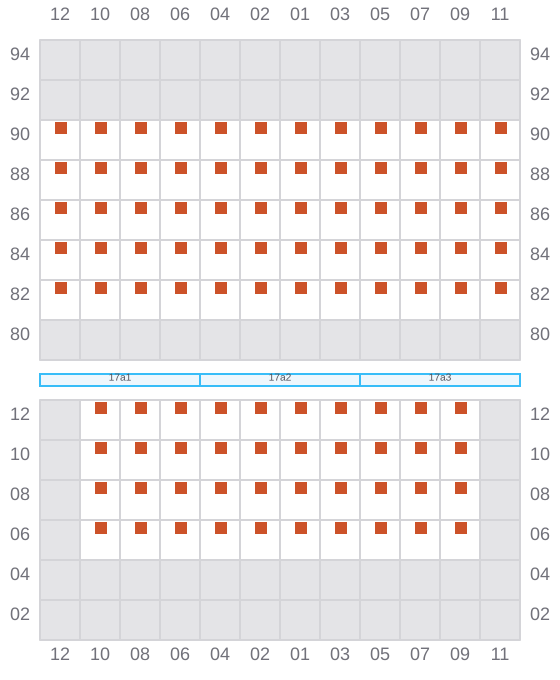

Bay 017 view and slots of CMA CGM CAYENNE

019 (018)

  • ←

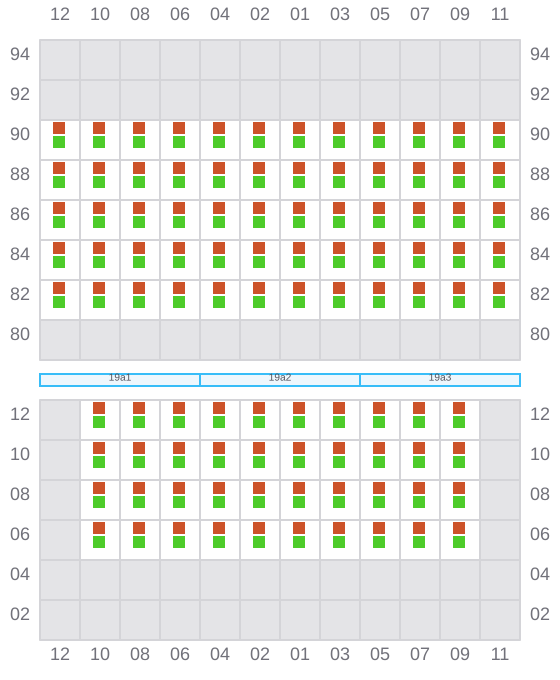

Bay 019 view and slots of CMA CGM CAYENNE

021

  • →
Bay 021 view and slots of CMA CGM CAYENNE

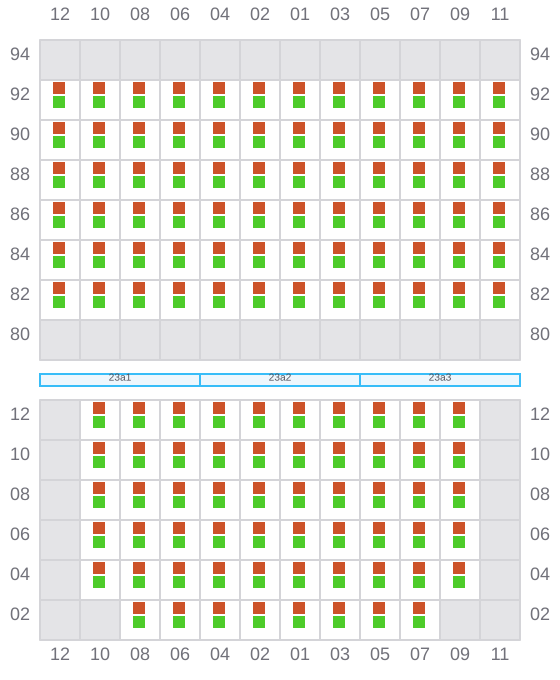

023 (022)

  • ←
Bay 023 view and slots of CMA CGM CAYENNE

025

  • →
Bay 025 view and slots of CMA CGM CAYENNE

027 (026)

  • ←
Bay 027 view and slots of CMA CGM CAYENNE

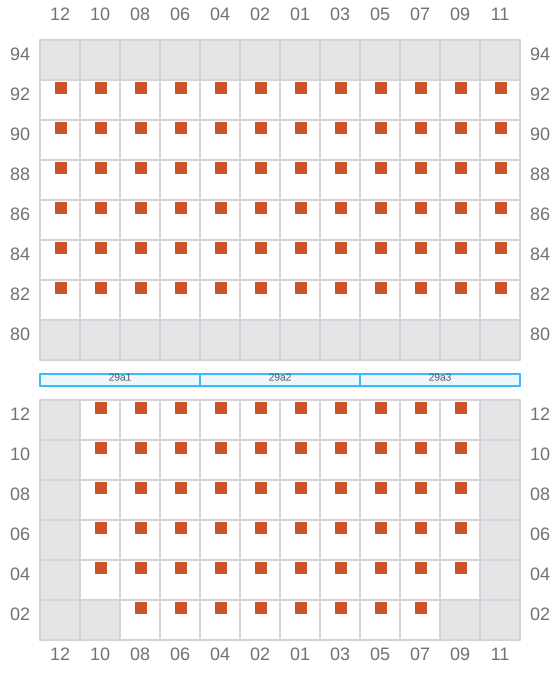

029

  • →
Bay 029 view and slots of CMA CGM CAYENNE

031 (030)

  • ←

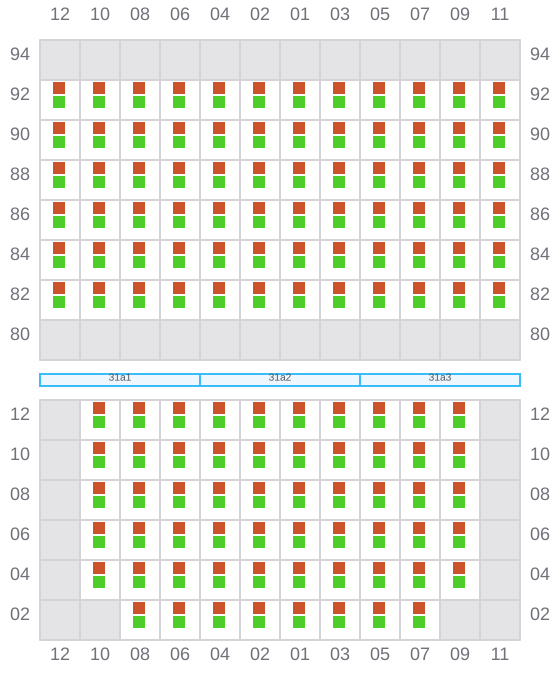

Bay 031 view and slots of CMA CGM CAYENNE

033

  • →

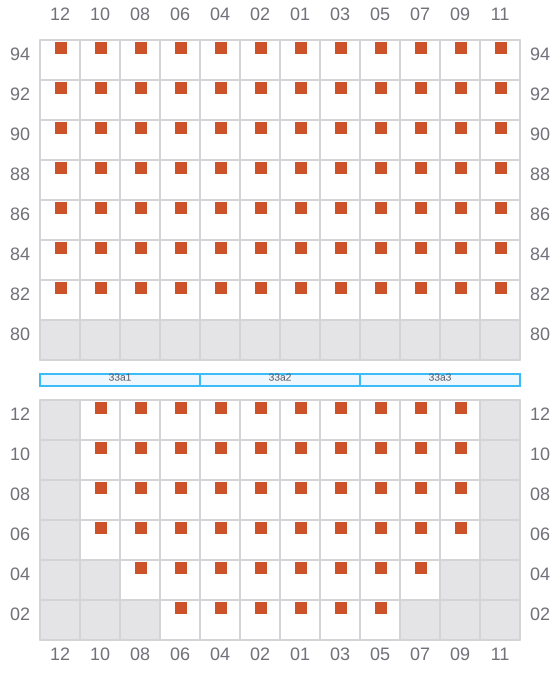

Bay 033 view and slots of CMA CGM CAYENNE

035 (034)

  • ←

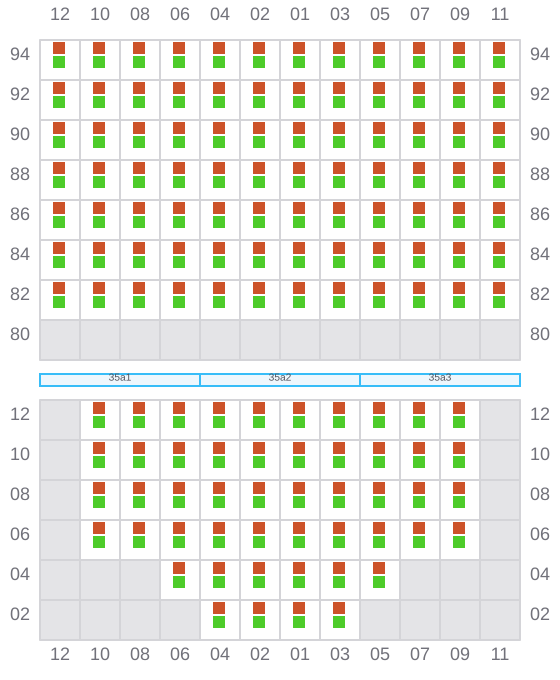

Bay 035 view and slots of CMA CGM CAYENNE

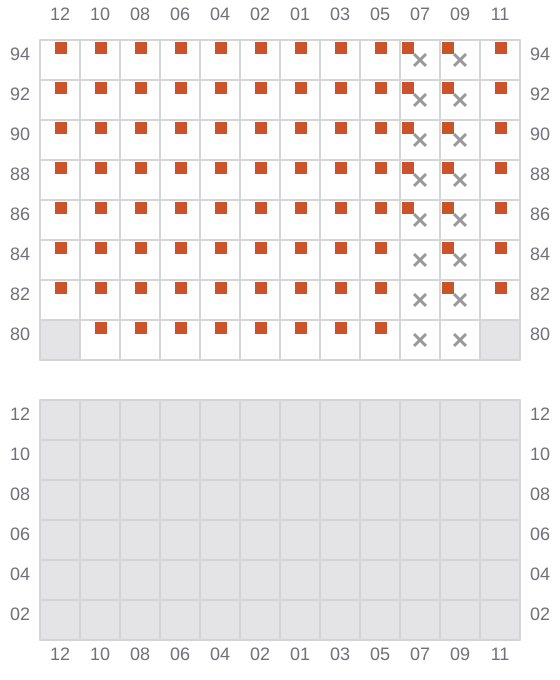

037

  • → / ?
Bay 037 view and slots of CMA CGM CAYENNE

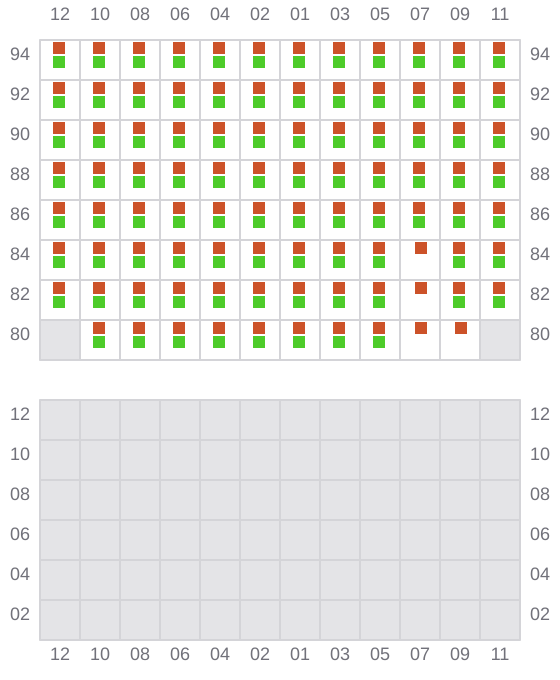

039 (038)

  • ← / ?
Bay 039 view and slots of CMA CGM CAYENNE
