CMA CGM CENDRILLON
9449819 | 9HA4971 | 9449819 by ********* Last update: Fri Apr 12 2024

General Info

Ship Name:CMA CGM CENDRILLON
IMO Code:9449819
Call Sign:9HA4971
Line Operator:9449819
Class Name for Sister Ships:CMA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,471

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CMA CGM CENDRILLON

Hatch-Covers View

Deck view of CMA CGM CENDRILLON

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

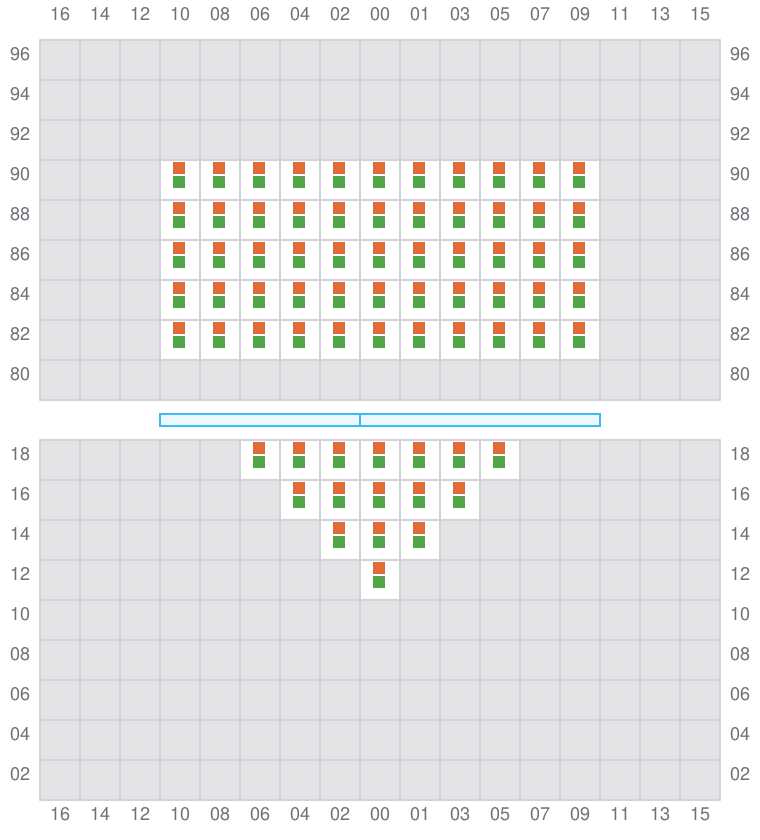

Bay 001 view and slots of CMA CGM CENDRILLON

003

  • ←
Bay 003 view and slots of CMA CGM CENDRILLON

005 (006)

  • →

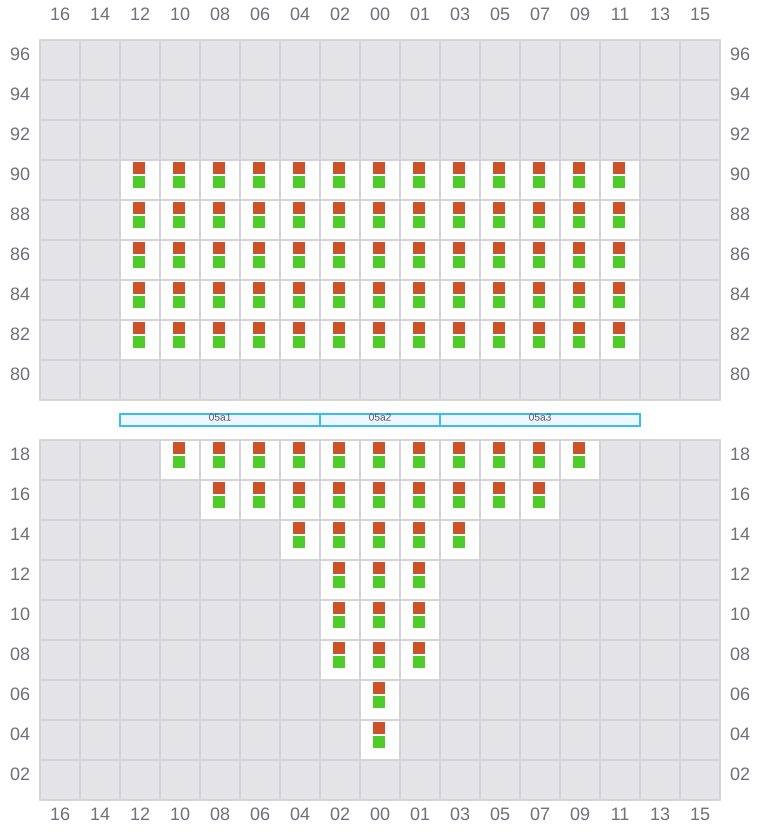

Bay 005 view and slots of CMA CGM CENDRILLON

007

  • ←

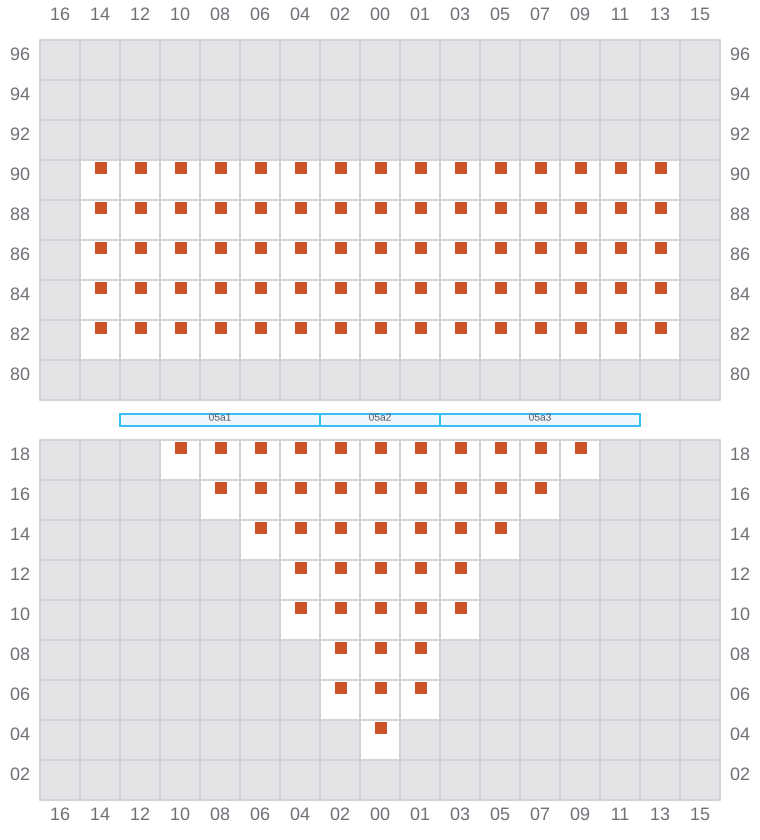

Bay 007 view and slots of CMA CGM CENDRILLON

009 (010)

  • →
Bay 009 view and slots of CMA CGM CENDRILLON

011

  • ←
Bay 011 view and slots of CMA CGM CENDRILLON

013 (014)

  • →

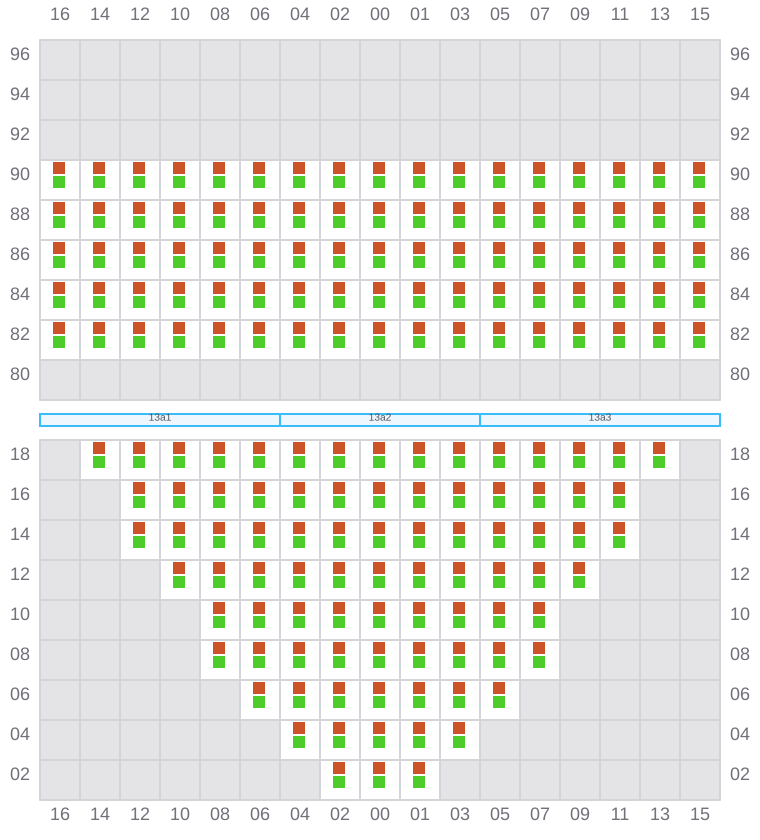

Bay 013 view and slots of CMA CGM CENDRILLON

015

  • ←
Bay 015 view and slots of CMA CGM CENDRILLON

017 (018)

  • →
Bay 017 view and slots of CMA CGM CENDRILLON

019

  • ←
Bay 019 view and slots of CMA CGM CENDRILLON

021 (022)

  • →
Bay 021 view and slots of CMA CGM CENDRILLON

023

  • ←
Bay 023 view and slots of CMA CGM CENDRILLON

025 (026)

  • →
Bay 025 view and slots of CMA CGM CENDRILLON

027

  • ←
Bay 027 view and slots of CMA CGM CENDRILLON

029 (030)

  • →
Bay 029 view and slots of CMA CGM CENDRILLON

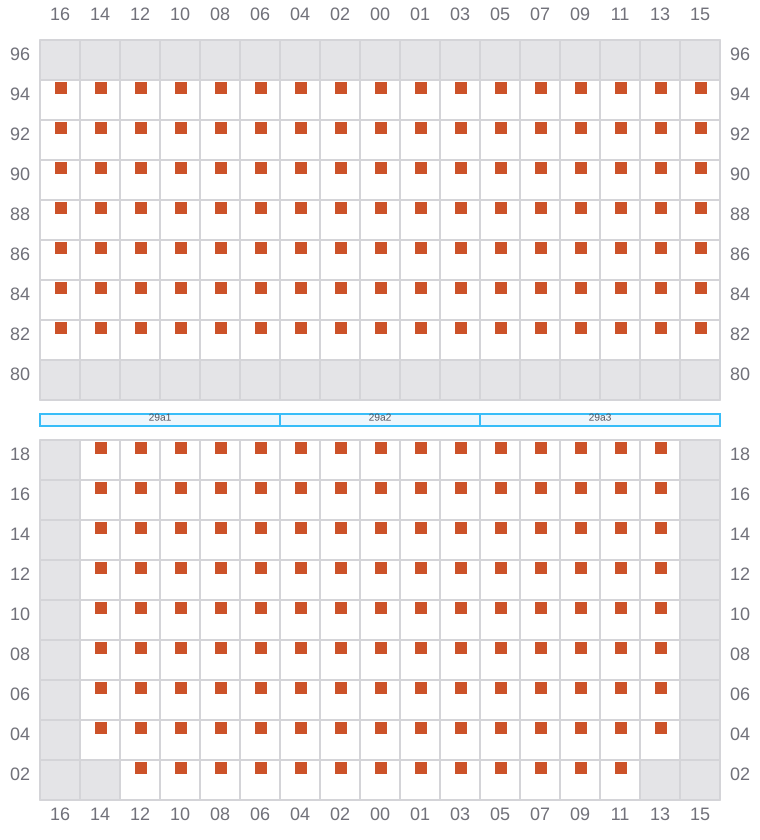

031

  • ←
Bay 031 view and slots of CMA CGM CENDRILLON

033 (034)

  • →
Bay 033 view and slots of CMA CGM CENDRILLON

035

  • ←
Bay 035 view and slots of CMA CGM CENDRILLON

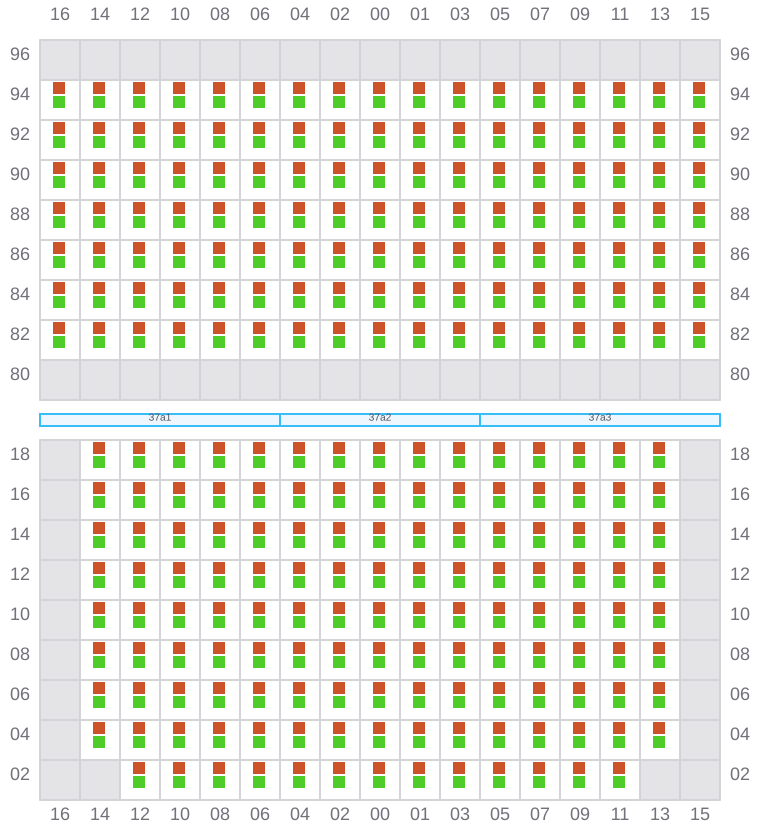

037 (038)

  • →

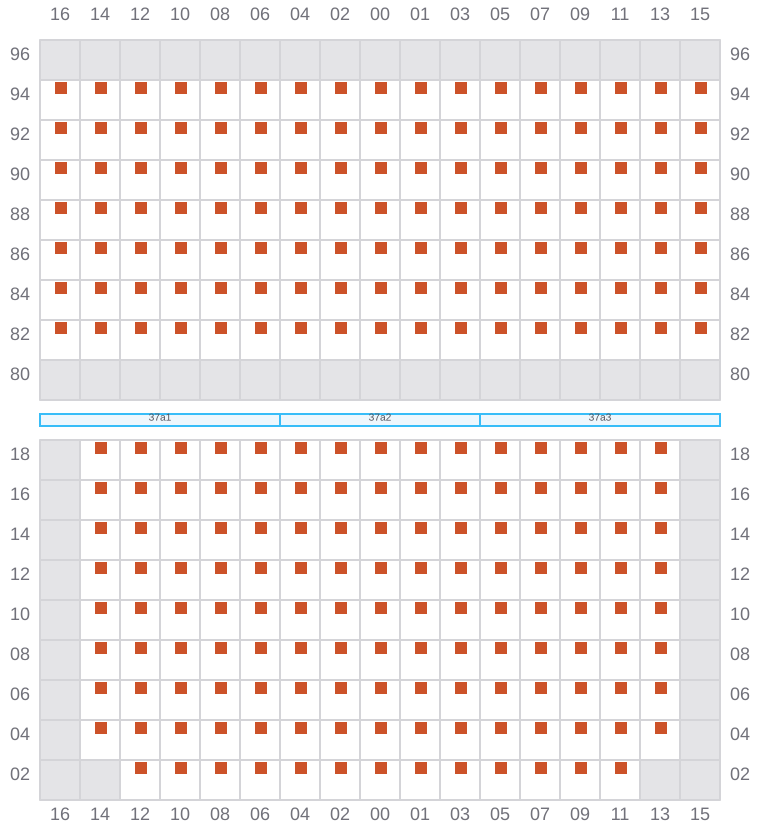

Bay 037 view and slots of CMA CGM CENDRILLON

039

  • ←
Bay 039 view and slots of CMA CGM CENDRILLON

041 (042)

  • →
Bay 041 view and slots of CMA CGM CENDRILLON

043

  • ←
Bay 043 view and slots of CMA CGM CENDRILLON

045 (046)

  • →
Bay 045 view and slots of CMA CGM CENDRILLON

047

  • ←
Bay 047 view and slots of CMA CGM CENDRILLON

049 (050)

  • →
Bay 049 view and slots of CMA CGM CENDRILLON

051

  • ←
Bay 051 view and slots of CMA CGM CENDRILLON

053 (054)

  • →

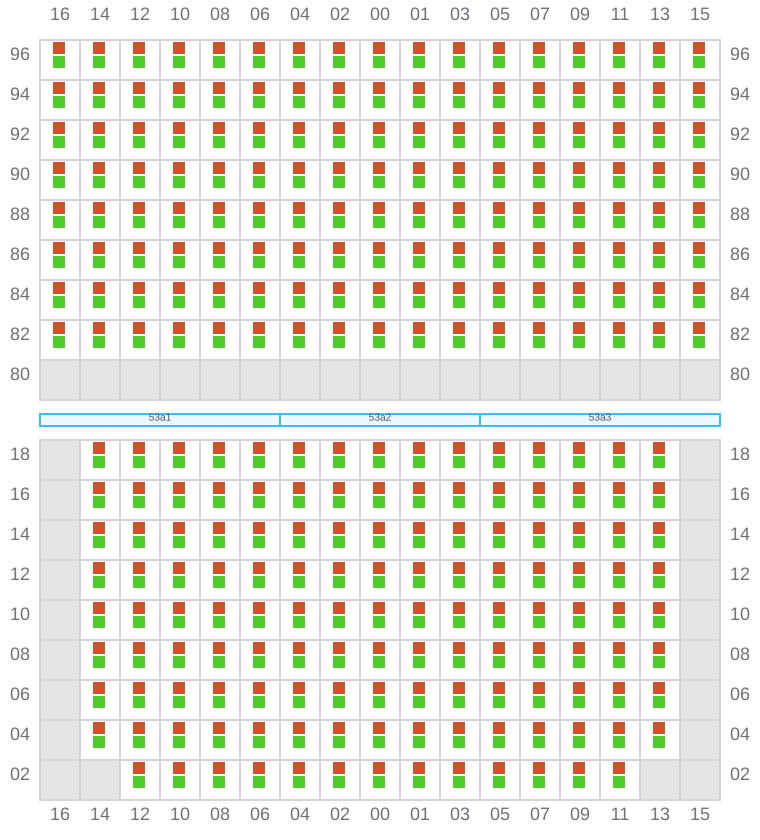

Bay 053 view and slots of CMA CGM CENDRILLON

055

  • ←
Bay 055 view and slots of CMA CGM CENDRILLON

057 (058)

  • →
Bay 057 view and slots of CMA CGM CENDRILLON

059

  • ←

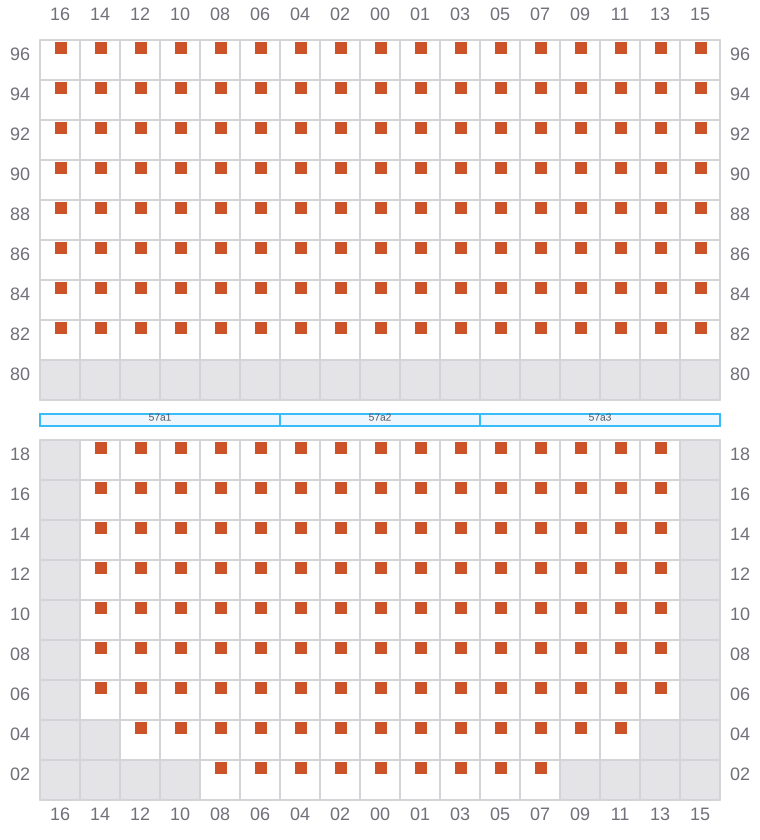

Bay 059 view and slots of CMA CGM CENDRILLON

061 (062)

  • →
Bay 061 view and slots of CMA CGM CENDRILLON

063

  • ←
Bay 063 view and slots of CMA CGM CENDRILLON

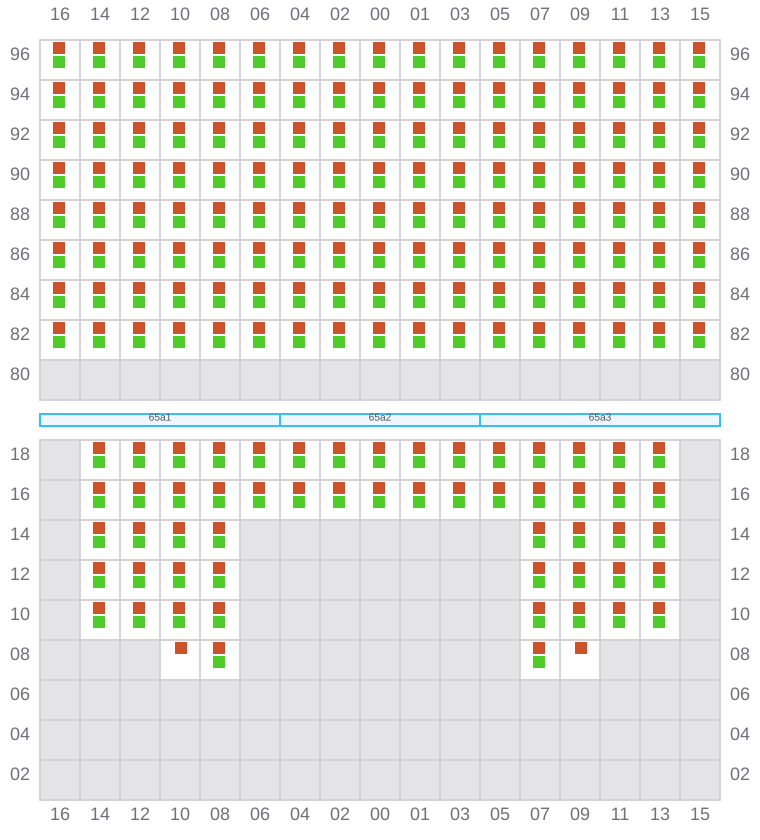

065 (066)

  • →
Bay 065 view and slots of CMA CGM CENDRILLON

067

  • ←
Bay 067 view and slots of CMA CGM CENDRILLON

069 (070)

  • →
Bay 069 view and slots of CMA CGM CENDRILLON

071

  • ←
Bay 071 view and slots of CMA CGM CENDRILLON

073 (074)

  • →
Bay 073 view and slots of CMA CGM CENDRILLON

075

  • ←
Bay 075 view and slots of CMA CGM CENDRILLON

077 (078)

  • → / ?

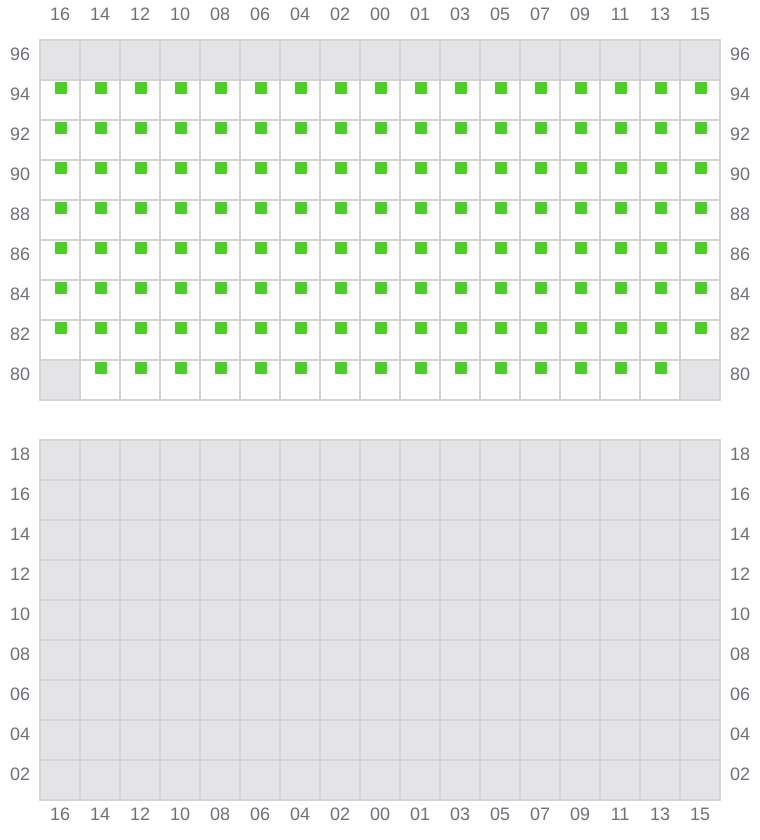

Bay 077 view and slots of CMA CGM CENDRILLON
