CMA CGM CHENNAI
9778129 | VRRQ5 | 9778129 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:CMA CGM CHENNAI
IMO Code:9778129
Call Sign:VRRQ5
Line Operator:9778129
Class Name for Sister Ships:CMA CGM CHENNAI
Year Built:2018
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:077
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:100
Min Above ISO Tier:82
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,314
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

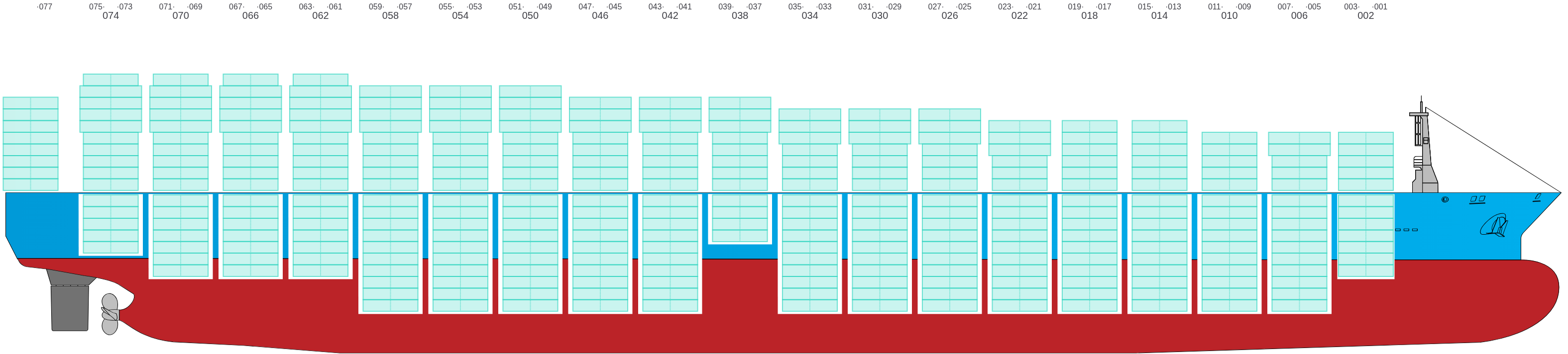

Side View
![Side view of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-sideView.png?v=1712947642160)
Hatch-Covers View
![Deck view of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-deckView.png?v=1712947642160)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

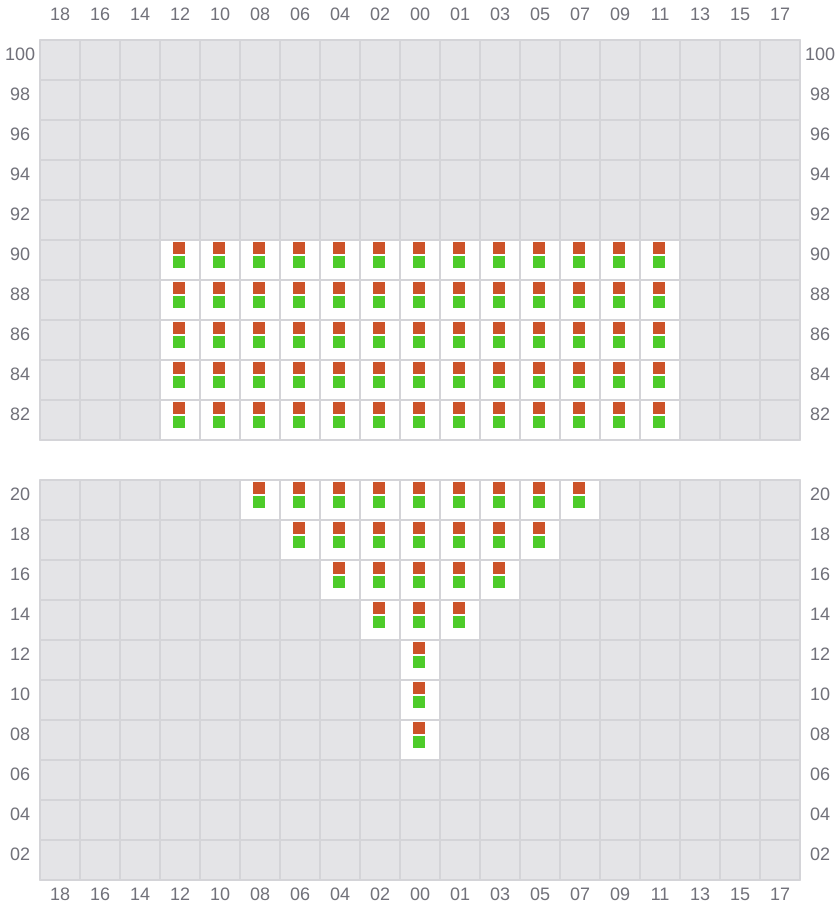

001 (002)
- →
![Bay 001 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b001.png?v=1712947642160)

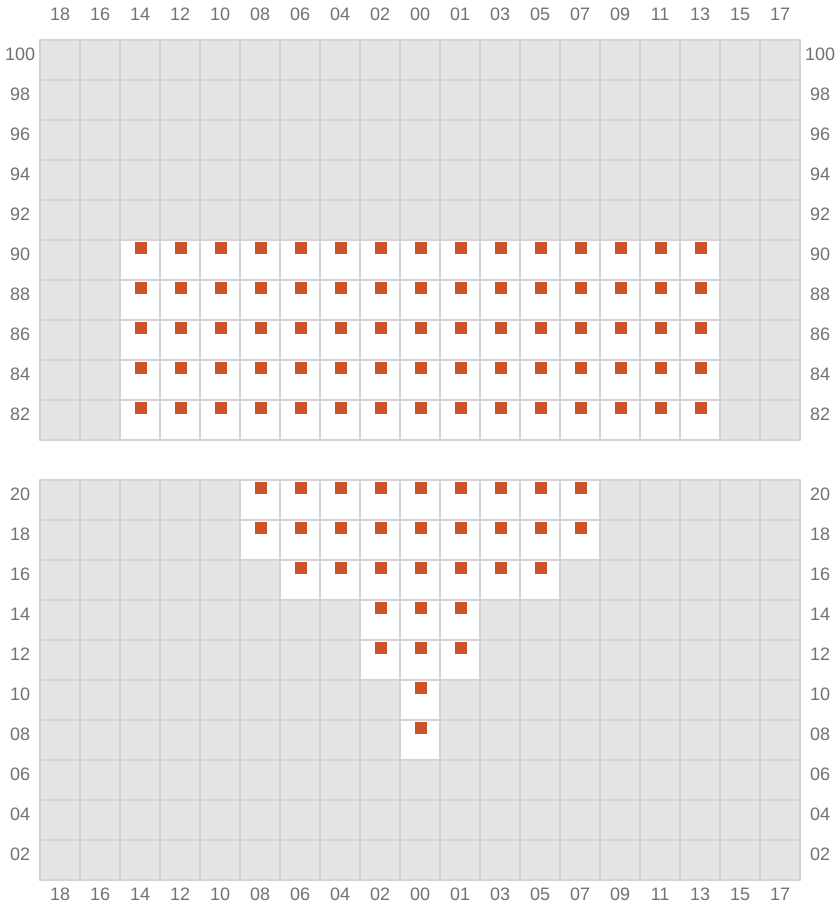

003
- ←
![Bay 003 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b003.png?v=1712947642160)

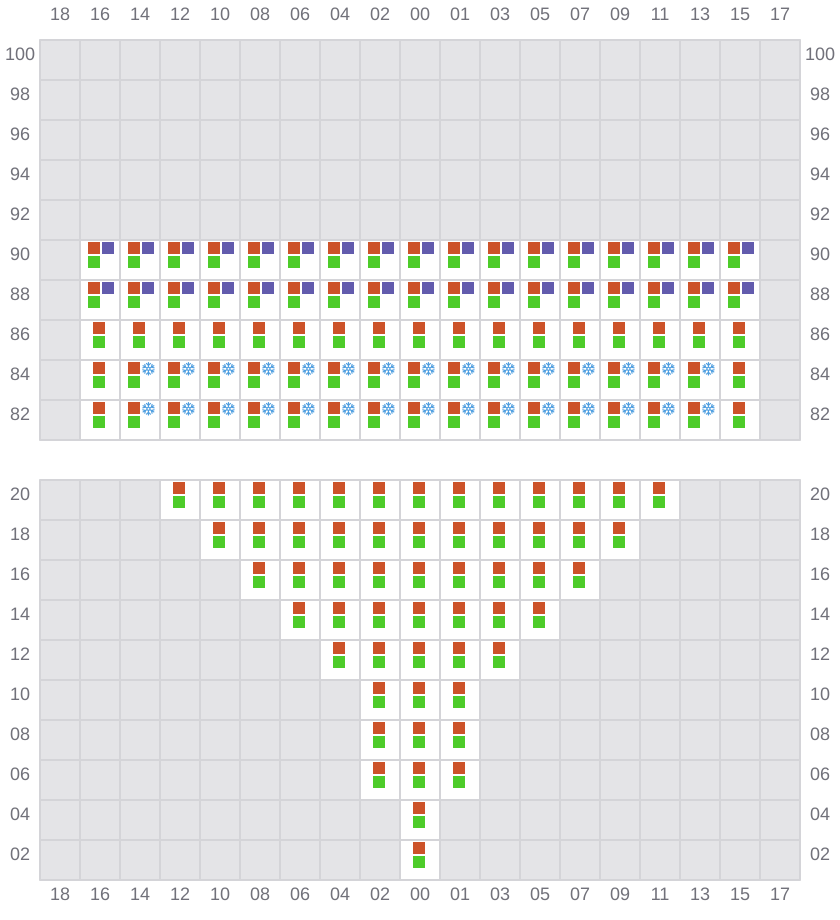

005 (006)
- →
![Bay 005 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b005.png?v=1712947642160)

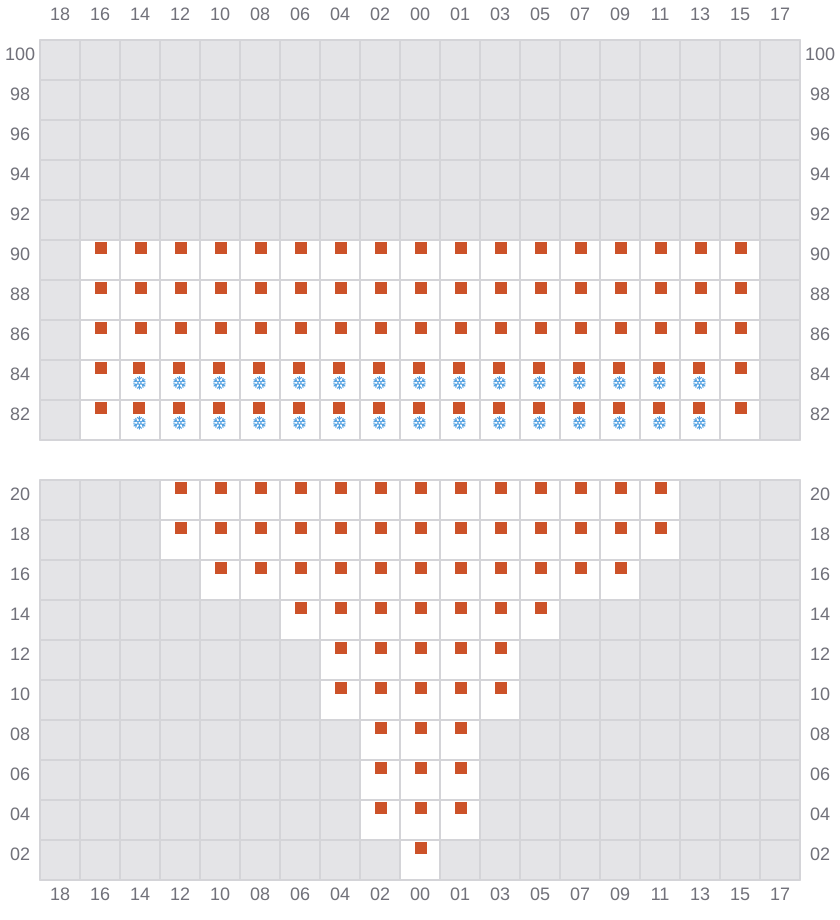

007
- ←
![Bay 007 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b007.png?v=1712947642160)

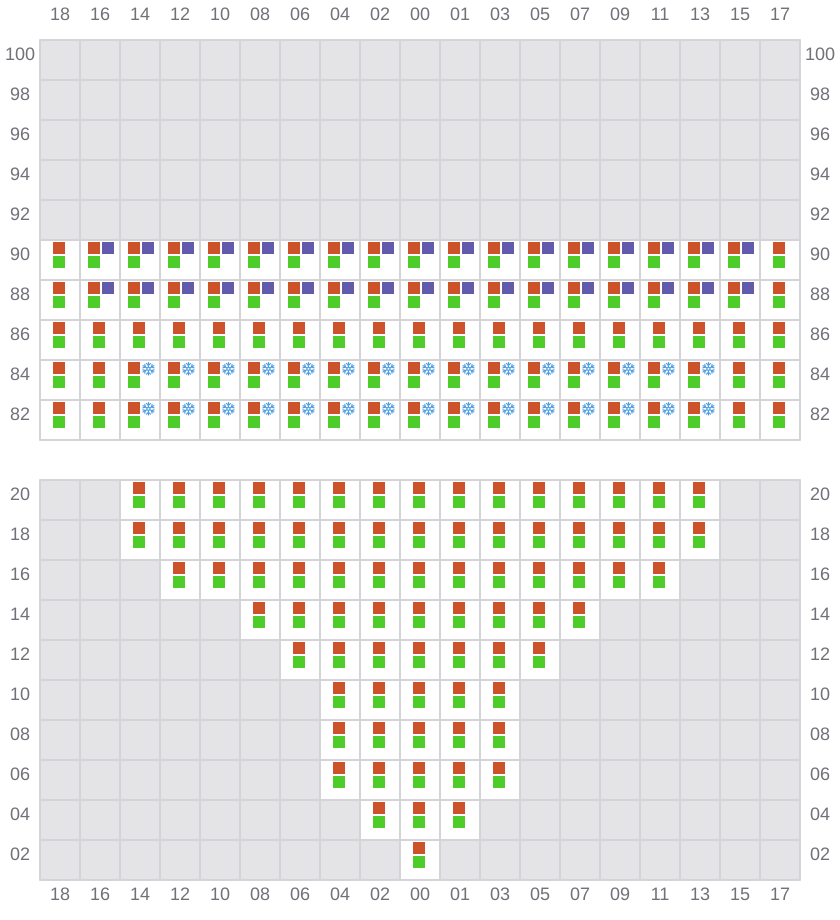

009 (010)
- →
![Bay 009 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b009.png?v=1712947642160)

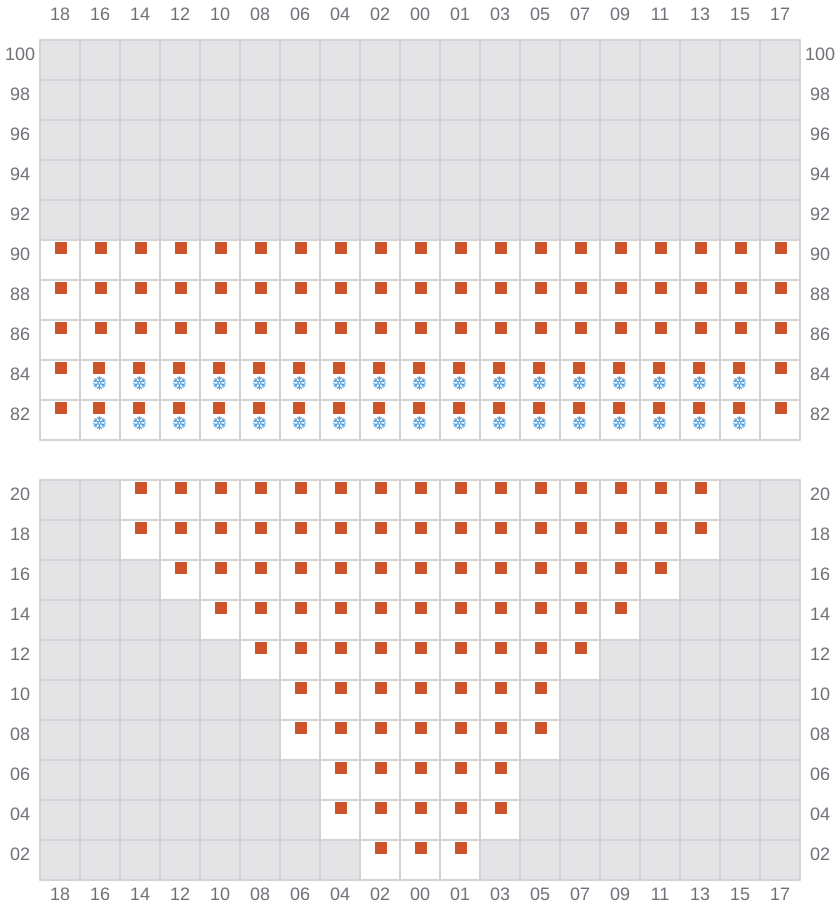

011
- ←
![Bay 011 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b011.png?v=1712947642160)

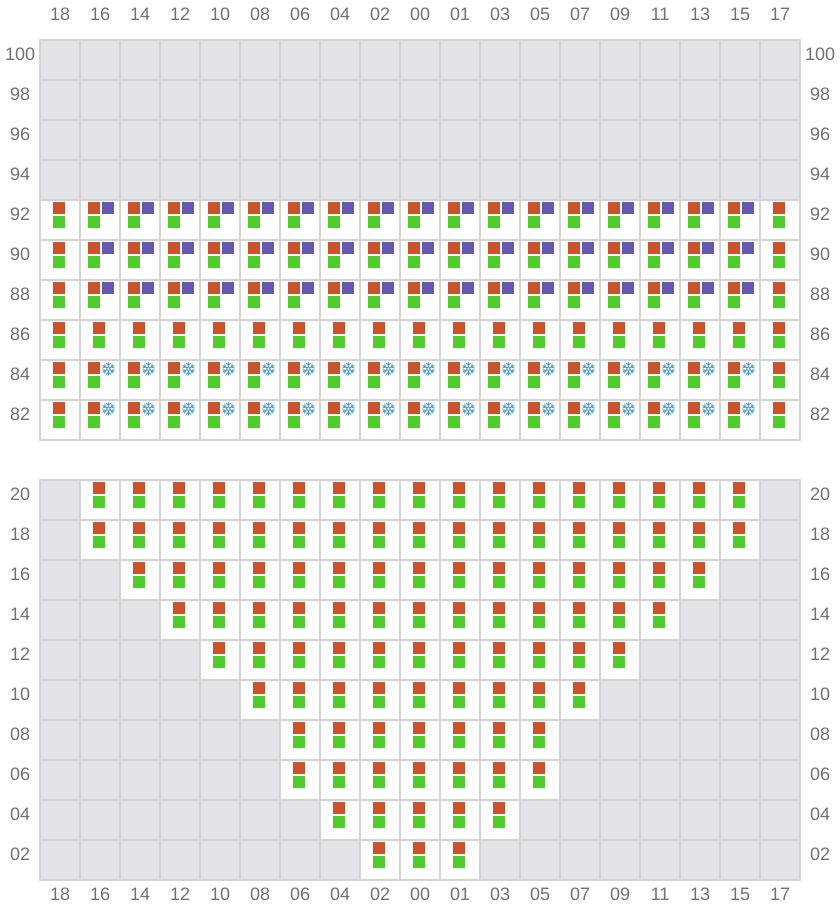

013 (014)
- →
![Bay 013 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b013.png?v=1712947642160)

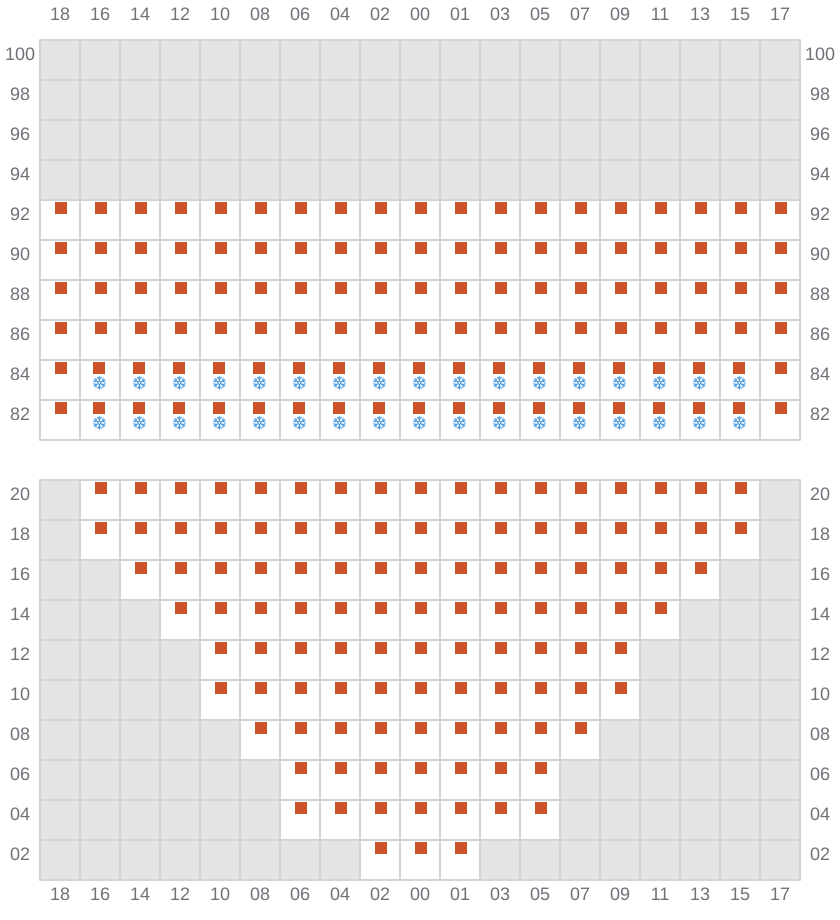

015
- ←
![Bay 015 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b015.png?v=1712947642160)

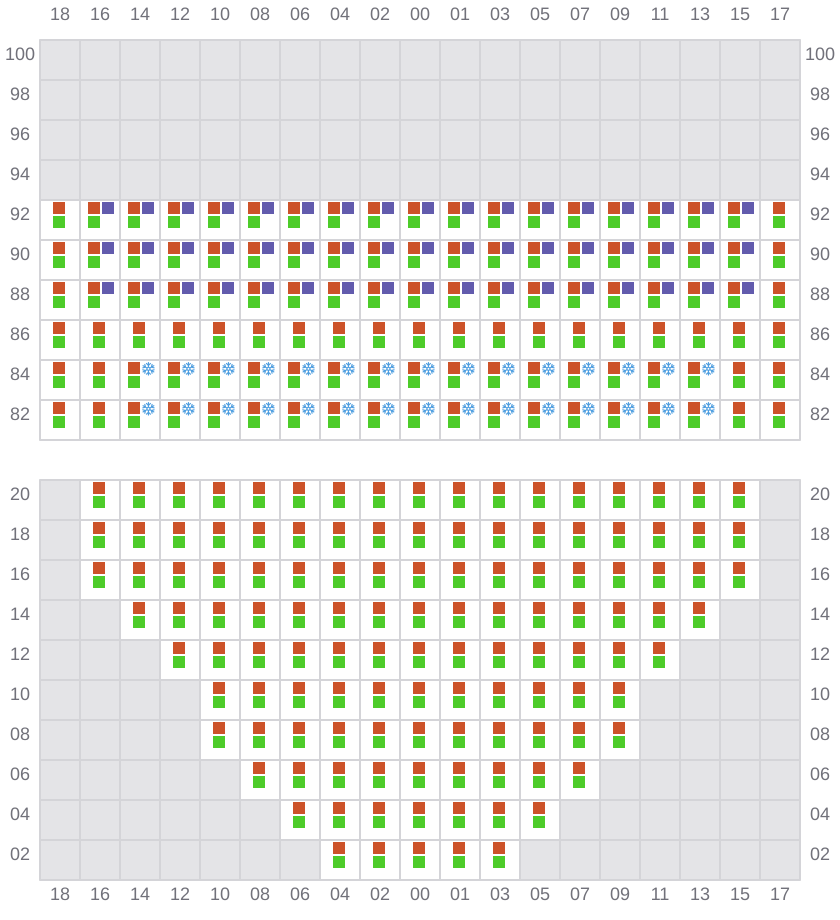

017 (018)
- →
![Bay 017 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b017.png?v=1712947642160)

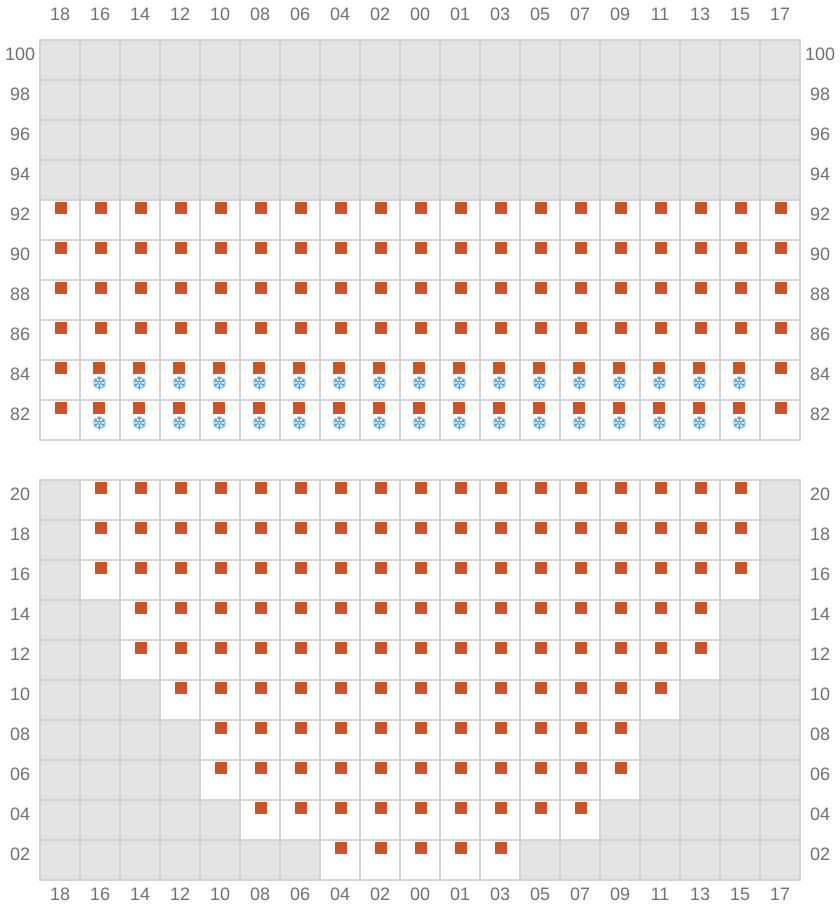

019
- ←
![Bay 019 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b019.png?v=1712947642160)

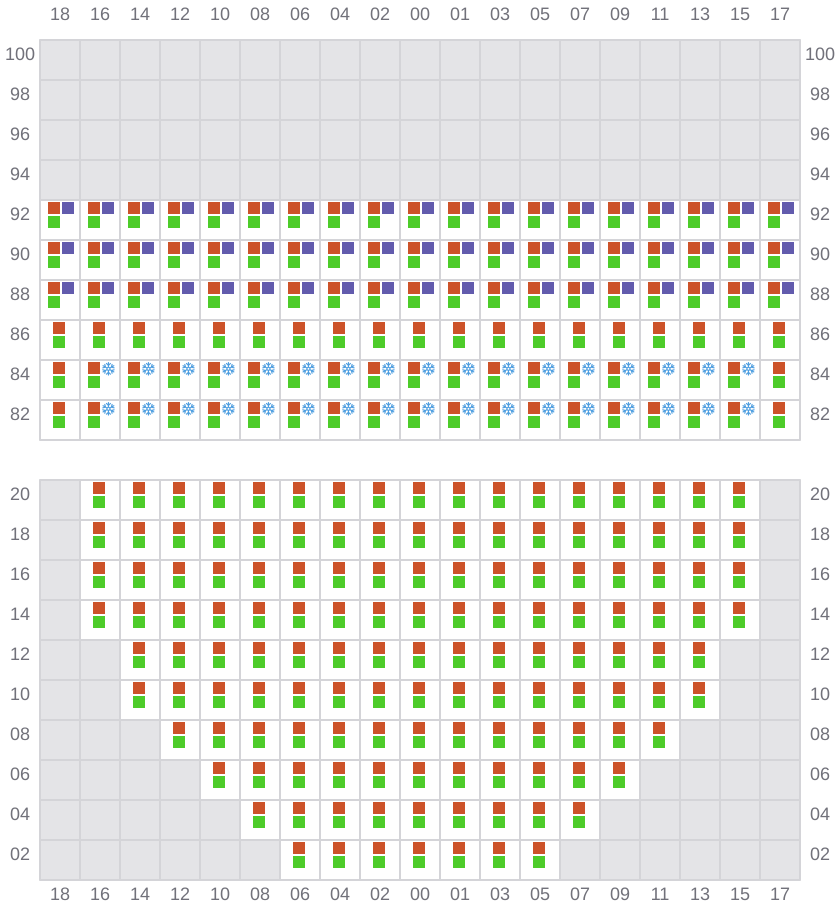

021 (022)
- →
![Bay 021 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b021.png?v=1712947642160)

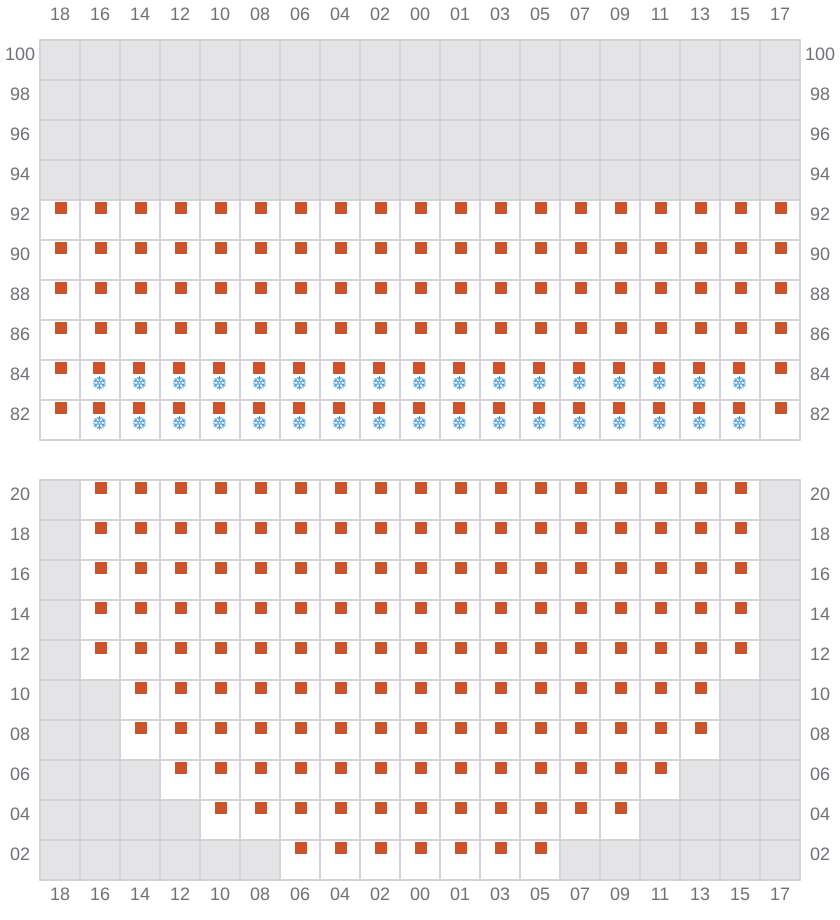

023
- ←
![Bay 023 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b023.png?v=1712947642160)

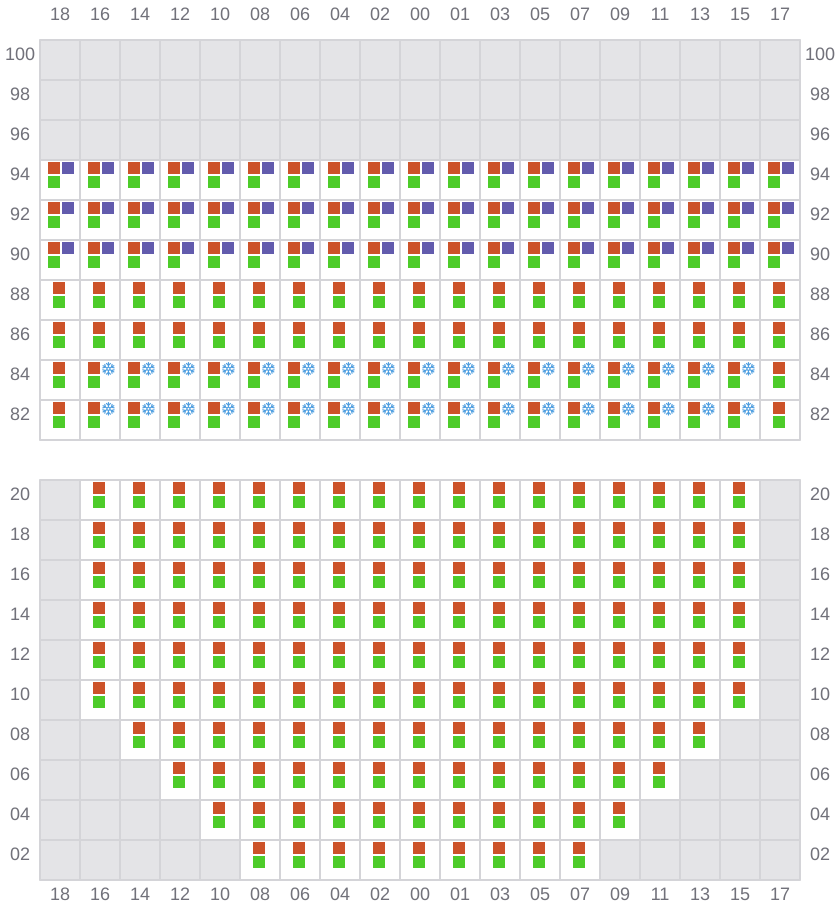

025 (026)
- →
![Bay 025 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b025.png?v=1712947642160)

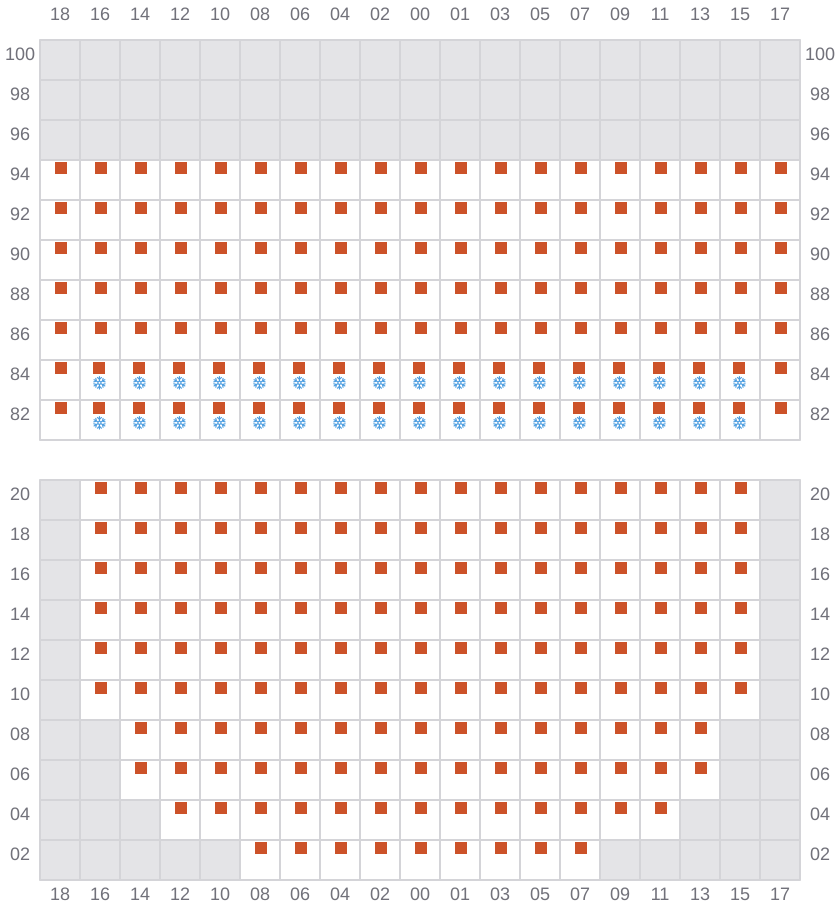

027
- ←
![Bay 027 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b027.png?v=1712947642160)

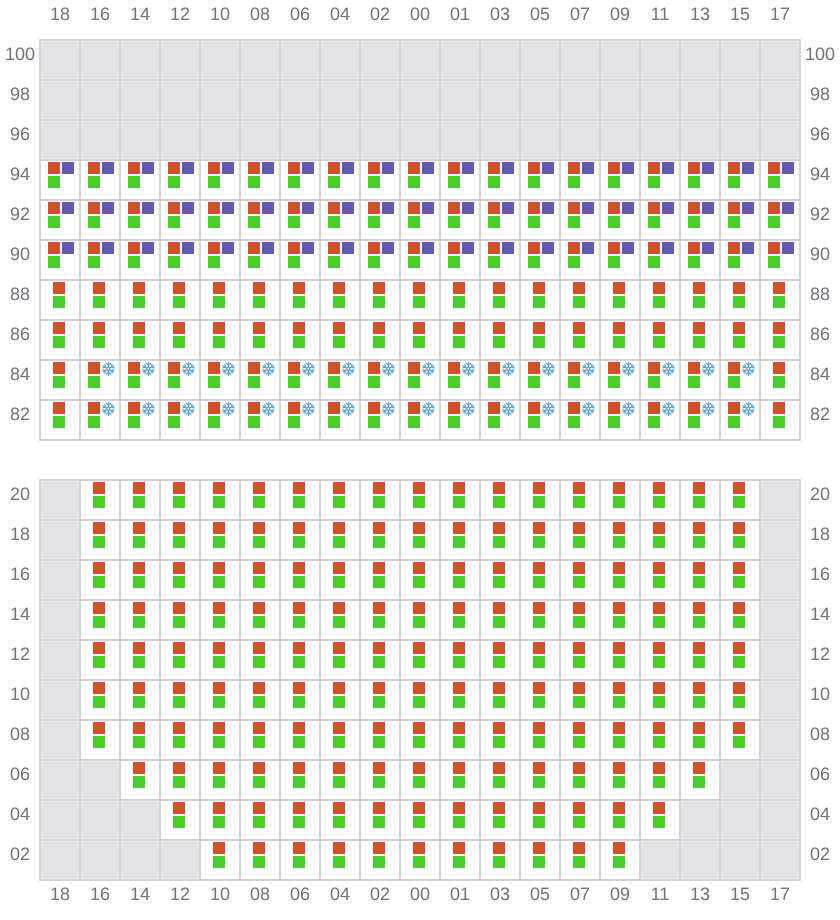

029 (030)
- →
![Bay 029 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b029.png?v=1712947642160)

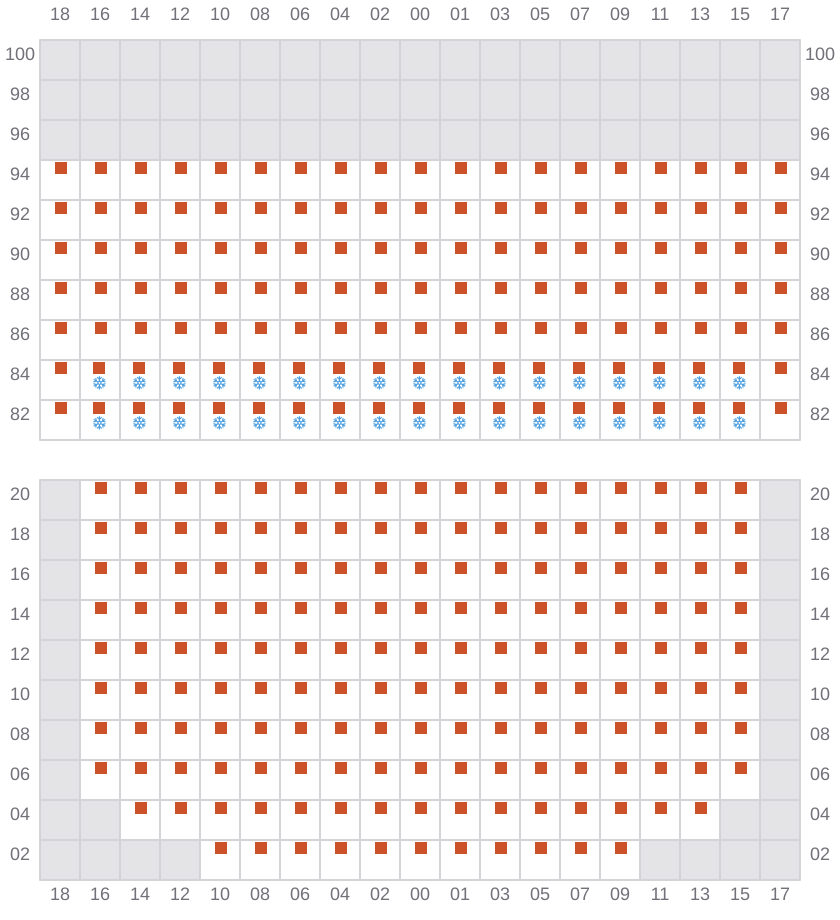

031
- ←
- ? / →
![Bay 031 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b031.png?v=1712947642160)

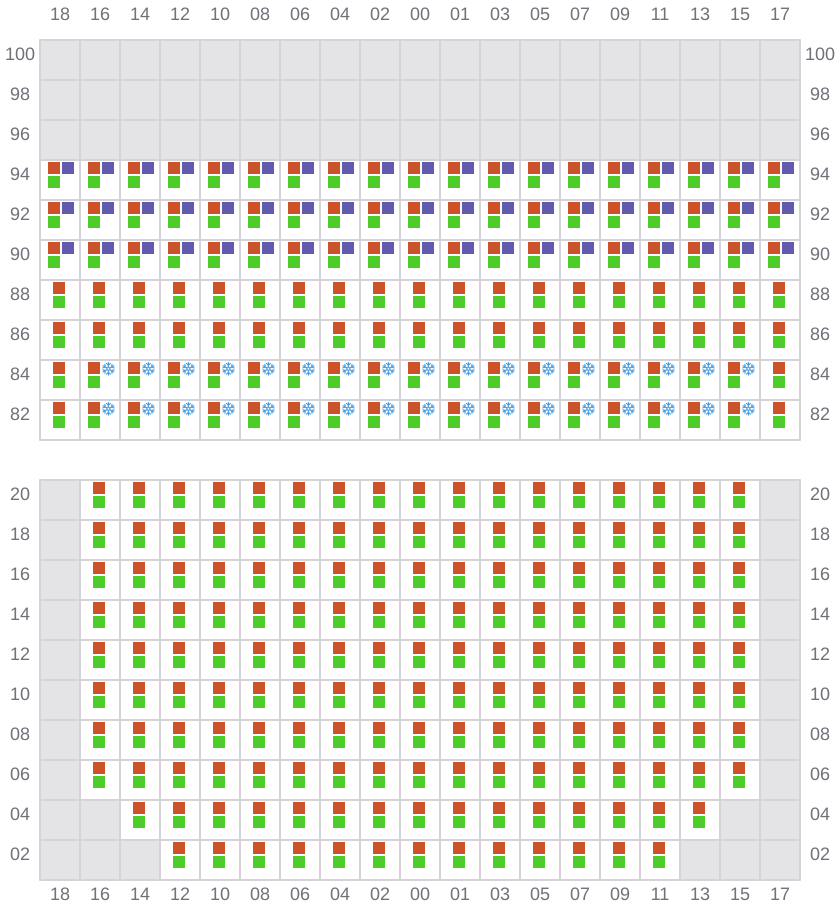

033 (034)
- →
![Bay 033 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b033.png?v=1712947642160)

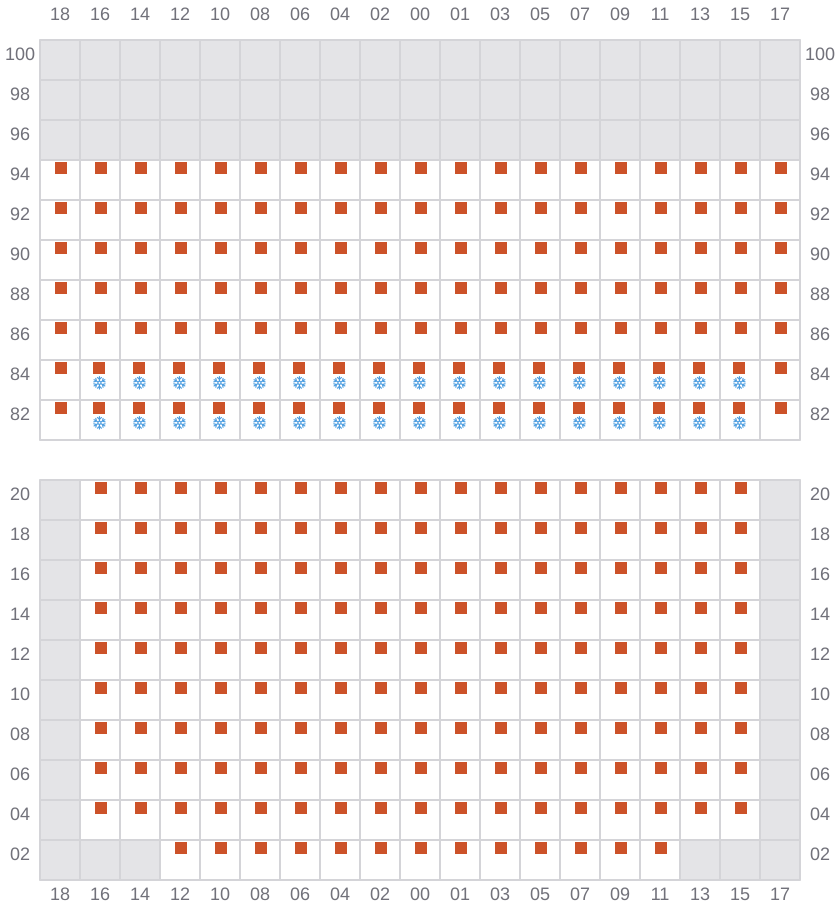

035
- ←
![Bay 035 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b035.png?v=1712947642160)

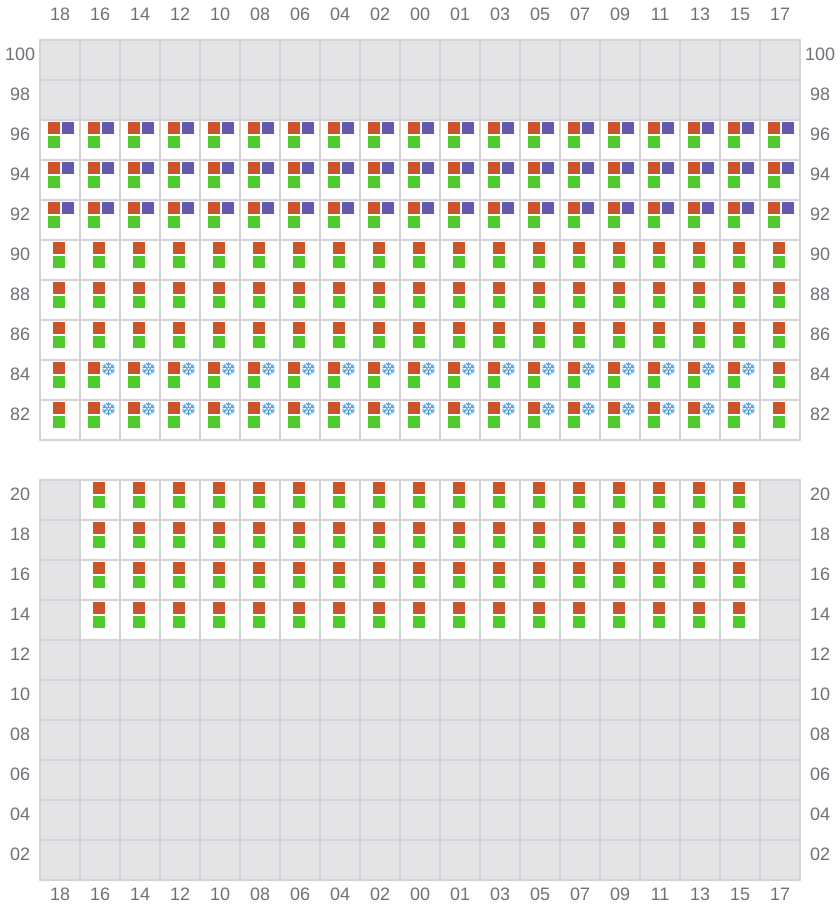

037 (038)
- →
![Bay 037 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b037.png?v=1712947642160)

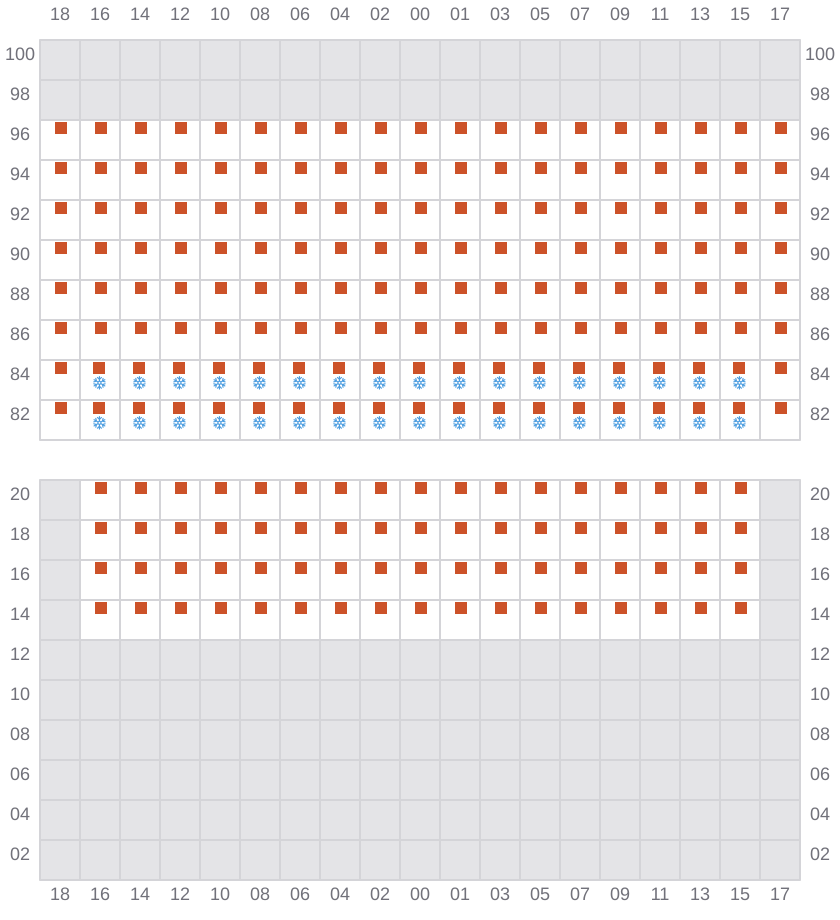

039
- ←
![Bay 039 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b039.png?v=1712947642160)

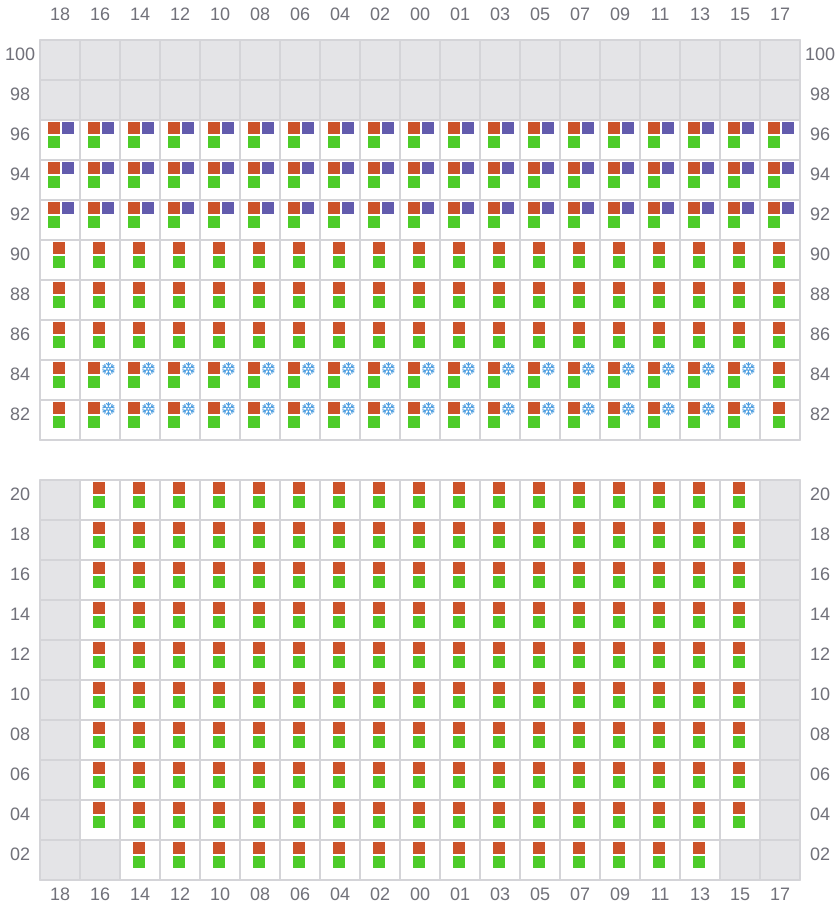

041 (042)
- →
![Bay 041 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b041.png?v=1712947642160)
043
- ←
![Bay 043 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b043.png?v=1712947642160)
045 (046)
- →
![Bay 045 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b045.png?v=1712947642160)

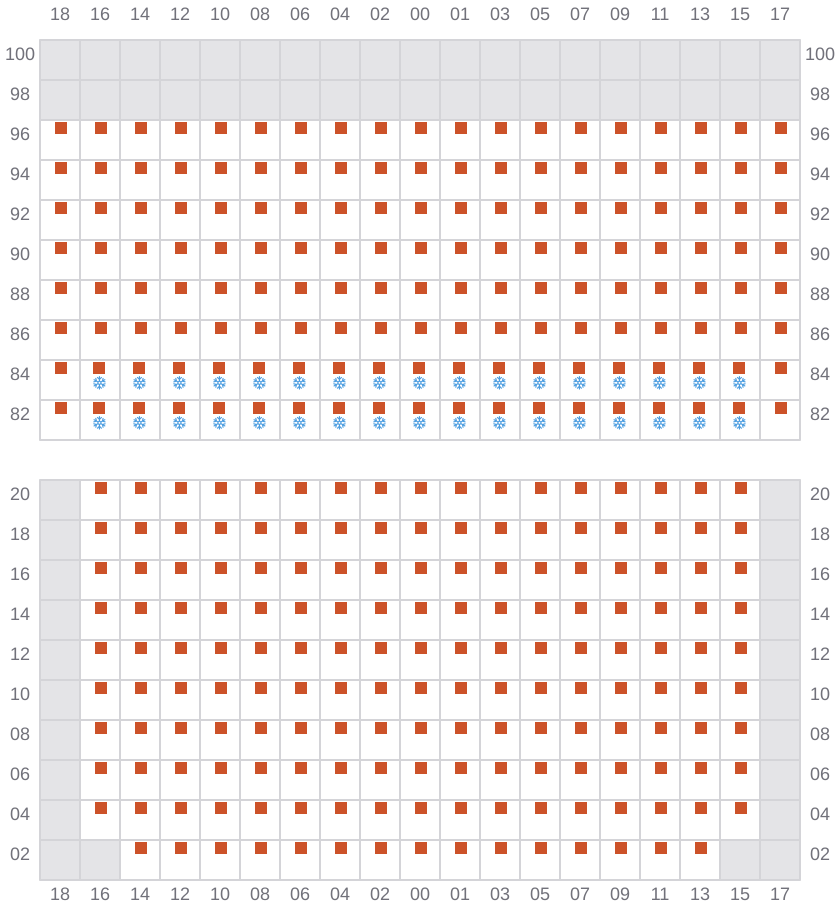

047
- ←
![Bay 047 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b047.png?v=1712947642160)

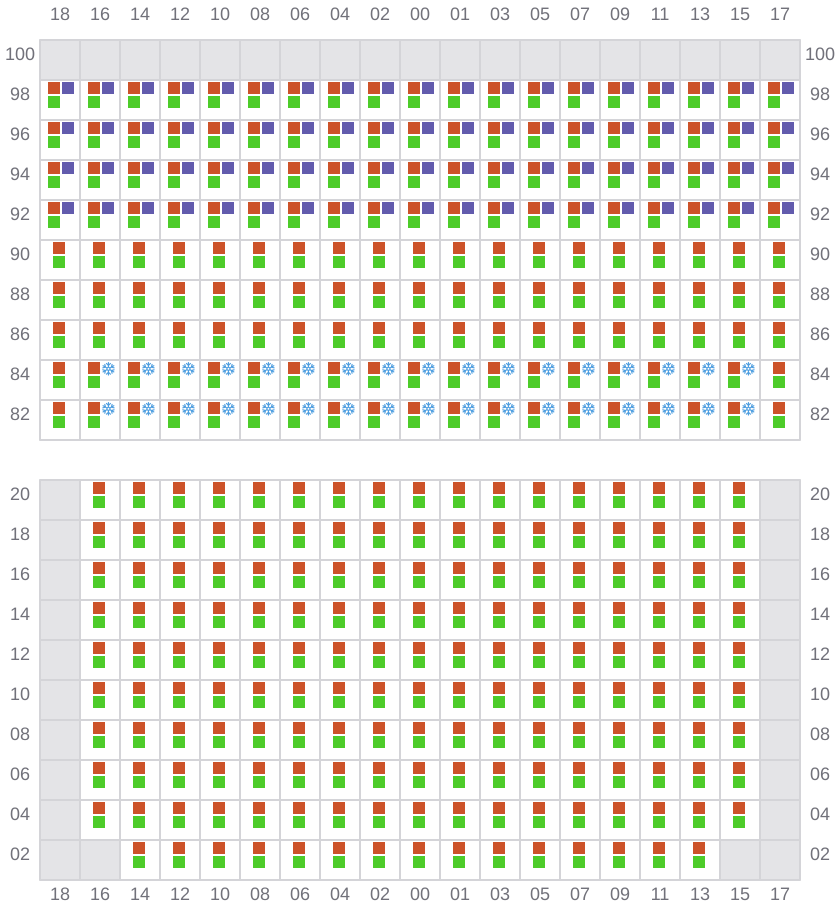

049 (050)
- →
![Bay 049 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b049.png?v=1712947642160)

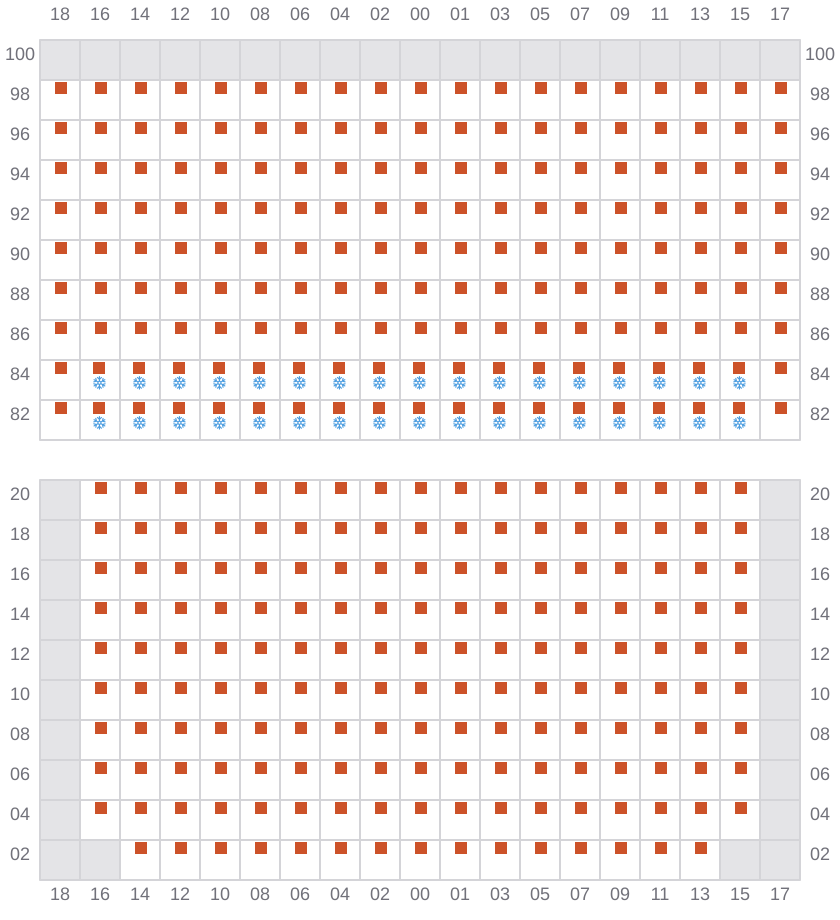

051
- ←
![Bay 051 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b051.png?v=1712947642160)

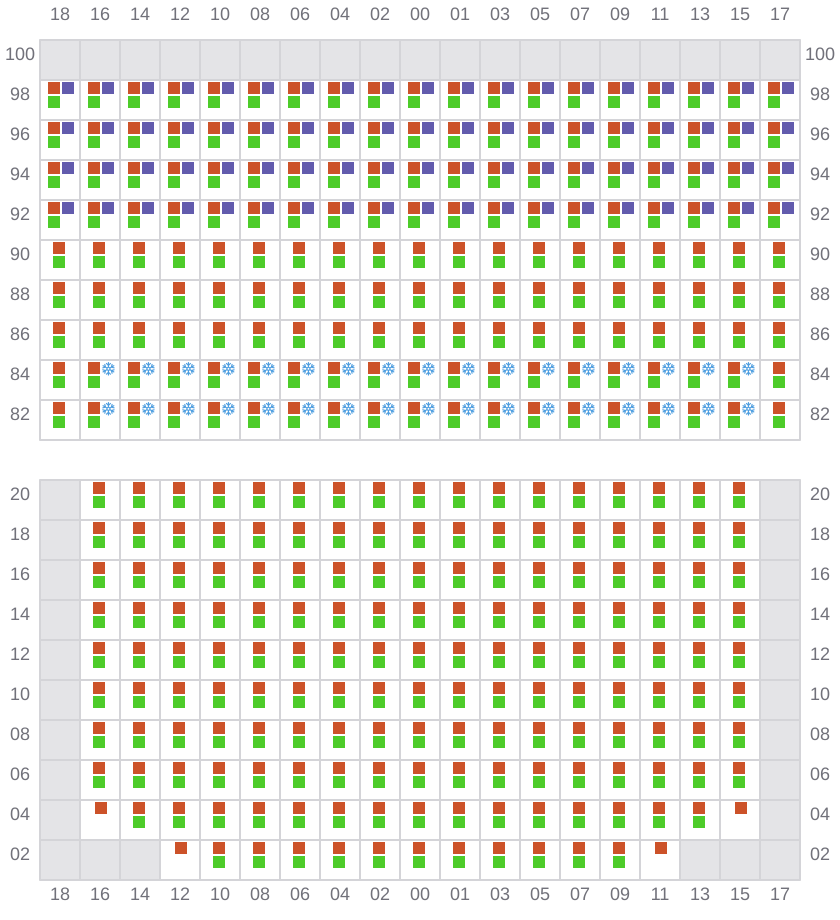

053 (054)
- →
![Bay 053 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b053.png?v=1712947642160)

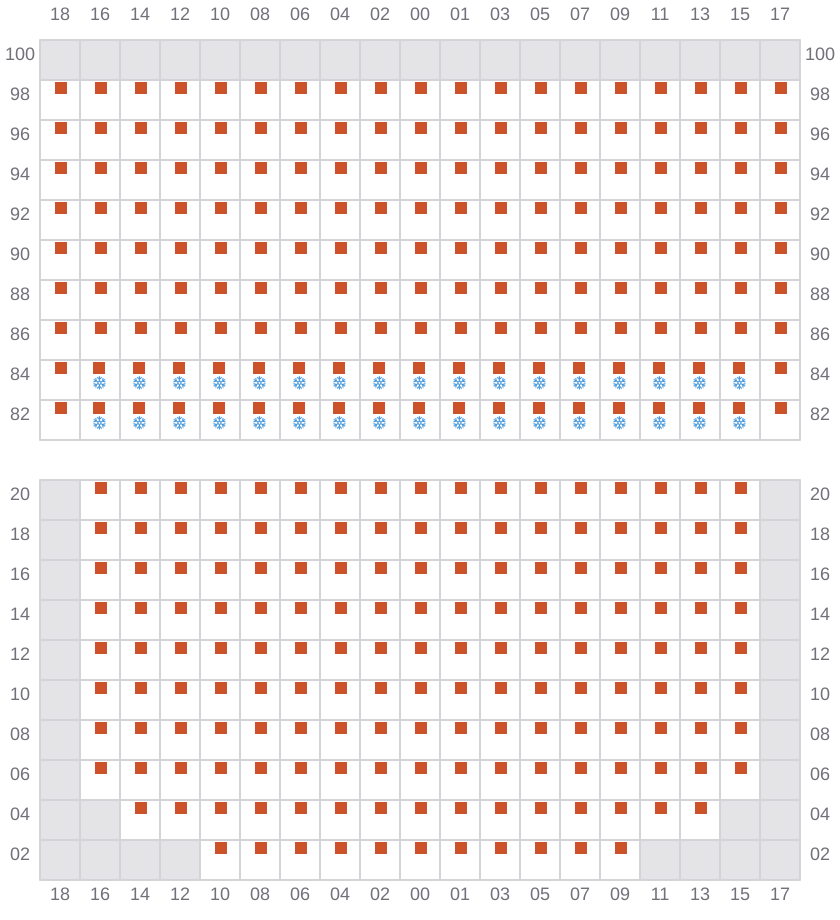

055
- ←
![Bay 055 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b055.png?v=1712947642160)

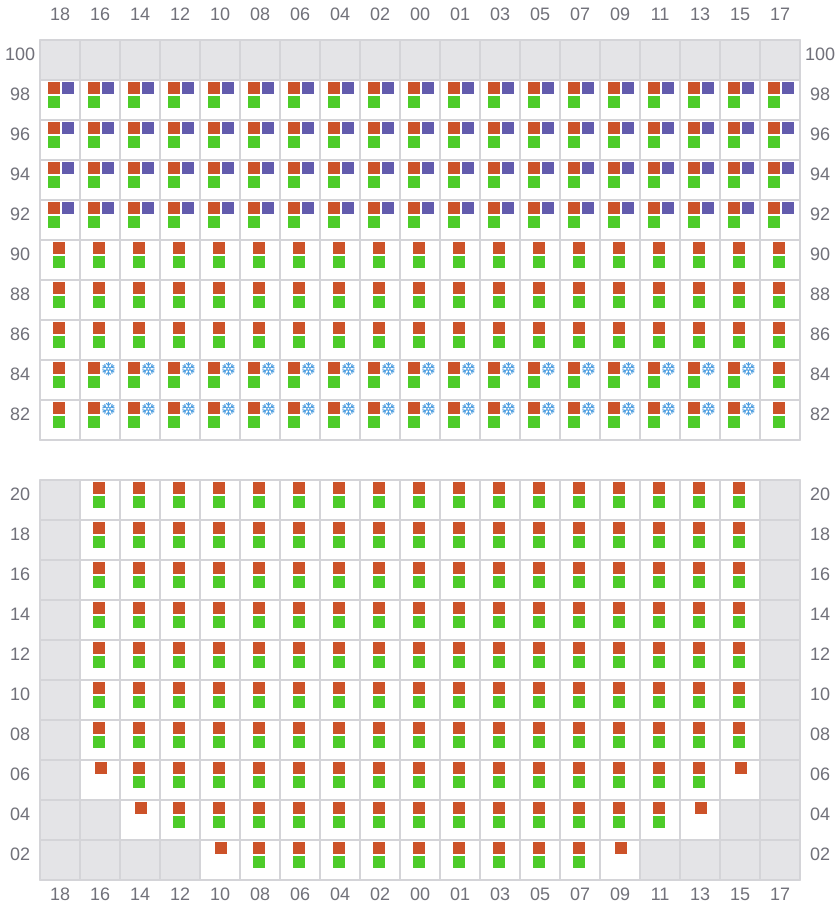

057 (058)
- →
![Bay 057 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b057.png?v=1712947642160)

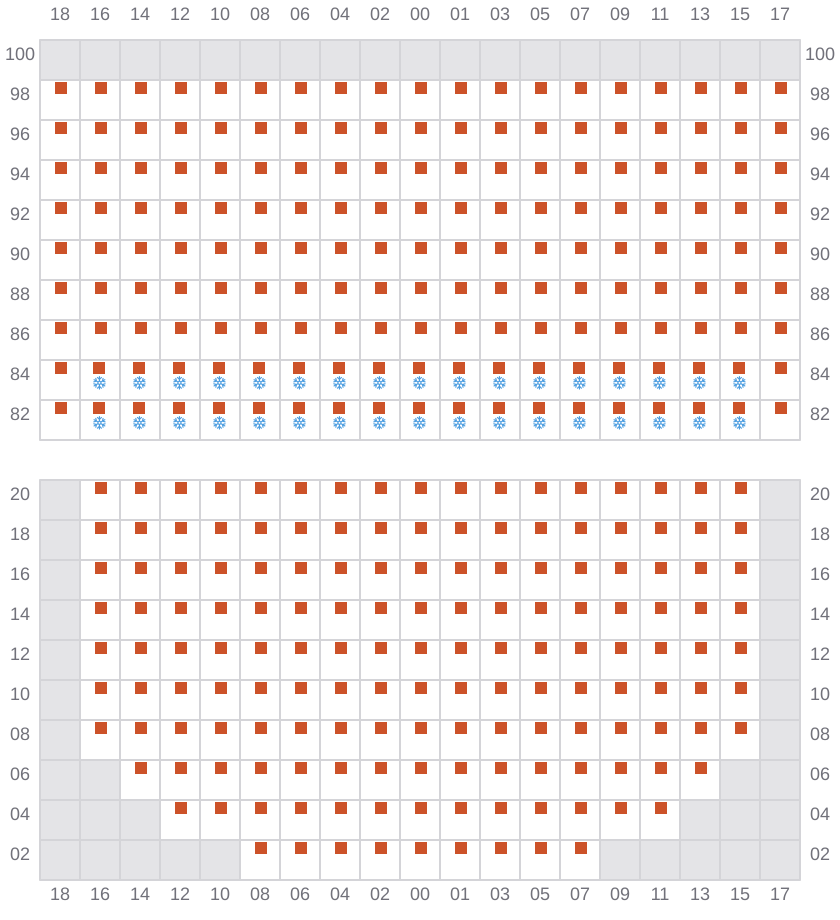

059
- ←
![Bay 059 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b059.png?v=1712947642160)

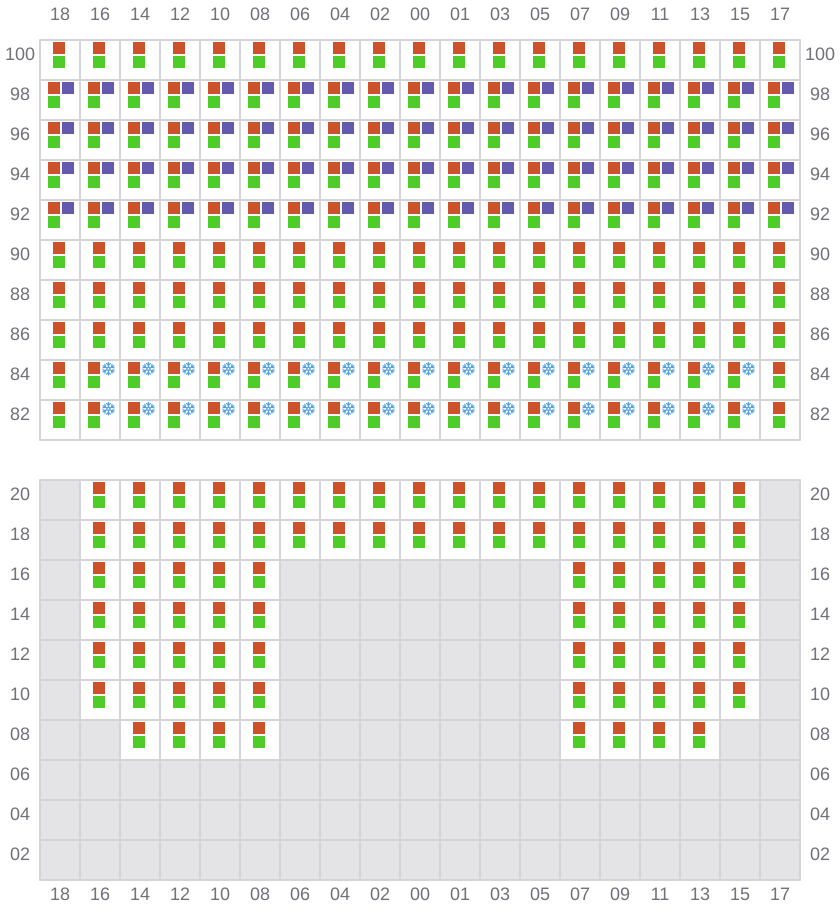

061 (062)
- →
![Bay 061 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b061.png?v=1712947642160)

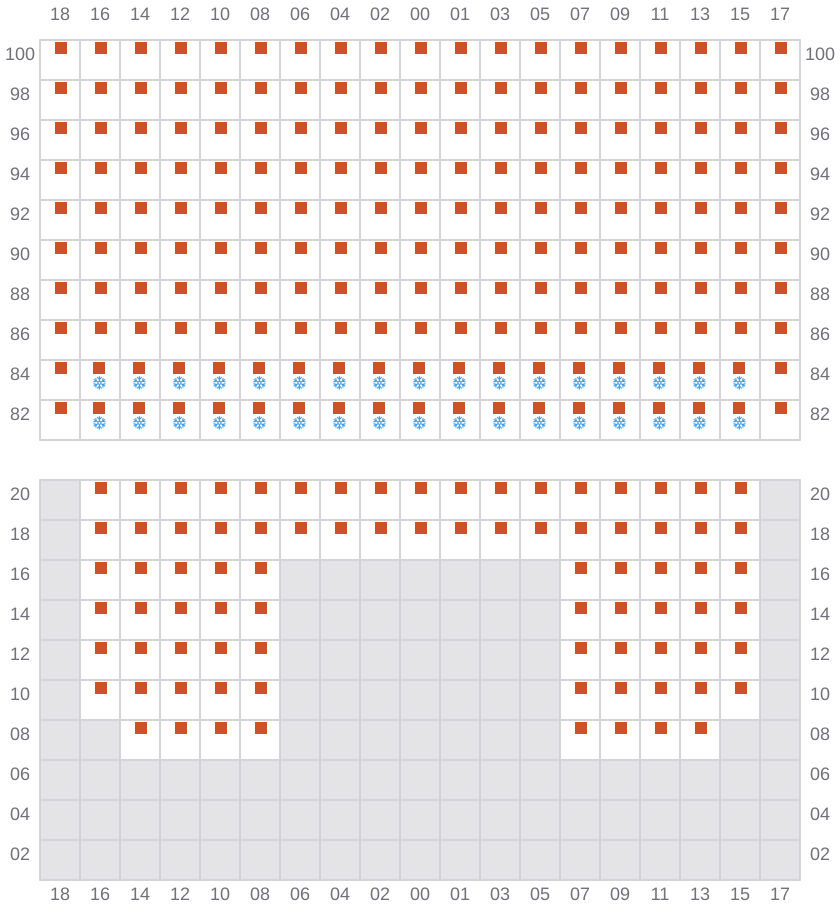

063
- ←
![Bay 063 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b063.png?v=1712947642160)

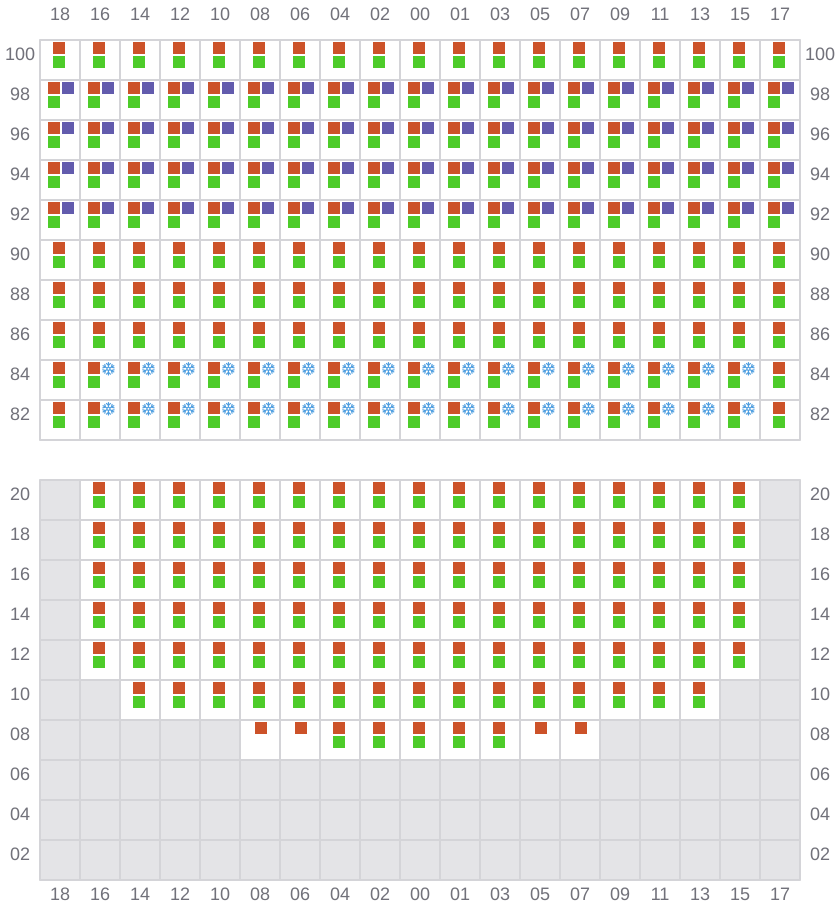

065 (066)
- →
![Bay 065 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b065.png?v=1712947642160)

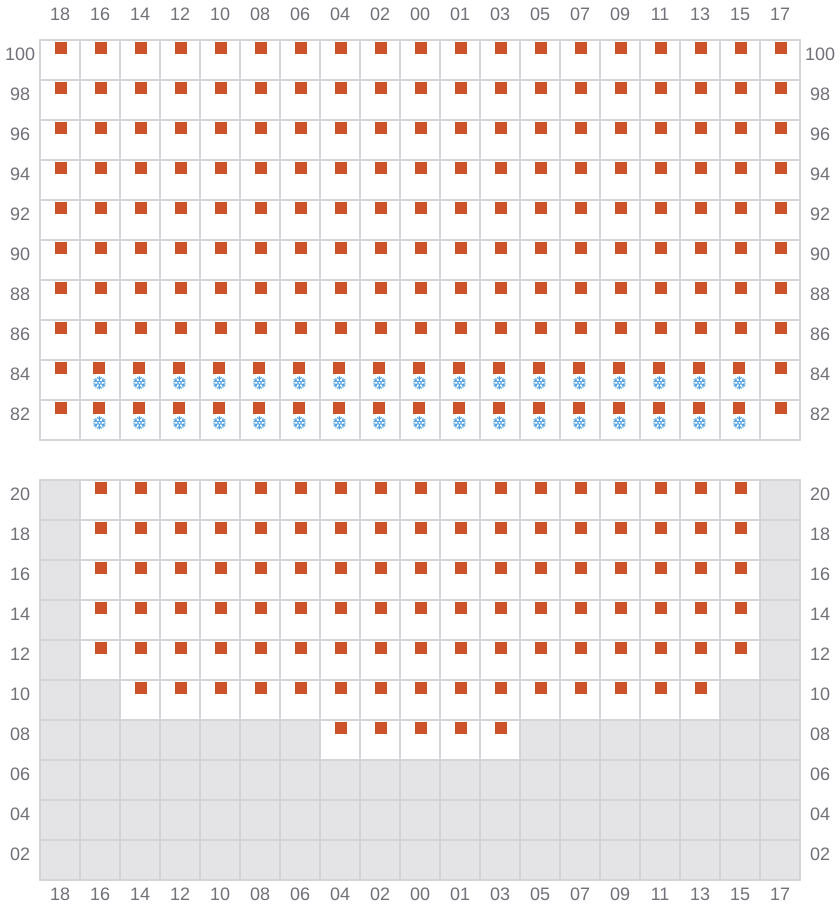

067
- ←
![Bay 067 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b067.png?v=1712947642160)
069 (070)
- →
![Bay 069 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b069.png?v=1712947642160)

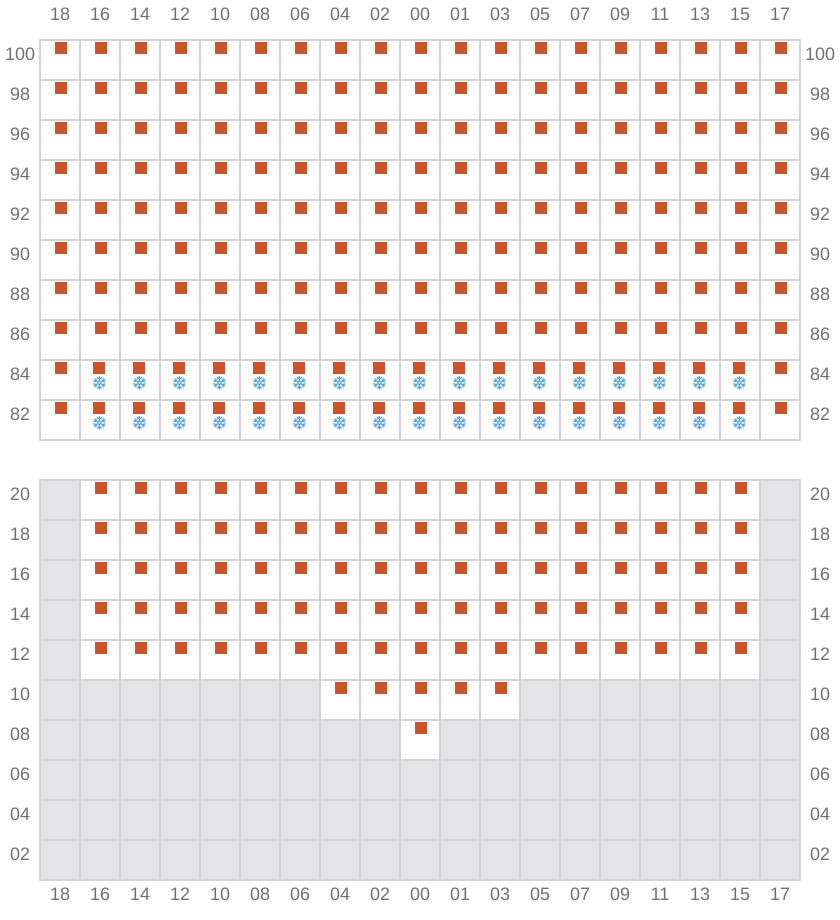

071
- ←
![Bay 071 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b071.png?v=1712947642160)

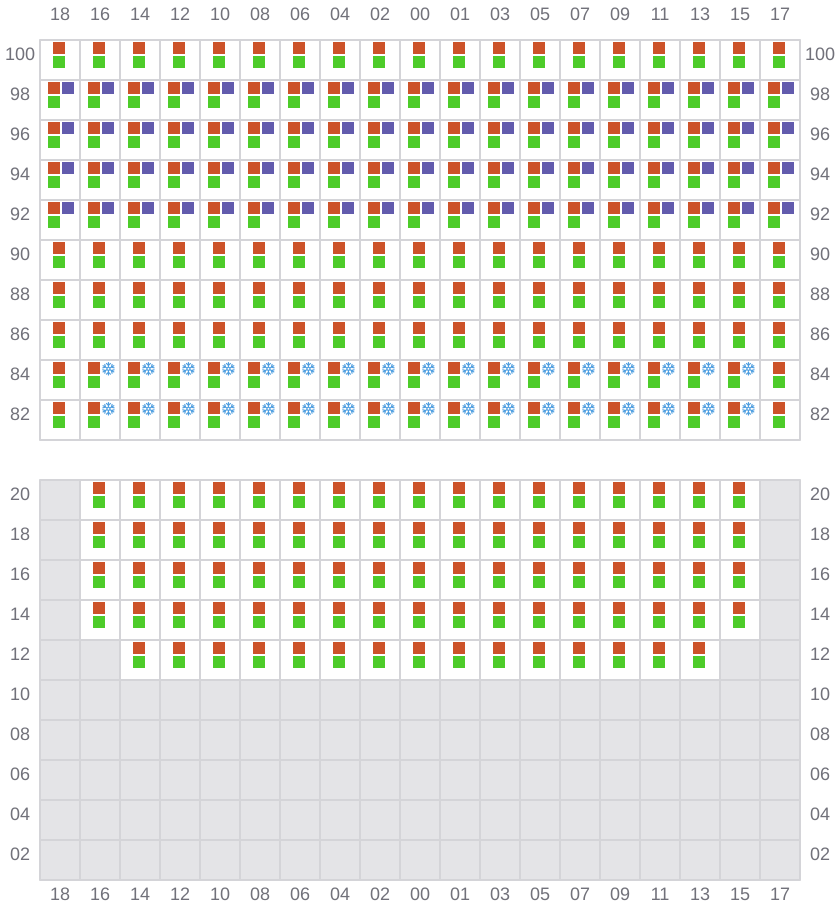

073 (074)
- →
![Bay 073 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b073.png?v=1712947642160)

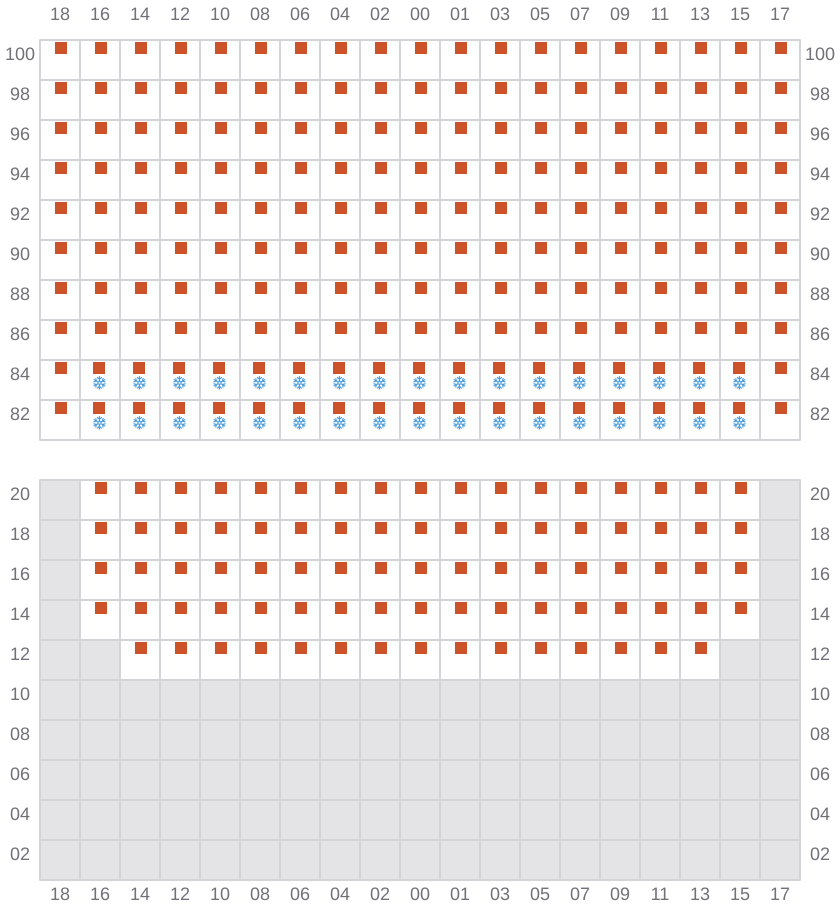

075
- ←
![Bay 075 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b075.png?v=1712947642160)

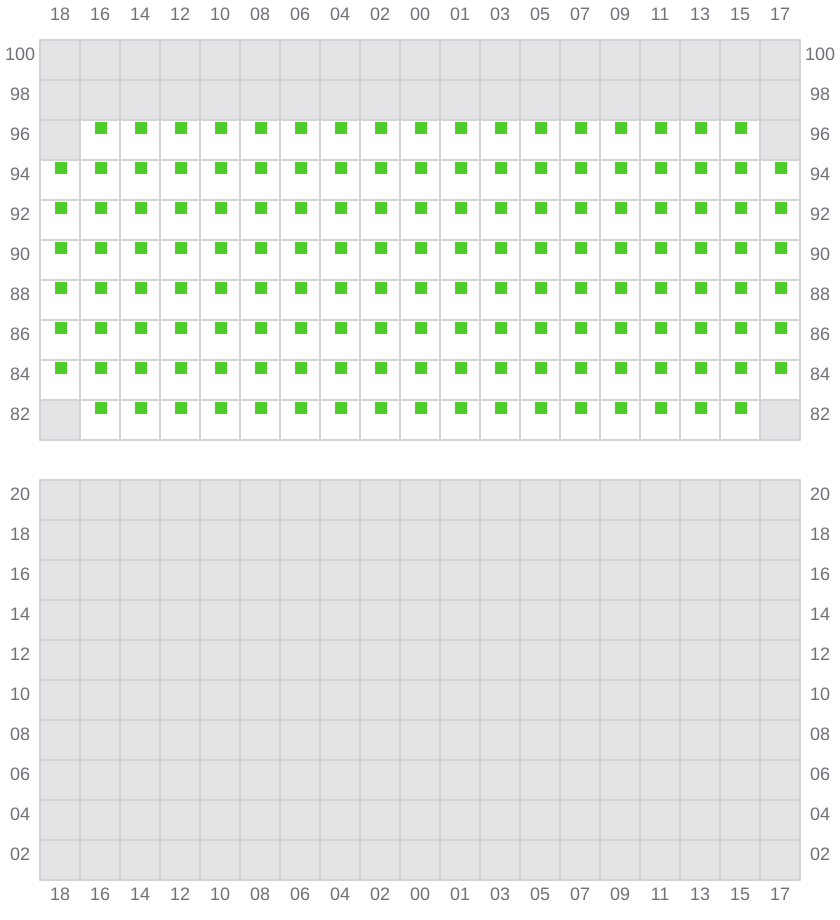

077 (078)
- → / ?
![Bay 077 view and slots of CMA CGM CHENNAI](/vessel-images/60ab460b-83c2-48d3-ae84-89a1c9dd81b5-b077.png?v=1712947642160)
