CMA CGM CHIWAN
9290098 | 9HA5642 | CMA CGM by ************** Last update: Wed Sep 23 2026

General Info

Ship Name:CMA CGM CHIWAN
IMO Code:9290098
Call Sign:9HA5642
Line Operator:CMA CGM
Class Name for Sister Ships:CMA CGM CHIWAN
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):244.80
LOA (Length Overall):260.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:CMA CGM SEATTLE
40' Bays Location:-

Size Summary

ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,275

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CMA CGM CHIWAN

Hatch-Covers View

Deck view of CMA CGM CHIWAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

001

  • →

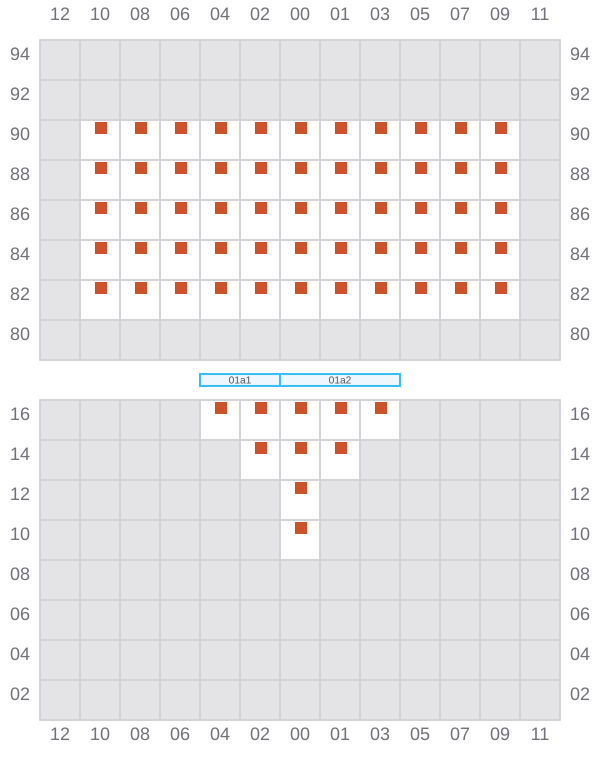

Bay 001 view and slots of CMA CGM CHIWAN

003 (002)

  • ←

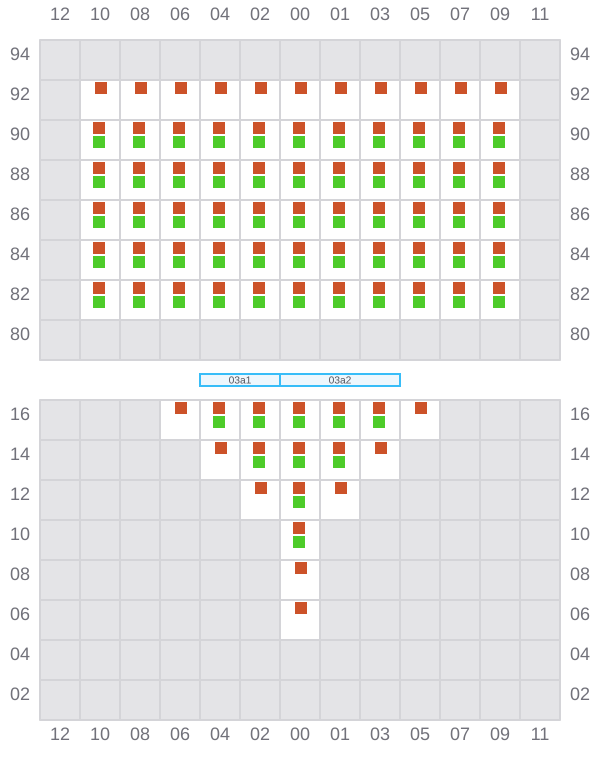

Bay 003 view and slots of CMA CGM CHIWAN

005

  • →

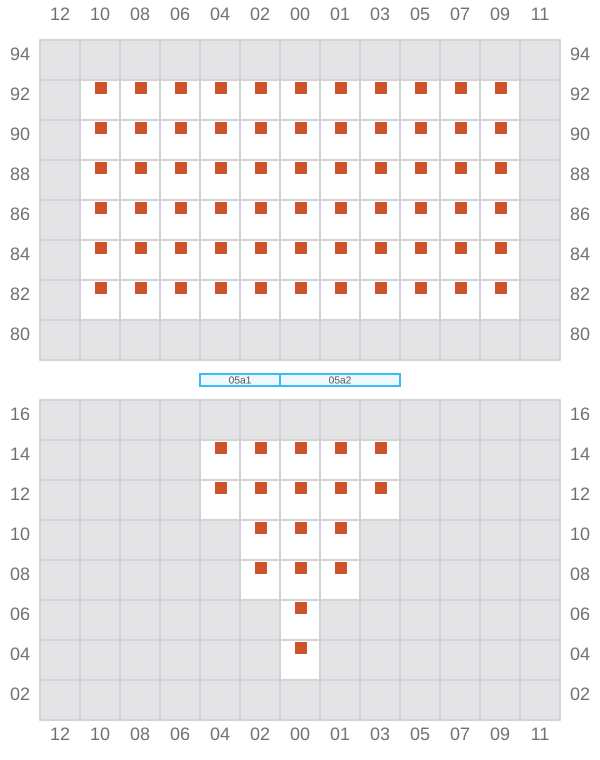

Bay 005 view and slots of CMA CGM CHIWAN

007 (006)

  • ←

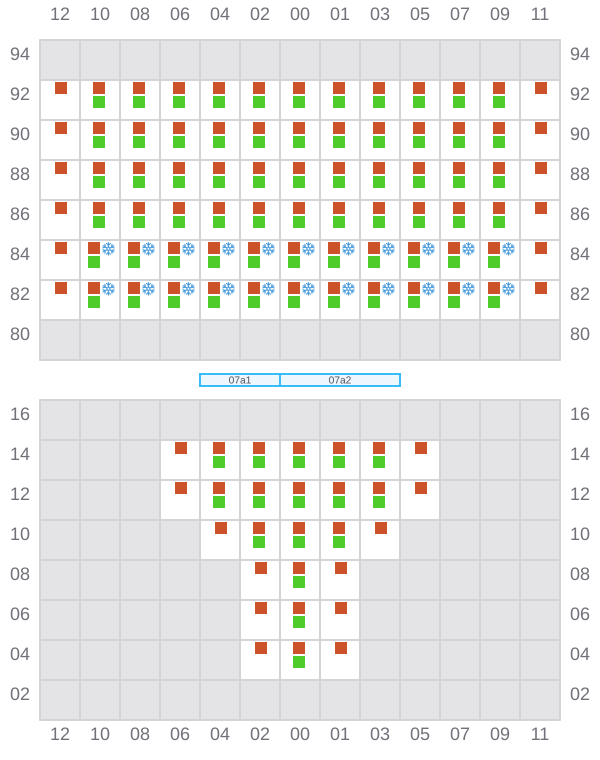

Bay 007 view and slots of CMA CGM CHIWAN

009

  • →

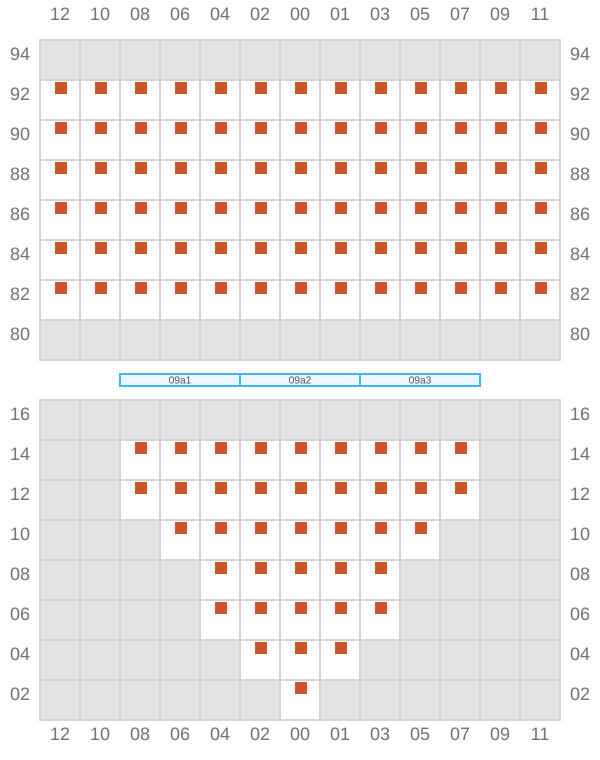

Bay 009 view and slots of CMA CGM CHIWAN

011 (010)

  • ←
  • → / ?

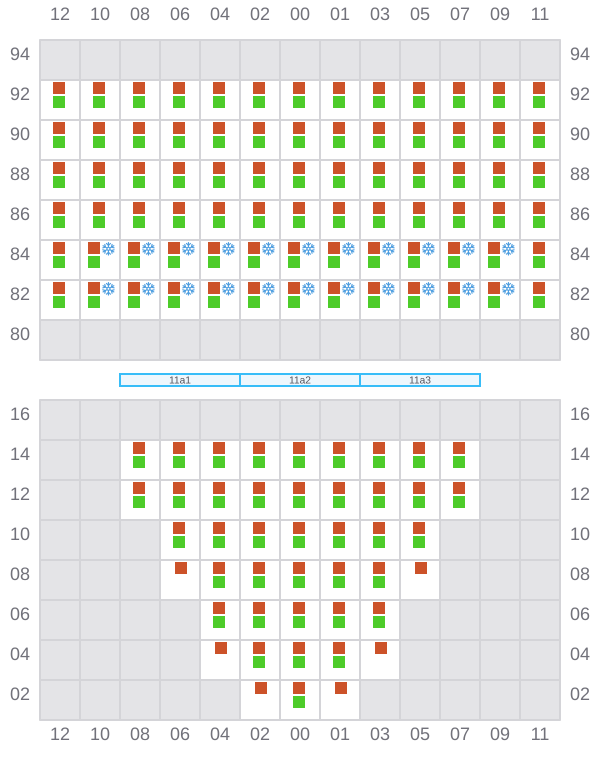

Bay 011 view and slots of CMA CGM CHIWAN

013

  • →

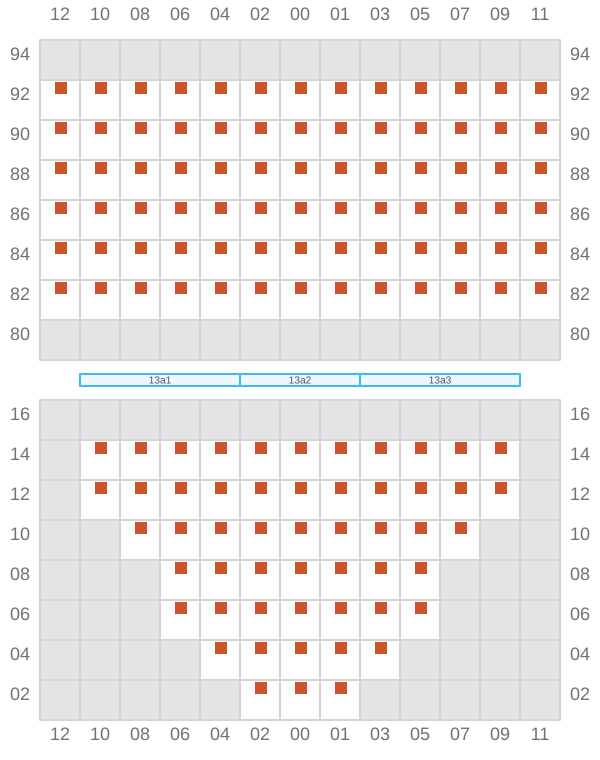

Bay 013 view and slots of CMA CGM CHIWAN

015 (014)

  • ←
  • → / ?

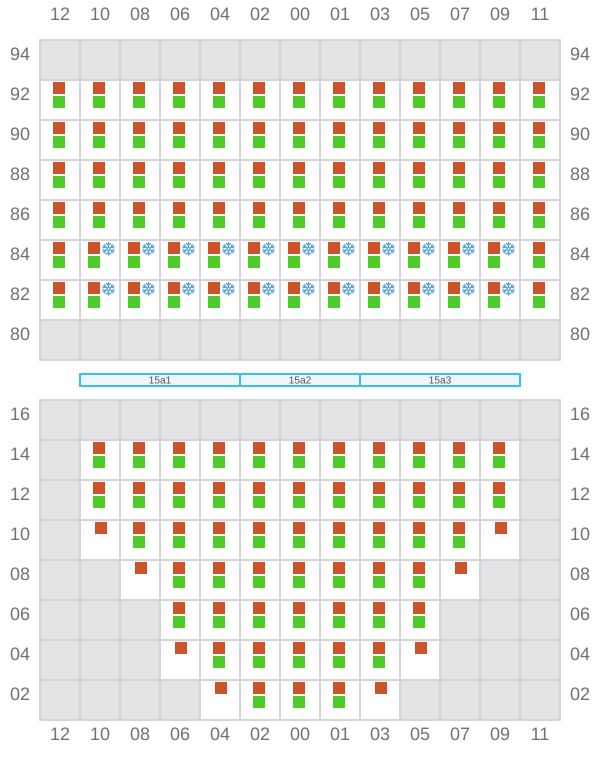

Bay 015 view and slots of CMA CGM CHIWAN

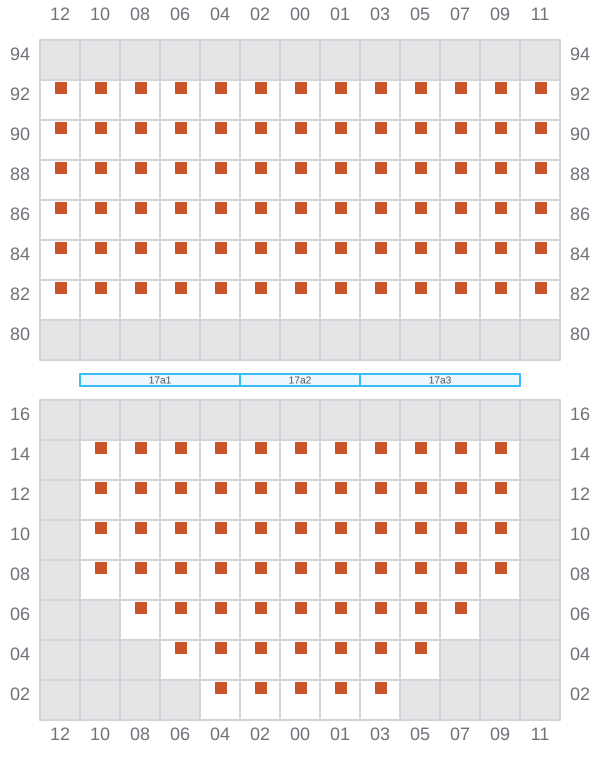

017

  • →
Bay 017 view and slots of CMA CGM CHIWAN

019 (018)

  • ←
  • → / ?

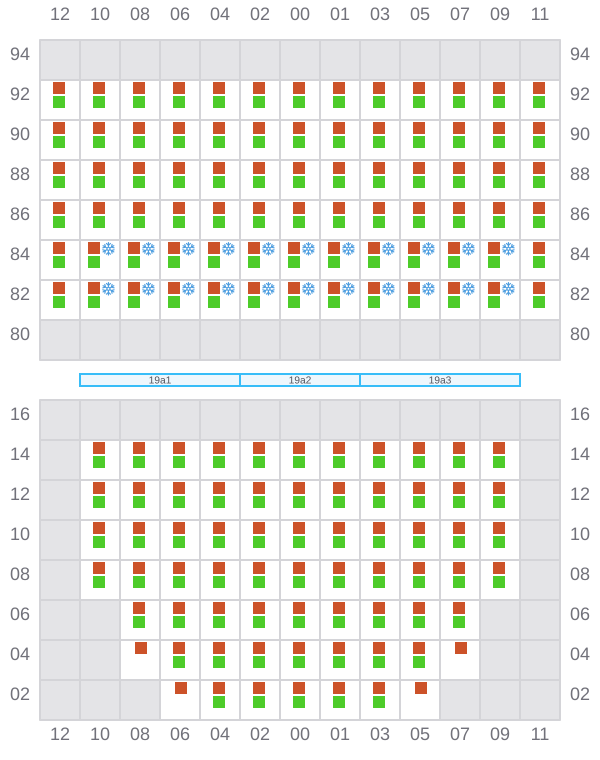

Bay 019 view and slots of CMA CGM CHIWAN

021

  • →

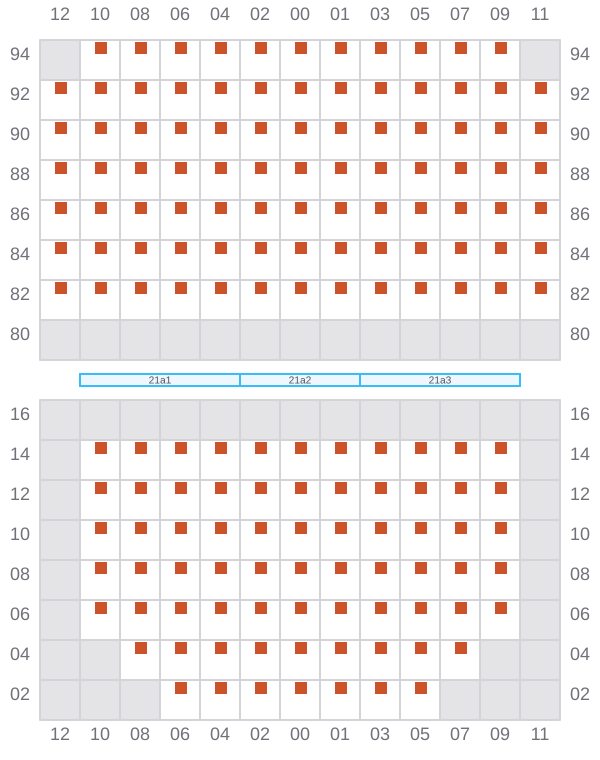

Bay 021 view and slots of CMA CGM CHIWAN

023 (022)

  • ←
  • → / ?

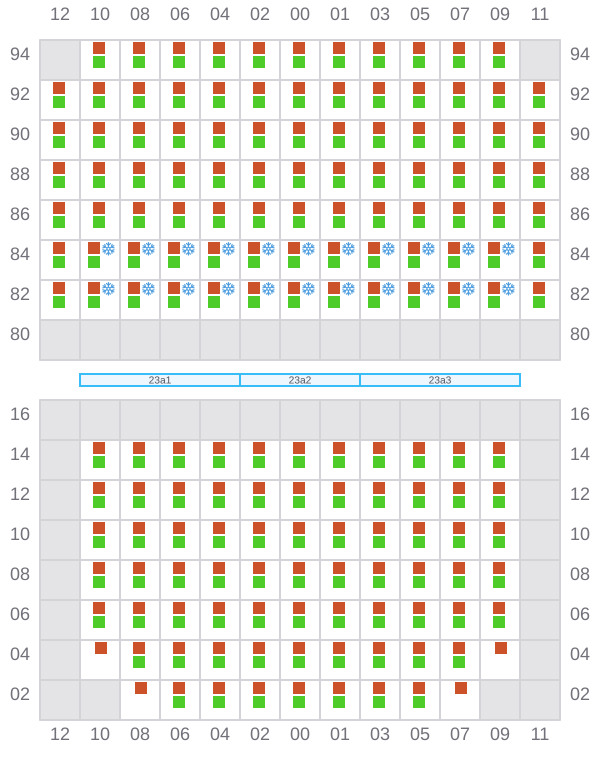

Bay 023 view and slots of CMA CGM CHIWAN

025

  • →
Bay 025 view and slots of CMA CGM CHIWAN

027 (026)

  • ←
  • → / ?

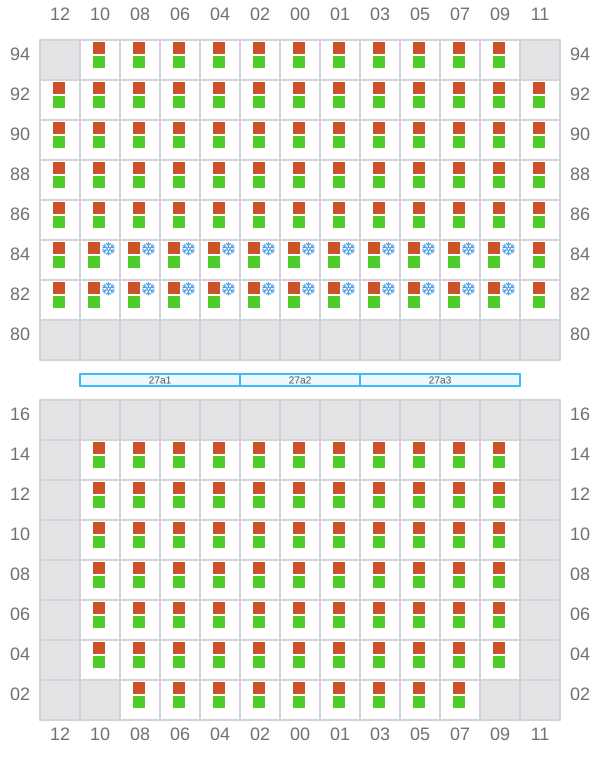

Bay 027 view and slots of CMA CGM CHIWAN

029

  • →
Bay 029 view and slots of CMA CGM CHIWAN

031 (030)

  • ←
  • → / ?
Bay 031 view and slots of CMA CGM CHIWAN

033

  • →
Bay 033 view and slots of CMA CGM CHIWAN

035 (034)

  • ←
  • ? / →

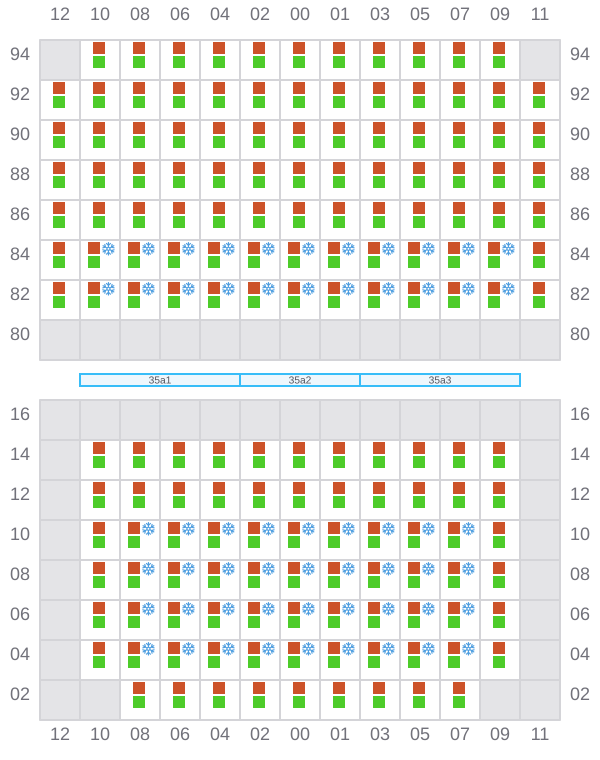

Bay 035 view and slots of CMA CGM CHIWAN

037

  • →

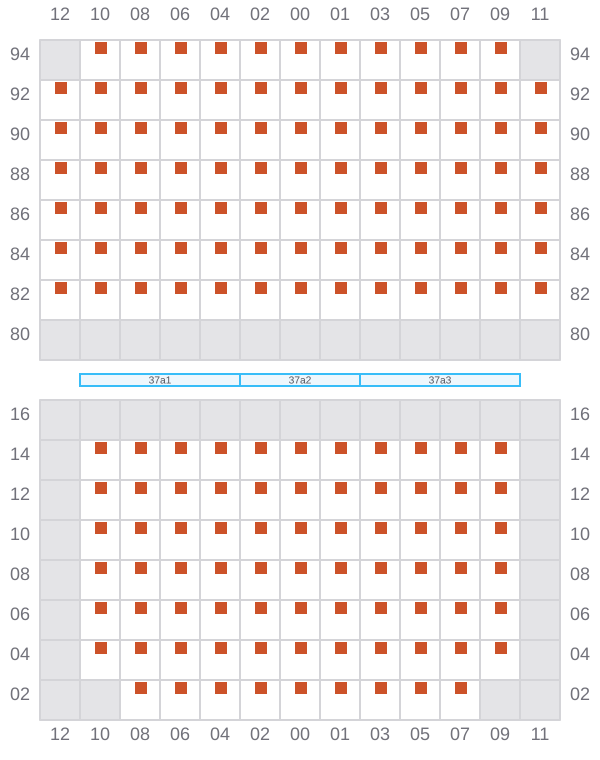

Bay 037 view and slots of CMA CGM CHIWAN

039 (038)

  • ←
  • →
Bay 039 view and slots of CMA CGM CHIWAN

041

  • →
Bay 041 view and slots of CMA CGM CHIWAN

043 (042)

  • ←
  • → / ?

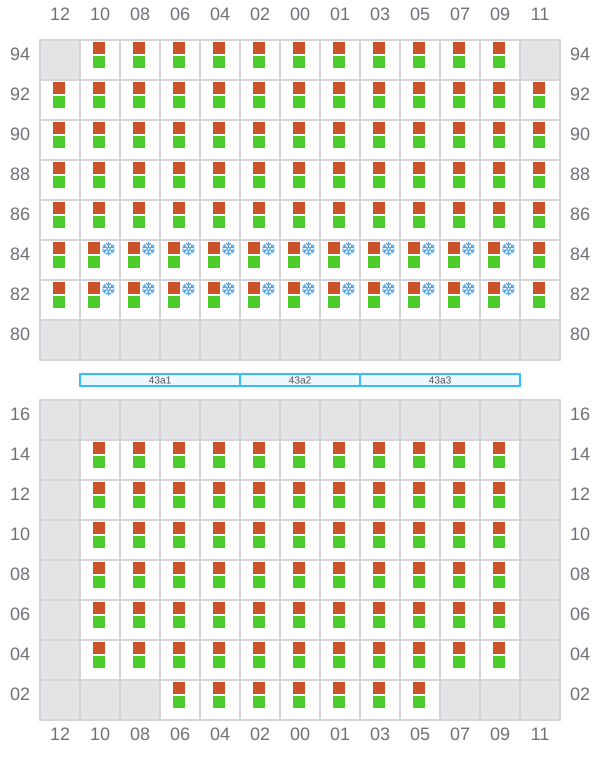

Bay 043 view and slots of CMA CGM CHIWAN

045

  • →
Bay 045 view and slots of CMA CGM CHIWAN

047 (046)

  • ←
  • → / ?
Bay 047 view and slots of CMA CGM CHIWAN

049 (050)

  • →
  • → / ?
Bay 049 view and slots of CMA CGM CHIWAN

051

  • ←
Bay 051 view and slots of CMA CGM CHIWAN

053

  • →

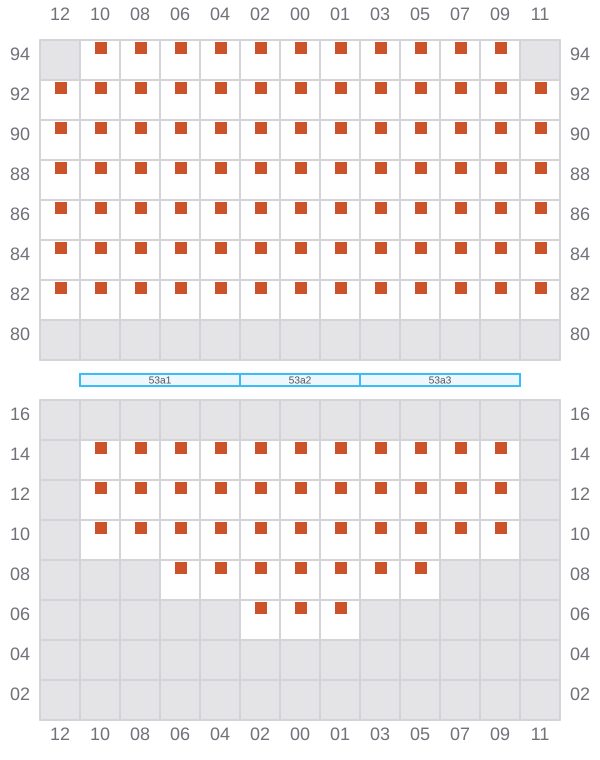

Bay 053 view and slots of CMA CGM CHIWAN

055 (054)

  • ←
  • ← / ?

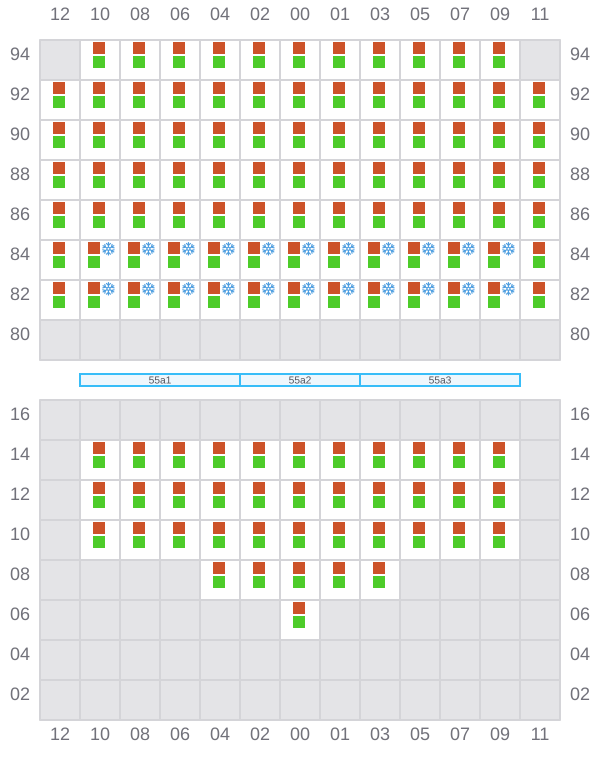

Bay 055 view and slots of CMA CGM CHIWAN

057

  • →

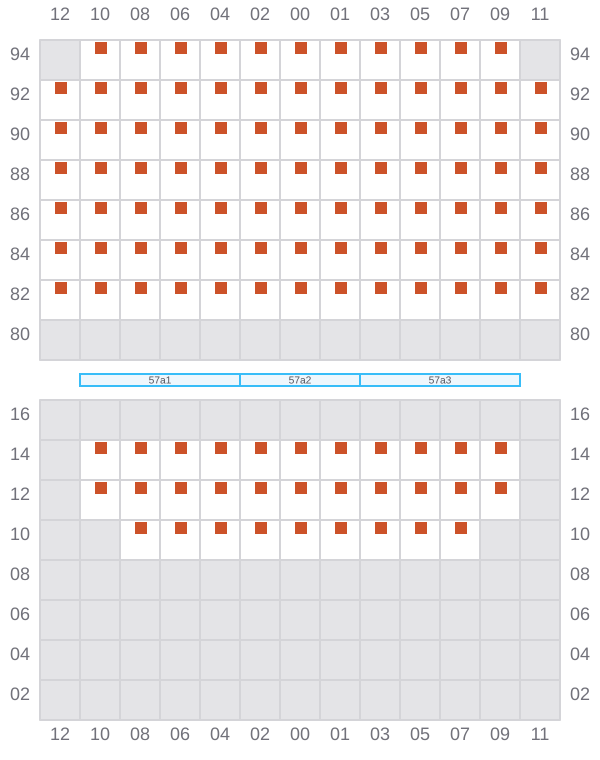

Bay 057 view and slots of CMA CGM CHIWAN

059 (058)

  • ←
  • ← / ?

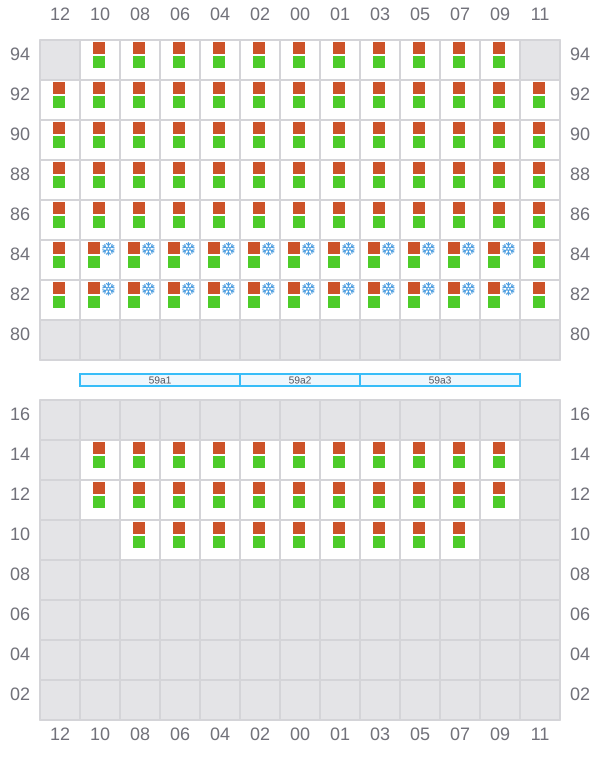

Bay 059 view and slots of CMA CGM CHIWAN

061 (062)

  • →
  • ← / ?

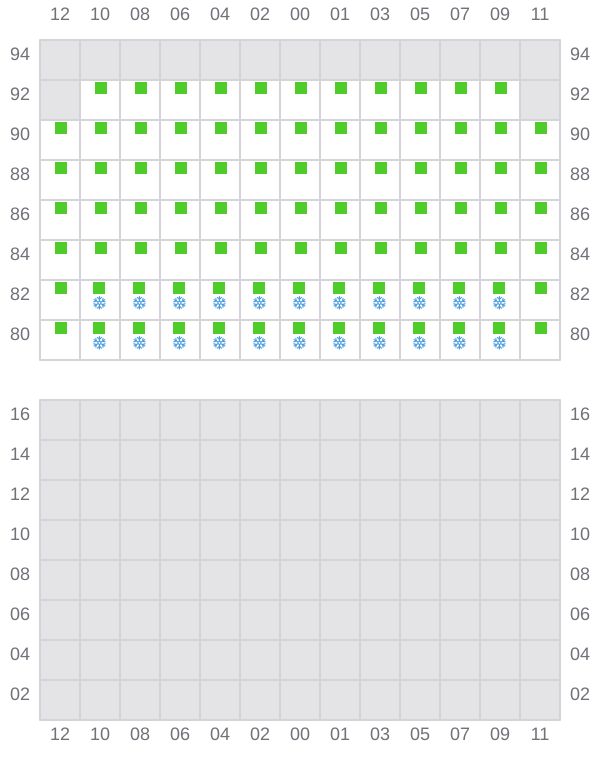

Bay 061 view and slots of CMA CGM CHIWAN

063

  • ←

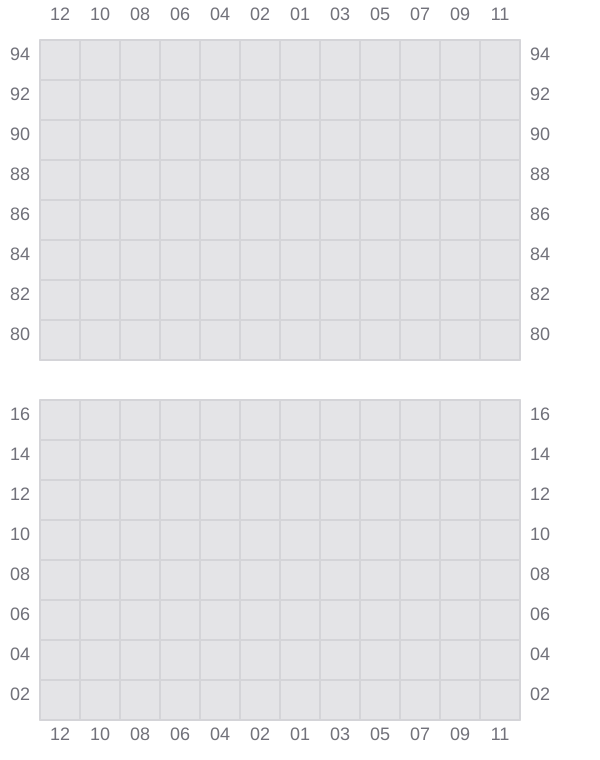

Bay 063 view and slots of CMA CGM CHIWAN
