CMA CGM CHRISTOPHE COLOMB
9453559 | 9HA5397 | CMA by *********************** Last update: Thu Jan 30 2025
General Info
Ship Name:CMA CGM CHRISTOPHE COLOMB
IMO Code:9453559
Call Sign:9HA5397
Line Operator:CMA
Class Name for Sister Ships:CGC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:085
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:70
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,884
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

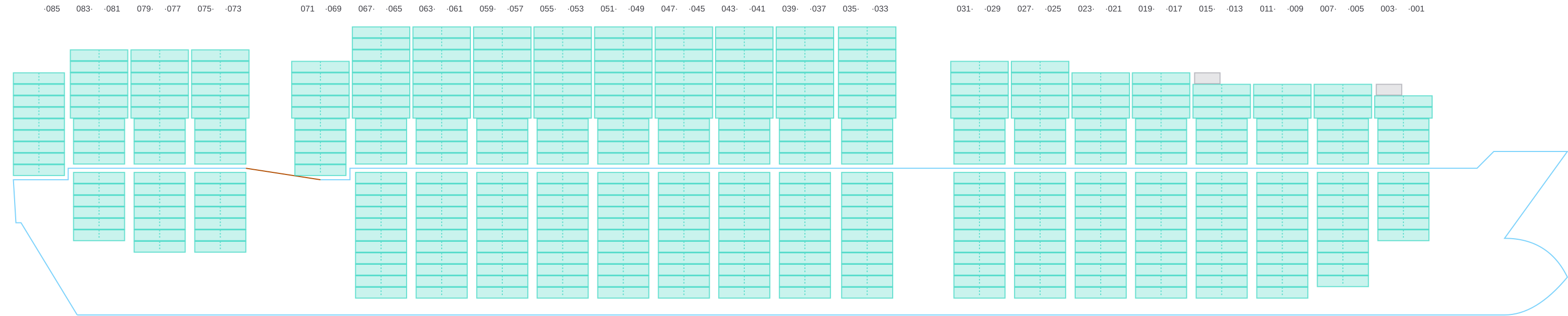

Side View

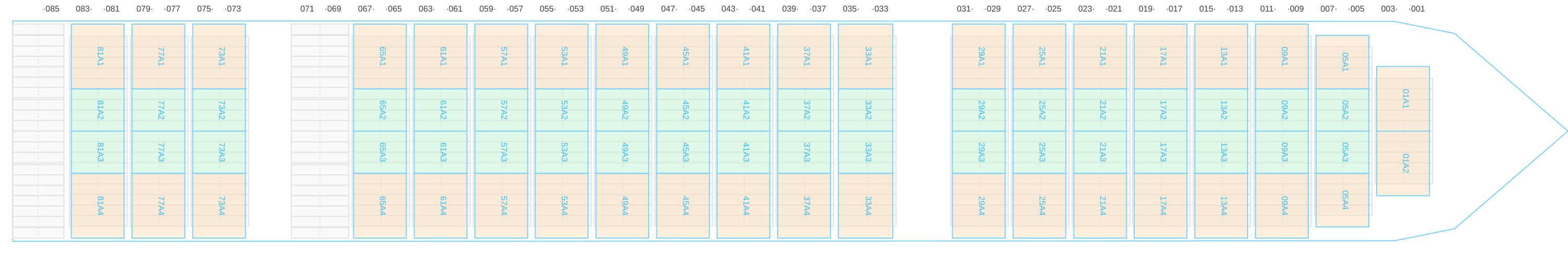

Hatch-Covers View

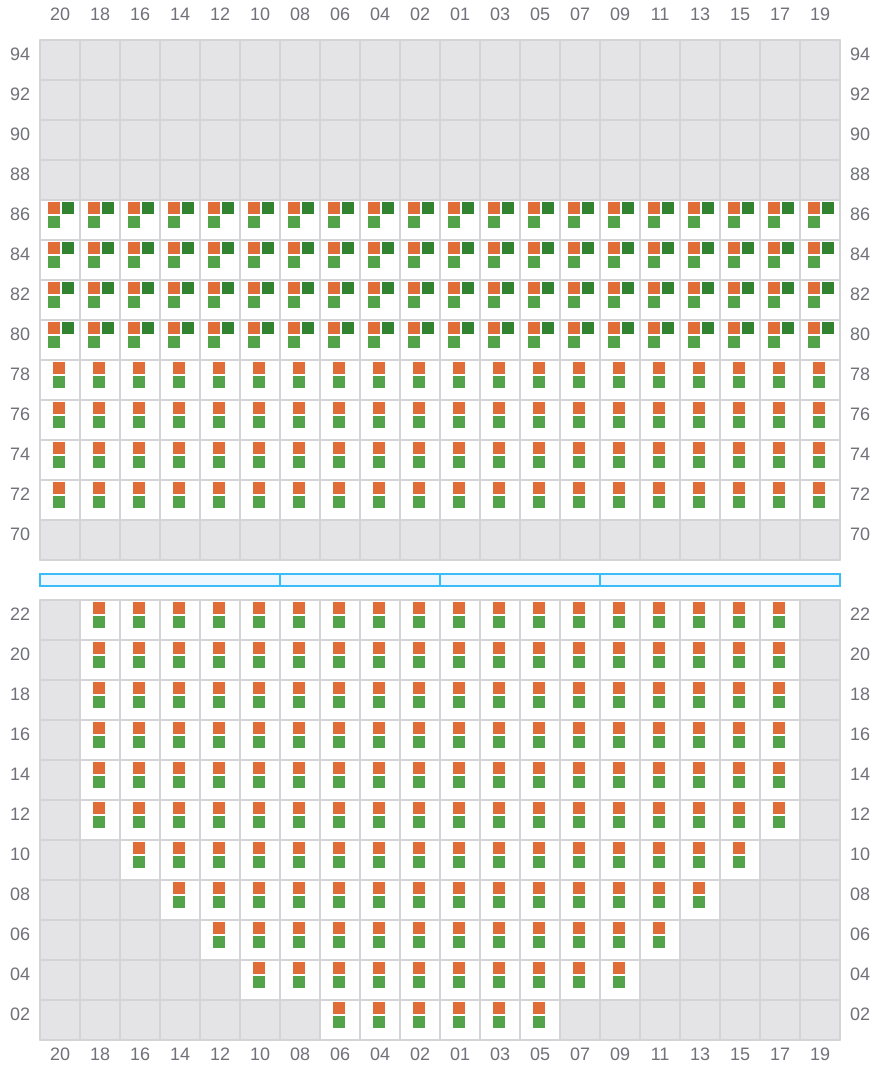

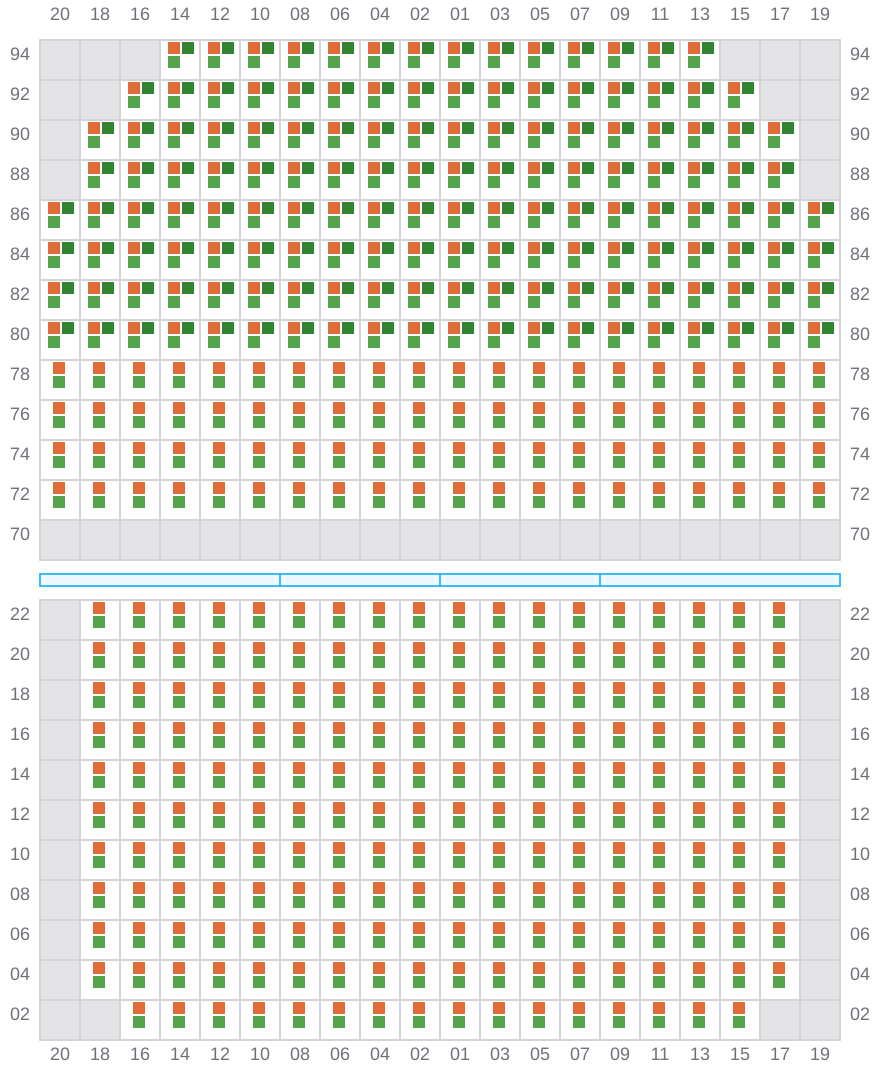

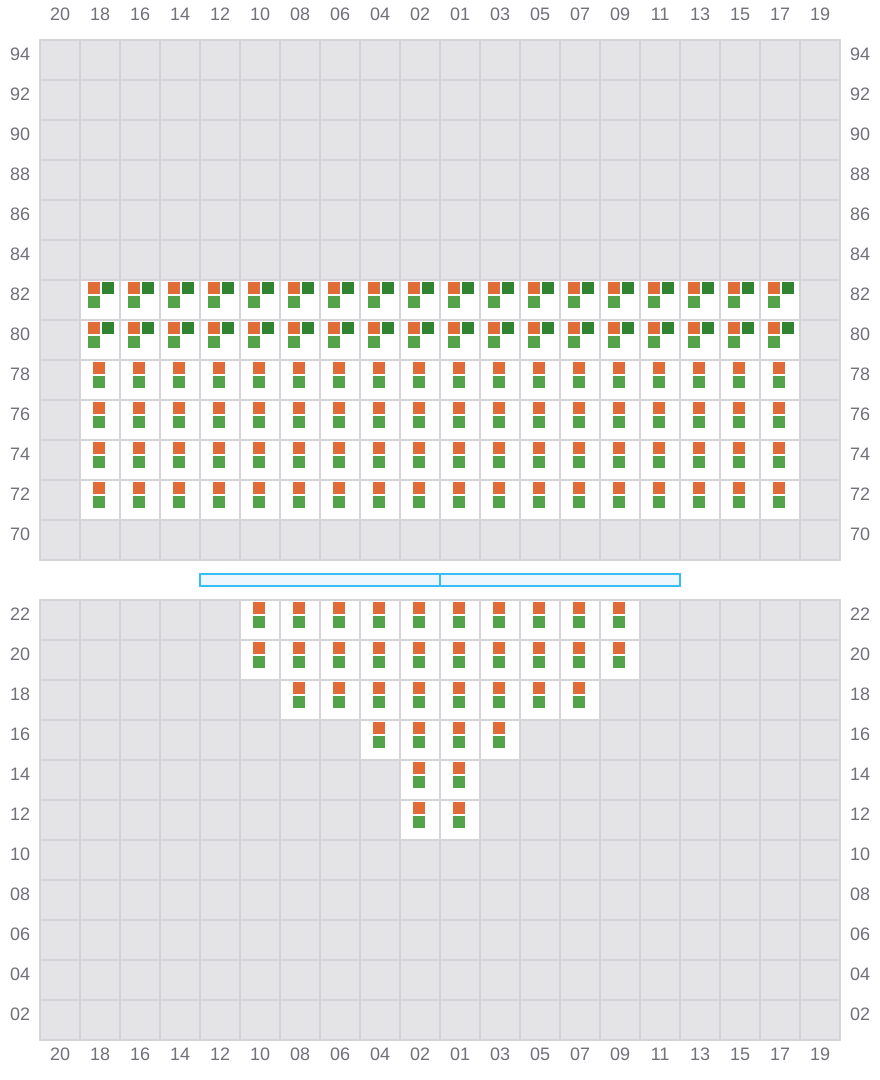

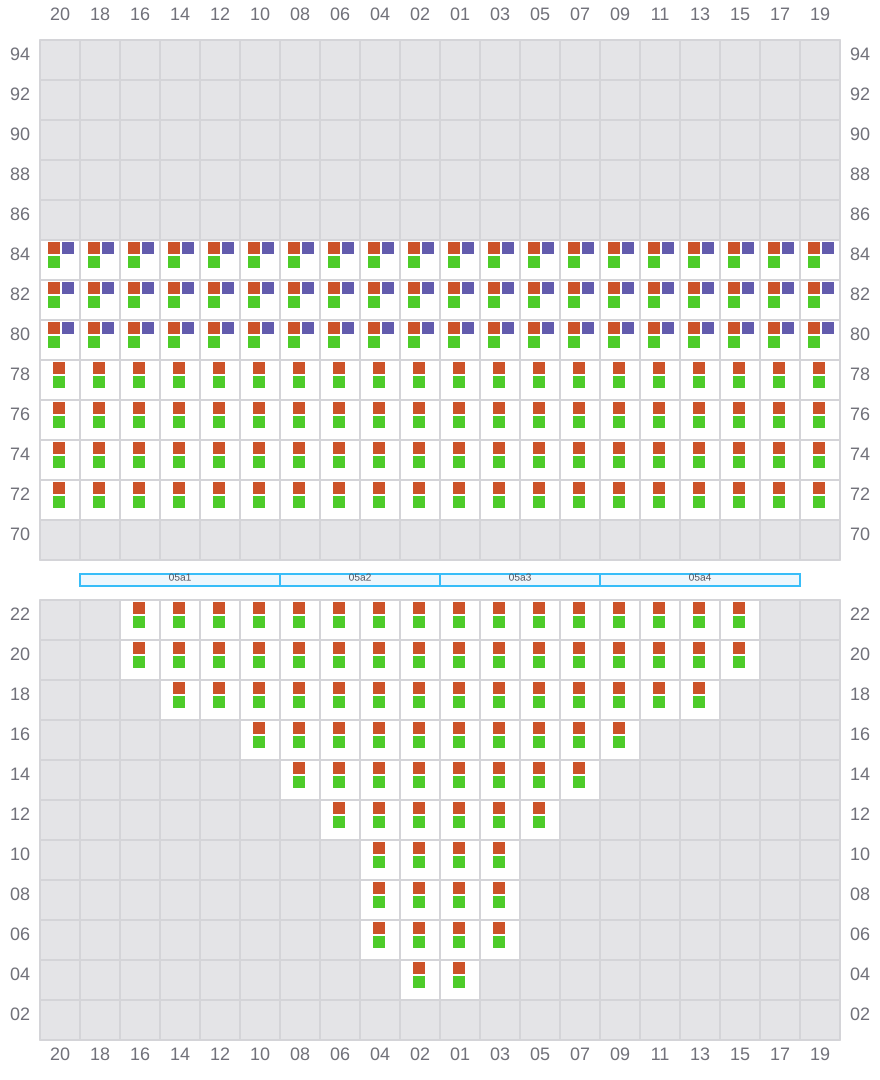

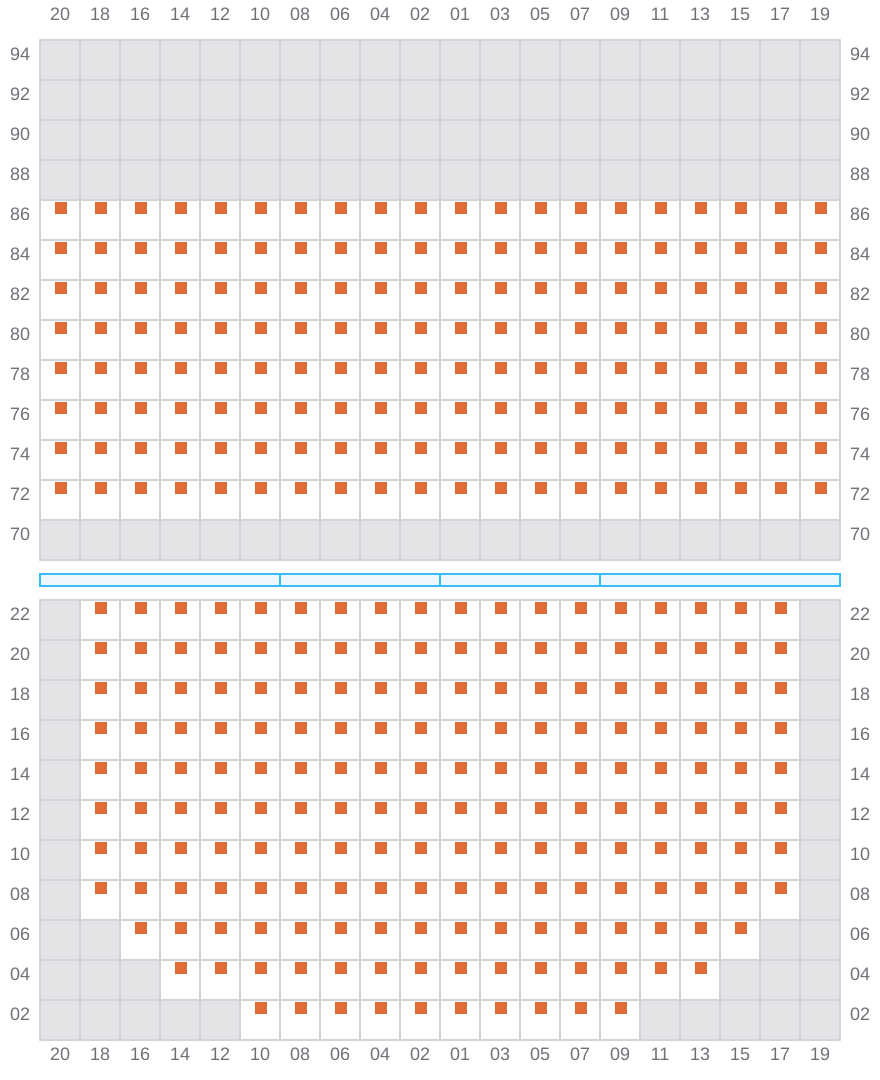

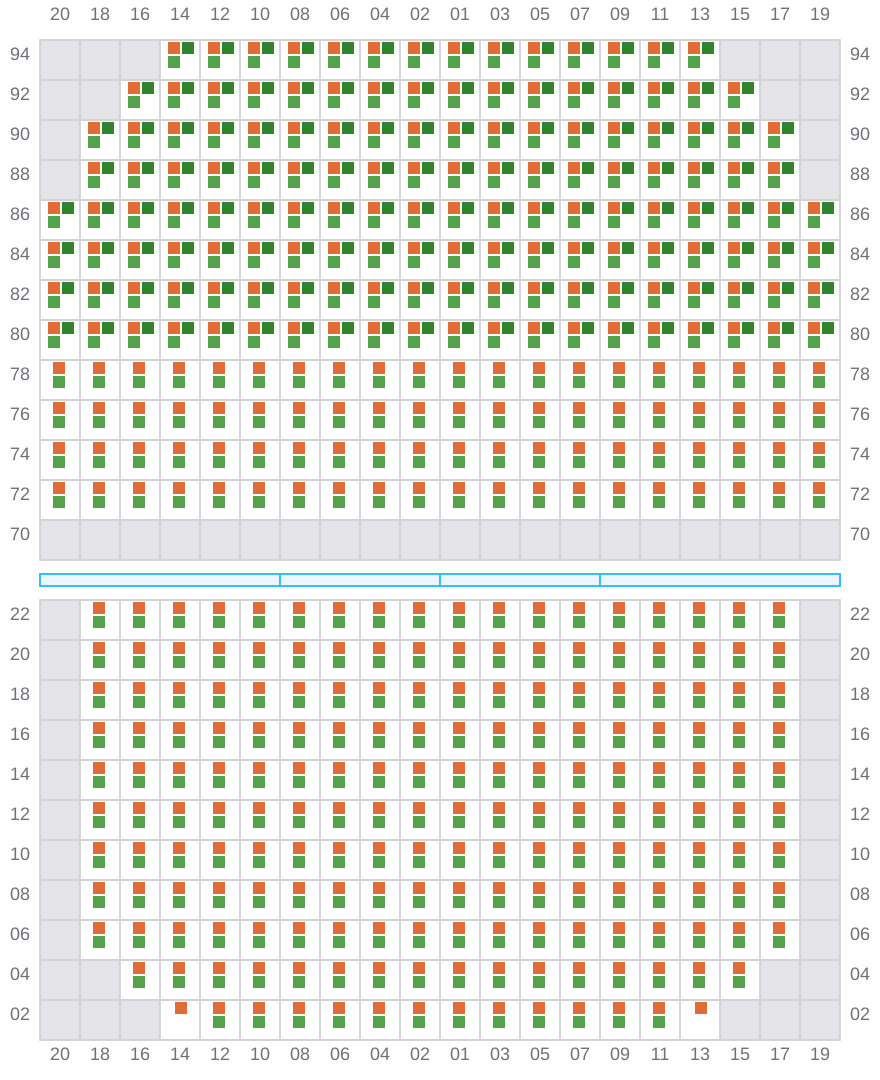

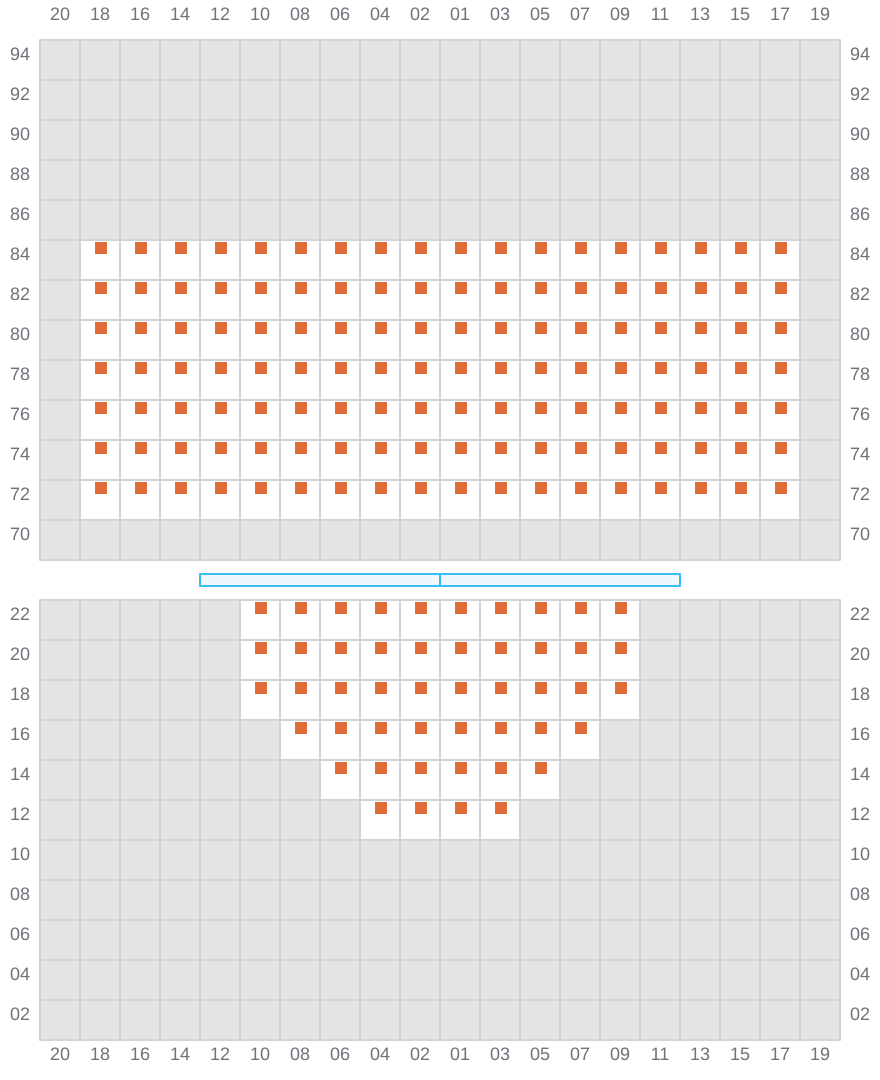

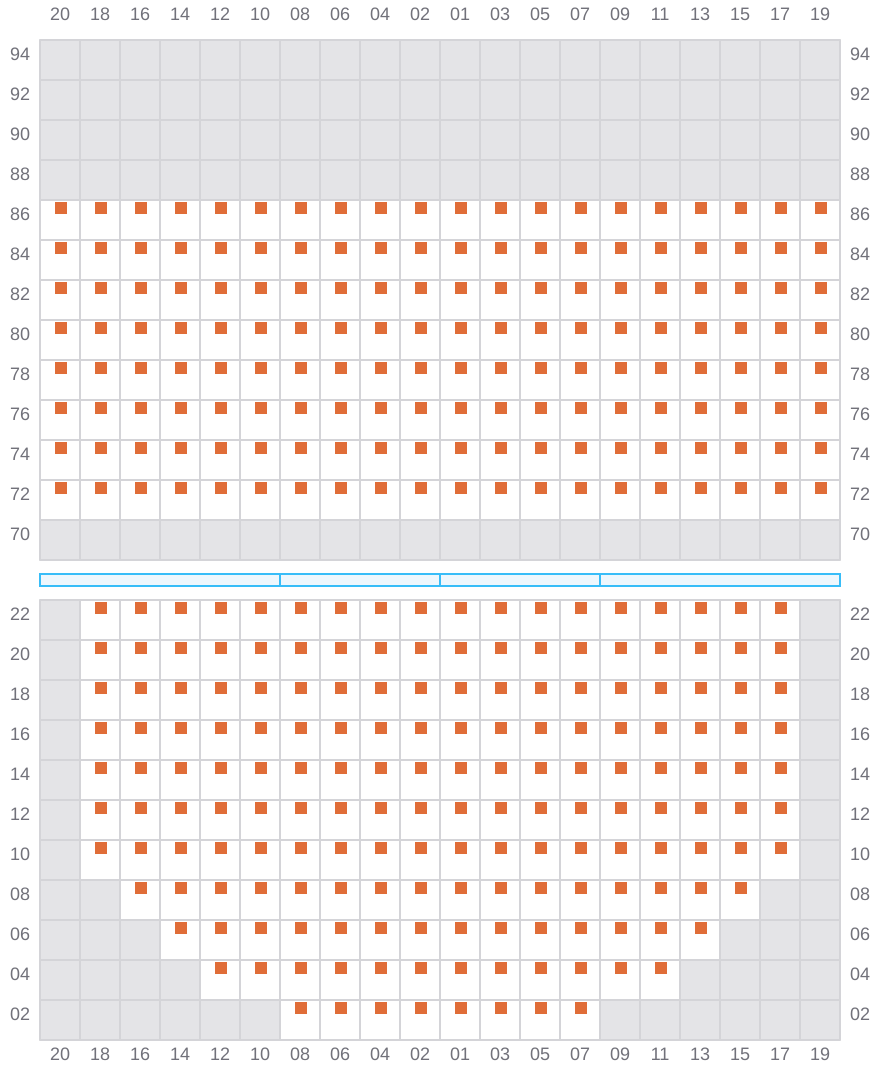

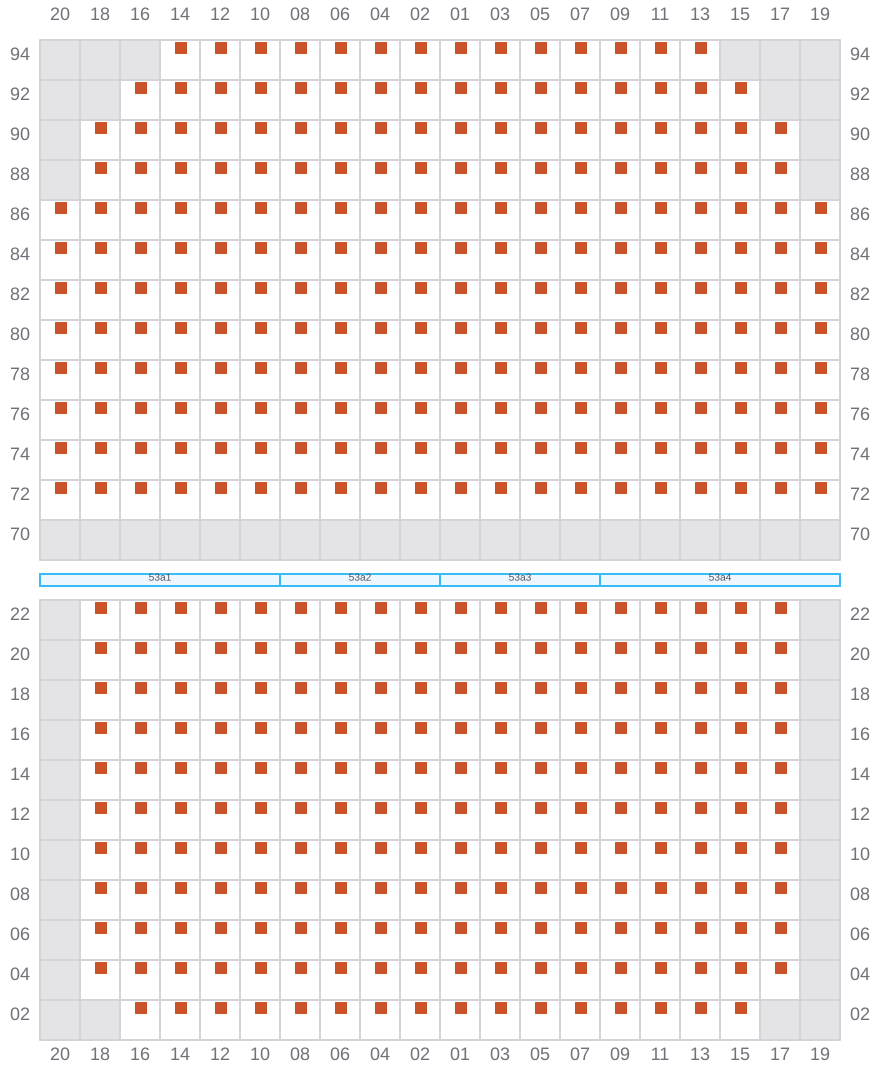

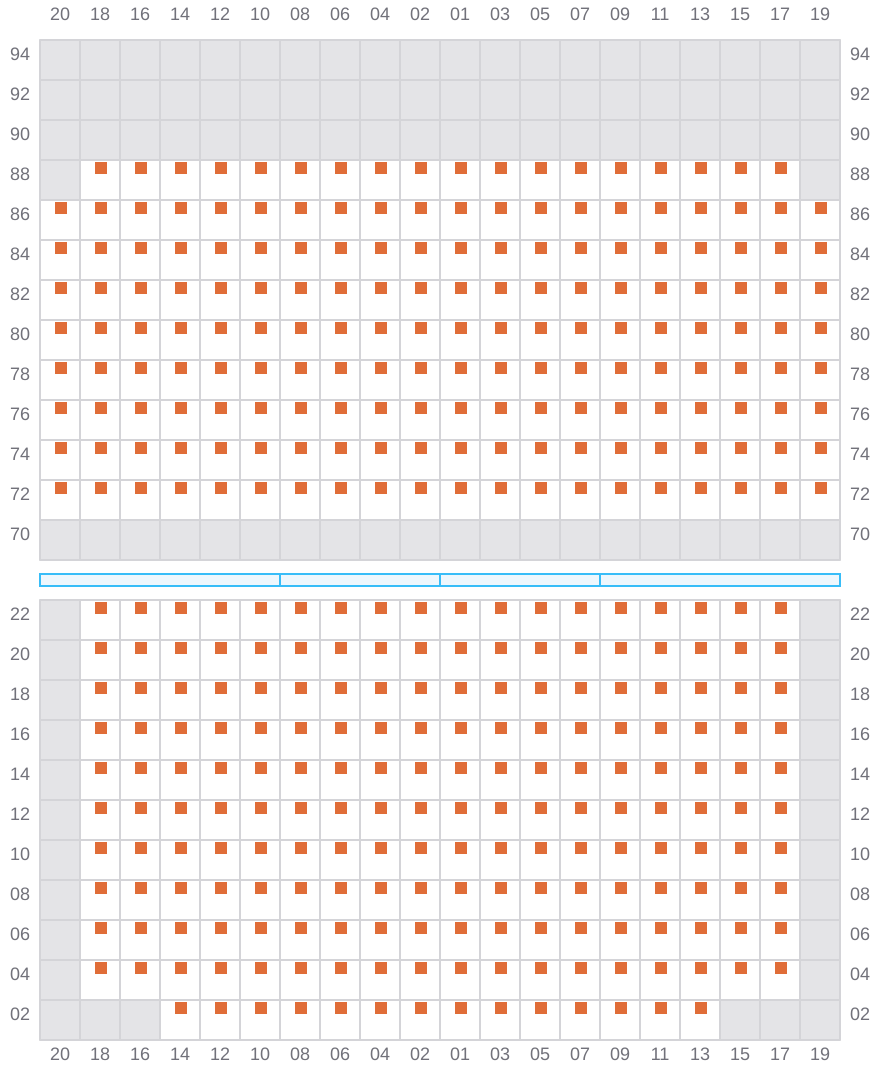

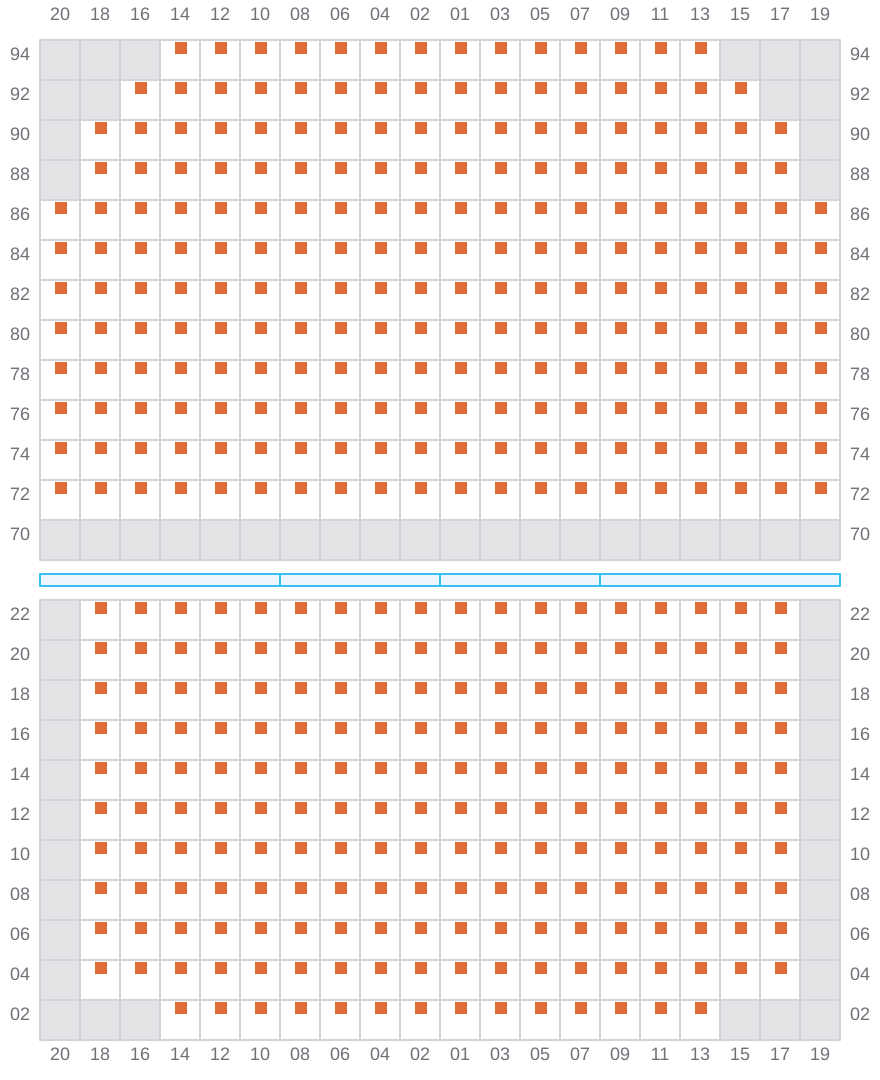

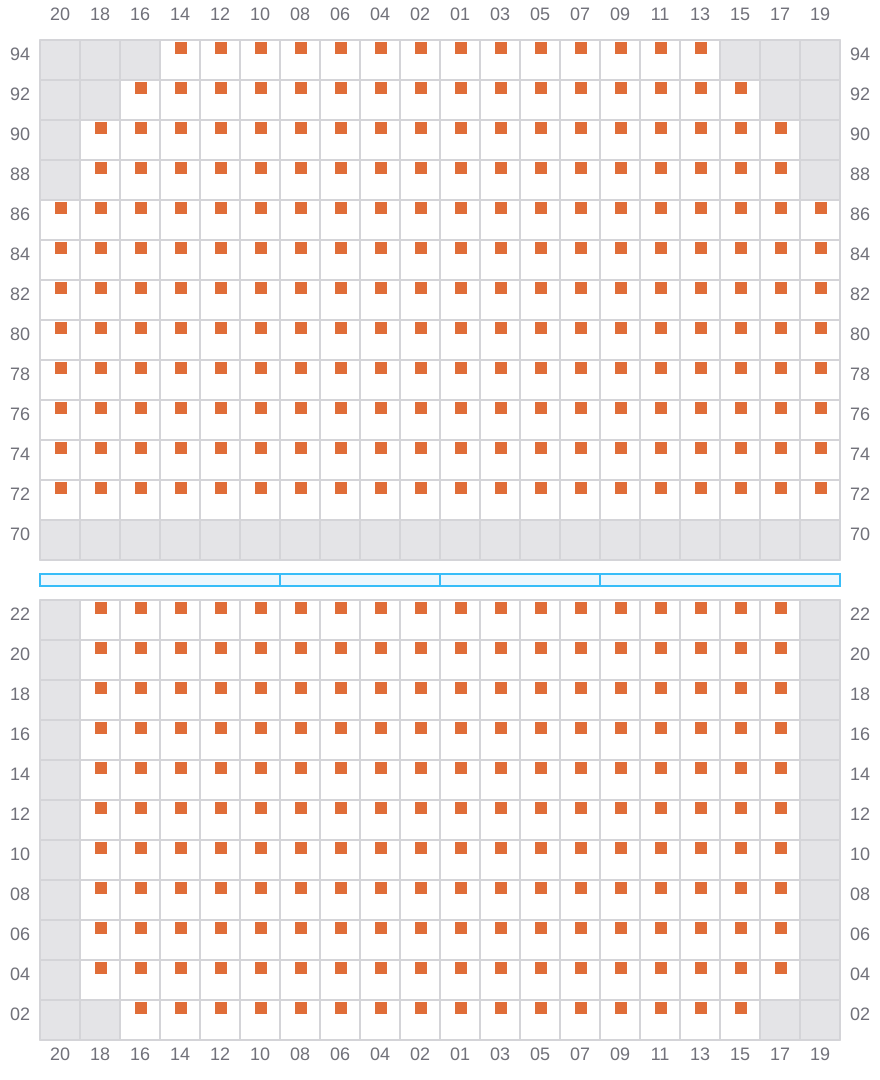

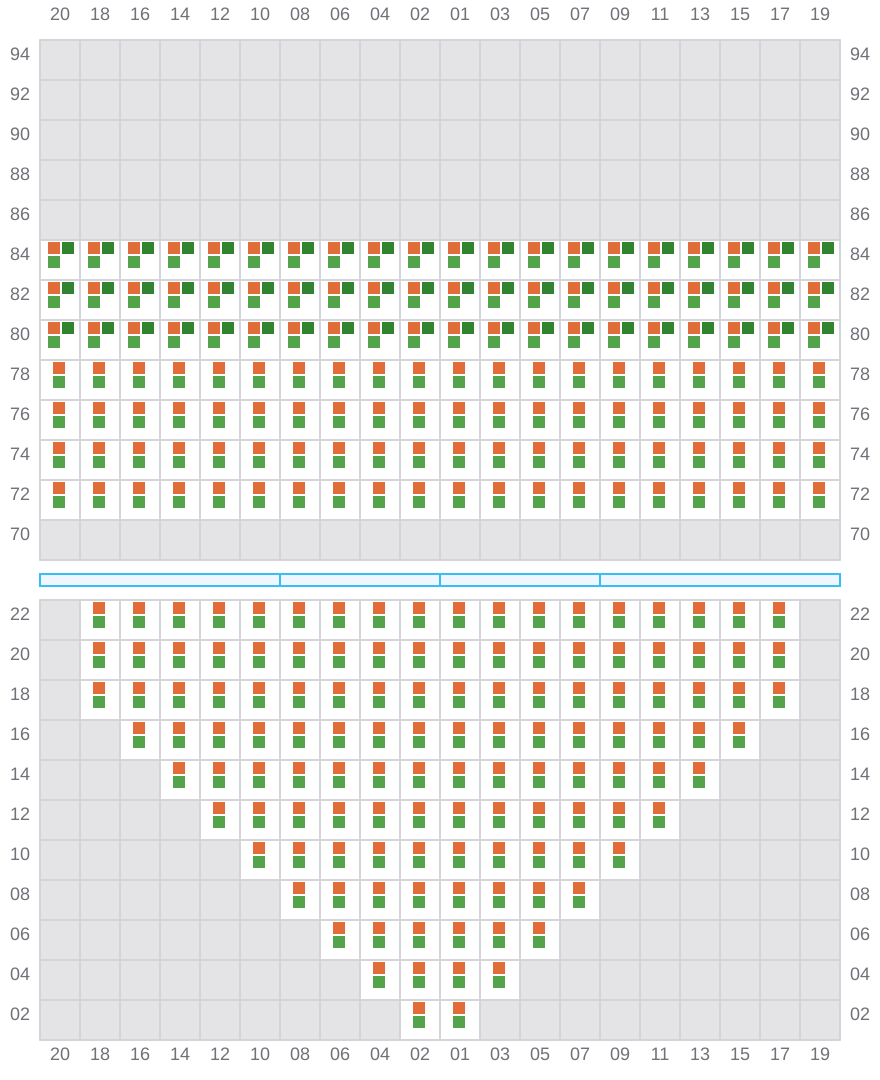

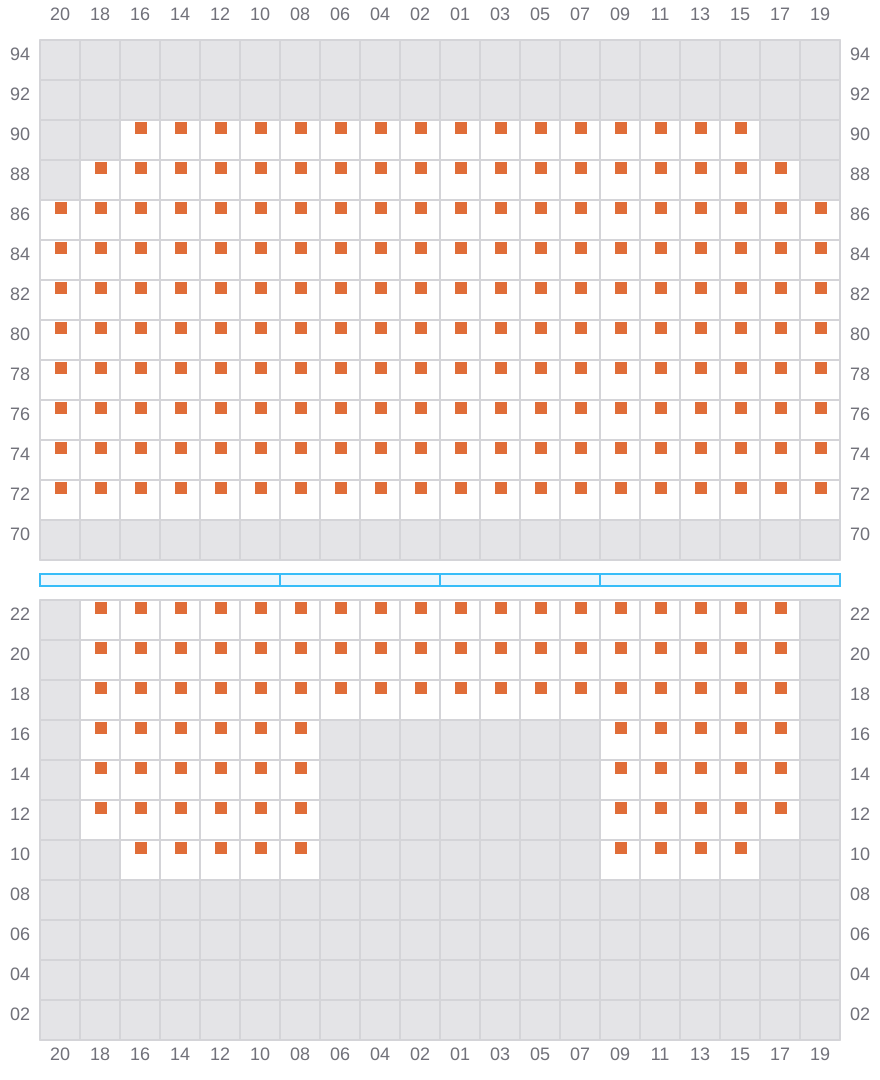

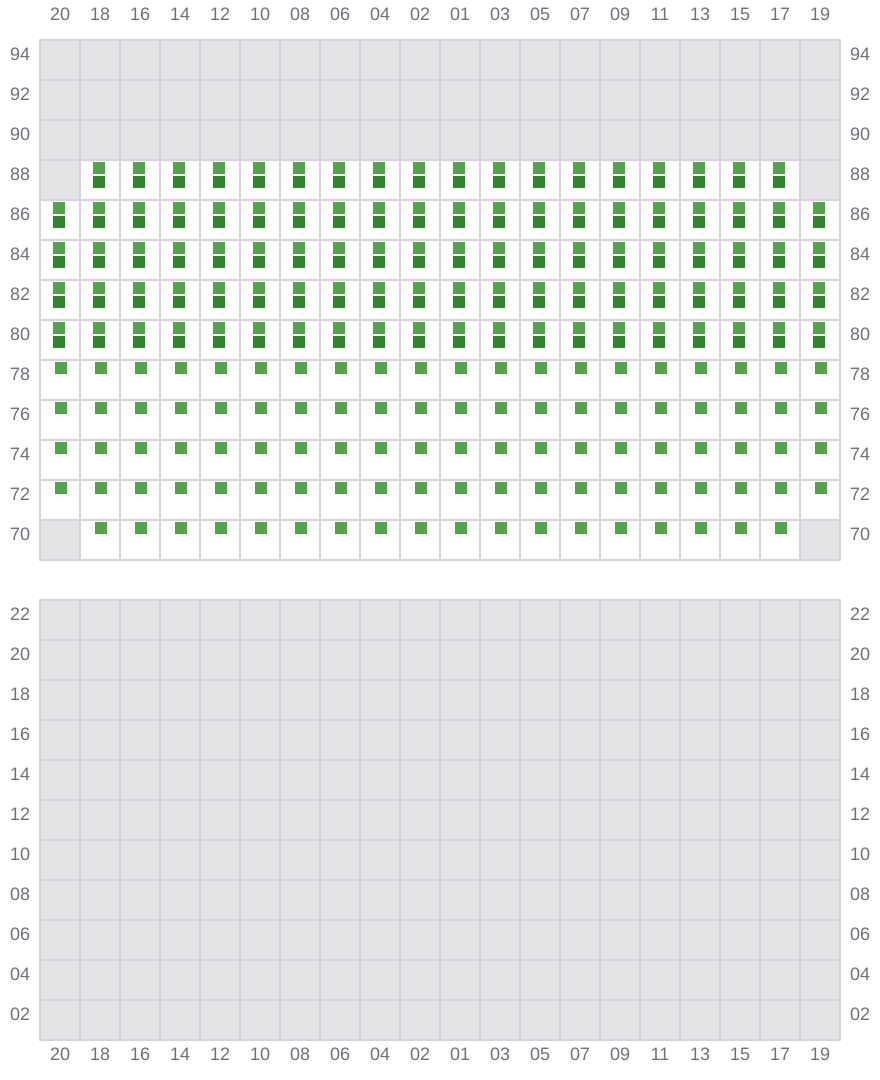

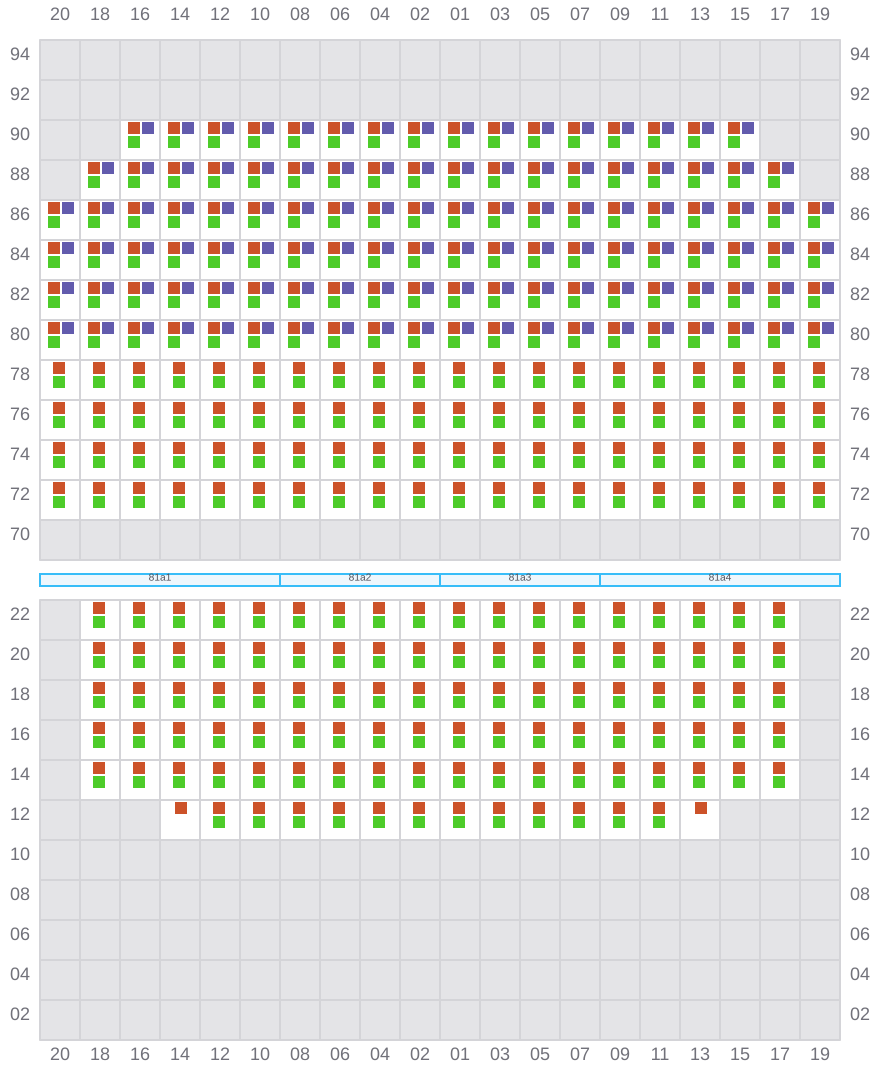

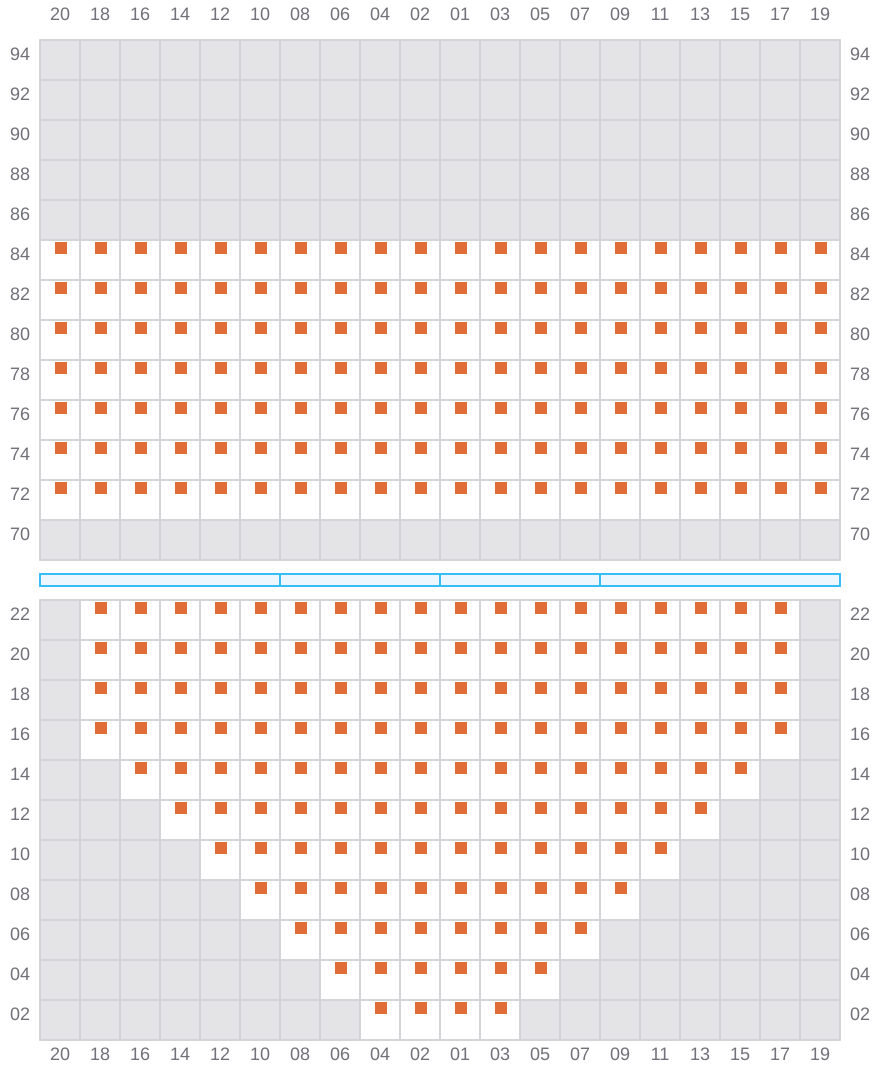

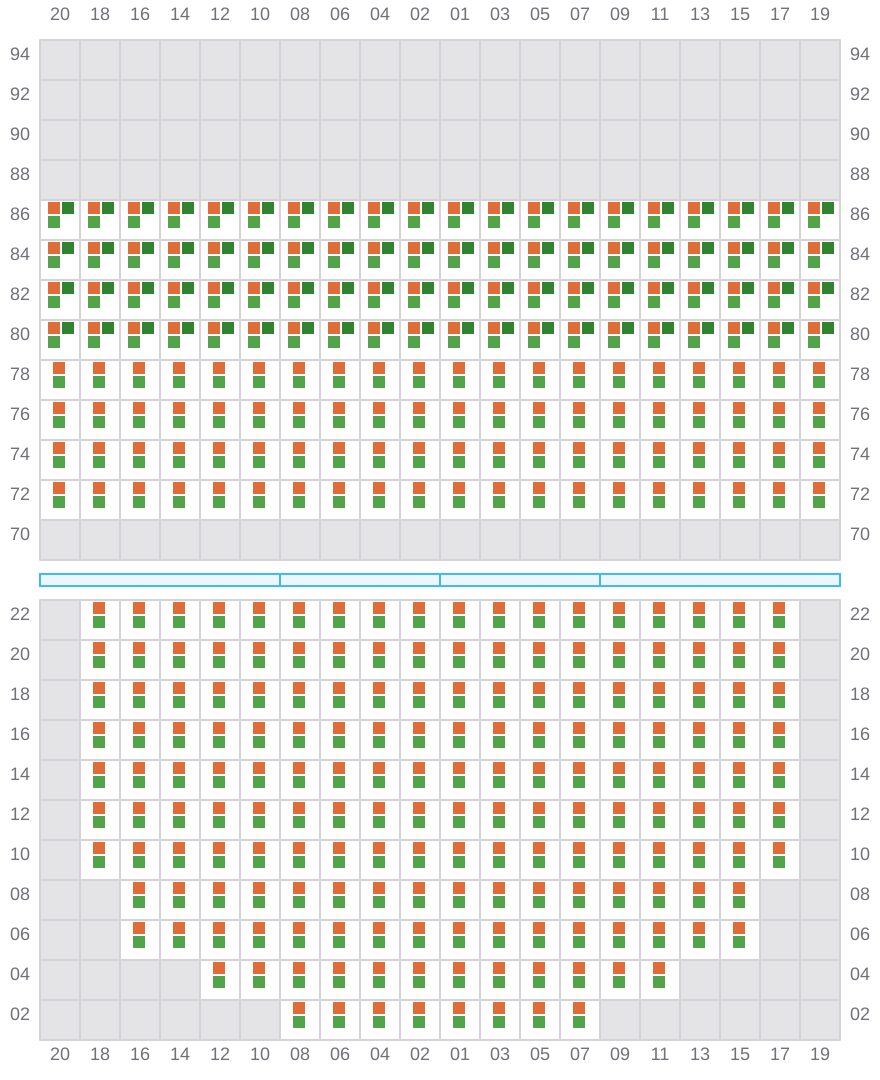

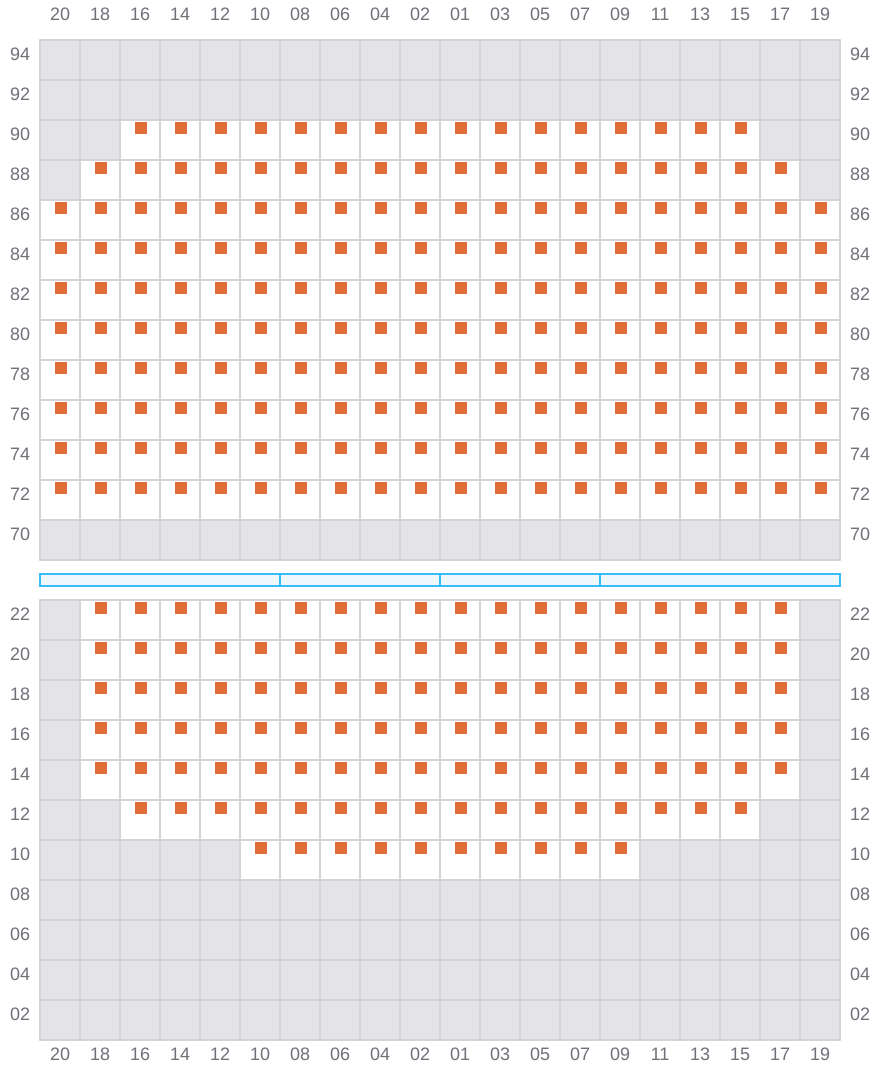

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →

003
- ←
- →

005 (006)
- →
- →

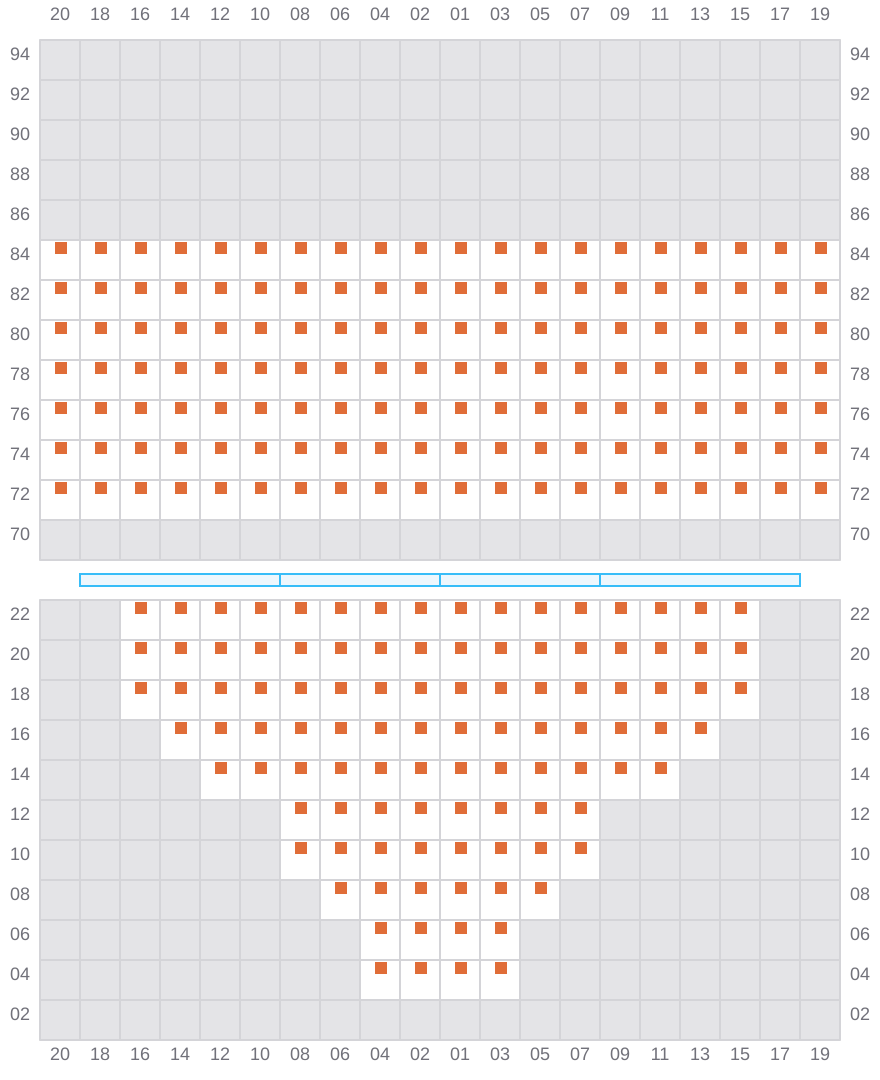

007
- ←
- →

009 (010)
- →
- →

011
- ←
- →

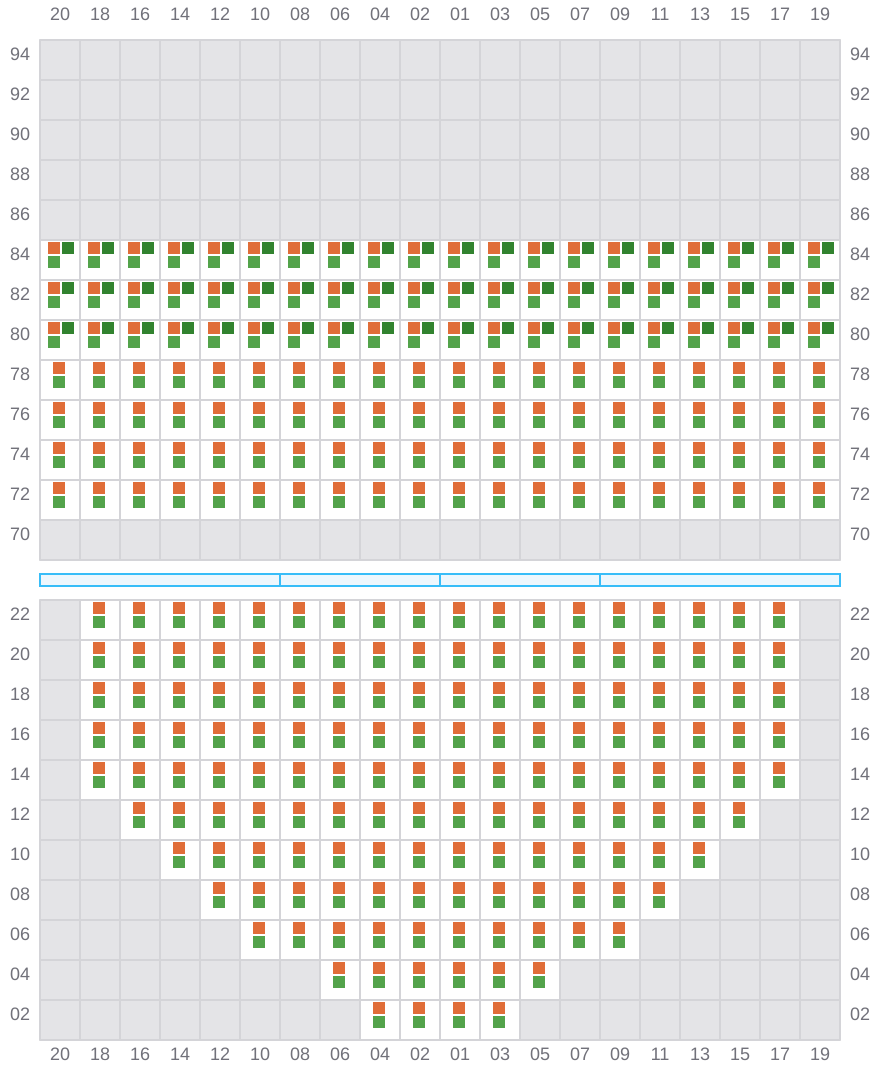

013 (014)
- →
- →

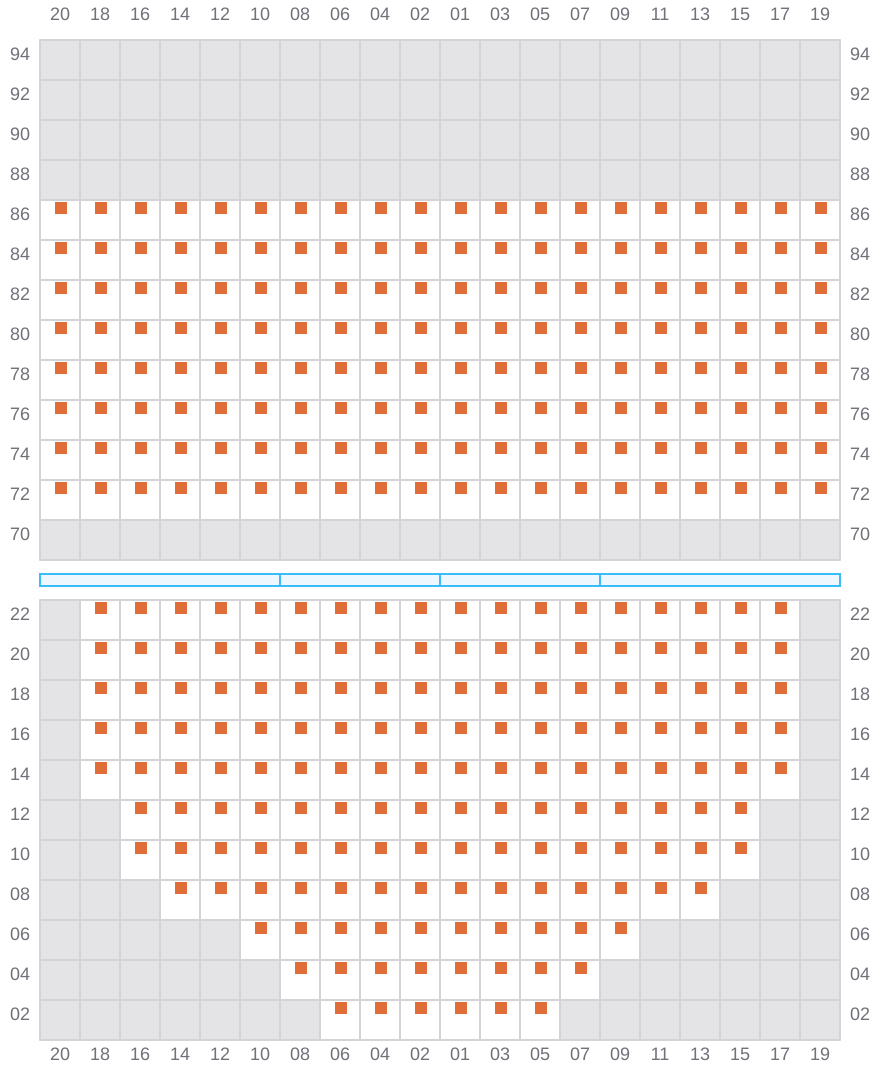

015
- ←
- →

017 (018)
- →
- →

019
- ←
- →

021 (022)
- →
- → / ?
- →

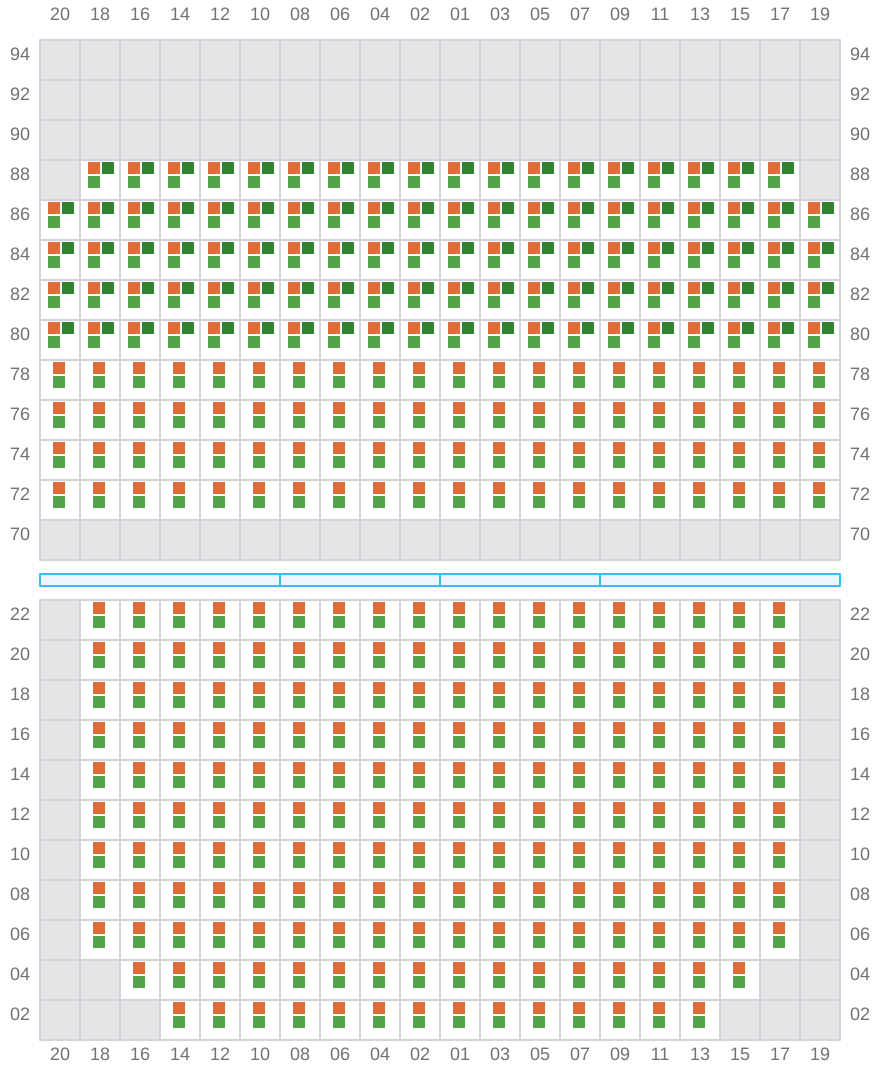

023
- ←
- → / ?
- →

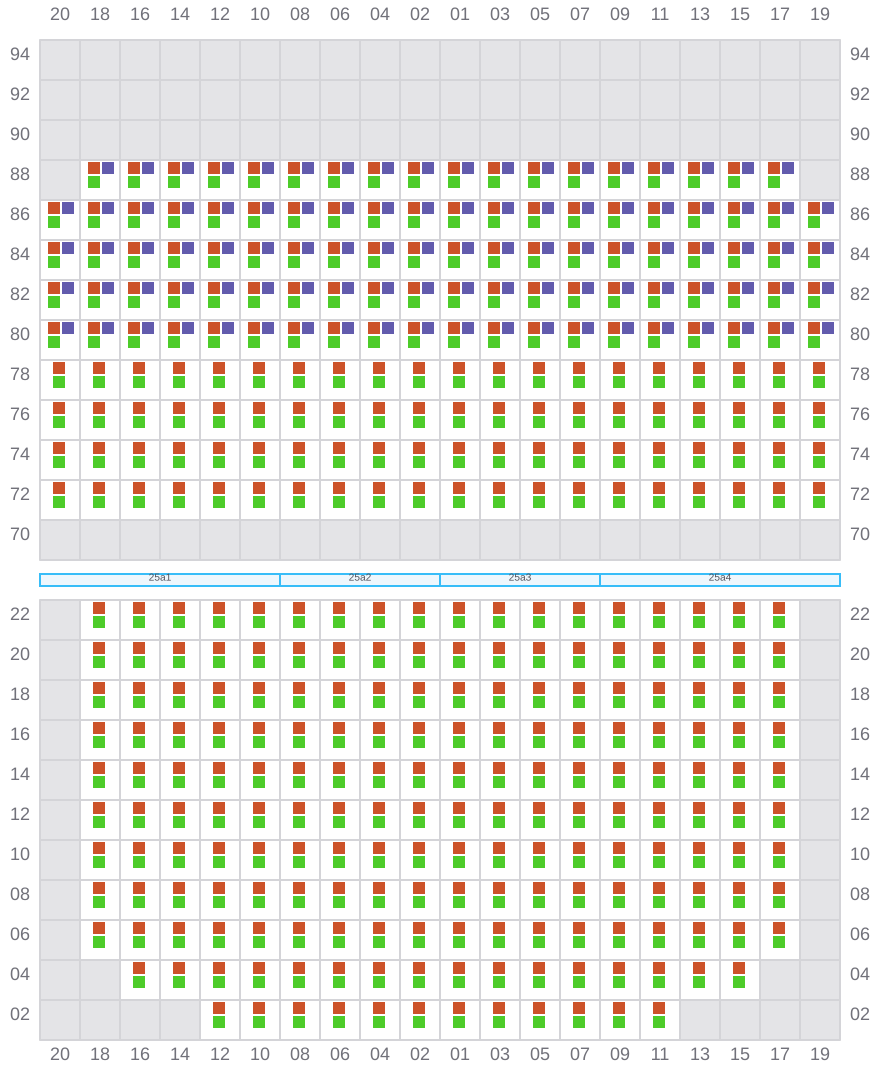

025 (026)
- →
- → / ?
- →

027
- ←
- → / ?
- →

029 (030)
- →
- → / ?
- →

031
- ←
- → / ?
- →

033 (034)
- →
- → / ?
- →

035
- ←
- → / ?
- →

037 (038)
- →
- → / ?
- →

039
- ←
- → / ?
- →

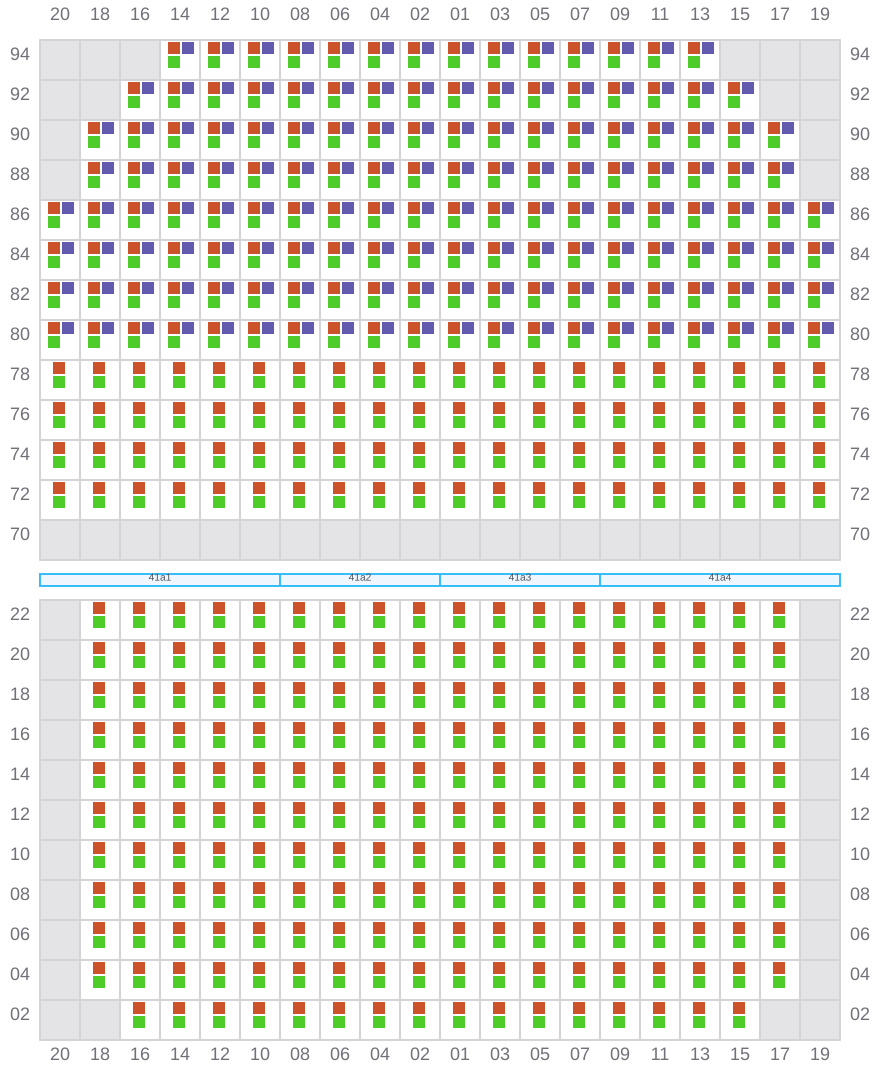

041 (042)
- →
- → / ?
- →

043
- ←
- → / ?
- →

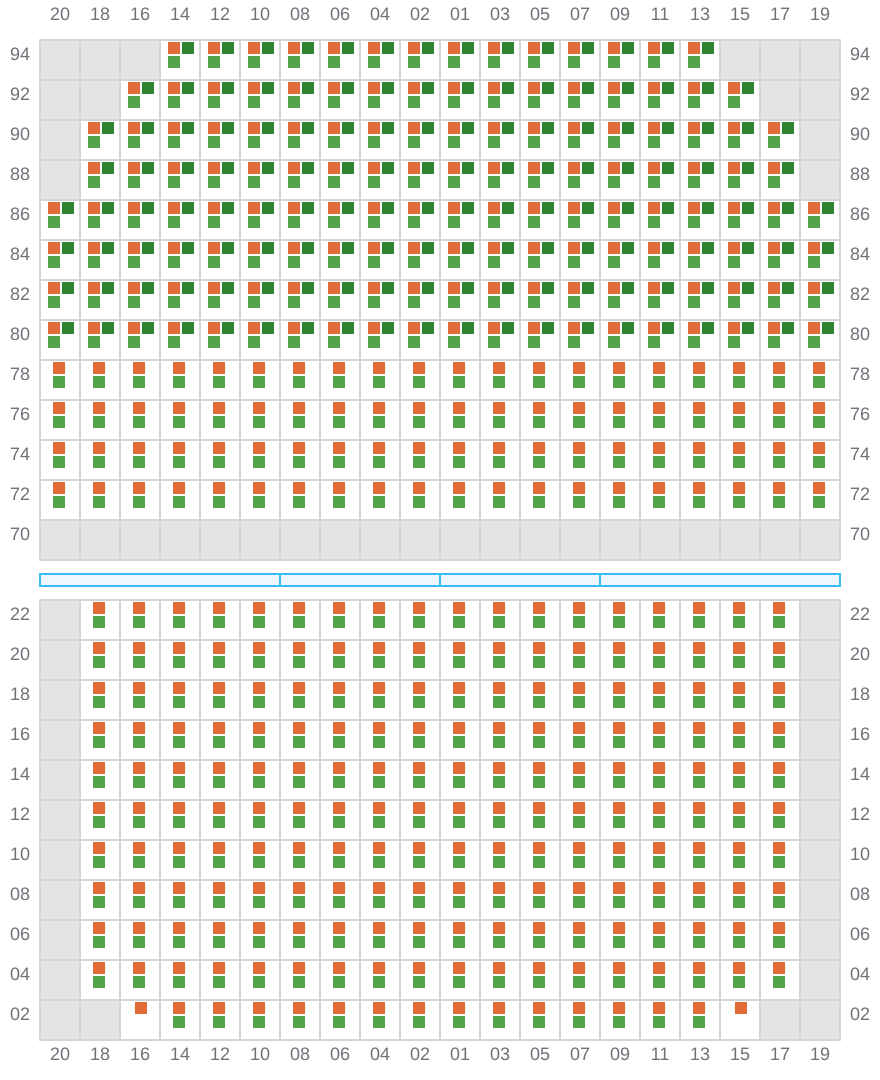

045 (046)
- →
- → / ?
- →

047
- ←
- → / ?
- →

049 (050)
- →
- → / ?
- →

051
- ←
- → / ?
- →

053 (054)
- →
- → / ?
- →

055
- ←
- → / ?
- →

057 (058)
- →
- → / ?
- →

059
- ←
- → / ?
- →

061 (062)
- →
- → / ?
- →

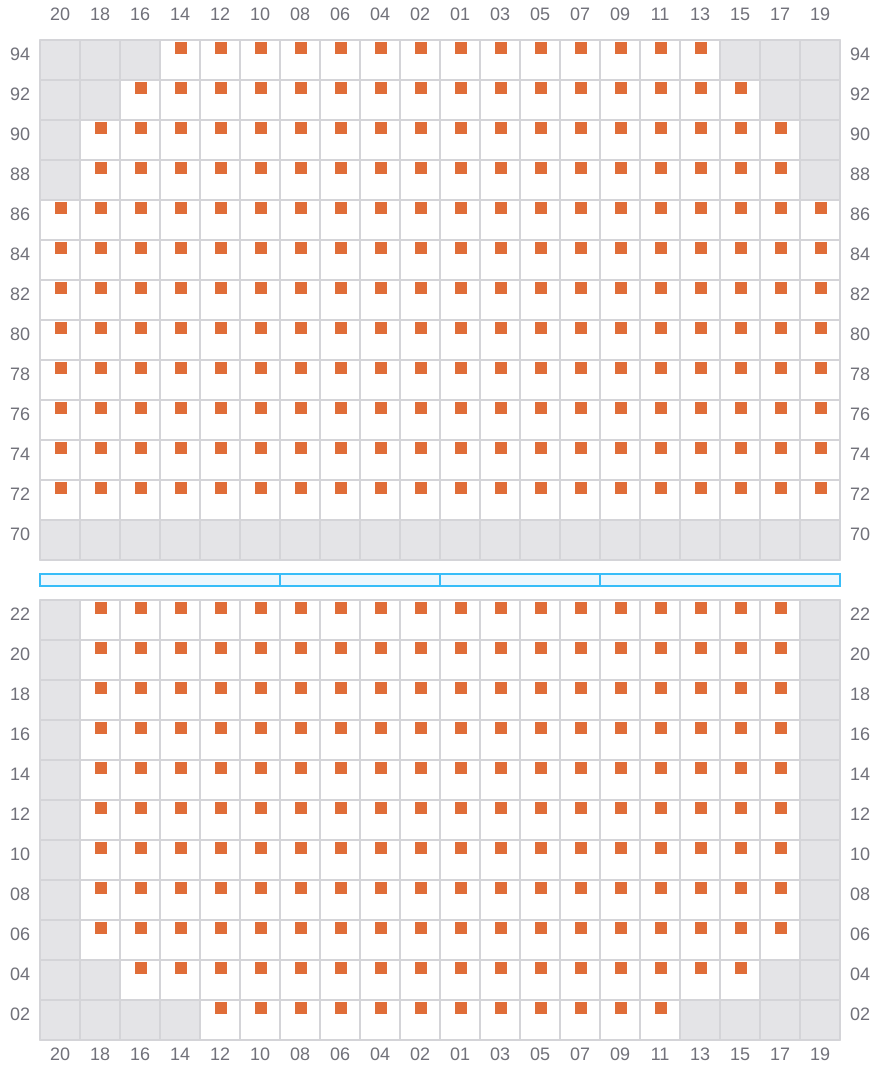

063
- ←
- → / ?
- →

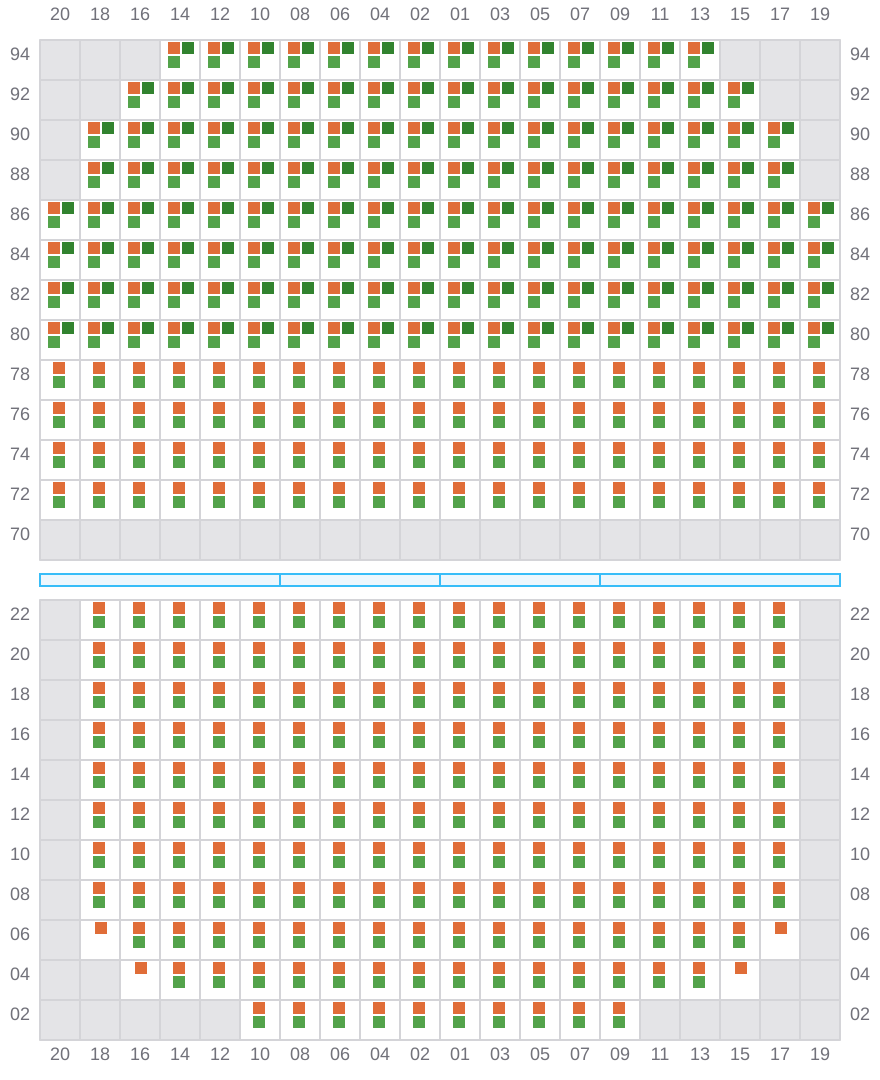

065 (066)
- →
- → / ?
- →

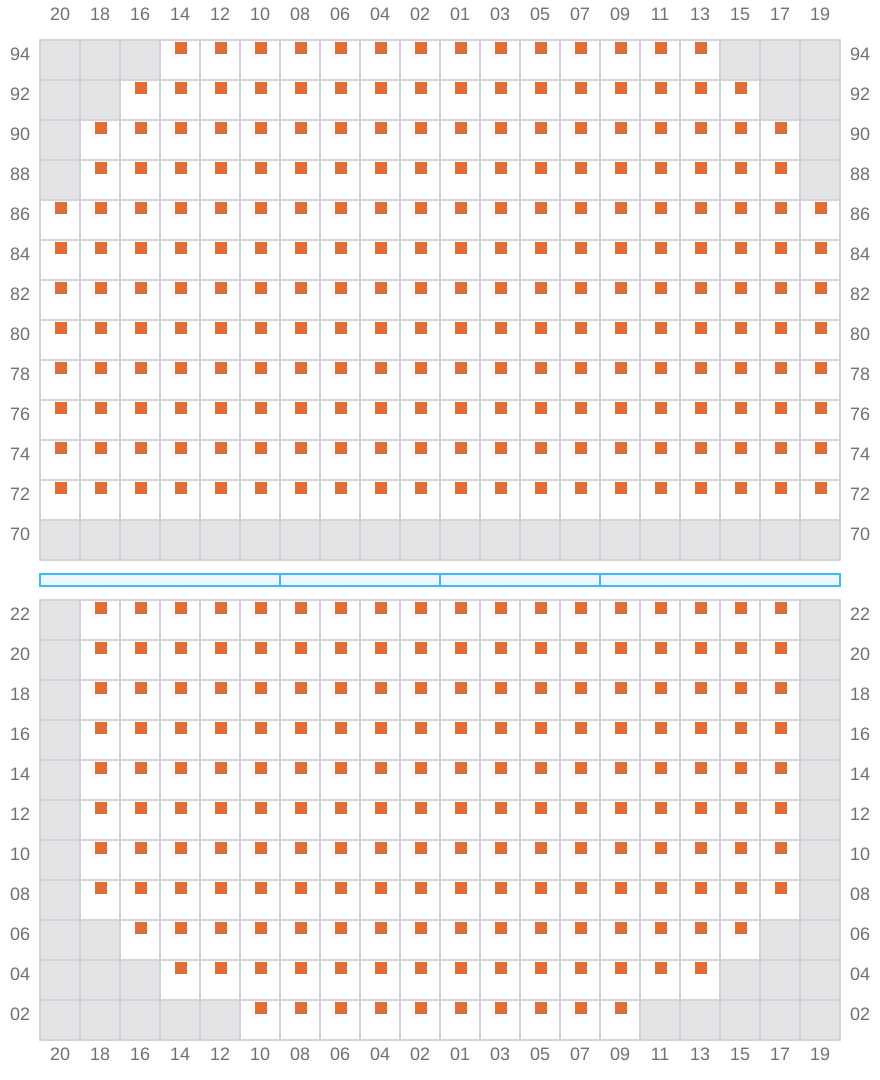

067
- ←
- → / ?
- →

069 (070)
- → / ?
- ← / ?
- → / ?

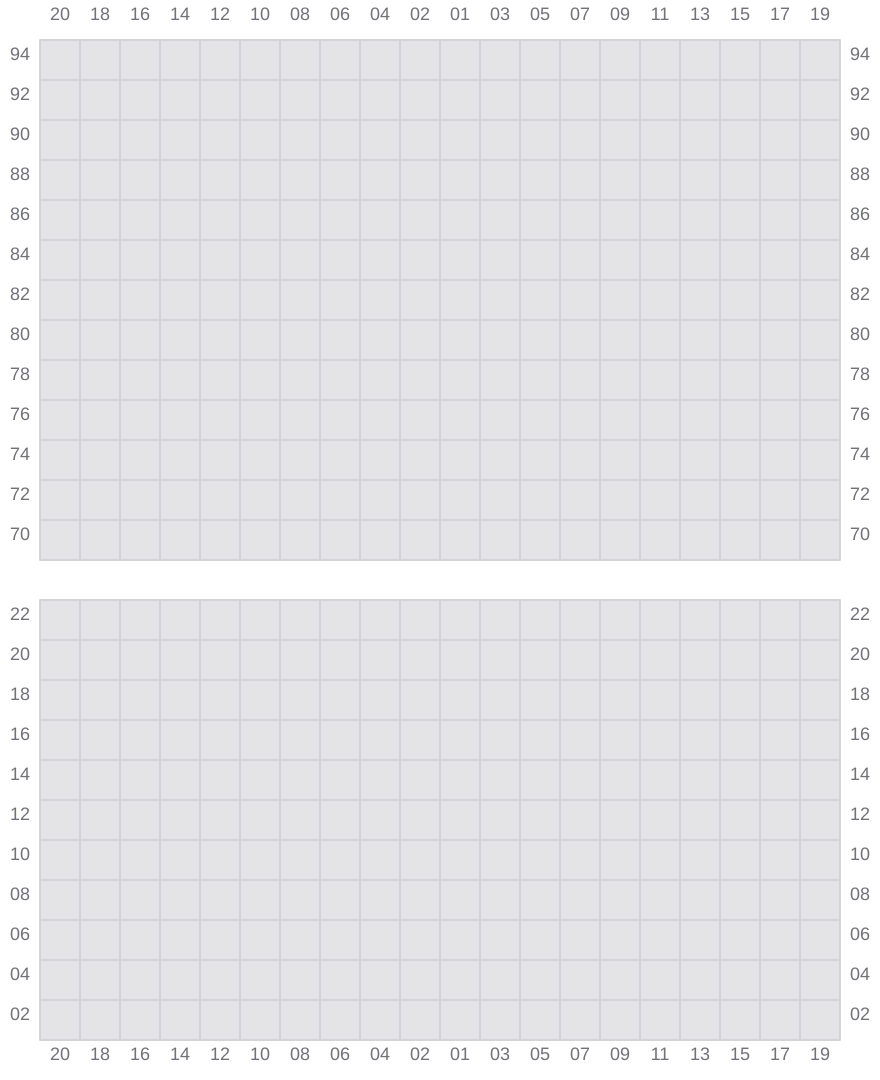

071

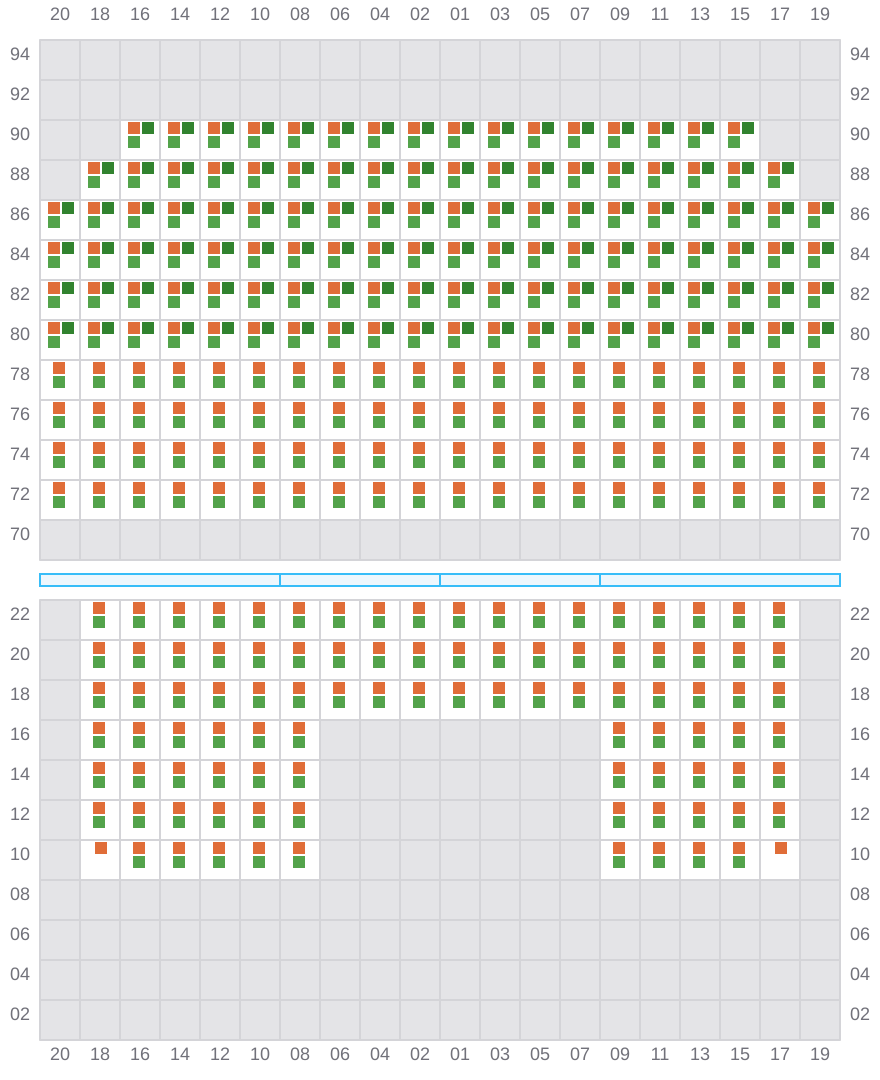

073 (074)
- →
- → / ?
- →

075
- ←
- → / ?
- →

077 (078)
- →
- → / ?
- →

079
- ←
- → / ?
- →

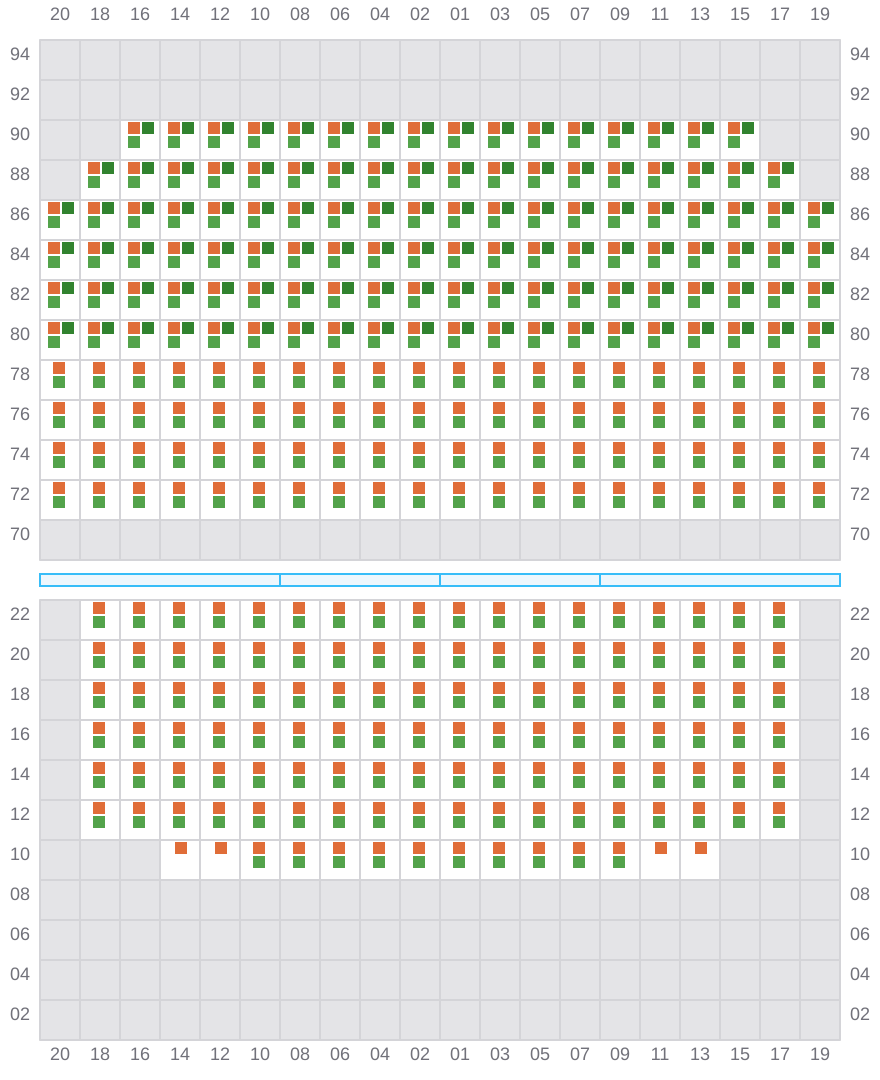

081 (082)
- →
- → / ?
- →

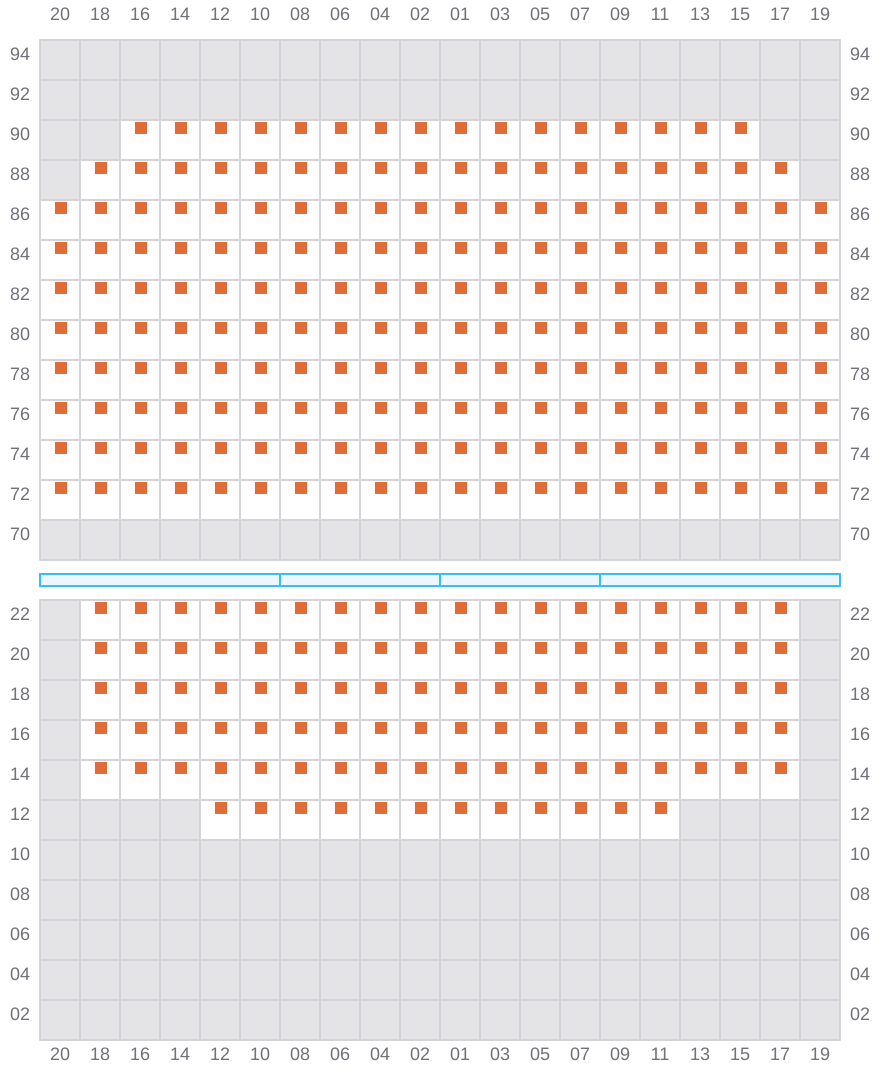

083
- ←
- → / ?
- →

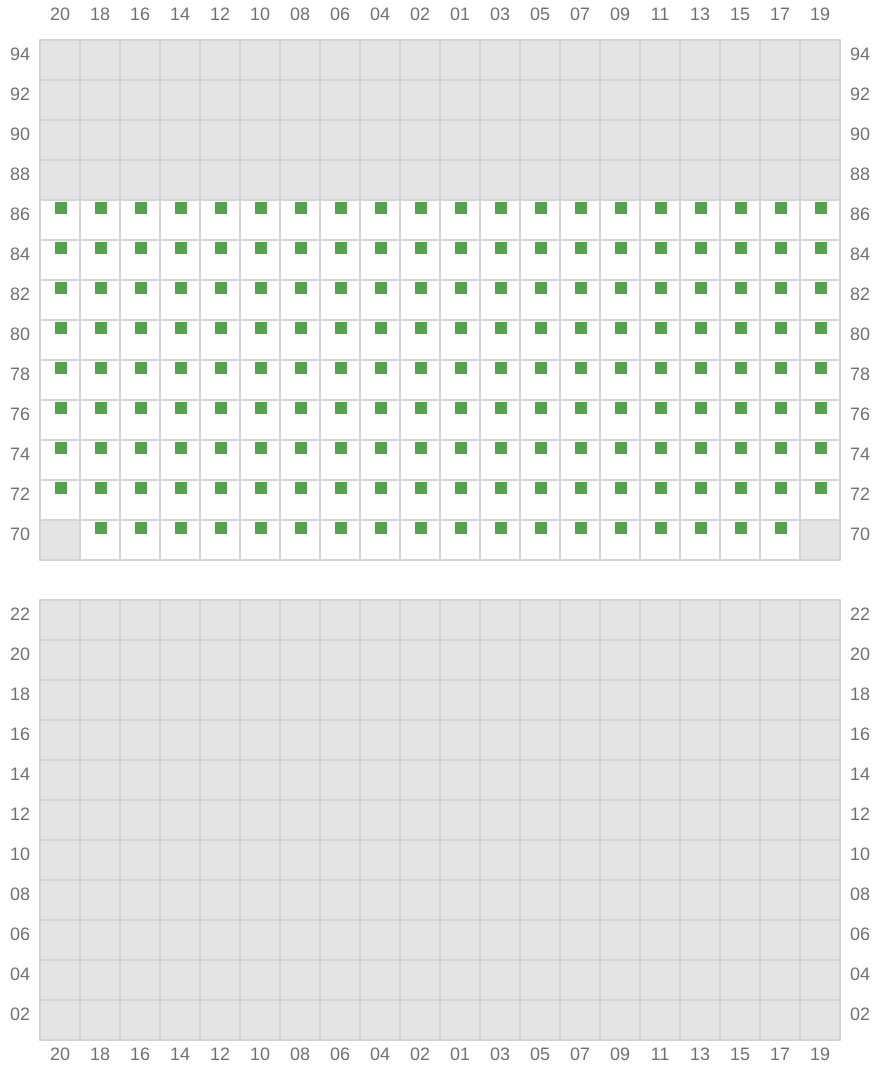

085 (086)
- → / ?
- → / ?
