CMA CGM CONSTANZA
9471202 | 9HA5745 | ZIM by ******* Last update: Tue Sep 03 2024

General Info

Ship Name:CMA CGM CONSTANZA
IMO Code:9471202
Call Sign:9HA5745
Line Operator:ZIM
Class Name for Sister Ships:ZCNZ
Year Built:2010
Position Format:Bay, Tier, Row
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Hazardous Prohib., Cones per Container Length
Also Known As...:-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,265

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

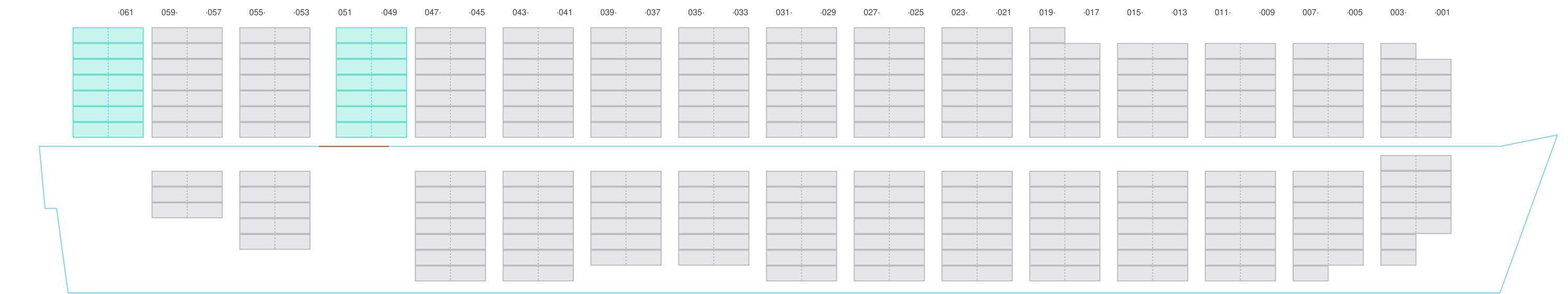

Side view of CMA CGM CONSTANZA

Hatch-Covers View

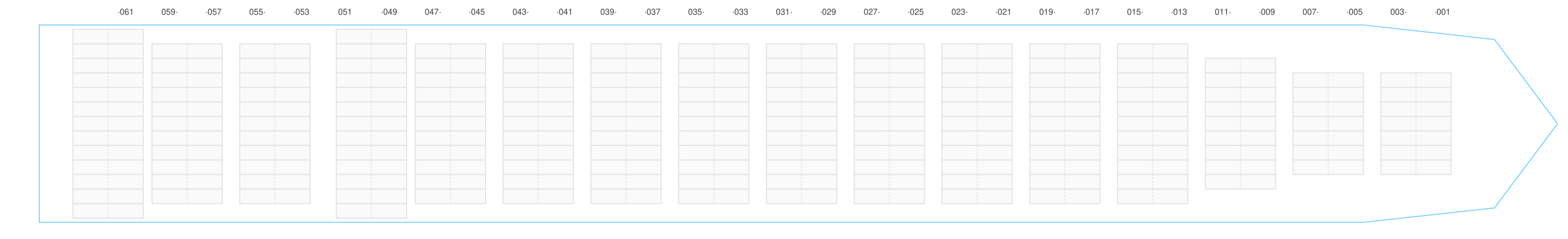

Deck view of CMA CGM CONSTANZA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Hazardous Prohib.
  • Restricted slot

001

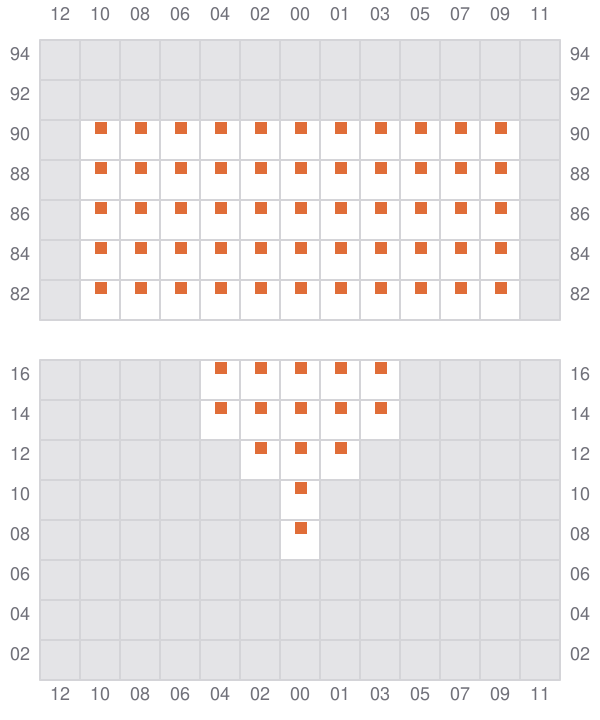

Bay 001 view and slots of CMA CGM CONSTANZA

003 (002)

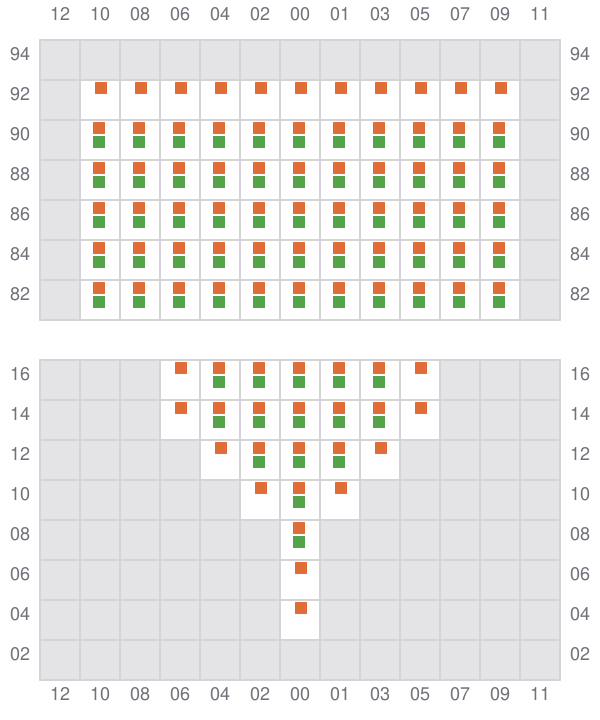

Bay 003 view and slots of CMA CGM CONSTANZA

005

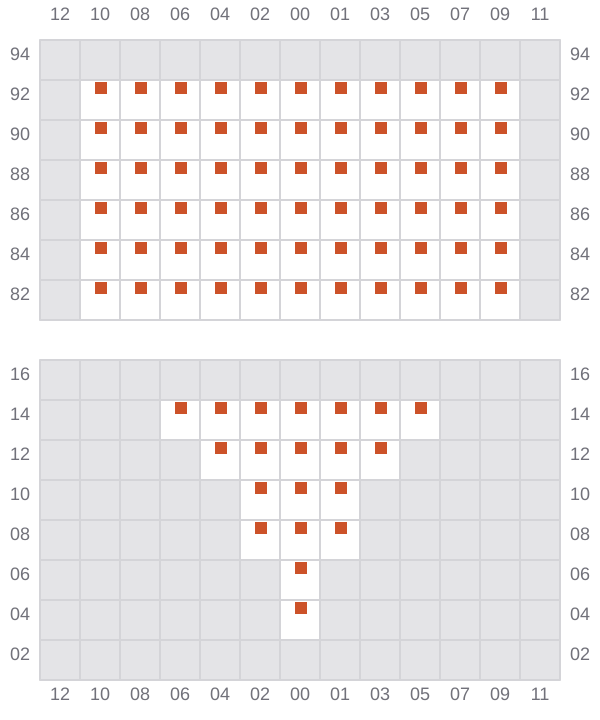

Bay 005 view and slots of CMA CGM CONSTANZA

007 (006)

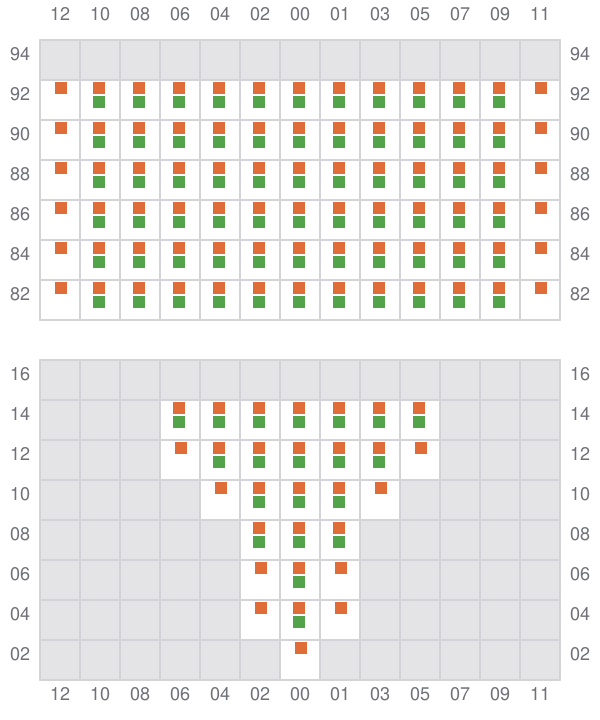

Bay 007 view and slots of CMA CGM CONSTANZA

009

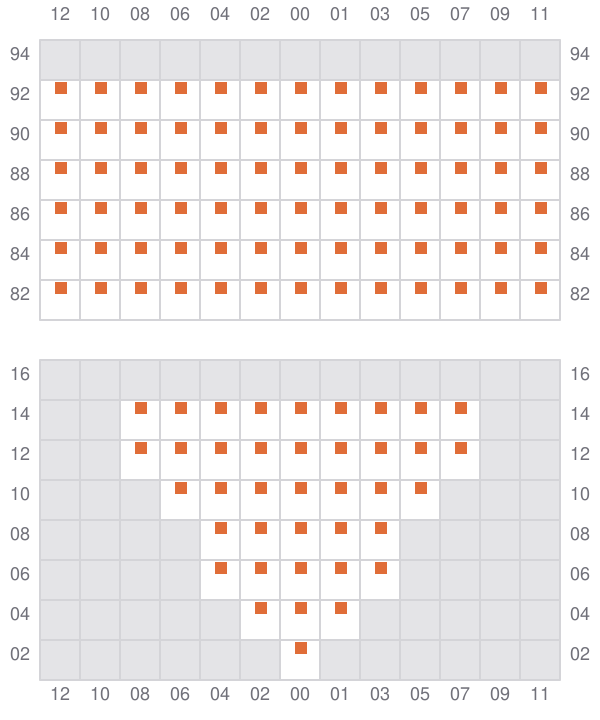

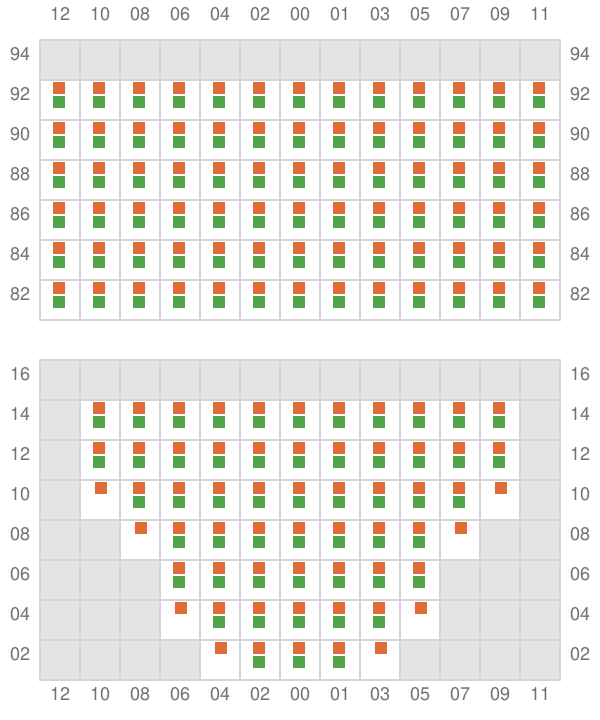

Bay 009 view and slots of CMA CGM CONSTANZA

011 (010)

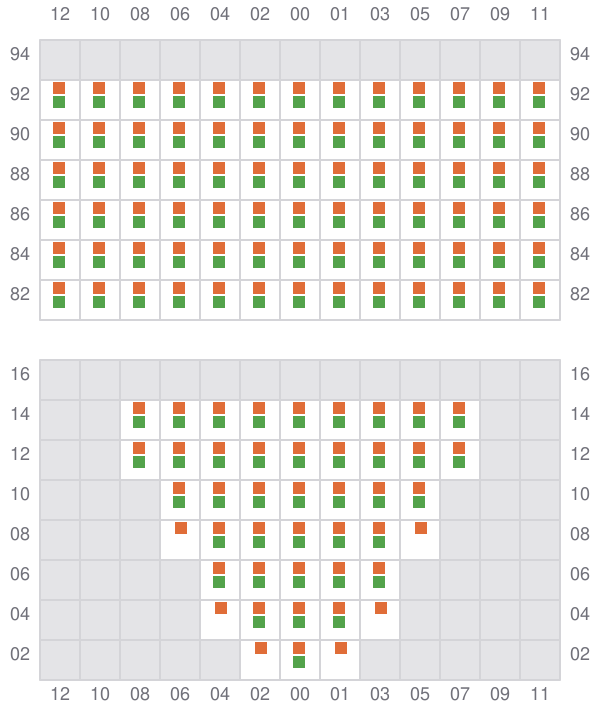

Bay 011 view and slots of CMA CGM CONSTANZA

013

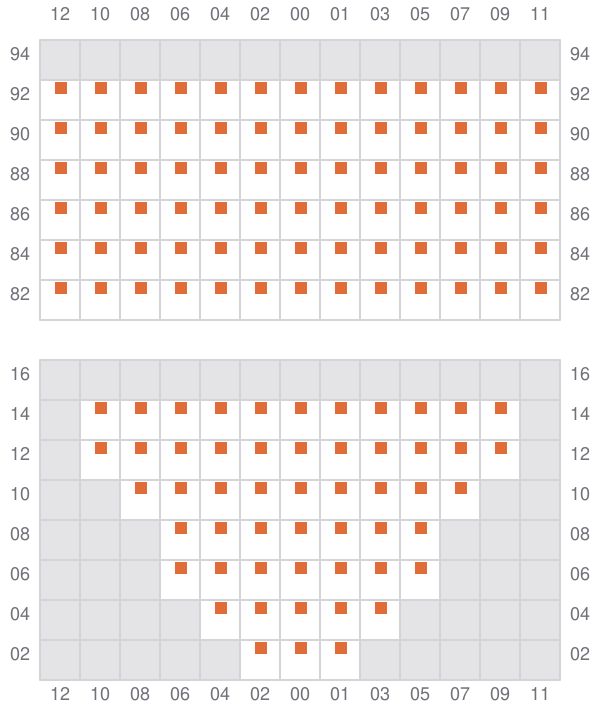

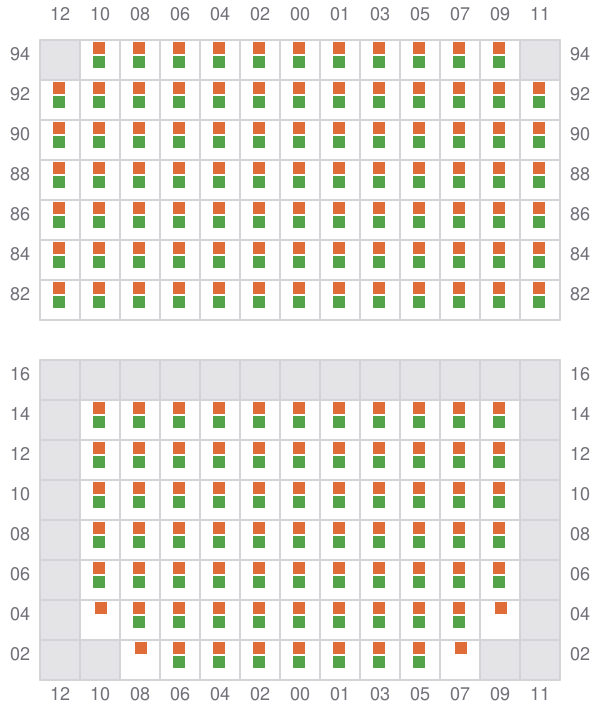

Bay 013 view and slots of CMA CGM CONSTANZA

015 (014)

Bay 015 view and slots of CMA CGM CONSTANZA

017

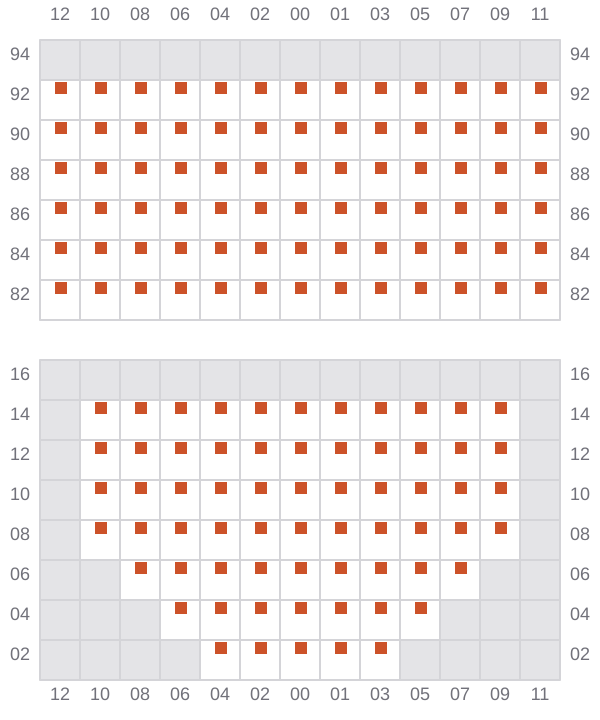

Bay 017 view and slots of CMA CGM CONSTANZA

019 (018)

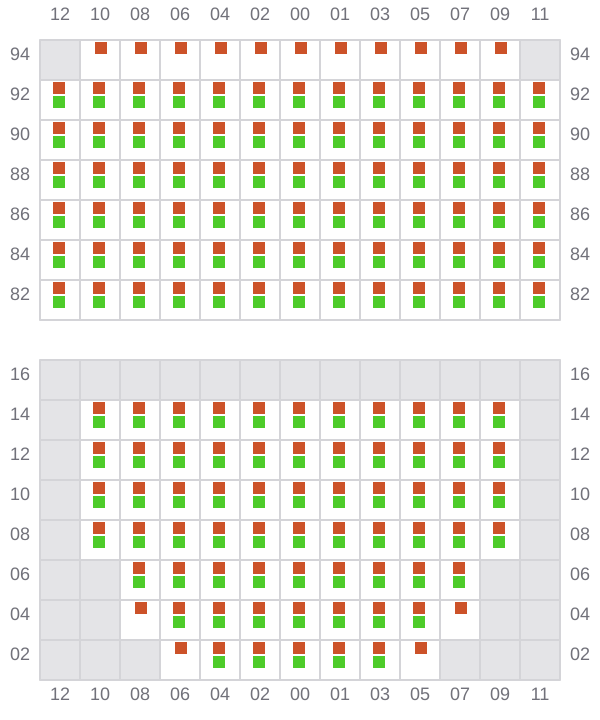

Bay 019 view and slots of CMA CGM CONSTANZA

021

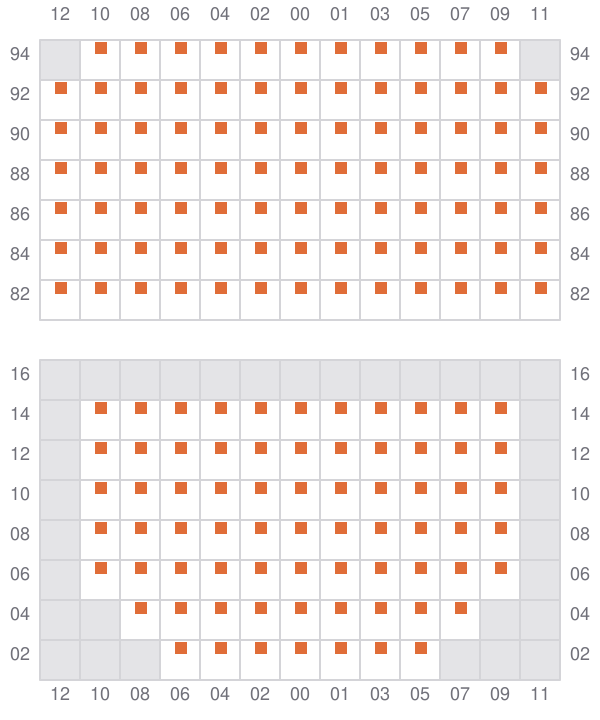

Bay 021 view and slots of CMA CGM CONSTANZA

023 (022)

Bay 023 view and slots of CMA CGM CONSTANZA

025

Bay 025 view and slots of CMA CGM CONSTANZA

027 (026)

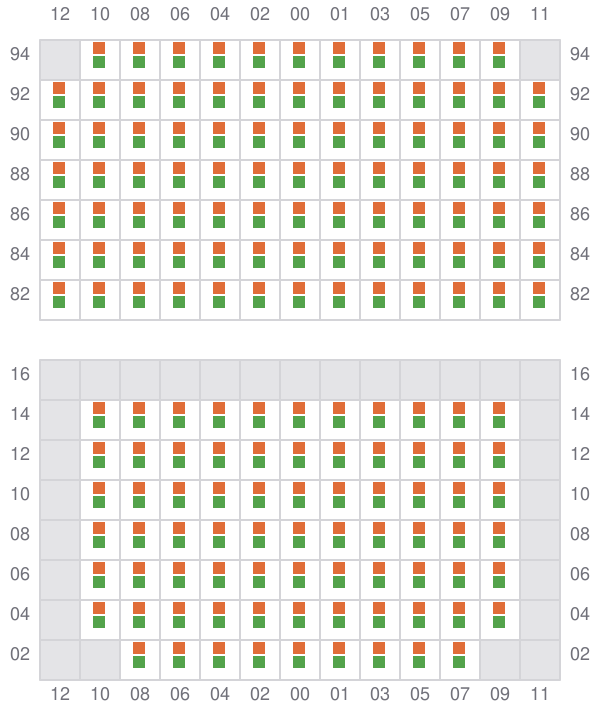

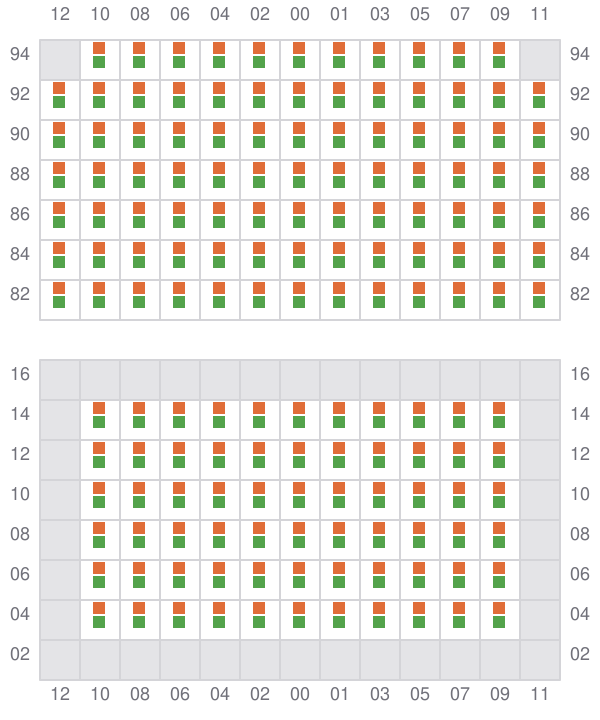

Bay 027 view and slots of CMA CGM CONSTANZA

029

Bay 029 view and slots of CMA CGM CONSTANZA

031 (030)

Bay 031 view and slots of CMA CGM CONSTANZA

033

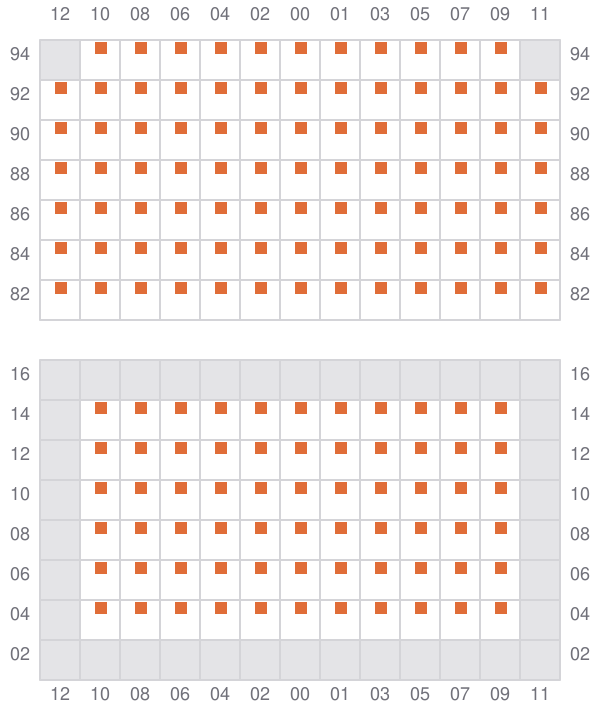

Bay 033 view and slots of CMA CGM CONSTANZA

035 (034)

Bay 035 view and slots of CMA CGM CONSTANZA

037

Bay 037 view and slots of CMA CGM CONSTANZA

039 (038)

Bay 039 view and slots of CMA CGM CONSTANZA

041

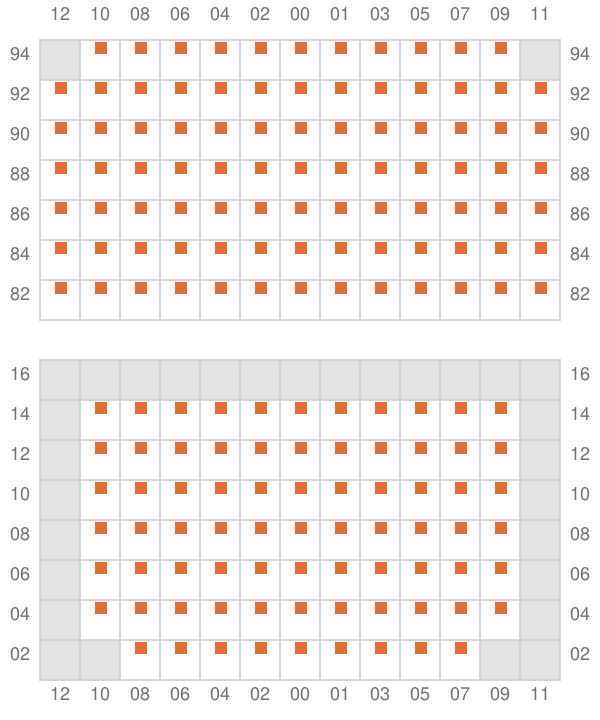

Bay 041 view and slots of CMA CGM CONSTANZA

043 (042)

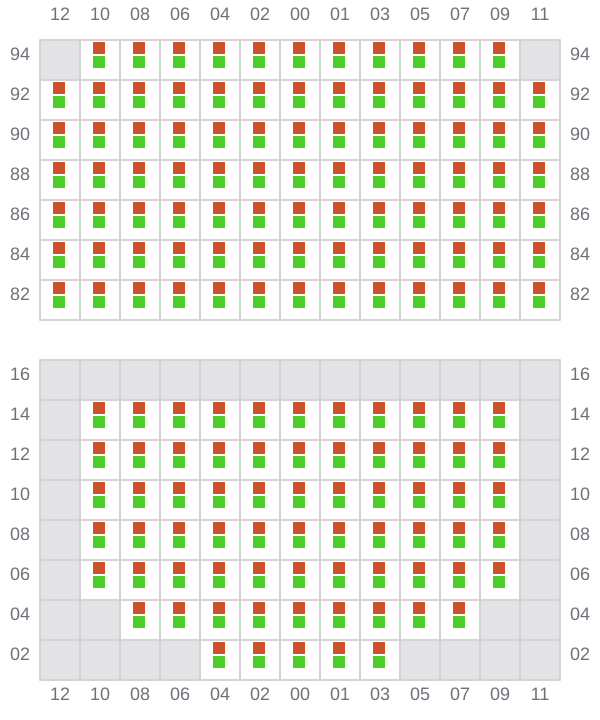

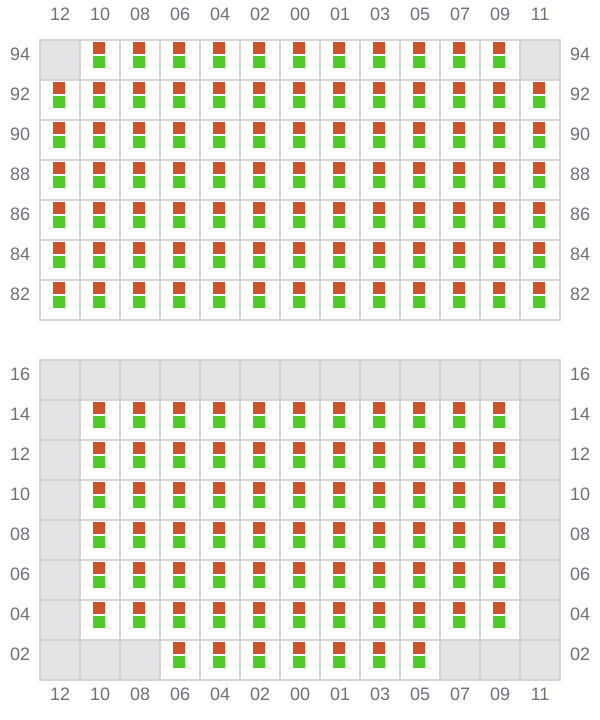

Bay 043 view and slots of CMA CGM CONSTANZA

045

Bay 045 view and slots of CMA CGM CONSTANZA

047 (046)

Bay 047 view and slots of CMA CGM CONSTANZA

049 (050)

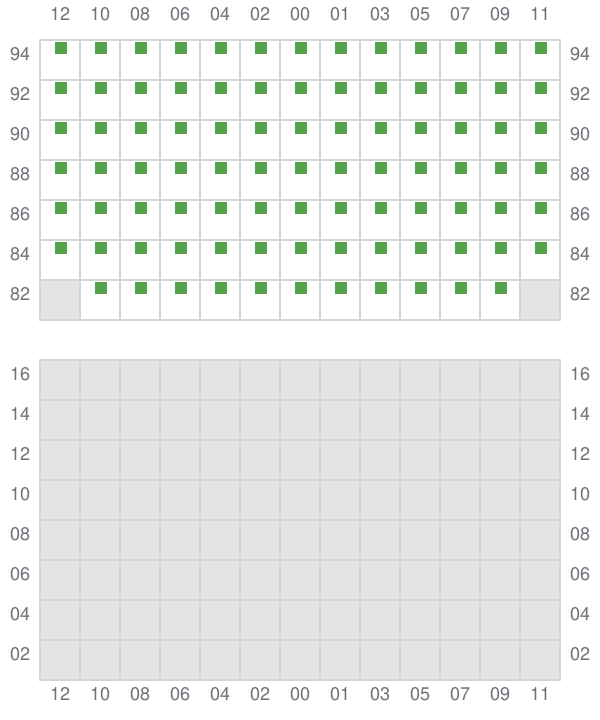

Bay 049 view and slots of CMA CGM CONSTANZA

051

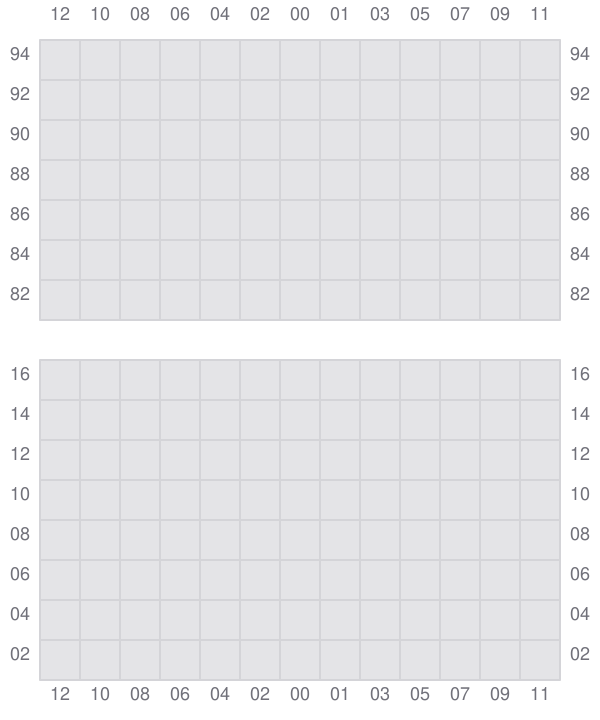

Bay 051 view and slots of CMA CGM CONSTANZA

053

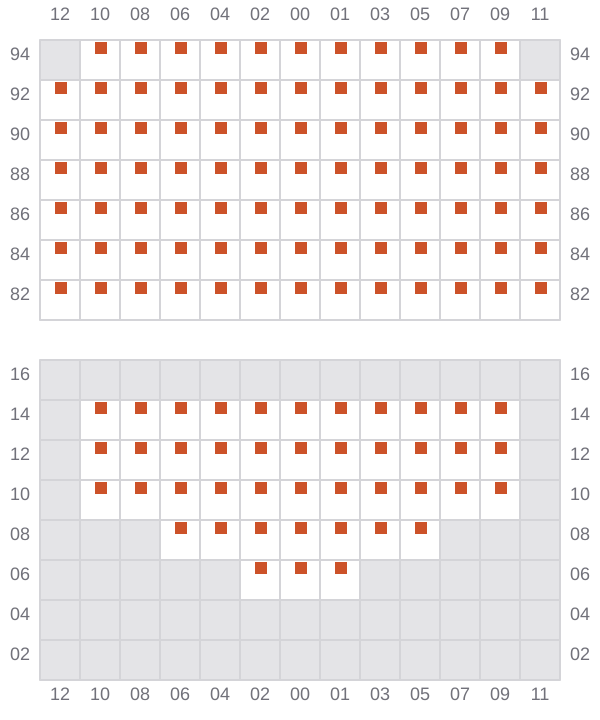

Bay 053 view and slots of CMA CGM CONSTANZA

055 (054)

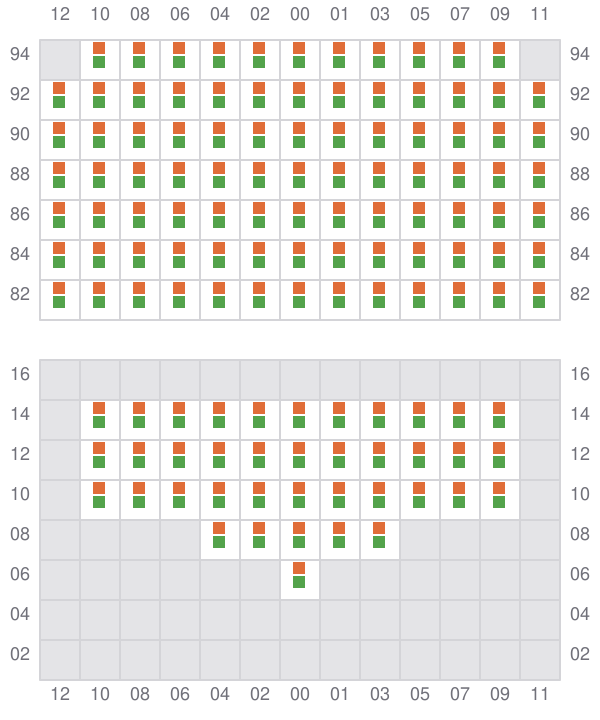

Bay 055 view and slots of CMA CGM CONSTANZA

057

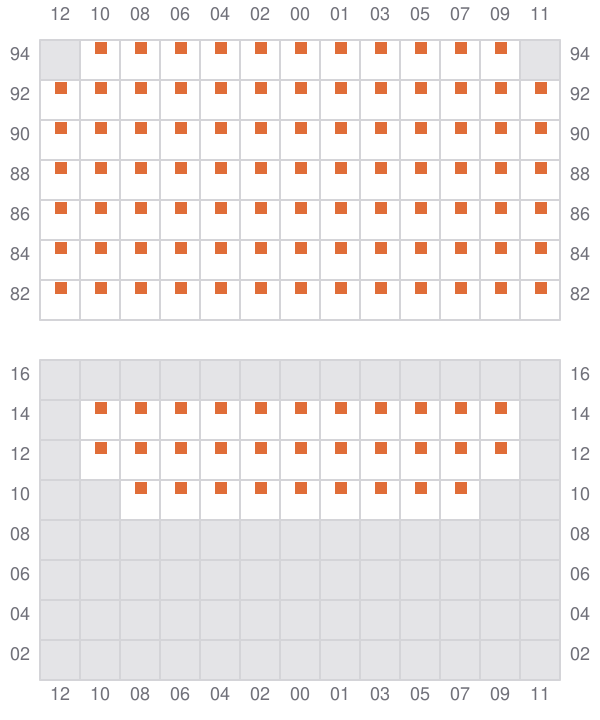

Bay 057 view and slots of CMA CGM CONSTANZA

059 (058)

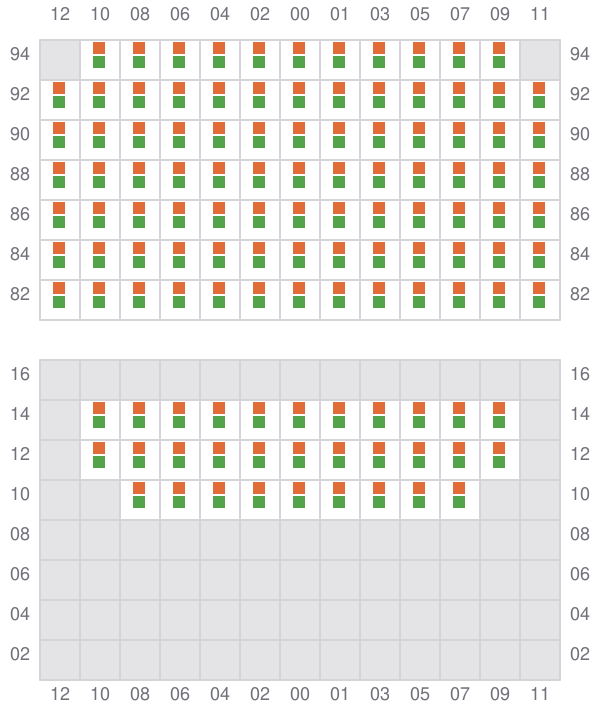

Bay 059 view and slots of CMA CGM CONSTANZA

061 (062)

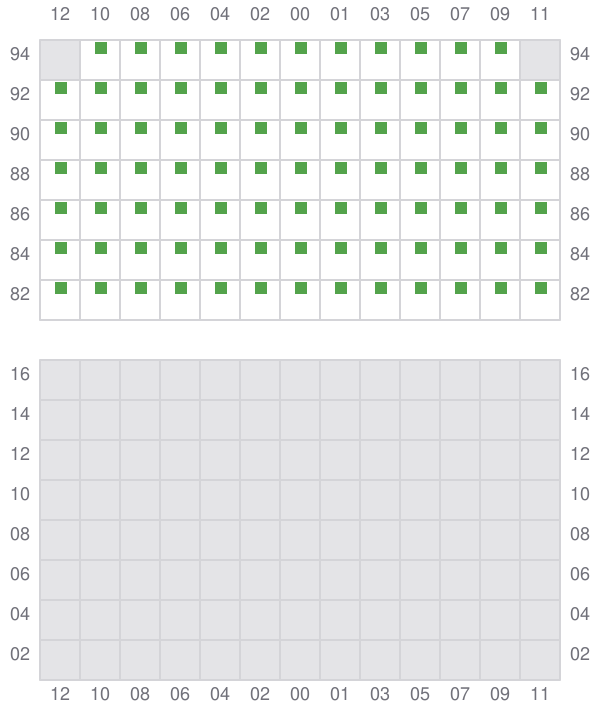

Bay 061 view and slots of CMA CGM CONSTANZA
