CMA CGM CORNEILLE
9409170 | A8SU4 | A009 by ******** Last update: Mon Jun 10 2024
General Info
Ship Name:CMA CGM CORNEILLE
IMO Code:9409170
Call Sign:A8SU4
Line Operator:A009
Class Name for Sister Ships:STAF
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,574
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-sideView.png?v=1718037452632)
Hatch-Covers View
![Deck view of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-deckView.png?v=1718037452632)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
![Bay 001 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b001.png?v=1718037452632)
003
- ←
- →
![Bay 003 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b003.png?v=1718037452632)
005 (006)
- →
- →
![Bay 005 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b005.png?v=1718037452632)
007
- ←
- →
![Bay 007 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b007.png?v=1718037452632)

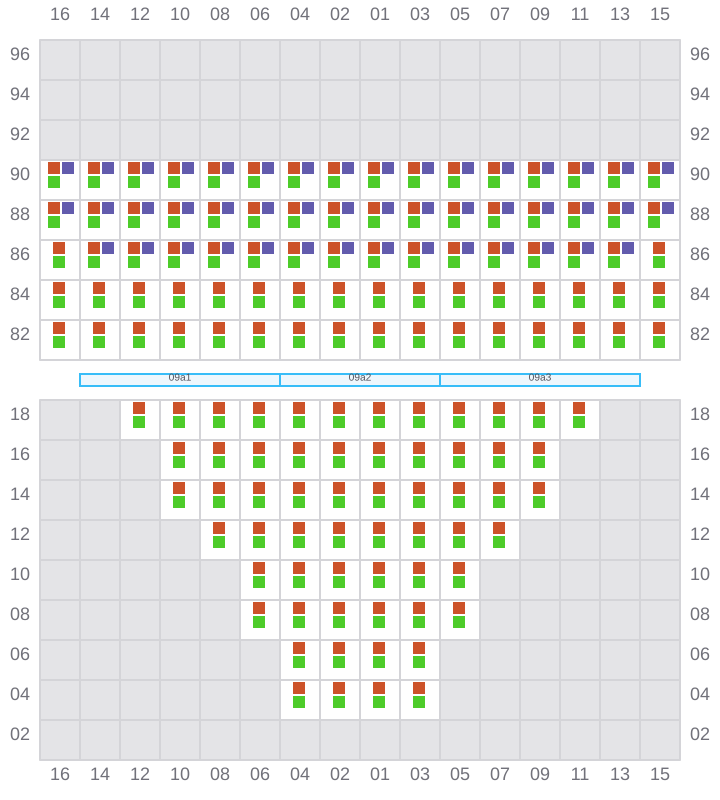

009 (010)
- →
- →
![Bay 009 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b009.png?v=1718037452632)
011
- ←
- → / ?
- →
![Bay 011 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b011.png?v=1718037452632)
013 (014)
- →
- ← / ?
- →
![Bay 013 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b013.png?v=1718037452632)
015
- ←
- → / ?
- →
![Bay 015 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b015.png?v=1718037452632)
017 (018)
- →
- ← / ?
- →
![Bay 017 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b017.png?v=1718037452632)
019
- ←
- → / ?
- →
![Bay 019 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b019.png?v=1718037452632)
021 (022)
- →
- ← / ?
- →
![Bay 021 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b021.png?v=1718037452632)
023
- ←
- → / ?
- →
![Bay 023 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b023.png?v=1718037452632)
025 (026)
- →
- ← / ?
- →
![Bay 025 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b025.png?v=1718037452632)
027
- ←
- → / ?
- →
![Bay 027 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b027.png?v=1718037452632)
029 (030)
- →
- ← / ?
- →
![Bay 029 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b029.png?v=1718037452632)
031
- ←
- → / ?
- →
![Bay 031 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b031.png?v=1718037452632)
033 (034)
- →
- ← / ?
- →
![Bay 033 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b033.png?v=1718037452632)
035
- ←
- → / ?
- →
![Bay 035 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b035.png?v=1718037452632)
037 (038)
- →
- ← / ?
- →
![Bay 037 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b037.png?v=1718037452632)
039
- ←
- → / ?
- →
![Bay 039 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b039.png?v=1718037452632)
041 (042)
- →
- ← / ?
- →
![Bay 041 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b041.png?v=1718037452632)
043
- ←
- → / ?
- →
![Bay 043 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b043.png?v=1718037452632)
045 (046)
- →
- ← / ?
- →
![Bay 045 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b045.png?v=1718037452632)
047
- ←
- → / ?
- →
![Bay 047 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b047.png?v=1718037452632)
049 (050)
- →
- ← / ?
- →
![Bay 049 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b049.png?v=1718037452632)
051
- ←
- → / ?
- →
![Bay 051 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b051.png?v=1718037452632)
053 (054)
- →
- ← / ?
- →
![Bay 053 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b053.png?v=1718037452632)
055
- ←
- → / ?
- →
![Bay 055 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b055.png?v=1718037452632)

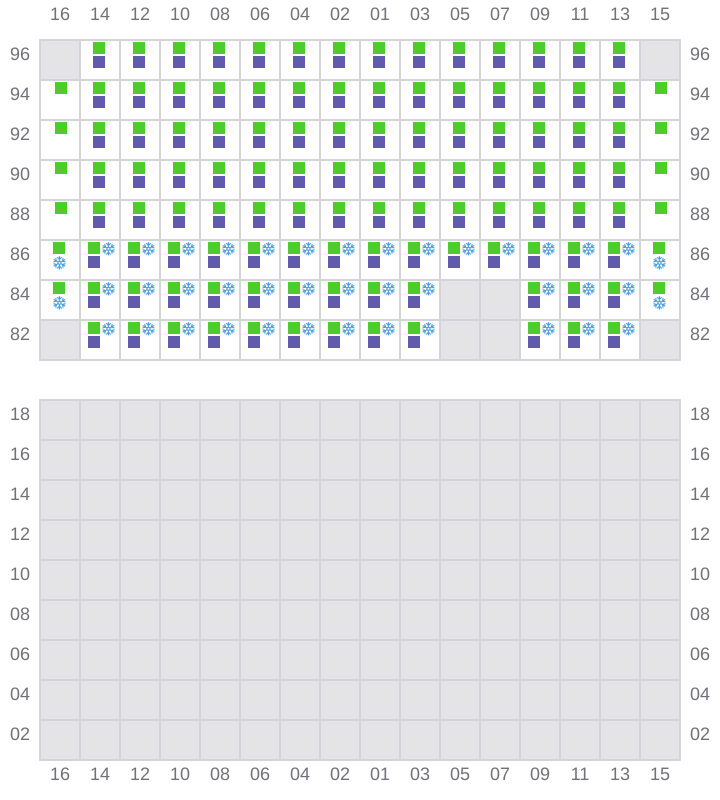

057 (058)
- → / ?
- → / ?
- → / ?
![Bay 057 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b057.png?v=1718037452632)

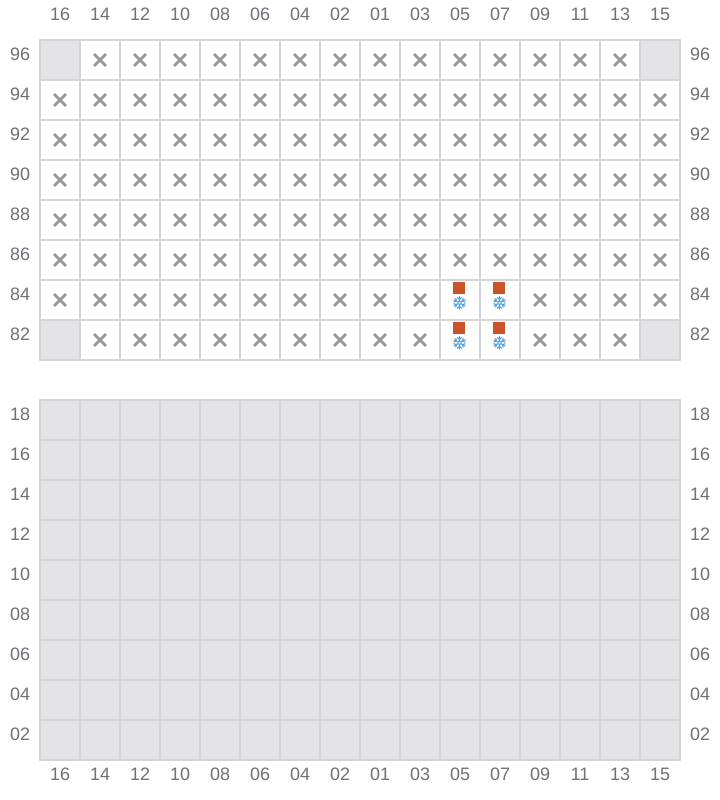

059
- ← / ?
- → / ?
- → / ?
![Bay 059 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b059.png?v=1718037452632)
061 (062)
- →
- ← / ?
- →
![Bay 061 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b061.png?v=1718037452632)
063
- ←
- → / ?
- →
![Bay 063 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b063.png?v=1718037452632)
065 (066)
- →
- ← / ?
- →
![Bay 065 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b065.png?v=1718037452632)
067
- ←
- → / ?
- →
![Bay 067 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b067.png?v=1718037452632)
069
- ← / ?
- → / ?
![Bay 069 view and slots of CMA CGM CORNEILLE](/vessel-images/4185fff9-e03b-471b-b266-86072e4d32e8-b069.png?v=1718037452632)
