CMA CGM DALILA
9450624 | FLSQ | CMA by ***************************** Last update: Mon May 29 2023

General Info

Ship Name:CMA CGM DALILA
IMO Code:9450624
Call Sign:FLSQ
Line Operator:CMA
Class Name for Sister Ships:CDAL
Year Built:2010
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,873

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

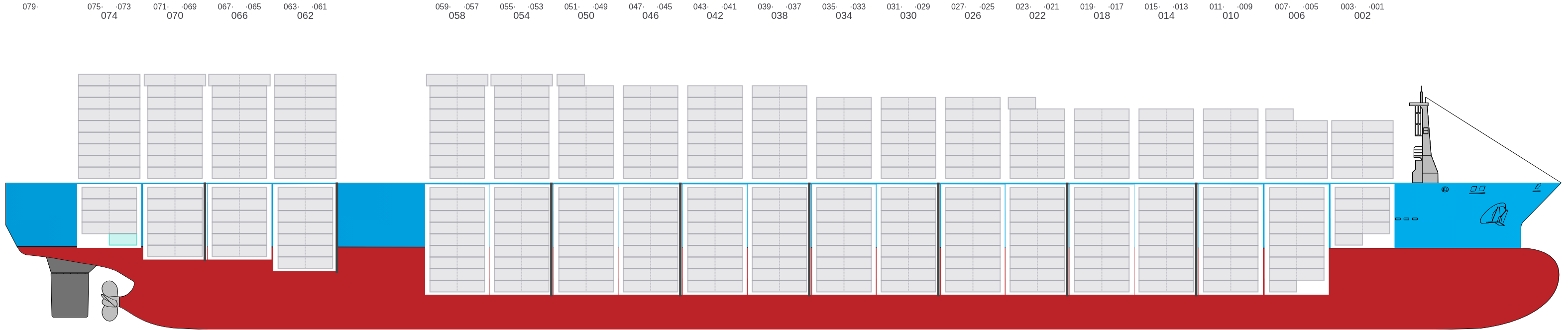

Side View

Side view of CMA CGM DALILA

Hatch-Covers View

Deck view of CMA CGM DALILA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

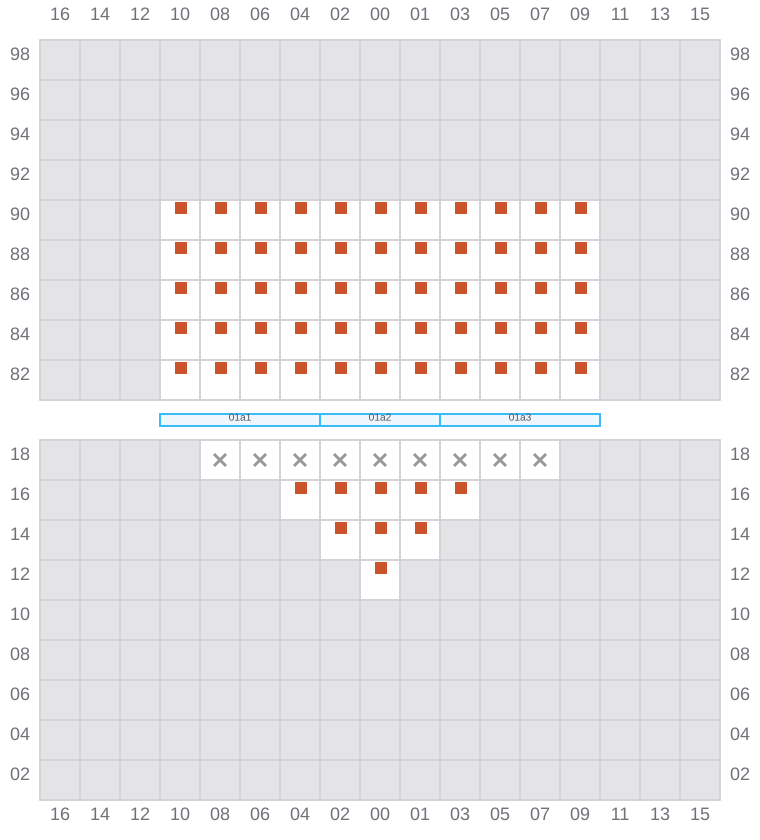

Bay 001 view and slots of CMA CGM DALILA

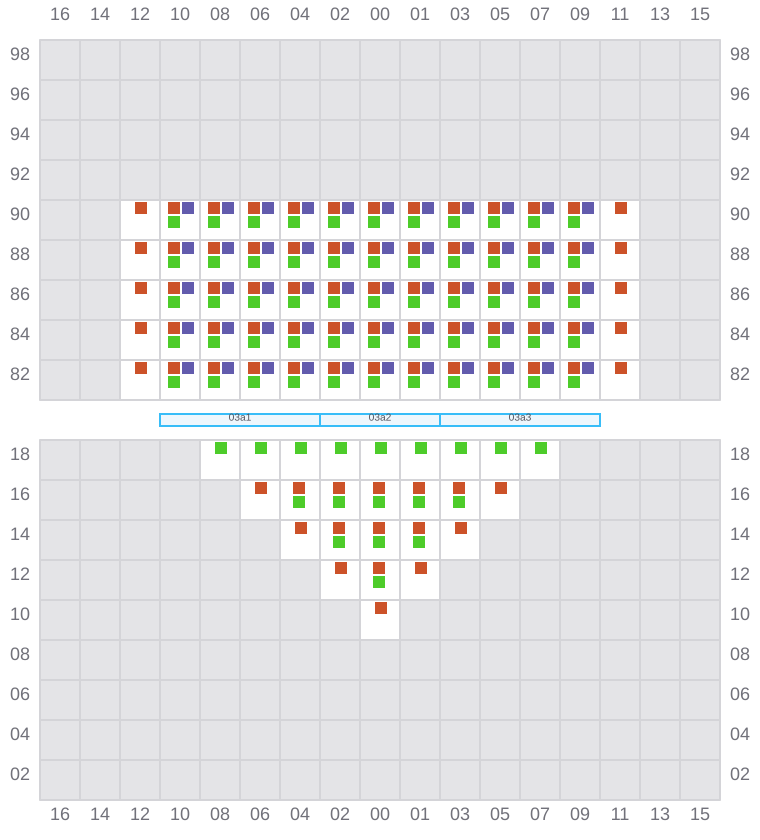

003 (002)

  • ←
  • →
Bay 003 view and slots of CMA CGM DALILA

005

  • →
  • →

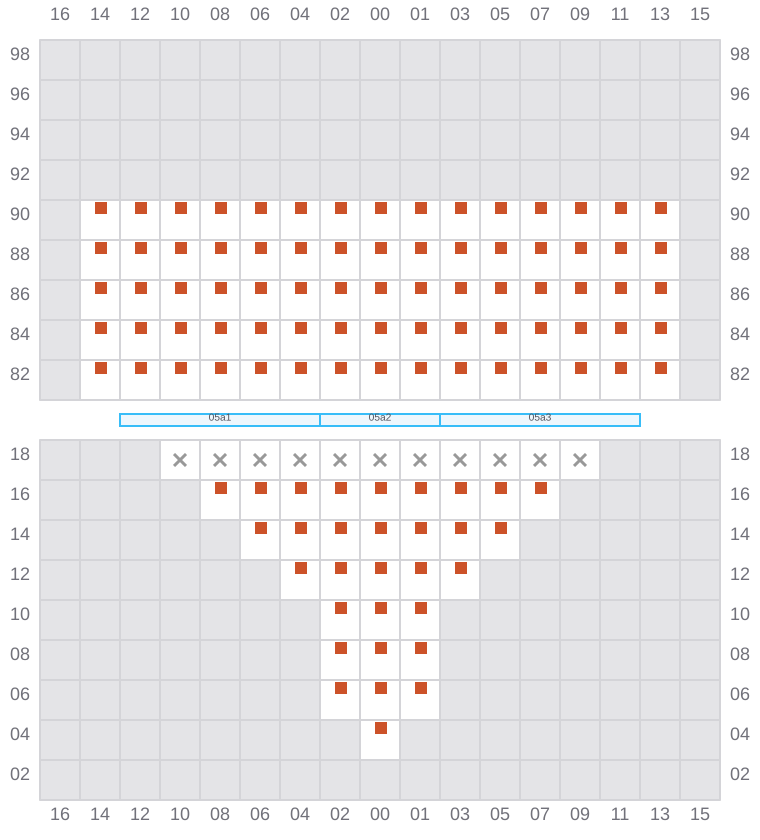

Bay 005 view and slots of CMA CGM DALILA

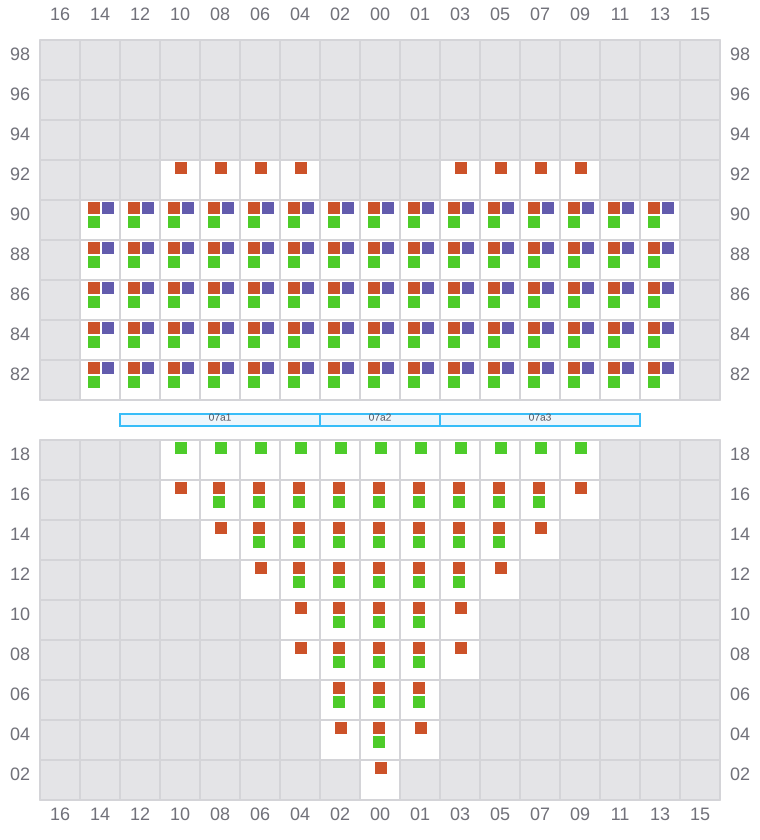

007 (006)

  • ←
  • →
Bay 007 view and slots of CMA CGM DALILA

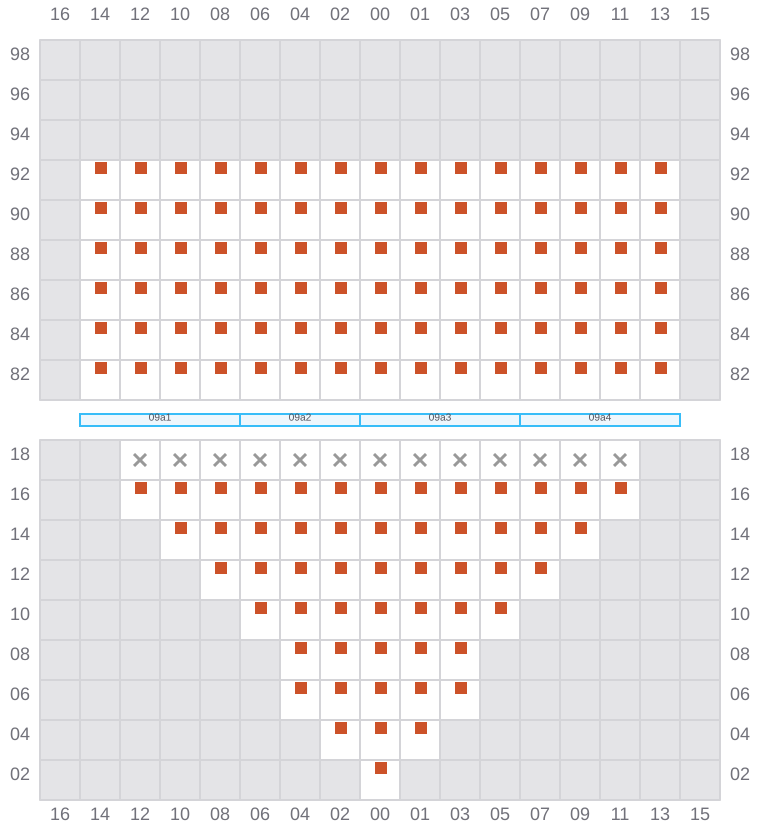

009

  • →
  • →
Bay 009 view and slots of CMA CGM DALILA

011 (010)

  • ←
  • → / ?
  • →

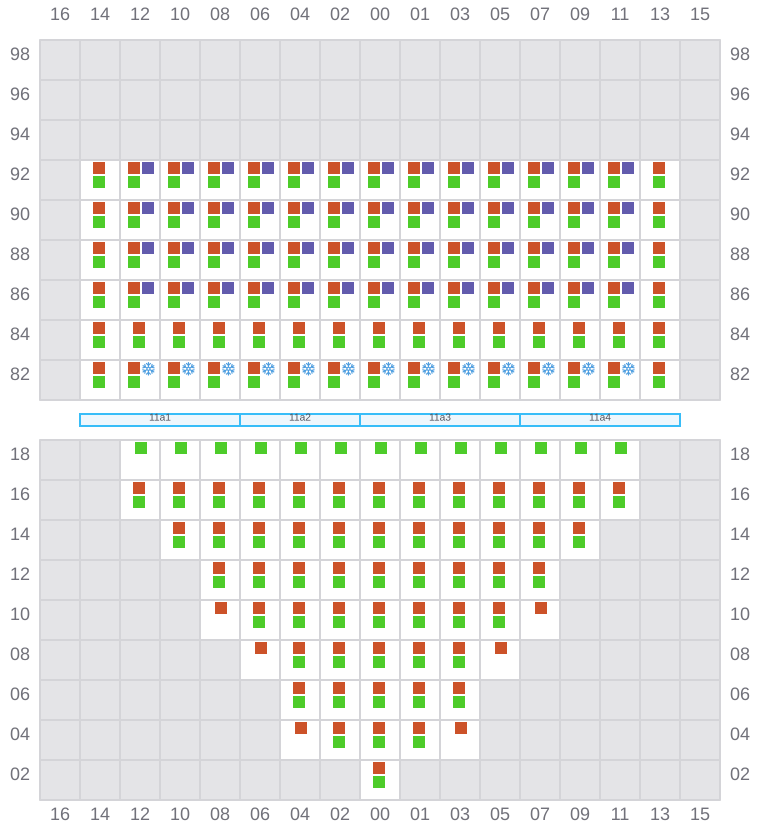

Bay 011 view and slots of CMA CGM DALILA

013

  • →
  • →

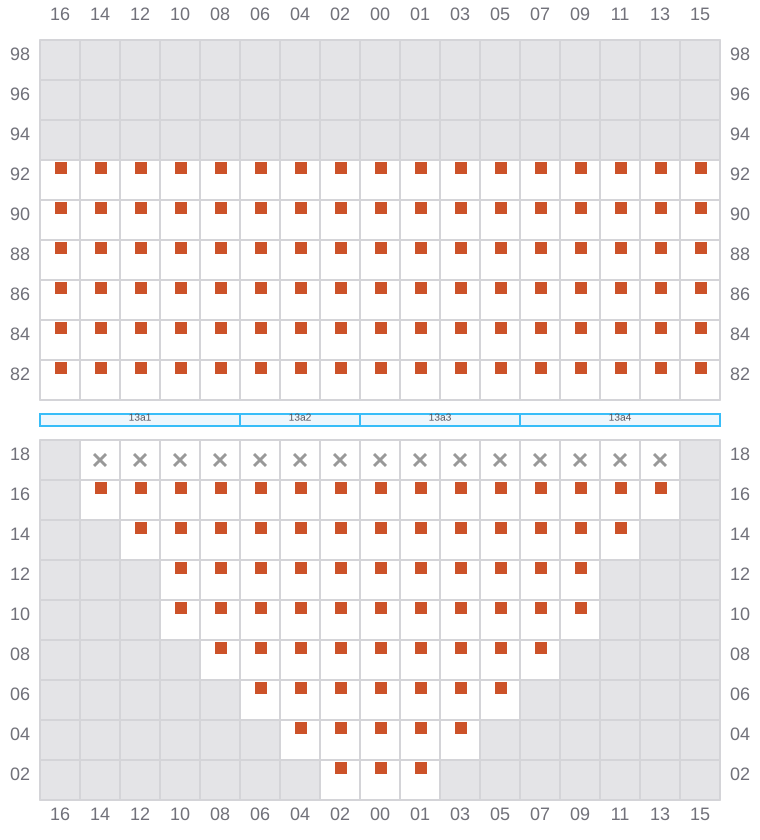

Bay 013 view and slots of CMA CGM DALILA

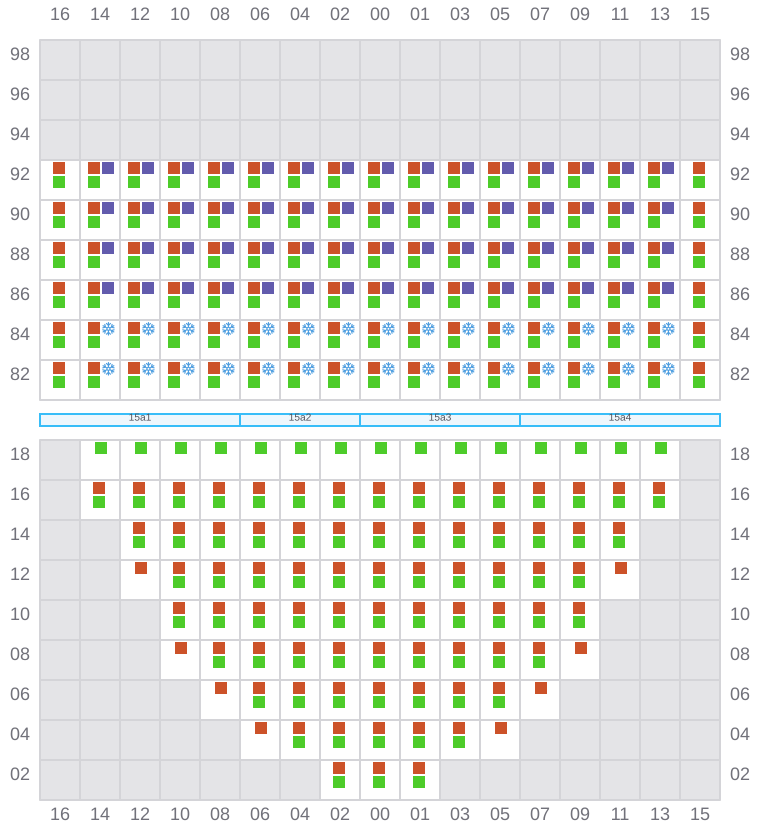

015 (014)

  • ←
  • → / ?
  • →
Bay 015 view and slots of CMA CGM DALILA

017

  • →
  • →

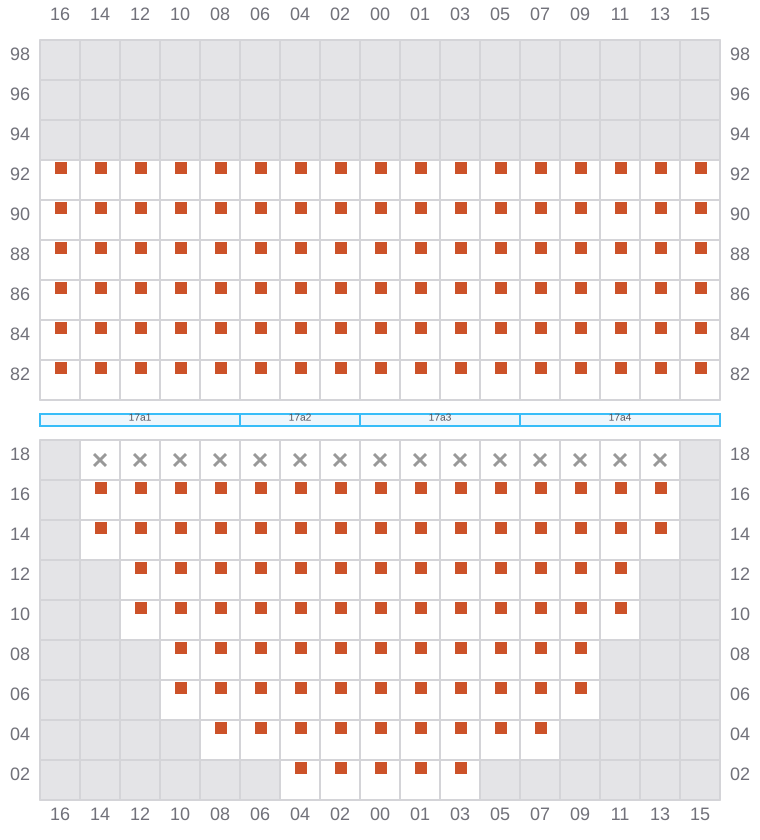

Bay 017 view and slots of CMA CGM DALILA

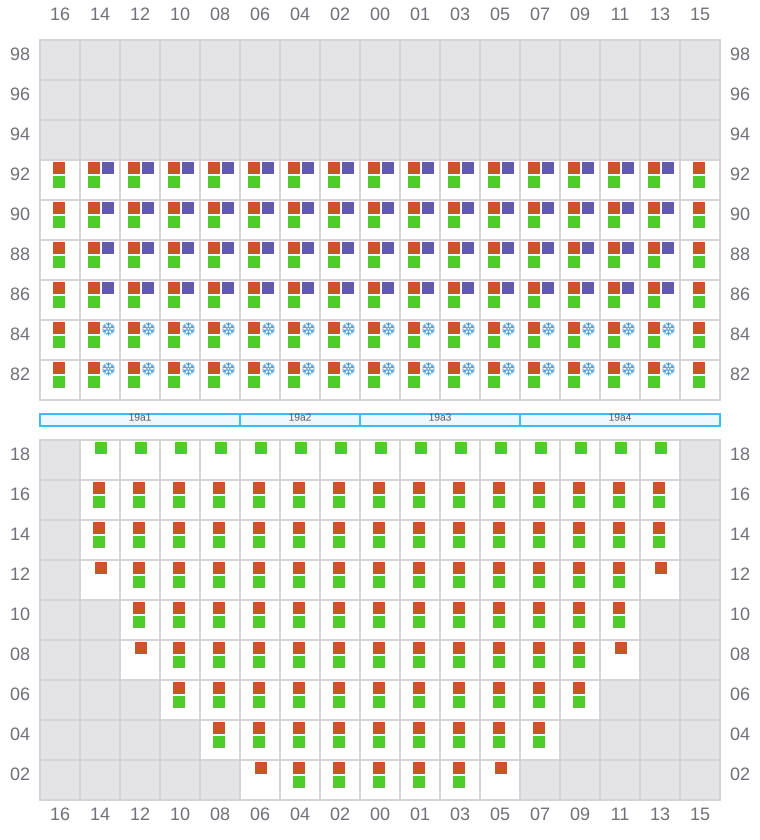

019 (018)

  • ←
  • → / ?
  • →
Bay 019 view and slots of CMA CGM DALILA

021

  • →
  • →

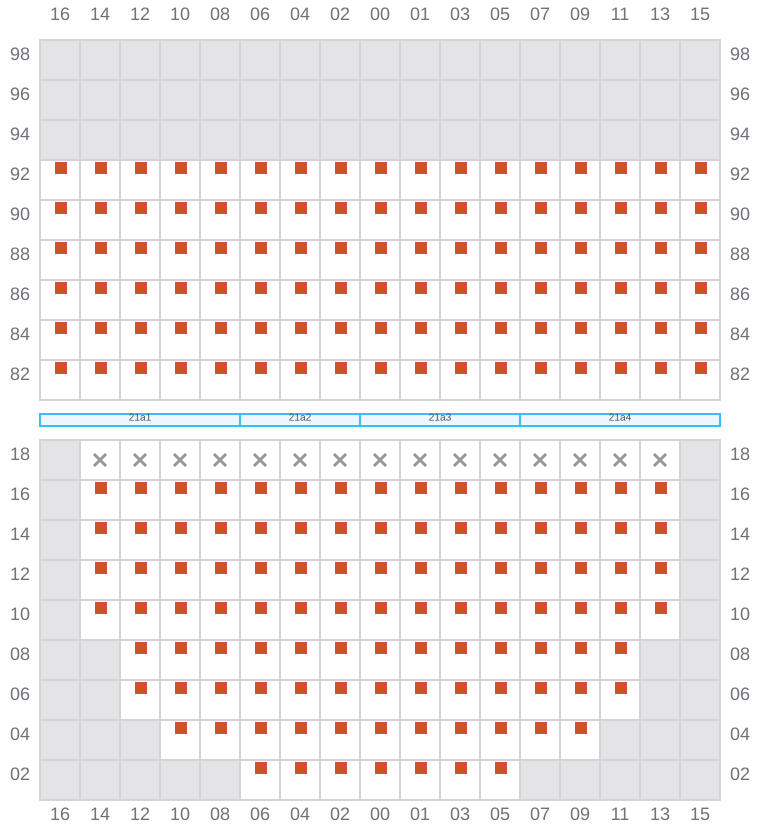

Bay 021 view and slots of CMA CGM DALILA

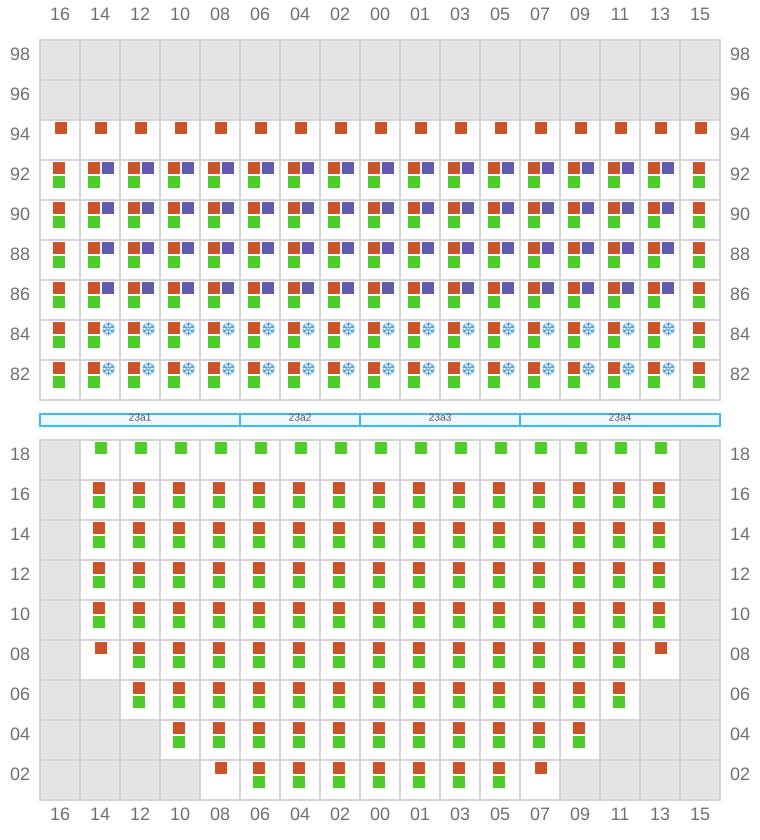

023 (022)

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM DALILA

025

  • →
  • →

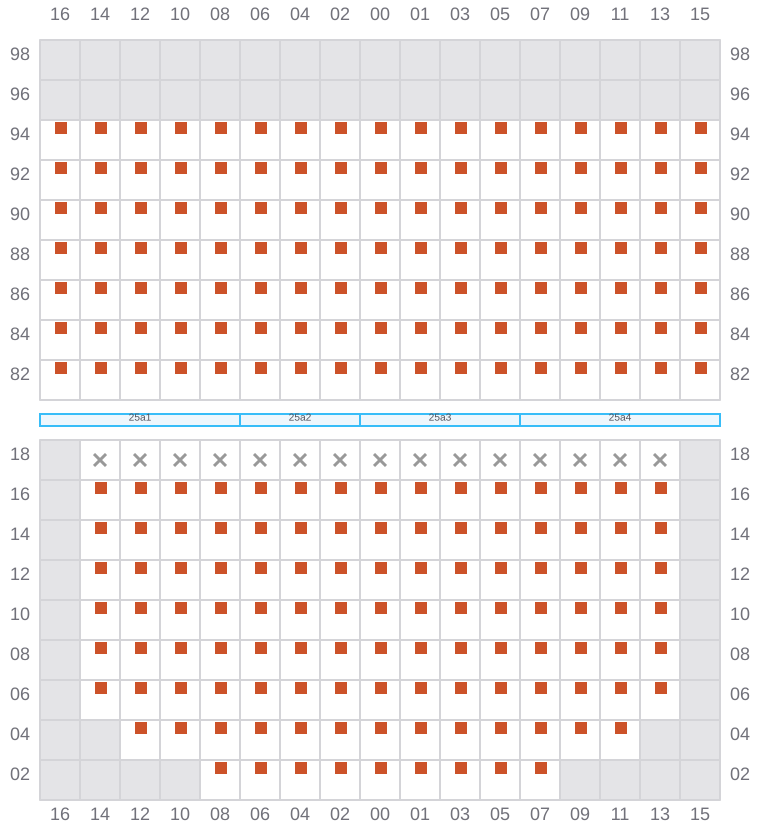

Bay 025 view and slots of CMA CGM DALILA

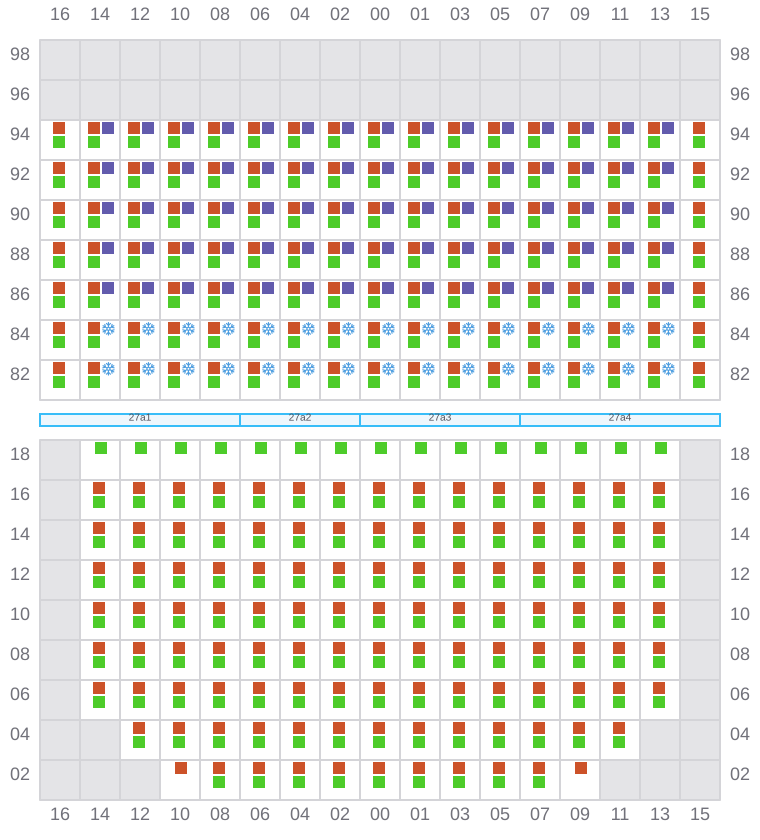

027 (026)

  • ←
  • → / ?
  • →
Bay 027 view and slots of CMA CGM DALILA

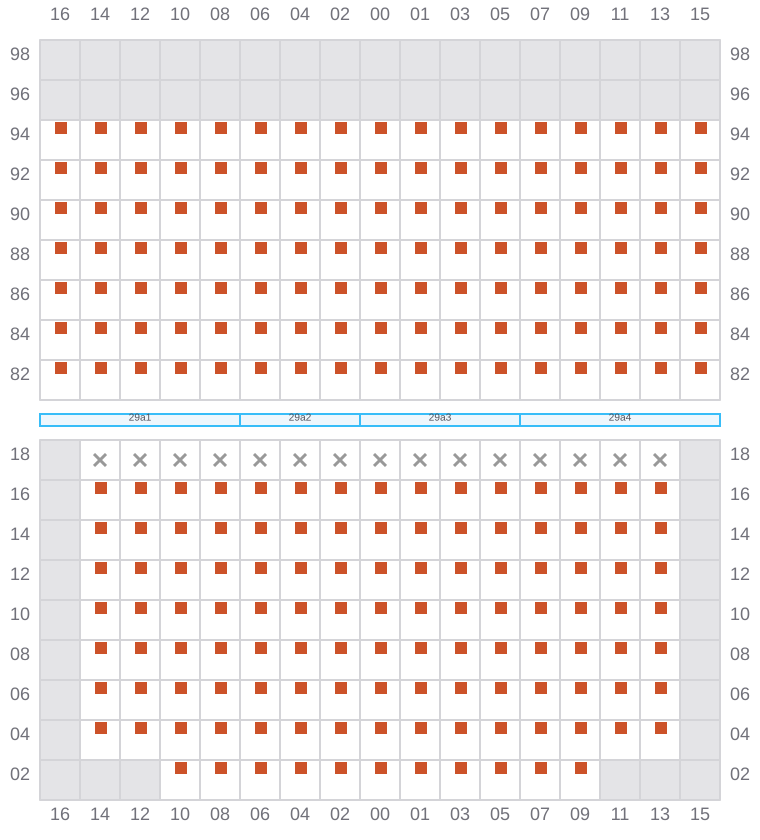

029

  • →
  • →
Bay 029 view and slots of CMA CGM DALILA

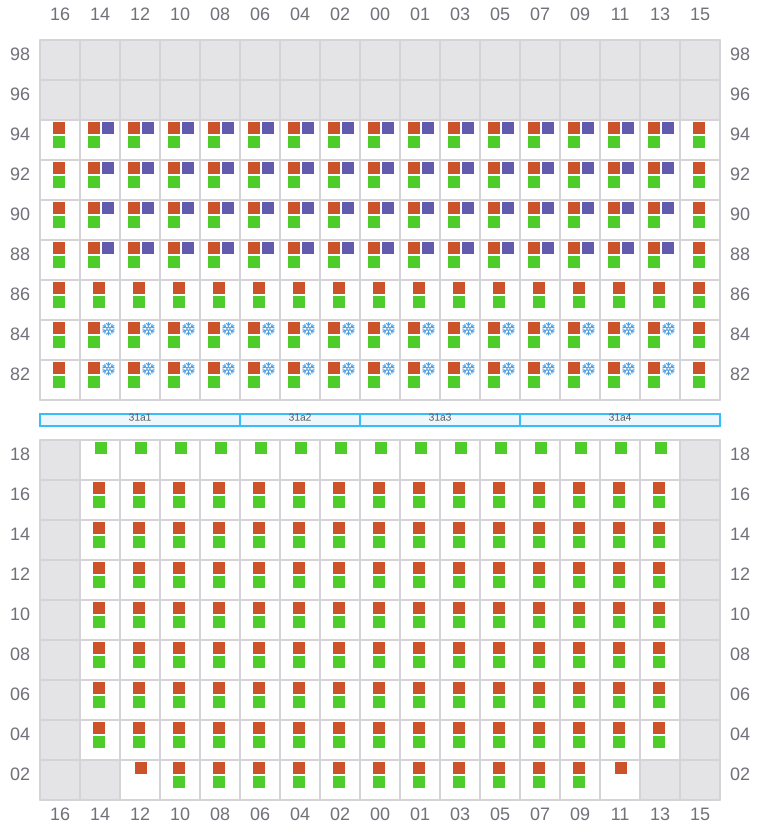

031 (030)

  • ←
  • → / ?
  • →
Bay 031 view and slots of CMA CGM DALILA

033

  • →
  • →

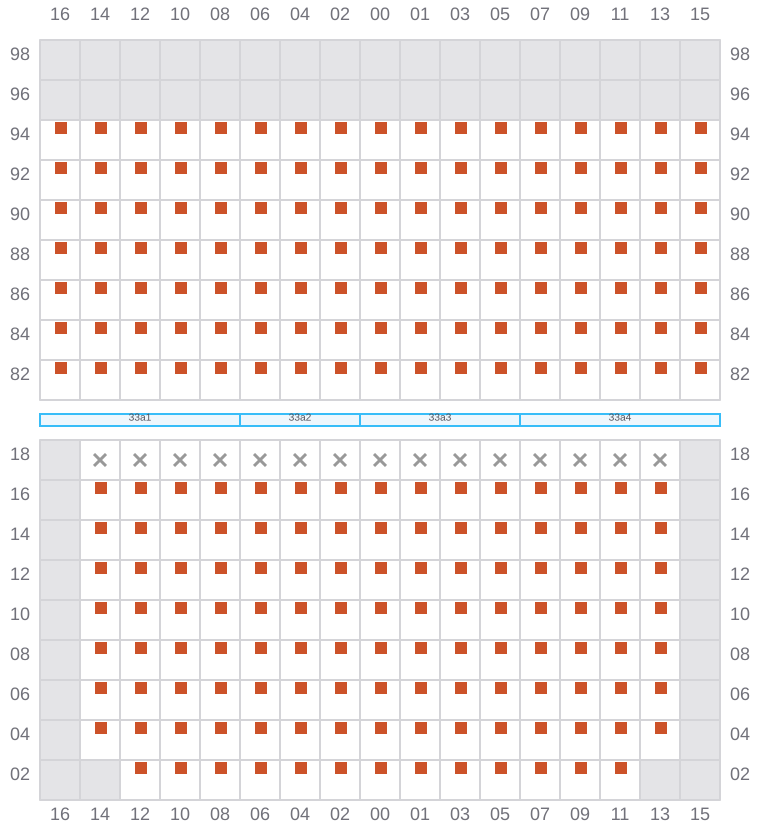

Bay 033 view and slots of CMA CGM DALILA

035 (034)

  • ←
  • → / ?
  • →
Bay 035 view and slots of CMA CGM DALILA

037

  • →
  • →

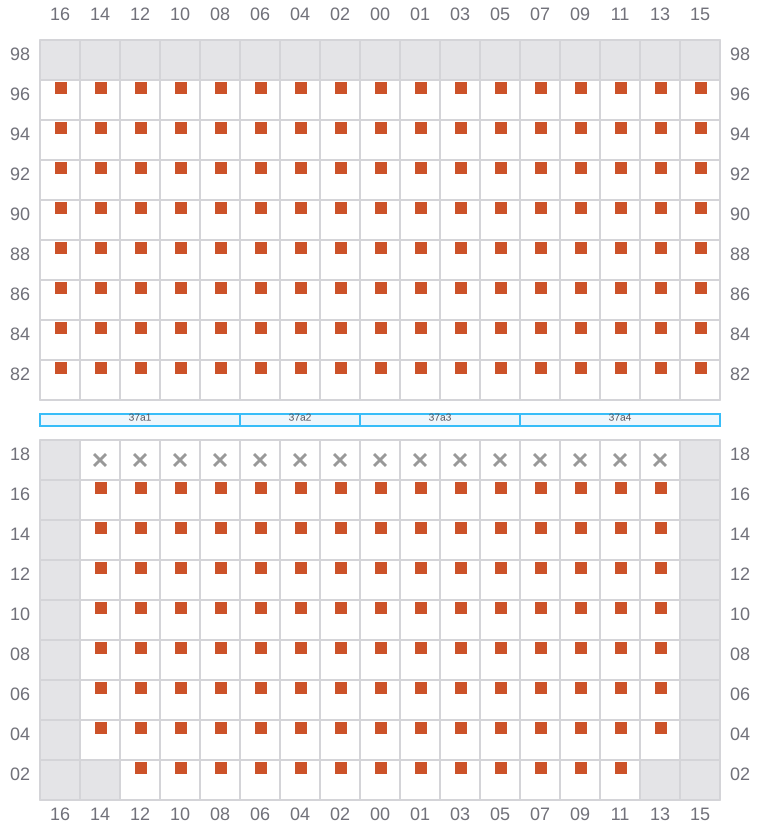

Bay 037 view and slots of CMA CGM DALILA

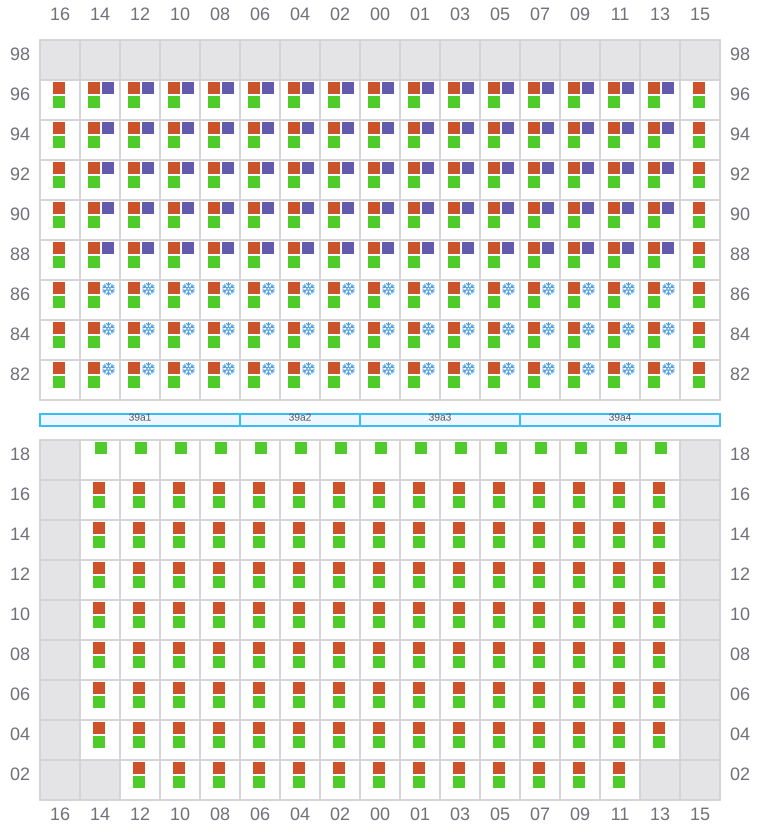

039 (038)

  • ←
  • → / ?
  • →
Bay 039 view and slots of CMA CGM DALILA

041

  • →
  • →
Bay 041 view and slots of CMA CGM DALILA

043 (042)

  • ←
  • → / ?
  • →
Bay 043 view and slots of CMA CGM DALILA

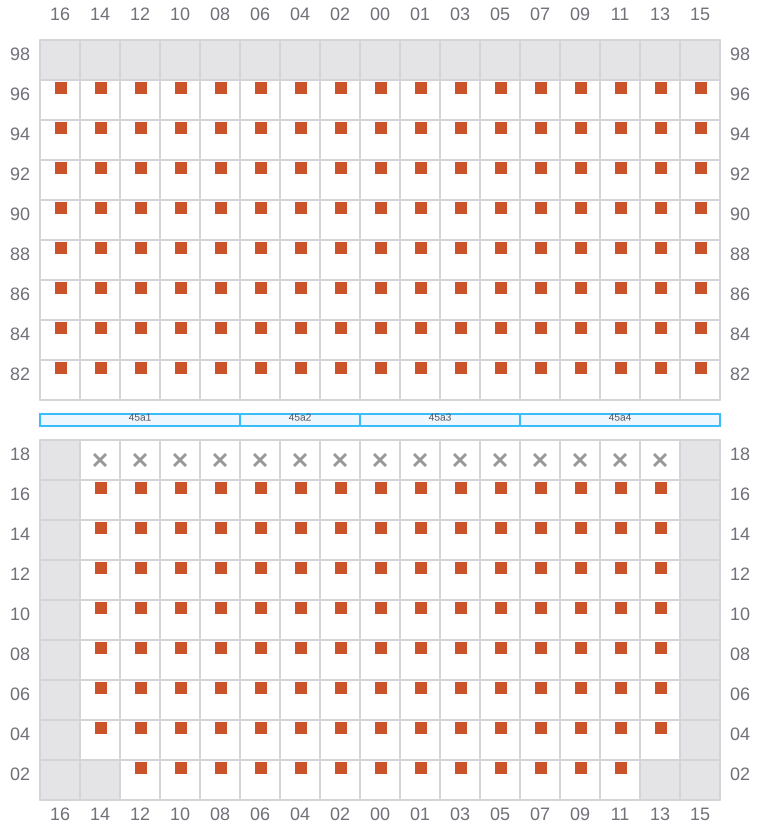

045

  • →
  • →
Bay 045 view and slots of CMA CGM DALILA

047 (046)

  • ←
  • → / ?
  • →

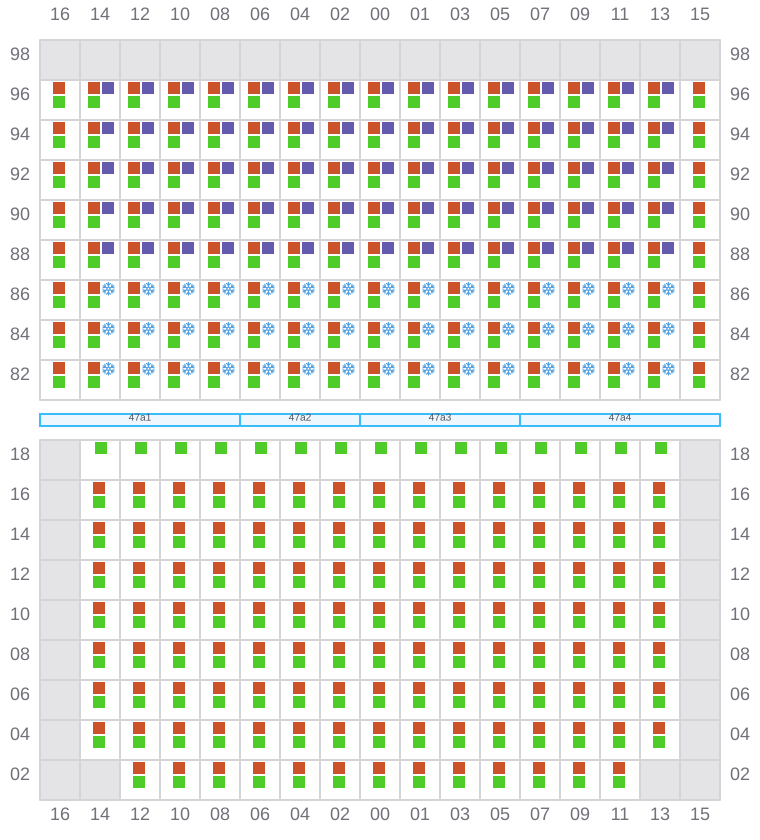

Bay 047 view and slots of CMA CGM DALILA

049

  • →
  • →
Bay 049 view and slots of CMA CGM DALILA

051 (050)

  • ←
  • → / ?
  • →

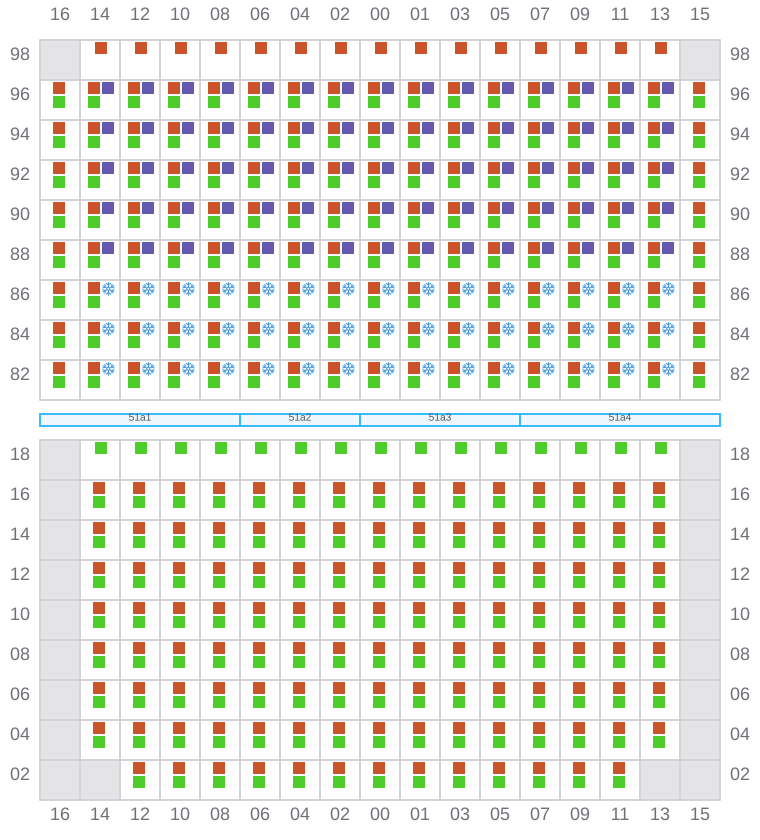

Bay 051 view and slots of CMA CGM DALILA

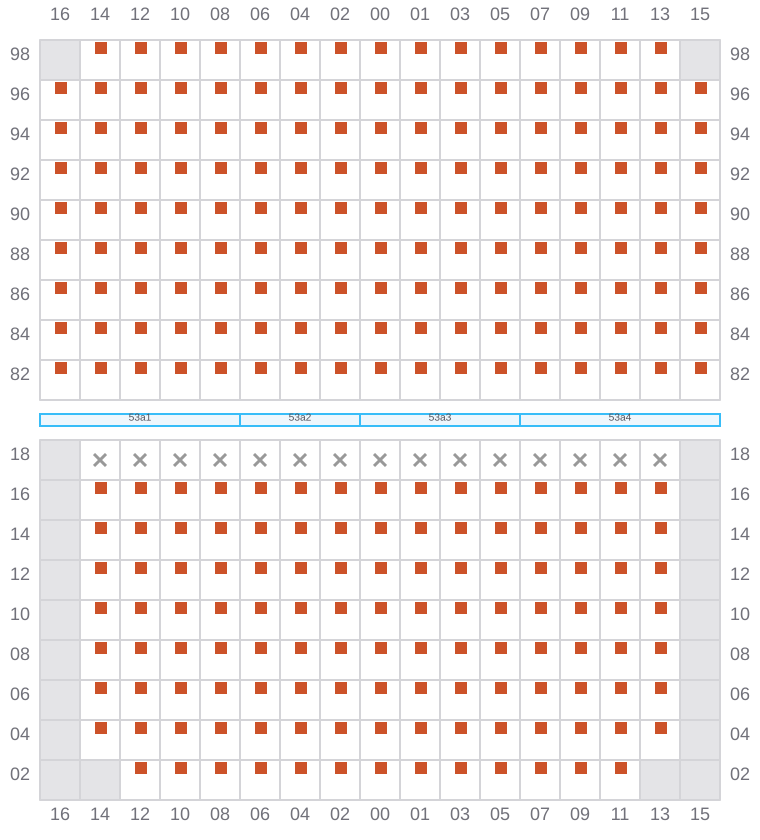

053

  • →
  • →
Bay 053 view and slots of CMA CGM DALILA

055 (054)

  • ←
  • → / ?
  • →
Bay 055 view and slots of CMA CGM DALILA

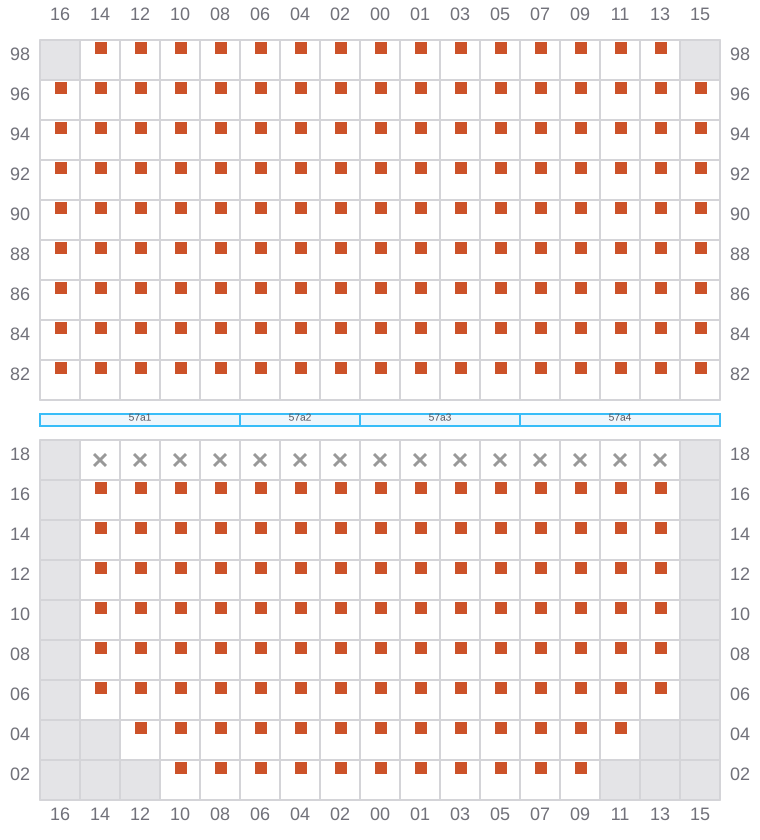

057

  • →
  • →
Bay 057 view and slots of CMA CGM DALILA

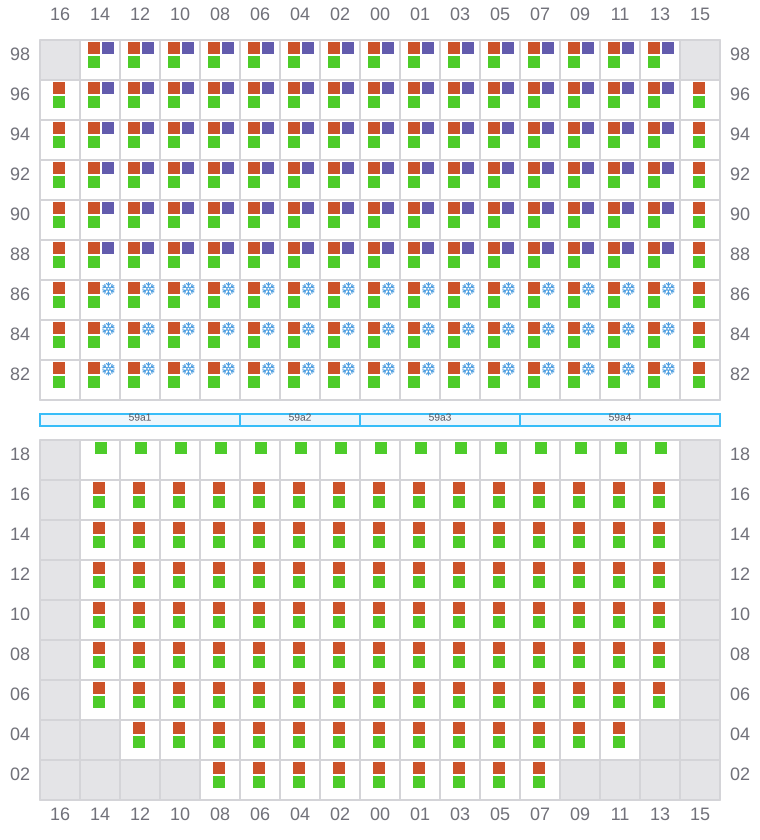

059 (058)

  • ←
  • → / ?
  • →
Bay 059 view and slots of CMA CGM DALILA

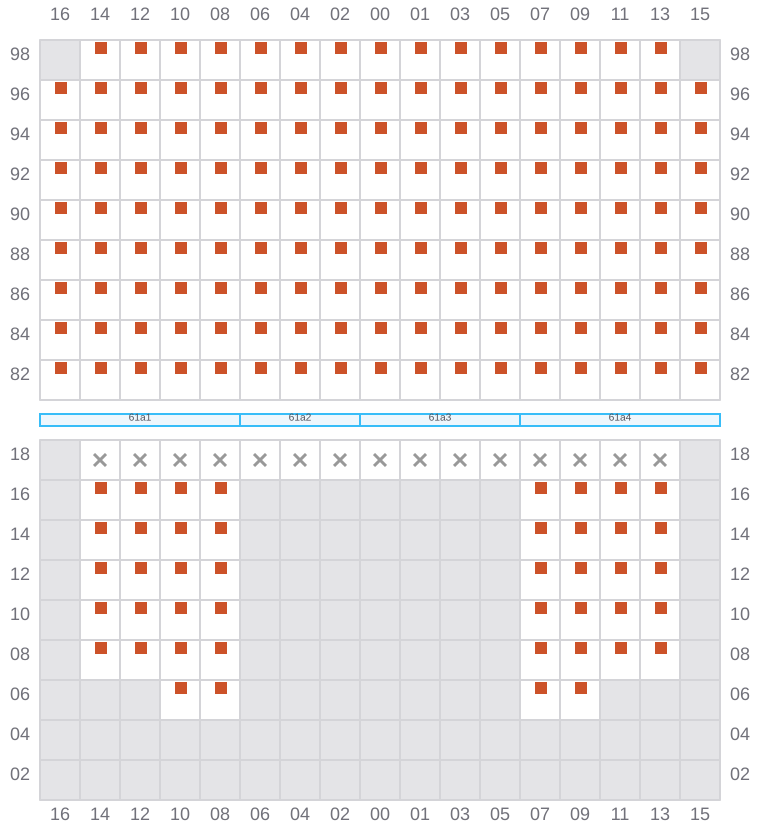

061

  • →
  • →
Bay 061 view and slots of CMA CGM DALILA

063 (062)

  • ←
  • → / ?
  • →

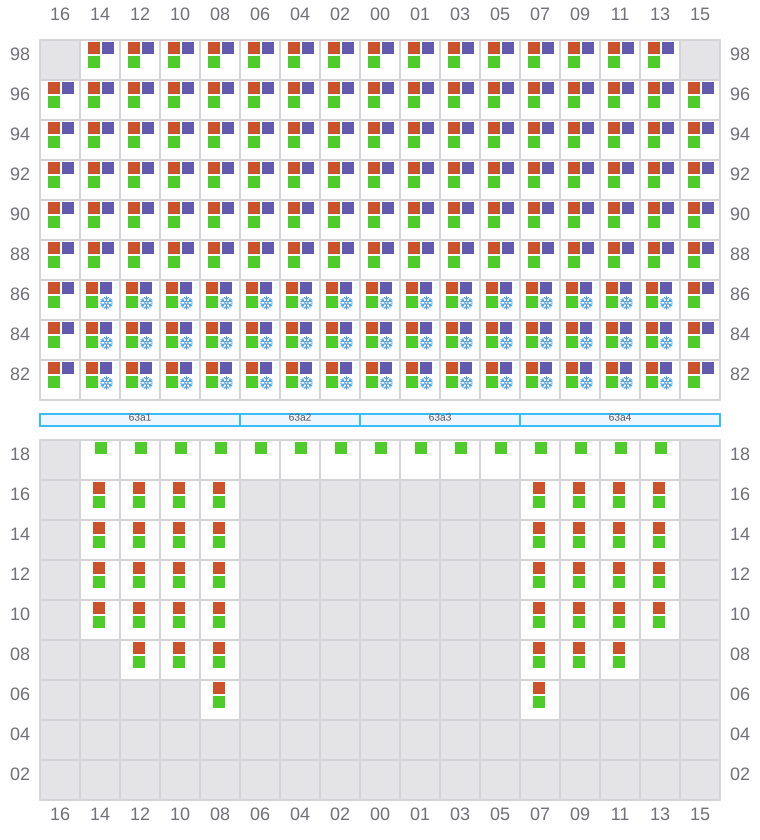

Bay 063 view and slots of CMA CGM DALILA

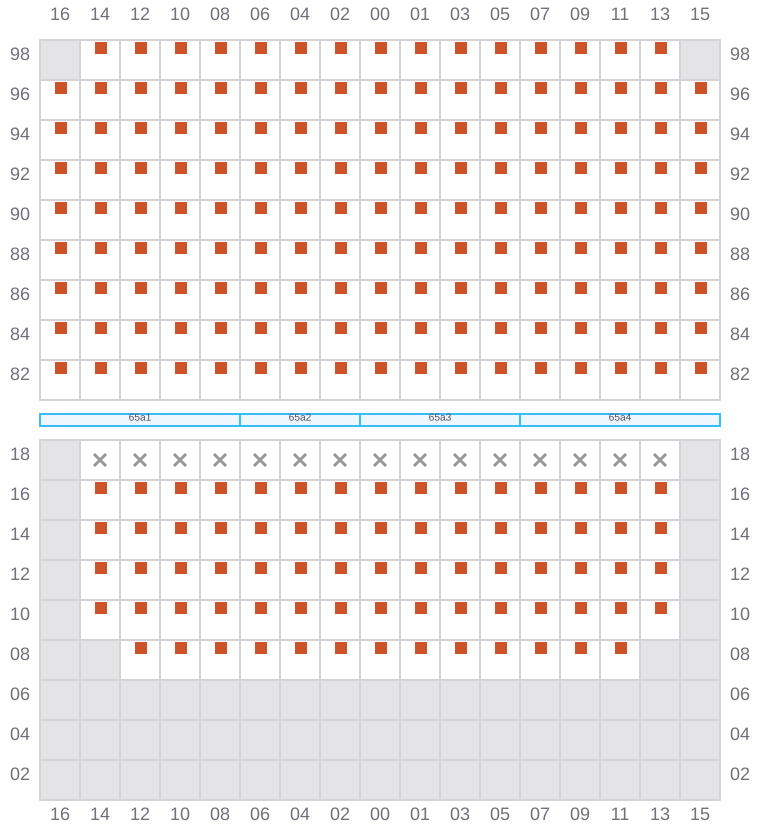

065

  • →
  • →
Bay 065 view and slots of CMA CGM DALILA

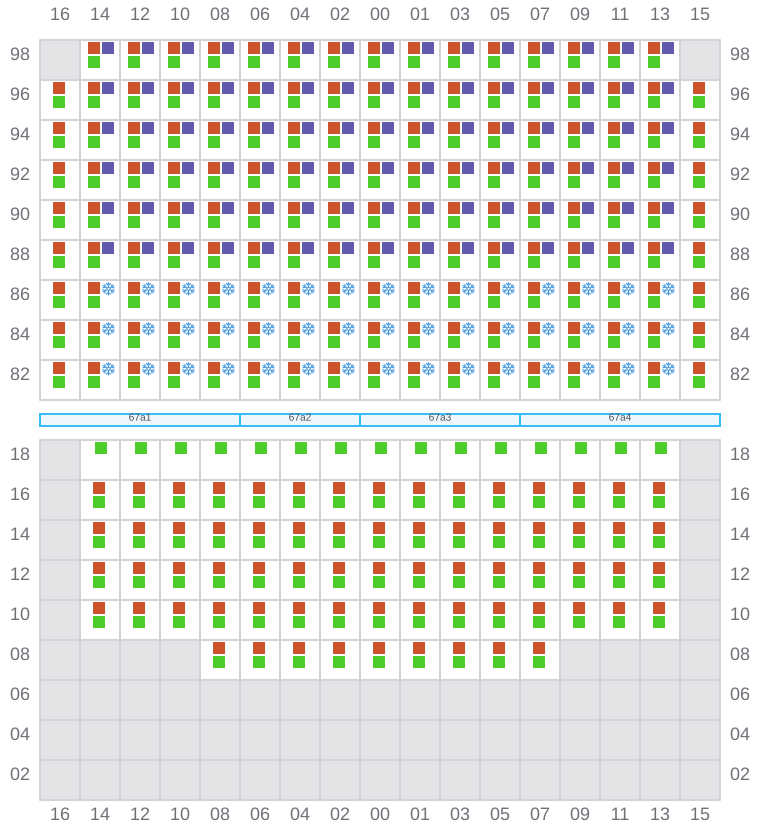

067 (066)

  • ←
  • → / ?
  • →
Bay 067 view and slots of CMA CGM DALILA

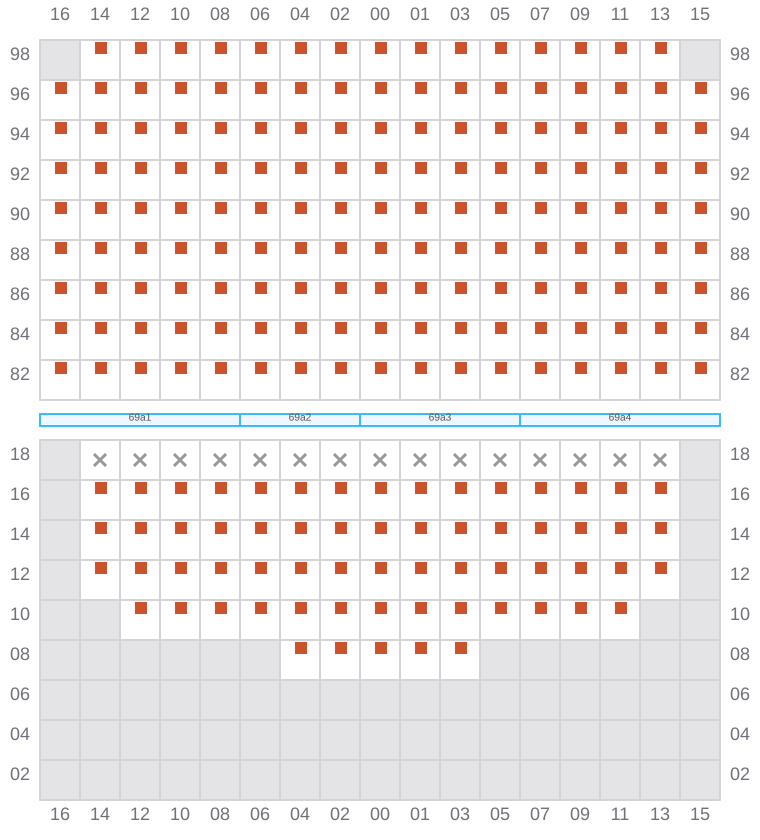

069

  • →
  • →
Bay 069 view and slots of CMA CGM DALILA

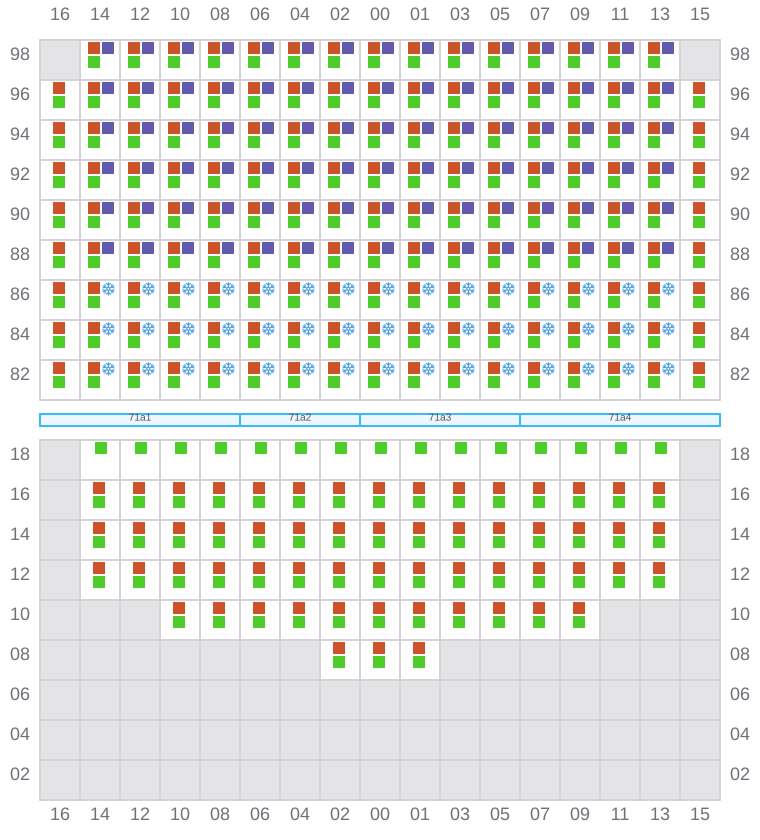

071 (070)

  • ←
  • → / ?
  • →
Bay 071 view and slots of CMA CGM DALILA

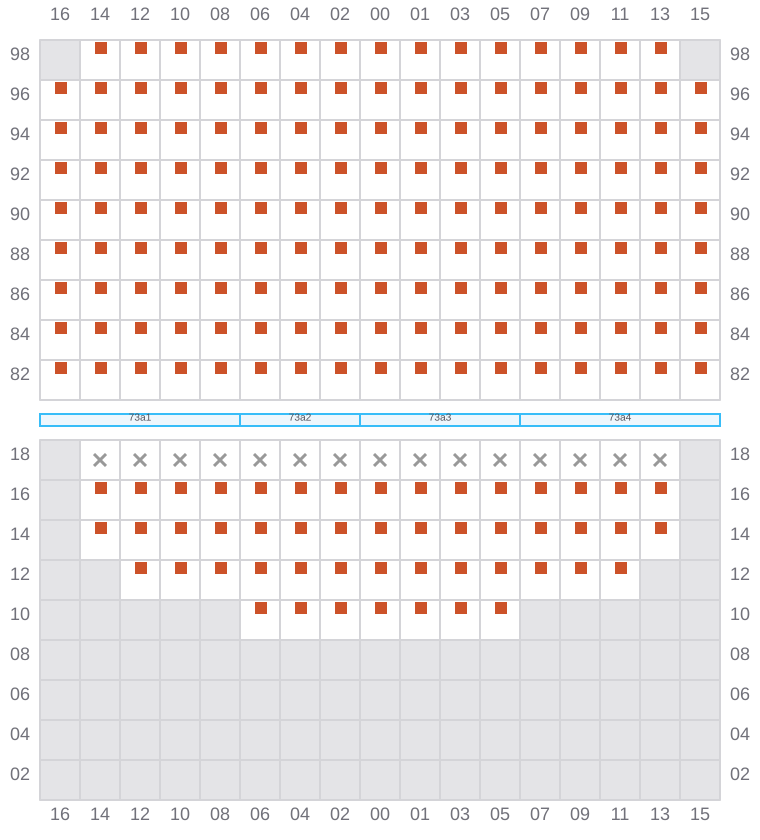

073

  • →
  • →
Bay 073 view and slots of CMA CGM DALILA

075 (074)

  • ←
  • → / ?
  • →

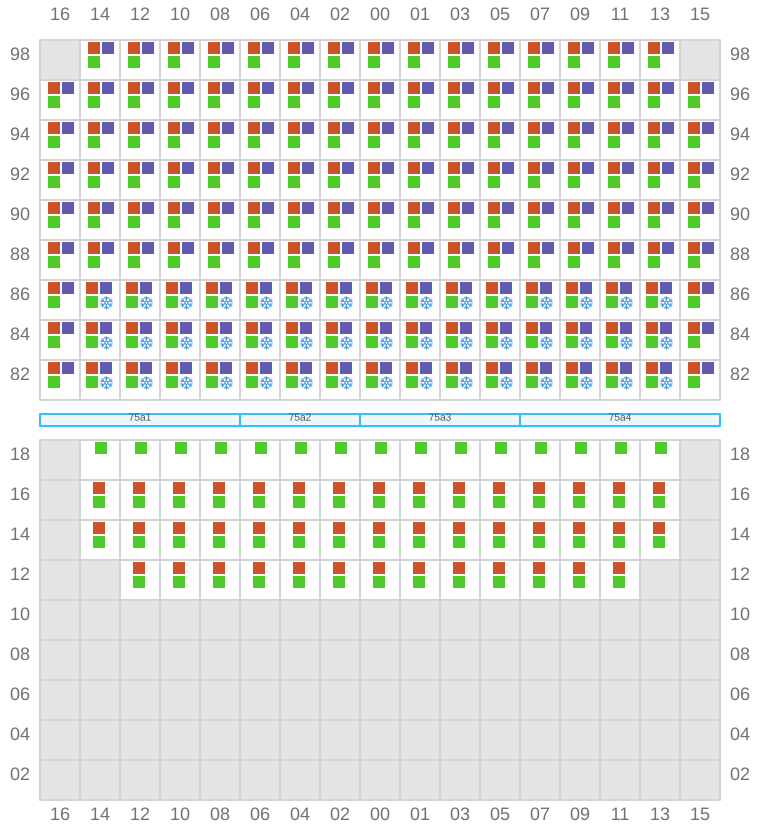

Bay 075 view and slots of CMA CGM DALILA

077

Bay 077 view and slots of CMA CGM DALILA

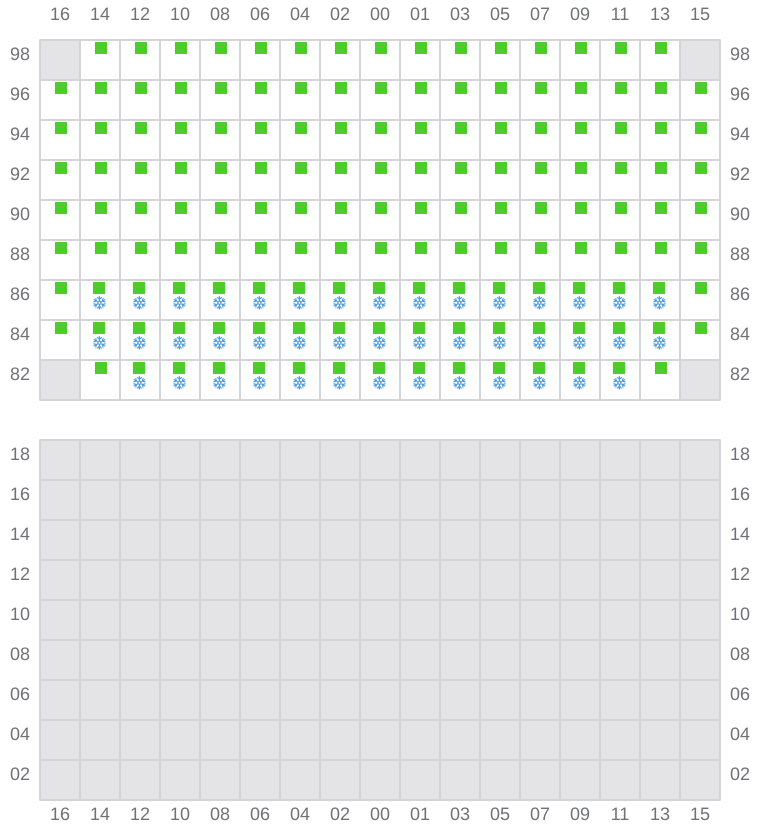

079 (078)

  • ← / ?
  • ← / ?
  • → / ?
Bay 079 view and slots of CMA CGM DALILA
