CMA CGM DUTCH HARBOR
9389409 | 9HA5434 | 9389409 by ********* Last update: Fri May 03 2024
General Info
Ship Name:CMA CGM DUTCH HARBOR
IMO Code:9389409
Call Sign:9HA5434
Line Operator:9389409
Class Name for Sister Ships:HANJIN GDYNIA
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,279
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

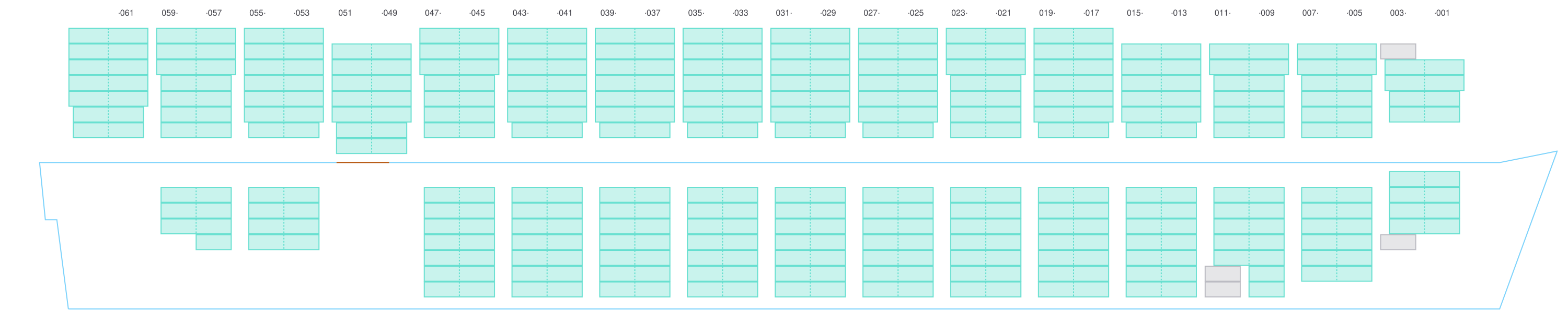

Side View
![Side view of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-sideView.png?v=1714762776913)

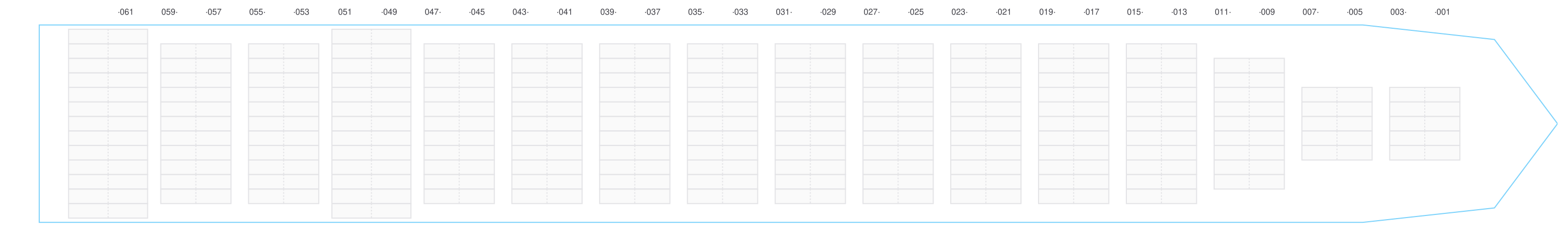

Hatch-Covers View
![Deck view of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-deckView.png?v=1714762776913)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

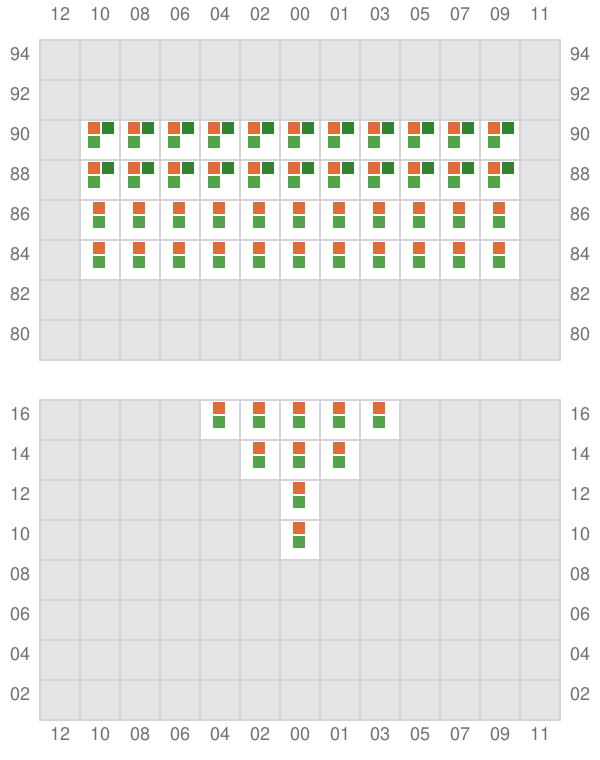

001 (002)
- →
![Bay 001 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b001.png?v=1714762776913)

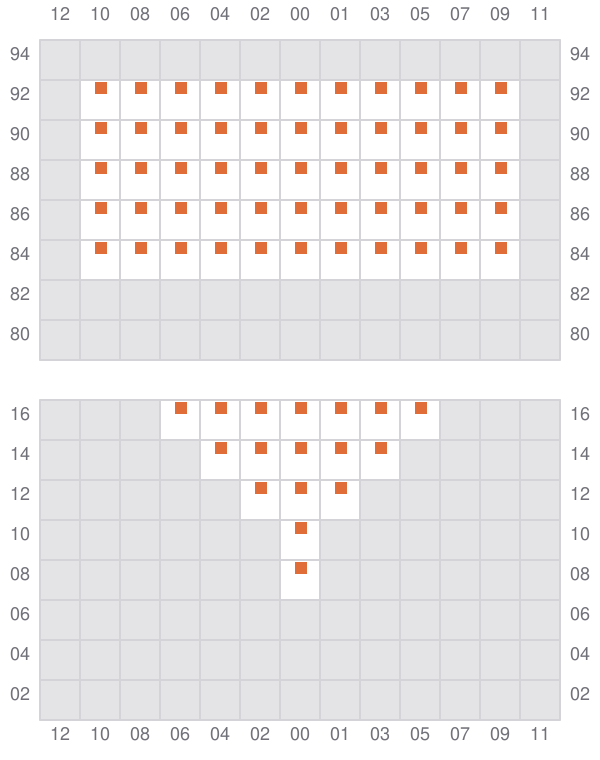

003
- ←
![Bay 003 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b003.png?v=1714762776913)

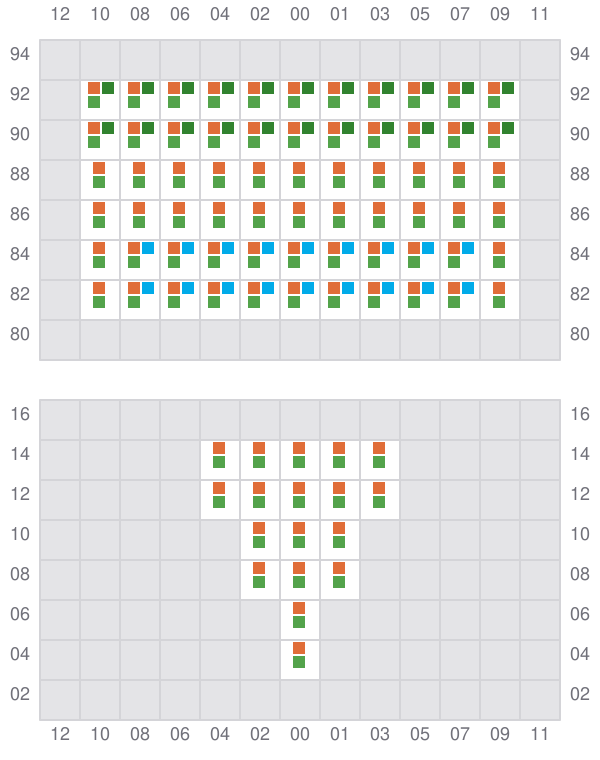

005 (006)
- →
![Bay 005 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b005.png?v=1714762776913)

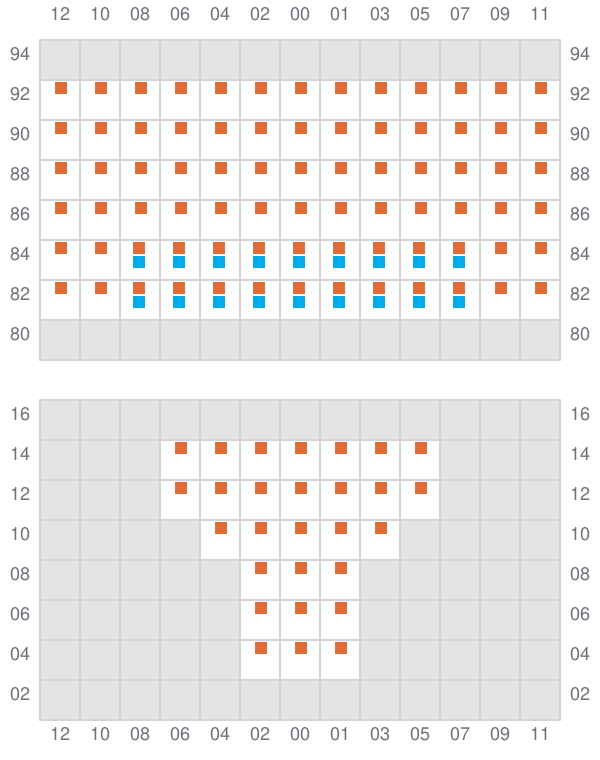

007
- ←
![Bay 007 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b007.png?v=1714762776913)

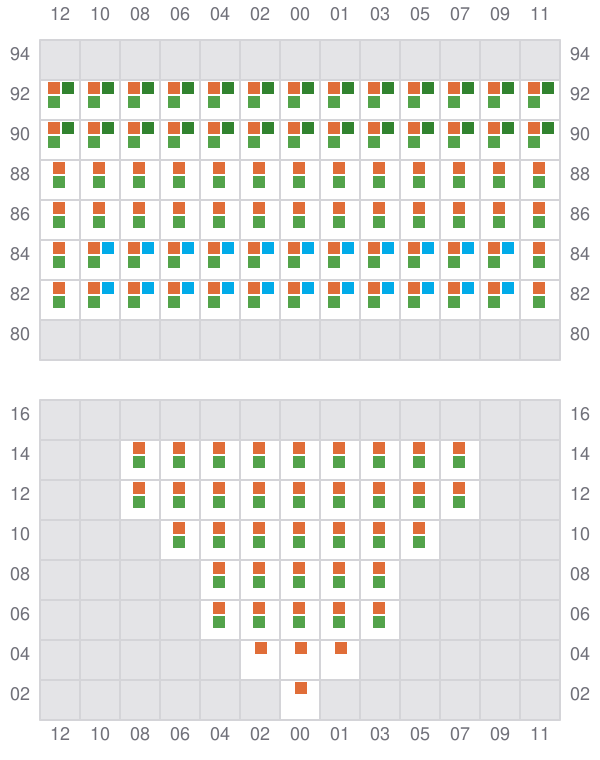

009 (010)
- →
![Bay 009 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b009.png?v=1714762776913)

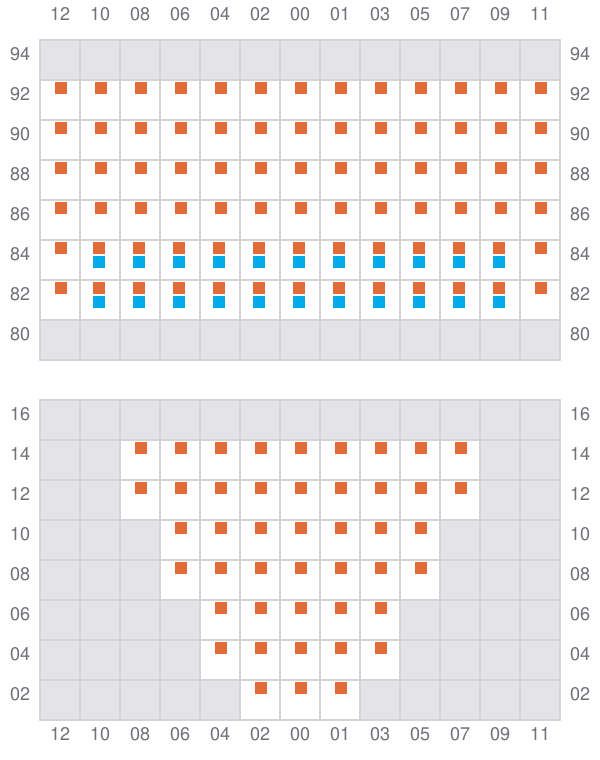

011
- ←
![Bay 011 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b011.png?v=1714762776913)

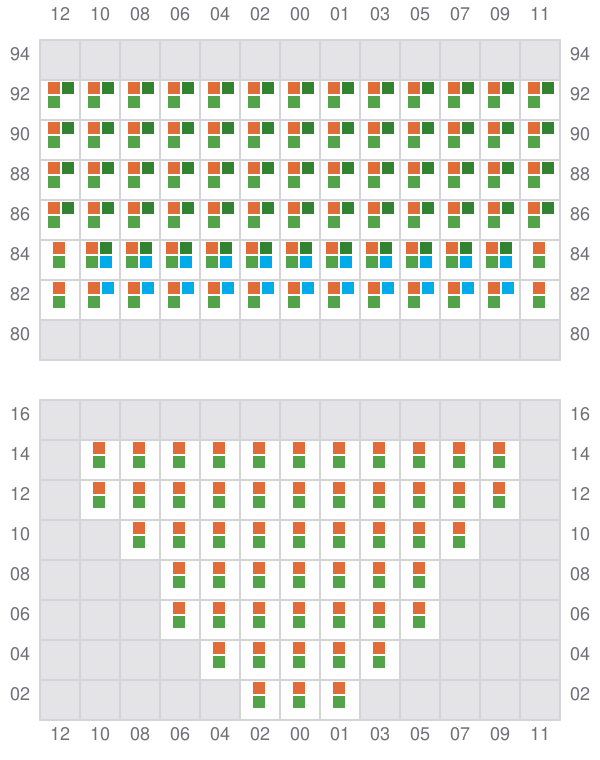

013 (014)
- →
![Bay 013 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b013.png?v=1714762776913)

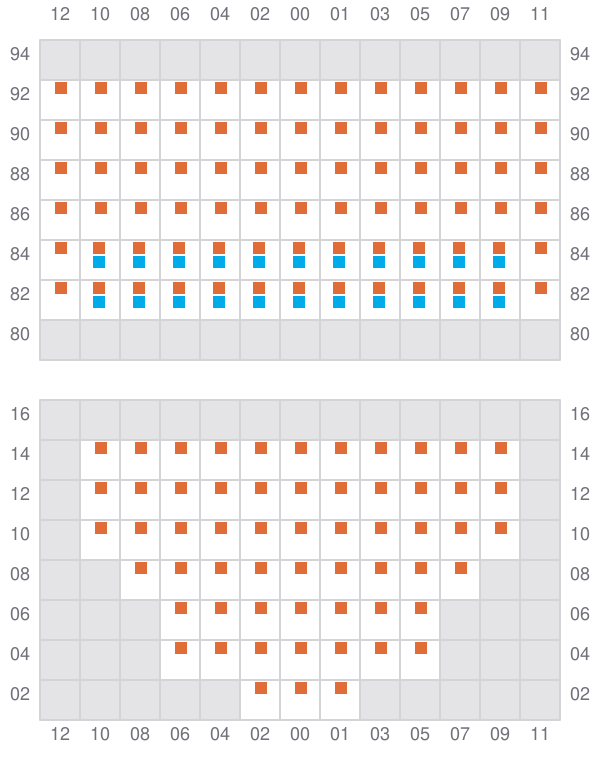

015
- ←
![Bay 015 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b015.png?v=1714762776913)

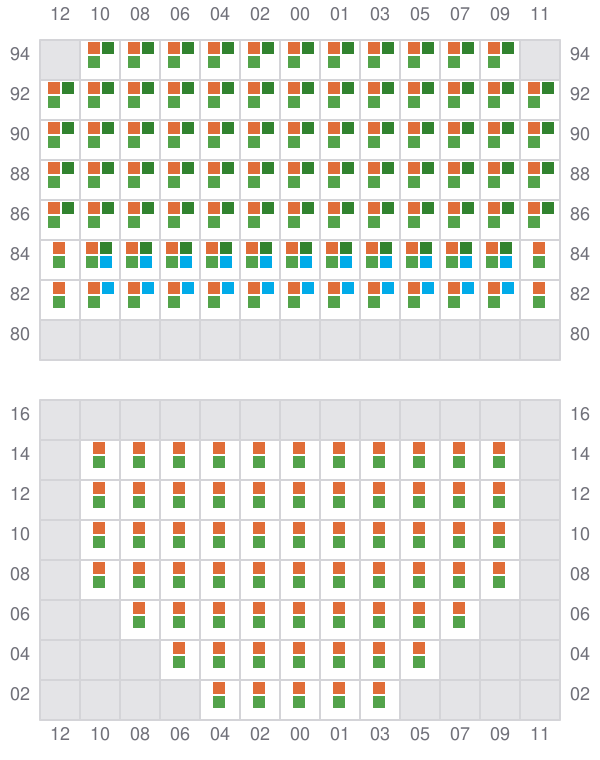

017 (018)
- →
![Bay 017 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b017.png?v=1714762776913)

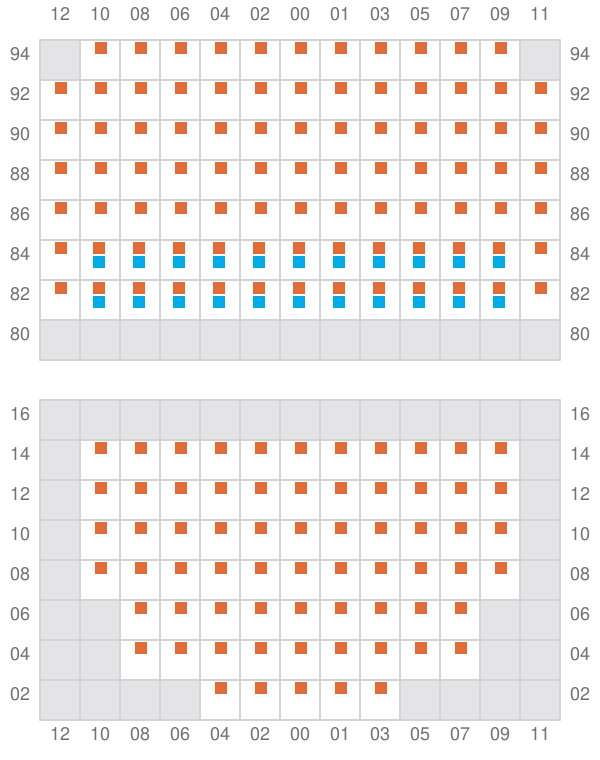

019
- ←
![Bay 019 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b019.png?v=1714762776913)

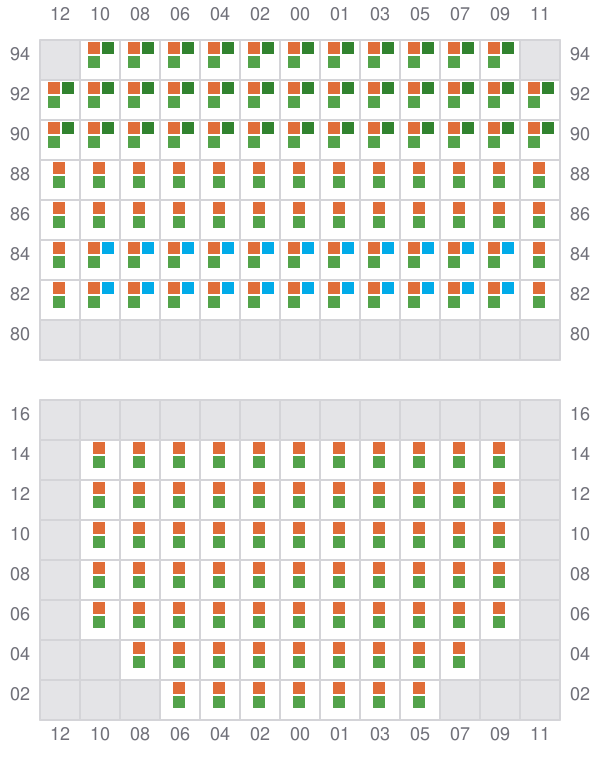

021 (022)
- →
![Bay 021 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b021.png?v=1714762776913)

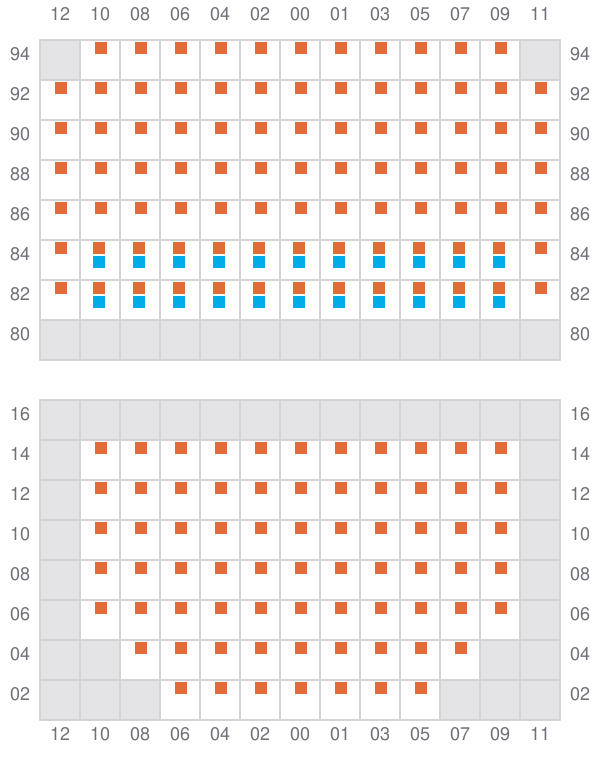

023
- ←
![Bay 023 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b023.png?v=1714762776913)
025 (026)
- →
![Bay 025 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b025.png?v=1714762776913)
027
- ←
![Bay 027 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b027.png?v=1714762776913)
029 (030)
- →
![Bay 029 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b029.png?v=1714762776913)
031
- ←
![Bay 031 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b031.png?v=1714762776913)
033 (034)
- →
![Bay 033 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b033.png?v=1714762776913)

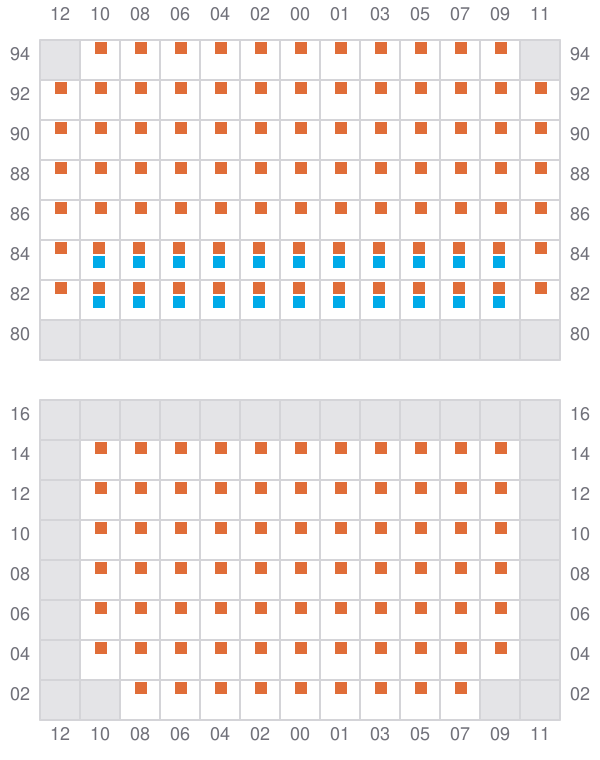

035
- ←
![Bay 035 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b035.png?v=1714762776913)
037 (038)
- →
![Bay 037 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b037.png?v=1714762776913)
039
- ←
![Bay 039 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b039.png?v=1714762776913)

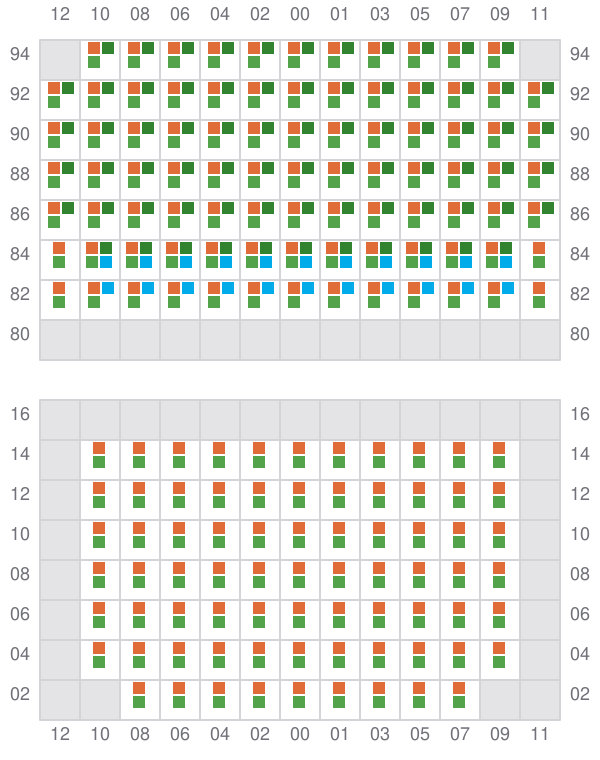

041 (042)
- →
![Bay 041 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b041.png?v=1714762776913)
043
- ←
![Bay 043 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b043.png?v=1714762776913)

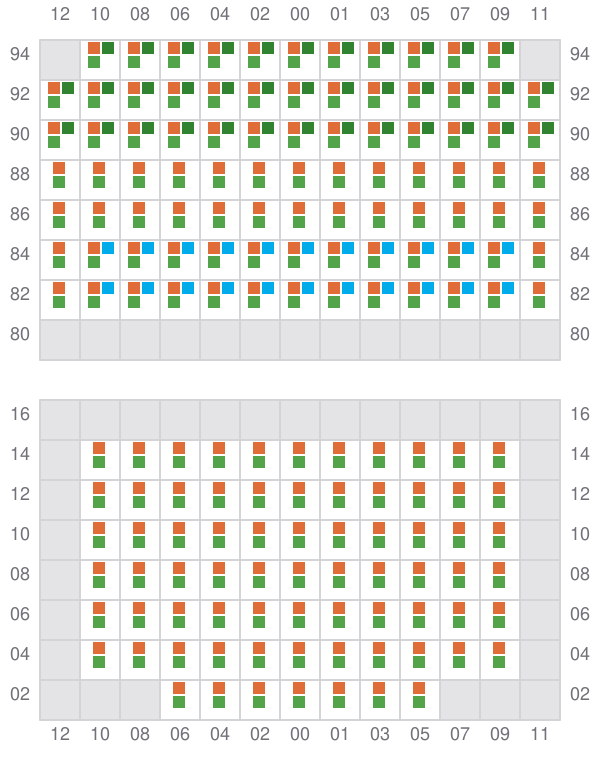

045 (046)
- →
![Bay 045 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b045.png?v=1714762776913)

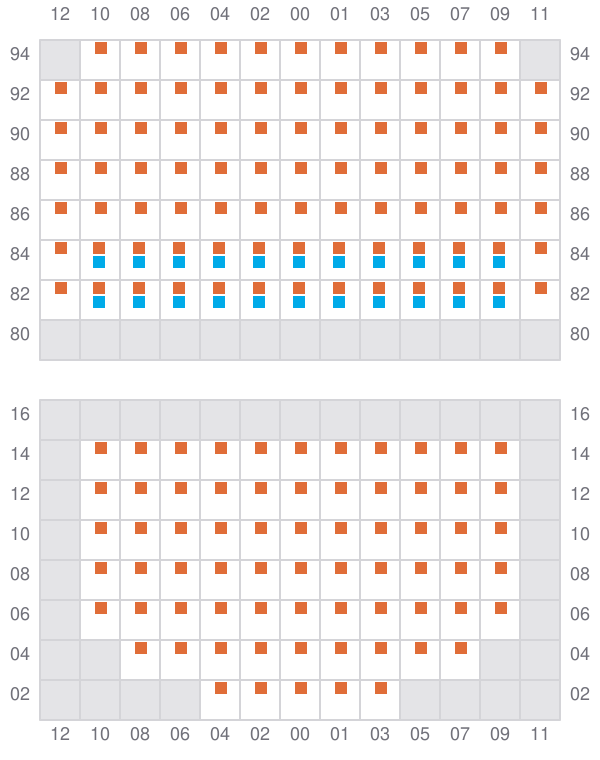

047
- ←
![Bay 047 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b047.png?v=1714762776913)

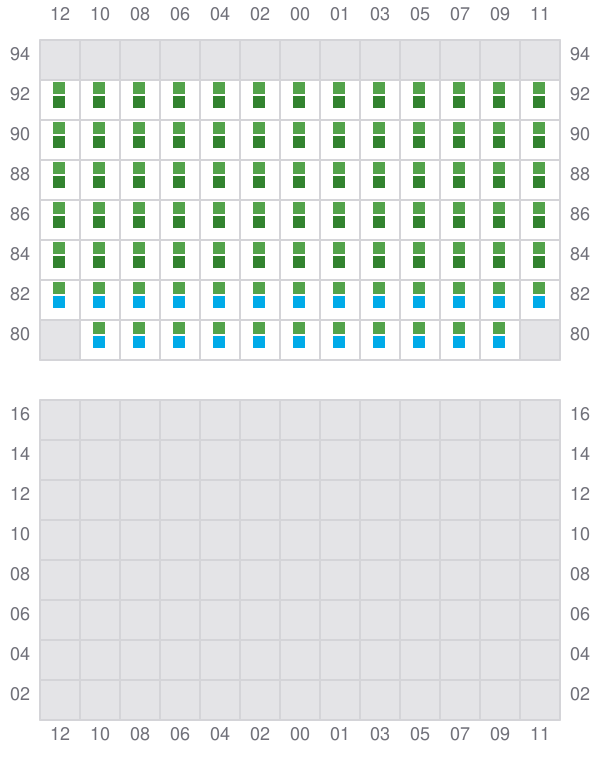

049 (050)
- → / ?
![Bay 049 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b049.png?v=1714762776913)

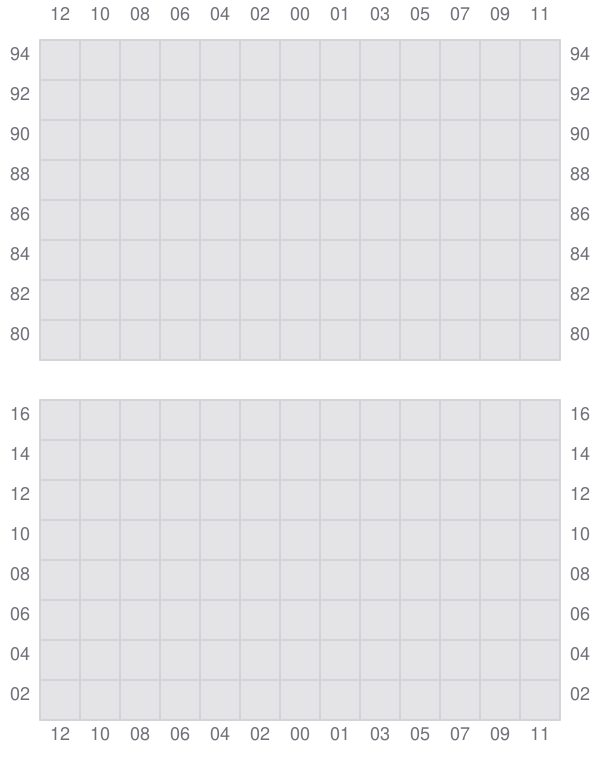

051
![Bay 051 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b051.png?v=1714762776913)

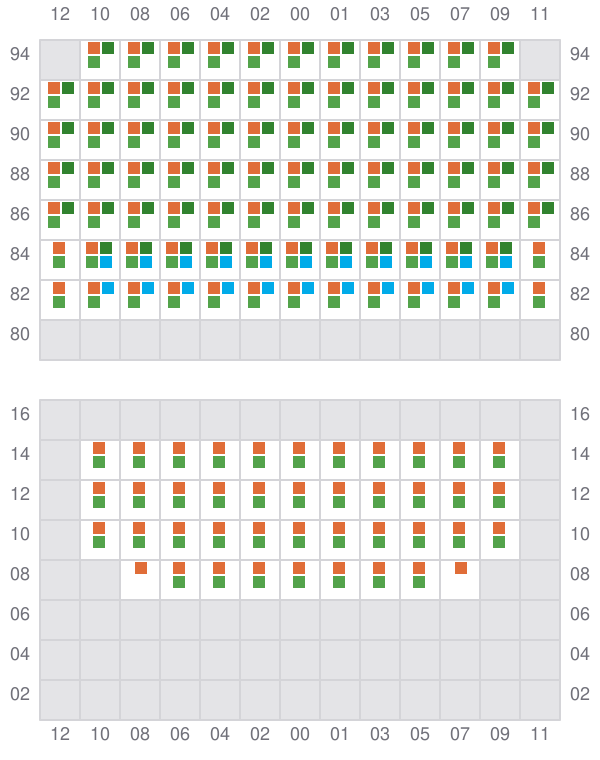

053 (054)
- →
![Bay 053 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b053.png?v=1714762776913)

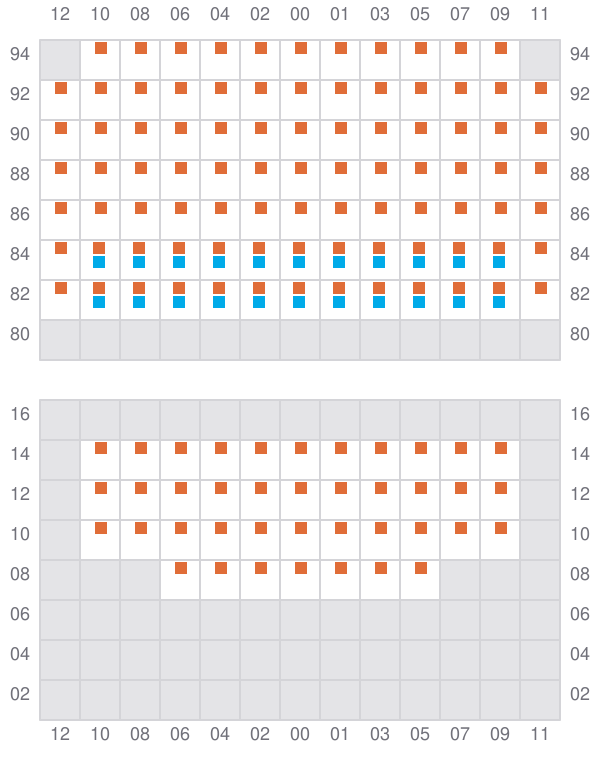

055
- ←
![Bay 055 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b055.png?v=1714762776913)

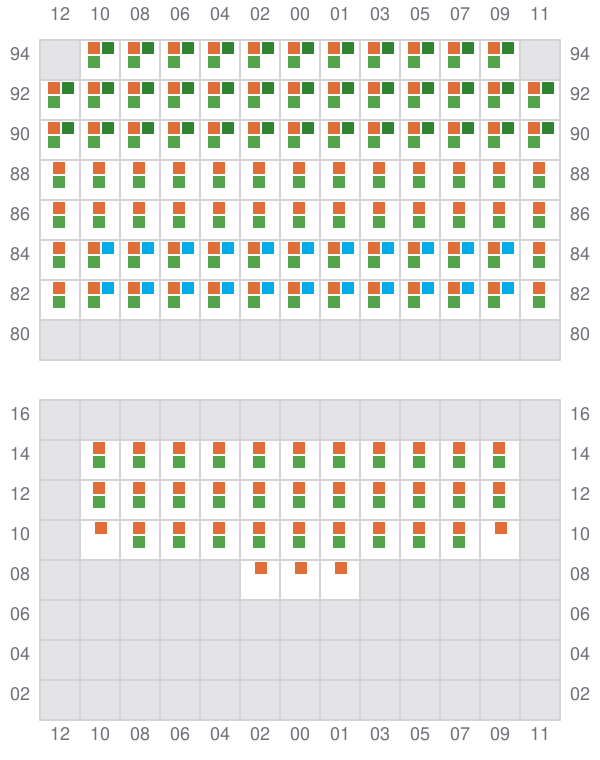

057 (058)
- →
![Bay 057 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b057.png?v=1714762776913)

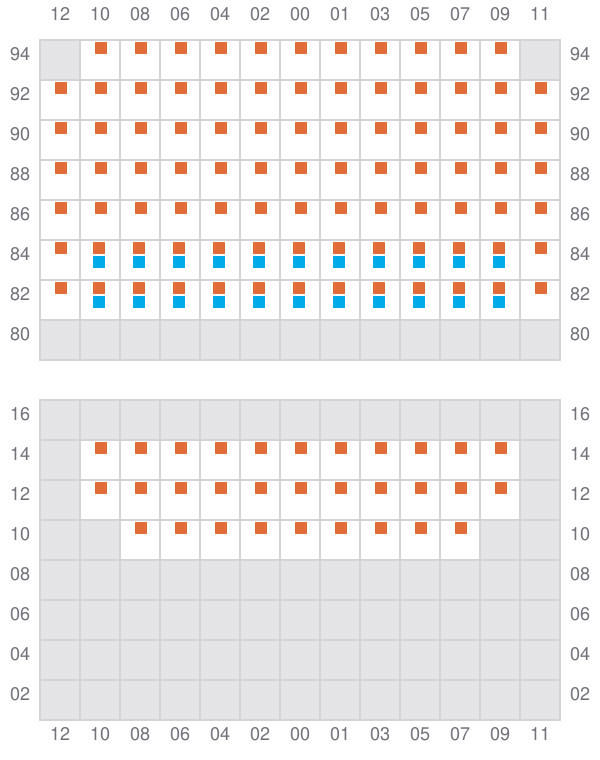

059
- ←
![Bay 059 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b059.png?v=1714762776913)

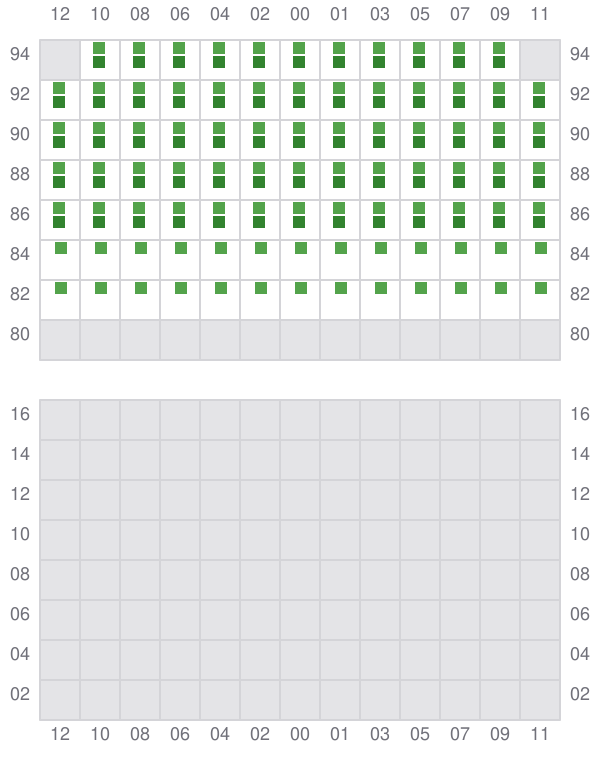

061 (062)
- → / ?
![Bay 061 view and slots of CMA CGM DUTCH HARBOR](/vessel-images/cc039423-44d7-4e59-ad3e-c66f6cc67e9a-b061.png?v=1714762776913)
