CMA CGM ELBE
9674529 | 9HA3731 | CMA by ************************** Last update: Thu Jun 15 2023

General Info

Ship Name:CMA CGM ELBE
IMO Code:9674529
Call Sign:9HA3731
Line Operator:CMA
Class Name for Sister Ships:ELB
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-

Size Summary

ISO Bays:055
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,917

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

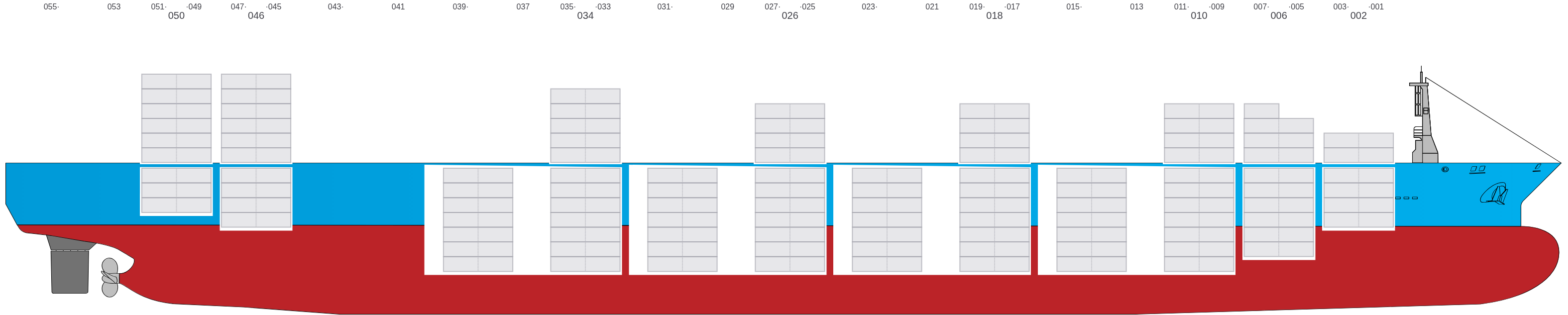

Side View

Side view of CMA CGM ELBE

Hatch-Covers View

Deck view of CMA CGM ELBE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →

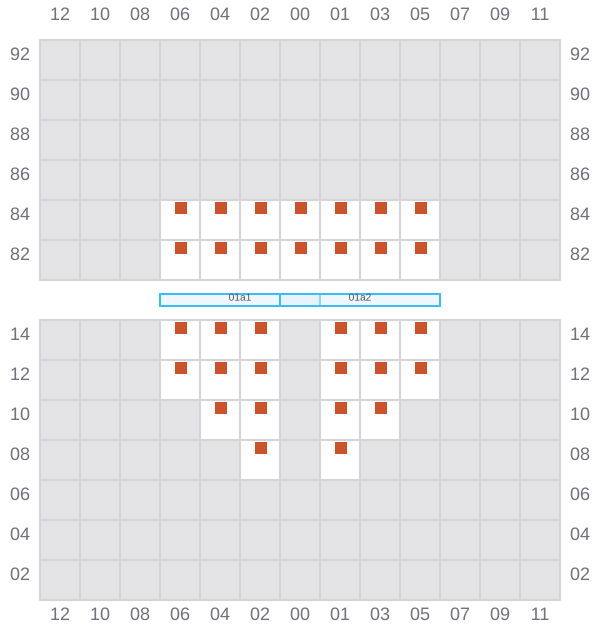

Bay 001 view and slots of CMA CGM ELBE

003 (002)

  • ←
Bay 003 view and slots of CMA CGM ELBE

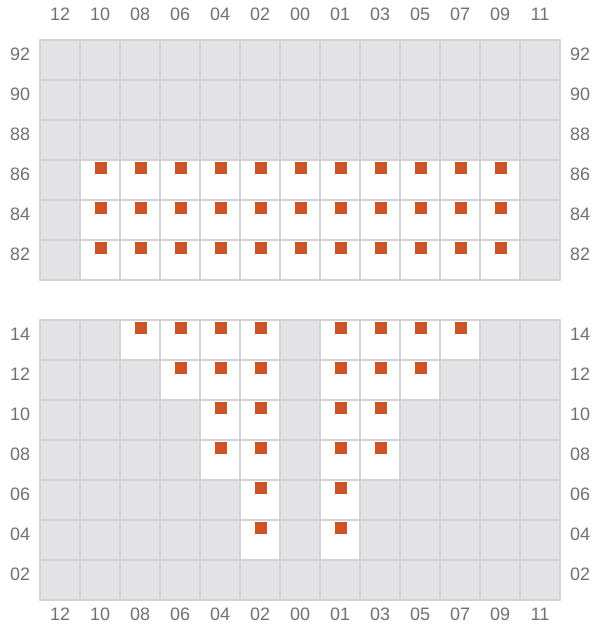

005

  • →
Bay 005 view and slots of CMA CGM ELBE

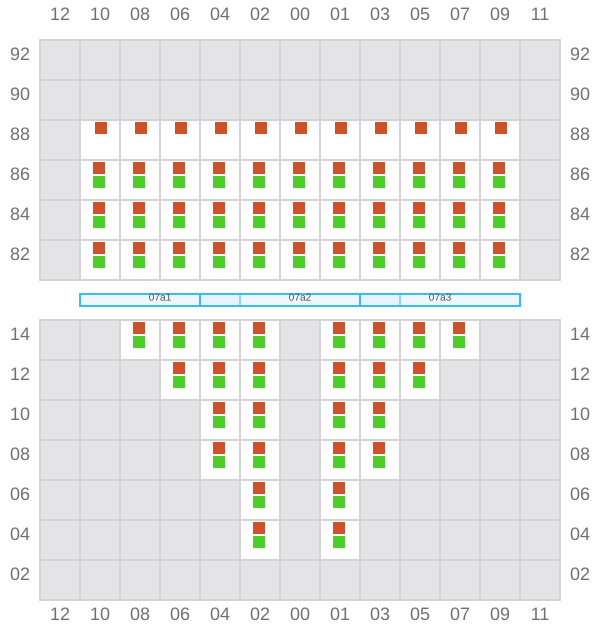

007 (006)

  • ←
Bay 007 view and slots of CMA CGM ELBE

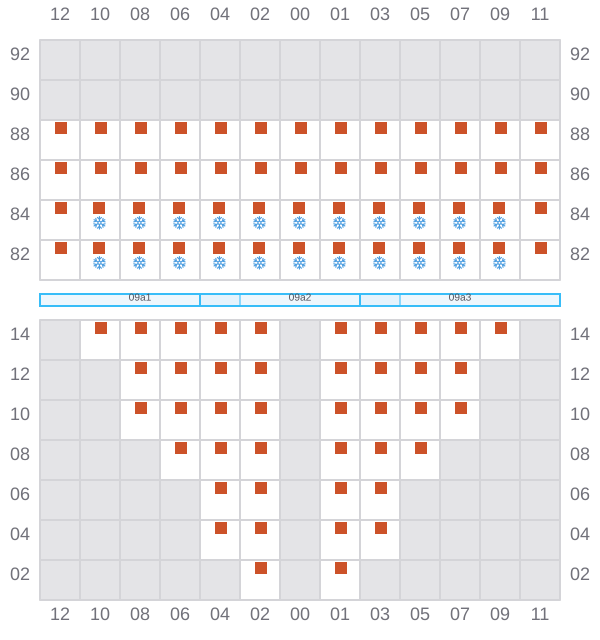

009

  • →
  • → / ?
Bay 009 view and slots of CMA CGM ELBE

011 (010)

  • ←
  • → / ?
Bay 011 view and slots of CMA CGM ELBE

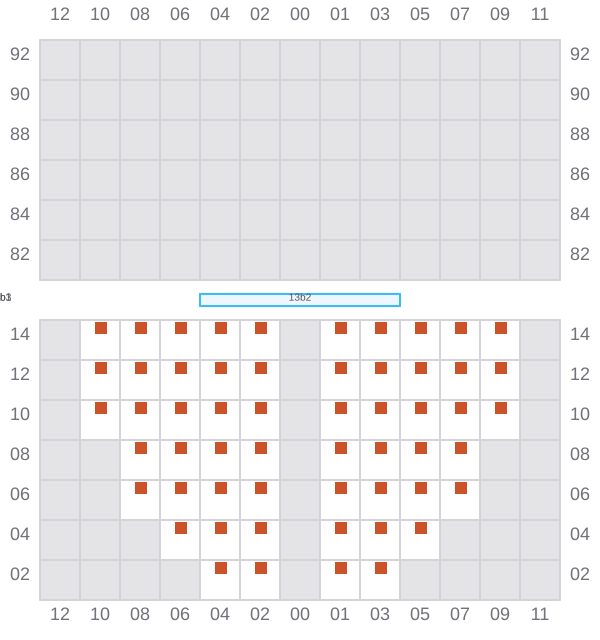

013

  • ? / →
Bay 013 view and slots of CMA CGM ELBE

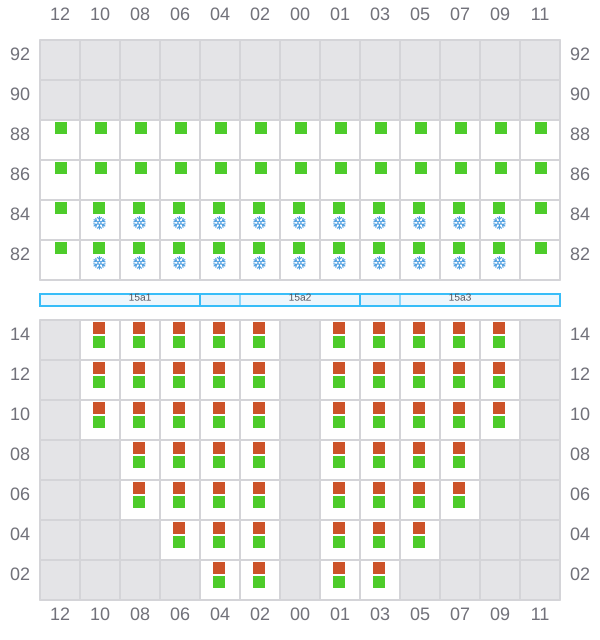

015 (014)

  • ←
  • ← / ?
Bay 015 view and slots of CMA CGM ELBE

017

  • →
  • → / ?
Bay 017 view and slots of CMA CGM ELBE

019 (018)

  • ←
  • → / ?

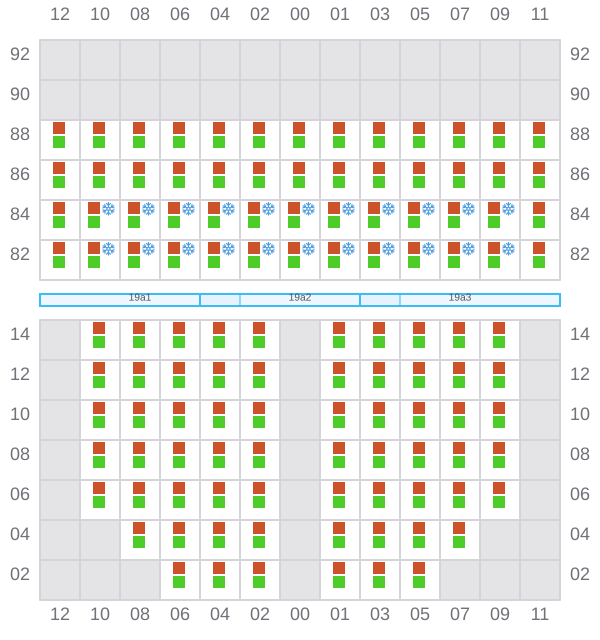

Bay 019 view and slots of CMA CGM ELBE

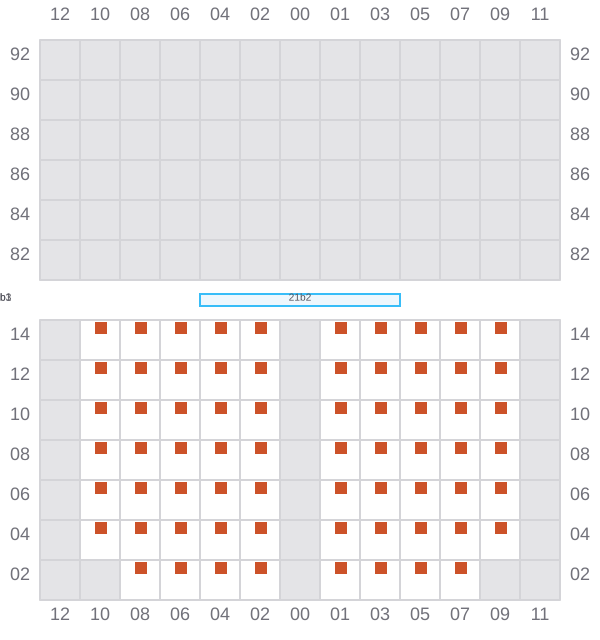

021

  • ? / →
Bay 021 view and slots of CMA CGM ELBE

023 (022)

  • ←
  • ← / ?
Bay 023 view and slots of CMA CGM ELBE

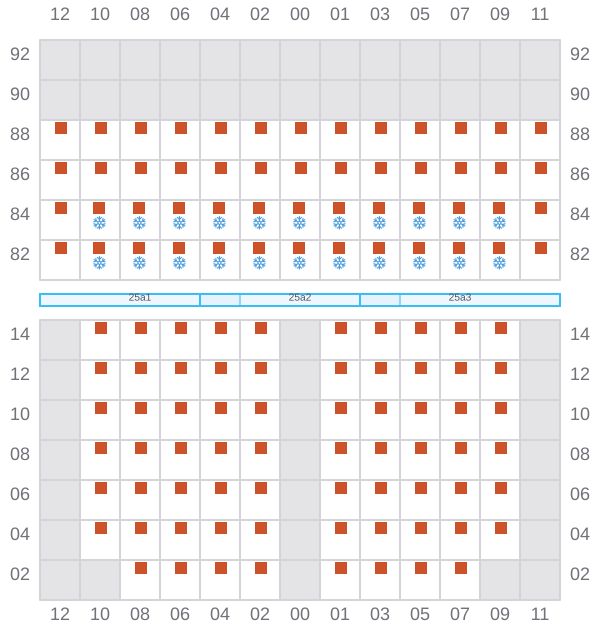

025

  • →
  • → / ?
Bay 025 view and slots of CMA CGM ELBE

027 (026)

  • ←
  • → / ?

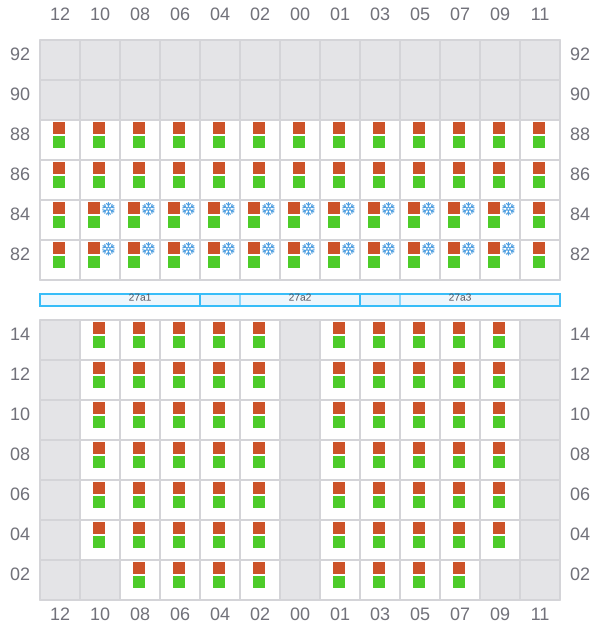

Bay 027 view and slots of CMA CGM ELBE

029

  • ? / →
Bay 029 view and slots of CMA CGM ELBE

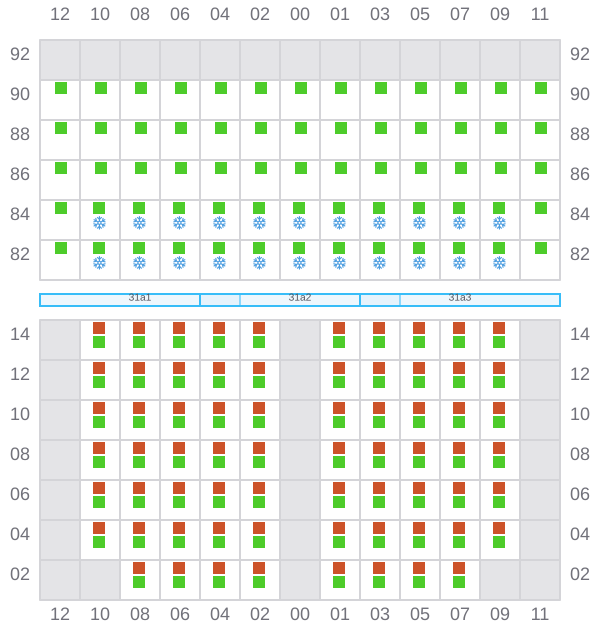

031 (030)

  • ←
  • → / ?
Bay 031 view and slots of CMA CGM ELBE

033

  • →
  • ← / ?

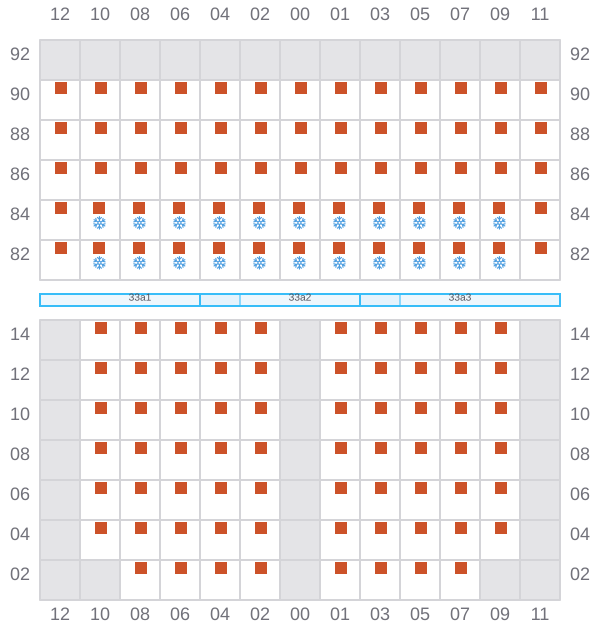

Bay 033 view and slots of CMA CGM ELBE

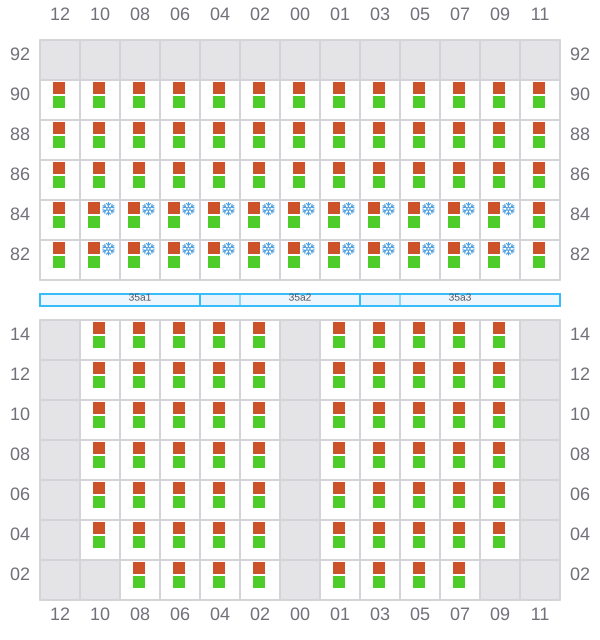

035 (034)

  • ←
  • → / ?
Bay 035 view and slots of CMA CGM ELBE

037

  • ? / →
Bay 037 view and slots of CMA CGM ELBE

039 (038)

  • ←
  • → / ?
Bay 039 view and slots of CMA CGM ELBE

041

Bay 041 view and slots of CMA CGM ELBE

043 (042)

  • ←
  • ← / ?

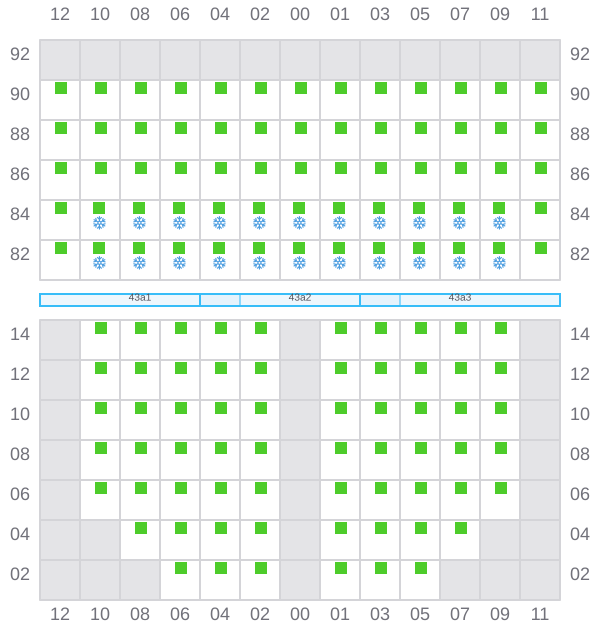

Bay 043 view and slots of CMA CGM ELBE

045

  • →

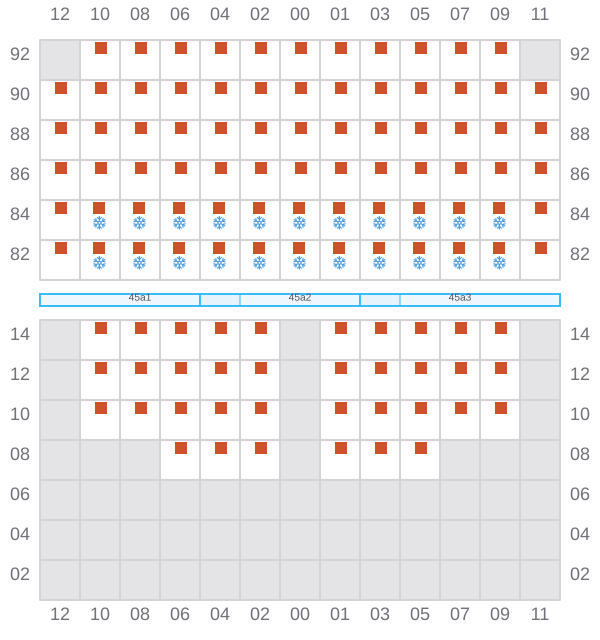

Bay 045 view and slots of CMA CGM ELBE

047 (046)

  • ←
  • ← / ?
Bay 047 view and slots of CMA CGM ELBE

049

  • →

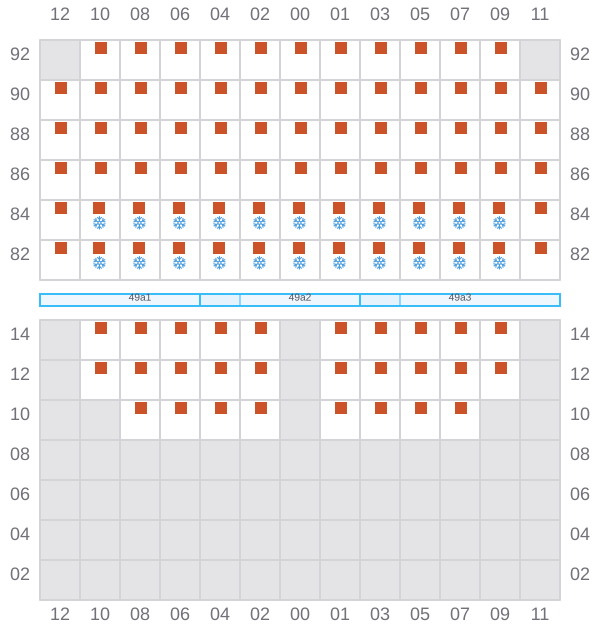

Bay 049 view and slots of CMA CGM ELBE

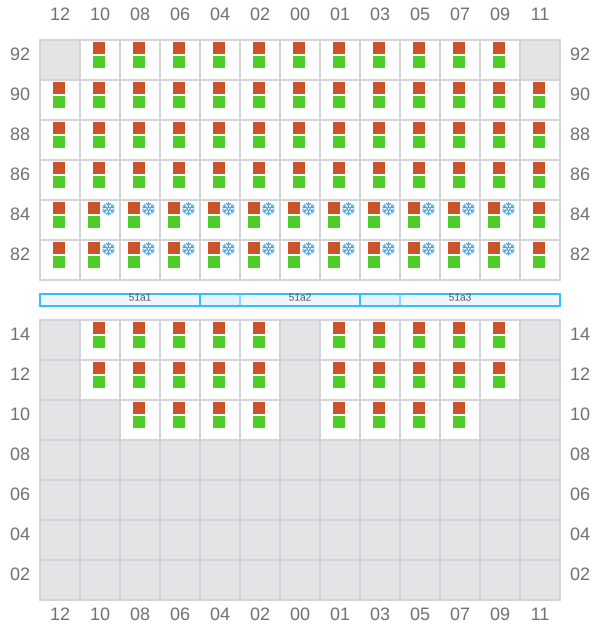

051 (050)

  • ←
  • → / ?
Bay 051 view and slots of CMA CGM ELBE

053

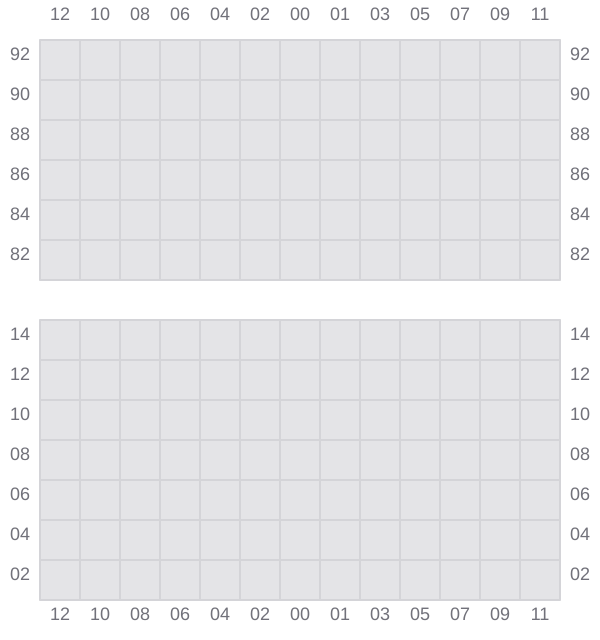

Bay 053 view and slots of CMA CGM ELBE

055 (054)

  • ← / ?
Bay 055 view and slots of CMA CGM ELBE
