CMA CGM FLORIDA
9348704 | 9HA5005 | 9348704 by ********* Last update: Wed May 01 2024
General Info
Ship Name:CMA CGM FLORIDA
IMO Code:9348704
Call Sign:9HA5005
Line Operator:9348704
Class Name for Sister Ships:CMA CGM FLORI
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,095
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

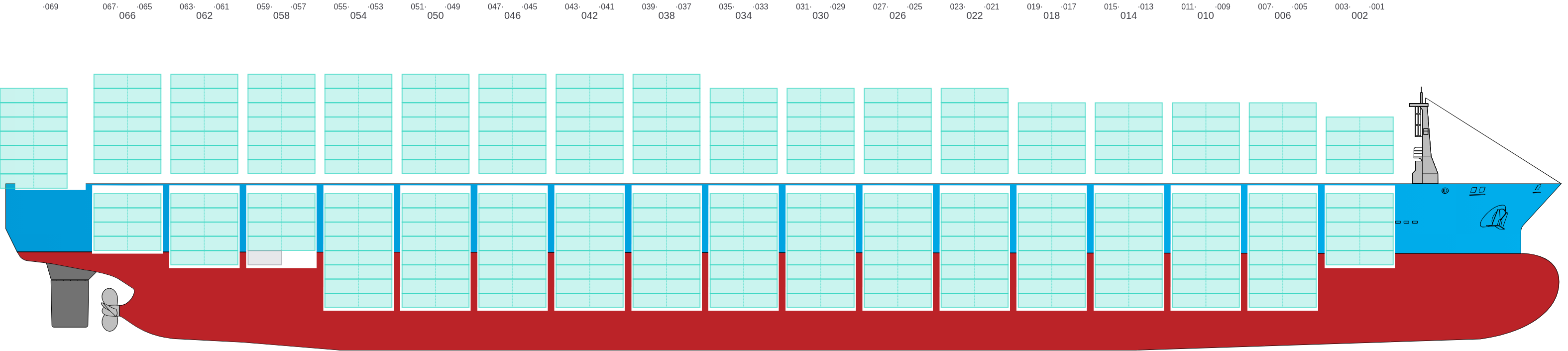

Side View

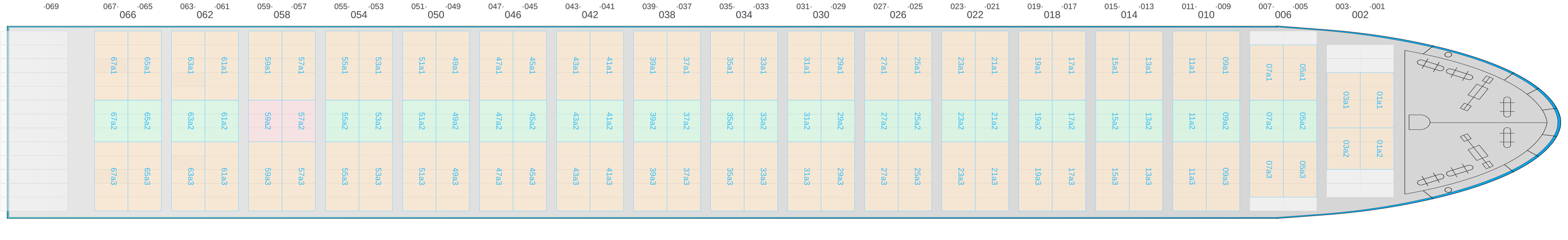

Hatch-Covers View

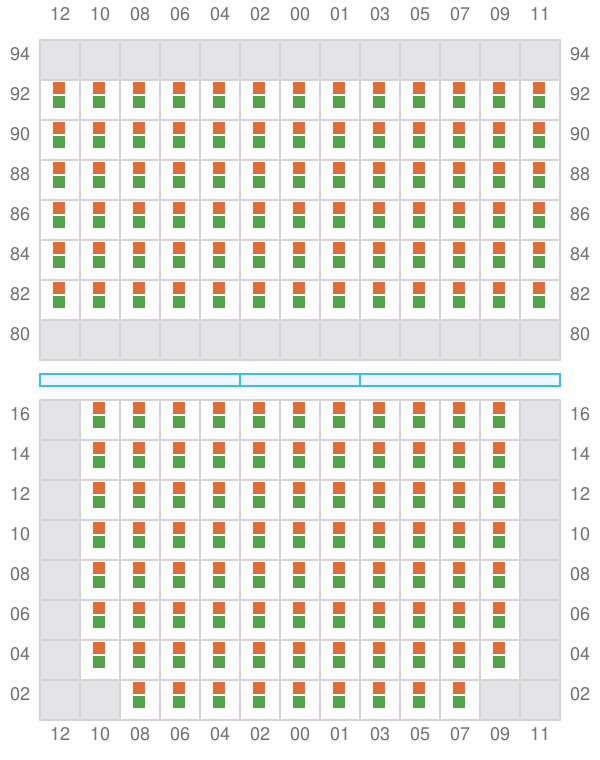

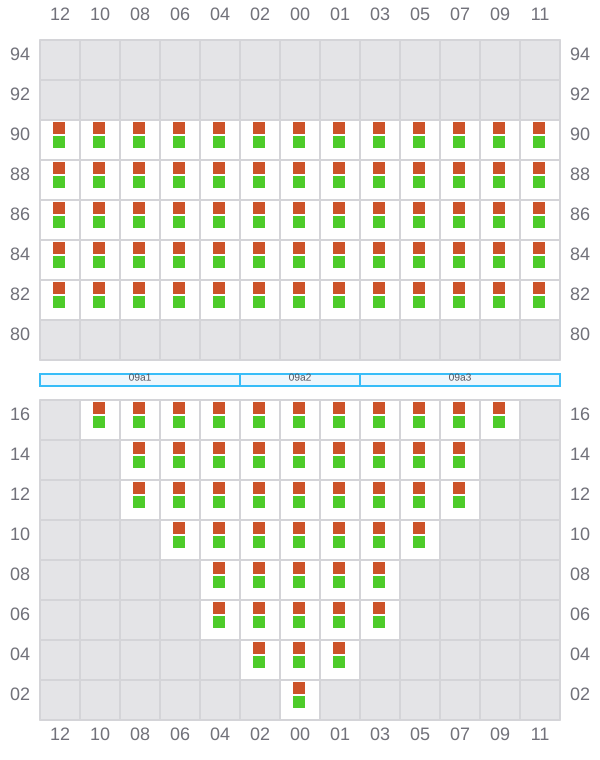

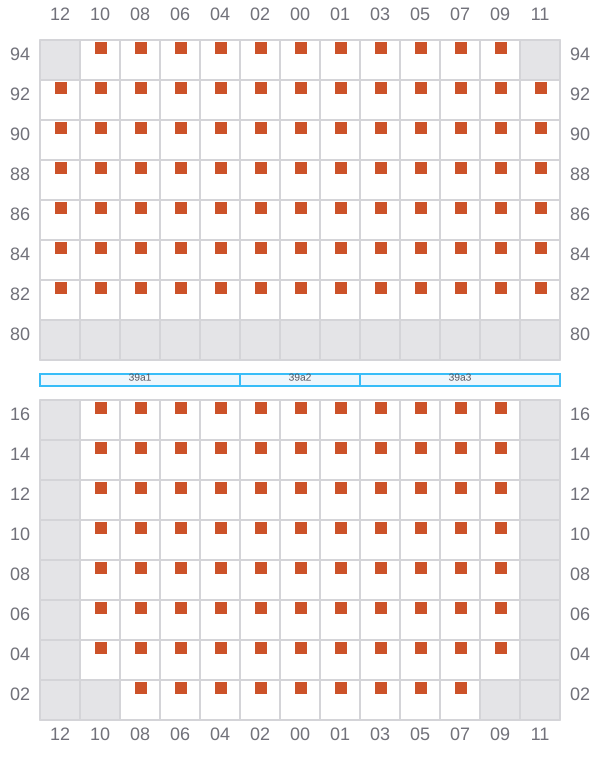

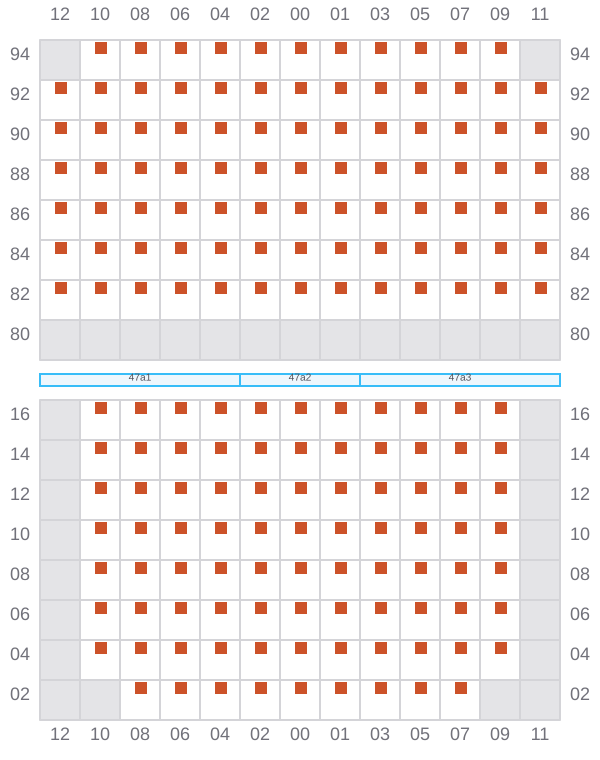

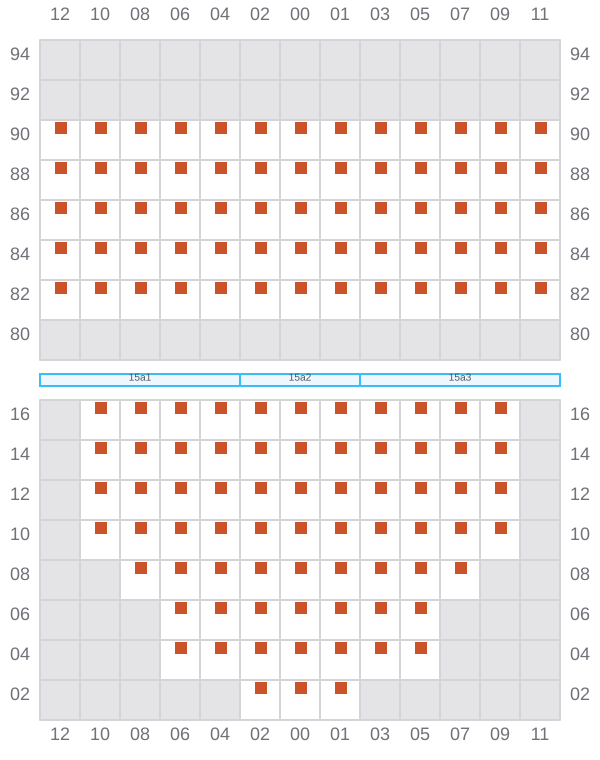

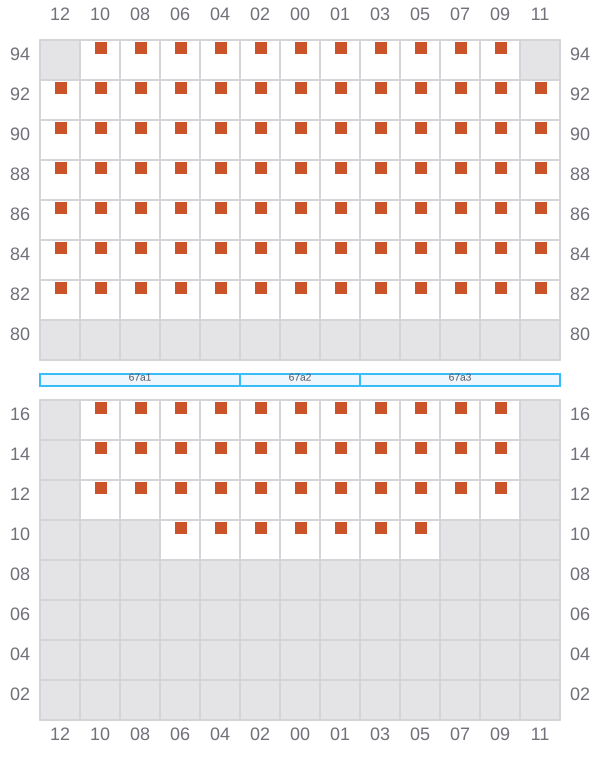

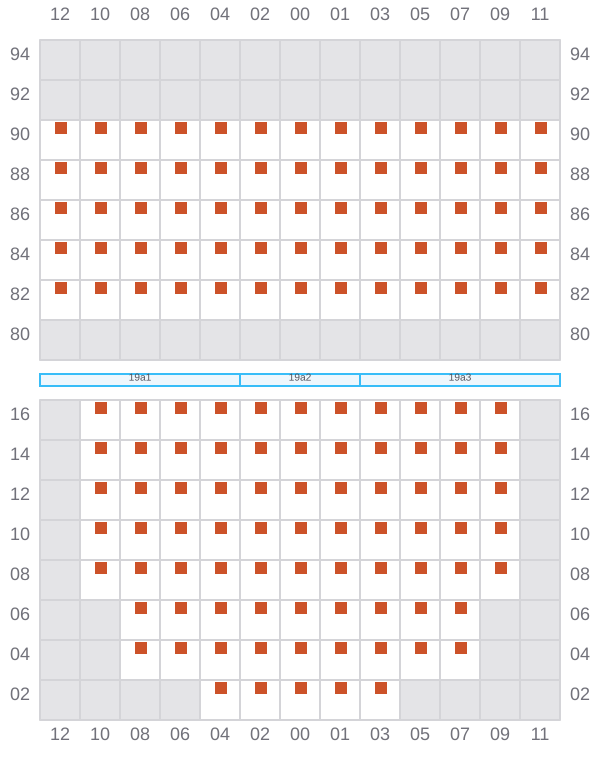

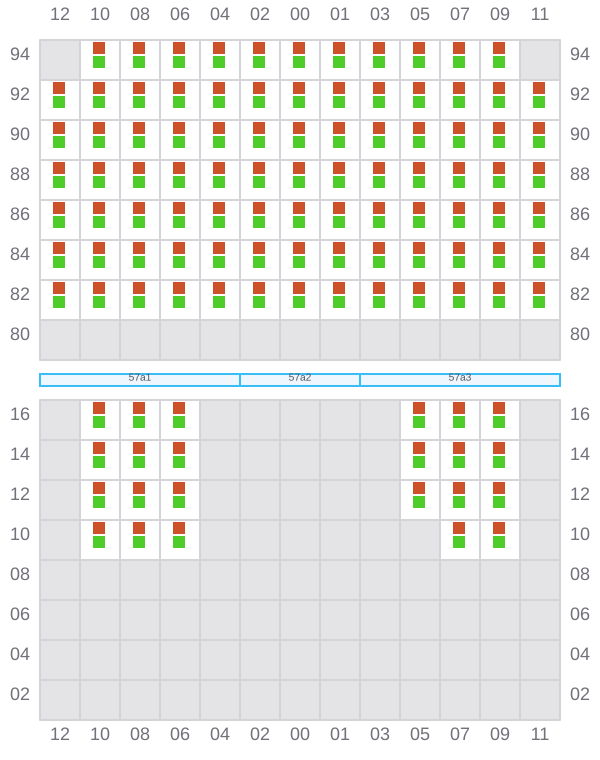

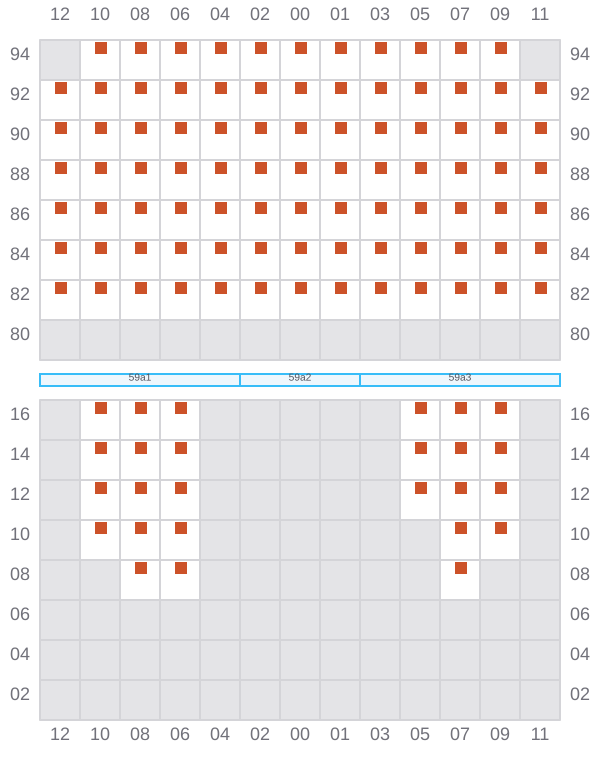

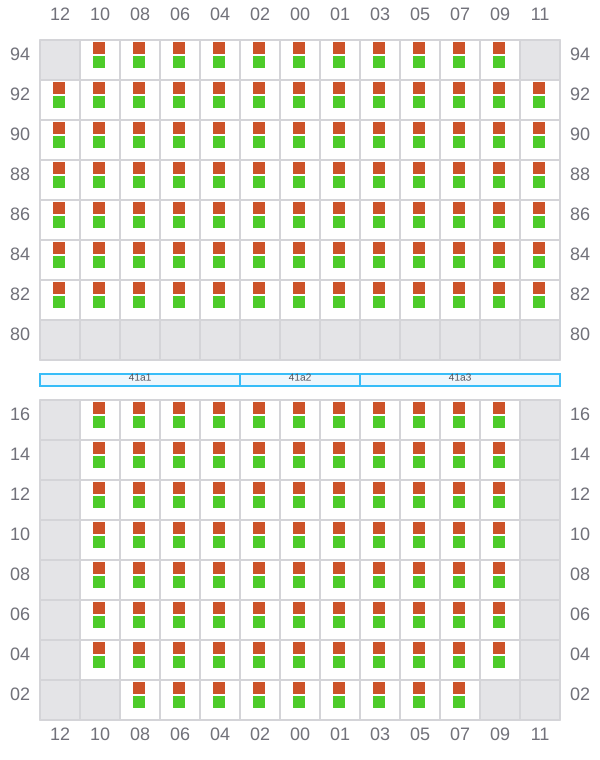

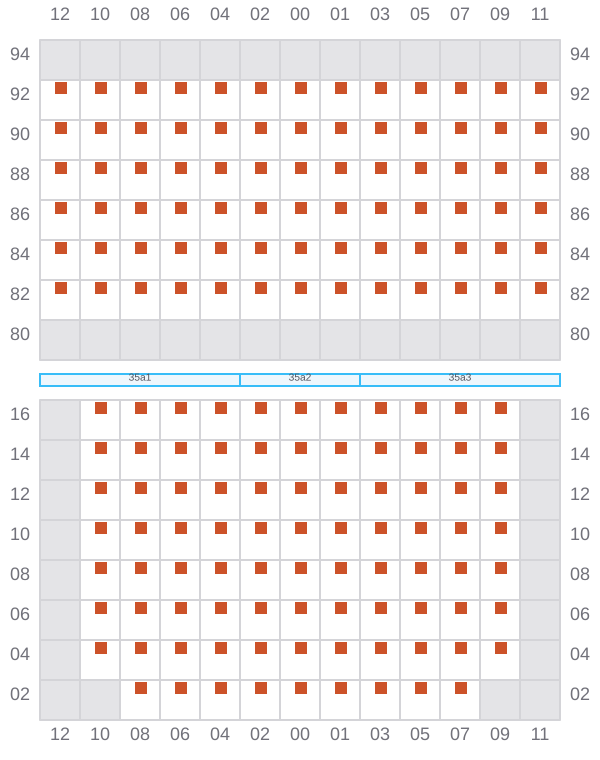

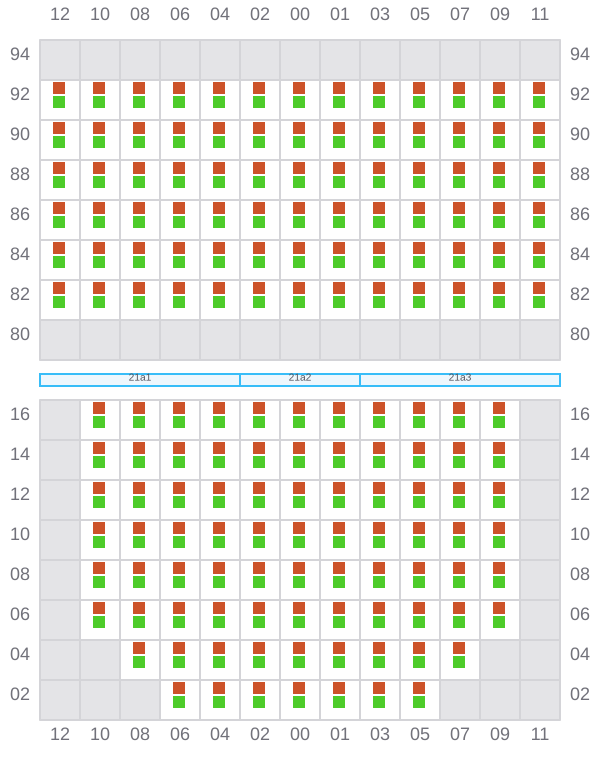

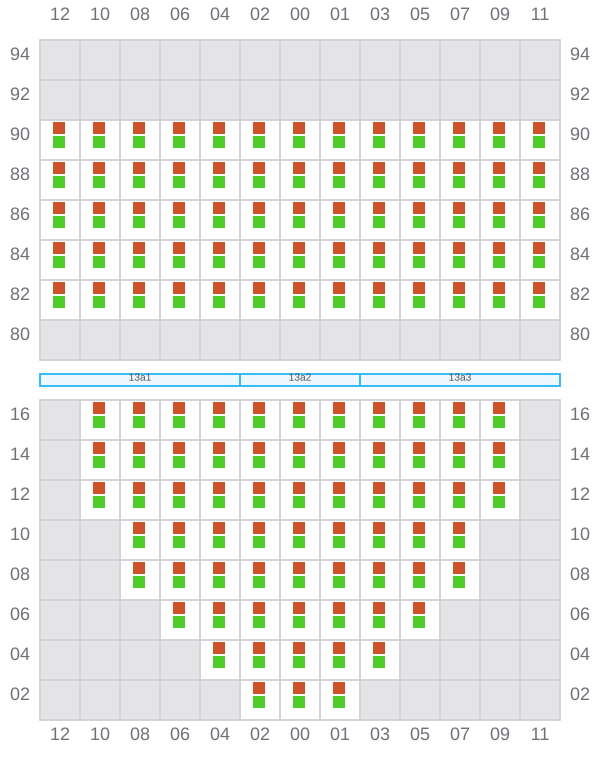

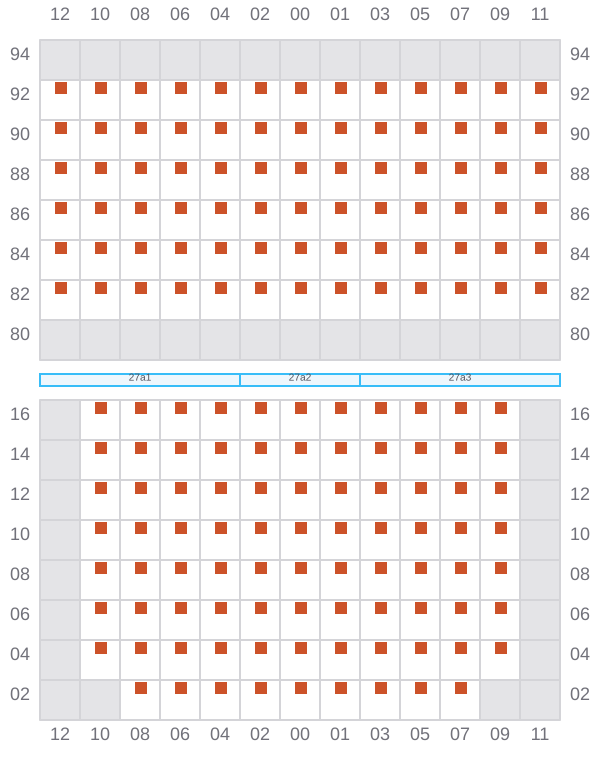

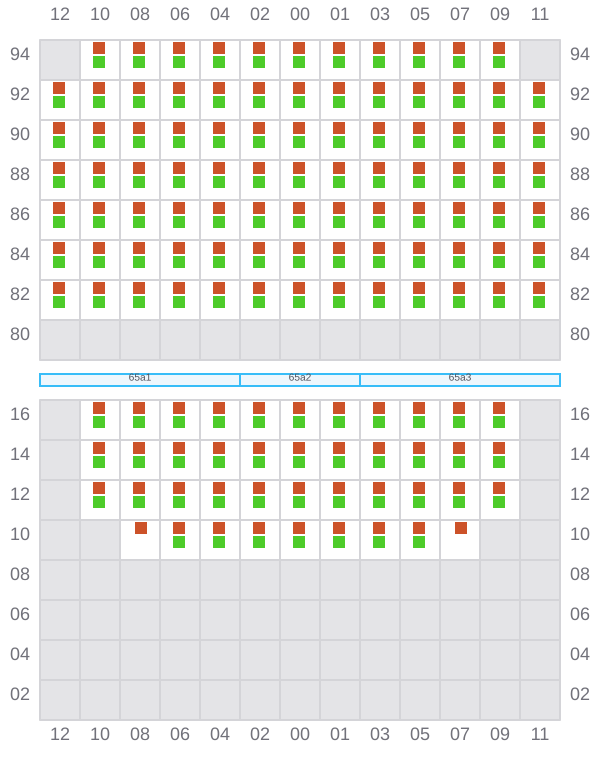

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

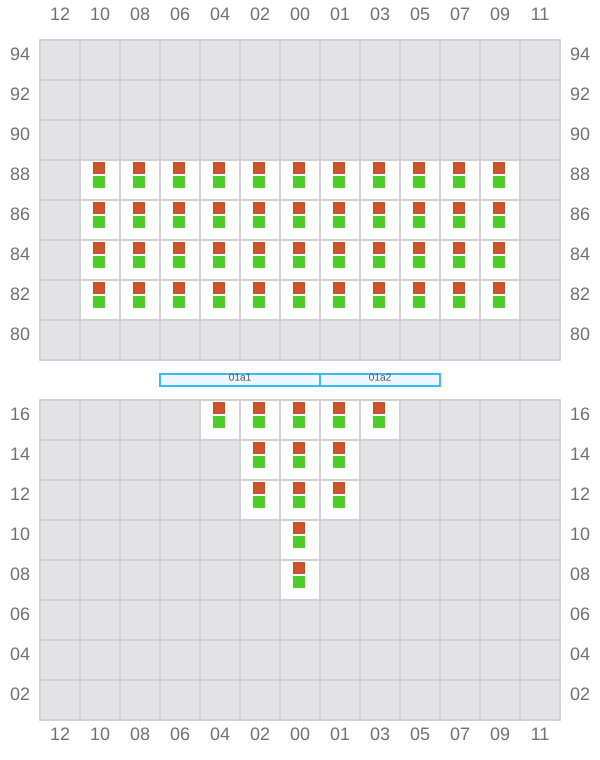

001 (002)
- →

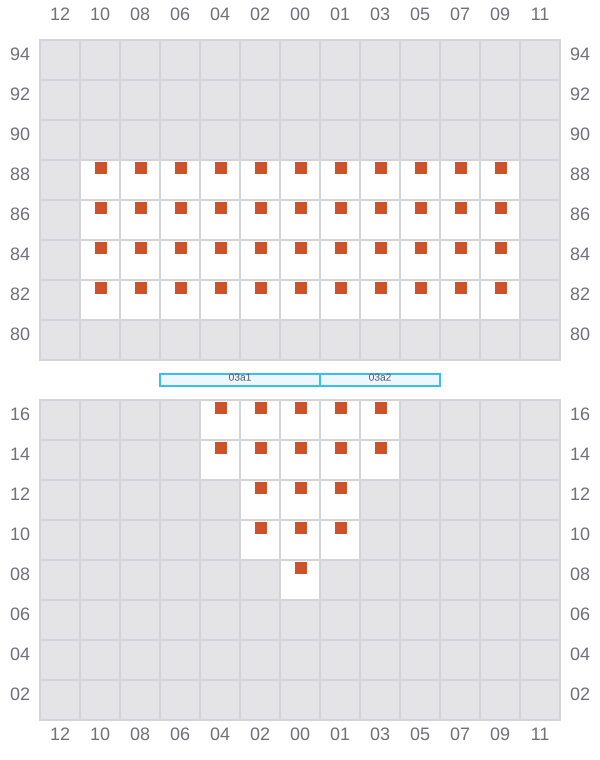

003
- ←

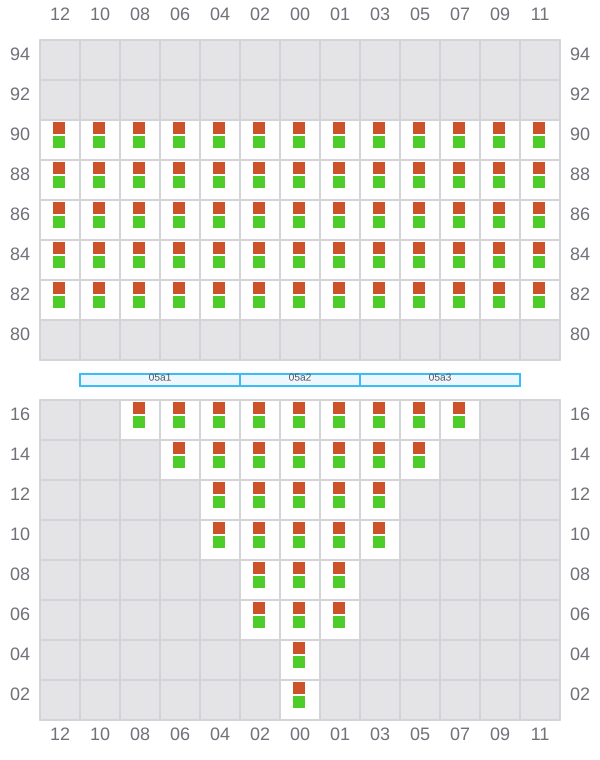

005 (006)
- →
007
- ←

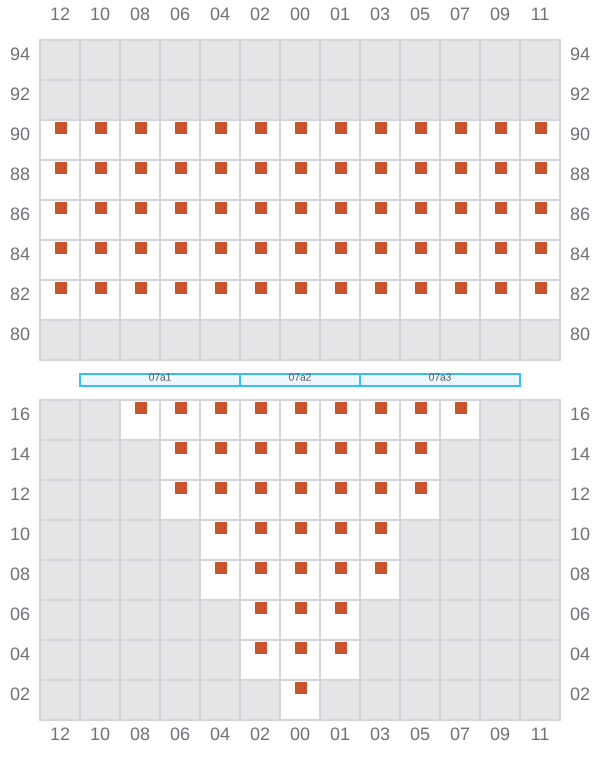

009 (010)
- →

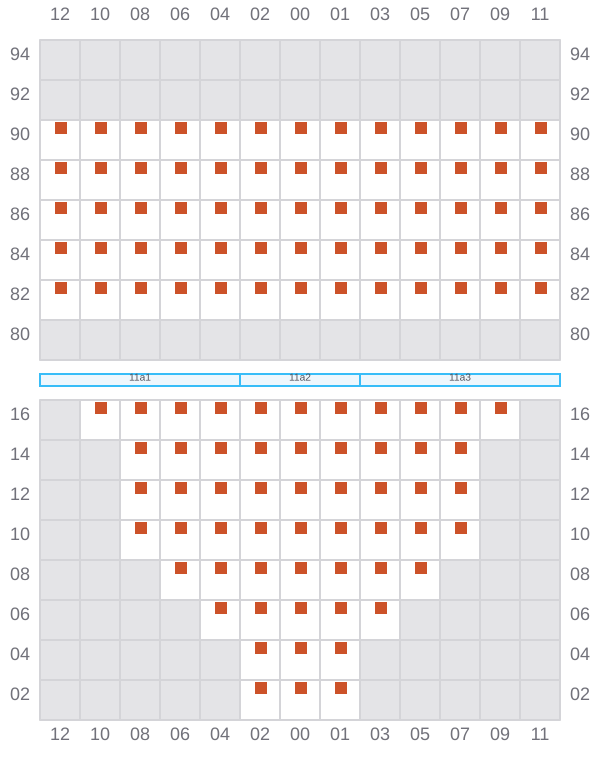

011
- ←
013 (014)
- →
015
- ←

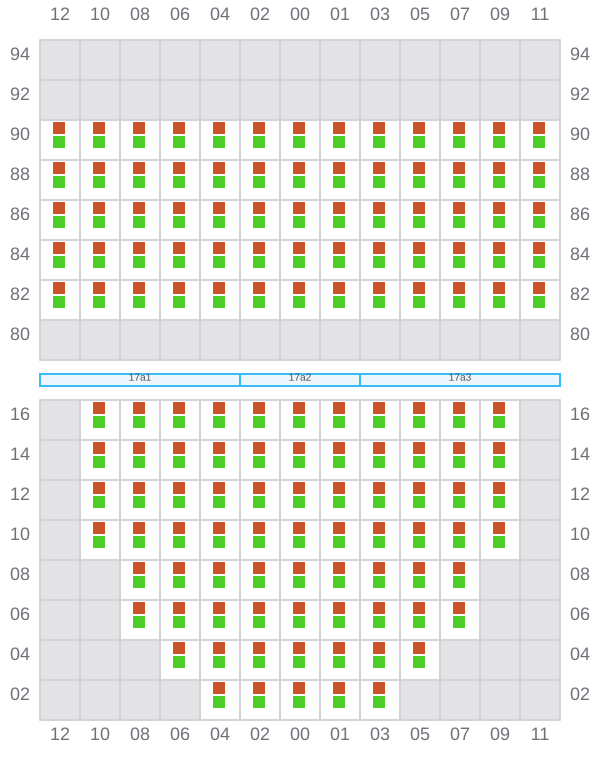

017 (018)
- →
019
- ←
021 (022)
- →

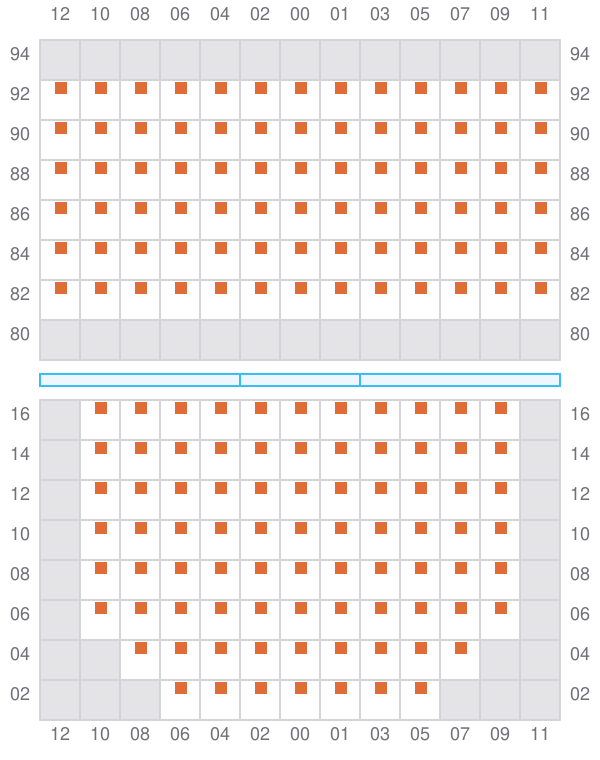

023
- ←
025 (026)
- →
027
- ←
029 (030)
- →

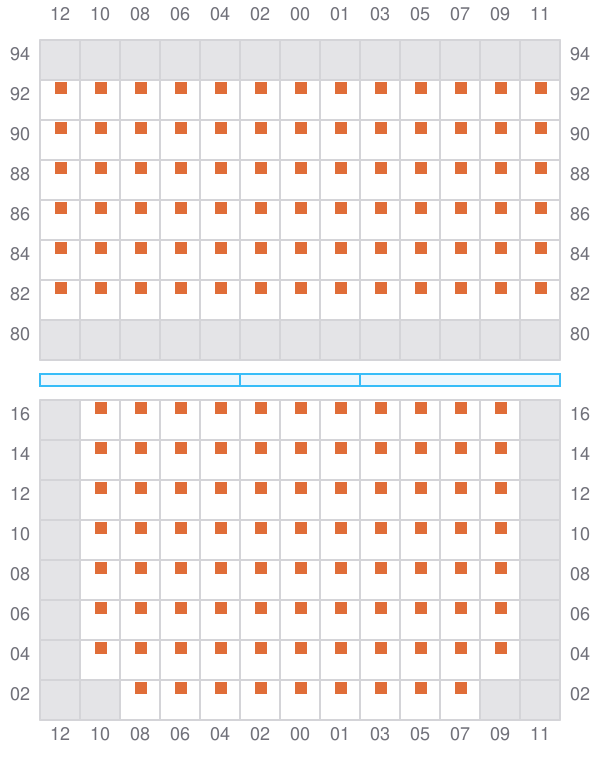

031
- ←
033 (034)
- →
035
- ←

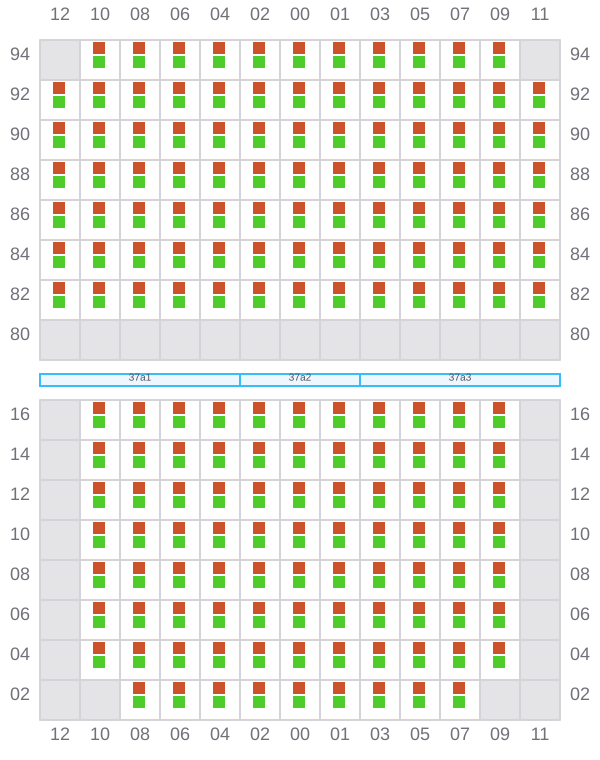

037 (038)
- →
039
- ←
041 (042)
- →
043
- ←
045 (046)
- →
047
- ←

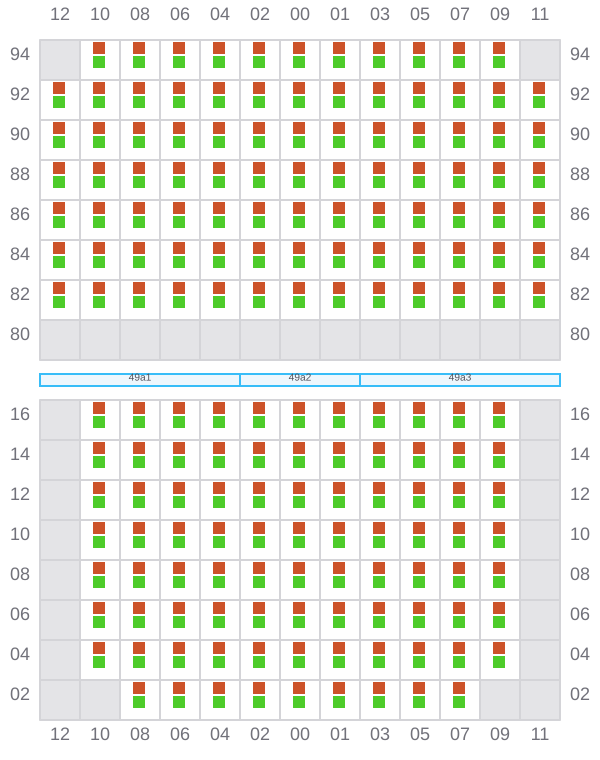

049 (050)
- →
051
- ←

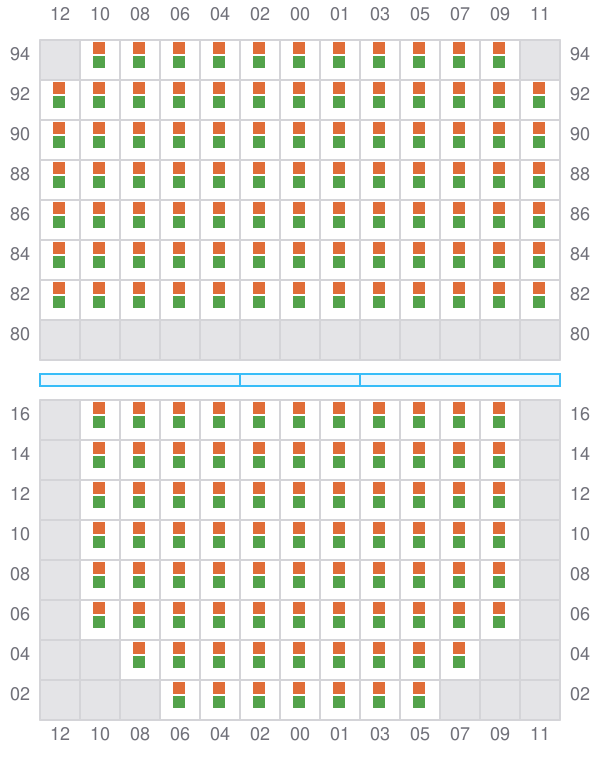

053 (054)
- →

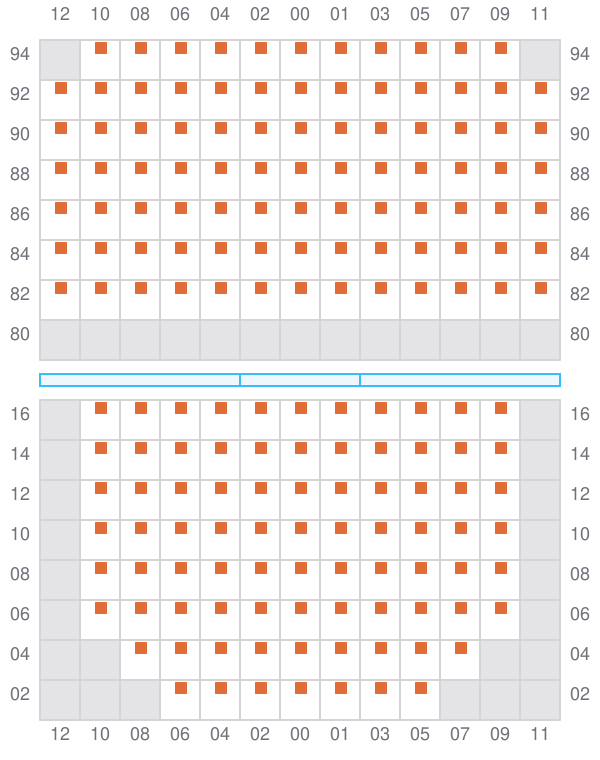

055
- ←
057 (058)
- →
059
- ←
061 (062)
- →

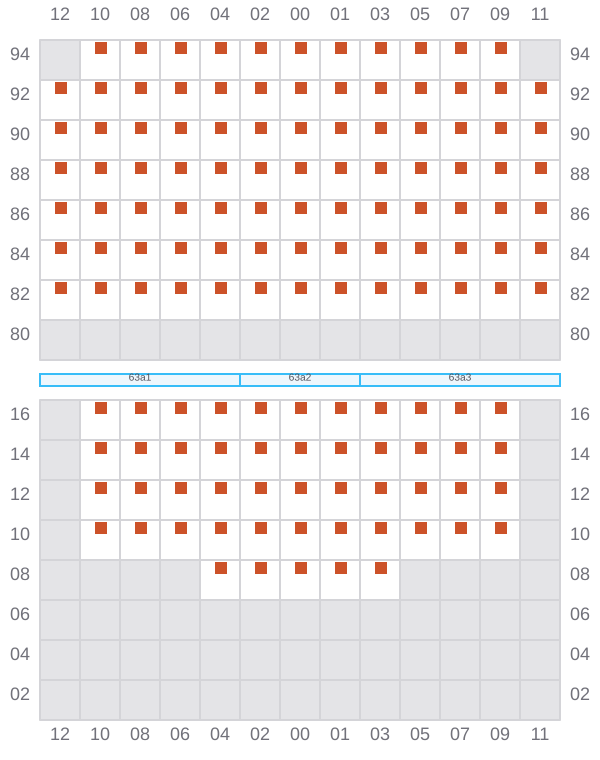

063
- ←
065 (066)
- →
067
- ←

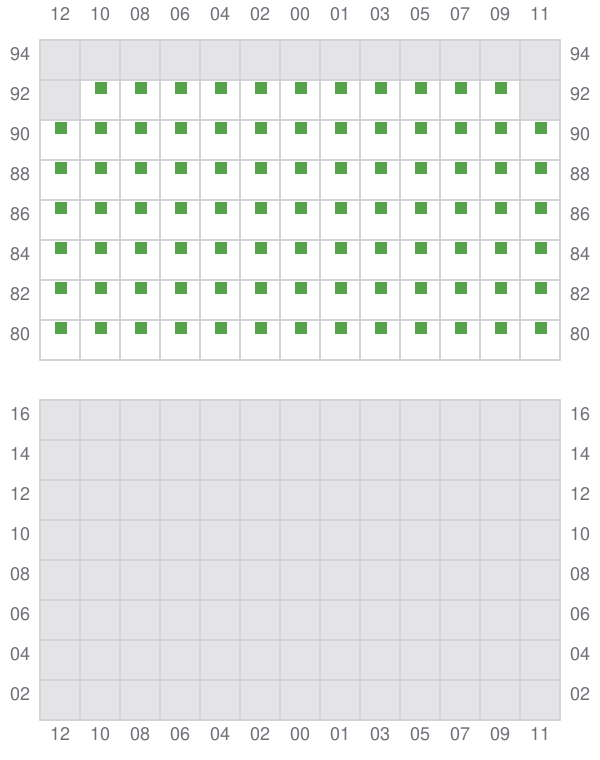

069 (070)
- → / ?
