CMA CGM FORT FLEUR D'EPEE
9809851 | 9HA6087 | CMA CGM SA THE FRENCH LINE by ************** Last update: Mon Jan 12 2026

General Info

Ship Name:CMA CGM FORT FLEUR D'EPEE
IMO Code:9809851
Call Sign:9HA6087
Line Operator:CMA CGM SA THE FRENCH LINE
Class Name for Sister Ships:FORT
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40
LPP (LBP):210.00
LOA (Length Overall):219.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:047
Max ISO Row:14
Center Line Row:No
Max Above ISO Tier:86
Min Above ISO Tier:70
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:3,532

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

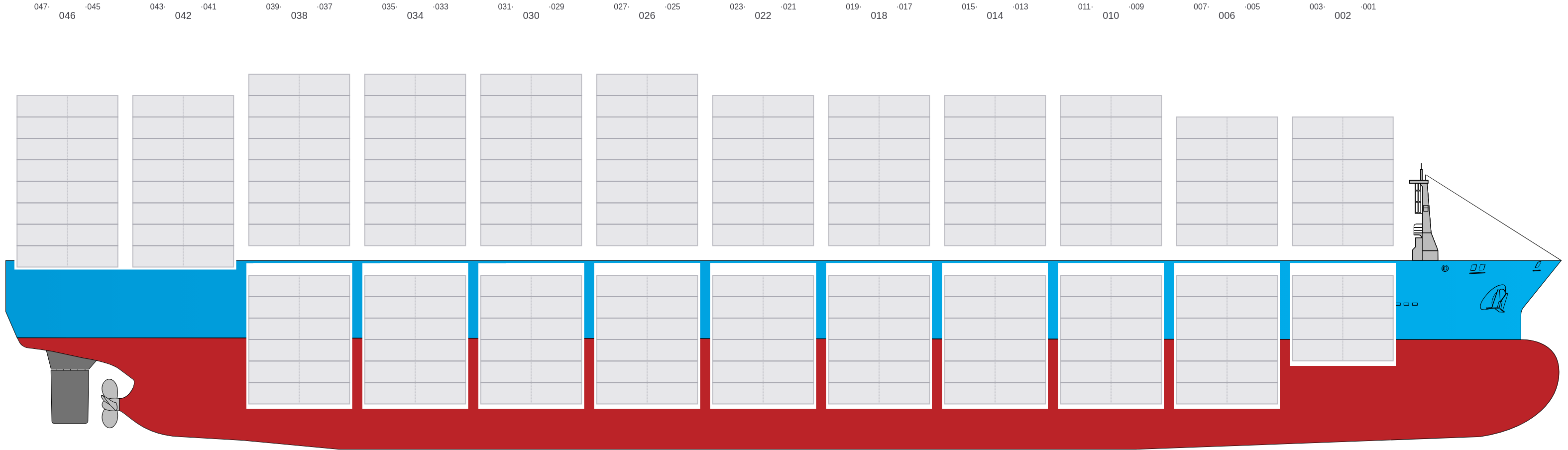

Side view of CMA CGM FORT FLEUR D'EPEE

Hatch-Covers View

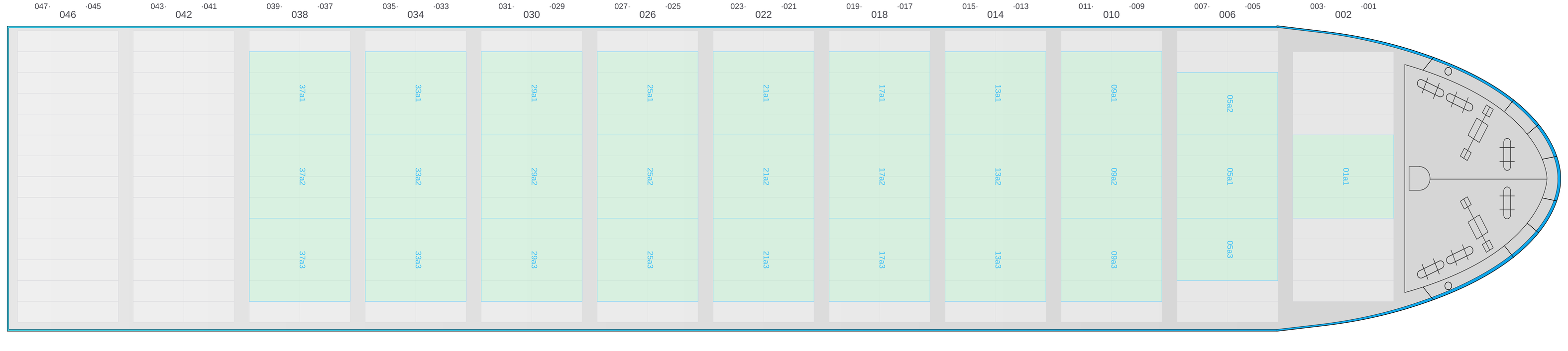

Deck view of CMA CGM FORT FLEUR D'EPEE

ISO Bays

Legend
  • 20'
  • 40'
  • Reefer
  • Restricted slot ×

001

  • →
  • ✓
Bay 001 view and slots of CMA CGM FORT FLEUR D'EPEE

003 (002)

  • ←
  • ✓

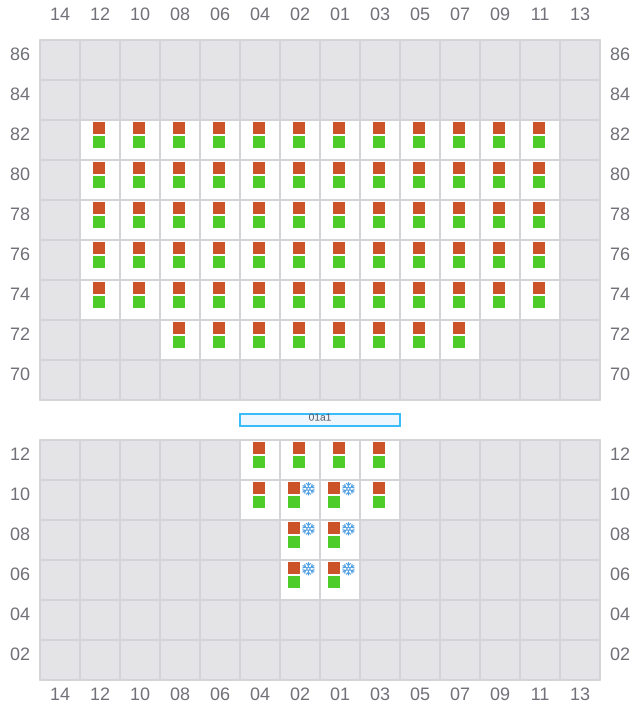

Bay 003 view and slots of CMA CGM FORT FLEUR D'EPEE

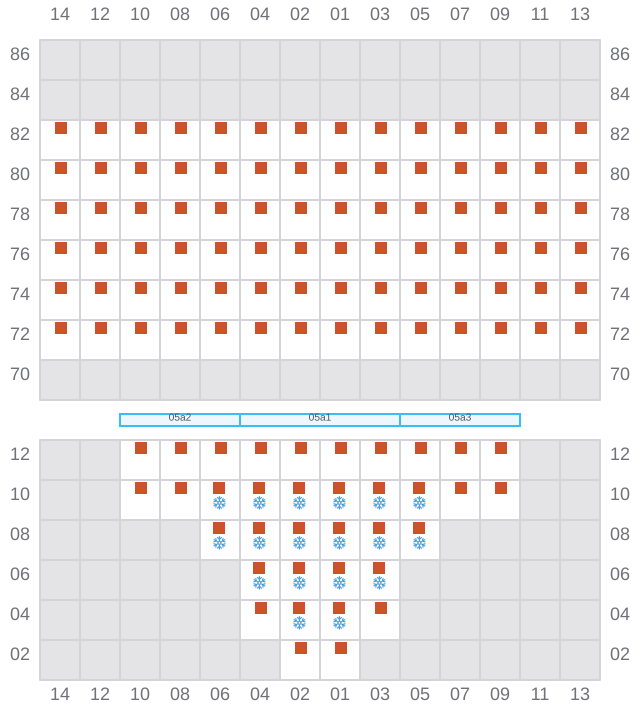

005

  • →
  • ? / ←
  • ✓
Bay 005 view and slots of CMA CGM FORT FLEUR D'EPEE

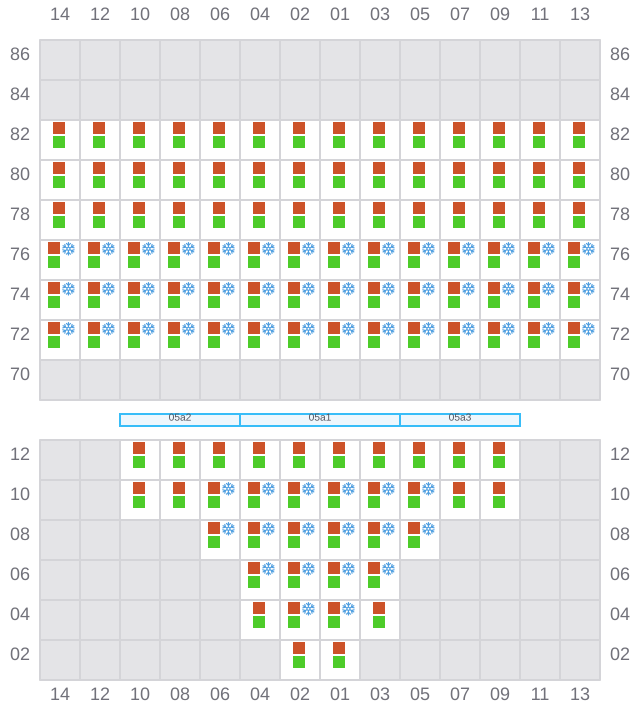

007 (006)

  • ←
  • → / ←
  • ✓
Bay 007 view and slots of CMA CGM FORT FLEUR D'EPEE

009

  • →
  • ✓

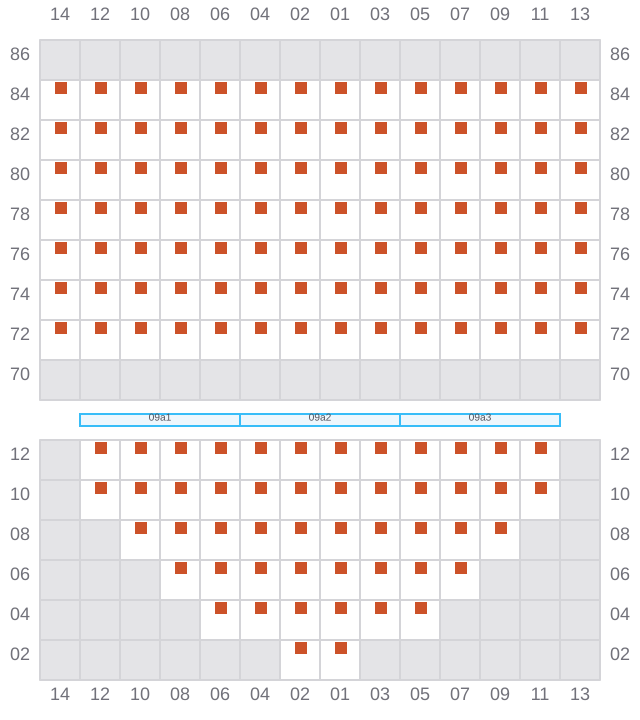

Bay 009 view and slots of CMA CGM FORT FLEUR D'EPEE

011 (010)

  • ←
  • →
  • ✓

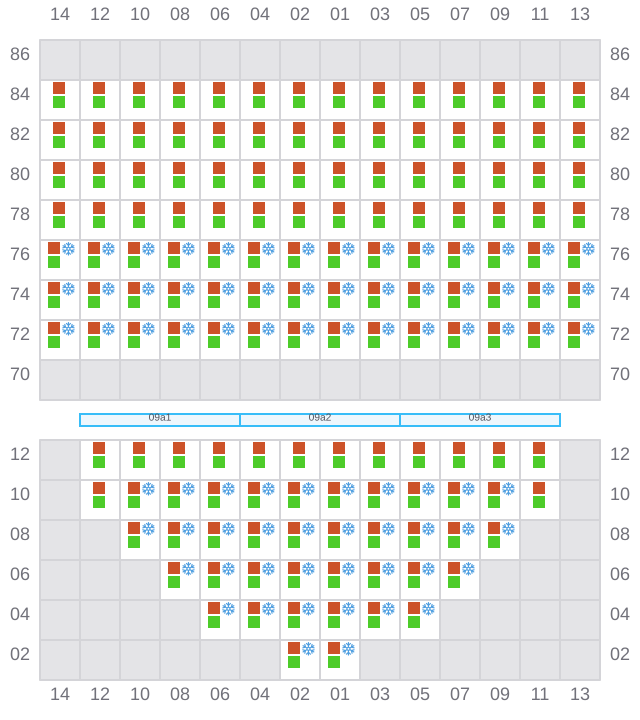

Bay 011 view and slots of CMA CGM FORT FLEUR D'EPEE

013

  • →
  • ✓

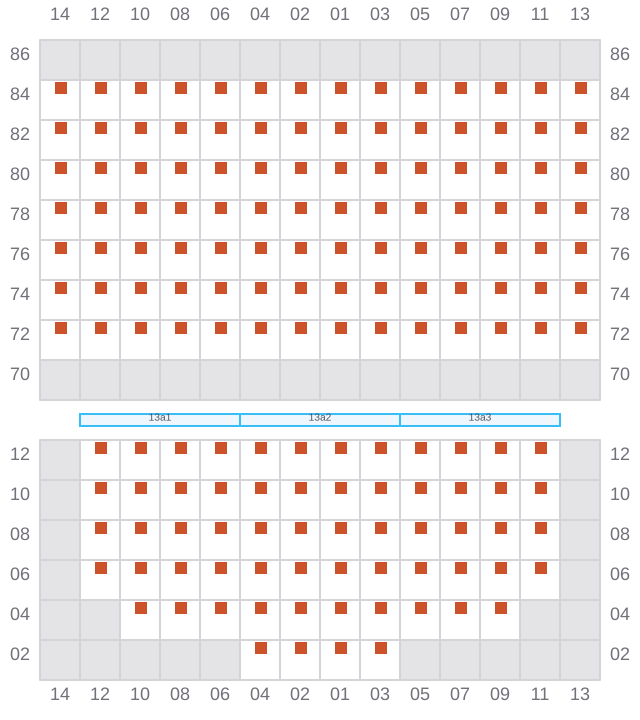

Bay 013 view and slots of CMA CGM FORT FLEUR D'EPEE

015 (014)

  • ←
  • → / ←
  • ✓
Bay 015 view and slots of CMA CGM FORT FLEUR D'EPEE

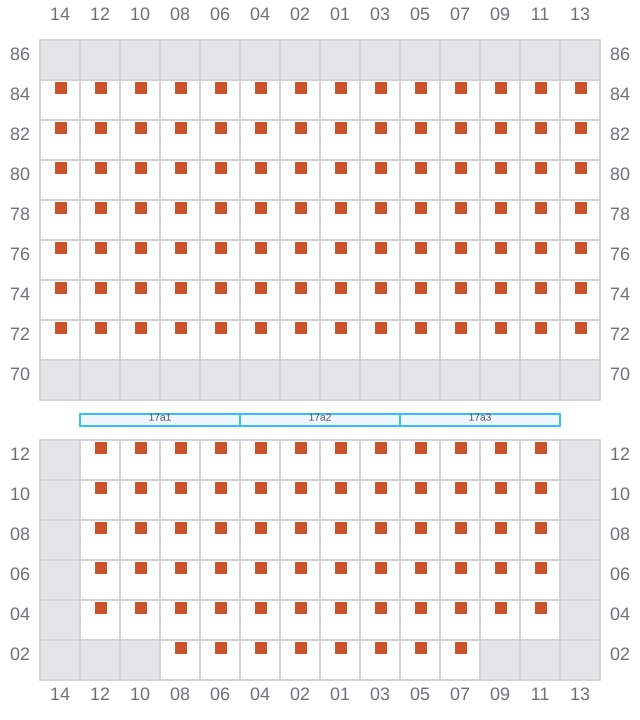

017

  • →
  • ✓
Bay 017 view and slots of CMA CGM FORT FLEUR D'EPEE

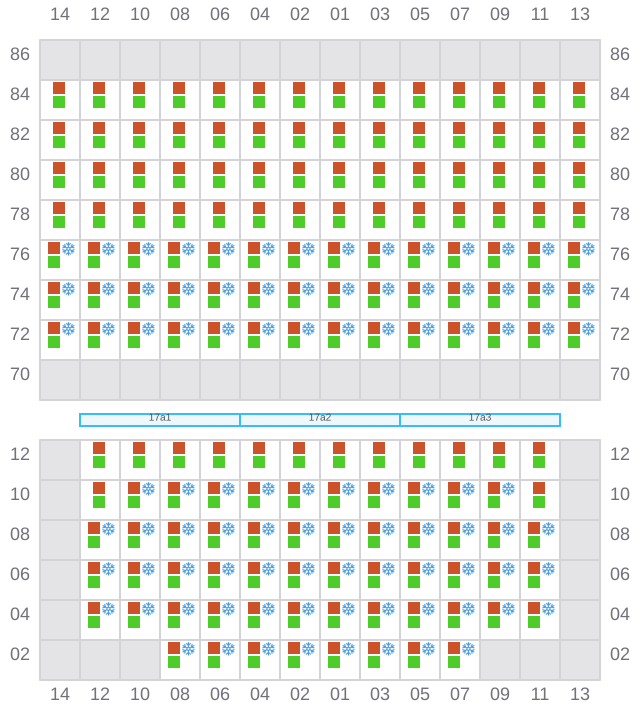

019 (018)

  • ←
  • →
  • ✓
Bay 019 view and slots of CMA CGM FORT FLEUR D'EPEE

021

  • →
  • ✓

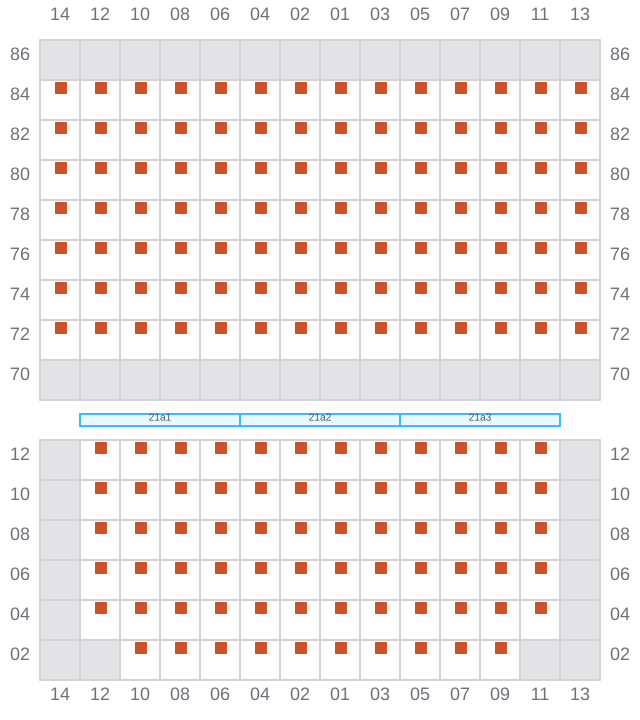

Bay 021 view and slots of CMA CGM FORT FLEUR D'EPEE

023 (022)

  • ←
  • → / ←
  • ✓

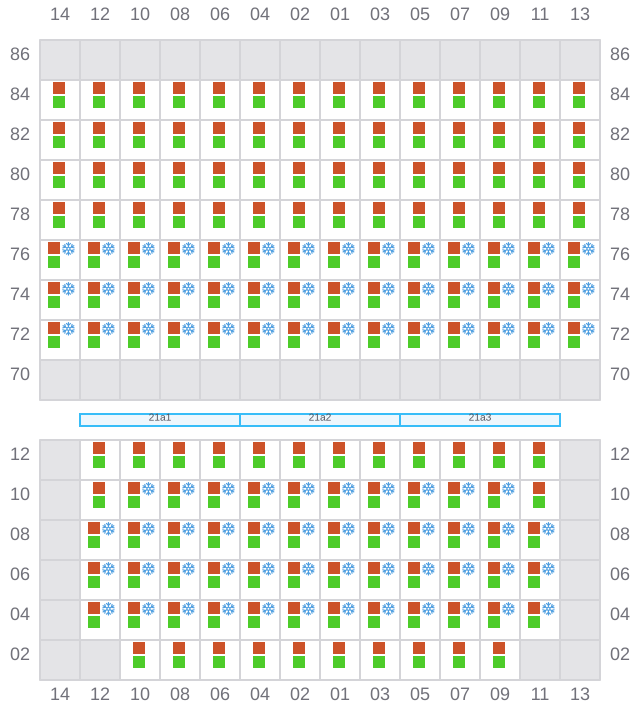

Bay 023 view and slots of CMA CGM FORT FLEUR D'EPEE

025

  • →
  • ✓
Bay 025 view and slots of CMA CGM FORT FLEUR D'EPEE

027 (026)

  • ←
  • →
  • ✓

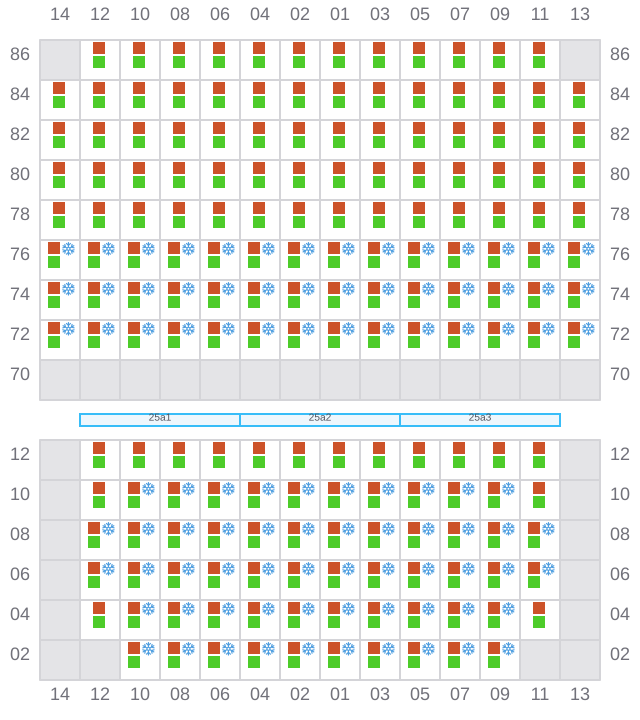

Bay 027 view and slots of CMA CGM FORT FLEUR D'EPEE

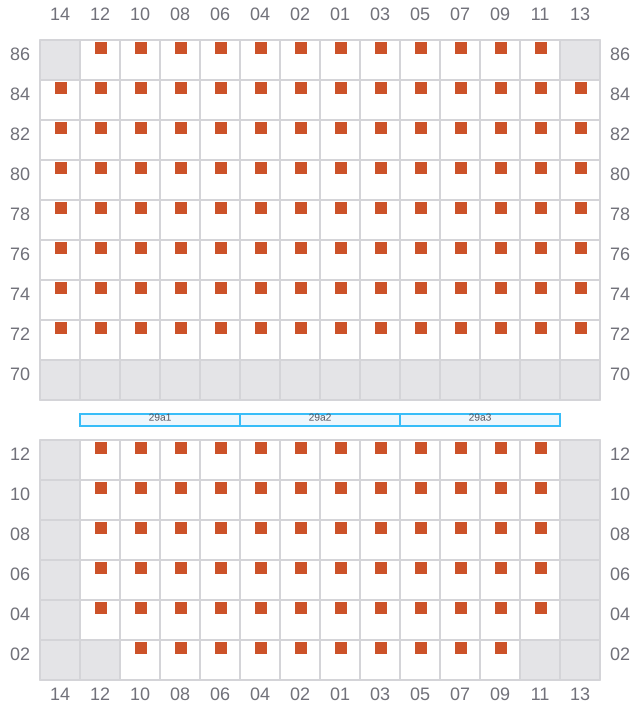

029

  • →
  • ✓
Bay 029 view and slots of CMA CGM FORT FLEUR D'EPEE

031 (030)

  • ←
  • → / ←
  • ✓

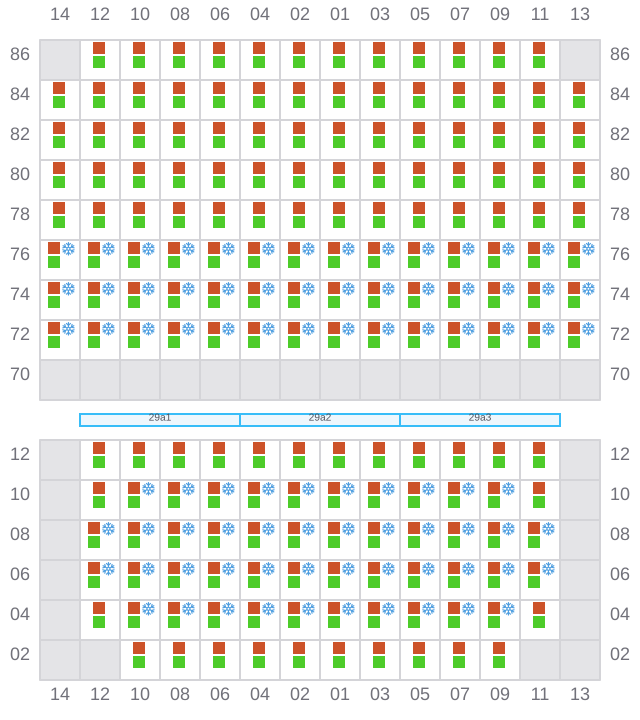

Bay 031 view and slots of CMA CGM FORT FLEUR D'EPEE

033

  • →
  • ✓

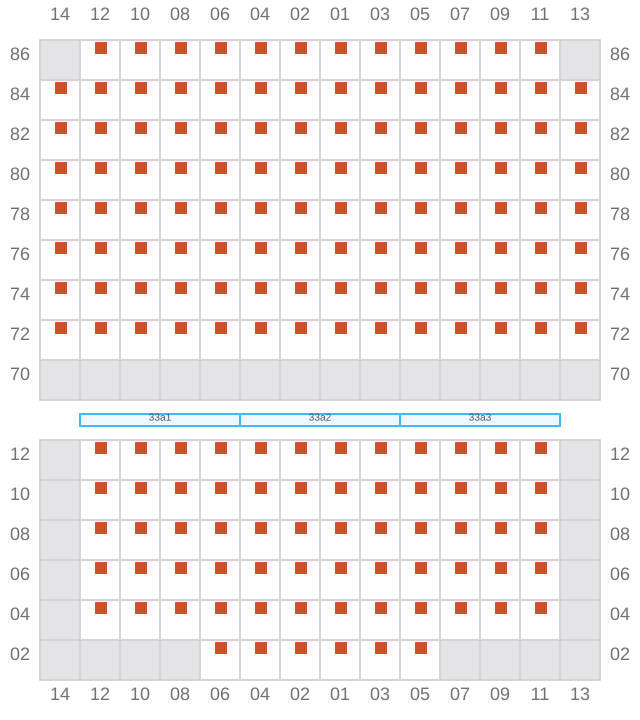

Bay 033 view and slots of CMA CGM FORT FLEUR D'EPEE

035 (034)

  • ←
  • →
  • ✓
Bay 035 view and slots of CMA CGM FORT FLEUR D'EPEE

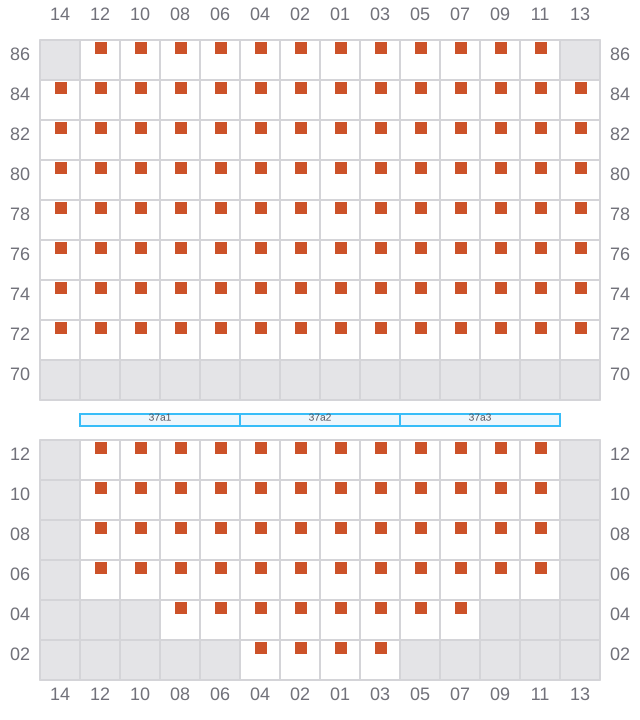

037

  • →
  • ✓
Bay 037 view and slots of CMA CGM FORT FLEUR D'EPEE

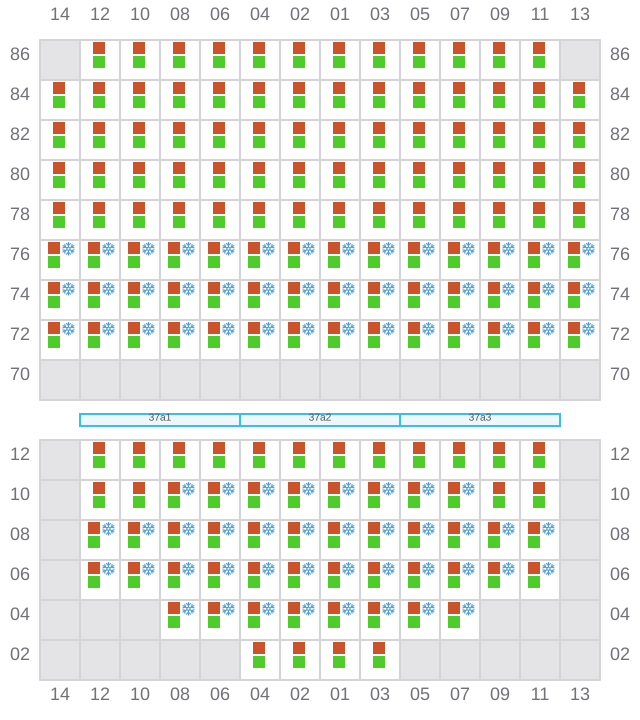

039 (038)

  • ←
  • → / ←
  • ✓
Bay 039 view and slots of CMA CGM FORT FLEUR D'EPEE

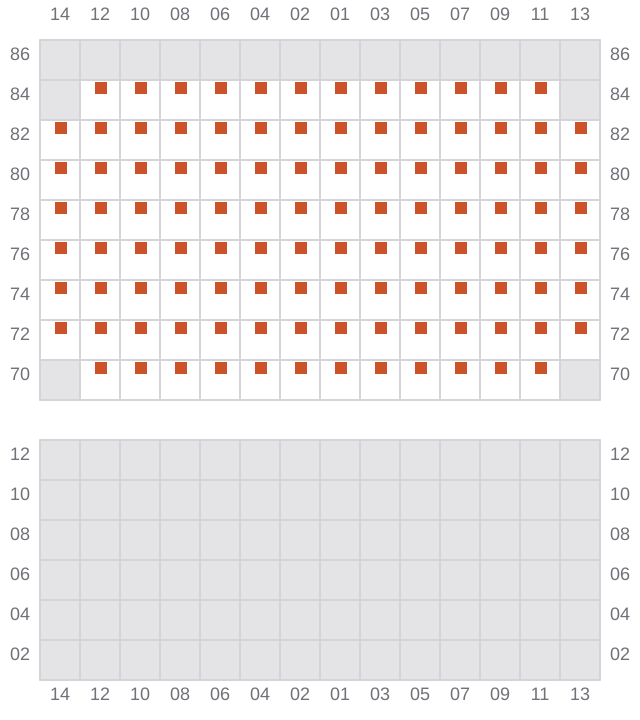

041

  • →
  • ✓
Bay 041 view and slots of CMA CGM FORT FLEUR D'EPEE

043 (042)

  • ←
  • → / ?
  • ✓

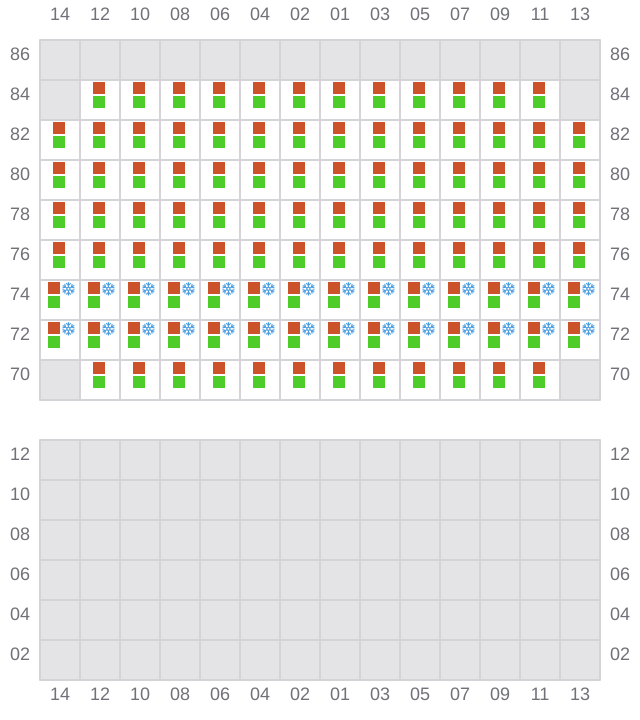

Bay 043 view and slots of CMA CGM FORT FLEUR D'EPEE

045

  • →

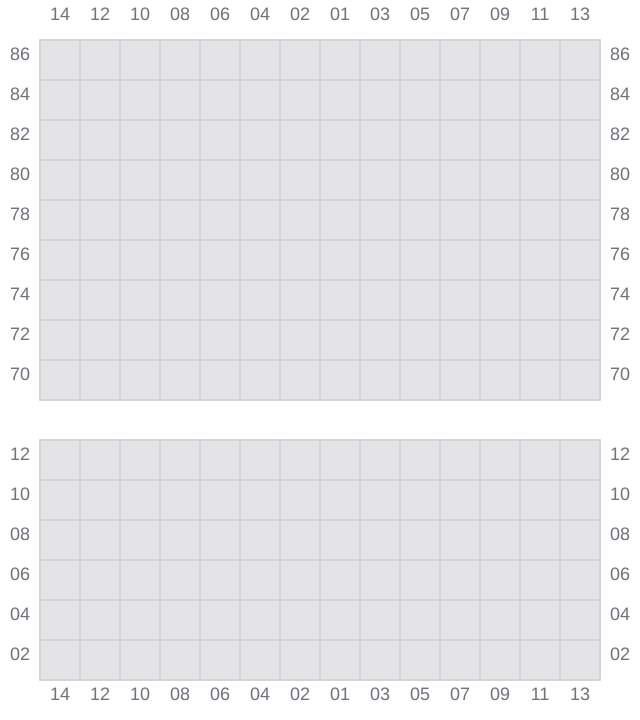

Bay 045 view and slots of CMA CGM FORT FLEUR D'EPEE

047 (046)

  • ←
Bay 047 view and slots of CMA CGM FORT FLEUR D'EPEE
