CMA CGM FORT ST LOUIS
9261889 | 5BLP5 | CMA by *********************** Last update: Thu Jan 16 2025
General Info
Ship Name:CMA CGM FORT ST LOUIS
IMO Code:9261889
Call Sign:5BLP5
Line Operator:CMA
Class Name for Sister Ships:CGFU
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:043
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,276
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

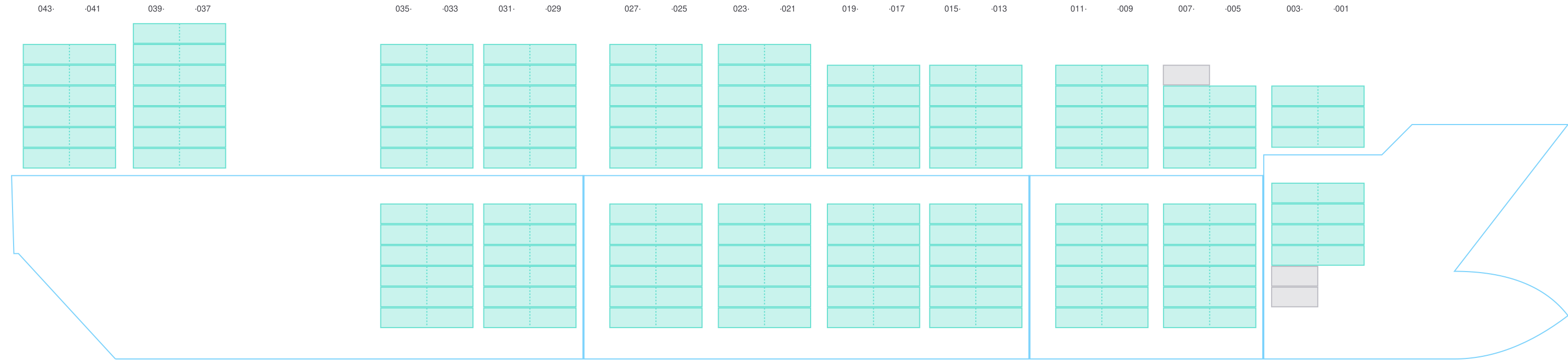

Side View

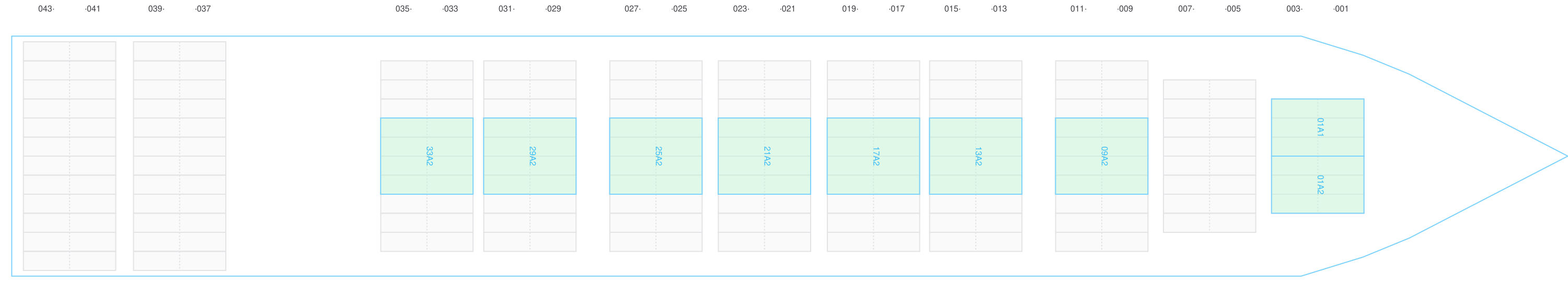

Hatch-Covers View

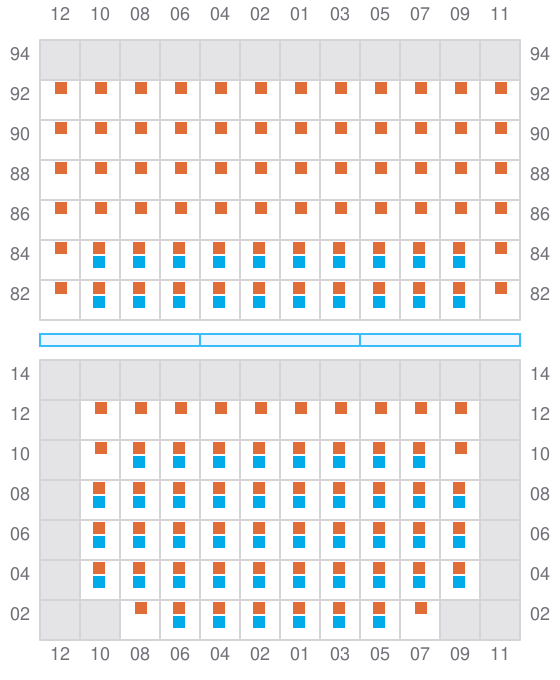

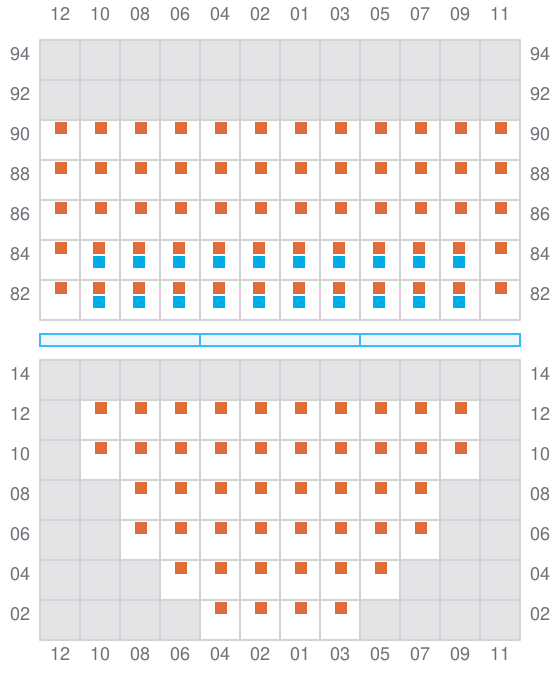

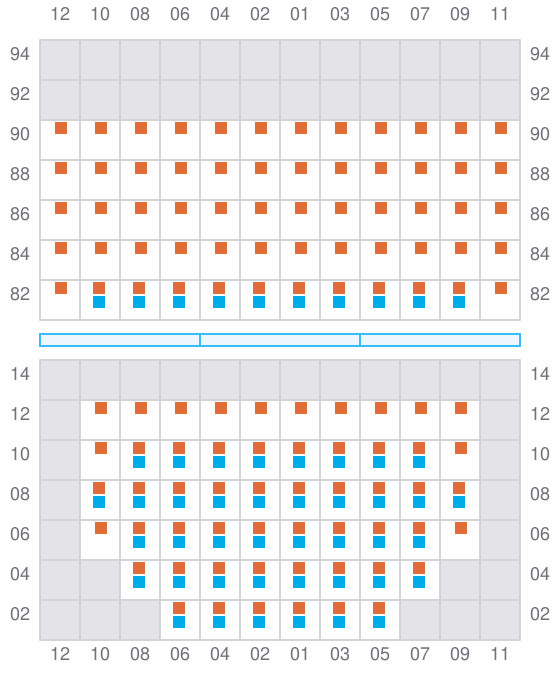

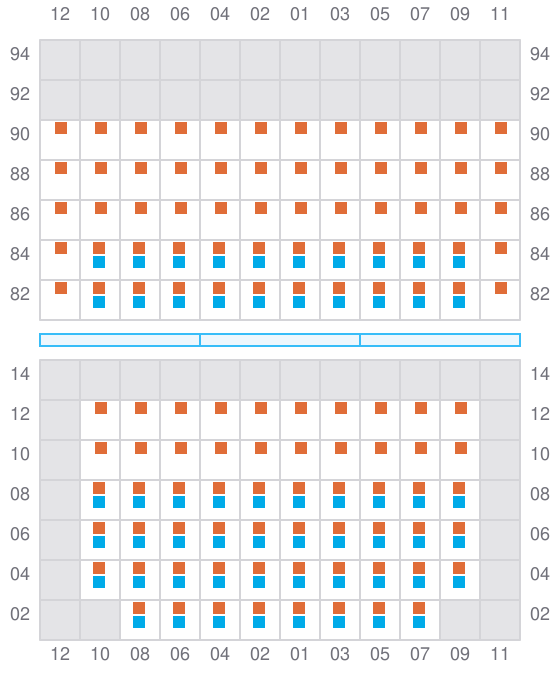

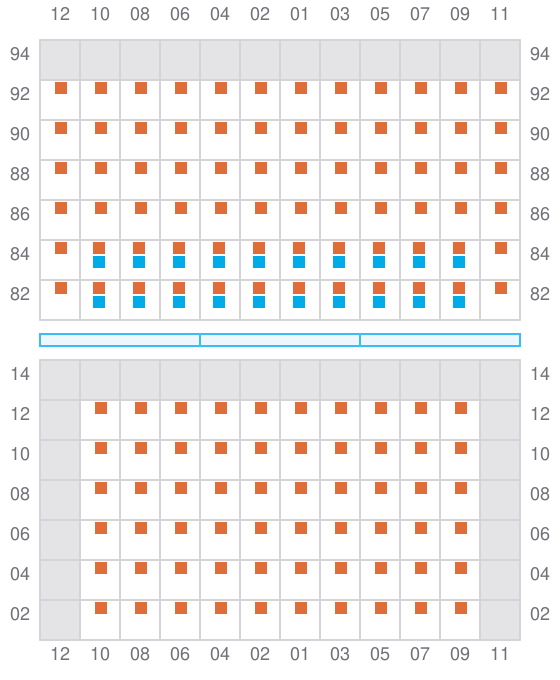

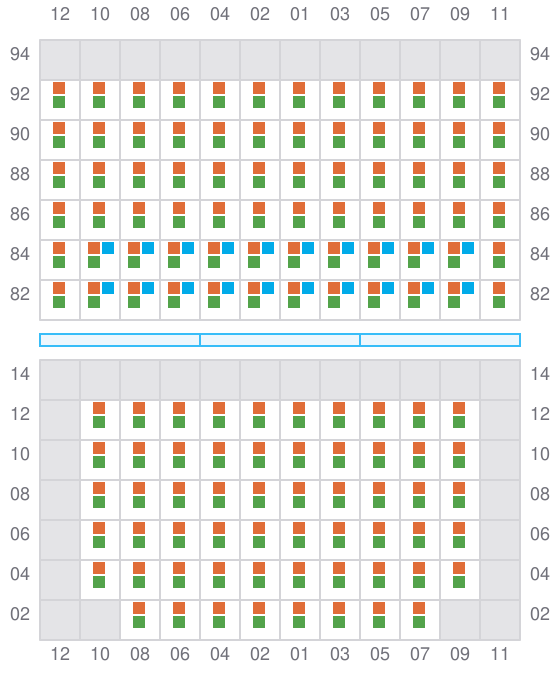

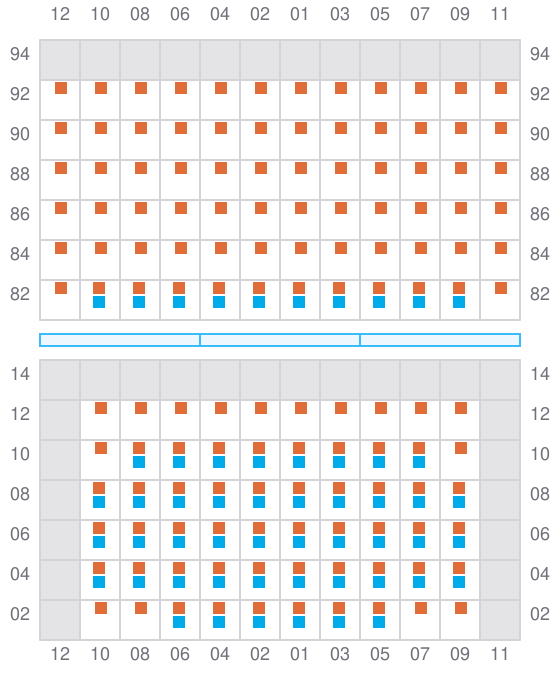

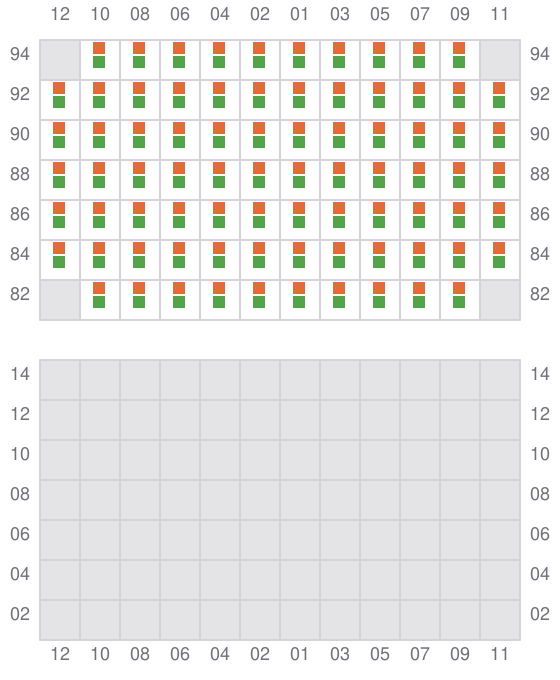

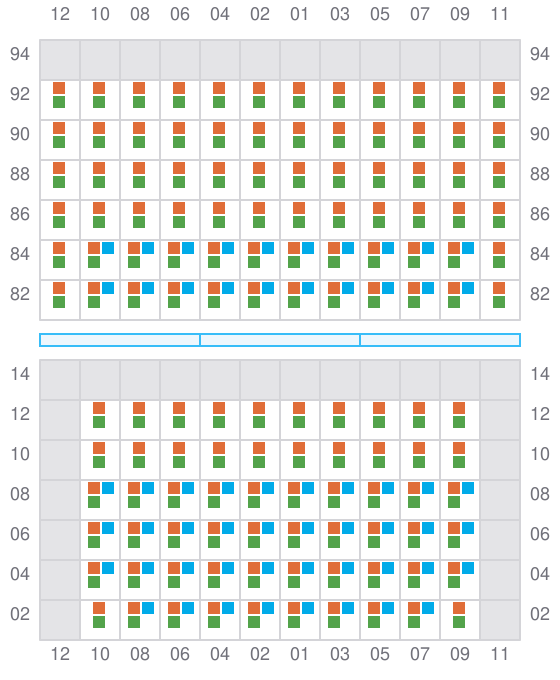

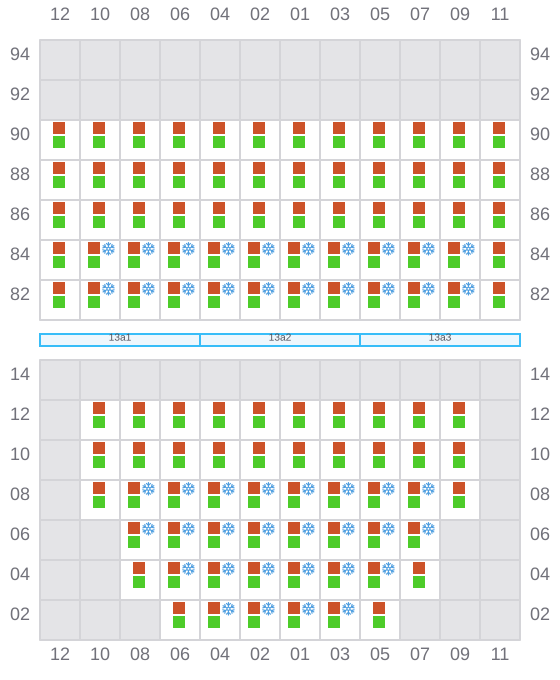

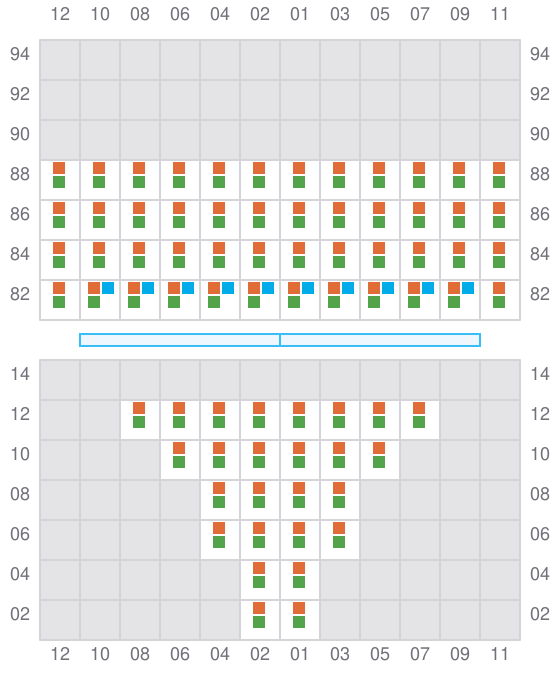

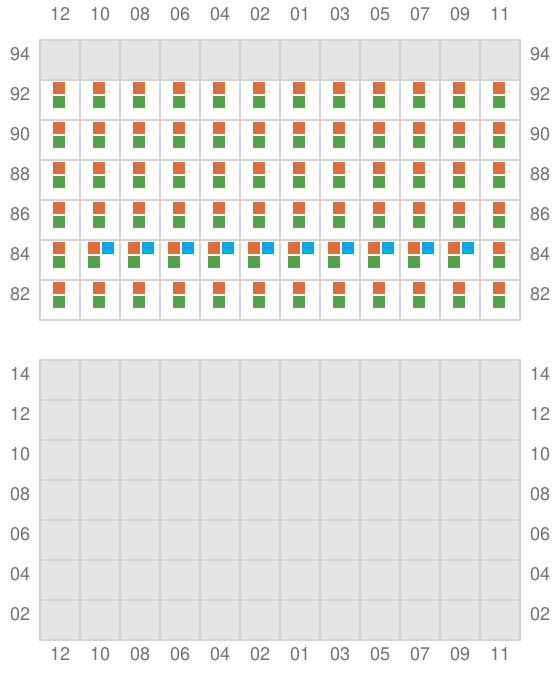

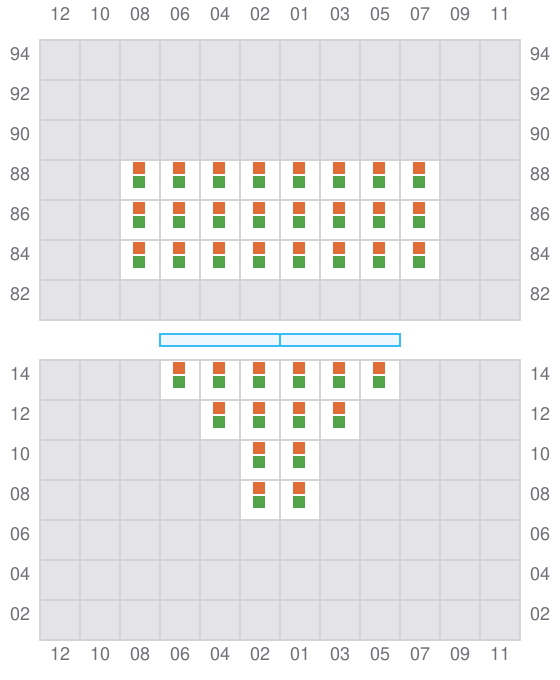

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →

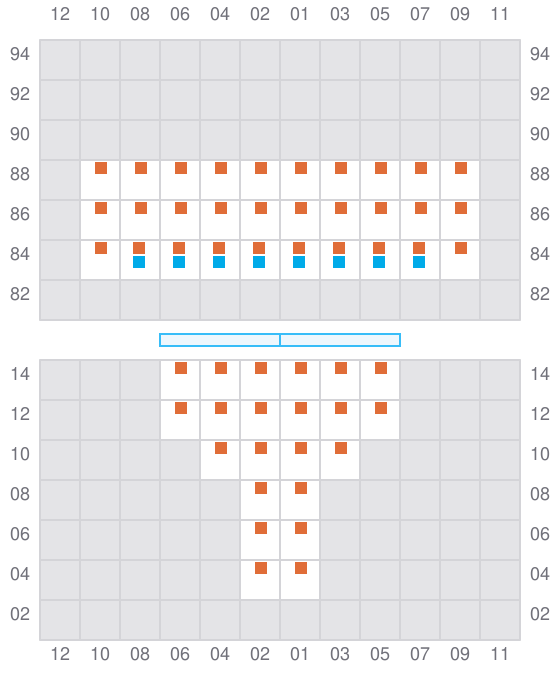

003
- ←
- → / ?
- →

005 (006)
- →
- → / ?
- →

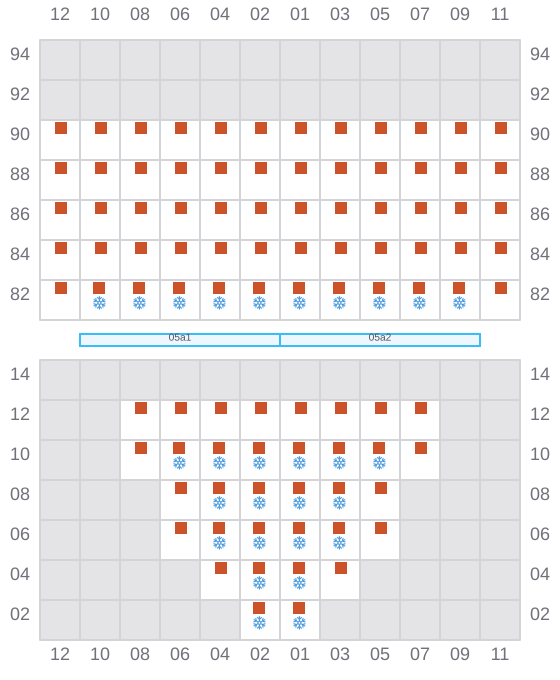

007
- ←
- → / ?
- →

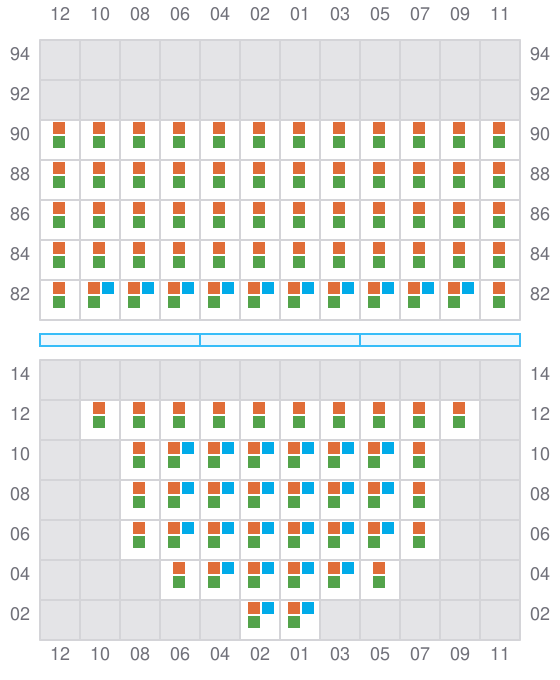

009 (010)
- →
- → / ?
- →

011
- ←
- → / ?
- →

013 (014)
- →
- →
- →

015
- ←
- →
- →

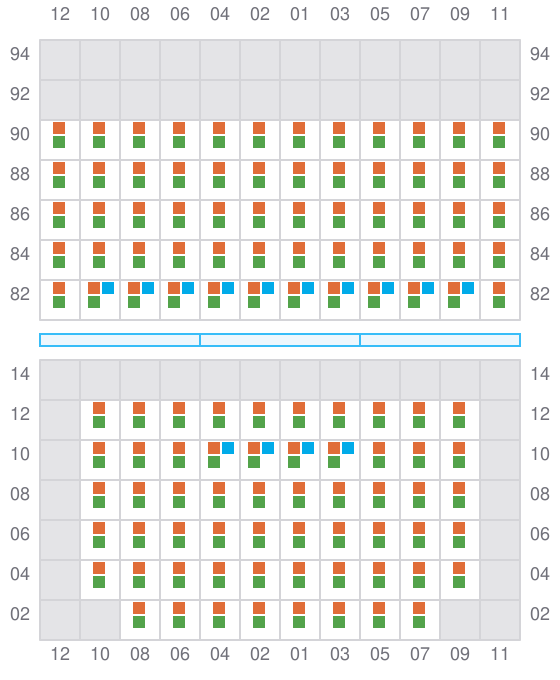

017 (018)
- →
- →
- →

019
- ←
- →
- →

021 (022)
- →
- →
- →

023
- ←
- →
- →

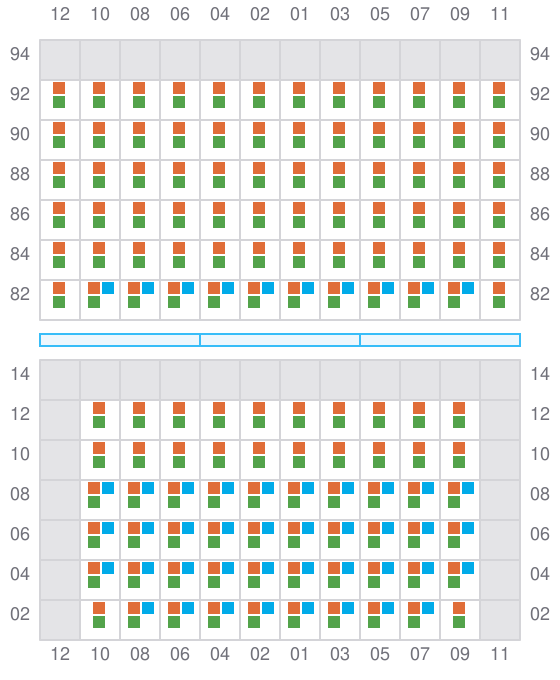

025 (026)
- →
- →
- →

027
- ←
- →
- →

029 (030)
- →
- →
- →

031
- ←
- →
- →

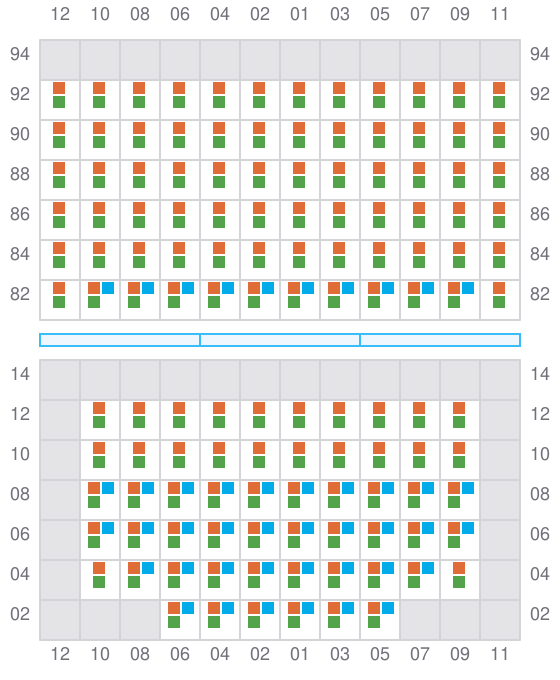

033 (034)
- →
- →
- →

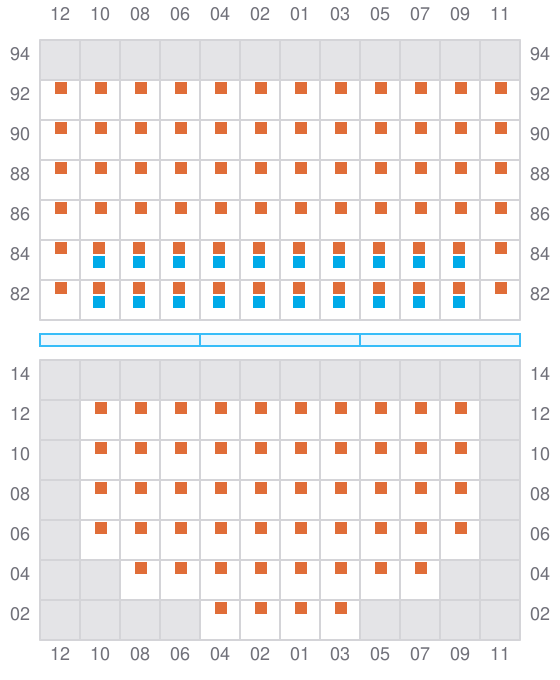

035
- ←
- →
- →

037 (038)
- → / ?
- → / ?
- → / ?

039
- ← / ?
- → / ?
- → / ?

041 (042)
- → / ?
- → / ?
- → / ?

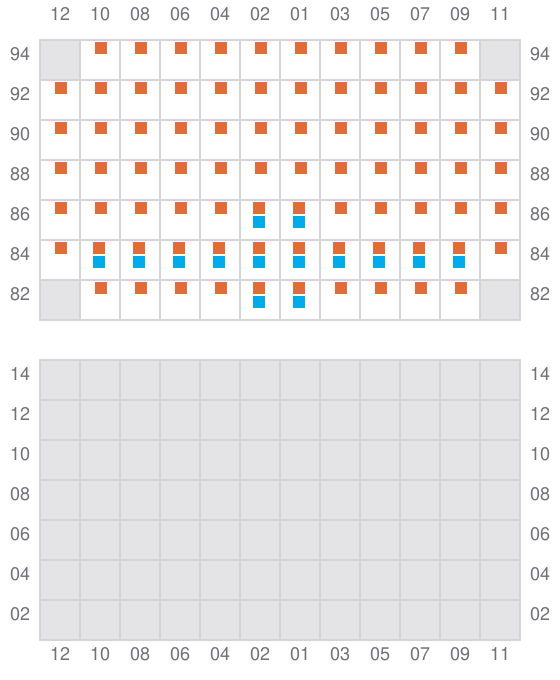

043
- ← / ?
- → / ?
- → / ?
