CMA CGM FRANCOISE SAGAN
9356696 | 9HA5888 | CMA by *********************** Last update: Mon Jan 27 2025
General Info
Ship Name:CMA CGM FRANCOISE SAGAN
IMO Code:9356696
Call Sign:9HA5888
Line Operator:CMA
Class Name for Sister Ships:CCFS
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):292.07
LOA (Length Overall):304.06
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:071
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,661
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

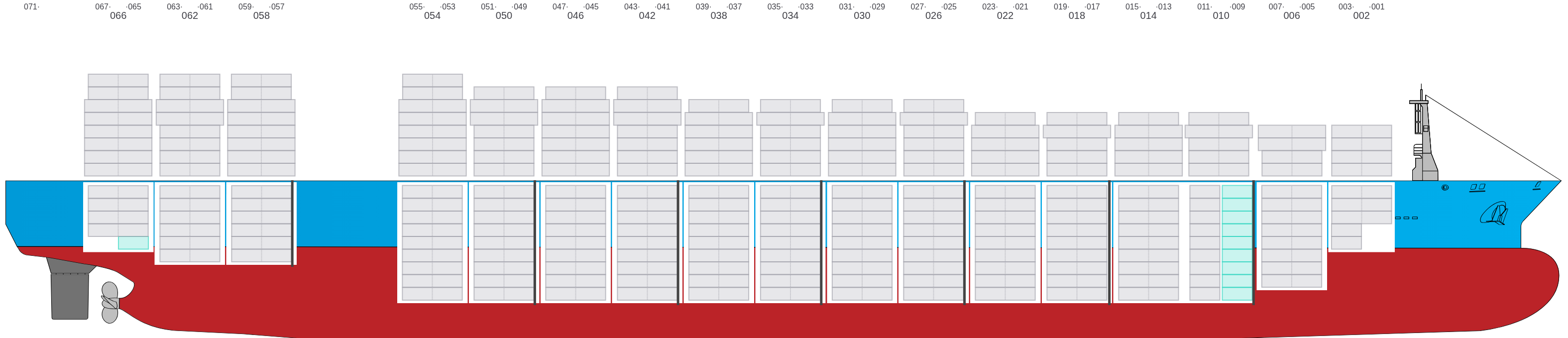

Side View

Hatch-Covers View

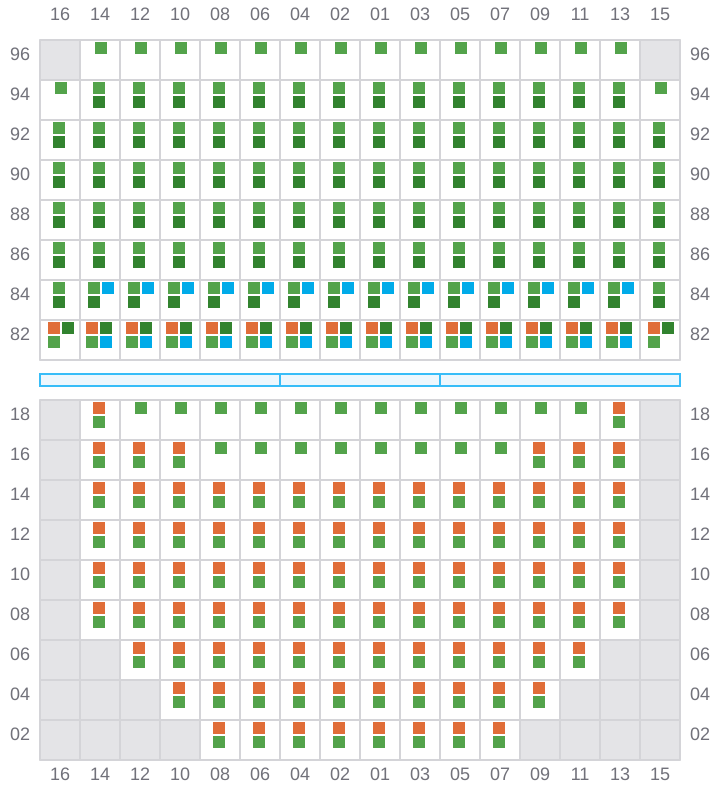

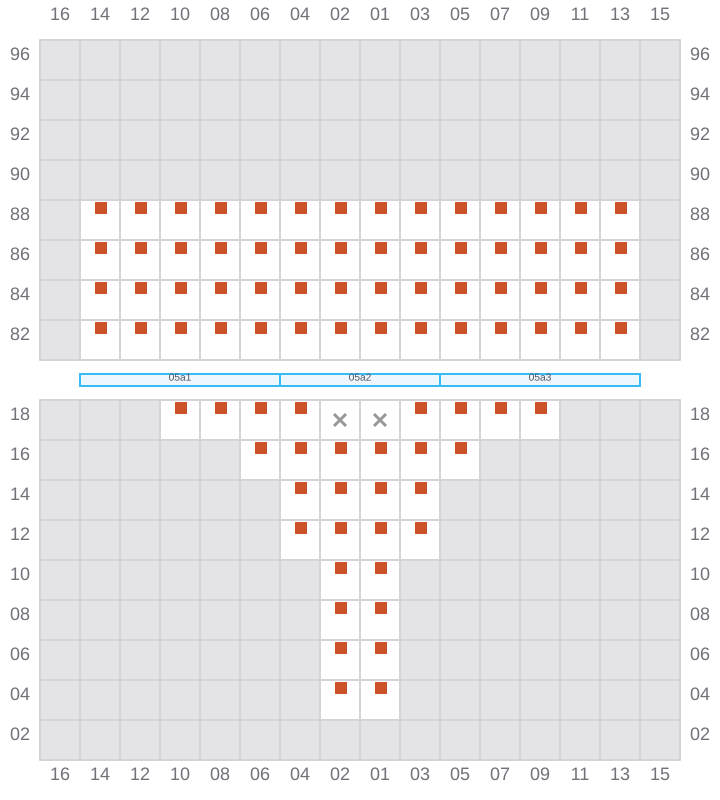

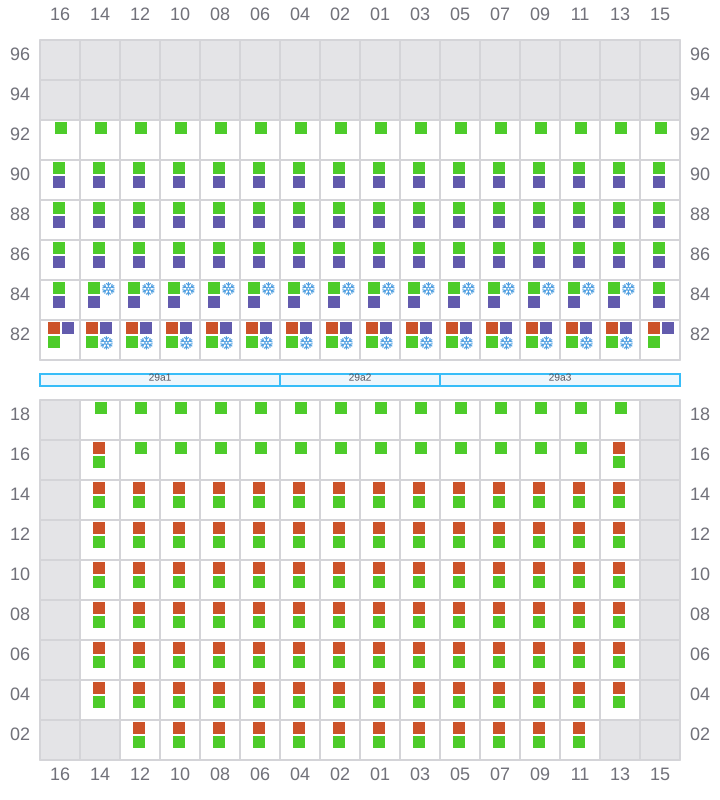

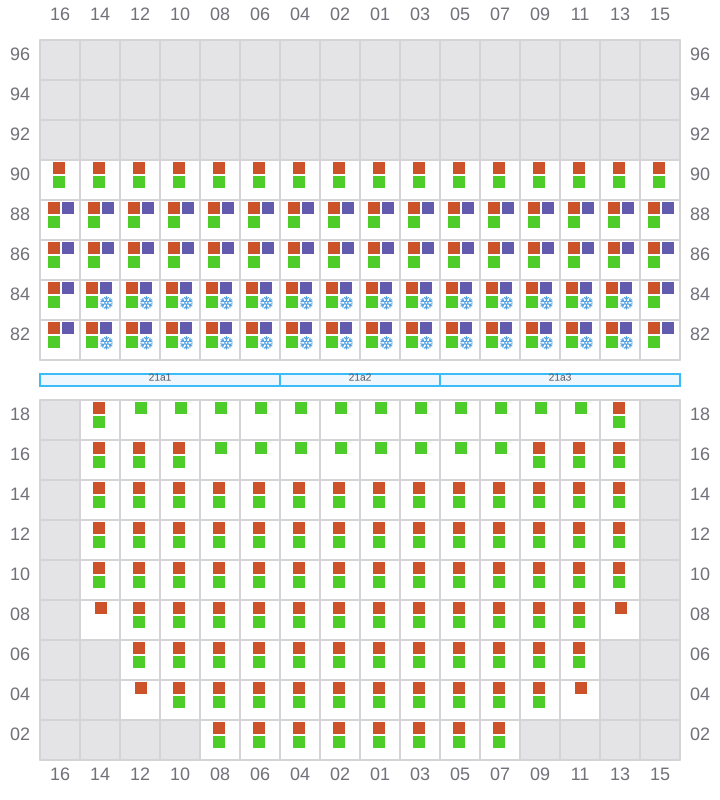

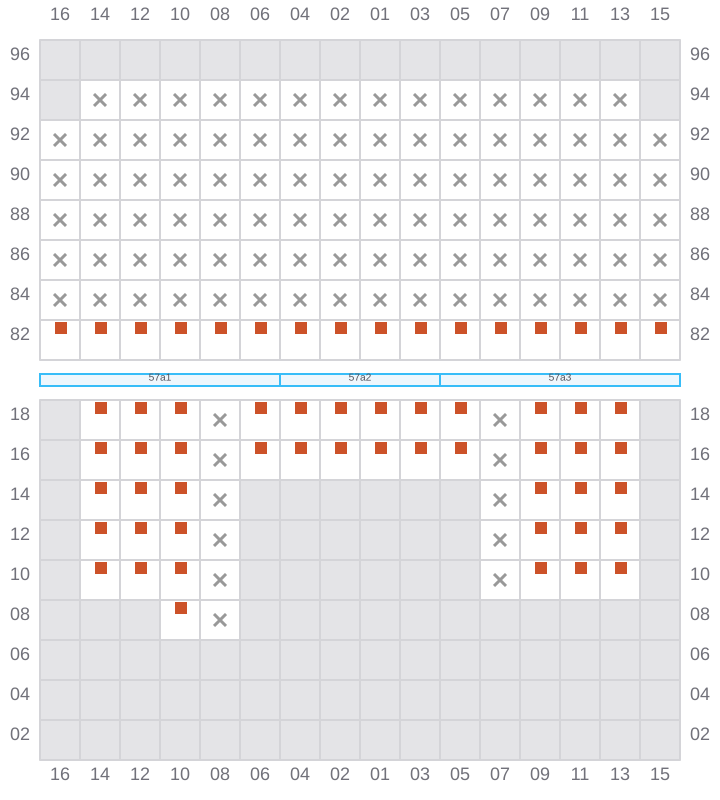

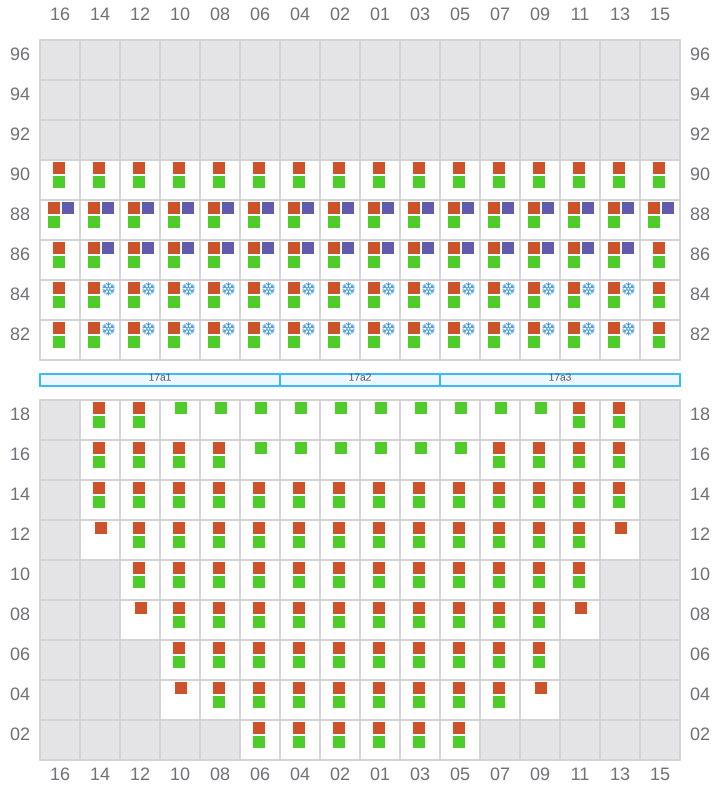

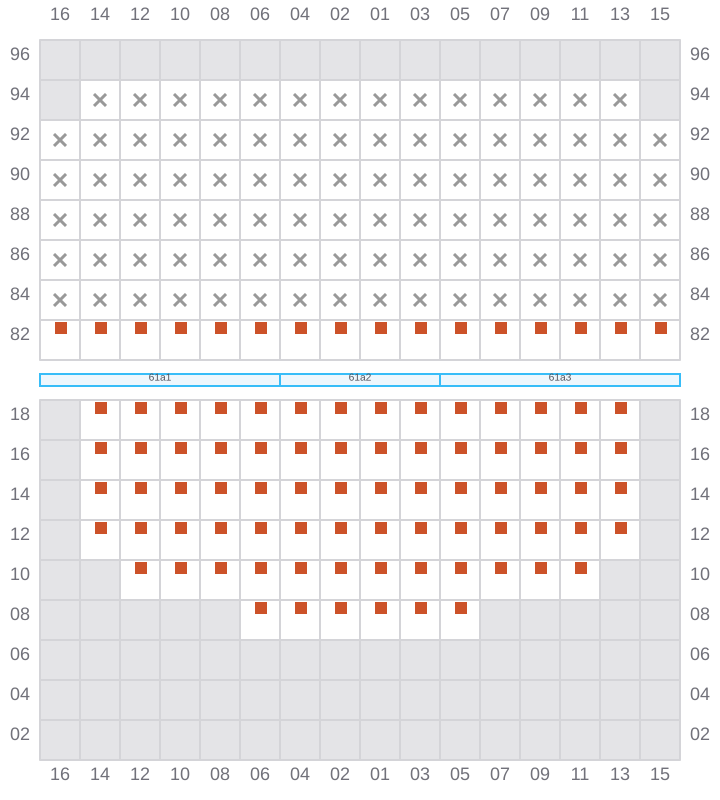

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

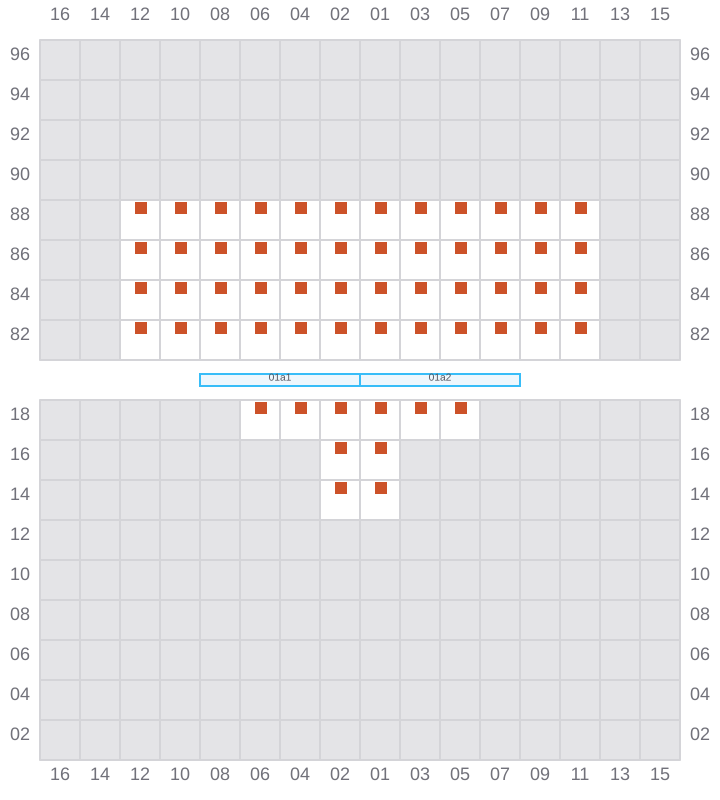

001
- →
- →

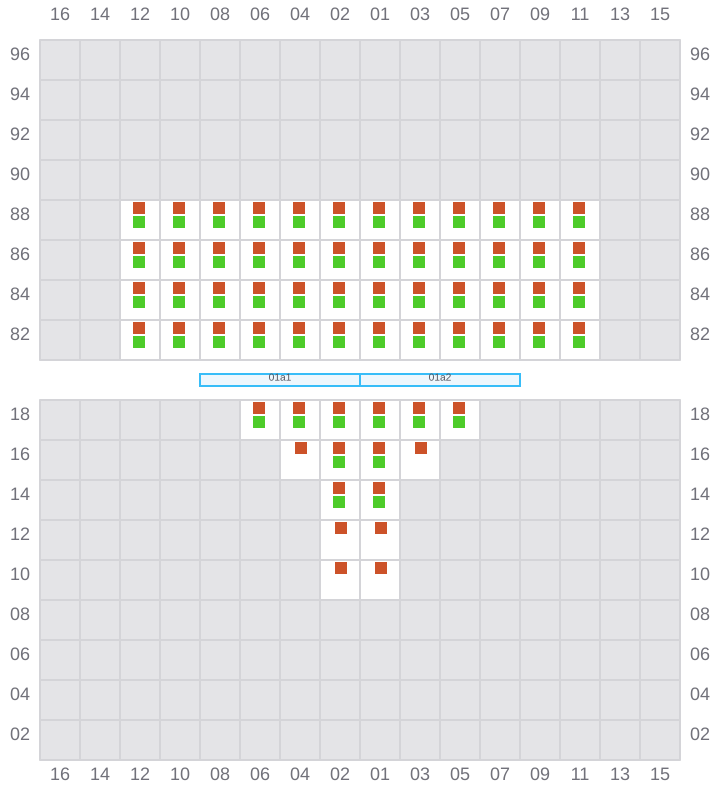

003 (002)
- ←
- →

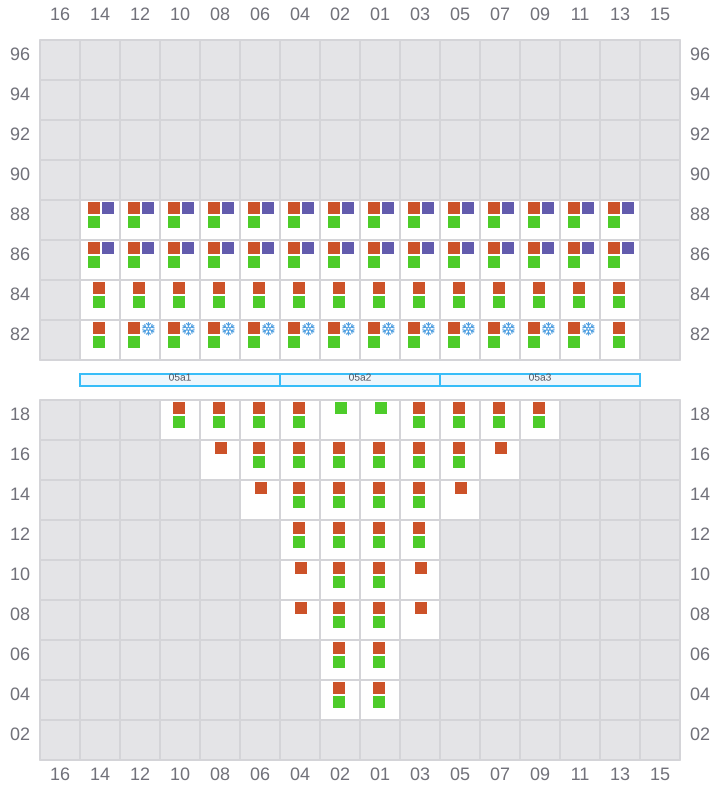

005
- →
- →

007 (006)
- ←
- → / ?
- →

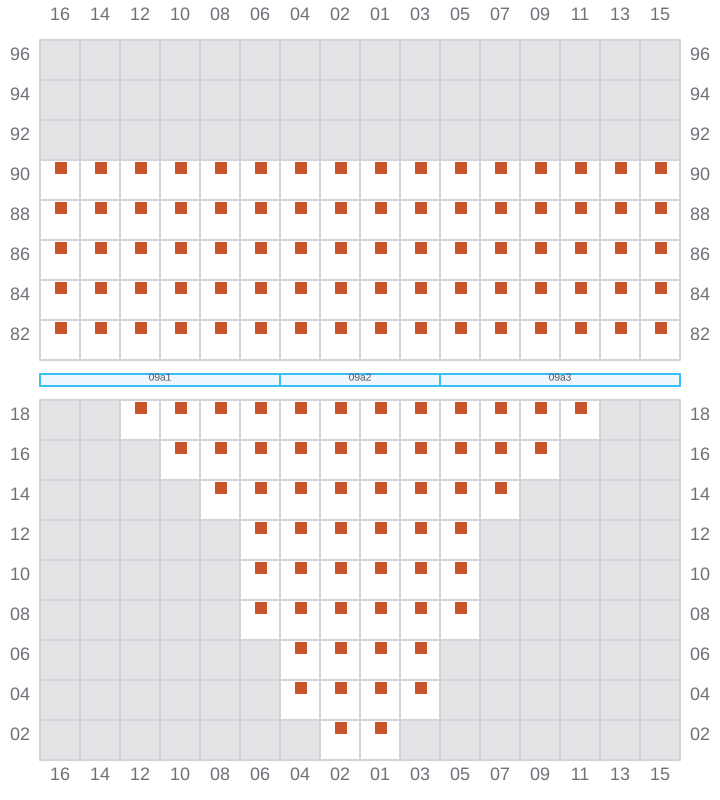

009
- →
- →

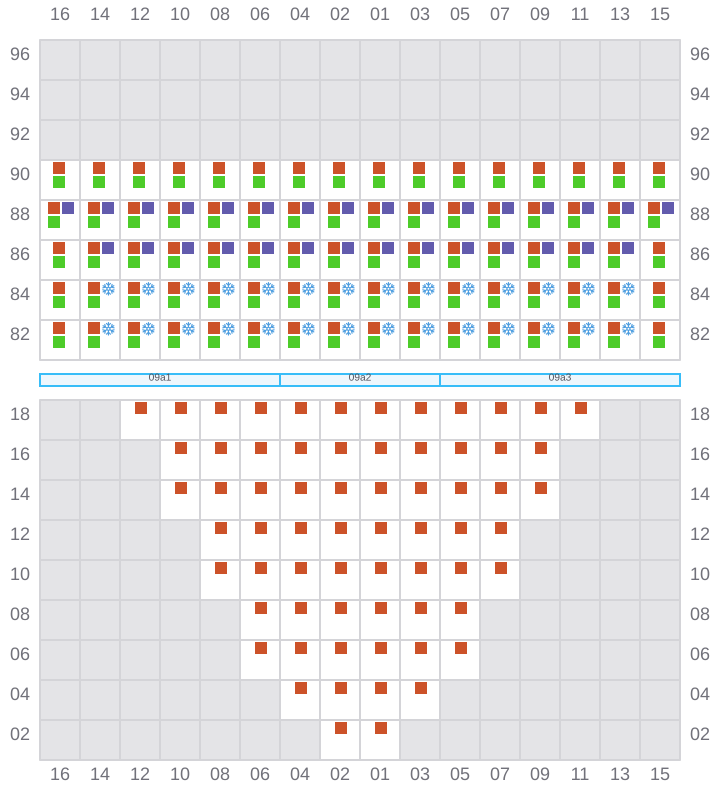

011 (010)
- ←
- → / ?
- →

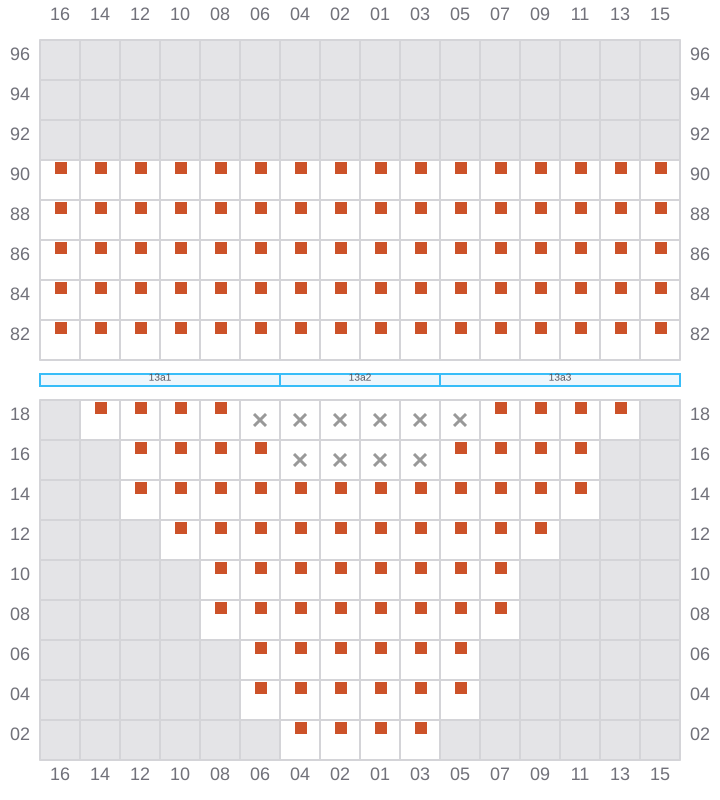

013
- →
- →

015 (014)
- ←
- → / ?
- →

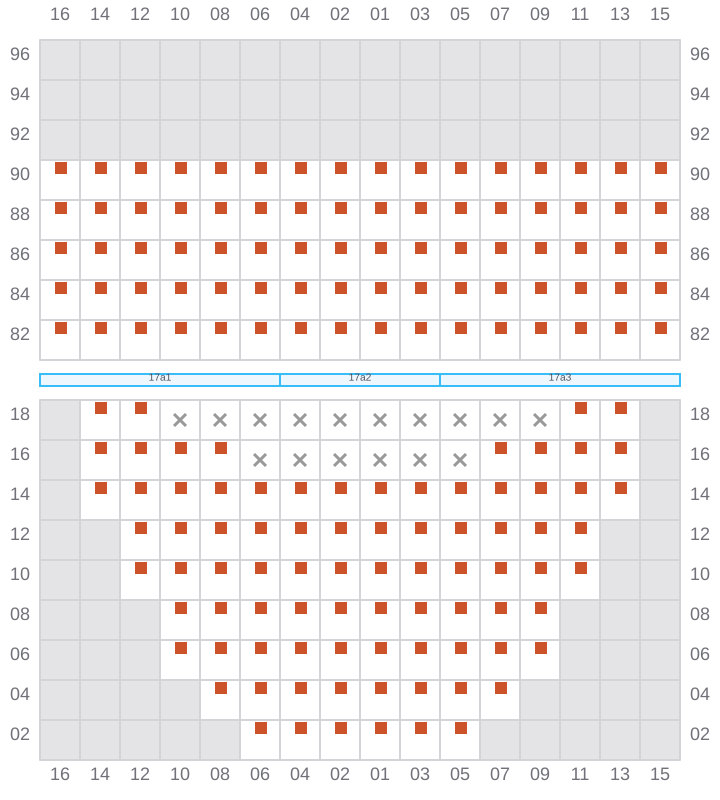

017
- →
- →

019 (018)
- ←
- → / ?
- →

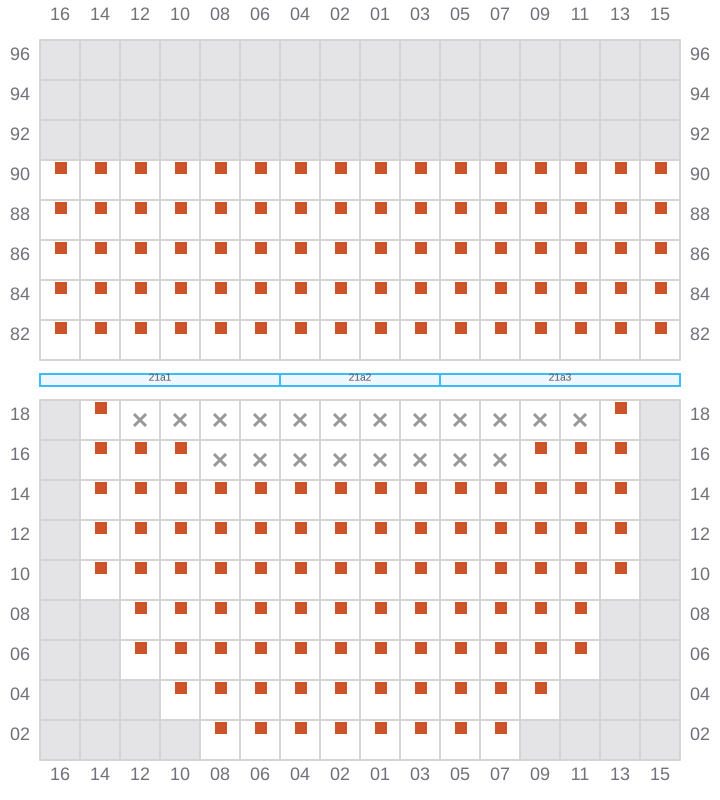

021
- →
- →

023 (022)
- ←
- → / ?
- →

025
- →
- →

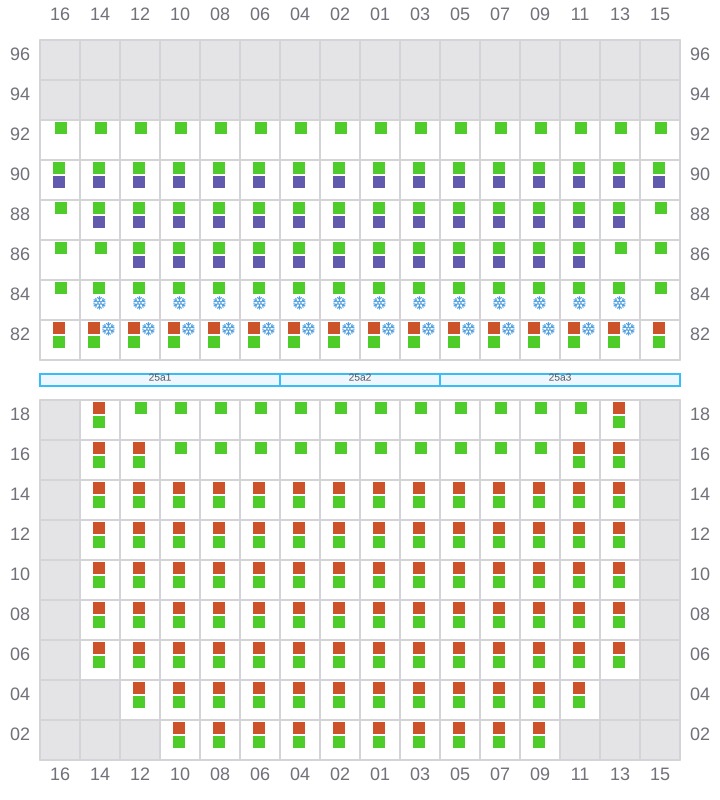

027 (026)
- ←
- → / ?
- →

029
- →
- →

031 (030)
- ←
- → / ?
- →

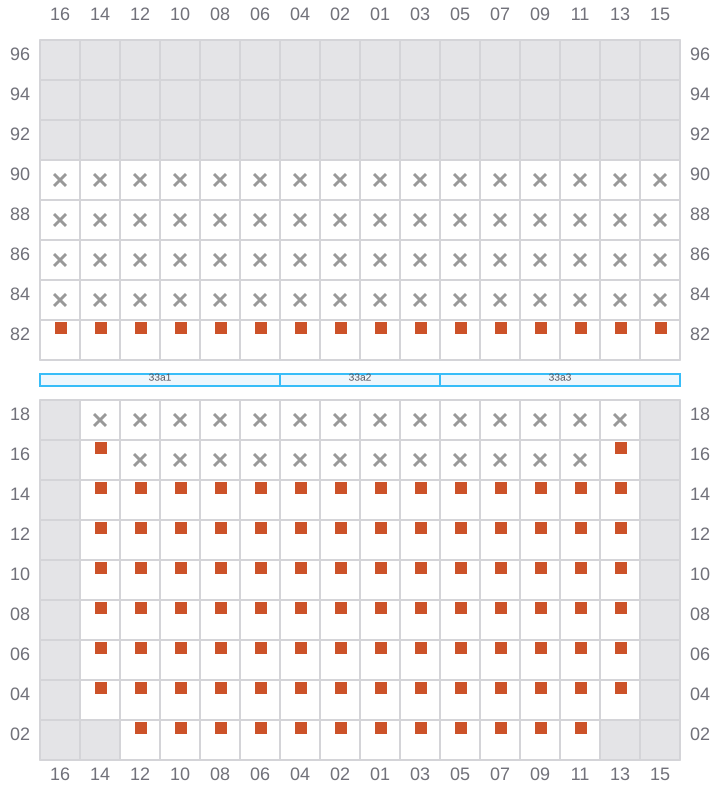

033
- →
- →

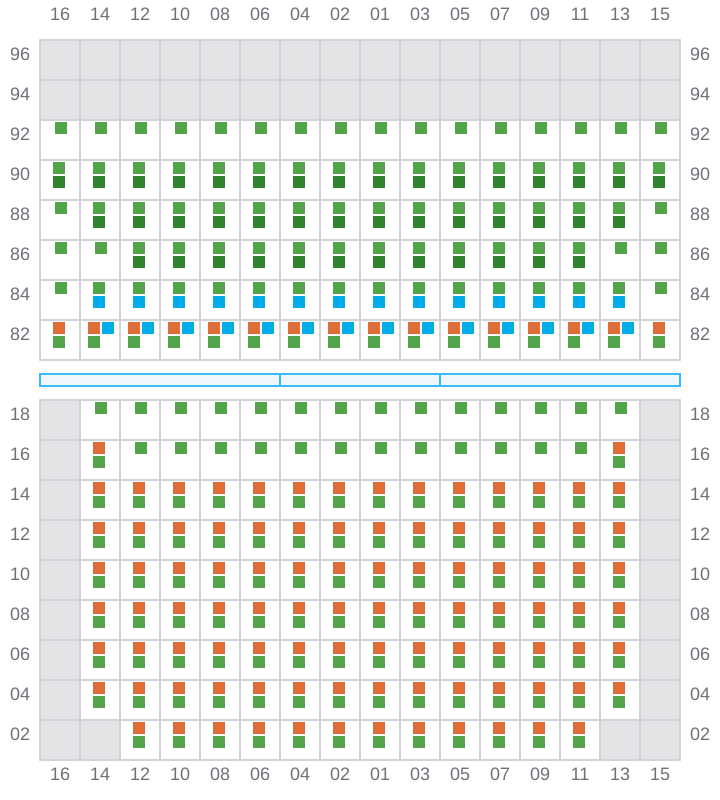

035 (034)
- ←
- → / ?
- →

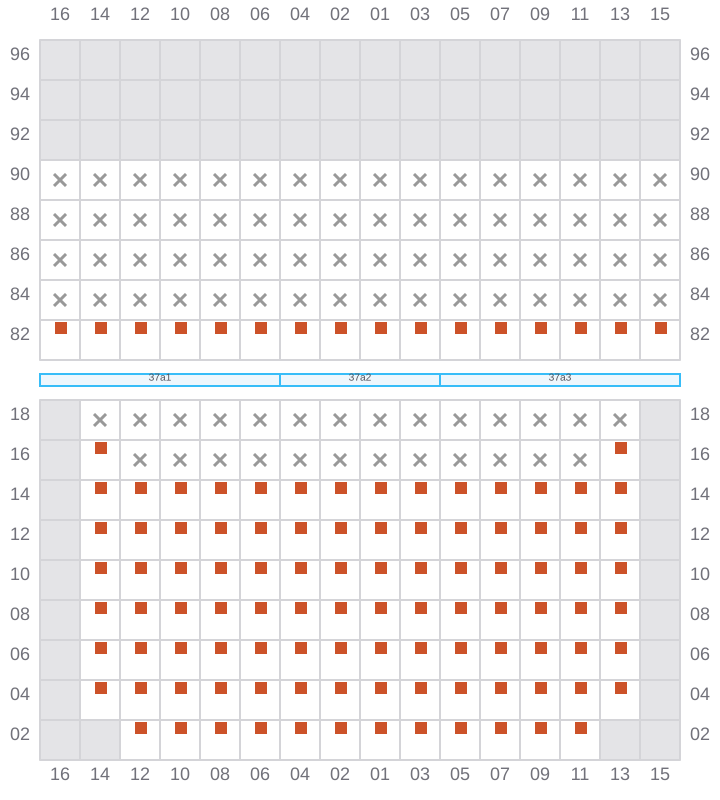

037
- →
- →

039 (038)
- ←
- → / ?
- →

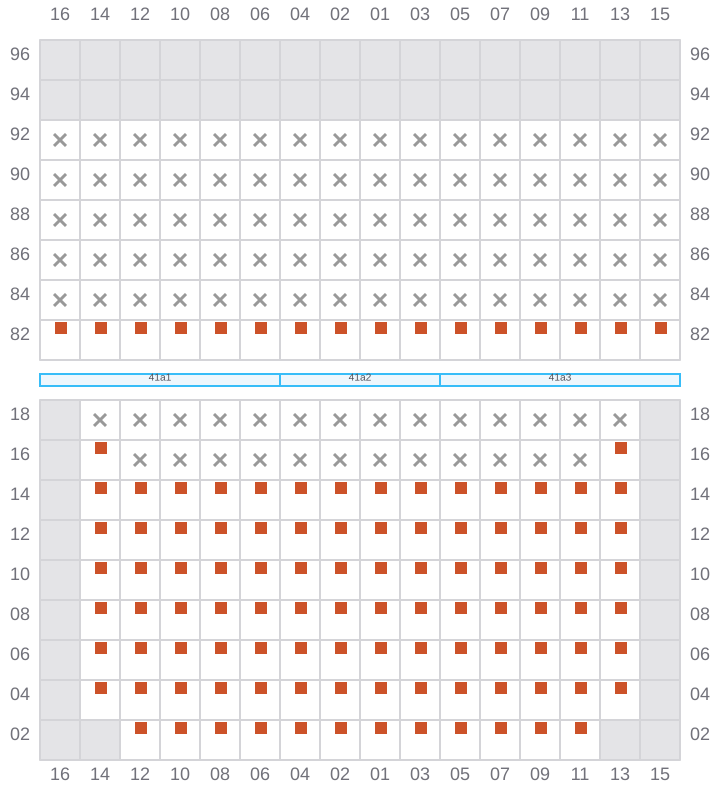

041
- →
- →

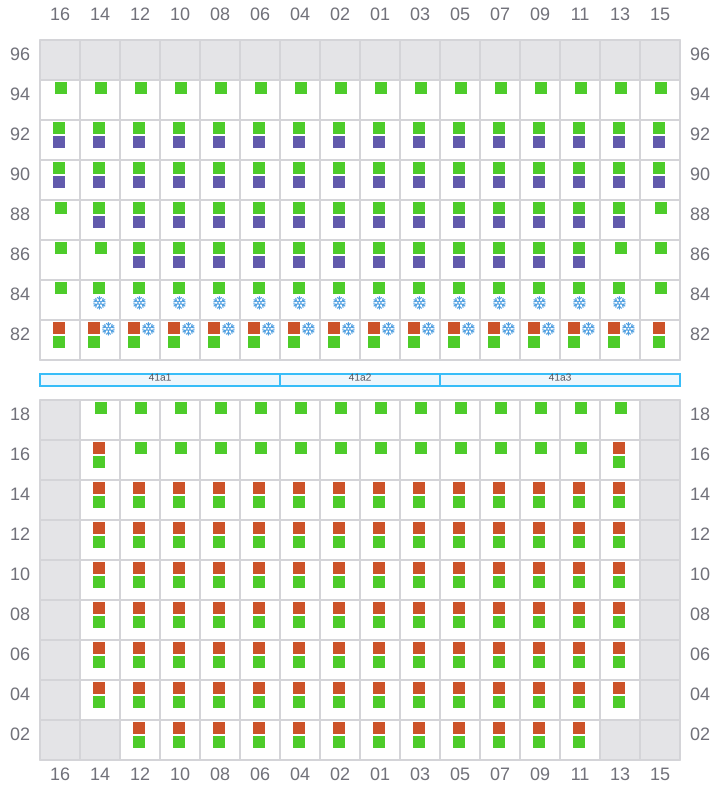

043 (042)
- ←
- → / ?
- →

045
- →
- →

047 (046)
- ←
- → / ?
- →

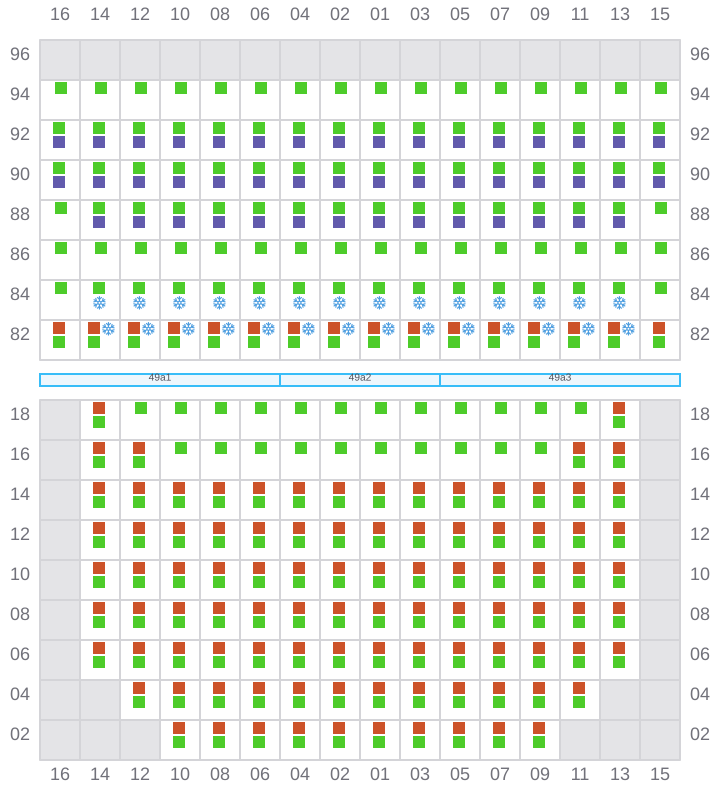

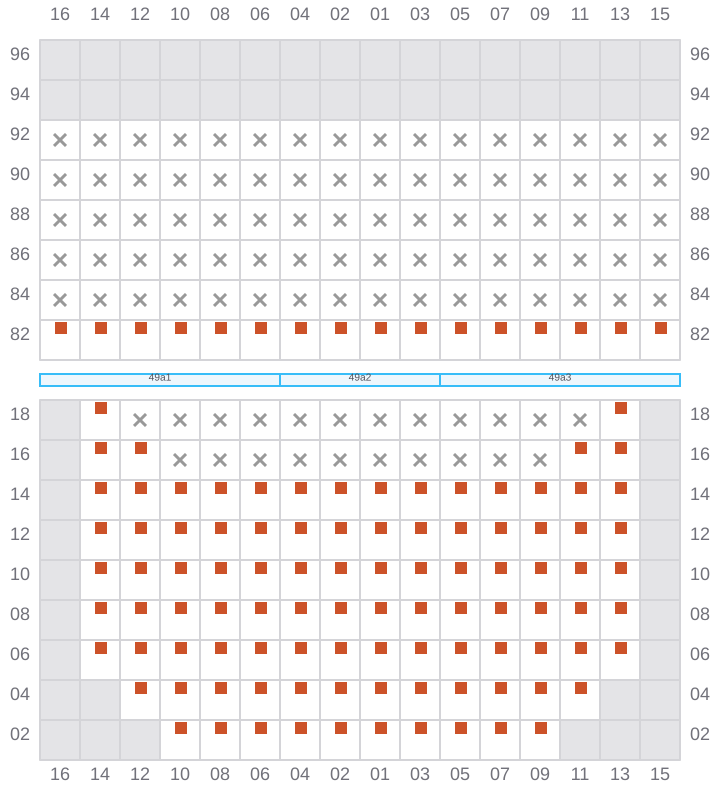

049
- →
- →

051 (050)
- ←
- → / ?
- →

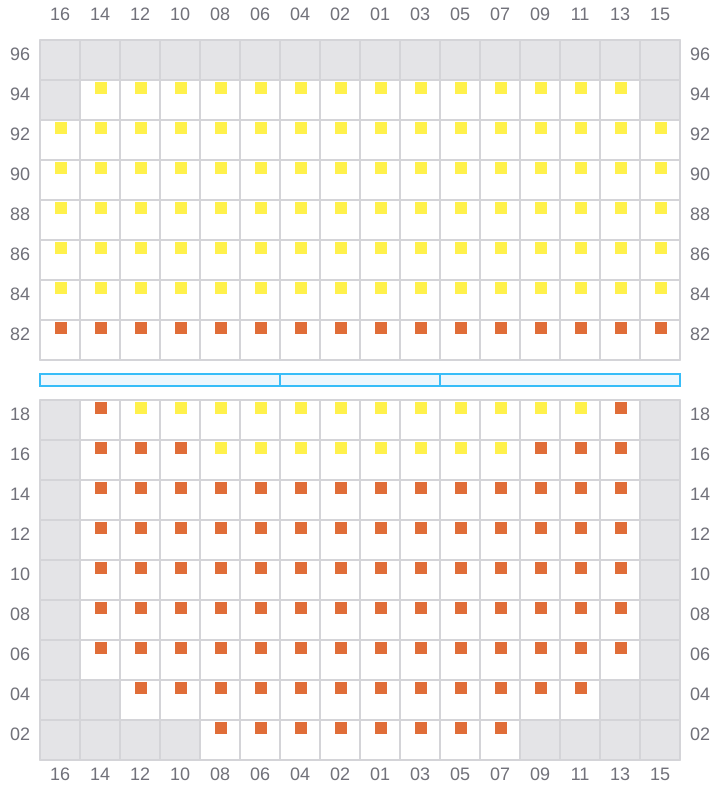

053
- →
- →

055 (054)
- ←
- → / ?
- →

057
- →
- →

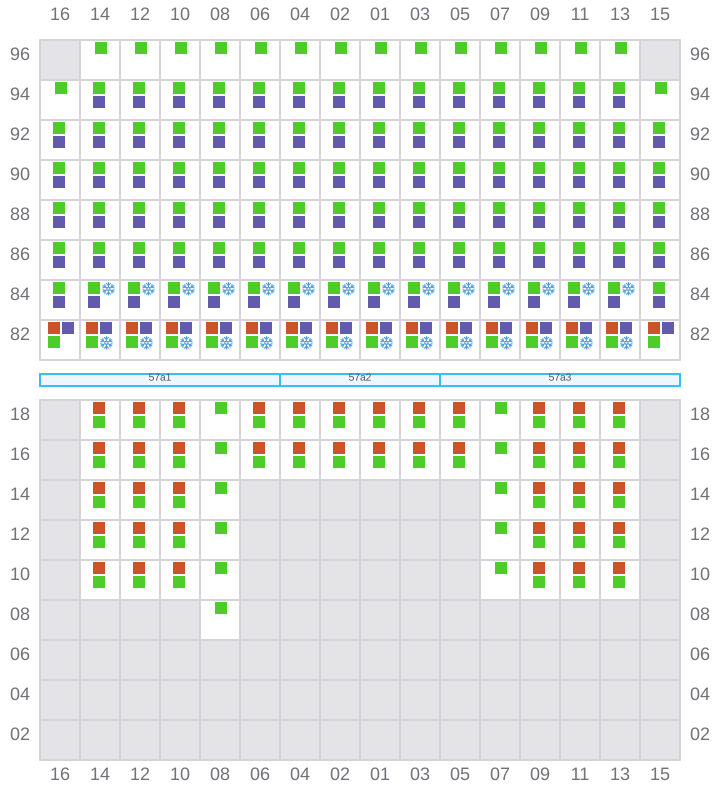

059 (058)
- ←
- → / ?
- →

061
- →
- →

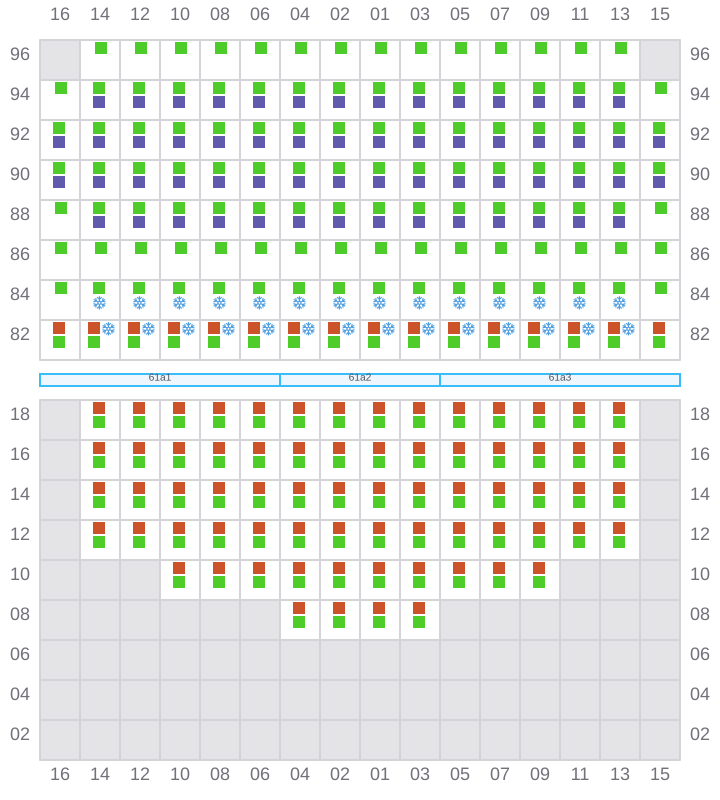

063 (062)
- ←
- → / ?
- →

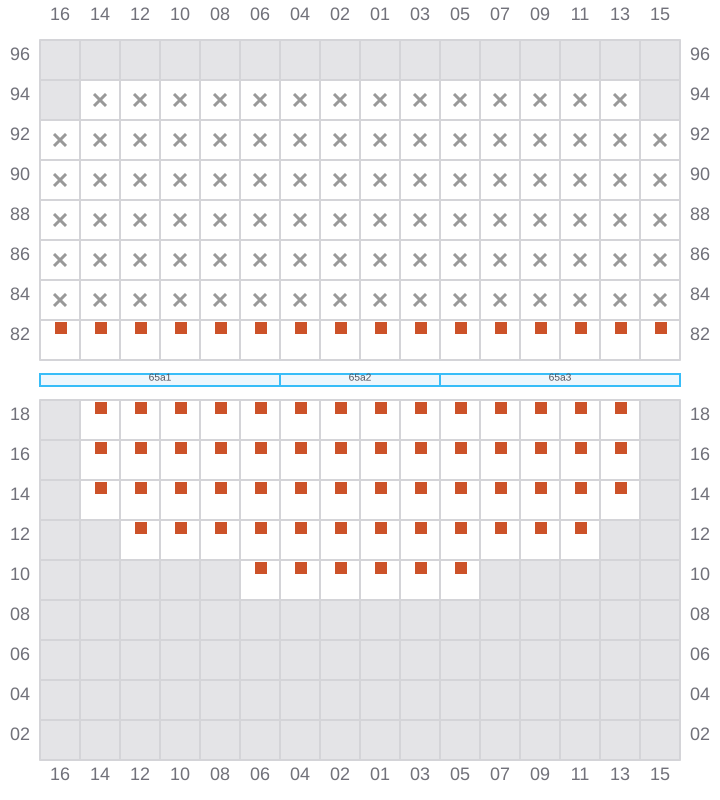

065
- →
- →

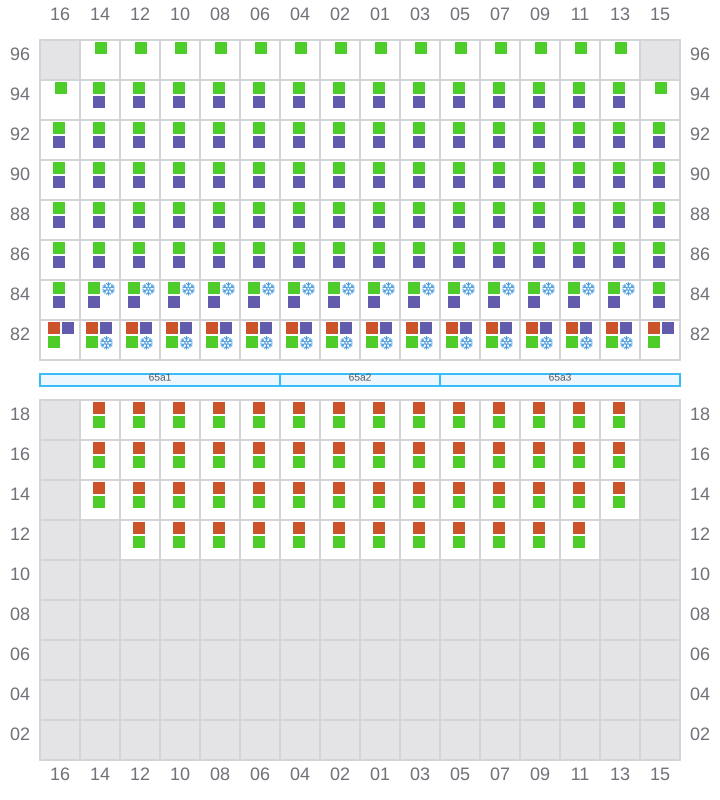

067 (066)
- ←
- → / ?
- →

069

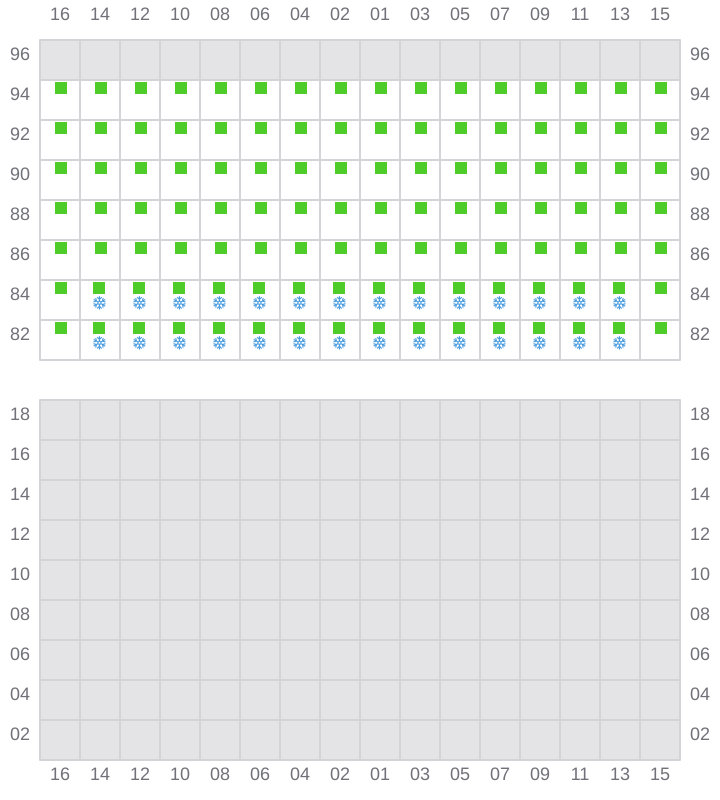

071 (070)
- ← / ?
- ← / ?
- → / ?
