CMA CGM GEORGIA
9351127 | 9HA5027 | 9351127 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:CMA CGM GEORGIA
IMO Code:9351127
Call Sign:9HA5027
Line Operator:9351127
Class Name for Sister Ships:CMA CGM GEORGIA
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,095

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

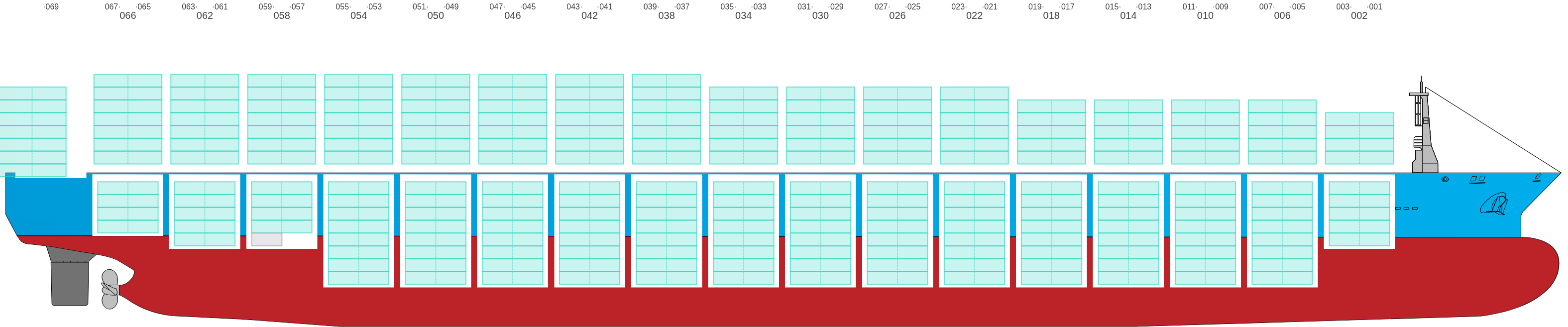

Side View

Side view of CMA CGM GEORGIA

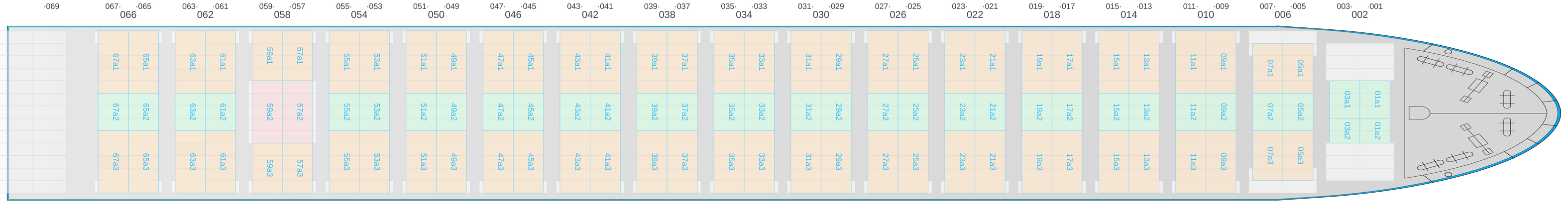

Hatch-Covers View

Deck view of CMA CGM GEORGIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

Bay 001 view and slots of CMA CGM GEORGIA

003

Bay 003 view and slots of CMA CGM GEORGIA

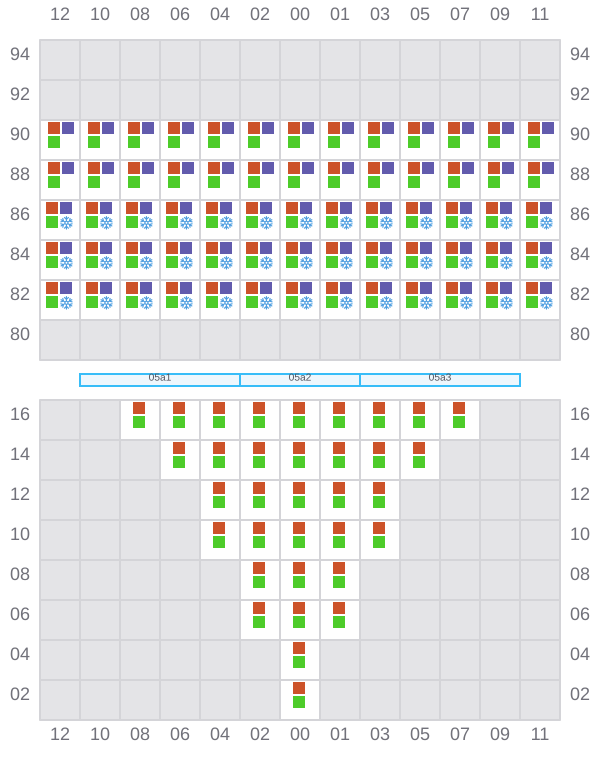

005 (006)

Bay 005 view and slots of CMA CGM GEORGIA

007

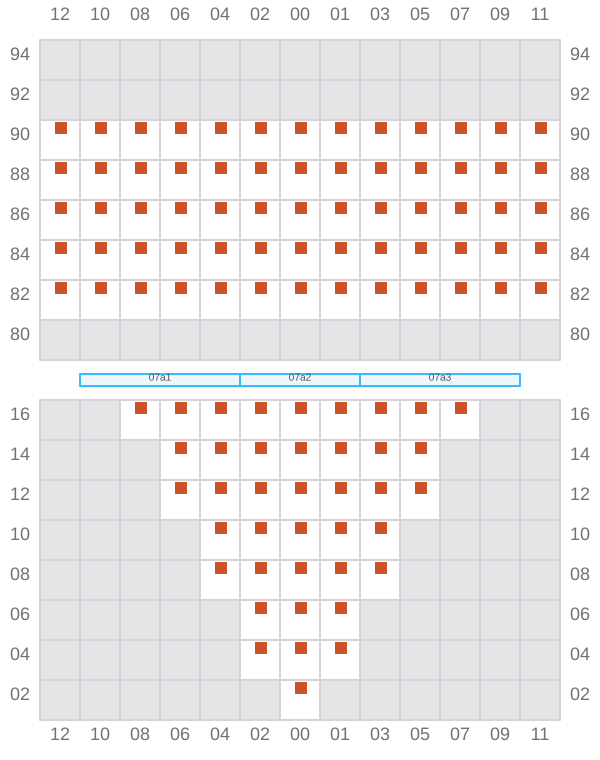

Bay 007 view and slots of CMA CGM GEORGIA

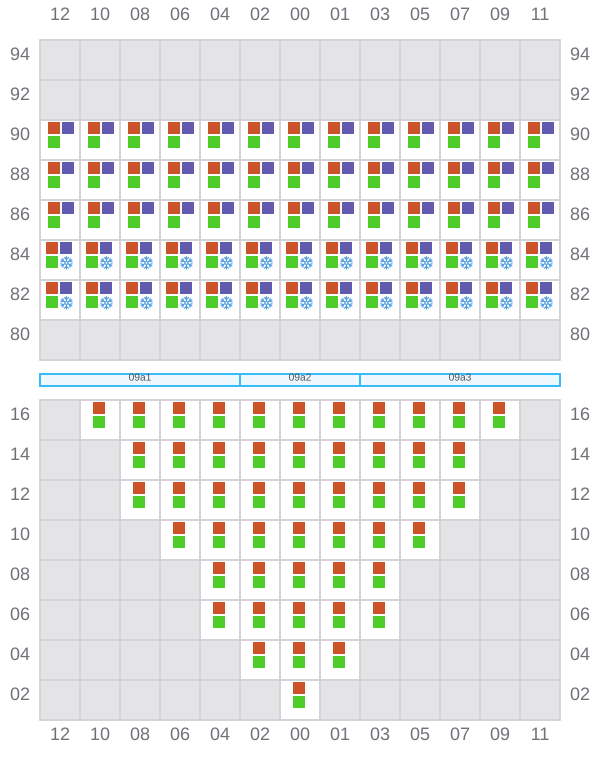

009 (010)

Bay 009 view and slots of CMA CGM GEORGIA

011

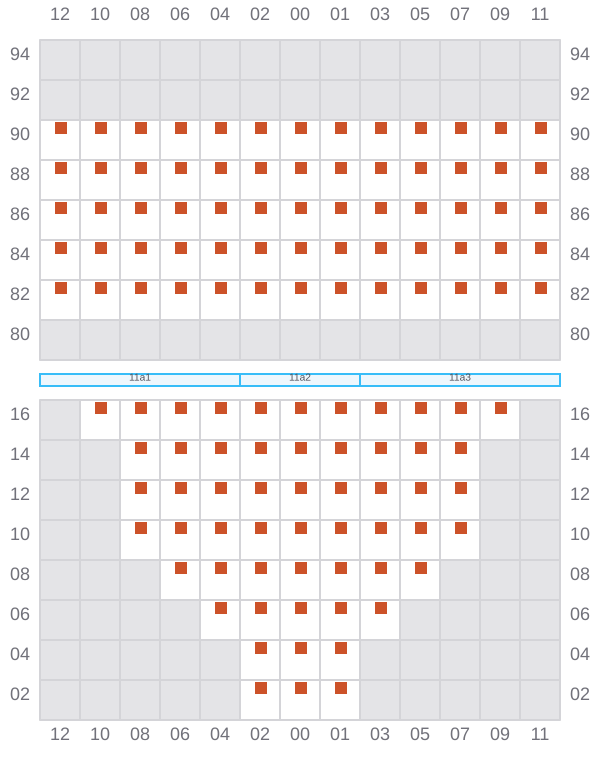

Bay 011 view and slots of CMA CGM GEORGIA

013 (014)

Bay 013 view and slots of CMA CGM GEORGIA

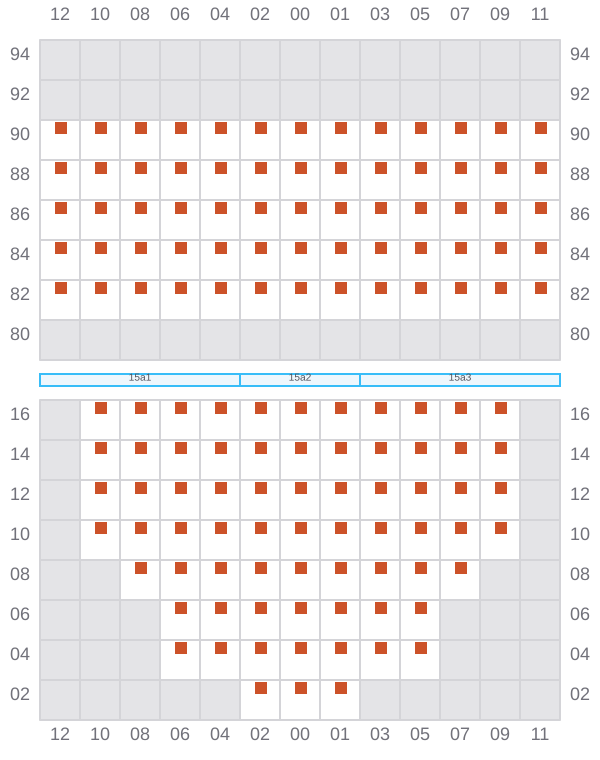

015

Bay 015 view and slots of CMA CGM GEORGIA

017 (018)

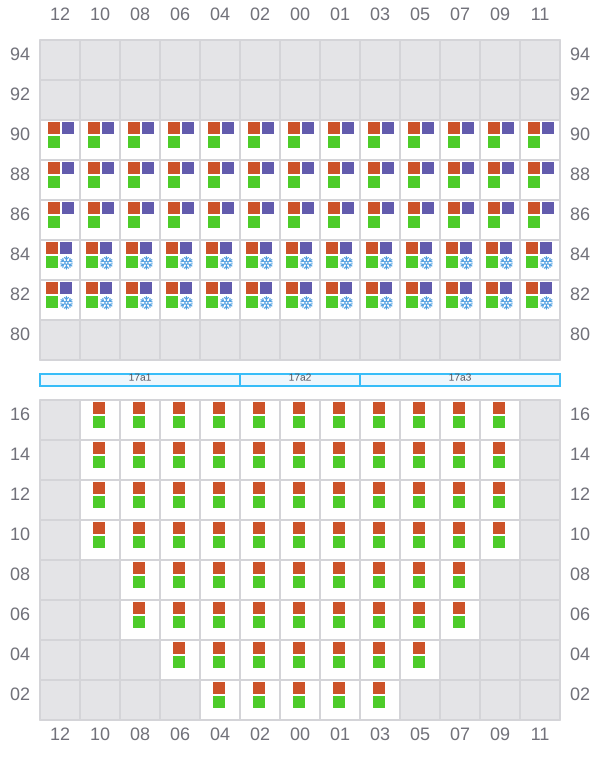

Bay 017 view and slots of CMA CGM GEORGIA

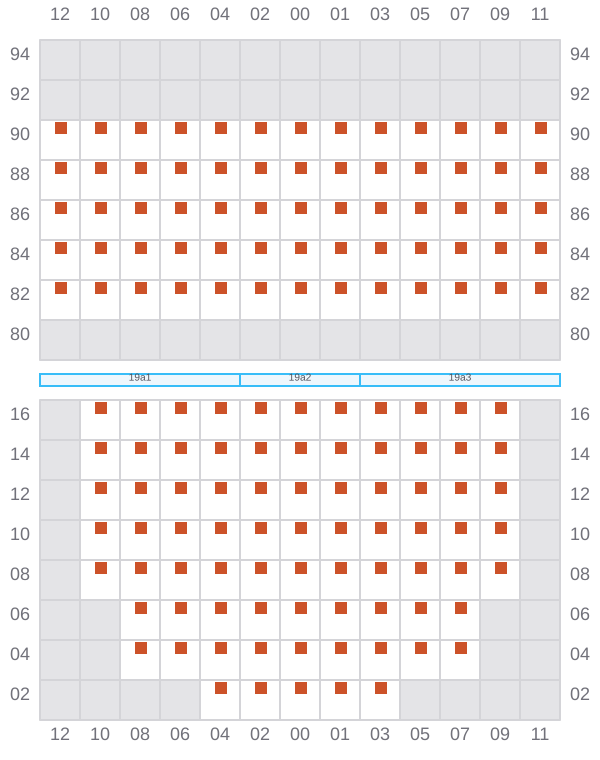

019

Bay 019 view and slots of CMA CGM GEORGIA

021 (022)

Bay 021 view and slots of CMA CGM GEORGIA

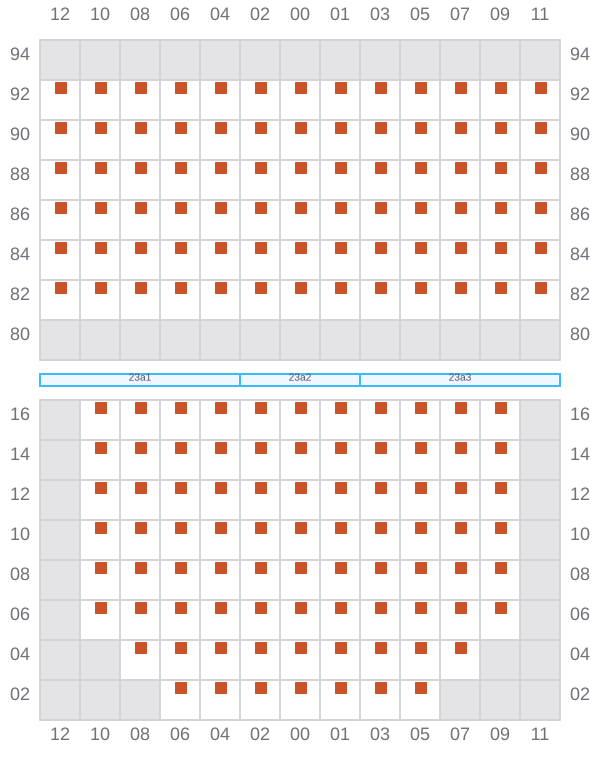

023

Bay 023 view and slots of CMA CGM GEORGIA

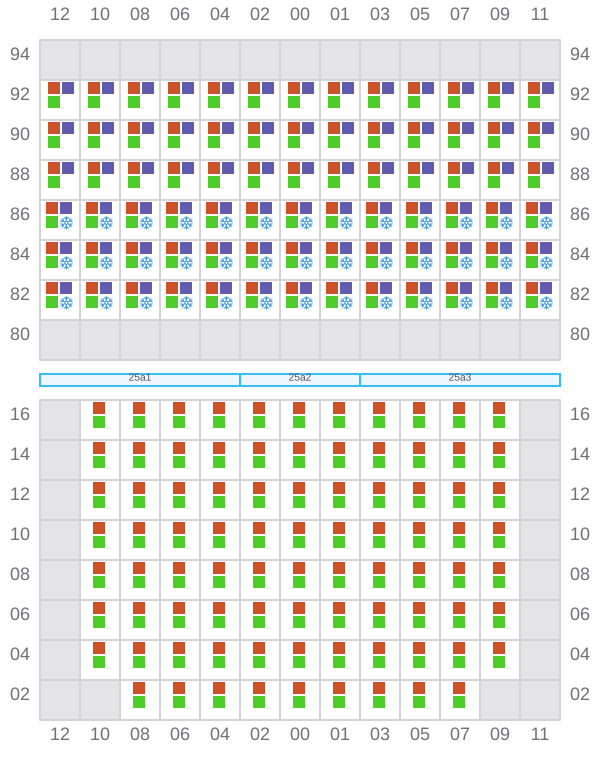

025 (026)

Bay 025 view and slots of CMA CGM GEORGIA

027

Bay 027 view and slots of CMA CGM GEORGIA

029 (030)

Bay 029 view and slots of CMA CGM GEORGIA

031

Bay 031 view and slots of CMA CGM GEORGIA

033 (034)

Bay 033 view and slots of CMA CGM GEORGIA

035

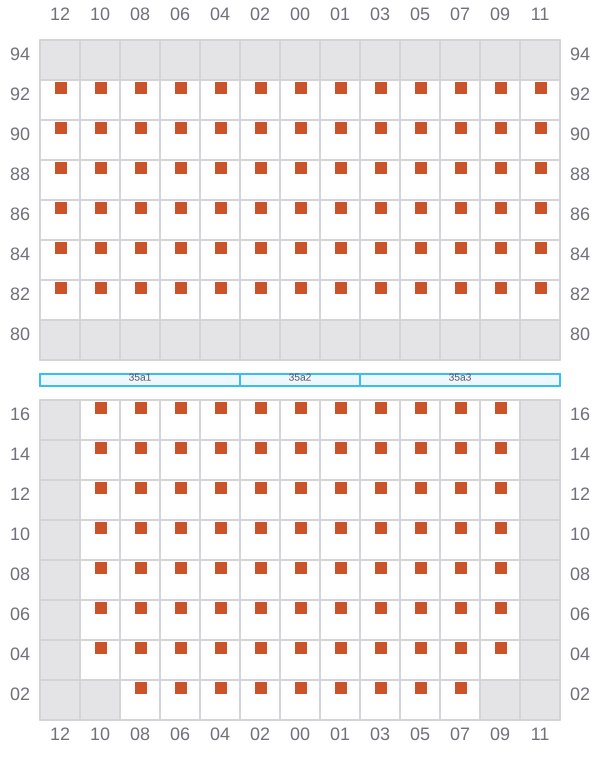

Bay 035 view and slots of CMA CGM GEORGIA

037 (038)

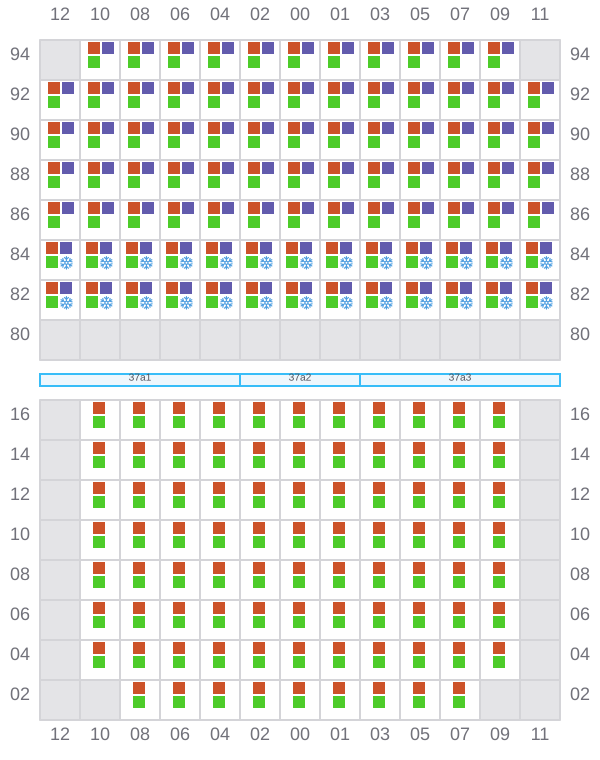

Bay 037 view and slots of CMA CGM GEORGIA

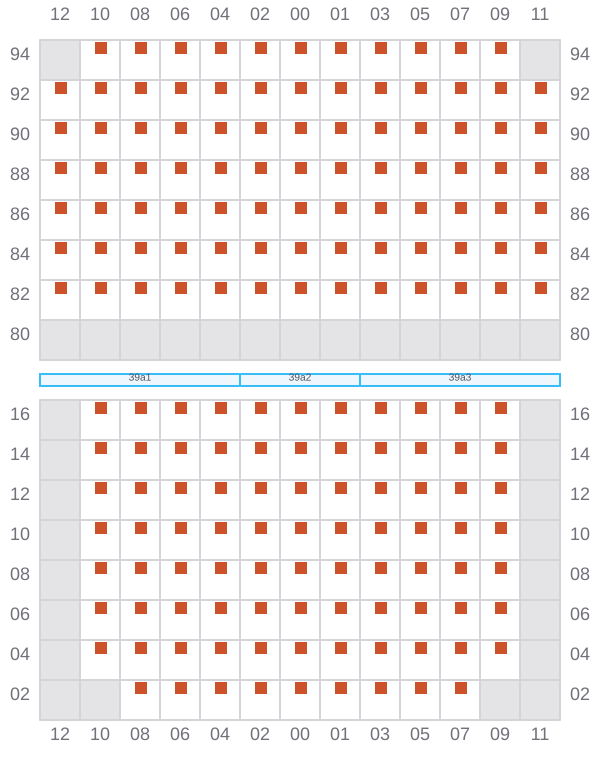

039

Bay 039 view and slots of CMA CGM GEORGIA

041 (042)

Bay 041 view and slots of CMA CGM GEORGIA

043

Bay 043 view and slots of CMA CGM GEORGIA

045 (046)

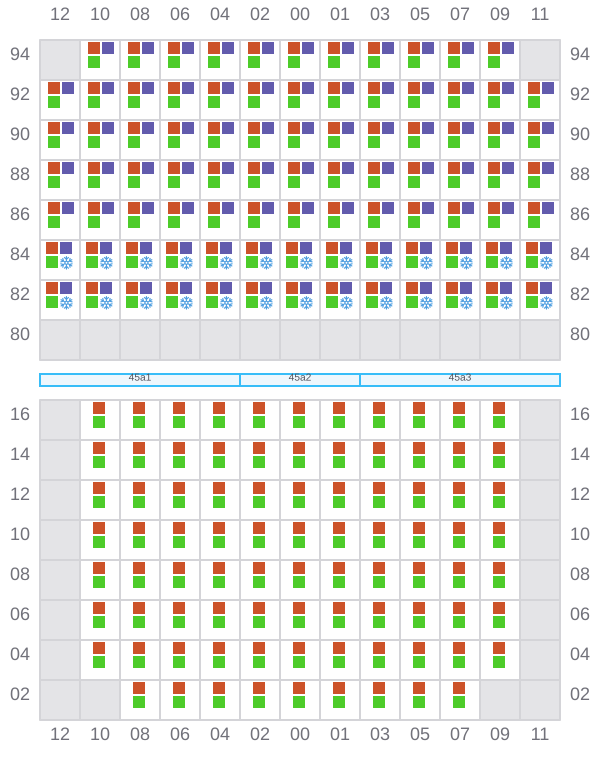

Bay 045 view and slots of CMA CGM GEORGIA

047

Bay 047 view and slots of CMA CGM GEORGIA

049 (050)

Bay 049 view and slots of CMA CGM GEORGIA

051

Bay 051 view and slots of CMA CGM GEORGIA

053 (054)

Bay 053 view and slots of CMA CGM GEORGIA

055

Bay 055 view and slots of CMA CGM GEORGIA

057 (058)

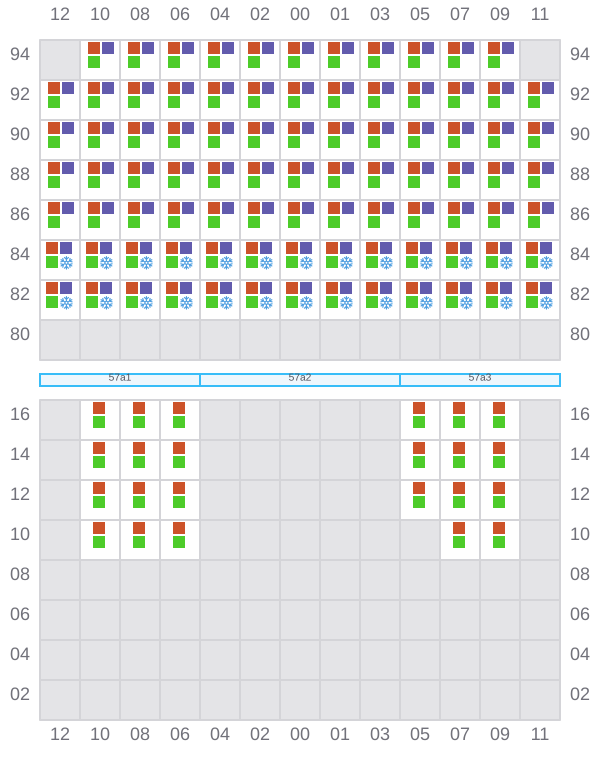

Bay 057 view and slots of CMA CGM GEORGIA

059

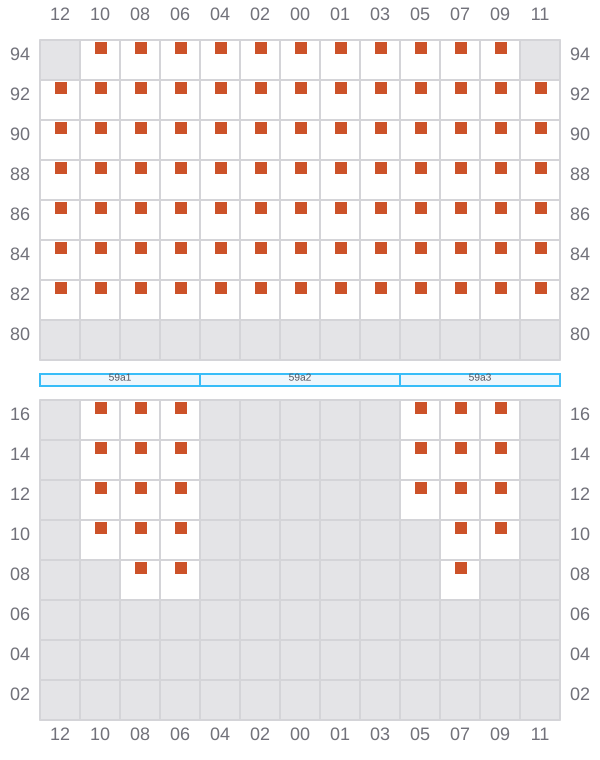

Bay 059 view and slots of CMA CGM GEORGIA

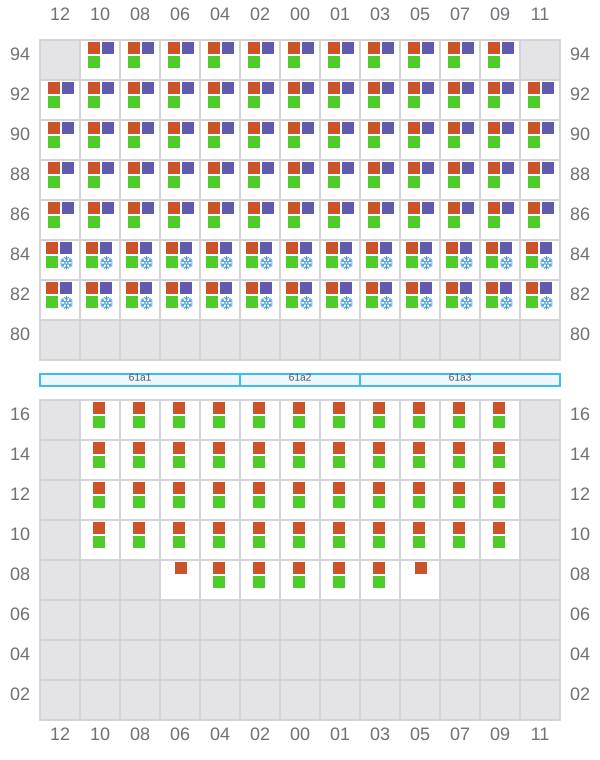

061 (062)

Bay 061 view and slots of CMA CGM GEORGIA

063

Bay 063 view and slots of CMA CGM GEORGIA

065 (066)

Bay 065 view and slots of CMA CGM GEORGIA

067

Bay 067 view and slots of CMA CGM GEORGIA

069 (070)

Bay 069 view and slots of CMA CGM GEORGIA
