CMA CGM GREEN
9810915 | 9HA6166 | CMA by *********************** Last update: Tue Feb 11 2025
General Info
Ship Name:CMA CGM GREEN
IMO Code:9810915
Call Sign:9HA6166
Line Operator:CMA
Class Name for Sister Ships:CGSG
Year Built:2019
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,268
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View

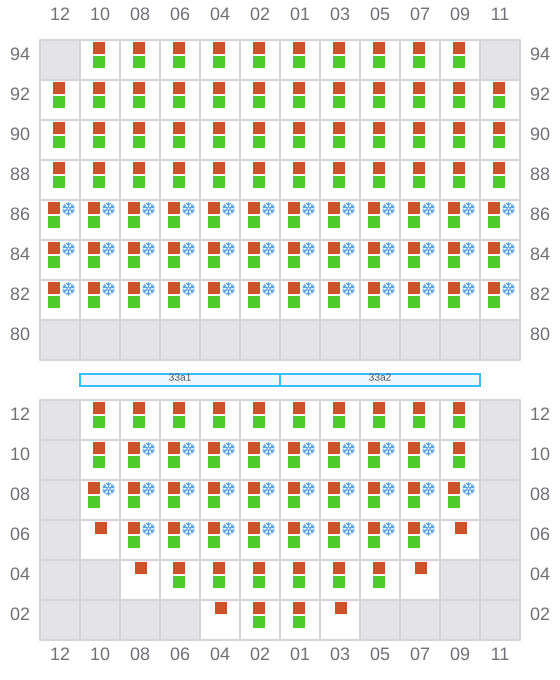

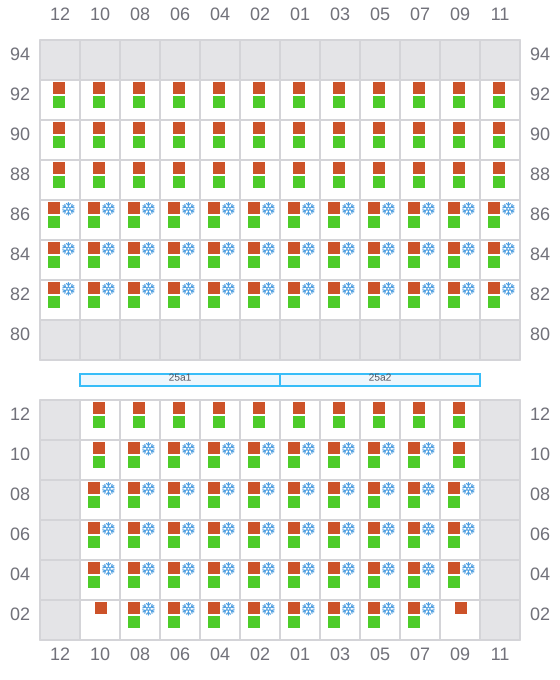

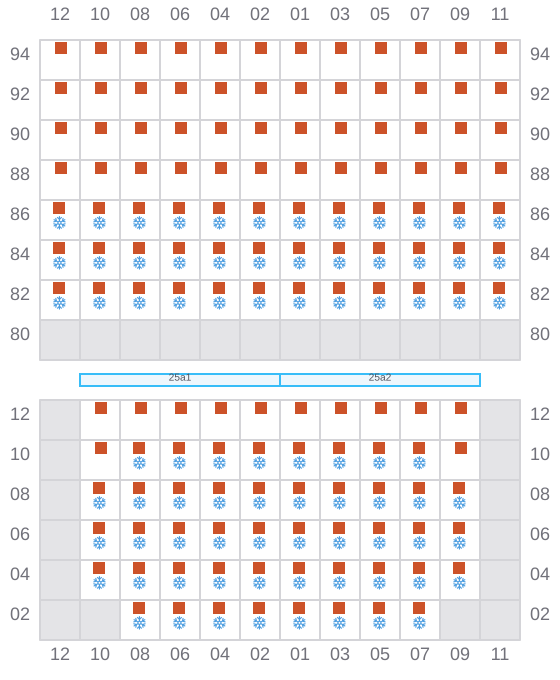

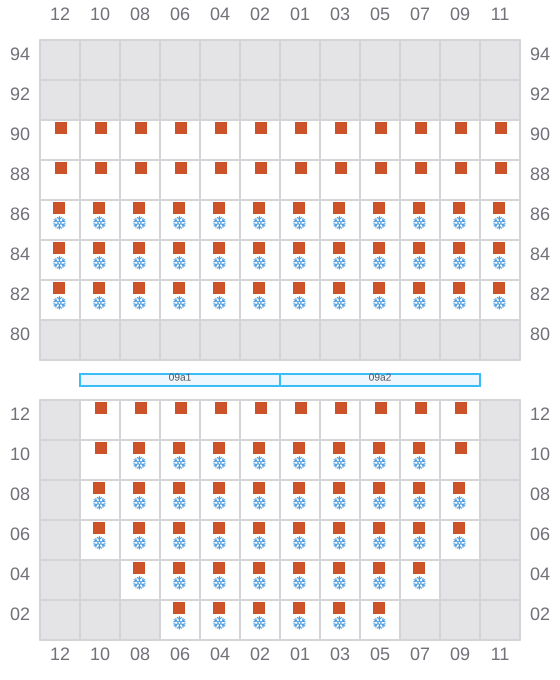

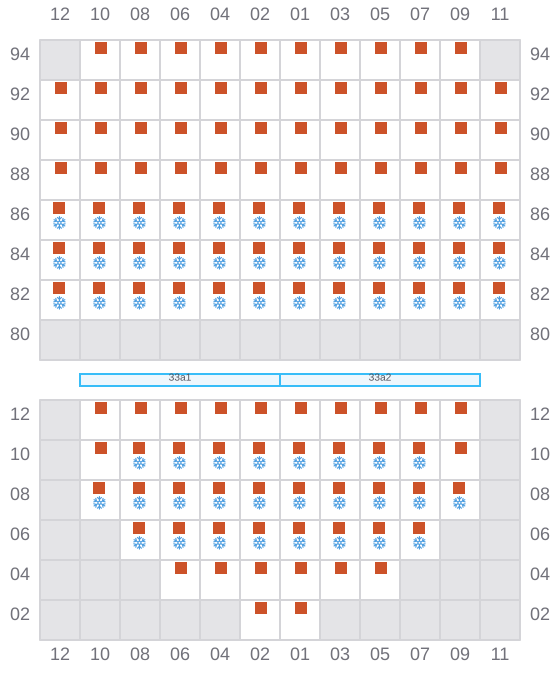

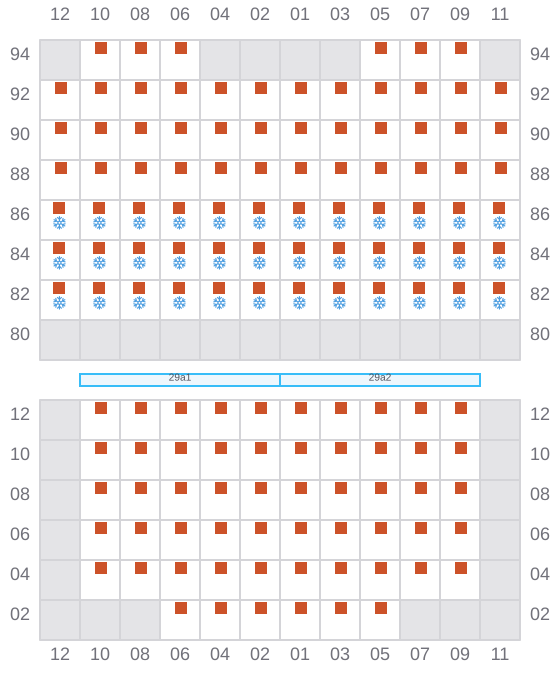

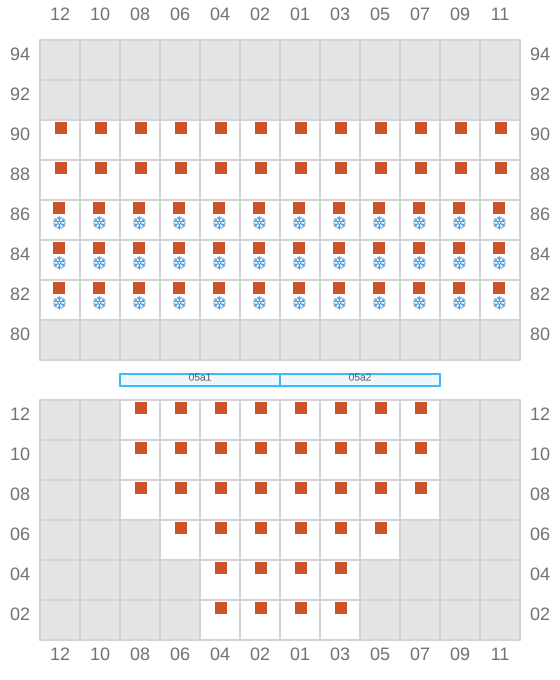

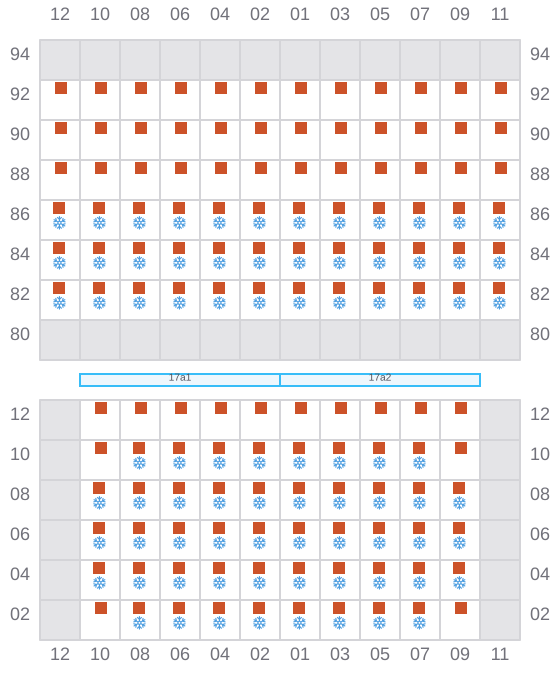

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
- →
- →
003
- ←
- →
- →

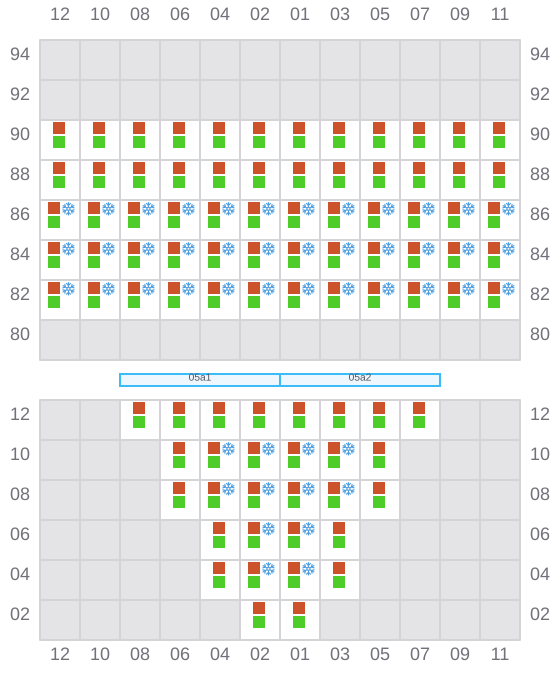

005 (006)
- →
- → / ←
- →
007
- ←
- → / ?
- →

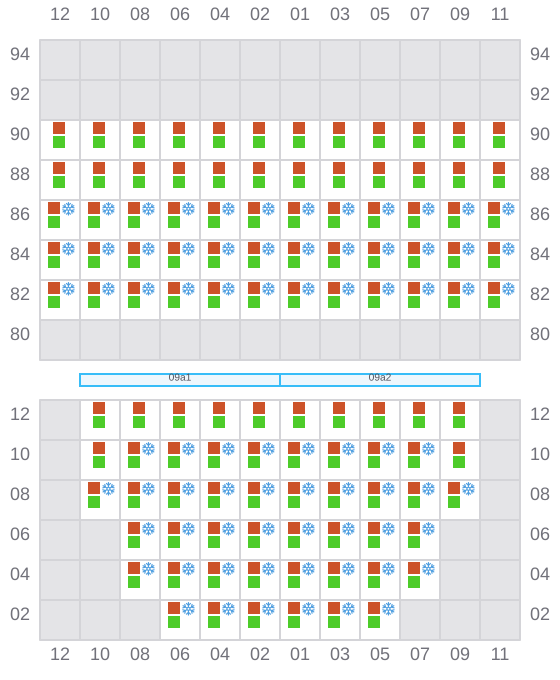

009 (010)
- →
- →
- →
011
- ←
- →
- →

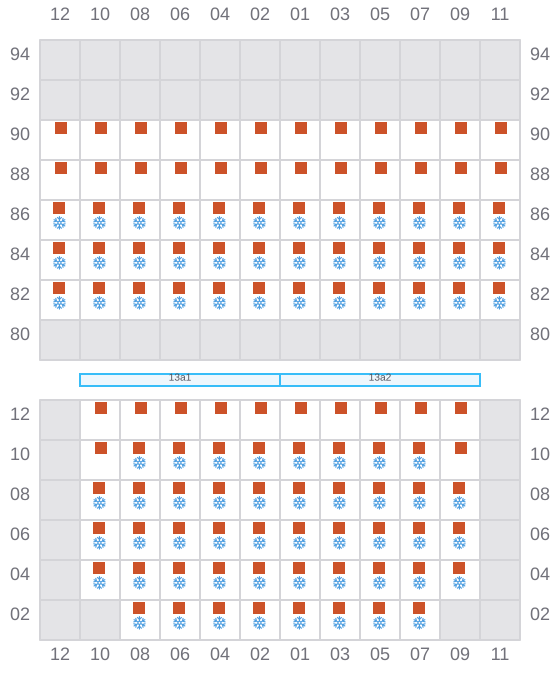

013 (014)
- →
- →
- →
015
- ←
- →
- →
017 (018)
- →
- →
- →
019
- ←
- →
- →
021 (022)
- →
- → / ←
- →

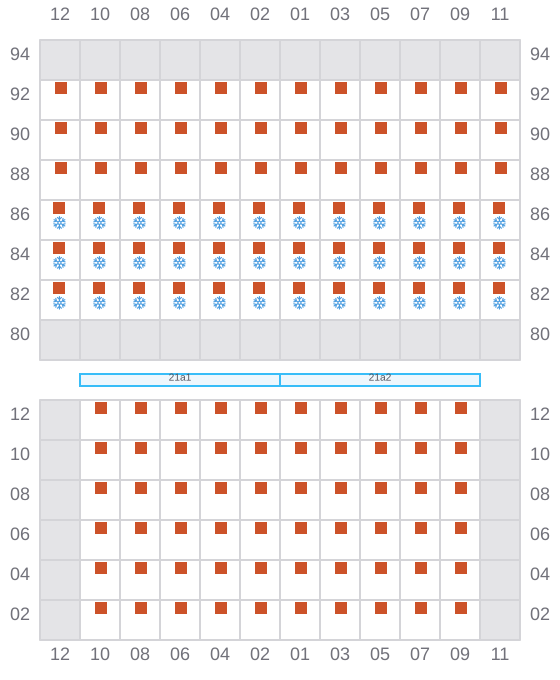

023
- ←
- → / ?
- →
025 (026)
- →
- →
- →
027
- ←
- →
- →

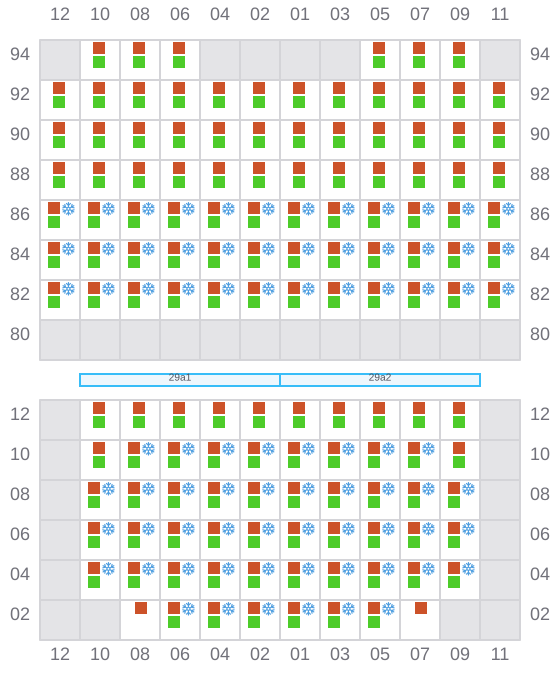

029 (030)
- →
- → / ←
- →
031
- ←
- → / ?
- →
033 (034)
- →
- →
- →
035
- ←
- →
- →
037 (038)
- → / ?
- → / ?
- → / ?

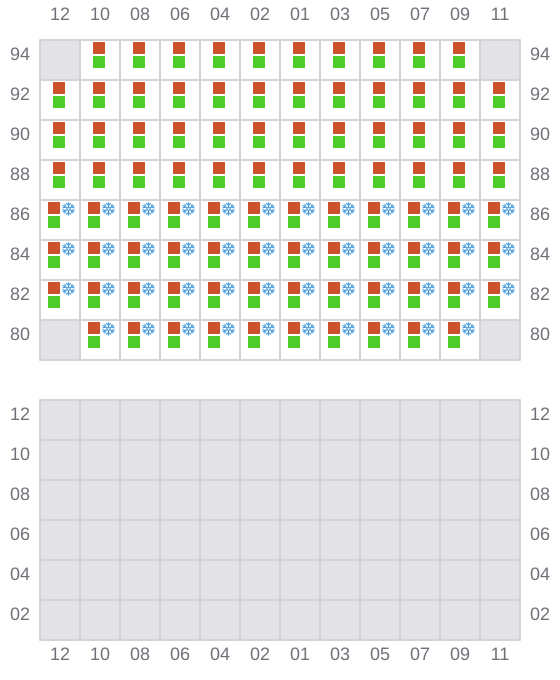

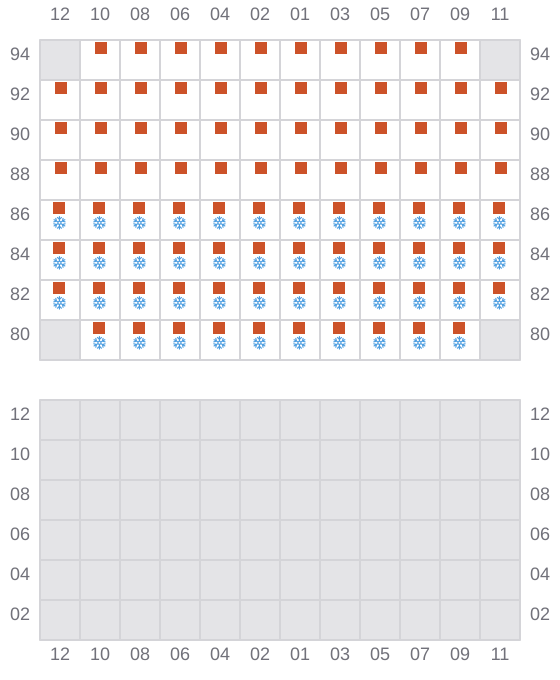

039
- ← / ?
- → / ?
- → / ?
