CMA CGM GUARANI
9234135 | S6HU6 | 9234135 by ********* Last update: Wed Apr 03 2024
General Info
Ship Name:CMA CGM GUARANI
IMO Code:9234135
Call Sign:S6HU6
Line Operator:9234135
Class Name for Sister Ships:APL
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,478
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

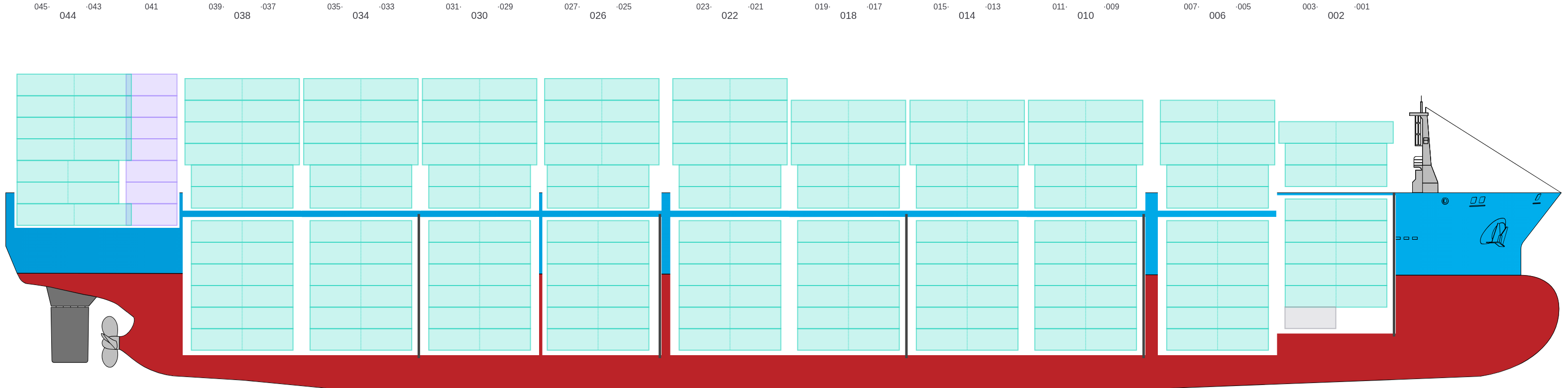

Side View
![Side view of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-sideView.png?v=1712166261204)
Hatch-Covers View
![Deck view of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-deckView.png?v=1712166261204)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

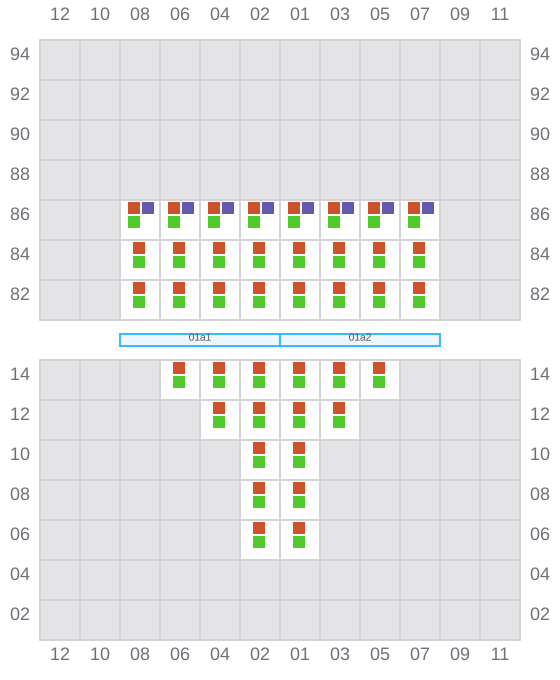

001 (002)
- →
![Bay 001 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b001.png?v=1712166261204)

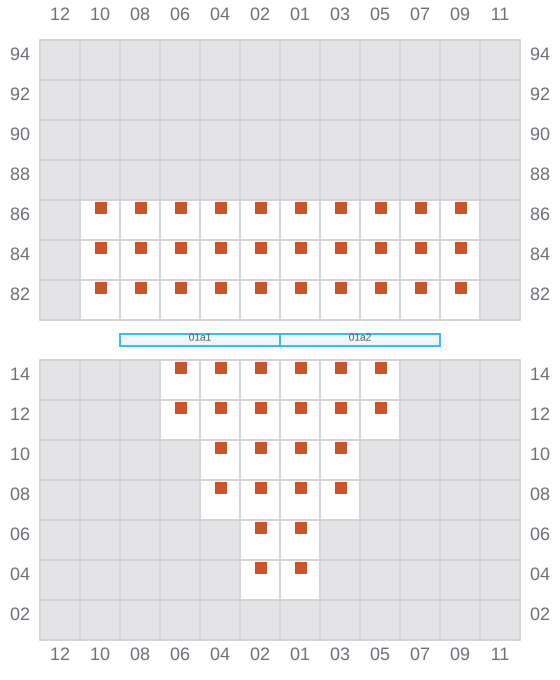

003
- ←
![Bay 003 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b003.png?v=1712166261204)

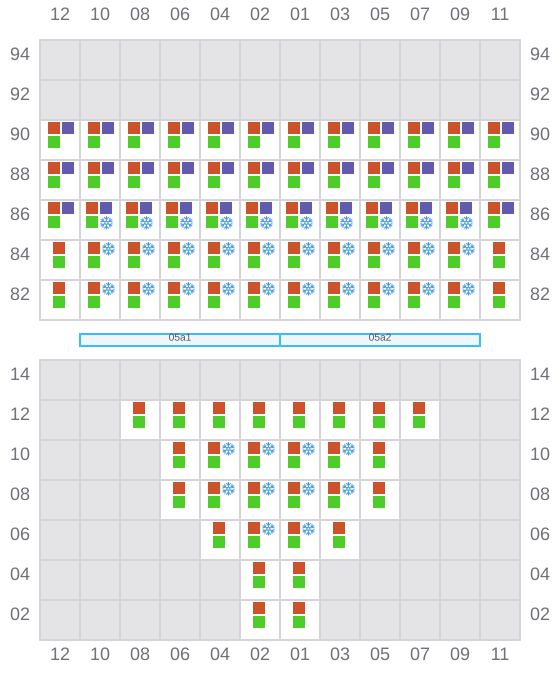

005 (006)
- →
- ←
![Bay 005 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b005.png?v=1712166261204)

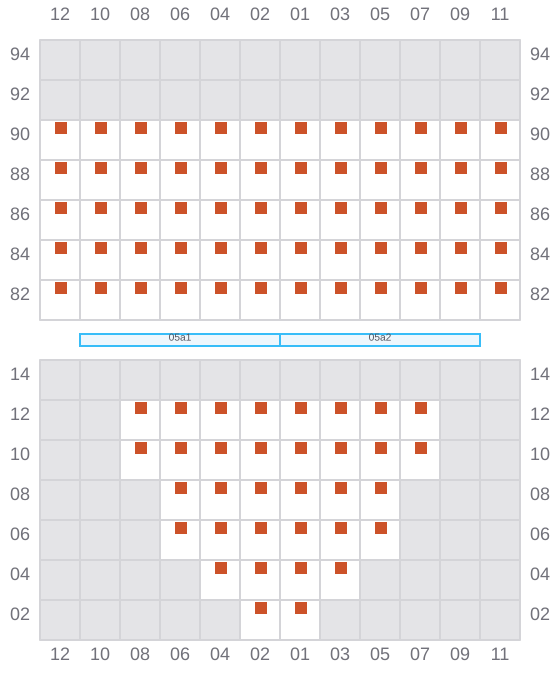

007
- ←
![Bay 007 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b007.png?v=1712166261204)

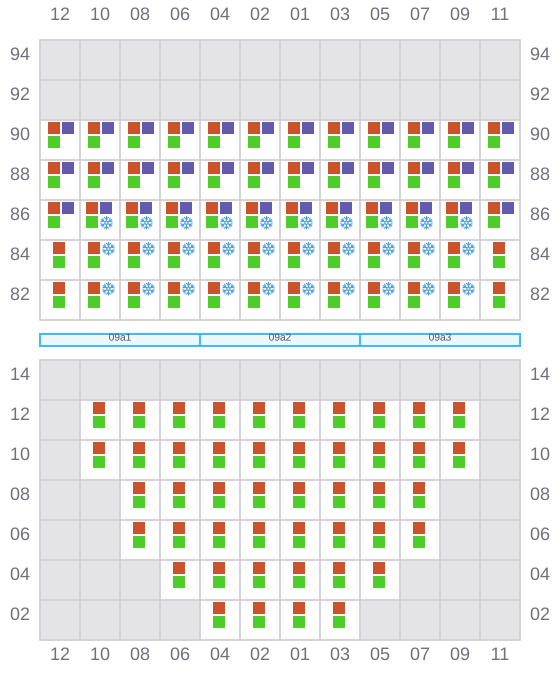

009 (010)
- →
- ← / →
![Bay 009 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b009.png?v=1712166261204)

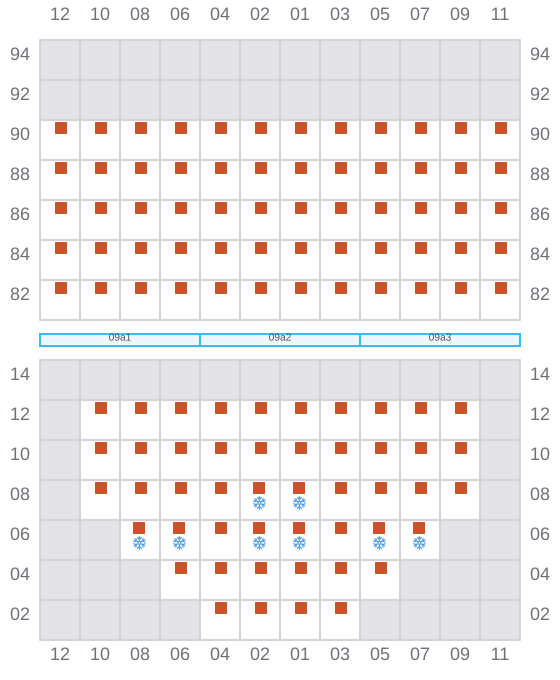

011
- ←
- ? / →
![Bay 011 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b011.png?v=1712166261204)

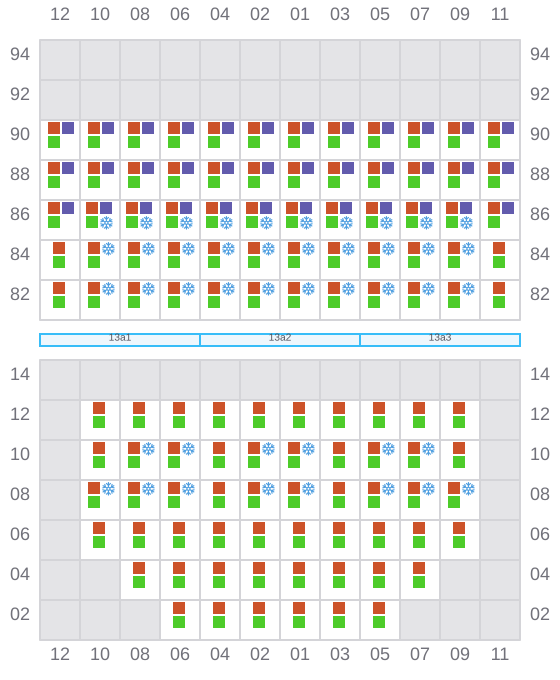

013 (014)
- →
- ←
![Bay 013 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b013.png?v=1712166261204)

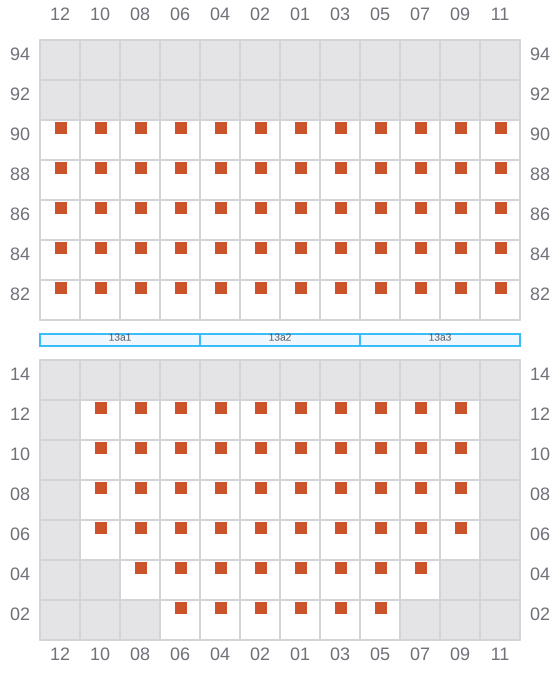

015
- ←
![Bay 015 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b015.png?v=1712166261204)

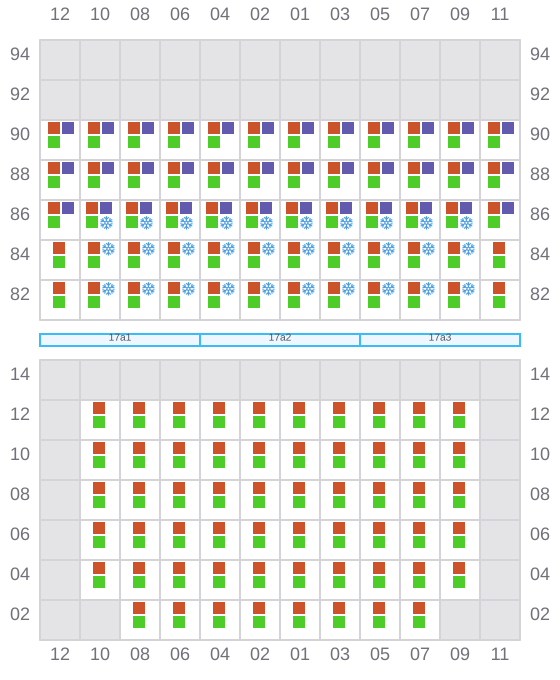

017 (018)
- →
- ← / ?
![Bay 017 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b017.png?v=1712166261204)

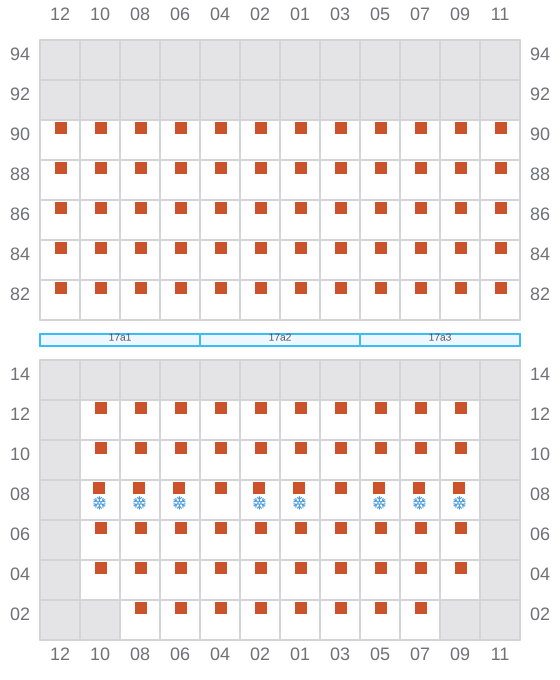

019
- ←
- ? / →
![Bay 019 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b019.png?v=1712166261204)

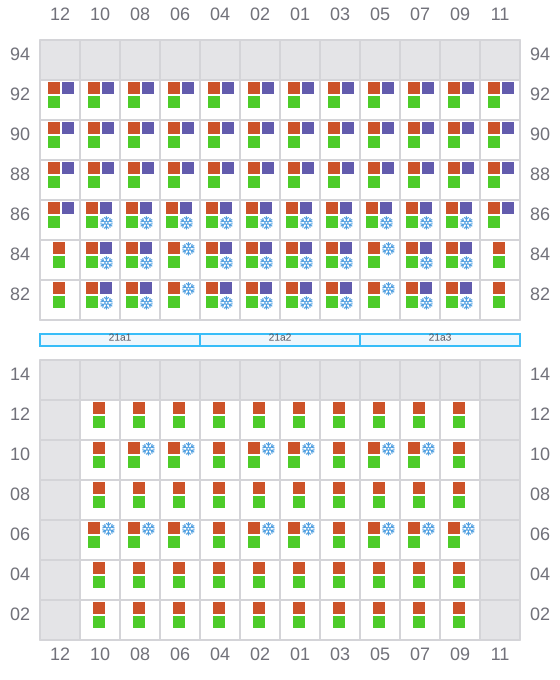

021 (022)
- →
- ←
![Bay 021 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b021.png?v=1712166261204)

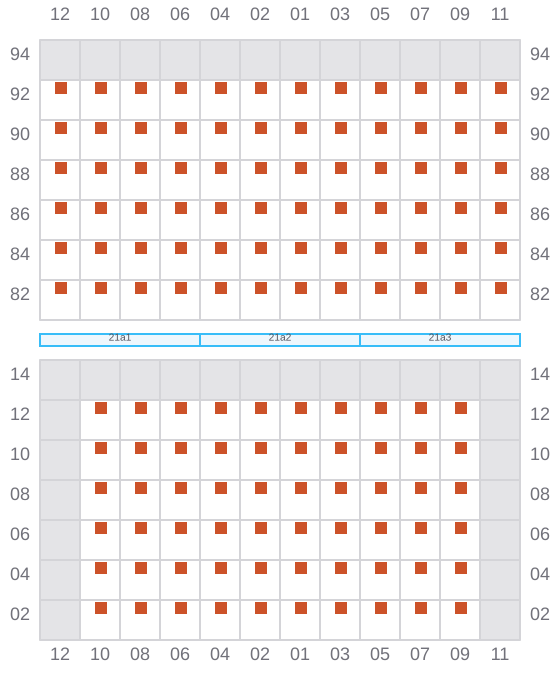

023
- ←
![Bay 023 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b023.png?v=1712166261204)

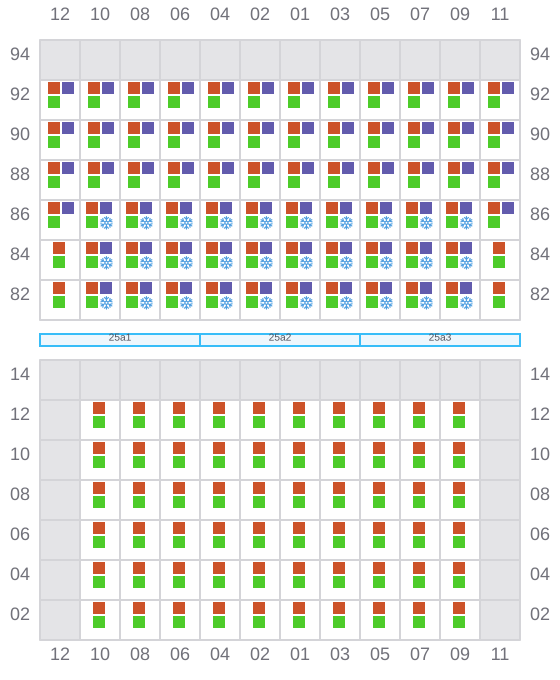

025 (026)
- →
- ← / ?
![Bay 025 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b025.png?v=1712166261204)
027
- ←
- ? / →
![Bay 027 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b027.png?v=1712166261204)

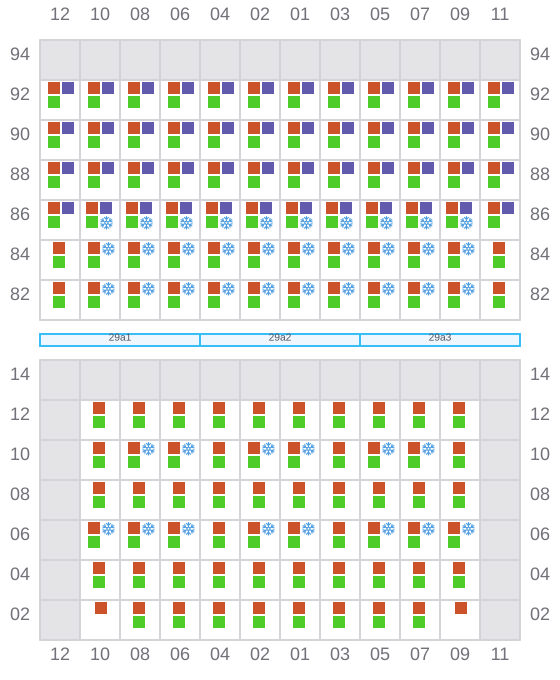

029 (030)
- →
- ←
![Bay 029 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b029.png?v=1712166261204)

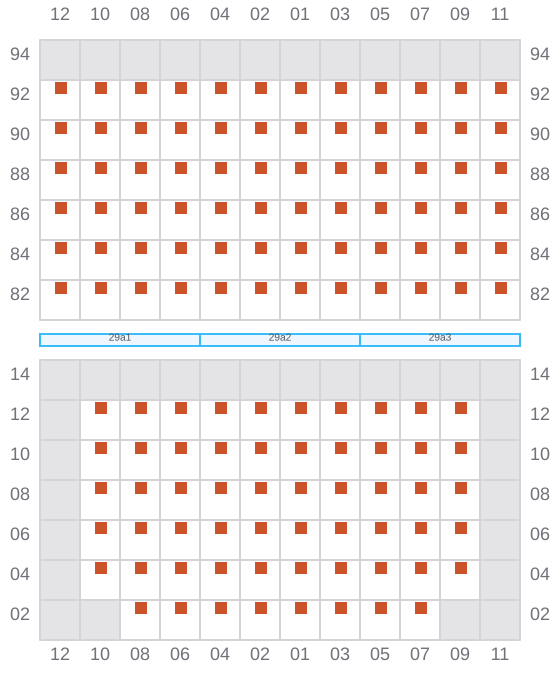

031
- ←
![Bay 031 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b031.png?v=1712166261204)

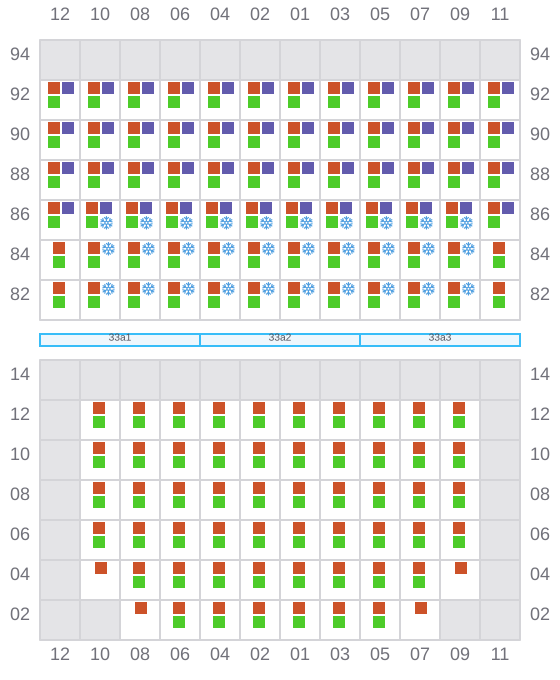

033 (034)
- →
- ← / ?
![Bay 033 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b033.png?v=1712166261204)

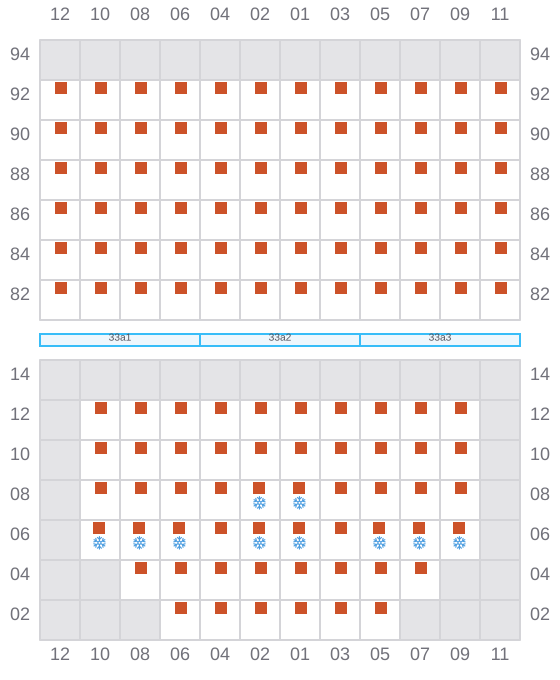

035
- ←
- ? / →
![Bay 035 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b035.png?v=1712166261204)

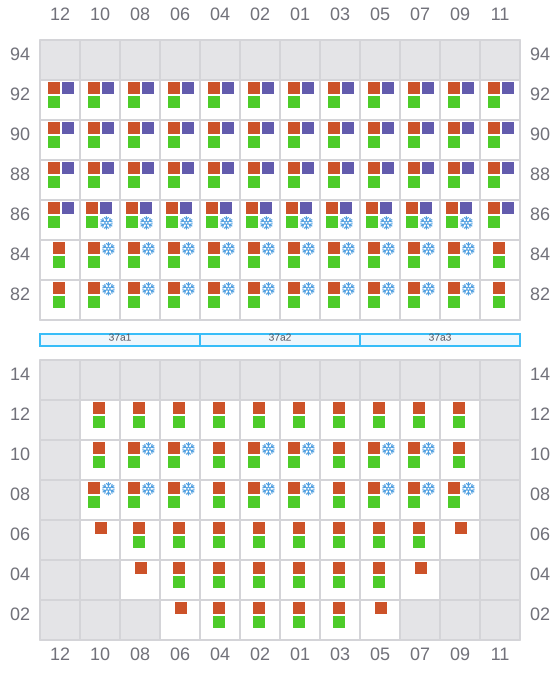

037 (038)
- →
- ←
![Bay 037 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b037.png?v=1712166261204)

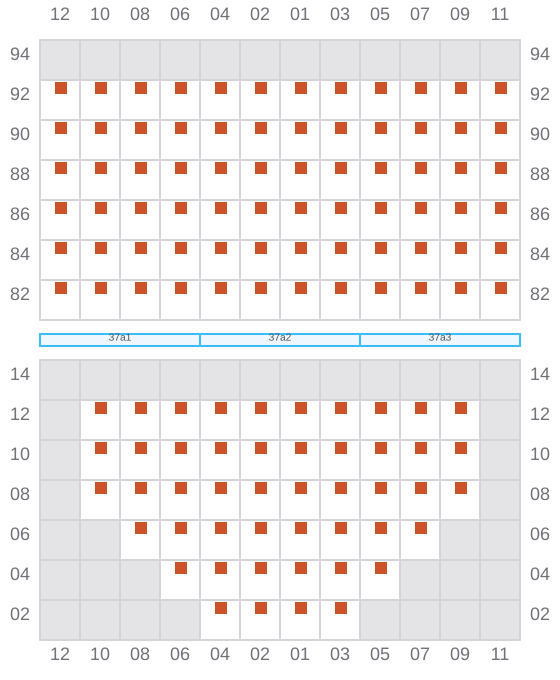

039
- ←
![Bay 039 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b039.png?v=1712166261204)

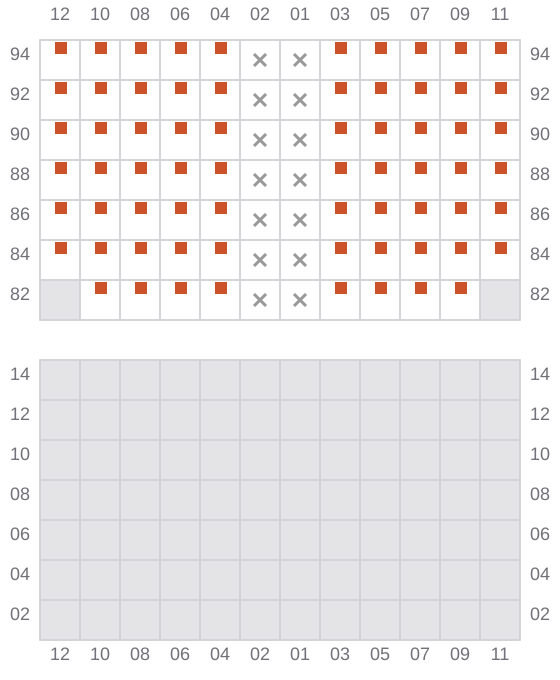

041
![Bay 041 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b041.png?v=1712166261204)

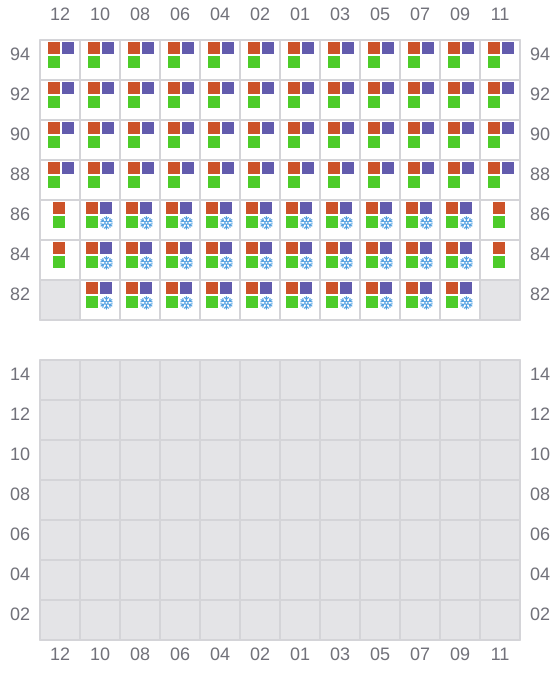

043 (044)
- → / ?
- ← / ?
![Bay 043 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b043.png?v=1712166261204)
045
- ← / ?
![Bay 045 view and slots of CMA CGM GUARANI](/vessel-images/058d719c-1be6-45fc-9882-4a54423b8e0c-b045.png?v=1712166261204)
