CMA CGM GULF EXPRESS
9239874 | 9HA5867 | 9239874 by ********* Last update: Mon Apr 29 2024
General Info
Ship Name:CMA CGM GULF EXPRESS
IMO Code:9239874
Call Sign:9HA5867
Line Operator:9239874
Class Name for Sister Ships:NALA DELMAS
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,653
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-sideView.png?v=1714423486513)
Hatch-Covers View
![Deck view of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-deckView.png?v=1714423486513)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

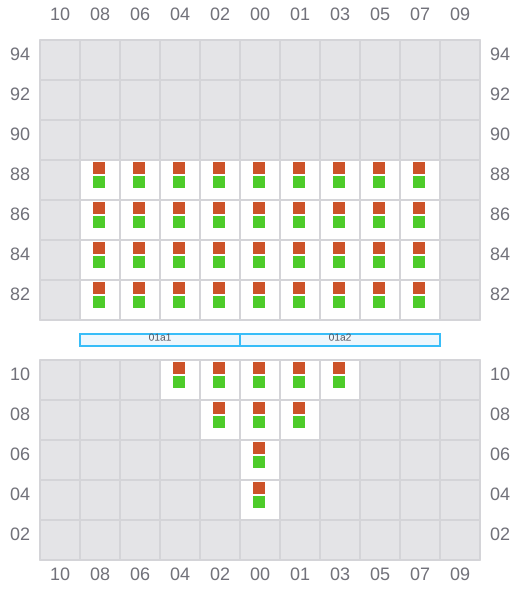

001 (002)
- →
![Bay 001 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b001.png?v=1714423486513)

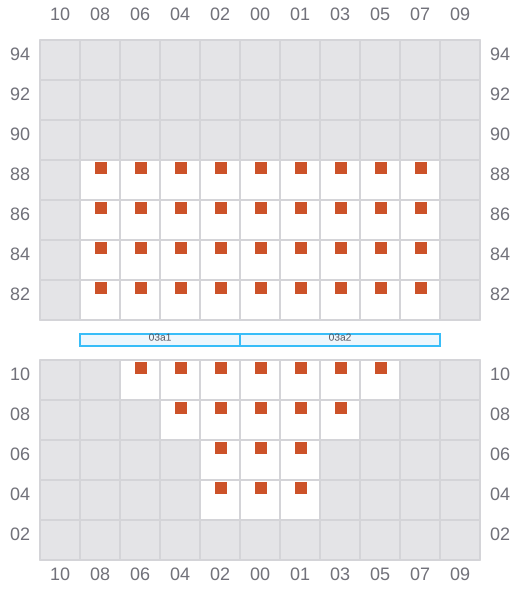

003
- ←
![Bay 003 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b003.png?v=1714423486513)

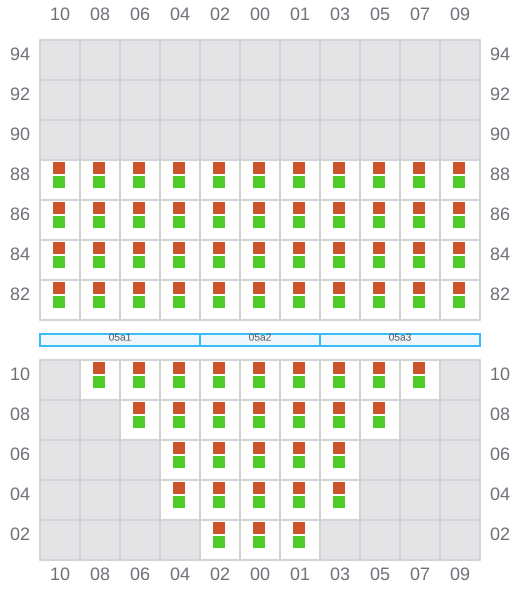

005 (006)
- →
![Bay 005 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b005.png?v=1714423486513)

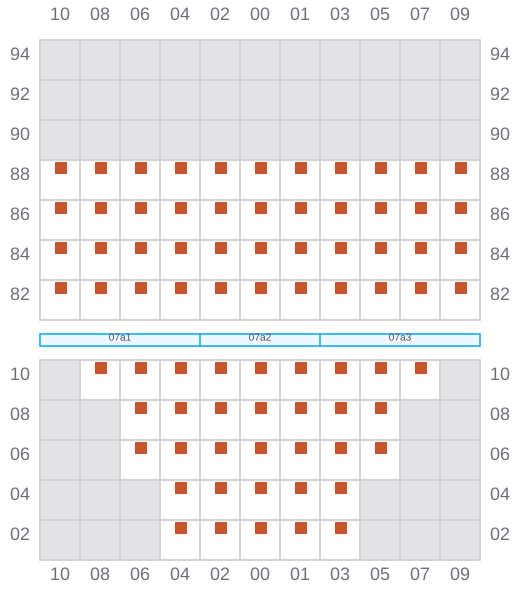

007
- ←
![Bay 007 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b007.png?v=1714423486513)
009 (010)
- →
![Bay 009 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b009.png?v=1714423486513)

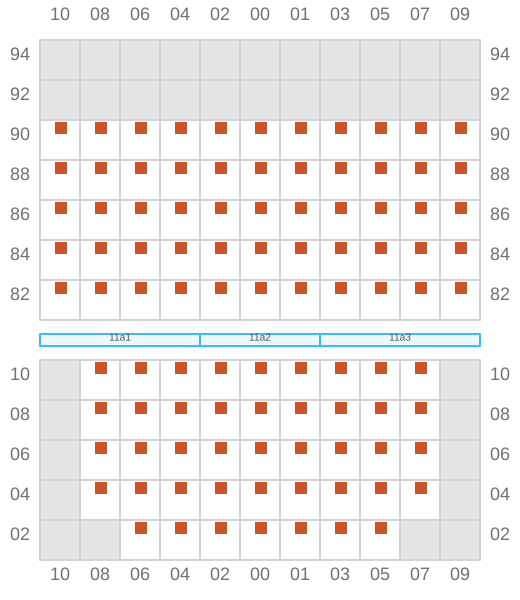

011
- ←
![Bay 011 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b011.png?v=1714423486513)

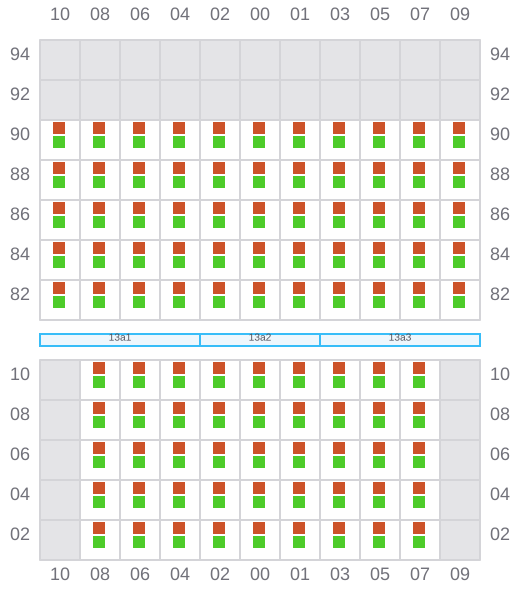

013 (014)
- →
![Bay 013 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b013.png?v=1714423486513)
015
- ←
![Bay 015 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b015.png?v=1714423486513)

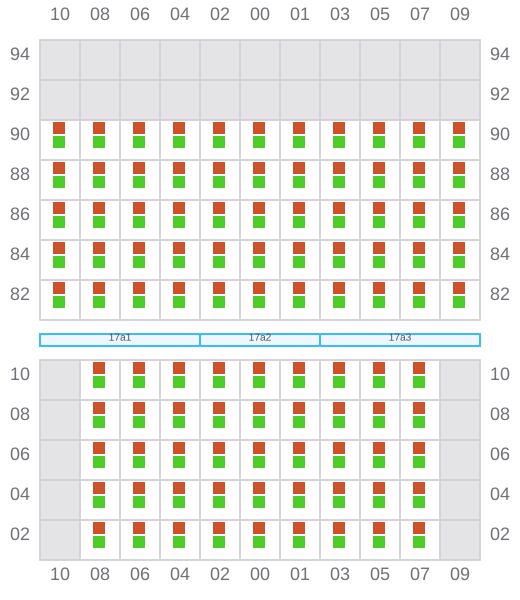

017 (018)
- →
![Bay 017 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b017.png?v=1714423486513)
019
- ←
![Bay 019 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b019.png?v=1714423486513)
021 (022)
- →
![Bay 021 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b021.png?v=1714423486513)

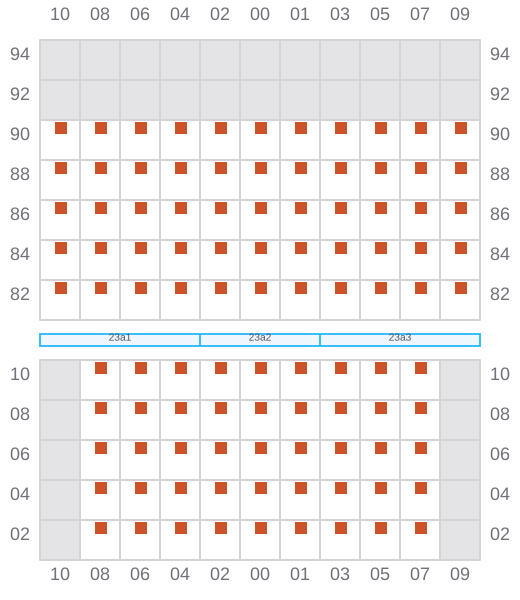

023
- ←
![Bay 023 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b023.png?v=1714423486513)

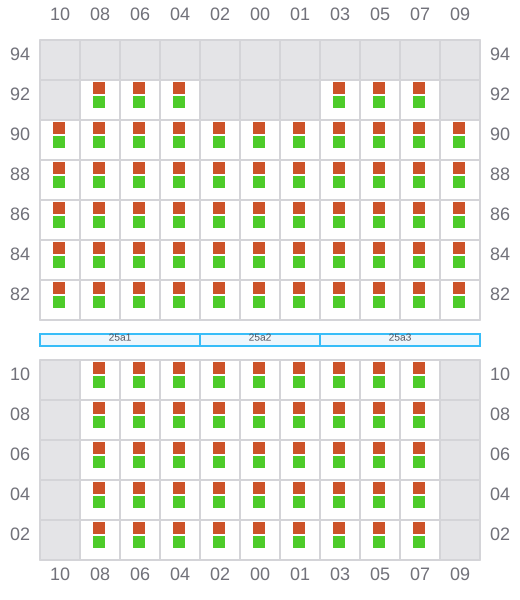

025 (026)
- →
![Bay 025 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b025.png?v=1714423486513)
027
- ←
![Bay 027 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b027.png?v=1714423486513)

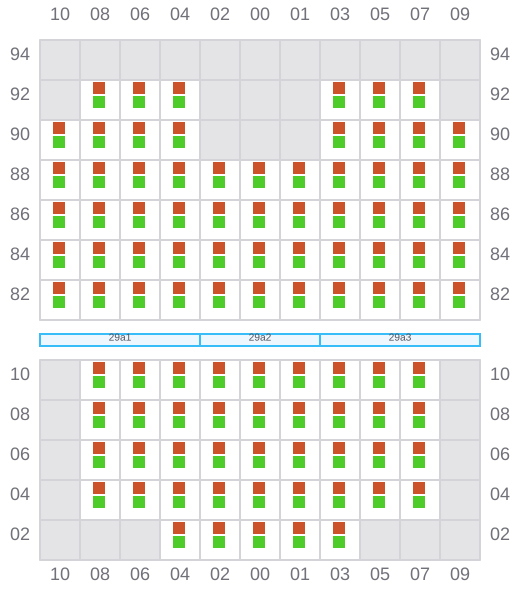

029 (030)
- →
![Bay 029 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b029.png?v=1714423486513)

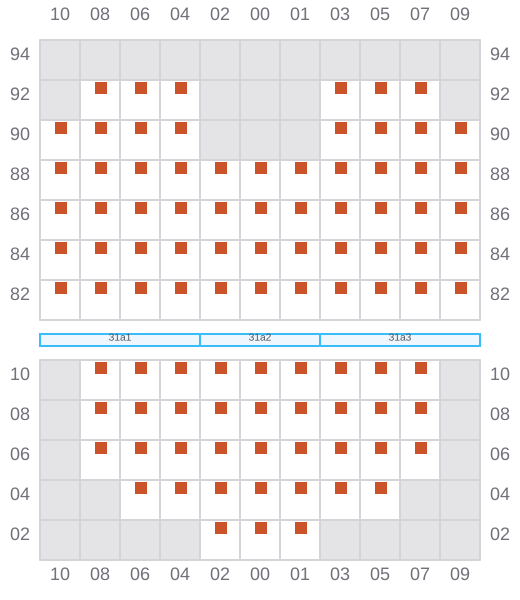

031
- ←
![Bay 031 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b031.png?v=1714423486513)
033 (034)
- → / ?
![Bay 033 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b033.png?v=1714423486513)

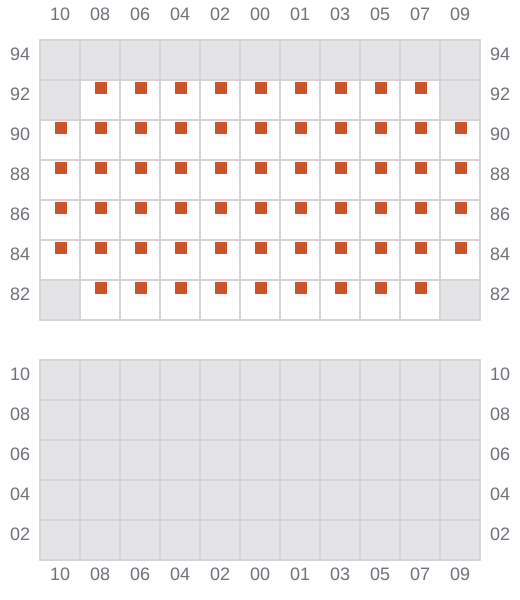

035
- ← / ?
![Bay 035 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b035.png?v=1714423486513)

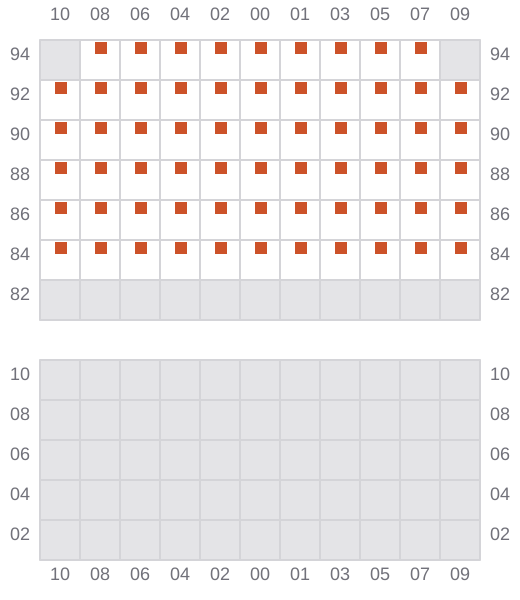

037
- → / ?
![Bay 037 view and slots of CMA CGM GULF EXPRESS](/vessel-images/5d94d4db-4c24-4571-adf1-2fc4c09e4a46-b037.png?v=1714423486513)
