CMA CGM HERMES
9882499 | 9HA5498 | CMA by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:CMA CGM HERMES
IMO Code:9882499
Call Sign:9HA5498
Line Operator:CMA
Class Name for Sister Ships:HER
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,510
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

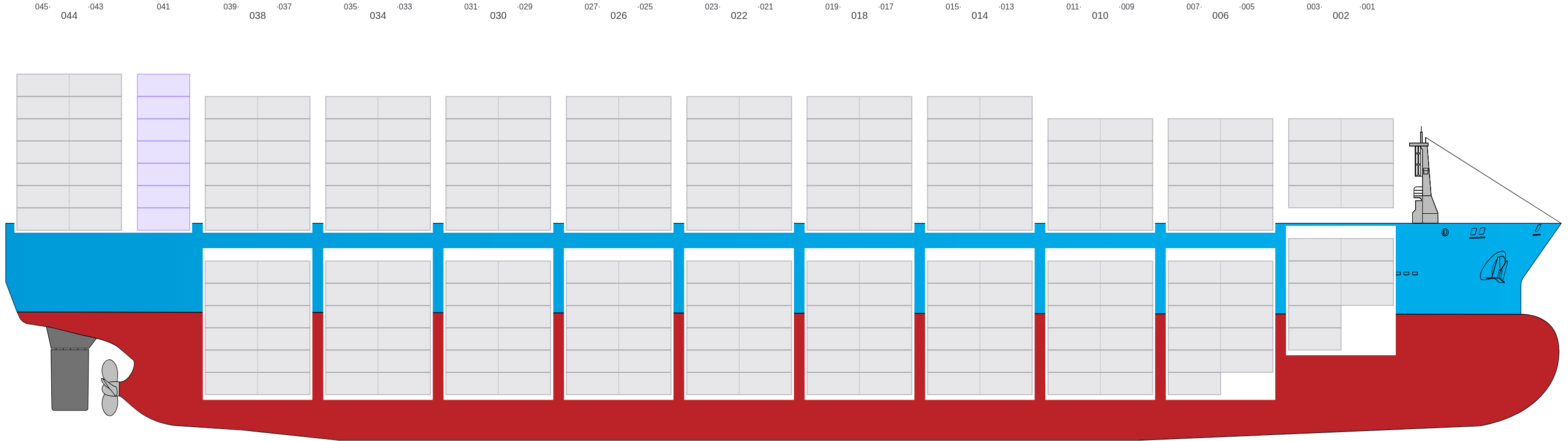

Side View
![Side view of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-sideView.png?v=1686765355743)
Hatch-Covers View
![Deck view of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-deckView.png?v=1686765355743)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

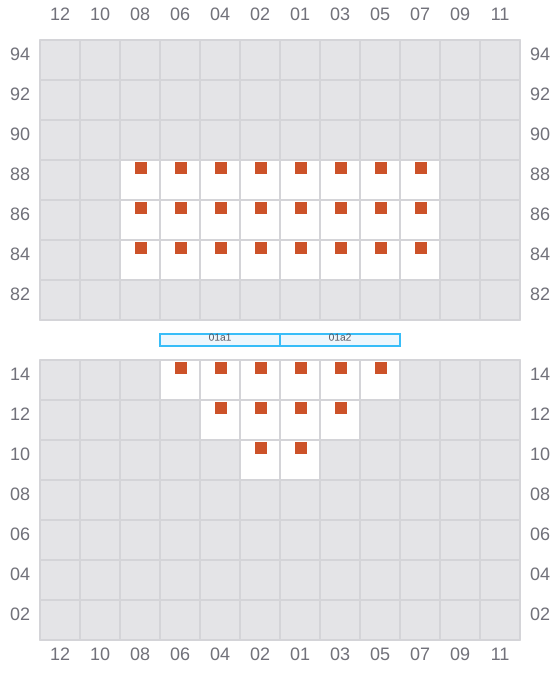

001
- →
![Bay 001 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b001.png?v=1686765355743)

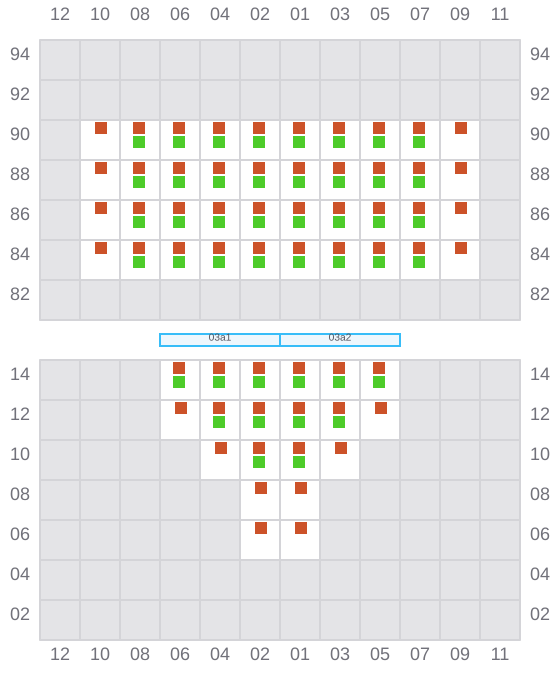

003 (002)
- ←
![Bay 003 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b003.png?v=1686765355743)

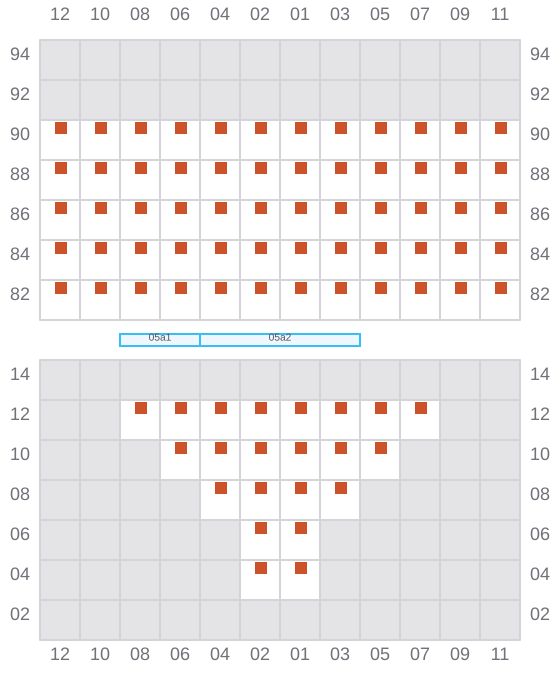

005
- →
![Bay 005 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b005.png?v=1686765355743)

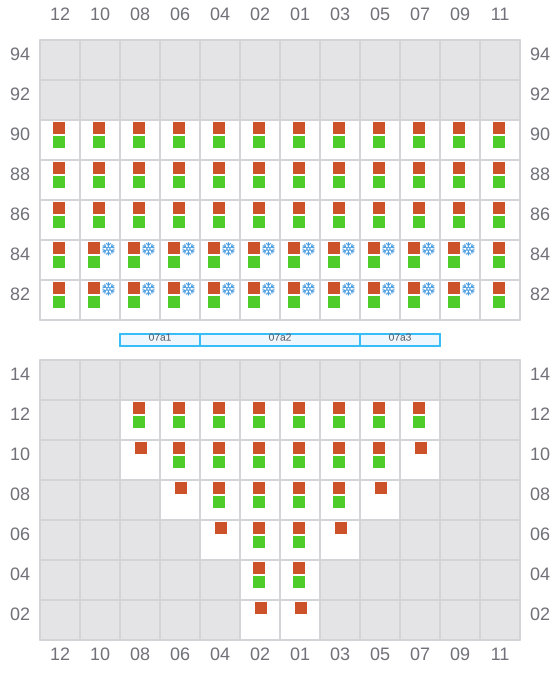

007 (006)
- ←
![Bay 007 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b007.png?v=1686765355743)
009
- →
![Bay 009 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b009.png?v=1686765355743)
011 (010)
- ←
![Bay 011 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b011.png?v=1686765355743)

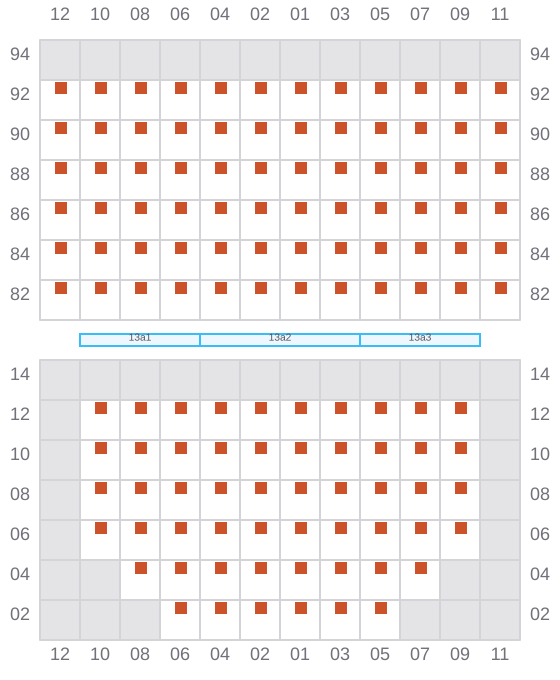

013
- →
![Bay 013 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b013.png?v=1686765355743)

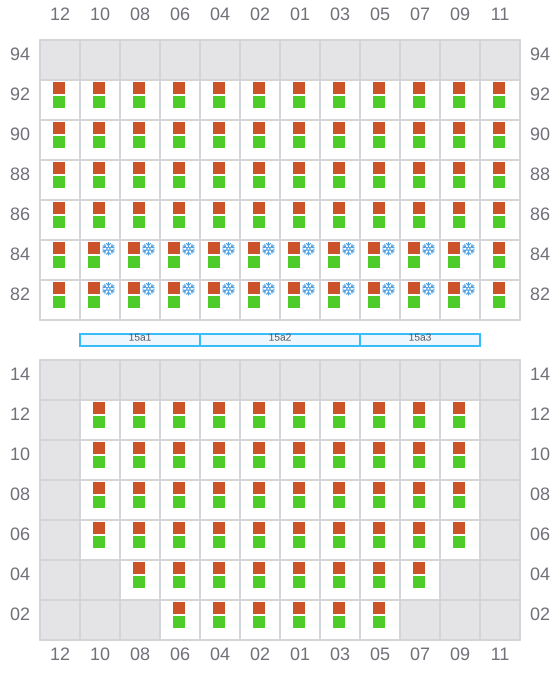

015 (014)
- ←
![Bay 015 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b015.png?v=1686765355743)

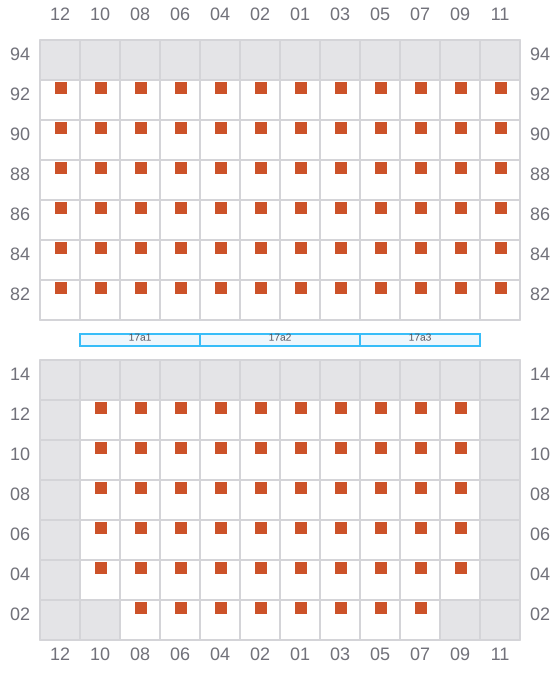

017
- →
![Bay 017 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b017.png?v=1686765355743)
019 (018)
- ←
![Bay 019 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b019.png?v=1686765355743)
021
- →
![Bay 021 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b021.png?v=1686765355743)
023 (022)
- ←
![Bay 023 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b023.png?v=1686765355743)
025
- →
![Bay 025 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b025.png?v=1686765355743)
027 (026)
- ←
![Bay 027 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b027.png?v=1686765355743)

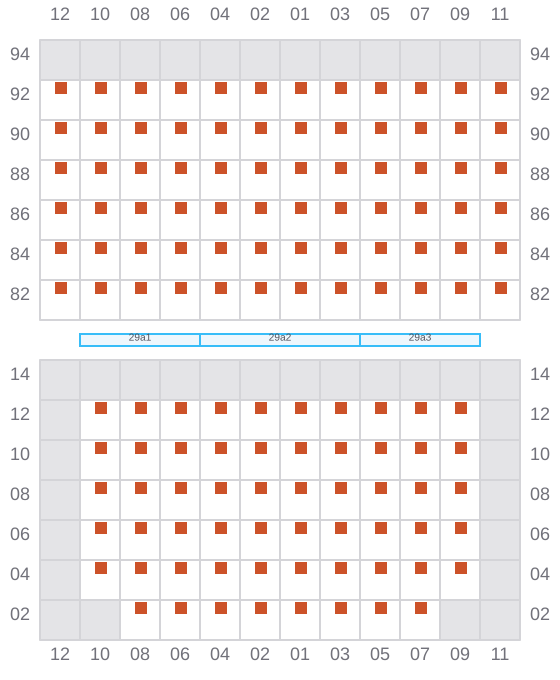

029
- →
![Bay 029 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b029.png?v=1686765355743)
031 (030)
- ←
![Bay 031 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b031.png?v=1686765355743)
033
- →
![Bay 033 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b033.png?v=1686765355743)
035 (034)
- ←
![Bay 035 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b035.png?v=1686765355743)

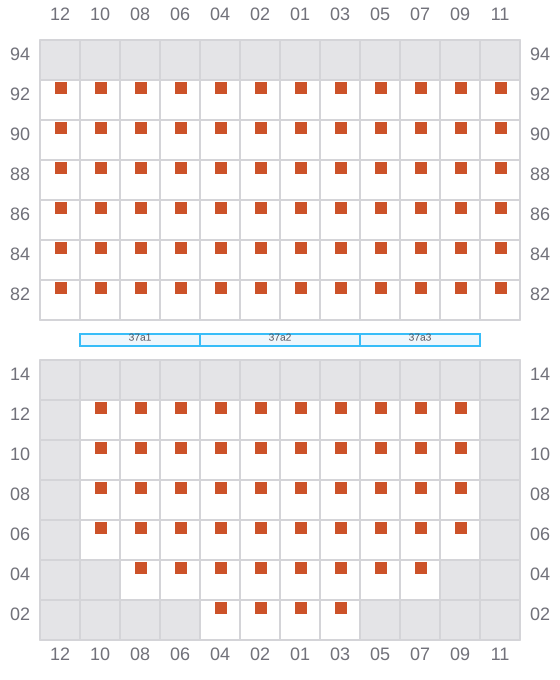

037
- →
![Bay 037 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b037.png?v=1686765355743)

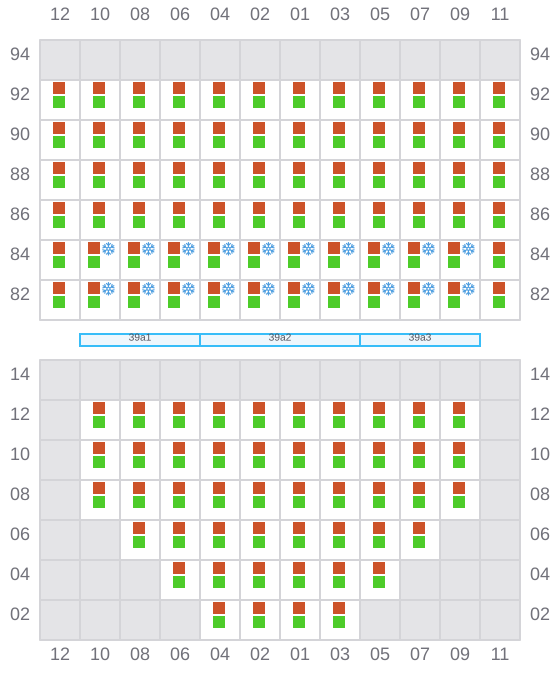

039 (038)
- ←
![Bay 039 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b039.png?v=1686765355743)

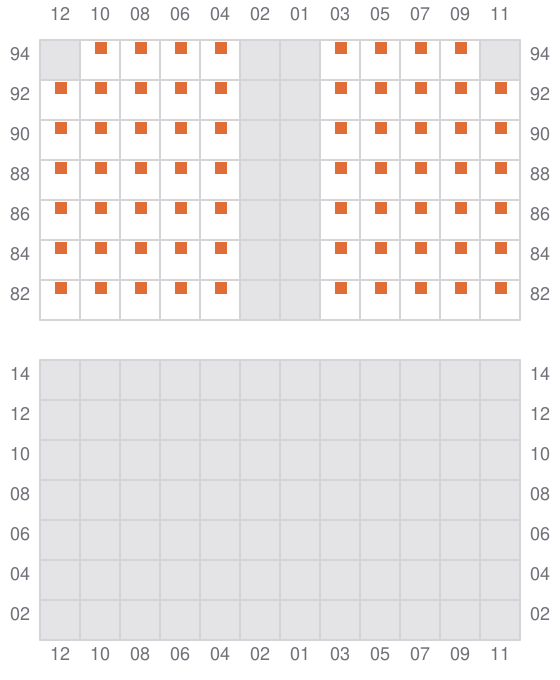

041
![Bay 041 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b041.png?v=1686765355743)

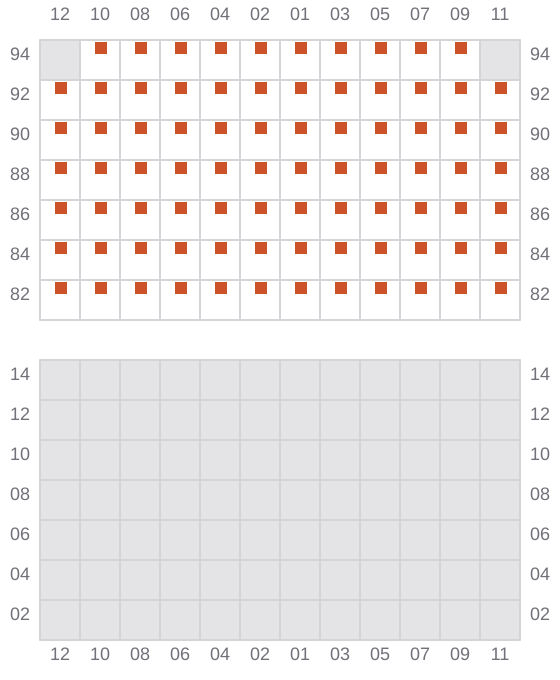

043
- → / ?
![Bay 043 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b043.png?v=1686765355743)

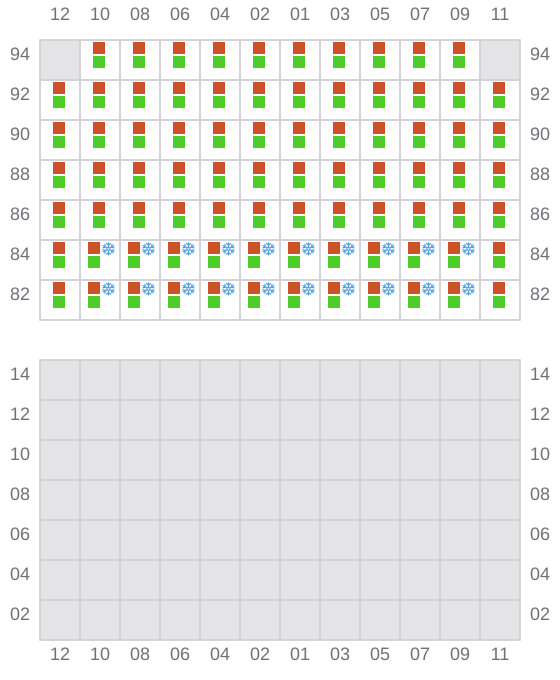

045 (044)
- ← / ?
![Bay 045 view and slots of CMA CGM HERMES](/vessel-images/14c56ba9-7372-4c3f-8423-76c9ccebf211-b045.png?v=1686765355743)
