CMA CGM HOMERE
9362322 | YDDM2 | CMA by *********************** Last update: Mon Jan 27 2025

General Info

Ship Name:CMA CGM HOMERE
IMO Code:9362322
Call Sign:YDDM2
Line Operator:CMA
Class Name for Sister Ships:CGHO
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,737

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Known
TCG Data:100%

Side View

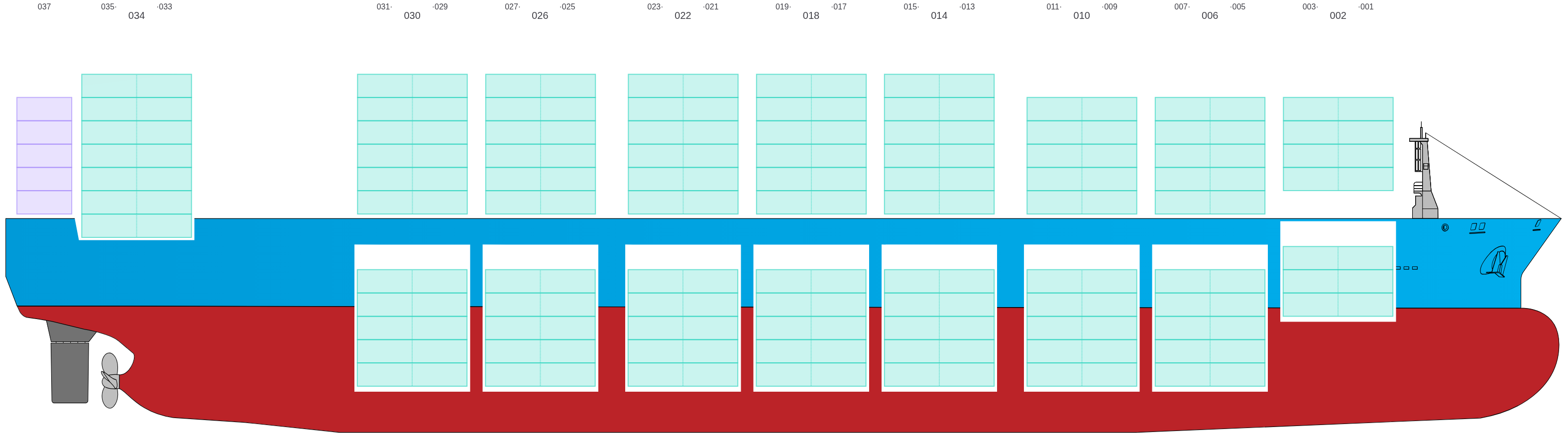

Side view of CMA CGM HOMERE

Hatch-Covers View

Deck view of CMA CGM HOMERE

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • / ?

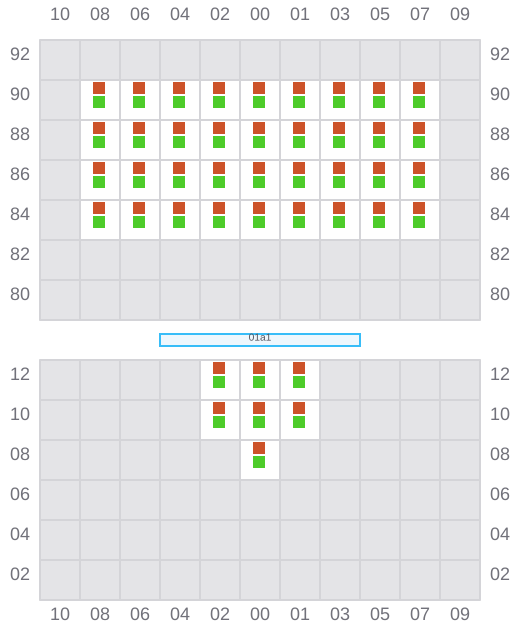

Bay 001 view and slots of CMA CGM HOMERE

003

  • / ?

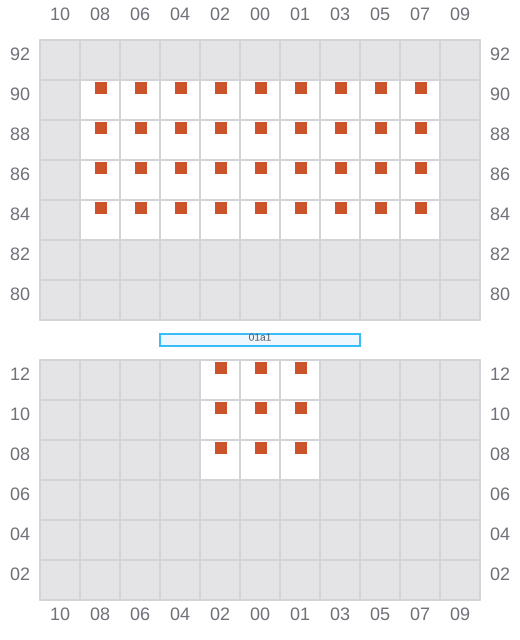

Bay 003 view and slots of CMA CGM HOMERE

005 (006)

  • / ?

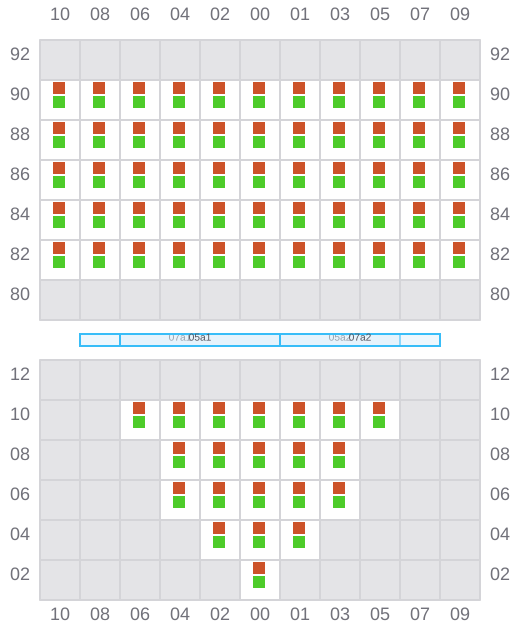

Bay 005 view and slots of CMA CGM HOMERE

007

  • / ?

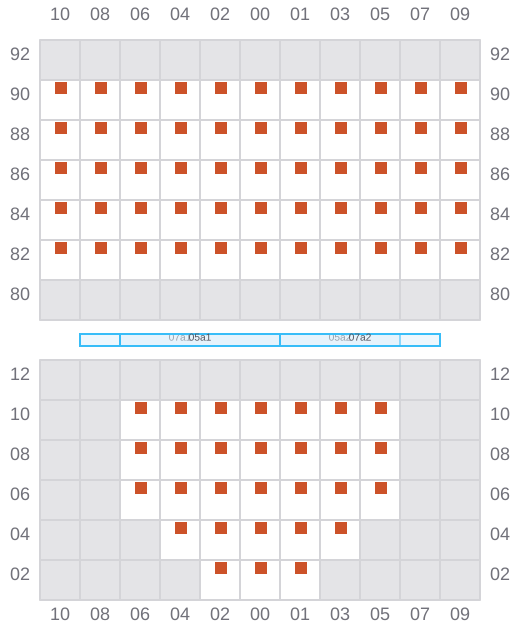

Bay 007 view and slots of CMA CGM HOMERE

009 (010)

  • / ?

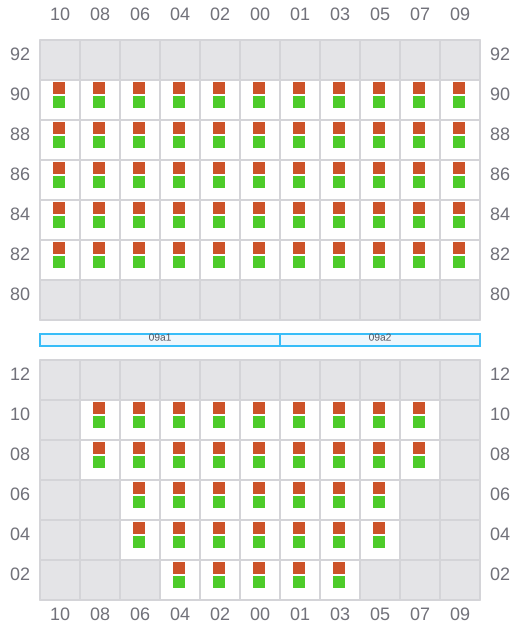

Bay 009 view and slots of CMA CGM HOMERE

011

  • / ?

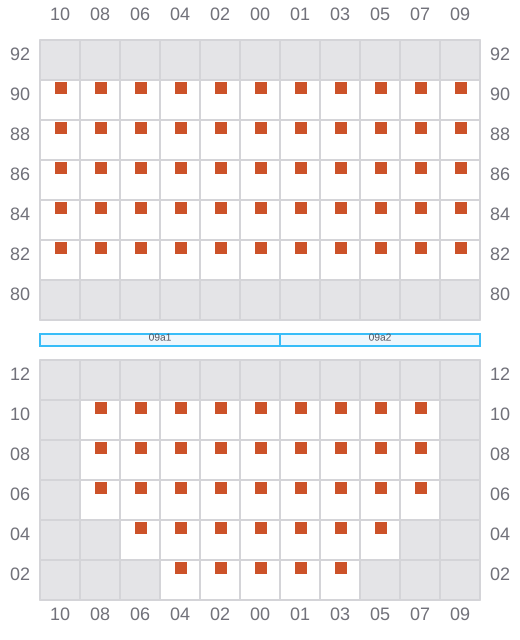

Bay 011 view and slots of CMA CGM HOMERE

013 (014)

  • / ?

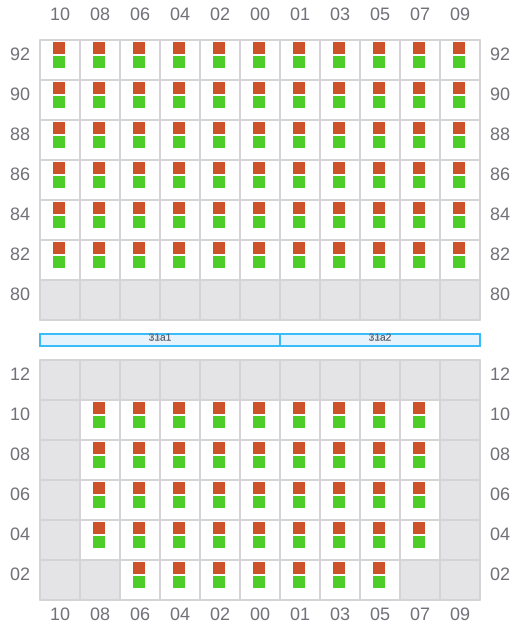

Bay 013 view and slots of CMA CGM HOMERE

015

  • / ?

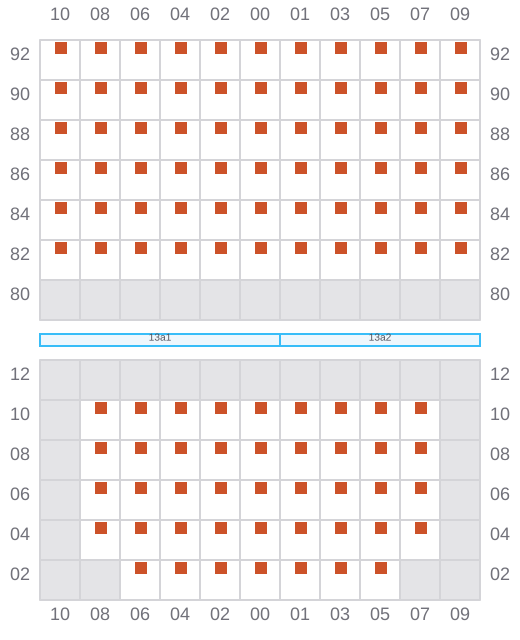

Bay 015 view and slots of CMA CGM HOMERE

017 (018)

  • / ?

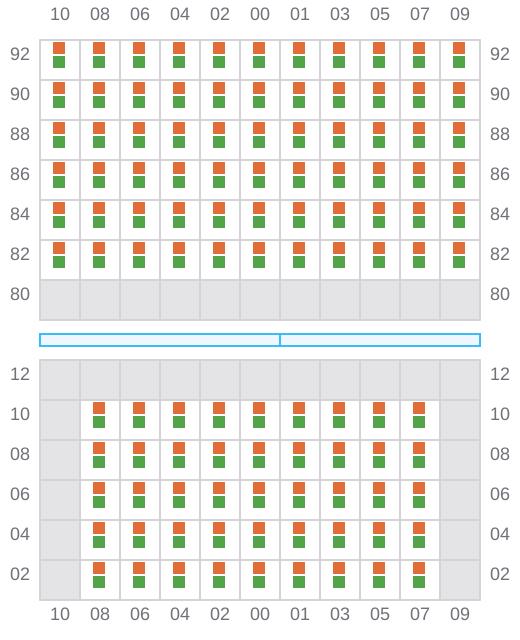

Bay 017 view and slots of CMA CGM HOMERE

019

  • / ?

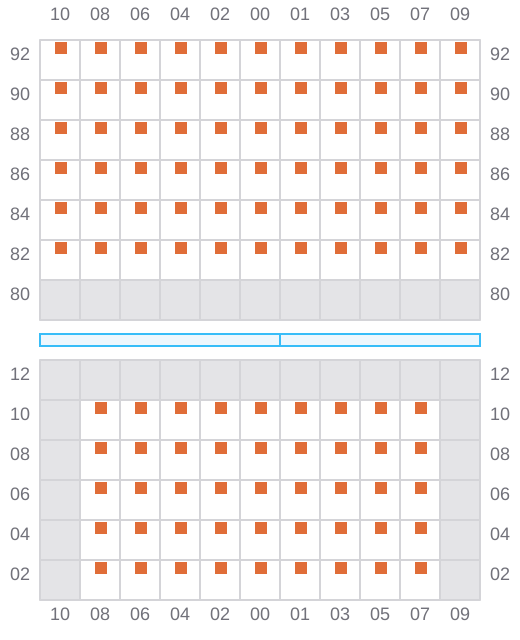

Bay 019 view and slots of CMA CGM HOMERE

021 (022)

  • /

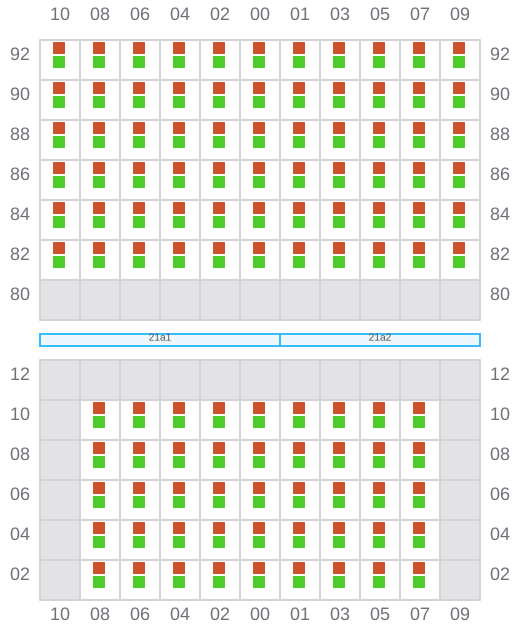

Bay 021 view and slots of CMA CGM HOMERE

023

  • /

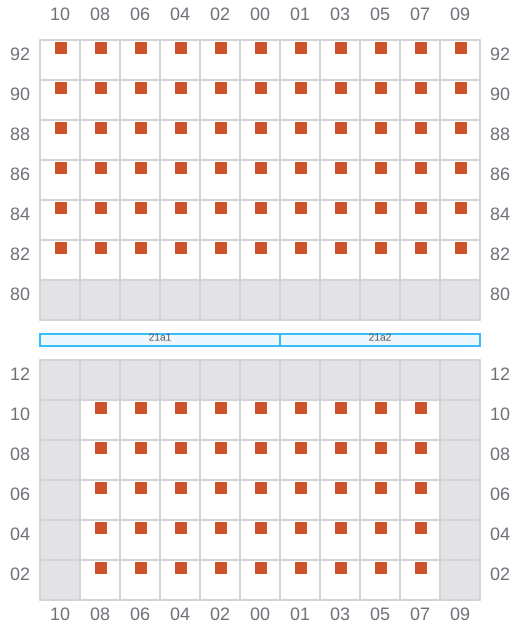

Bay 023 view and slots of CMA CGM HOMERE

025 (026)

  • / ?

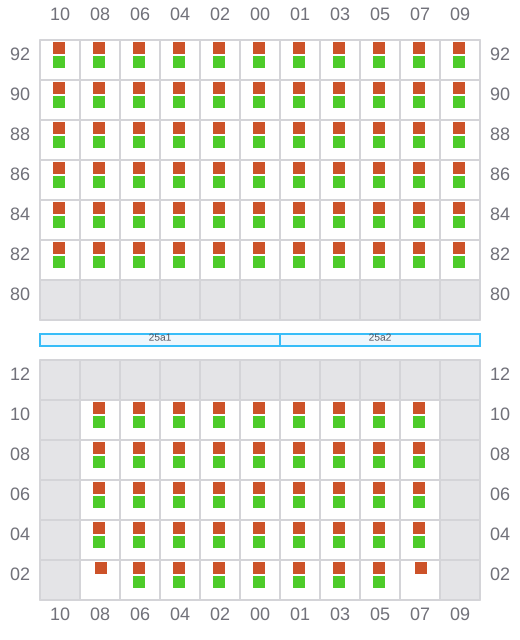

Bay 025 view and slots of CMA CGM HOMERE

027

  • / ?

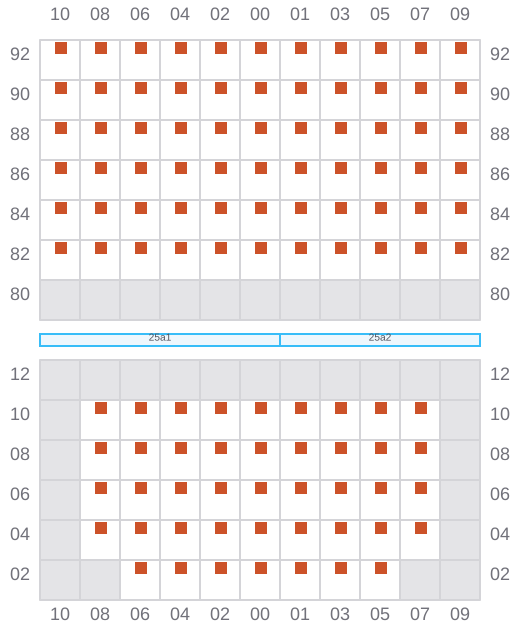

Bay 027 view and slots of CMA CGM HOMERE

029 (030)

  • /

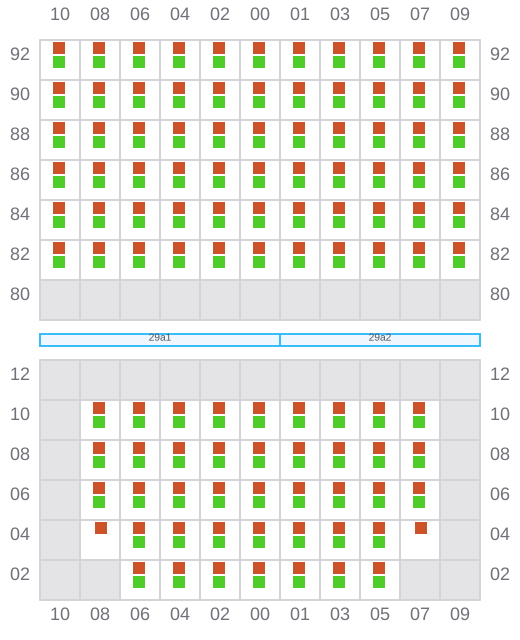

Bay 029 view and slots of CMA CGM HOMERE

031

  • /

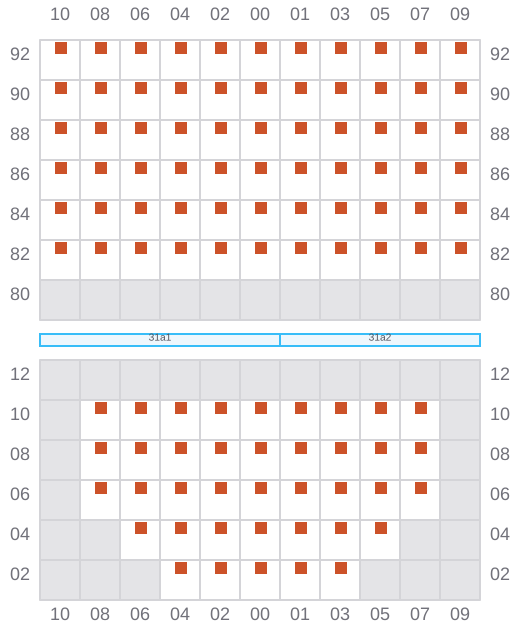

Bay 031 view and slots of CMA CGM HOMERE

033 (034)

  • / ?
  • / ?

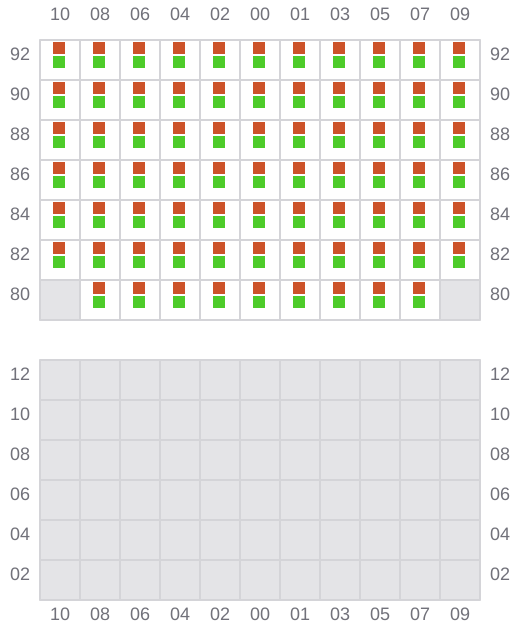

Bay 033 view and slots of CMA CGM HOMERE

035

  • / ?
  • / ?

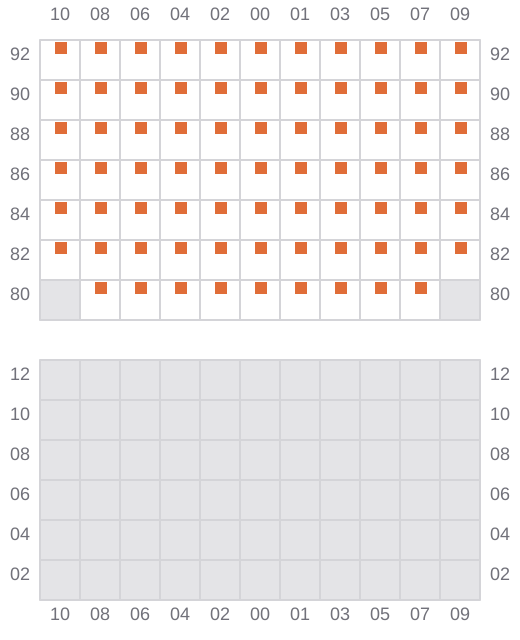

Bay 035 view and slots of CMA CGM HOMERE

037

  • / ?

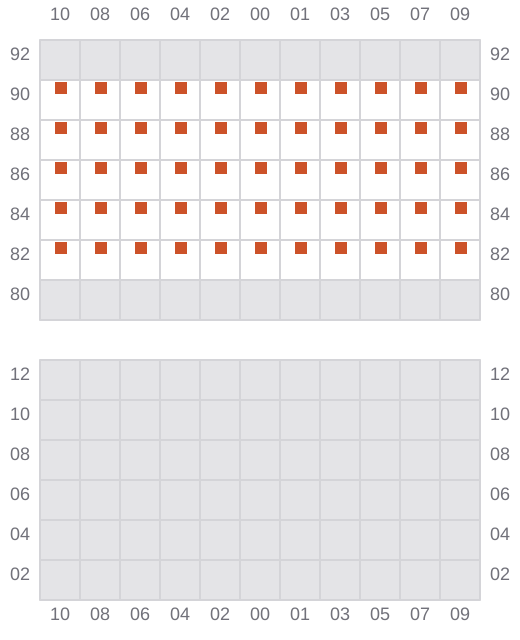

Bay 037 view and slots of CMA CGM HOMERE
