CMA CGM HOMERE
9362322 | YDDM2 | 9362322 by ********* Last update: Thu Apr 11 2024

General Info

Ship Name:CMA CGM HOMERE

IMO Code:9362322

Call Sign:YDDM2

Line Operator:9362322

Class Name for Sister Ships:CMA CGM HOMERE

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:037

Max ISO Row:10

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:80

Max Below ISO Tier:12

Min Below ISO Tier:02

Total TEU:1,735

Centers of Gravity

LCG Values:Estimated

LCG Data:0%

VCG Values:Estimated

VCG Data:0%

TCG Values:Estimated

TCG Data:0%

Side View

Side view of CMA CGM HOMERE

Hatch-Covers View

Deck view of CMA CGM HOMERE

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot ×

001 (002)

→

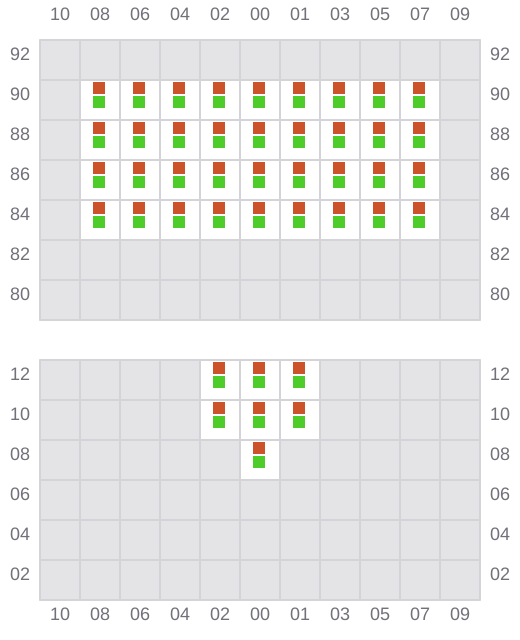

Bay 001 view and slots of CMA CGM HOMERE

003

←

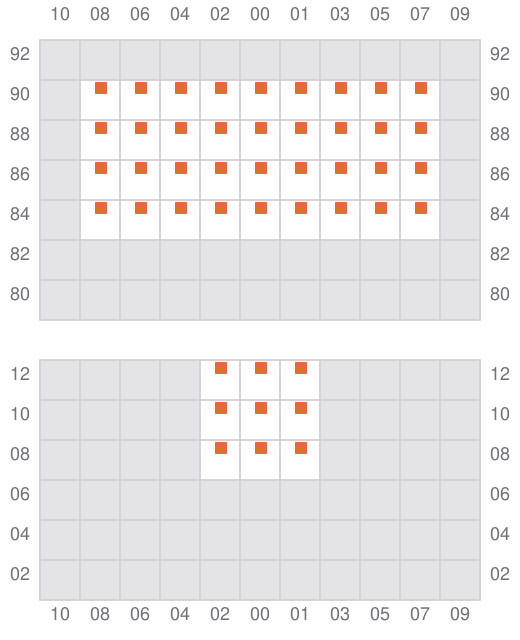

Bay 003 view and slots of CMA CGM HOMERE

005 (006)

→

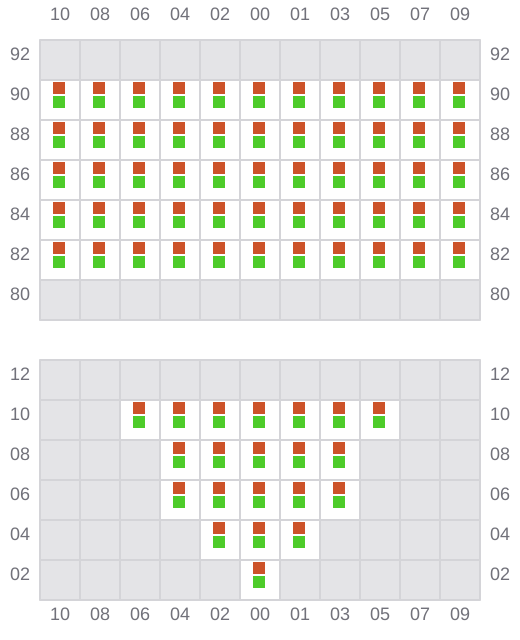

Bay 005 view and slots of CMA CGM HOMERE

007

←

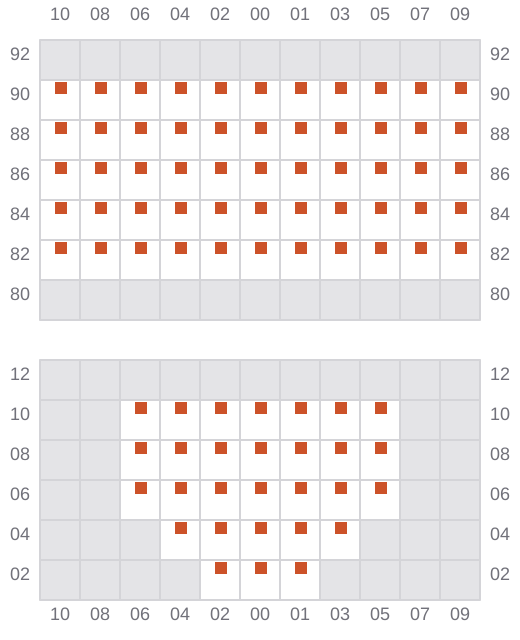

Bay 007 view and slots of CMA CGM HOMERE

009 (010)

→

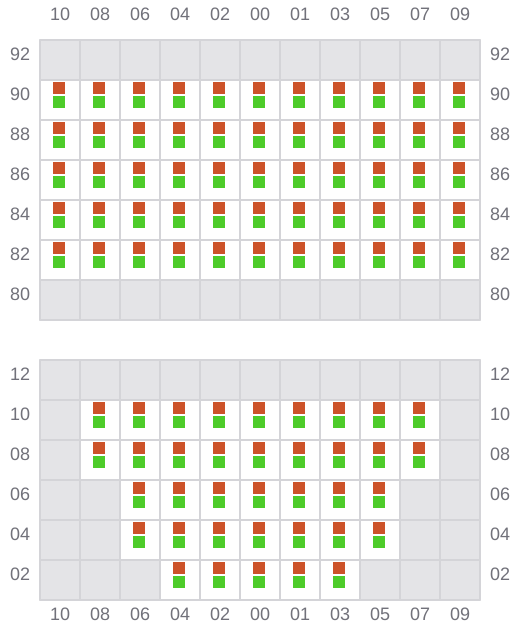

Bay 009 view and slots of CMA CGM HOMERE

011

←

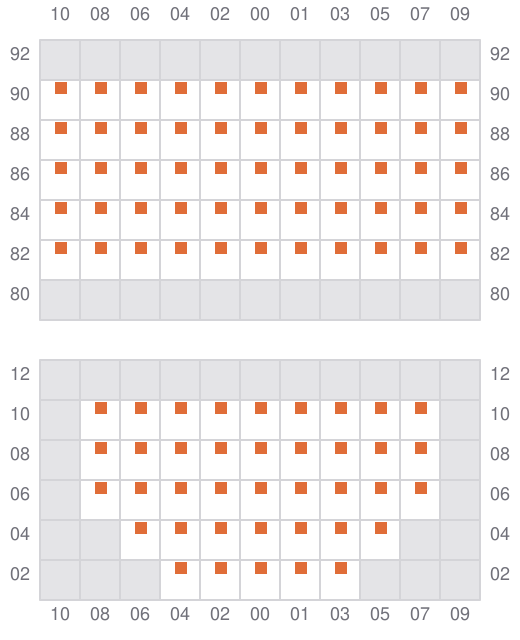

Bay 011 view and slots of CMA CGM HOMERE

013 (014)

→

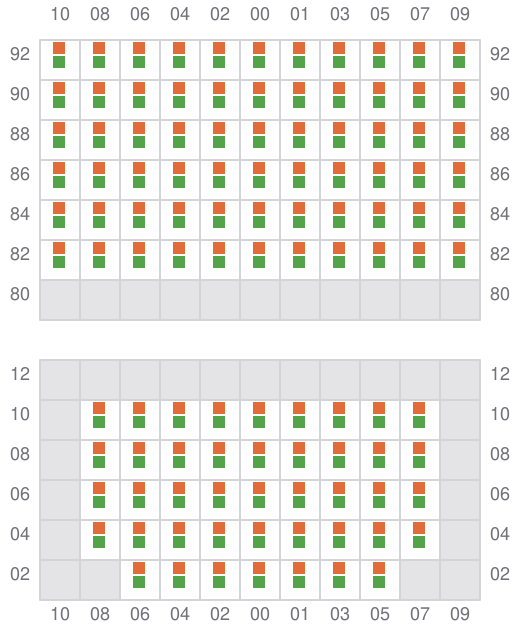

Bay 013 view and slots of CMA CGM HOMERE

015

←

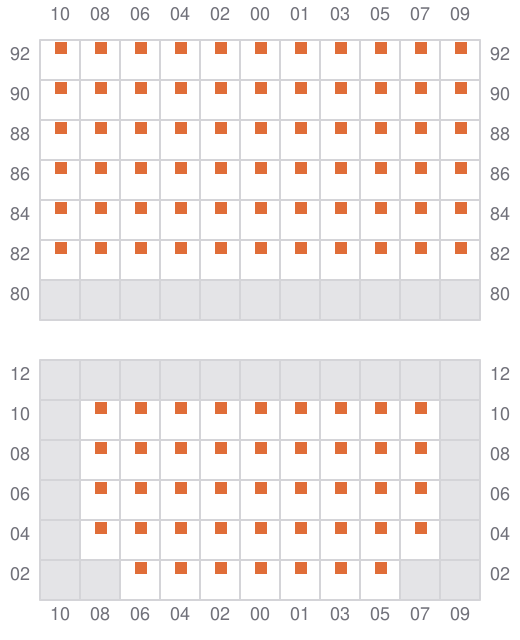

Bay 015 view and slots of CMA CGM HOMERE

017 (018)

→

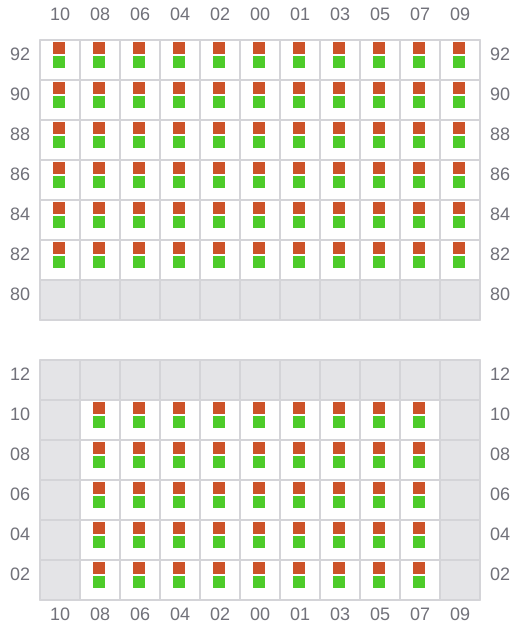

Bay 017 view and slots of CMA CGM HOMERE

019

←

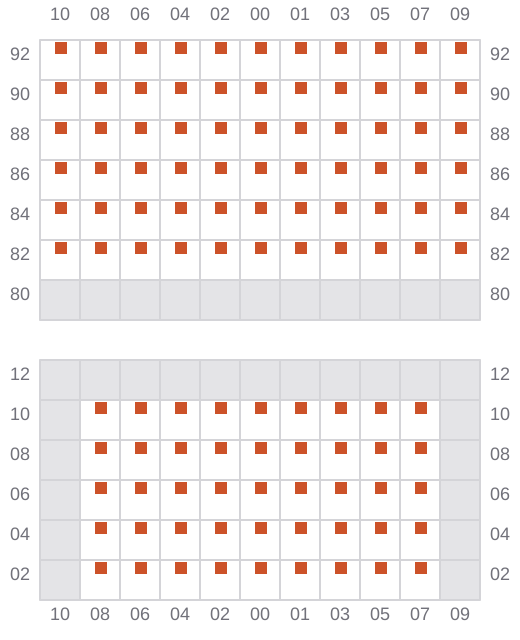

Bay 019 view and slots of CMA CGM HOMERE

021 (022)

→

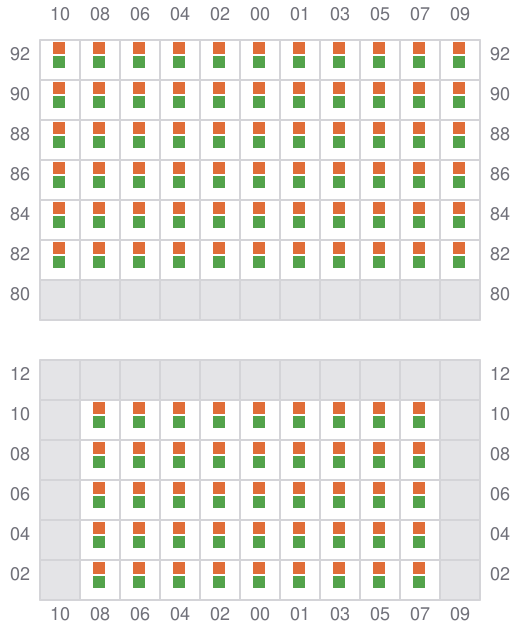

Bay 021 view and slots of CMA CGM HOMERE

023

←

Bay 023 view and slots of CMA CGM HOMERE

025 (026)

→

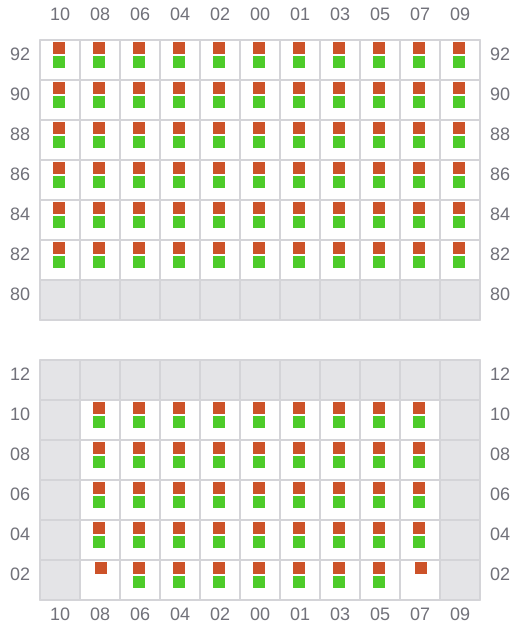

Bay 025 view and slots of CMA CGM HOMERE

027

←

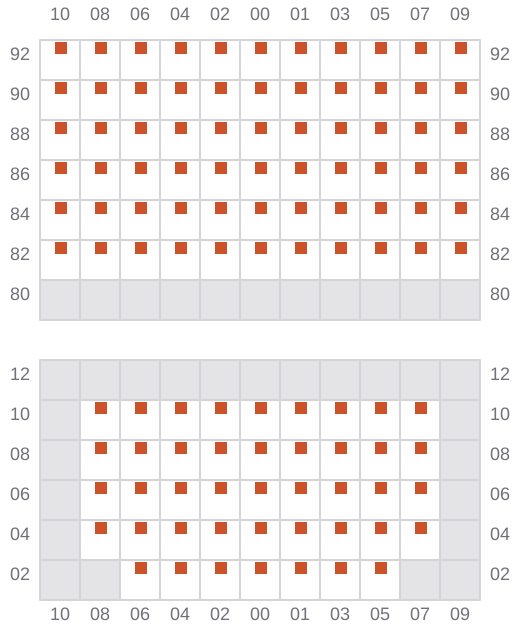

Bay 027 view and slots of CMA CGM HOMERE

029 (030)

→

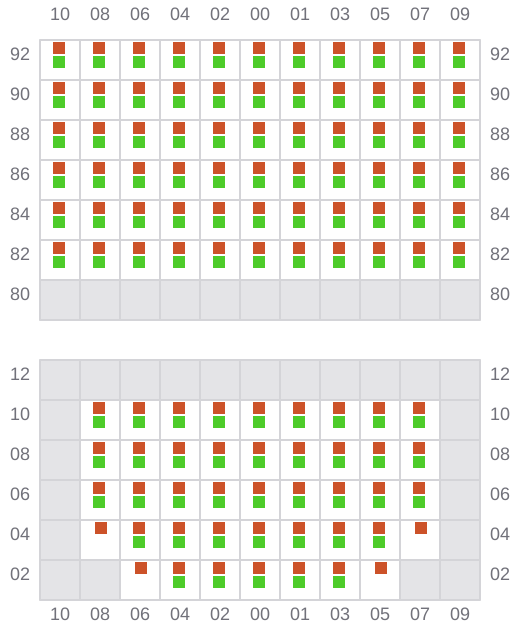

Bay 029 view and slots of CMA CGM HOMERE

031

←

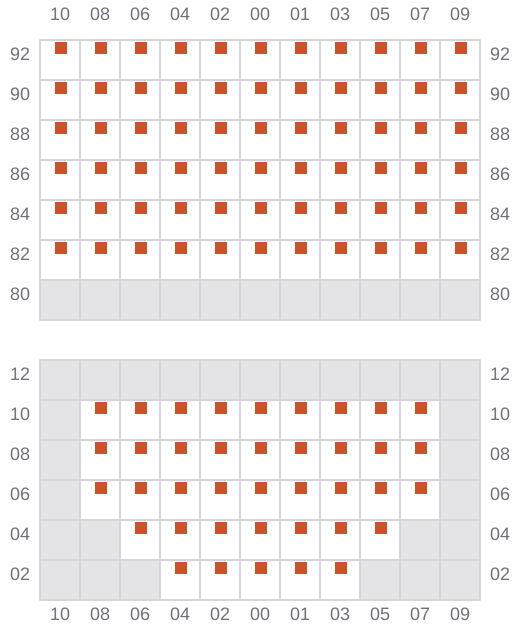

Bay 031 view and slots of CMA CGM HOMERE

033 (034)

^→ / _?

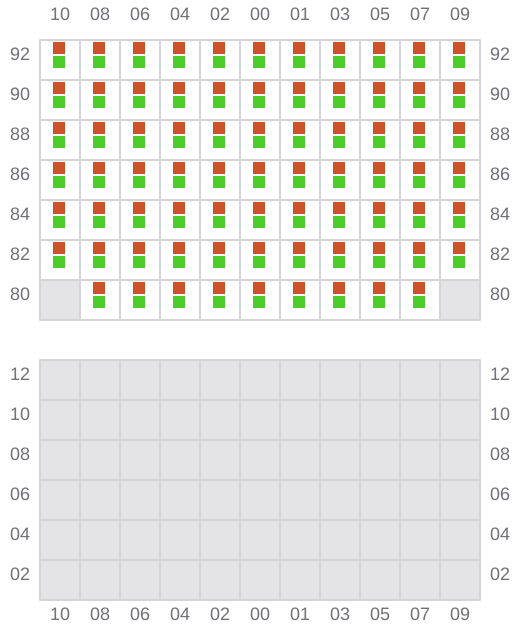

Bay 033 view and slots of CMA CGM HOMERE

035

^← / _?

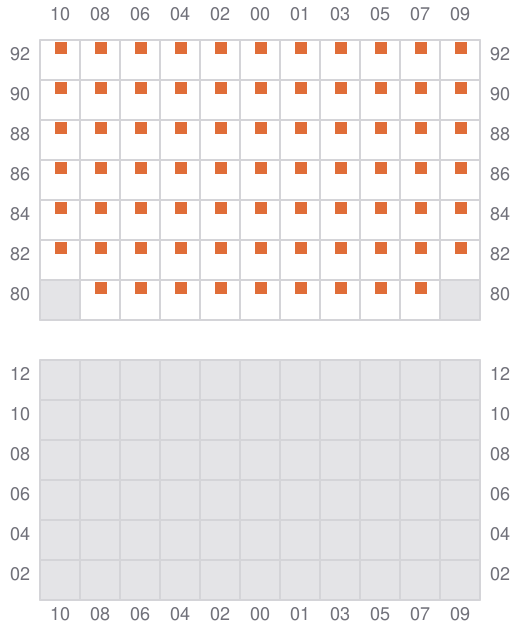

Bay 035 view and slots of CMA CGM HOMERE

037

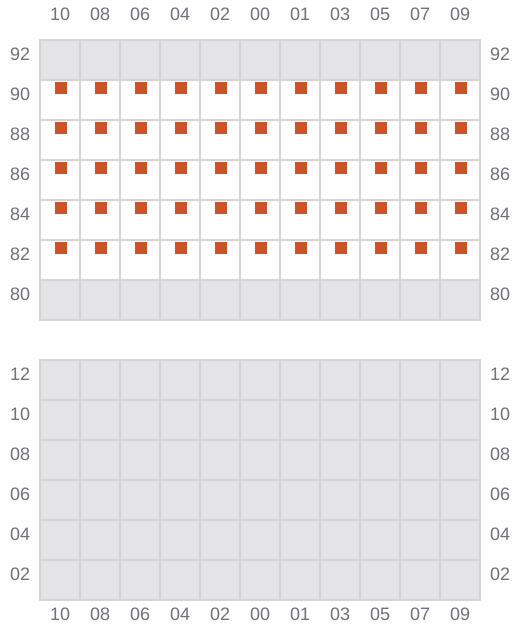

Bay 037 view and slots of CMA CGM HOMERE
