CMA CGM IGUACU
9859131 | 9HA5398 | 9859131 by ********* Last update: Mon Apr 08 2024

General Info

Ship Name:CMA CGM IGUACU
IMO Code:9859131
Call Sign:9HA5398
Line Operator:9859131
Class Name for Sister Ships:CMA CGM IGUACU
Year Built:2021
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,648

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

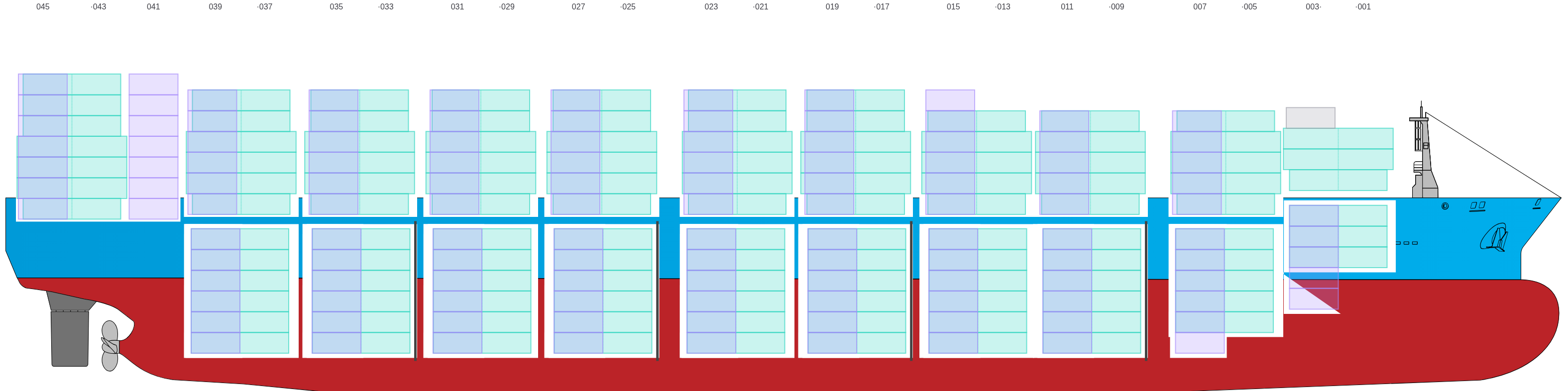

Side view of CMA CGM IGUACU

Hatch-Covers View

Deck view of CMA CGM IGUACU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

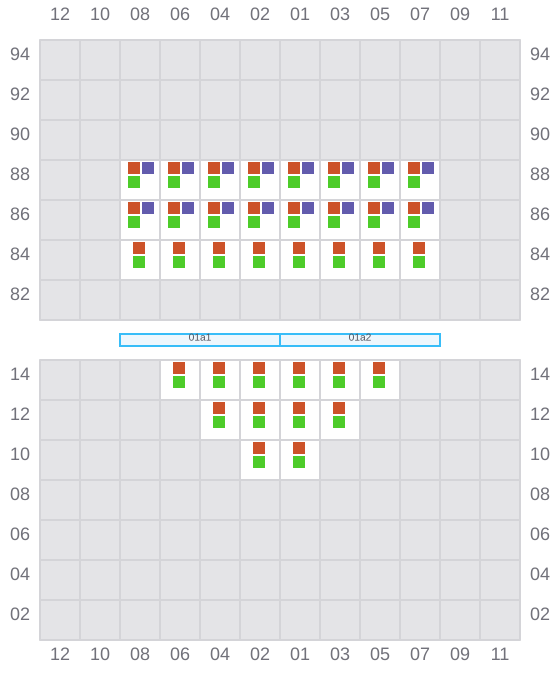

Bay 001 view and slots of CMA CGM IGUACU

003

  • ← / ?

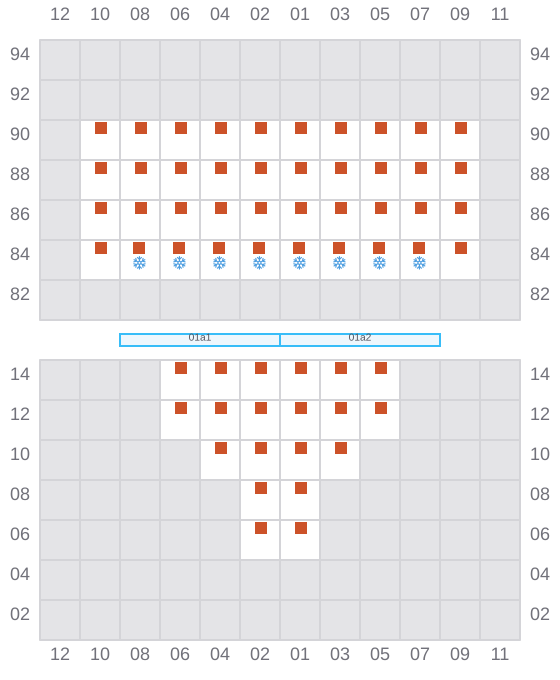

Bay 003 view and slots of CMA CGM IGUACU

005 (006)

  • →

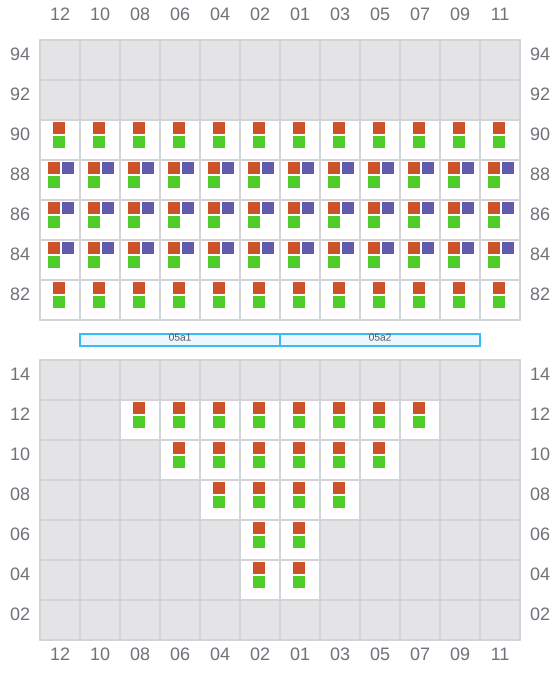

Bay 005 view and slots of CMA CGM IGUACU

007

  • → / ?

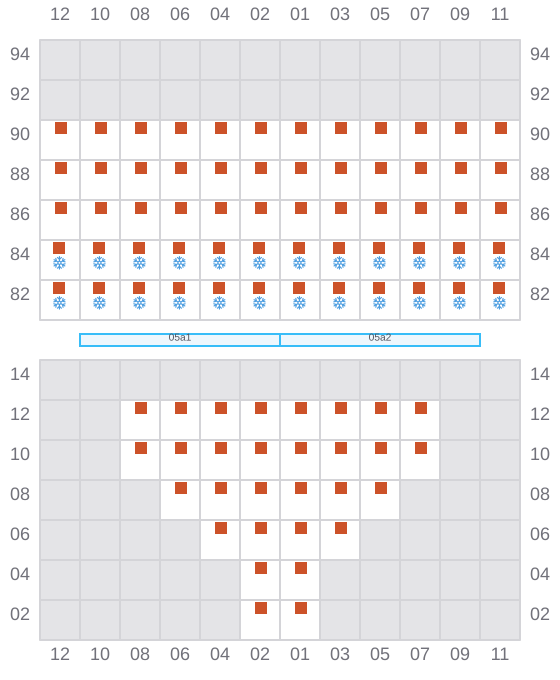

Bay 007 view and slots of CMA CGM IGUACU

009 (010)

  • →

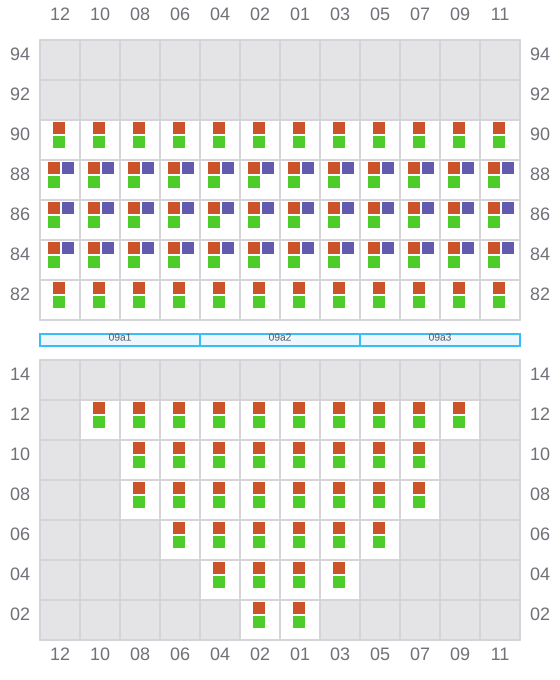

Bay 009 view and slots of CMA CGM IGUACU

011

  • → / ?

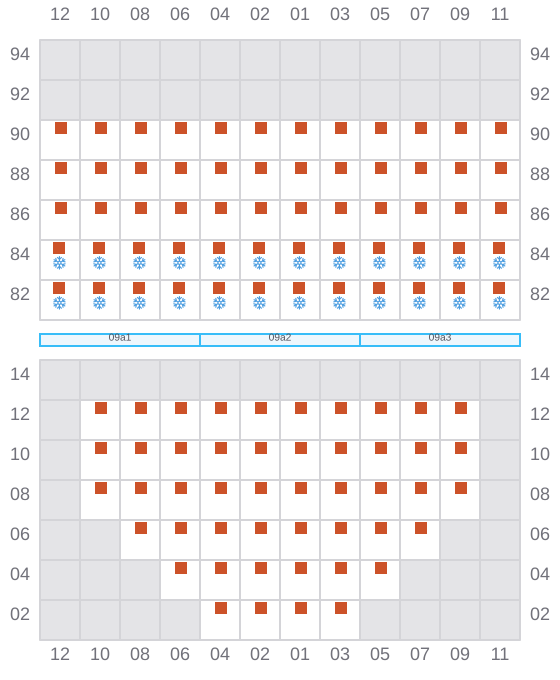

Bay 011 view and slots of CMA CGM IGUACU

013 (014)

  • →

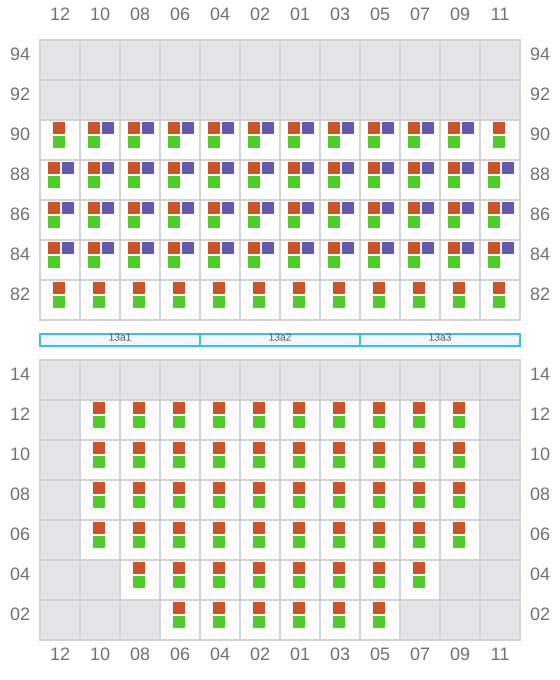

Bay 013 view and slots of CMA CGM IGUACU

015

  • → / ?

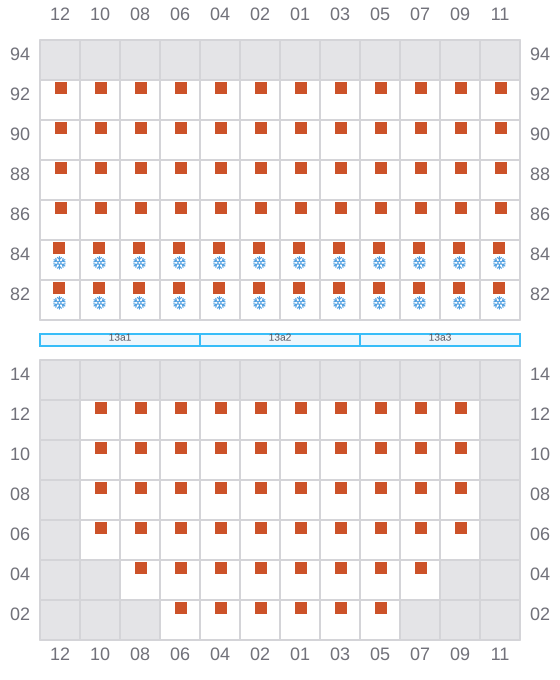

Bay 015 view and slots of CMA CGM IGUACU

017 (018)

  • →

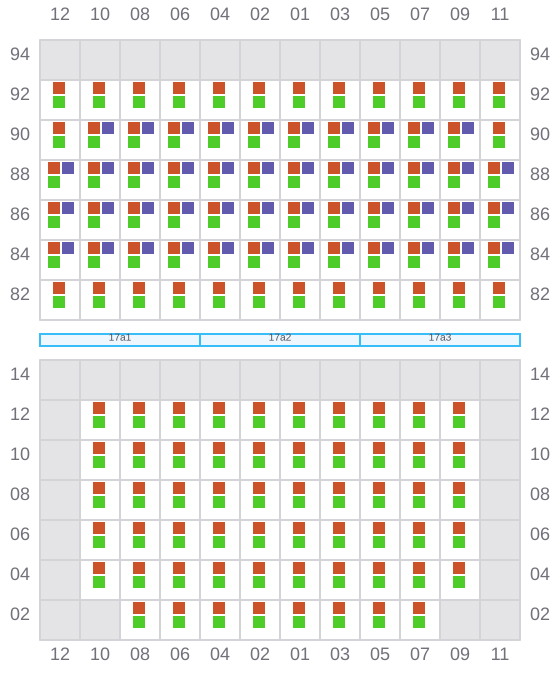

Bay 017 view and slots of CMA CGM IGUACU

019

  • →

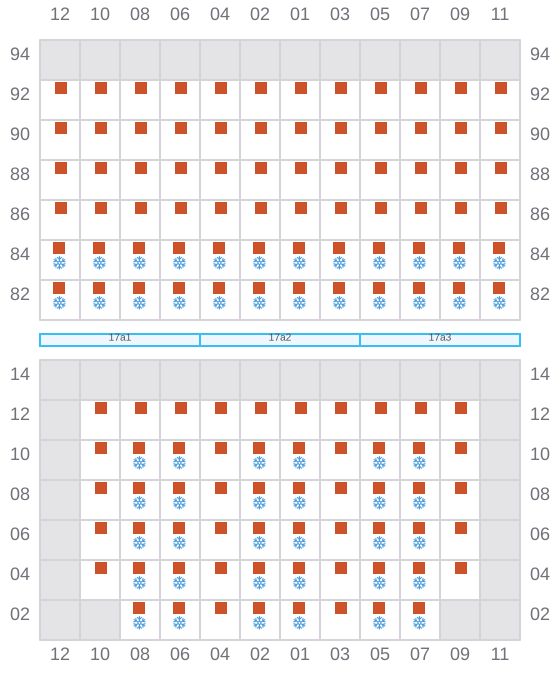

Bay 019 view and slots of CMA CGM IGUACU

021 (022)

  • →
  • ? / ←

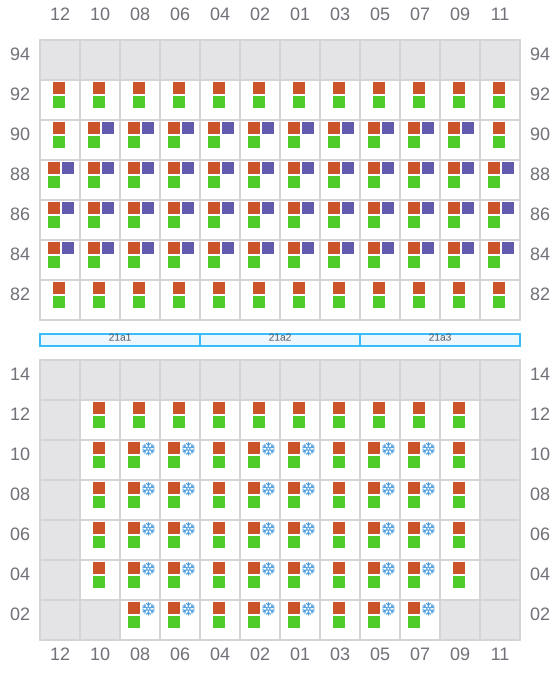

Bay 021 view and slots of CMA CGM IGUACU

023

  • → / ?

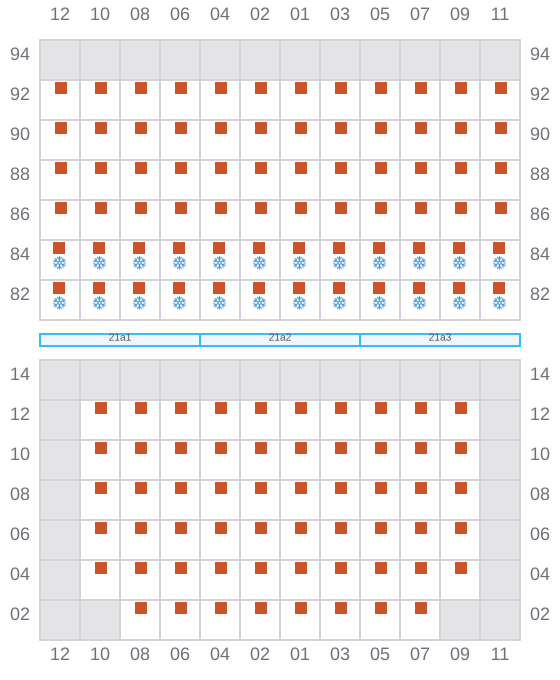

Bay 023 view and slots of CMA CGM IGUACU

025 (026)

  • →
Bay 025 view and slots of CMA CGM IGUACU

027

  • →
Bay 027 view and slots of CMA CGM IGUACU

029 (030)

  • →
  • ? / ←
Bay 029 view and slots of CMA CGM IGUACU

031

  • → / ?
Bay 031 view and slots of CMA CGM IGUACU

033 (034)

  • →
Bay 033 view and slots of CMA CGM IGUACU

035

  • →

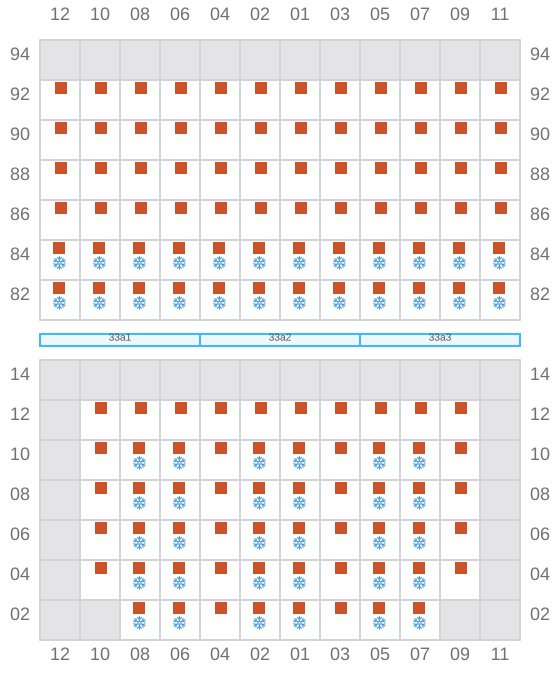

Bay 035 view and slots of CMA CGM IGUACU

037 (038)

  • →
  • ? / ←

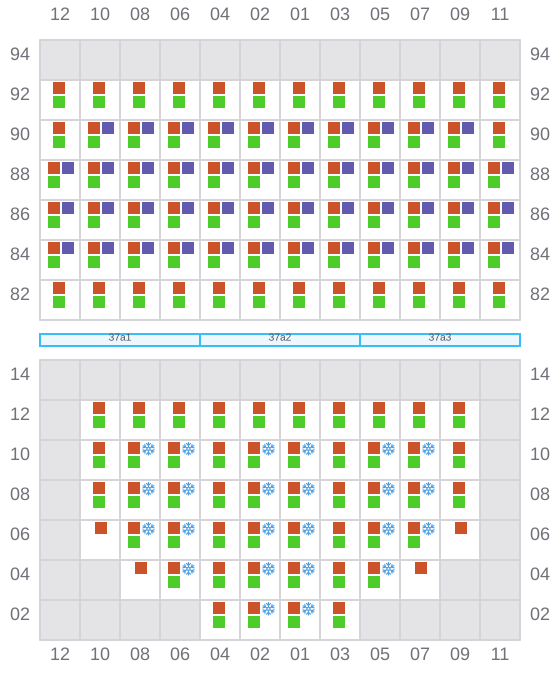

Bay 037 view and slots of CMA CGM IGUACU

039

  • → / ?

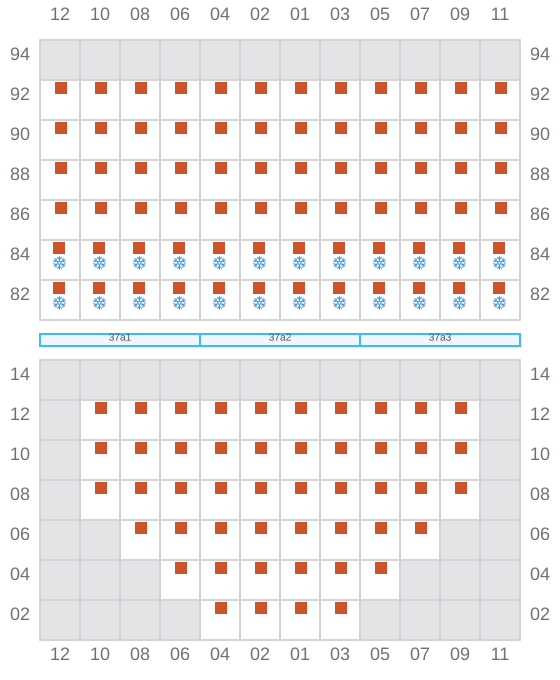

Bay 039 view and slots of CMA CGM IGUACU

041

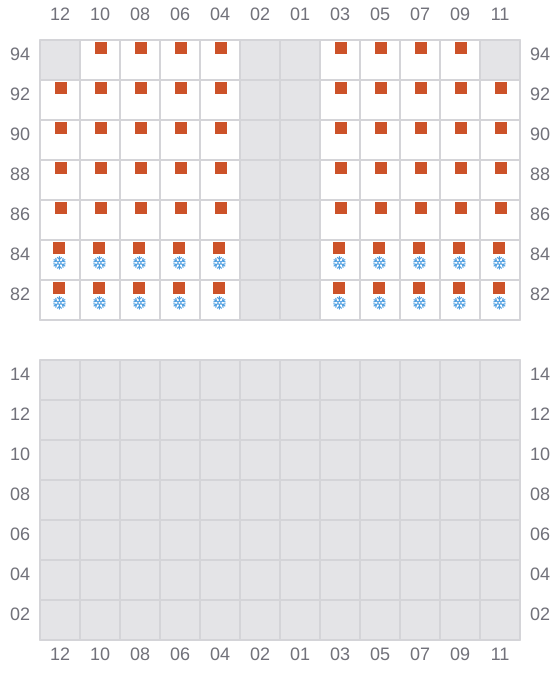

Bay 041 view and slots of CMA CGM IGUACU

043 (044)

  • → / ?

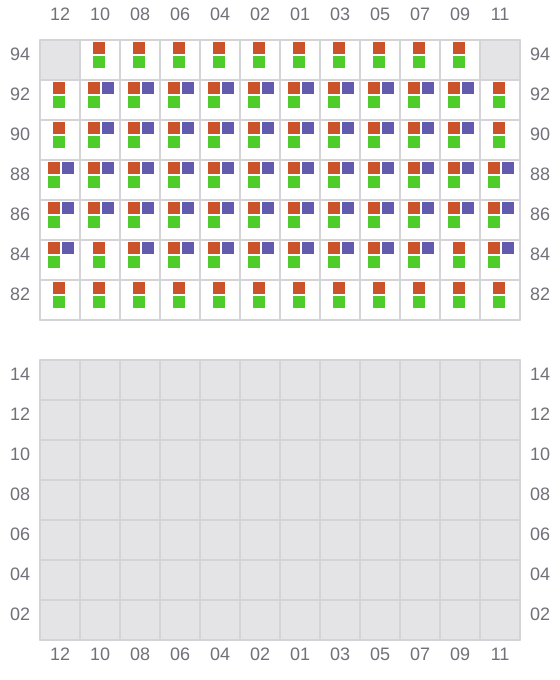

Bay 043 view and slots of CMA CGM IGUACU

045

  • → / ?

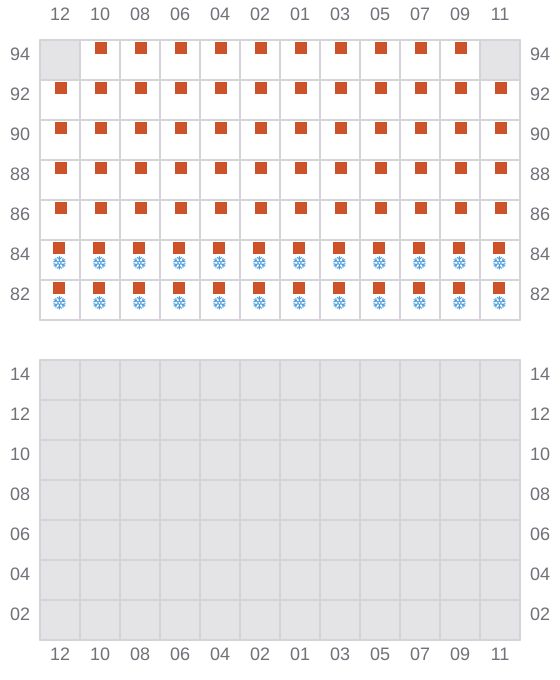

Bay 045 view and slots of CMA CGM IGUACU
