CMA CGM J. MADISON
9780897 | 9HA4975 | CMA by *********************** Last update: Tue Feb 11 2025

General Info

Ship Name:CMA CGM J. MADISON

IMO Code:9780897

Call Sign:9HA4975

Line Operator:CMA

Class Name for Sister Ships:CGJI

Year Built:2018

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):350.00

LOA (Length Overall):366.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:085

Max ISO Row:18

Center Line Row:Yes

Max Above ISO Tier:88

Min Above ISO Tier:72

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:13,148

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

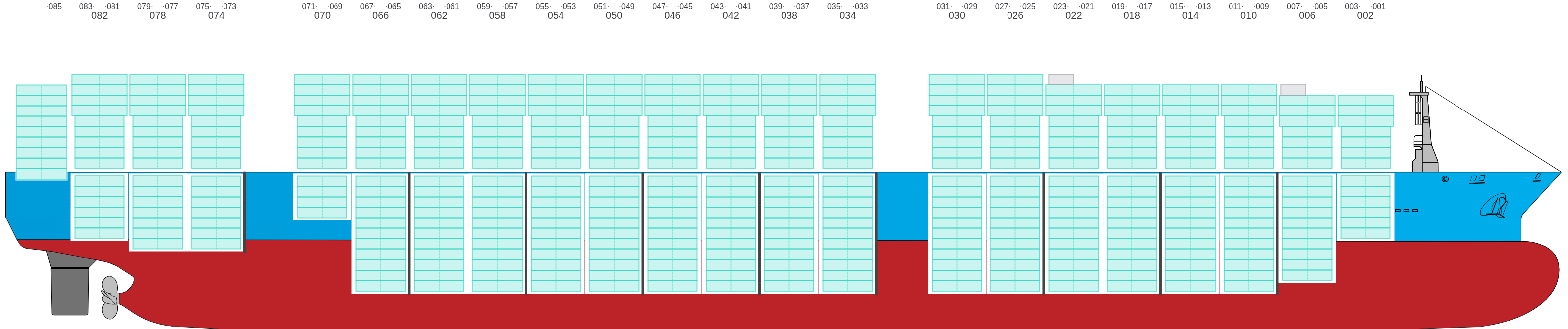

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

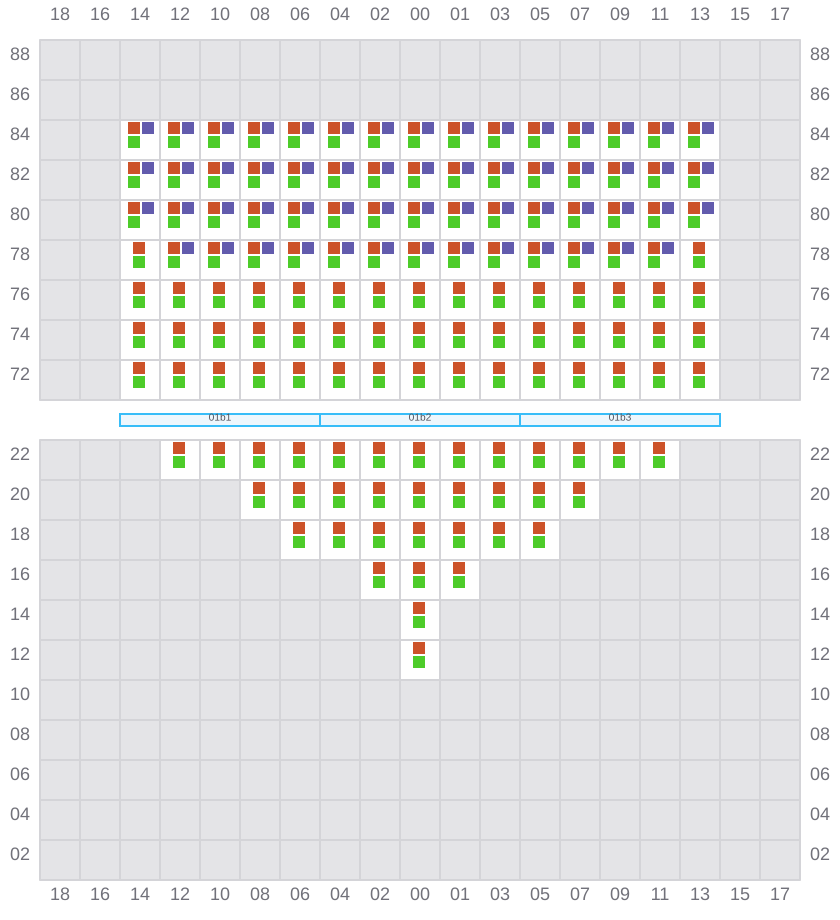

Bay 001 view and slots of CMA CGM J. MADISON

003

←
^→ / _?
^→ / _?

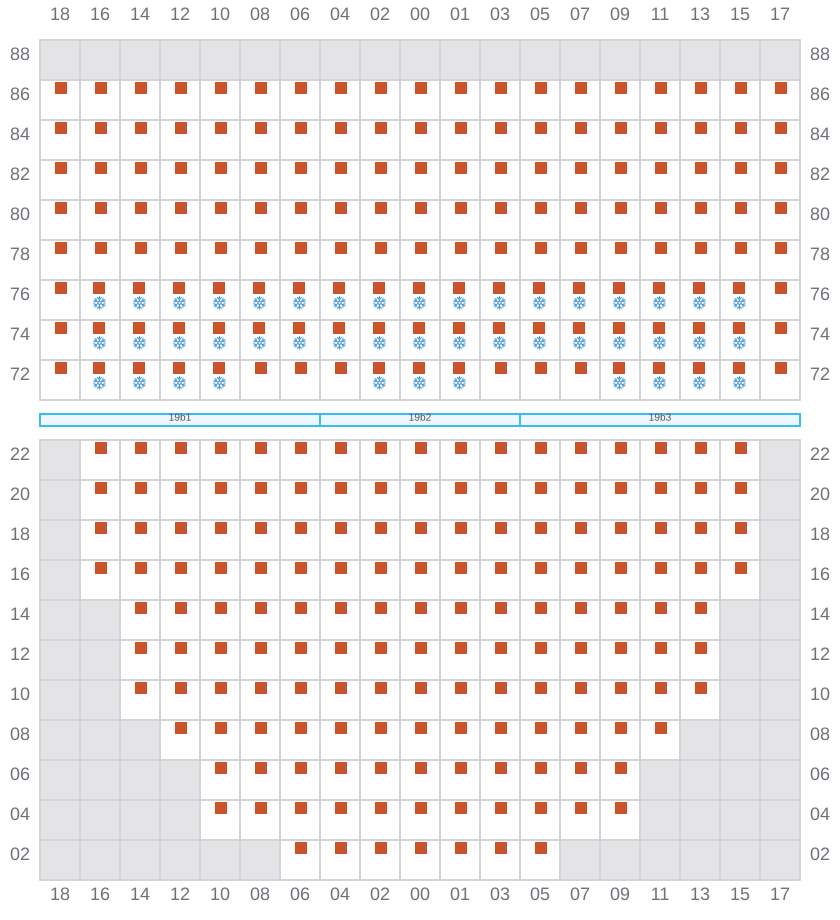

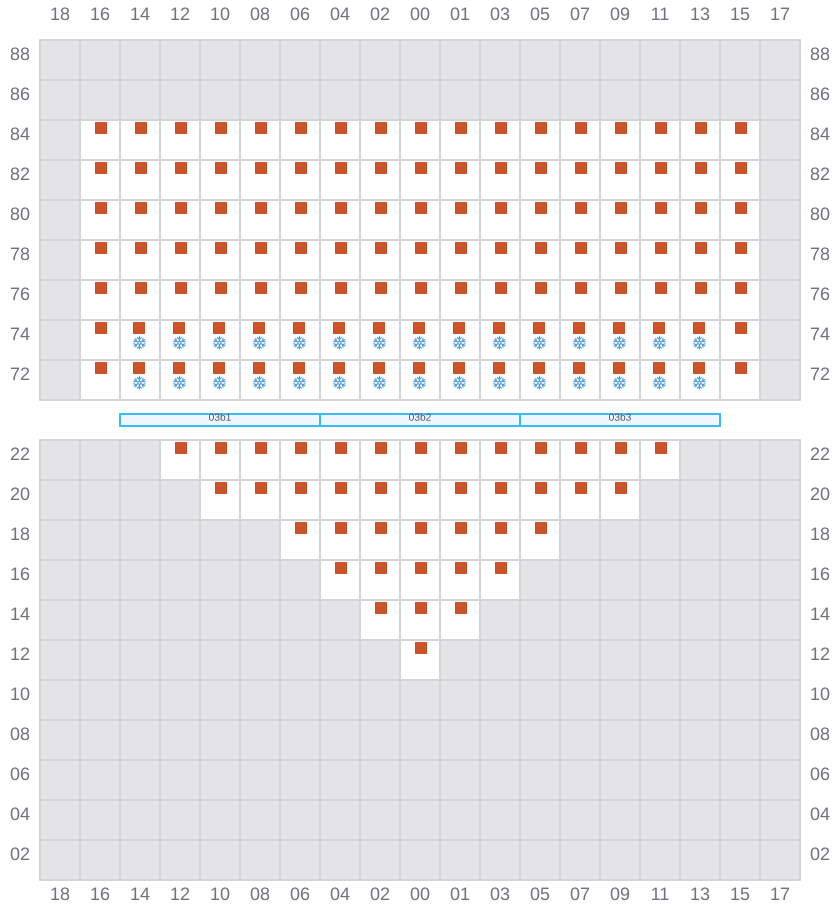

Bay 003 view and slots of CMA CGM J. MADISON

005 (006)

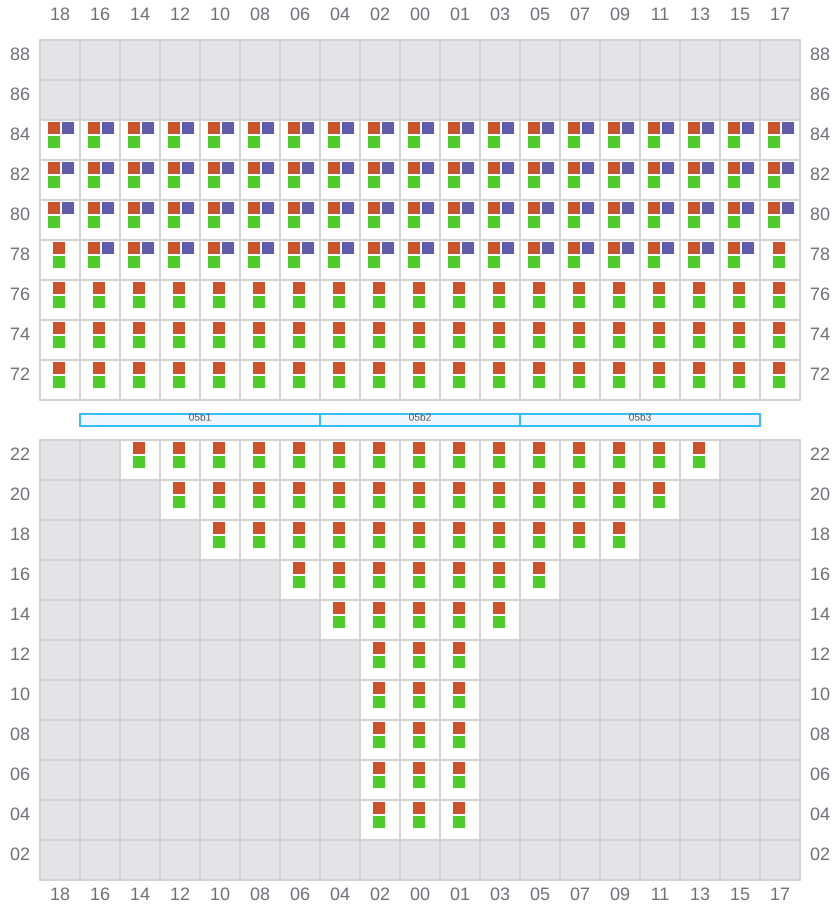

Bay 005 view and slots of CMA CGM J. MADISON

007

←
^→ / _?
→

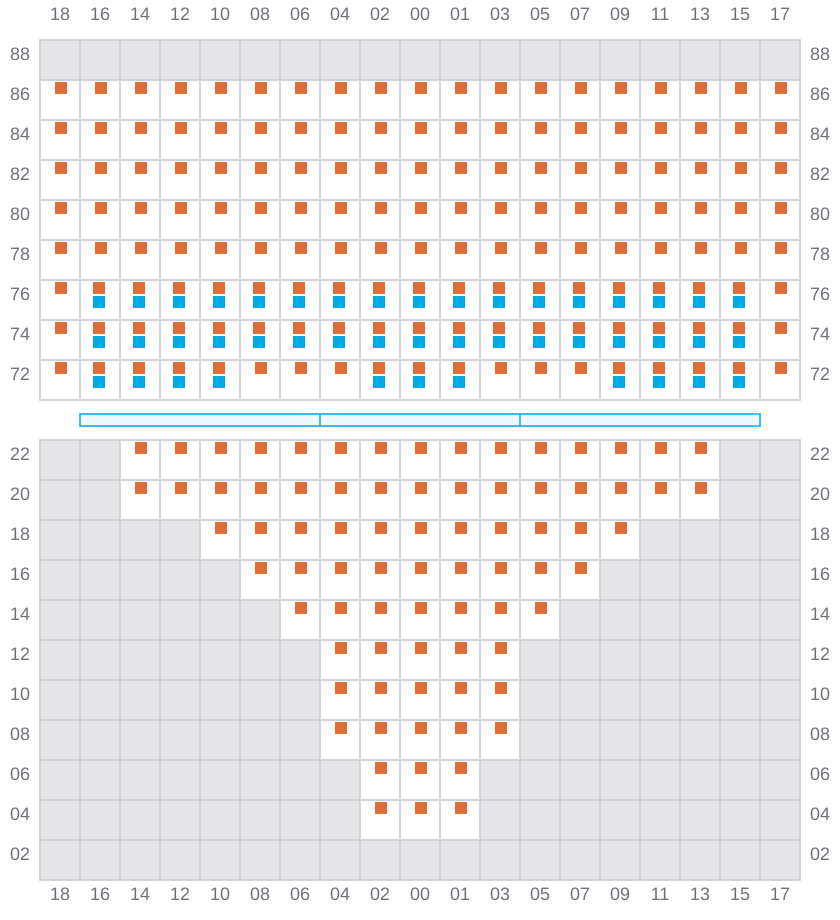

Bay 007 view and slots of CMA CGM J. MADISON

009 (010)

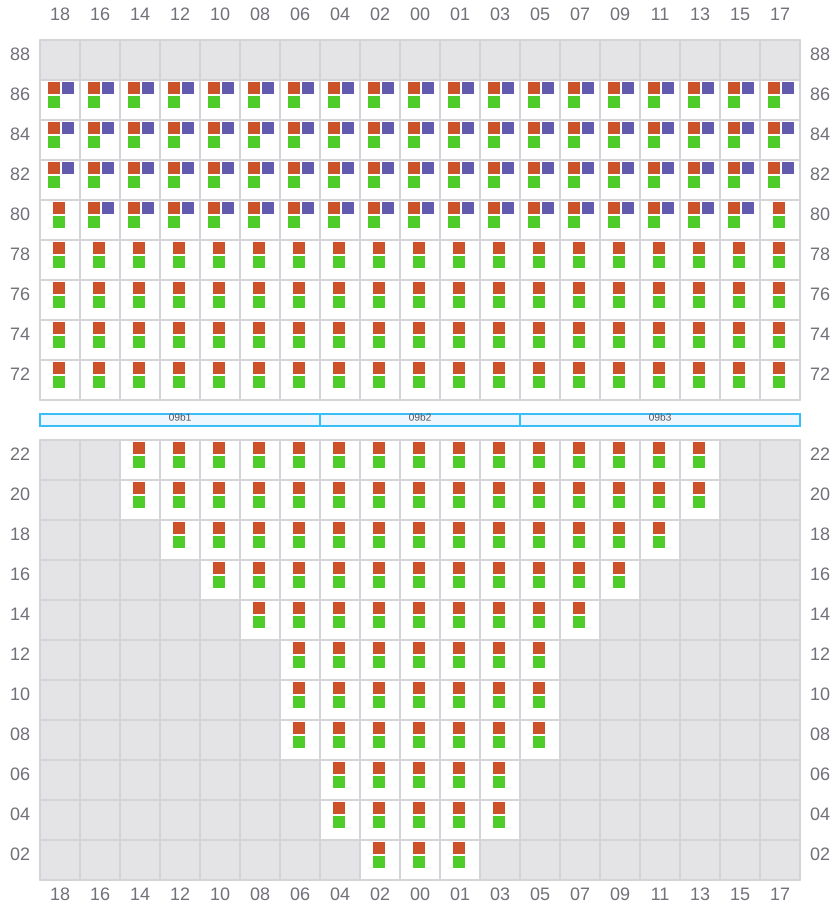

Bay 009 view and slots of CMA CGM J. MADISON

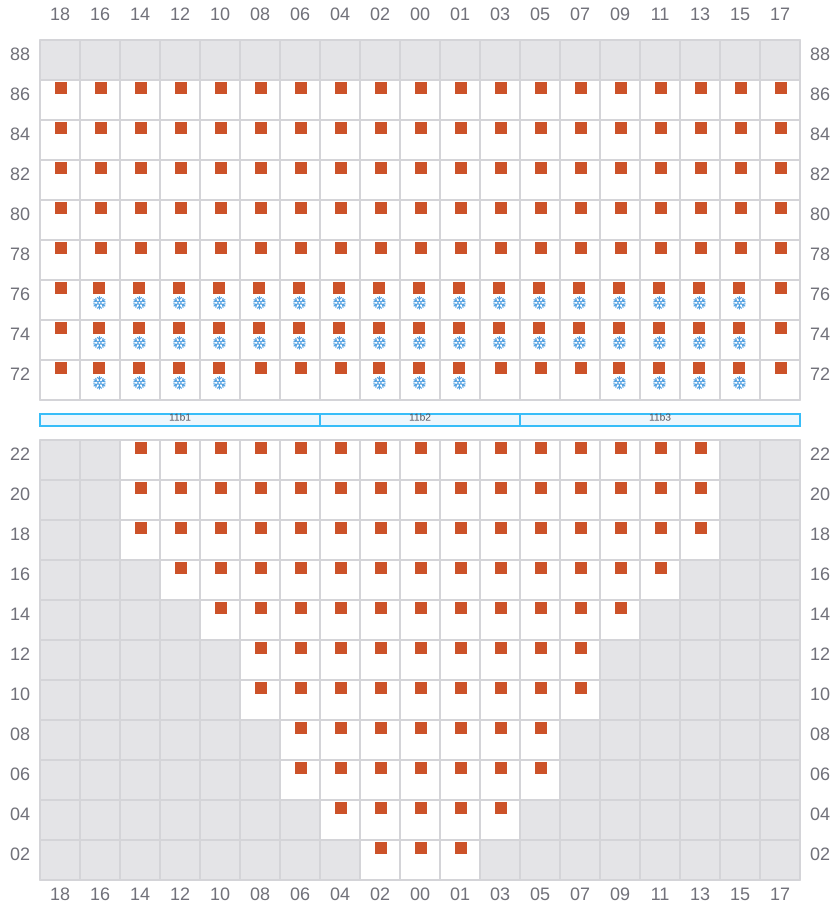

011

←
^→ / _?
→

Bay 011 view and slots of CMA CGM J. MADISON

013 (014)

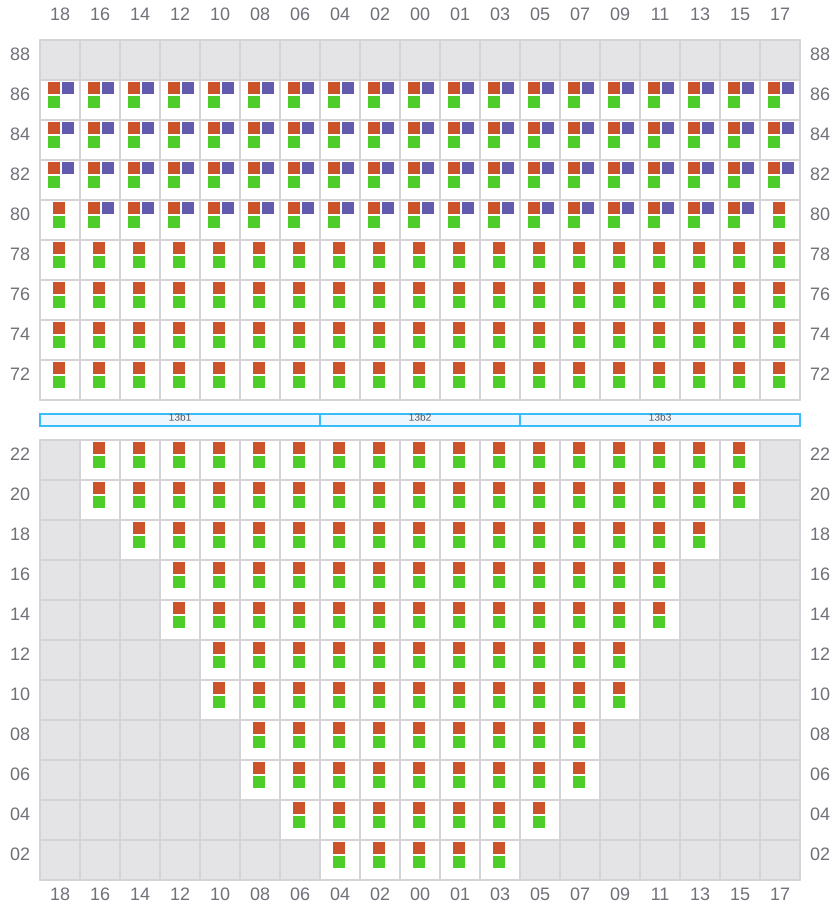

Bay 013 view and slots of CMA CGM J. MADISON

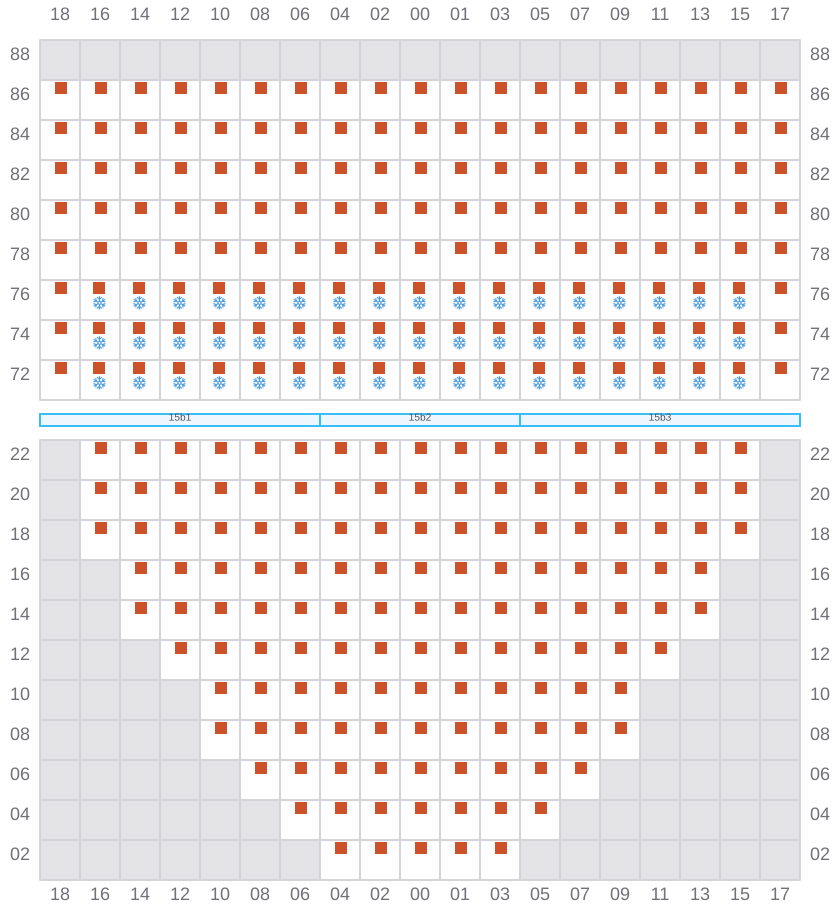

015

←
^→ / _?
→

Bay 015 view and slots of CMA CGM J. MADISON

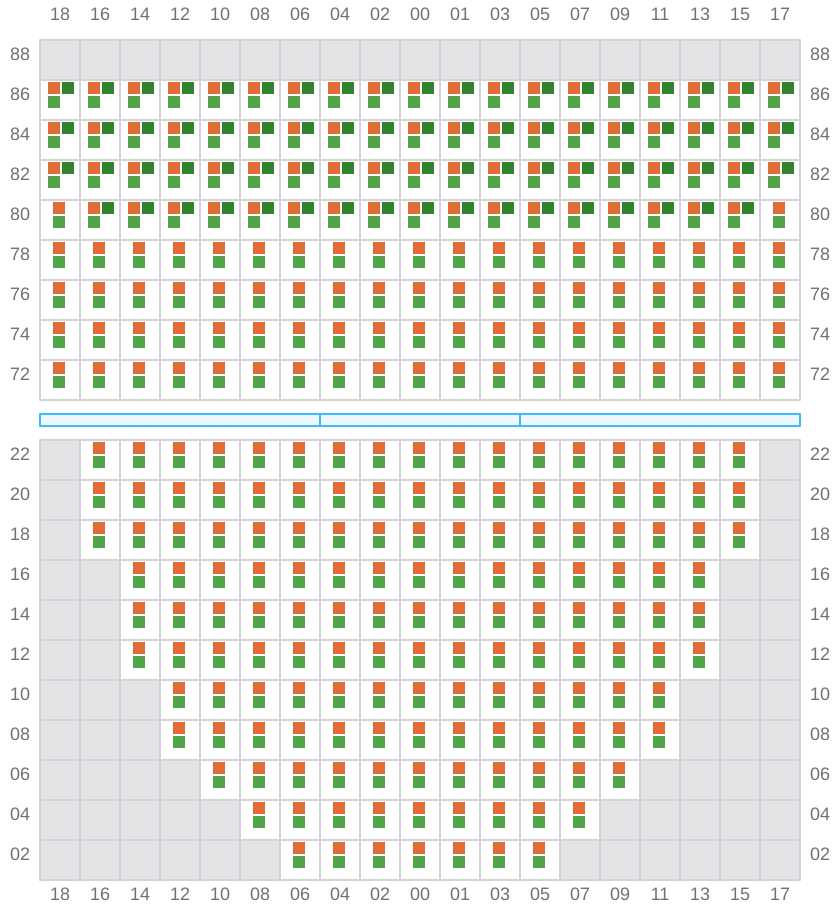

017 (018)

Bay 017 view and slots of CMA CGM J. MADISON

019

←
^→ / _?
→

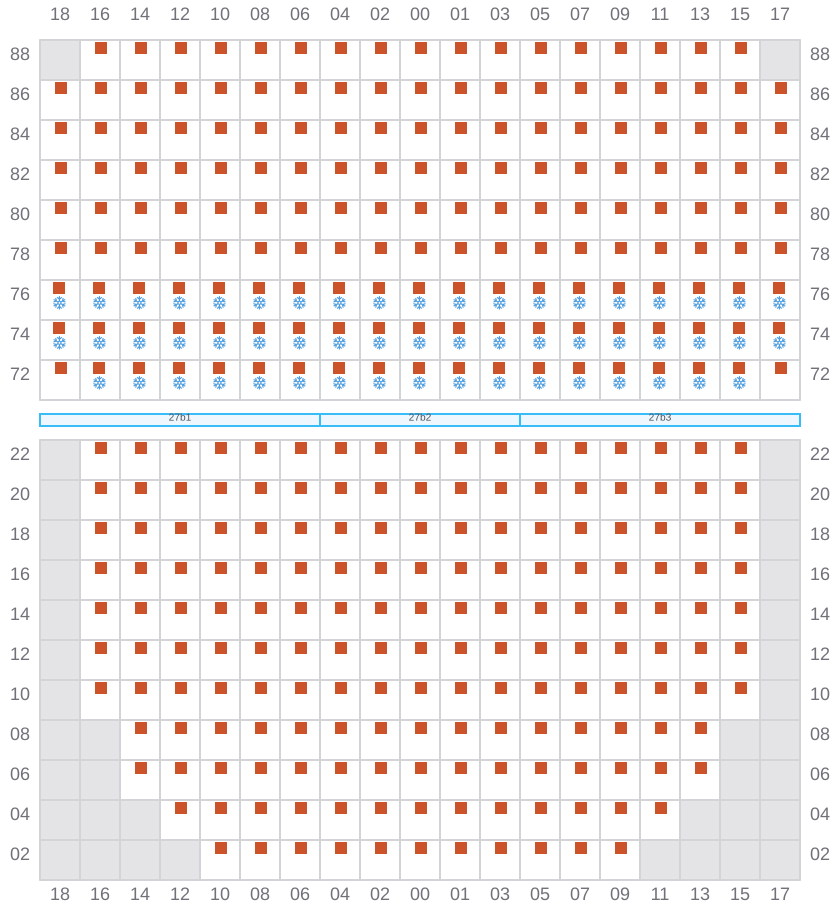

Bay 019 view and slots of CMA CGM J. MADISON

021 (022)

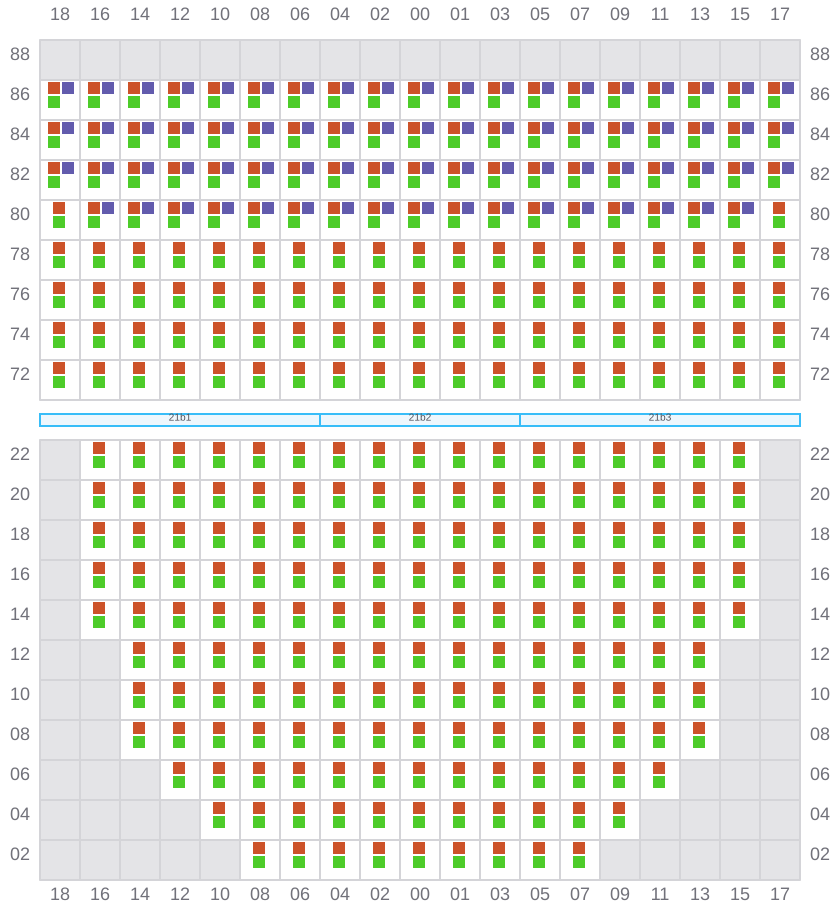

Bay 021 view and slots of CMA CGM J. MADISON

023

←
^→ / _?
→

Bay 023 view and slots of CMA CGM J. MADISON

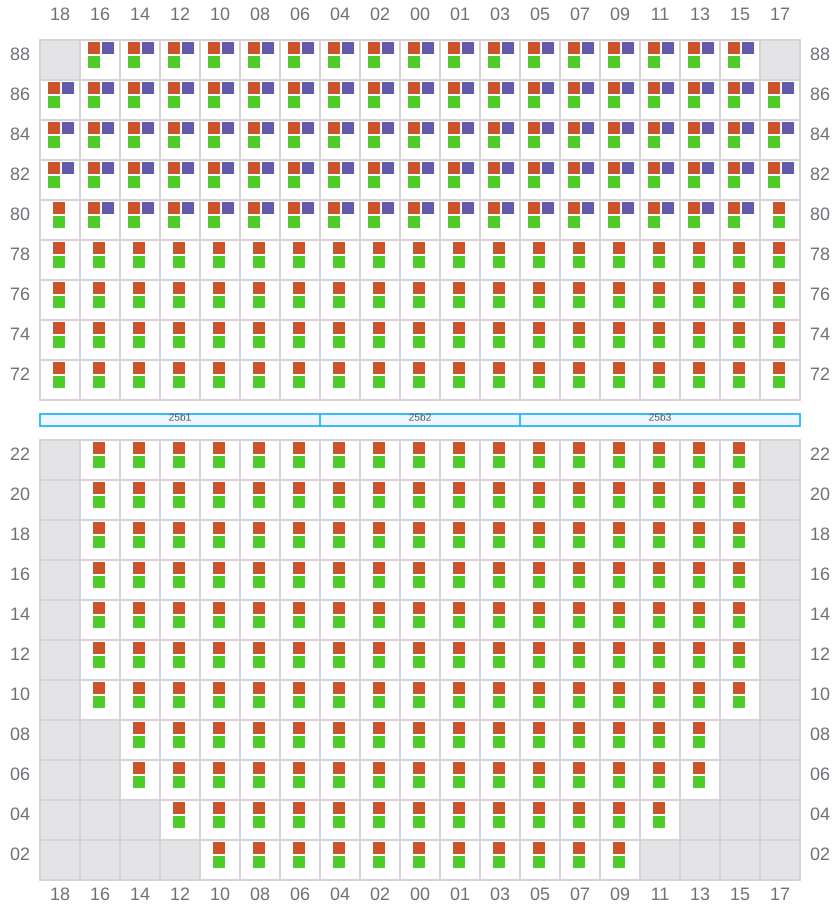

025 (026)

Bay 025 view and slots of CMA CGM J. MADISON

027

Bay 027 view and slots of CMA CGM J. MADISON

029 (030)

→
^← / _?
→

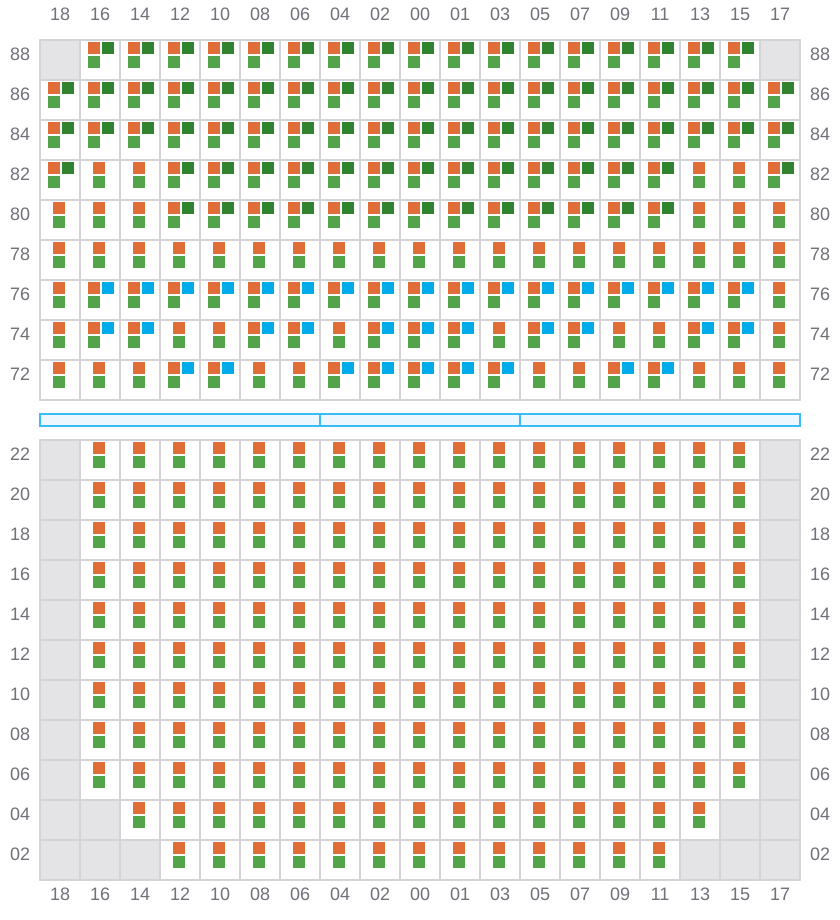

Bay 029 view and slots of CMA CGM J. MADISON

031

←
^→ / _?
→

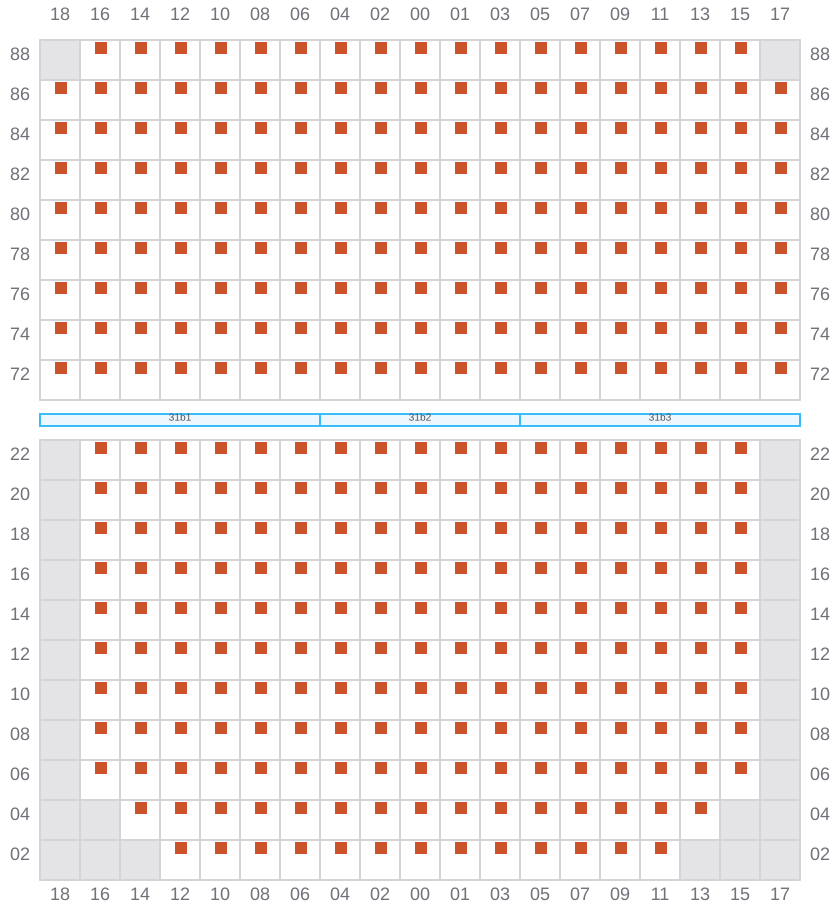

Bay 031 view and slots of CMA CGM J. MADISON

033 (034)

Bay 033 view and slots of CMA CGM J. MADISON

035

←
^→ / _?
→

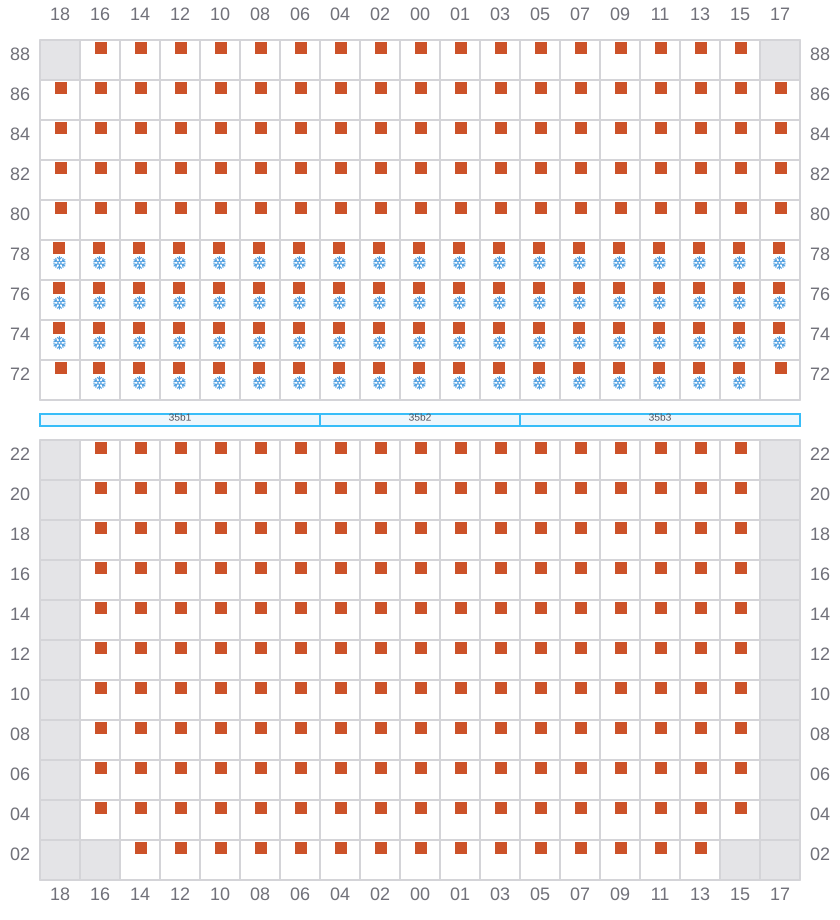

Bay 035 view and slots of CMA CGM J. MADISON

037 (038)

Bay 037 view and slots of CMA CGM J. MADISON

039

←
^→ / _?
→

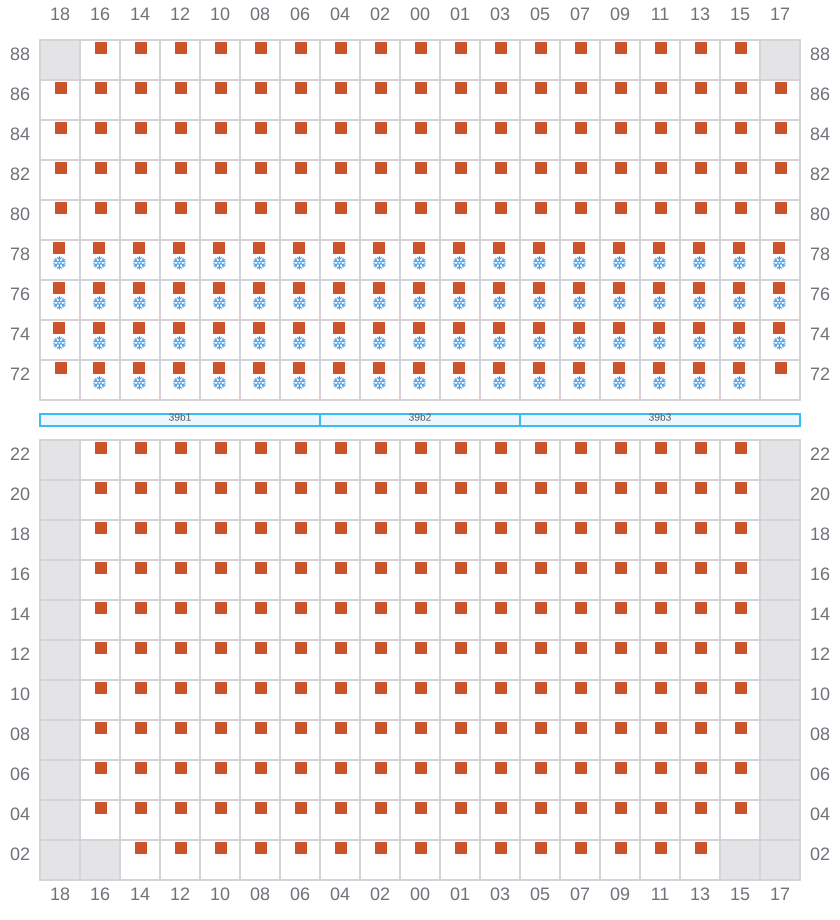

Bay 039 view and slots of CMA CGM J. MADISON

041 (042)

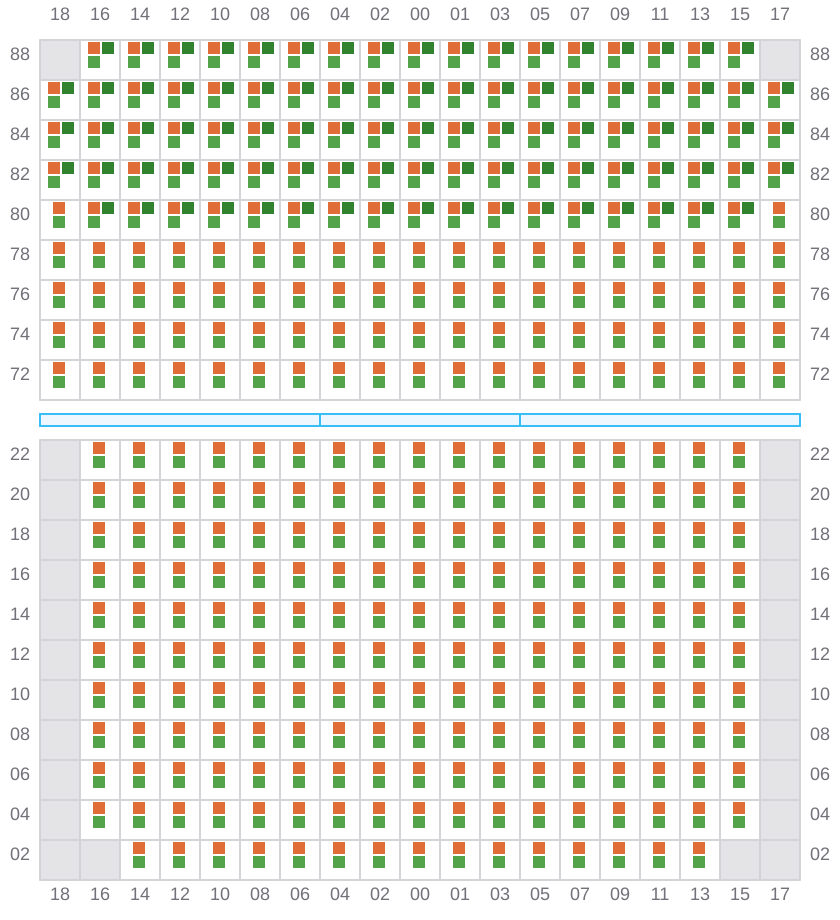

Bay 041 view and slots of CMA CGM J. MADISON

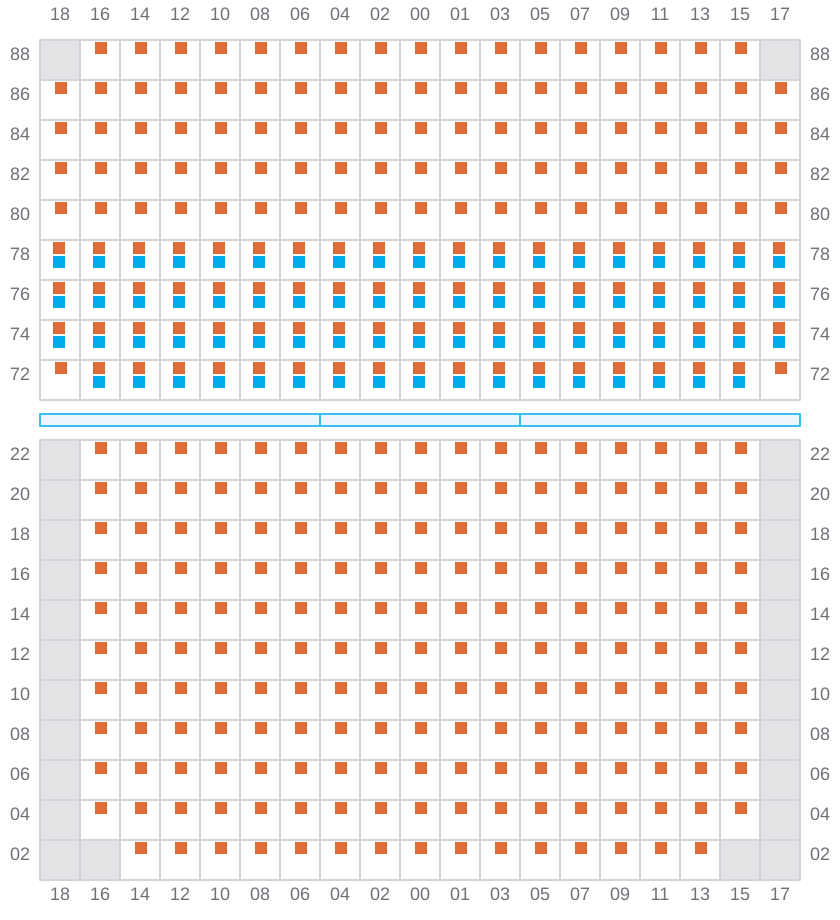

043

Bay 043 view and slots of CMA CGM J. MADISON

045 (046)

Bay 045 view and slots of CMA CGM J. MADISON

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM J. MADISON

049 (050)

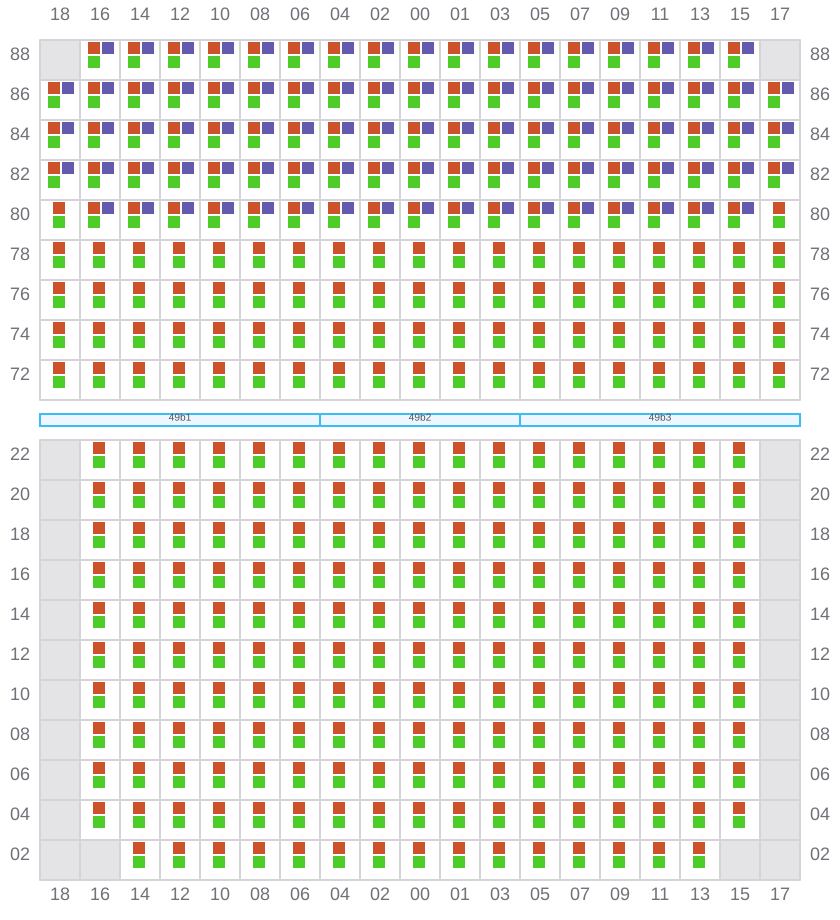

Bay 049 view and slots of CMA CGM J. MADISON

051

←
^→ / _?
→

Bay 051 view and slots of CMA CGM J. MADISON

053 (054)

Bay 053 view and slots of CMA CGM J. MADISON

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM J. MADISON

057 (058)

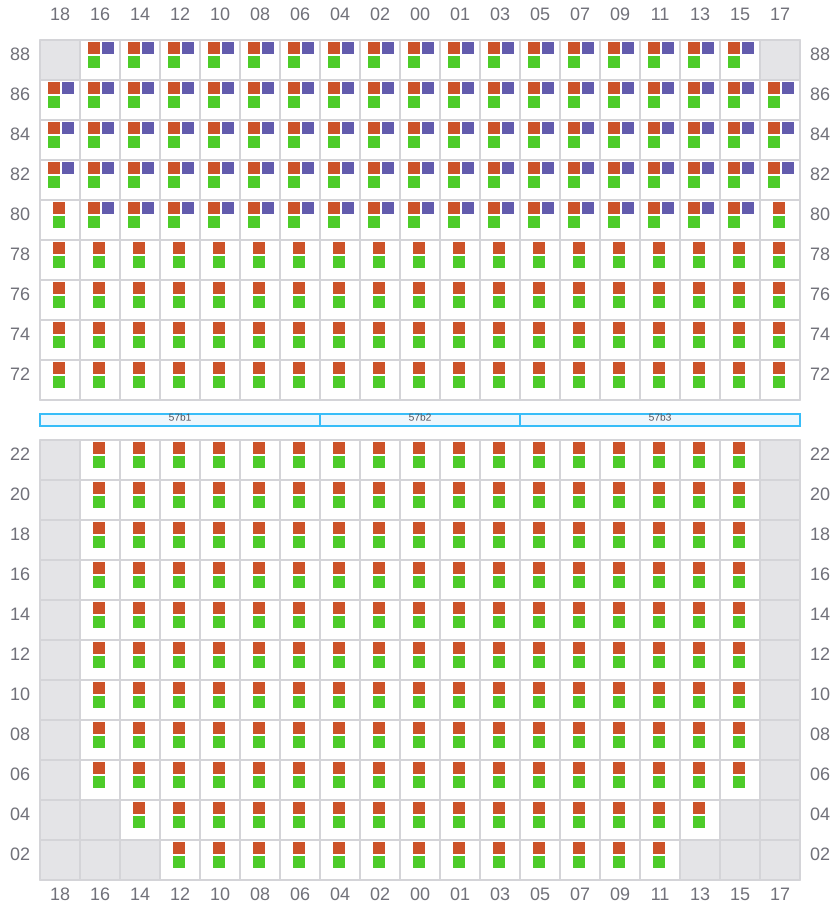

Bay 057 view and slots of CMA CGM J. MADISON

059

Bay 059 view and slots of CMA CGM J. MADISON

061 (062)

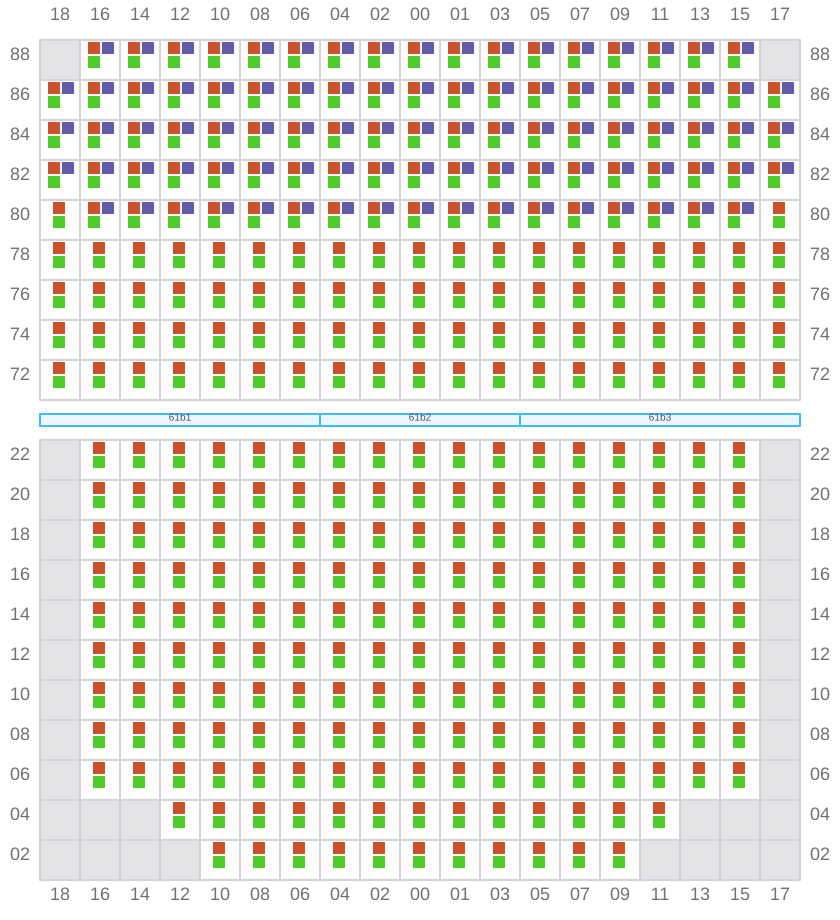

Bay 061 view and slots of CMA CGM J. MADISON

063

←
^→ / _?
→

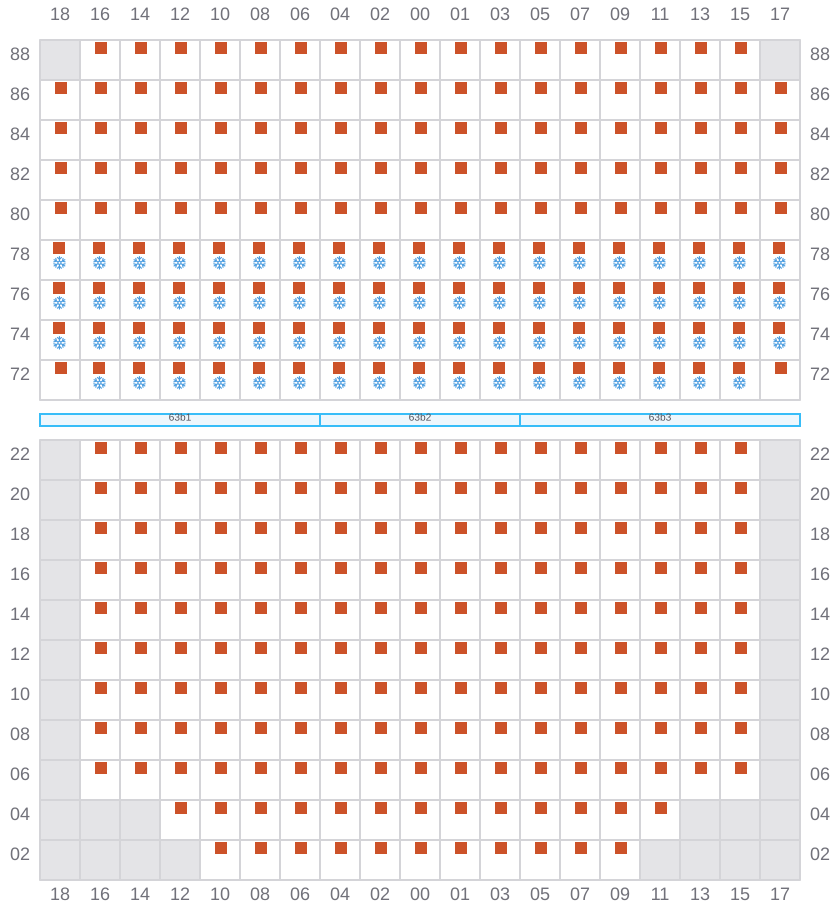

Bay 063 view and slots of CMA CGM J. MADISON

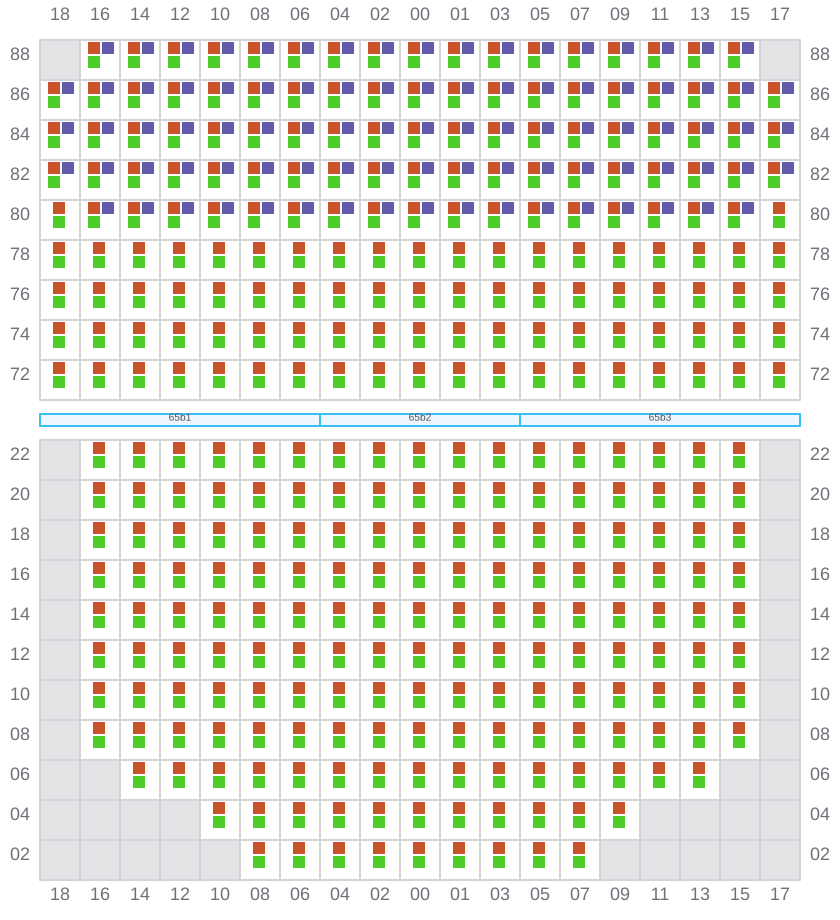

065 (066)

Bay 065 view and slots of CMA CGM J. MADISON

067

←
^→ / _?
→

Bay 067 view and slots of CMA CGM J. MADISON

069 (070)

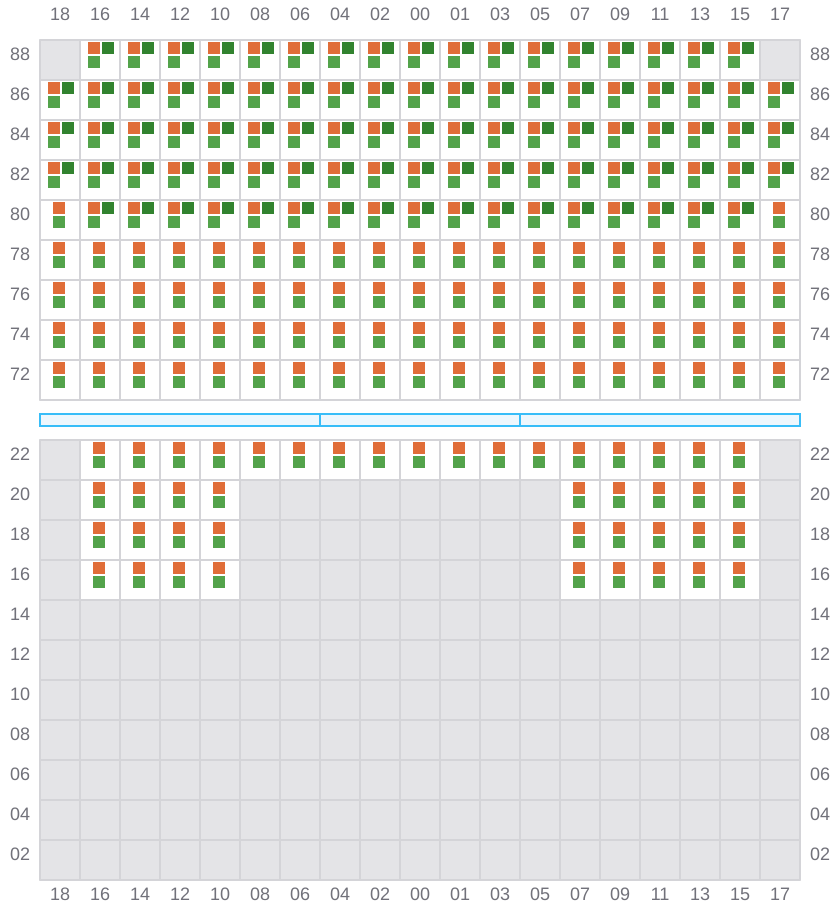

Bay 069 view and slots of CMA CGM J. MADISON

071

←
^→ / _?
→

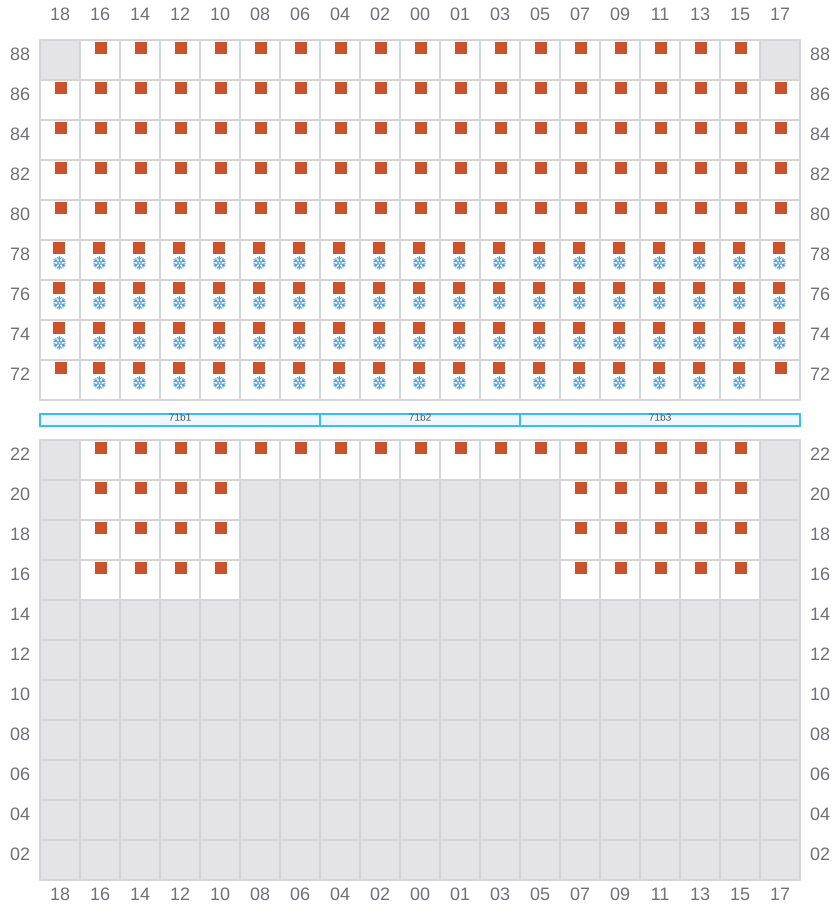

Bay 071 view and slots of CMA CGM J. MADISON

073 (074)

→
^← / _?
→

Bay 073 view and slots of CMA CGM J. MADISON

075

←
^→ / _?
→

Bay 075 view and slots of CMA CGM J. MADISON

077 (078)

→
^← / _?
→

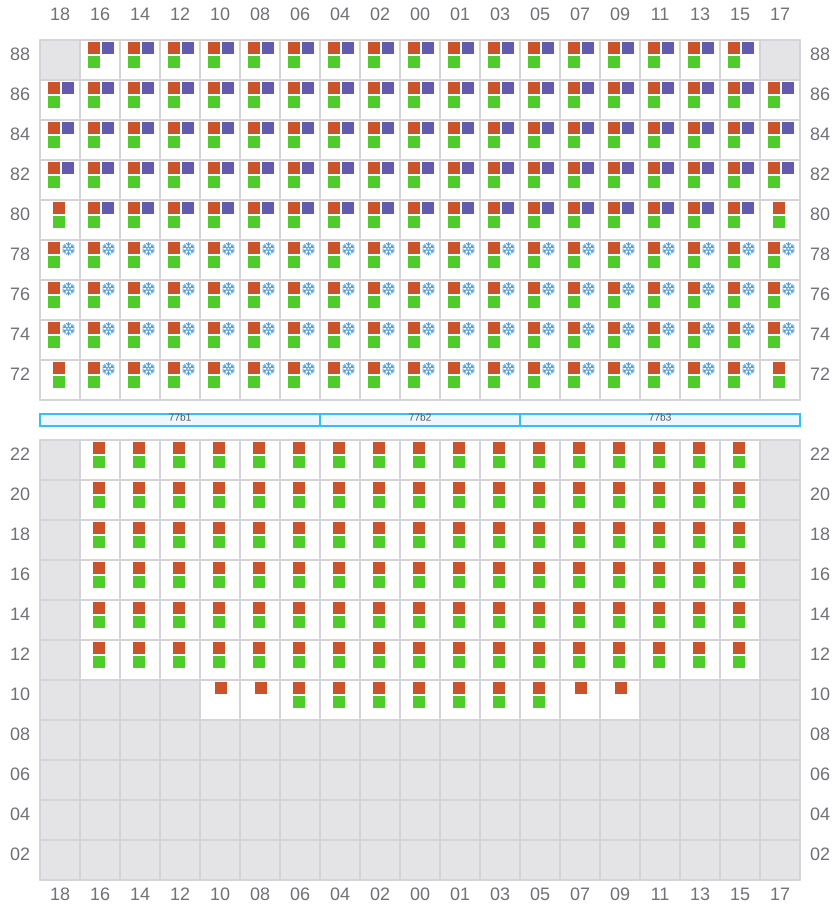

Bay 077 view and slots of CMA CGM J. MADISON

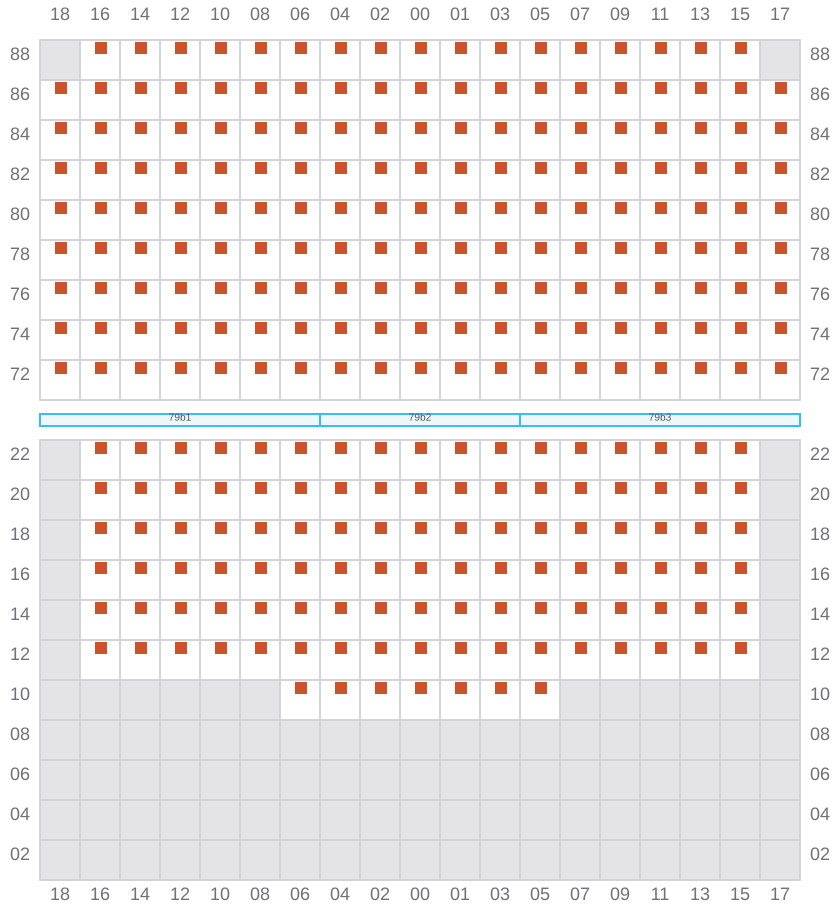

079

←
^→ / _?
→

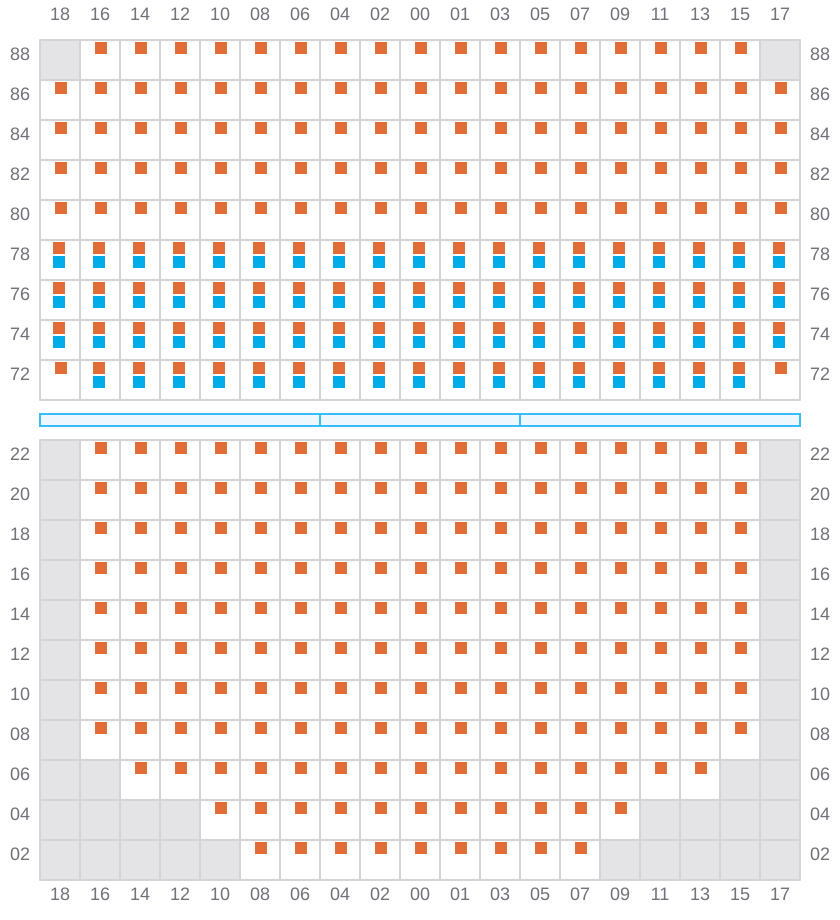

Bay 079 view and slots of CMA CGM J. MADISON

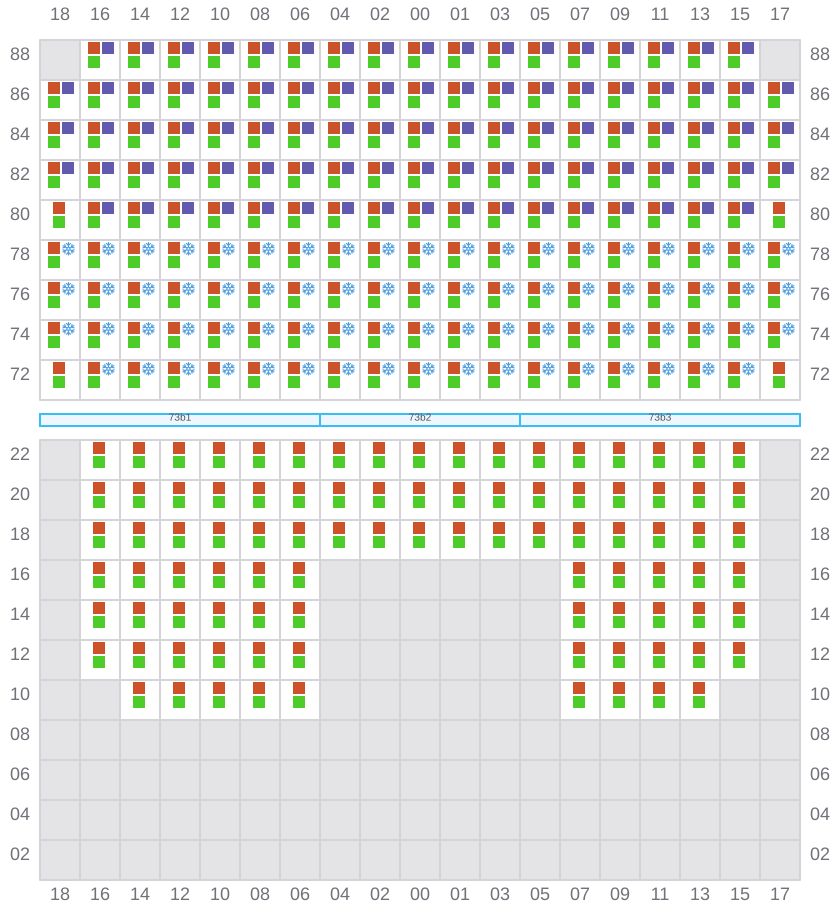

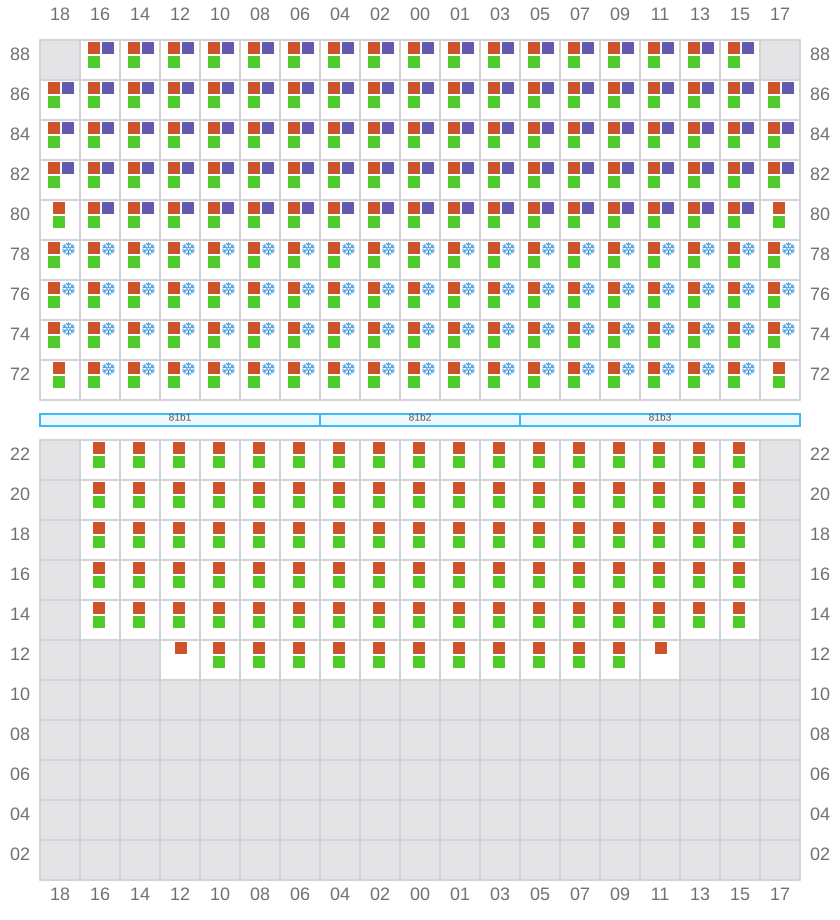

081 (082)

→
^← / _?
→

Bay 081 view and slots of CMA CGM J. MADISON

083

←
^→ / _?
→

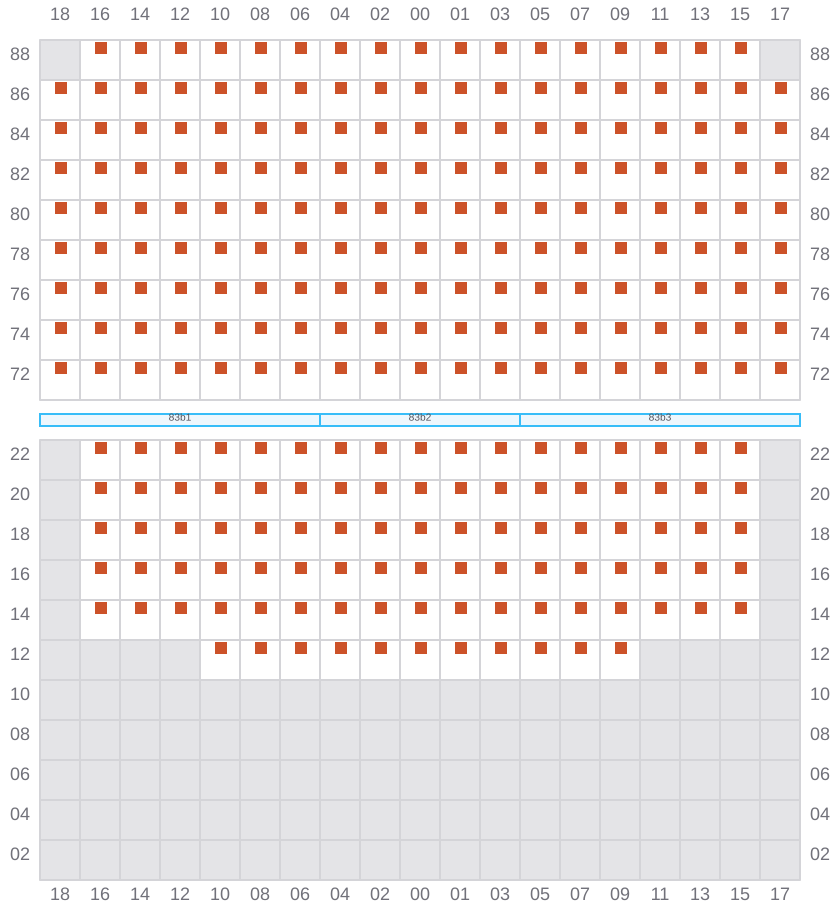

Bay 083 view and slots of CMA CGM J. MADISON

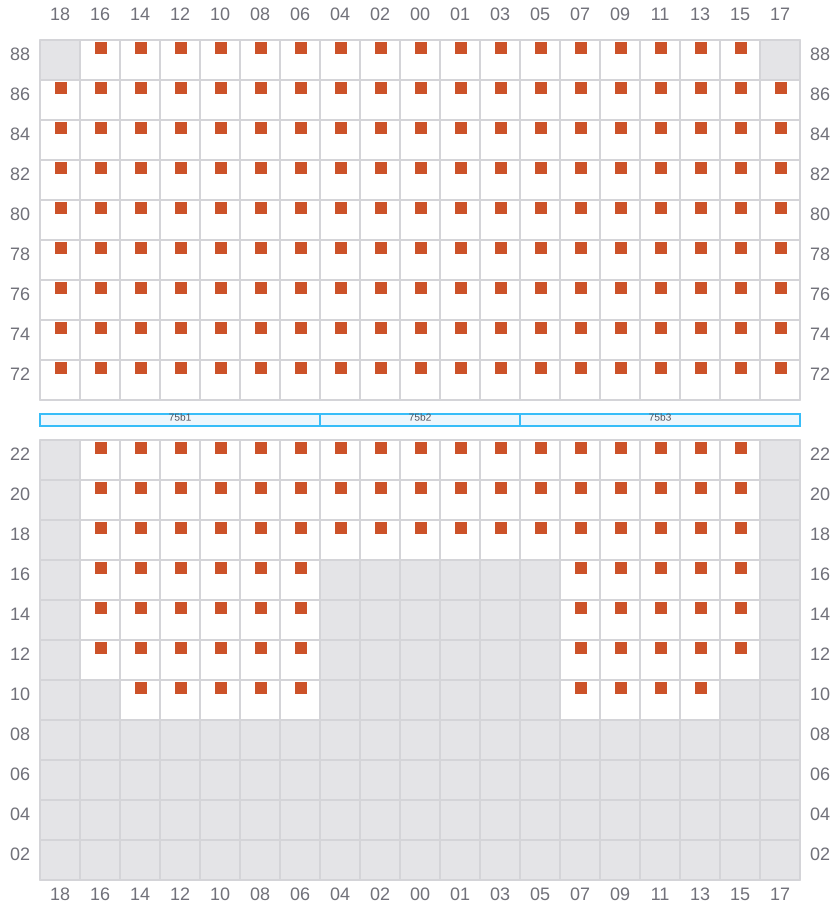

085 (086)

^→ / _?
^← / _?
^→ / _?

Bay 085 view and slots of CMA CGM J. MADISON
