CMA CGM JACQUES JOSEPH
9729104 | 9HA4667 | CMA by *********************** Last update: Fri Feb 07 2025

General Info

Ship Name:CMA CGM JACQUES JOSEPH
IMO Code:9729104
Call Sign:9HA4667
Line Operator:CMA
Class Name for Sister Ships:CGJJ
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,060

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

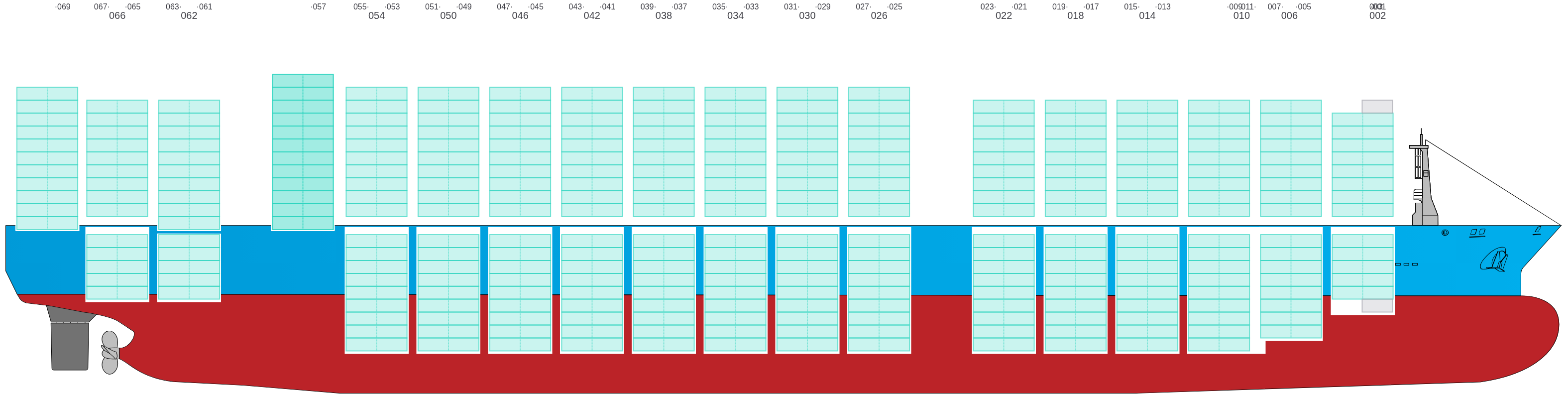

Side View

Side view of CMA CGM JACQUES JOSEPH

Hatch-Covers View

Deck view of CMA CGM JACQUES JOSEPH

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

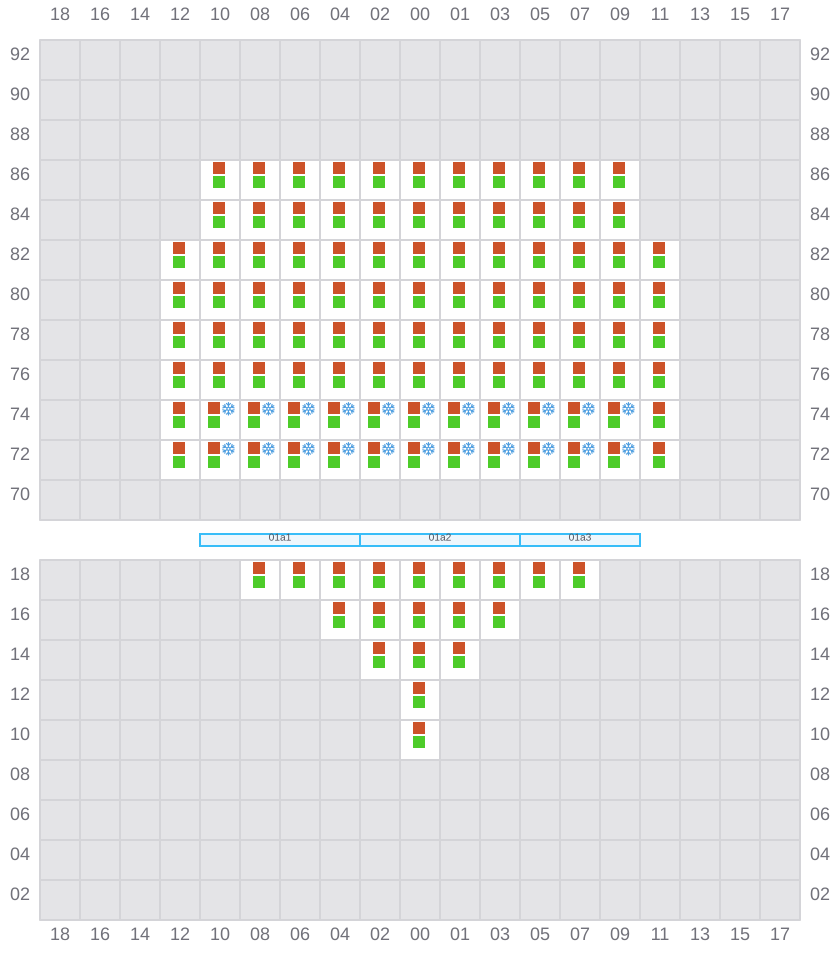

001 (002)

  • →
  • → / ?
  • →
Bay 001 view and slots of CMA CGM JACQUES JOSEPH

003

  • ←
  • → / ?
  • →

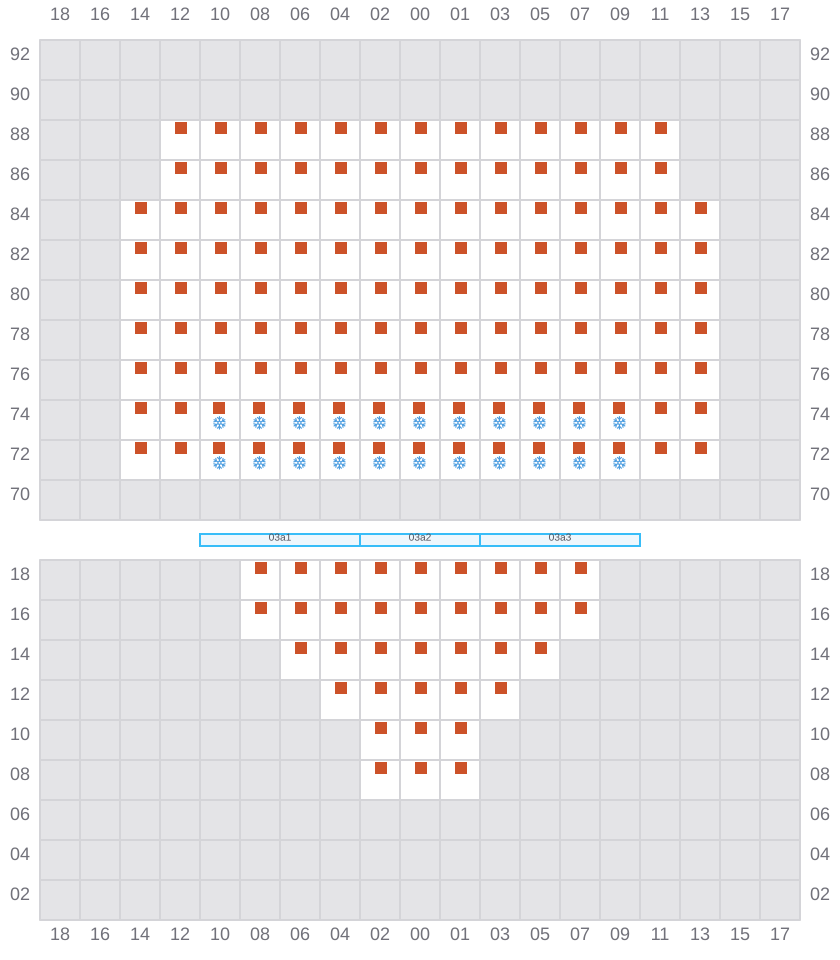

Bay 003 view and slots of CMA CGM JACQUES JOSEPH

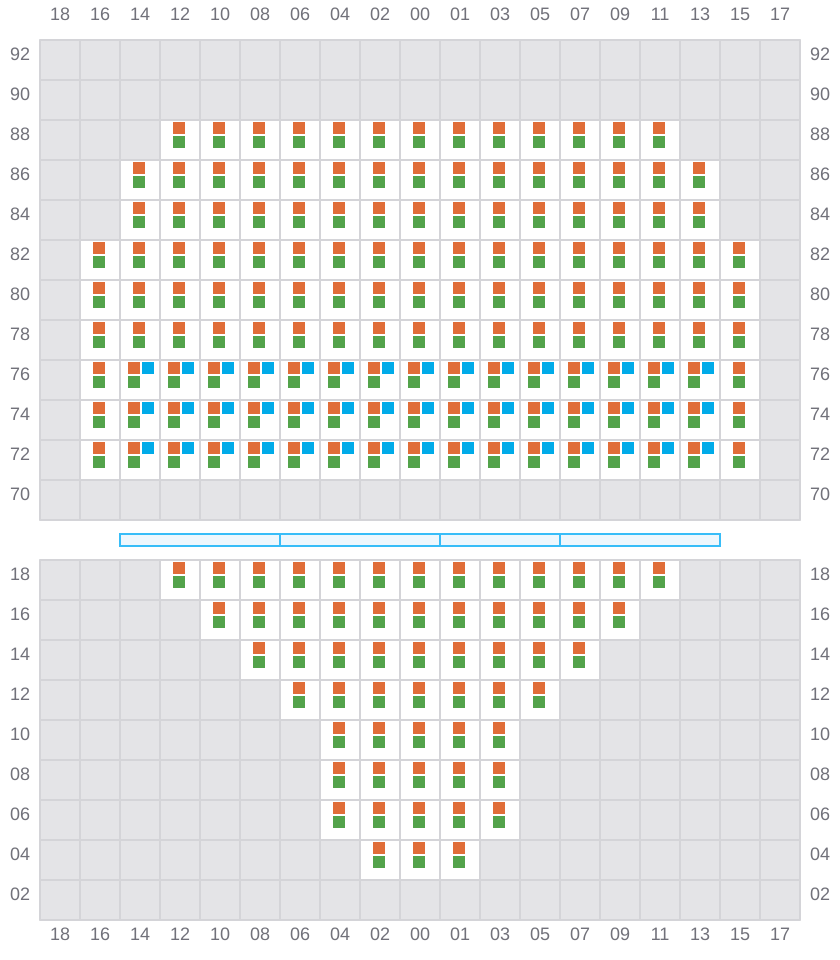

005 (006)

  • →
  • → / ?
  • →
Bay 005 view and slots of CMA CGM JACQUES JOSEPH

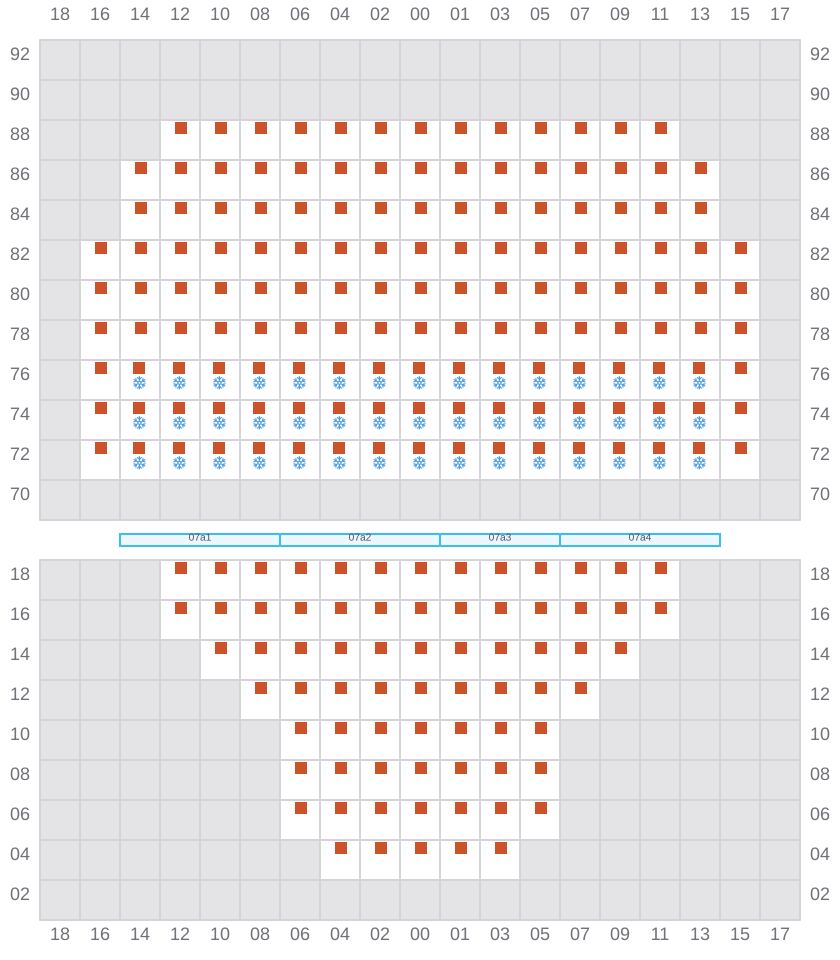

007

  • ←
  • → / ?
  • →
Bay 007 view and slots of CMA CGM JACQUES JOSEPH

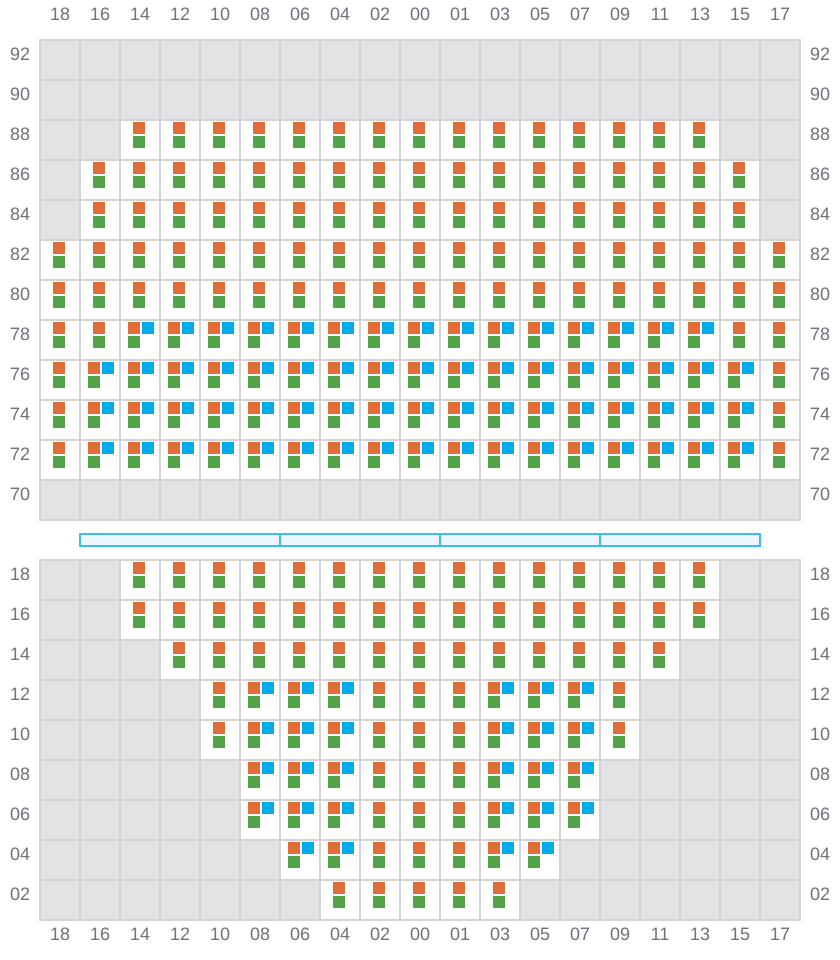

009 (010)

  • →
  • →
  • →
Bay 009 view and slots of CMA CGM JACQUES JOSEPH

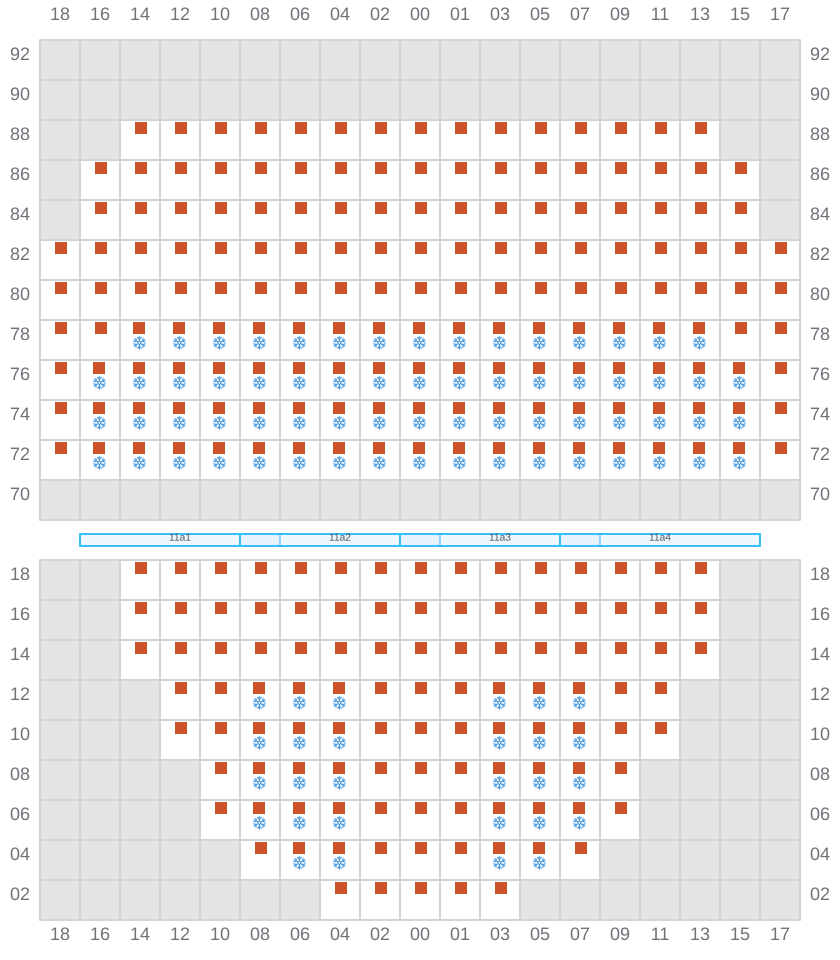

011

  • ←
  • →
  • →
Bay 011 view and slots of CMA CGM JACQUES JOSEPH

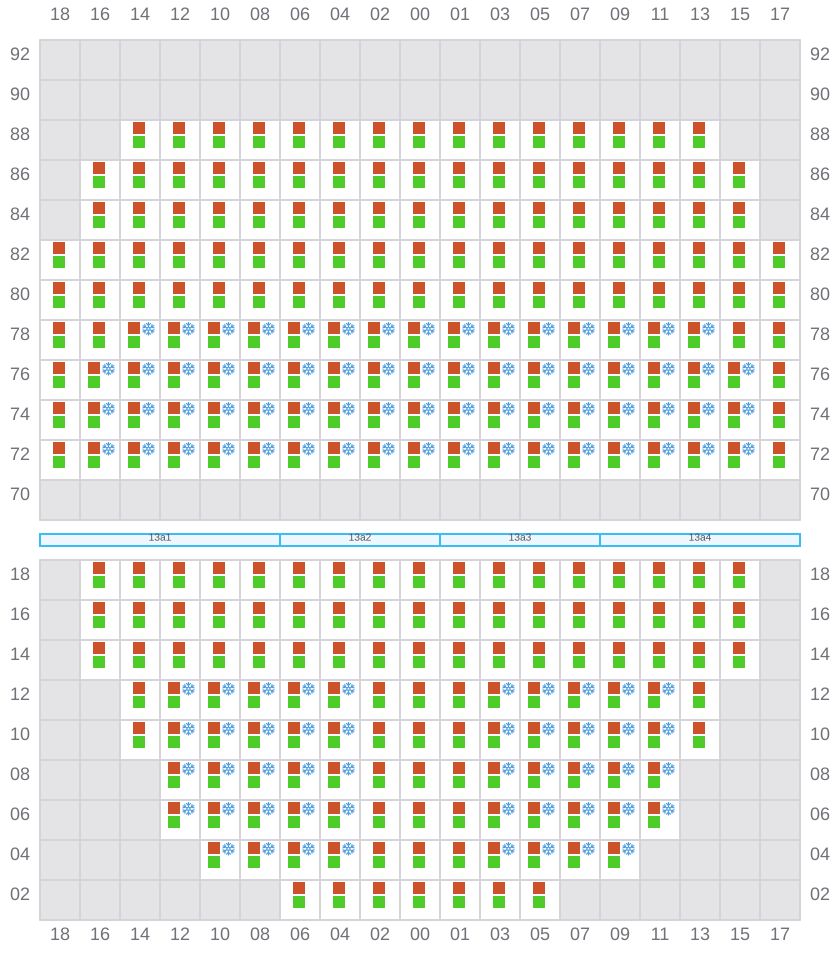

013 (014)

  • →
  • →
  • →
Bay 013 view and slots of CMA CGM JACQUES JOSEPH

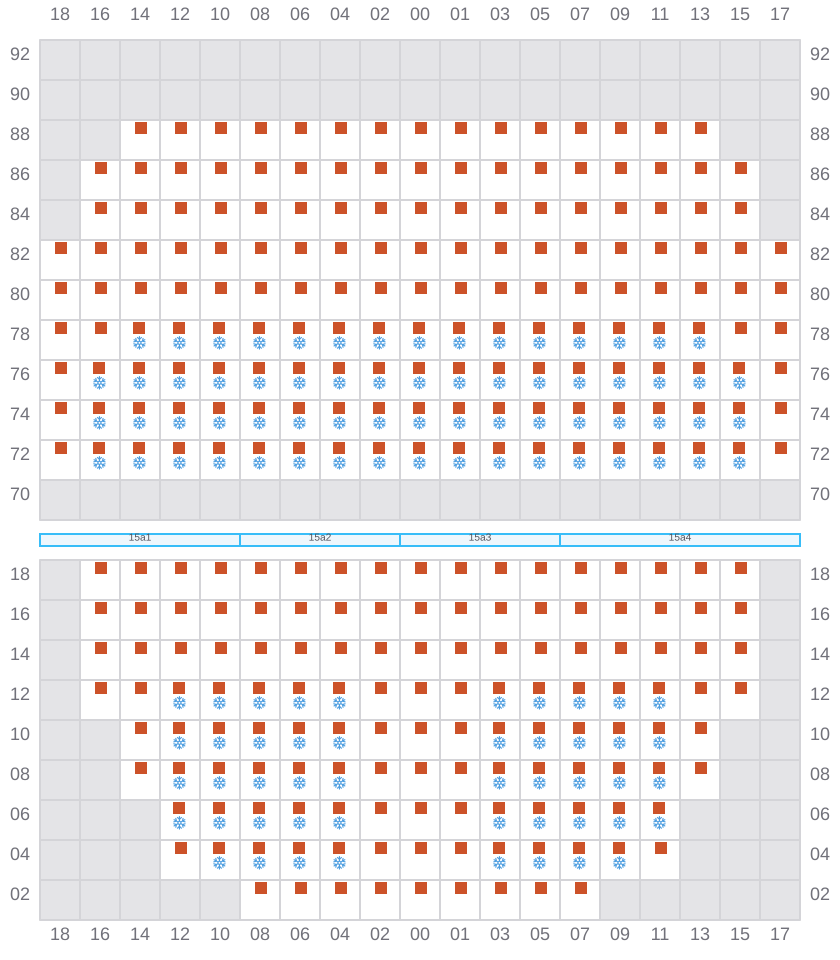

015

  • ←
  • →
  • →
Bay 015 view and slots of CMA CGM JACQUES JOSEPH

017 (018)

  • →
  • →
  • →
Bay 017 view and slots of CMA CGM JACQUES JOSEPH

019

  • ←
  • →
  • →
Bay 019 view and slots of CMA CGM JACQUES JOSEPH

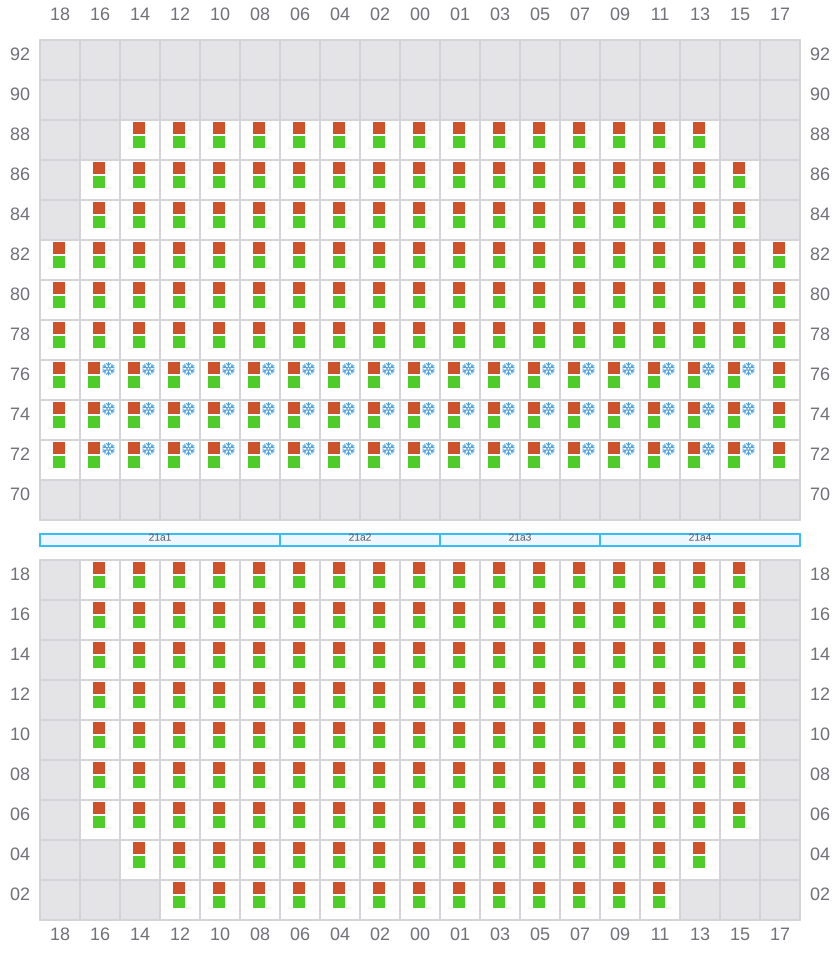

021 (022)

  • →
  • → / ?
  • →
Bay 021 view and slots of CMA CGM JACQUES JOSEPH

023

  • ←
  • → / ?
  • →
Bay 023 view and slots of CMA CGM JACQUES JOSEPH

025 (026)

  • →
  • →
  • →
Bay 025 view and slots of CMA CGM JACQUES JOSEPH

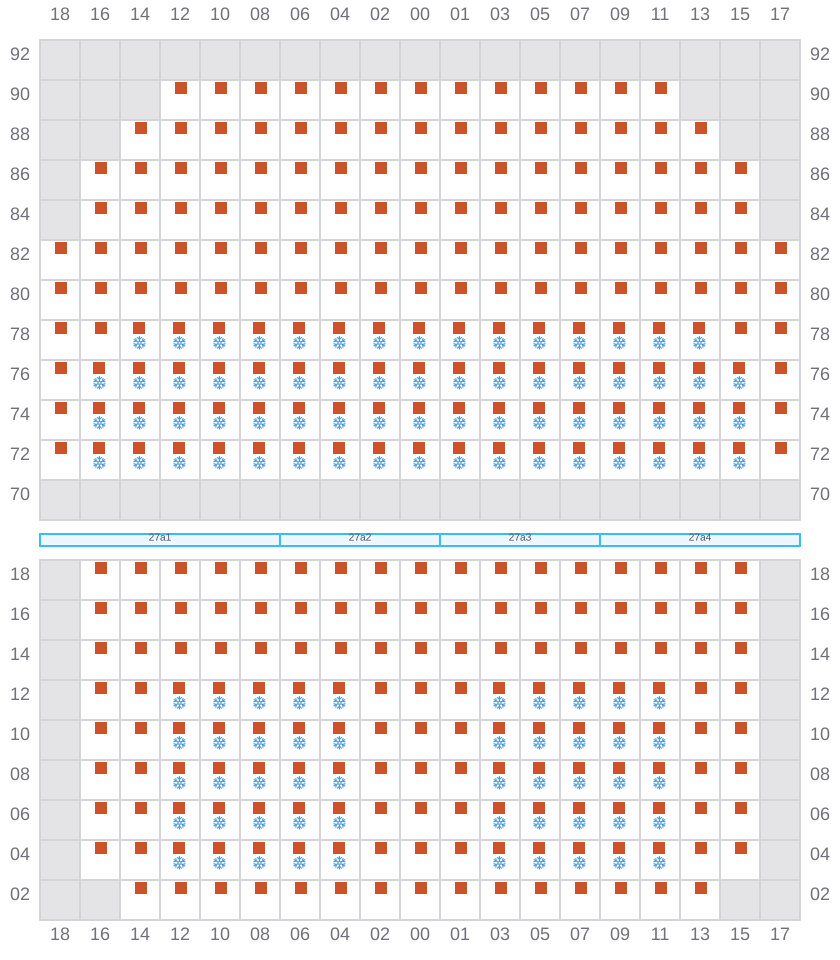

027

  • ←
  • →
  • →
Bay 027 view and slots of CMA CGM JACQUES JOSEPH

029 (030)

  • →
  • →
  • →
Bay 029 view and slots of CMA CGM JACQUES JOSEPH

031

  • ←
  • →
  • →
Bay 031 view and slots of CMA CGM JACQUES JOSEPH

033 (034)

  • →
  • →
  • →
Bay 033 view and slots of CMA CGM JACQUES JOSEPH

035

  • ←
  • →
  • →

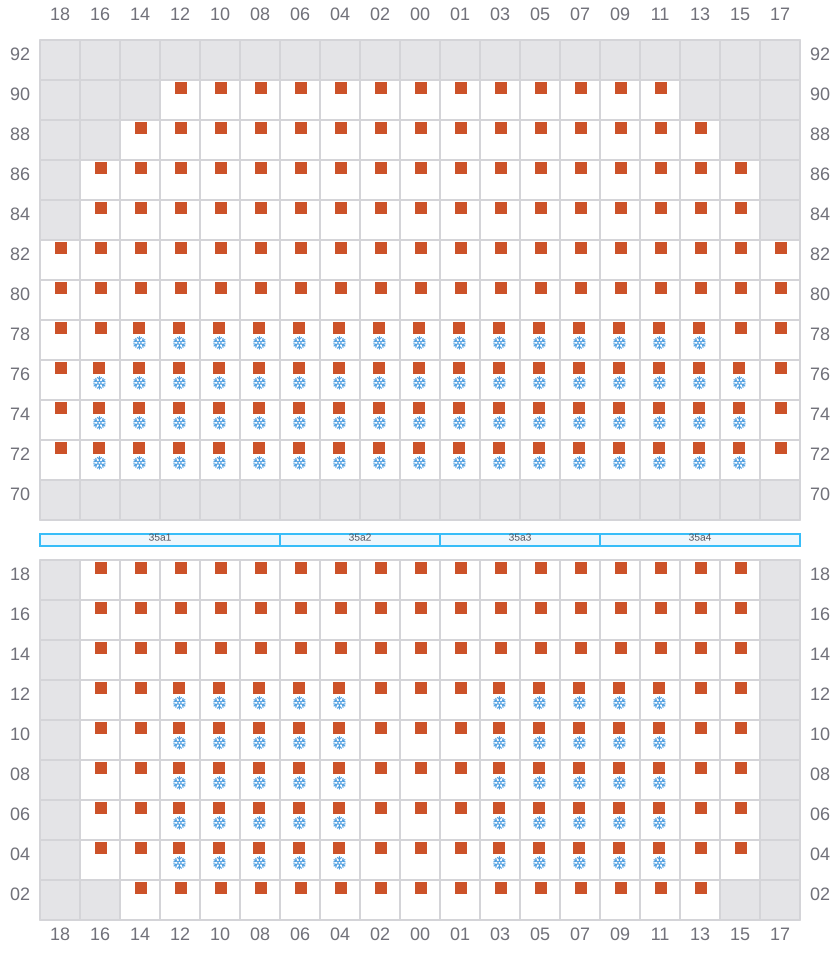

Bay 035 view and slots of CMA CGM JACQUES JOSEPH

037 (038)

  • →
  • →
  • →

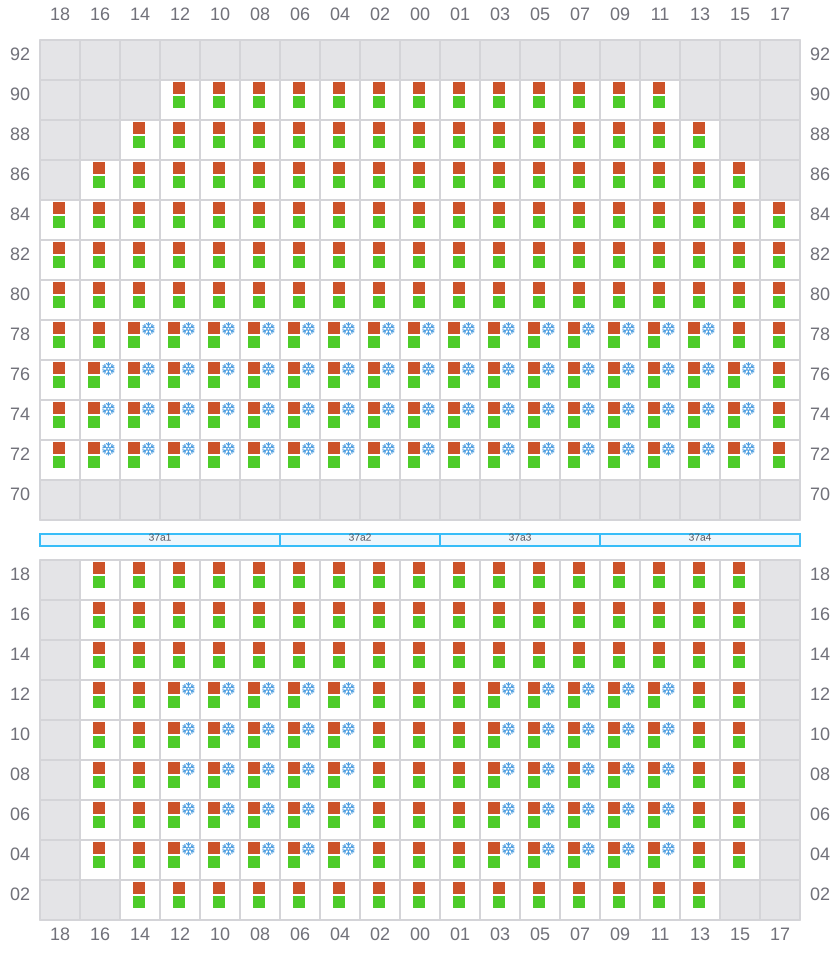

Bay 037 view and slots of CMA CGM JACQUES JOSEPH

039

  • ←
  • →
  • →
Bay 039 view and slots of CMA CGM JACQUES JOSEPH

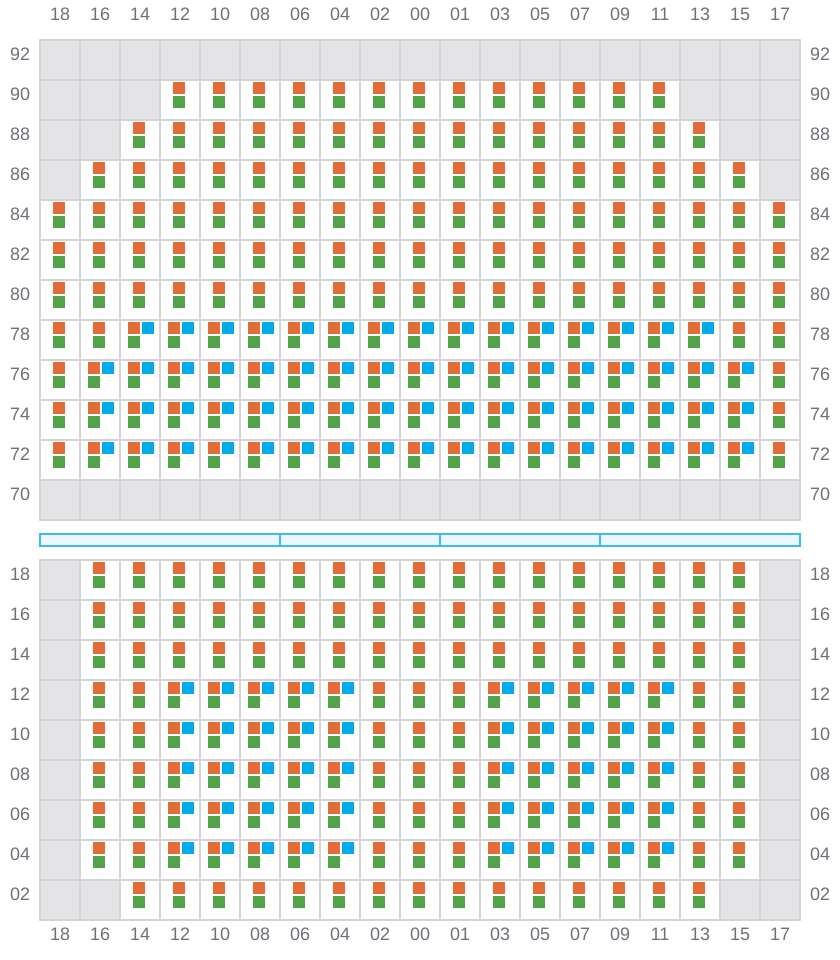

041 (042)

  • →
  • →
  • →
Bay 041 view and slots of CMA CGM JACQUES JOSEPH

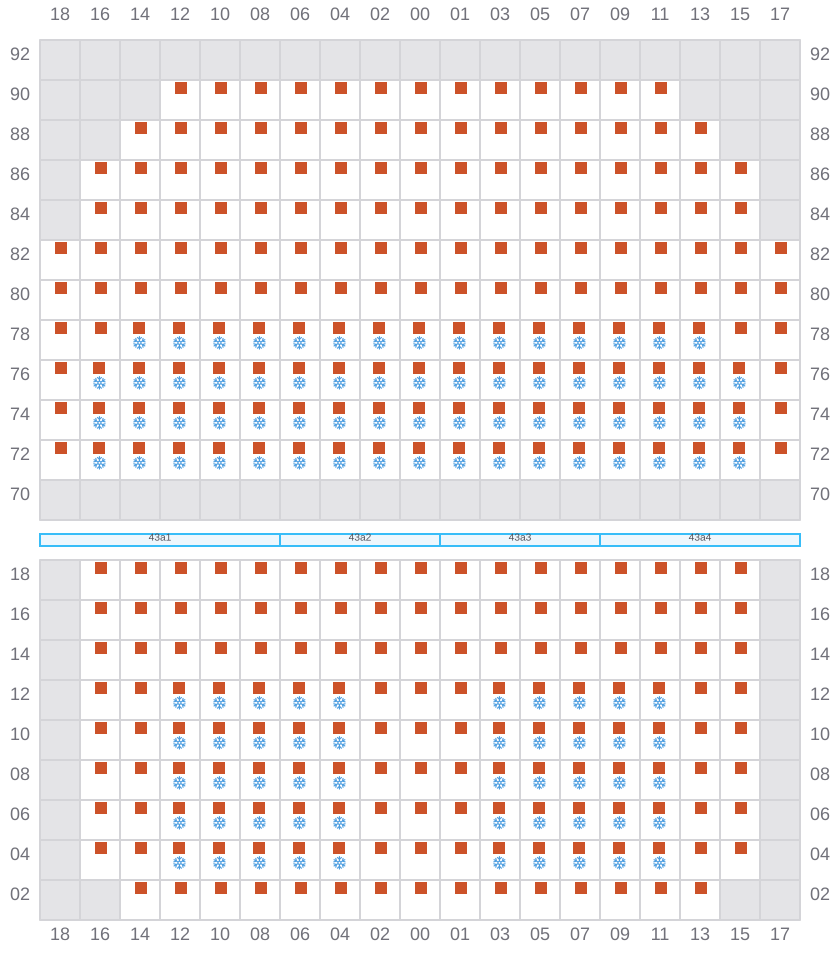

043

  • ←
  • →
  • →
Bay 043 view and slots of CMA CGM JACQUES JOSEPH

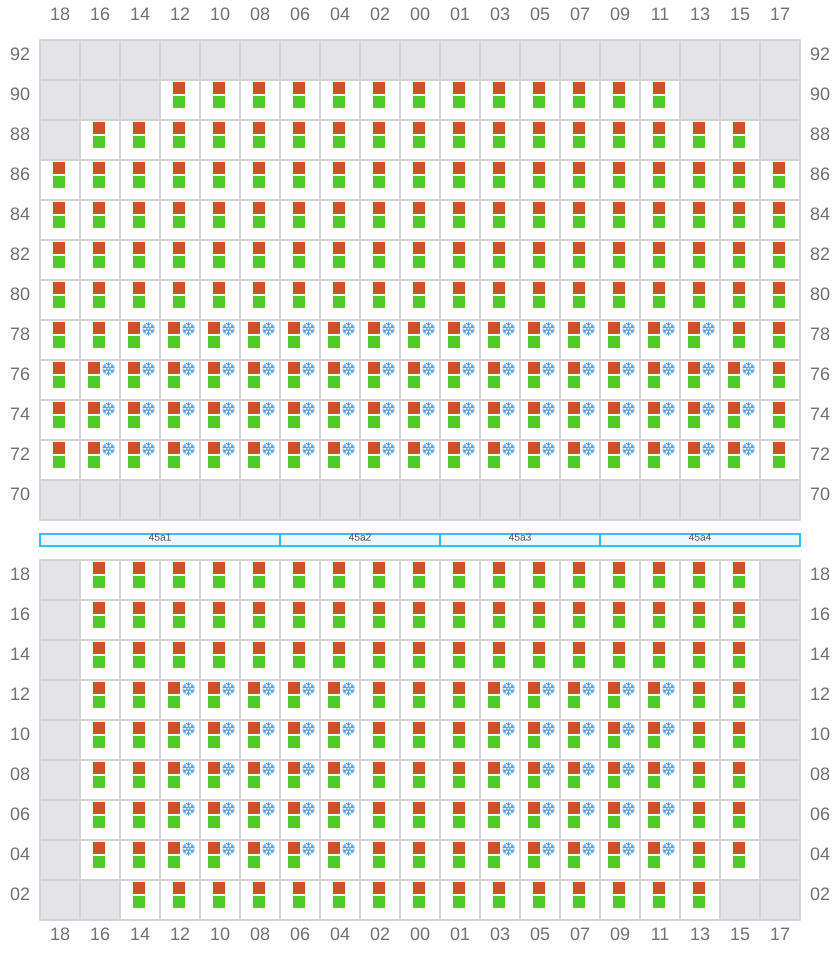

045 (046)

  • →
  • →
  • →
Bay 045 view and slots of CMA CGM JACQUES JOSEPH

047

  • ←
  • →
  • →
Bay 047 view and slots of CMA CGM JACQUES JOSEPH

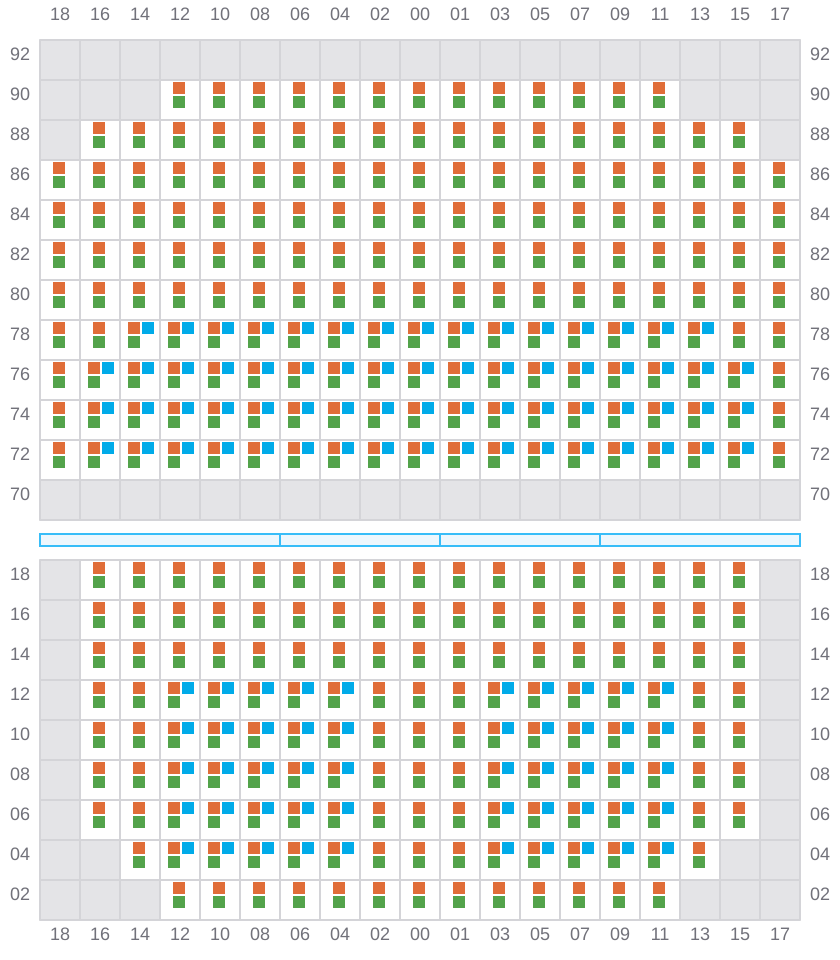

049 (050)

  • →
  • →
  • →
Bay 049 view and slots of CMA CGM JACQUES JOSEPH

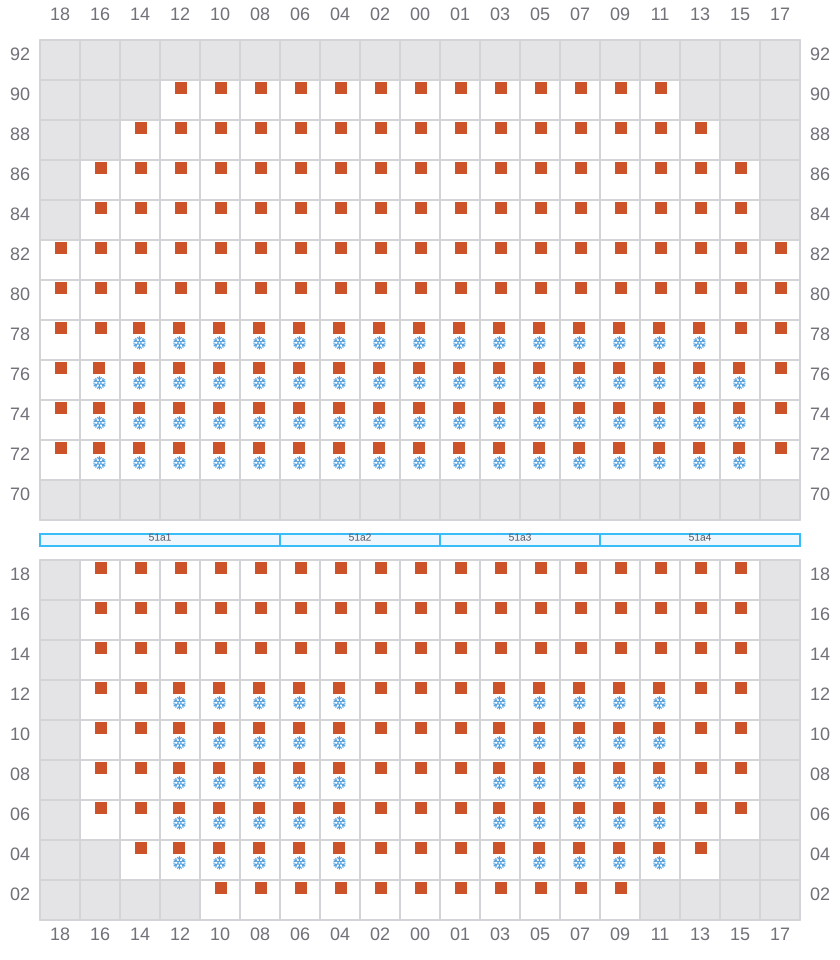

051

  • ←
  • →
  • →
Bay 051 view and slots of CMA CGM JACQUES JOSEPH

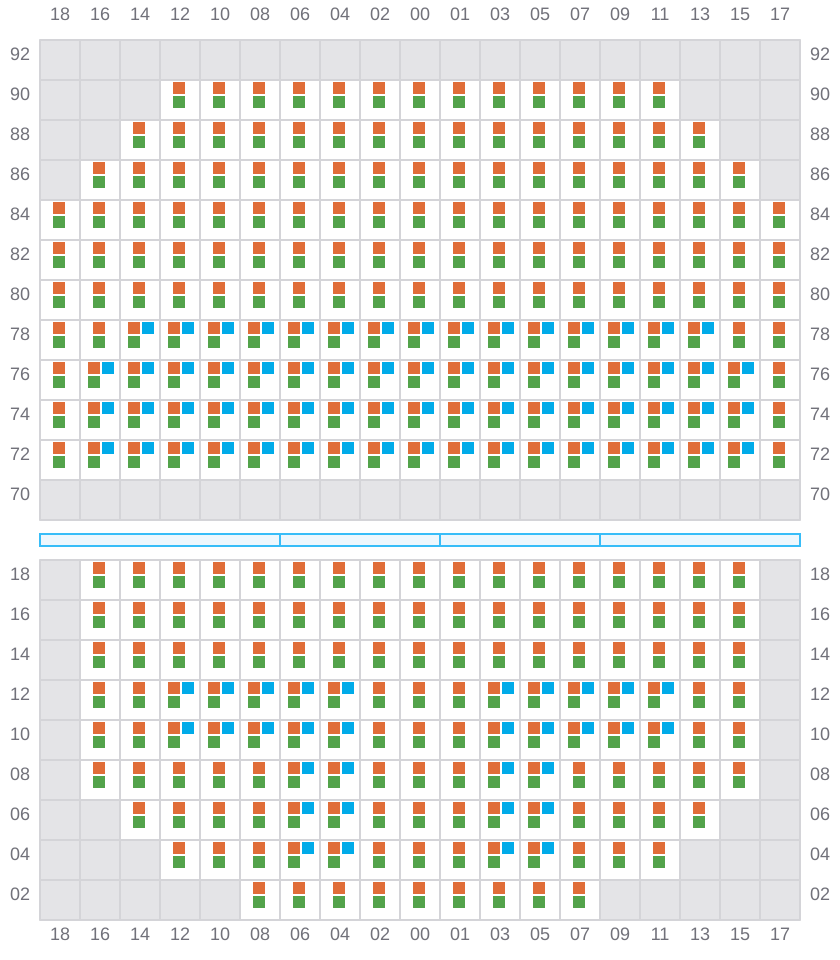

053 (054)

  • →
  • →
  • →
Bay 053 view and slots of CMA CGM JACQUES JOSEPH

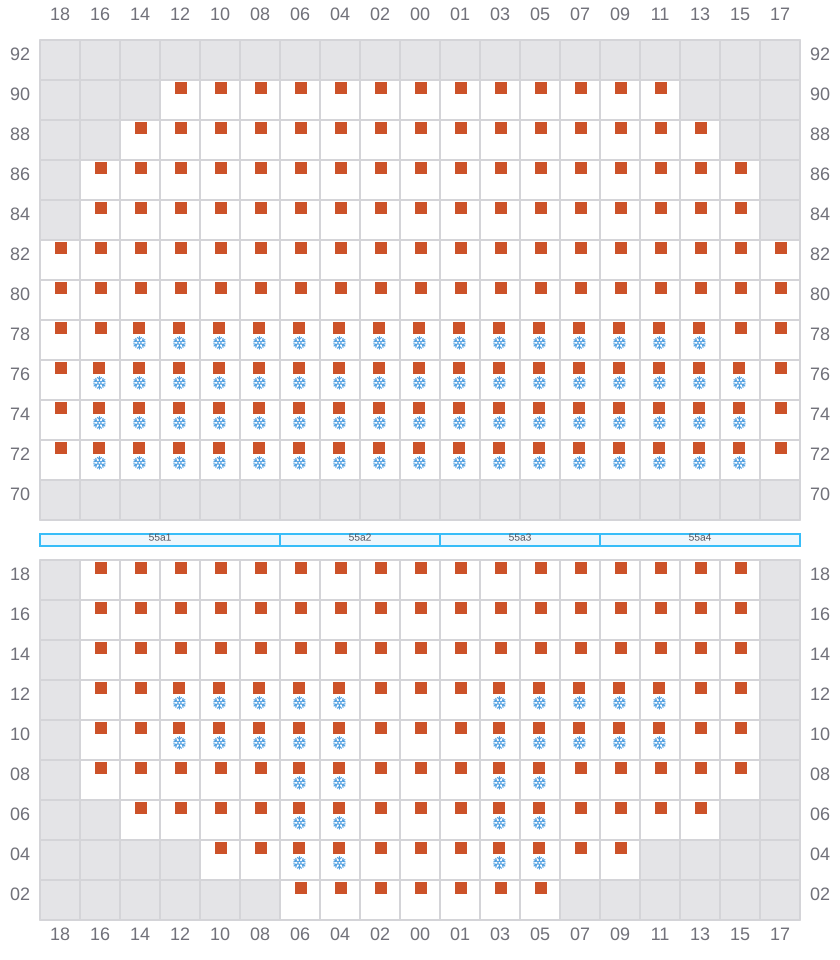

055

  • ←
  • →
  • →
Bay 055 view and slots of CMA CGM JACQUES JOSEPH

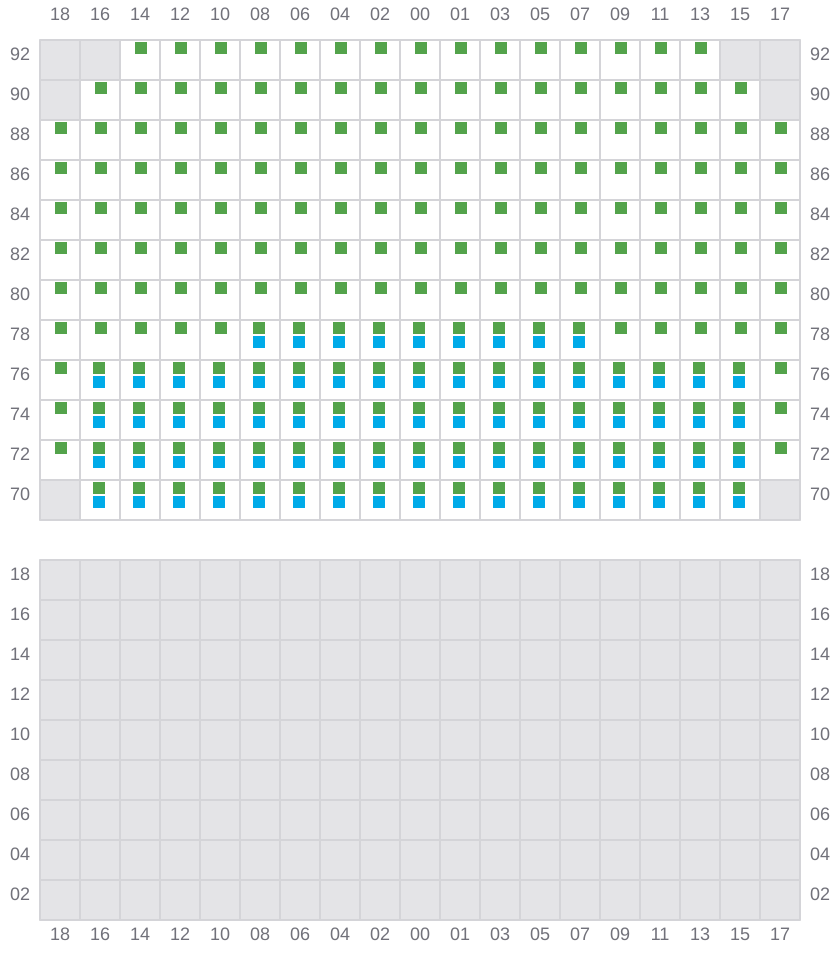

057 (058)

  • → / ?
  • → / ?
  • → / ?
Bay 057 view and slots of CMA CGM JACQUES JOSEPH

059

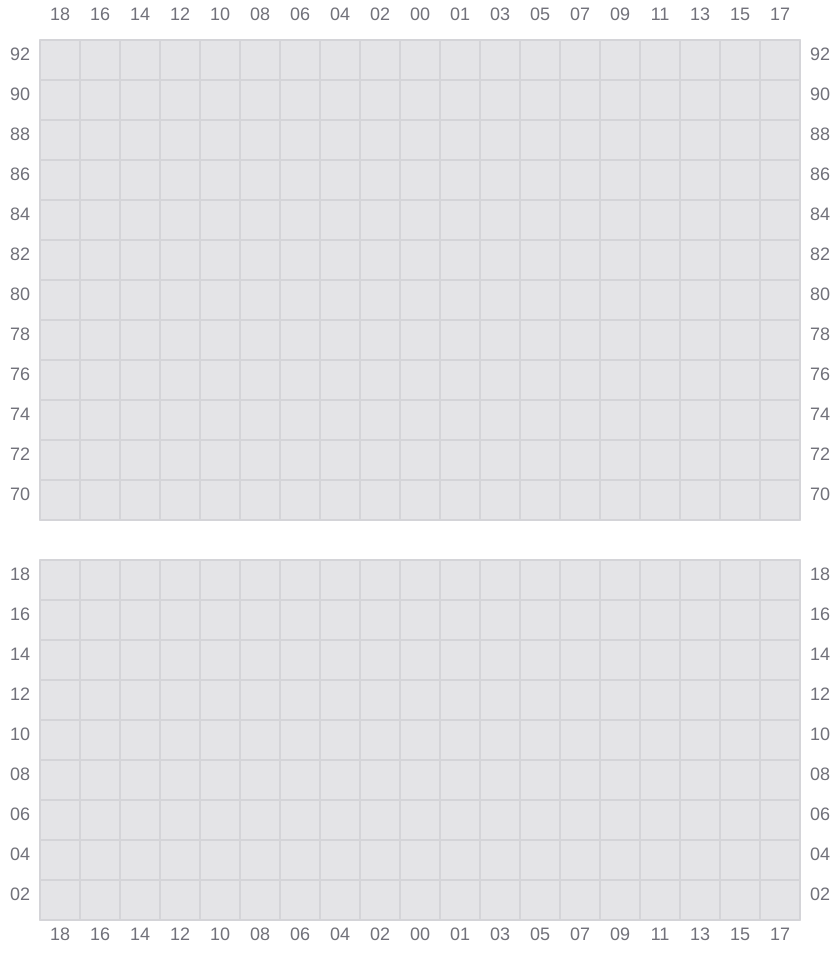

Bay 059 view and slots of CMA CGM JACQUES JOSEPH

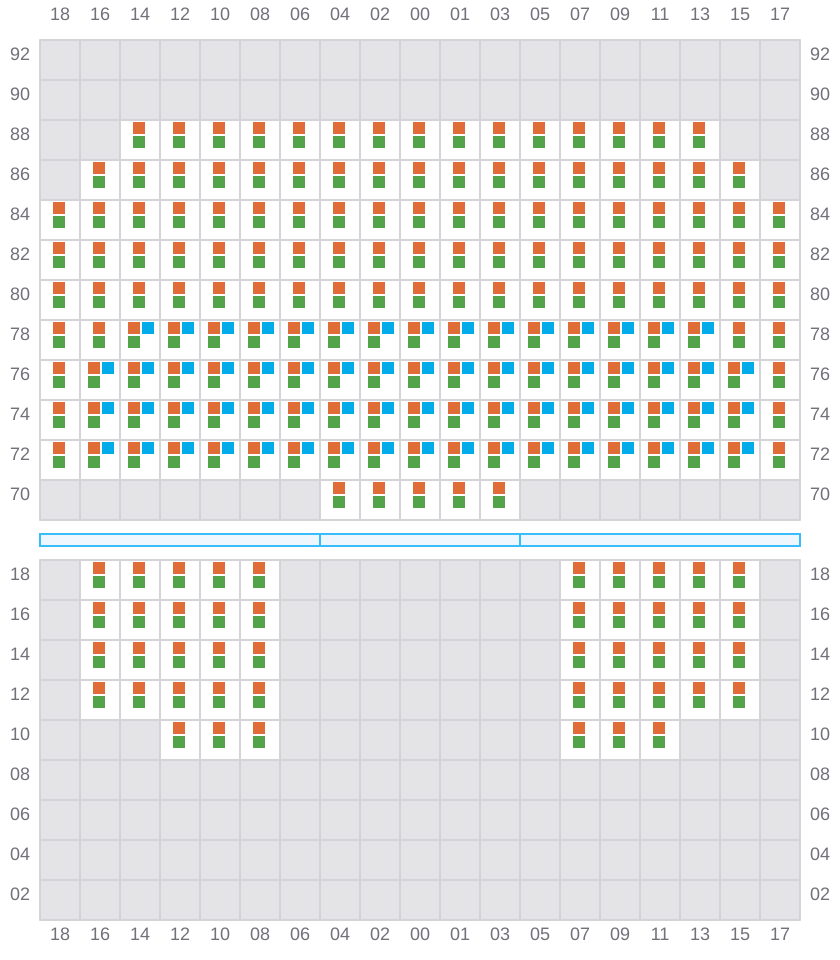

061 (062)

  • →
  • → / ?
  • →
Bay 061 view and slots of CMA CGM JACQUES JOSEPH

063

  • ←
  • → / ?
  • →
Bay 063 view and slots of CMA CGM JACQUES JOSEPH

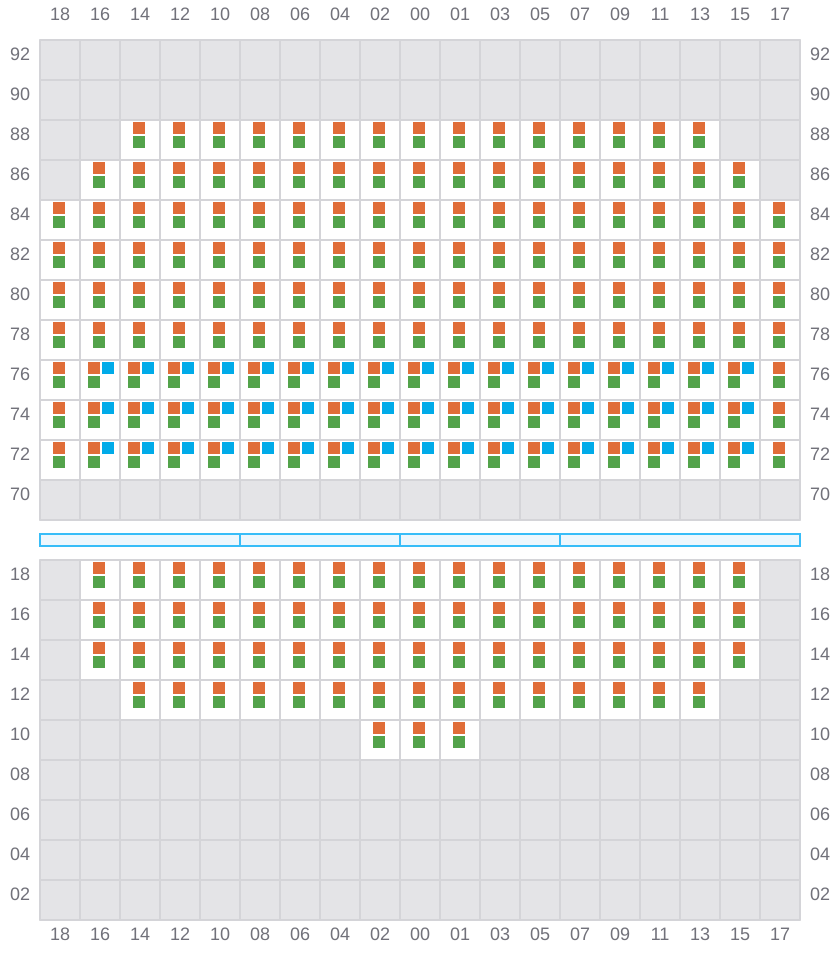

065 (066)

  • →
  • → / ?
  • →
Bay 065 view and slots of CMA CGM JACQUES JOSEPH

067

  • ←
  • → / ?
  • →

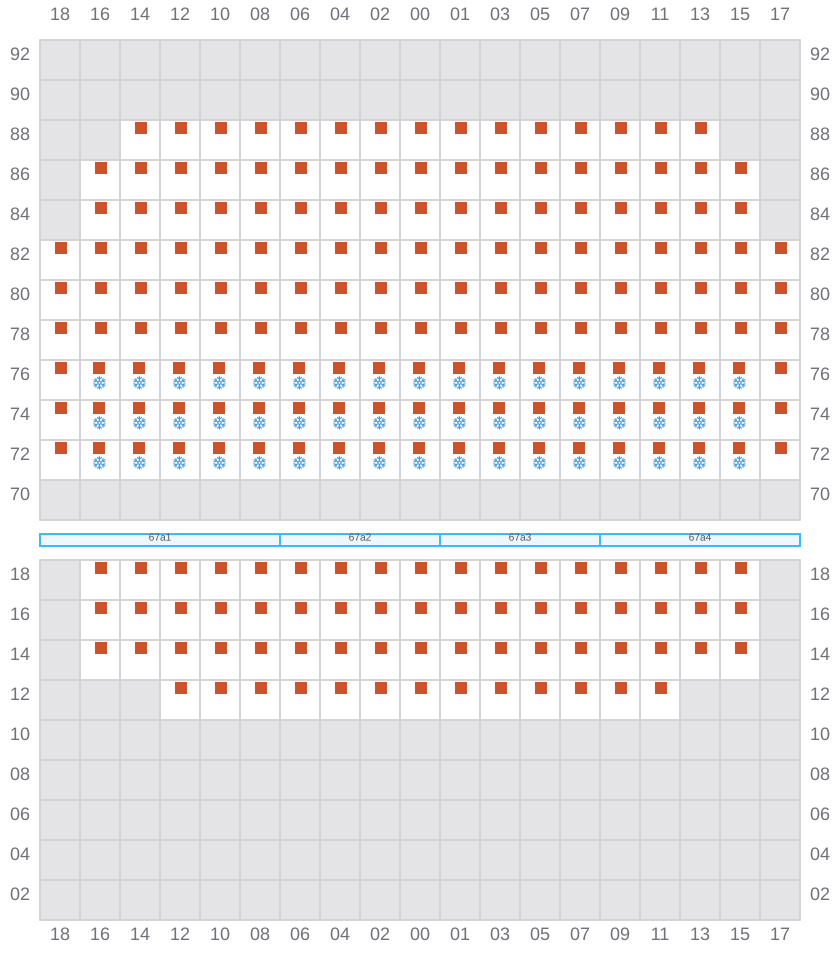

Bay 067 view and slots of CMA CGM JACQUES JOSEPH

069 (070)

  • → / ?
  • ← / ?
  • → / ?

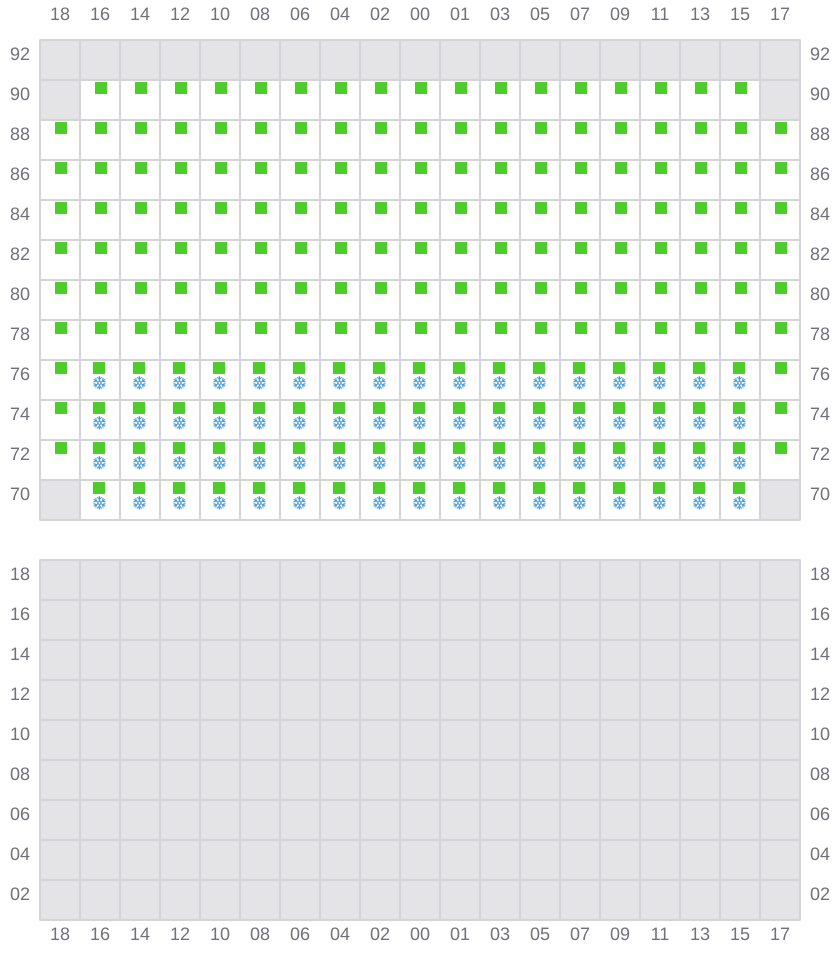

Bay 069 view and slots of CMA CGM JACQUES JOSEPH
