CMA CGM JACQUES JUNIOR
9722716 | 9HA4198 | 9722716 by ********* Last update: Tue May 07 2024
General Info
Ship Name:CMA CGM JACQUES JUNIOR
IMO Code:9722716
Call Sign:9HA4198
Line Operator:9722716
Class Name for Sister Ships:CMA CGM JACQUES JU
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:70
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:10,376
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

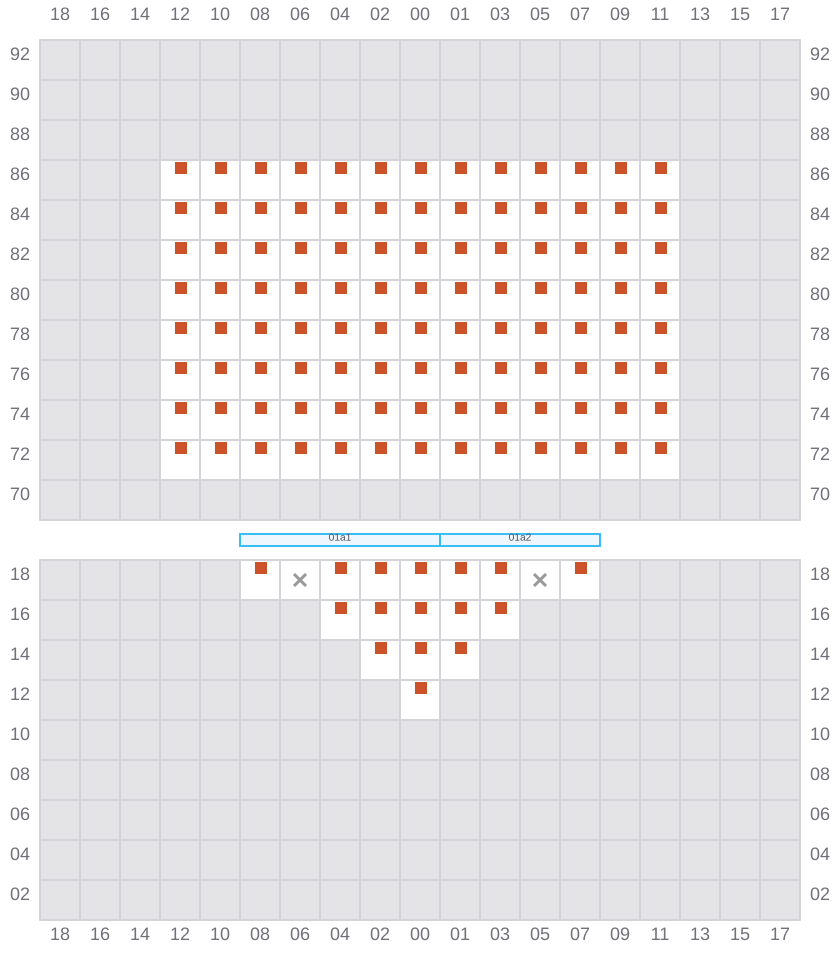

001
- →

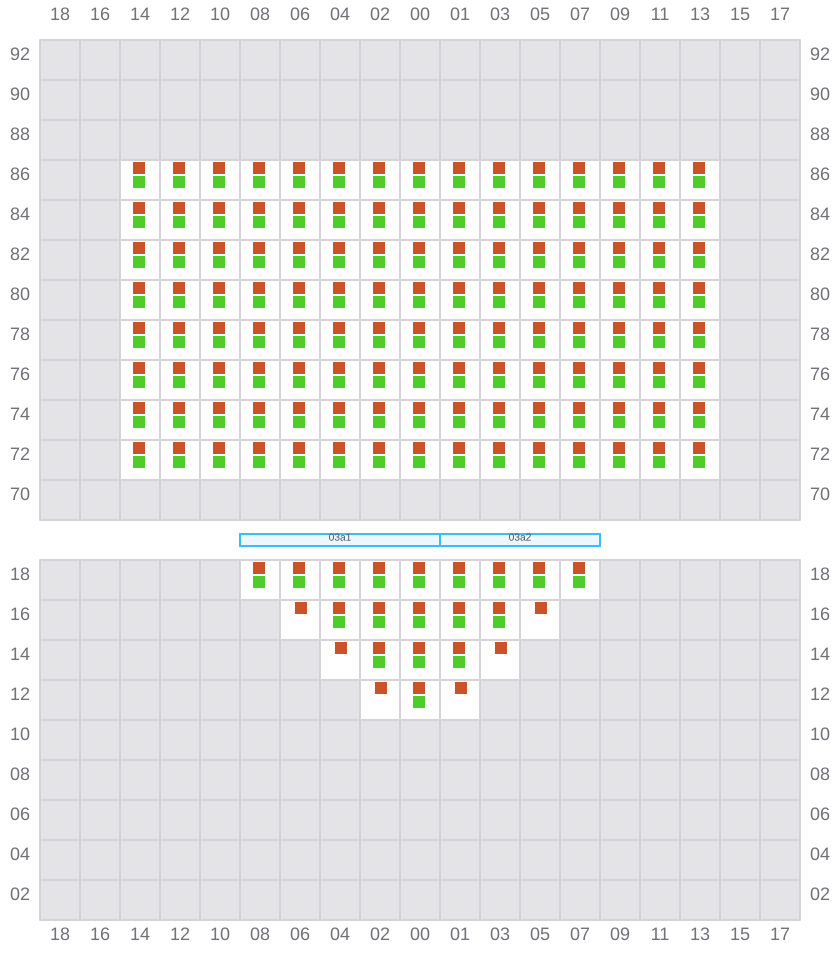

003 (002)
- ←

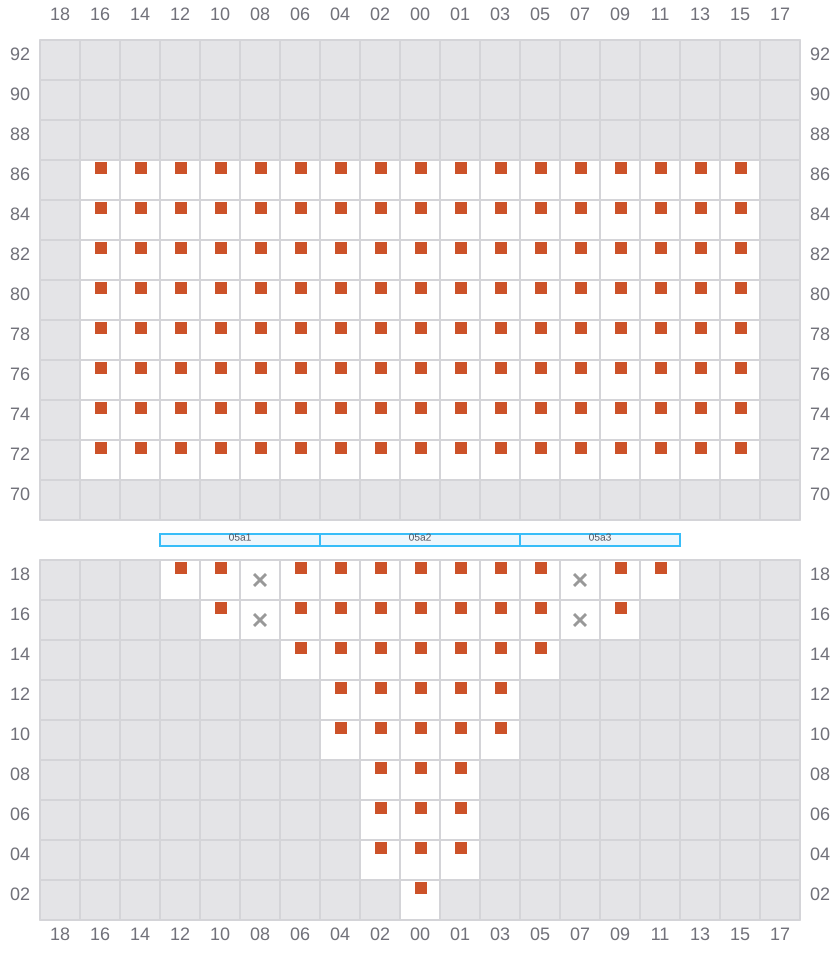

005
- →

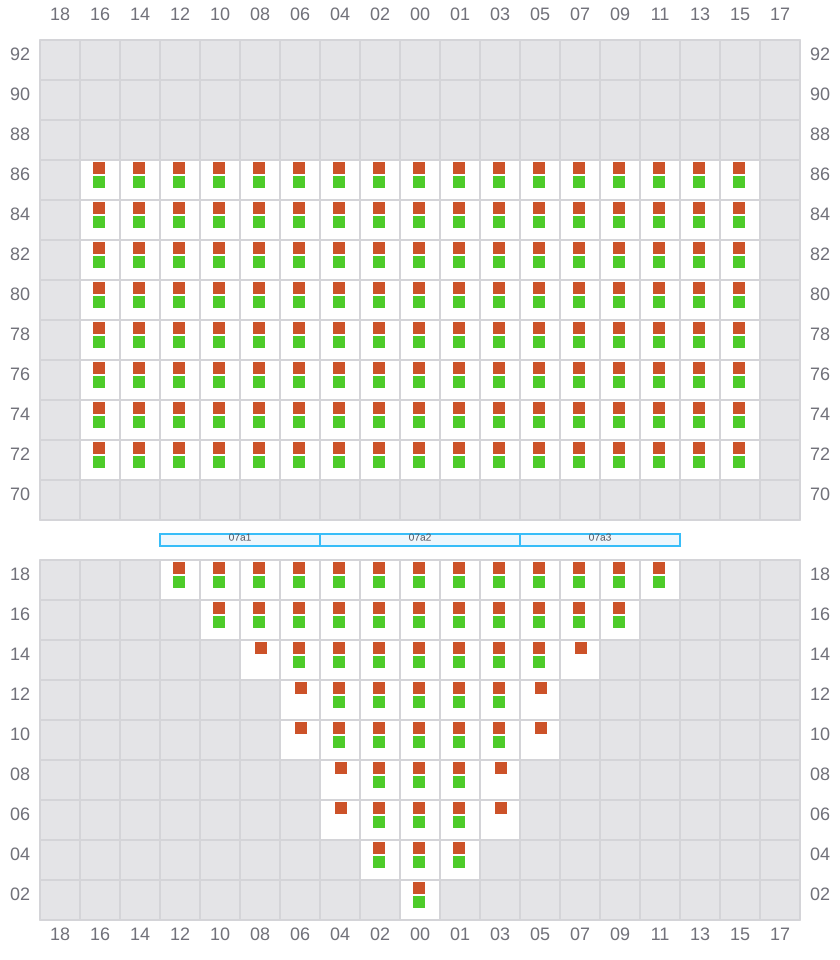

007 (006)
- ←

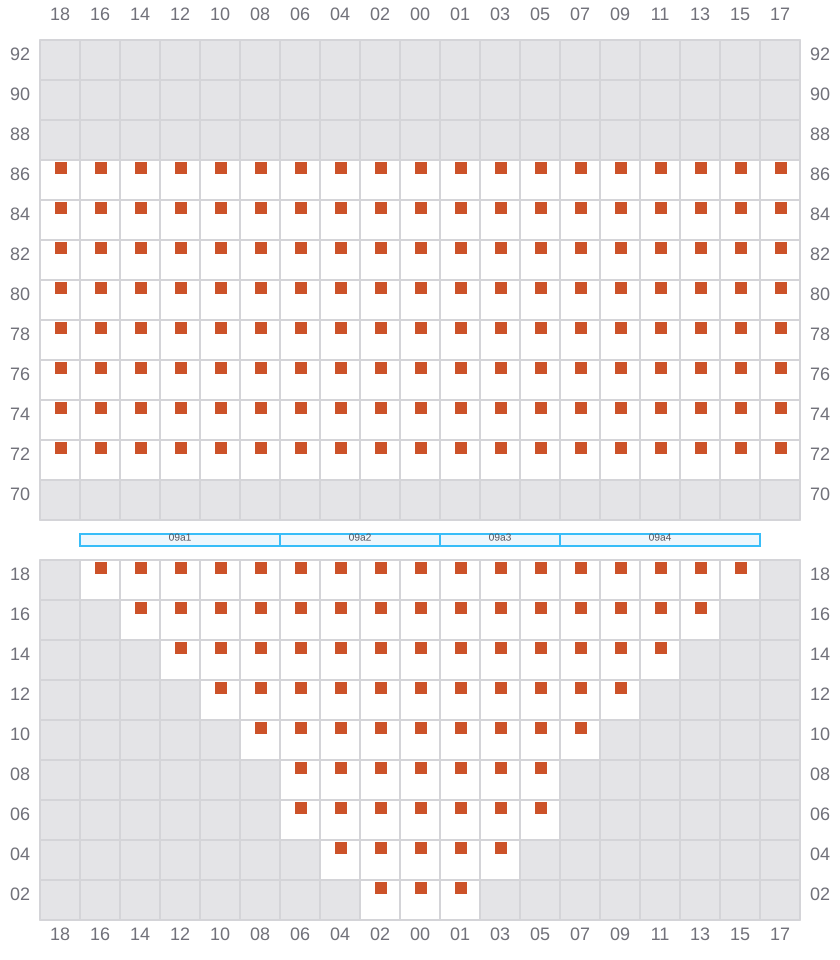

009
- →

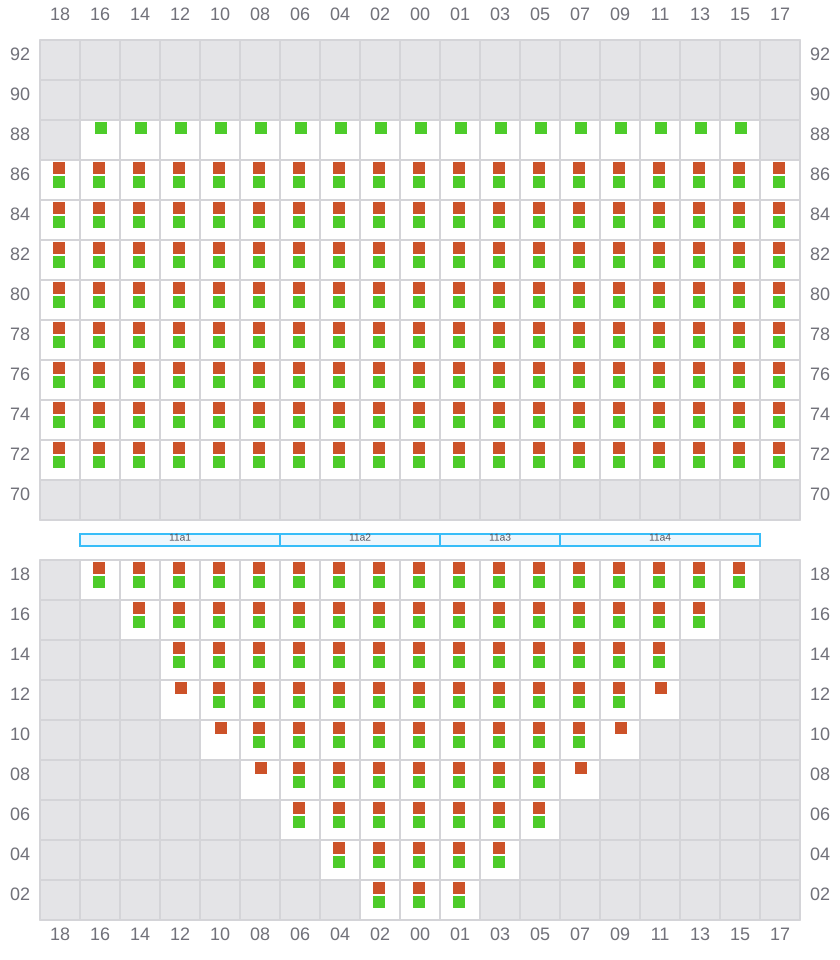

011 (010)
- ←

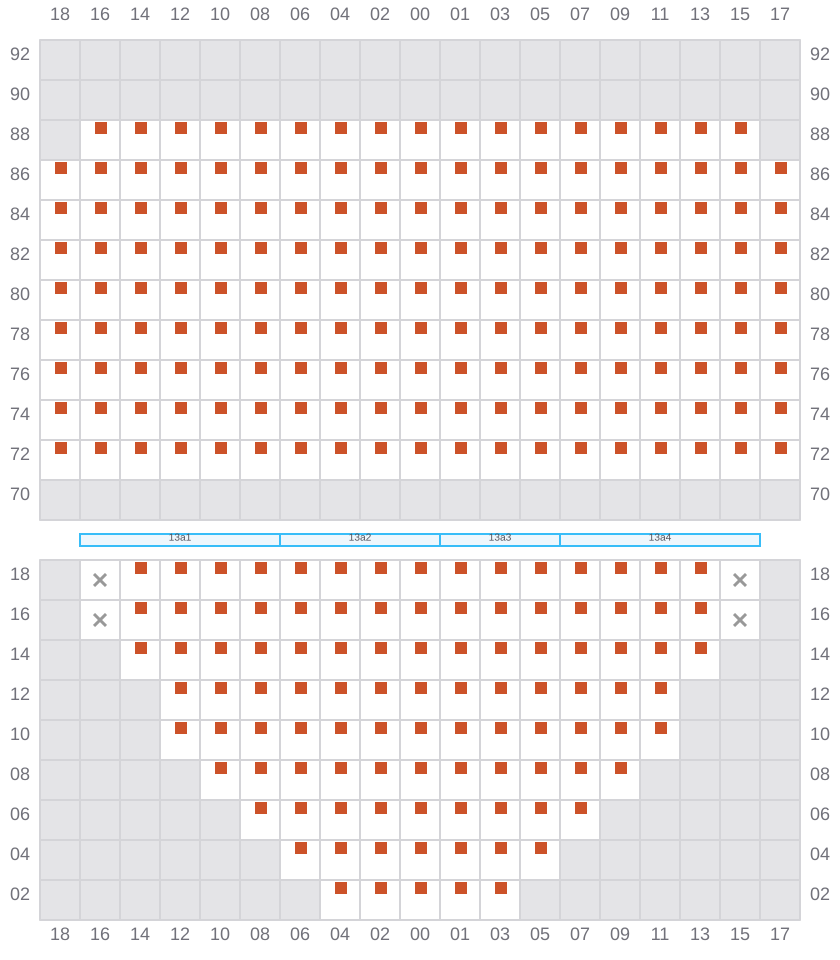

013
- →

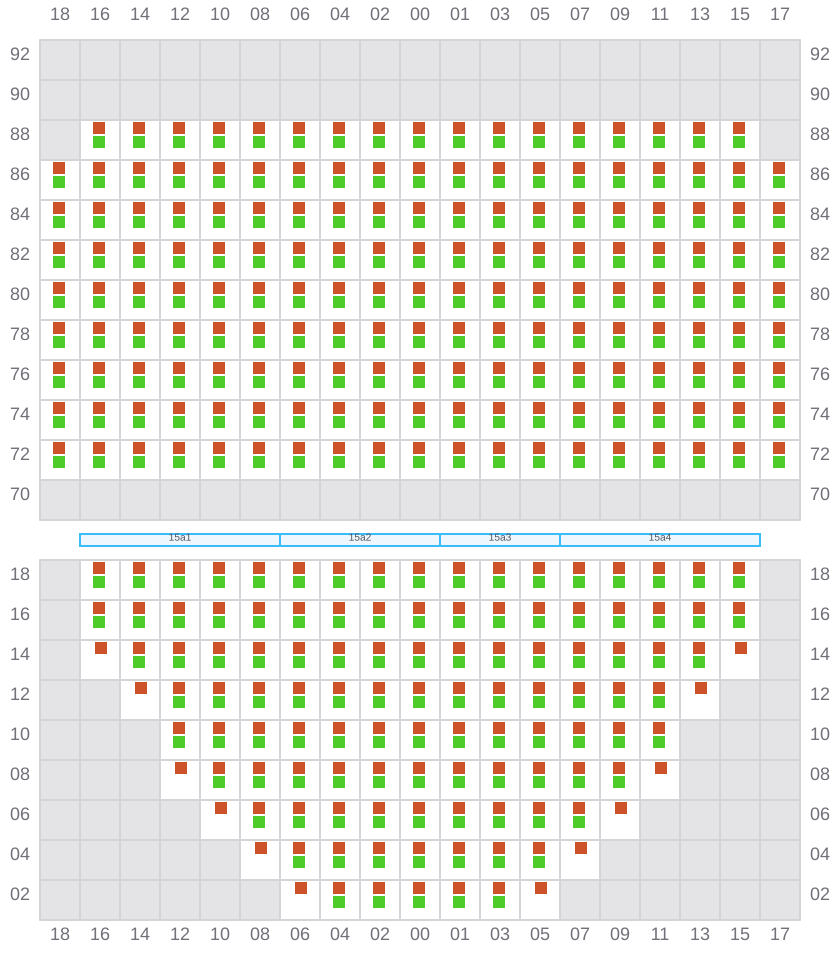

015 (014)
- ←

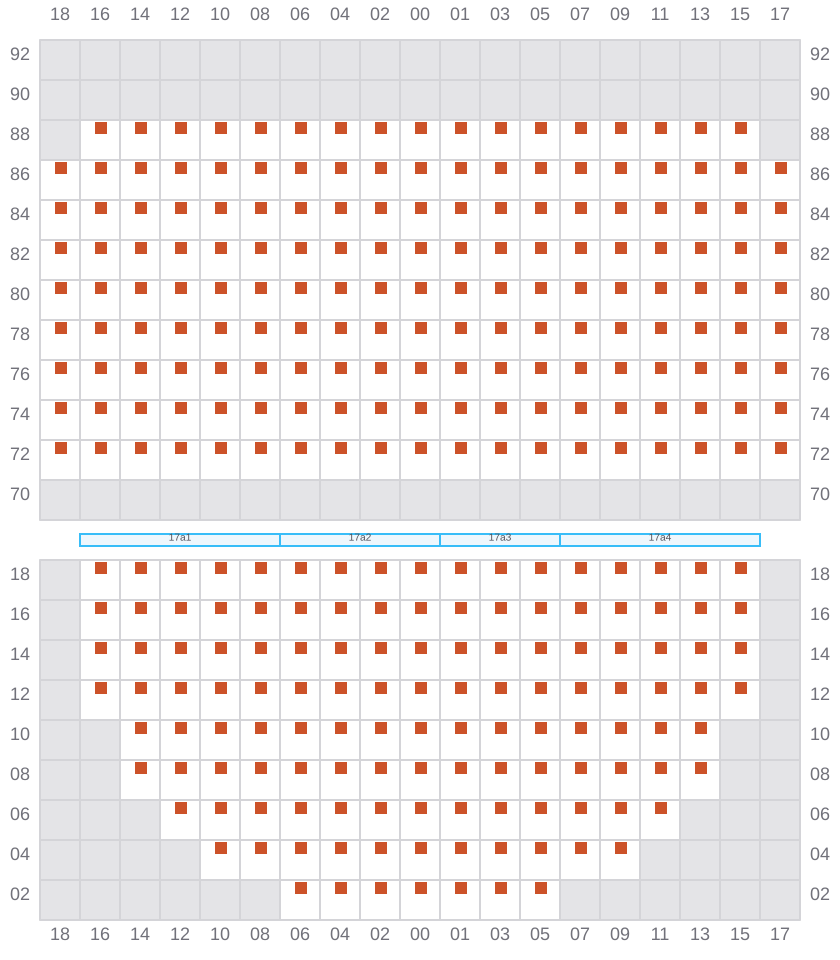

017
- →

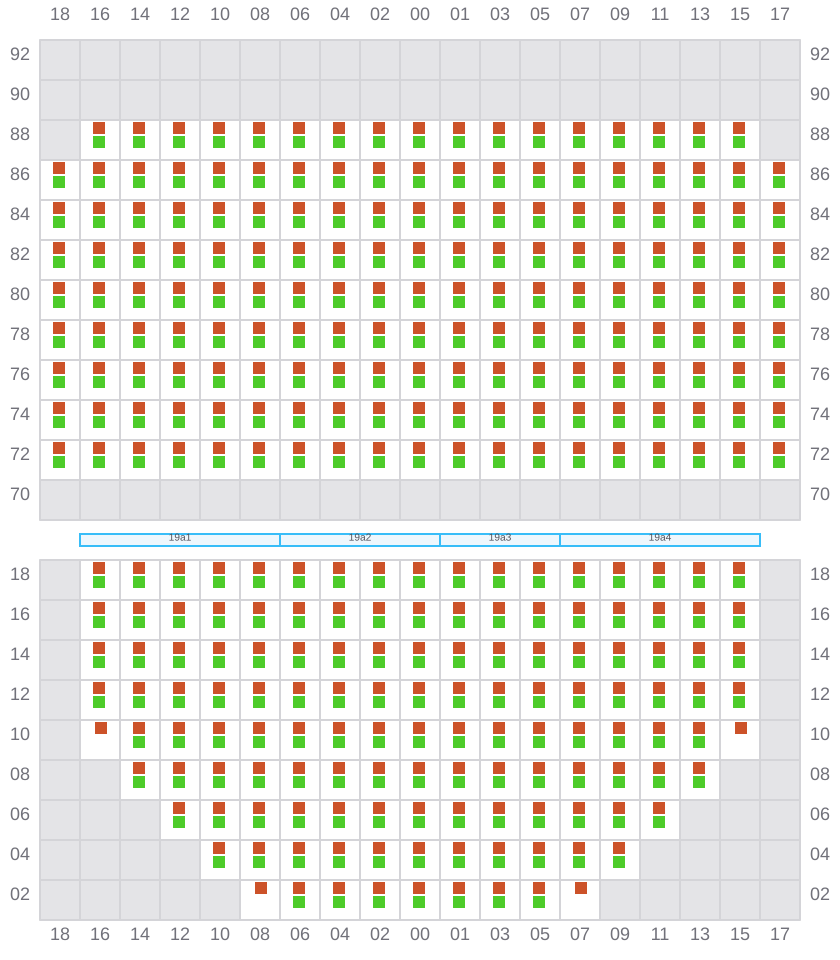

019 (018)
- ←
021
- →

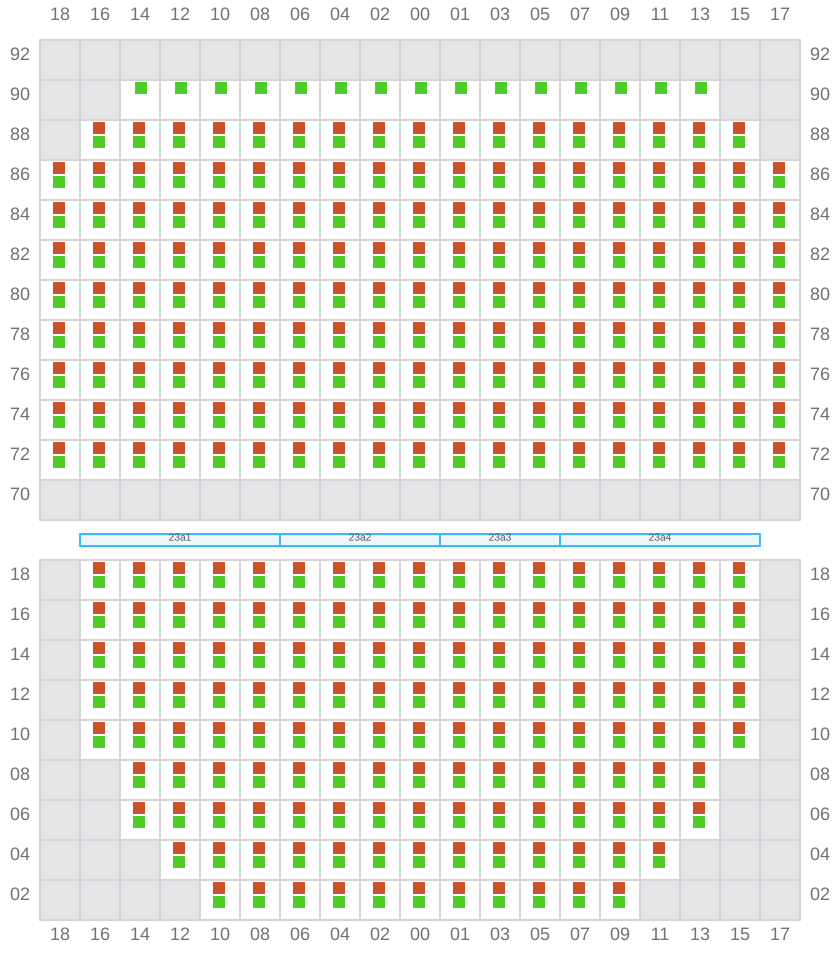

023 (022)
- ←

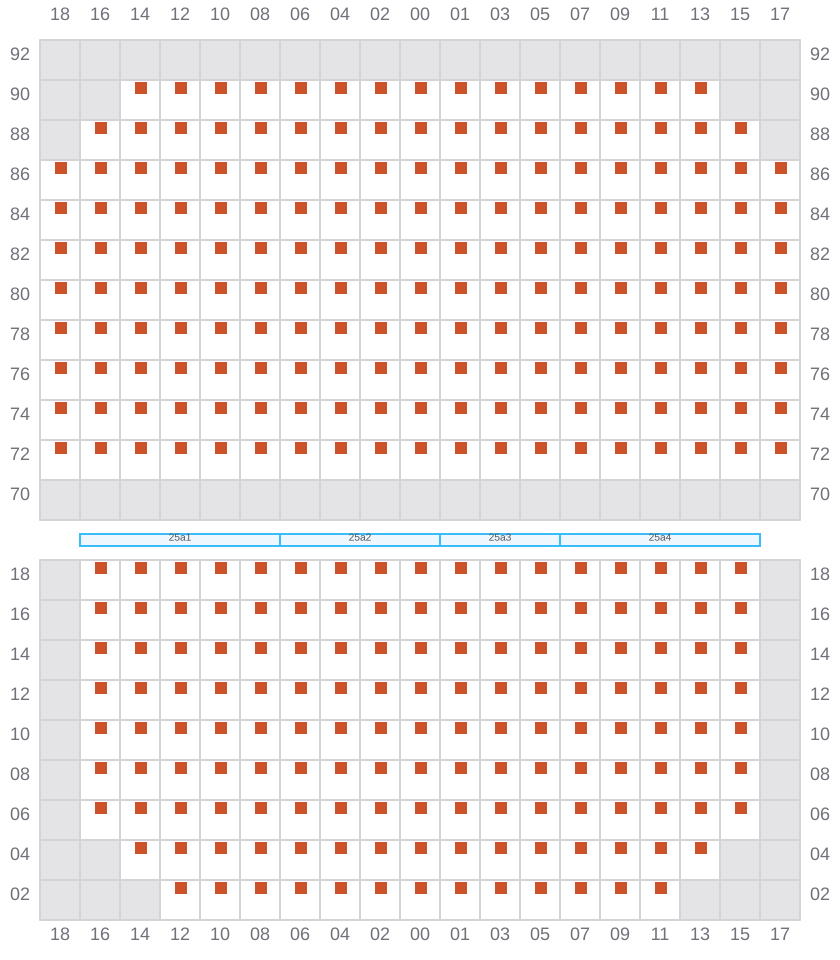

025
- →

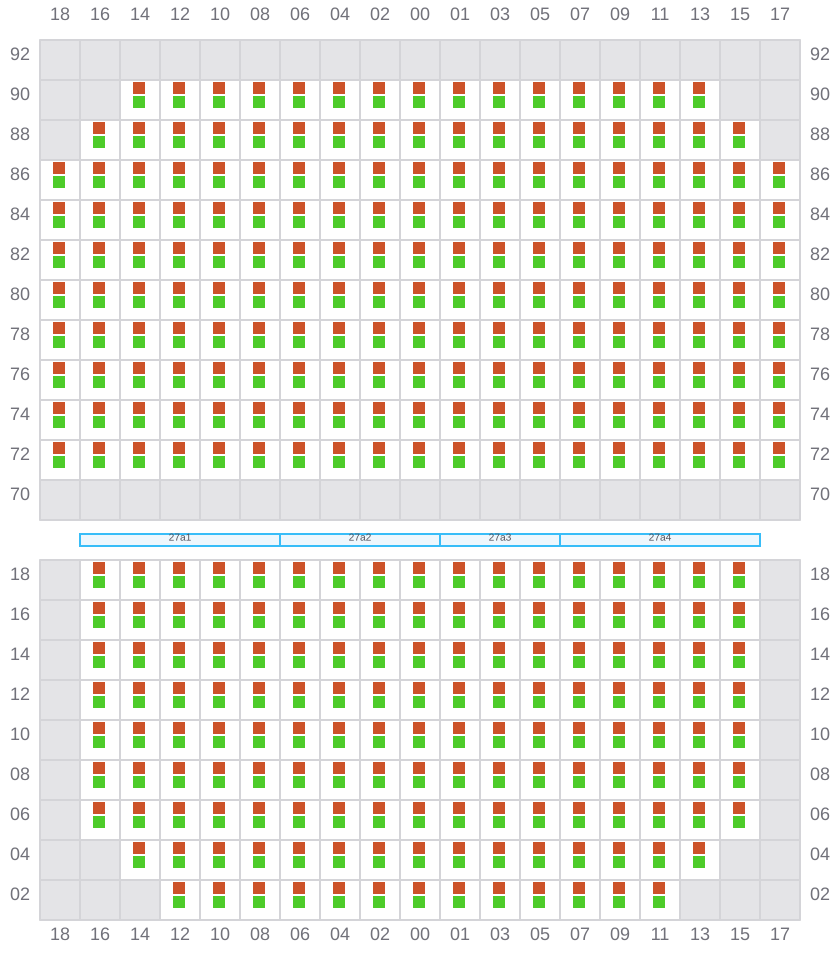

027 (026)
- ←
029
- →

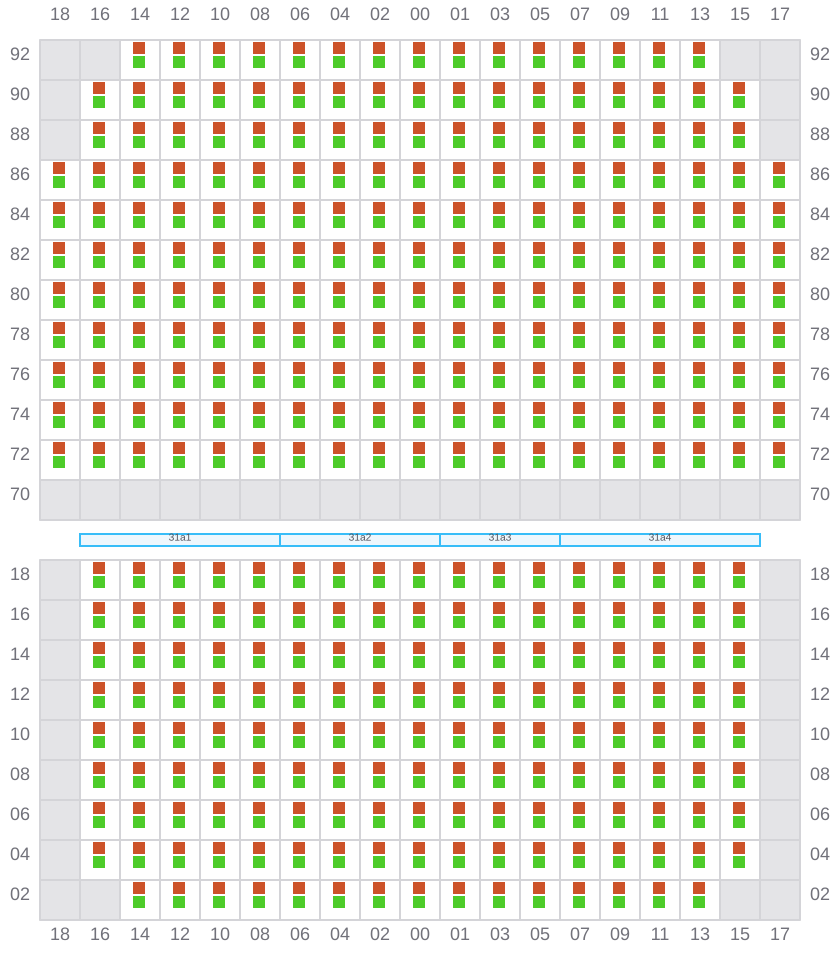

031 (030)
- ←

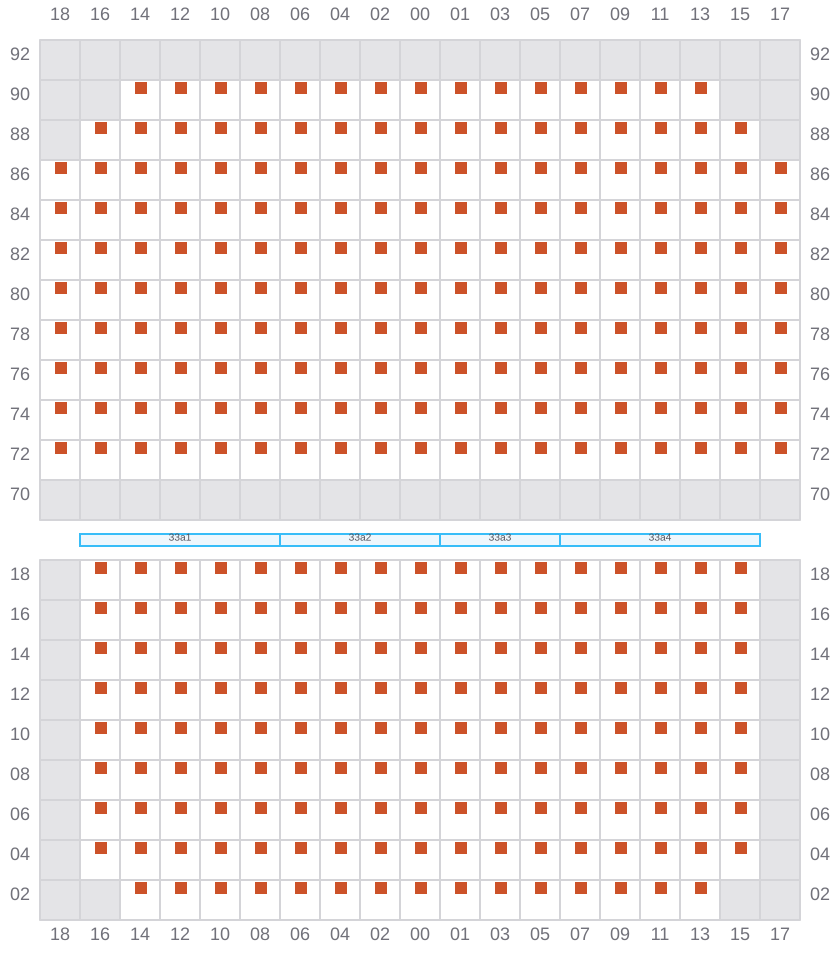

033
- →

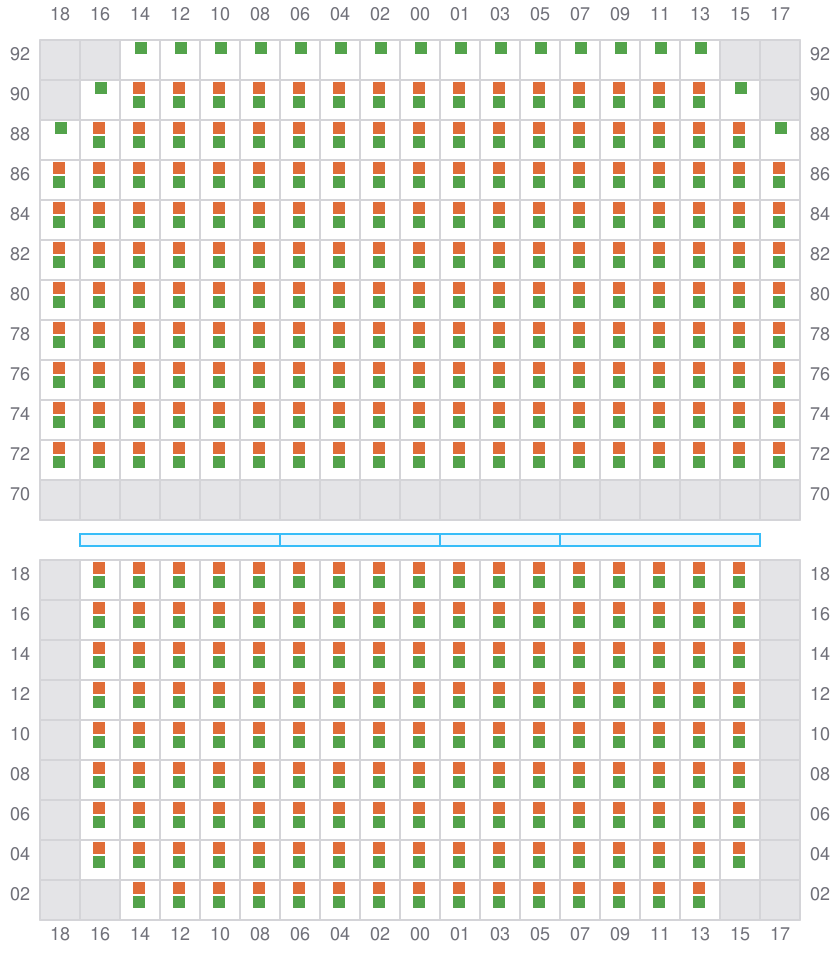

035 (034)
- ←

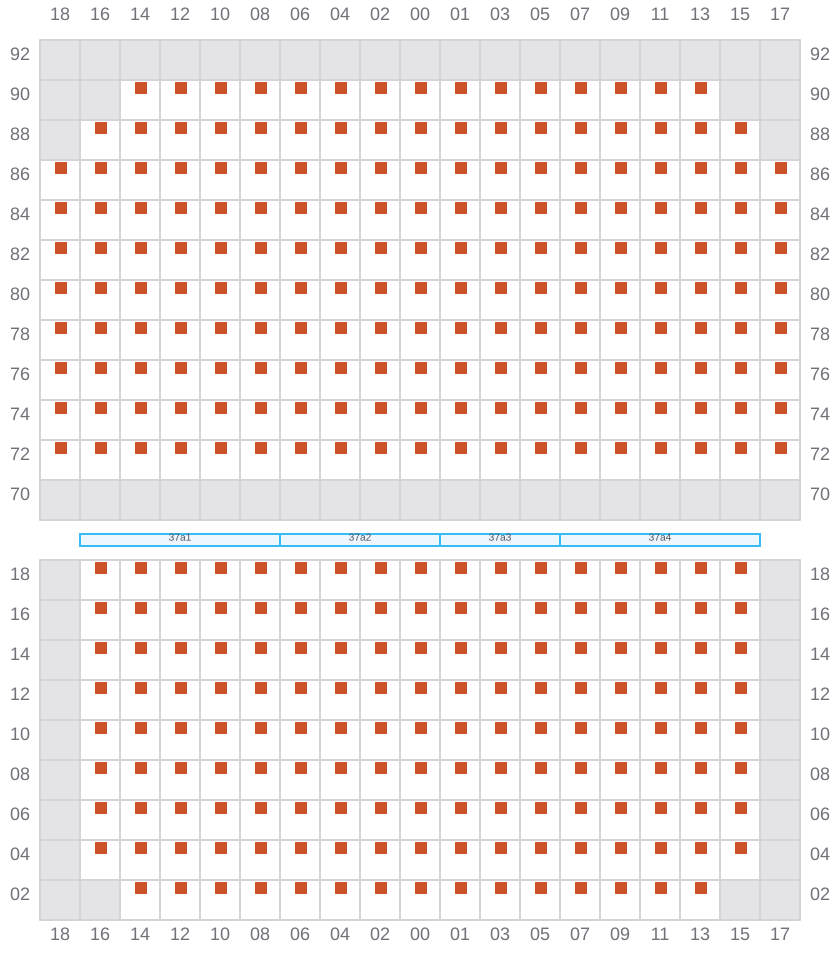

037
- →
039 (038)
- ←

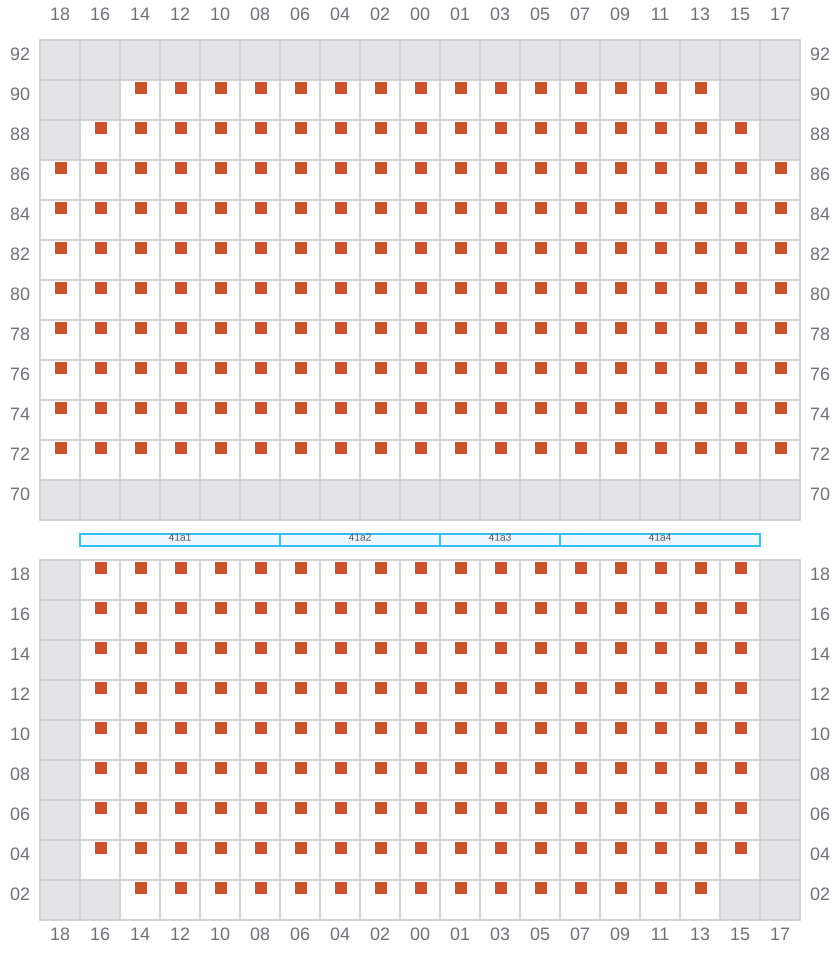

041
- →

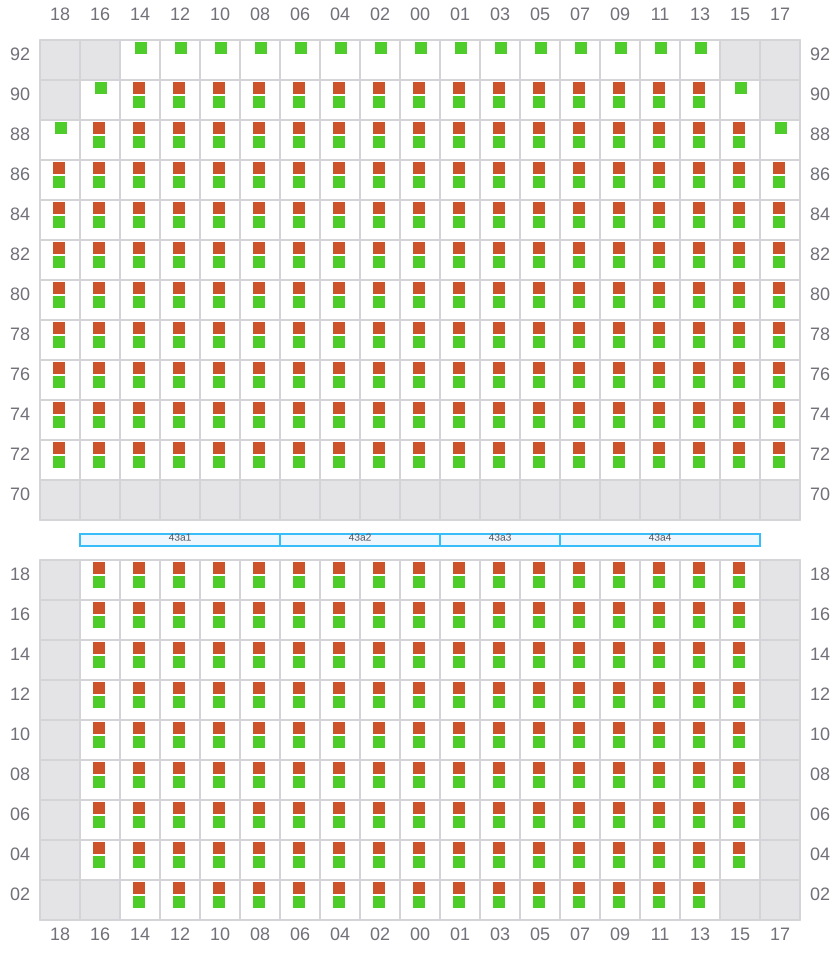

043 (042)
- ←
045
- →

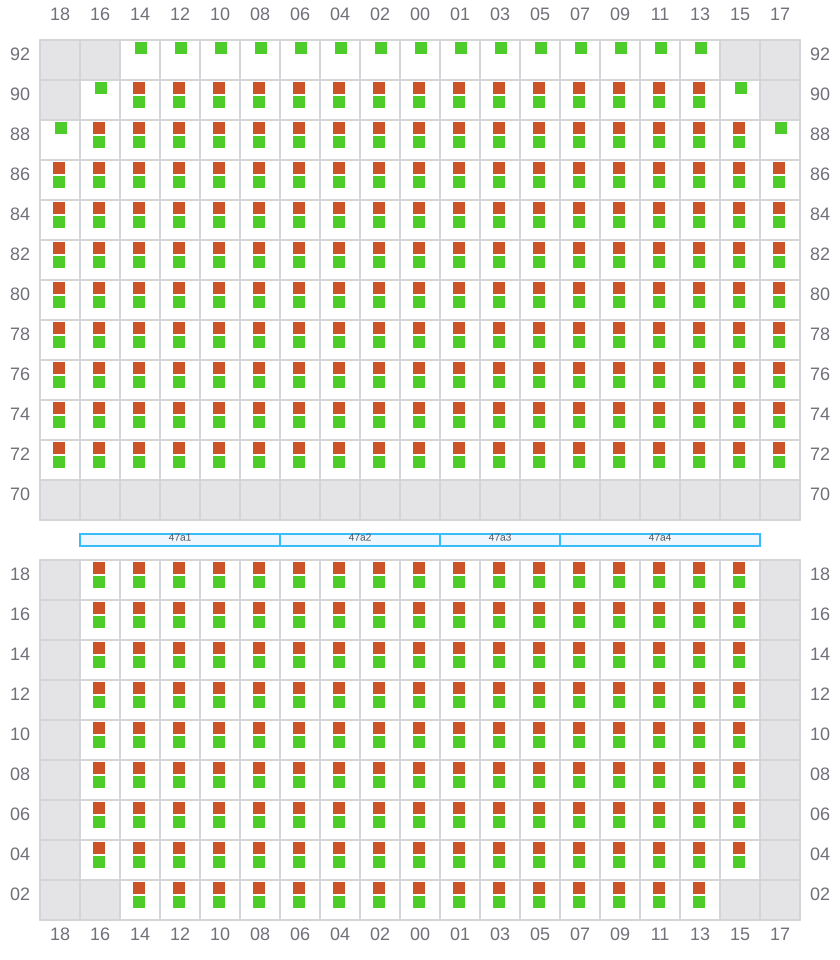

047 (046)
- ←

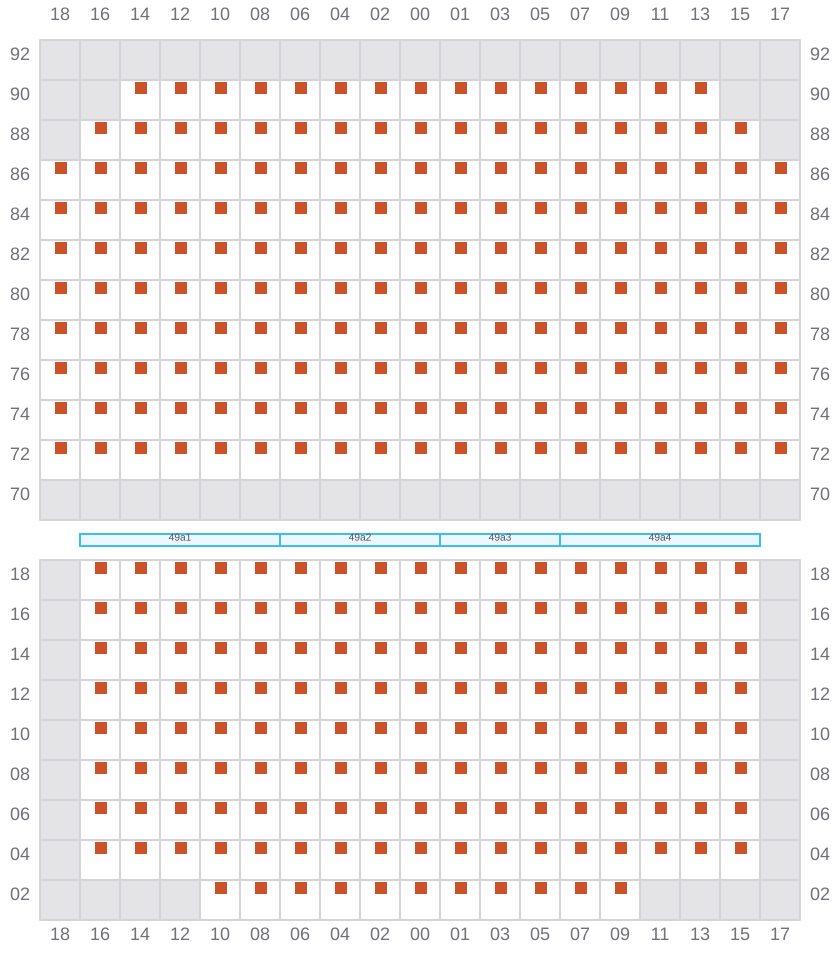

049
- →
051 (050)
- ←
053

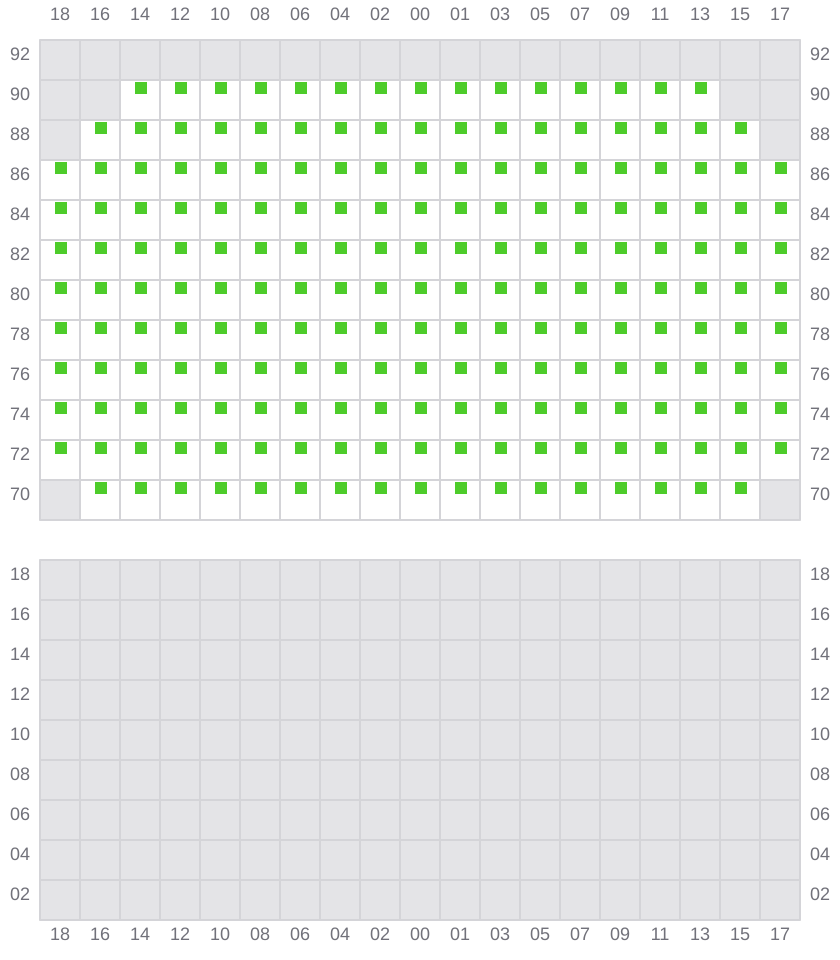

055 (054)
- ← / ?

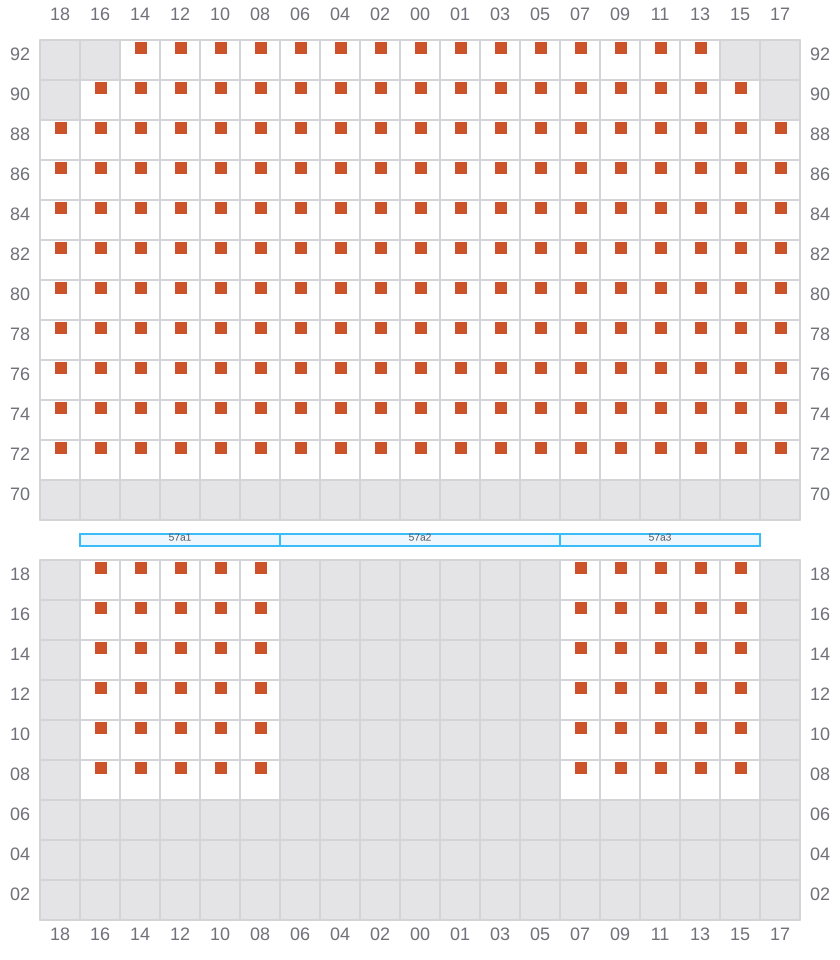

057
- →

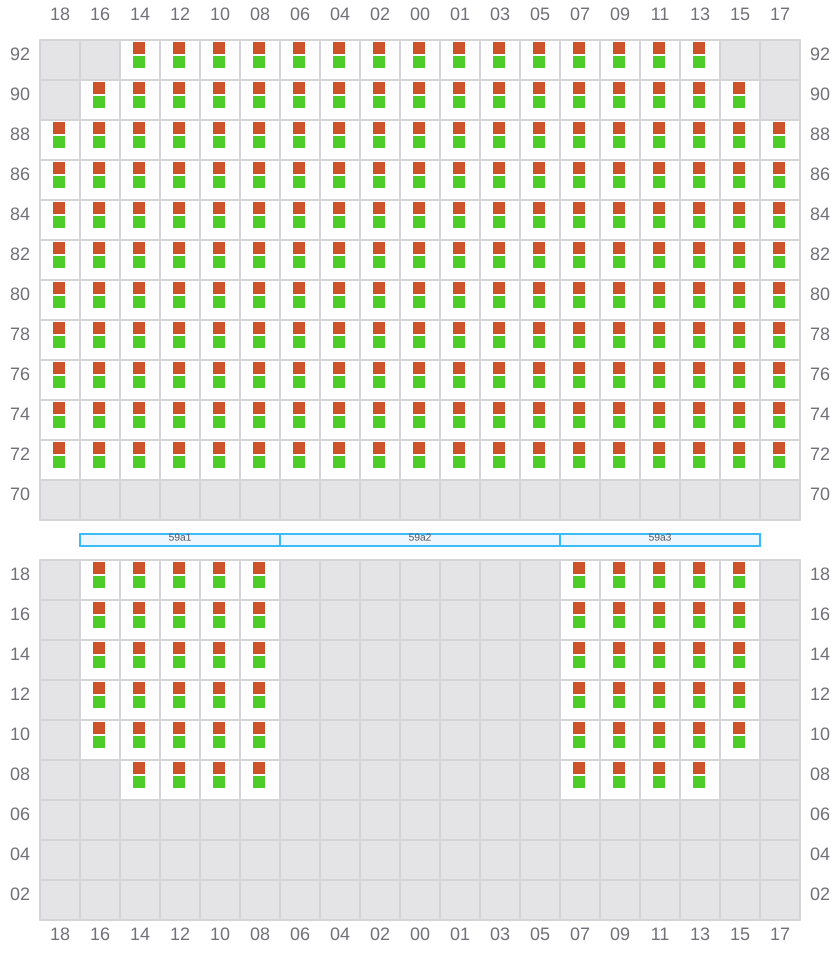

059 (058)
- ←

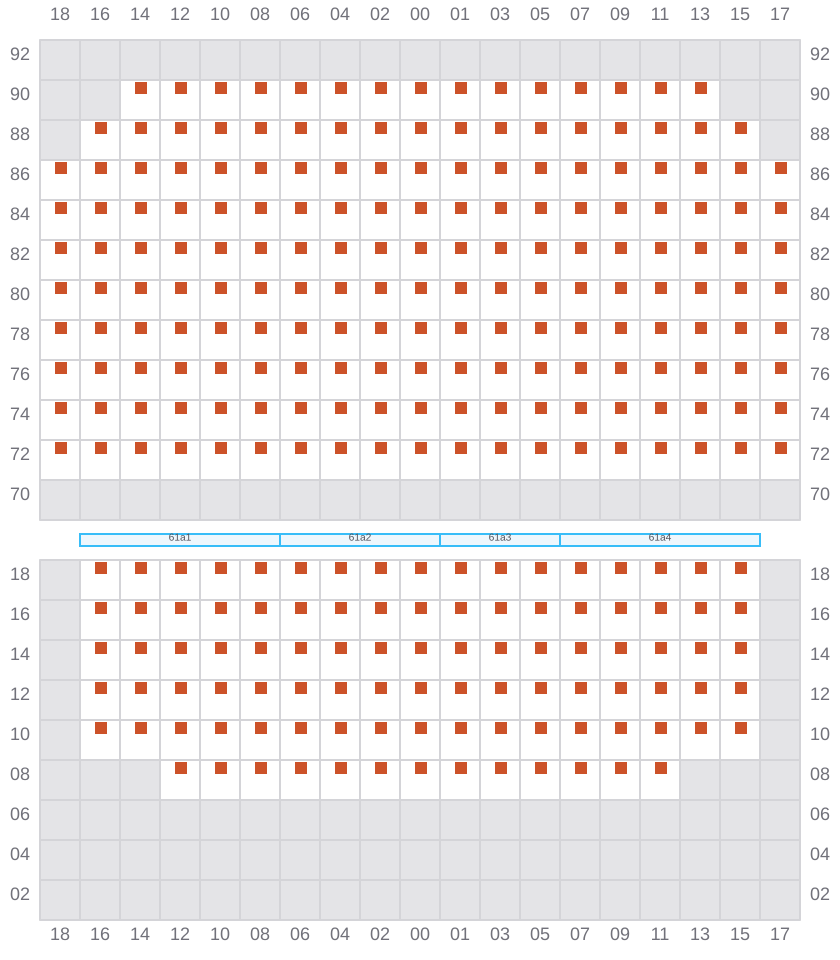

061
- →

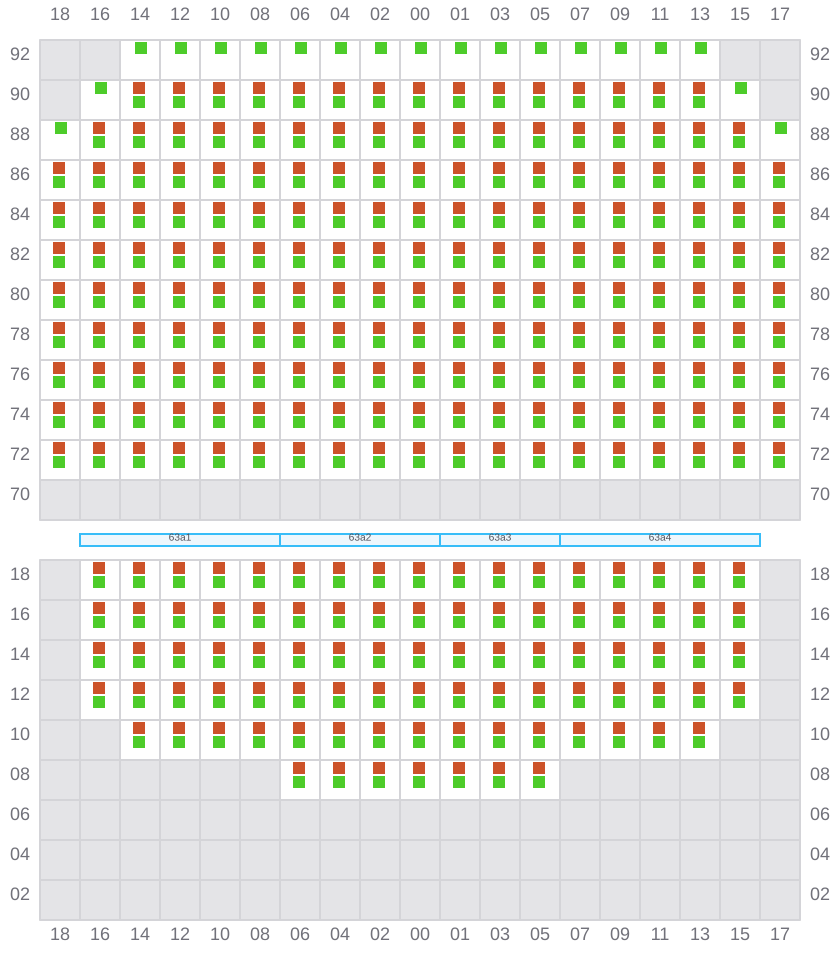

063 (062)
- ←

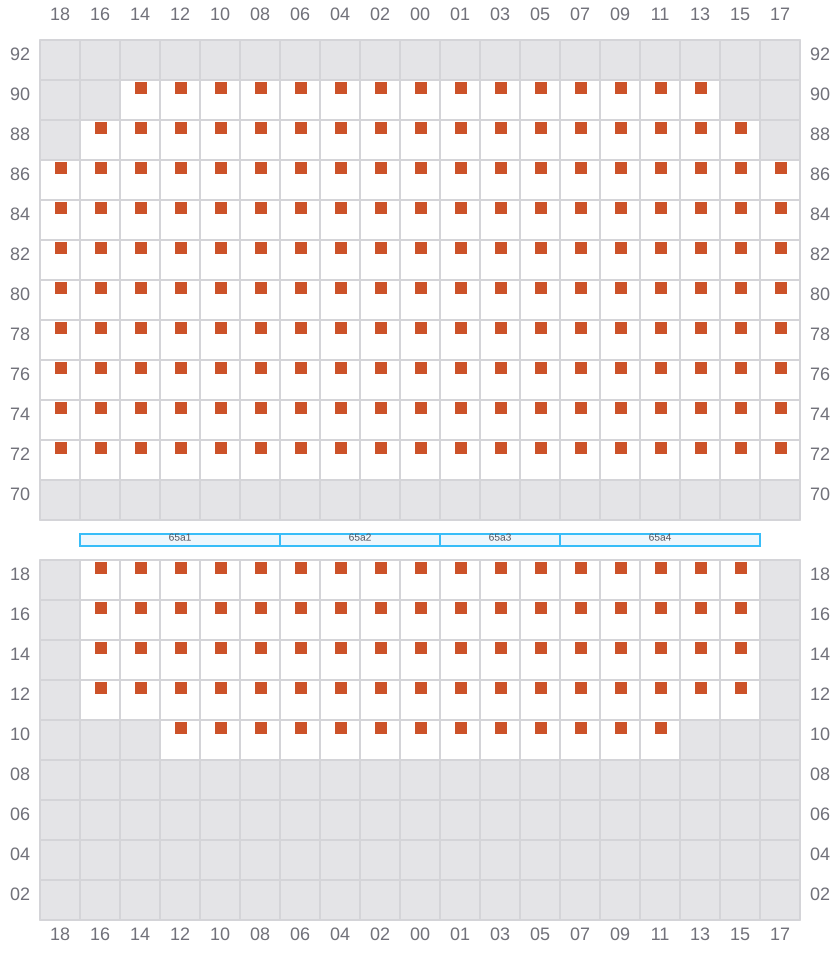

065
- →

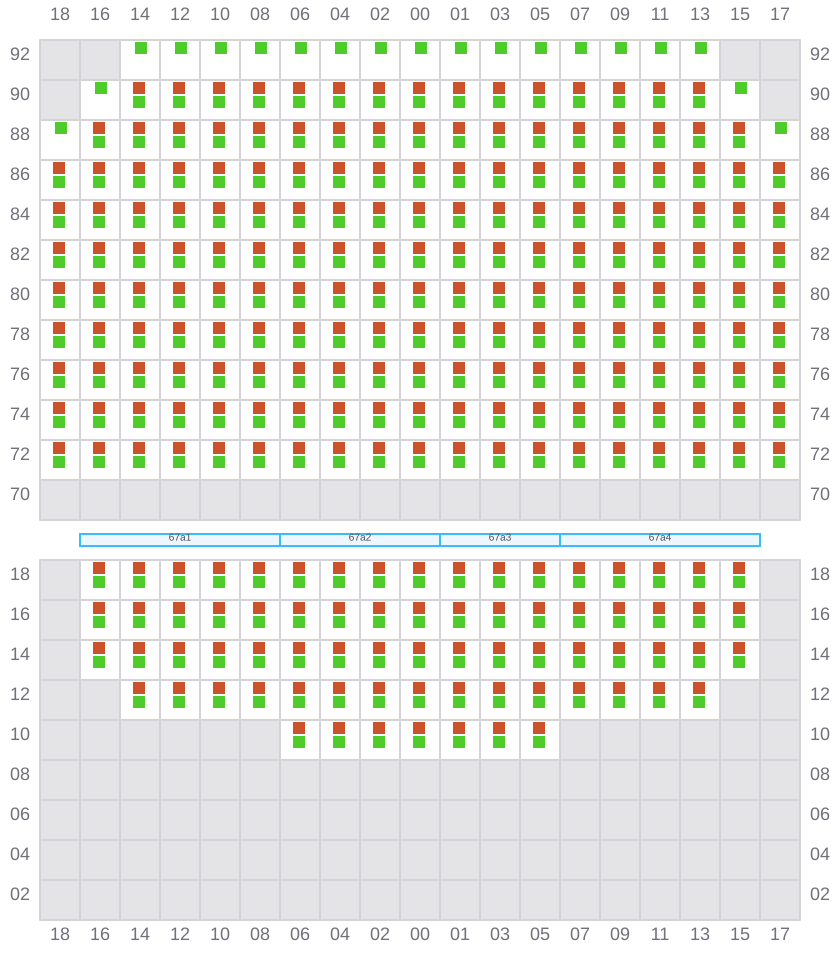

067 (066)
- ←
069

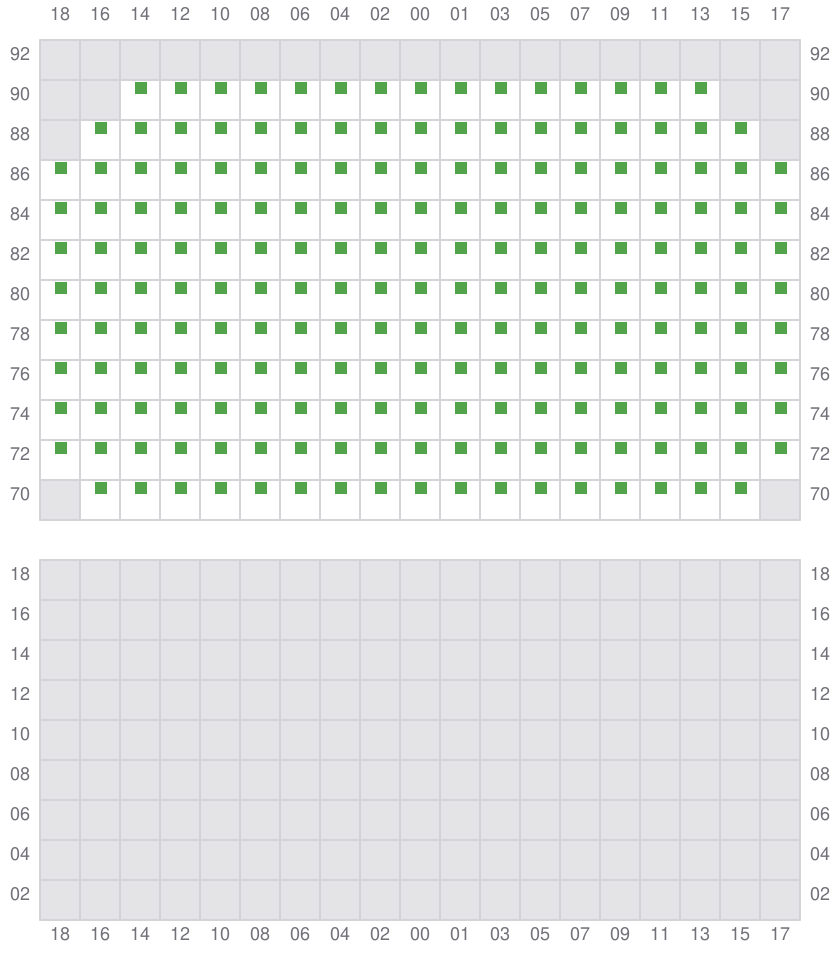

071 (070)
- ← / ?
