CMA CGM JEAN MERMOZ
9776420 | 9HA4798 | CMA by *********************** Last update: Mon Feb 10 2025

General Info

Ship Name:CMA CGM JEAN MERMOZ

IMO Code:9776420

Call Sign:9HA4798

Line Operator:CMA

Class Name for Sister Ships:CGJM

Year Built:2018

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):0.00

Stern to AFT PP:-

Features Informed:Standard

Also Known As...:-

Size Summary

ISO Bays:093

Max ISO Row:22

Center Line Row:Yes

Max Above ISO Tier:92

Min Above ISO Tier:70

Max Below ISO Tier:24

Min Below ISO Tier:02

Total TEU:20,956

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Estimated

VCG Data:0%

TCG Values:Known

TCG Data:100%

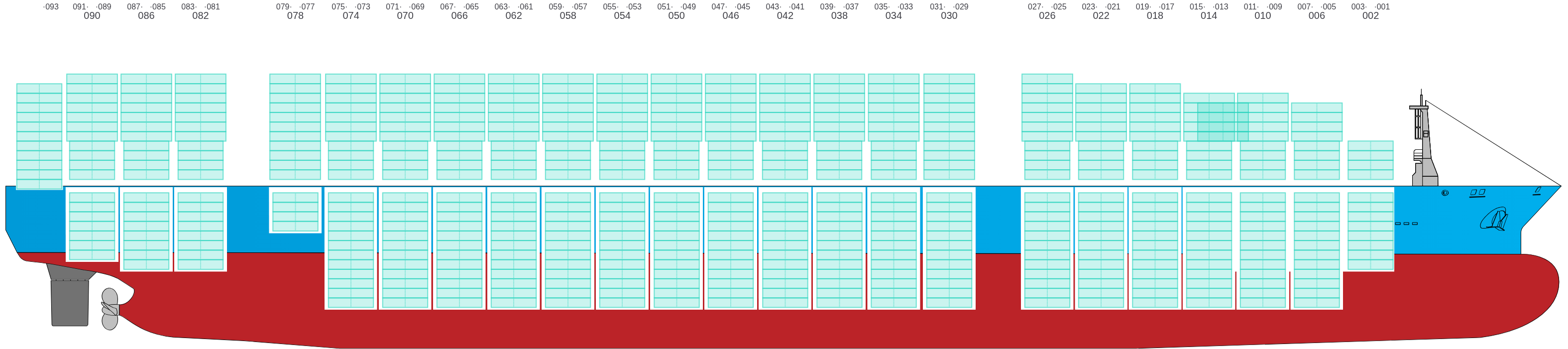

Side View

Hatch-Covers View

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

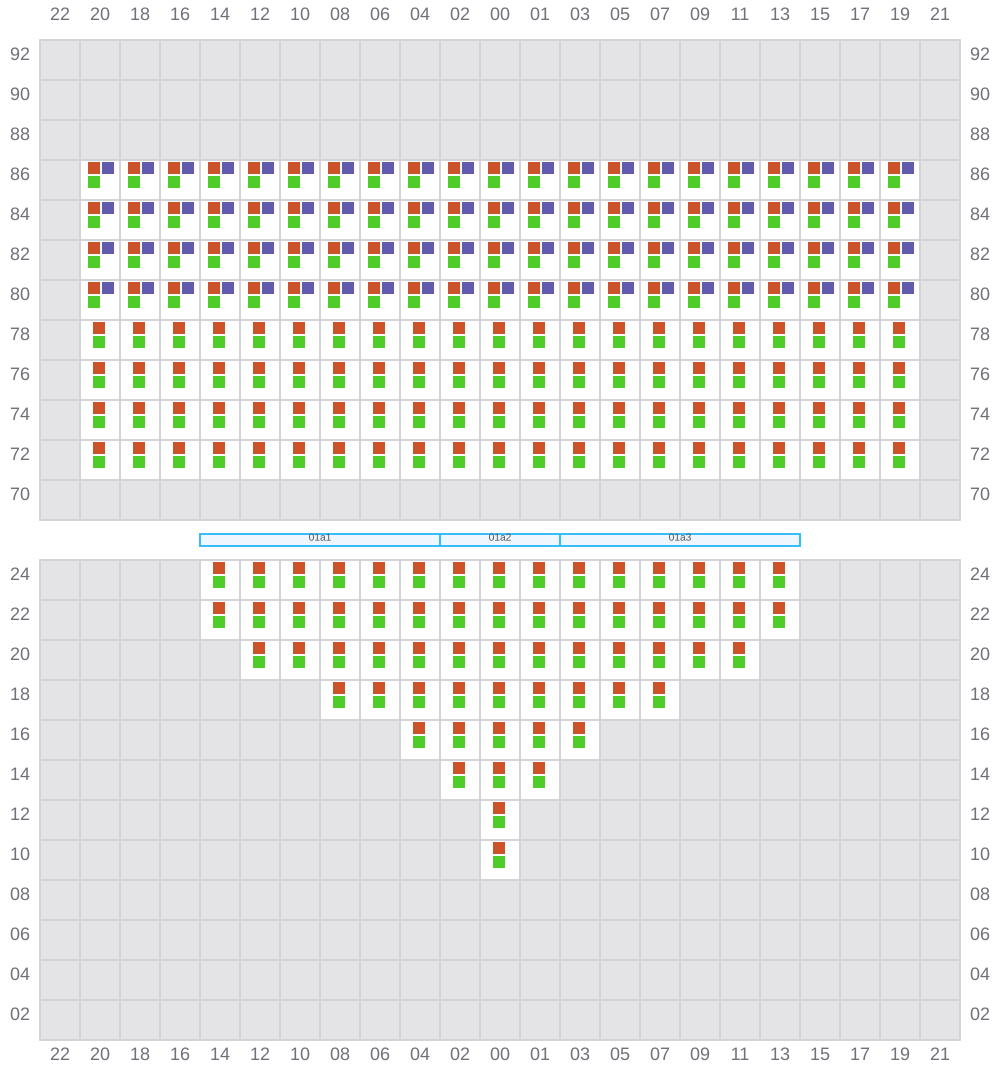

Bay 001 view and slots of CMA CGM JEAN MERMOZ

003

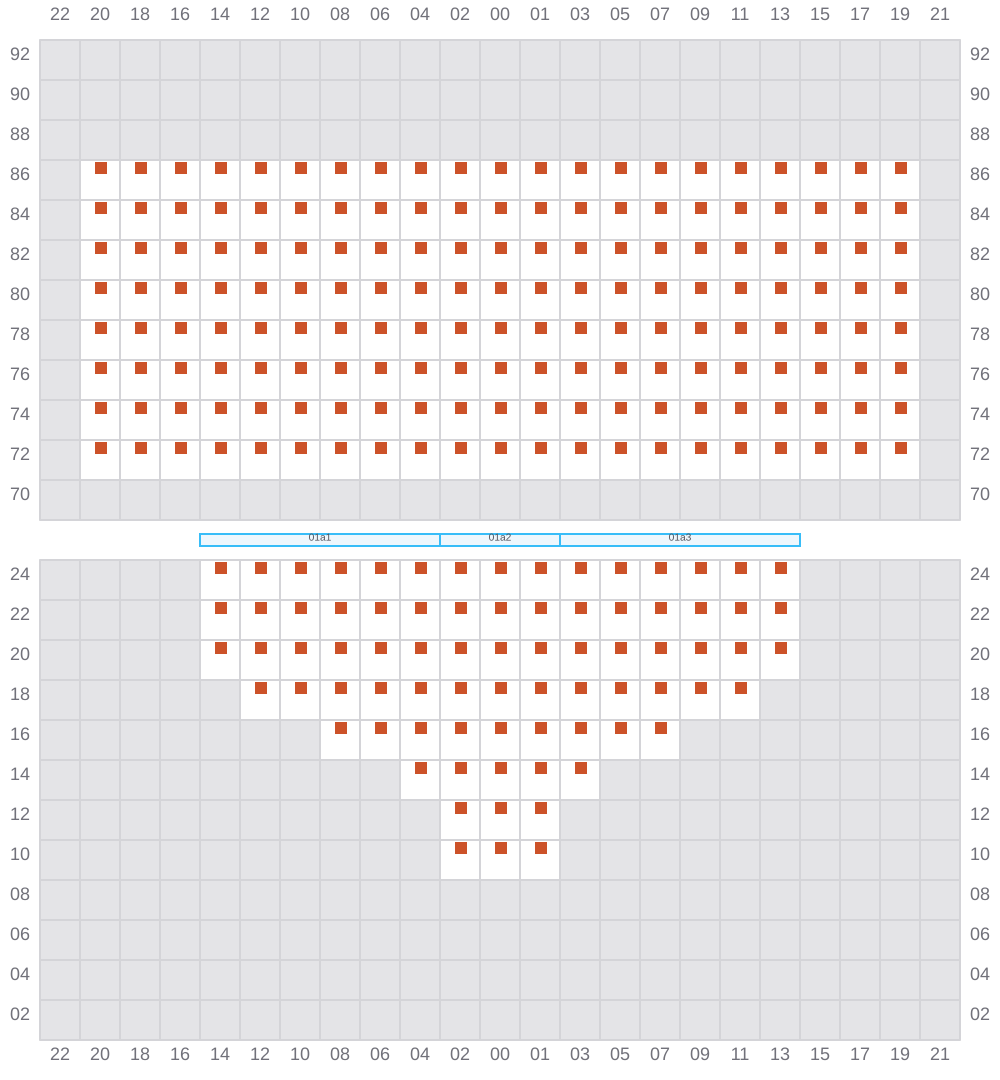

Bay 003 view and slots of CMA CGM JEAN MERMOZ

005 (006)

→
^→ / _?
→

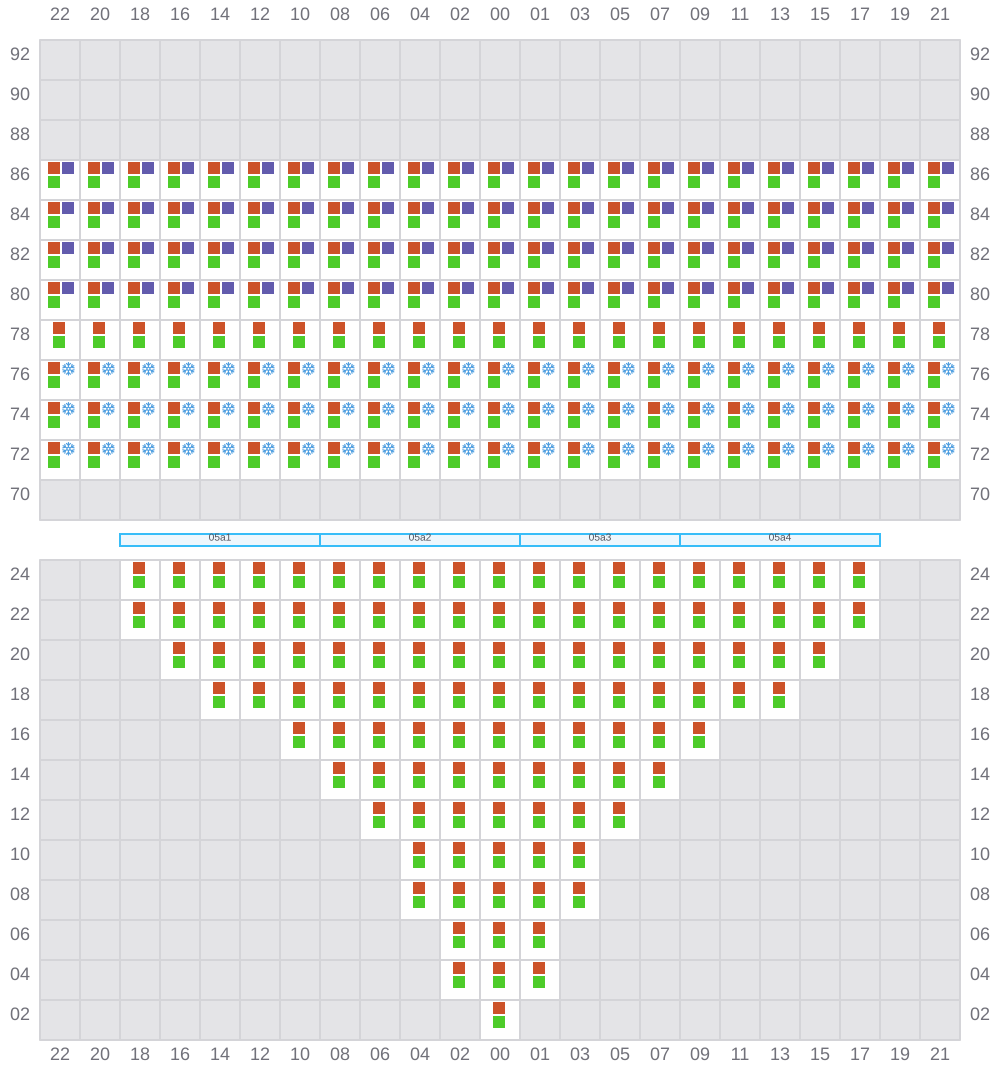

Bay 005 view and slots of CMA CGM JEAN MERMOZ

007

←
^→ / _?
→

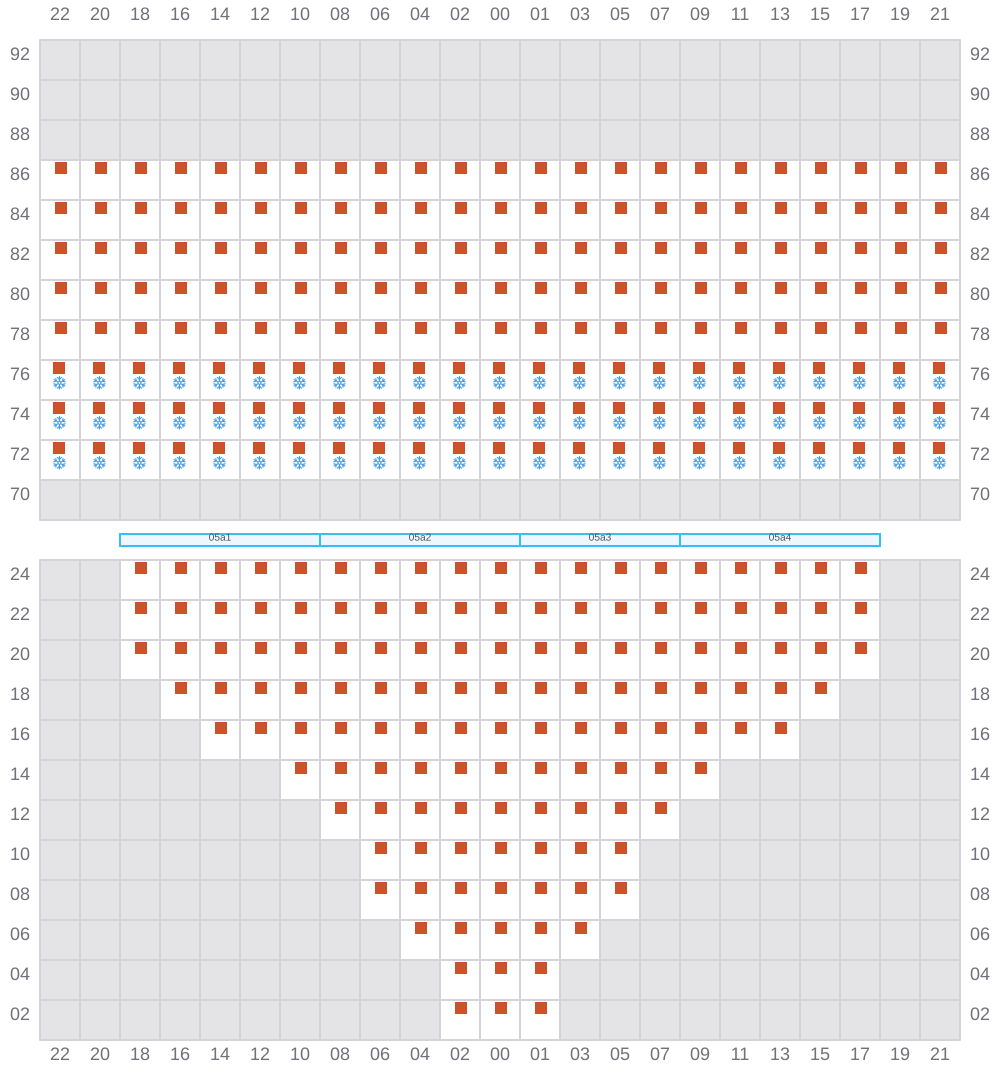

Bay 007 view and slots of CMA CGM JEAN MERMOZ

009 (010)

→
^→ / _?
→

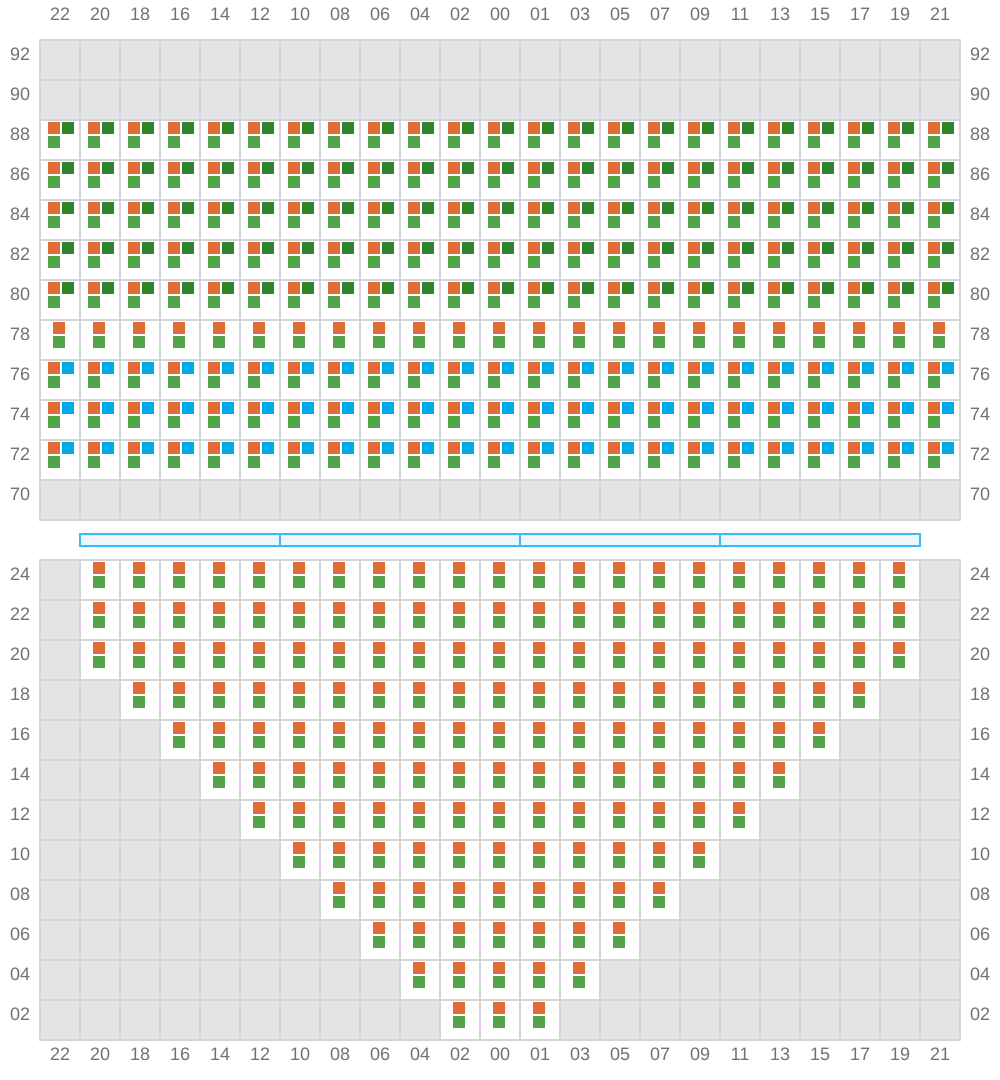

Bay 009 view and slots of CMA CGM JEAN MERMOZ

011

←
^→ / _?
→

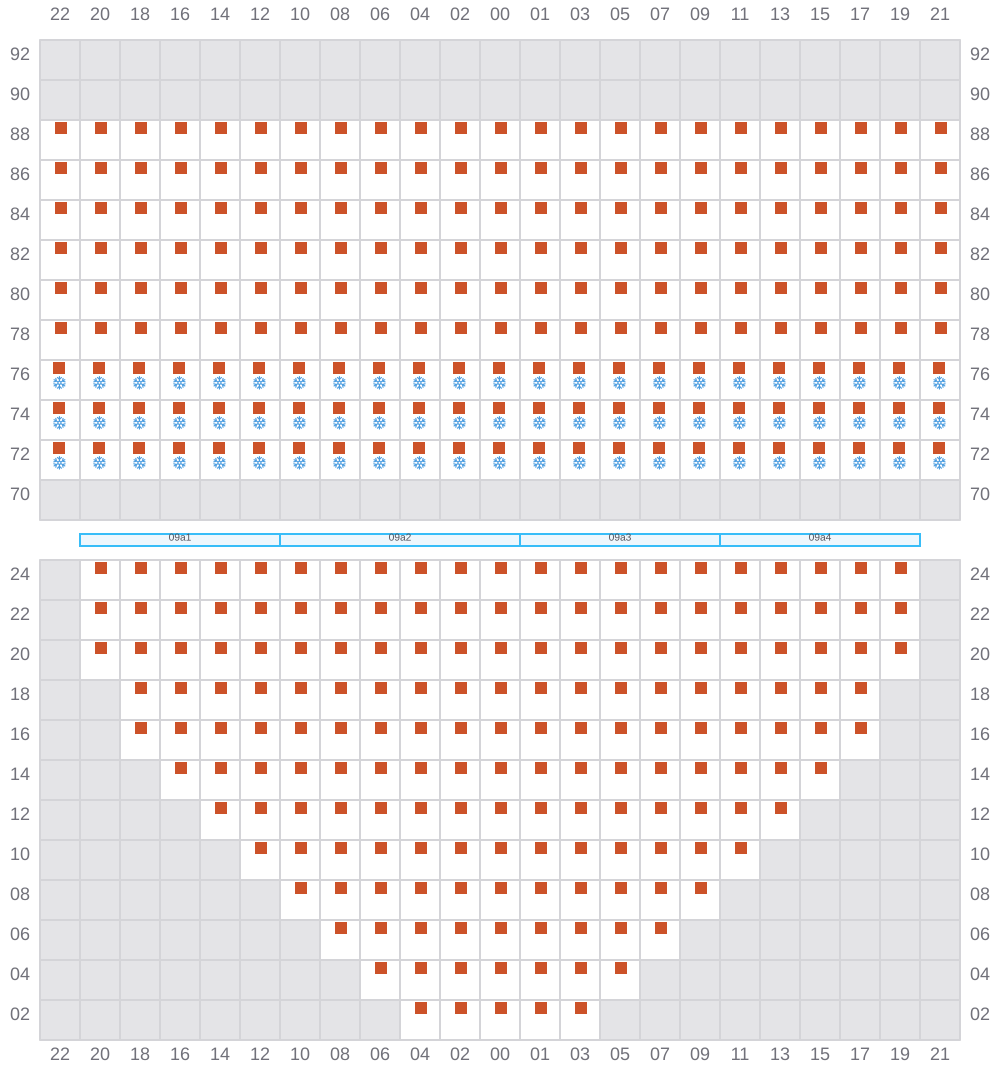

Bay 011 view and slots of CMA CGM JEAN MERMOZ

013 (014)

→
^→ / _?
→

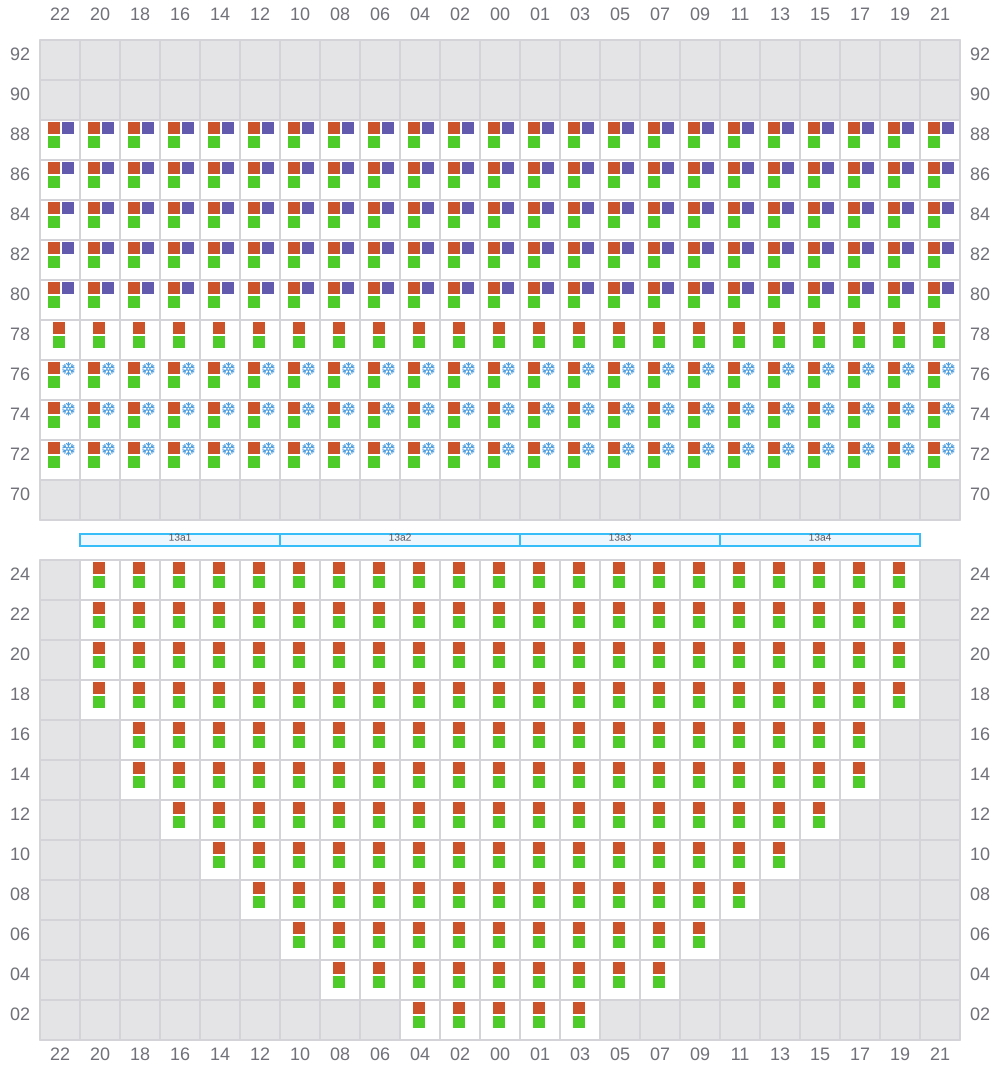

Bay 013 view and slots of CMA CGM JEAN MERMOZ

015

←
^→ / _?
→

Bay 015 view and slots of CMA CGM JEAN MERMOZ

017 (018)

→
^→ / _?
→

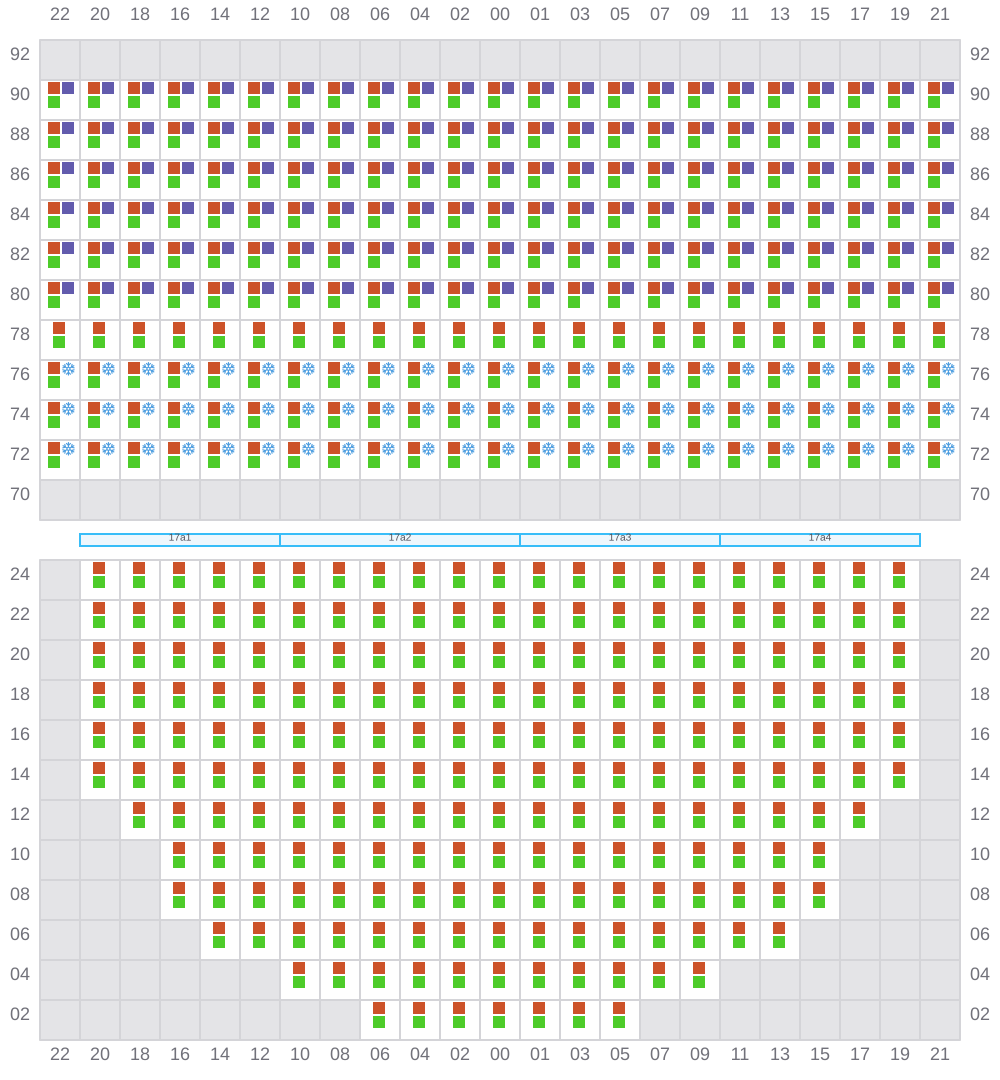

Bay 017 view and slots of CMA CGM JEAN MERMOZ

019

←
^→ / _?
→

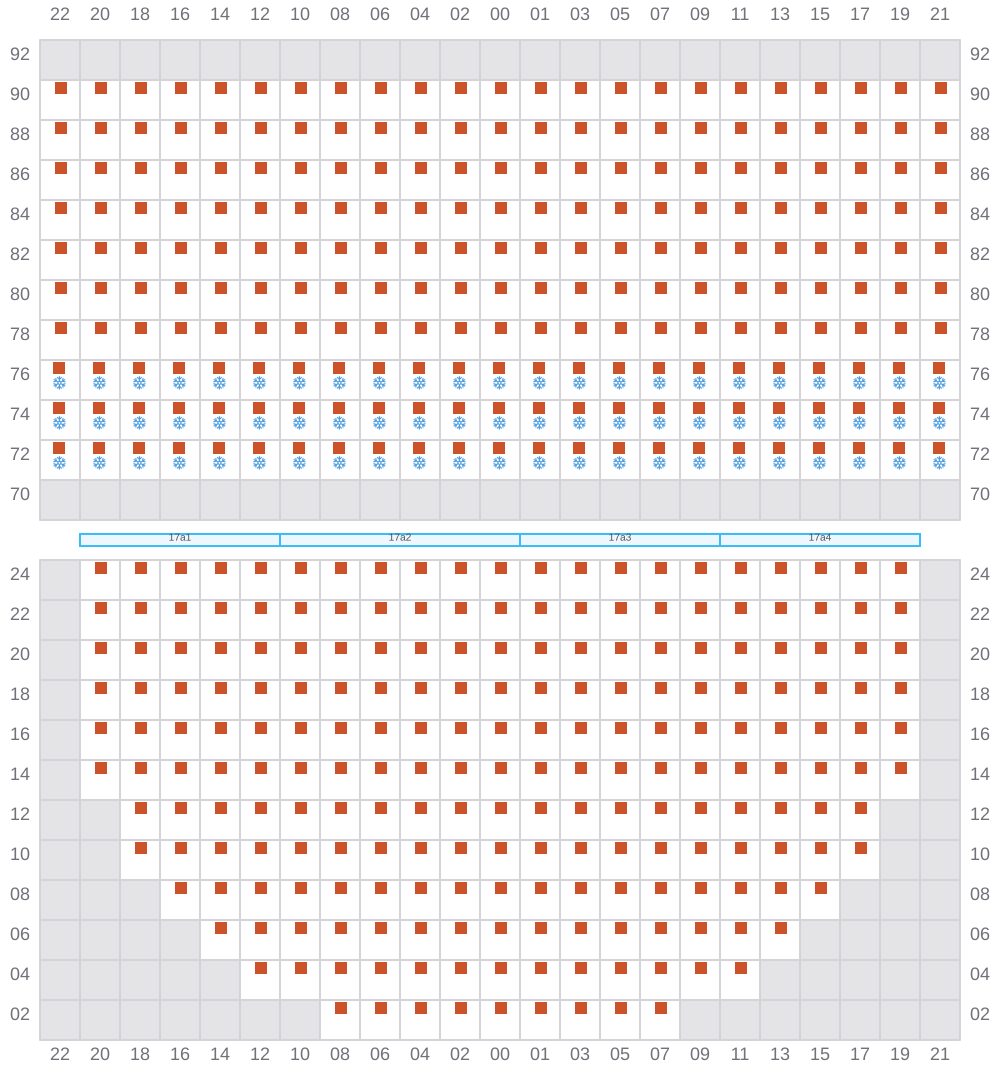

Bay 019 view and slots of CMA CGM JEAN MERMOZ

021 (022)

→
^→ / _?
→

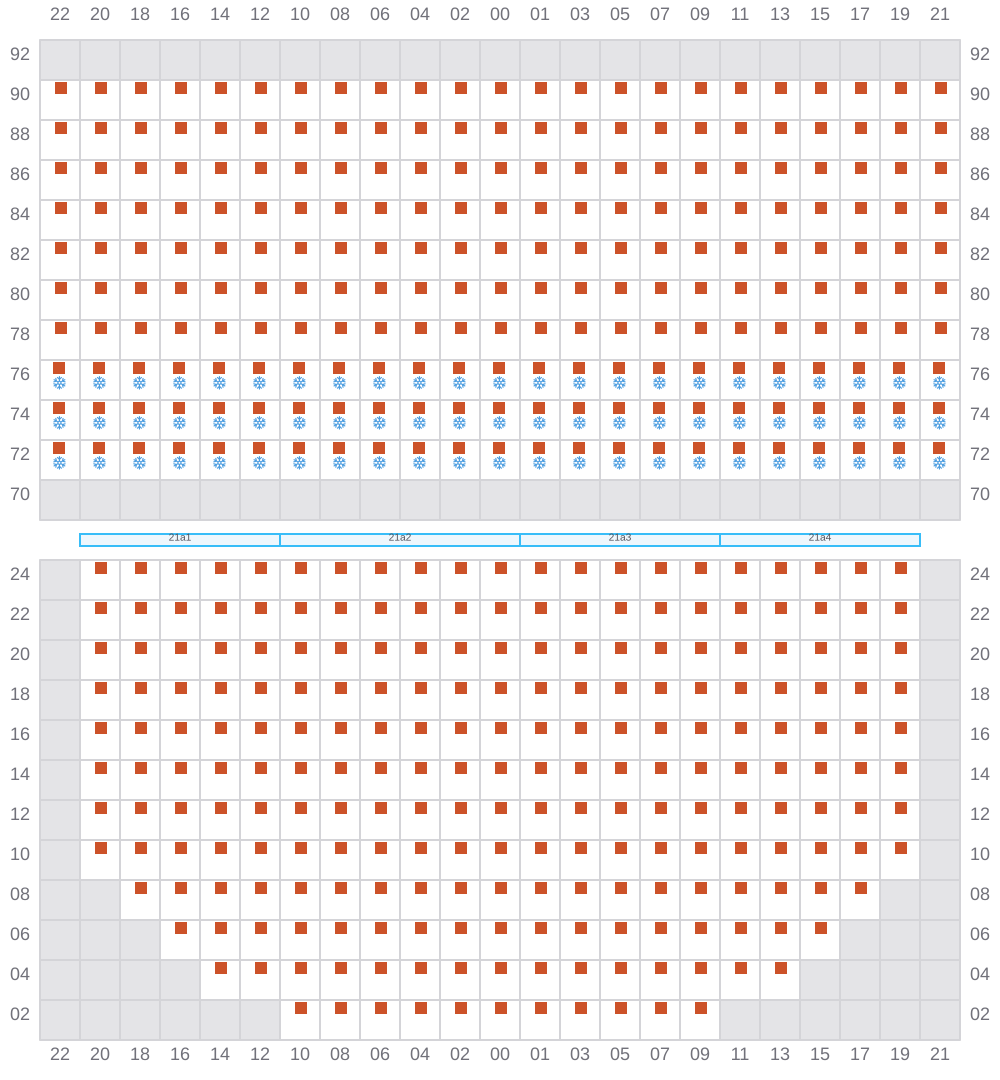

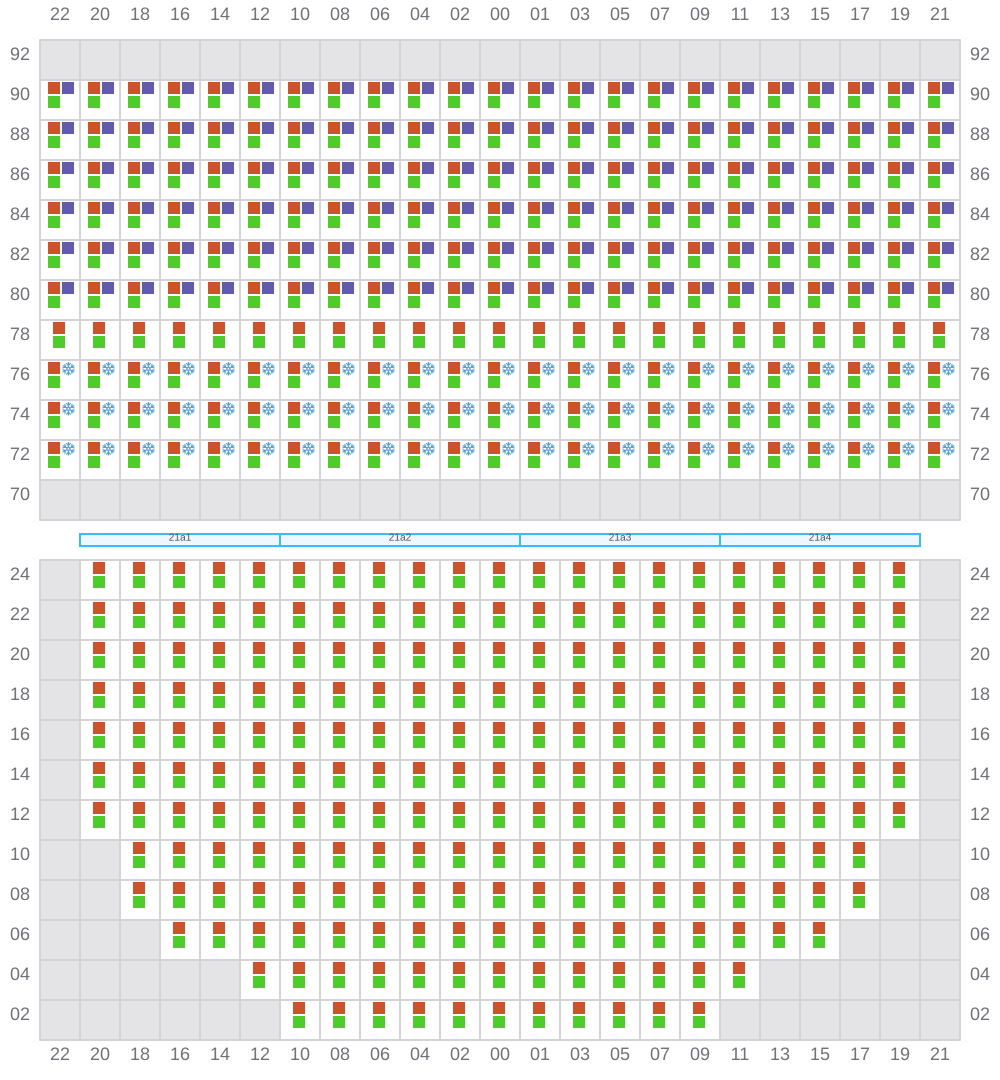

Bay 021 view and slots of CMA CGM JEAN MERMOZ

023

←
^→ / _?
→

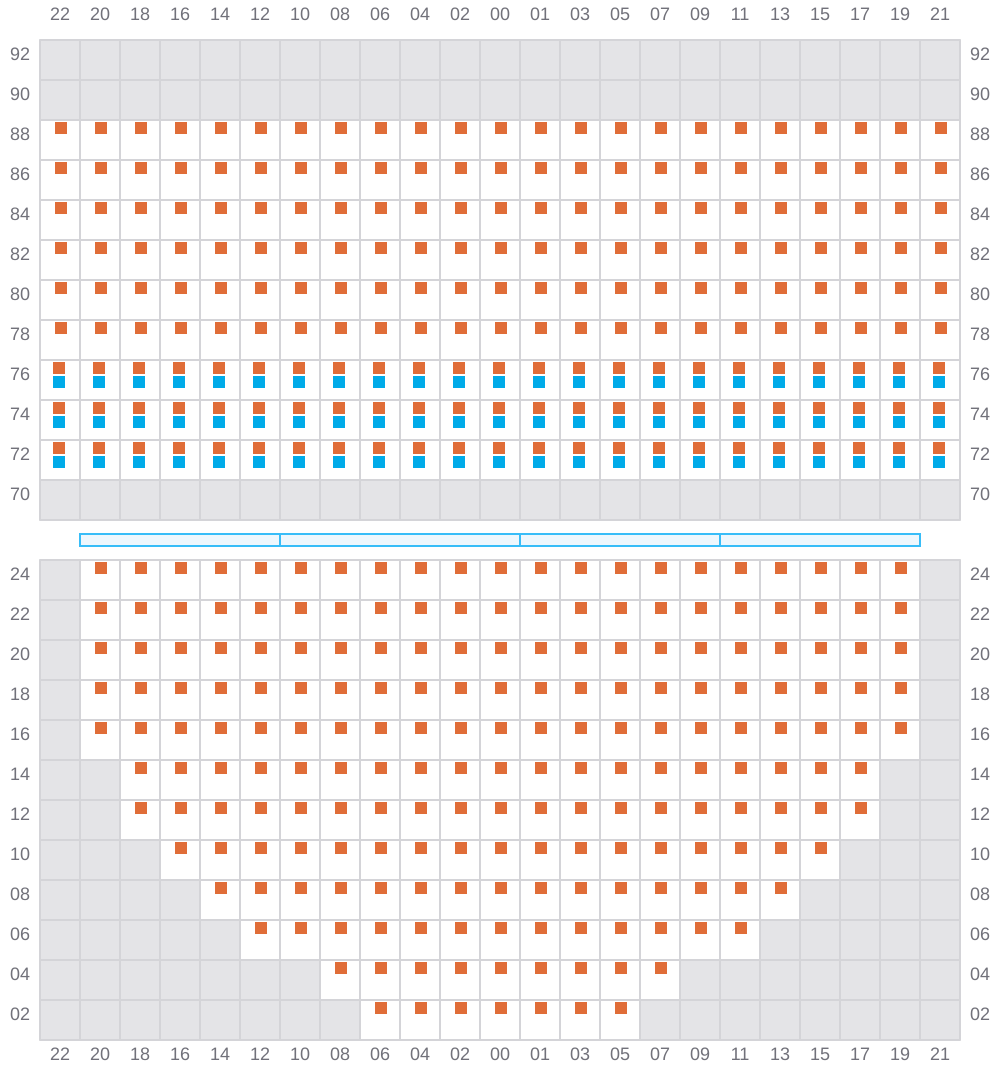

Bay 023 view and slots of CMA CGM JEAN MERMOZ

025 (026)

→
^← / _?
→

Bay 025 view and slots of CMA CGM JEAN MERMOZ

027

←
^→ / _?
→

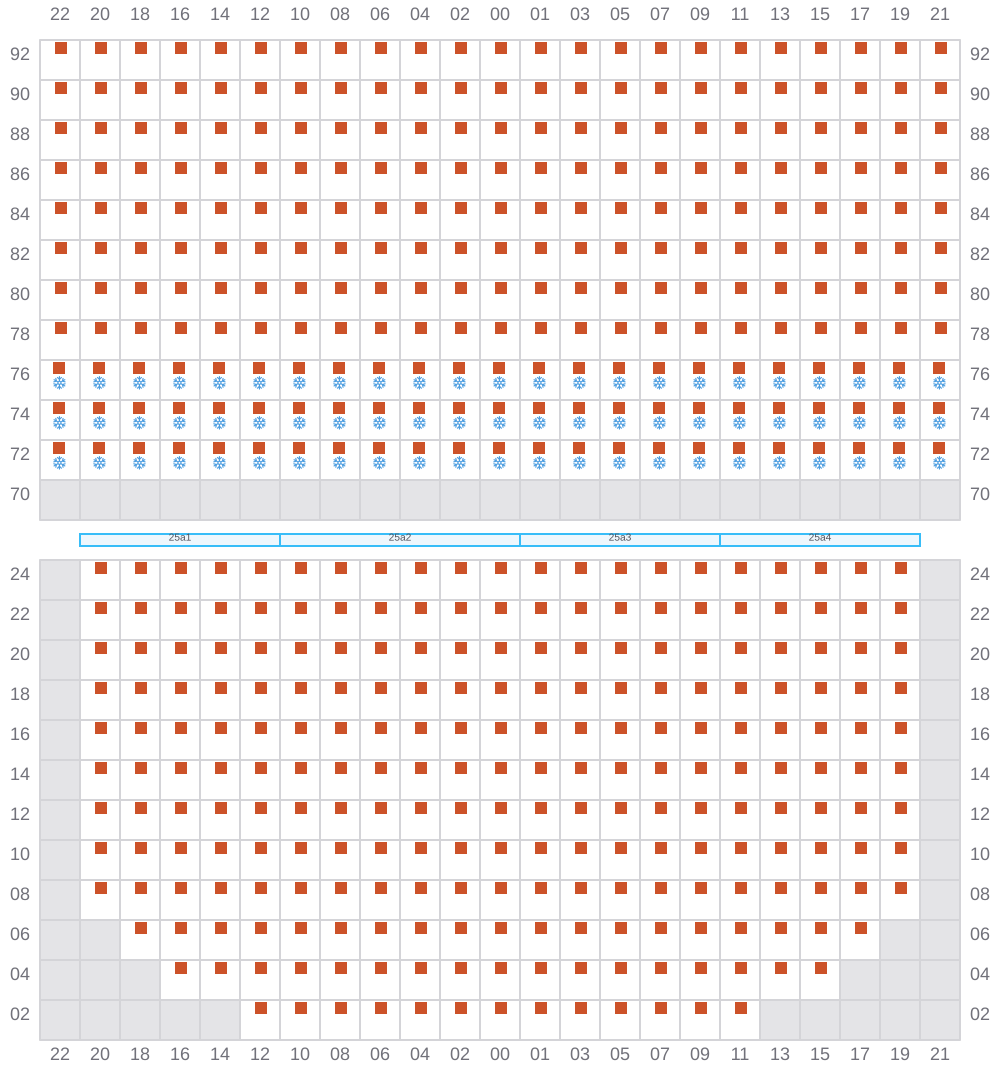

Bay 027 view and slots of CMA CGM JEAN MERMOZ

029 (030)

→
^→ / _?
→

Bay 029 view and slots of CMA CGM JEAN MERMOZ

031

←
^→ / _?
→

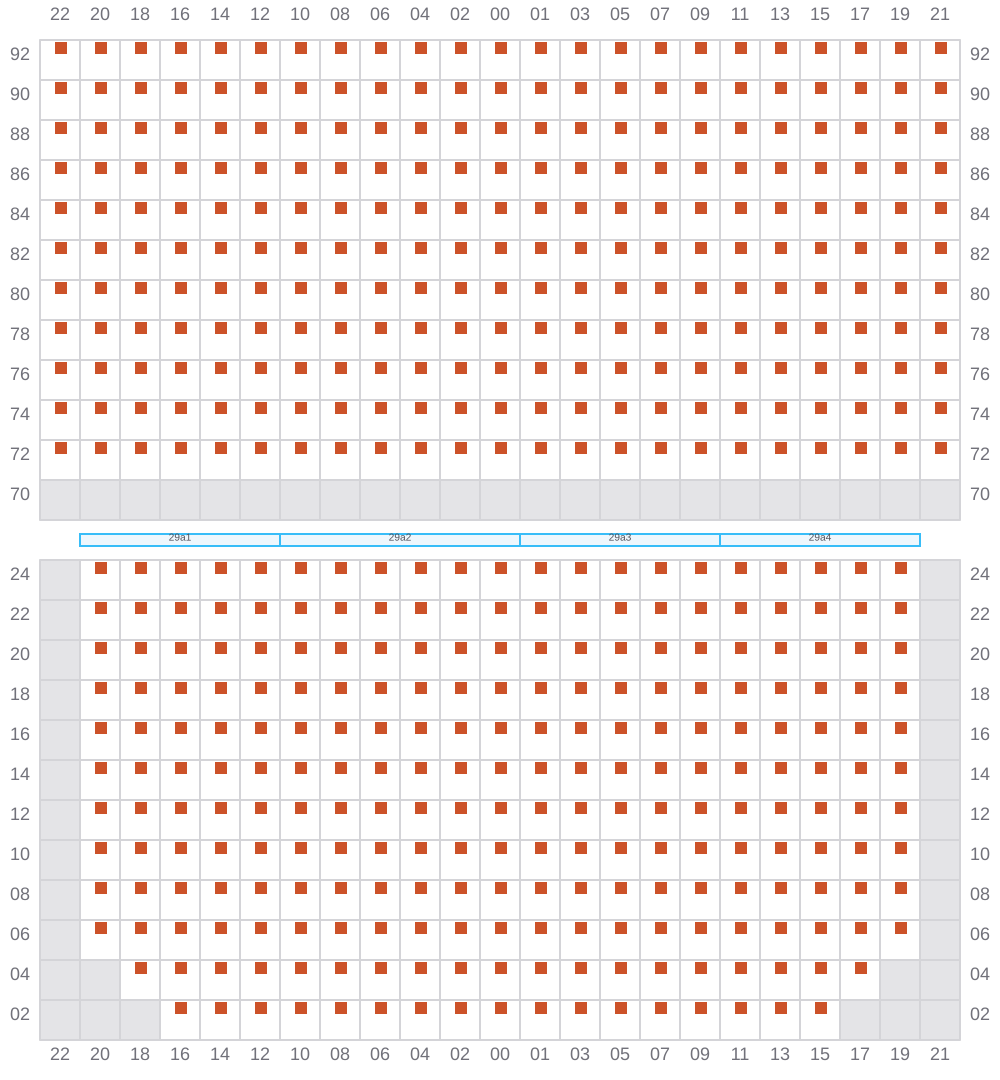

Bay 031 view and slots of CMA CGM JEAN MERMOZ

033 (034)

→
^→ / _?
→

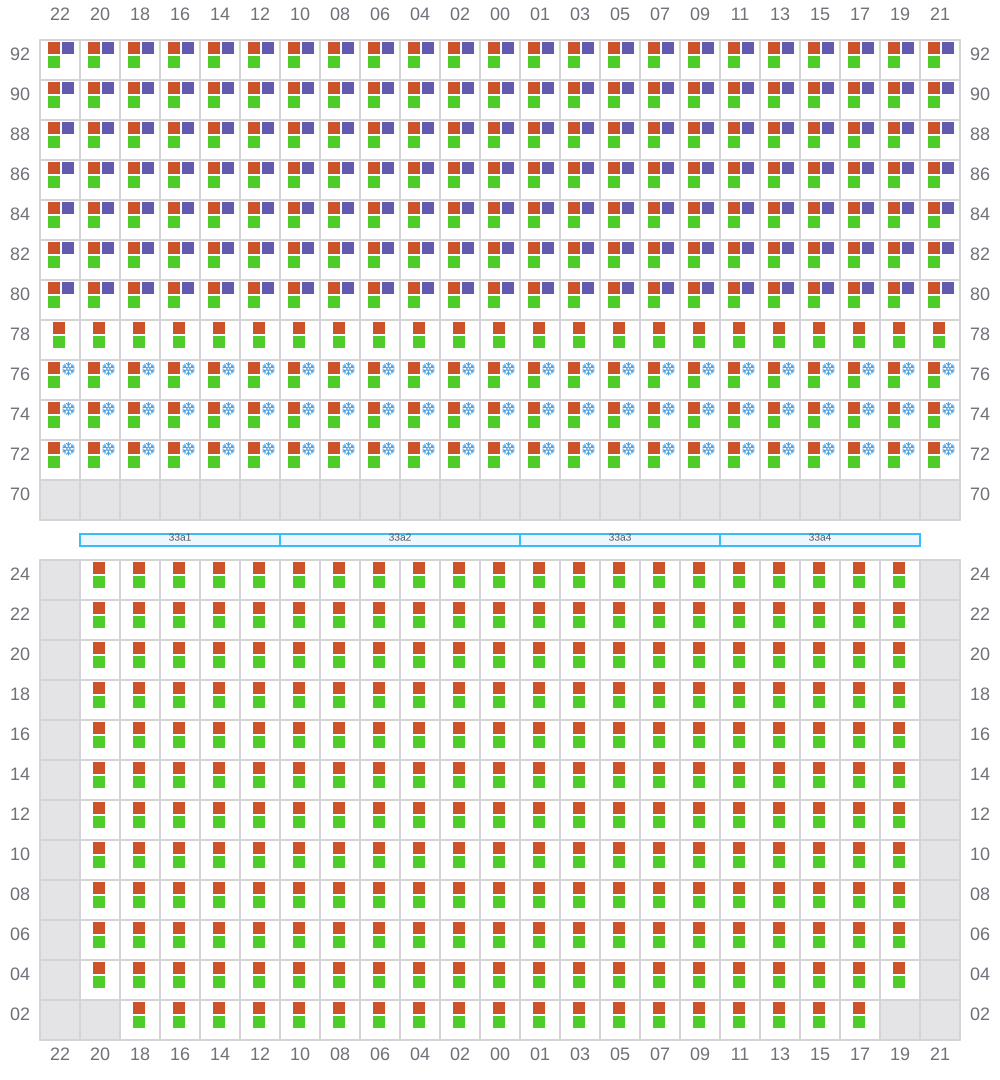

Bay 033 view and slots of CMA CGM JEAN MERMOZ

035

←
^→ / _?
→

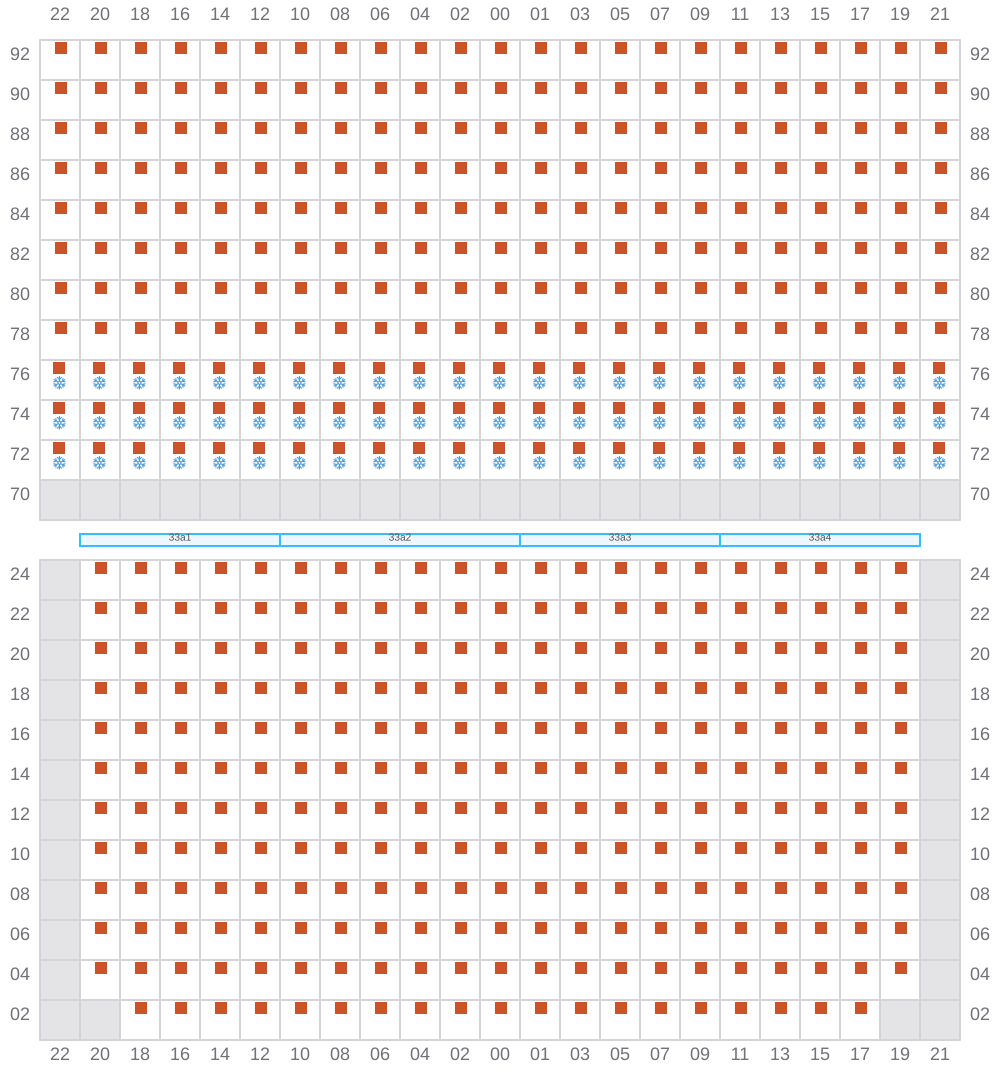

Bay 035 view and slots of CMA CGM JEAN MERMOZ

037 (038)

→
^→ / _?
→

Bay 037 view and slots of CMA CGM JEAN MERMOZ

039

←
^→ / _?
→

Bay 039 view and slots of CMA CGM JEAN MERMOZ

041 (042)

→
^→ / _?
→

Bay 041 view and slots of CMA CGM JEAN MERMOZ

043

←
^→ / _?
→

Bay 043 view and slots of CMA CGM JEAN MERMOZ

045 (046)

→
^→ / _?
→

Bay 045 view and slots of CMA CGM JEAN MERMOZ

047

←
^→ / _?
→

Bay 047 view and slots of CMA CGM JEAN MERMOZ

049 (050)

→
^→ / _?
→

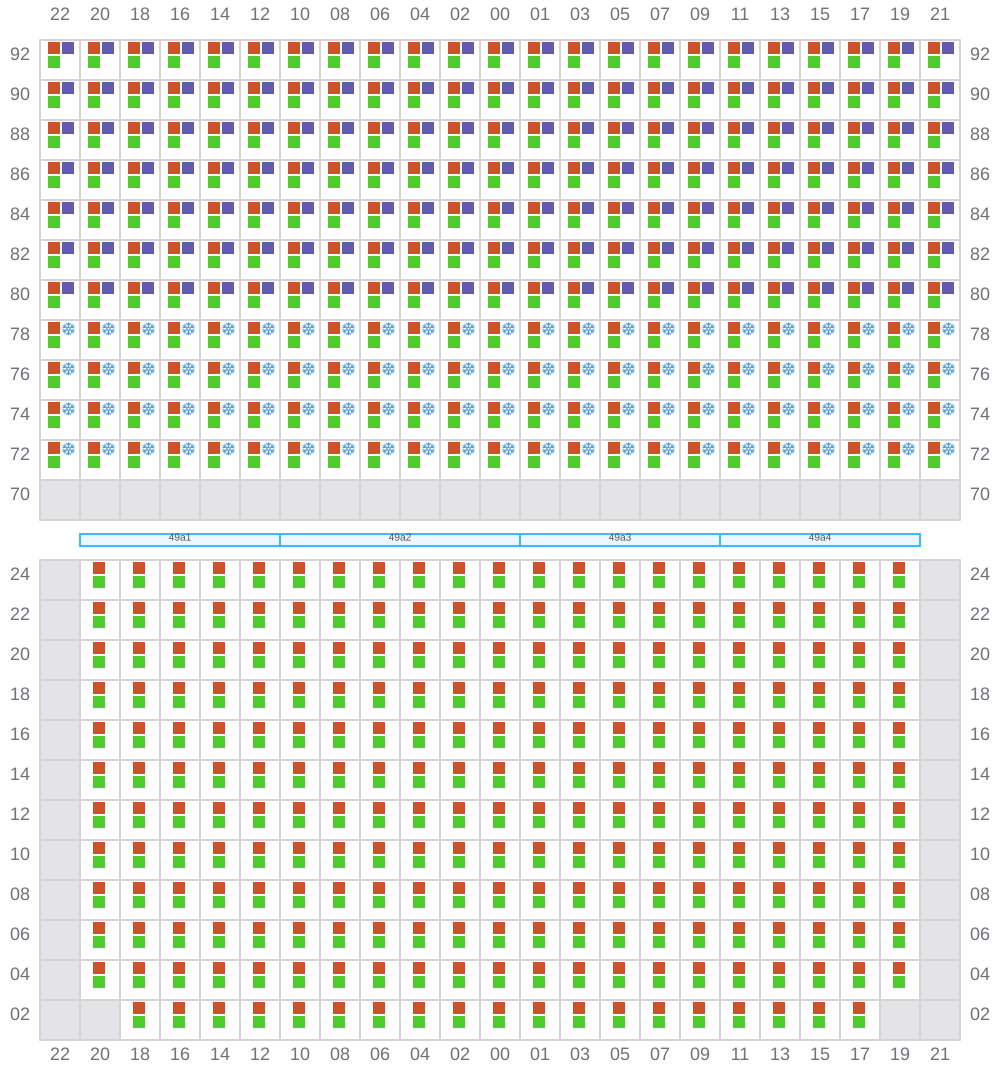

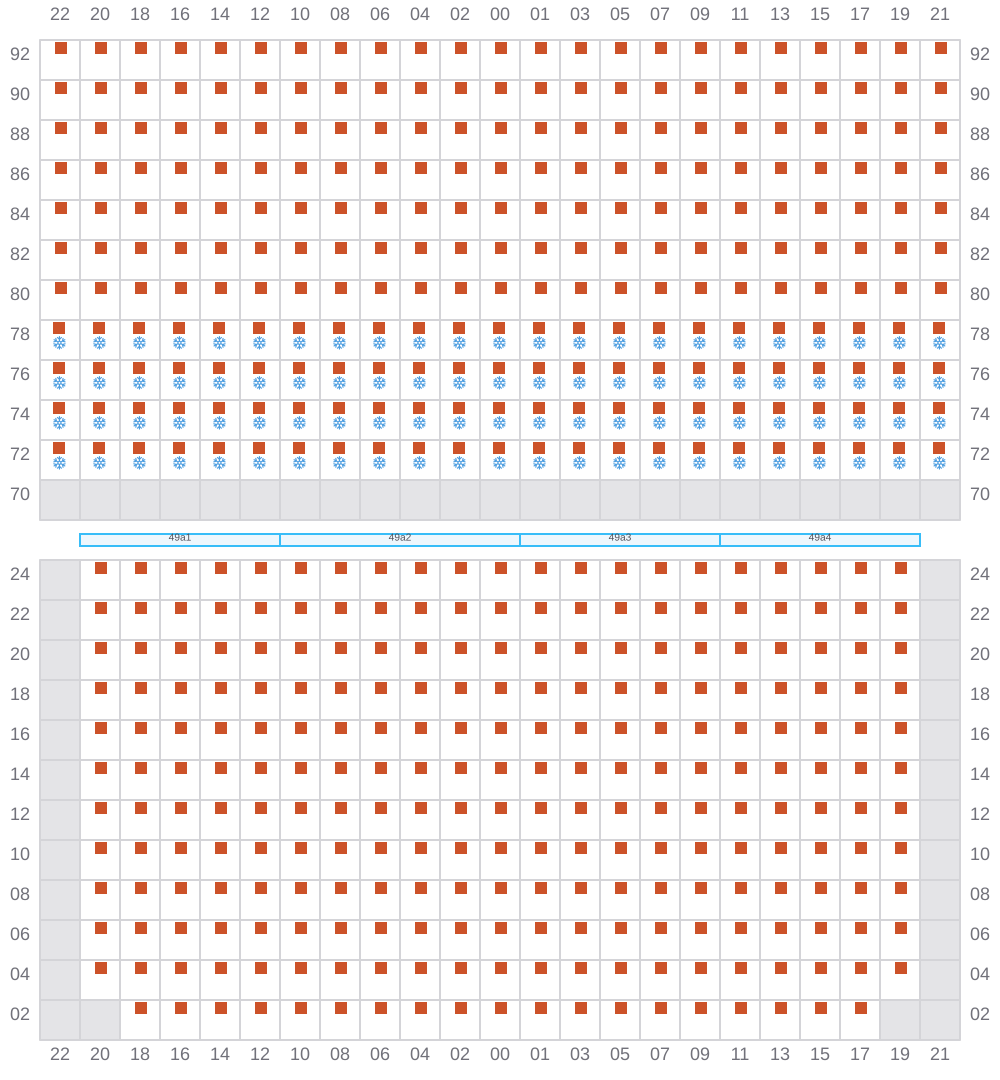

Bay 049 view and slots of CMA CGM JEAN MERMOZ

051

←
^→ / _?
→

Bay 051 view and slots of CMA CGM JEAN MERMOZ

053 (054)

→
^→ / _?
→

Bay 053 view and slots of CMA CGM JEAN MERMOZ

055

←
^→ / _?
→

Bay 055 view and slots of CMA CGM JEAN MERMOZ

057 (058)

→
^→ / _?
→

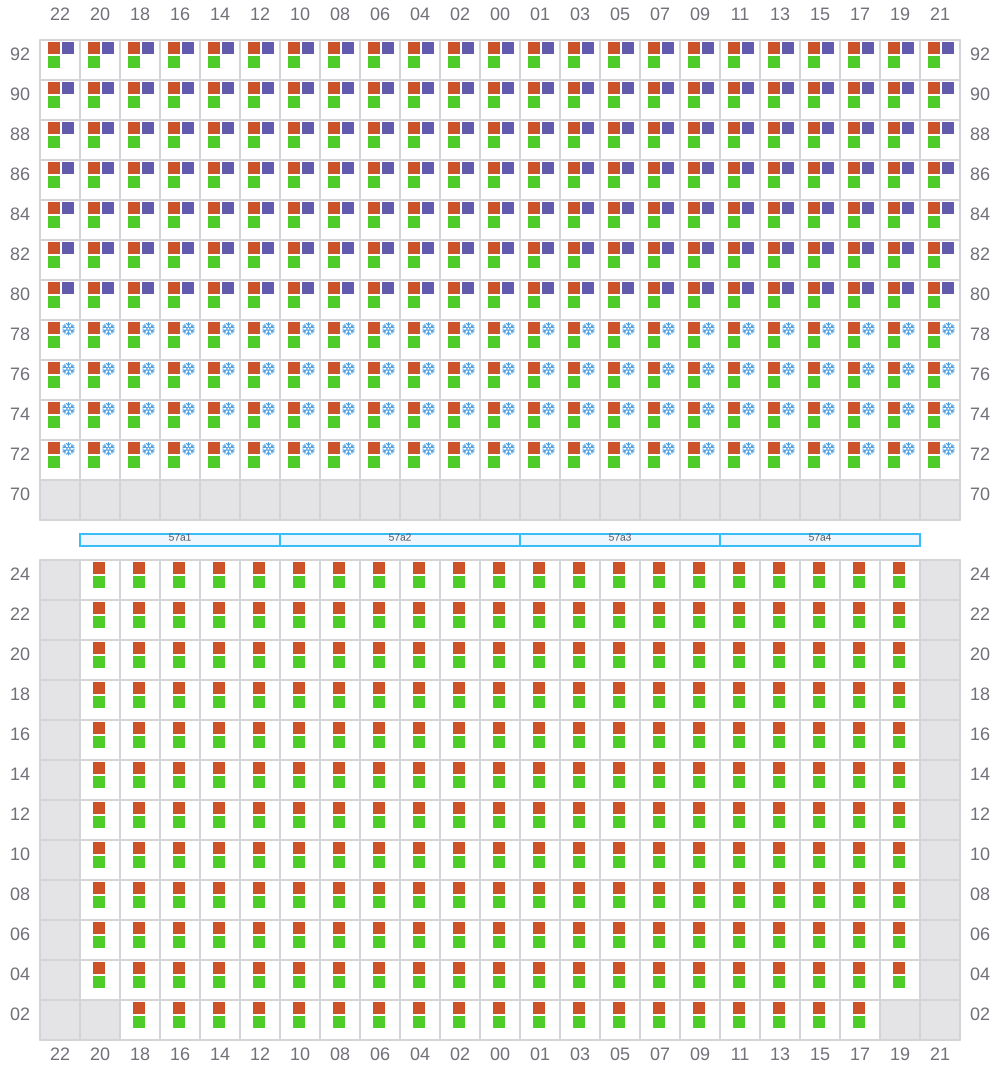

Bay 057 view and slots of CMA CGM JEAN MERMOZ

059

←
^→ / _?
→

Bay 059 view and slots of CMA CGM JEAN MERMOZ

061 (062)

→
^→ / _?
→

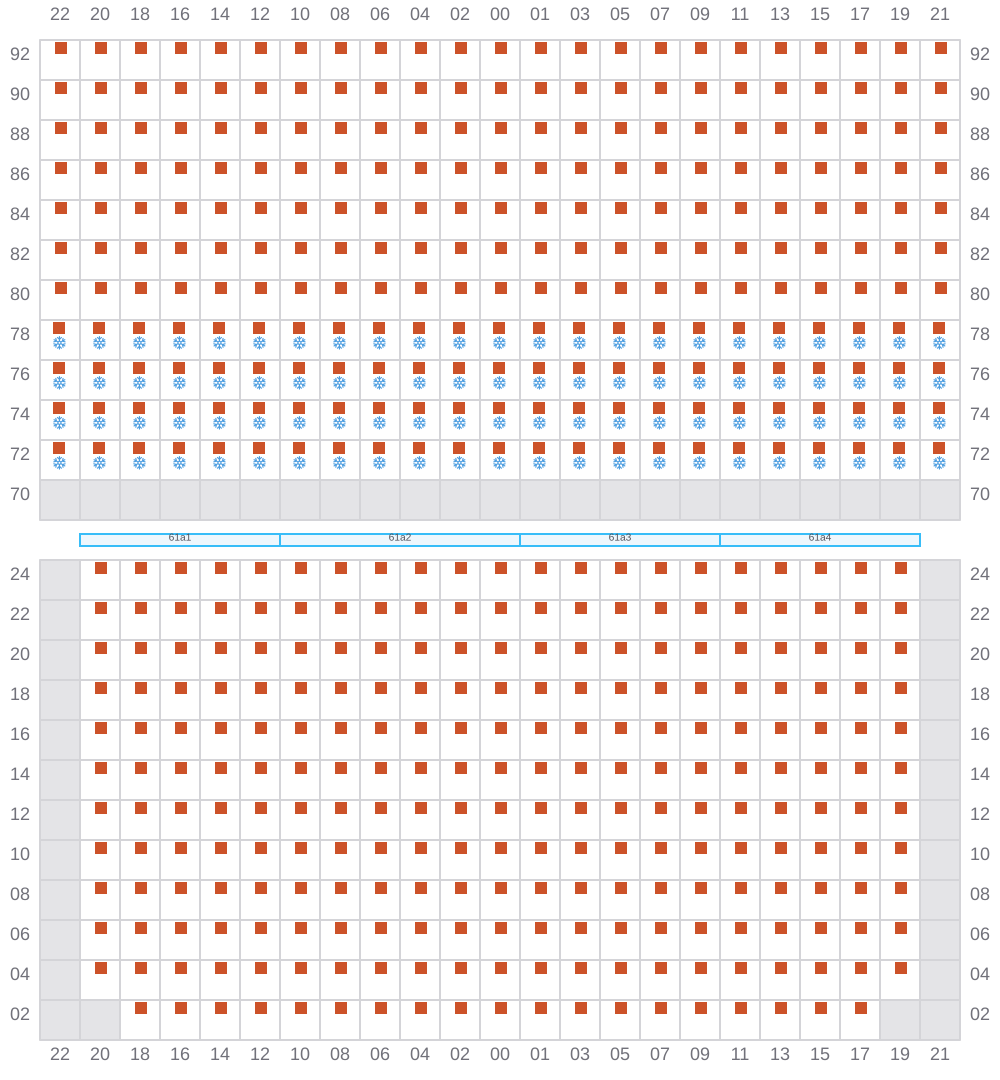

Bay 061 view and slots of CMA CGM JEAN MERMOZ

063

←
^→ / _?
→

Bay 063 view and slots of CMA CGM JEAN MERMOZ

065 (066)

→
^→ / _?
→

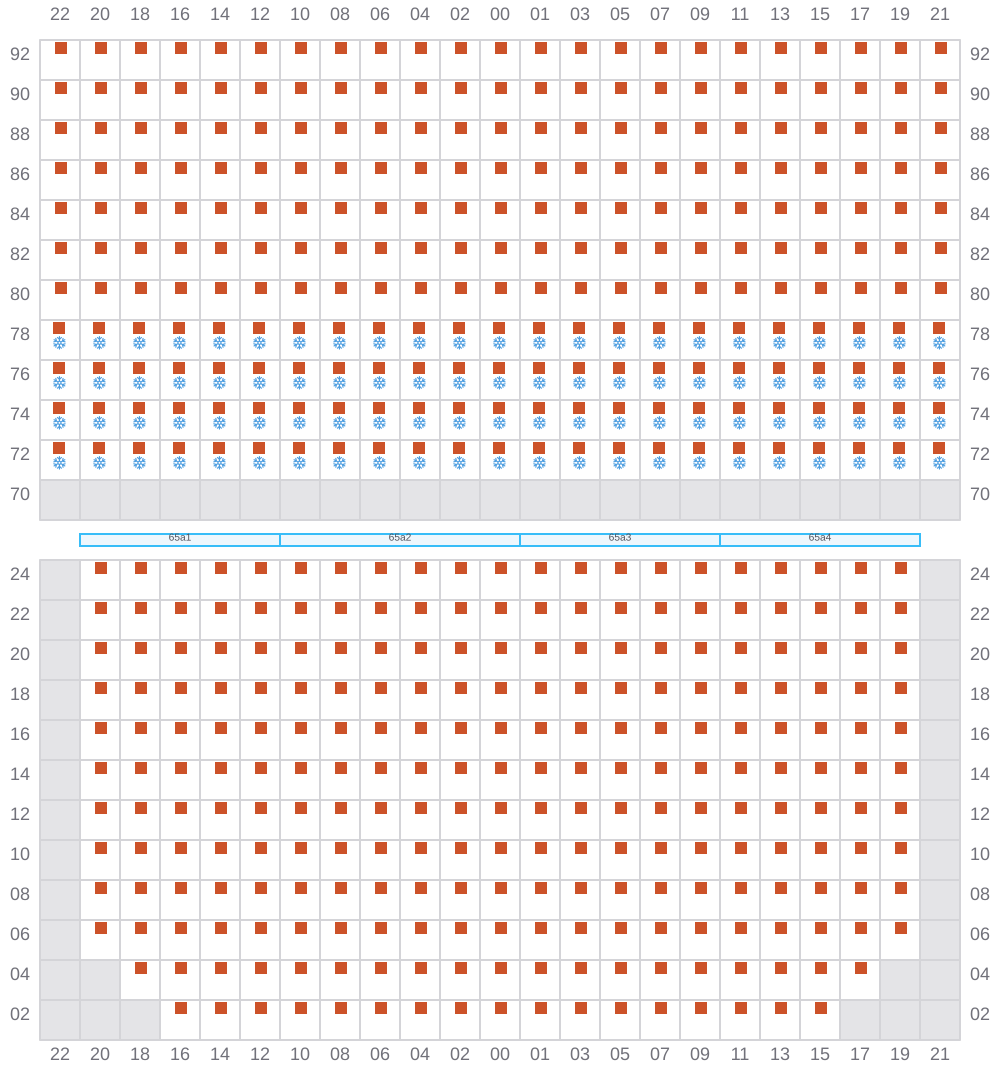

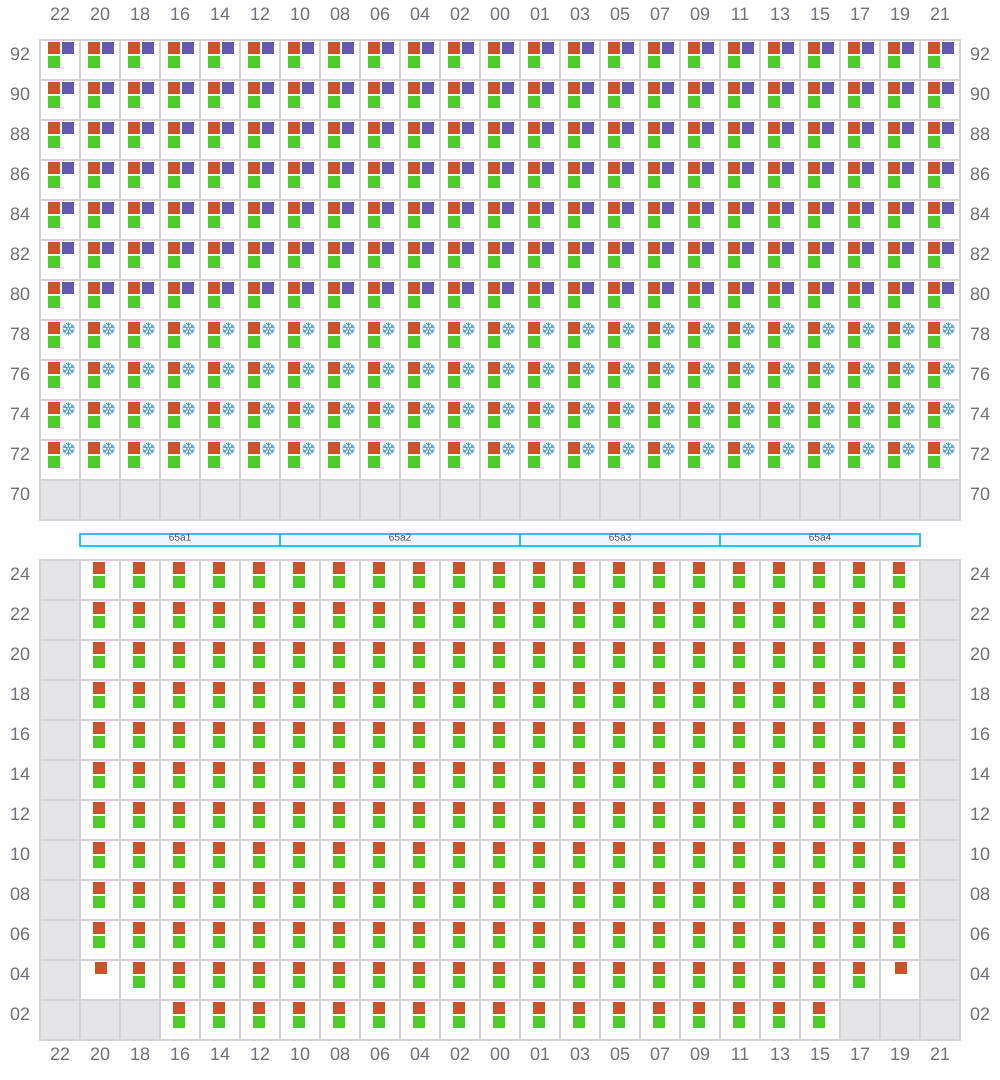

Bay 065 view and slots of CMA CGM JEAN MERMOZ

067

←
^→ / _?
→

Bay 067 view and slots of CMA CGM JEAN MERMOZ

069 (070)

→
^→ / _?
→

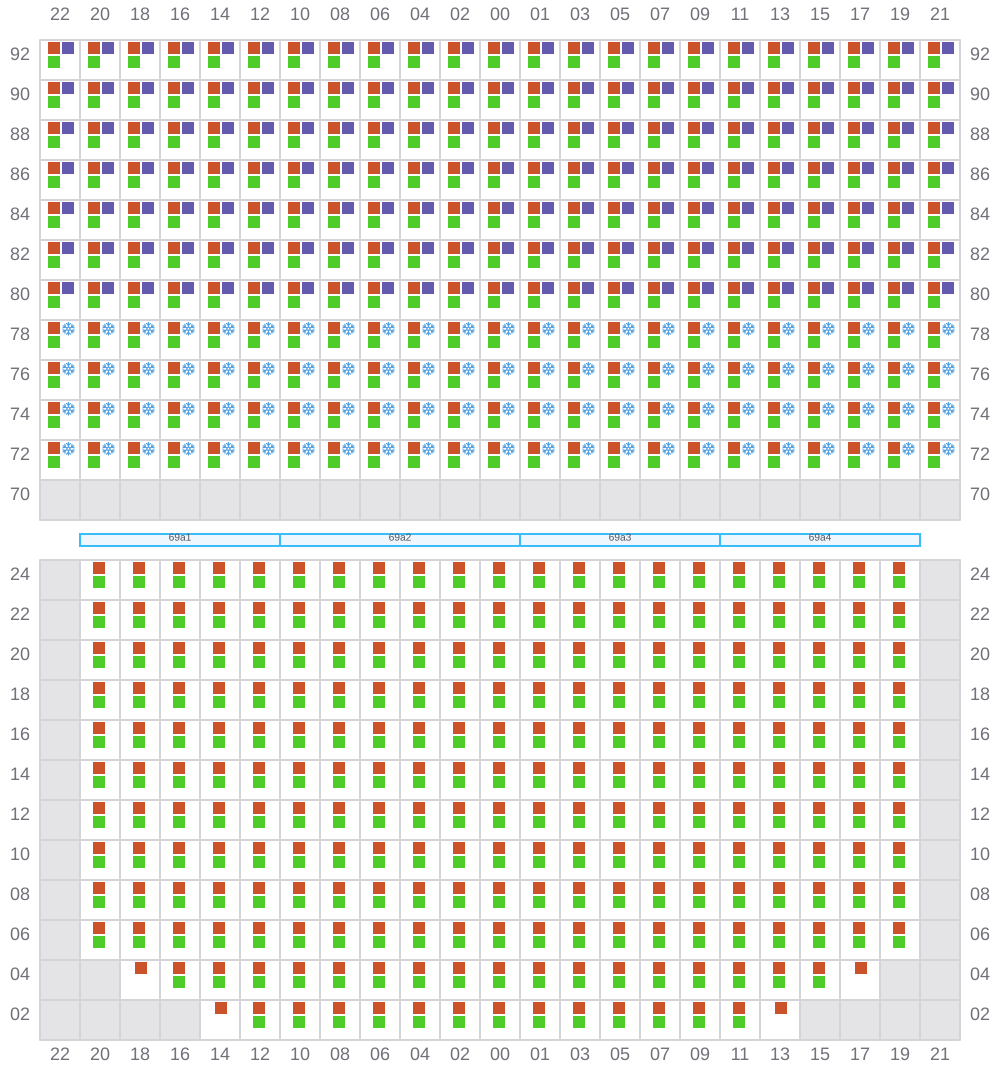

Bay 069 view and slots of CMA CGM JEAN MERMOZ

071

←
^→ / _?
→

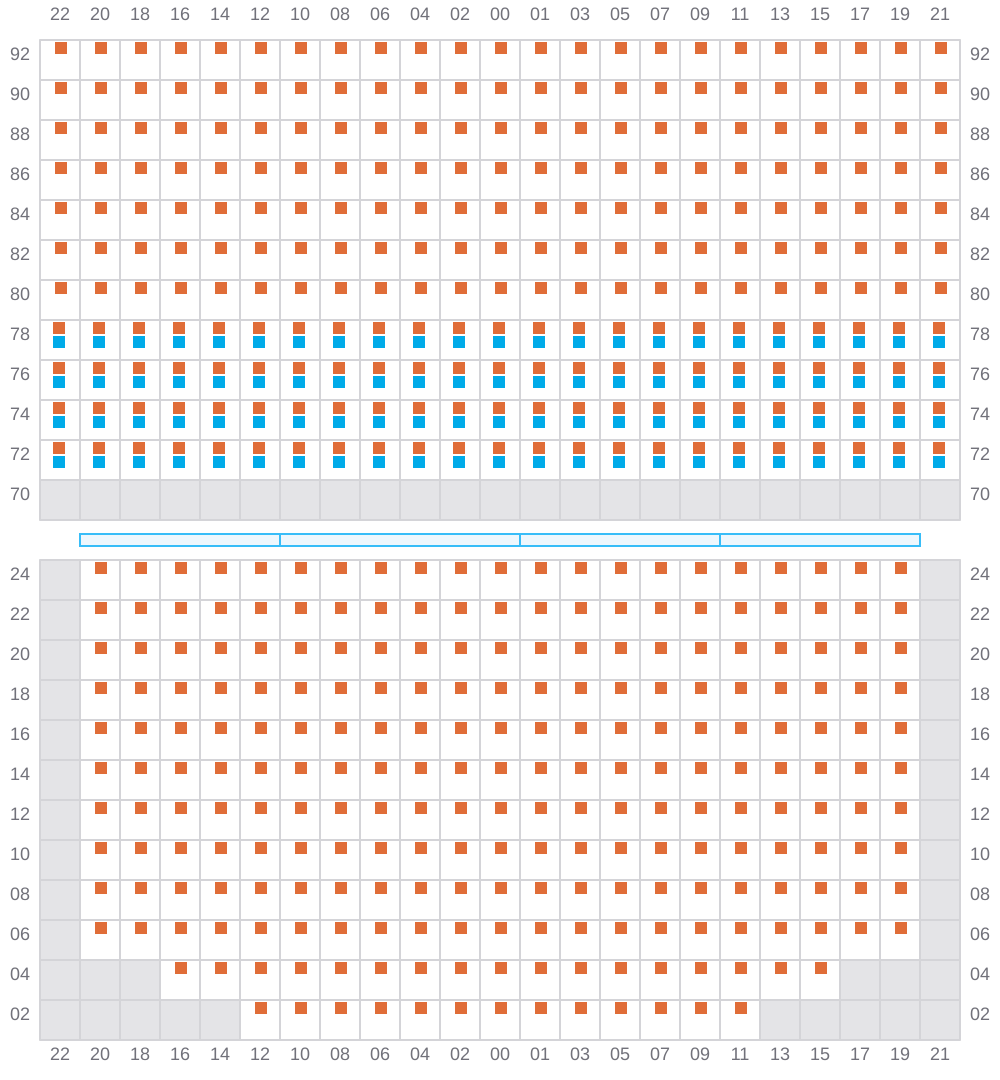

Bay 071 view and slots of CMA CGM JEAN MERMOZ

073 (074)

→
^→ / _?
→

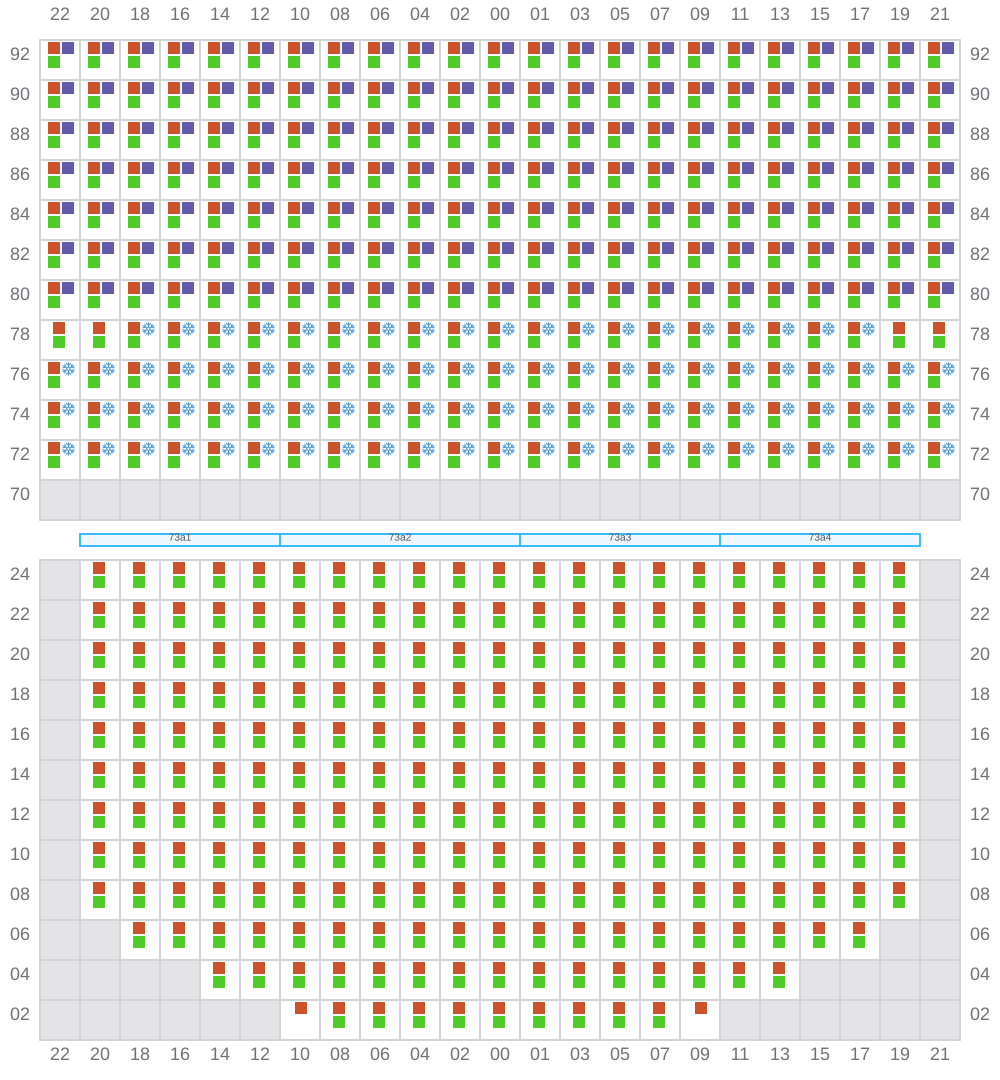

Bay 073 view and slots of CMA CGM JEAN MERMOZ

075

←
^→ / _?
→

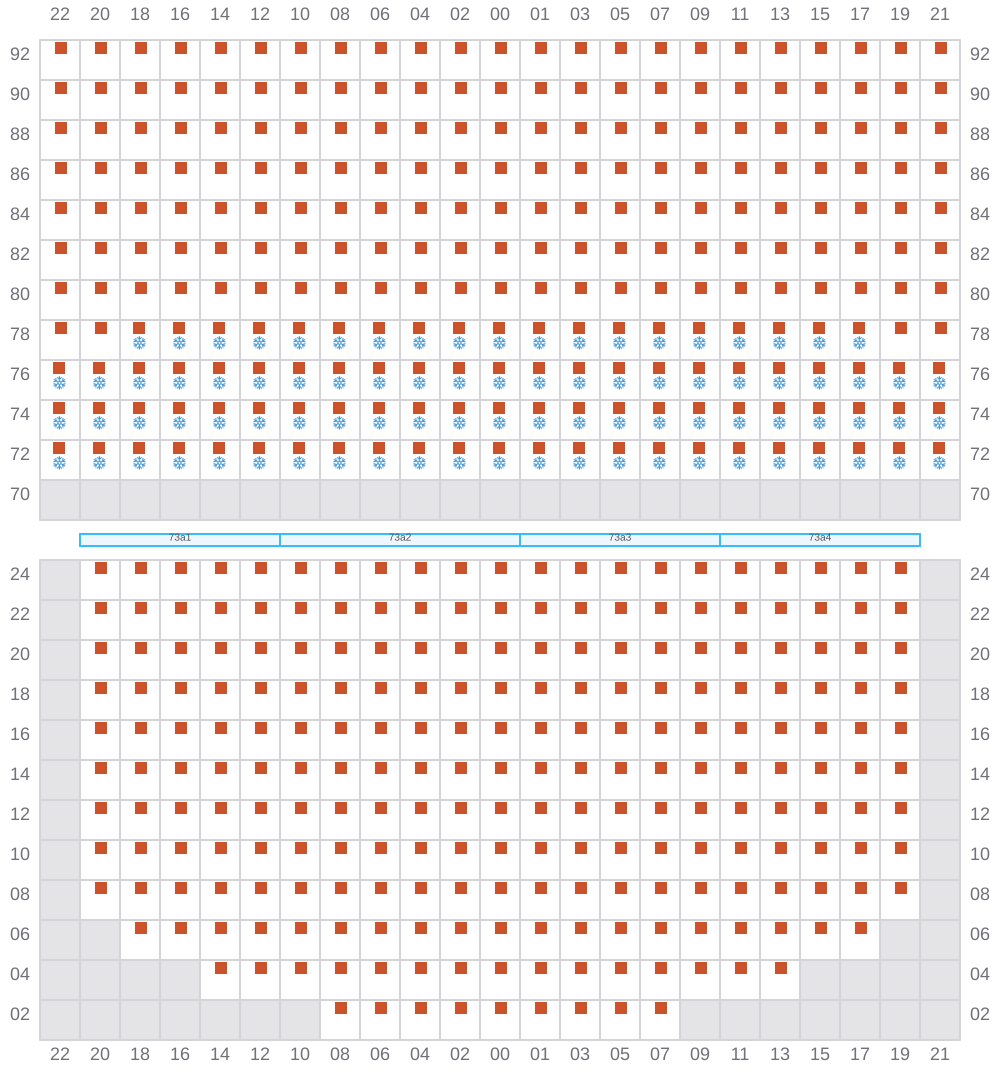

Bay 075 view and slots of CMA CGM JEAN MERMOZ

077 (078)

→
^← / _?
→

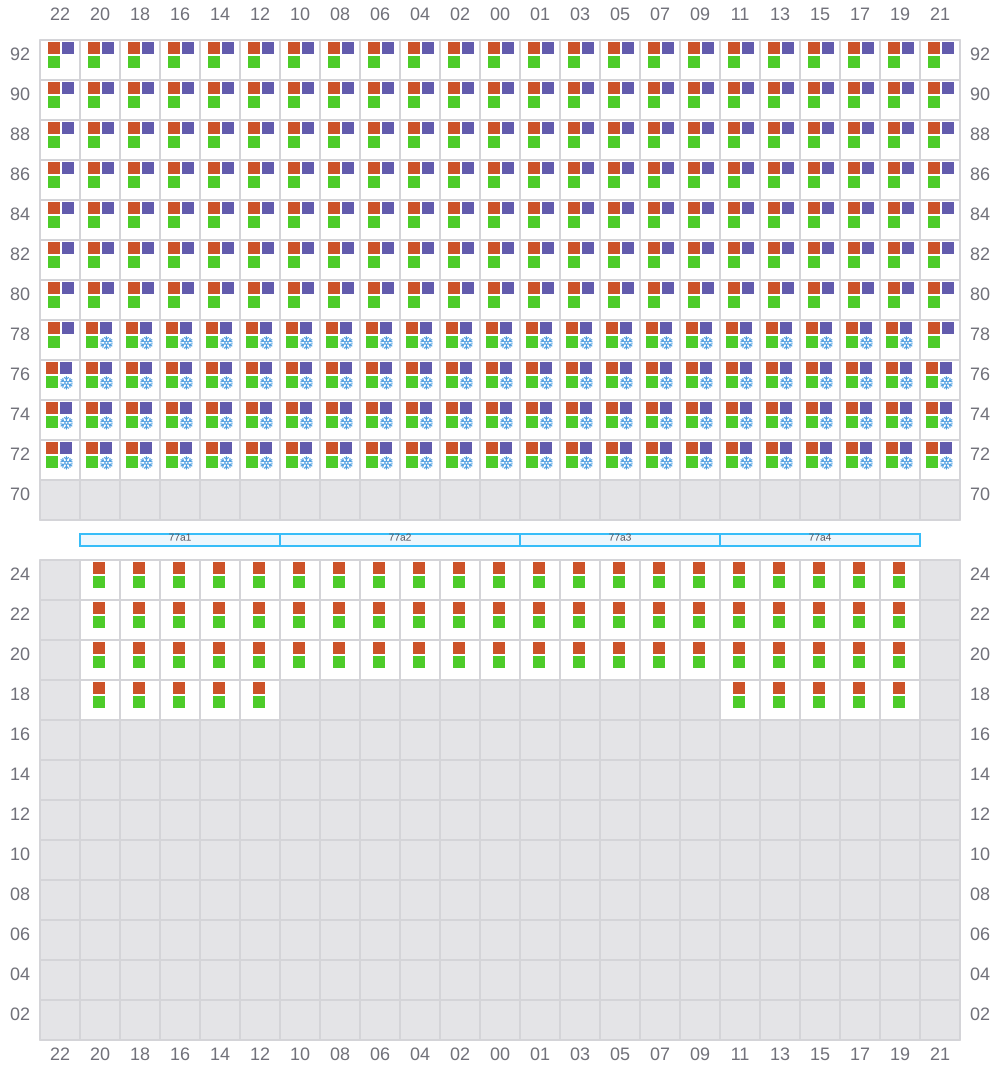

Bay 077 view and slots of CMA CGM JEAN MERMOZ

079

←
^→ / _?
→

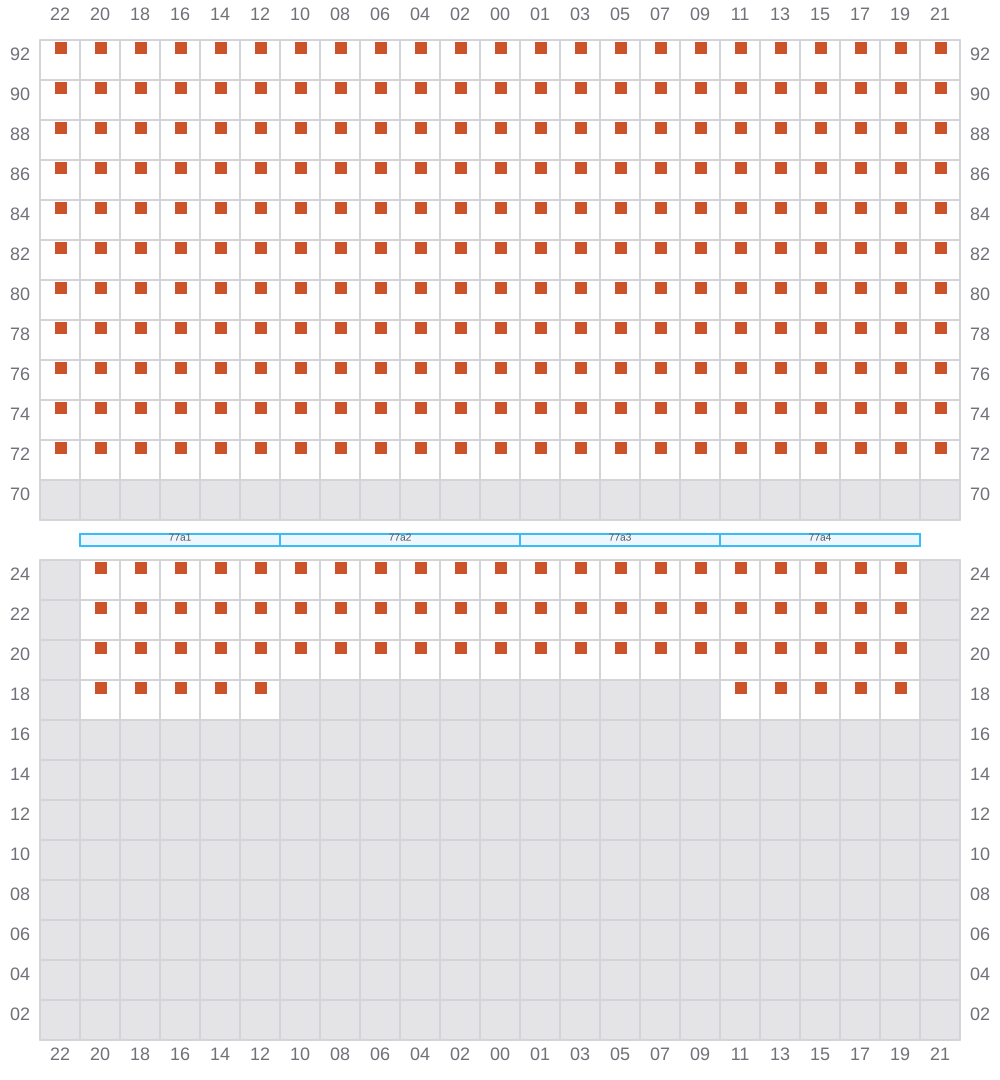

Bay 079 view and slots of CMA CGM JEAN MERMOZ

081 (082)

→
^→ / _?
→

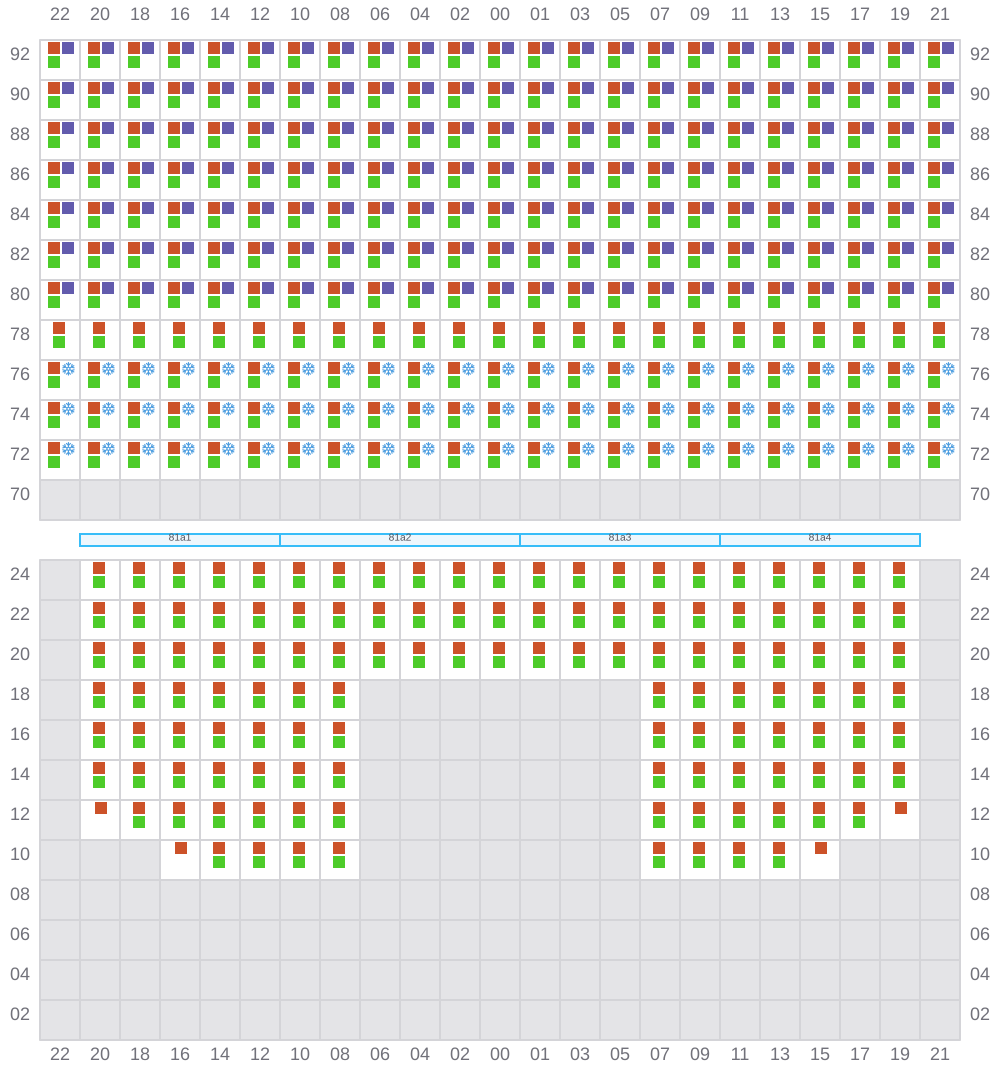

Bay 081 view and slots of CMA CGM JEAN MERMOZ

083

←
^→ / _?
→

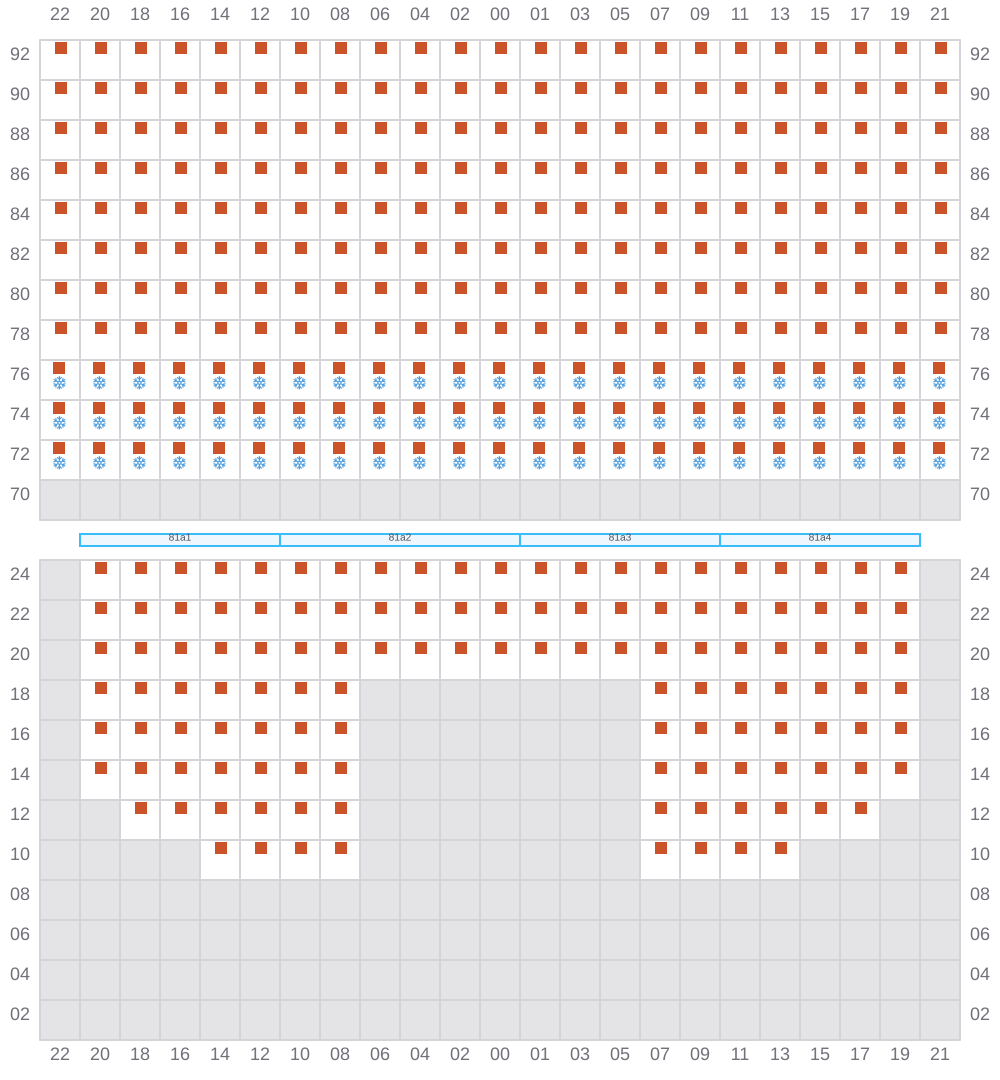

Bay 083 view and slots of CMA CGM JEAN MERMOZ

085 (086)

→
^→ / _?
→

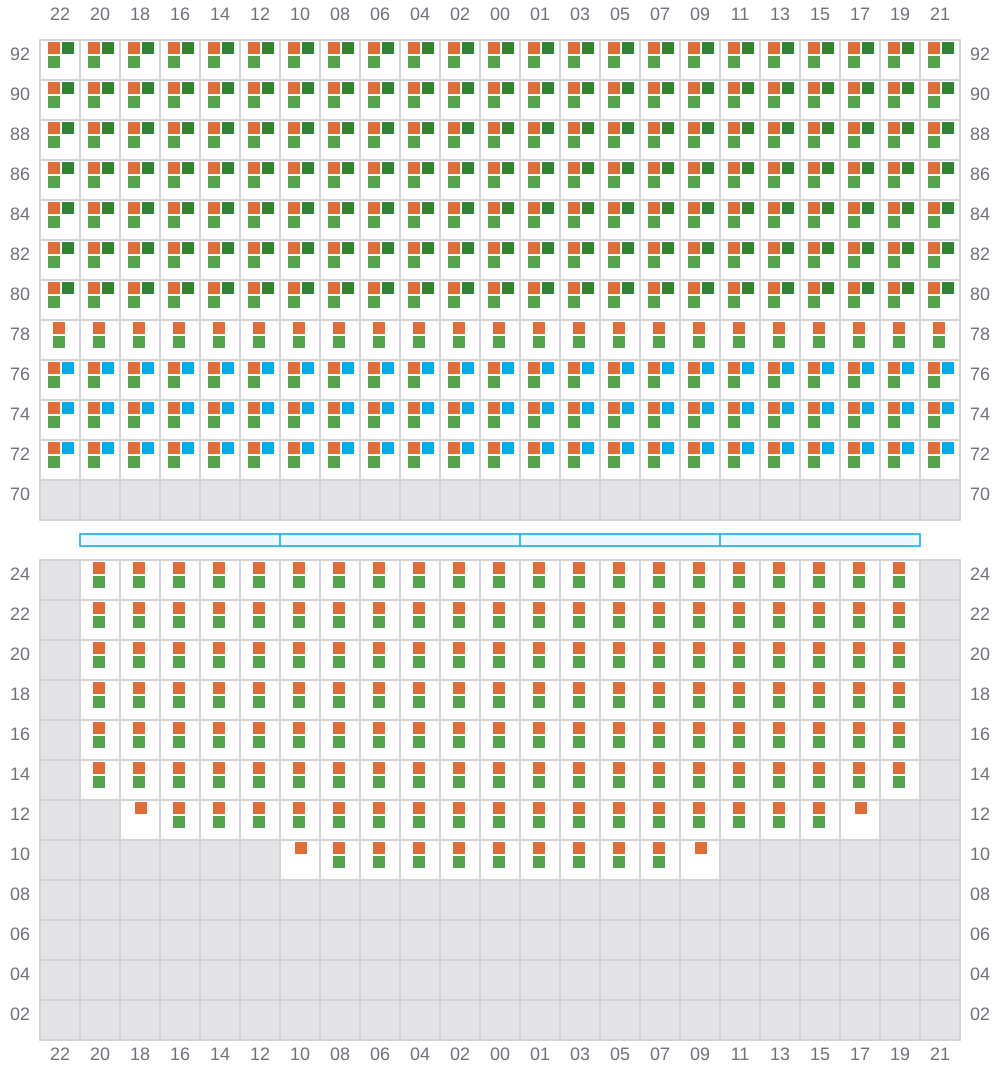

Bay 085 view and slots of CMA CGM JEAN MERMOZ

087

←
^→ / _?
→

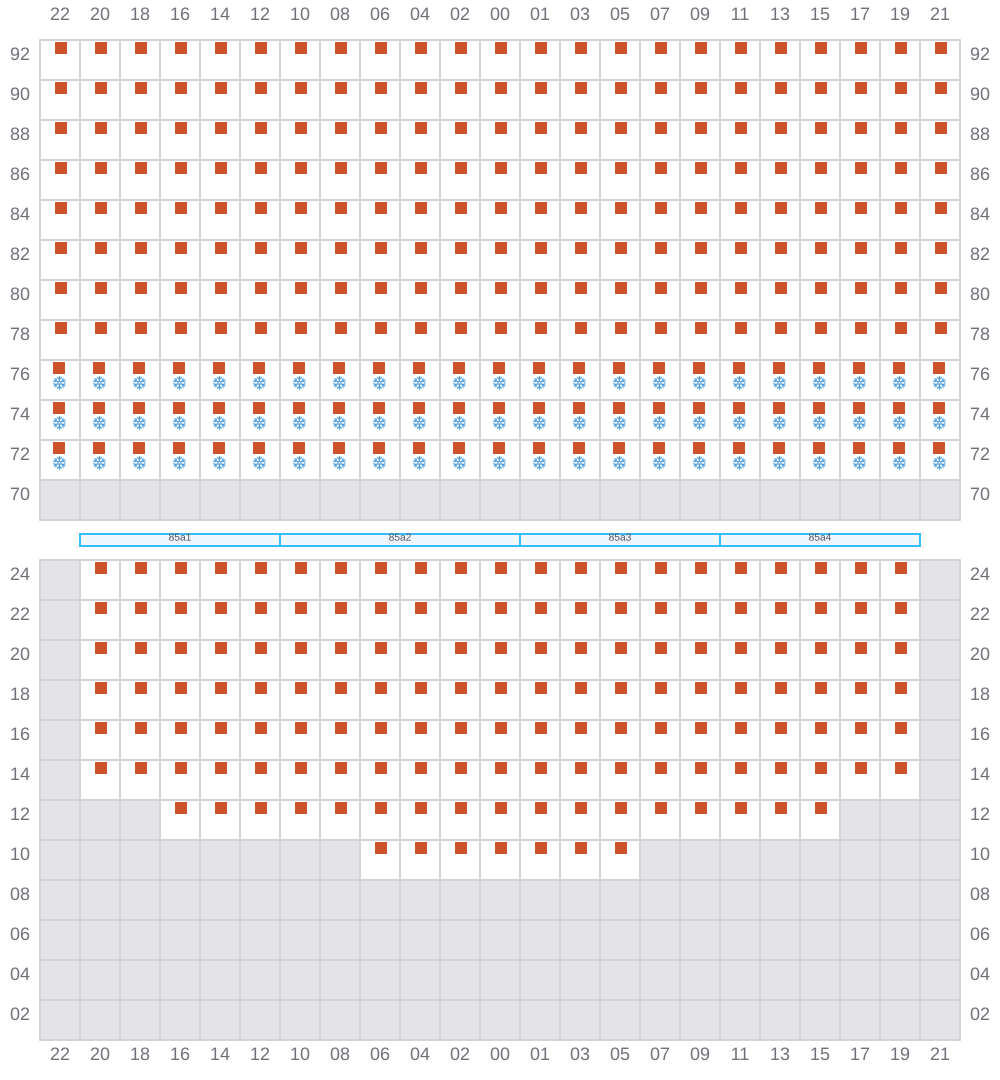

Bay 087 view and slots of CMA CGM JEAN MERMOZ

089 (090)

→
^→ / _?
→

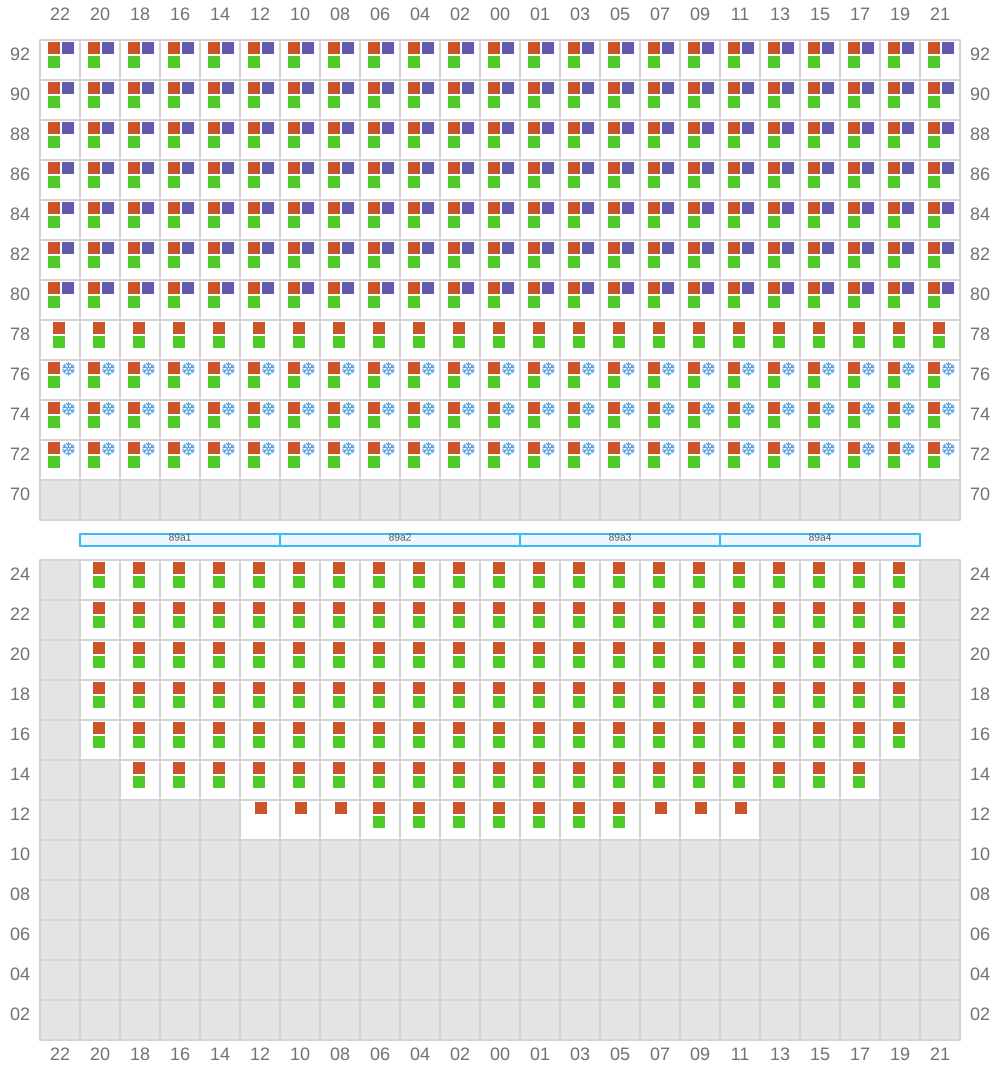

Bay 089 view and slots of CMA CGM JEAN MERMOZ

091

←
^→ / _?
→

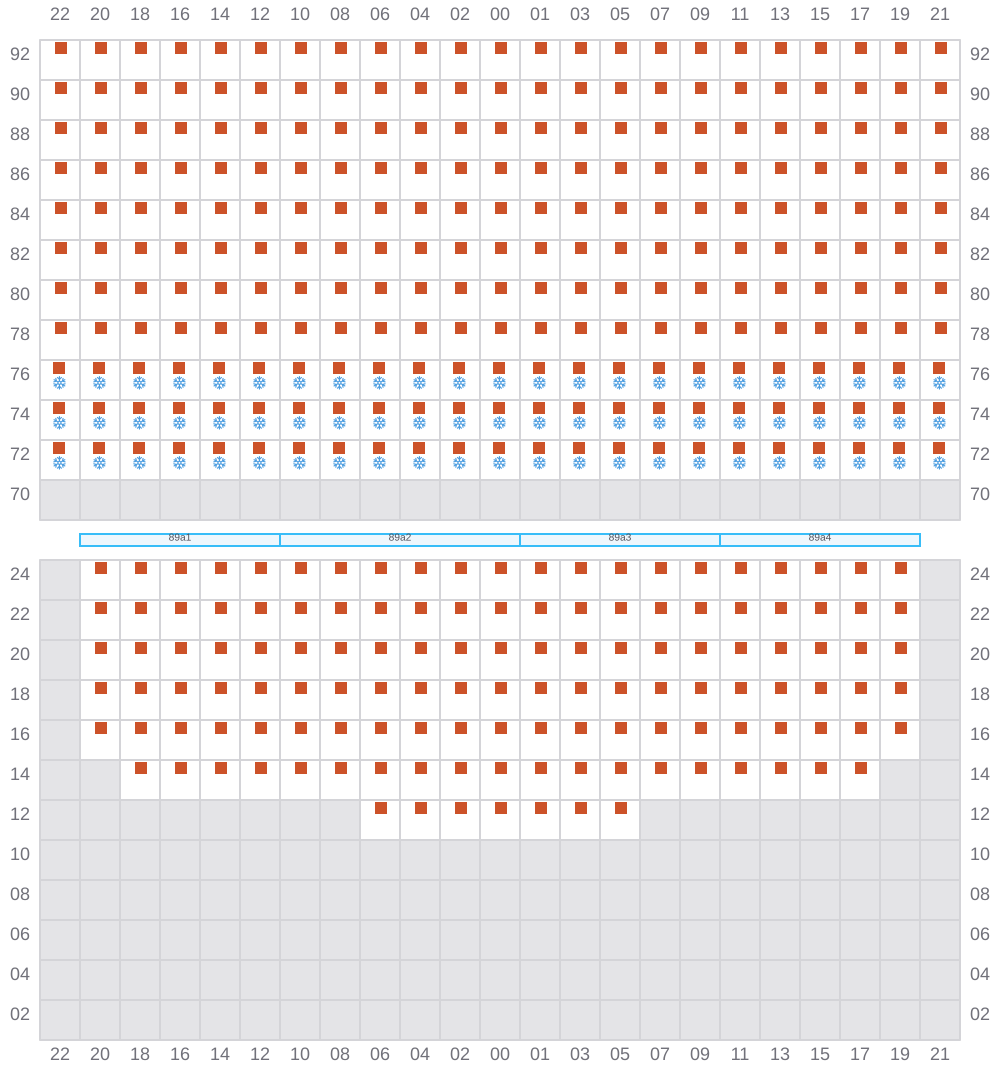

Bay 091 view and slots of CMA CGM JEAN MERMOZ

093 (094)

^→ / _?
^→ / _?
^→ / _?

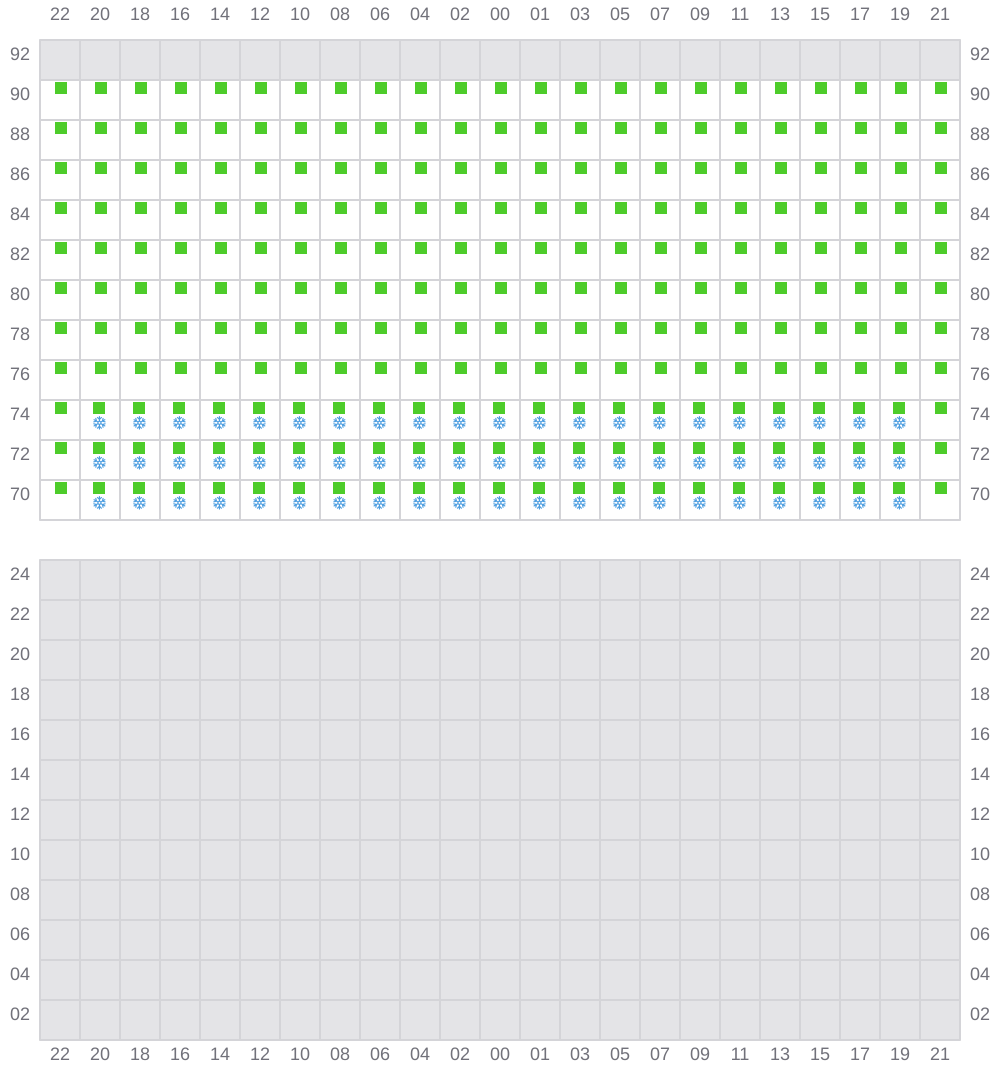

Bay 093 view and slots of CMA CGM JEAN MERMOZ
